Package Includes:

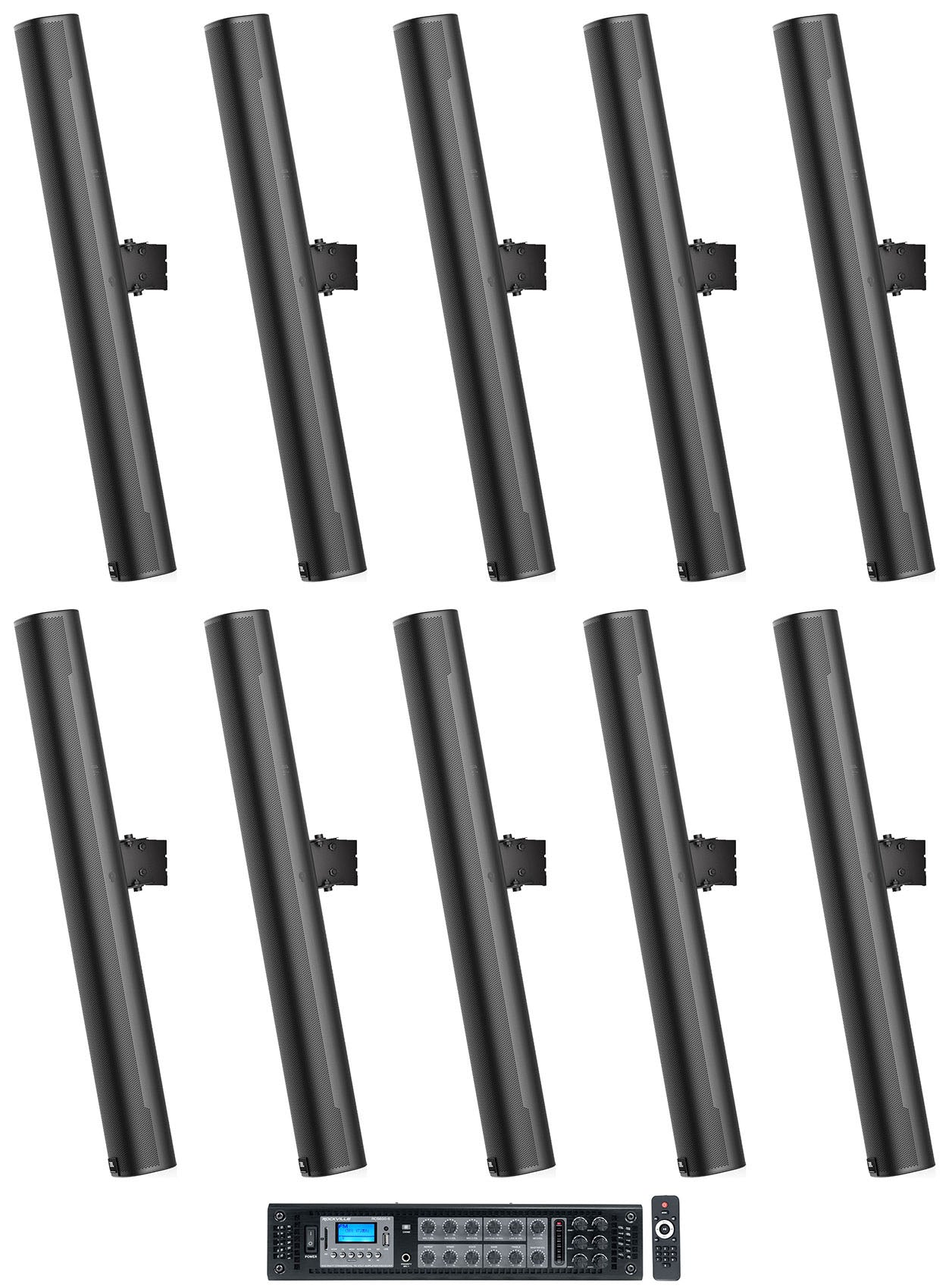

• (1) Rockville RCS650-6 650 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth

• (10) JBL COL800-BK 32" Black 70V Commercial Slim Column Wall Mount Array Speaker


---

All About Your RCS650-6:

How To Set Up Your RCS Series of Amplifiers:

How To Parallel Wire Your 70 VOLT System:

What's In The Box:

• Amplifier
• Remote
• Rack Mount Ears
• Power Cable
• FM Radio Antenna
• Set-up and how-to training video so you can install it yourself
• Warranty

Description:

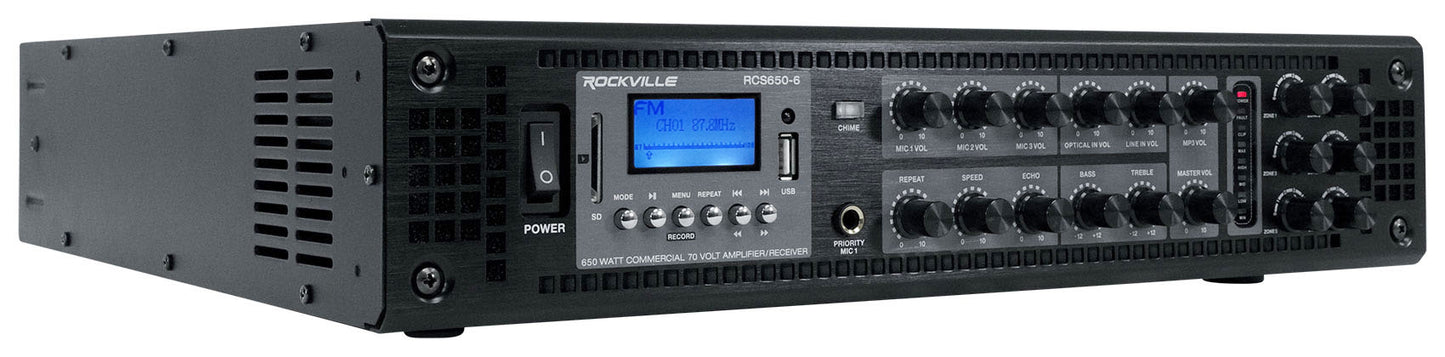

Rockville is proud to introduce our new RCS series of products. The RCS650-6 is a 650 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Café/Lounge/School/Conference room or any other setting where many speakers are needed.

This RCS650-6 outputs 650 watts at 70 volt or 780 Watts at 100 volt and the power can be split up into 6 zones. (Most professionals recommend you not exceed 90% of the amp power, so we recommend your speakers watts not to be more than 600 in total on the taps). Each zone can output up to 200 watts and all zones should not exceed 650 watts. If you want all 650 watts into a single zone you can use the direct outputs. If you want to use multiple zones then you can use the zone outputs. For example you can have zone 1 with 200 watts, zone 2 with 200 watts, zone 3 with 100 watts, zone 4 with 50 watts, zone 6 with 50 watts. This would total 600 watts which is less than the 650 watts the amp can produce and its also not more than the 200 watts output each zone can produce.

Wiring is totally simple as well. You just wire all the speakers in parallel from one to the next. This product will include a video URL in the box to train you how to use it.

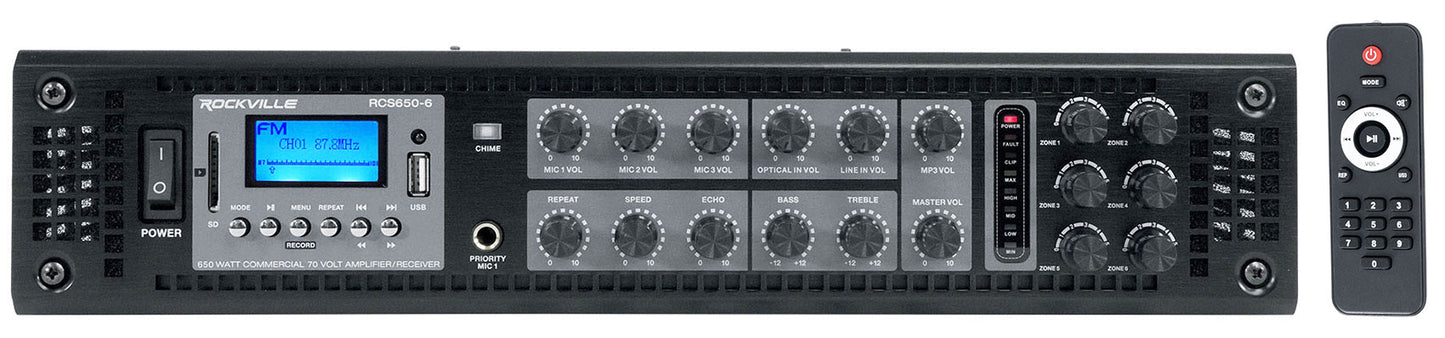

With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements. The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc.

Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system. If you want a volume control in each room, then you can buy any of our wall mount 70 volt volume controllers such as our VOL70100.

The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable.

Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. The RCS650-6 makes it a breeze to connect many speakers and multiple external sources. We intentionally use common plugs like RCA and ¼" to make this amplifier more universal and user friendly. With our unique design you can feel confident in your DIY ability when installing our commercial system!

What is 70 volt ?

70 volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, with this 650 watt / 70 volt amplifier, you can install speakers that total around 600 watts. It does not matter if it is 18 speakers that are 30 watts each or 36 speakers that are tapped at 15 watts each. You always want your 70 volt amp to have at least 10% more power than the combined watts your speakers are tapped at. When we say the word tap, what we are referring to are the selectors that many speakers in 70 volt have on them. For example, some speakers might have selectable options of 1.5w, 3w, 5w, 10w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. What this allows for is full customization of your sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 10 watts, the ones in the hallway at 3 watts and the speakers in the bathrooms at 1.5 watts. Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.

70 volt systems allow you to run very long lines of speaker wire without signal loss. This makes it ideal when running long speaker leads. The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

If you want an easy to use feature-rich 70 volt amplifier with a ton of power and 6 zones the Rockville RCS650-6 is your best choice!

Applications:

• Restaurant
• Bar
• Café
• School
• Lounge
• Home (Multi-zone, Multi-room)
• Office
• Warehouse

Features:

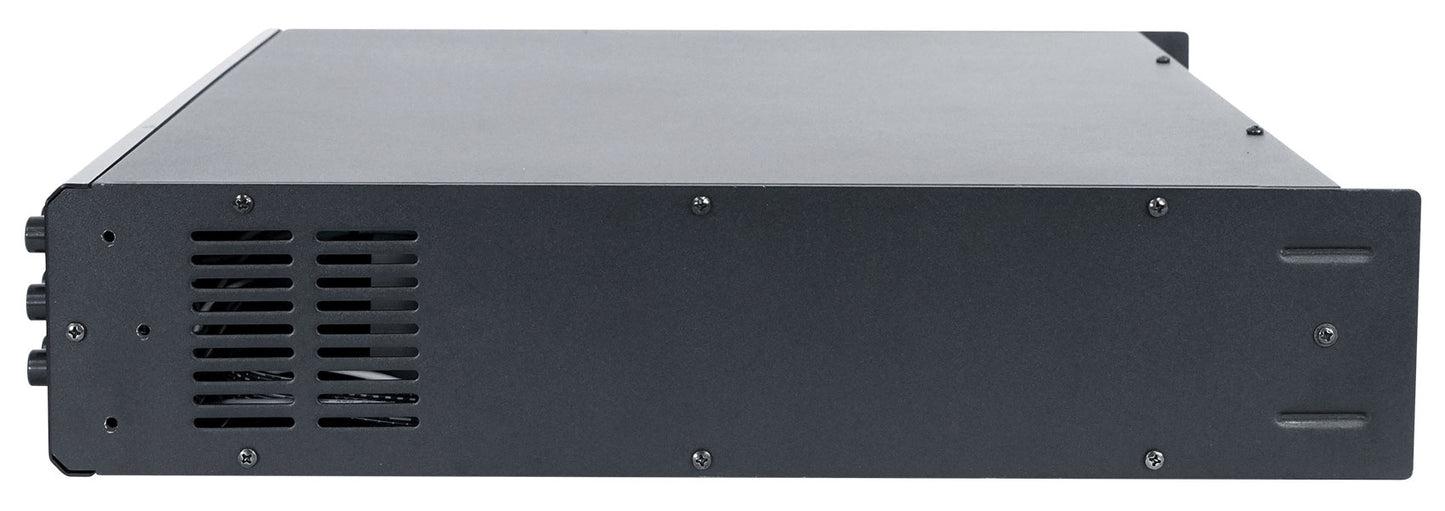

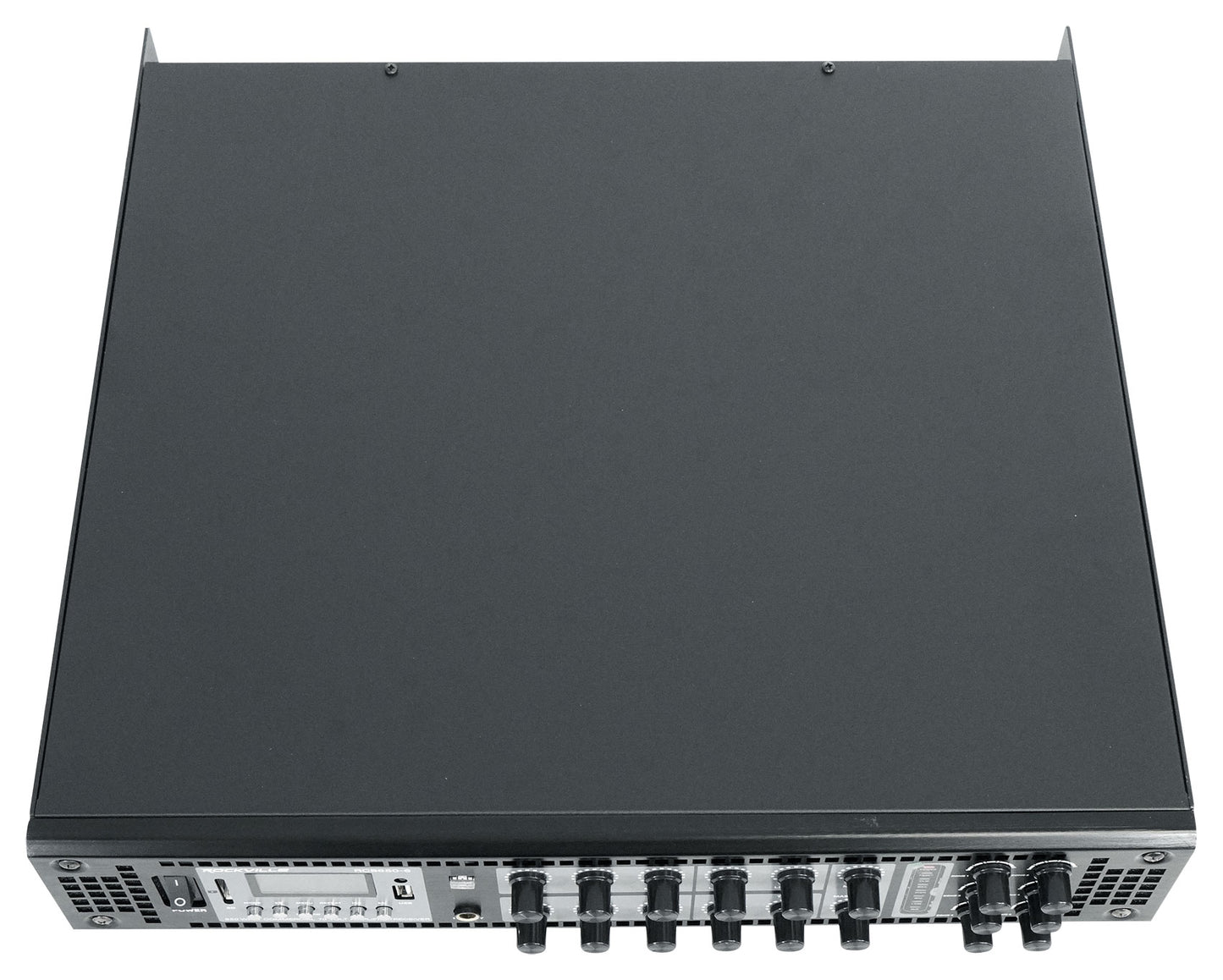

• Rockville RCS650-6 650 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
• Capable of 70 volt, 100 volt, 8 ohm, and 4 ohm
• 70V RMS Power: 650 Watts
• 100 volt RMS Power: 780 Watts
• 6-Zones - each zone has a separate volume control and you can easily add wall volume controllers as well
• Each zone can output 200 watts at 70 volts and the entire amp can output 650 watts total RMS
• You can use the direct output and get 650 watts to a single zone or you can use the zone outputs and get up to 200 watts per zone with all zones combined not exceeding 650 watts
• Built in Bluetooth audio streaming
• FM radio tuner
• USB input to play audio stored on a thumb drive (32gb max)
• SD card slot to play music stored on an SD Card (32gb max)
• Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
• Echo control for the mic inputs with speed and repeat adjustments
• Built in clipping limiter to protect the amp and speakers
• BASS and Treble control
• Chime button for making announcements
• Top quality aluminum panel with industrial grade knobs
• 5 segments signal level indication
• Built in cooling system keeps component cool at all times

Inputs and Outputs:

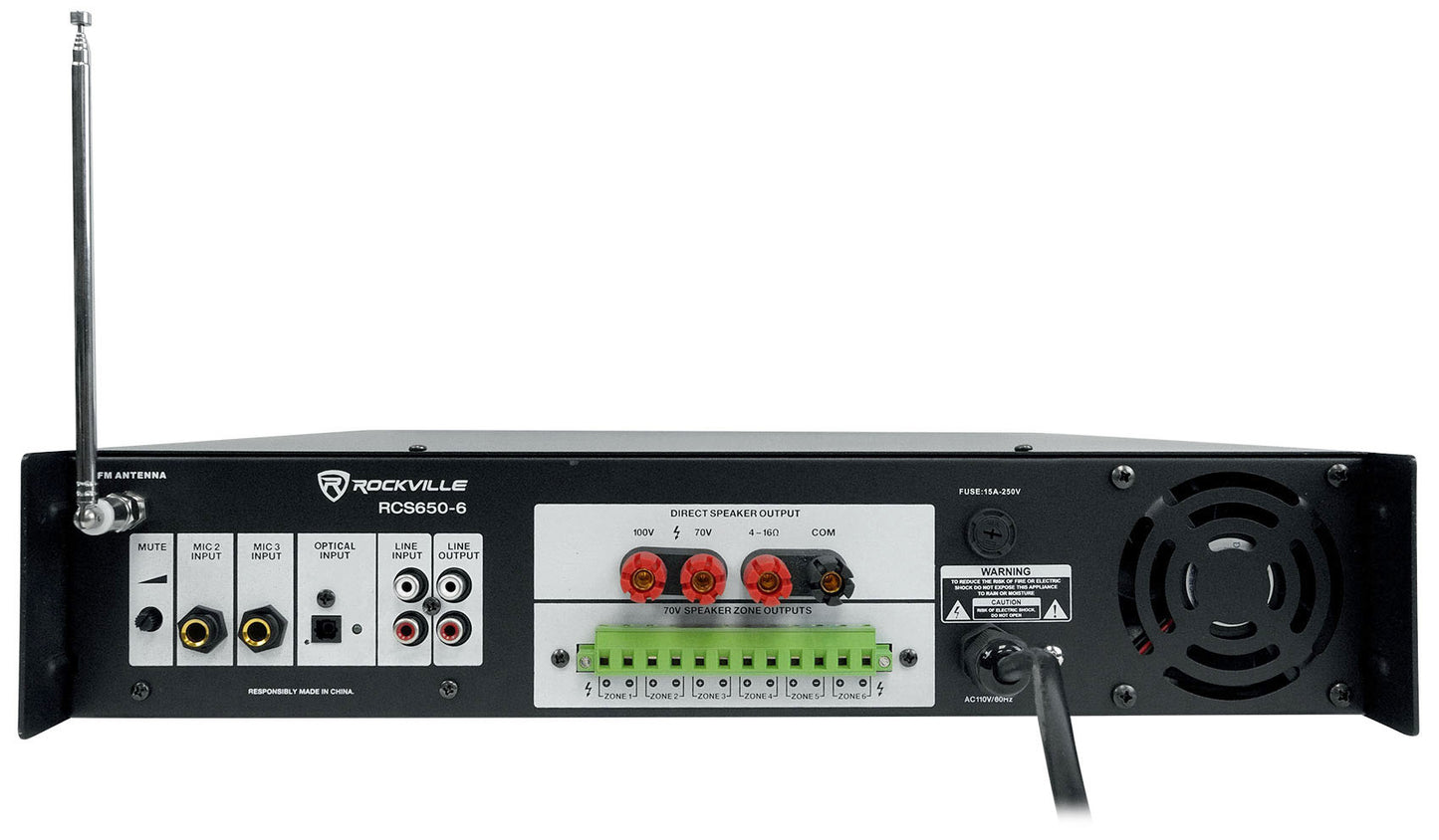

• (2) Sets RCA AUX inputs
• (3) Mic inputs
• RCA Line output
• 100V speaker red positive speaker output terminal
• 70V speaker red positive speaker output terminal
• 8 Ohm red positive speaker output terminal
• Shared negative speaker output terminal

Specifications:

• Power Requirements: 120V / 50-60Hz
• A Weighted Signal to Noise (@ 1W) -70.2dBA
• A Weighted Signal to Noise (referenced to full 4 ohm power) -93.9dBA
• Frequency Response: 42Hz to 20 Khz
• Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.65%
• Weight: 31.7 lbs
• Dimensions: 19" x 16" x 4" inches

---

Description of JBL-COL800-BK:

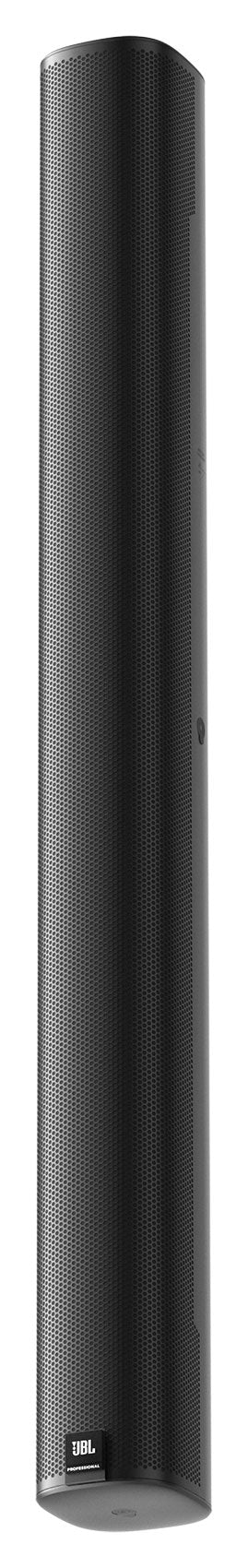

The JBL COL800 is an elegant 32-inch (800 mm) slim column loudspeaker that provides wide horizontal and narrow vertical coverage, with a built-in 10° down-tilt to the aim, providing optimum coverage of most listening areas while allowing the speaker to be installed flat to the wall. The slim, compact design—winner of international design awards for industrial design excellence—complements virtually any architectural décor.

A combination of stylish design and outstanding performance features makes the COL800 ideal for a wide variety of applications, such as conference/meeting rooms, lecture halls, retail stores, concourses, transit spaces, fill applications, audio for video, and other applications where slim, compact design and high performance is desired.

Four 5-inch x 2.25-inch racetrack woofers provide maximum radiating area in a column form factor. Dual tweeters are located at top of the array for less obstructed coverage of the listening space, and they are aimed at a 10° down angle, allowing down-tilted coverage aim, even with the cabinet flat to the wall. The shallow cabinet depth of 3.7 inches (93 mm) qualifies for ADA (Americans with Disabilities Act) projects when installed with the back of the cabinet flush to the wall.

A 60-watt multi-tap transformer allows for use on either 70V or 100V distributed speaker lines, while the speaker is switchable for direct 8-ohm operation with power handling of 150W continuous (600W peak, 2 hrs). The 85 Hz to 20 kHz frequency range delivers clean, clear sound for music or speech.

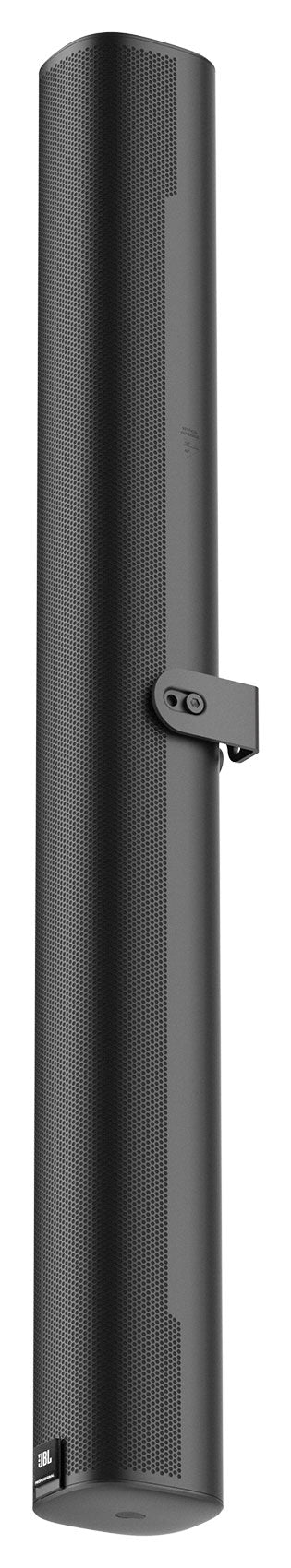

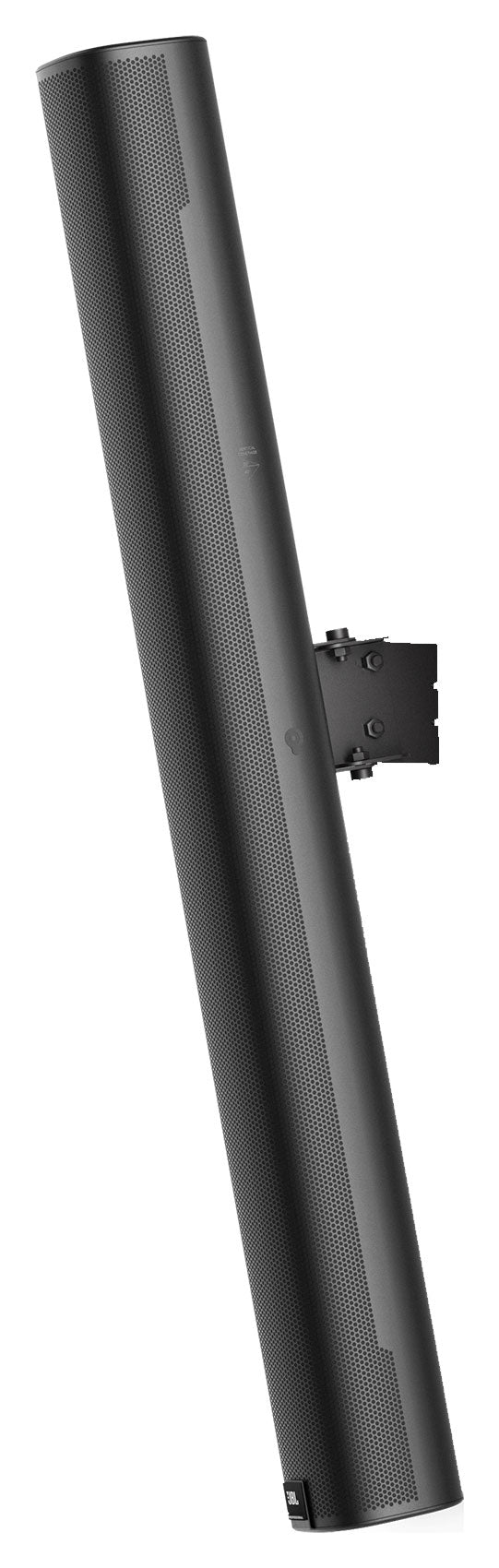

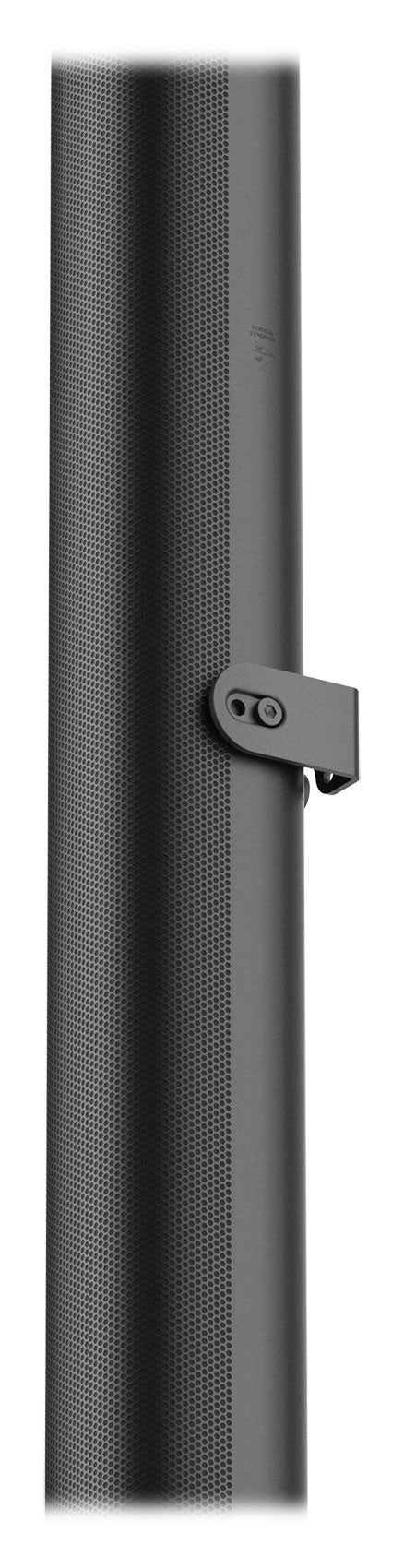

Versatile installation is accommodated by two included L-brackets, which can be installed on either the top and bottom panels (for horizontal pan aiming) or on the left and right side panels. Both locations allow for close-to-the-wall installation. In addition, a low-profile swivel (pan) / tilt wall bracket is also included, for adding up to 10° down-tilt to the cabinet aiming (in addition to the built-in 10° down-tilt aim when the speaker is installed flat to the wall).

The COL800 has an IP54 rating (per IEC60529) for protection against ingress of dust or water. The drivers are water-treated, the grille has a water-backing, and a cover is included to protect the input terminals.

Features:

• Four 5-inch x 2.25-inch (125 x 55 mm) racetrack woofers & two 0.8-inch (20 mm) tweeters

• 32 inches tall with shallow 3.7-inch (93 mm) cabinet depth

• Wide 160° horizontal and focused 60° vertical coverage

• 10° downward tilt to dispersion aim for covering most listening areas without requiring physical down-tilting of the cabinet

• 150W continuous pink noise power handling (600W peak)

• 85 Hz – 20 kHz frequency range

• Built-in 60W 70V/100V multi-tap transformer, plus 8 ohm direct input

• 116 dB peak SPL (110 dB continuous), 2 hrs

• Dual tweeters near top of column for unobstructed coverage of listening space

• Versatile mounting brackets included -- both close-to-wall L-brackets and low-profile swivel(pan)/tilt wall bracket
• Color: Black

Common Applications:

The JBL COL800 slim column loudspeaker is ideal for a wide variety of applications, such as conference/meeting rooms, lecture halls, retail stores, concourses, transit spaces, fill applications, audio for video, and other applications where slim, compact design and high performance is desired.

Specifications:

• Frequency Range (-10 dB)¹: 85 Hz – 20 kHz

• Frequency Response (+/-3 dB): 125 Hz – 18 kHz

• Power Rating (8Ω setting)2 :

• 300W Continuous Program (2 hrs)

• 150W (600W peak) Continuous Pink Noise (2 hrs)

• 100W (400W peak) Continuous Pink Noise (100 hrs)

• Sensitivity (2.83V @ 1m): 88 dB


Coverage Pattern:

• Vertical 60° [1 kHz-4 kHz average]; 10° down-tilt to vertical aiming axis for +20°/-40° coverage in relation to physical cabinet aim

• Horizontal 160° [1 kHz – 4 kHz average]

• Directivity (Q): 8.1

• Directivity Index (DI): 9.1 dB

• Rated Maximum SPL: 110 dB Continuous (116 dB peak) @ 1m

• Nominal Impedance: 8Ω (in Thru/direct mode)

• Minimum Impedance: 7.7 Ω@ 290 Hz

• Transformer Taps: 60W, 30W, 15W @ both 70V & 100V (plus 7.5W @ 70V), and 8Ω thru, selectable via switch

• Transformer Insertion Loss: Less than 1 dB for all taps

• Maximum Input Voltage: 33 V RMS (2 hrs), 66 V peak

• Recommended Protective High-Pass: 75 Hz for 8 Ω operation; 60 Hz for all transformer tap settings (60W, 30W, 15W and 7.5W).


Drivers:

• Four 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers

• Two 20 mm (0.8 in.) tweeters (tweeters located at top of array for better coverage of listening space)

• Enclosure Material: PC + ABS, UL94-V0 flammability rating

• Grille: Plated SPCC with polyester powder coat finish

• Agency Ratings: Transformer UL recognized. RoHS, REACH compliance. LVD for CE

• Environmental Rating: IP-54 rated per IEC60529, dust and water protected when installed with included rain cover for input terminal compartment and no physical up-tilt cabinet aiming. UV resistant. [Cycle 1 per ISO 4892.3-2006]

• Terminals: 4-pin Euroblock connection for bare wire, accepts 24 to 14 AWG gauge wire (0.25 to 2.5 sq mm). Rain cover allows for one or two 2-wire cables, with max cable jacket diameter of 8 mm (0.3 in)

• Insert Points: Back Panel: 2 threaded insert points for WALL BRACKET, attaches via included M6 x 20 mm bolts, flat washers, & lock washers; plus 1 threaded insert point for secondary safety cable, M6 threaded x 20 mm deep.

• Top & Bottom Caps: 1 threaded insert point on each cap (top & bottom, 2 insert points total) for L-BRACKET; attaches via included M6 x 28 mm bolts, flat washers, and lock washers. (Remove silicon caps over insert points AND remove pre-
• installed bolts holding end cap in place.)[Note: For installer-specified attachment to these threaded insert points (without L-bracket), insert is M6 x 28 mm deep.]

• Side Panels: 1 threaded insert point on each side (left and right, for 2 insert points total) for L-BRACKET; attaches via included M6 x 28 mm bolts, flat washers, and lock washers. (Remove silicon caps over insert points) [Note: For installer-
• specified attachment to these threaded insert points (without L-bracket), insert is M6 x 22 mm deep.]


Mounting:

• Included Swivel (Pan) / Tilt WALL BRACKET provides continuously variable ±95° degree Horizontal left-right swivel (pan) aiming (at 0° down-tilt); continuously adjustable +0°/-10° Vertical tilt (when no interference to wall). WALL and SPEAKER sections of WALL BRACKET ASSEMBLY attached together via included M6 x 12 mm bolts, flat washers, and lock washers.

• Two included L-brackets that can be positioned on either top & bottom insert points or side-side insert points.

• Top, bottom, and 2 side threaded insert points can be interfaced by installer for installer-supplied mounting methods. Installer responsible for safety of mounting method.

• Dimensions (H x W x D): 800 x 102 x 93 mm (31.5 x 4.1 x 3.7 inches)

• Net Weight: 5.2 kg (11.5 lbs) each

• Shipping Weight: 6.4 kg (14.0 lbs) each (packed 1 speaker per carton)


Included Accessories:

• Low-profile SWIVEL (PAN) / TILT WALL BRACKET; 2 x L-BRACKETS that can be positioned on top/bottom or side/side insert points
