Package Includes:

• (1) Rockville RCS350-6 350 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth
• (2) Pair of JBL Control 18C/T-BK 8" 70v Commercial Black Ceiling Speakers For Restaurant
• (2) Pair of JBL CONTROL 16C/T-BK 6.5" 30w 70v Commercial Ceiling Speakers 4 Restaurant/Bar

---

How to Set up Your RCS Series of Amplifiers:

Video of RCS350-6:

Includes:

• Amplifier

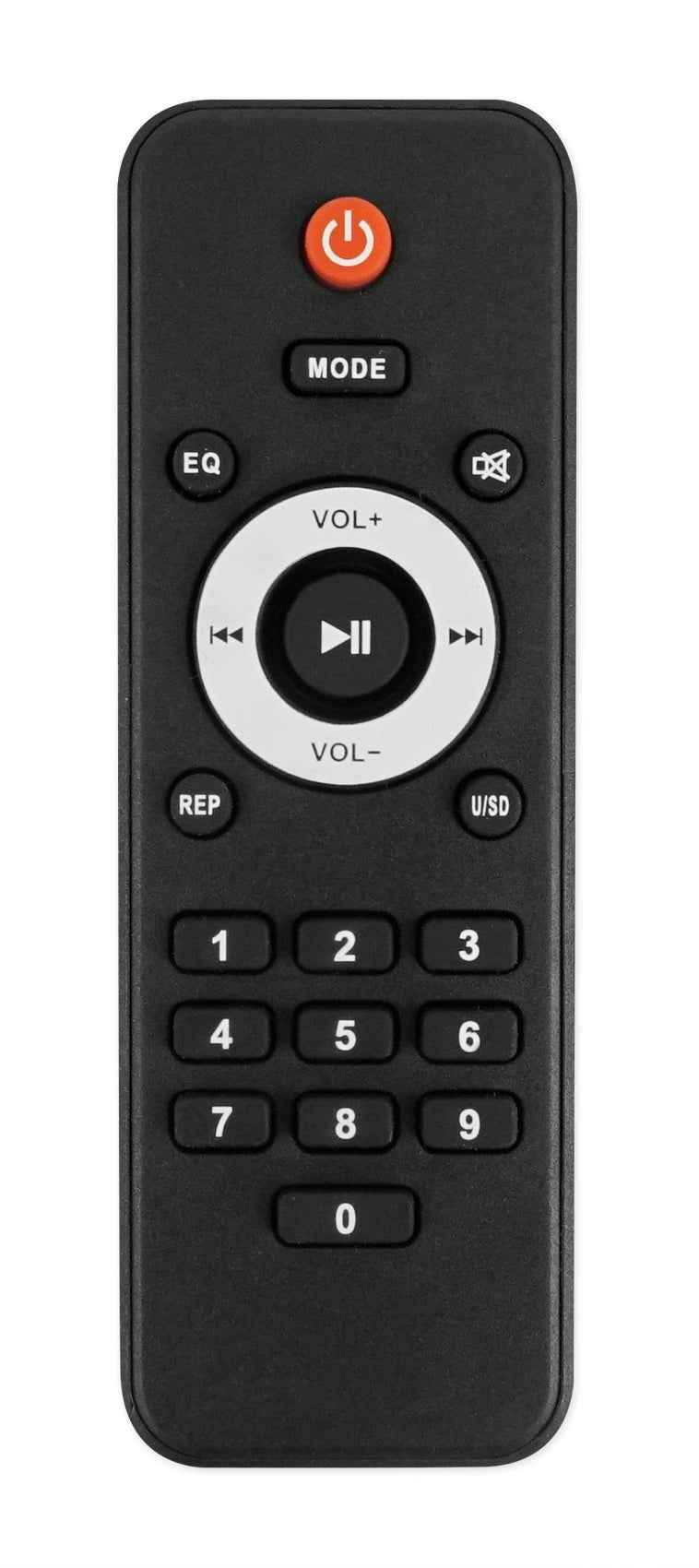

• Remote
• Rack mount ears
• Power Cable
• FM Radio antenna
• Owner’s manual
• Warranty

Description:

Rockville is proud to introduce our new RCS series of products. The RCS350-6 is a 350 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Café/Lounge/School/Conference room or any other setting where many speakers are needed.

This model offers 350 watts at 70 volt or 100 volt and the power can be split up into 6 zones. (Most professionals recommend you not exceed 80% of the amp power, so we recommend your speakers watt not to be more than 300 in total on the taps). Each zone can have the power split as your please. For example you can put all 300 watts into one zone with one volume control. Or you can have zone 1 with 100 watts, zone 2 with 100 watts and the rest of the zones with 25 watts each. Just add the total watts up to be under 350 and you are OK. No complex wiring required like with 8 ohm systems.

With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements. The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc. This is our new and improved version that now has optical input so you can connect this to a digital source like a television or projector.

Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system.

The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable.

This is our new and improved version with euro-block speaker terminals that make it super easy to install the wires even if the receiver is hidden in a corner. The terminals are detachable and once you connect your speaker wire to the terminal it just clicks into the receiver.

Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. This model makes it a breeze to connect many speakers and multiple external sources. We intentionally use common plugs like RCA and 1/4" on our model to make this more universal and user friendly. With our unique design you can feel confident in your DIY ability when installing our commercial system!

What is 70 volt ?

70 volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, with this 350 watt / 70 volt amplifier, you can install speakers that total close to 300 watts. It does not matter if it is 20 speakers that are 15 watts each or 40 speakers that are tapped at 7.5 watts each. You always want your 70 volt amp to have at least 15 or 20% more power than the combined watts your speakers are tapped at. When we say the word tap, what we are referring to are the selectors that many speakers in 70 volt have on them. For example, some speakers might have selectable options of 1.5w, 3w, 5w, 10w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. What this allows for is full customization of your sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 10 watts, the ones in the hallway at 3 watts and the speakers in the bathrooms at 1.5 watts. Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.

70 volt systems allow you to run very long lines of speaker wire without signal loss. This makes it ideal when running long speaker leads.

The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

If you want an easy to use feature-rich 70 volt amplifier with a ton of power and 6 zones the Rockville RCS350-6 is your best choice!

Applications:

• Restaurant
• Bar
• Café
• School
• Lounge
• Home (Multi-zone, Multi-room)
• Office
• Warehouse

Features:

• Rockville RCS350-6 350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
• Capable of 70 volt, 100 volt, 8 ohm, and 4 ohm
• 70/100 volt RMS Power: 355 Watts
• 6-Zones – each zone has a separate volume control
• Built in Bluetooth audio streaming
• FM radio tuner
• USB input to play audio stored on a thumb drive (32gb max)
• SD card slot to play music stored on an SD Card (32gb max)
• Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
• Echo control for the mic inputs with speed and repeat adjustments
• Built in clipping limiter to protect the amp and speakers
• BASS and Treble control
• Detachable euro-block speaker output terminals for easy installation
• Chime button for making announcements
• Top quality aluminum panel with industrial grade knobs
• 5 segments signal level indication
• Built in cooling system keeps component cool at all times

Inputs and Outputs:

• (2) Sets RCA AUX inputs
• (3) Mic inputs
• RCA Line output
• Optical input
• Detachable euro-block speaker output terminals for easy installation
• 100V speaker red positive speaker output terminal
• 70V speaker red positive speaker output terminal
• 8 Ohm red positive speaker output terminal
• Shared negative speaker output terminal

Specifications:

• Power Requirements: 120V / 50-60Hz
• A Weighted Signal to Noise (@ 1W) -68.1dBA
• A Weighted Signal to Noise (referenced to full 4 ohm power) -89.2dBA
• Frequency response: 49Hz to 14.9 Khz
• Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.89%
• Weight: 22.7lbs
• Dimensions: 19” x 16” x 4” inches

Owner’s Manual

---

Authorized JBL Dealer!

Description of Control 18C/T-BK:

Two-Way 8-Inch Coaxial Ceiling Loudspeaker

Control 18C/T is a full-range ceiling speaker consisting of a 200 mm (8.0 inch) high tech cone driver and a 25 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.

The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

Features:

• 200 mm (8.0 in) high output driver with polypropylene cone and butyl rubber surround
• 25 mm (1.0 in) soft-dome liquid-cooled tweeter
• Blind-mount backcan for quick and easy installation
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance direct operation
• 90 Watts at 8Ω nominal setting
• 60W multi-tap at 70V/100V
• 58 Hz – 20 kHz bandwidth with 90° coverage
• High 92 dB sensitivity for high maximum SPL
• Color: Black

Specifications:

Frequency Range (-10 dB)1	58 Hz – 20 kHz
Frequency Response (±3 dB)1	80 Hz – 16 kHz
Power Capacity (at low-Z) 2	180 Watts Continuous Program Power
Maxium Input Voltage	31.8 V RMS (2hrs), 63.6 V peak
Nominal Sensitivity3	92 dB
Nominal Coverage Angle3	90° conical coverage
Directivity Factor (Q) 3	6.0
Directivity Index (DI) 3	7.8 dB
Rated Maximum SPL	112 dB @ 1 m (3.3 ft) average, 118 dB peak
Nominal Impedance	8 ohms (in direct/bypass 8Ω setting)
Transformer Taps	60 W, 30 W, 15 W @ 70V or 100V (plus 7.5 W @ 70V only)
Recommended Protective High-Pass4	45 Hz high-pass (24 dB/oct) for 8ohm operation, 60 Hz for 60 W tap, 50 Hz for 30 W, 15 W & 7.5 W tap setting
Crossover Network	12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
LF Driver	200 mm (8.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
HF Driver	25 mm (1.0 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
Input Connector	Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring	Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs	Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
Safety Agency	UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions	307 mm diameter x 274 mm depth from back of baffle (12.1 in diameter x 10.8 in depth)
Ceiling Cutout Size	Circular cutout with 282 mm (11.1 in) diameter (cardboard cutout template included)
Ceiling Thickness Range	Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
Safety Seismic Attachment	One point, top surface
Net Weight	6.4 kg (14.1 lbs, one speaker)
Shipping Weight	17.7 kg (39.0 lbs, pair in master carton)
Included Accessories	C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille with safety tether.
Optional Accessories	MTC-47NC new construction bracket; MTC-47MR mud-ring construction bracket; MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dogears for 6 speakers); MTC-48TR tile rail for 1200 mm (4 ft) tile spans

Owner's Manual

---

Advantages of buying from an authorized seller:

• Best prices - We sell all JBL Products at great prices
• Full Factory Warranty
• Lifetime Customer Service by JBL product experts
• Guaranteed legitimate and authentic merchandise

Please note: If you purchase JBL from an un-authorized seller then you are taking a big risk. You will not have any manufacturer warranty, and there is no guarantee that the item is authentic, brand new, or even working.

---

Authorized JBL Dealer

Description of CONTROL 16C/T-BK:

Two-Way 6.5" Coaxial Ceiling Loudspeaker

Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.

​Features:

• (2) JBL CONTROL 16C/T-BK 6.5" 30 Watt 70v Commercial Ceiling Speakers For Restaurant/Bar in Black
• Components:
  • 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
  • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
• Blind-mount backcan for quick and easy install
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance direct operation
  • 50 Watts at 8Ω nominal setting
  • 30W multi-tap at 70V/100V
• 62 Hz – 20 kHz bandwidth with wide 110° coverage
• High 91 dB sensitivity for high maximum SPL
• Black (-BK)

Specifications:

• Frequency Range (-10 dB): 62 Hz – 20 kHz
• Power Capacity (at low-Z)
  • 100 Watts Continuous Program Power
  • 50 Watts Continuous Pink Noise
• Transformer Taps: 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
• Frequency Response (±3 dB): 96 Hz – 15 kHz
• Nominal Sensitivity: 91 dB
• Nominal Coverage Angle: 110° conical coverage
• Directivity Factor (Q): 7.8
• Directivity Index (DI): 8.2 dB
• Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average, 116 dB peak
• Nominal Impedance: 8 ohms (in direct/bypass 8Ω setting)
• Crossover Network
  • 12 dB/oct (2nd order) low-pass to LF driver,
  • 12 dB/oct (2nd order) high-pass to HF driver
• LF Driver: 165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
• HF Driver: 19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
• Input Connector: Removable locking 4-pin connector with screw-down terminals.
  Max wire size 12 AWG (2.5 mm2)
• Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
• Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
• Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated
  steel backcan
• Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
• Dimensions
  • 253 mm diameter x 225 mm depth from back of baffle
  • (10.0 in diameter x 8.8 in depth)
• Ceiling Cutout Size: Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout
  template included)
• Ceiling Thickness Range: Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
• Safety Seismic Attachment: One point, top surface
• Net Weight: 3.4 kg (7.4 lbs, one speaker)
• Shipping Weight: 11.2 kg (24.7 lbs, pair in master carton)
• Included Accessories: C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
• Optional Accessories
  • MTC-26NC new construction bracket
  • MTC-26MR mud-ring construction bracket
  • MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers)
  • MTC-48TR tile rail for 1200 mm (4 ft) tile spans

---

Advantages of purchasing from an authorized seller:

·         Best prices - We sell all JBL Products at wholesale prices
·         Full Factory Warranty
·         Detailed information of all products
·         Lifetime Customer Service by JBL product Experts
·         Guaranteed legitimate and authentic merchandise
Please note:  If you purchase JBL from an un-authorized seller then you are taking a big risk.  You will not have any manufacturers warranty, and there is no guarantee that the item is authentic, brand new,  or even working.
