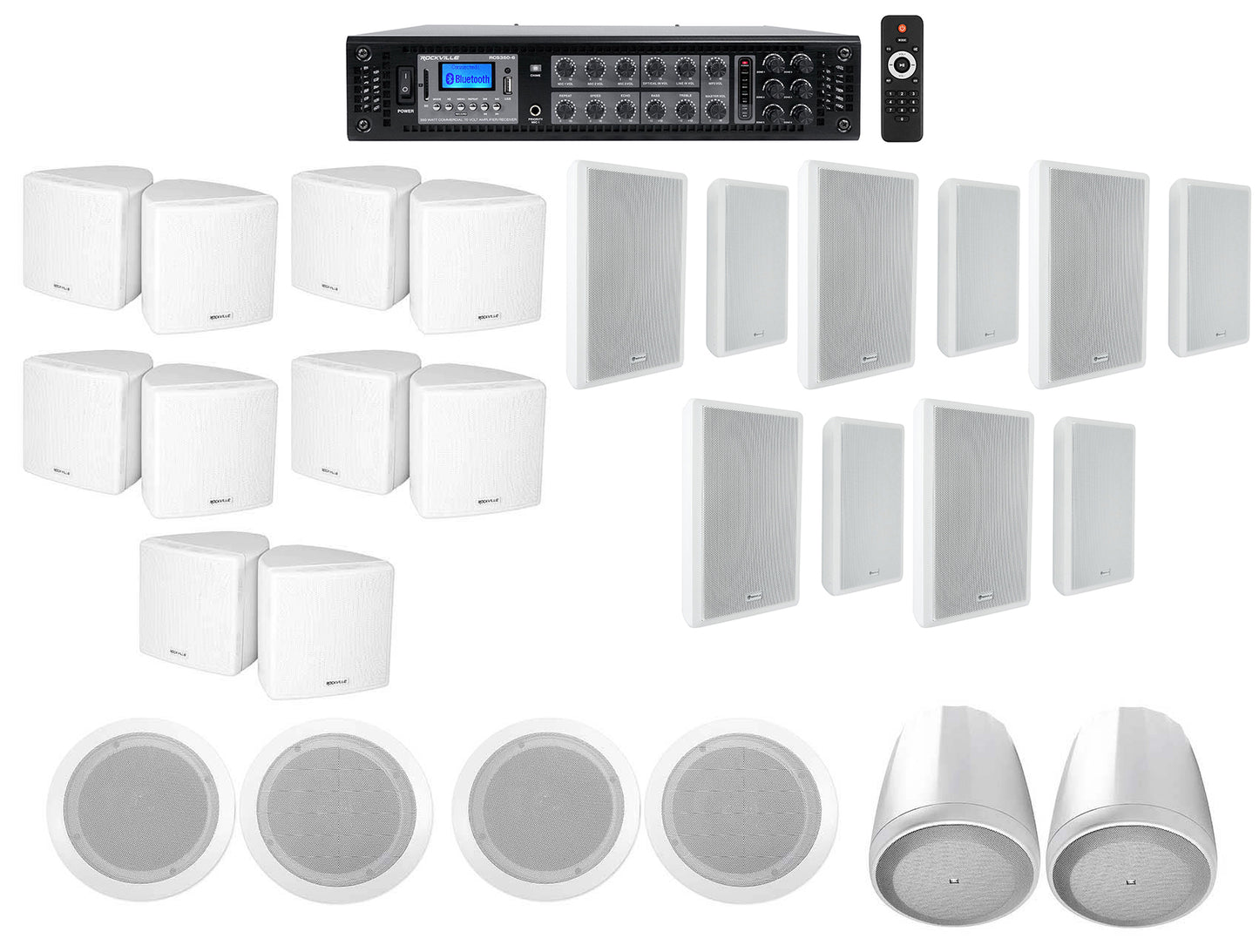

- (1) Rockville RCS350-6 350 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth
- (2) Pairs of Rockville CC65T White 6.5" Commercial 70v Ceiling Speakers For Restaurant
- (1) Pair of JBL Control 65P/T-WH White 5.25" 70v Commercial Pendant Speakers 4 Restaurant
- (5) Cube by Rockville Pair of 3.5" White Commercial 70v Swivel Wall Mount Speakers
- (5) Pairs of Rockville RockSlim 70W White 5.25" 70v Commercial Restaurant Wall Speakers

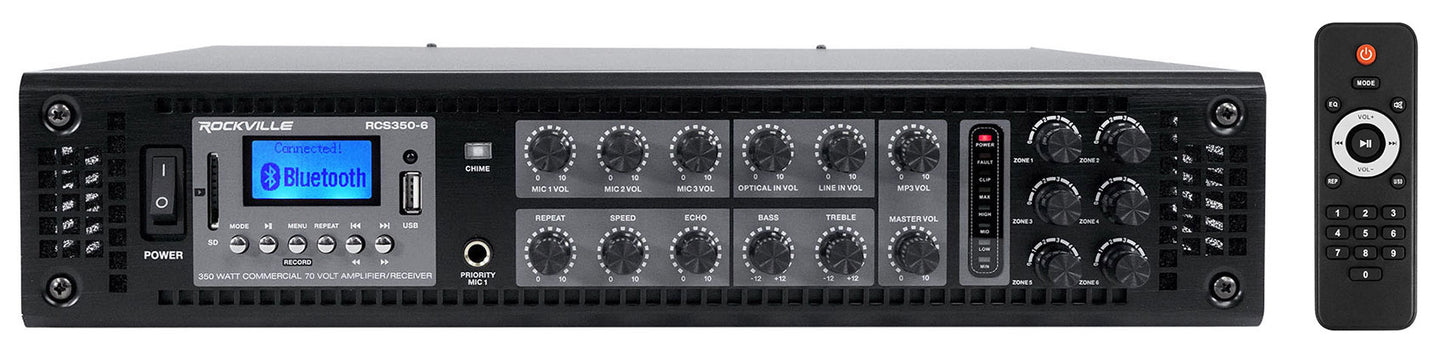

How to Set up Your RCS Series of Amplifiers:
Video of RCS350-6:
Description:
Rockville is proud to introduce our new RCS series of products. The RCS350-6 is a 350 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Café/Lounge/School/Conference room or any other setting where many speakers are needed.
This model offers 350 watts at 70 volt or 100 volt and the power can be split up into 6 zones. (Most professionals recommend you not exceed 80% of the amp power, so we recommend your speakers watt not to be more than 300 in total on the taps). Each zone can have the power split as your please. For example you can put all 300 watts into one zone with one volume control. Or you can have zone 1 with 100 watts, zone 2 with 100 watts and the rest of the zones with 25 watts each. Just add the total watts up to be under 350 and you are OK. No complex wiring required like with 8 ohm systems.
With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements. The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc. This is our new and improved version that now has optical input so you can connect this to a digital source like a television or projector.
Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system.
The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable.
This is our new and improved version with euro-block speaker terminals that make it super easy to install the wires even if the receiver is hidden in a corner. The terminals are detachable and once you connect your speaker wire to the terminal it just clicks into the receiver.
Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. This model makes it a breeze to connect many speakers and multiple external sources. We intentionally use common plugs like RCA and 1/4" on our model to make this more universal and user friendly. With our unique design you can feel confident in your DIY ability when installing our commercial system!
70 volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, with this 350 watt / 70 volt amplifier, you can install speakers that total close to 300 watts. It does not matter if it is 20 speakers that are 15 watts each or 40 speakers that are tapped at 7.5 watts each. You always want your 70 volt amp to have at least 15 or 20% more power than the combined watts your speakers are tapped at. When we say the word tap, what we are referring to are the selectors that many speakers in 70 volt have on them. For example, some speakers might have selectable options of 1.5w, 3w, 5w, 10w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. What this allows for is full customization of your sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 10 watts, the ones in the hallway at 3 watts and the speakers in the bathrooms at 1.5 watts. Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.
70 volt systems allow you to run very long lines of speaker wire without signal loss. This makes it ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.
If you want an easy to use feature-rich 70 volt amplifier with a ton of power and 6 zones the Rockville RCS350-6 is your best choice!
Applications:
- Restaurant
- Bar
- Café
- School
- Lounge
- Home (Multi-zone, Multi-room)
- Office
- Warehouse
Features:
- Rockville RCS350-6 350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
- Capable of 70 volt, 100 volt, 8 ohm, and 4 ohm
- 70/100 volt RMS Power: 355 Watts
- 6-Zones – each zone has a separate volume control
- Built in Bluetooth audio streaming
- FM radio tuner
- USB input to play audio stored on a thumb drive (32gb max)
- SD card slot to play music stored on an SD Card (32gb max)
- Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
- Echo control for the mic inputs with speed and repeat adjustments
- Built in clipping limiter to protect the amp and speakers
- BASS and Treble control
- Detachable euro-block speaker output terminals for easy installation
- Chime button for making announcements
- Top quality aluminum panel with industrial grade knobs
- 5 segments signal level indication
- Built in cooling system keeps component cool at all times
Inputs and Outputs:
- (2) Sets RCA AUX inputs
- (3) Mic inputs
- RCA Line output
- Optical input
- 100V speaker red positive speaker output terminal
- 70V speaker red positive speaker output terminal
- 8 Ohm red positive speaker output terminal
- Shared negative speaker output terminal
Specifications:
- Power Requirements: 120V / 50-60Hz
- A Weighted Signal to Noise (@ 1W) -68.1dBA
- A Weighted Signal to Noise (referenced to full 4 ohm power) -89.2dBA
- Frequency response: 49Hz to 14.9 Khz
- Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.89%
- Weight: 22.7lbs
- Dimensions: 19” x 16” x 4” inches

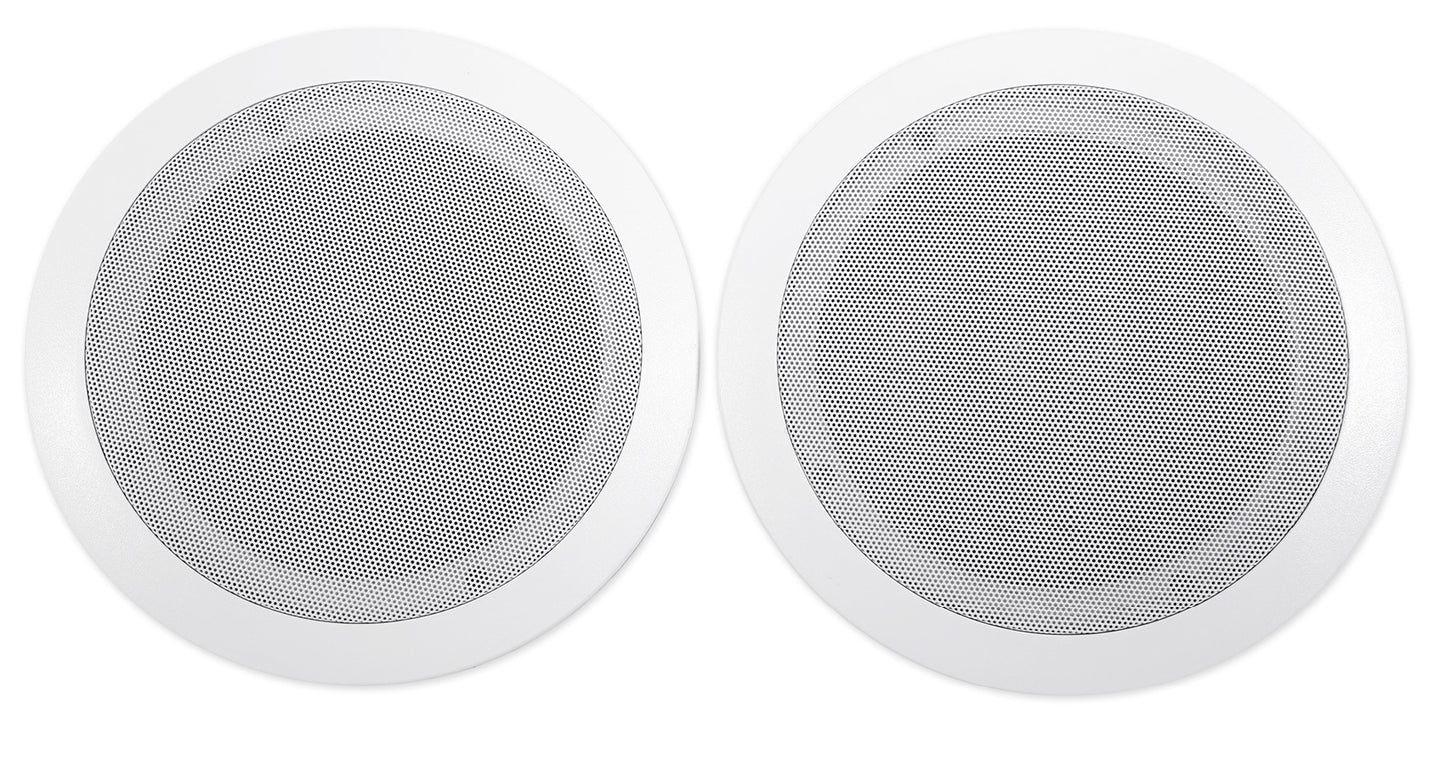

How to Set up Your CC65T and CC80T:
Description:
The CC65T are perfect for any commercial application where you want to get amazing sound quality out of your music and have the ability to crank the volume really loud. It will obviously still handle your PA announcements and chimes, etc. We took a high quality home theater speaker and added 70 volt technology to it to give you the best of both worlds. With a selectable tap wattage that ranges from 2.5w all the way to 20w these speakers are great for any commercial application.
These ceiling speakers are precision tuned for excellent audio response at high and low volumes. If you want good musical sound you really need a 2-way speaker with a dedicated tweeter for highs and a dedicated woofer for lows. These in-ceiling speakers feature a 6.5” polypropylene woofer cone for clear, rich mids and deep bass. Our mylar dome tweeter provides clean, crisp highs. The included sheer grill enables flush installation and can be painted to match any décor. Our high quality spring loaded push terminals make your wiring very secure.
Features:
- Pair of Rockville CC65T White 6.5” Commercial 70v In-Ceiling Speakers for Restaurant/Bar/Cafe
-
70V Power Options:
- 20w
- 15w
- 10w
- 5w
- 2.5w
- Polypropylene Cone
- Rubber Surround
- 6.5” Woofer
- 1” Aluminum Voice Coil
- ½” Mylar Dome Tweeter
- 10 oz. Ferrite Magnet
- High Quality Spring Loaded Push Terminals
- Aim-able Swivel Tweeter
- Paintable Flush Mount Grills
- Frequency Response: 60Hz – 20KHz
- Sensitivity: 89dB @ 1w / 1m
- Impedance: 8 Ohms
- Mounting Depth: 2.91”
- Cut-out Diameter: 7.6”
- Color: White (paintable)
There is a tap switch on the speaker so you can easily select how many watts you want the speaker to get from the amp.
70V Power Options:
- 20w
- 15w
- 10w
- 5w
- 2.5w
8 Ohm power handling:
- 40w
What is 70 volt ?
70 volt systems are the number one choice for applications where you want to install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 150 watts and you can install speakers that total around 120 watts. It does not matter if it is 12 speakers that are 10 watts each or 24 speakers that are tapped at 5 watts each. You always want your 70 volt amp to have at least 15 to 20% more power than the combined watts your speakers are tapped at.
When we say the word tap, we are referring to the switch that is located on the rear of these speakers where you can select how many watts you want the speaker to play. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 6 watts, and the hallway or bathroom speakers at 3 watts.
Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.
Authorized JBL Dealer!

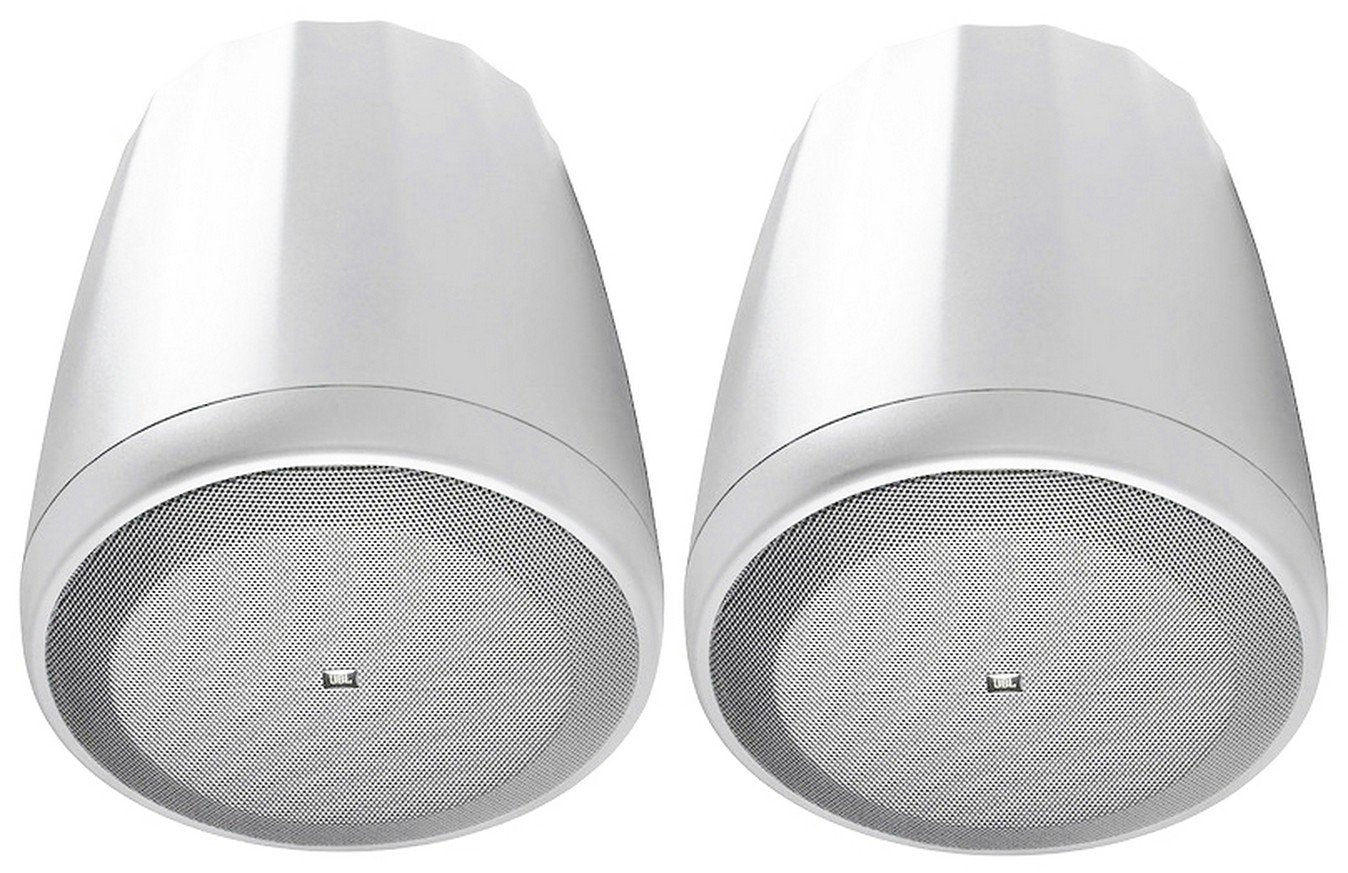

Description of Control 65P/T-WH:
Pair Compact Full-Range Pendant Speakers
Control 65P/T incorporates JBL’s exclusive RBI Radiation Boundary Integration
technology to provide very consistent, wide coverage throughout the listening
space.
Features:
- Pair JBL Control 65P/T-WH White 5.25" 70v Commercial Pendant Speakers For Restaurant
- RBI Radiation Boundary Integrator Technology
- 120° conical coverage
- 5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
- 75 Watts, 8 ohms and 60W multi-tap transformer
- Color: White
Specifications:
|
Frequency Response (-10 dB) |
55 Hz – 20 kHz | |
| Frequency Range (±3 dB) | 78 Hz – 18 kHz | |
| Power Capacity |
75 Watts Continuous Pink Noise Power (with 300 Watts peaks) 150 Watts Continuous Program Power |
|
| Nominal Sensitivity | 86 dB | |
| Nominal Coverage Angle | 120° (+20°/-10°) | |
| Directivity (Q) | 5.3 | |
| Directivity Index (DI) | 7.2 dB | |
| Rated Maximum SPL @ 1m | 105 dB continuous pink noise, 111 dB peak | |
| Rated Impedance | 8 ohms | |
| Transformer Taps | 70V:
60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W |
|
| Transformer Insertion Loss | 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W | |
| LF Driver | 130
mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former |
|
| HF Driver | 20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former | |
| Enclosure Material | High impact polystyrene | |
| Grille |
Zinc-plated steel grille with powder-coat finish, foam backing
(removable for painting) |
|
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating. | |
| Termination | Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. | |
| Suspension | Two
identical suspension systems (one as main suspension cable and the other
as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in)
high-tensile galvanized-steel wire rope suspension cable with
spring-clips for clipping onto the loudspeaker bracket and Gripple™
brand adjustable-height cable fasteners for infinitely adjustable
height. Cables have SWL rating of 45 kg (99 lb). |
|
| Safety Agency Ratings | Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. | |
| Dimensions | 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket. | |
| Net Weight (ea) | 3.7 kg (8 lbs) | |
| Shipping Weight (pair) | 8.7 kg (19 lbs) | |
| Included Accessories | Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors | |
| Optional Accessories | MTC-PC60 top panel / terminal cover | |
| Colors | Available in white (-WH). Paintable. |
Advantages of buying from an authorized seller:
- Best prices - We sell all JBL Products at great prices
- Full Factory Warranty
- Lifetime Customer Service by JBL product experts
- Guaranteed legitimate and authentic merchandise
Please note: If you purchase JBL from an un-authorized seller then you are taking a big risk. You will not have any manufacturer warranty, and there is no guarantee that the item is authentic, brand new, or even working.
How to Set Up Cube 70 Volt Speaker:
Video of Cube 70v White:

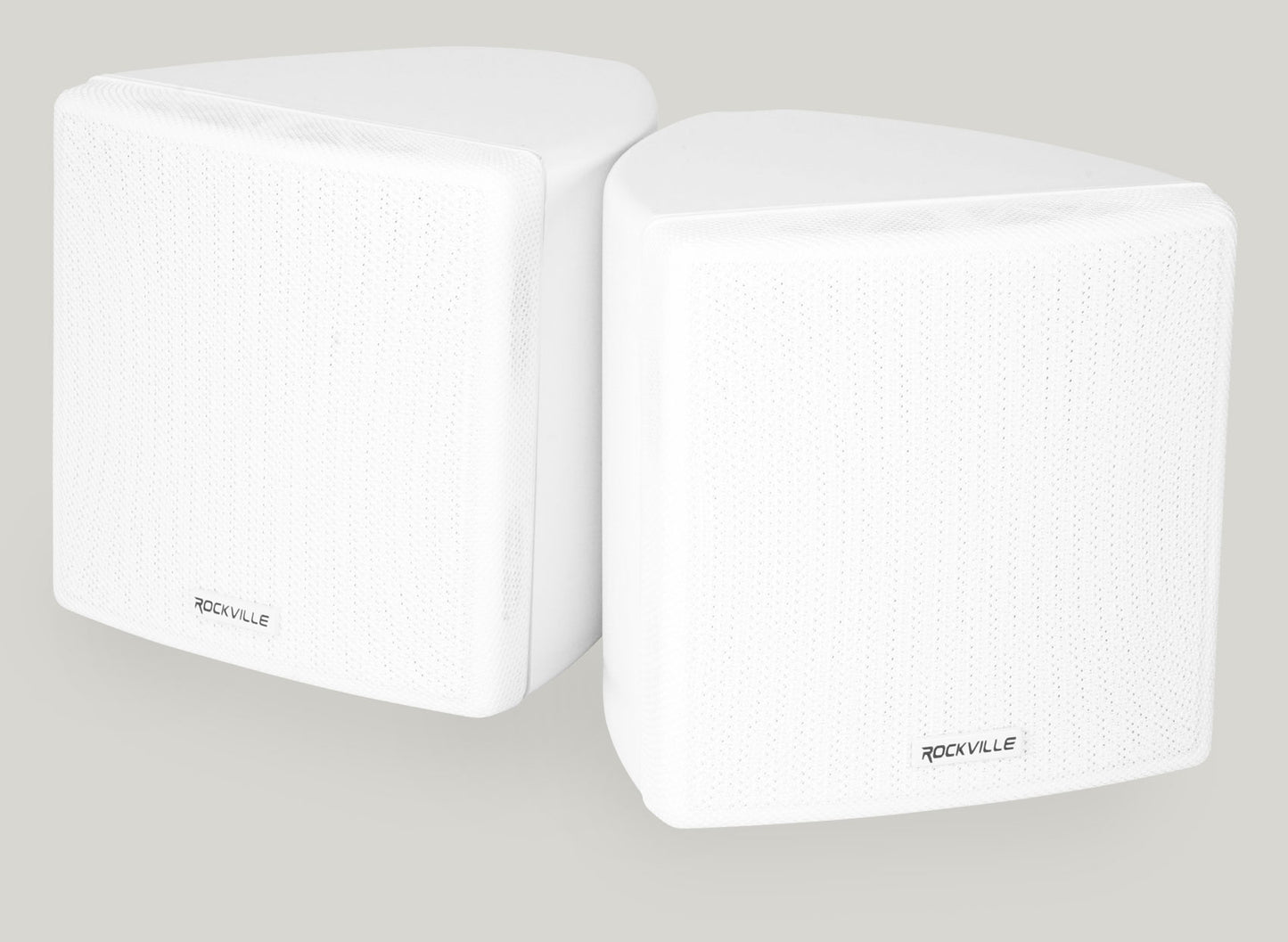

Introducing Cube by Rockville!
70 Volt power options
- 6 Watt
- 3 Watt
- 1.5 Watt
(2) Speakers
(2) mounting brackets with metal bars
(2) safety cables
(8) screws
(1) User manual
Description:
The Rockville Cube 70V white is a great choice for any restaurant, office, retail store, or any other commercial application. What makes these special is the minimal footprint that is stylish and unobtrusive. The speaker also includes our 360 degree mounting system that allows rotation in any direction for optimal sound staging. The slim design can be mounted anywhere quickly and easily.
2-Way configuration
There is a couple of very famous companies who make speakers that look similar.
In our opinion those speakers have no highs and no lows. That is because they
use a one way design. Our model has a dedicated woofer for mids and a dedicated
tweeter for highs giving you incredible sound quality.
Quick-disconnect terminals
We use euro-block speaker terminals which are detachable so you can easily wire
many speaker and quickly disconnect them at any time.
What is 70 volt ?
70 volt systems are the number one choice for applications where you want to
install many speakers. With 70 volt there are a lot of advantages over 8-ohm
systems. One of the main advantages is the simplicity of the wiring as well as
how easy it is to match up speakers with the amplifier. For example, you can buy
one 70V amplifier with 150 watts and you can install speakers that total around
120 watts. It does not matter if it is 20 speakers that are 6 watts each or 40
speakers that are tapped at 3 watts each. You always want your 70 volt amp to
have at least 15 to 20% more power than the combined watts your speakers are
tapped at.
When we say the word tap, we are referring to the rear of these speakers where you can use the 1.5 watt, 3 watt, or 6 watt inputs. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 6 watts, and the hallway or bathroom speakers at 3 watts.
Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers
to the positive 70 volt terminals of the amplifier. The negative terminals on
the speaker simply get wired to the negative terminals on the amp. You do not
have to worry about impedance. The power is constant.
Features:
- Cube by Rockville - Pair of White 3.5” 70 Volt Commercial Speakers With Swivel Mounting Bracket
- 70 Volt power options: 6 watts, 3 watts, 1.5 watts
- Easy Wall Mount Brackets with 360 Degree Swivel Rotation For Optimal Sound Staging
- 3.5” Woofer with Paper Cone has Natural Sound Reproduction with Clear Mids and Bass
- 0.5” black PEI tweeter delivers crystal clear highs
- True 2 way speaker system delivers way better sound quality than famous brands who make these in a 1 way design
- Sensitivity: 86 dB +-2dB (1M/2.83V)
- Frequency Response (±3db): 130Hz - 20kHz
- Cabinet Material: ABS
- Color: White
- Shielded grill offers additional protection from dust and damage
- Audiophile grade sound quality
- Perfect for restaurants, offices, retail stores, and other commercial applications
- Euro block speaker terminals with quick disconnect
- Product Dimensions: 4.13" x 4.13” x 7.3" x 4.74" inches
- Product Weight: 1.76 Lbs. (Per Speaker)
Description:

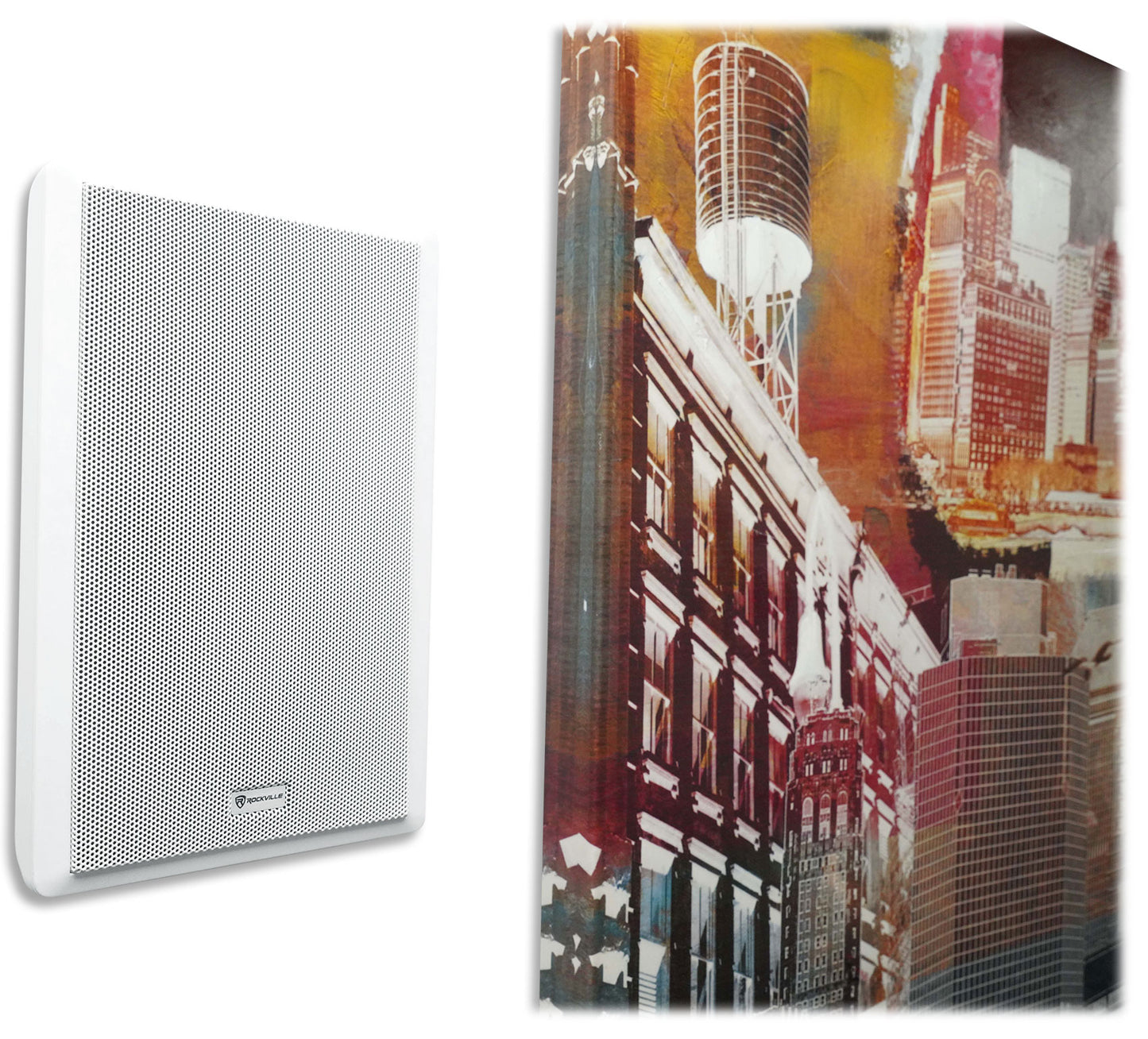

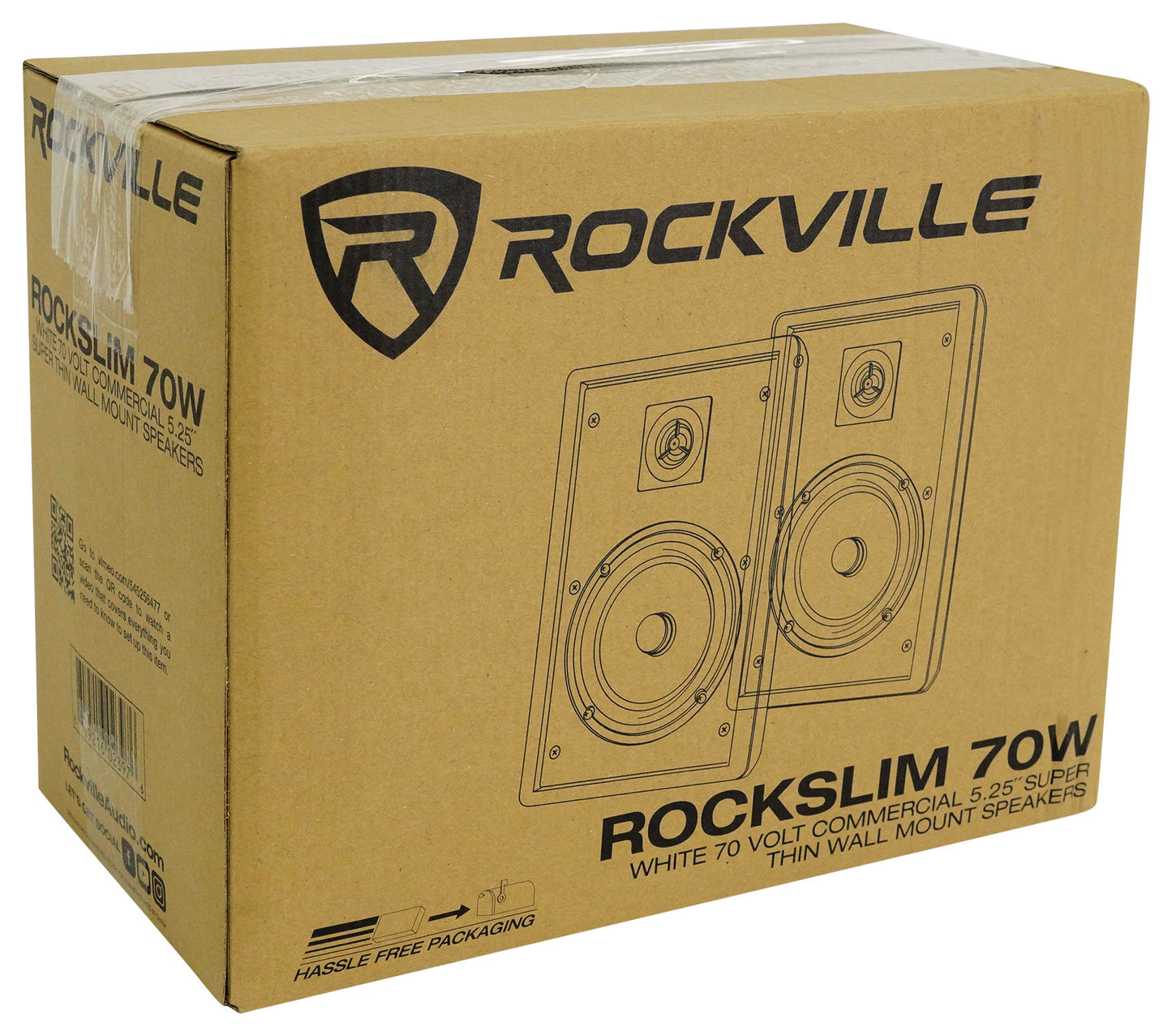

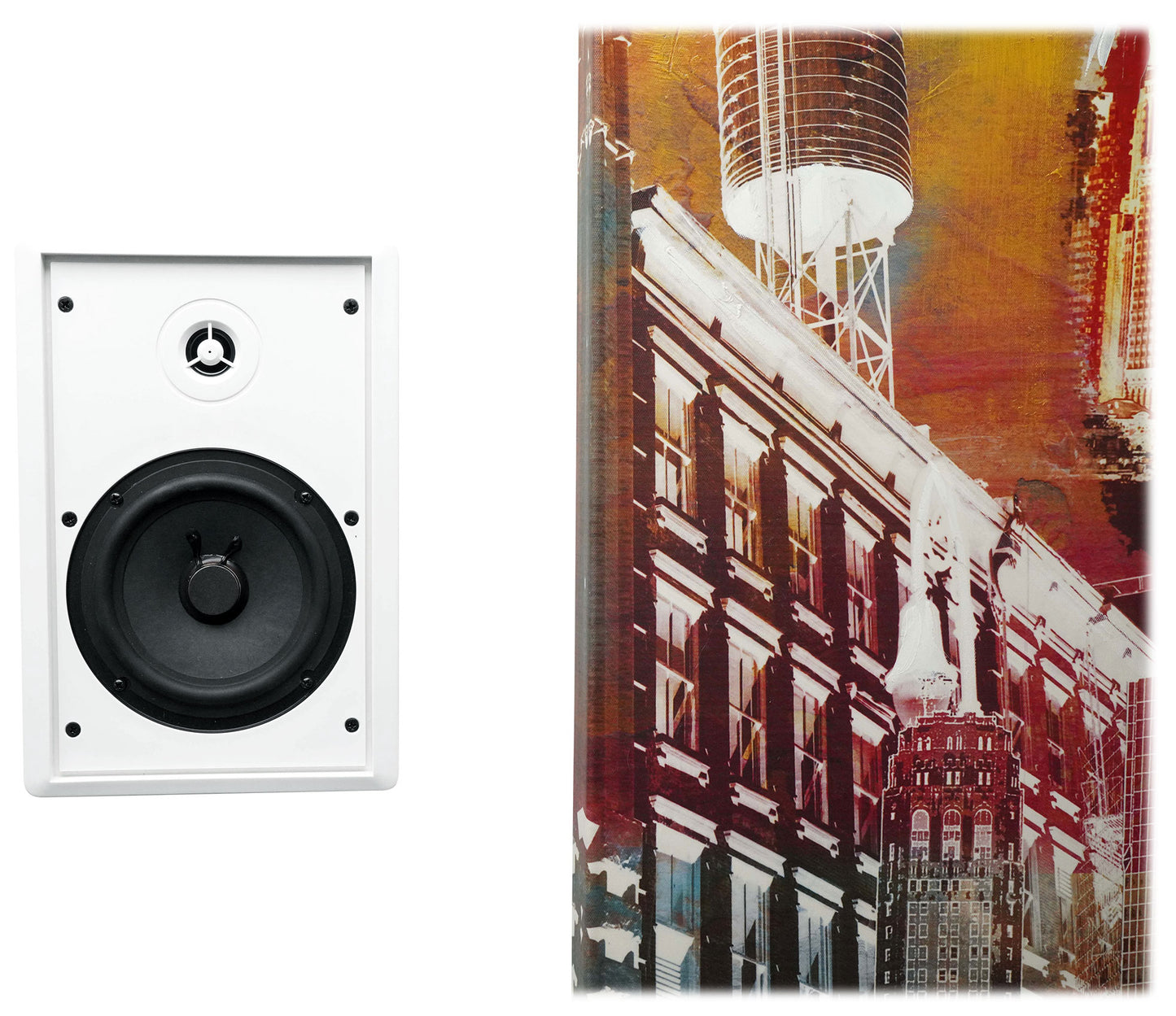

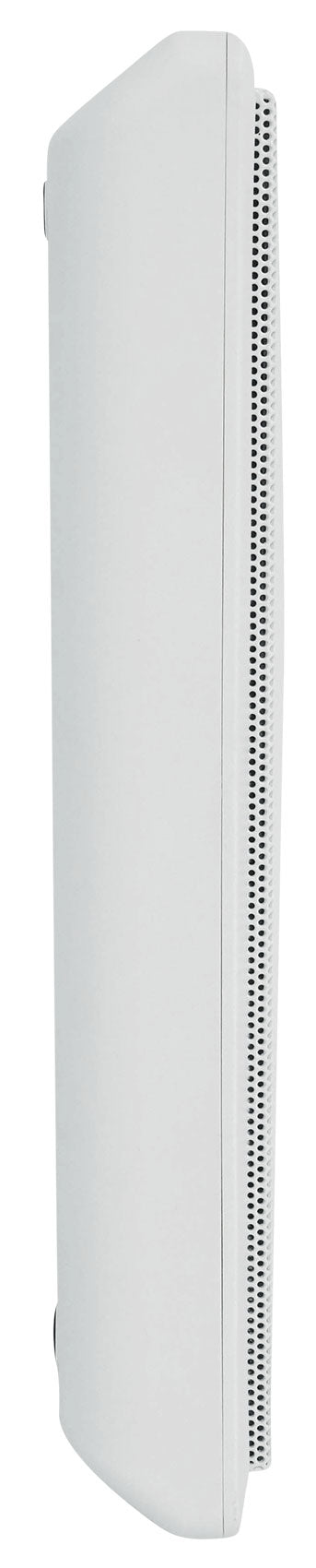

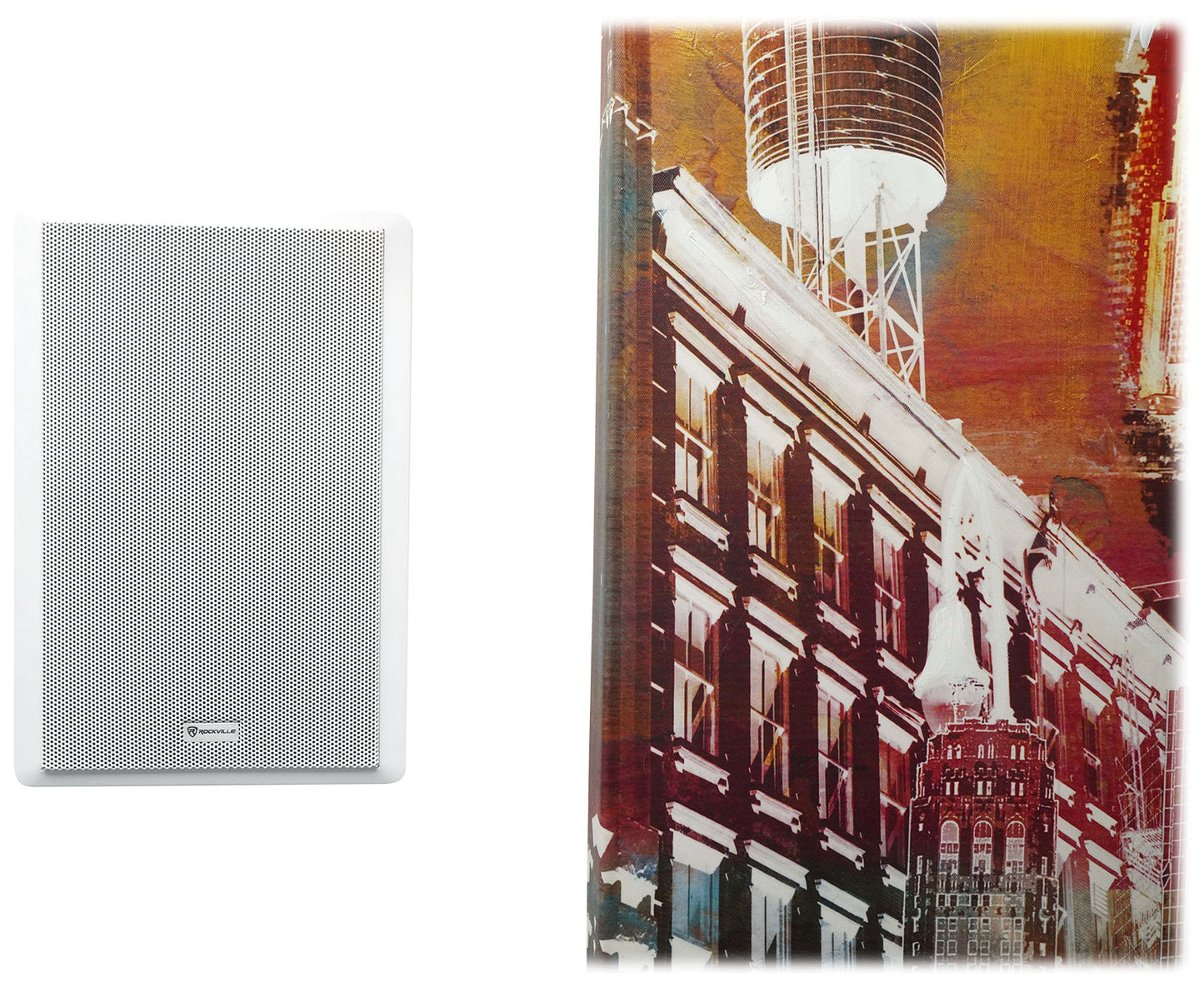

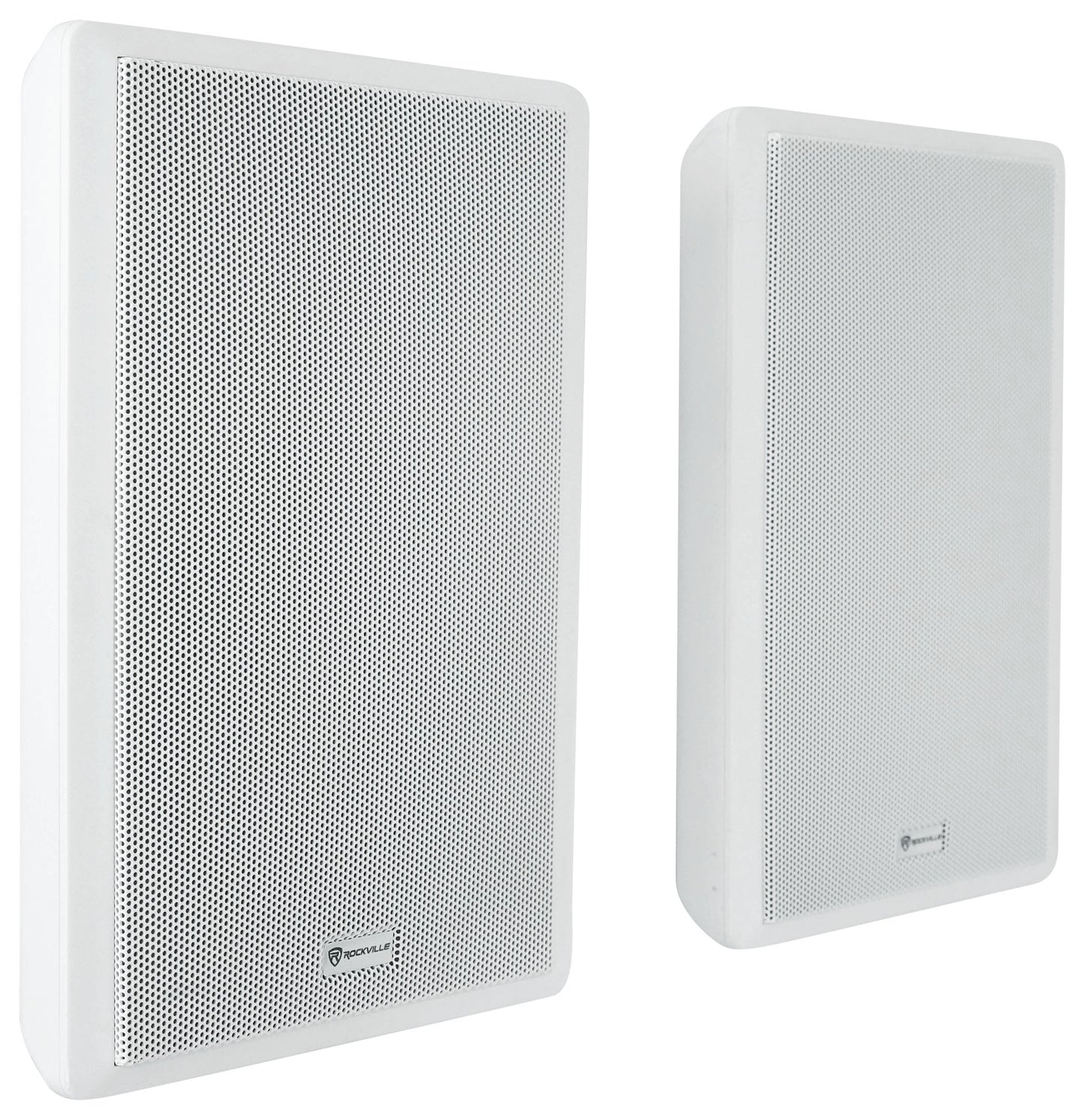

The Rockville Rock Slim 70W is the commercial 70 volt version of our super popular Rockslim series of speakers. These speakers feature the slimmest design available on the market along with the easiest installation. They will enhance the décor of any store, restaurant, hotel, or other commercial space. With the included bracket which is molded into the speaker, installation is easier than hanging a picture. The Recessed spring-loaded wire terminals and the molded speaker wire grooves seamlessly hide all the wires behind the speaker.
What is 70 volt ?
70 volt systems are the number one choice for applications where you want to
install many speakers. With 70 volt there are a lot of advantages over 8-ohm
systems. One of the main advantages is the simplicity of the wiring as well as
how easy it is to match up speakers with the amplifier. For example, you can buy
one 70V amplifier with 150 watts and you can install speakers that total around
120 watts. It does not matter if it is 15 speakers that are 8 watts each or 30
speakers that are tapped at 4 watts each. You always want your 70 volt amp to
have at least 15 to 20% more power than the combined watts your speakers are
tapped at.

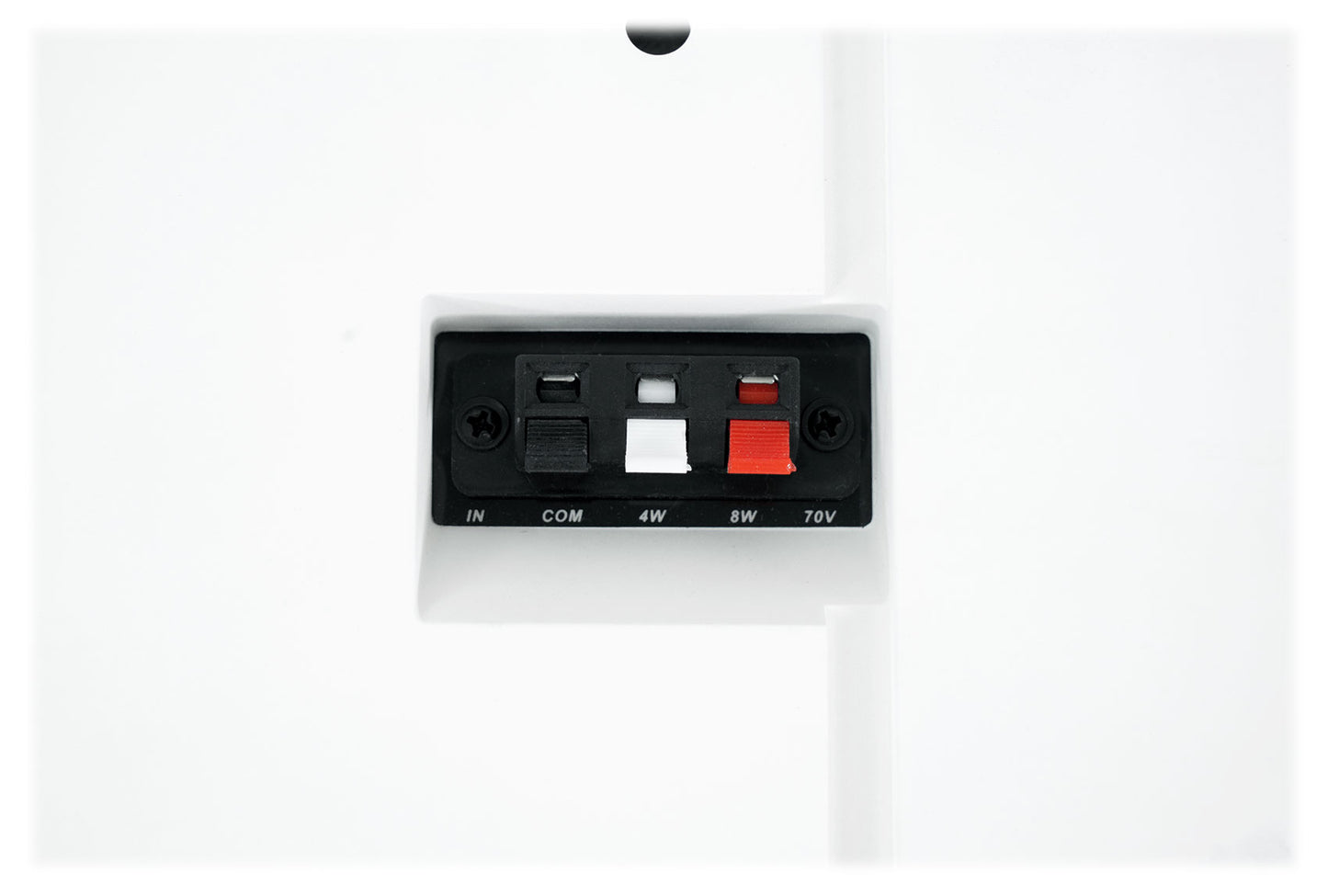

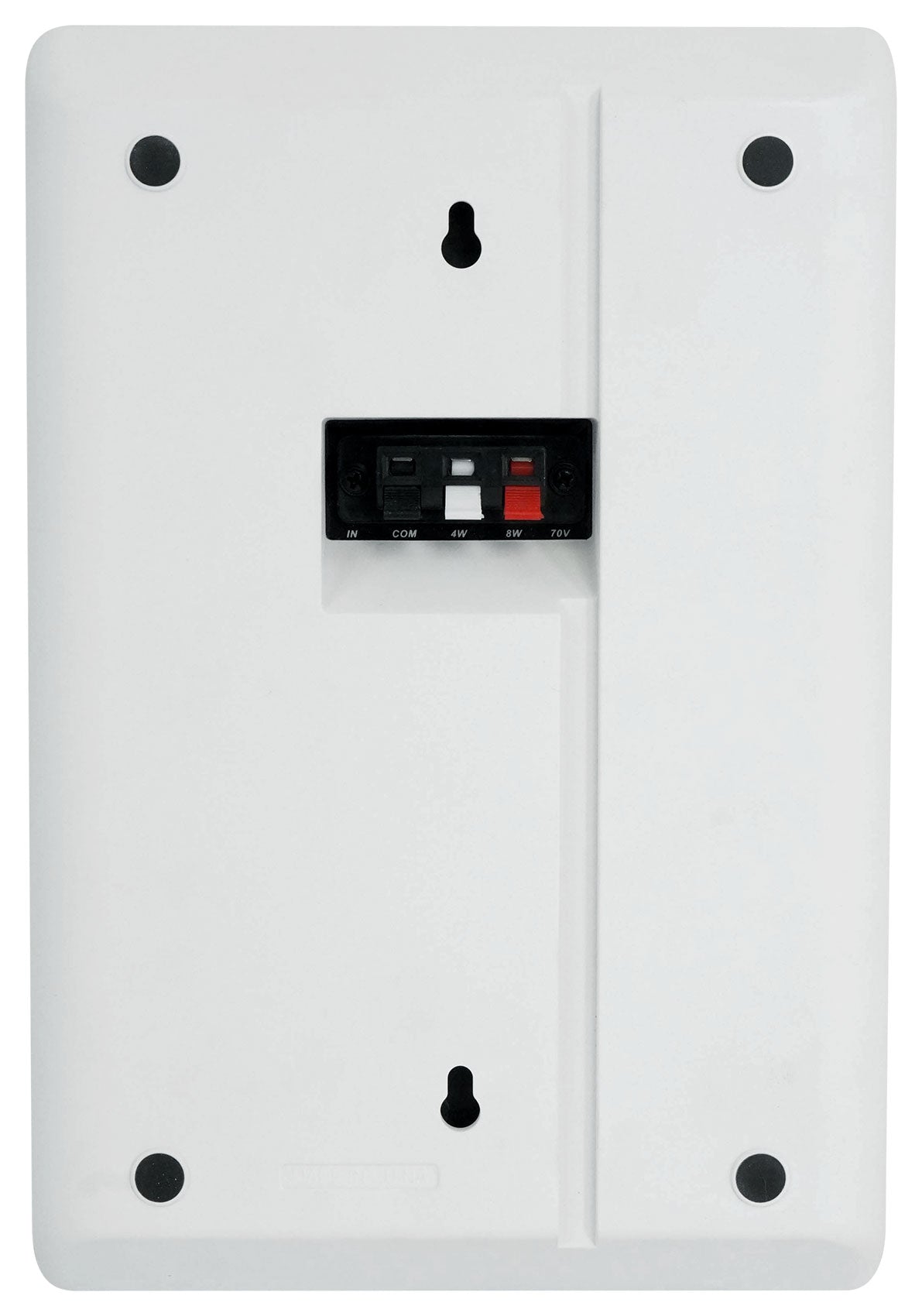

When we say the word tap, we are referring to the rear of these speakers where you can use the 4 watt or 8 watt inputs. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 8 watts, and the hallway or bathroom speakers at 4 watts.
Another great feature with 70 volt is you can mix and match any 70 volt speakers
whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70
volt systems allow you to run very long lines of speaker wire without signal
loss. This is ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers
to the positive 70 volt terminals of the amplifier. The negative terminals on
the speaker simply get wired to the negative terminals on the amp. You do not
have to worry about impedance. The power is constant.
70V Power Options:
Features:
- UPC:
- 613816438501
