- (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth
- (6) Pairs of Rockville RockSlim 70W White 5.25" 70v Commercial Restaurant Wall Speakers
- (2) Pairs of JBL 8128 8" Full Range Commercial 70V/100V 6w Ceiling Speakers 4 Restaurant
How to Set up Your RCS Series of Amplifiers:
Video of RCS180-6:
Includes:
- Amplifier
- Remote
- Rack mount ears
- Power Cable
- FM Radio antenna
- Owner’s manual
- Warranty
Description:
What is 70 volt ?
Applications:
- Restaurant
- Bar
- Café
- School
- Lounge
- Home (Multi-zone, Multi-room)
- Office
- Warehouse
Features:

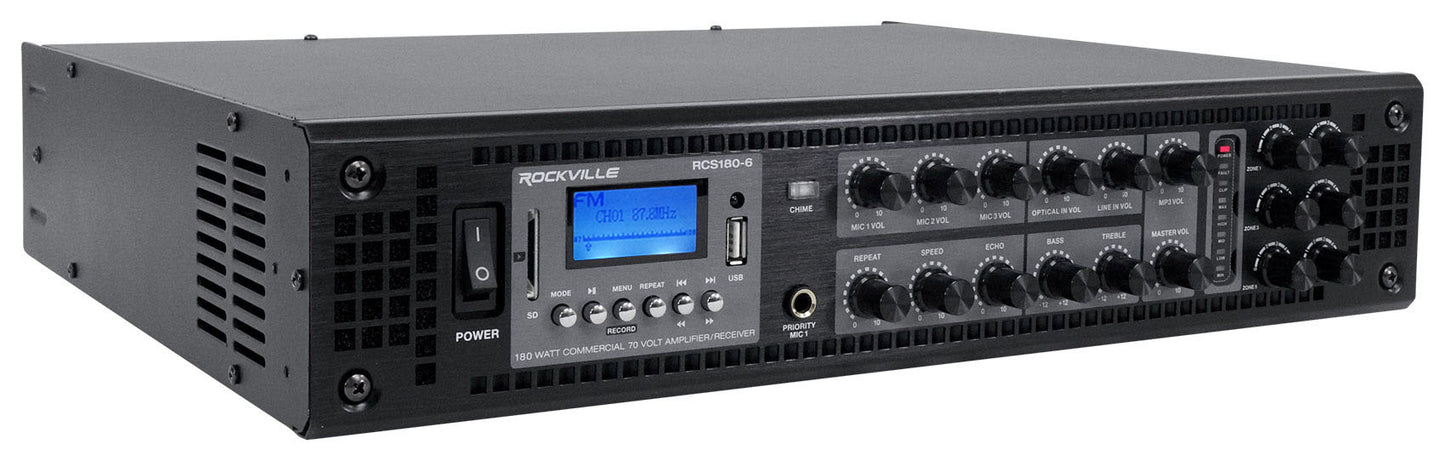

- Rockville RCS180-6350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
- Capable of 70 volt, 100 volt, 8ohm, and 4 ohm
- 70/100 volt RMS Power: 184 Watts
- 4-16 ohm binding post speaker output
- 6-Zones of speaker outputs - each zone has a separate volume control
- 70 and 100 volt binding post outputs for single zone playback of all 180 watts
- Built in Bluetooth audio streaming
- FM radio tuner
- USB input to play audio stored on a thumb drive (32gb max)
- SD card slot to play music stored on an SD Card (32gb max)
- Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
- Echo control for the mic inputs with speed and repeat adjustments
- Built in clipping limiter to protect the amp and speakers
- BASS and Treble control
- Detachable euro-block speaker output terminals for easy installation
- Chime button for making announcements
- Top quality aluminum panel with industrial grade knobs
- 5 segments signal level indication
- Built in cooling system keeps component cool at all times
Inputs and Outputs:
- (2) Sets RCA AUX inputs
- (3) Mic inputs
- RCA Line output
- Optical input
- Detachable euro-block speaker output terminals for easy installation
- 100V speaker red positive speaker output terminal
- 70V speaker red positive speaker output terminal
- 8 Ohm red positive speaker output terminal
- Shared negative speaker output terminal
Specifications:
- Power Requirements: 120V / 50-60Hz
- A Weighted Signal to Noise (@ 1W) -68.1dBA
- A Weighted Signal to Noise (referenced to full 4 ohm power) -89.2dBA
- Frequency response: 49Hz to 14.9 Khz
- Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.89%
- Weight: 22.7lbs
- Dimensions: 19” x 16” x 4” inches
Description:

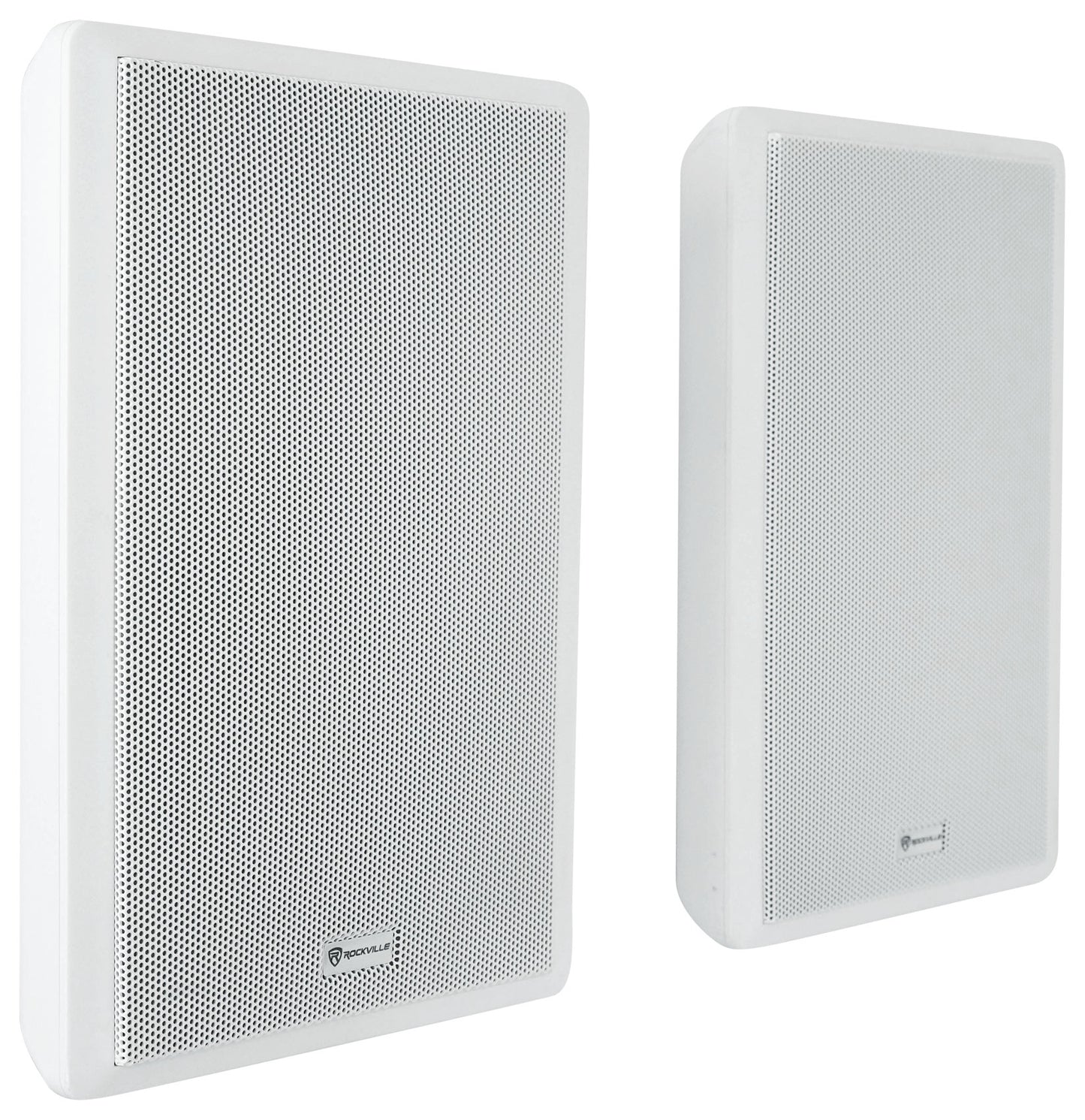

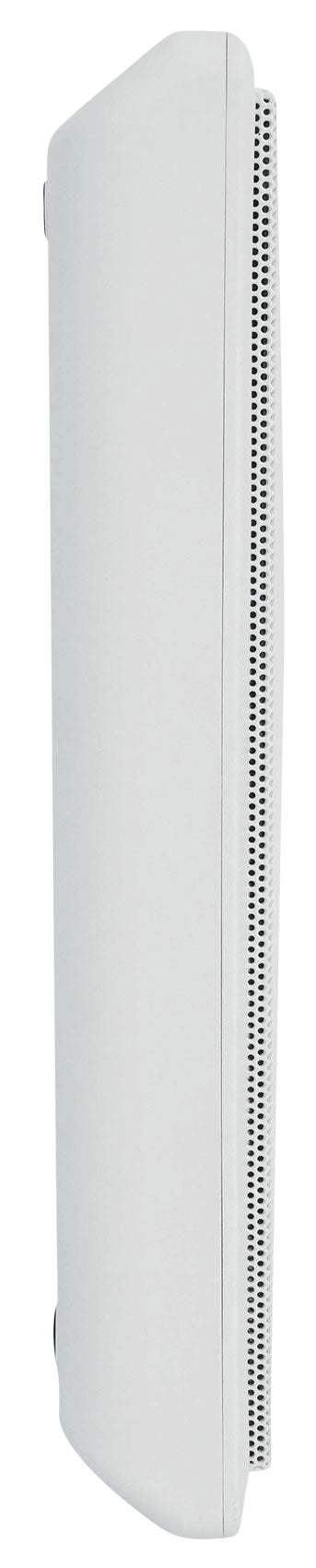

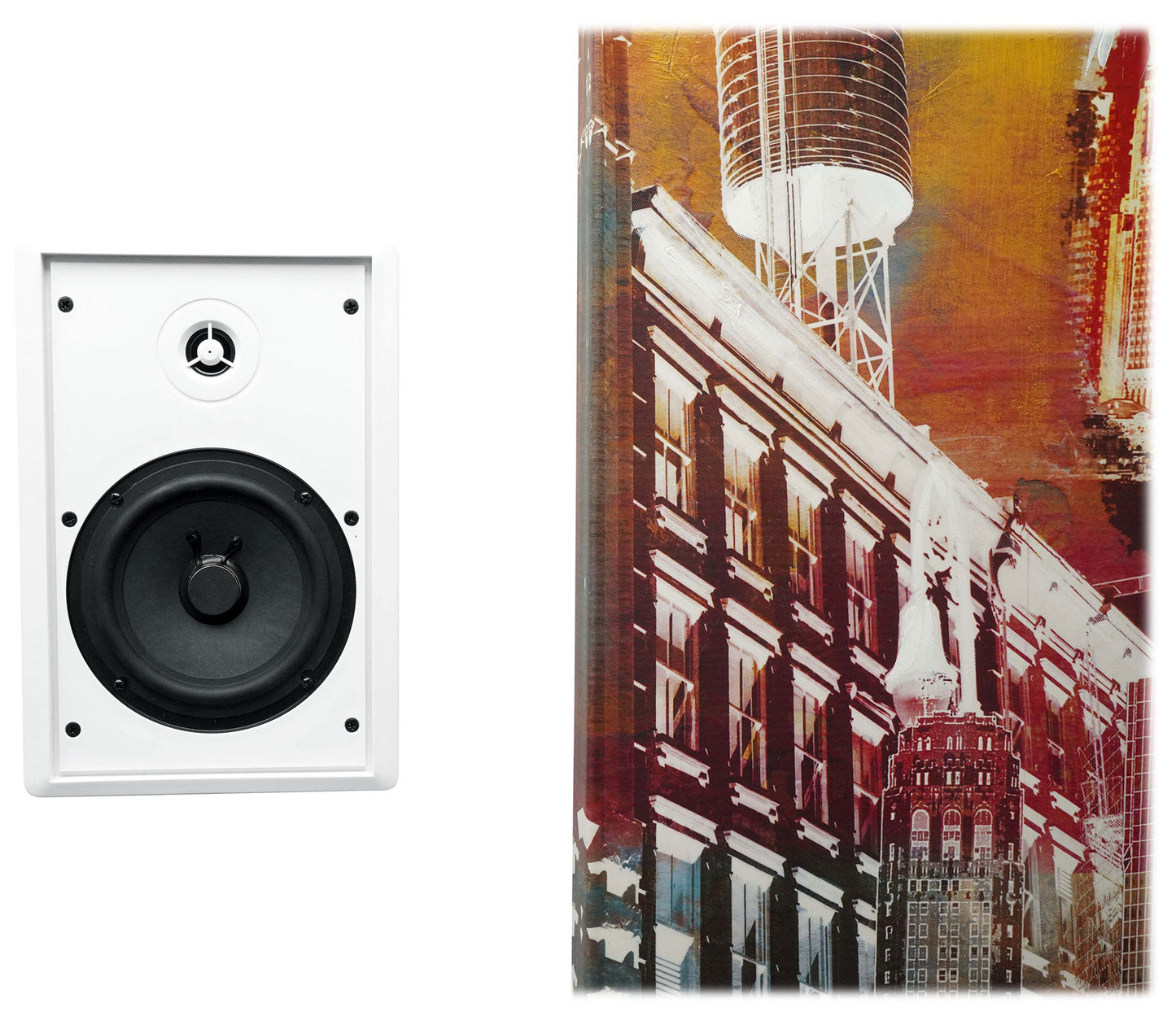

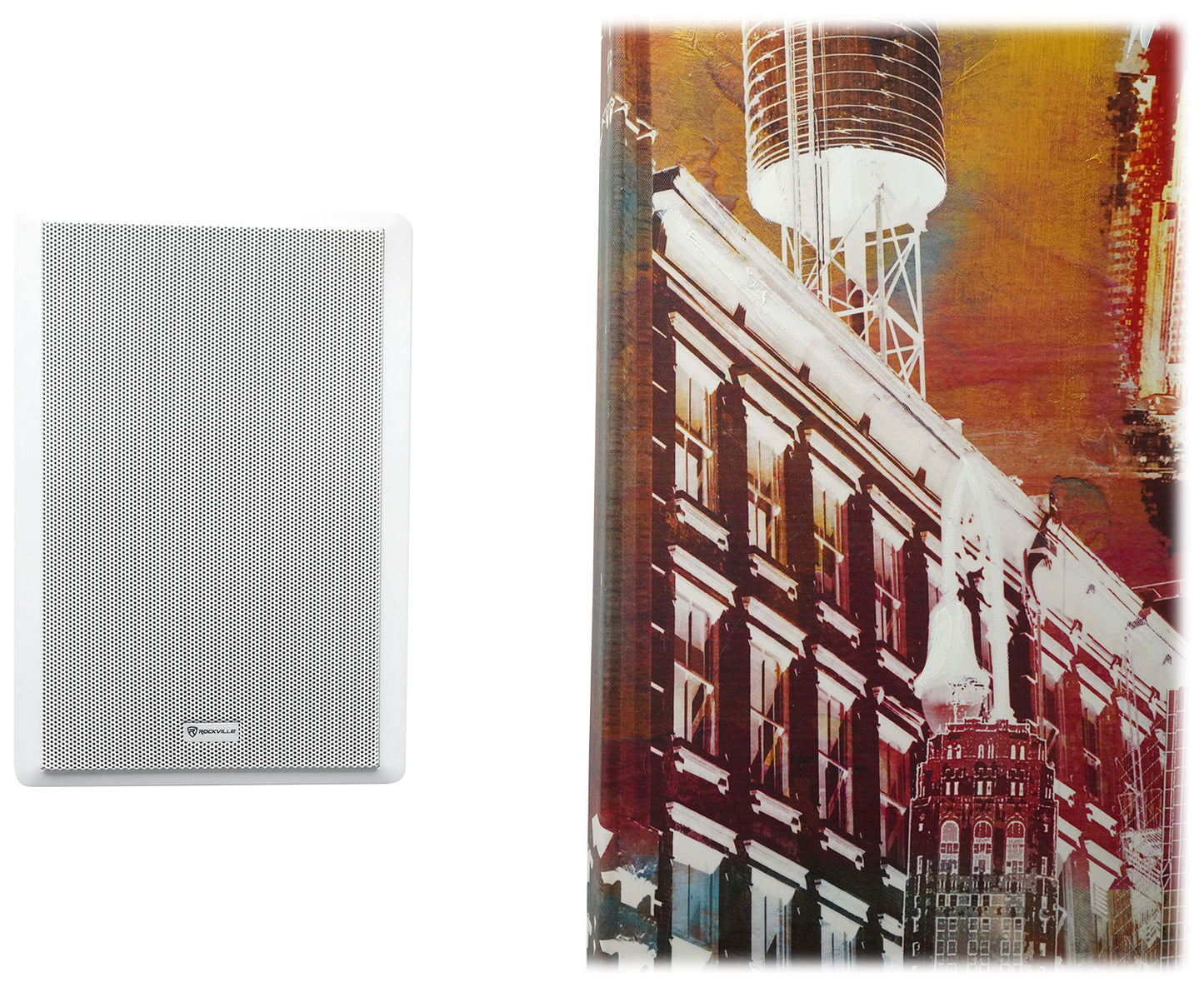

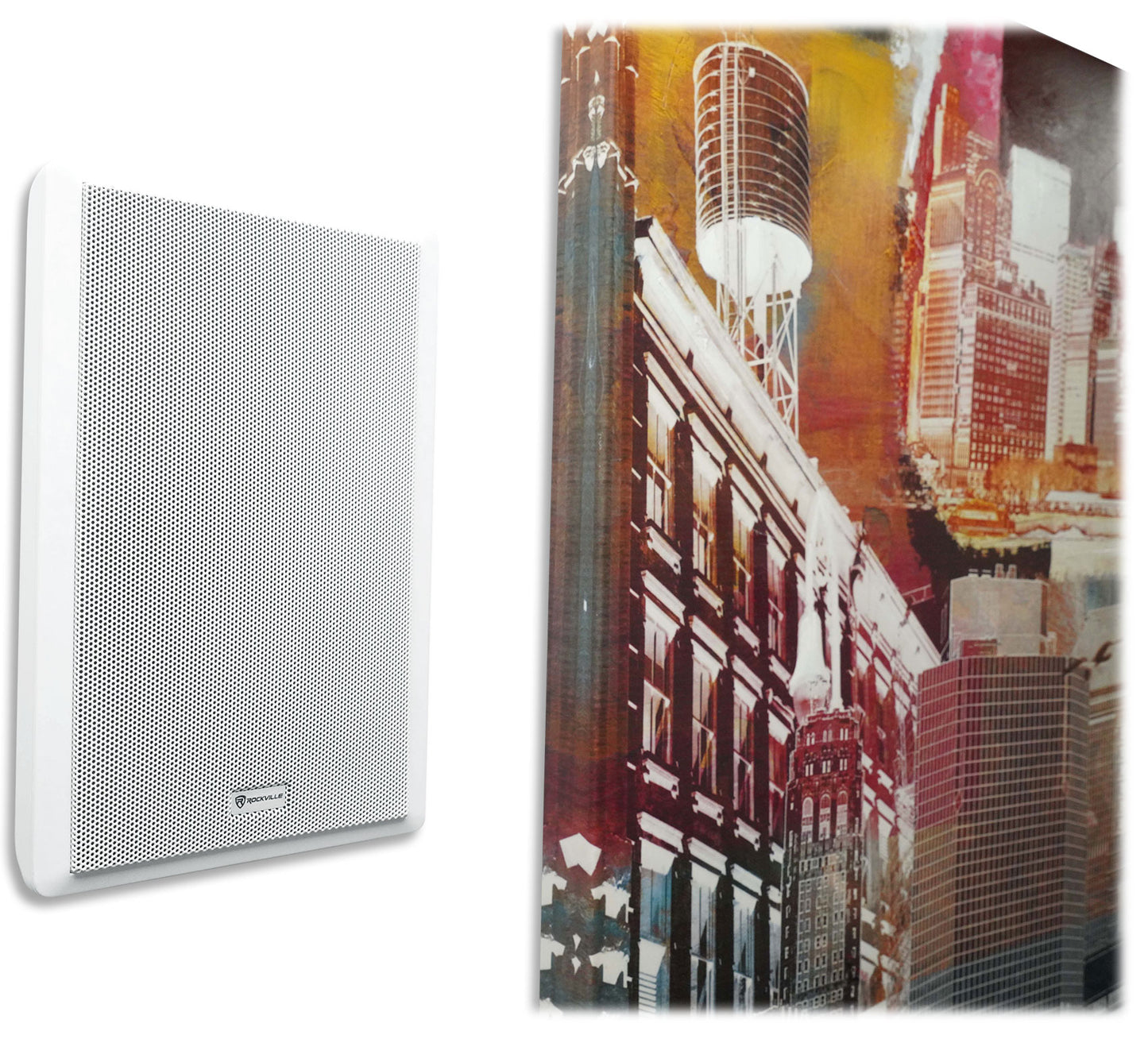

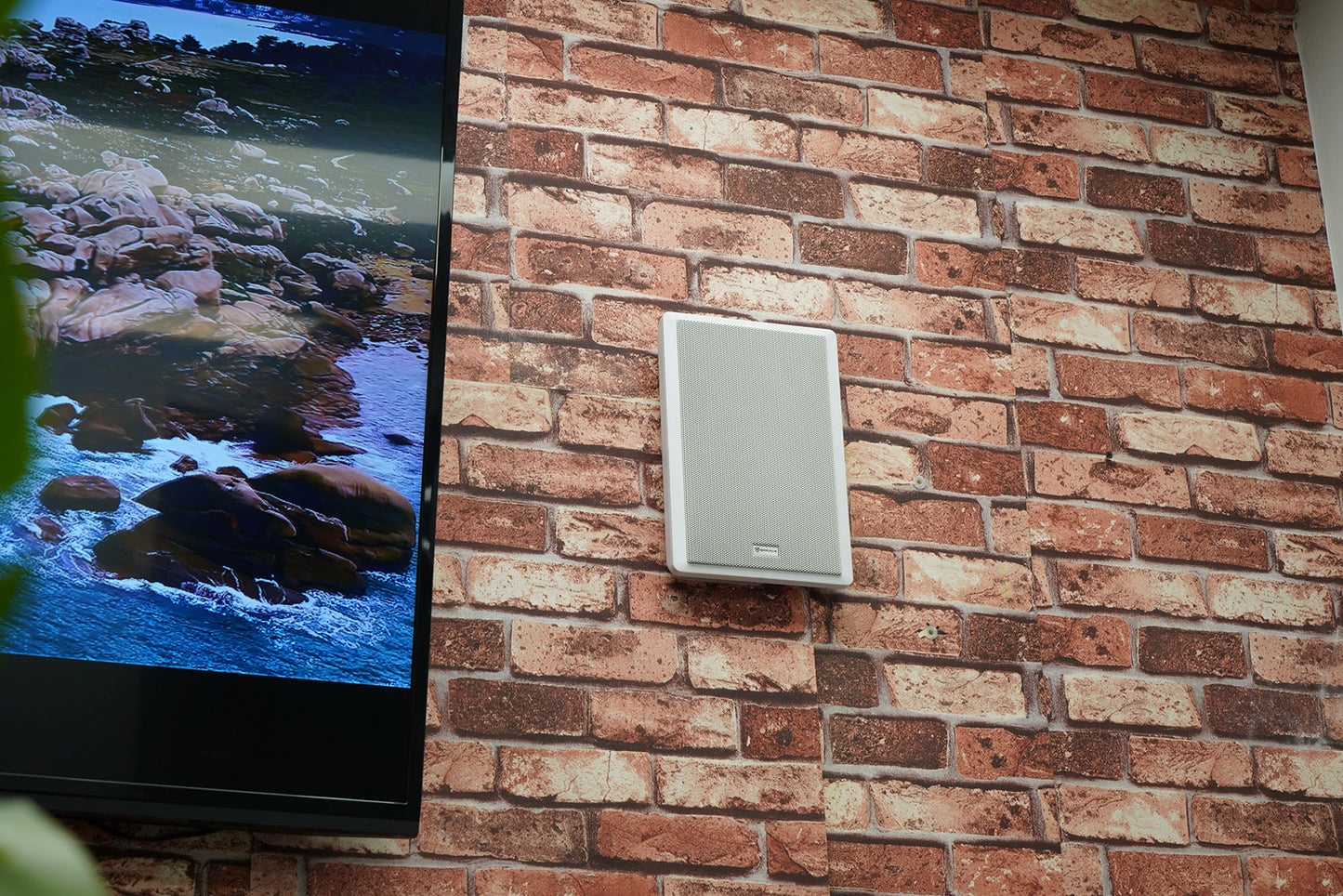

The Rockville Rock Slim 70W is the commercial 70 volt version of our super popular Rockslim series of speakers. These speakers feature the slimmest design available on the market along with the easiest installation. They will enhance the décor of any store, restaurant, hotel, or other commercial space. With the included bracket which is molded into the speaker, installation is easier than hanging a picture. The Recessed spring-loaded wire terminals and the molded speaker wire grooves seamlessly hide all the wires behind the speaker.
What is 70 volt ?
70 volt systems are the number one choice for applications where you want to
install many speakers. With 70 volt there are a lot of advantages over 8-ohm
systems. One of the main advantages is the simplicity of the wiring as well as
how easy it is to match up speakers with the amplifier. For example, you can buy
one 70V amplifier with 150 watts and you can install speakers that total around
120 watts. It does not matter if it is 15 speakers that are 8 watts each or 30
speakers that are tapped at 4 watts each. You always want your 70 volt amp to
have at least 15 to 20% more power than the combined watts your speakers are
tapped at.

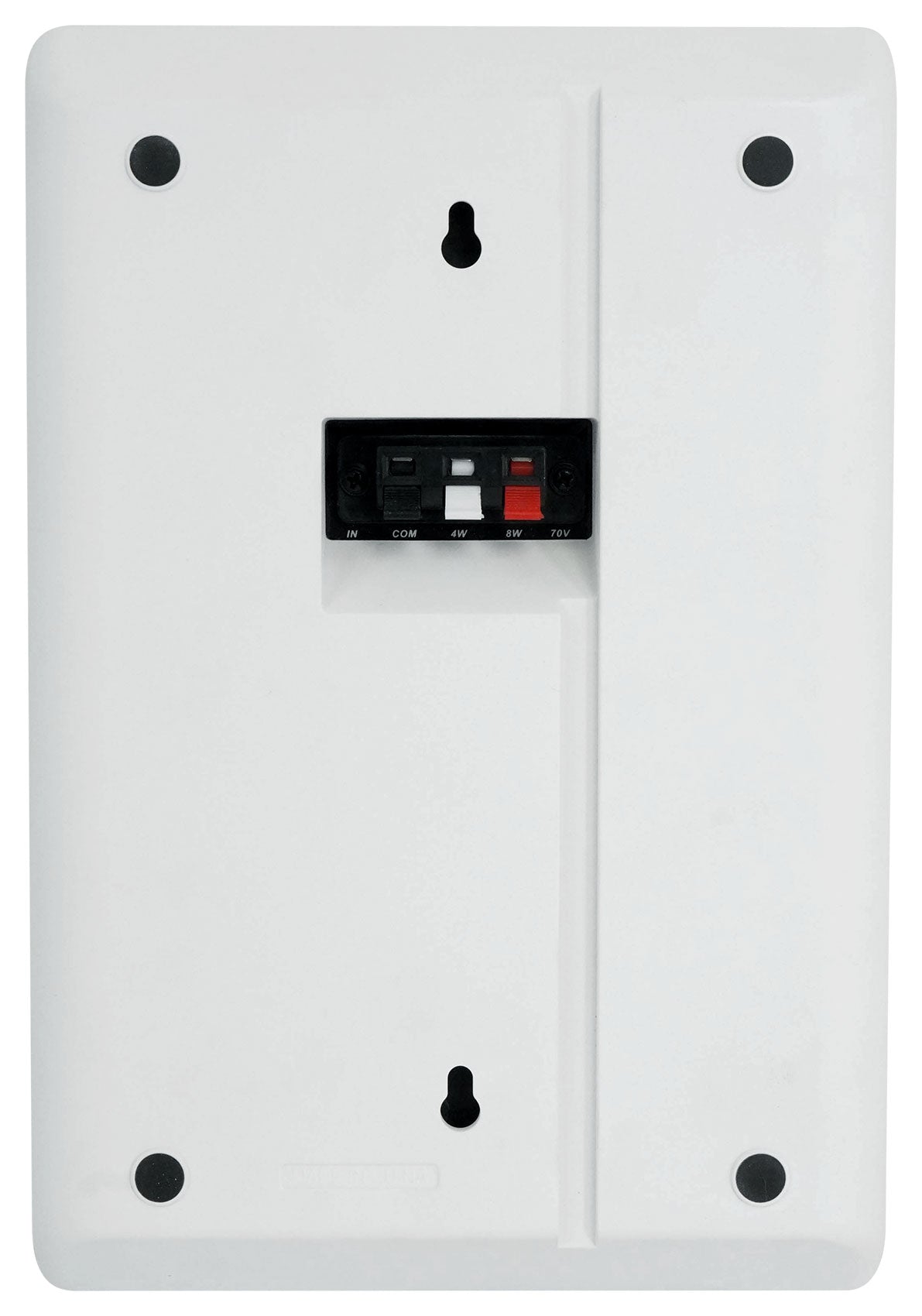

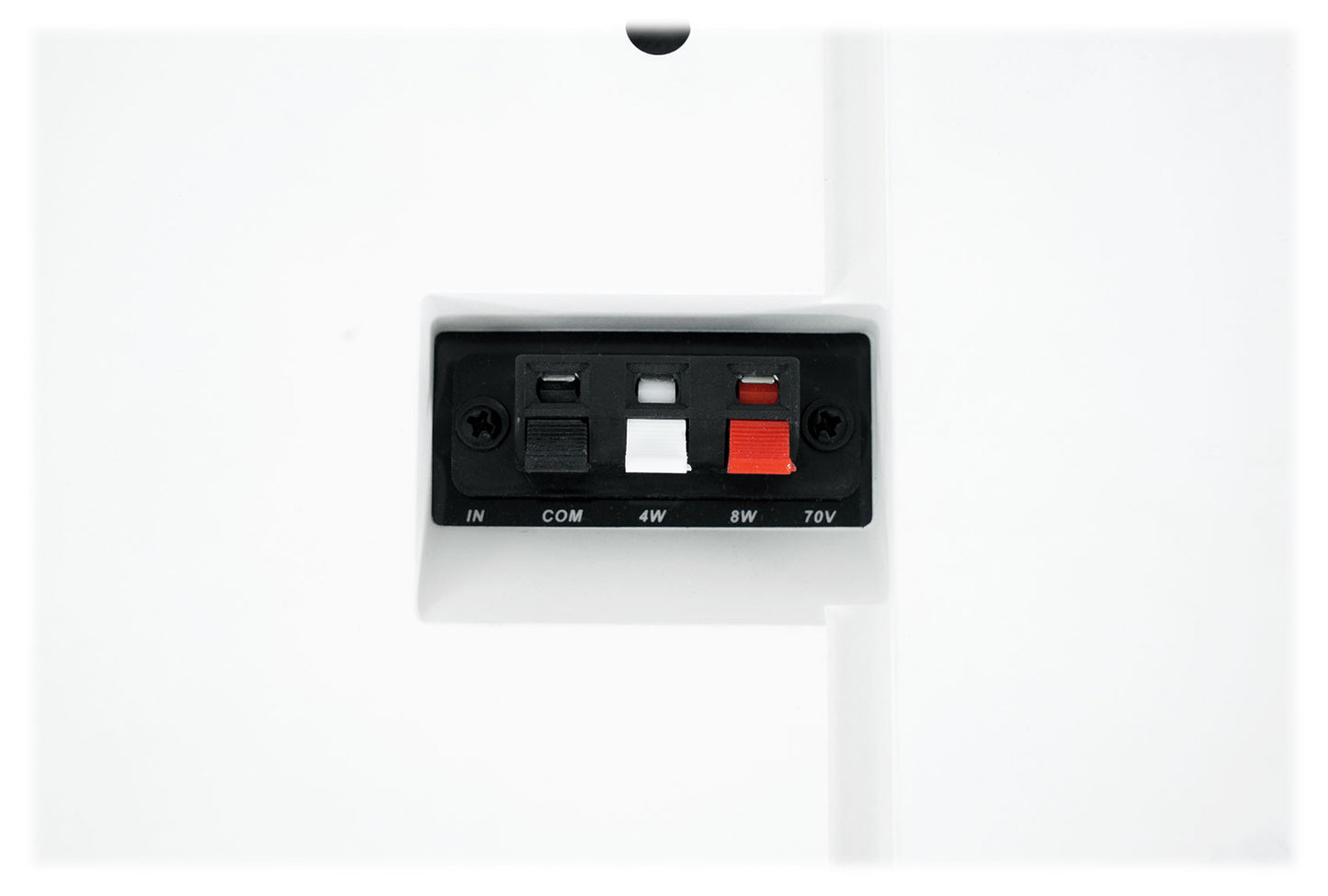

When we say the word tap, we are referring to the rear of these speakers where you can use the 4 watt or 8 watt inputs. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 8 watts, and the hallway or bathroom speakers at 4 watts.
Another great feature with 70 volt is you can mix and match any 70 volt speakers
whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70
volt systems allow you to run very long lines of speaker wire without signal
loss. This is ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers
to the positive 70 volt terminals of the amplifier. The negative terminals on
the speaker simply get wired to the negative terminals on the amp. You do not
have to worry about impedance. The power is constant.
70V Power Options:
Features:
Authorized JBL Dealer!
Description of 8128:
8-inch, Full-Range,
In-Ceiling Loudspeaker
The 8128 is a 8-inch, full-range, cost-effective loudspeaker for commercial
applications. The 8128 features high-fidelity performance in an easy to install
package. The system’s high sensitivity drivers deliver maximum sound levels
using minimal amplifier power. With its contemporary grill design, 70V/100V taps
and an open-back design, the 8100 series brings elegance and performance to
basic commercial sound systems, or any application not requiring a back can for
installation.
Features:
- (4) JBL 8128 8" Full Range 70V/100V 6 Watt Commercial Ceiling Speakers for Restaurant/Bar/Cafe
- Component: 8" Full-Range Driver
- Frequency Range: 50 Hz – 16 kHz
- Sensitivity: 97 dB
- Coverage: 90° Conical
- 70V/100V Taps: 6W, 3W, 1.5W (0.75W at 70V only)
- Termination: Bare Wires
- Clear, High-Fidelity Performance
- Dog-ears for easy Blind Mount Installations
- High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency
- 6W Transformer for use of 70V / 100V Distributed Lines
- Included Accessories: Sculpted Grille
- Product Dimensions (Diameter x Depth): 11.3" x 4.1" inches
- Product Weight: 3.0 Lbs.
- UPC:
- 613816414932
