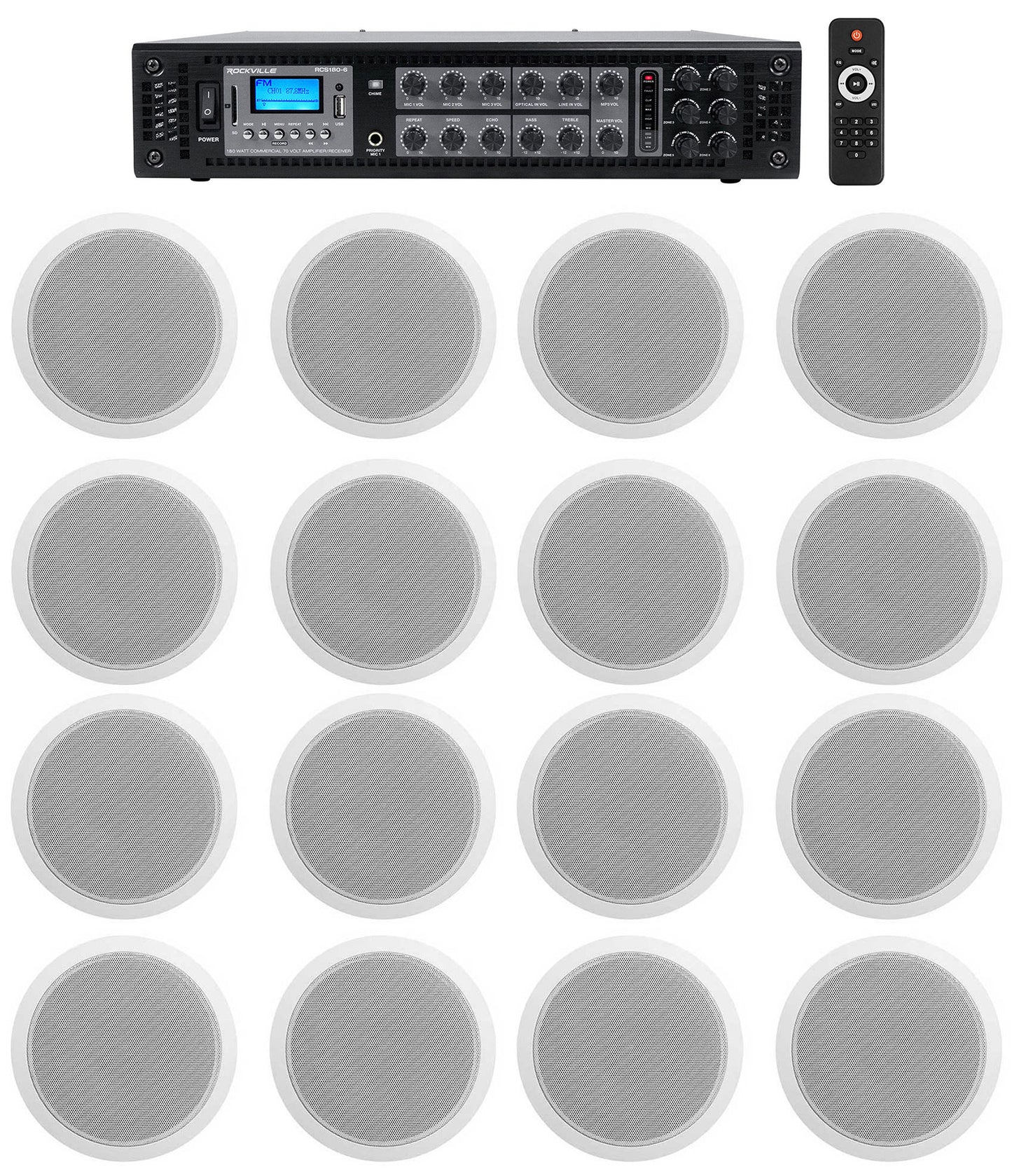

Package Includes:
- (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth
- (16) Rockville CCL6T White 70V 6" Commercial Ceiling Speakers 4 Restaurant/Office
How to Set up Your RCS Series of Amplifiers:
Video of RCS180-6:
Includes:
- Amplifier
- Remote
- Rack mount ears
- Power Cable
- FM Radio antenna
- Owner’s manual
- Warranty
Description:

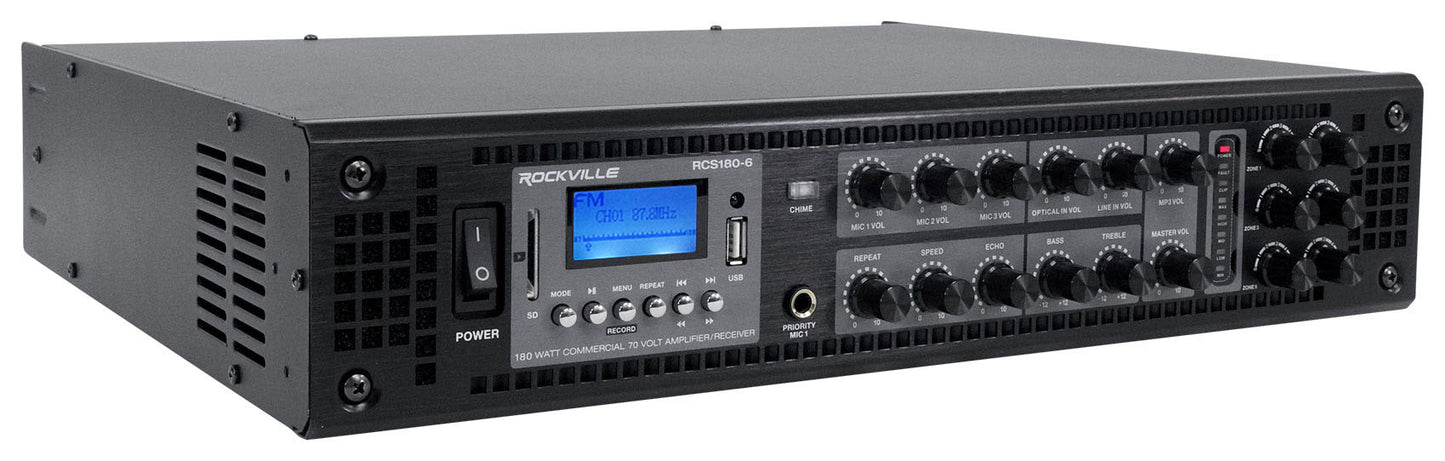

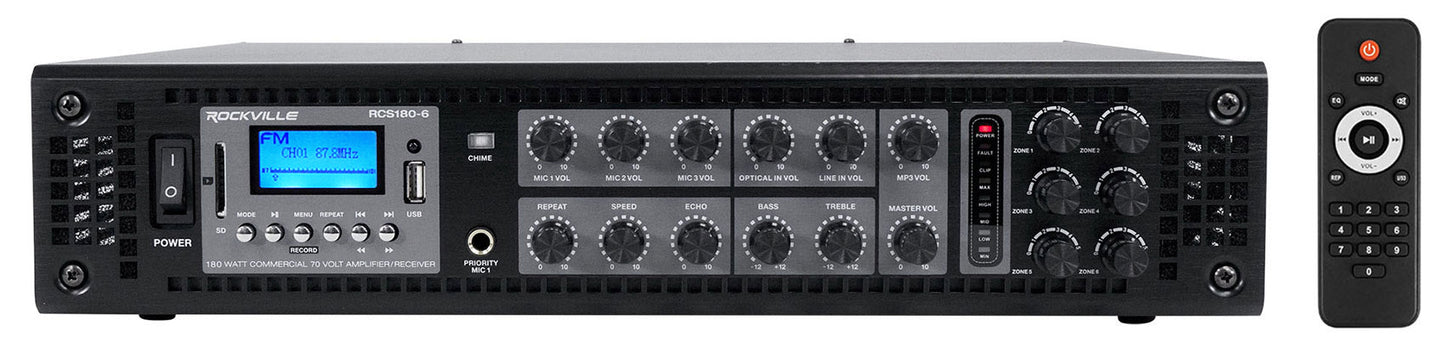

Rockville is proud to introduce our new RCS series of products. The RCS180-6 is a 180 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Café/Lounge/School/Conference room or any other setting where many speakers are needed.
This model offers 180 watts at 70 volt and you can either use the binding posts for single zone applications or use the speaker wire outputs and split the power up to 6 zones. (Do not exceed 100 watts on a single zone). Each zone can have an unlimited amount of speakers wired in parallel. You can also split the 180 watts into 6 zones as you please. For example you can put 25 watts to each of the 6 zones or 50 watts to 2 zones and 12 watts to each of the remaining zones. Simply put, if the total watts are under 180 then you are OK. (Most professionals recommend you not exceed 80% of the amp power. We recommend your speakers watts not to be more than 150 total on the speaker taps.
With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements.The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc. This is our new and improved version that now has optical input so you can connect this to a digital source like a television or projector.
Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system.
The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable.
This is our new and improved version with euro-block speaker terminals that make it super easy to install the wires even if the receiver is hidden in a corner. The terminals are detachable and once you connect your speaker wire to the terminal it just clicks into the receiver.
Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. This model makes it a breeze to connect many speakers and multiple external sources. We intentionally use common plugs like RCA and ¼” on our model to make this more universal and user friendly. With our unique design you can feel confident in your DIY ability when installing our commercial system!
What is 70 volt ?
70 volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, with this180 watt / 70 volt amplifier, you can install speakers that total close to 150 watts. It does not matter if it is 10 speakers that are 15 watts each or 25 speakers that are tapped at 5 watts each. You always want your 70 volt amp to have at least 15 or 20% more power than the combined watts your speakers are tapped at. When we say the word tap, what we are referring to are the selectors that many speakers in 70 volt have on them. For example, some speakers might have selectable options of 1.5w, 3w, 5w, 10w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. What this allows for is full customization of your sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 10 watts, the ones in the hallway at 3 watts and the speakers in the bathrooms at 1.5 watts. Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.
70 volt systems allow you to run very long lines of speaker wire without signal loss. This makes it ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.
If you want an easy to use feature-rich 70 volt amplifier with a ton of power and 6 zones the Rockville RCS180-6 is your best choice!
Applications:
- Restaurant
- Bar
- Café
- School
- Lounge
- Home (Multi-zone, Multi-room)
- Office
- Warehouse
Features:
- Rockville RCS180-6350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
- Capable of 70 volt, 100 volt, 8ohm, and 4 ohm
- 70/100 volt RMS Power: 184 Watts
- 4-16 ohm binding post speaker output
- 6-Zones of speaker outputs - each zone has a separate volume control
- 70 and 100 volt binding post outputs for single zone playback of all 180 watts
- Built in Bluetooth audio streaming
- FM radio tuner
- USB input to play audio stored on a thumb drive (32gb max)
- SD card slot to play music stored on an SD Card (32gb max)
- Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
- Echo control for the mic inputs with speed and repeat adjustments
- Built in clipping limiter to protect the amp and speakers
- BASS and Treble control
- Detachable euro-block speaker output terminals for easy installation
- Chime button for making announcements
- Top quality aluminum panel with industrial grade knobs
- 5 segments signal level indication
- Built in cooling system keeps component cool at all times

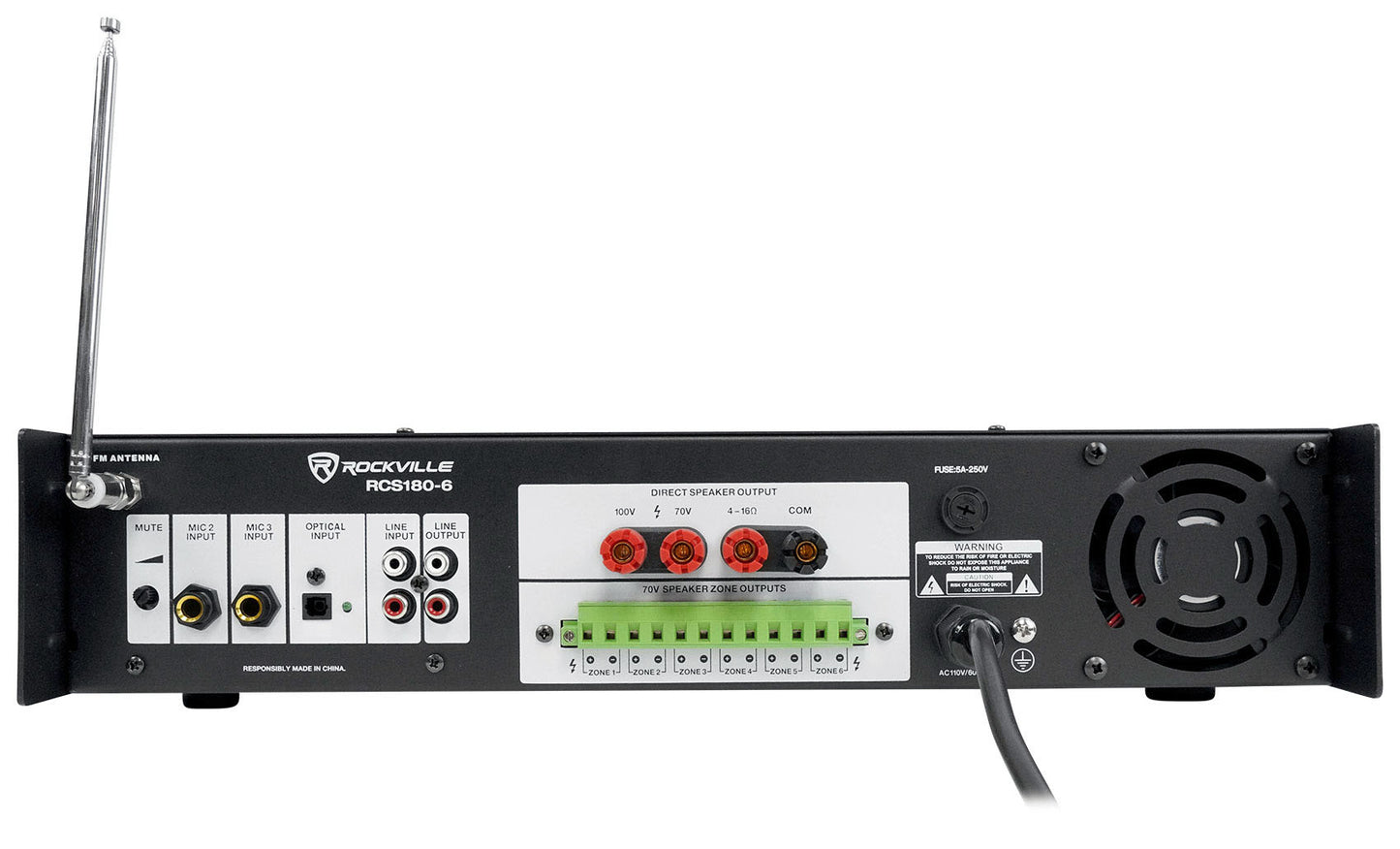

Inputs and Outputs:
- (2) Sets RCA AUX inputs
- (3) Mic inputs
- RCA Line output
- Optical input
- Detachable euro-block speaker output terminals for easy installation
- 100V speaker red positive speaker output terminal
- 70V speaker red positive speaker output terminal
- 8 Ohm red positive speaker output terminal
- Shared negative speaker output terminal
Specifications:
- Power Requirements: 120V / 50-60Hz
- A Weighted Signal to Noise (@ 1W) -68.1dBA
- A Weighted Signal to Noise (referenced to full 4 ohm power) -89.2dBA
- Frequency response: 49Hz to 14.9 Khz
- Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.89%
- Weight: 22.7lbs
- Dimensions: 19” x 16” x 4” inches
How to Set up Your CCL6T:
Video of CCL6T :
Price Includes (16) Speakers!
There is a white, green, and red terminal on the speaker so you can easily
select how many watts you want the speaker to get from the amp.
70V Power Options:
- 10w (White)
- 5w (Green)
- 2.5w (Red)

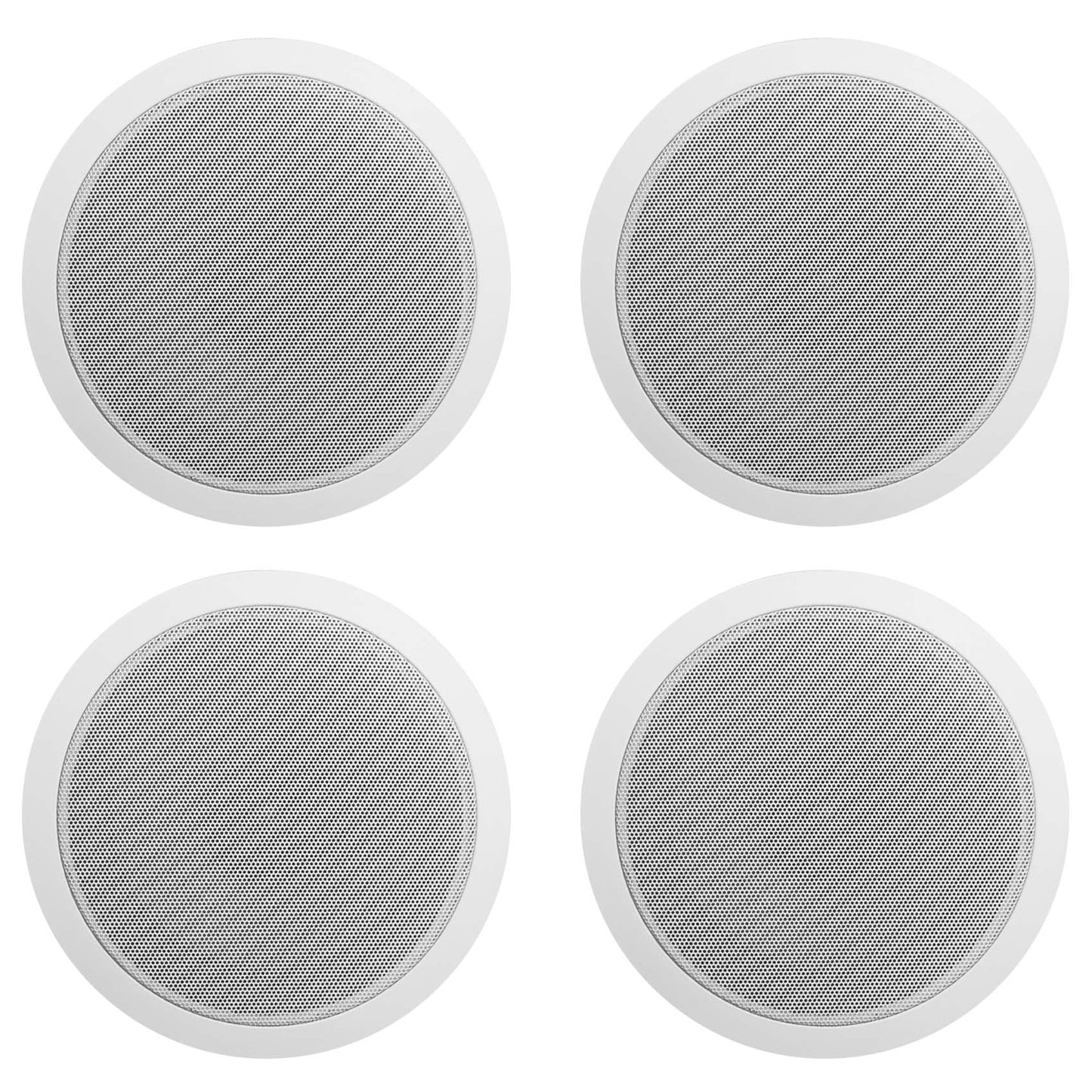

Description of CCL6T WHITE:
The Rockville CCL6T is a great choice for any restaurant, office, school, retail
store, or any other commercial application. This speaker will sound great for
all your PA announcements, and background music. There are 3 inputs so you can
select how loud you want them to play.
What is 70 volt ?
70 volt systems are the number one choice for applications where you want to
install many speakers. With 70 volt there are a lot of advantages over 8-ohm
systems. One of the main advantages is the simplicity of the wiring as well as
how easy it is to match up speakers with the amplifier. For example, you can buy
one 70V amplifier with 150 watts and you can install speakers that total around
120 watts. It does not matter if it is 12 speakers that are 10 watts each or 24
speakers that are tapped at 5 watts each. You always want your 70 volt amp to
have at least 15 to 20% more power than the combined watts your speakers are
tapped at.
When we say the word tap, we are referring to the rear of these speakers where
you can use the 2.5 watt, 5 watt, or 10 watt inputs. What this does is limit how
many watts the built-in transformer on the speaker will allow the speaker to get
from the amplifier. This gives you full customization over the sound for your
space. In a restaurant for example you can tap your dining room speakers at 5
watts, and the hallway or bathroom speakers at 2.5 watts.
Another great feature with 70 volt is you can mix and match any 70 volt speakers
whether they are ceiling speakers, wall mounted speakers, subwoofers, etc. 70
volt systems allow you to run very long lines of speaker wire without signal
loss. This is ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers
to the positive 70 volt terminals of the amplifier. The negative terminals on
the speaker simply get wired to the negative terminals on the amp. You do not
have to worry about impedance. The power is constant.
Features:
- (16) Rockville CCL6T White 70V 6" Commercial Ceiling Speakers
- Perfect for PA announcements or background music or any other applications where you want many speakers installed
- Transformer with terminals for 10 Watts, 5 watts, or 2.5 watts
- Perfect for restaurants, offices, schoolsm churches, buildings, and other commercial applications
- Double Paper Cone
- 0.75” voice coil
- 3.5 oz ferrite magnet
- 6” Woofer
- Fireproof screw terminal block
- High Quality Spring Loaded Push Terminals
- Paintable Flush Mount Grills
- Frequency Response: 80Hz – 15KHz
- Sensitivity: 88dB @ 1w / 1m
- Impedance: 1K, 2K, 4K ohms
- Mounting Depth: 2.36”
- Cut-out Diameter: 6.5”
- Color: White (paintable)
