Package Includes:
- (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth
- (3) Pair of JBL LCT 81C/T Commercial Drop Ceiling Tile Speakers For Office/Restaurant/Cafe
- (1) Pair of JBL CONTROL 16C/T 6.5" 30w 70v Commercial Ceiling Speakers For Restaurant/Bar
- (6) JBL CSS8018 8" Commercial 70V/100V 10 Watt Ceiling Speaker 4 Restaurant, Etc
How to Set up Your RCS Series of Amplifiers:
Video of RCS180-6:
Includes:
- Amplifier
- Remote
- Rack mount ears
- Power Cable
- FM Radio antenna
- Owner’s manual
- Warranty
Description:
Rockville is proud to introduce our new RCS series of products. The RCS180-6 is a 180 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Café/Lounge/School/Conference room or any other setting where many speakers are needed.
This model offers 180 watts at 70 volt and you can either use the binding posts for single zone applications or use the speaker wire outputs and split the power up to 6 zones. (Do not exceed 100 watts on a single zone). Each zone can have an unlimited amount of speakers wired in parallel. You can also split the 180 watts into 6 zones as you please. For example you can put 25 watts to each of the 6 zones or 50 watts to 2 zones and 12 watts to each of the remaining zones. Simply put, if the total watts are under 180 then you are OK. (Most professionals recommend you not exceed 80% of the amp power. We recommend your speakers watts not to be more than 150 total on the speaker taps.
With 3 mic inputs; each with echo control, you can use this amplifier for announcements, speeches or even Karaoke night! This model also includes a chime button so you can create a chime sound before making announcements.The RCS series features Bluetooth audio streaming so you can play your favorite music or access a playlist right from your phone! This amp also features both USB and SD inputs allowing you to play audio stored on a USB thumb drive or SD Card. There are also 2-line inputs that allow you to plug in another audio device such as an MP3 player, CD player, TV, etc. This is our new and improved version that now has optical input so you can connect this to a digital source like a television or projector.
Individual volume knobs for each of the 6 zones and volume knobs for each of the 3 mic inputs gives you full control over your system.
The built-in clipping limiter function protects your speakers and the amp from overheating. For further protection there is also a cooling system in this amplifier that will keep the components running cool making the amplifier durable and reliable.
This is our new and improved version with euro-block speaker terminals that make it super easy to install the wires even if the receiver is hidden in a corner. The terminals are detachable and once you connect your speaker wire to the terminal it just clicks into the receiver.
Our goal with the RCS series was to make it possible for anyone to install 70 volt systems on their own without spending thousands of dollars on a contractor. This model makes it a breeze to connect many speakers and multiple external sources. We intentionally use common plugs like RCA and ¼” on our model to make this more universal and user friendly. With our unique design you can feel confident in your DIY ability when installing our commercial system!
What is 70 volt ?
What is 70 volt ?
70 volt systems are the number one choice for any application where you want to install multiple speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, with this180 watt / 70 volt amplifier, you can install speakers that total close to 150 watts. It does not matter if it is 10 speakers that are 15 watts each or 25 speakers that are tapped at 5 watts each. You always want your 70 volt amp to have at least 15 or 20% more power than the combined watts your speakers are tapped at. When we say the word tap, what we are referring to are the selectors that many speakers in 70 volt have on them. For example, some speakers might have selectable options of 1.5w, 3w, 5w, 10w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. What this allows for is full customization of your sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 10 watts, the ones in the hallway at 3 watts and the speakers in the bathrooms at 1.5 watts. Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.
70 volt systems allow you to run very long lines of speaker wire without signal loss. This makes it ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.
If you want an easy to use feature-rich 70 volt amplifier with a ton of power and 6 zones the Rockville RCS180-6 is your best choice!
Applications:
- Restaurant
- Bar
- Café
- School
- Lounge
- Home (Multi-zone, Multi-room)
- Office
- Warehouse
Features:
- Rockville RCS180-6350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver
- Capable of 70 volt, 100 volt, 8ohm, and 4 ohm
- 70/100 volt RMS Power: 184 Watts
- 4-16 ohm binding post speaker output
- 6-Zones of speaker outputs - each zone has a separate volume control
- 70 and 100 volt binding post outputs for single zone playback of all 180 watts
- Built in Bluetooth audio streaming
- FM radio tuner
- USB input to play audio stored on a thumb drive (32gb max)
- SD card slot to play music stored on an SD Card (32gb max)
- Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3
- Echo control for the mic inputs with speed and repeat adjustments
- Built in clipping limiter to protect the amp and speakers
- BASS and Treble control
- Detachable euro-block speaker output terminals for easy installation
- Chime button for making announcements
- Top quality aluminum panel with industrial grade knobs
- 5 segments signal level indication
- Built in cooling system keeps component cool at all times

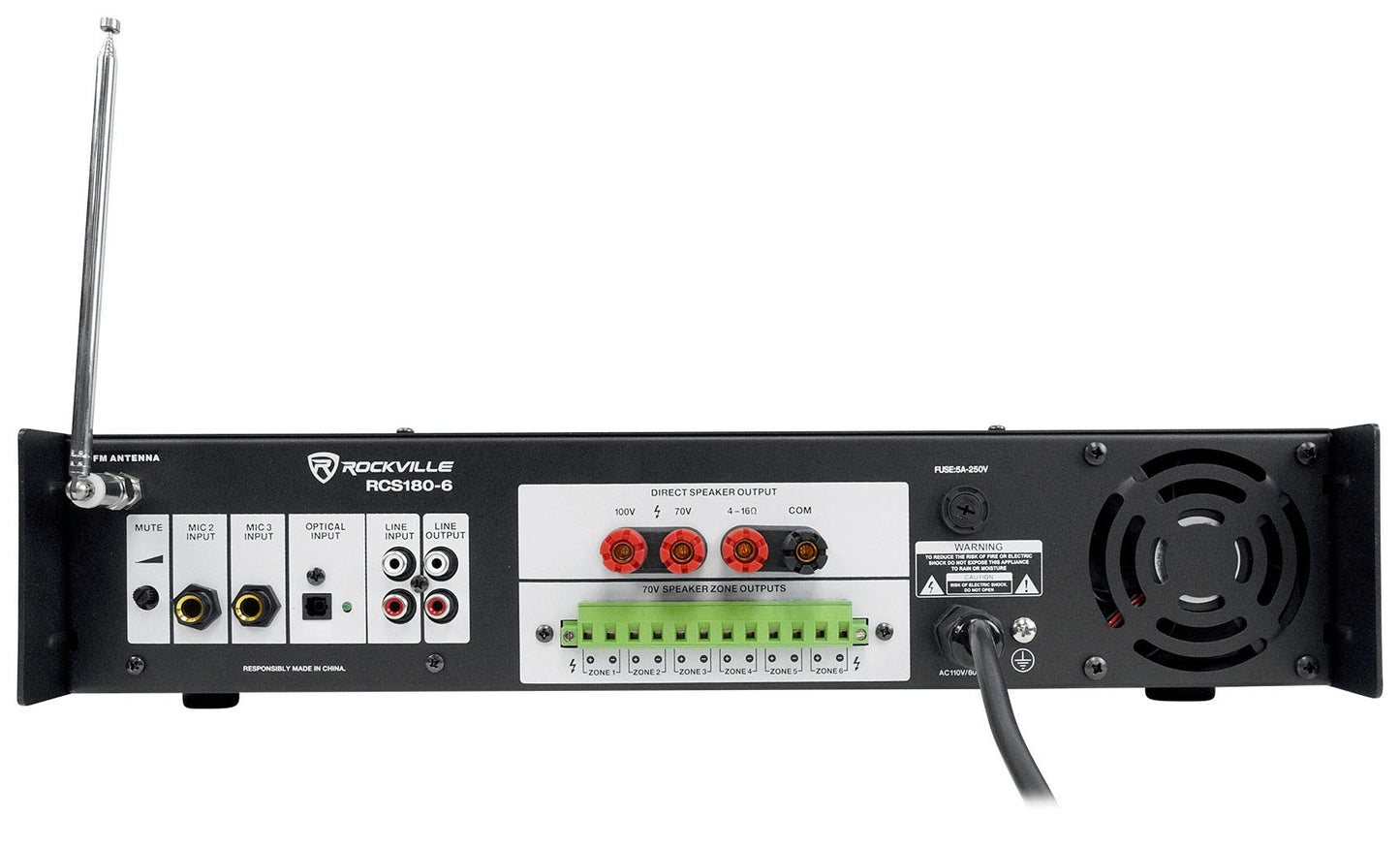

Inputs and Outputs:
- (2) Sets RCA AUX inputs
- (3) Mic inputs
- RCA Line output
- Optical input
- Detachable euro-block speaker output terminals for easy installation
- 100V speaker red positive speaker output terminal
- 70V speaker red positive speaker output terminal
- 8 Ohm red positive speaker output terminal
- Shared negative speaker output terminal
Specifications:
- Power Requirements: 120V / 50-60Hz
- A Weighted Signal to Noise (@ 1W) -68.1dBA
- A Weighted Signal to Noise (referenced to full 4 ohm power) -89.2dBA
- Frequency response: 49Hz to 14.9 Khz
- Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.89%
- Weight: 22.7lbs
- Dimensions: 19” x 16” x 4” inches
?
Description of LCT 81C/T?:
Low-Profile Lay-In 2' x 2' Ceiling Tile
Loudspeaker with 200 mm (8 in) Driver
LCT 81C/T is a full-range ceiling speaker designed to lay into a 2 ft x 2 ft
US-style suspended grid ceiling, with no cutting of ceiling tiles required,
making for an easy and cost-effective installation with a minimum of mess. The
low profile depth of only 100 mm (4 in) allows the speaker to fit in locations
where deeper loudspeakers do not.
This loudspeaker is designed to provide excellent performance for paging and
light-to-medium music in a wide variety of applications, including education
classrooms, business music systems, retail stores, music/paging systems,
airports, reception/waiting rooms, lounges, courtrooms, meeting rooms, and more.
The very high sensitivity of 96 dB provides maximum sound level, even at low tap
settings. LCT 81C/T contains a 200 mm (8 in) dual-cone driver with a very high
96 dB sensitivity. The driver features a 25 mm (1 in) diameter voice coil with a
Kapton coil-former and high-temperature wire for better power dissipation and
long-term reliability. The speaker's built-in 10 Watt transformer provides
versatility by allowing use on 100V or 70V distributed loudspeaker lines, as
well as at 8 ohms (low impedance) for driving directly from a low impedance
power amplifier. Adjusting is convenient via a rotary switch on the side of the
rear enclosure. Two safety seismic attachment tabs are provided for securing to
ceiling deck, plus 4 holes are provided -- one in each corner. The color of the
perforated grille is white.
Features:
- High efficiency 200 mm (8 in) dual-cone driver.
- Easy lay-in installation into 2' x 2' US-style suspended grid ceilings. No cutting of ceiling tiles is necessary.
- Perforated metal grille included.
- Combined 70V/100V and low impedance direct operation.
- 20 Watts at 8O (low-impedance) direct setting.
- 10 Watt multi-tap at 70V/100V with taps at 10W, 5W, 2.5W (and 1.3W for 70V only)
- Very low-profile at just 103 mm (4.1 in) deep, to fit into ceilings that are shallow or that contain obstructions.
- Easy bare-wire connection in protected compartment. Wire entrance from either top or side via knock-out.
- Very high 96 dB sensitivity turns power from small amplifiers into maximum sound level for listeners.
- Designed for high speech intelligibility.
- 100° coverage pattern (conical).
- UL1480A and UL2043 certifications for use in ceiling plenum spaces.
Specifications:
- Transducer: High-efficiency 200 mm (8 inch) dual-cone driver with 25 mm (1 in) diameter voice coil, Kapton coil former, and high-temperature voice coil wire.
- Frequency Range (-10 dB): 100 Hz – 16 kHz
- Nominal Sensitivity: 96 dB
- Nominal Coverage Angle: 100° conical coverage (ave. 1 kHz - 4 kHz)
- Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average, 108 dB peak (at 8O setting)
- Nominal Impedance: 8 ohms (in Direct/Thru 8O setting)
- Transformer Taps: 10 W, 5 W, 2.5 W @ 70V or 100V (plus 1.3 W @ 70V only)
- Recommended Protective High Pass: 90 Hz high-pass (24 dB/oct) for 8O direct or any 70V or 100V tap setting
- Power Capacity (at low-Z):
- 40 Watts Continuous Program Power
- 20 Watts Continuous Pink Noise
- Input Connector: Bare wire inside protected in touch-proof wiring compartment.
- Tap Selector: Rotary switch accessible from side of backcan
- Materials: Steel rear enclosure, front baffle, and perforated grille
- Grille Color: White
- Safety Agency: Suitable for use in air handling spaces certified per UL1480A, Speakers for Commercial and Professional Use; UL2043, Standard for Fire Test for Heat and Visible Smoke Release for Discrete Products Installed in Air Handling Spaces; NFPA90 & NFPA70; S7232/UL Listed, Signaling Speaker.
- Dimensions: 607 x 607 x 103 mm (23.9 x 23.9 x 4.1 in)
- Net Weight: 7.1 kg (15.7 lbs)
- Shipping Weight: 8.3kg ea; 16.5 kg per pair-pack (18.3 lbs ea; 36.4 lbs per pair-pack)
- Ceiling Cutout Size: No cutout required. Speaker drops into ceiling grid
- Suspension / Safety-Seismic: Attachment Points Two tabs on back baffle, plus 4 holes in corners
Authorized JBL Dealer
Description of CONTROL 16C/T:
Two-Way 6.5" Coaxial Ceiling Loudspeaker
Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.
Features:
- (2) JBL CONTROL 16C/T 6.5" 30 Watt 70v Commercial Ceiling Speakers For Restaurant/Bar
- Components:
- 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
- 19 mm (0.75 in) soft-dome liquid-cooled tweeter
- Blind-mount backcan for quick and easy install
- Dual conduit/cable clamps
- Combined 70V/100V and low impedance direct operation
- 50 Watts at 8O nominal setting
- 30W multi-tap at 70V/100V
- 62 Hz – 20 kHz bandwidth with wide 110° coverage
- High 91 dB sensitivity for high maximum SPL
- Color: White
Specifications:
- Frequency Range (-10 dB): 62 Hz – 20 kHz
- Power Capacity (at low-Z)
- 100 Watts Continuous Program Power
- 50 Watts Continuous Pink Noise
- Transformer Taps: 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
- Frequency Response (±3 dB): 96 Hz – 15 kHz
- Nominal Sensitivity: 91 dB
- Nominal Coverage Angle: 110° conical coverage
- Directivity Factor (Q): 7.8
- Directivity Index (DI): 8.2 dB
- Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average, 116 dB peak
- Nominal Impedance: 8 ohms (in direct/bypass 8O setting)
- Crossover Network
- 12 dB/oct (2nd order) low-pass to LF driver,
- 12 dB/oct (2nd order) high-pass to HF driver
- LF Driver: 165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
- HF Driver: 19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
- Input Connector: Removable locking 4-pin connector with screw-down terminals.
Max wire size 12 AWG (2.5 mm2) - Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
- Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
- Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated
steel backcan - Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
- Dimensions
- 253 mm diameter x 225 mm depth from back of baffle
- (10.0 in diameter x 8.8 in depth)
- Ceiling Cutout Size: Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout
template included) - Ceiling Thickness Range: Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
- Safety Seismic Attachment: One point, top surface
- Net Weight: 3.4 kg (7.4 lbs, one speaker)
- Shipping Weight: 11.2 kg (24.7 lbs, pair in master carton)
- Included Accessories: C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
- Optional Accessories
- MTC-26NC new construction bracket
- MTC-26MR mud-ring construction bracket
- MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers)
- MTC-48TR tile rail for 1200 mm (4 ft) tile spans
Advantages of purchasing from an authorized seller:
· Best prices - We sell all JBL Products at wholesale prices
· Full Factory Warranty
· Detailed information of all products
· Lifetime Customer Service by JBL product Experts
· Guaranteed legitimate and authentic merchandise
Please note: If you purchase JBL from an un-authorized seller then you are taking a big risk. You will not have any manufacturers warranty, and there is no guarantee that the item is authentic, brand new, or even working.
Authorized JBL Dealer!
Description of CSS8018:
200 mm (8 in) Commercial
Series Ceiling Speakers
JBL’s Commercial Series Ceiling Speakers provide excellent performance for
paging and background music applications. High sensitivity across the product
line provides maximum sound level, even at low tap settings.
Features:
- JBL CSS8018 8" Commercial 70V/100V 10 Watt Ceiling Speaker for Restaurant, Stores, etc.
- Driver Size: 200mm (8") Dual Cone
- Driver Sensitivity: 97 dB
- Frequency Range: 50 Hz - 17 kHz
- Coverage: 110°
- Driver Continuous Power Handling: 20 Watts
- 100V Taps: 10W, 5W, 2.5W
- 70V Taps: 10W, 5W, 2.5W, 1.3W
- 25V Taps: 10W, 5W, 2.5W, 1.3W
- Transformer Insertion Loss: 1.5 dB Maximum
- Transformer Connection: Bare Wire
- Motor Mass: 283 g (10 oz.)
- Matching CSS Backcan: CSS-BB8
- Bolt Mounting Circle to Backcan: 4 points on 11.25" diameter
- Cutout Diameter (Open-Back): 216 mm (8.5")
- Cutout Diameter (In CSS-BB Backcan): 295 mm (11.7")
- Depth (Behind Grille): 73 mm (2.9")
- Grille Diameter: 327 mm (12.9")
- Product Weight: 3.5 Lbs.
1 YEAR
- UPC:
- 613815696339
