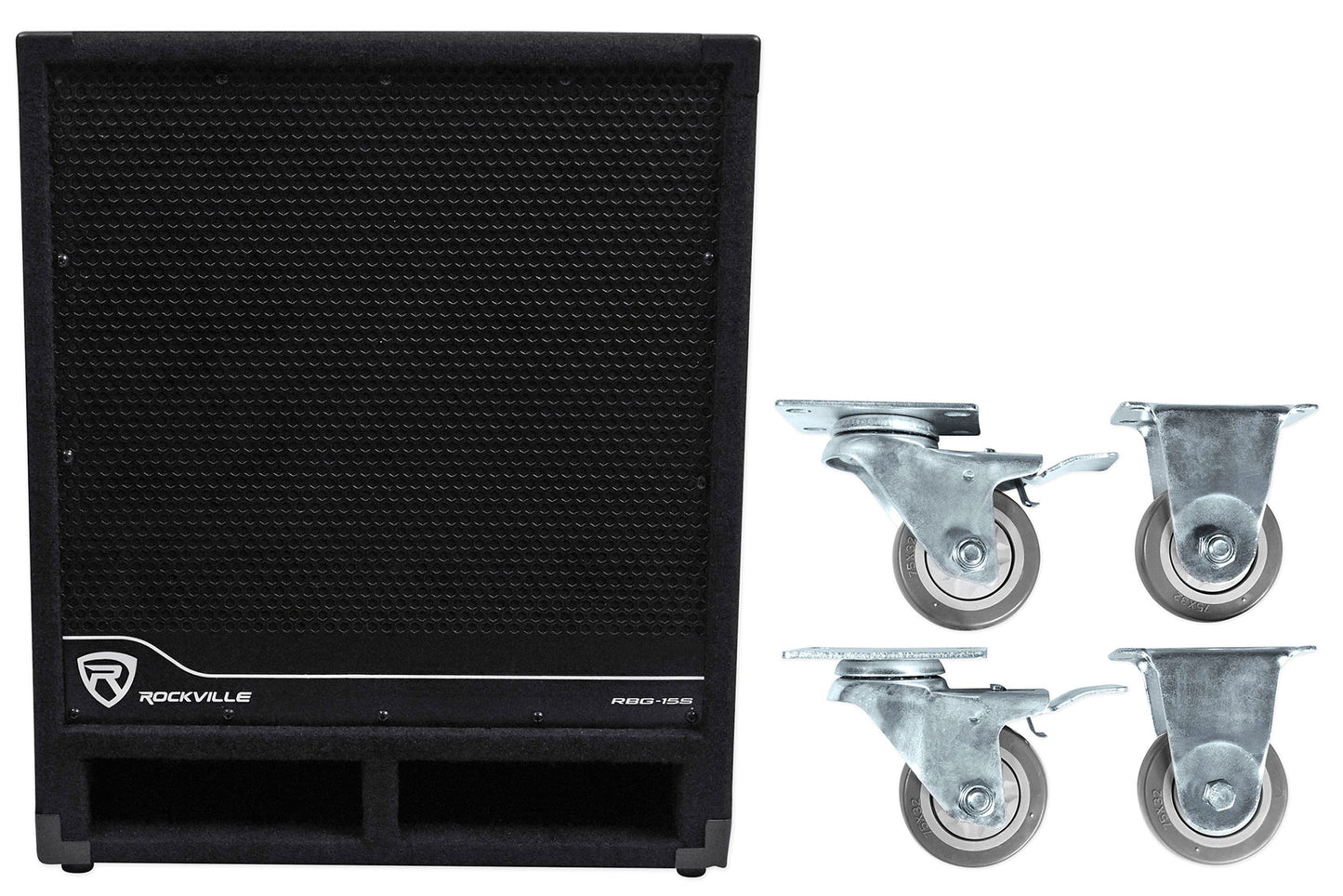

Package Includes:

• (1) Rockville RBG15S 15" 1600w Active Powered PA Subwoofer w/DSP + Limiter Pro/DJ
• (1) Rockville WH4 3" Locking+Swivel Steel Caster Wheels 4 PA DJ Speakers, Subwoofers

---

Rockville Bass Gig Series Active Subwoofers…Built to Blast!

How to Set Up your RBG15S:

Video of RBG15S:

Description of RBG15S:

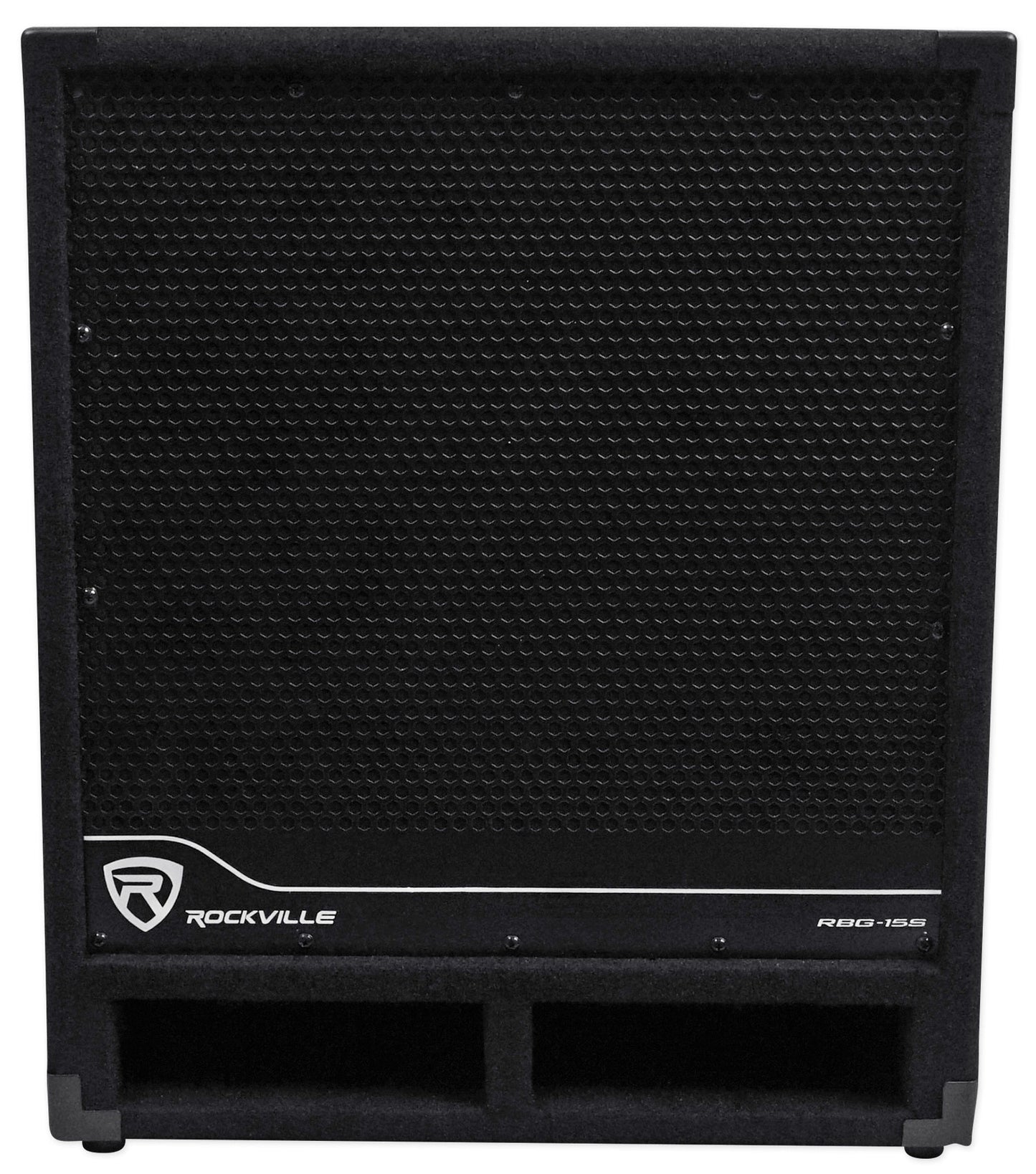

Add serious low end to your gig with the Rockville Bass Gig RBG-15S powered subwoofer. This is an incredible sounding powered sub that features a 15" driver with up to 1600-watts of peak power for tremendous bass that can run all night without stopping. The subwoofer features a high temperature 4-layer 3” voice coil and is set in a 70oz magnet motor structure. The sound quality was just so much better, that we had to make this upgrade. Most brands on the market have smaller coils and lighter magnets. They will not perform or sound as good as the RBG15S. The amplifier features an internal heat sink with a heat sensitive, variable speed, auto turn-on fan cooling system, so even when your music gets HOT – your amp will stay cool.

You can tailor your sound using the built-in DSP (Digital Signal Processor), which allows you to either add extended boost or extended low frequency enhancement. The DSP circuit also controls over-excursion, thermal, and clipping protection which will ensure you can pound your subs hours straight without any damage occurring. This sub is built to last for years and years of use. A 3 position Low Pass crossover filters out the highs to make your system sound its best whatever venue you're in.

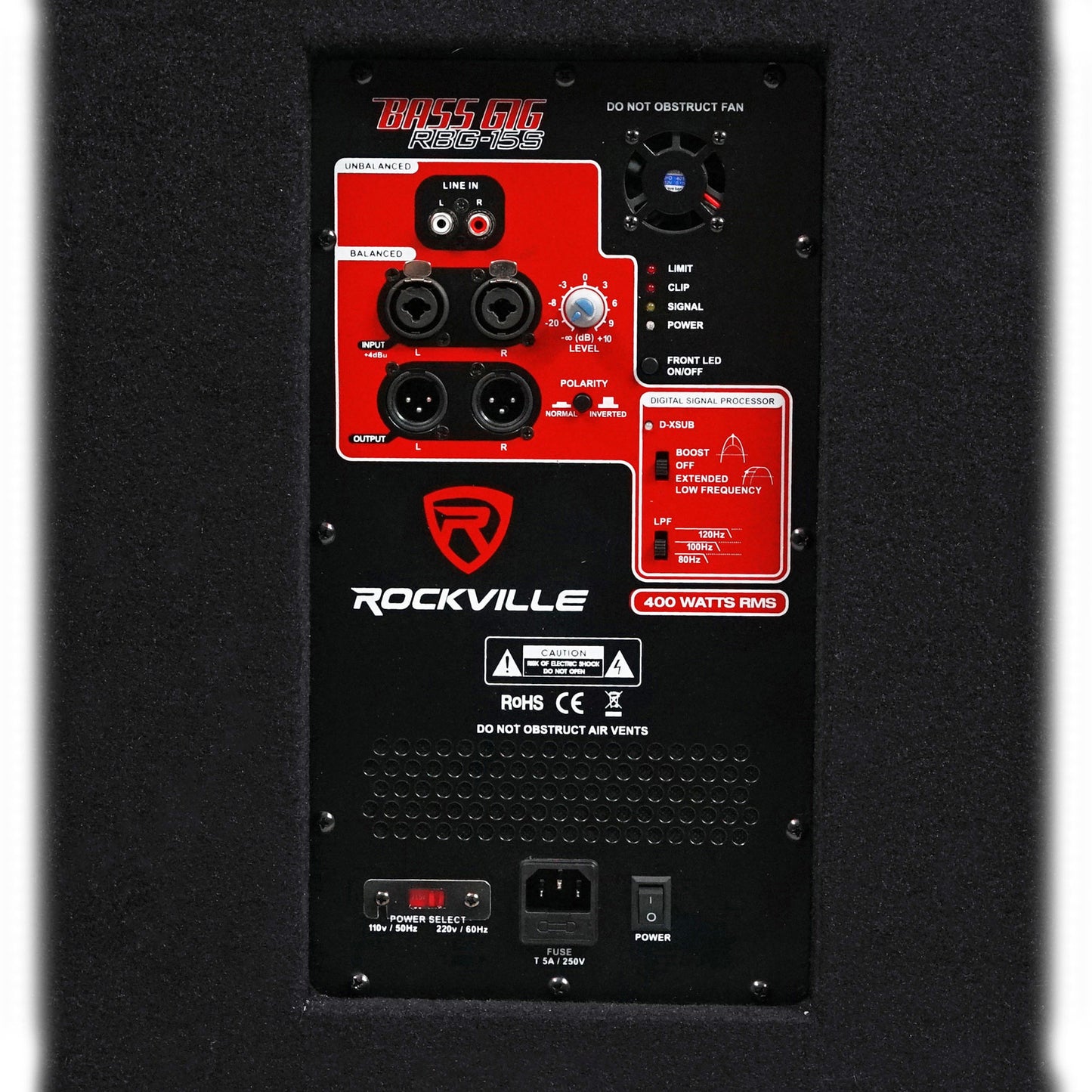

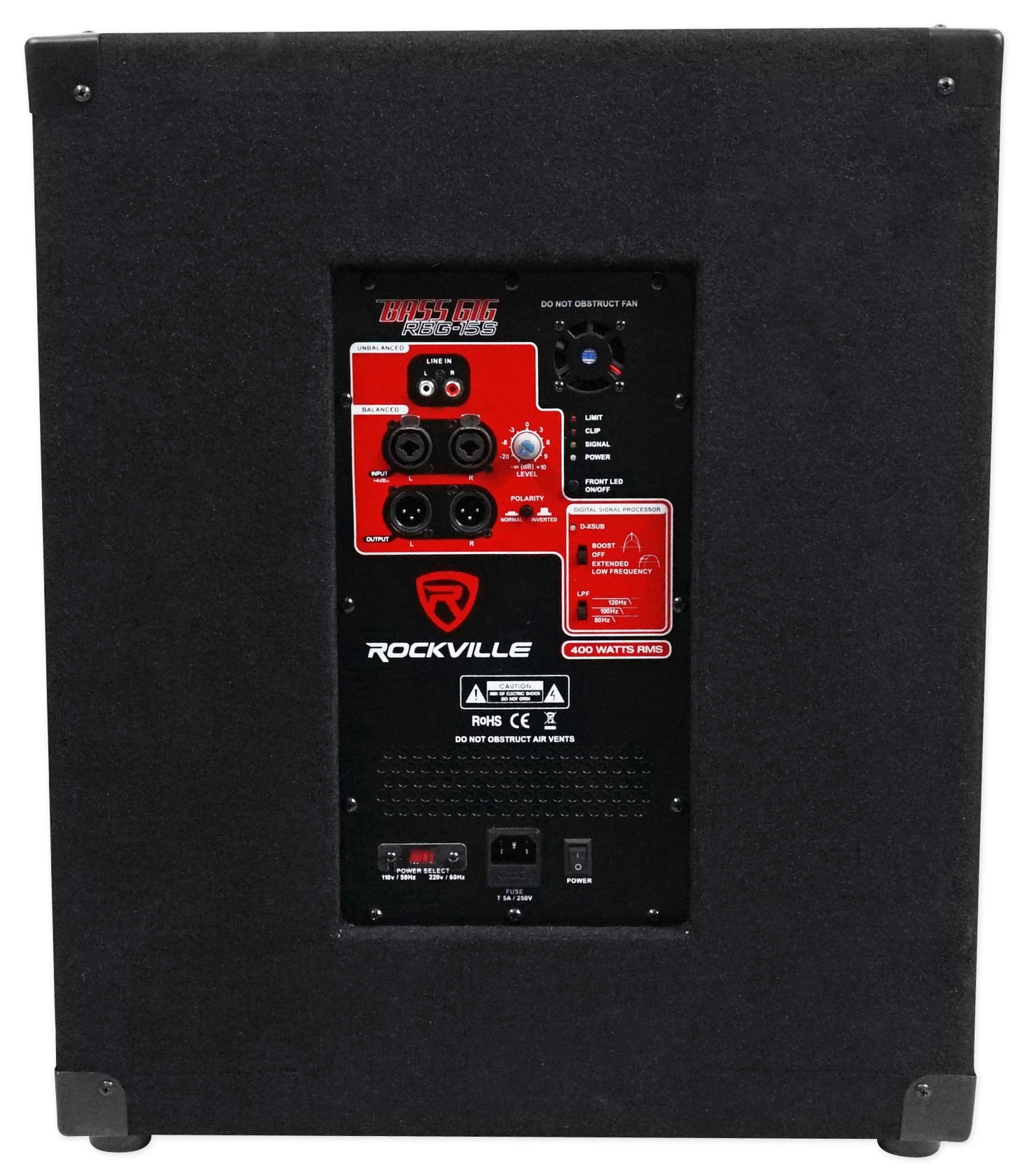

For added convenience and easy set-up, the RBG15S units feature combo XLR – ¼” TRS inputs with Level control and XLR thru puts to secondary units. Just connect your main mix outputs to the subwoofer, and then link your main speakers from the RBG15S! This sub features a heavy-duty pole-socket so you can mount your main speaker on top for easy setup and positioning and carry handles so you can easily transport it. Additional controls include a polarity switch, which allows you to invert the subwoofers polarity when installing the subwoofer away from the main speakers. This allows for near perfect time alignment of the subwoofer low-end frequencies to your main speakers.

Lets talk power for a second. Different brands have unique ways of rating their products. So off brands might just make up crazy peak power ratings and write things like 10,000 watts. Premium brands will generally give you legitimate RMS power ratings. So let me explain our ratings and our thought process. This powered sub is 400 watts RMS rated. This is the true continuous power rating. So if a premium brand such as Yamaha or  Mackie were to build this same subwoofer, this is around the same RMS rating they would rate it at. 800 watts program power is basically a safe number the sub can handle during peak power of the songs but at an average volume level. This is the way some middle-of-the-road brands would rate it. The peak power of 1,600 watts is what the sub can produce for a split second during the loudest point of a song at full volume. I have seen entry level brands write 4000 watts on subs with less than half the power of this one. Our peak rating is actually a legitimate peak rating, however peak ratings are not important and can vary greatly depending on many factors.



Features:

• Rockville RBG15S 15" 1600w Active Powered PA Pro/DJ DSP Subwoofer+Steel Casters
• 400 Watts RMS / 800 Watts Program / 1600 Watts Peak Power

• 15" Woofer with 70oz Magnet and 3” Voice Coil
• Frequency Response: (+/-3dB) 29Hz - 150Hz
• Maximum SPL @ 1w / 1m: 120dB Peak / 115dB Continuous
• DSP Digital Signal Processor with Boost for Extended Low Frequency Control
• Power-On and Signal Input LED Indicators
• Signal Input LED Indicator
• Clip Limiter Circuitry with LED Indicator
• Balanced XLR + TRS input jacks
• Balanced XLR thru/output jacks for parallel connections
• Passive heat sink with heat sensitive variable speed auto turn-on fan  for cooling
• Subwoofer Crossover 80Hz/100hz/120HZ Low Pass
• Subwoofer Level Adjustment
• Subwoofer Phase Control

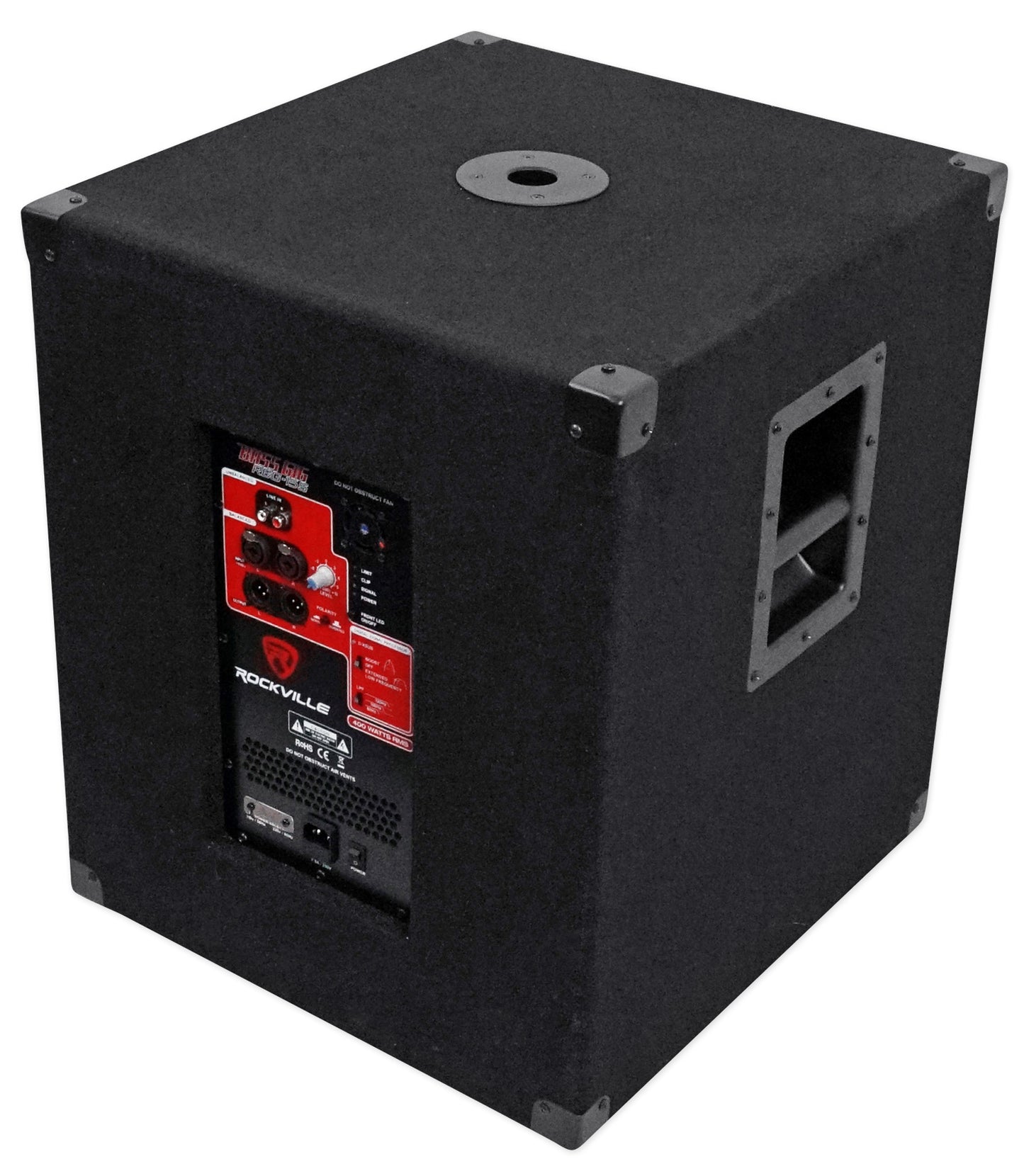

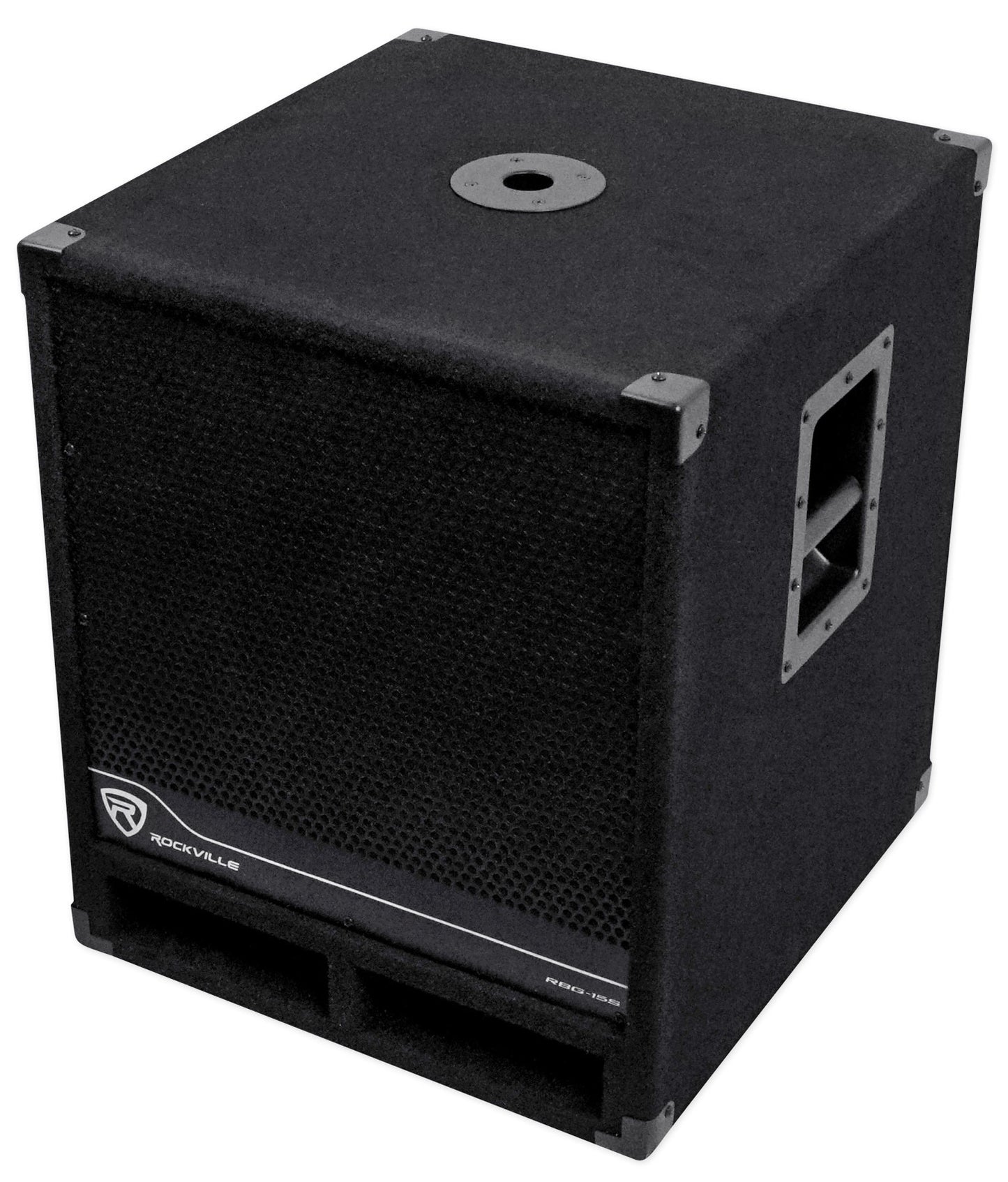

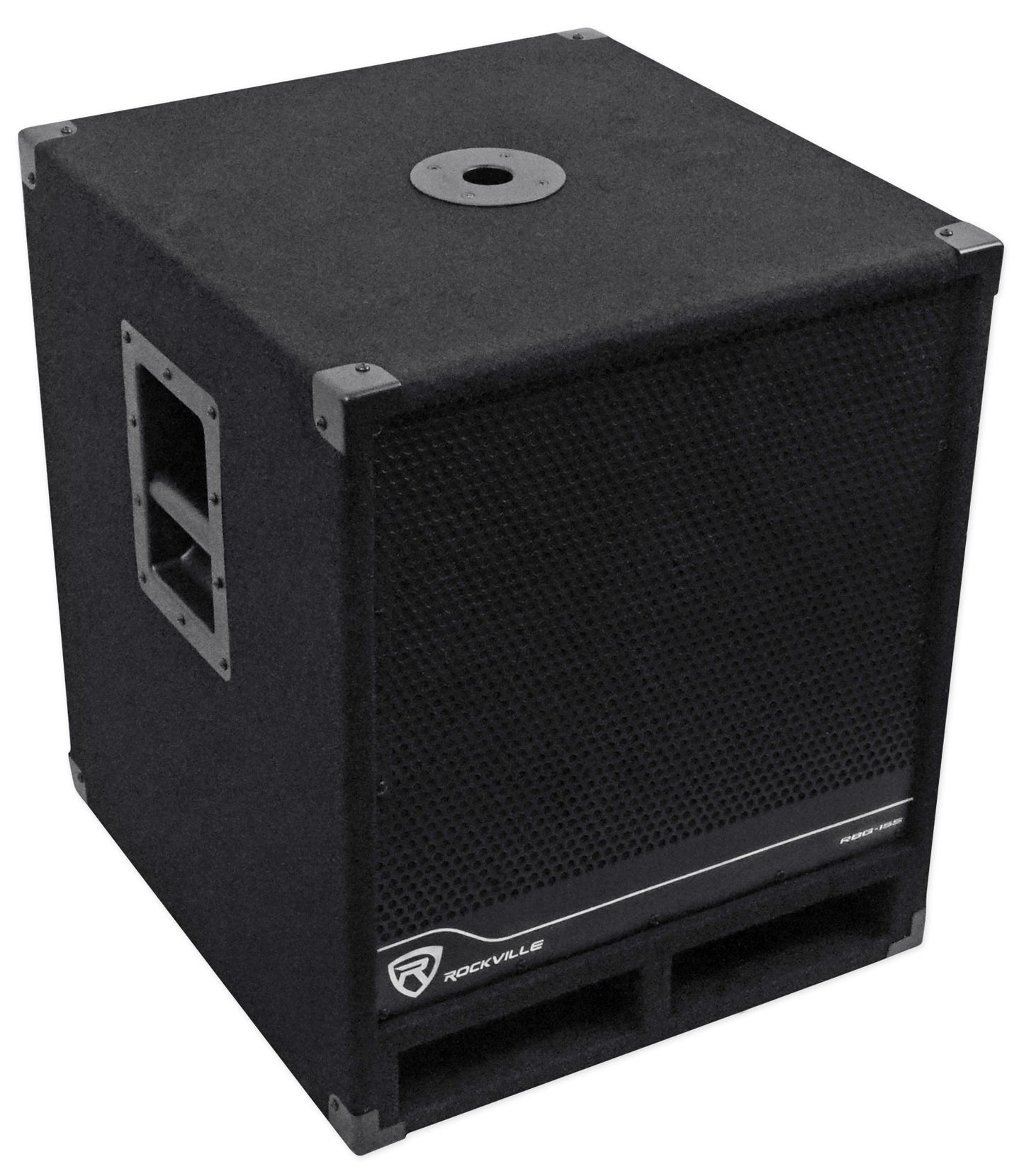

• Built-in pole mount socket
• Built-in carrying handles
• Custom metal grill
• Durable black carpet with black metal corners
• 7-layer Birch 5/8” plywood baffle construction
• Aluminum former voice coils with copper winding

• Dimensions: 23.25" x 20.75" x 19.75"
• Weight: 73Lbs

---

These are universal caster wheels and modifications may be required to install.

Video of WH4:

Description:

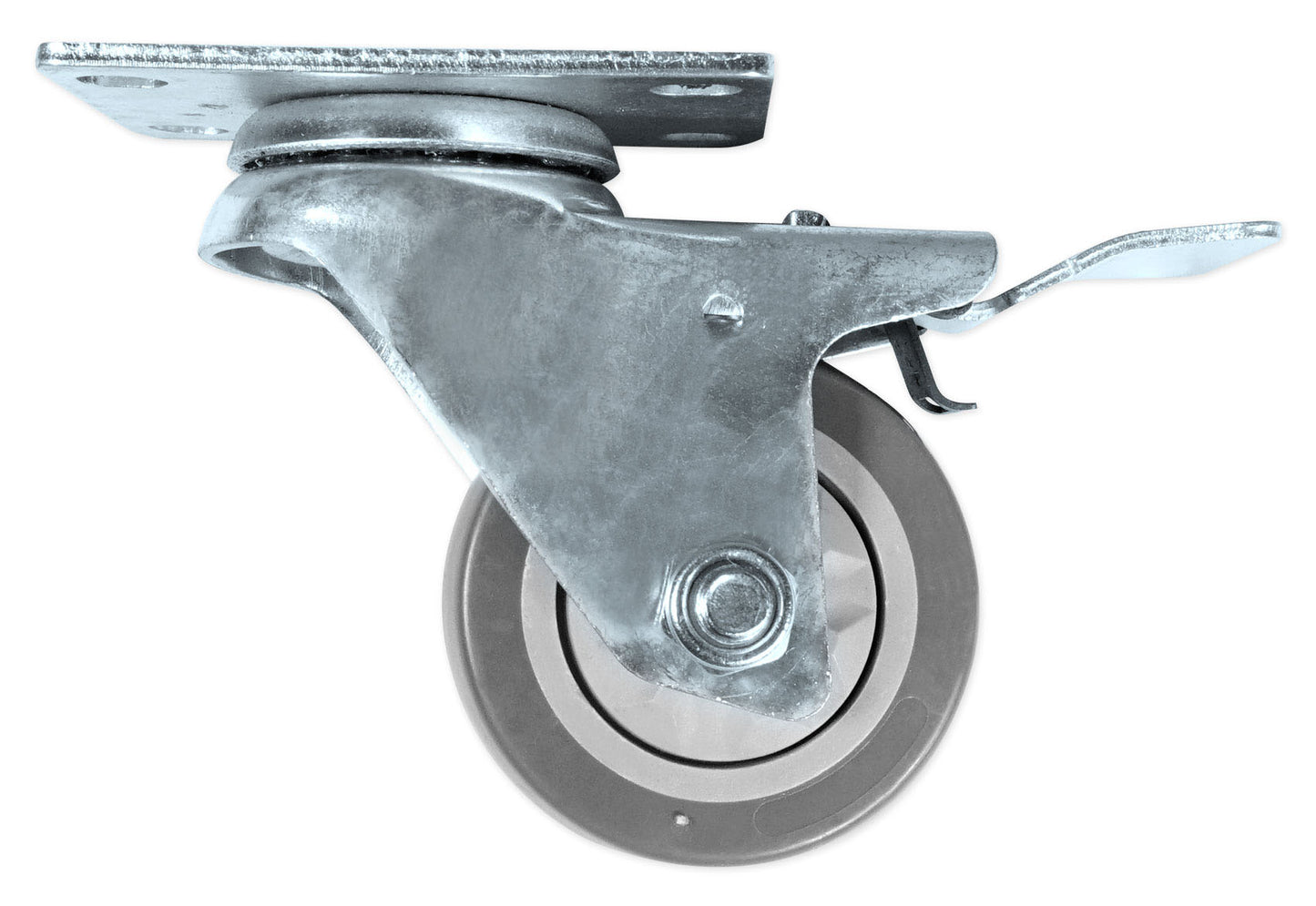

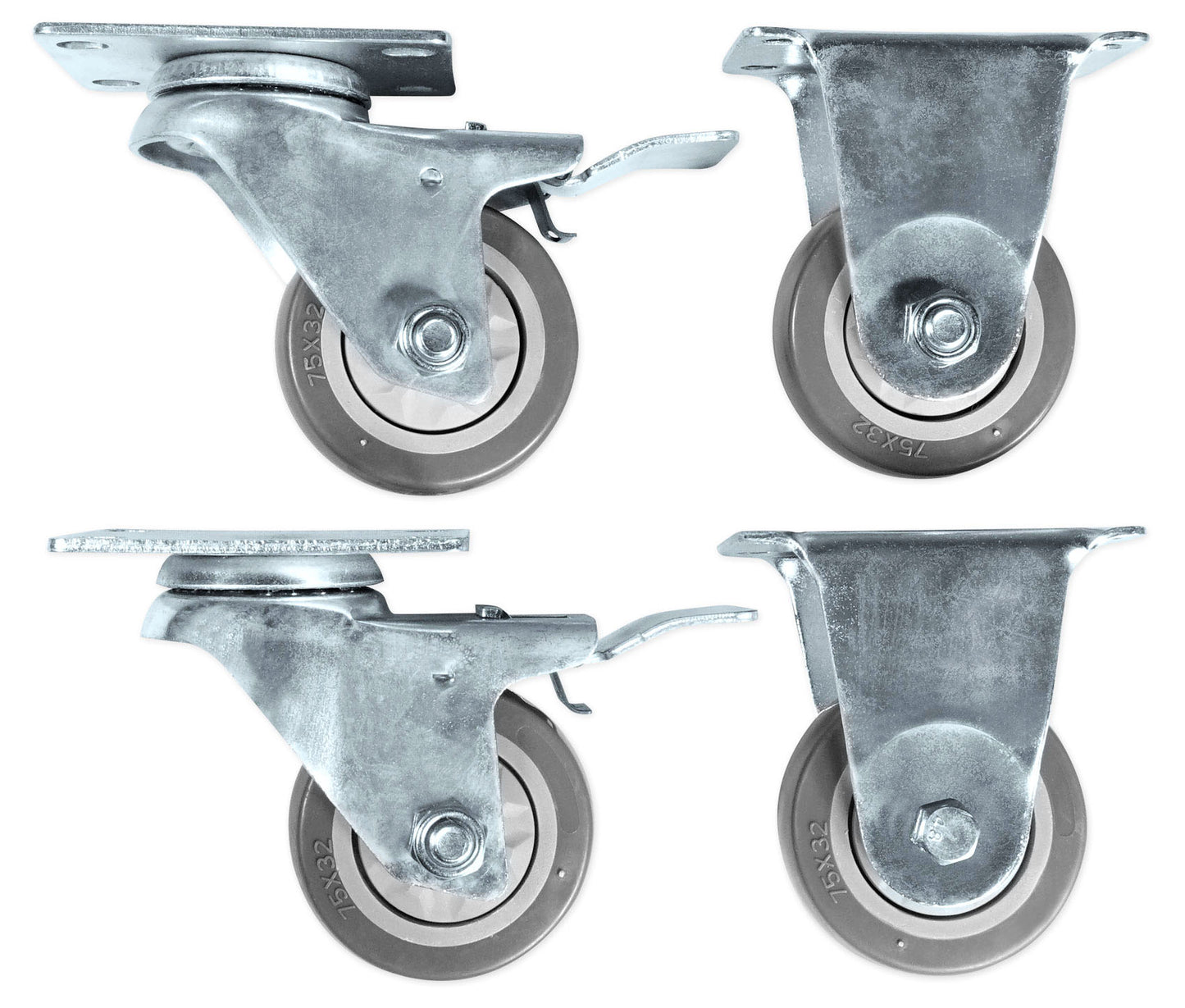

The Rockville WH4 Zinc Plated Steel Caster Wheels just made the life of a DJ and/or gigging musician that much easier! We at Rockville understand the importance of mobility when playing live shows or gigging. With the new WH4 Casters you can give your back a rest and at the same time decrease tear down and load time! These heavy duty 3” swivel casters will hold up to 350 lbs. and are simply a necessity for when Line arrays and dual or quad 18” Subs are just too heavy for one person to move around. These casters are zinc plated and are made from steel. The locking mechanism minimizes movement from heavy vibrations and the swivel housing make it that much easier to move around. These caster can be used for Speakers, Subwoofers, Monitors, Rack cases or anything else that is too heavy to lift.

In the Box:

• 2 X fixed casters
• 2 X swivel casters

Features:

• Rockville WaH4 3" Locking+Swivel Steel Caster Wheels 4 PA DJ Speakers, Subwoofers
• Zinc plated
• Pressed steel
• Swivel housing
• Double ball race

Specifications:

• 3” Wheels
• Height: 4.25”
• Mounting plate: 3.74” x 2.64”
• Mounting hole: 2.91” x 1.77”
• Net weight each fixed wheel: .99 lbs.
• Net weight each swivel wheel: 1.87 lbs.
• Gross weight of full set of (4) wheels: 6.17 lbs.

Applications:

• DJ Speakers
• PA Speakers
• Karaoke speakers
• Subwoofers
• Studio monitors
• Rack Cases
• And Much More!
