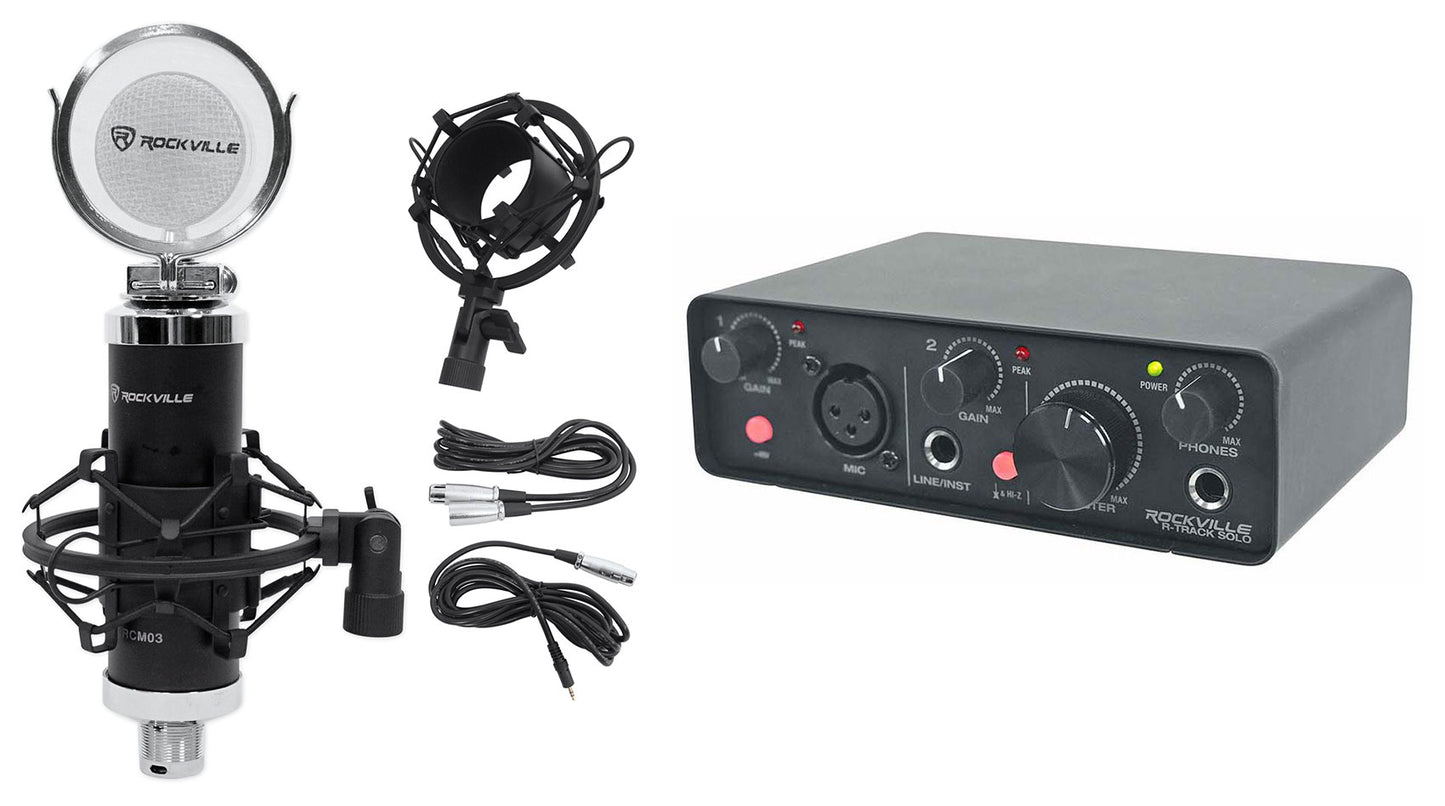

Package Includes:

• (1) Rockville R-TRACK SOLO Recording USB C Audio Interface 24Bit 192Khz+ASIO Drivers
• (1) Rockville RCM03 Pro Studio Recording Condenser Microphone Mic+Metal Shock Mount

---

All About Your R-TRACK SOLO:

How To Set Up Your R-TRACK SOLO:

How To Set Up Speakers with Your R-TRACK SOLO:

How To Set Up a PC with Your R-TRACK SOLO:

How To Set Up a Mic to Your R-TRACK SOLO:

How To Set Up an Instrument with Your R-TRACK SOLO:

How To Set Up a Mac with Your R-TRACK SOLO:

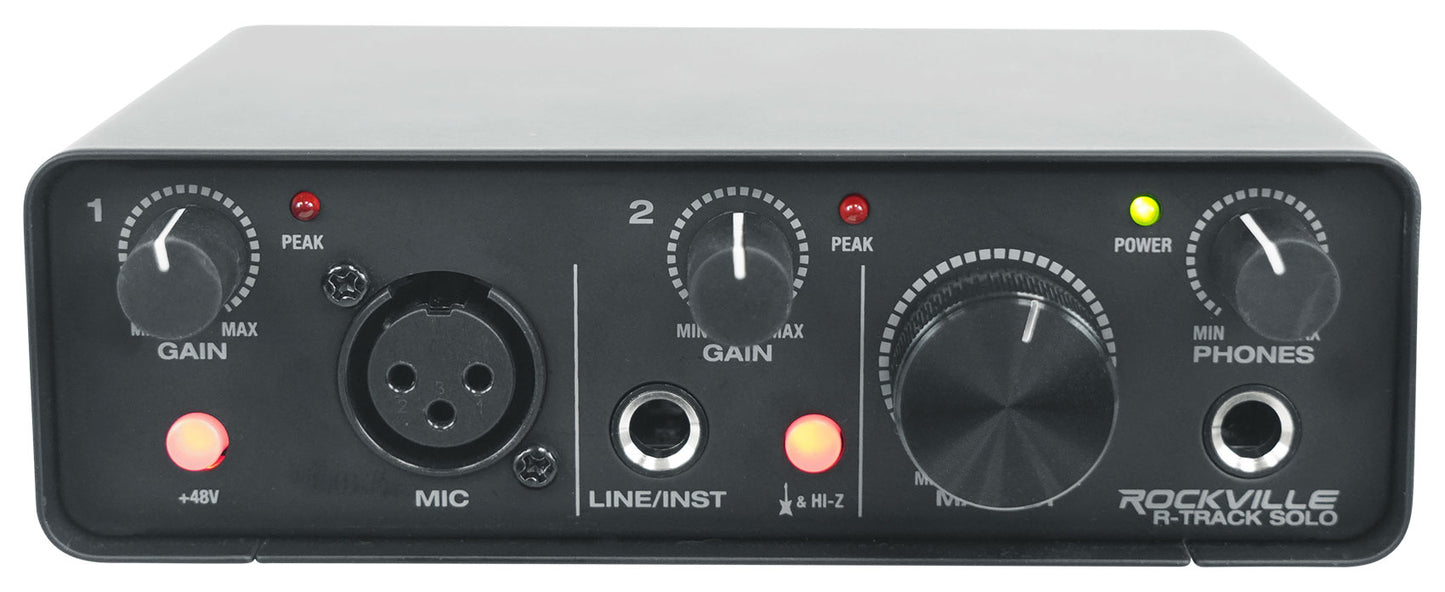

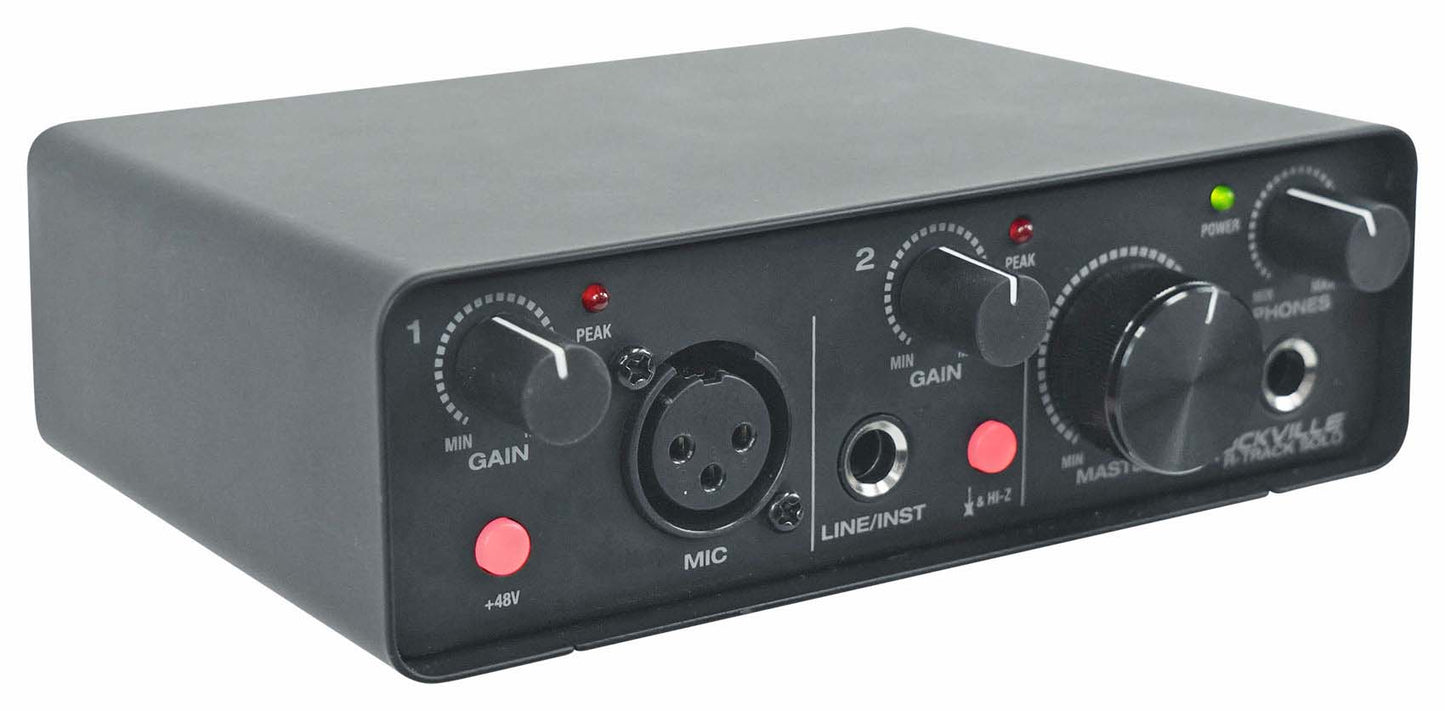

Inputs, Outputs, and Controls Explained on Your R-TRACK SOLO::

How To Set Up Your DAW to Your R-TRACK SOLO:

What's In The Box:

• USB AUDIO INTERFACE
• User Manual

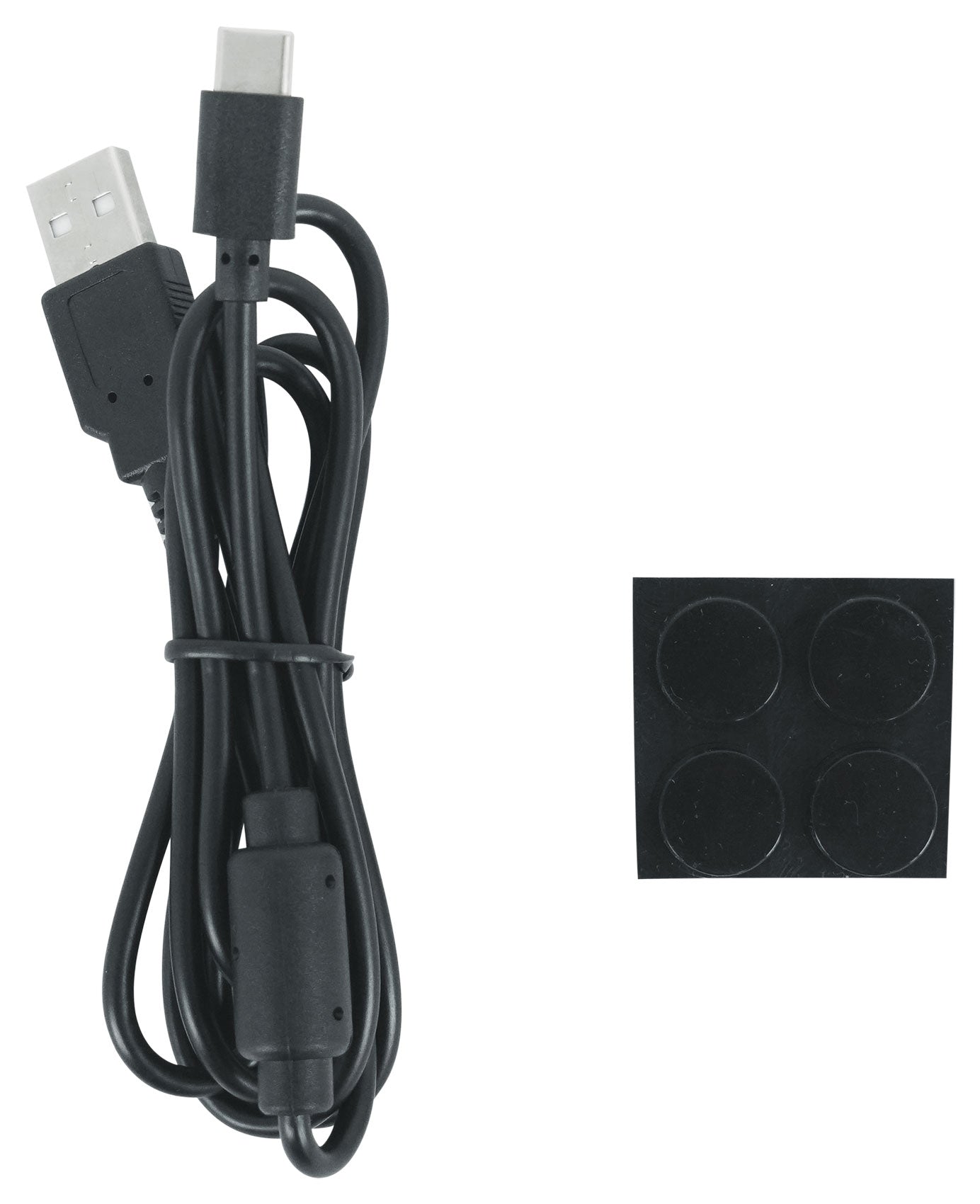

• USB Cable, Type A to Type C
• Training videos teaching you how to set up the interface

Description:

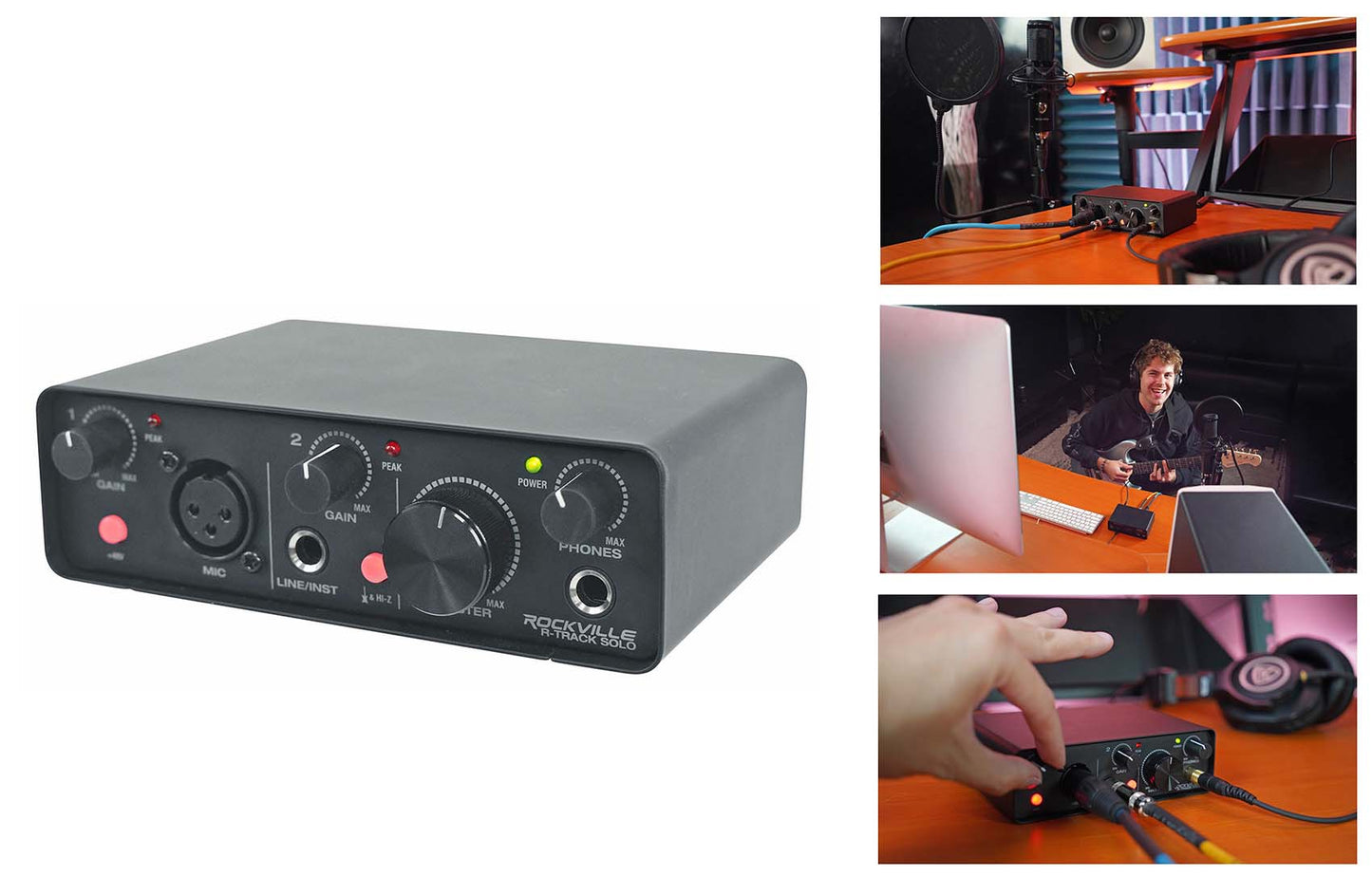

Introducing the Rockville R-TRACK SOLO Recording USB C Audio Interface: Your Gateway to Professional Sound!
Ready to step up your recording game without breaking the bank? Look no further than the Rockville R-TRACK SOLO - a compact powerhouse that delivers unprecedented quality at an unbeatable price. Let's dive into the features and specs that make this interface a game-changer.

High-Quality Recording Made Simple
R-TRACK SOLO is your ticket to studio-quality audio. Whether you're an experienced musician, podcaster, or content creator, this interface has you covered. Here's why it's a must-have:

Crystal-Clear Sound
24-bit, 192KHz sampling ensures pristine audio fidelity. Capture every nuance, from delicate vocals to thunderous bass lines.

Versatile I/O Options
2-in, 2-out – perfect for recording vocals, instruments, or stereo sources.
CH1 (XLR Input): Plug in your favorite microphone and enjoy 48V Phantom Power for condenser mics.
CH2 (¼" TRS Line Input): Connect instruments, keyboards, or other line-level devices. The Hi-Z input lets you plug in your electric guitar directly for amp-like tone and feel.

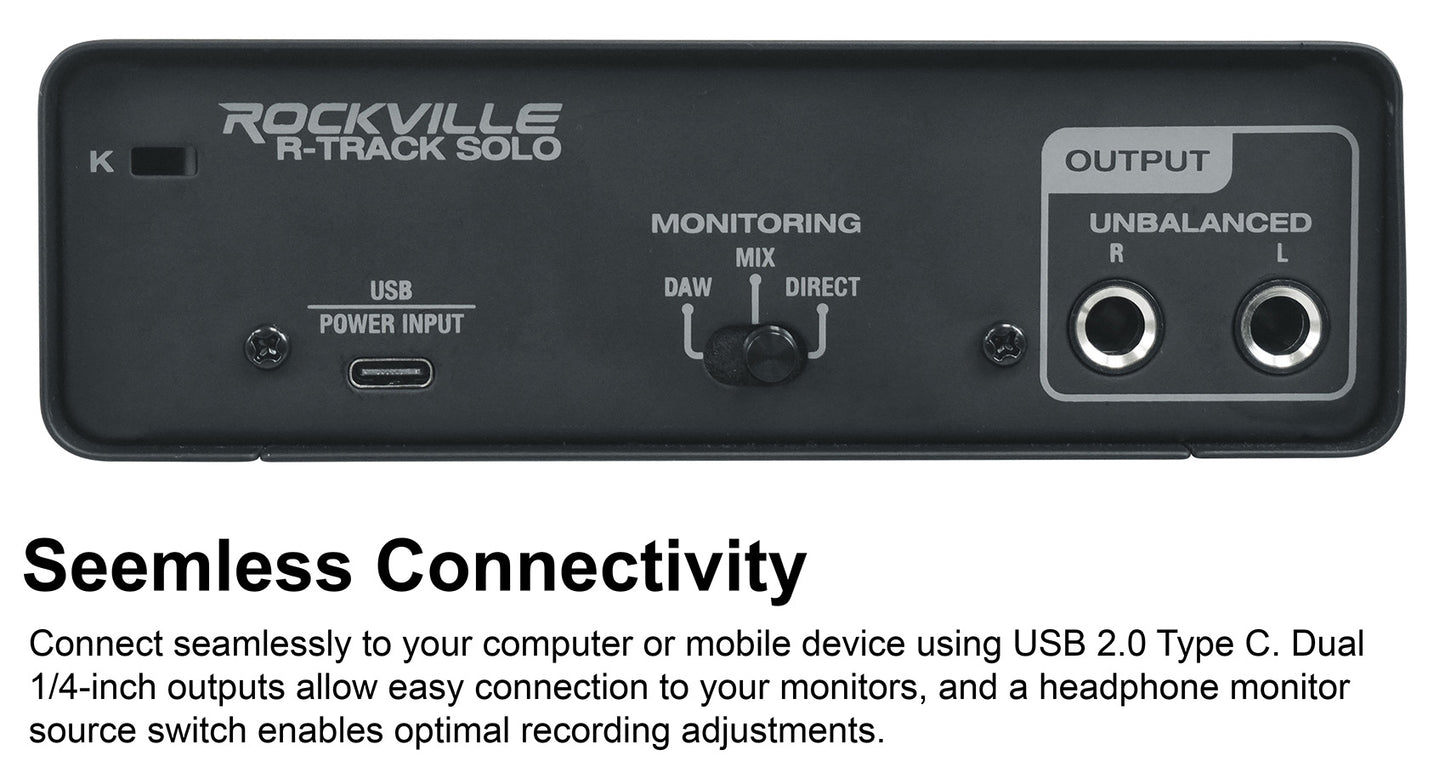

Seamless Connectivity
USB 2.0 Type C: Fast, reliable, and future-proof. Hook up to your computer or mobile device effortlessly.
Kensington Security Lock: Keep your gear safe during sessions or on the road.

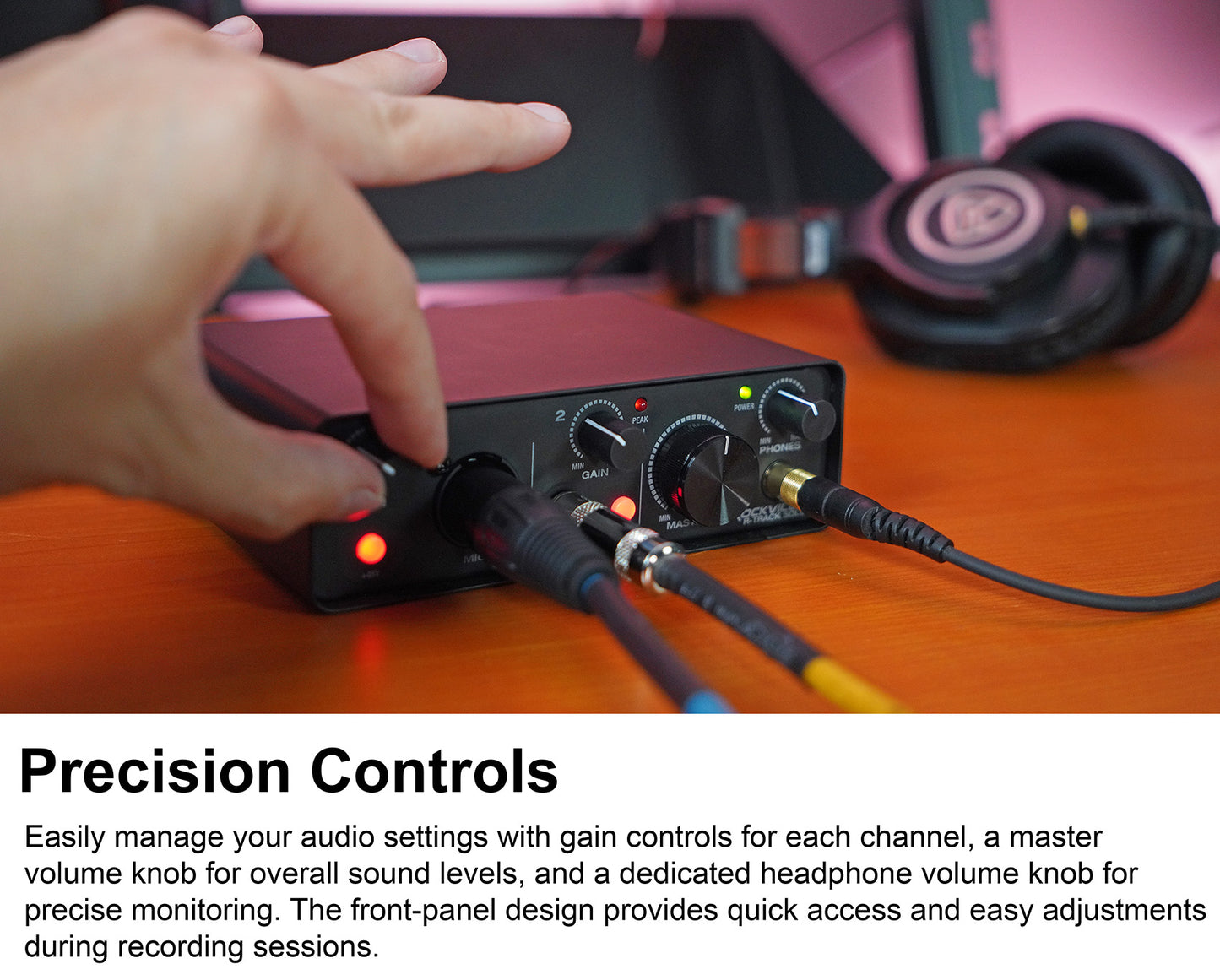

Precision Control
Gain Control Knobs (CH1-2): Dial in the perfect input levels.

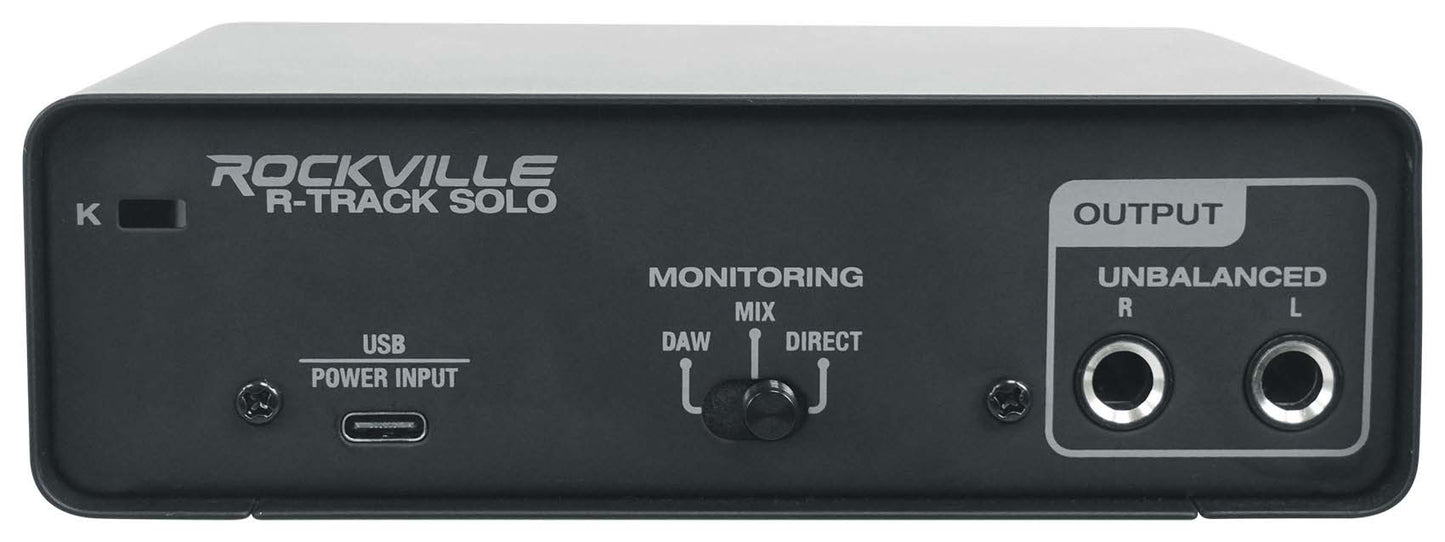

Rear Switch for Monitoring Source: Choose between direct monitoring or playback from your DAW.
Master Volume Knob: Fine-tune your overall mix.
Headphones Volume Knob: Monitor your recordings with precision.

Intelligent Integration
Built-in USB Interface: Seamlessly sends CH1-2 to your favorite digital audio workstation (DAW).
External Sound Card Recognition: Your DAW will treat the R-TRACK SOLO as a trusted partner.
Peak LED Indicator: Catch any clipping issues on channels CH1-2.
Power LED Indicator: Know when you’re good to go.

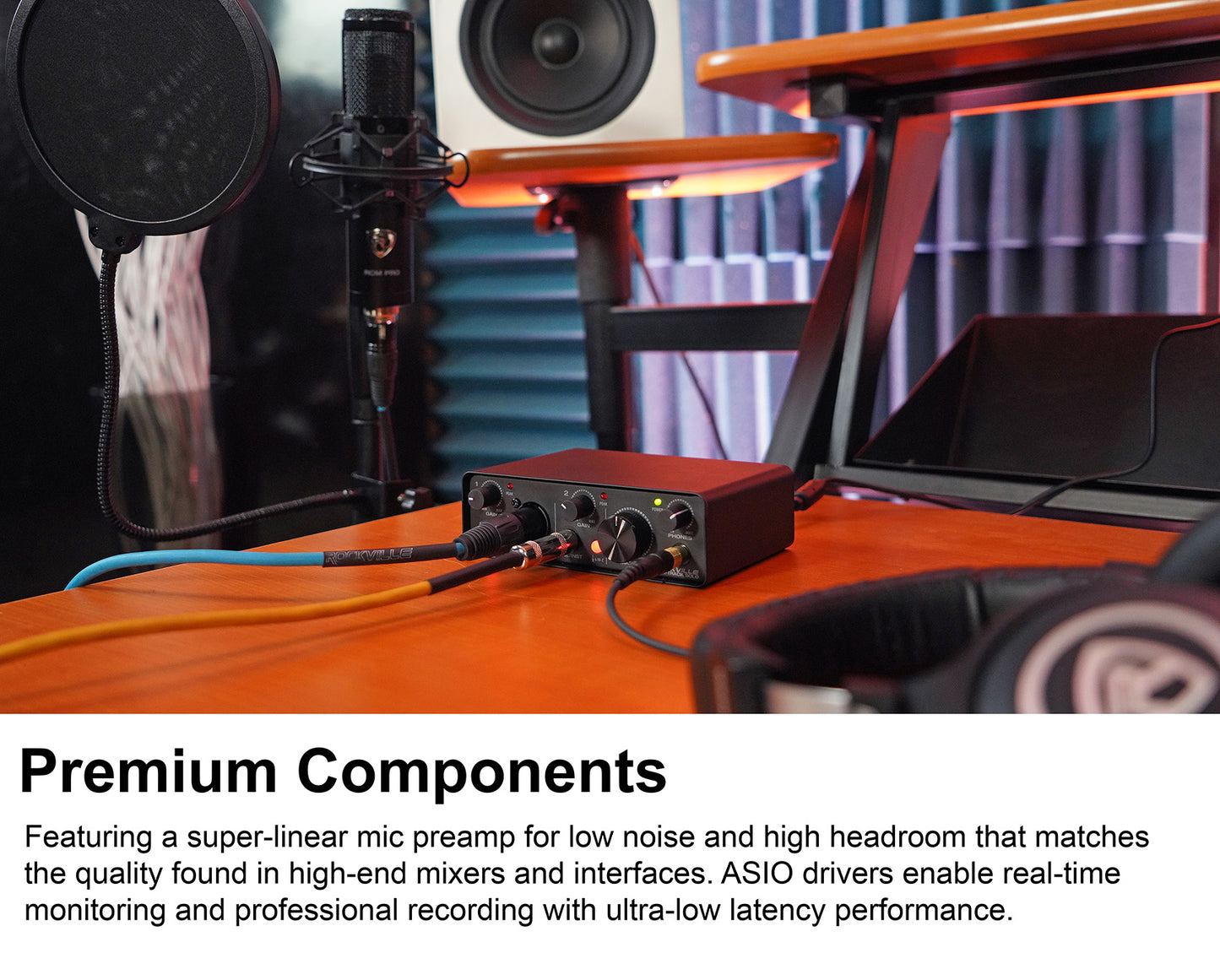

Premium Components
Super Linear Mic Preamp: Low noise, high headroom – the same quality found in expensive mixers and interfaces.

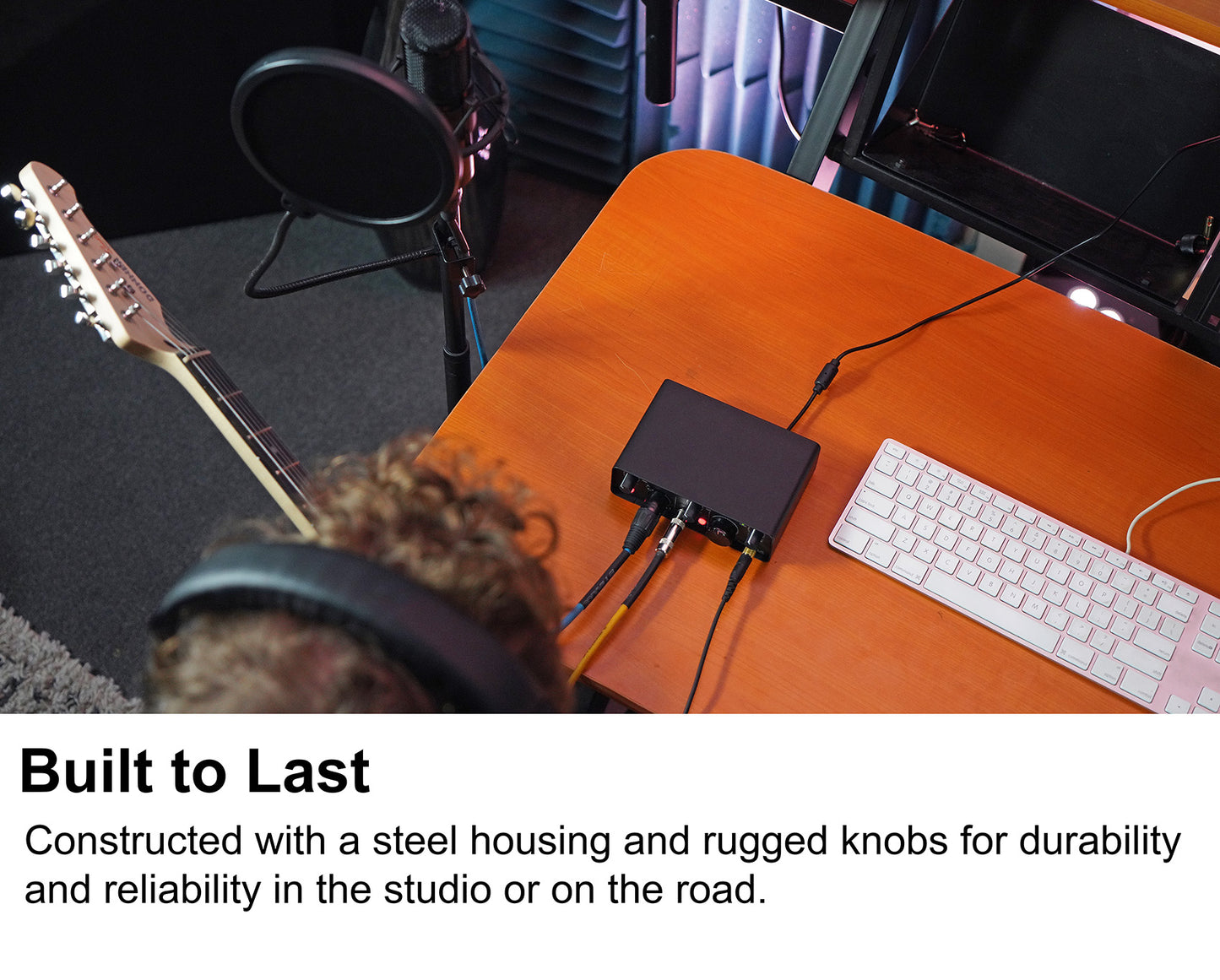

Steel Housing: Solid, rugged, and built to withstand the rigors of the road.
Sturdy Knobs and Potentiometers: No flimsy parts here – just reliable control.

ASIO Support: Unlock Low-Latency Performance
ASIO (Audio Stream Input/Output) is a critical feature for any serious audio interface. It’s like having a backstage pass to your recording sessions. Here’s why it matters

Ultra-Low Latency
ASIO drivers bypass the usual audio processing layers, resulting in minimal delay between your input (microphone, instrument) and what you hear in your headphones. No more distracting lag – just pure, real-time monitoring.

Professional-Grade Recording
Whether you’re tracking vocals, laying down guitar riffs, or mixing beats, ASIO ensures that your audio signals flow seamlessly. It’s the secret sauce behind top-tier studios and live performances.
So, with the Rockville R-TRACK SOLO, you’re not just getting an interface – you’re getting a high-performance tool that lets you focus on your creativity without missing a beat.

Features:

• Rockville R-TRACK SOLO Recording USB C Audio Interface 24Bit 192Khz+ASIO Drivers
• ASIO support
• High sampling rate, 192KHz/24Bit
• 2 in 2 out professional recording interface
• (CH1) XLR input with gain, and 48V Phantom power
• (CH2) ¼ "TRS Line input with gain and Hi-z
• 48V phantom power for condenser microphones
• USB 2.0 port: Type C connector
• Kensington Security Lock
• ¼” Jack Main outputs
• ¼” Jack Headphones output
• Gain control knob (CH1-2)
• Rear switch to select your monitoring source
• Master volume knob
• Headphones volume knob
• Built in USB interface will send the CH1-2 to your favorite DAW
• Interface will be identified and addressed as an external sound card in your DAW
• Peak LED indicator detects clipping on channel (CH1-2)
• Power LED indicator
• Our design is Simple, flexible, and highly-efficient
• Super linear mic preamp with low noise (this uses a top of the line mic pre normally found in very expensive mixers or interfaces)
• The interface is housed in steel, and when you pick it up, you immediately feel its weight and build quality
• All knobs and potentiometers are super sturdy and linear

Technical Specs:

• Mic Sensitivity: 6mV/3KΩ (at max gain)
• Line Input Sensitivity (Channel 1/2): 30mV/10KΩ (at max gain)
• Hi-Z Input Sensitivity (Channel 2): 60mV/1MΩ
• Main Output Level: 4.8V (15dBu) max
• Headphones Output Level: 775mV (0dBu) max
• Frequency Range: 20Hz - 20,000Hz (±1dBu)
• Signal-to-Noise Ratio: 90dBu (A-weighted)
• THD+N: <0.002% (A-weighted)
• Dynamic Range: 90dBu (A-weighted)
• Gain Range: 50dBu
• Headphone Impedance: ≥32Ω
• USB Interface: USB 2.0 (full speed and earlier, also 1.1 compatible)
• Supported Sampling Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz
• Bit Depth: 16-bit, 24-bit
• Weight: 1.15 Lbs
• Dimensions in inches: 5.65” L x 4” D x 2” H
• OS requirements: Windows 7 or higher; Mac OS 9.0.4 or higher, 10.X or higher

---

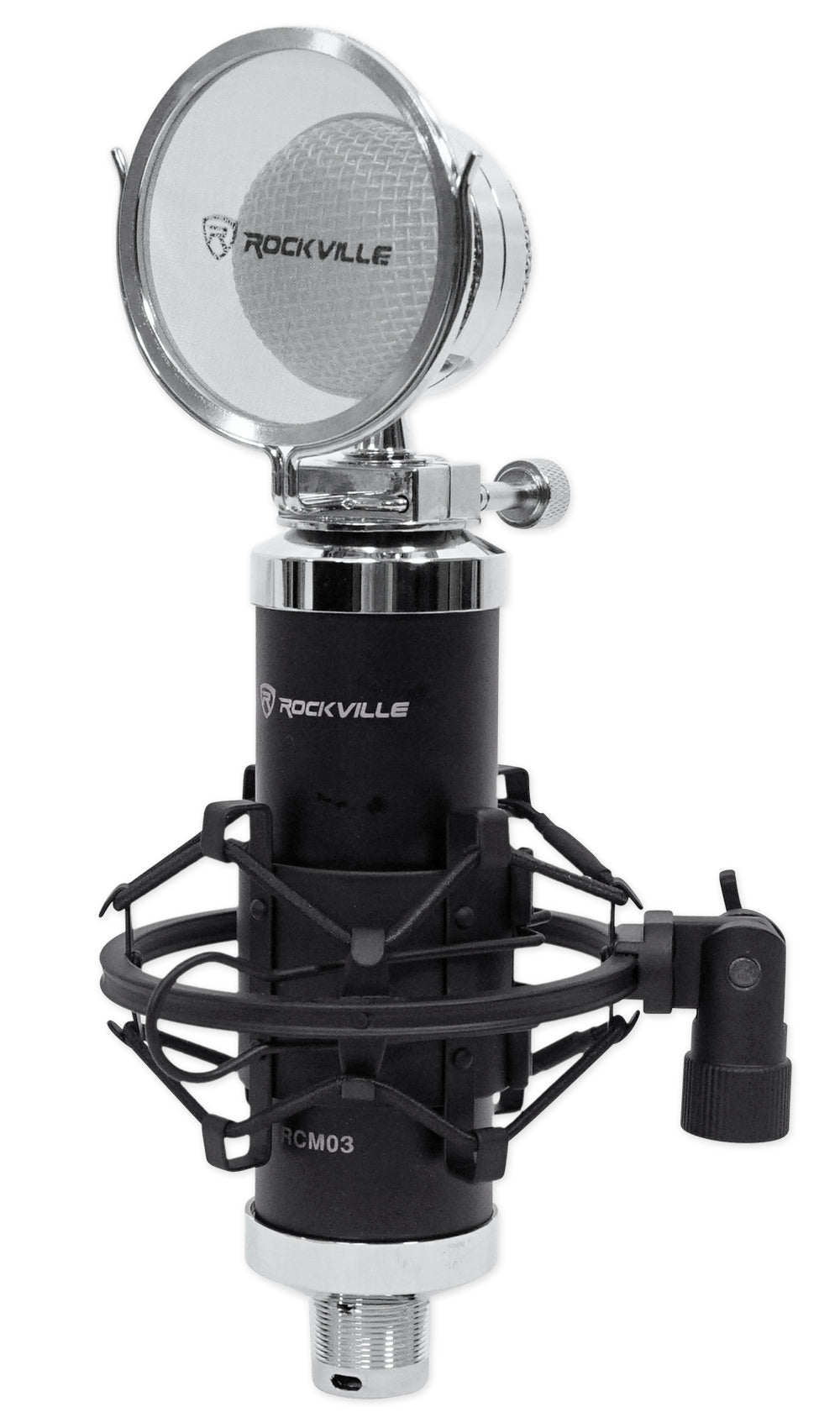

All About Your RCM03:

How To Set Up Your RCM03:

How To Set Up Your RCM03 with an Interface:

How To Set Up Your RCM03 with a PSP5:

How To Set Up Your RCM03 with an ISOBOX:

Description:

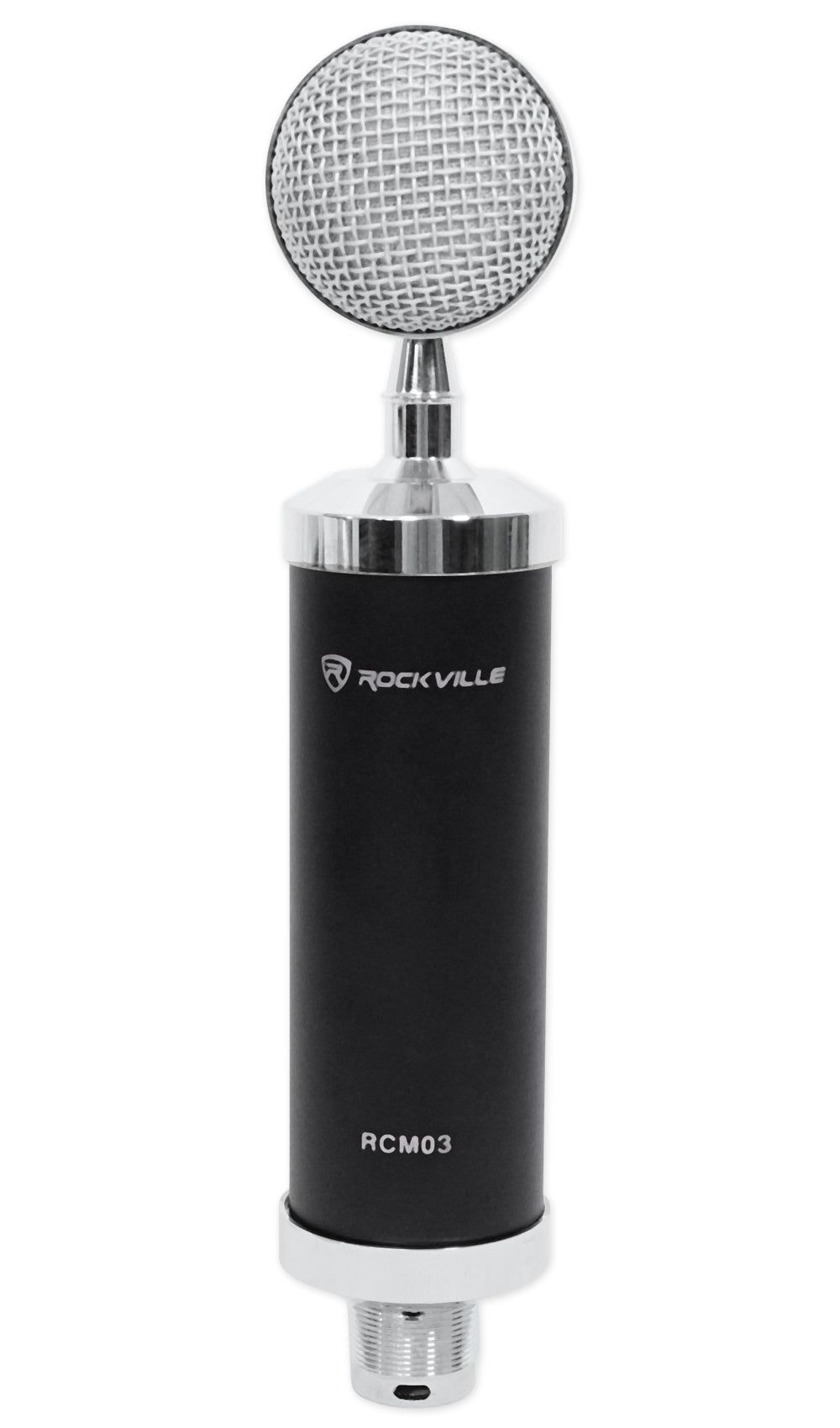

Whether you’re recording vocals, instruments, or podcasts, this “lollipop” style condenser microphone delivers exceptional sound quality with a touch of elegance.

All Aluminum Chassis Design:

The RCM03 strikes the perfect balance between weight and performance. Its sturdy aluminum construction ensures durability without compromising on sound quality.

Unidirectional Cardioid Polar Pattern:

Say goodbye to unwanted noise. The cardioid pattern focuses on capturing sound directly in front of the microphone, reducing pickup from the sides and rear. Your recordings will be crystal clear, free from distractions.

Medium-Sized 16mm Diaphragm:

The RCM03’s diaphragm strikes a harmonious balance between natural sound and wide pickup area. Whether you’re belting out soulful melodies or recording delicate acoustic instruments, this microphone captures every nuance.

Easy Integration

This microphone can be used in multiple ways. You can connect this to the phantom power of your mixer or you can connect it directly to your computer sound card. We include both cables! We include a cable to connect it to your mixer as well as a cable to connect the mic to your computer!

Connect the RCM03 to your audio interface or mixer using 48V DC phantom power or or you can connect it directly to your computer sound card with the 3.5MM cable. We include both cables!. It's compatible with most setups, making it a versatile choice for home studios, podcasts, live streaming, and more.

Low Noise, High Sensitivity:

With a sensitivity of -29dB±2dB (0dB=1V/Pa at 1kHz), the RCM03 ensures that even the softest whispers are faithfully captured. No detail goes unnoticed.

Elegant “Lollipop” Style:

Stand out from the crowd with the RCM03’s unique design. Its sleek form factor adds a touch of sophistication to your recording setup.

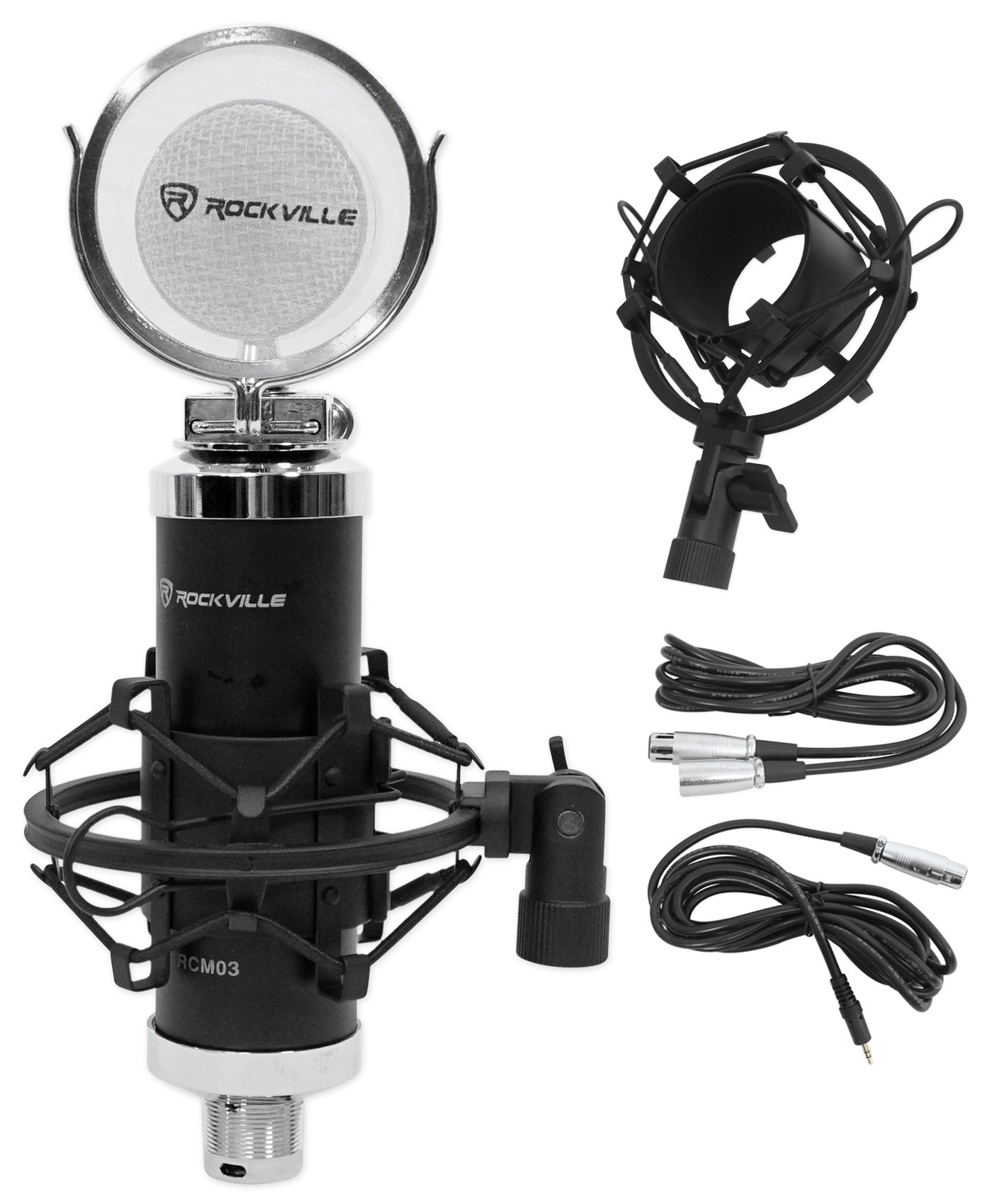

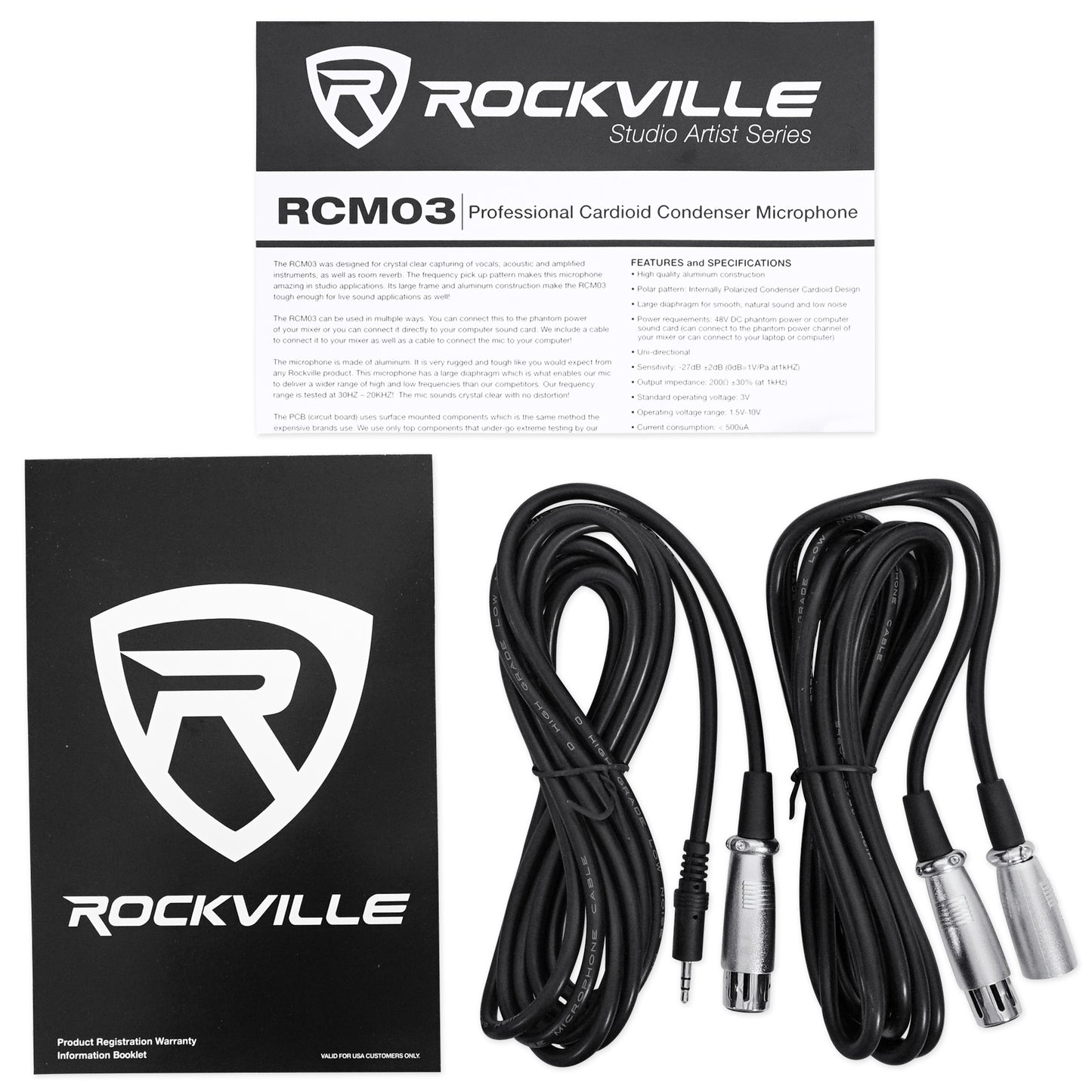

What's Included:

• RCM03 Condenser Microphone (made of aluminum!)
• 100% Copper 10 foot 3.5mm jack to XLR cable to connect mic to your computer or other device
• 100% Copper 10 foot XLR to XLR cable to connect to any mixer with phantom power

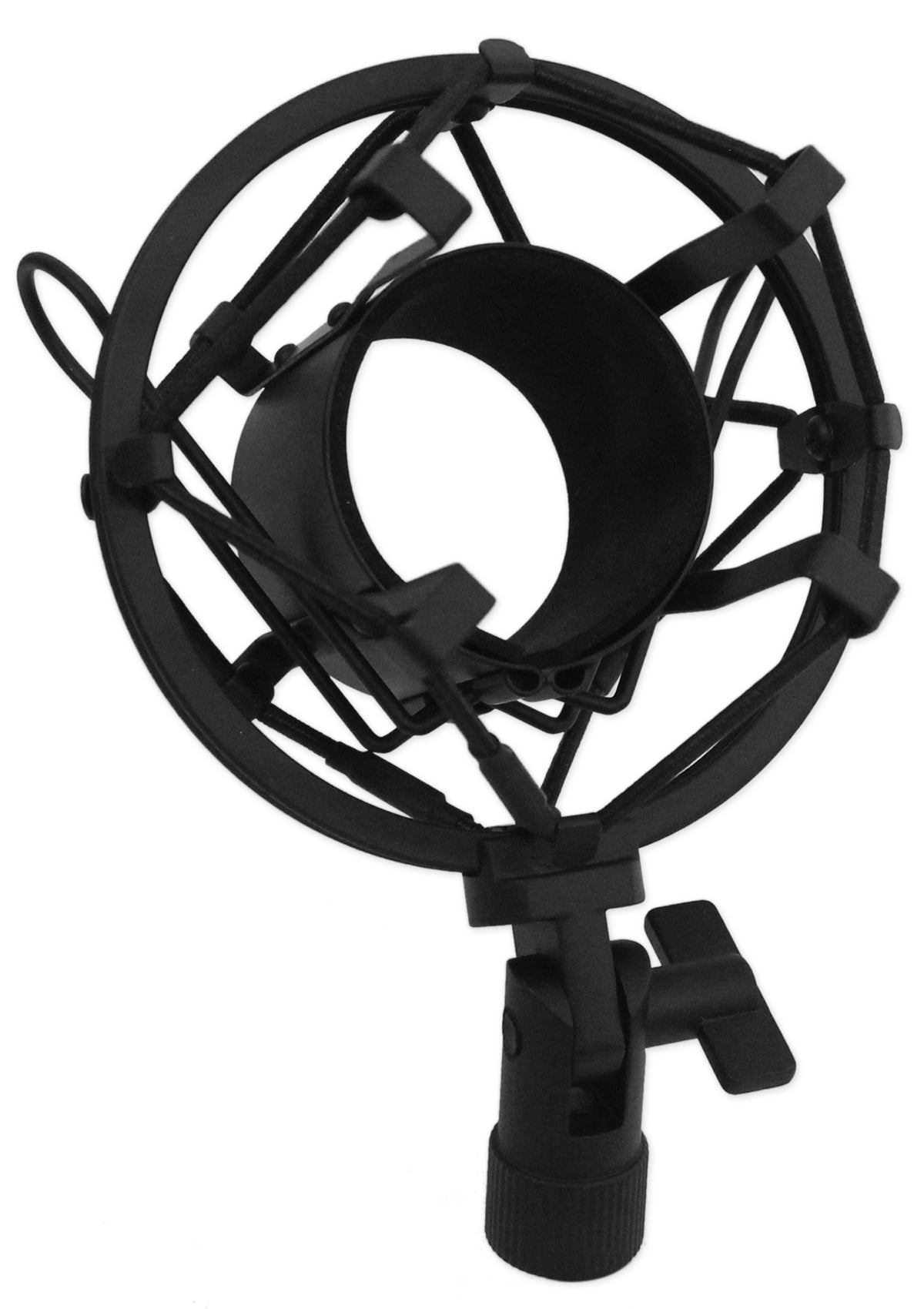

• Metal Shock Mount
• Metal Anti-wind Foam Cap
• Owners Manual
• Warranty Card

Features:

• Rockville RCM03 Pro Studio Recording "Lollipop" Style Condenser Microphone
• All aluminum chassis design for optimal balance between weight and performance
• Standard shock mount included
• Polar Pattern: Unidirectional Cardioid
• Cardioid Polar Pattern Reduces Pickup of Sound From Sides and Rear, reducing unwanted noise
• Permanently Polarized Single Sided "Electret" Style Capsule
• Medium sized 16mm diaphragm for natural sound and wide pick up area
• Power Requirements: 48V DC Phantom Power
• Sensitivity: -29dB±2dB (0dB=1V/Pa at1kHZ)
• Output Impedance: 200O±30% (at 1kHz)
• Standard Operating Voltage: 3V
• Operating Voltage Range: 1.5V-10V
• Current Consumption: <= 500uA
• Voltage Deduction Characteristic: Within 3dB at 2V
• S/N Ratio: 74 dB
• Frequency Response: 30Hz - 20 KHz
• Fixed Crossover Filter Cutoff Frequency: 40Hz---16 KHz
• Load Impedance: >= 1000 Ohms
• Equivalent Noise Level: <= 18dBA (IEC 581-5)
• Max. Input SPL: 126dB (THD=1.0% at 1kHZ)
• Electrical Current: >= 4.8mA
• Microphone Body Net Weight: 380 Grams (0.84 Pounds)
• Microphone Max.diameter: 51mm (2" inches)
• Microphone Length: 215mm (8.46" inches)
• Microphone Material: Steel Basket + Aluminum Body
• PCB Layout: Surface Mount

---
