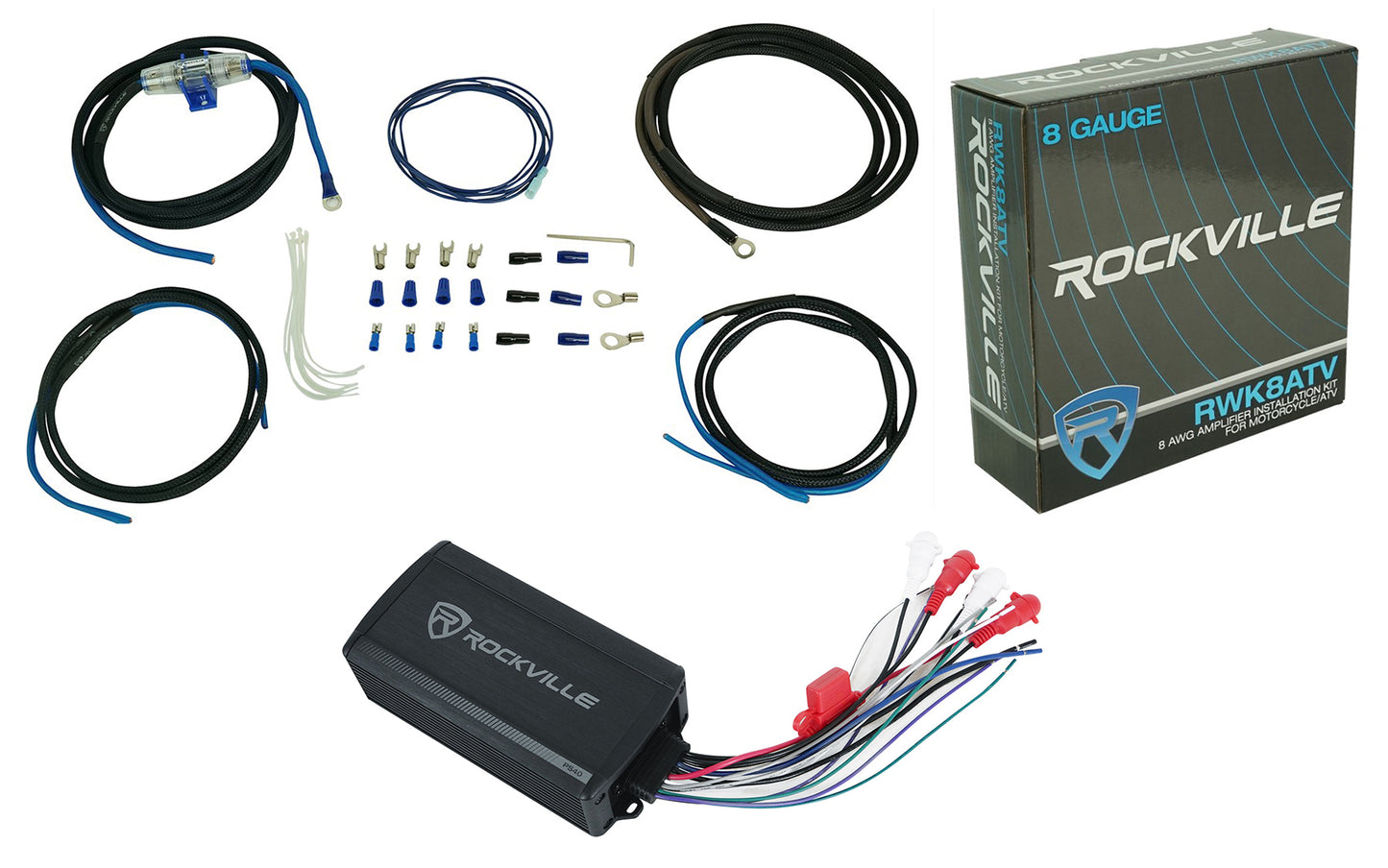

Package Includes:

• (1) Rockville PS40 4 Channel ATV/UTV/Motorcycle Bluetooth Amplifier IP65 Micro Amp

• (1) Rockville RWK8ATV OFC Copper 8 AWG Gauge Amp Installation Wire Kit 4 RZR/ATV/UTV


---

All About Your PS40:

How To Set Up Your PS40:

Inputs, Outputs and Functions Explained on Your PS40:

Description:

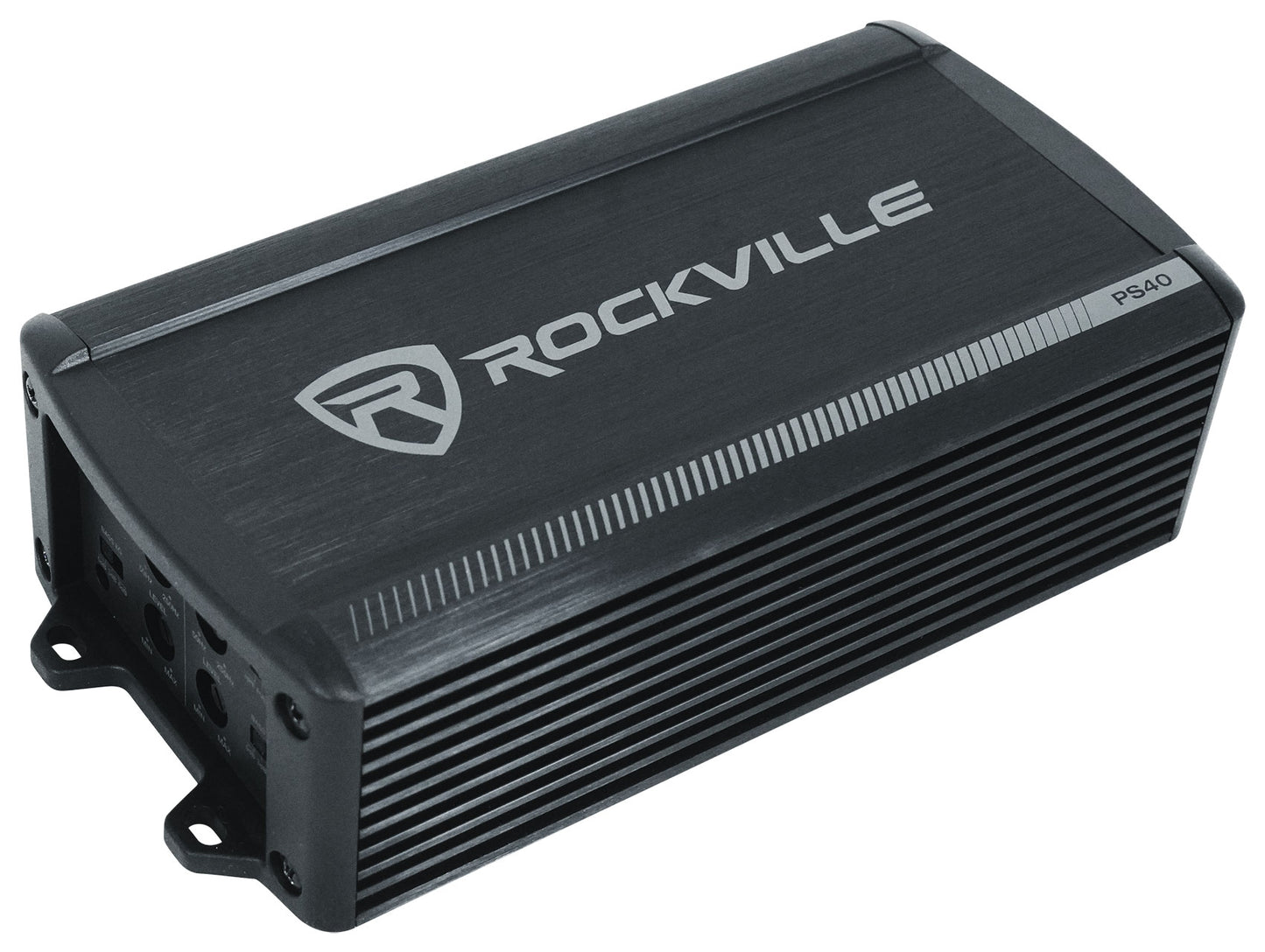

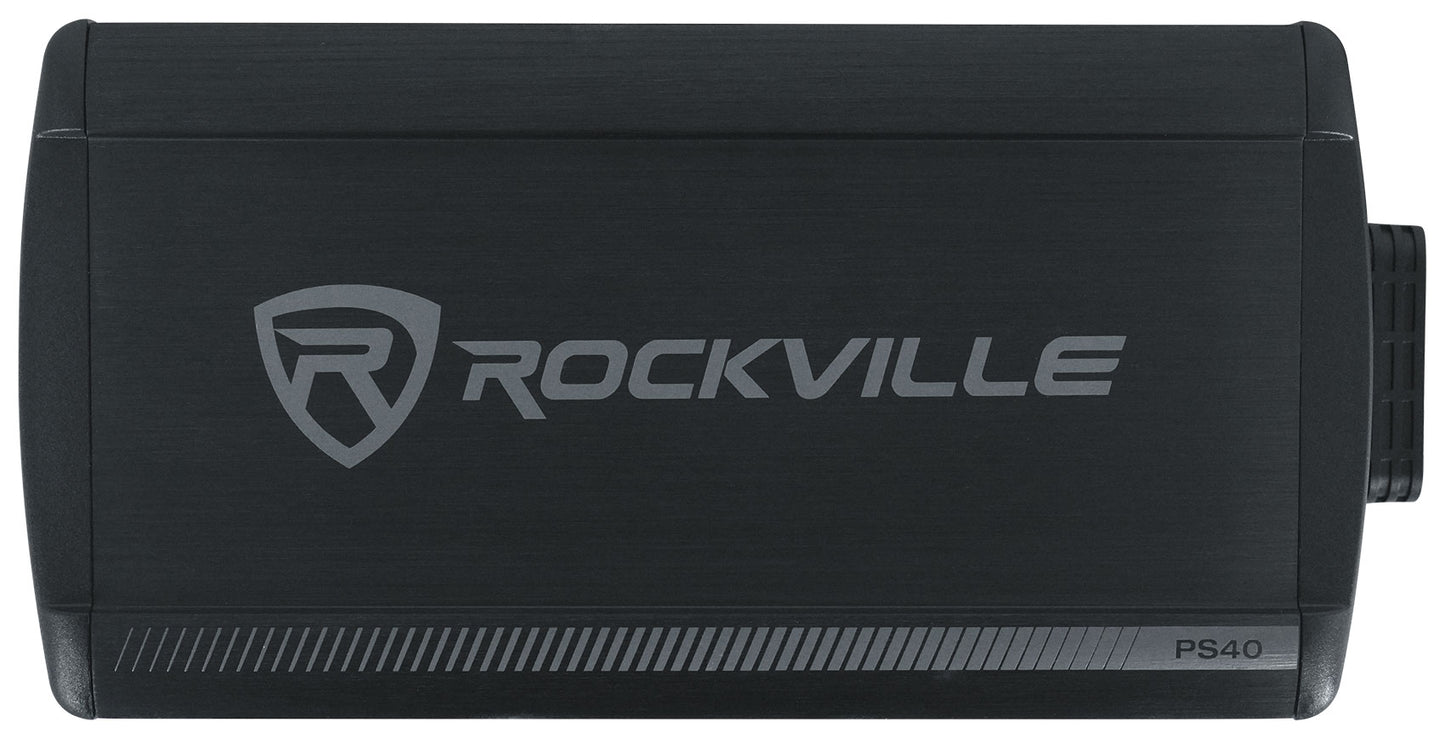

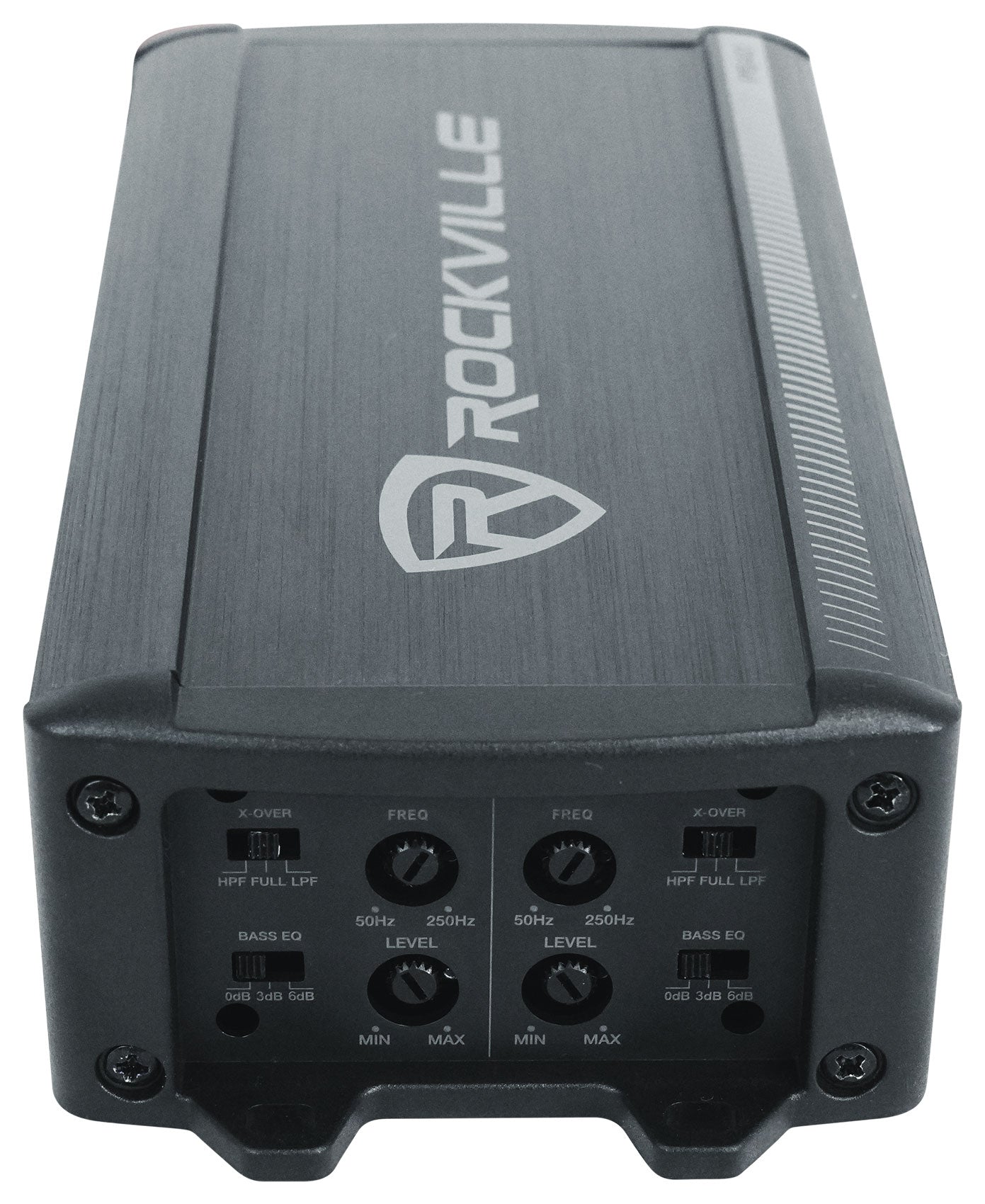

The Rockville PS40 is a 4 channel amplifier that is perfect for any powersport application like UTV, ATV, motorcycle, etc. It will deliver 85 x 4 watts RMS @ 2 ohms. We dyno-test the amp to make sure you get the power we promise

This amp is IP65 which means even if you submerged it in water for a few seconds it will still function fine. This means you do not need to worry about your amp breaking when you spray down your vehicle. The amp also has waterproof silicone covers over the control panel and inputs to give additional protection.

The built-in Bluetooth is great because you do not even need a head unit or controller. You can just install this amp and wire it to your speakers and then Bluetooth your phone to the amp.

This amp is super compact making it easy to install into tight spaces.

If you want the most waterproof and high performing powersport amplifier on the market then the PS40 is a great option for you.

Features:

• Rockville PS40 4 Channel ATV/UTV Bluetooth Amplifier IP65 Waterproof Micro Amp

• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top premium brands)

• 2 Ohms: 340 Watts (4 x 85 Watts)

• 4 Ohms: 200 Watts (4 x 50 Watts)
• 4 Ohm Bridged: 340w (2 x 170 Watts)
• Peak @ 2 Ohms: 1,350 Watts (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
• Built-in Wireless Bluetooth with Auto Pairing (You can run this amp without any receiver)
• IP65 waterproof rating

• Waterproof silicone covers on all inputs and control panel

• Conformal coated circuit board

• Anti-rust materials

• Micro Size amplifier can easily fit in tight spaces making it perfect for Motorcycles, UTV, ATV, etc

• Digital Class D Audio Topology

• Distortion (THD): ≤0.5%

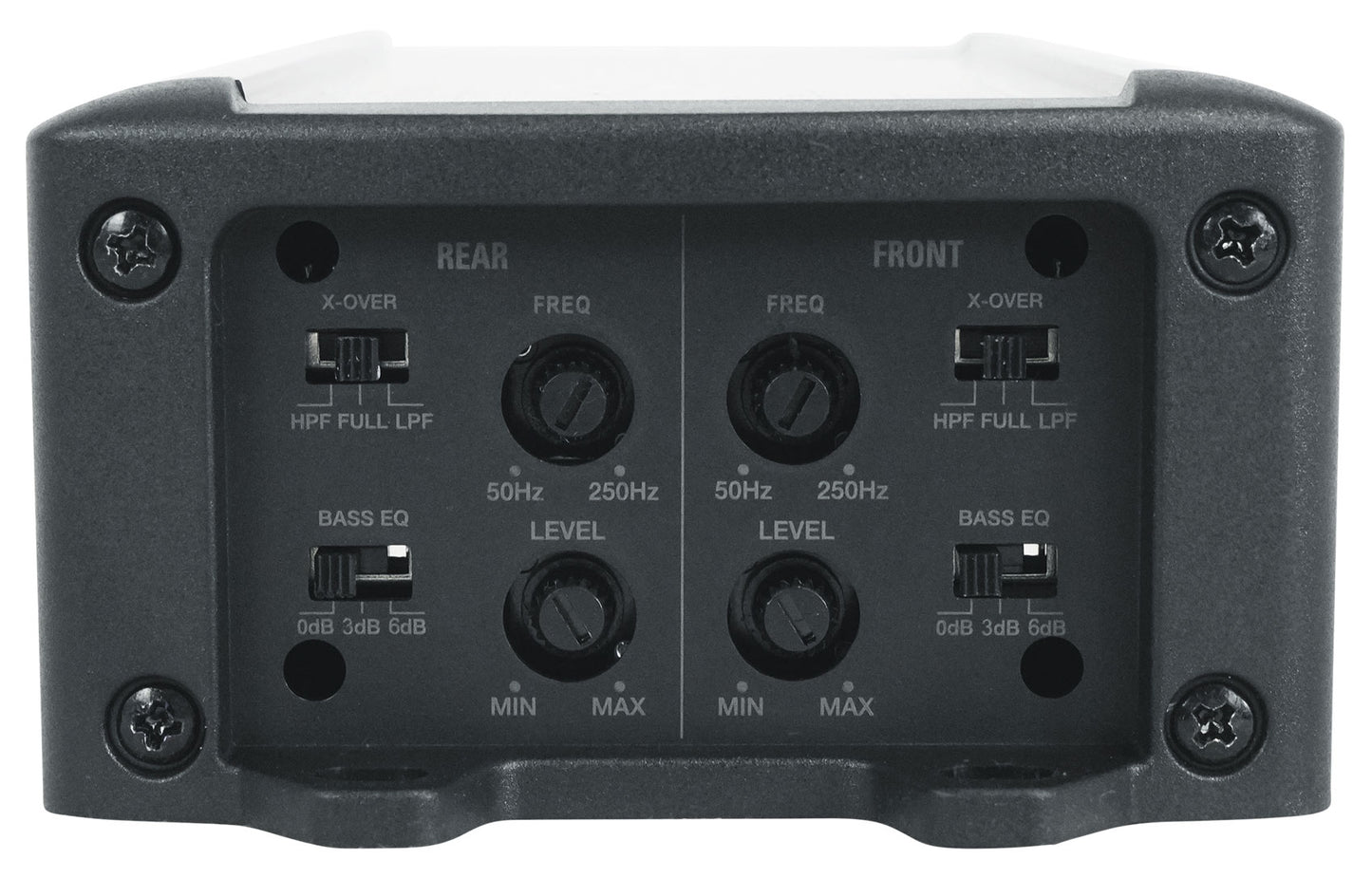

• Independent Crossover Controls for CH1-2 and CH3-4

• Full Range/Low Pass/High Pass Crossover

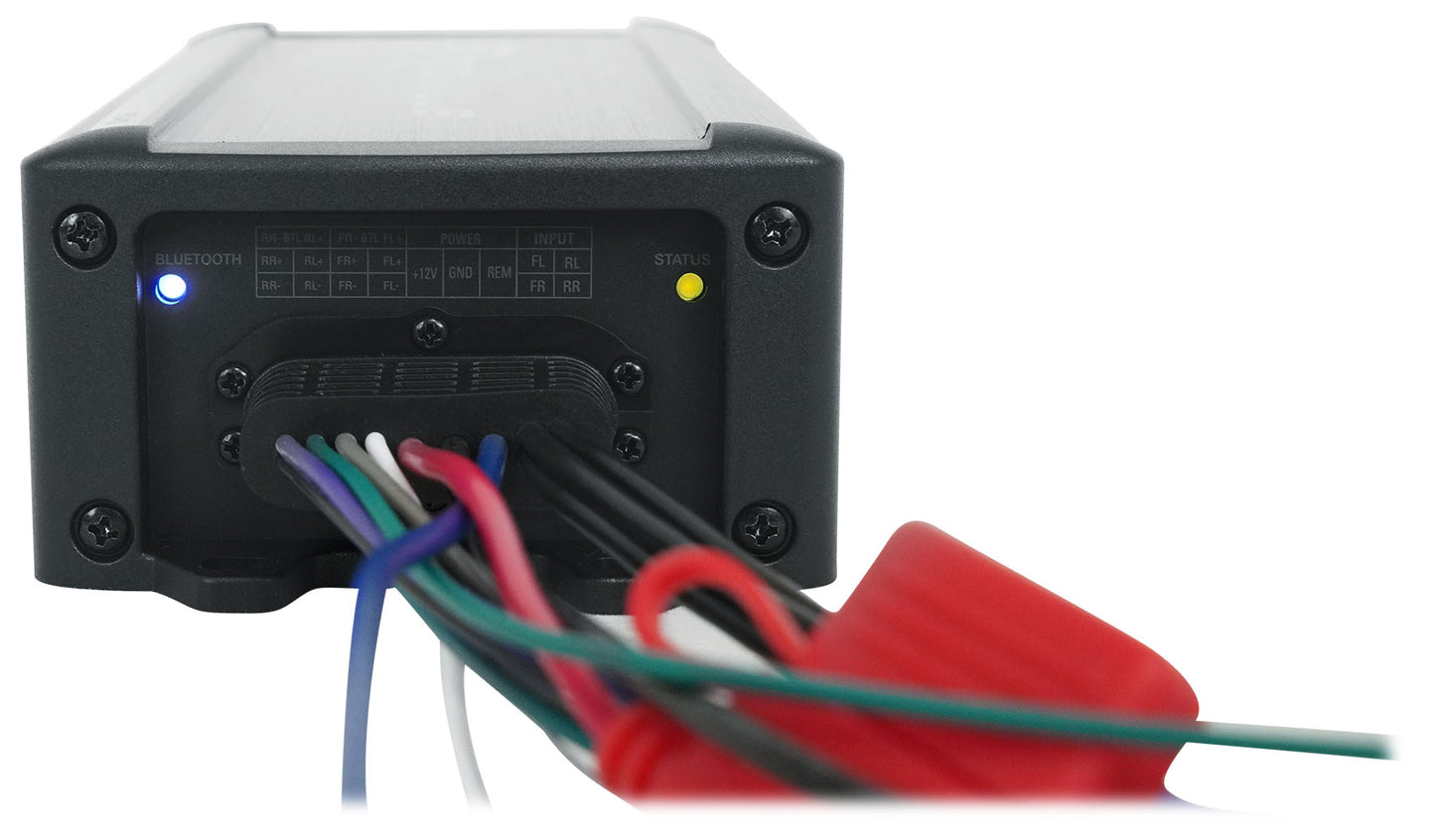

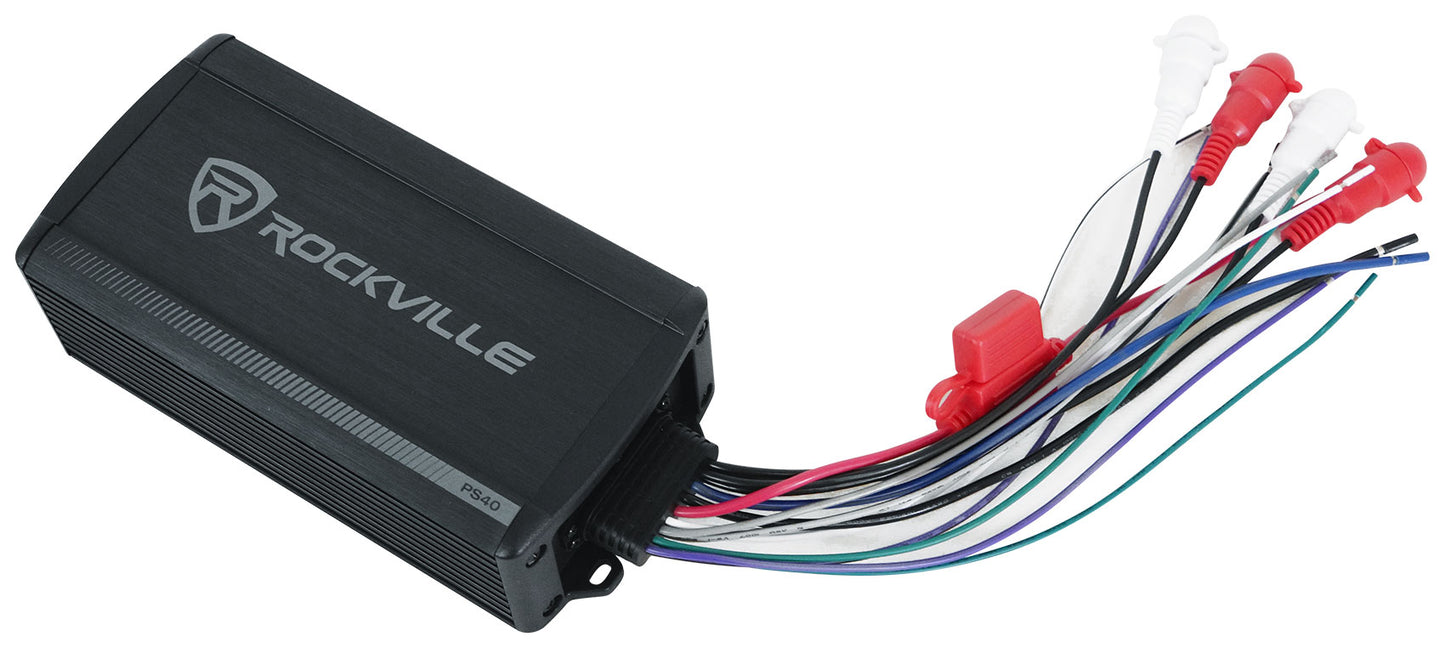

• RCA Low level inputs and High Level Inputs (with Auto ON)

• Selectable LPF/FULL/HPF with Variable Crossover Frequency: 50Hz-250Hz

• Selectable 0/3/6dB Bass Equalizer

• Waterproof RCA Input

• Frequency Response: 20Hz-20KHz

• Signal to Noise Ratio: (1 Watt into 4 Ohms) ≥75dB

• Input Sensitivity: 0.5V-15V

• Stereo Separation: ≥45dB

• Fuse Rating: 30A

• High-Speed MOSFET Power supply

• Status Mode LED Indicator

• Dimensions (Inches): 7.56" L x 3.66" W x 2.07" H

---

How to install an amplifier in your UTV:

Video of RWK8ATV:

Features:

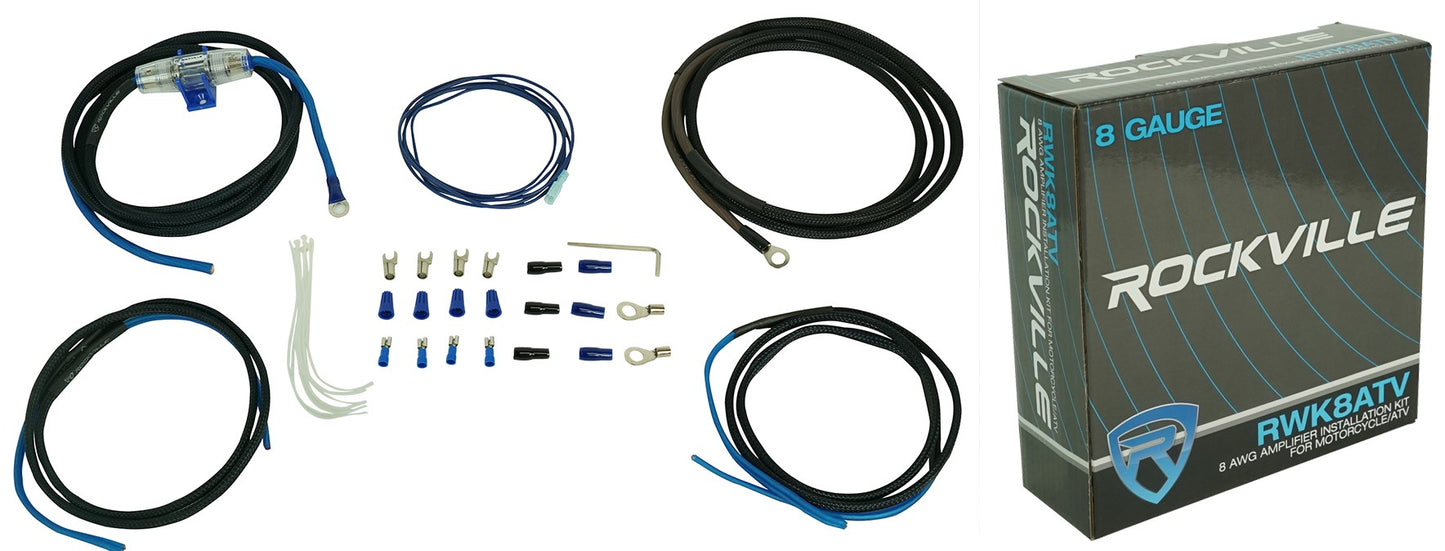

• Rockville RWK8ATV 8 AWG Gauge Amplifier/Amp Installation Wire Kit For Motorcycle/RZR/ATV/UTV

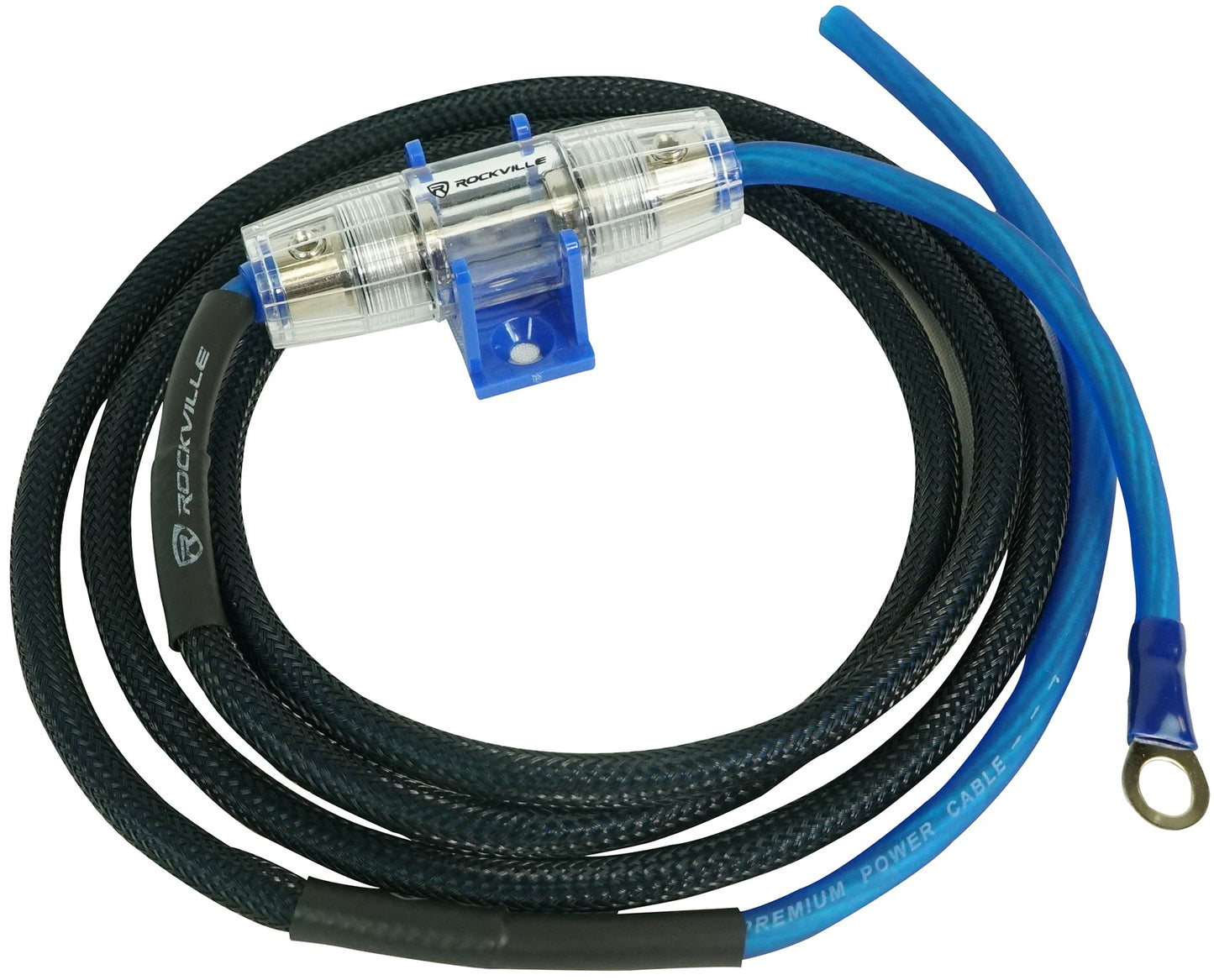

• 6 Foot 8 Gauge 100% OFC, Red Flexible Power Cable with 3' Black Poly Woven Mesh to better resist chemicals in the battery compartment

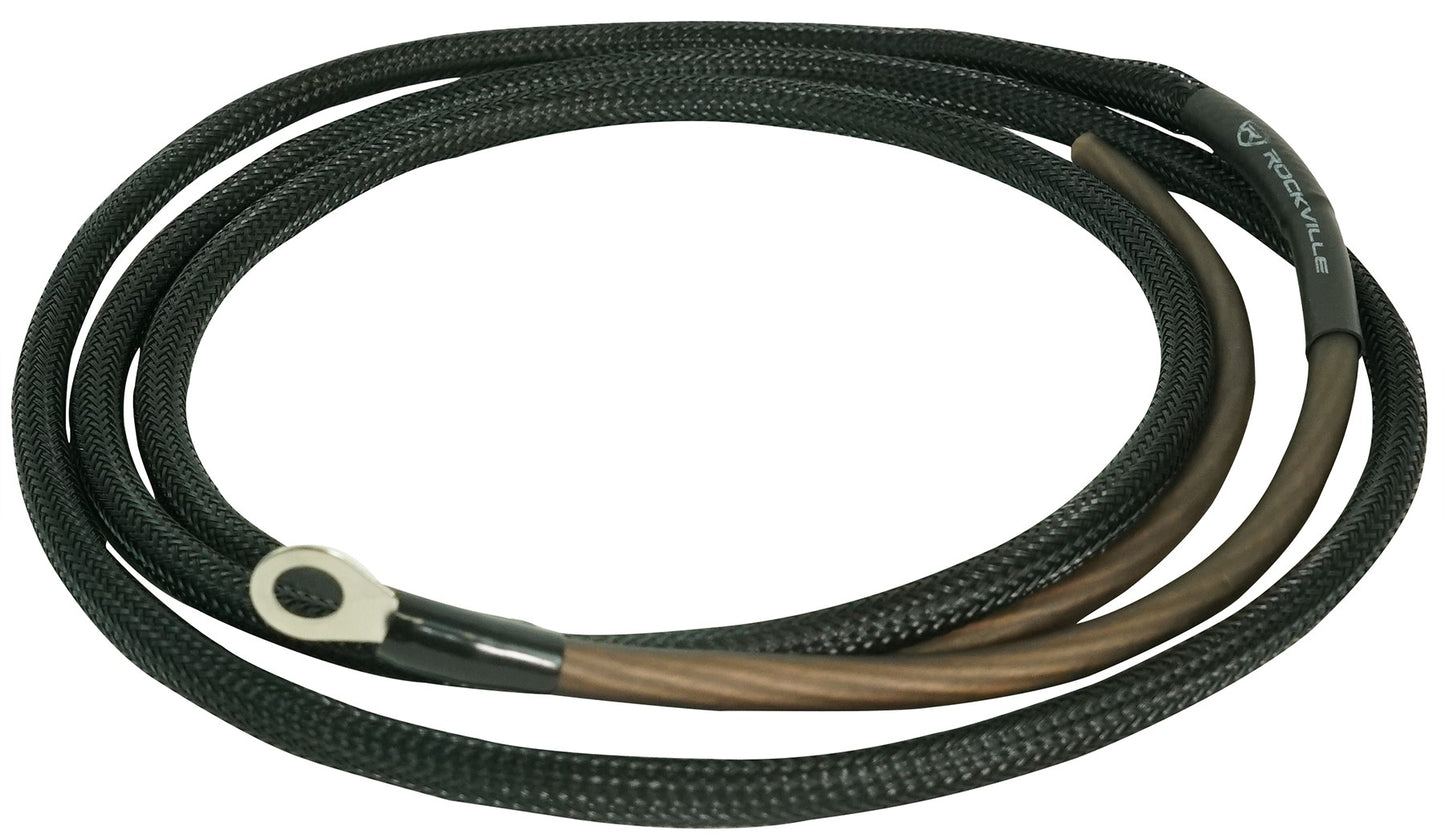

• 6 Foot 8 Gauge 100% OFC, Black Flexible Ground Cable

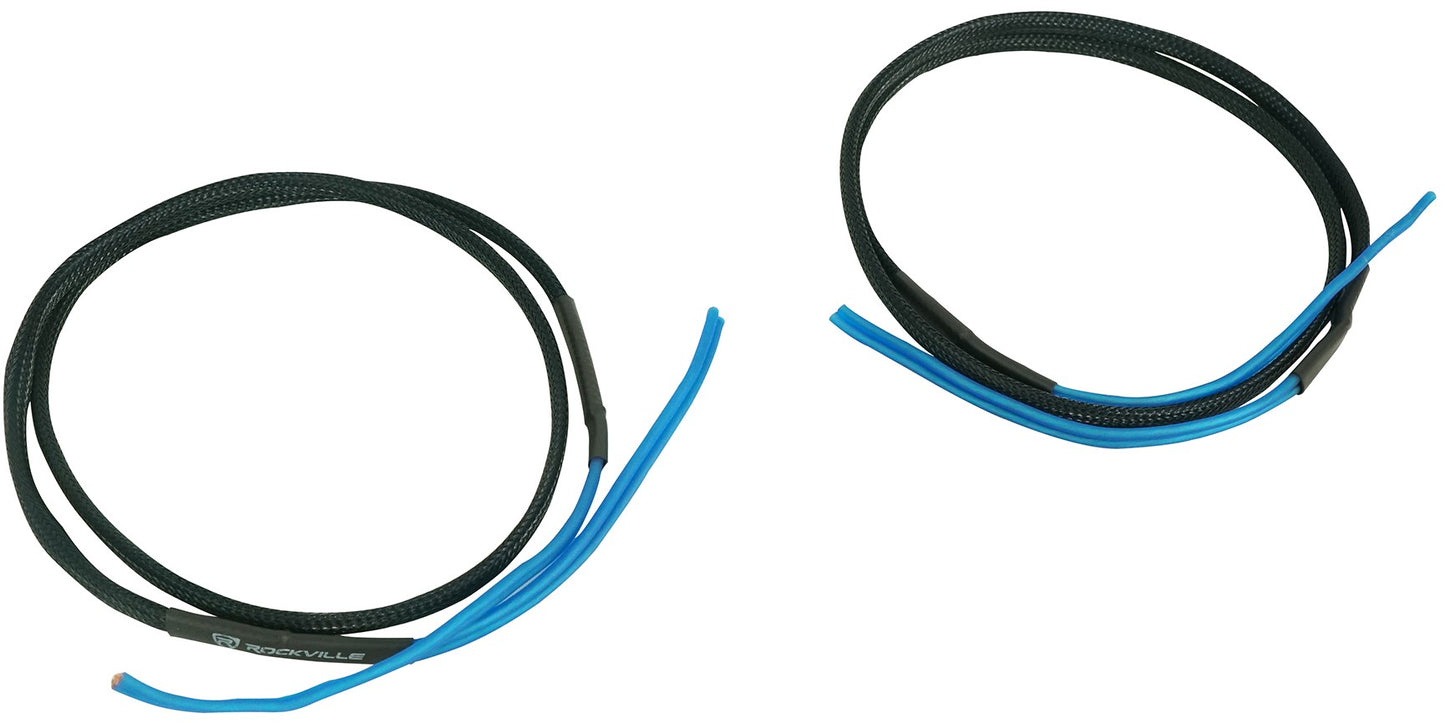

• (2) 4 Foot 16 Gauge 100% OFC black Flexible Speaker Cables Protected by black nylon mesh
• 6 Foot Pre-terminated ring terminals make connections to the battery simple

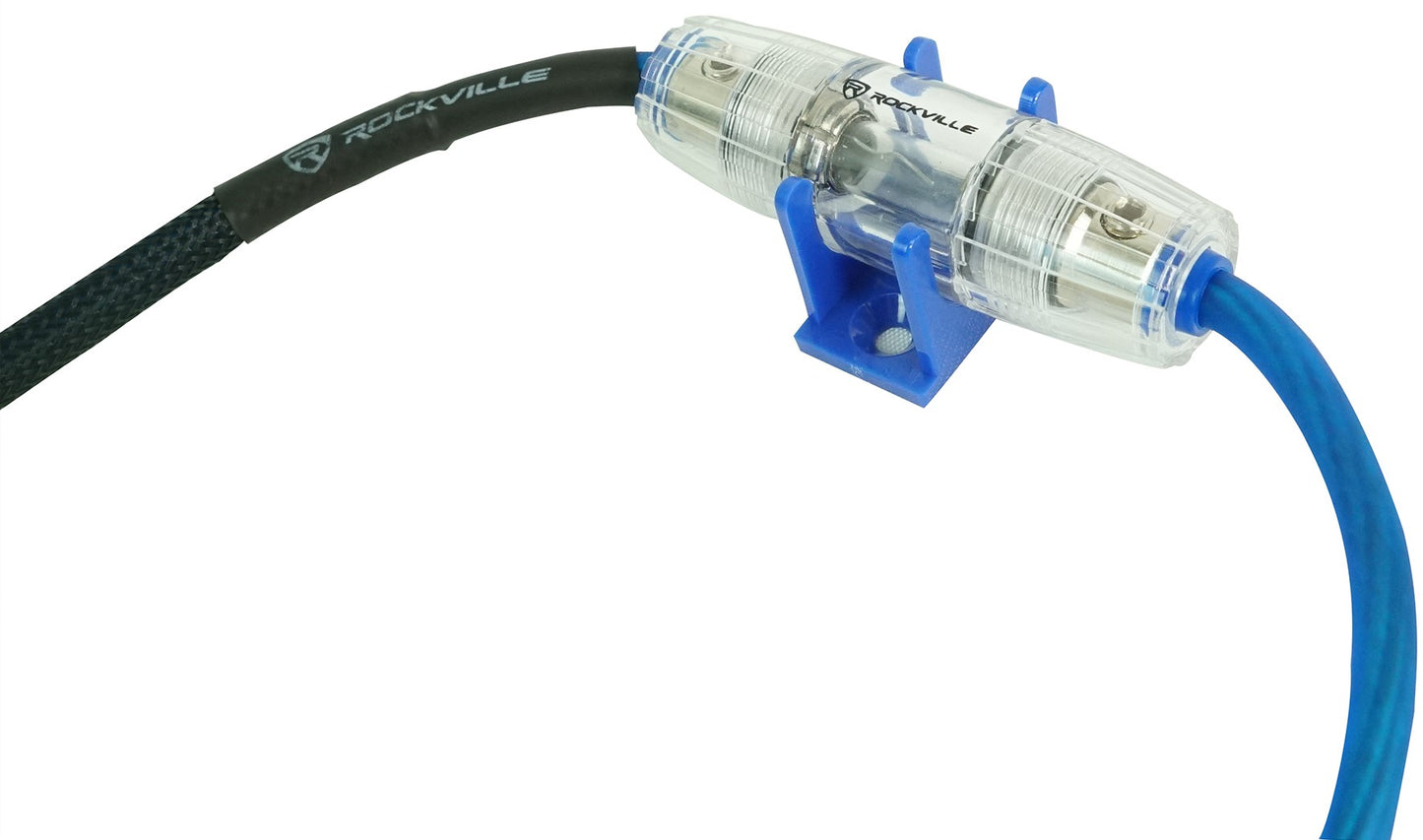

• (1) Silver AGU Fuse Holder - Clear Shell and Clear Blue Bottom Bracket with Blue Waterproof Ring
• (1) 60A AGU Fuse
• (2) Ring Terminals
• (2) Spade Terminals
• (4) Speaker Cable Terminals
• (4) Washers
• (10) White Cable Ties
• (1) hexagon spanner
