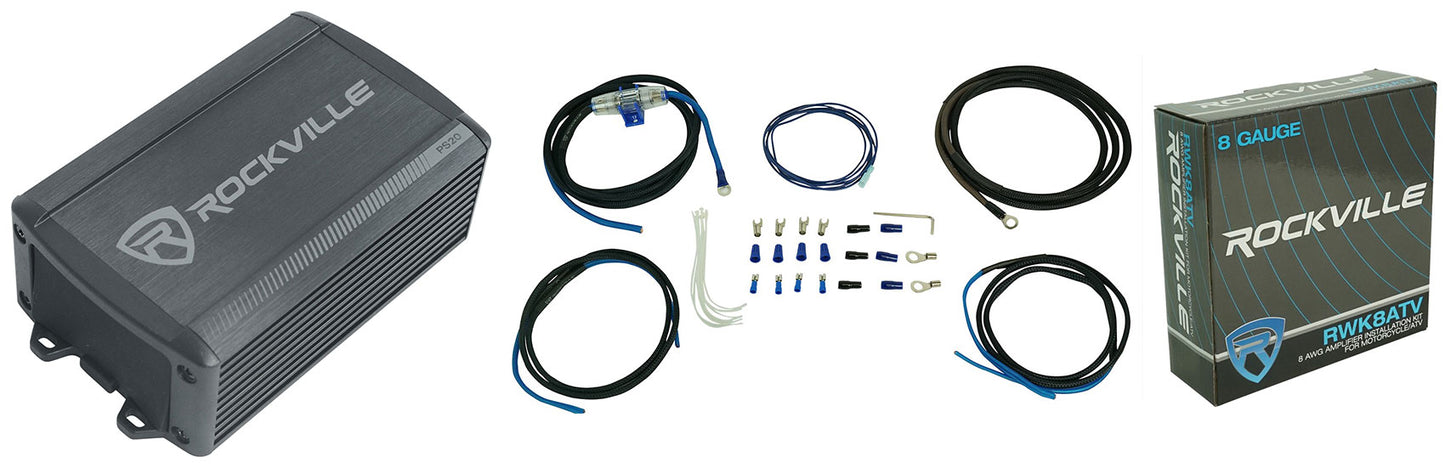

Package Includes:

• (1) Rockville PS20 2 Channel ATV/UTV/Motorcycle Bluetooth Amplifier IP65 Micro Amp
• (1) Rockville RWK8ATV OFC Copper 8 AWG Gauge Amp Installation Wire Kit 4 RZR/ATV/UTV

---

Description:

Designed for those who demand durability and high performance in any environment, the Rockville PS20 provides a powerful, waterproof solution for your UTV, ATV, or motorcycle audio needs. With dyno-tested 150 watts RMS per channel into 2 ohms, Bluetooth connectivity, and an IP65 waterproof rating, this micro-amplifier is built for adventure without sacrificing sound quality.

Rugged and Reliable: Waterproof & Dustproof Design

The Rockville PS20 is specifically designed for rugged applications such as ATVs, UTVs, and motorcycles. Its IP65 waterproof rating means it can withstand water, mud, and dust, ensuring you stay in control of your soundtrack no matter what the conditions. Whether you're washing down your vehicle or powering through unpredictable weather, this amp is built to last.

Wireless Freedom and Easy Installation

With built-in Bluetooth, the PS20 eliminates the need for additional head units. Just wire it to your speakers, connect your smartphone, and you're ready to go. Its ultra-compact size allows for easy installation in tight or unconventional spaces, making it perfect for any powersports setup.

Highlights:

Powerful, Consistent Performance

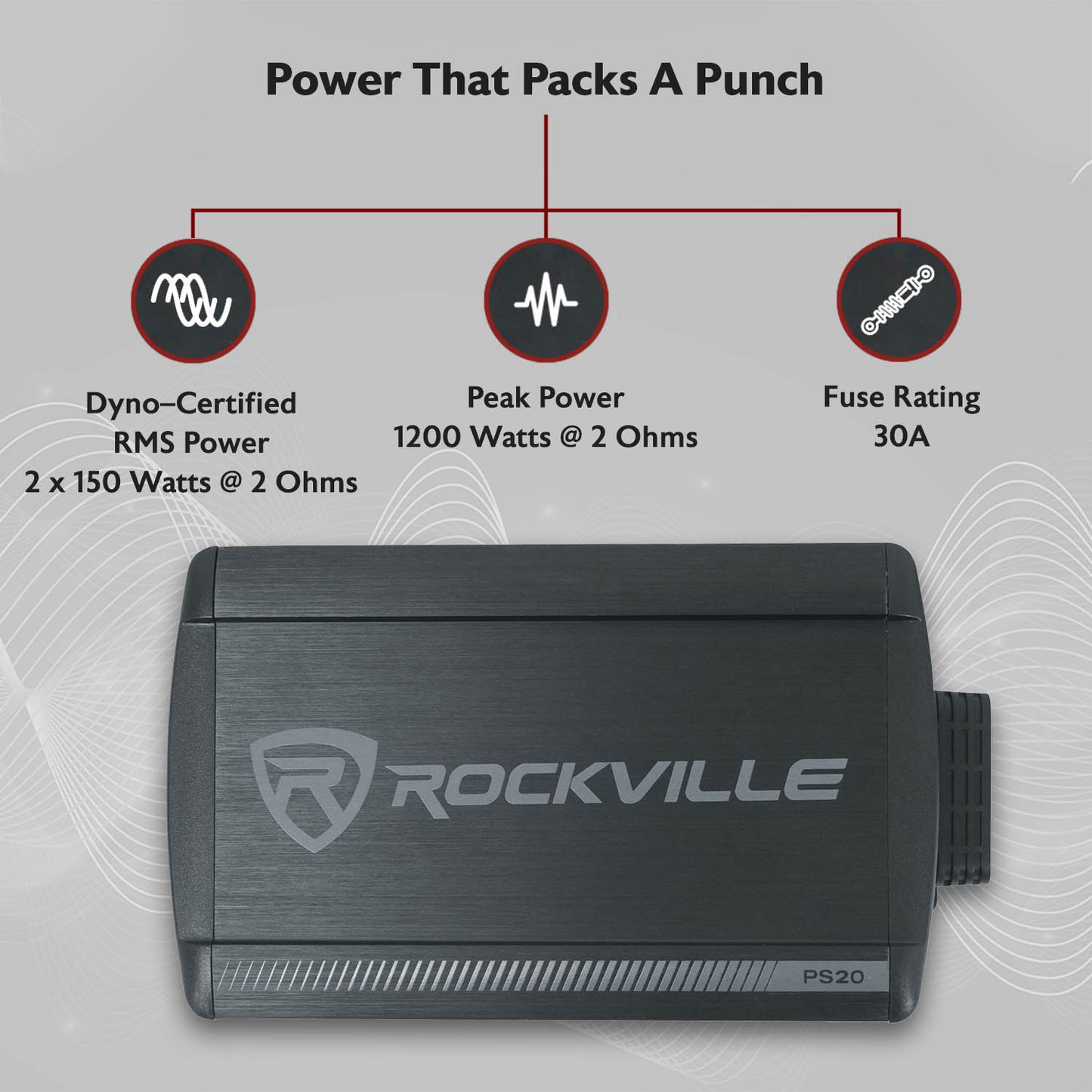

• Certified Dyno-Tested Power: Delivers a reliable 150W x 2 RMS into 2 ohms, certified to meet Rockville’s rigorous testing standards.
• Peak Power for Budget Comparison: Capable of 1200W peak power into 2 ohms, ideal when comparing with budget brands.

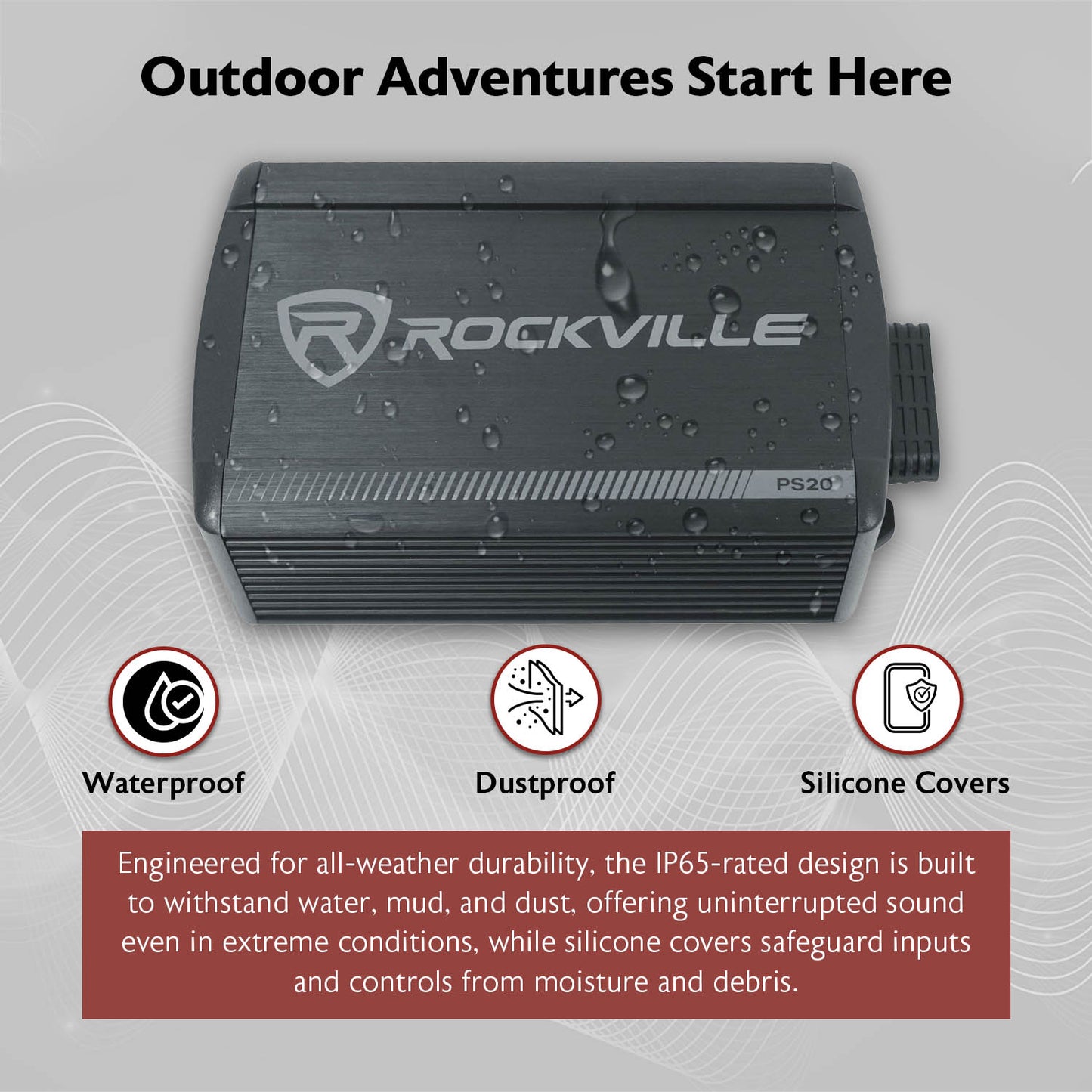

Waterproof and Weather-Resistant Design

• IP65 Rating: Resists water and dust for rugged outdoor use and can withstand brief submersion in water.
• Waterproof Silicone Covers: Protects control panel and inputs from moisture and debris.

Compact and Versatile Installation

• Micro Size: Fits easily in small spaces, ideal for motorcycles, ATVs, and UTVs.

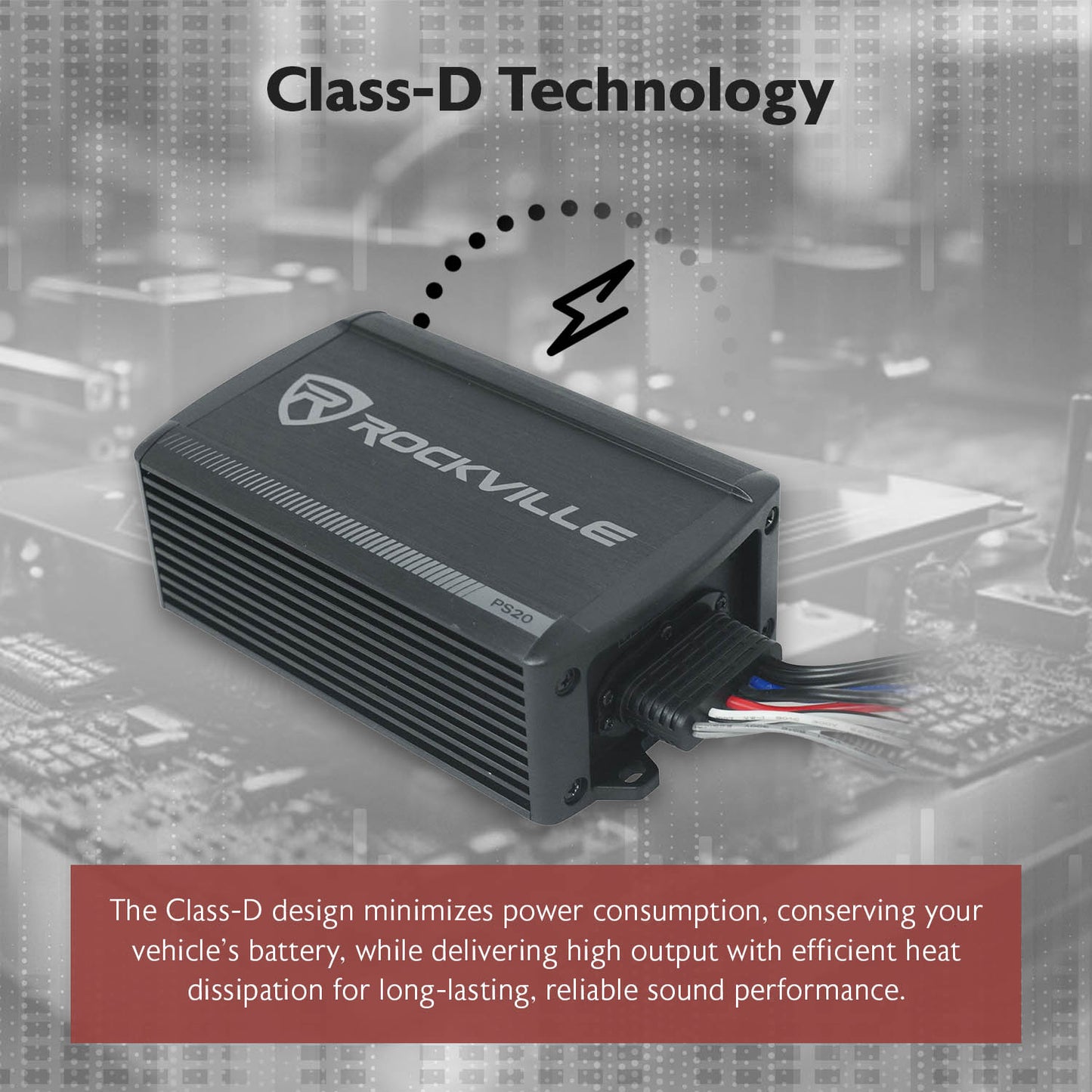

• Lightweight and Efficient: Class D audio technology uses less power, which conserves your vehicle's battery.

Advanced Sound Controls

• Independent Crossovers: Full-range, low-pass, and high-pass crossover options with adjustable frequencies.
• Bass Boost EQ: Selectable bass equalizer with 0/3/6 dB options for enhanced low-frequency control.

The Rockville PS20 is a reliable choice for adventurers and powersports enthusiasts who need high-performance audio in a rugged, space-saving design.​​

Specifications:

• Power Output (Dyno Certified RMS / Less than 1% THD):
  • 2 Ohms: 150W x 2
  • 4 Ohms: 90W x 2
  • Bridged 4 Ohms: 300W
• Peak Power (Use when comparing to top budget brands such as Boss, Power Acoustik, etc.): 1200W at 2 Ohms
• Amplifier Type: Class D
• Distortion (THD): ≤0.5%
• Signal-to-Noise Ratio (1 Watt into 4 Ohms): ≥75dB
• Stereo Separation: ≥45dB
• Waterproof Rating: IP65
• Frequency Response: 20Hz - 20kHz
• Input Sensitivity: 0.5V - 15V

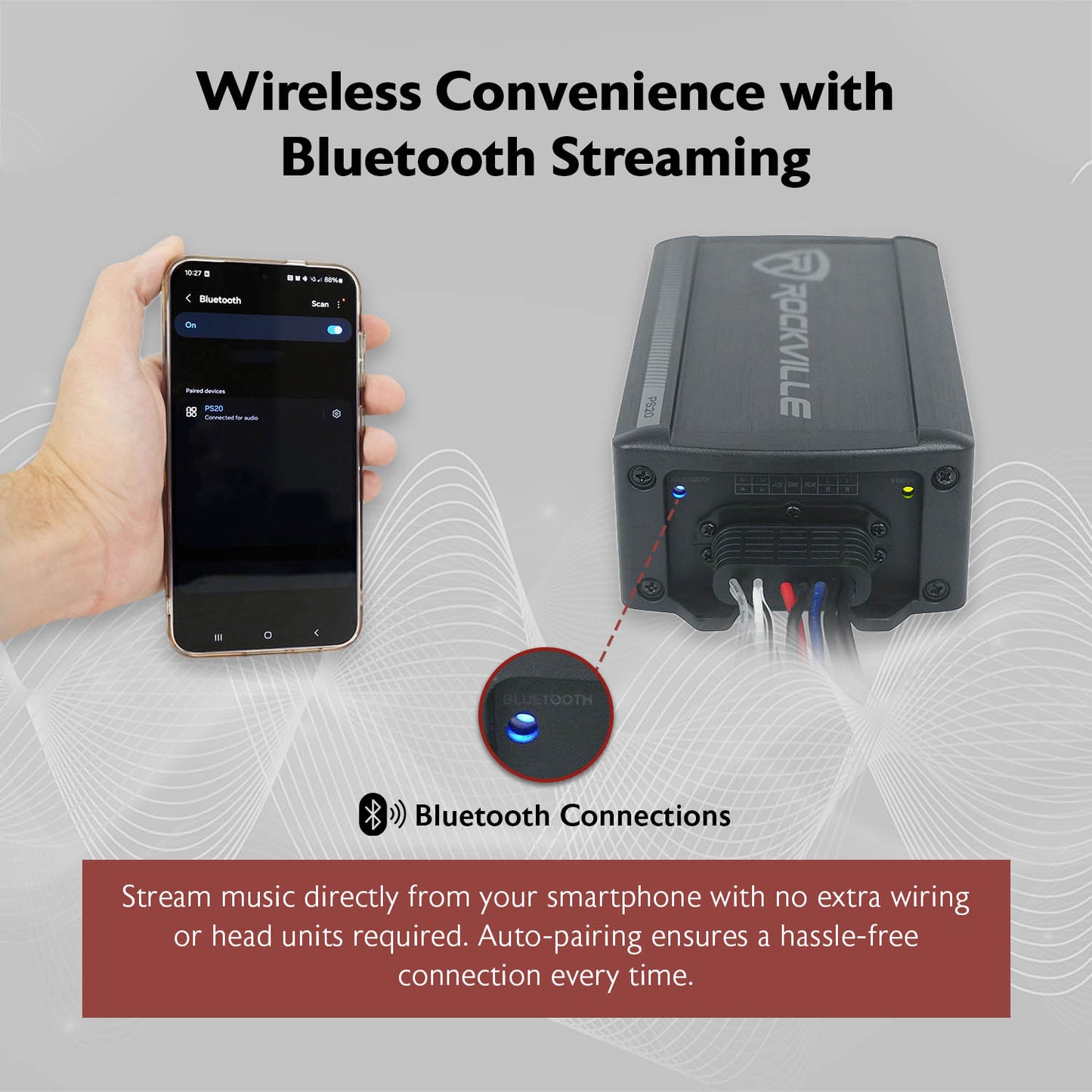

• Bluetooth: Wireless Streaming Audio with Auto Pairing

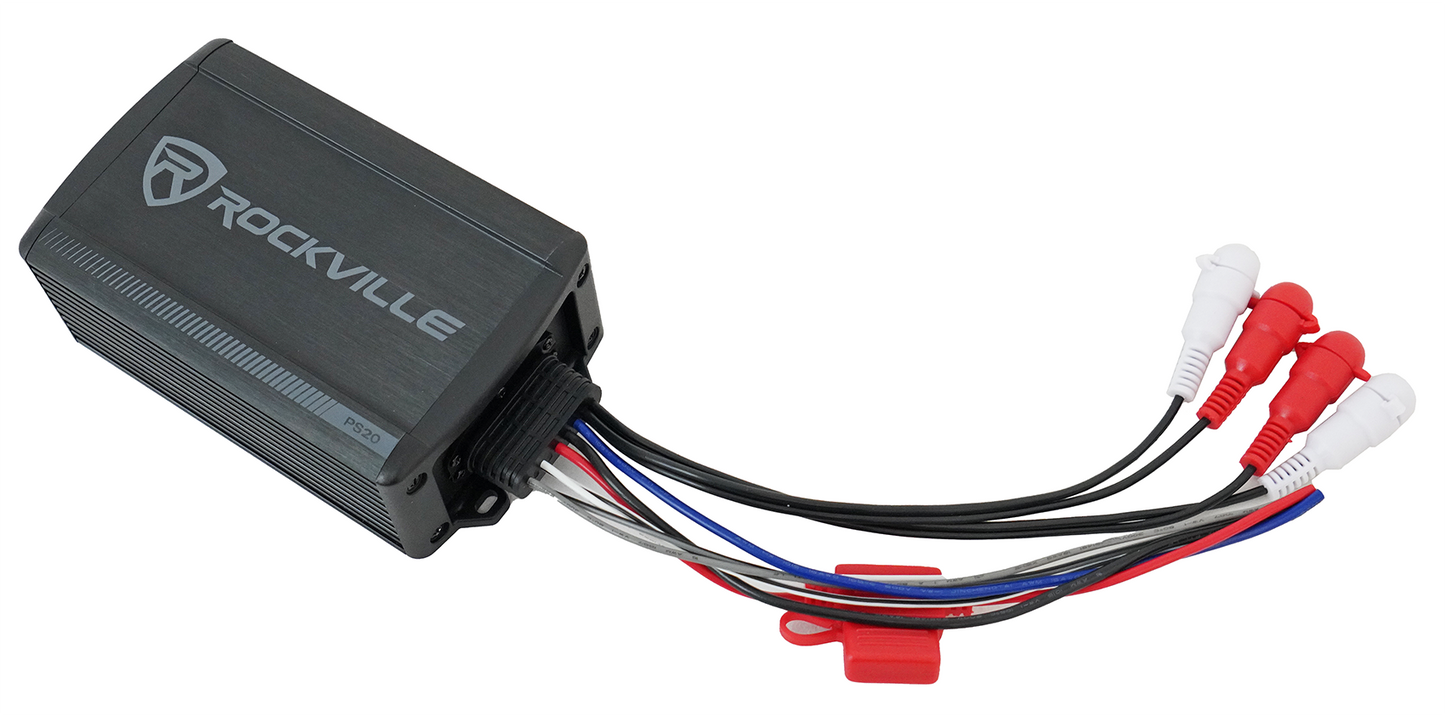

• Inputs: RCA Low Level and High Level (with Auto ON)
• Controls: Level Control, Variable Crossover Frequency (50Hz – 250Hz), Selectable Bass EQ (0/3/6dB), X-Over (HPF, Full, LPF)

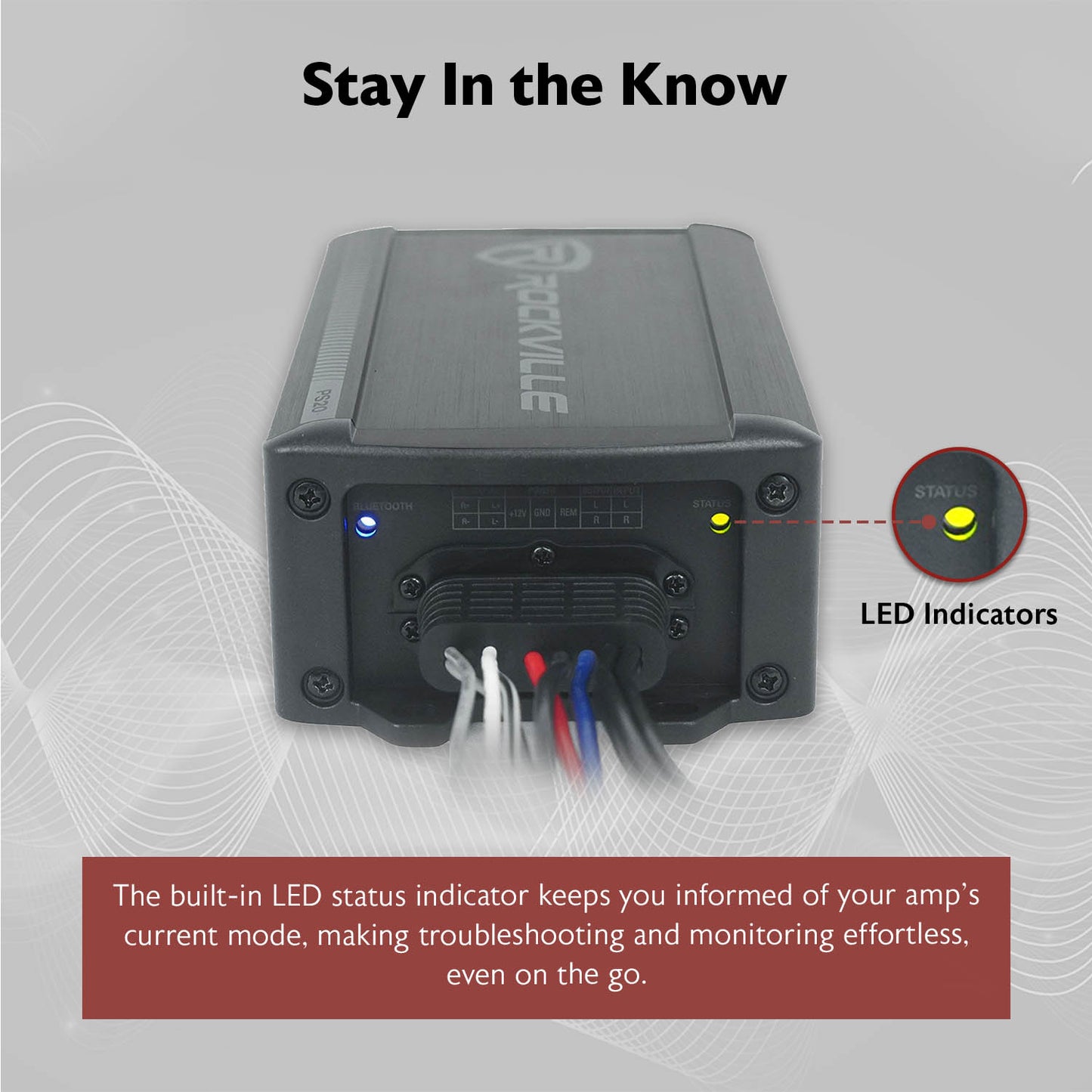

• Indicator: Status Mode LED
• Extra Features: Waterproof silicone covers on all inputs and control panel, Waterproof RCA Input,
  Conformal coated circuit board, Anti-rust materials
• Fuse Rating: 30A

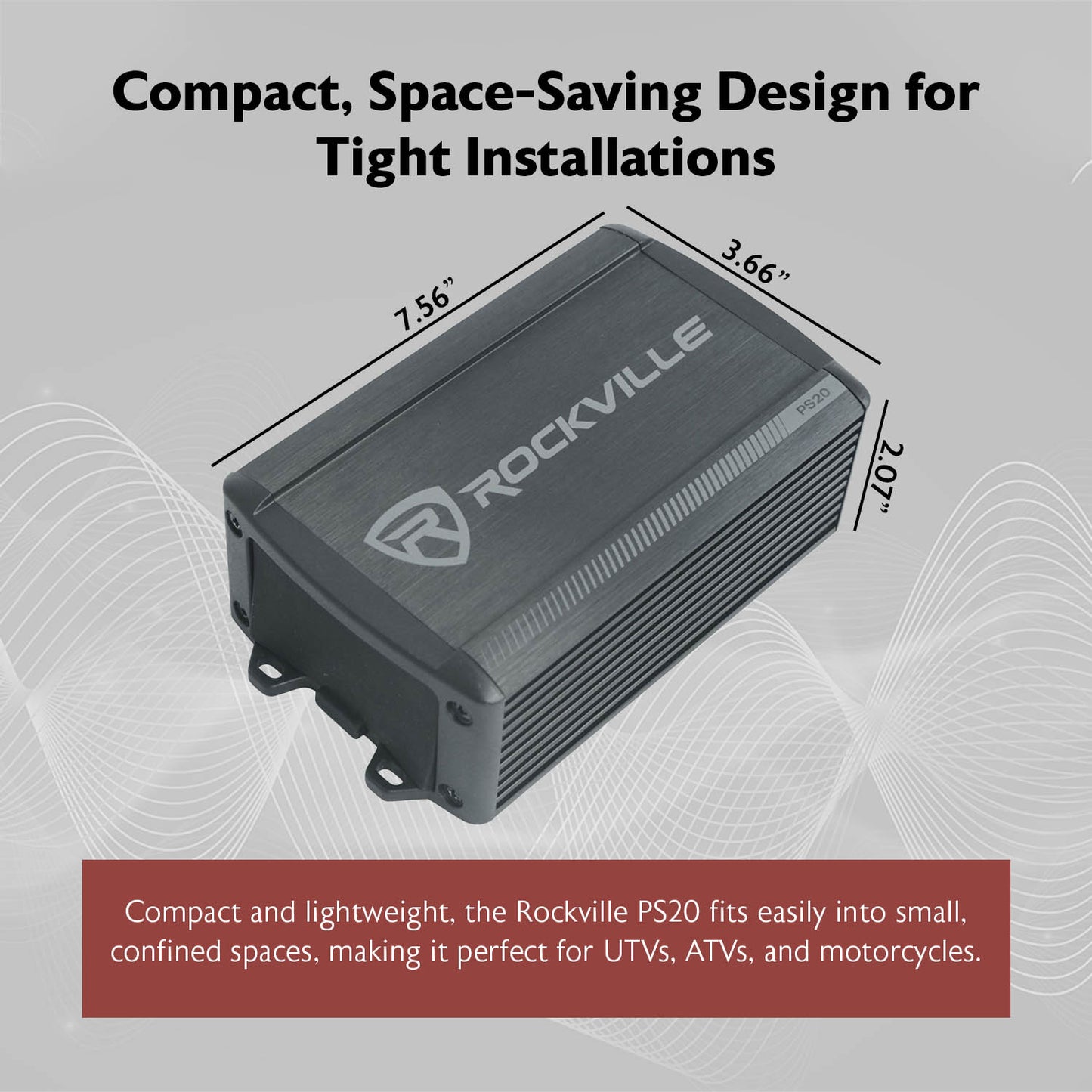

• Dimensions: 7.56" L x 3.66" W x 2.07" H

---

How To Install an Amplifier in Your UTV:

Video of RWK8ATV:

Features:

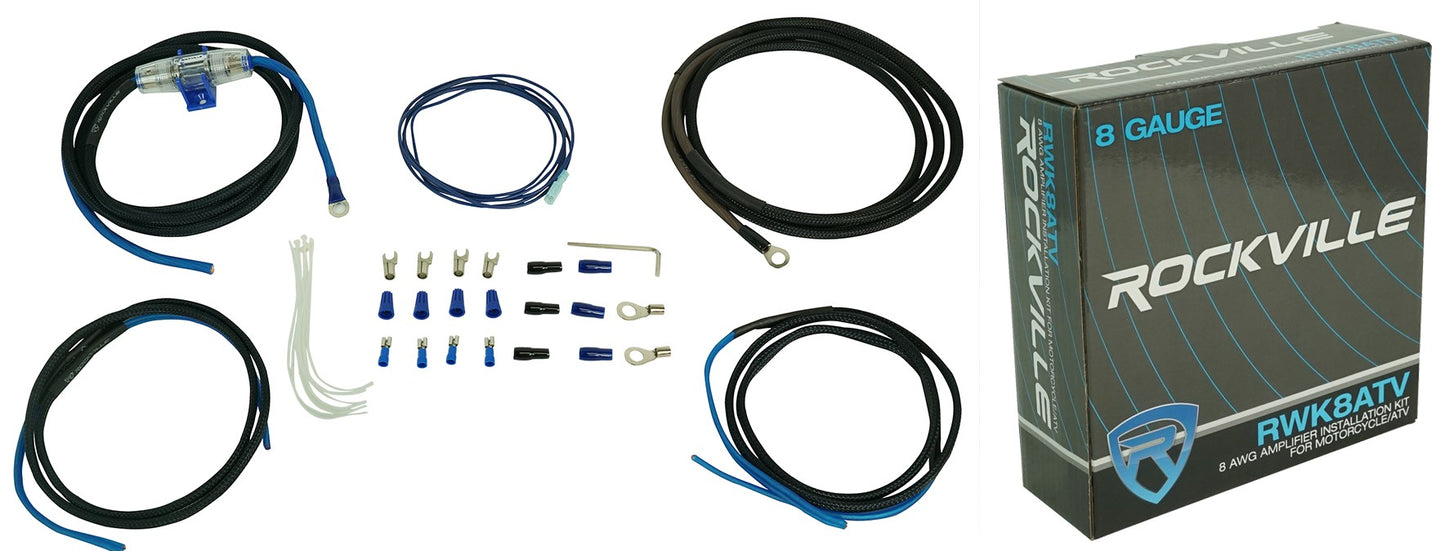

• Rockville RWK8ATV 8 AWG Gauge Amplifier/Amp Installation Wire Kit For Motorcycle/RZR/ATV/UTV

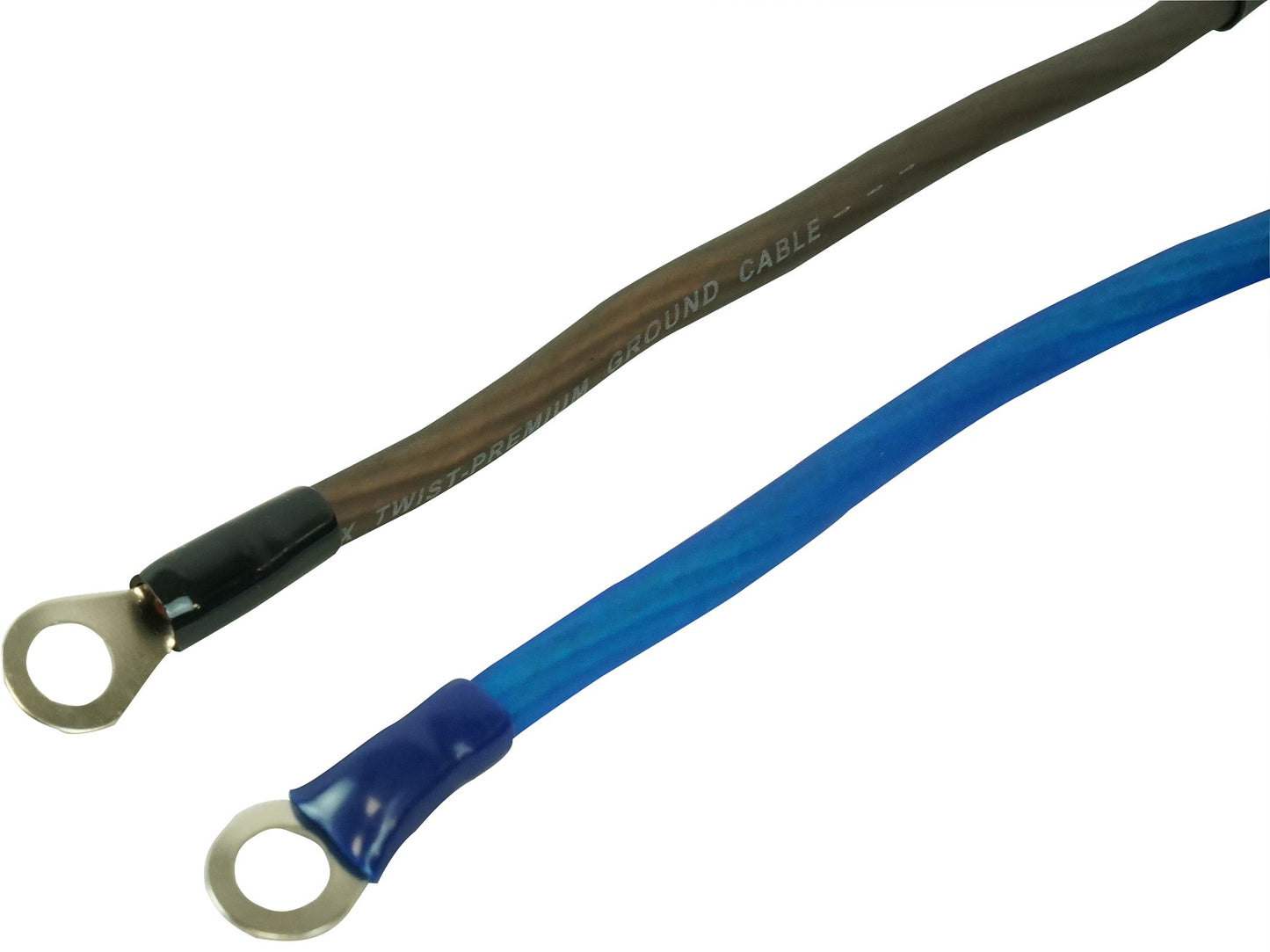

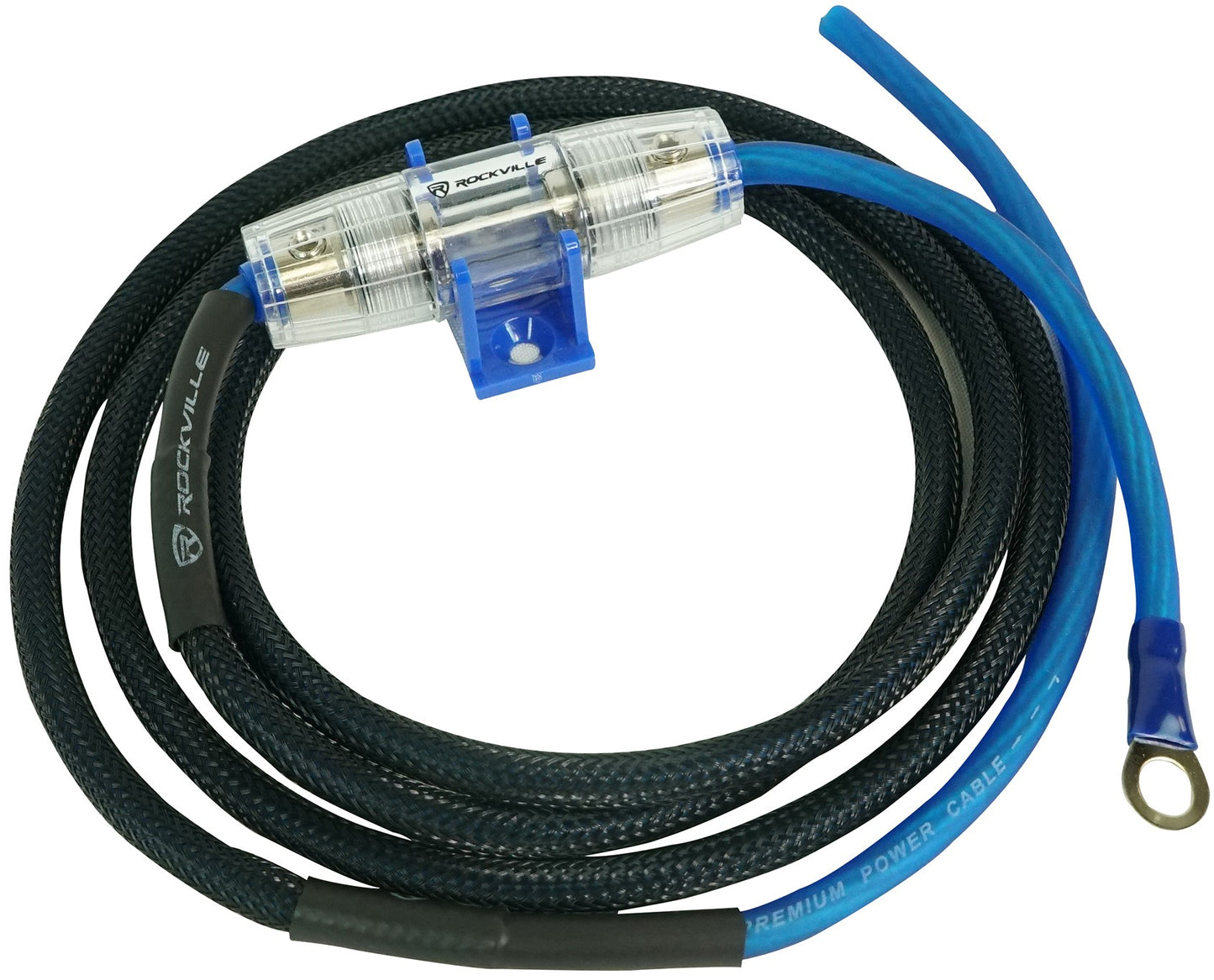

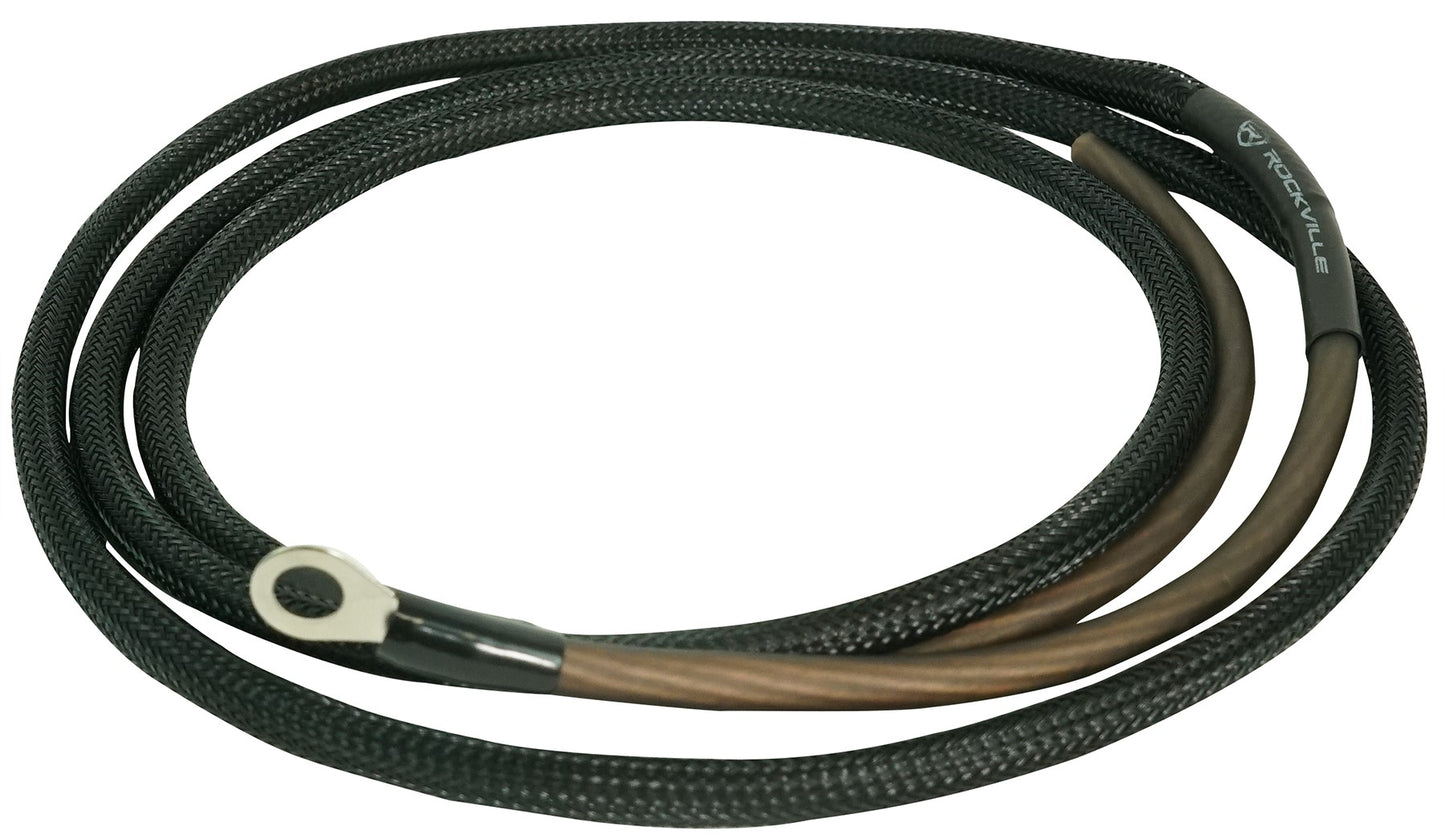

• 6 Foot 8 Gauge 100% OFC, Red Flexible Power Cable with 3' Black Poly Woven Mesh to better resist chemicals in the battery compartment

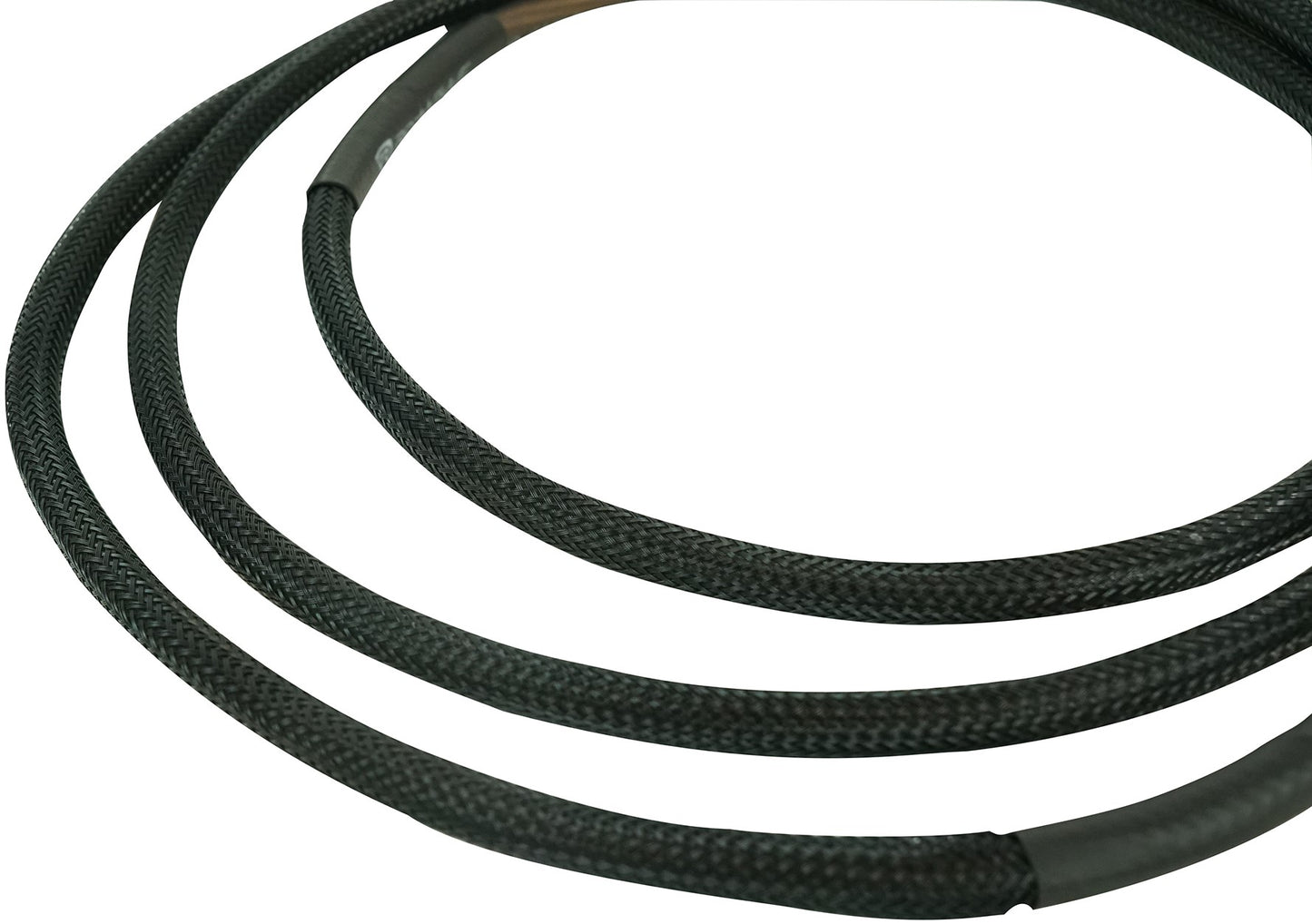

• 6 Foot 8 Gauge 100% OFC, Black Flexible Ground Cable

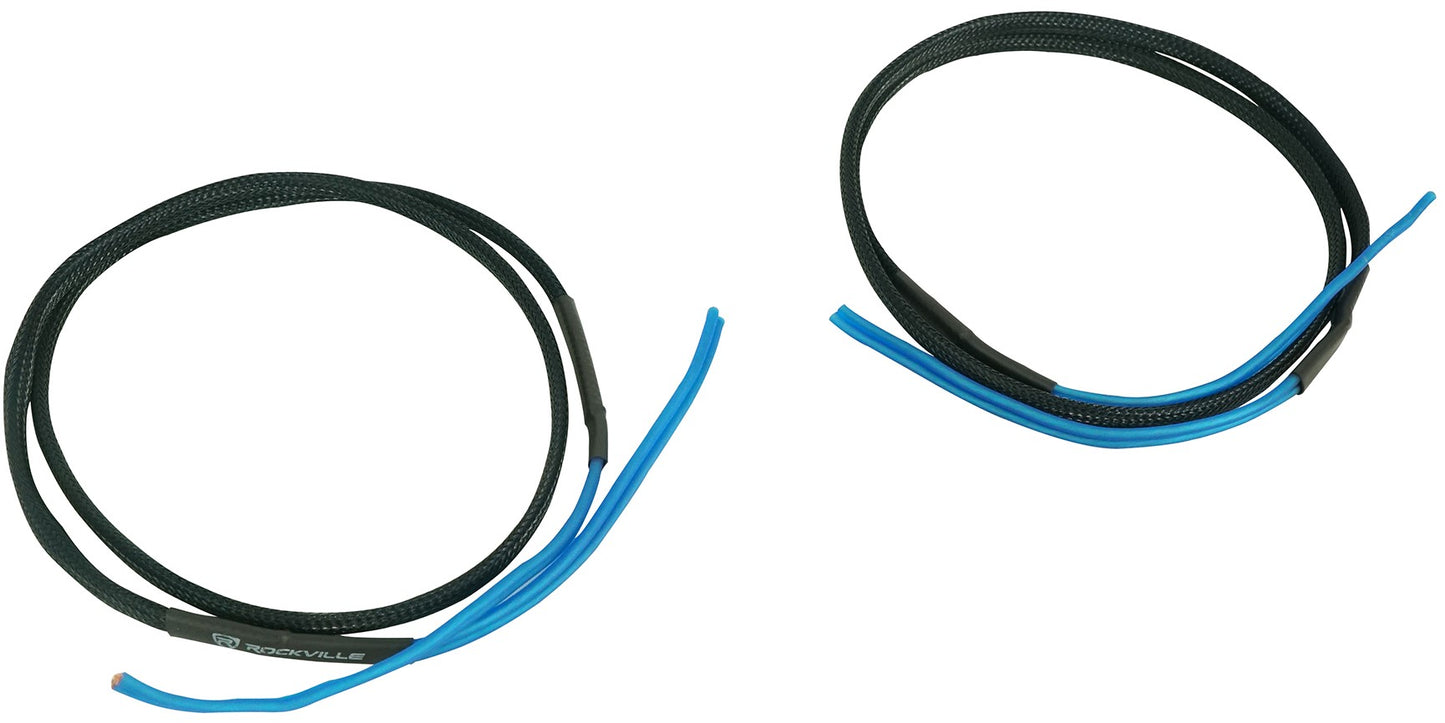

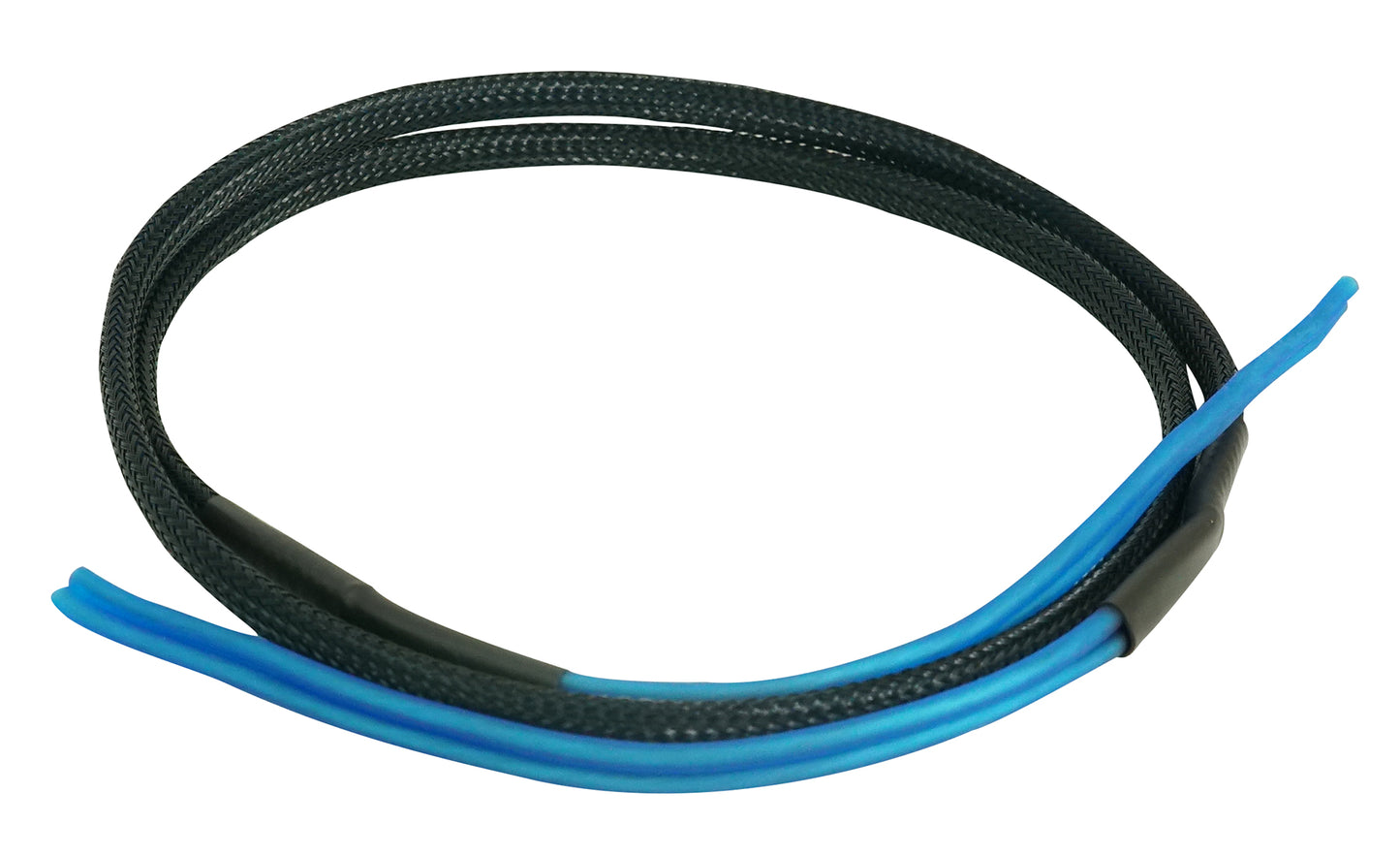

• (2) 4 Foot 16 Gauge 100% OFC black Flexible Speaker Cables Protected by black nylon mesh
• 6 Foot Pre-terminated ring terminals make connections to the battery simple

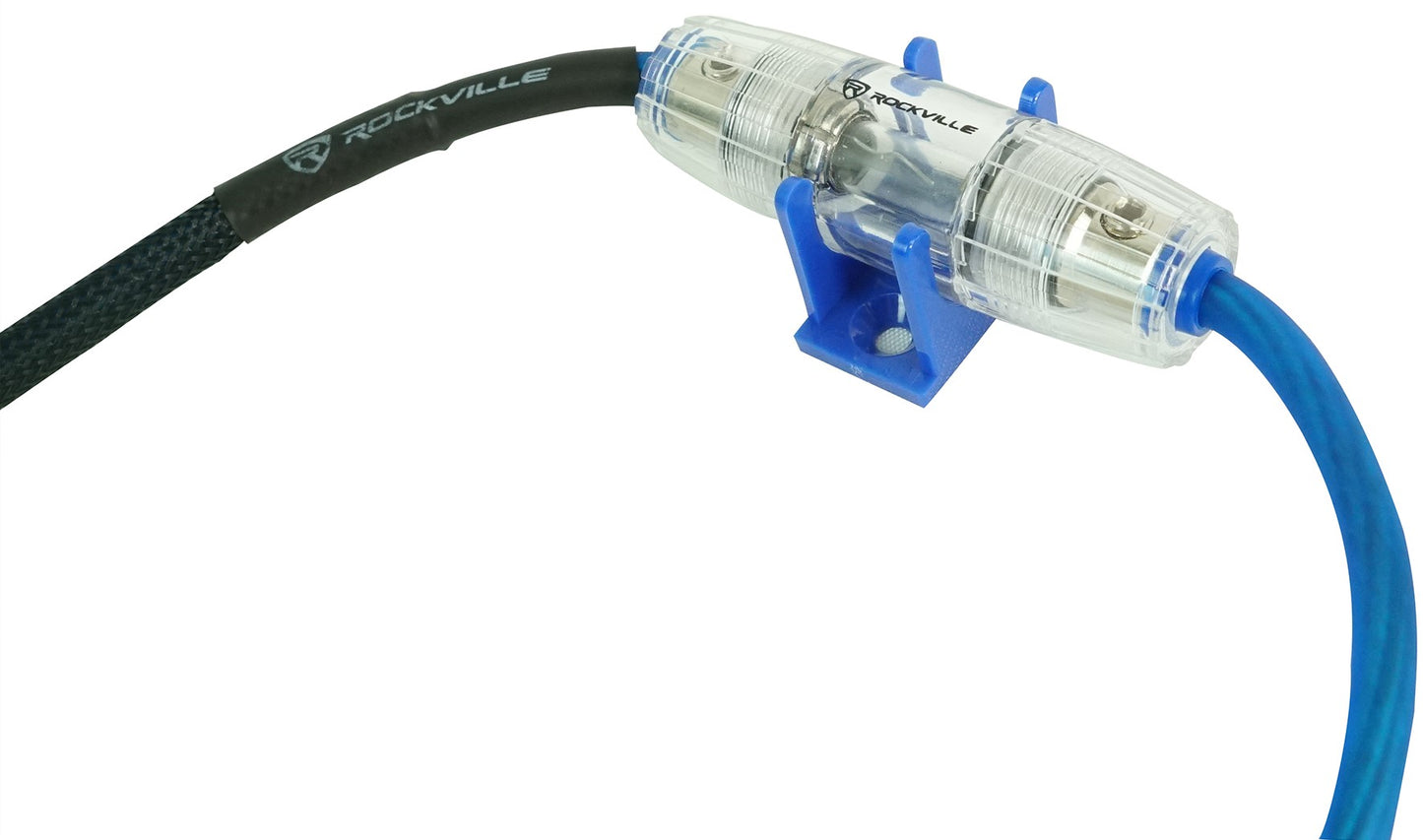

• (1) Silver AGU Fuse Holder - Clear Shell and Clear Blue Bottom Bracket with Blue Waterproof Ring
• (1) 60A AGU Fuse

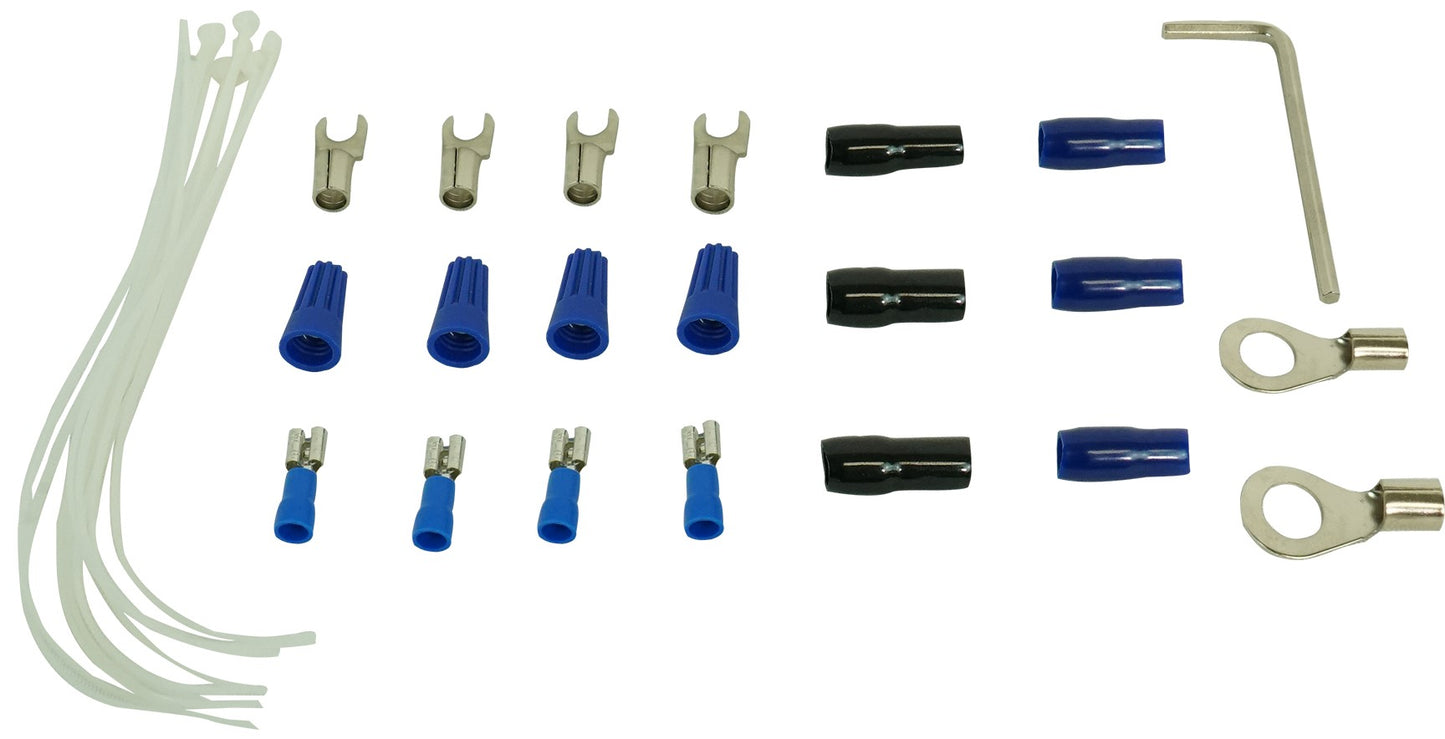

• (2) Ring Terminals
• (2) Spade Terminals
• (4) Speaker Cable Terminals
• (4) Washers
• (10) White Cable Ties
• (1) Hexagon Spanner
