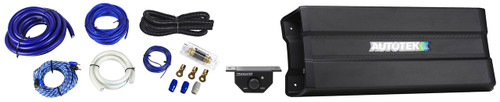

Package Includes:
- (1) Autotek MM-4025.1D 4000w 1 Ohm Mono Amplifier Compact Car Audio Amp+Bass Remote
- (1) Rockville RWK01 0 Gauge Complete Car Amp Wiring Installation Wire Kit w/ RCA's
Description:
Autotek MEAN MACHINE compact series of car audio amplifiers bring extreme power with PRO-FI™ High Speed MOSFETS and high sound quality with minimum distortion levels. The MM-4025.1D features 4000 watts of power in a 1 Ohm stable Monoblock amplifier designed to power a mono subwoofer system. The Class D technology provides extreme power in a smaller footprint.
Features:
- Low Noise Preamplifier Circuit
Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process. - RCA Inputs
RCA inputs and outputs provide the highest sound quality connection. - Operation Mode
Mono only - Crossover Type
Onboard electronic crossover - Electronic Equalizer
Electronic equalizer provides control of amplifier output with onboard electronic crossover to tailor specific frequencies to speakers and subwoofers. - Class / Topology
Very efficient D-Class to drive additional power while remaining a small footprint. - Output Device Technology
MEAN MACHINE'S ROAD WORTHY™ TCID (Twin Coil Isolation Design) and PRO-FI™ High Speed MOSFETS bring extreme power with high sound quality and minimum distortion levels. - Heat Sink
Heavy-duty aluminum alloy heatsink with illuminated logo adds a vibrant display and showcase for every car audio installation. - Power Supply
High energy PWM (Pulse Width Modulated) power supply provides Maximum power with minimal electrical impact. - Output Connections
Nickel-plated brass connection with hex set screw terminals allow for secure connection and resist erosion. - Connection Type
Angled, Allen Key connectors provide easy access for hand tools allowing a quick and secure connection. - Full-Range RCA Outputs for Signal Pass Through
Full-range signal pass through output allows additional amplifiers to be run from the "output" RCA connections which minimize the need for additional cables running the length of the vehicle. This can dramatically minimize noise. - LED System Protection Circuitry Diagnostics
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel. - Bass Remote Included
Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.
Specifications:
- Weight: 7.45 lbs.
- Dimensions: 18.25 × 7 × 3.25 in
- Type: Amplifier
- Series: Compact MEAN MACHINE
- Color: Black
- Warranty: 1 Year
- Compatible Vehicles: Universal
- Amp Class: Class D
- Amp Total Channels: 1
- Amp Max Power (watts): 4000
- Amp Power @ 1 Ohm (Ch x watts): 1 x 4000
- Amp Power @ 2 Ohms (Ch x watts): 1 x 2000
- Amp Power @ 4 Ohms (Ch x watts): 1 x 1000
- Amp Crossover: Variable Electronic 12dB Per Octave
- Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-300Hz
- Amp Tone Control / Parametric EQ: Built-in Bass Control
- Amp Bass Boost: 0-12dB
- Amp Subsonic Filter: 10Hz-40Hz
- Amp Variable Voltage: 0.2-6V
- Amp Frequency Response: 10Hz-500Hz
- Amp Total Harmonic Distortion (THD): < 0.1%
- Amp Speaker Level Audio Inputs: Yes
- Pre-amp Audio Outputs: RCA
- Amp Power Terminal 12v/GND: 4 AWG
- Amp Speaker Terminal Wire Gauge: 12 AWG
- Amp Fusing: External 150A
Video of RWK01:
Description:
The Rockville RWK01 0 AWG (American Wire Gauge) amp kit has the following differences over other amp kits on the market at this price point.
1. Our RCA cables are 100 % copper. These are top of the line RCA cables.
2. Better Resistance: The only thing that really matters with wires is the resistance rating. This is a measurement of conductivity and how much signal is lost per foot of wire. Since Rockville wires are made with around 3 times as much copper as any other wire at this price point, these wires have a much better resistance rating which means they will transfer more power to your amps than the other brands.
3. We do not cheat you on the thickness of the wire. These are standard American wire gauge thickness. This is another reason our conductivity is better than anything else at this price point. Other brands in the market place write 4 gauge, but cheat you on the thickness. We are honest about the thickness.
4. The Rockville amplifier installation kits feature a new soft abrasion proof insulating jacket. This rugged PVC outer jacket allows for 100% improved flexibility over standard power cables making them extremely easy to route through your vehicles interior, and it maintains exceptional resistance to grease and oil. The PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F.
Features:
- Rockville RWK01 0 AWG (American Wire Gauge) Complete Car Amp Installation Wire Kit
- 17' - 0 Gauge Translucent Blue SuperFlex Power Cable
- 3' - 0 Gauge Translucent Black SuperFlex Ground Cable
- Gold Plated ANL Heat Resistance Fuse Holder
- 200 Amp ANL Gold Plated Fuse
- 1 - 17' High Grade Twisted Pair of RCA Interconnects
- 25' Translucent Blue Speaker Wire
- 7' Split Loom Tubing
- 17' Amplifier Remote Turn On Cable
- Wire Ties and Ring Terminals, and all other accessories you need for a clean installation
- Soft abrasion proof insulating jacket allows for 100% improved flexibility
- PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F
