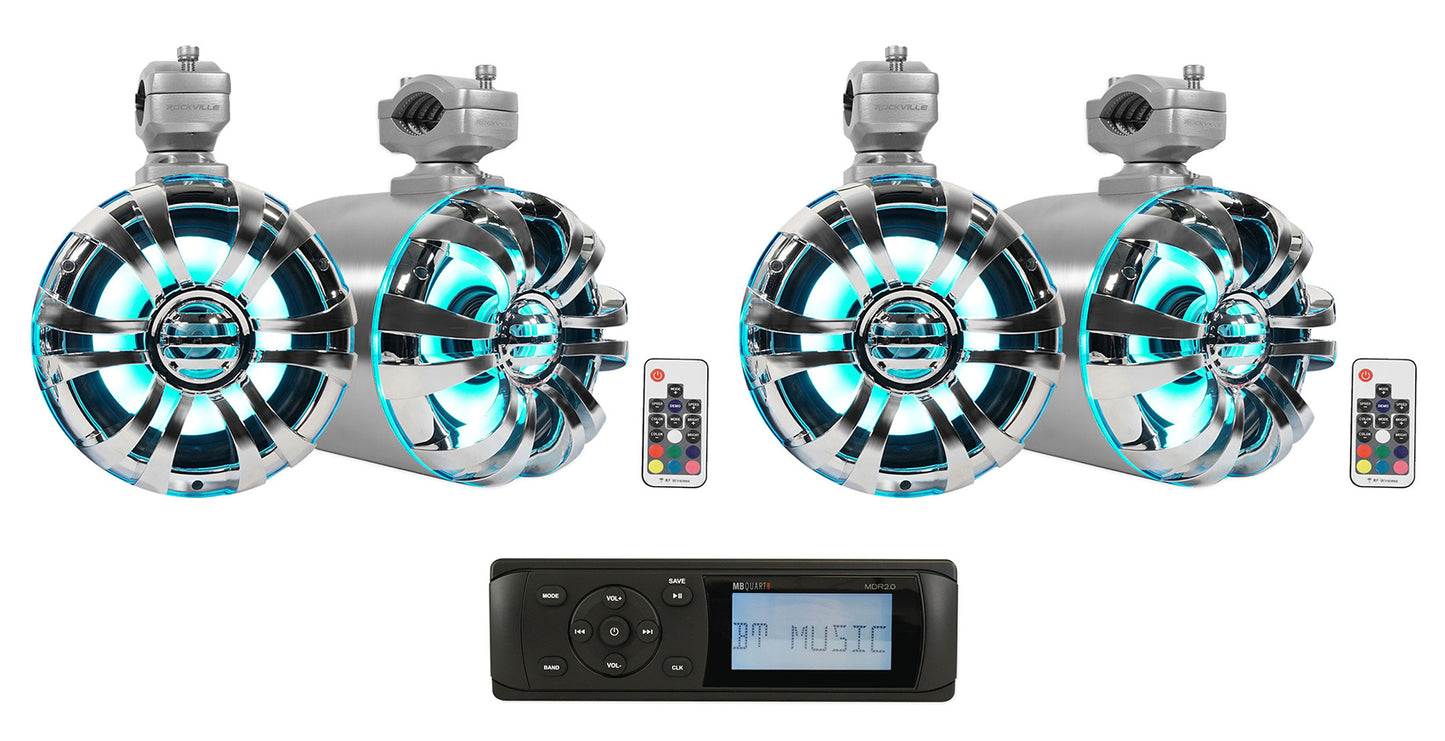

- (1) MB Quart MDR2.0 Single DIN Marine/Boat Bluetooth/USB Receiver Radio

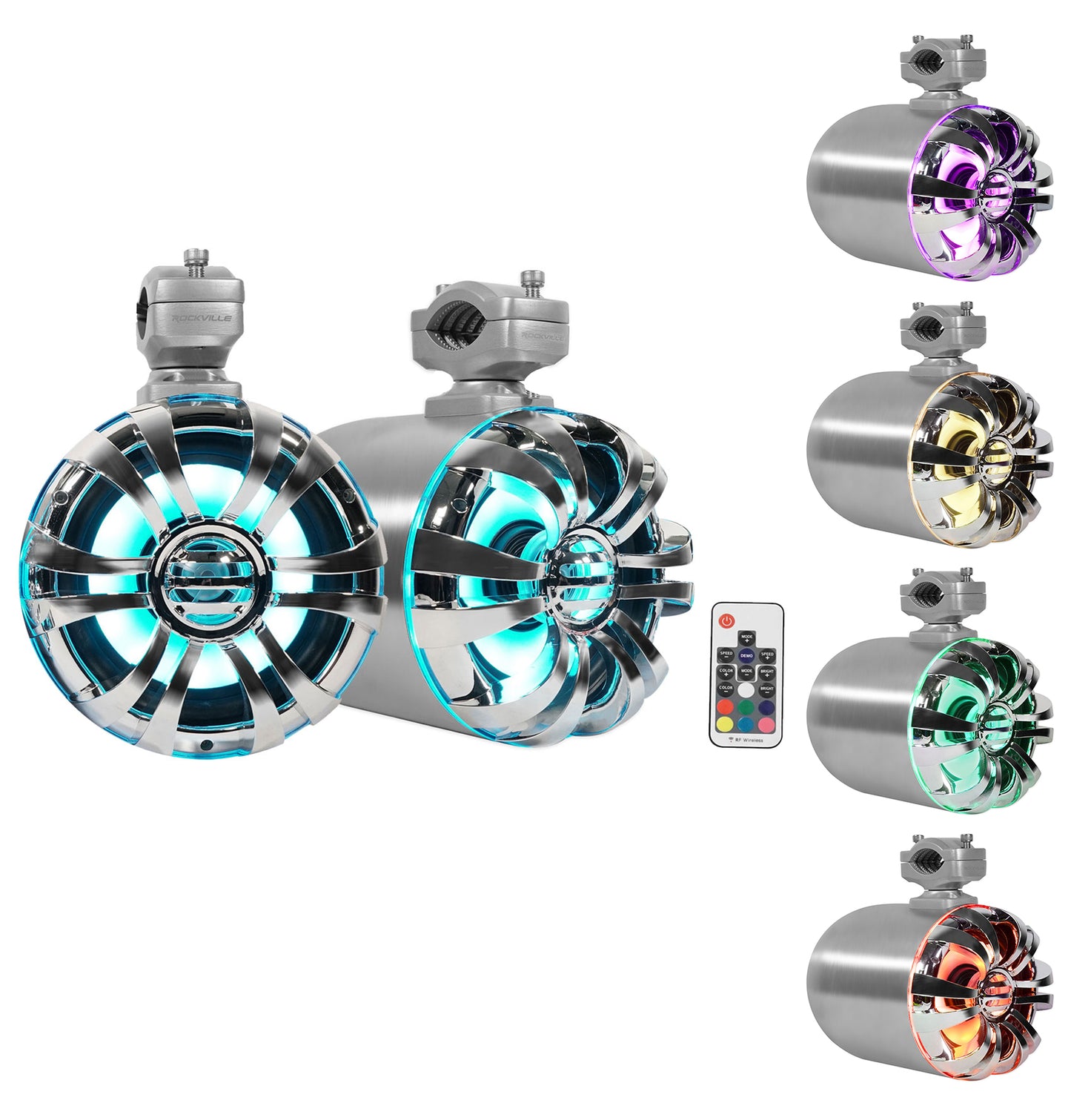

- (2) Pair Rockville WB65KLED 6.5" 600w Metal Marine Wakeboard LED Tower Speakers+Remote
Description of MDR2.0:
Multimedia Digital Receiver with 160 Watt internal amplifier features AM/FM/Weather Band, Bluetooth®, USB.
Multimedia Digital Receiver
160 Watt AM/FM/Weather band, Bluetooth®, USB
Bluetooth™ Connect & Quick-Pair
Quick and secure pairing of devices with your music library with album art displayed
USB Control
Easily connect smartphones, portable media devices and streaming services. iPod control allows full Apple® connectivity.
LIFE SHIELD
Marine certified to IPX5 with large waterproof buttons

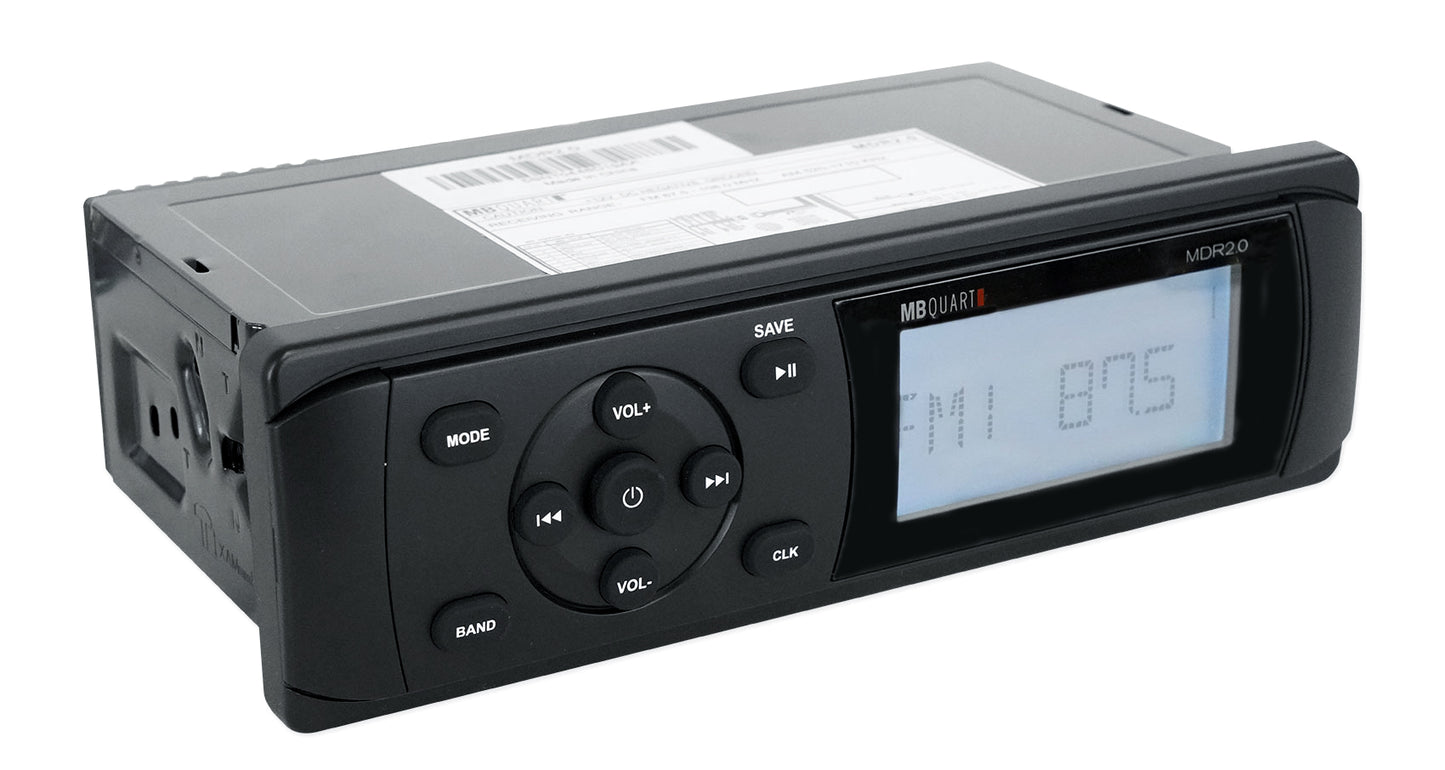

DIGITAL MEDIA RECEIVER - MDR 2.0
The MB Quart MDR2.0 is a Digital Media Receiver with a 160 watt internal amplifier. The unit features AM/FM//Weather Band, Bluetooth® streaming audio and USB input options. This Digital Receiver was unveiled to anxious boat builders at the IBEX show in 2018. Now the RV industry, off road builders and marine enthusiasts are joining the professionals choosing the MDR2.0 for their applications.
Check out some of the specific features and technologies that make the MDR2.0 an ideal control system for any audio system.
INSTALLATION-FRIENDLY DESIGN

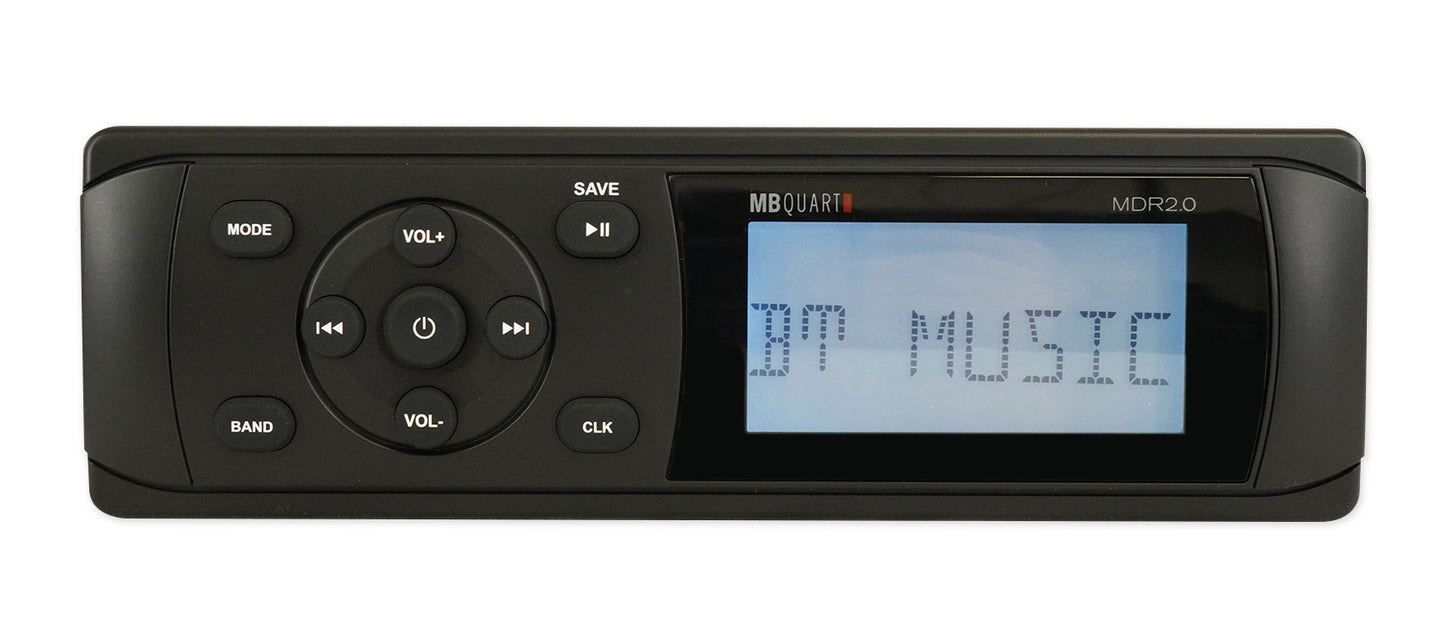

The easy-to-operate face of the unit with the high contrast display allows easy viewing and control. Regardless of full sun or shade, the display is clearly visible. Intuitive controls are straightforward. The compact single-DIN chassis offers greater installation flexibility and placement options because of its shallow depth so it fits well in nearly any dashboard, whether a car, truck, touring motorcycle, UTV or watercraft.
USB CONTROL & AUDIO INPUTS
Easily connect smartphones, portable media devices and streaming services. iPod® control allows full Apple® connectivity. The MDR2.0 is also Android® compatible. The MDR2.0 unit supports MP3, WMA, and WAV audio with a USB thumb drive connected.
AM/FM/WEATHER BAND TUNER
MB Quart engineers incorporated a strong AM/FM and Weather Band tuner into the RVDVD2.0 utilizing a PLL synthesizer crystal. This assures reception in the most remote areas. Perfect for RV adventures, marine overnights at beach camp sites and road trips to nowhere.
BLUETOOTH CONNECT & SECURE SIMPLE PAIRING
Our Bluetooth Connect ™ quick-pairing technology allows the MDR2.0 to securely and quickly connect your Bluetooth-enabled device to stream audio content. The unit supports Bluetooth 4.0 technology.
This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system and the highest quality of streaming audio. Simply search for “MDR2.0” on your Bluetooth device and connect. The MDR2.0 Bluetooth range is 10 meters or 32 feet.
APPLE & ANDROID COMPATIBLE
Secure Simple Pairing™ from MB Quart provides a quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. The Bluetooth range is 10 meters or 32 feet.
SIMPLE UX NAVIGATION
The MDR2.0 incorporated a simple navigation system, along you to concentrate on more important things - like driving.
HIGH POWER BUILT-IN AMPLIFIER
Integrated 160 watt, 4-channel amplifier (4x40 watts) delivers plenty of power for all speakers connected.
MAXXIMUM CONNECTIVITY
With 4 volts of signal from the preamp level RCA outputs, audio systems can be designed to integrate external amplifiers for speakers and subwoofers.
Choose from several types of amplifiers in the MB Quart line of marine, off-road and mobile amplifiers. The compact NA2 line-up is ideal for power density and efficiency, which means a small installation footprint in your RV and maximum power output. Also consider the full marine line of amplifiers and many choices of MB Quart car audio amplifiers.
For speakers and subwoofers, consider if you wish to have speakers hidden away into original locations or more outdoor and off road options. Check out the full line of MB Quart Nautic Speakers and Tower Speakers or more traditional car audio speakers, such as those you might install within an RV interior.
Of course the heart of music is hidden in the bass frequencies, which means subwoofers. MB Quart has that covered with waterproof Nautic and car audio subwoofers that provide incredible low frequency performance in very moderate air space requirements.
LIFE SHIELD
The MDR2.0 is IPX-5 rated for water intrusion, making it ideal for a marine or off-road environment. Rest assured, when you see the MB Quart Life Shield icon, you are choosing a product that is Waterproof, Dust Proof, Snow Proof and built to the highest standards.
Features:
- MARINE GRADE PROTECTION
Meets or exceeds IPX5 requirements for water and dust proofing - LIFE SHIELD
This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors - APPLE® CONTROL
Quick control and access of iTunes collection with iPhone, iPod and iPad - SOURCE TYPE
AM/FM/Bluetooth® Radio allows all access to radio stations and content from Bluetooth enabled devices - INPUT TYPES
Bluetooth, RCA, USB nearly nothing the device can not play - CONTROL BUTTONS
Front facing buttons to engage and adjust all features - BLUETOOTH® CONNECT
Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process - SECURE SIMPLE PAIRING™
Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system - QUICK PAIR™
No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY - BUILT-IN POWER
Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle - CONTROL METHOD
9 control buttons on faceplate - FREQUENCY RANGE
FM: 87.5 - 108, AM: 530 - 1710 - WEATHER BAND
Includes built-in weather band radio
Specifications:
- RMS POWER OUTPUT: 4 x 20 Watts
- PEAK POWER OUTPUT: 4 x 40 Watts
- MAXIMUM THD+N AT 4 OHMS: 81.2dBA
- EFFICIENCY AT FULL POWER 4 OHM (1KHZ): 0.639
- IDLE CURRENT: 0.3A
- MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 4 Volts/span>
- SIGNAL TO NOISE (CTA-2006B): -86.2dBA AUX, -66.1dBA Bluetooth
- SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -76.2 dBA, Aux -86.4dBA
- PREAMP FREQUENCY RESPONSE (+/- 3.0DB): 20Hz – 10.2 kHz USB, 30Hz – 9.7 kHz Bluetooth
- AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): 20Hz – 20.0 kHz USB, 30Hz – 20.0 kHz Bluetooth
- STEREO SEPARATION (AUX INPUT): -45.60dB @ 5kHz
- FM MONO USABLE SENSITIVITY: 3.6μV
- AM MONO USABLE SENSITIVITY: 17µV
- MINIMUM IMPEDANCE: 4 Ohms
- PRE-AMP OUTPUTS: 1 Pair
- DISPLAY TYPE: LCD

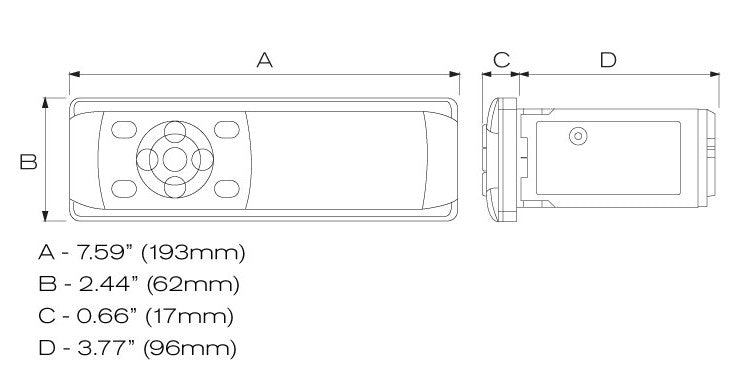

- DIMENSIONS MOUNTING HOLE: 7 x 2 inches
- DIMENSIONS MOUNTING DEPTH: 4 inches
- TUNER SECTION FM STEREO FREQUENCY RANGE: 87.5MHz-108MHz
- TUNER SECTION SIGNAL TO NOISE RATIO: >55dB
- BLUETOOTH RANGE: 32 Feet (10 Meters)
- OUTPUT VOLTAGE: 4 Volts
Video of WB65KLED:

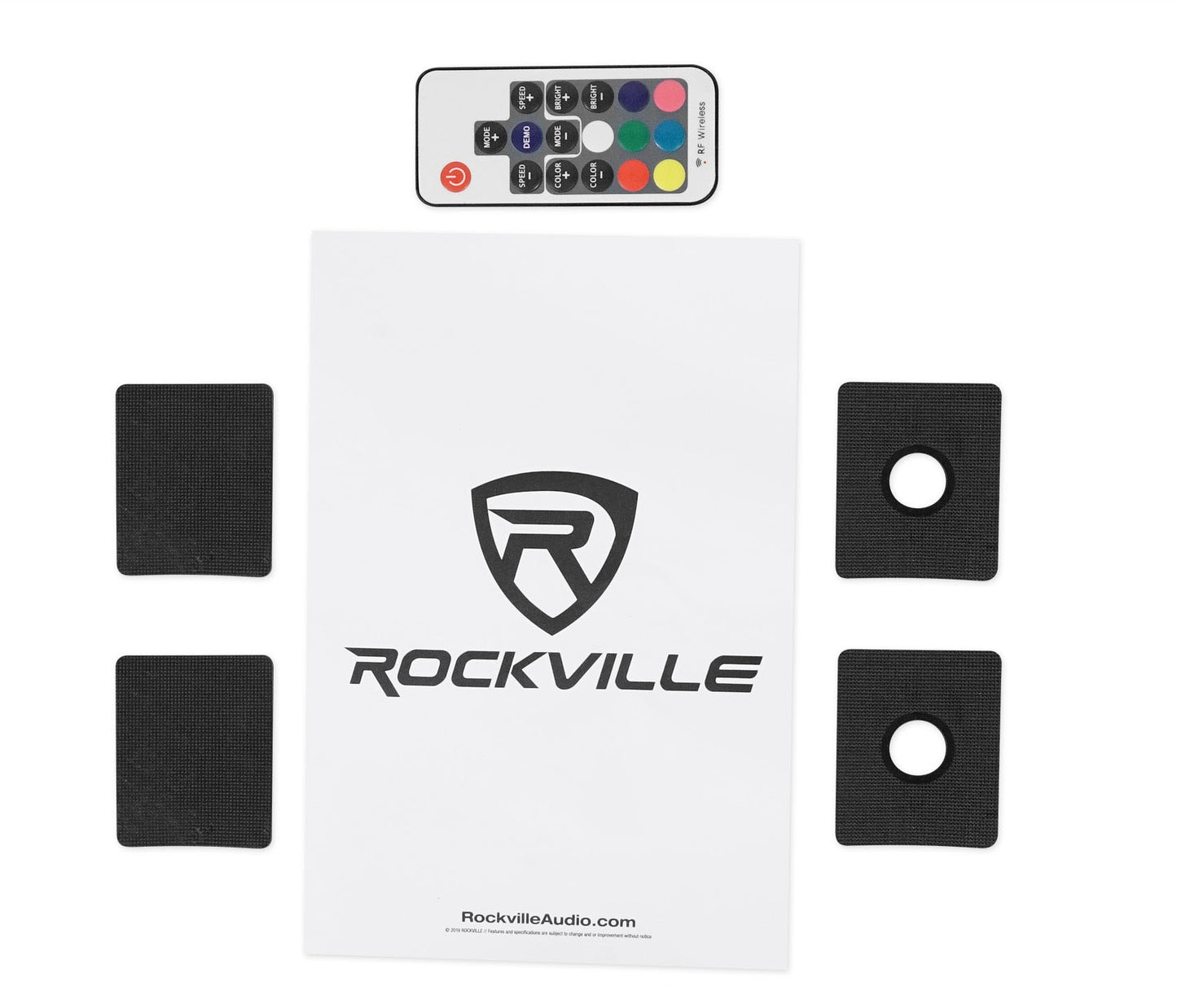

What's Included:
- Pair 6.5" marine wakeboard tower speakers with built in LED's
- Waterproof leading wire
- Mounting brackets and mounting hardware
- ABS chrome grill
- Installation hardware
- Wiring instructions

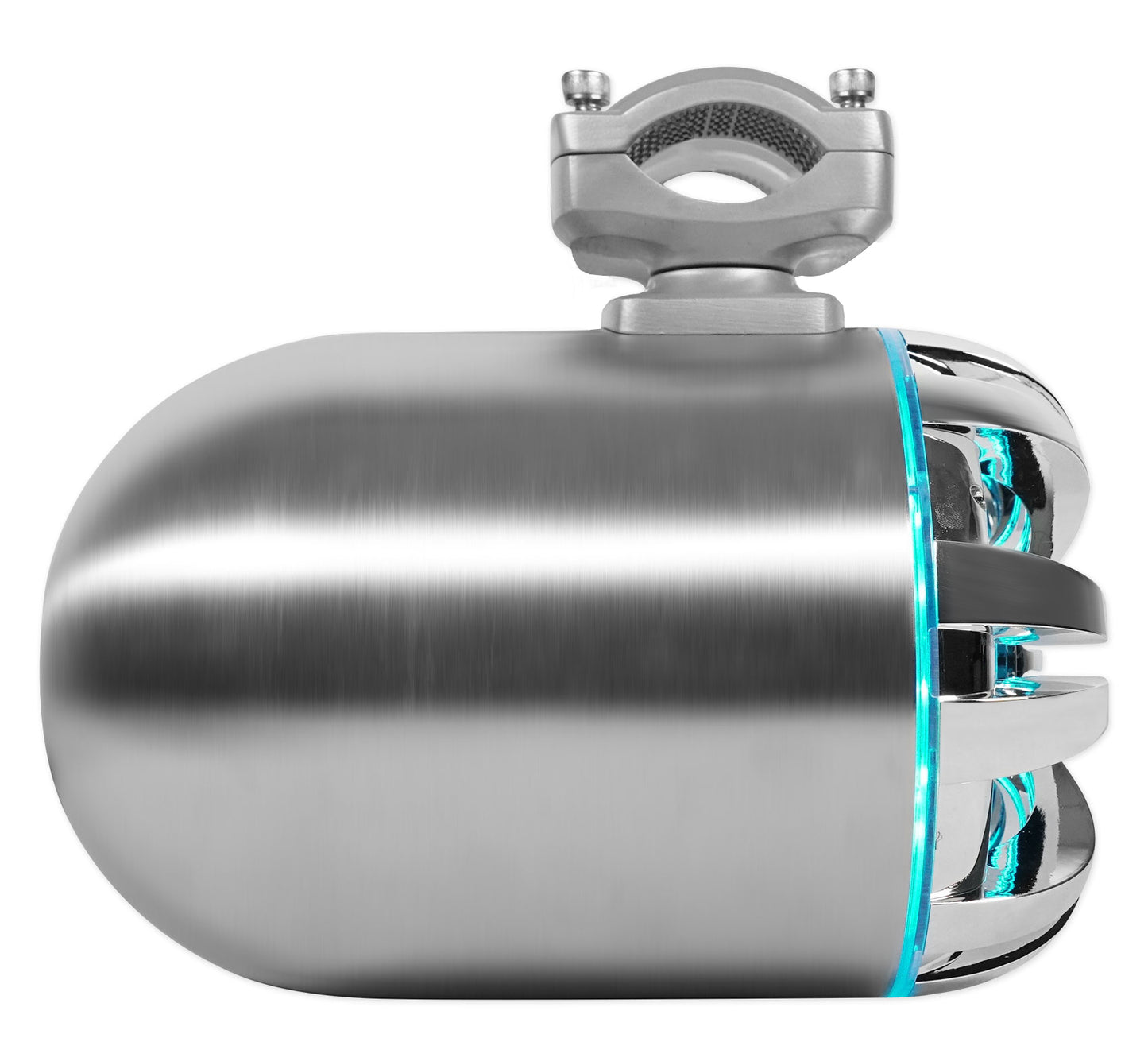

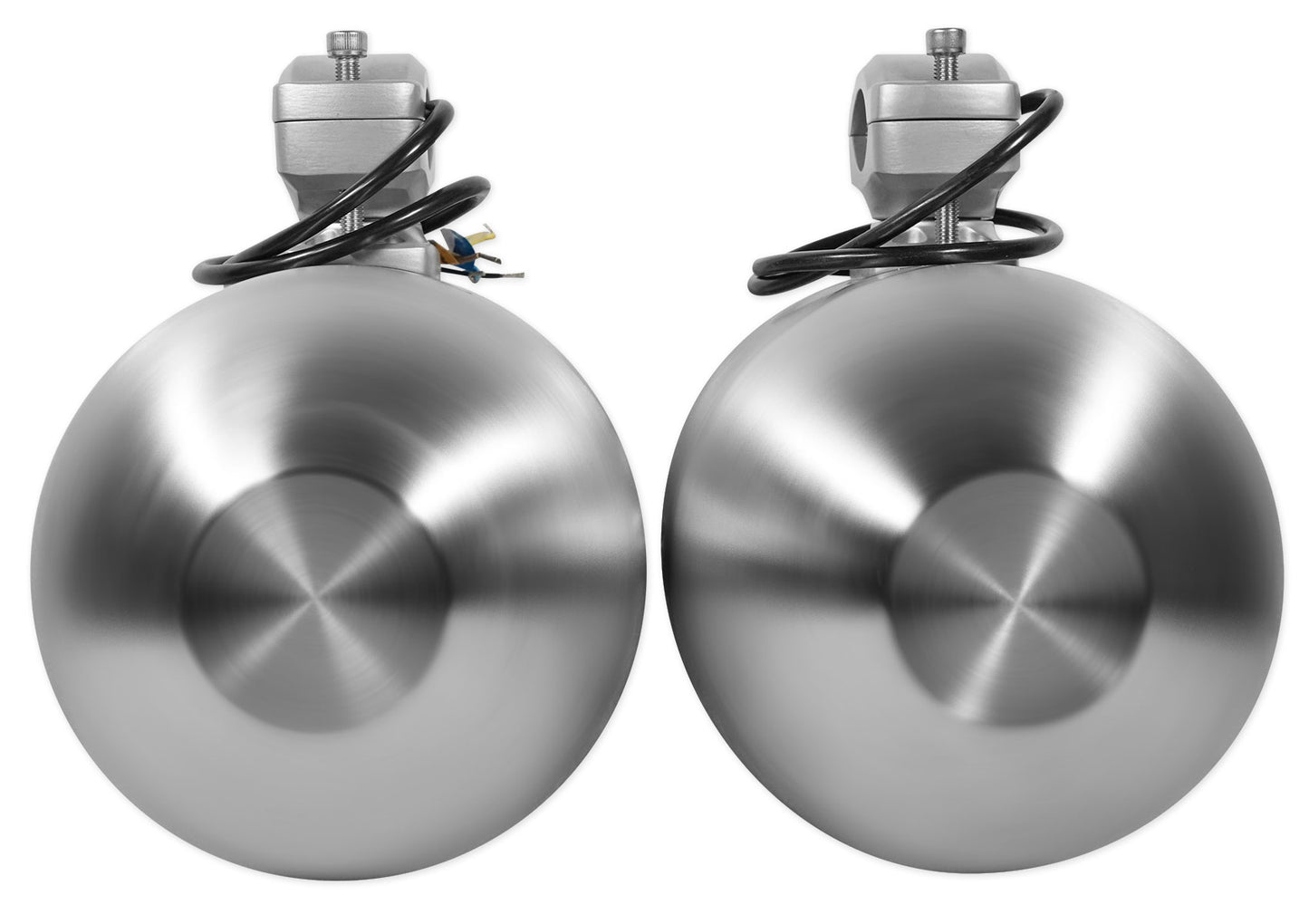

Description:

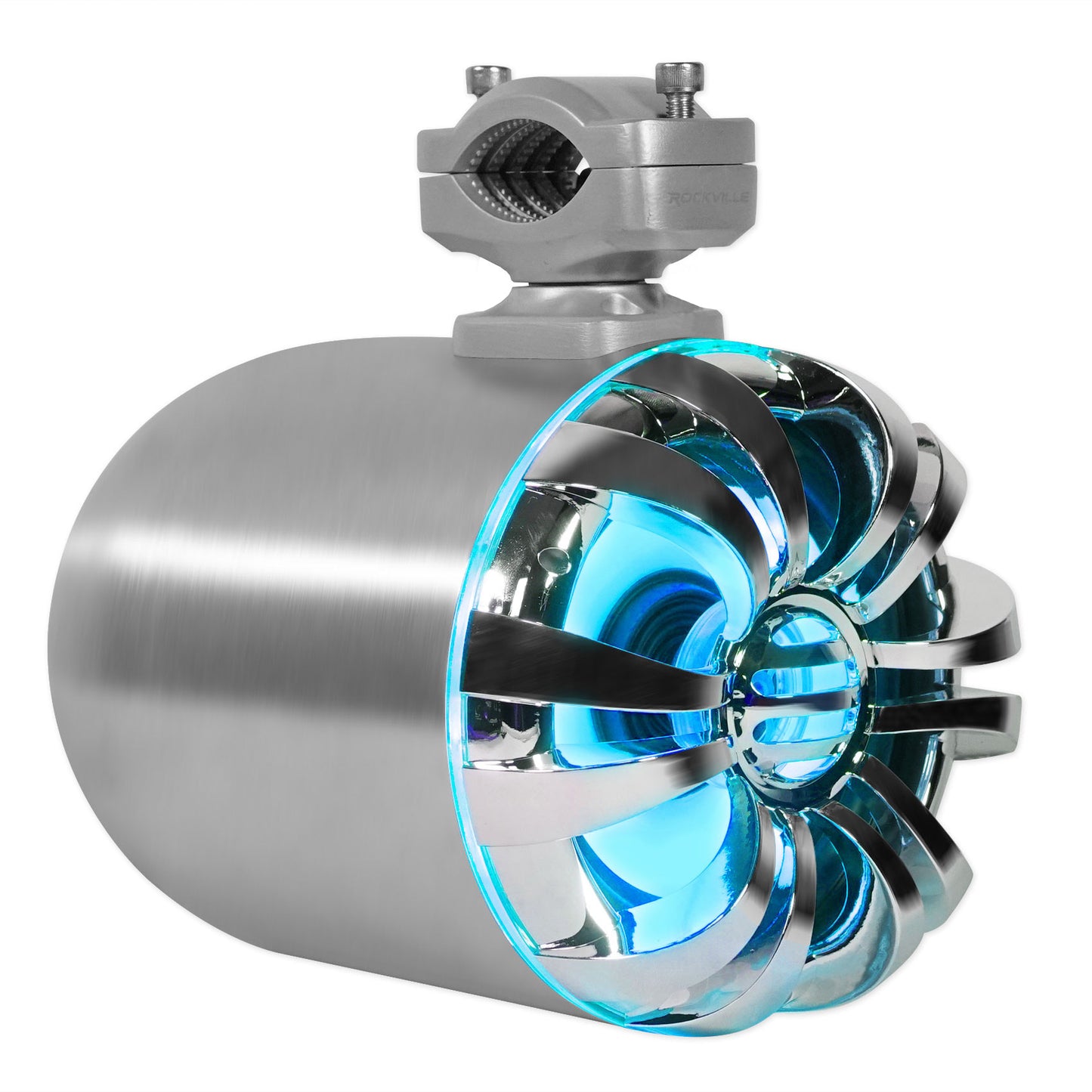

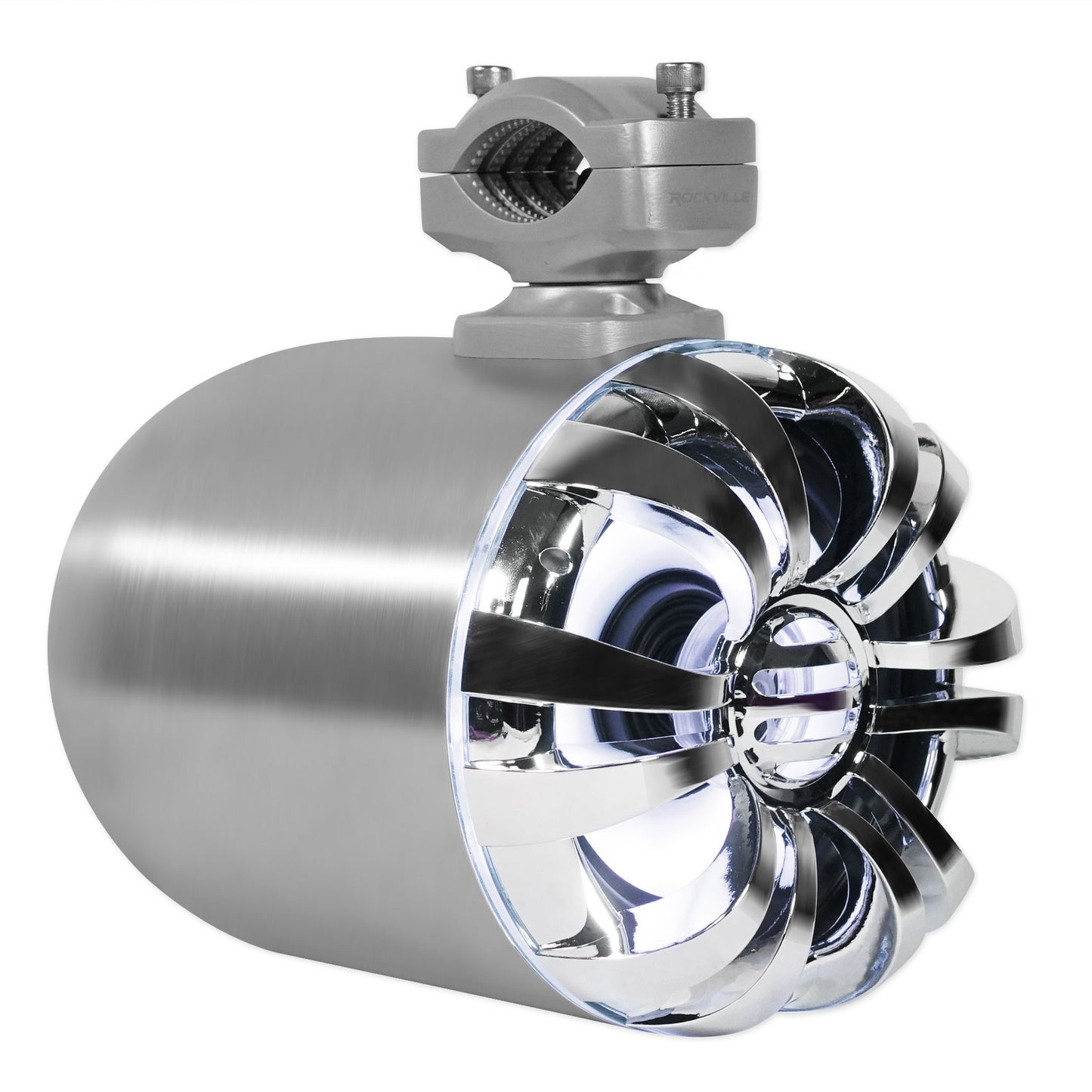

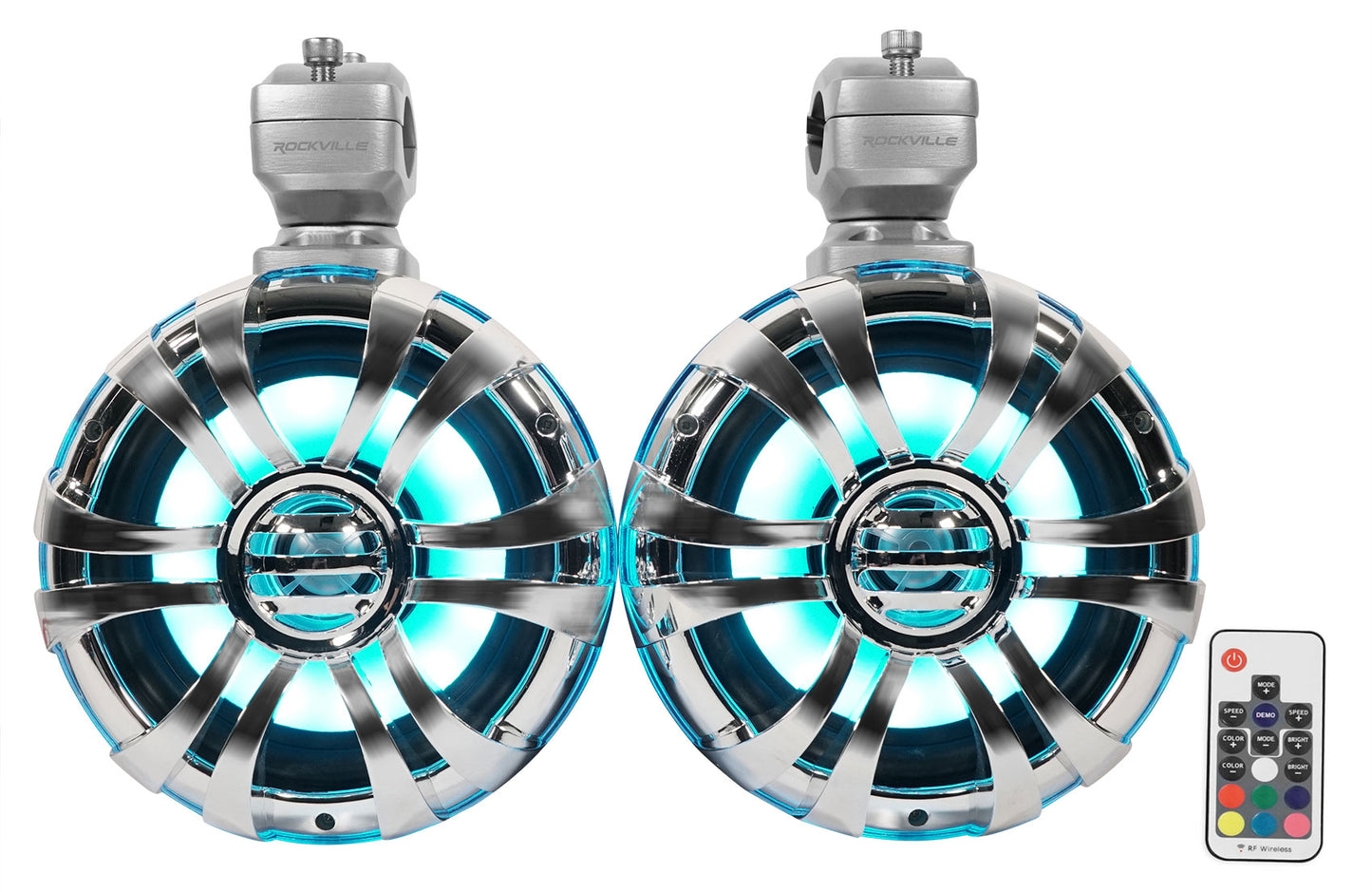

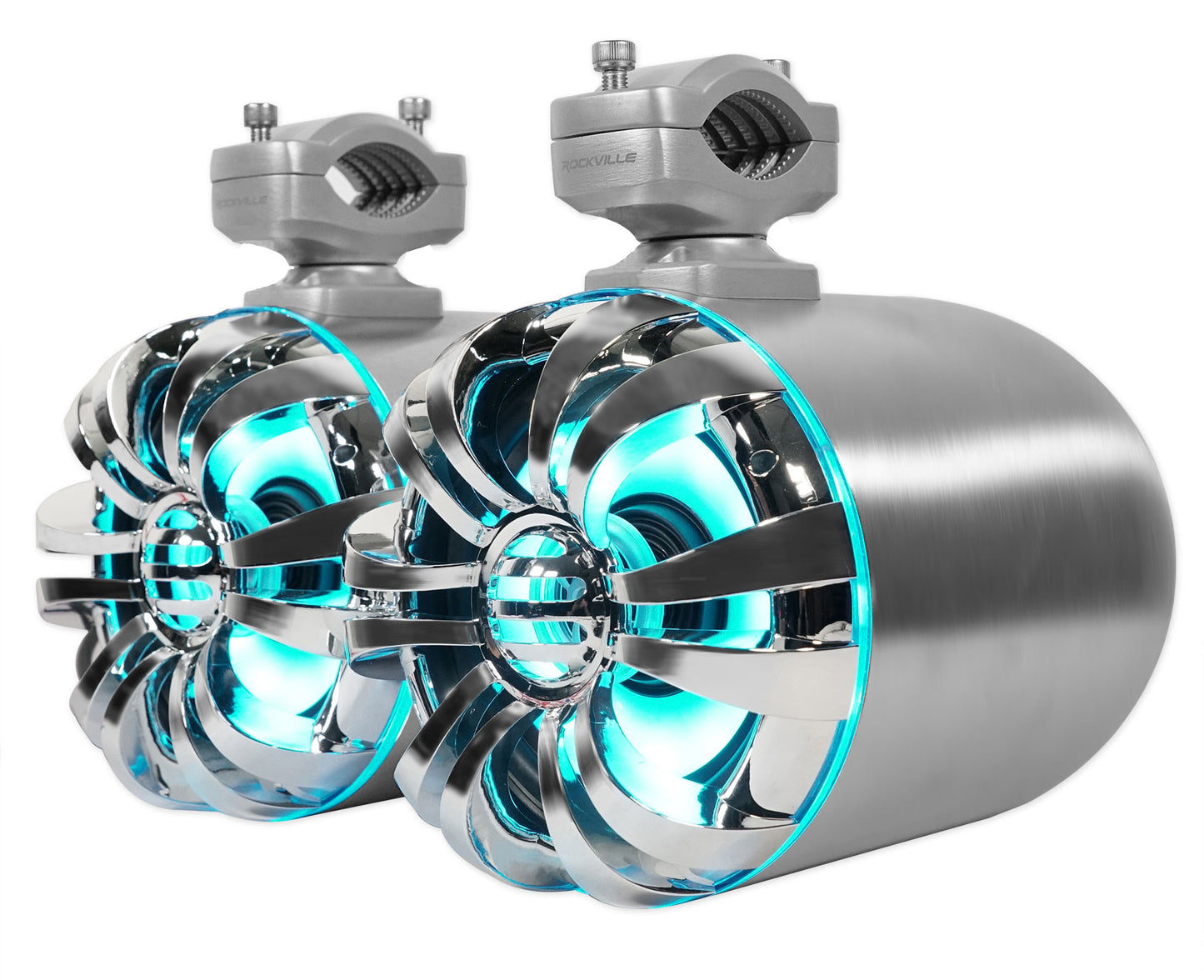

The WB65KLED 2-way marine wakeboard tower speakers with built in LED's by Rockville are the newest addition to the Rockville marine audio lineup. These speakers are both sleek and durable. You get a pair of 6.5" waterproof speakers in a stainless steel enclosure with a chrome grill finish. Each speaker is equipped with a 1" titanium dome tweeter and a 6.5" long excursion woofer. Each speaker can handle 150 watts RMS and 300 watts peak! The built in blue LED's are both reliable and look great! They really complete the sleek look of these speakers. Adding these tower speakers to either your boat, jeep, or UTV will surely enhance the look of your ride!
Rockville engineers care about quality and sound more than anything else. The WB65KLED was designed with good looks and durability in mind. The grill is constructed from ABS and is painted in chrome for an amazing finish. The 1" titanium dome tweeters really make the sound of these speakers stand out. The highs on these speakers are crisp, clear, and extremely loud! The long excursion woofer is both reliable and sounds great. The material used on these woofers are the same materials used on most of the top speakers on the market. We use rubber surrounds on these to eliminate unwanted distortion. In addition, rubber is an extremely waterproof material. The long excursion woofer makes for low end bass and mids that truly make these speakers sound amazing!
The mounting brackets are made of aluminum and built to last. These brackets are light weight, durable and can withstand the toughest conditions. The bracket features a special UV coating to protect it from the elements. A 360 degree rotating mechanism built into the bracket allows you to position the speaker in any direction for optimum listening enjoyment. This also gives you the flexibility to rotate the speaker to the front or rear of your ride.
We use only marine grade components and materials making these speakers truly waterproof. They will not get damaged by fresh water, salt water, or moisture. In addition to wakeboard towers on boats, these speakers are versatile and are perfect for installing in Jeeps, ATVs, and UTVs.
Features:
- Pair Rockville WB65KLED 6.5" Polished Silver Wakeboard Tower Speaker w/ Built in LED's
- Peak Power Handling per speaker: 300 Watts
- RMS Power Handling per speaker: 150 Watts
- Frequency Response: 50Hz - 20kHz
- Sound Pressure Level: 90dB
- Impedance: 4 Ohm
- Polished silver stainless steel enclosure
- Aluminum Mounting Bracket
- Quick and Easy Speaker Angle Adjustment
- Bracket rotates 360 degrees
- 1" Titanium Dome Tweeter
- Fully Marinized Against Salt & Fresh Water Conditions
- Completely Resistant to Water, Rust, and UV Rays
- Polypropylene Mica Injected Cone with Rubber Surround
- 15 oz High Density Magnet
- 1" Voice Coil
- CE and RoHS Certified
- These wakeboard speakers fit bars ranging from 1" to 2.5"
- Dimensions per speaker (H x W x D): 7.8" x 7.8" x 11.8"
- Weight per speaker: 5.3lbs
- Color: polished silver
About Rockville Quality Control Procedures:
The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty.- UPC:
