All About Your KRYPTON S6:

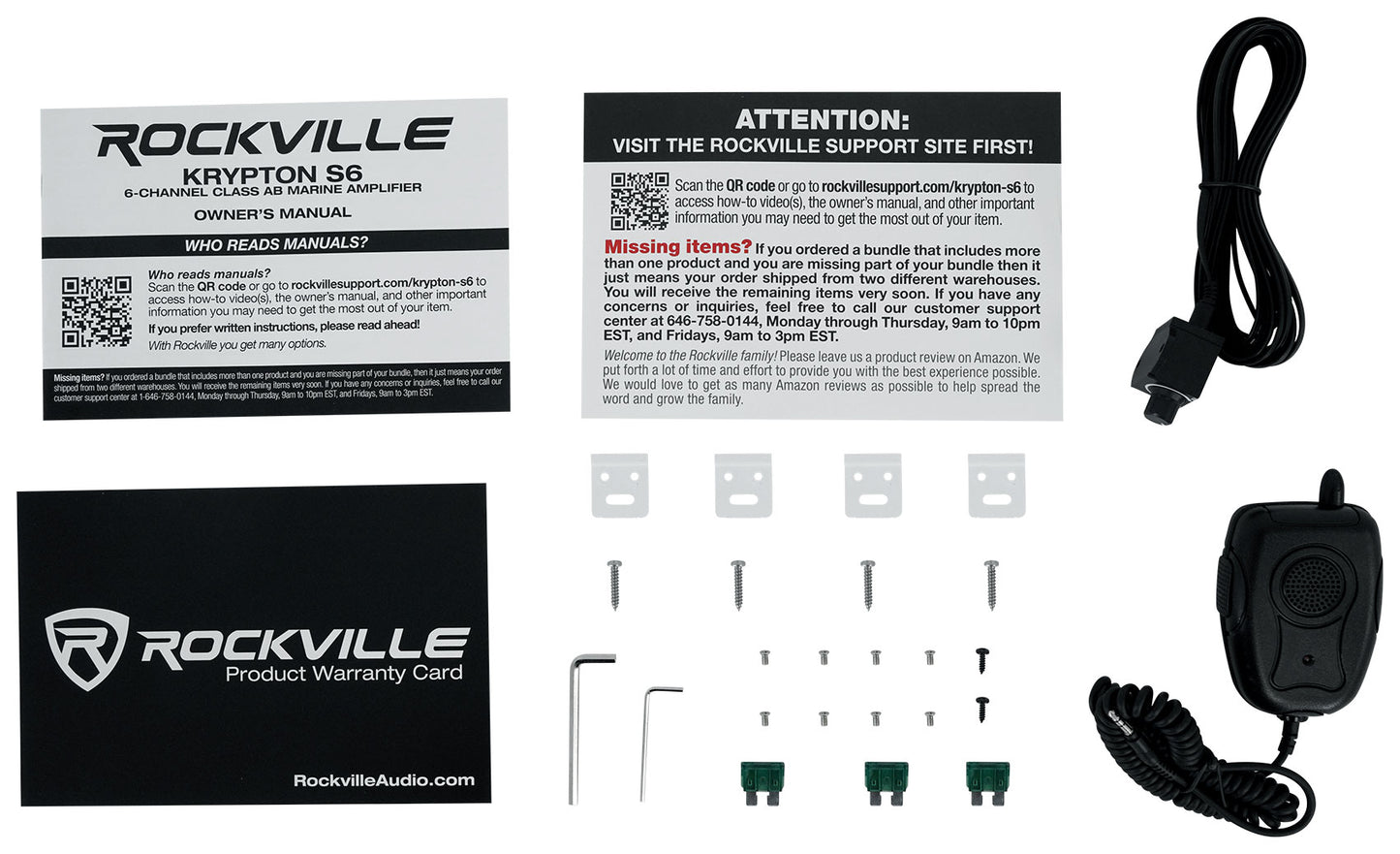

What's In The Box:
- Amplifier

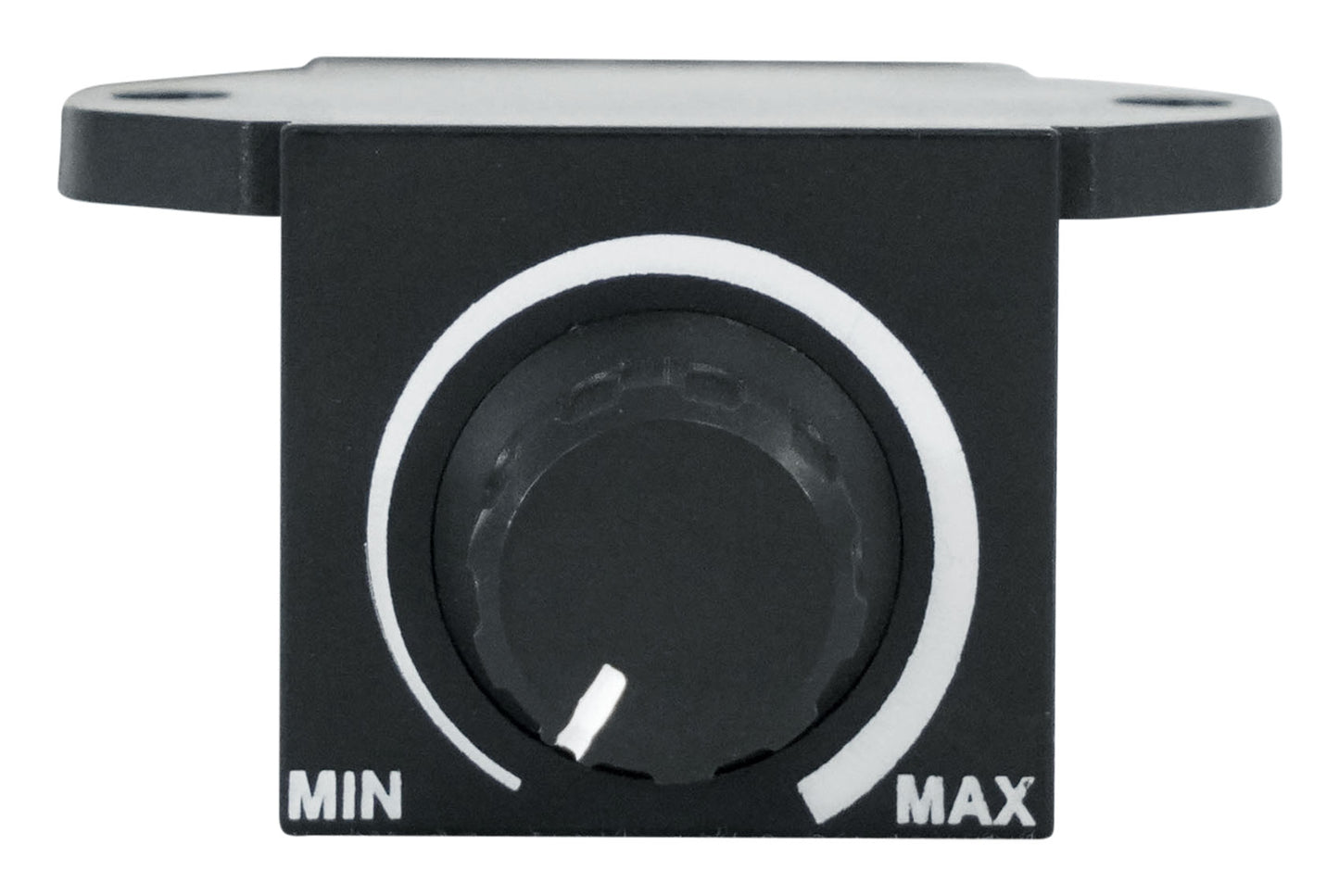

- Bass Remote
- PA Microphone
- Birth Sheet with Dyno-tested power
- Mounting Screw Kit
- Owner's Manual
- Warranty
- Instructions including installation video
Description:

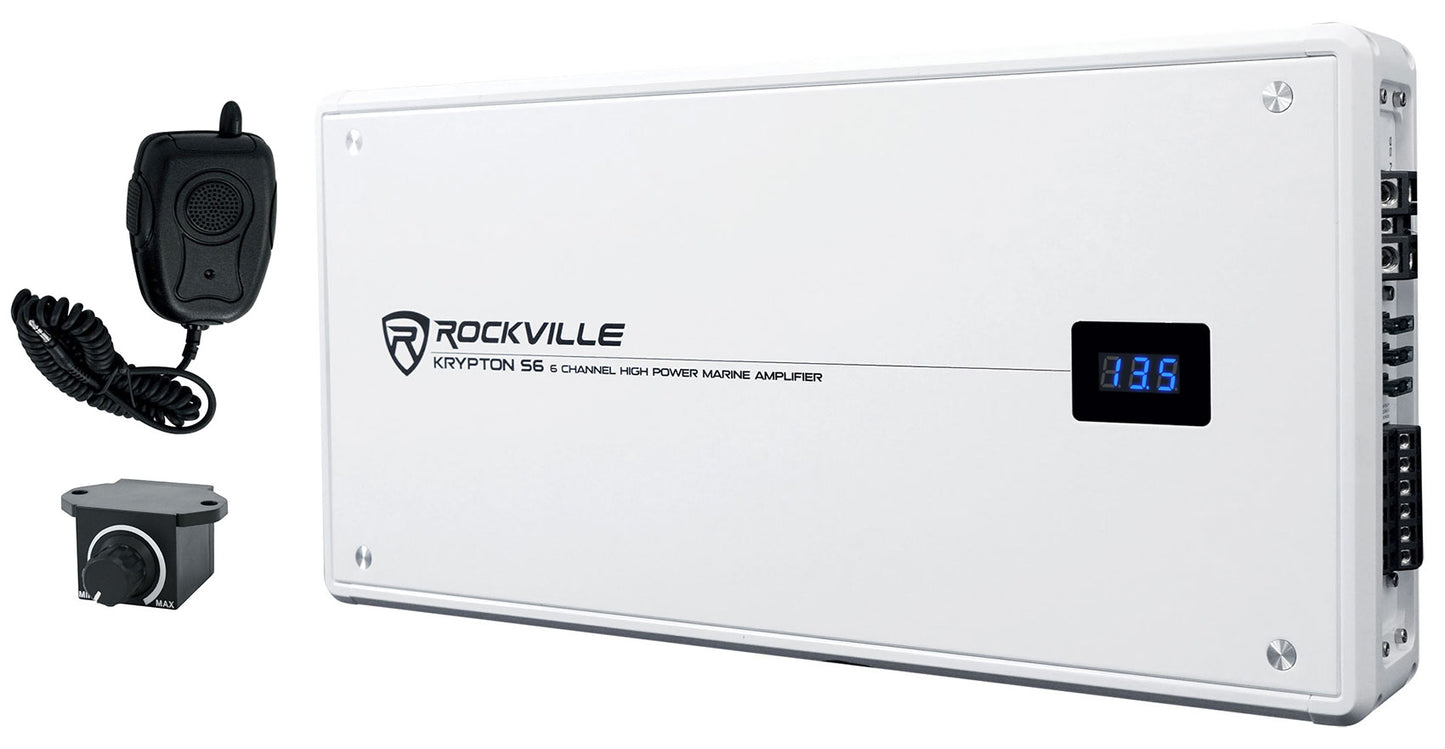

The all new Krypton marine series of amplifiers gives you the best of both worlds! Small footprint and big power! These amps also have great features like built in volt meter. This amp also includes a PA microphone for making announcements to your friends. We also include a remote knob allowing you to adjust the output from the remote.

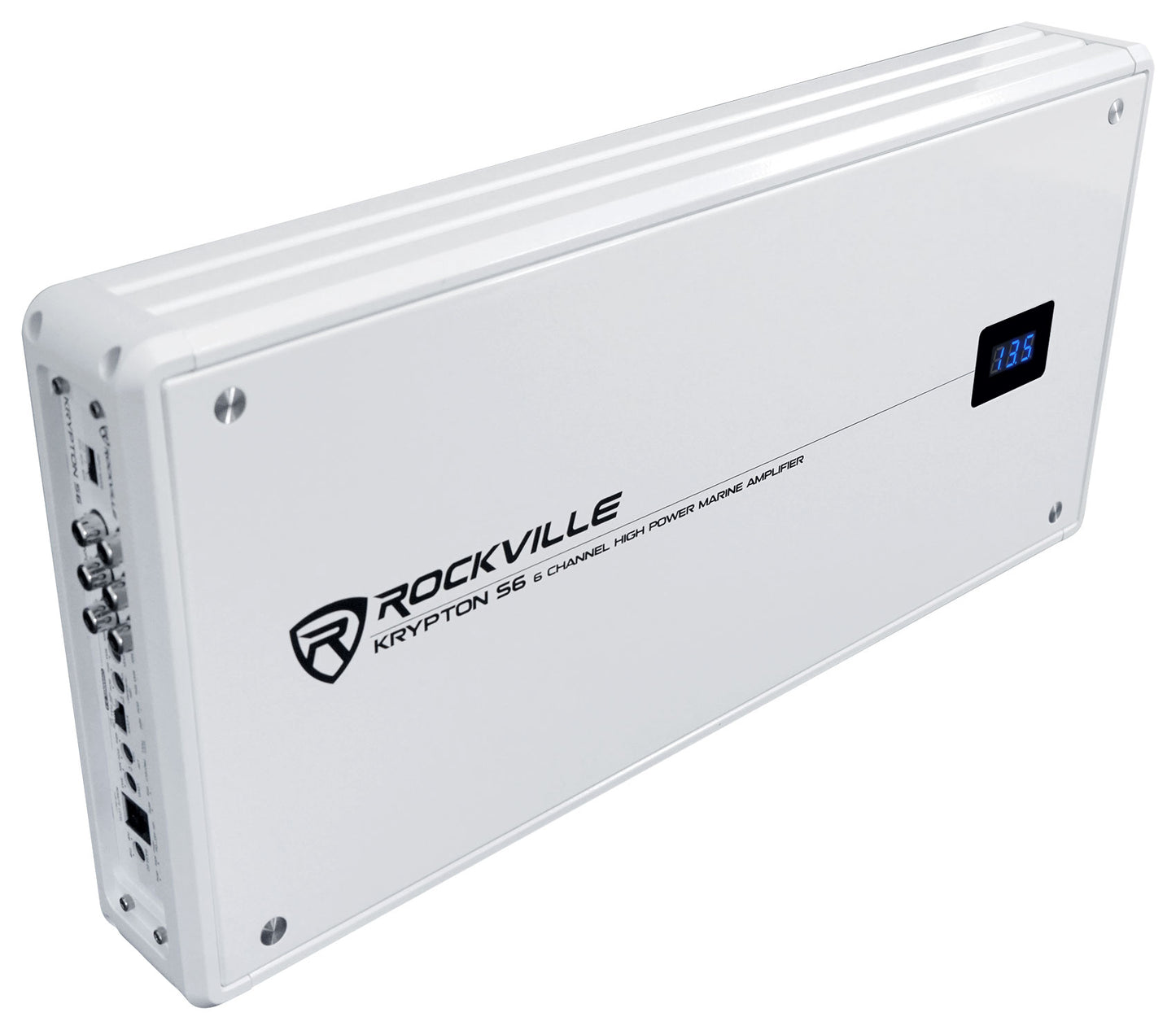

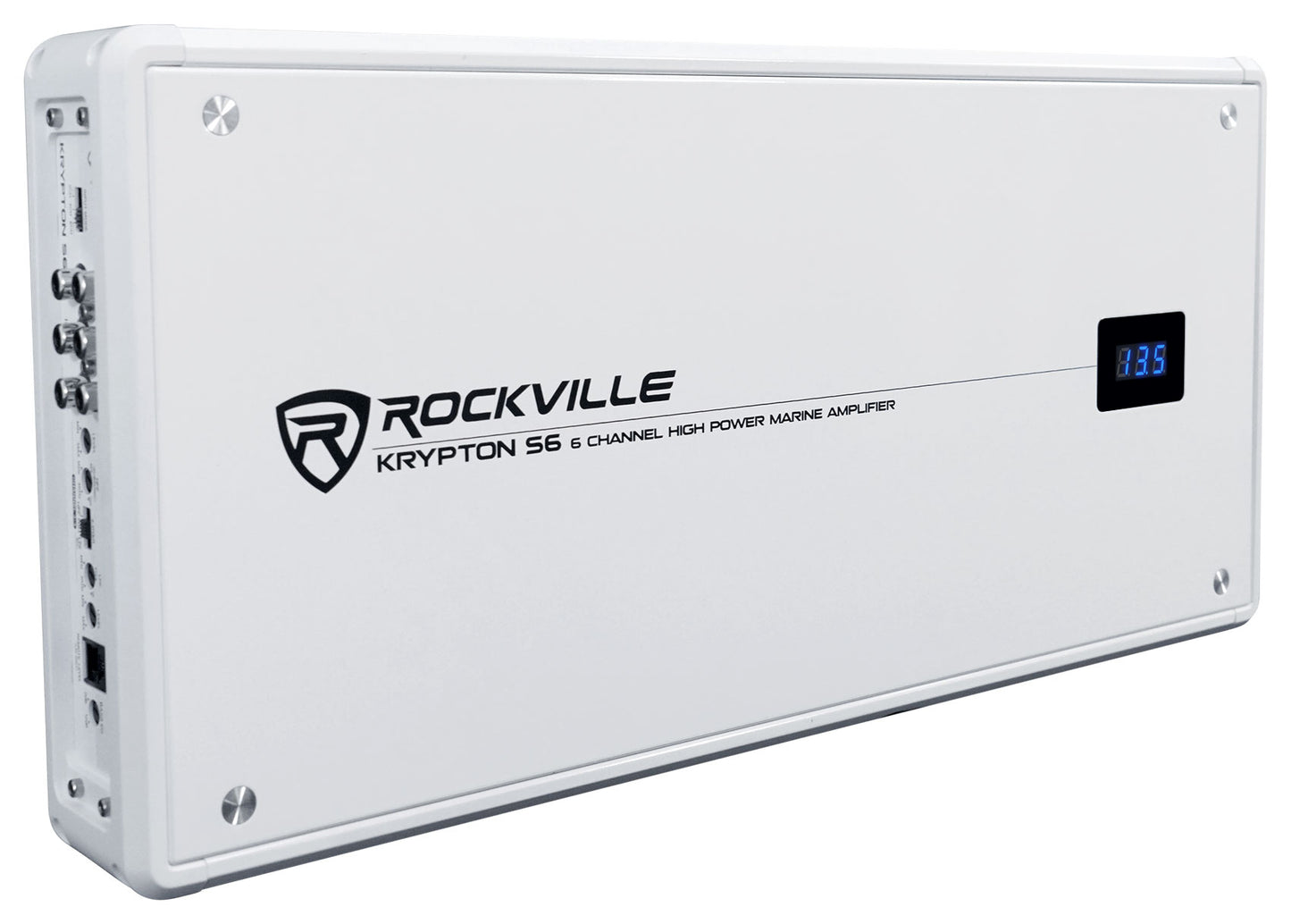

The KRYPTON S6 is a class A/B 6-Channel high power amplifier with 2,600 watts peak output and 660 watts RMS (Certified dyno-tested RMS power). The RMS power is tested on a dyno using the certified run. It puts out 110 watts x 6 channels at less than 1% THD at 14.4 volts. We give you the dyno-tested power as well as a peak power rating to make sure you can compare our amp to other brands regardless how they like to rate their amps.
This amp has enough juice to power either (12) speakers, (6) speakers, (3) subwoofers or a combination of subwoofers and speakers. It is also perfect for mids and tweeters.
This amp has a very cool fully adjustable 12dB/Octave crossover. What is cool about it is that the crossover supports low pass, full, and high pass. This makes our amp ideal for subwoofers (sealed and vented), full range speakers, midrange speakers, and even tweeters. In high pass mode we allow you to filter out the lower frequencies (cut-off frequency adjustable between 15Hz - 4K Hz). In low pass mode we allow you to filter out the upper frequencies (cut-off frequency adjustable between 40Hz - 4K Hz). In full mode you will not be filtering any frequencies. Our advanced crossover technology will allow you to really fine tune each speaker to get the sound you desire.
The other cool thing is that this amp has 4 of these crossovers. Every 2 channels has its own set of advanced filters. So if you wanted you can use 2 channels for subwoofer(s) and 2 channels for full range speakers and 2 channels for mid or tweeters.
This amp utilizes high grade marine components including a conformal coated PCB board with a waterproof glue that is painted on to protect the circuitry. The heat sink casing, including the bottom plate, is made of stainless steel which is rustproof. The end panels, the internal mounting screws and hardware of the amp are made of stainless steel and are rustproof as well. Even after many years of use the amp will be rust free and operate like new!
Features:
- Rockville KRYPTON S6 2600 Watt Peak/660 Watt RMS 6 Channel Class AB Marine Stereo Amplifier
- Dyno certified RMS Power: (less than 1 % distortion) (Use these ratings when comparing with other premium brands such as Kicker, Rockford Fosgate, etc.)
- 2 Ohm: 110 Watts x 6 Channel <1% THD+N @ 14.4 Volts
- 4 Ohm: 75 Watts x 6 Channel <1% THD+N @ 14.4 Volts
- 4 Ohm Bridged: 220 Watts x 3 Channel <1% THD+N @ 14.4 Volts
- Peak Power: (Use these ratings when comparing with great budget brands such as Boss, Power Acoustik, Crunch, etc.)
- 2 Ohm: 440 Watts x 6 Channel
- 4 Ohm: 300 Watts x 6 Channel
- 4 Ohm Bridged: 880 Watts x 3 Channel

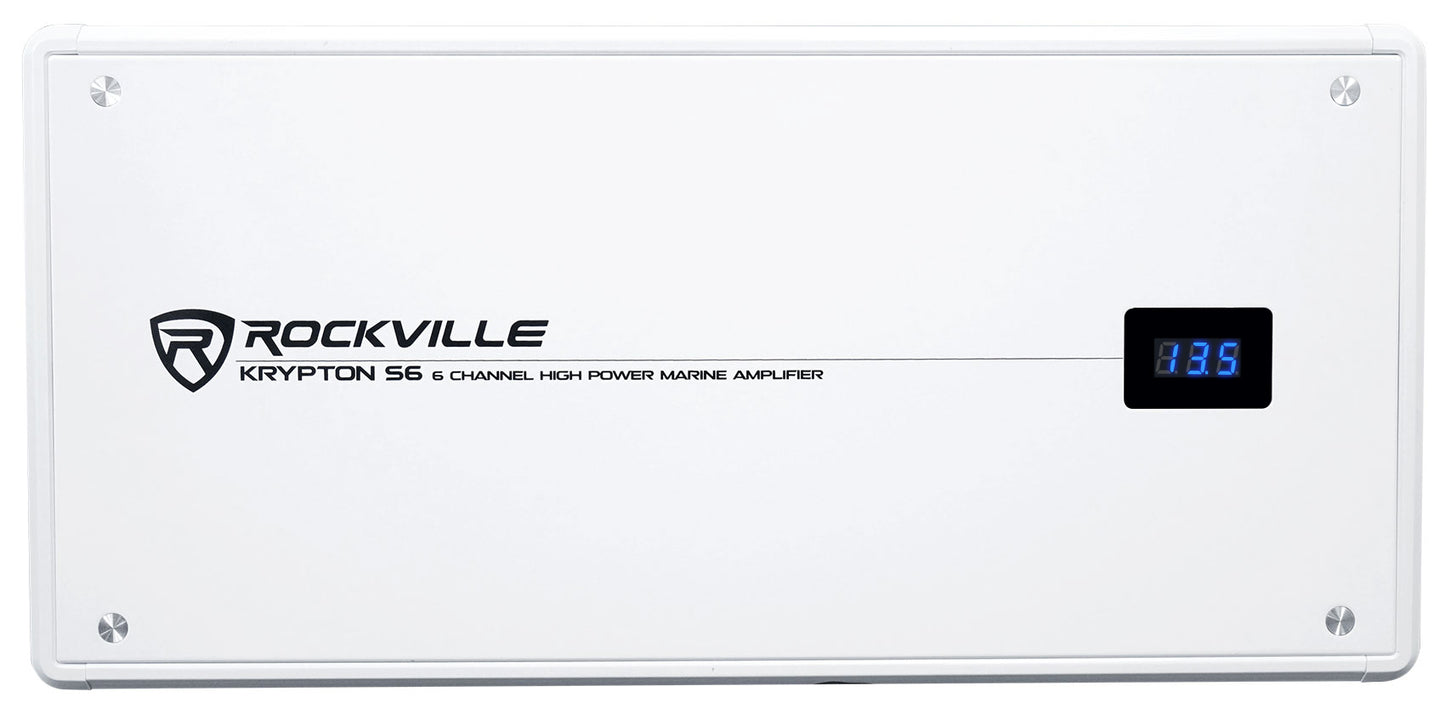

- Digital Voltage Display on Amp
- Microphone input and PA microphone included
- Adjustable Low Pass Filter: 40Hz - 4KHz
- Adjustable High Pass Filter: 15Hz - 4KHz
- Adjustable Band Pass Filter: 15Hz - 4KHz
- Painted Conformal Coating PCB Board (Uses 2577 Waterproof Glue)
- Rustproof Aluminum heat sink with black hairline finish
- Stainless steel end panels are rustproof
- All screws and mounting hardware are stainless steel and rustproof
- Bottom panel is aluminum and rustproof

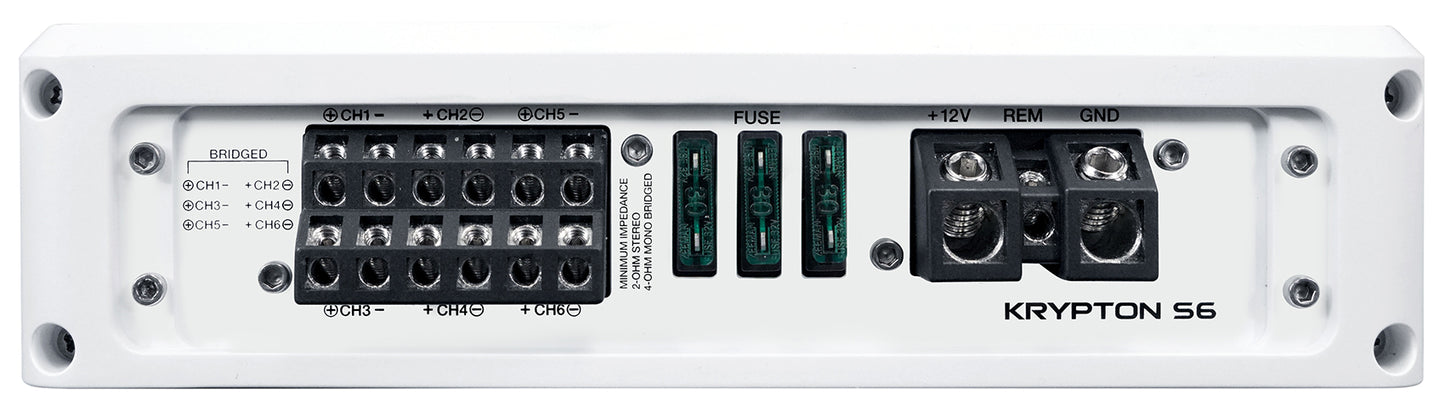

- 4 Gauge power and ground terminals
- 10 Guage speaker wire terminals
- All channels on the amp have crossovers so they can each be used for subs or full range speakers or tweeters or midrange speakers
- All channels on the amplifier are bridgeable
- High-Speed MOSFET Power Supply
- Under Voltage Protection at 10V
- Over Voltage Protection at 16V
- Tertiary Supplies Circuitry
- Studio-Grade Bipolar Output Stage Transistors
- Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
- Full IC-Controlled Protection Circuitry
- Fully Adjustable 12dB Bass Equalizer
- Adjustable Input Level Control
- Mute and Delay Soft Start System
- 2CH/4CH/6CH Input Mode Switch
- 8 Volt Preamp Circuitry
- Status Mode LED Indicator
- Minimum THD at Rated Power: < 0.05%
- S / N Ratio: >90dB
- Frequency Response: 10Hz - 50KHz
- Damping Factor: >85 @ 100Hz
- 30 Amp x 3 ATC Fuse
- Dimensions: (W x H x L) 8.66" x 2.2" x 18.3"
- UPC:
- 819216028940
