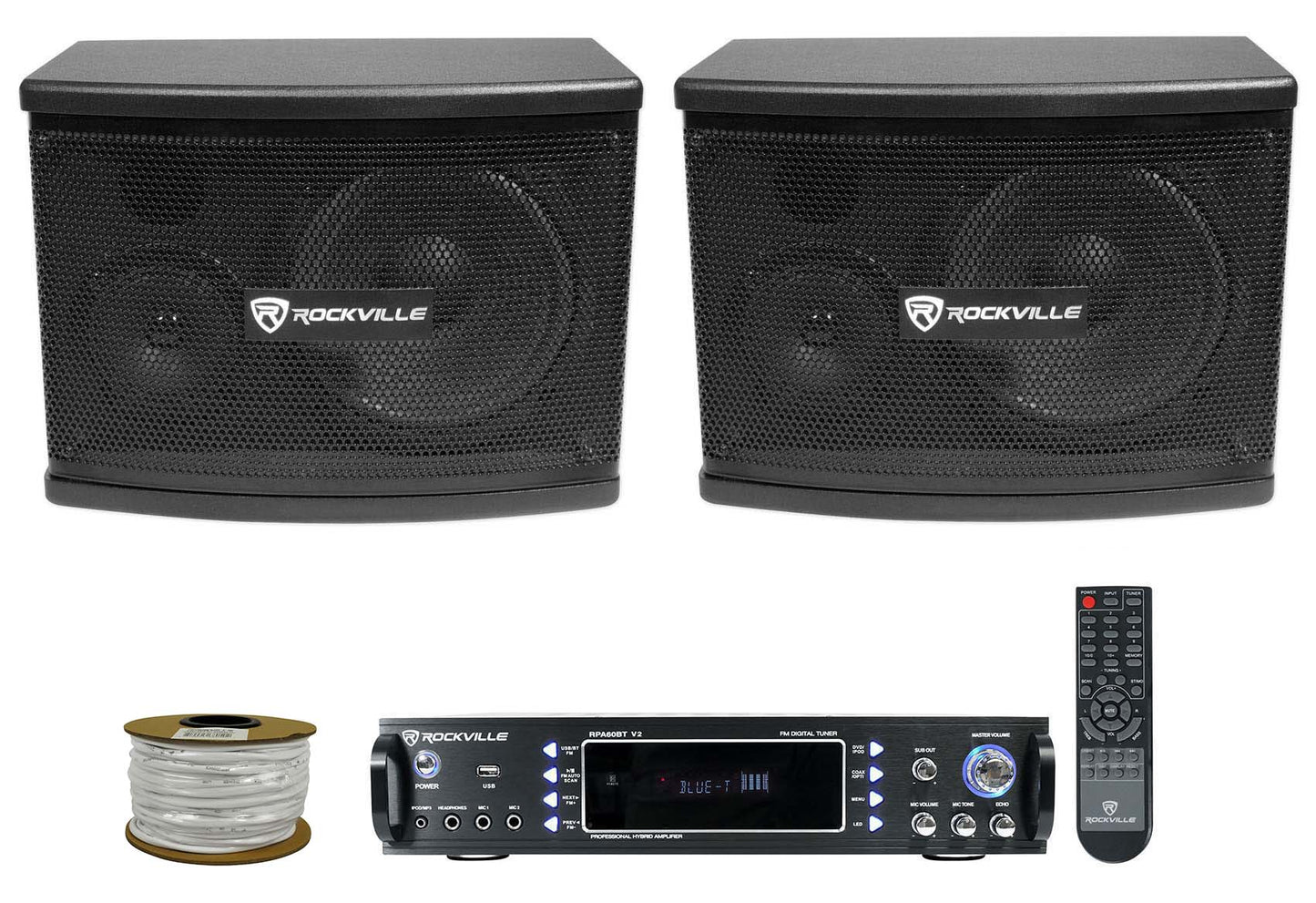

Package Includes:

• (1) Pair of Rockville KPS65 6.5" 2-Way 400 Watt Karaoke Speakers+Wall Brackets / MDF!
• (1) Rockville RPA60BT V2 1000 Watt 2-Ch USB Bluetooth DJ/Pro/Karaoke Amplifier Mixer
• (1) Rockville RCC14-100-2 CL2 Rated 14 AWG 100' CCA Speaker Wire In Wall Ceiling 70V

---

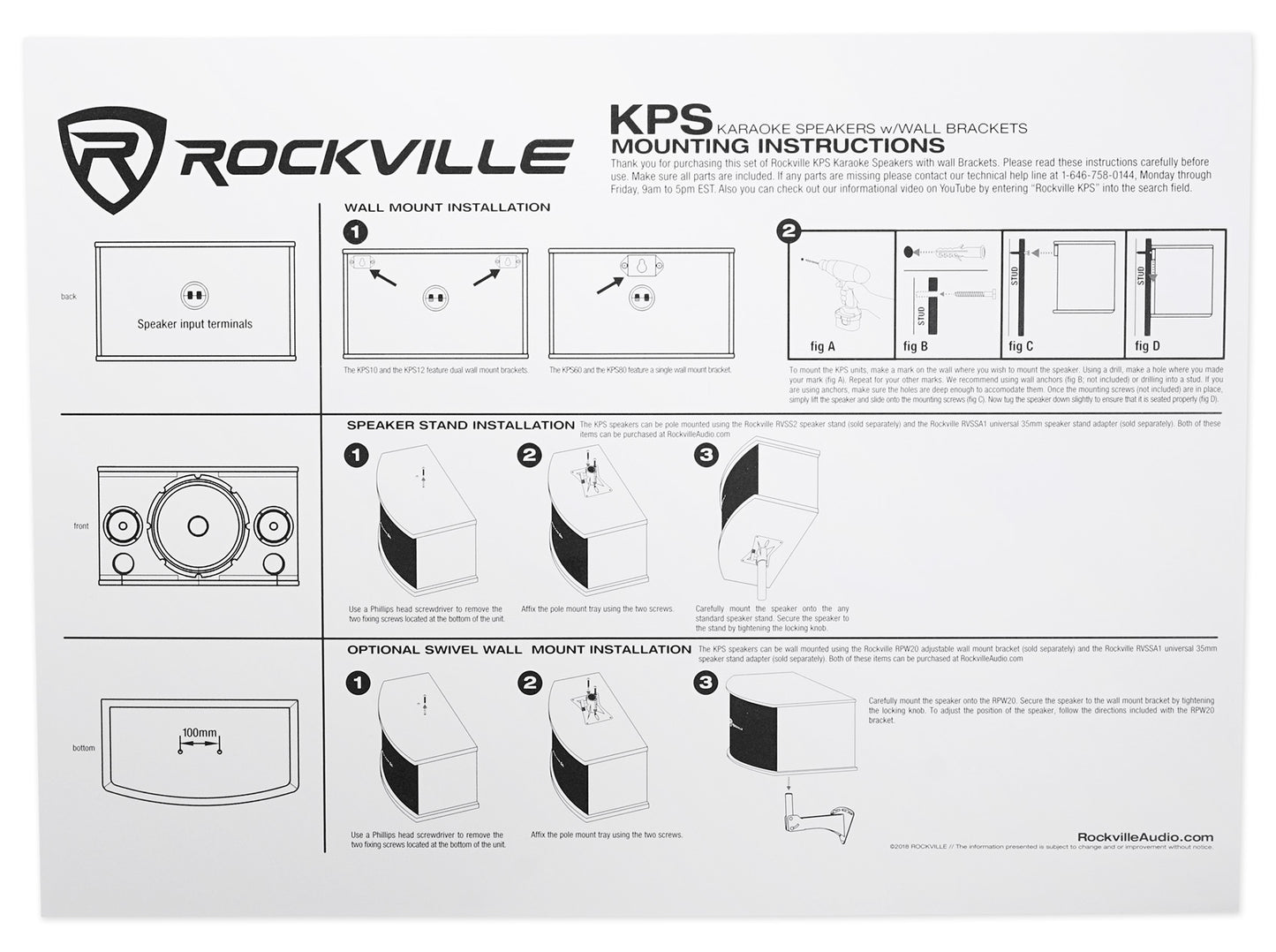

How to set up your KPS Speakers:

Video of KPS Series Speakers:

Features of KPS65:

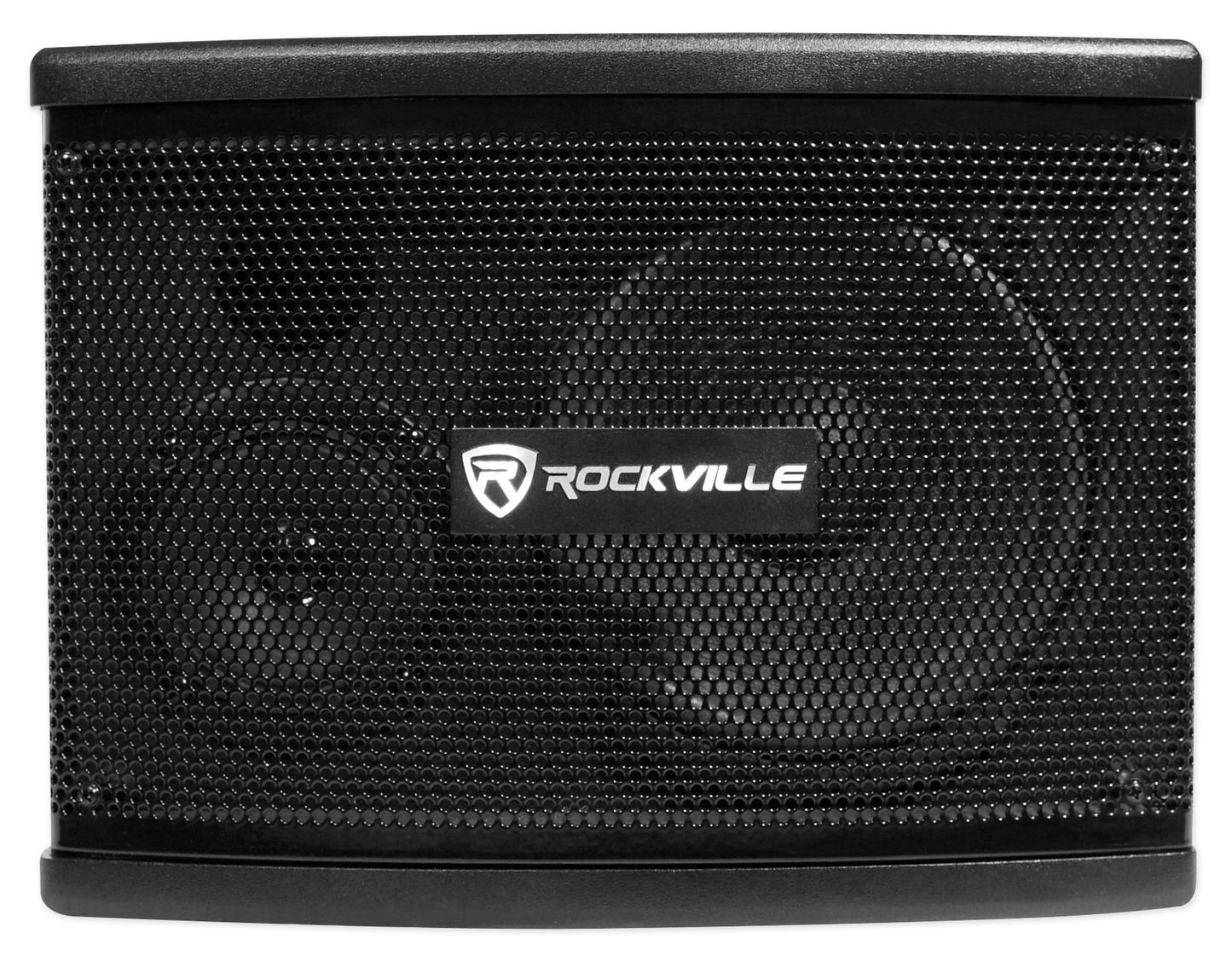

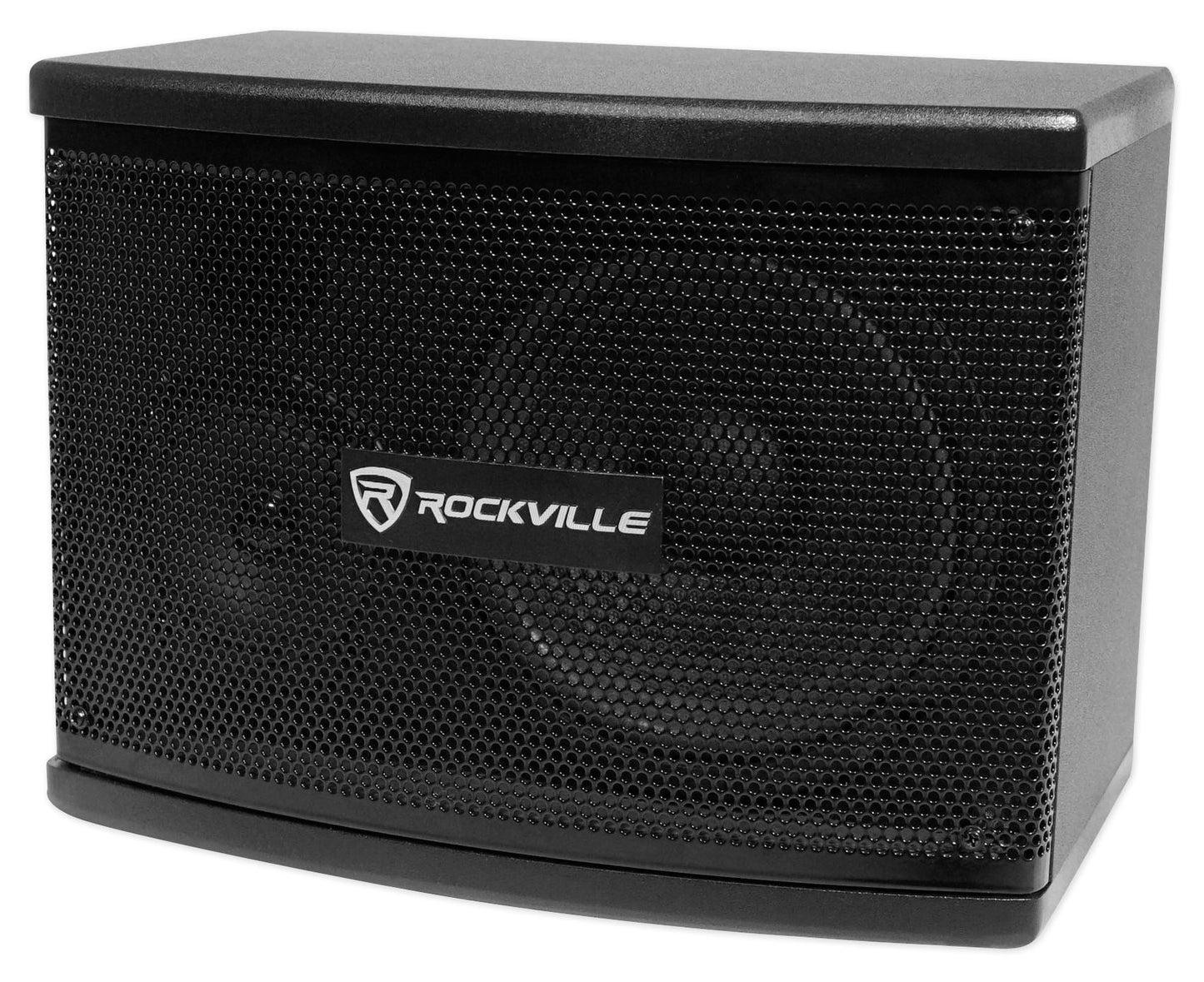

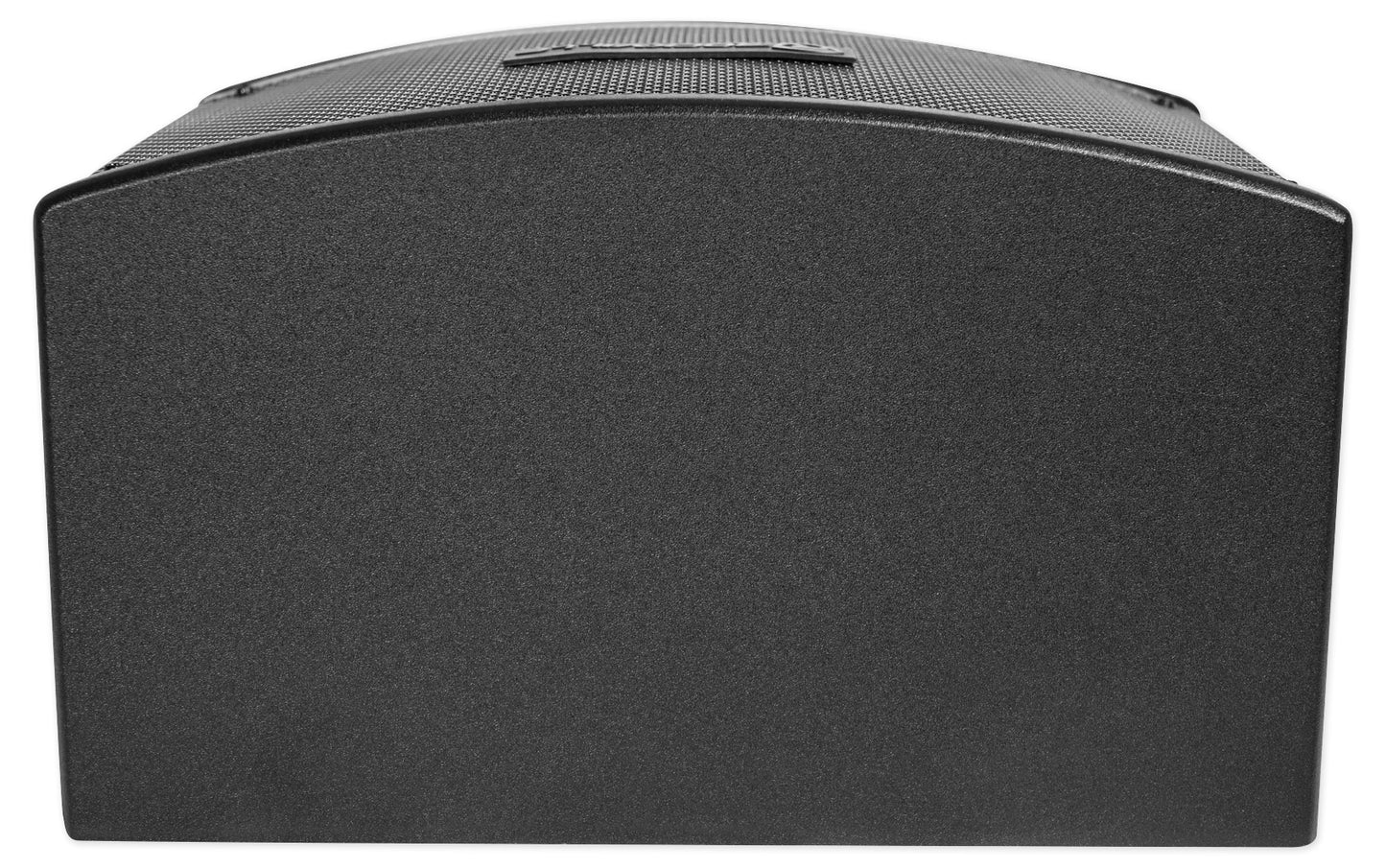

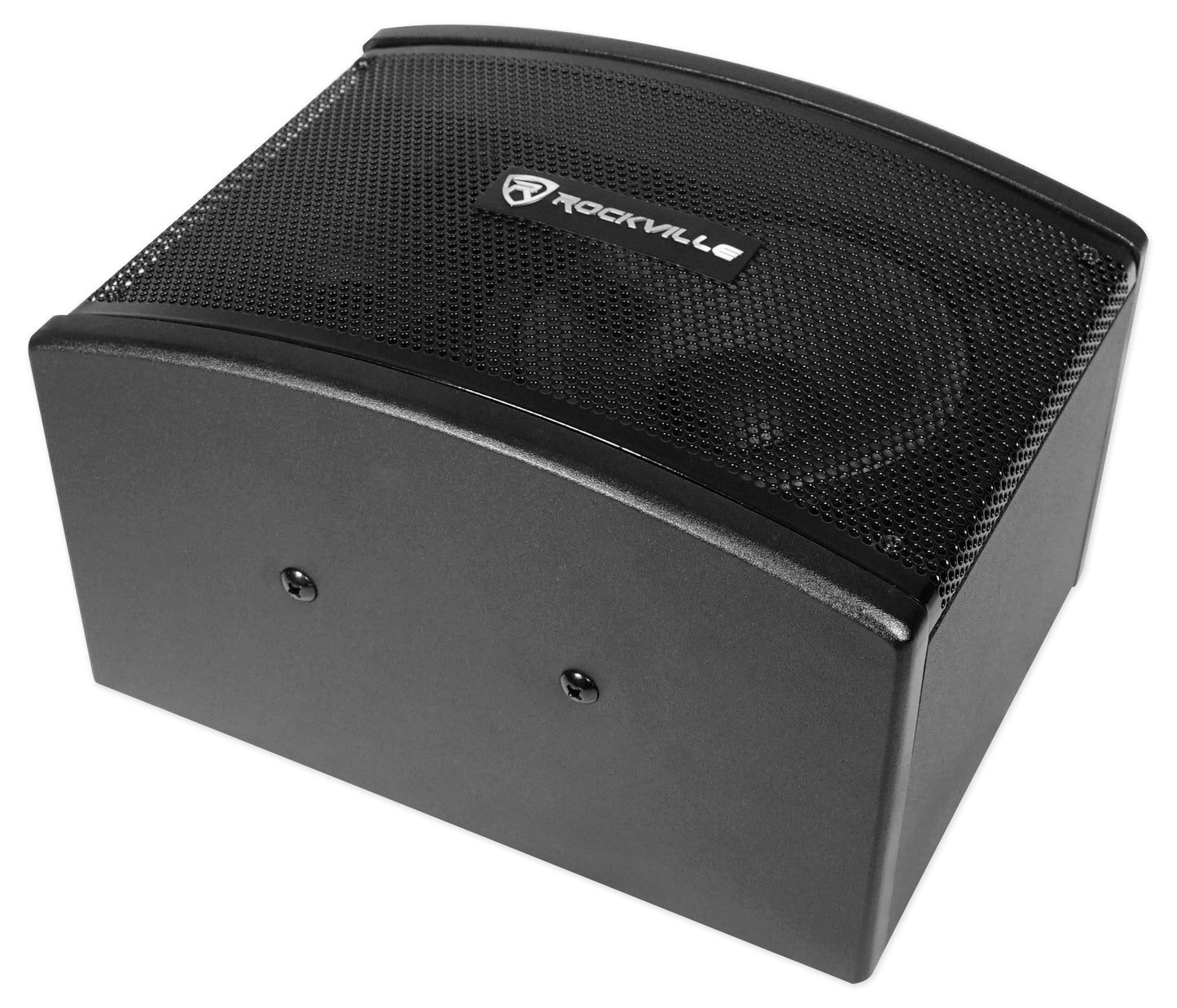

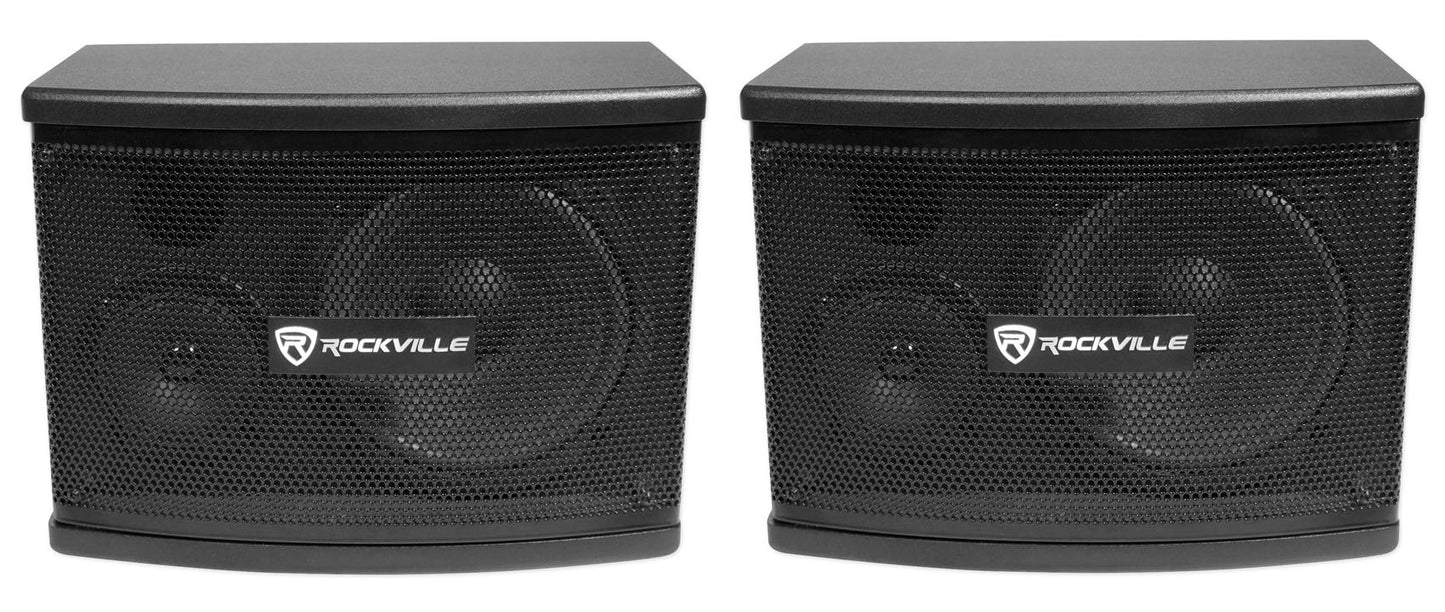

• Pair Rockville KPS65 6.5" 2-Way 400 Watt Karaoke Speakers with Wall Brackets and MDF Enclosure
• Peak Power: 800 Watts Per Pair (400 Watts Each)
• Program Power: 400 Watts Per Pair (200 Watts Each)
• RMS Power: 200 Watts Per Pair (100 Watts Each)
• 6.5” Low Frequency Woofer With 1.37”, 100% Copper Voice Coil and 22 oz. Ferrite Magnet
• 3.85” High Frequency Tweeter With 3.5 oz. Magnet and 0.39" 100% Copper Voice Coil
• Tweeter Is Made Of A Special Blend of Iron That Is Tuned To Sound Great For Voice and Music
• Built-In 2-Way High Quality Crossover Filters the Sound to Make the Speaker Last Longer and Sound Better
• 0.6” Inch Thick MDF Enclosure With Built-In Computer Tuned Port For Incredible Sound
• Speaker Weight: 8.8 Lbs. Each
• Woofer Has a Steel Basket OFC 100% Copper Voice Coils and a Paper Cone
• Foam Surrounds for Great Sound Quality
• Aluminum Voice Coil Bobbin
• Metal Speaker Grilles
• Impedance: 8 Ohm
• Sensitivity: 92 dB
• Frequency Response: 80 Hz – 14 kHz

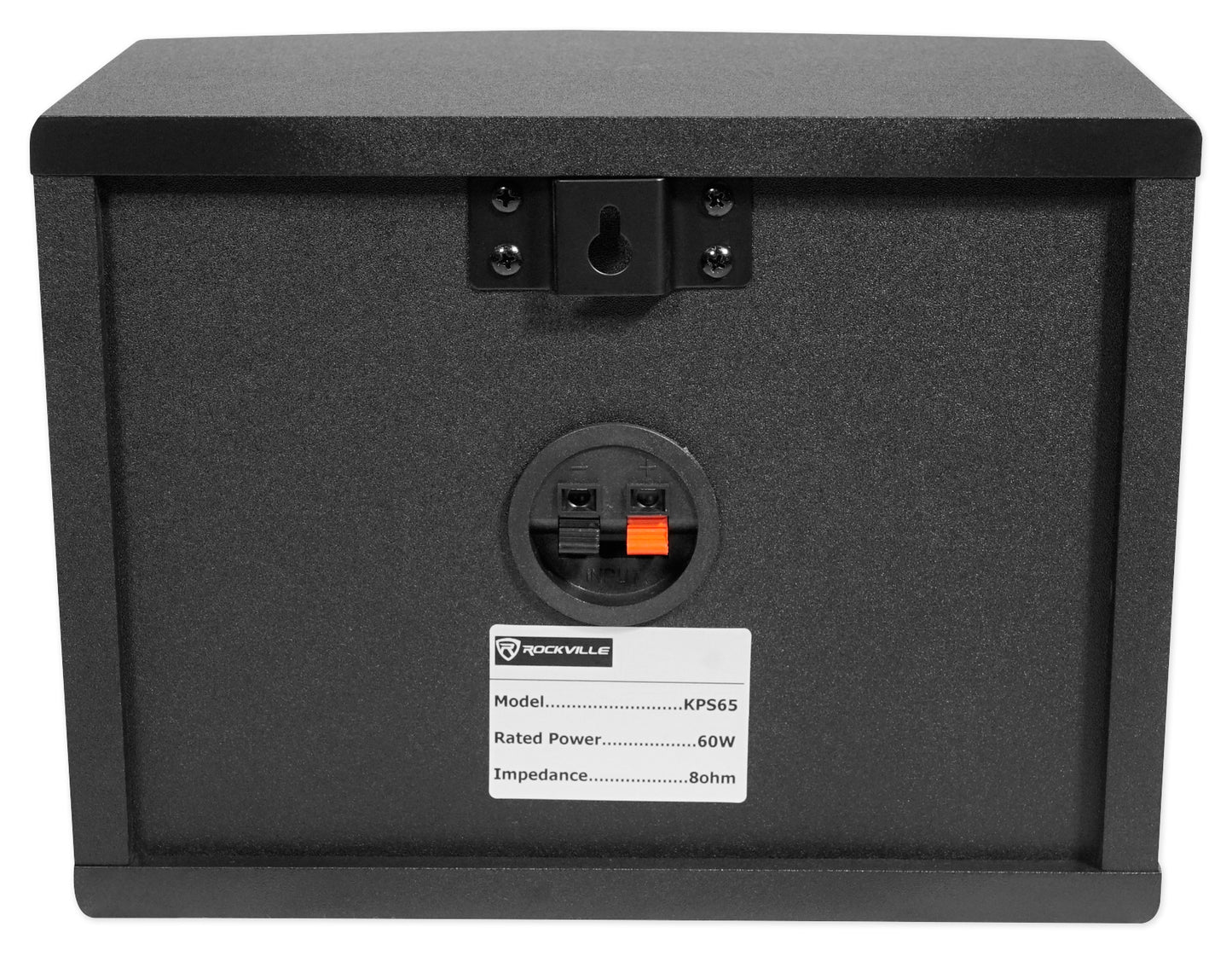

• Spring Loaded Speaker Terminals
• Speakers Use Y30 High Grade Magnets
• Dimensions per speaker: 11.6 inches x 7 inches x 8.7 inches

---



RPA SERIES PRODUCT VIDEO:

HOW TO SET UP YOUR RPA SERIES (RPA70WBT V2, RPA60BT):

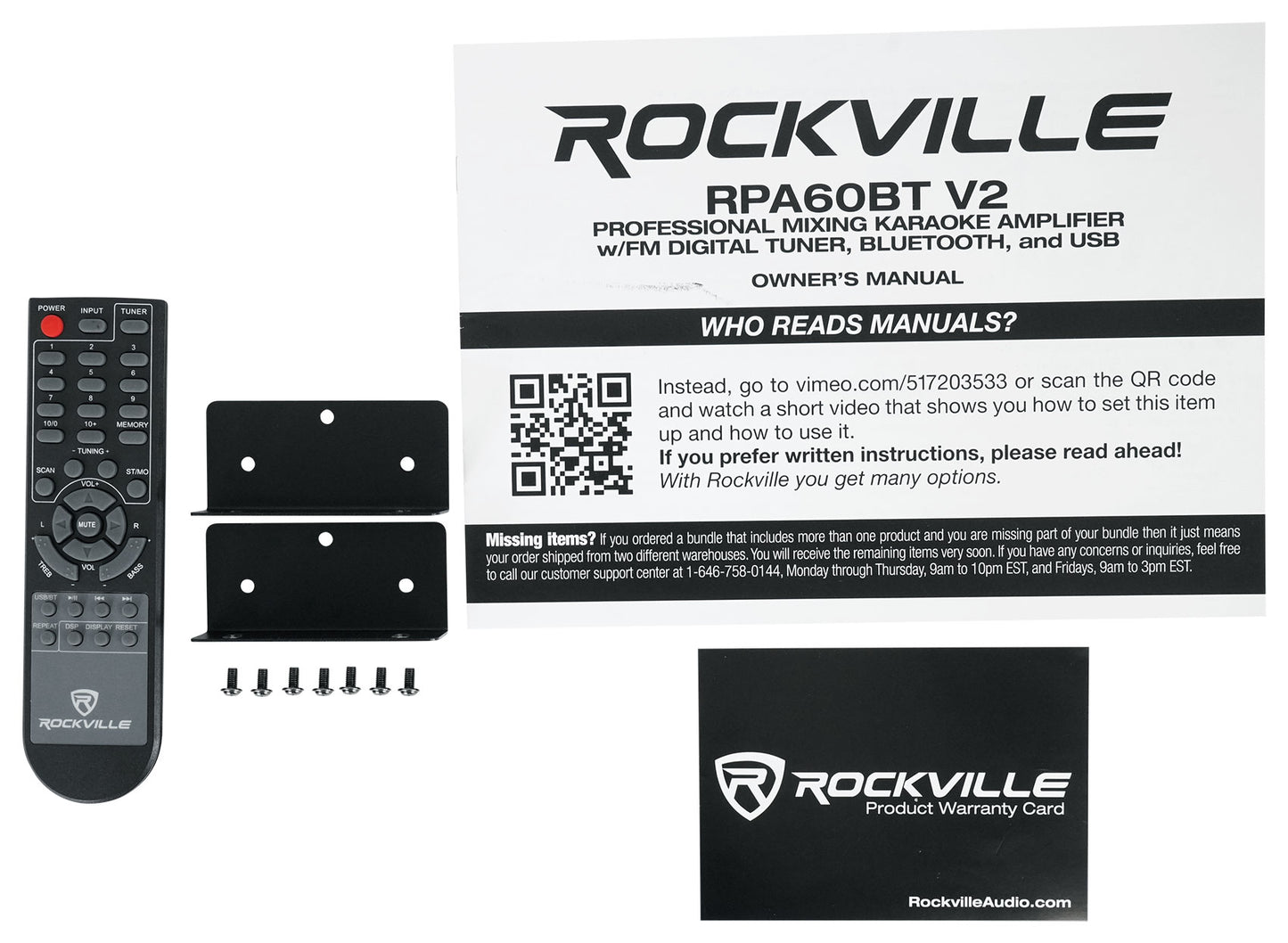

What's in the Box:

• RPA60BT Receiver

• Rack Ears (Detachable)

• (1) Remote Control

• (1) AC Power Plug

• Owners Manual

• Warranty Card

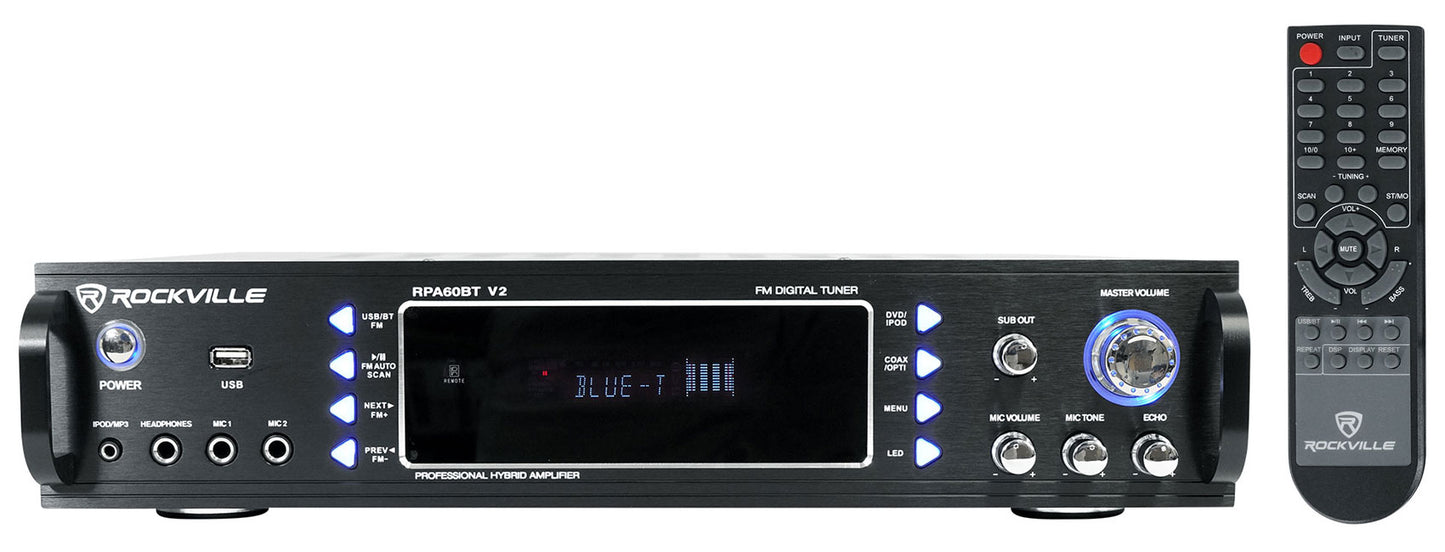

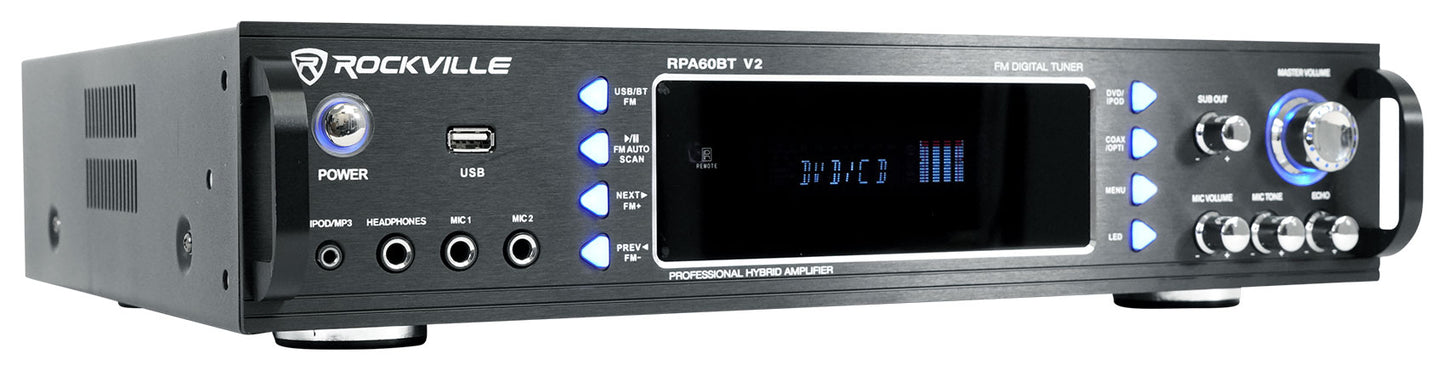

Description of RPA60BT V2:

Huge Power
The RPA60BT is loaded with 1,000 Watts of power! When manufacturing this item we upgraded the power of the amplifier. We tested these against similar items on the market and these significantly outperformed the others rated at 2000 and 3000 watts.

Expandable
This is more than an amplifier. The RPA60BT will be the control center for your home, karaoke, or professional audio system. There is an optical and coaxial input to easily integrate this with any television or LED panel. There is an RCA aux input for any media player like a CD player, etc. There is an RCA pre-amp output allowing you to expand your system by adding another amplifier or even powered speakers. The sub output allows you to add a powered subwoofer or another amplifier. The REC output allows you to record easily.

You can also connect 2 microphones directly to the front of the receiver.

Other playback options built into the unit are USB playback, Bluetooth, 3.5mm aux, and FM radio.

Great For Karaoke
There is a built in mic mixer with echo control, which makes this perfect for karaoke performances.

Bluetooth
Connect your favorite device, and quickly start a karaoke party with your favorite songs!

Full Function Remote
The remote control that is included will allow you to access all functions of the receiver quickly and efficiently.

Built In Radio
Another major advantage this model has is that it has a built in radio. This makes it perfect for home use, and the radio is also great for intermissions during live performances.

Adjustable Equalizer Settings
The adjustable equalizer will allow you to fine tune your music so it sounds at its best.

Built In Dual Cooling Fan
The built in fans keep the amp cool. This amp will never overheat on you like the cheaper ones out there. We actually upgraded this to a dual cooling fan when we were engineering these. Since we upgraded the amplifier we actually felt the need to also upgrade the fan of this unit to ensure it doesn't overheat.

Beautiful Multi Colored Display
The multi colored display is easy to read. It has an active EQ curve that goes to the beat of the music. The display is very user friendly.

Features:

• Rockville RPA60BT 19" 1000 Watt 2-Channel USB and Bluetooth Karaoke Receiver/Amplifier/Mixer

• 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver

• RMS Power @ 4 Ohms: 125w x 2

• Peak Power @ 4 Ohms: 500w x 2

• RMS Power @ 8 Ohms: 100w x 2

• Peak Power @ 8 Ohms: 400w x 2

• THD: > 0.1%

• Input Sensitivity: 400mv/33 KOhm

• Frequency Response: 20 Hz - 20 kHz

• Signal to Noise Ratio: 80 dB

• Tone Characteristic: 100Hz-10KHz ±12dB

• 110v/220v Switchable

• Front Inputs: 3.5MM front aux input, 1/4” Headphone Jack, (2) 1/4" Mic Inputs, USB Input, Optical

• Rear Inputs: RCA, Optical, Coaxial

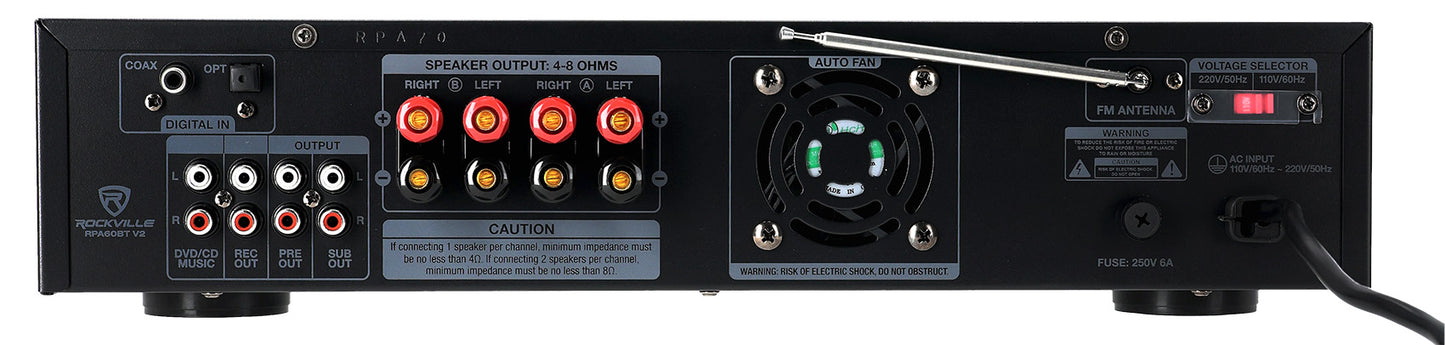

• Rear Outputs:

• Preamp output for an external additional amplifier or powered speaker

• Sub preamp output to connect a powered subwoofer or an amplifier
• Record output to mixer
• Record output to connect a recording device

• Bluetooth Capable

• Rear Speaker Terminals: Banana plug / binding post outputs for 4 speakers (2 on Channel A and 2 on Channel B)

• Built-in Pre-Amplifier

• Bass, treble, and balance control knobs

• Multicolor VFD Display

• FM Radio Tuner with Presets & Auto-Scan

• Preset EQ: Rock, Pop, Classical, Jazz

• Remote control for quick access to all functions

• Vacuum Fluorescent Digital Output Display Meters

• Separate gain controls for master volume & subwoofer

• Digital Karaoke System

• 2 front microphone inputs with volume, tone and echo controls

• Built-In Mic Mixer with Echo Control

• USB input for music files from USB thumb drive

• 3.5mm input for iPod / MP3 player

• Spectrum analyzer equalizer display

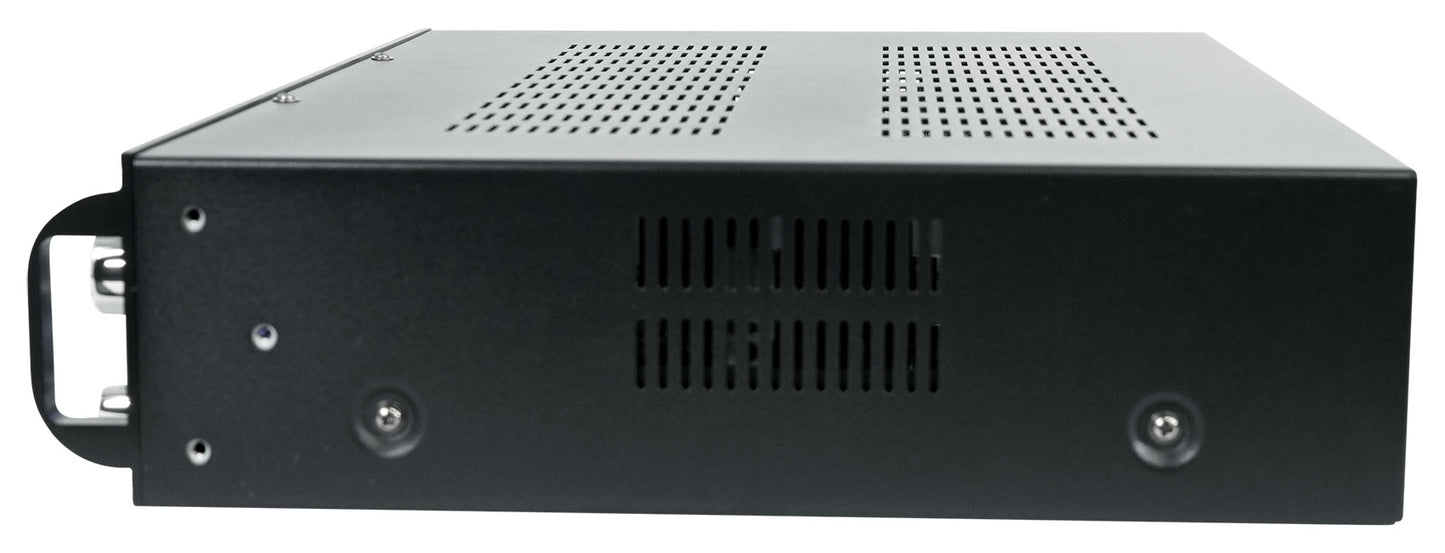

• Turbo cooling twin fan system

• Dimensions with rack ears (W x D x H): 19" x 12.25" x 3.5" inches

• Dimensions without rack ears (W x D x H): 17" x 12.25" x 3.5" inches

---

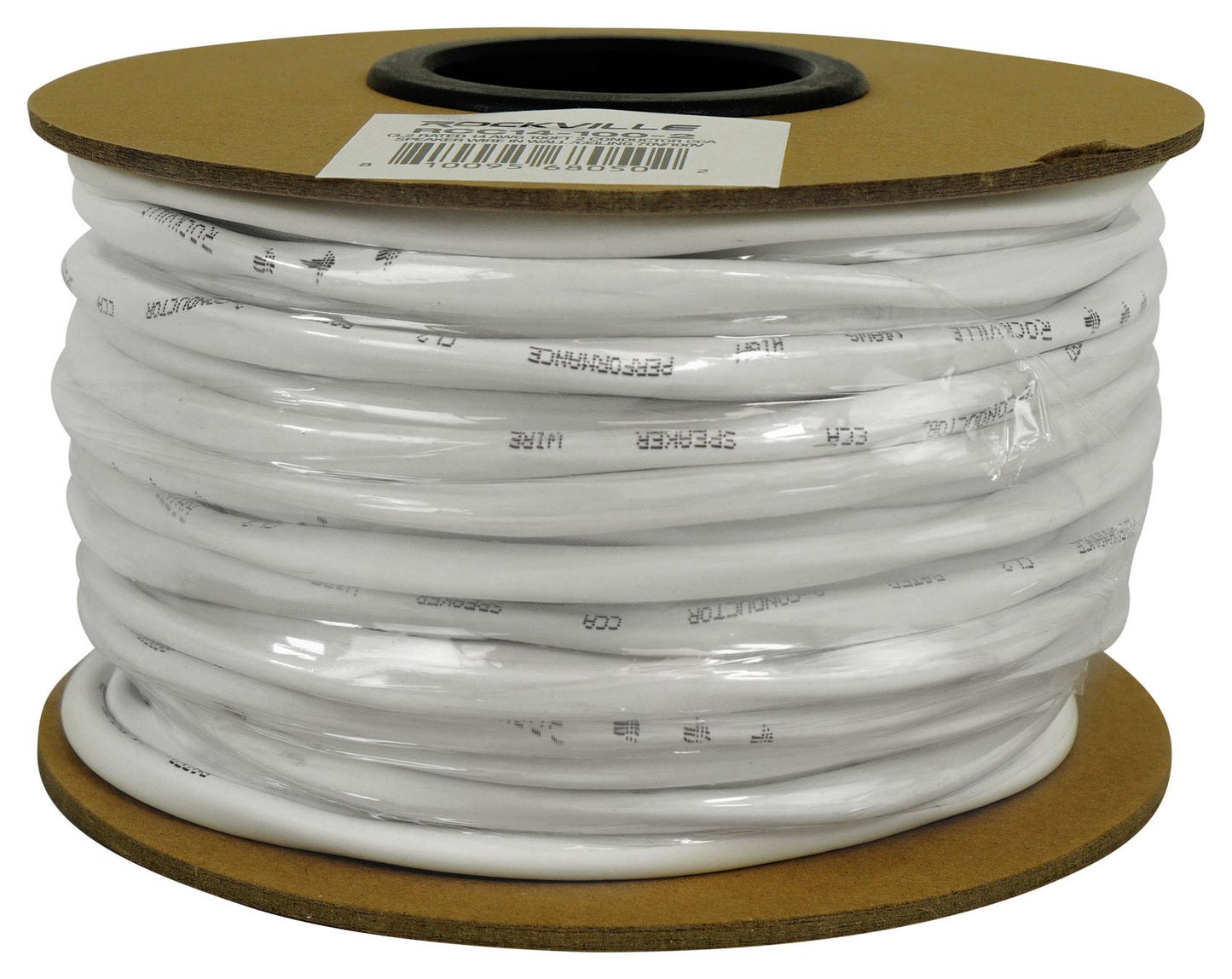

All About Your RCC14 Series of Speaker Wire:

How To Set Up Your RCC14 Speaker Wire:

Description:

CL2 rated speaker wire is perfect for commercial or home applications. CL2 means you can safely install it in your ceiling or behind walls. If you are doing a 70V or 100V or 8 ohm installation of wire then this is the perfect product for you.

This speaker wire is CCA (copper clad aluminum). Our CCA will run well because we use 30 % copper and 70 % aluminum. There are other CCA cables on the market that use 10 % or less of copper. OFC cables are better but they cost way more and in many applications there will be no performance difference. You should use OFC cables for long runs or if a lot of power will be running through it.

Each conductor is housed in a color-coded PVC for easy polarity identification. The entire cable is inside of a PVC material that is CL2 fire-safety rated.

Features:

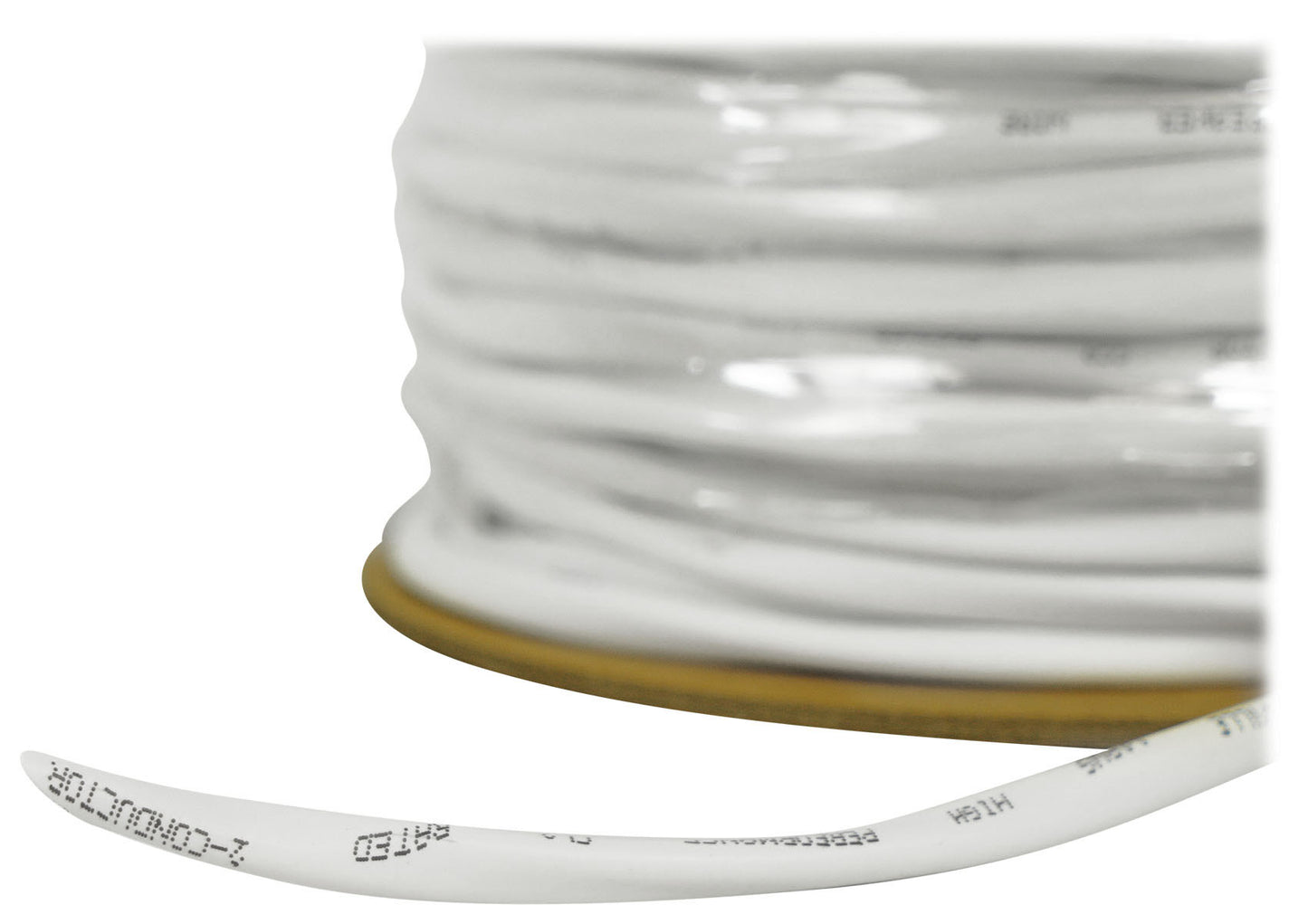

• Rockville RCC14-100-2 CL2 Rated CCA (Copper Clad Aluminum) Speaker Wire For In Ceiling or In-Wall Installation
• 100 Feet
• 14 AWG (American Wire Gauge)
• 2 Conductor
• 30% Copper and 70 % Aluminum wire
• CL2 rated for safe installations in ceilings or walls
• Strands Count: 41 Wires Strand Size: 0.25mm
• Each conductor is housed in a color-coded PVC for easy polarity identification
