Package Includes:

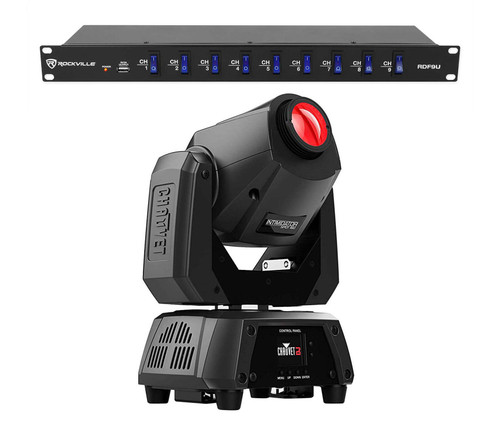

• (1) Chauvet DJ Intimidator Spot 160 ILS DMX Moving Head Beam Light w/LCD+Totem Mode
• (1) Rockville RDF9U 1U 15A Rack Mount DJ Pro Audio Power Supply Strip w/ USB Charging

---

What's in the Box:

• Intimidator Spot 160

• Power cord

• Hanging bracket

• Quick Reference Guide


Description:

Intimidator Spot 160
Intimidator Spot 160 is the epitome of compact moving head power. This feature-packed moving head is designed for mobile performances with CHAUVET DJ’s innovative built-in Totem mode, keeping beams focused on the dance floor. One scene can be set, saved, and recalled manually from the full-color LCD display. A convenient ¼-turn hanging bracket allows for quick removal when needed, and up to 4 fixtures can be linked to create eye-catching, synchronized shows in Automated or Sound mode. Wireless non-DMX control is possible using the optional IRC-6 remote.

Features:

• Feature-packed moving head designed for mobile performances

• ¼-turn hanging bracket allows for quick removal when needed

• Beams always remain on the dance floor using the built-in, innovative Totem mode

• Set, save, and recall 1 scene manually, directly from the full-color LCD display

• Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode

• Convenient, wireless non-DMX control using the optional IRC-6 remote

• Fits best in the CHS-1XX VIP Gear Bag


Specifications:

• DMX Channels: 5 or 11

• DMX Connectors: 3-pin XLR

• Pan and Tilt: 540°/270°

• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt

• Colors: 9 + open, split colors, continuous scroll at variable speeds

• Gobos: 9 + open (9 aluminum), continuous scroll at variable speeds

• Light Source: 1 LED (cool white) 32 W, (2.3 A), 50,000 hours life expectancy

• Strobe Rate: 0 to 20 Hz

• PWM Frequency: 2.4 kHz

• Beam Angle: 17°

• Illuminance: 6,080 lux @ 2 m

• Power Linking: 9 units @ 120 V; 16 units @ 230 V

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 60 W, 0.8 A @ 120 V, 60 Hz, 60 W, 0.4 A @ 230 V, 50 Hz

• Weight: 8.8 lb (4.0 kg)

• Size: 8.2 x 5.9 x 12 in (207 x 149 x 308 mm)

• Approvals: CE

• Bracket Mounting Hole: M12

• Optional Controllers: IRC-6

---

How to Set Up Your RDF9U:

Includes:

• Rack mount power supply
• Power cord
• Rack screws
• Owner manual and warranty card

Features of RDF9U:

• Rockville RDF9U 1U 15A Rack Mount DJ Pro Audio Power Supply w/ USB Charging Port
• 9 Outlets
• 15A Power supply for all your pro audio and lighting needs
• Each outlet has a power switch with a dim blue LED illumination light
• Built-in AC Noise Filter
• Circuit Breaker to protect your equipment
• Spike and Surge Protection
• 1U Rack Mountable and includes rack screws
• Steel Chassis
• Push to Reset (If the unit goes into protect mode there is a reset button to restart it)
• 6 Foot Power Cord (3x14 AWG)
• Max load 15A or 1,725 watts (115 Volts)
• Energy Dissipation: 150 Joules
• Peak Impulse Current: 1200 Amps
• Operating Voltage: 115 V/50 – 60Hz
• Eliminates extension cords and messy wires
• Top quality 120v 3-prong outlets on rear of the unit
• The perfect solution for switching on and off specific lights and sound equipment
• Maximum load: 15 amps or 1800 watts
• Length: 19"
• Height: 1.8"
• Depth: 3.9"
