Video of DBM25:
What's In The Box:
- (1) DBM25 Amplifier

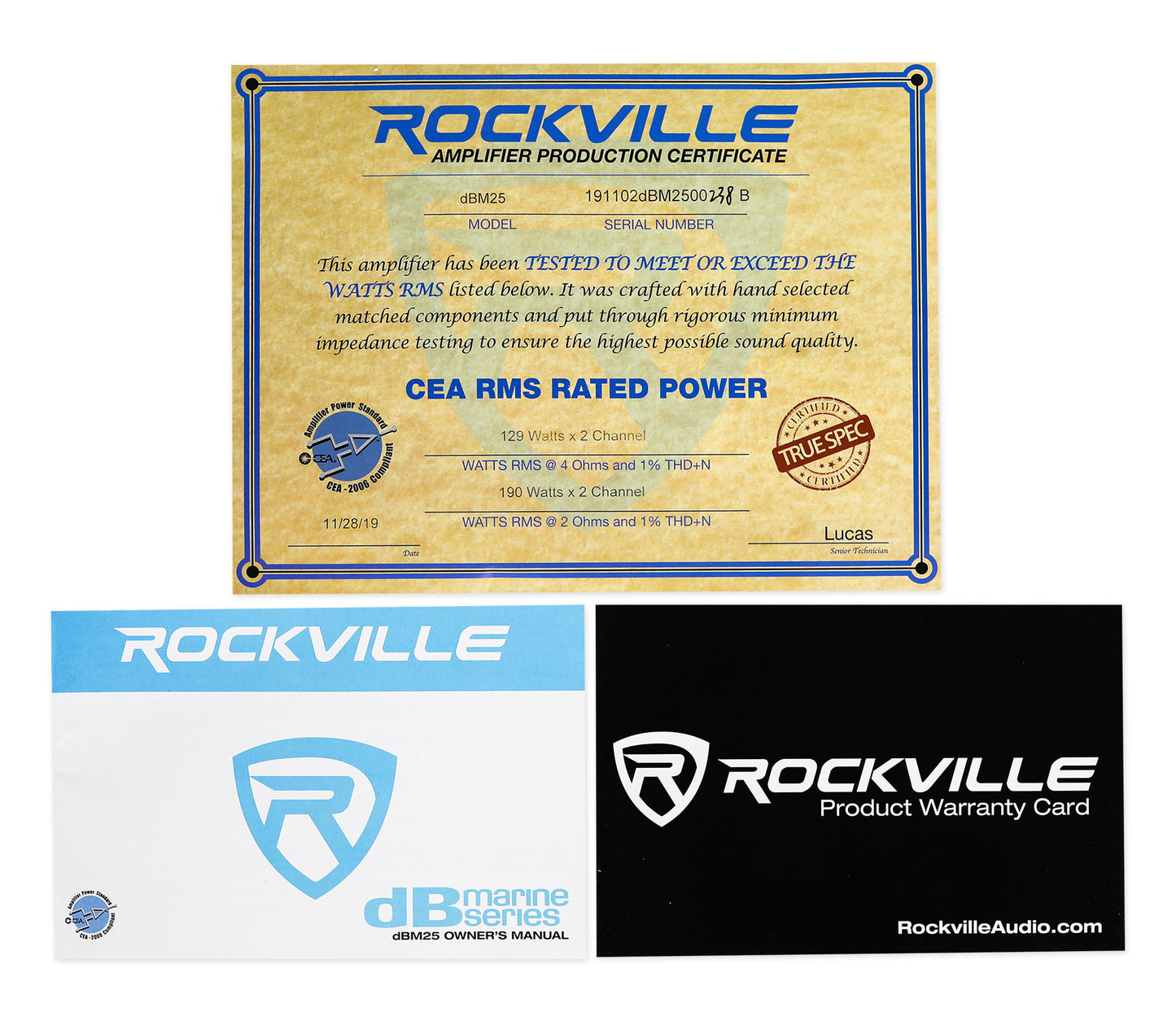

- Birth sheet with Tested Power
- Mounting Screws
- Warranty Card
- Owner’s Manual
Description:

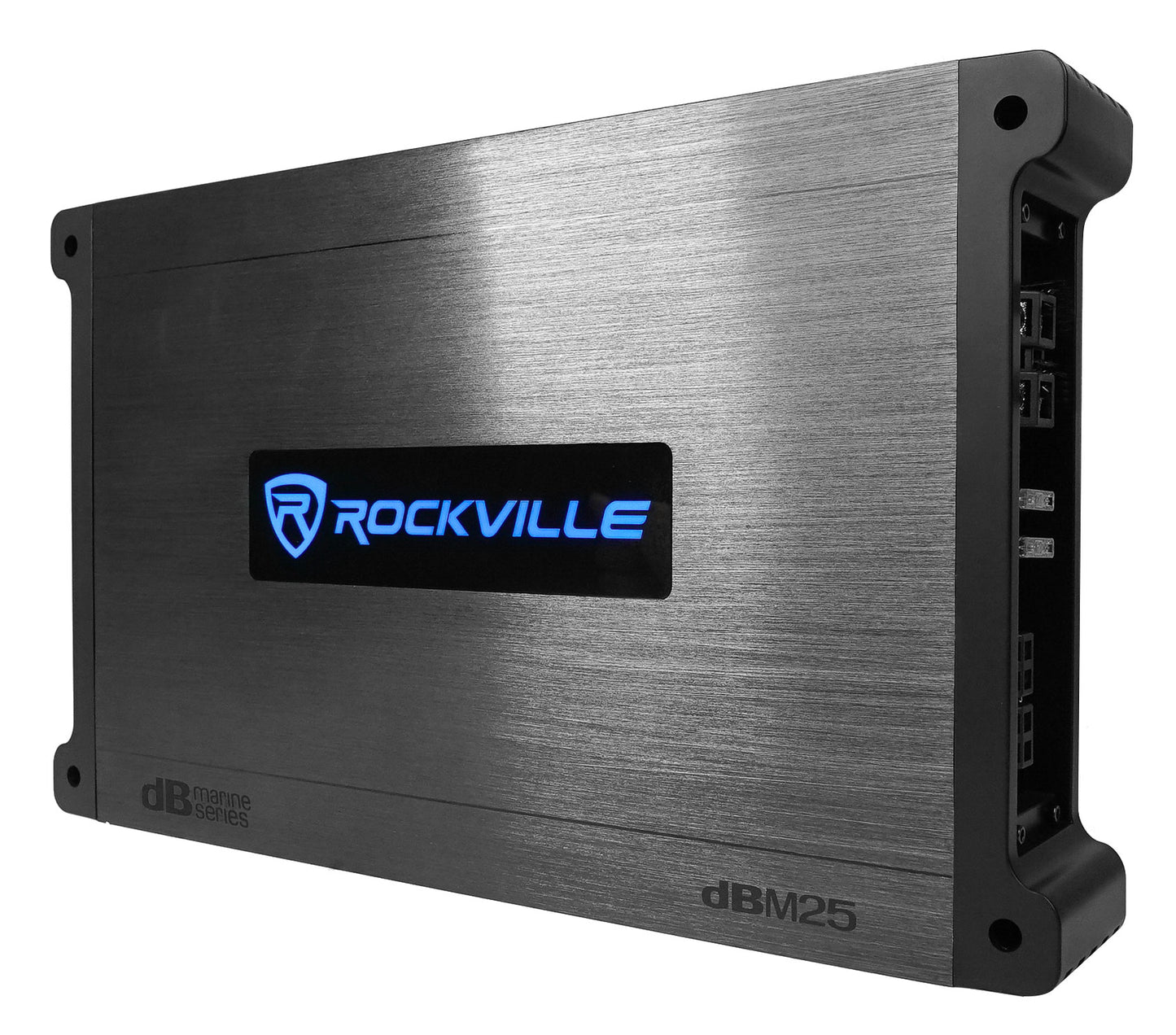

The all new dB marine series of amplifiers gives you the best of both worlds! We took the sound of our best selling series of dB car amps and we added the best marine grade parts so that they will last forever and withstand even the harshest conditions on the water.

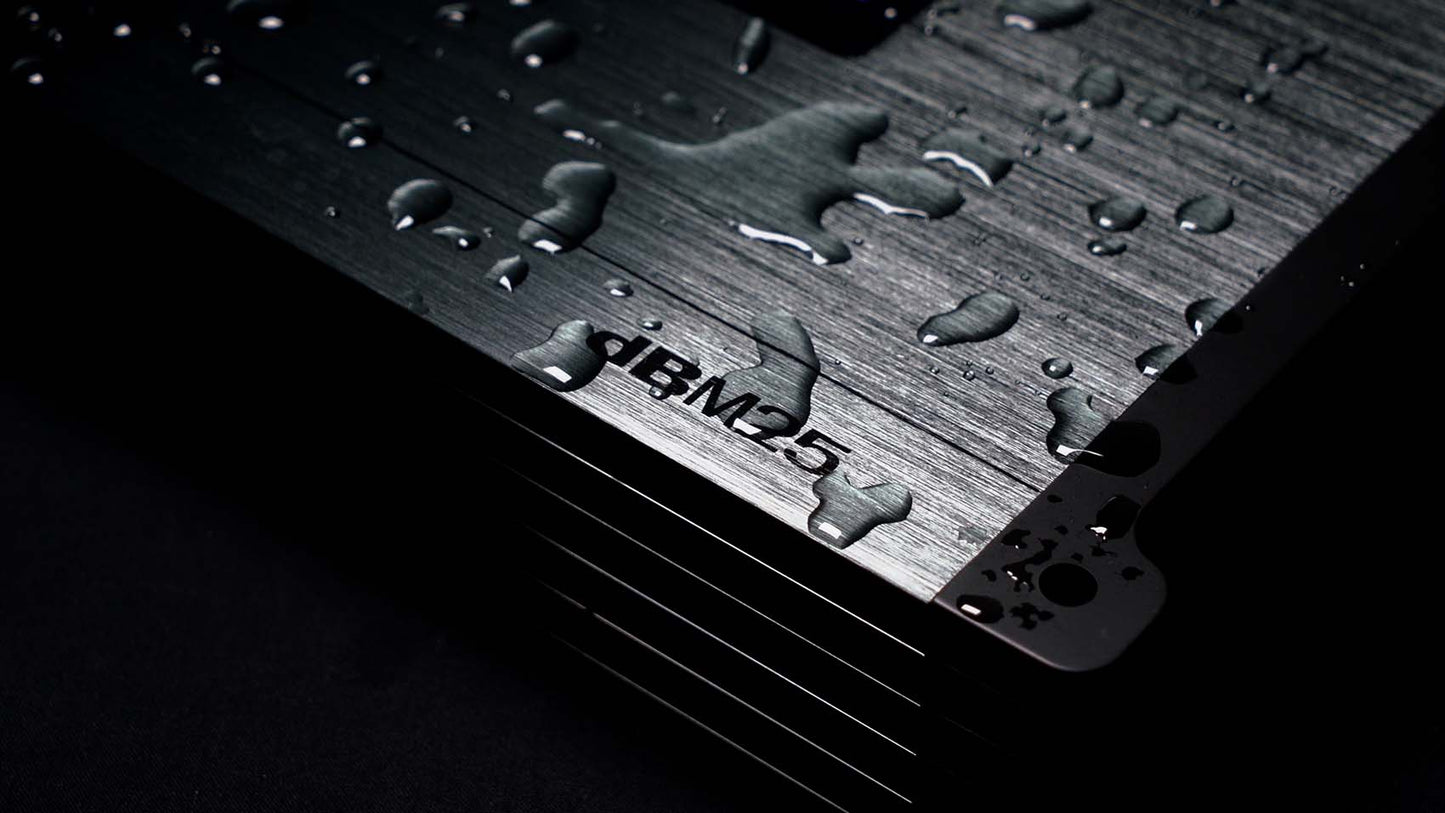

We went a little overboard (no pun intended) to make this amp marine ready. We conformal coated the PCB board with a waterproof glue that is painted on to protect the circuitry. We then added waterproof silicone covers over the terminals so that water can never get into the amp. The heat sink, including the bottom plate, is made of aluminum which is rustproof. The end panels, all of the internal mounting screws and hardware of the amp are made of stainless steel and are rustproof as well. Even after many years of use the amp will be rust free and operate like new!

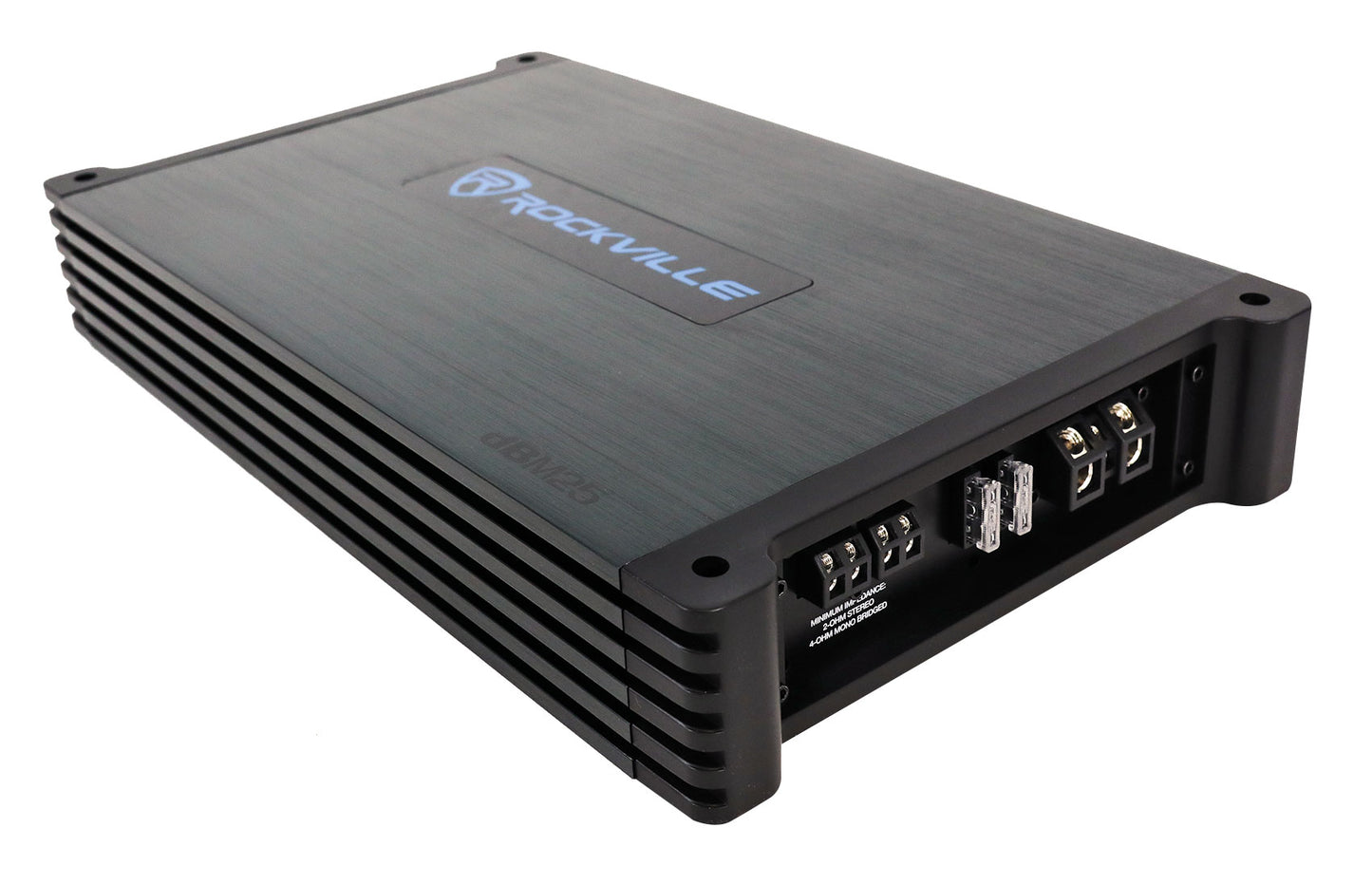

The DBM25 is a 2-Channel amplifier with 1,500 watts peak output and 375 watts Dyno Certified power. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.
This amp has a fully adjustable 12dB/Octave crossover with differential circuitry. Other features include a subsonic filter, a fully adjustable bass equalizer, mute and delay soft start technology, a phase control switch, and a dashboard subwoofer control for added convenience. The DBM25 is protected by a full IC controlled circuit and has professional peak limiter circuitry guaranteeing distortion free music playback at all levels.
We are so confident in your satisfaction of this amplifier that we will offer you a 90 day money back guarantee. If this amp does not perform as well as you expected, we will send you a pre-paid shipping label and give your money back. This means that, if for any reason you want to return the amplifier for a full refund within 90 days, you can! (Amp must be complete along with the box).
Features:
- Rockville DBM25 1500w Peak/370w Dyno-Certified RMS Class-AB 2-Channel Marine Amplifier With Terminal Covers
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
- 2 Ohm: 185 Watts x 2 Channel
- 4 Ohm: 125 Watts x 2 Channel
- 4 Ohm Bridged: 370 Watts x 1 Channel
- Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
- 2 Ohm: 750 Watts x 2 Channel
- 4 Ohm: 500 Watts x 2 Channel
- 4 Ohm Bridged: 1500 Watts x 1 Channel

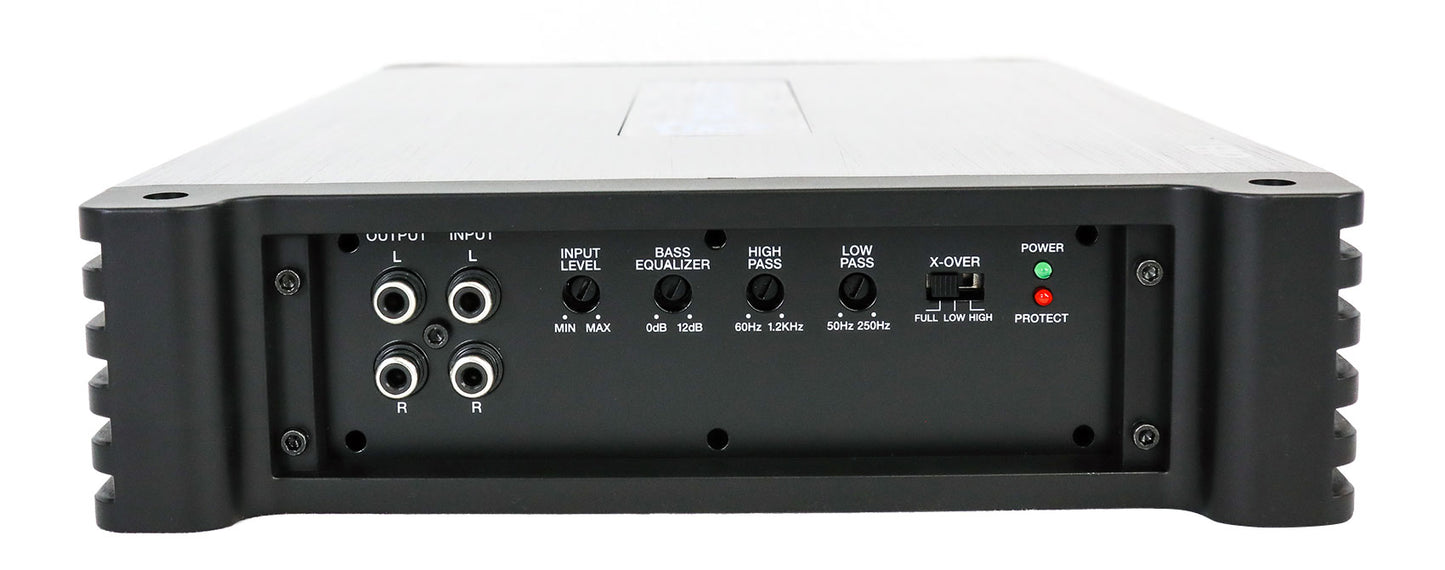

- Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
- Adjustable Low Pass Filter: 50Hz - 250Hz
- Adjustable High Pass Filter: 60Hz - 1.2kHz
- Fully Adjustable 12dB Bass Equalizer
- Adjustable Input Level Control
- Minimum THD at Rated Power: <0.05%
- S/N Ratio: >90 dB
- Frequency Response: 10Hz - 50kHz
- Damping Factor: >100 @ 100Hz

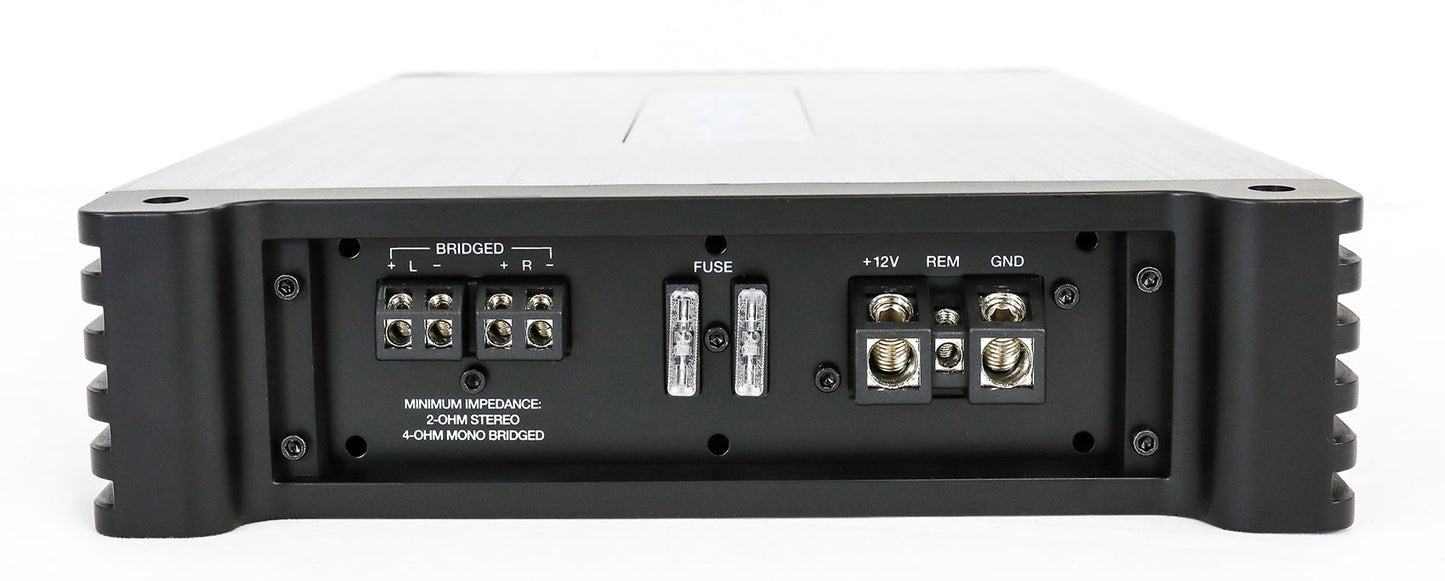

- (2) 25 Amp ATC Fuses
- Painted Conformal Coating PCB Board (Uses 2577 Waterproof Glue)

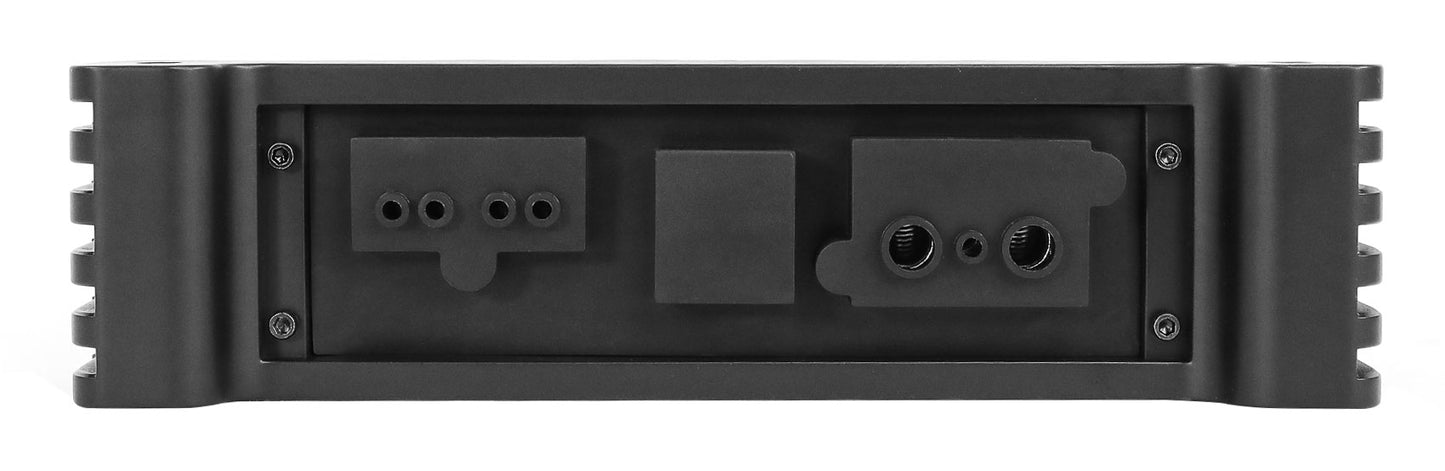

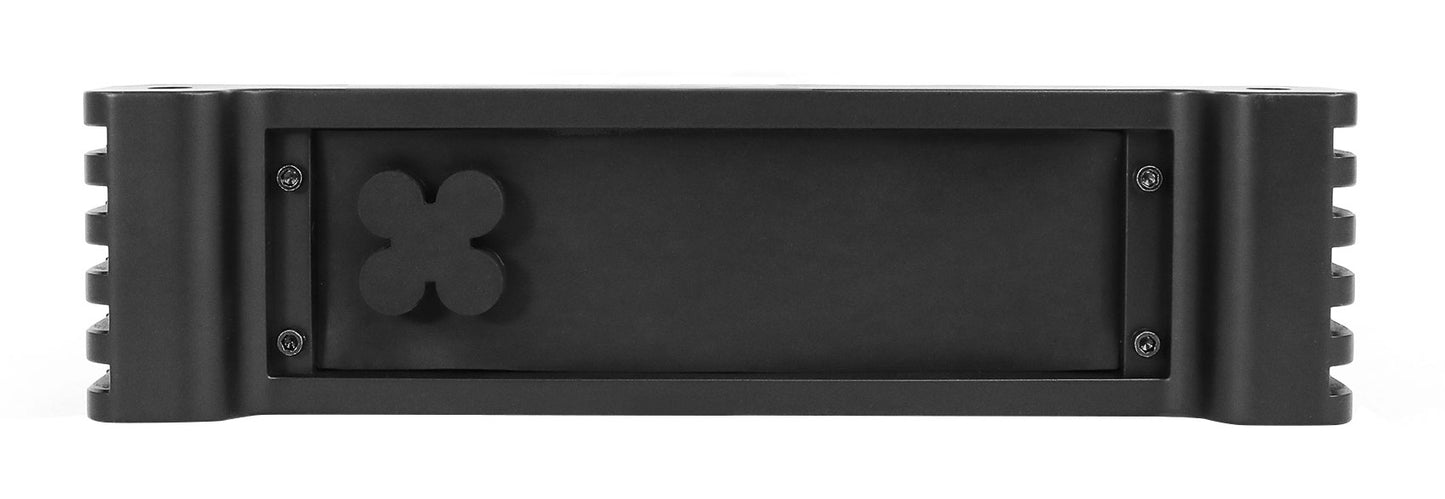

- Waterproof silicone covers for end panels
- Rustproof Aluminum heat sink with white paintedfinish
- Stainless steel end panels are rustproof
- All screws and mounting hardware are stainless steel and rustproof
- Bottom panel is aluminum and rustproof
- High-Speed MOSFET Power Supply
- Studio-Grade Bipolar Output Stage Transistors
- Product Dimensions (W x H x L): 9" x 2.4" x 15.1" inches
- Product Weight: 7.7 Lbs
- UPC:
- 819216022313
