How to Set Up Your BLUDAC2 Series:

How To Connect Your TV to Your BLUDAC2:

How To Connect Your Laptop/Computer to Your BLUDAC2:

How To Connect Your Gaming Console to Your BLUDAC2:

How To Pair Your Smartphone or Tablet to Your BLUDAC2:

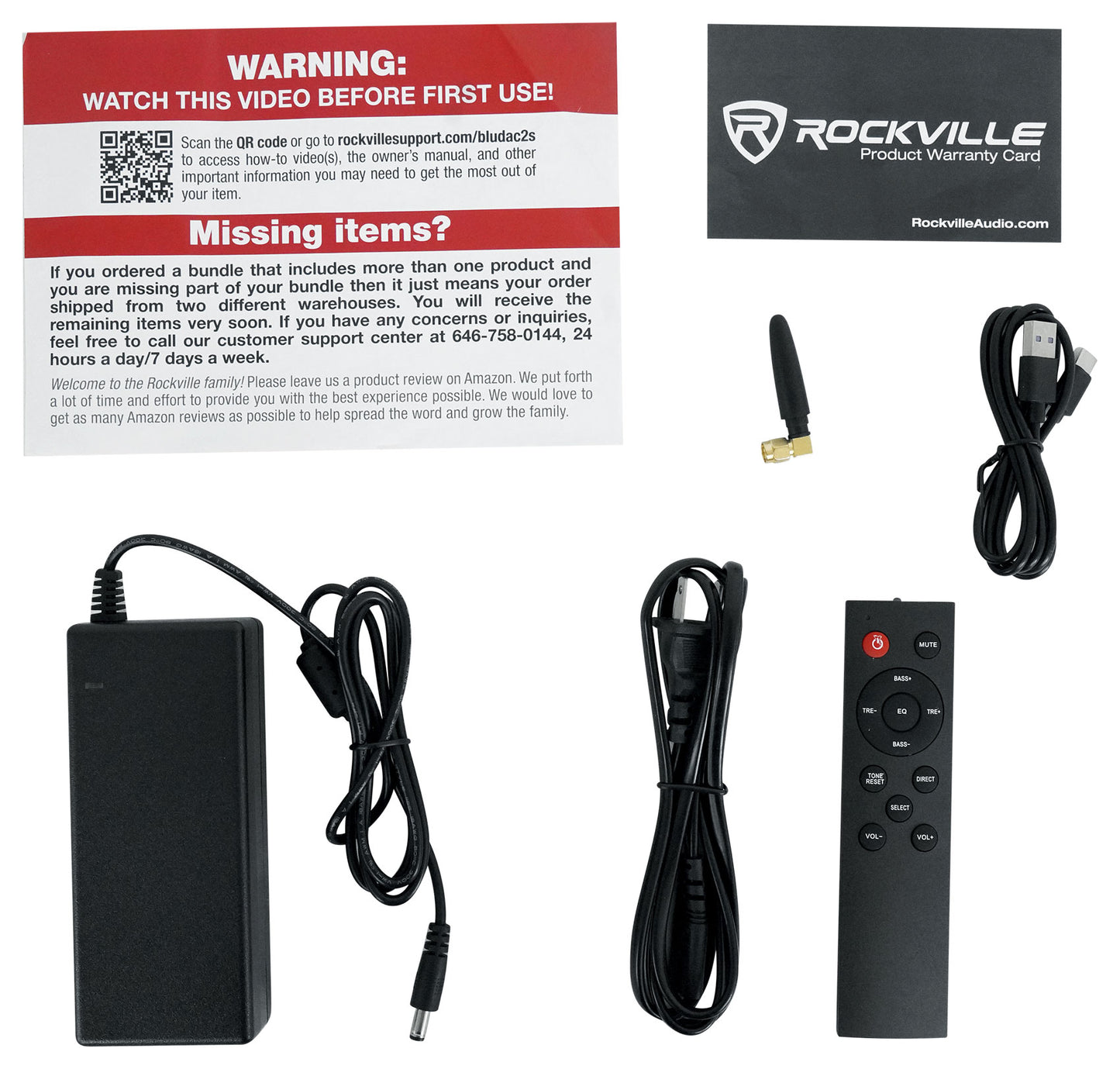

What's In The Box:

• DAC with built in amplifier and Bluetooth

• USB-C interface cable

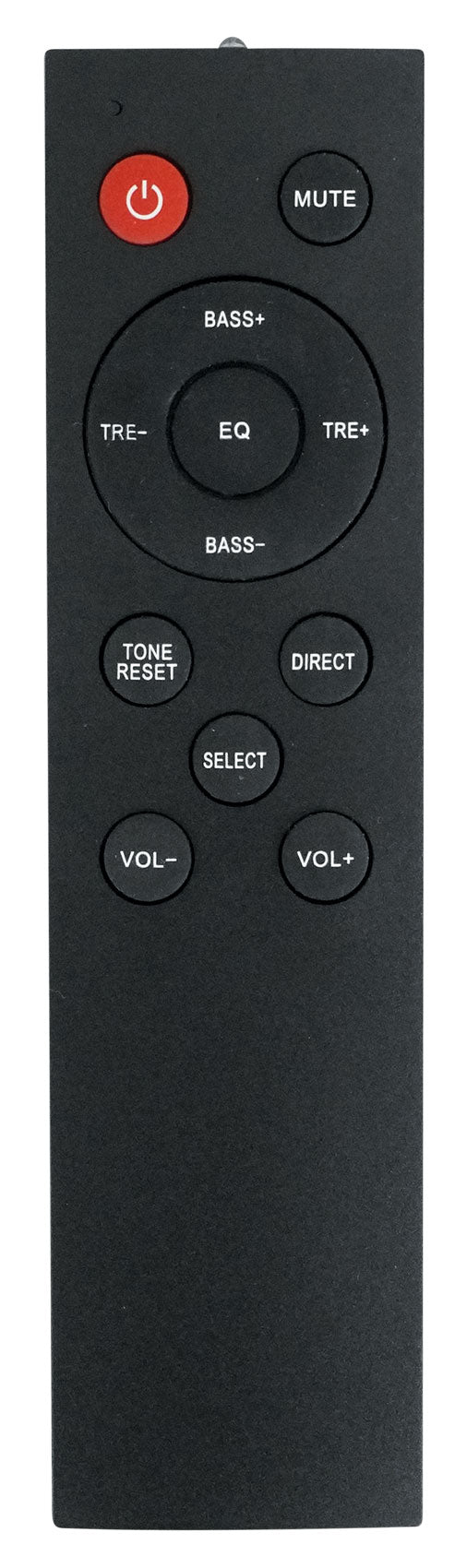

• Remote

• Power adapter

• How to instructional setup video

• Warranty card


Description:

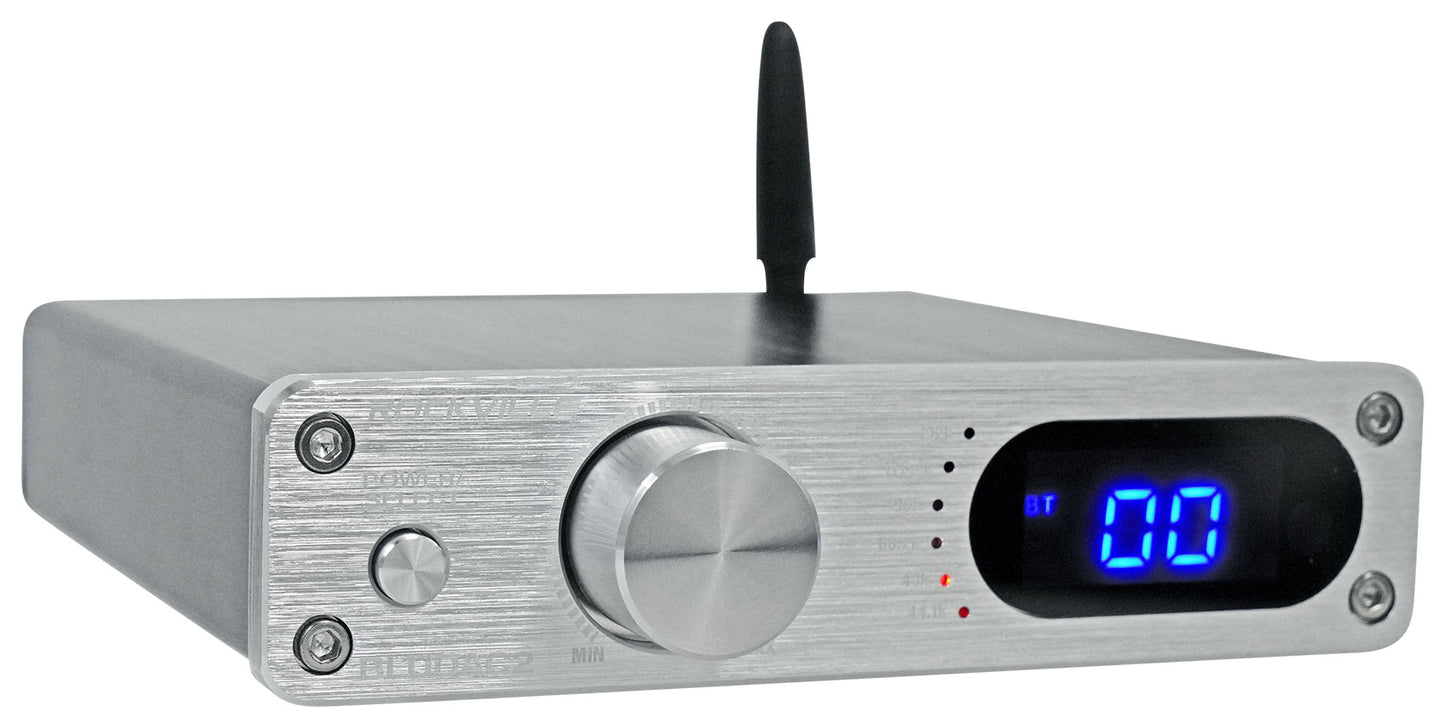

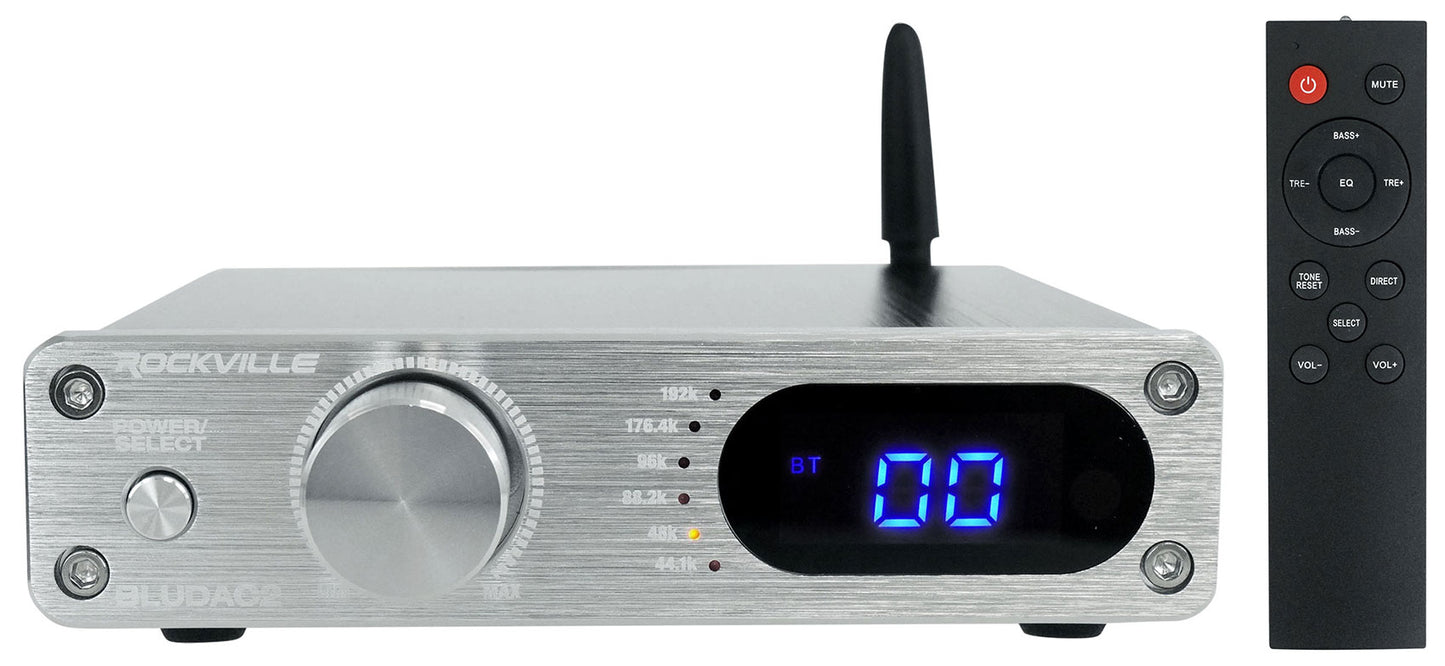

The Rockville BLUDAC2S is an audiophile grade receiver/ stereo amplifier that supports up to 192K high-resolution audio.

The built in amplifier is extremely powerful. You can connect 2 speakers or you can even run 4 speakers in parallel and connect 2 per channel as long as your speakers are a minimum impedance of 8 ohm. The sound out of this amplifier is crystal clear. There is also a sub output that allows you to connect a powered subwoofer. This also has an optical, coax and 3.5MM aux input to support all your favorite devices. The build in Bluetooth 5.0 chip is top of the line and has a long range of 35 feet. The Bluetooth sound is crystal clear with no unwanted humming or interference noises.

Features:

• Rockville BLUDAC2S DAC/Bluetooth Amplifier Home Receiver USB/Optical/Sub Out
• 4 Ohms: 75 x 2 watts RMS and 300 x 2 watts peak
• 8 Ohms: 45 x 2 watts RMS and 180 x 2 watts peak

• Built in Bluetooth 5.0 with 35 foot long range

• Class D Circuitry
• Bass and treble control

• DSP EQ Modes

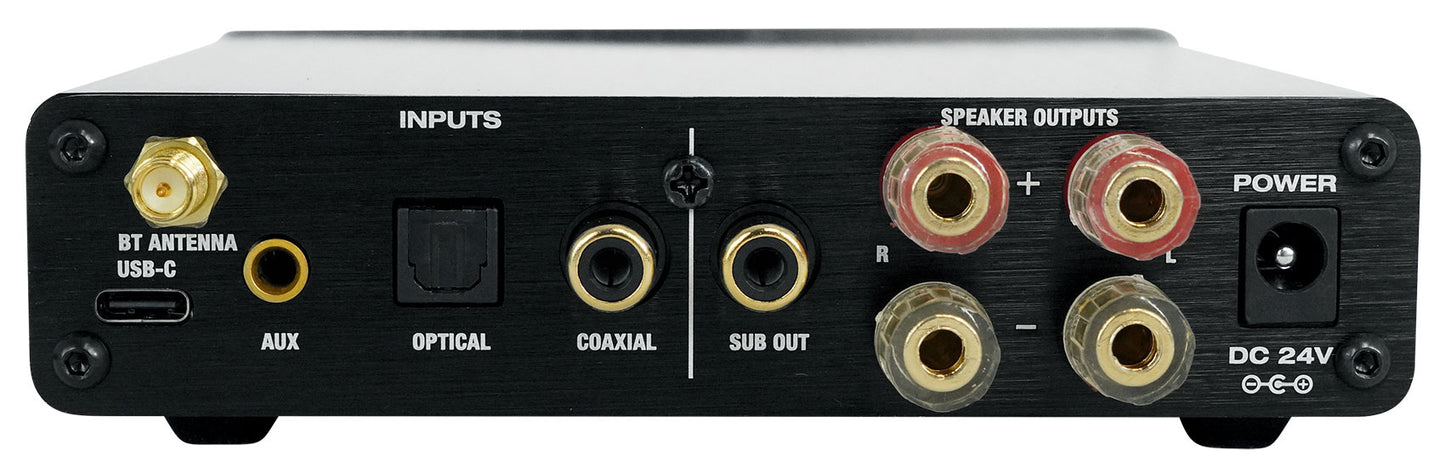

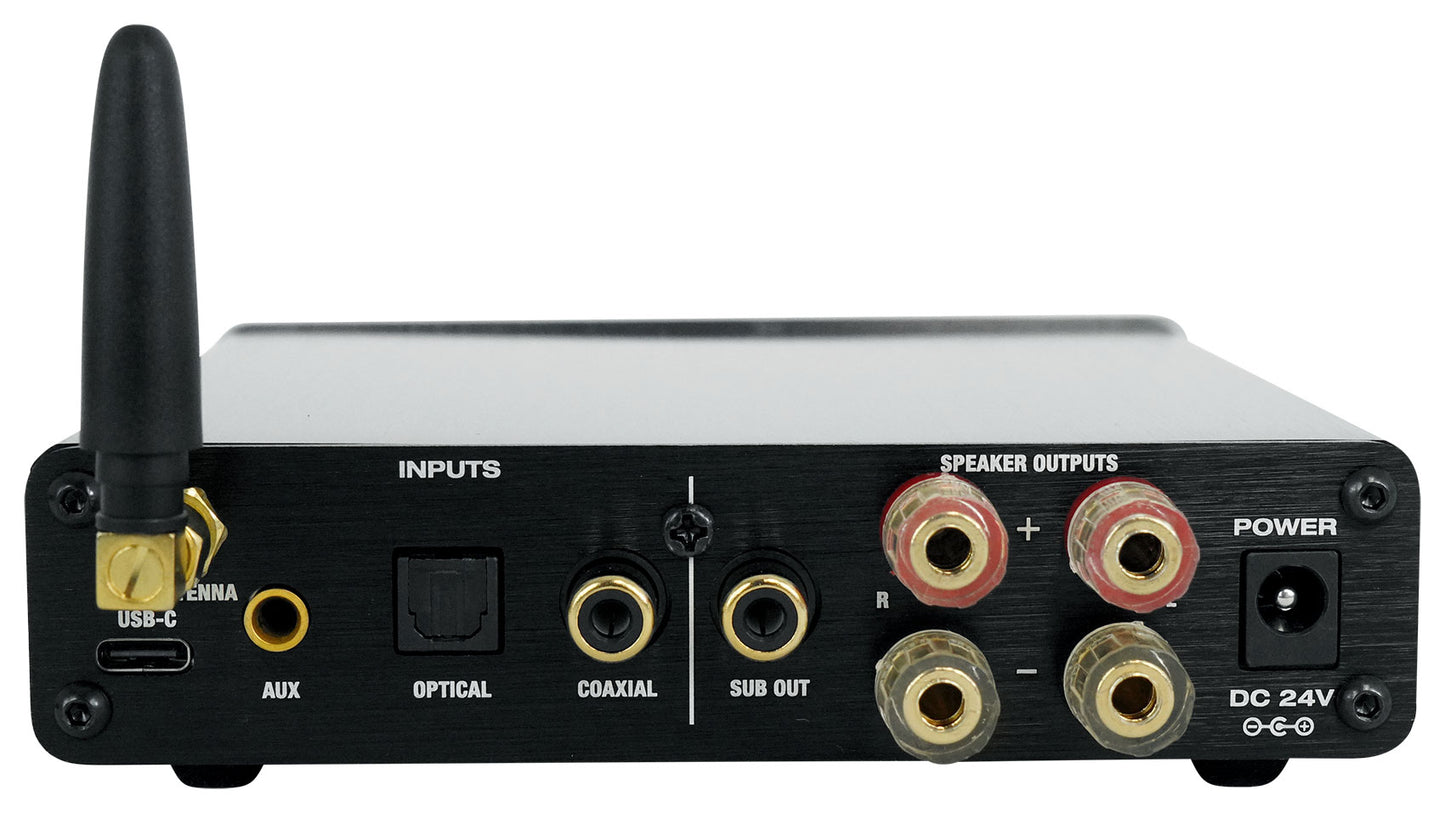

• Optical Input (Up to 192K high resolution)

• Coax input (Up to 192K high resolution)

• 3.5MM aux input

• Sub output

• Unique compact design

• Great sound quality and performance

• Multi function volume knob

• Solid metal construction with brushed aluminum front panel

• Every component from start to finish in this item is high quality and durable

• DAC Converts digital sources audio to analog

• Converts computer USB playback to analog speaker-level out
• You can connect your computer to the DAC through the included USB interface cable
• Sampling Rate : Optical/Coaxial -- 16-24Bit/ 44.1kHz-192kHz
• Supports virtually all digital file formats including top quality 24-bit high resolution lossless audio files stored on your computer
• Sampling Rate : USB--16-24Bit/ 44.1kHz-96kHz
• Sampling Rate : AUX/BT--24Bit/ 48kHz

• Frequency Response: 20hz To 20khz (±0.1db)

• Signal To Noise Ratio: 105dB

• Sampling rate display

• Perfect for music playback, video games, or home theater systems
• DC power supply/DC : 24V 4A
• Color: Silver

• Dimensions in inches: 4.1” W x 1.8” H x 5.1" D

• Weight: 1.1 lbs.

Specifications:

• Digital Input Sampling Frequencies Supported: 32khz, 44.1khz, 48khz, 88.2khz, 96khz, 192khz

• Max. Output Level (Unbalanced): 18.5 vRms

• Total Correlated Jitter: <130ps

• Crosstalk @ 1khz: < -130db

• Crosstalk @ 20khz: < -112db

• SUB Crossover : 130 Hz

• Output Impedance: <50ohms

• Thd @ 1khz 0dbfs: <0.0142% 24-bit

• Thd @ 1khz -10dbfs: <0.0025% 24-bit

• Thd @ 20khz 0dbfs: <0.0025%
