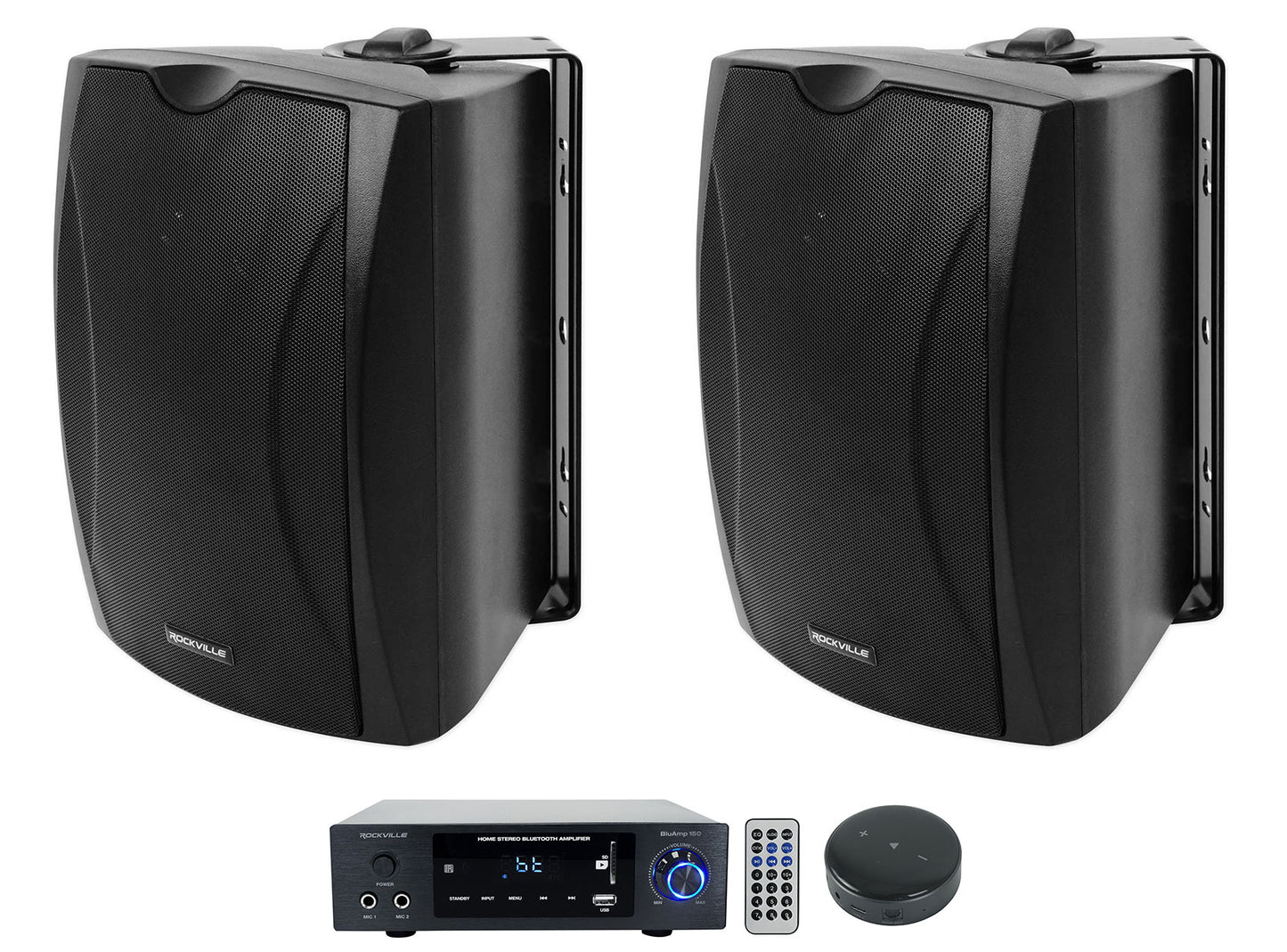

Package Includes:

• (1) Rockville BLUAMP 150 Home Stereo Bluetooth Amplifier Receiver Optical/Phono/RCA

• (2) Rockville WET-5B 70V 5.25" IPX55 Commercial Indoor/Outdoor Wall Speaker - Black

• (1) WiiM Mini Wifi Music Player Wireless Audio Streaming Multiroom Stereo Receiver


---

BLUAMP SERIES PRODUCT VIDEO:

How to Set up the BluAmp Series Amplifiers:

What's in the Box:

• Bluetooth Stereo Amplifier
• Remote Control
• Owners manual / Warranty card

Description:

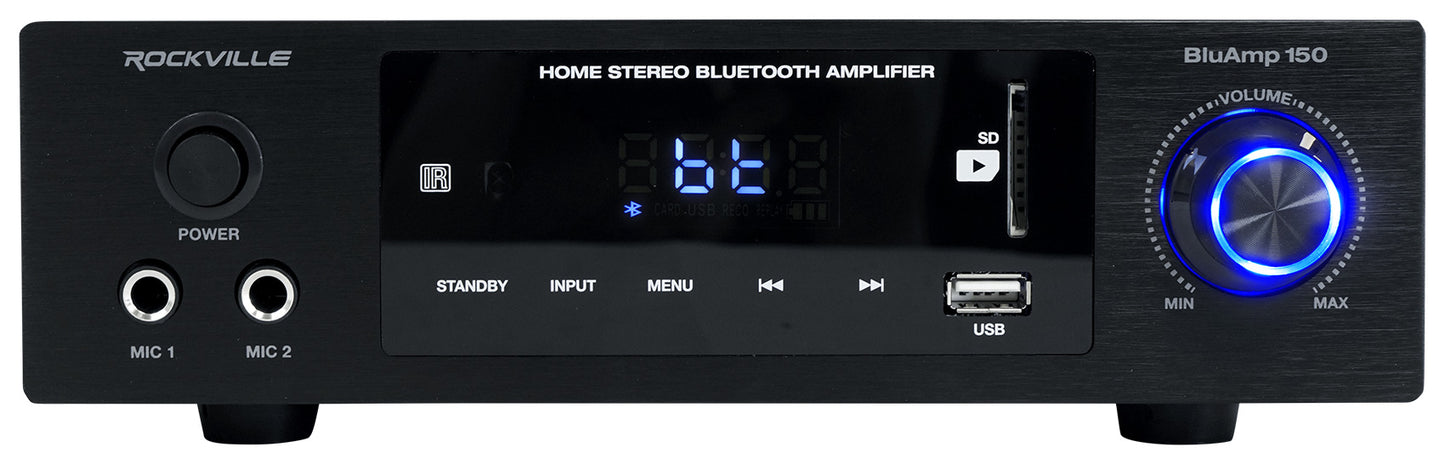

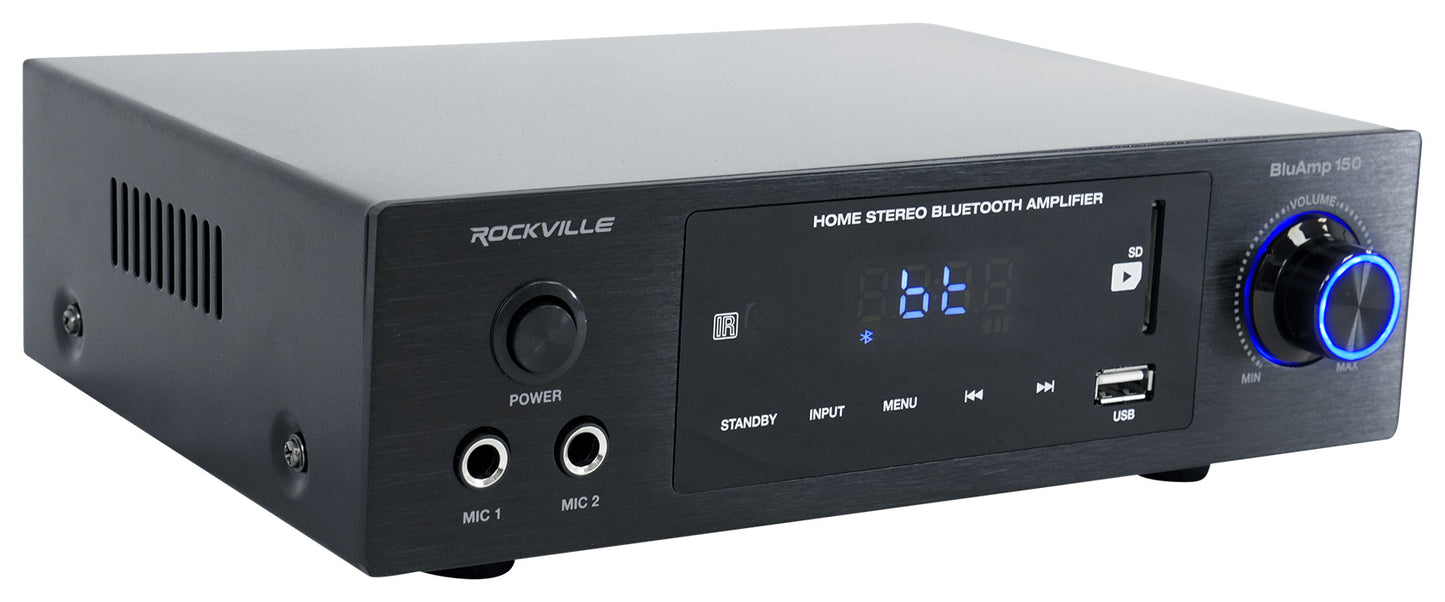

The BluAmp 150 by Rockville is a high quality Bluetooth amplifier that has 75 watts x 2 RMS and a lot of playback options including Bluetooth, RCA, Phono, Optical, and Mic inputs.

Huge Power
The BluAmp 150 has 75 x 2 watts RMS @ 4 ohms which is an incredible amount of power for an amp of this size. Big power is great when you want to have crystal clear sound even at high volume levels. At 95% volume this amp still delivers clean power with no clipping.

So many playback and expandability options!
For playback it has built in Bluetooth, USB, and SD options. The Bluetooth 5.0 chipset has long range and works perfectly. The input section has RCA aux, Optical, and phono. Whether you want to connect your MP3 player, television, computer, or even your turntable we got you covered!

We also have 1 set of RCA outputs allowing you to add more amplifiers, powered subs, or powered speakers to the system!

Karaoke!
There are 2 mic inputs along with echo control, and mic volume controls which makes this perfect for karaoke parties.

Full Function Remote
The remote control that is included will allow you to access all functions of the receiver quickly and efficiently.

Adjustable Equalizer Settings
The adjustable bass and treble controls will allow you to fine tune your music to your taste.

Features:

• Rockville BLUAMP-150 2-Channel Home Stereo Bluetooth Amplifier
• 4 Ohms: 75 x 2 watts RMS and 300 x 2 watts peak
• 8 Ohms: 40 x 2 watts RMS and 160 x 2 watts peak
• Plays Bluetooth/USB/SD
• RCA aux input
• Phono RCA input for turntables
• Optical input
• (2) 1/4" Mic inputs for Karaoke with Echo control and mic volume control
• (1) set of RCA Audio Outputs to connect to a subwoofer or another amplifier
• Built in Bluetooth 5.0 with 33 foot range
• 2 sets of binding post speaker output terminals
• Bass/Treble/Balance/Mic Volume/Mic Echo and Master Volume controls
• Built-in Cooling Fan
• Built-in Pre-Amplifier with low distortion
• Class D circuit with great sound quality
• Solid metal construction with brushed aluminum front panel
• Multi function volume knob
• LCD Display / Touch Buttons
• Frequency Response (±3dB): 50 Hz- 20 KHz
• AUX Input Impedance: 10k Ohms
• AUX Input Sensitivity: 300mV
• Phono input impedance: 47K
• Phono input sensitivity: 20mV
• Output Impedance: 4-8 ohm
• Total Harmonic Distortion(THD): =0.5%
• Signal-to-Noise Ratio(S/N): =78dBA
• USB: Supports WAV/MP3/WMA
• 110-220V

---

All About Your WET Series:



How to Set Up Your 70 Volt Speakers:

All About Your 70 Volt:

Description:

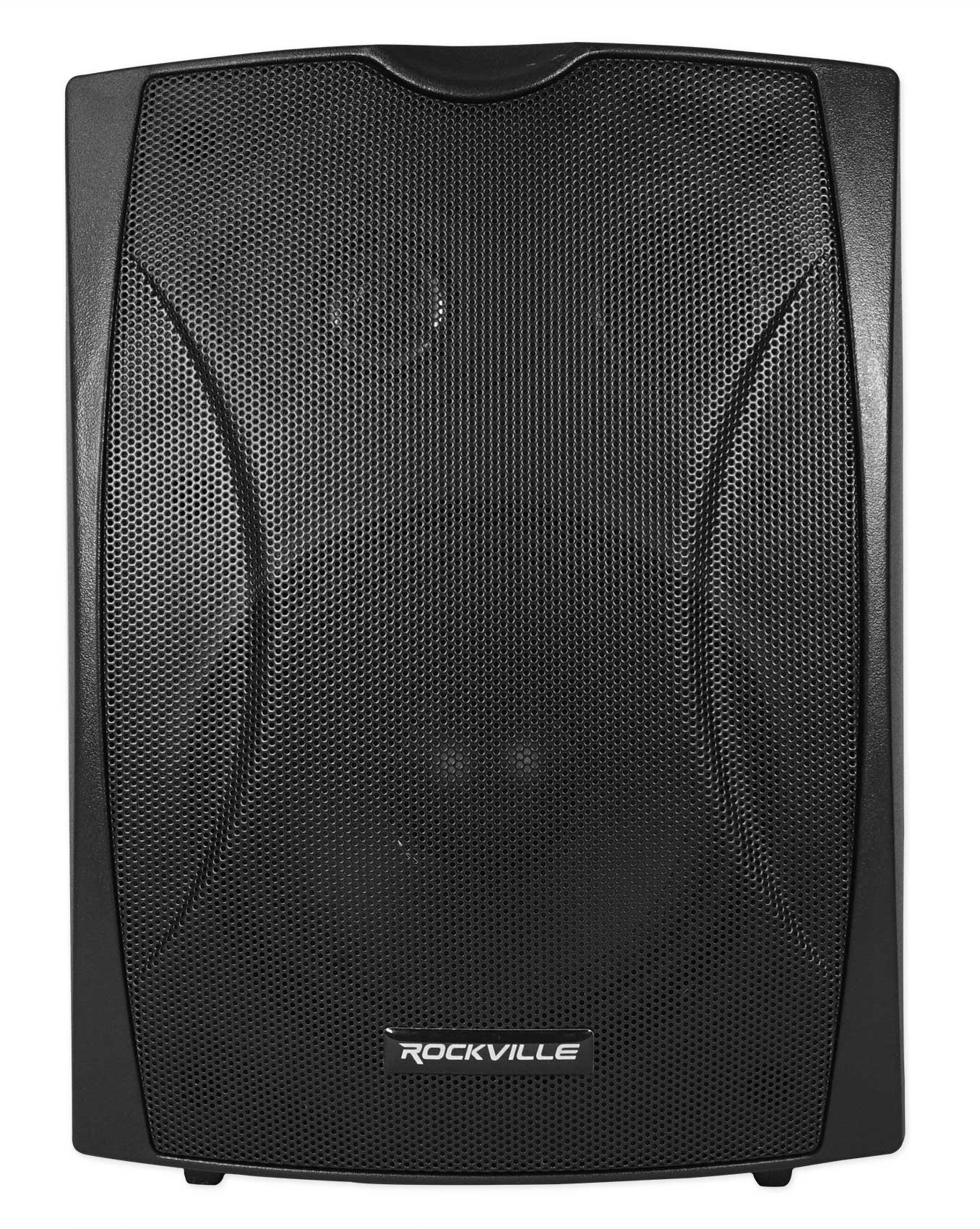

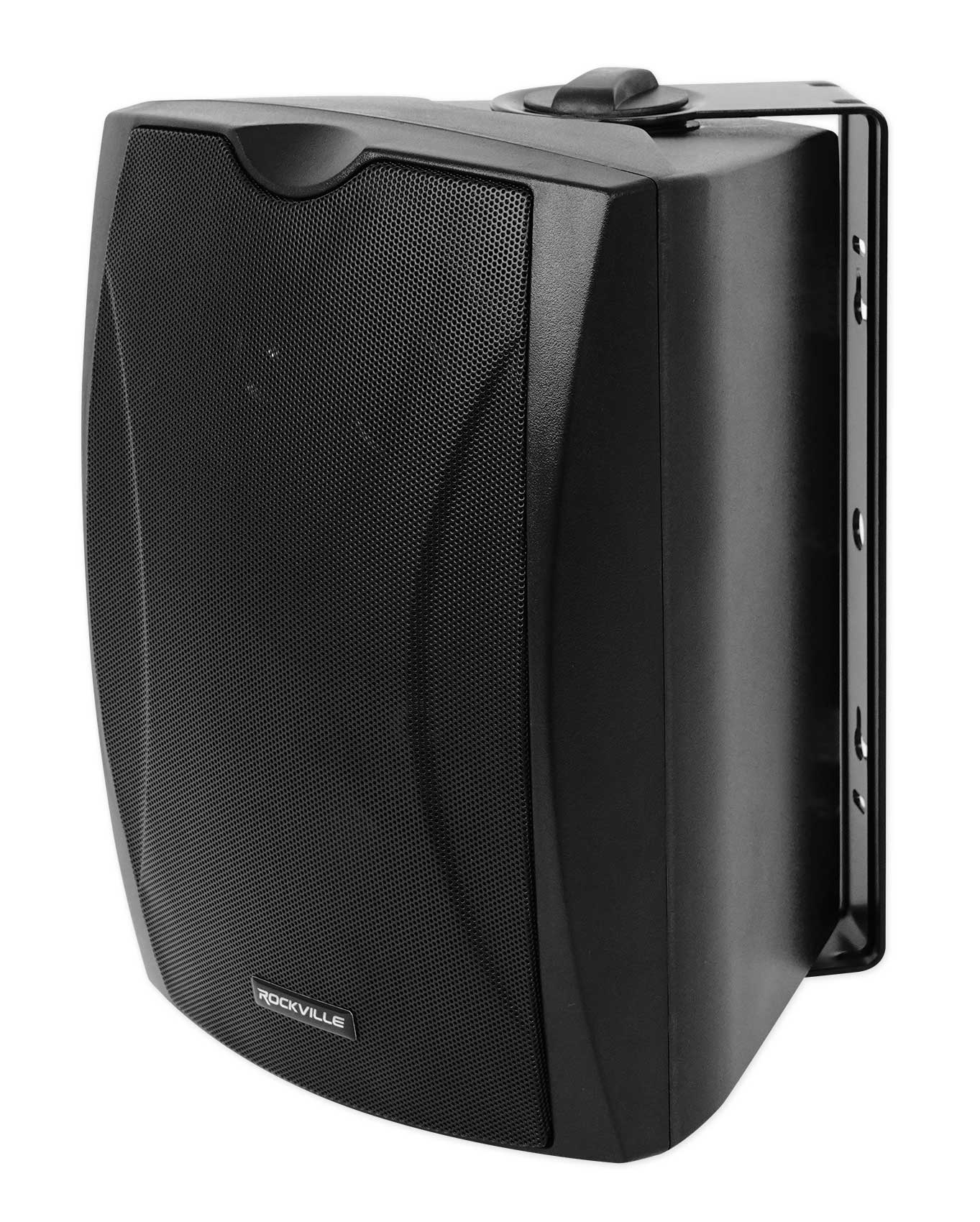

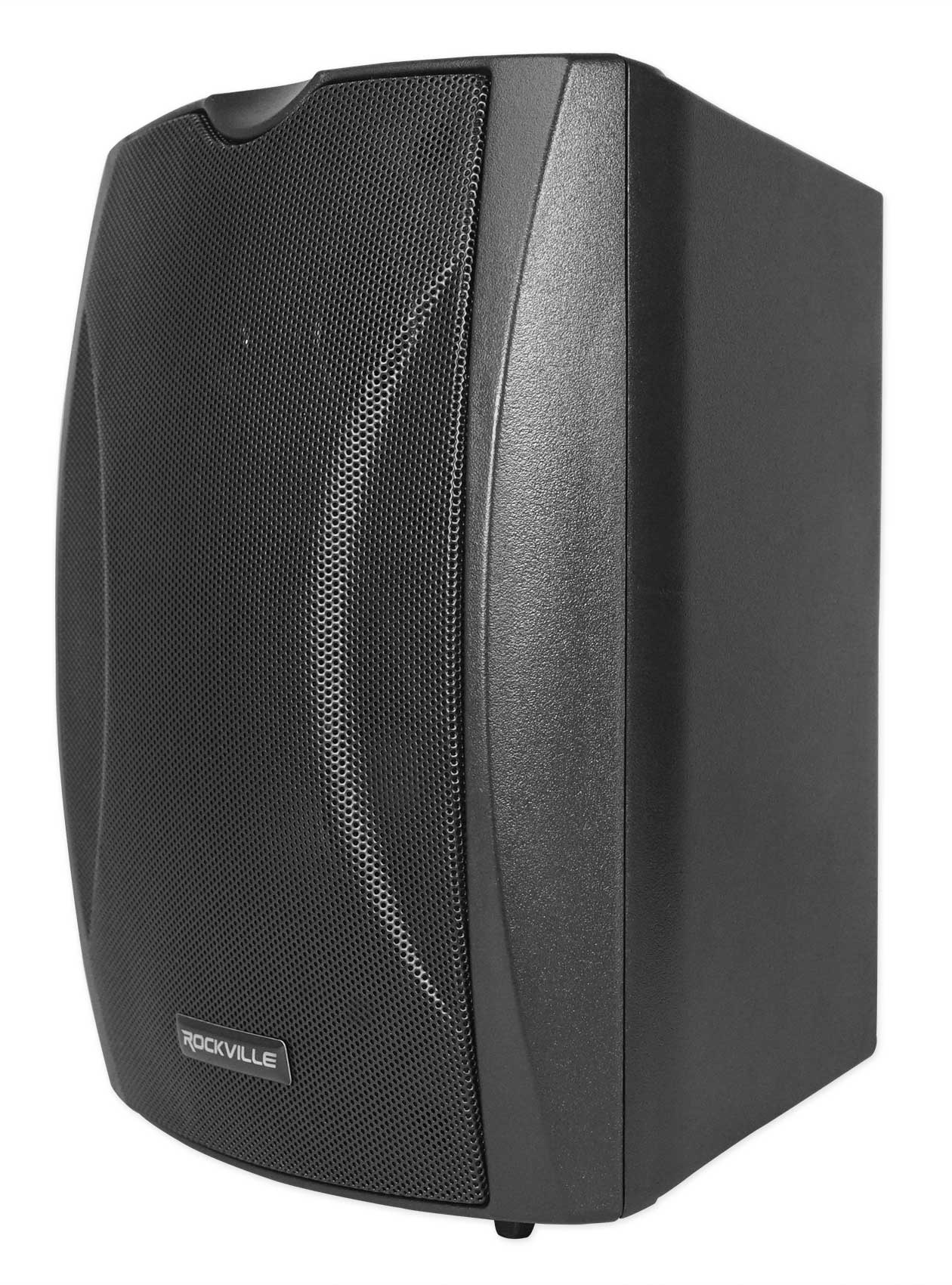

The Rockville WET-5B features swivel brackets that allow you to mount the speaker to your wall. Attaching the speaker to the swivel bracket is quick and easy. Simply slide the speaker on to the bracket and tighten the knobs with a quick turn.Changing the swivel position is just as easy. You simply loosen the Knobs to change the position of the speaker while it is on the bracket.

IPX55 rated!
These speakers are IPX55 rated. This means you can install them indoors or outdoors. They can withstand heavy rain, moisture, sun,dust, and even jet streams of water hitting the speaker from multiple angles. We went above and beyond in terms of product development to get these speakers IPX55 rated. The cabinets were upgraded to a high-end waterproof ABS material. In addition, we added a special cloth material to the speaker to block water from going entering the vent. The grill is made of aluminum and will never rust from outdoors use. We used Stainless steel brackets to ensure that the brackets wouldn't rust either. Even the speaker wire terminals are waterproof and rustproof!

Vented design has kicking bass!
This is one of the only indoor/outdoor 70V speakers on the market with a vented design and an IPX55 rating. These will give you amazing bass response and great full range sound quality at low or high volume.

What is 70 volt ?
70 volt systems are the number one choice for applications where you want to install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 350 watts and you can install speakers that total close to 300 watts. It does not matter if it is 15 speakers that are 20 watts each or 50 speakers that are tapped at 5 watts each. You always want your 70 volt amp to have at least 15 or 20% more power than the combined watts your speakers are tapped at.

When we say the word tap, what we are referring to are the selectors these speakers have on them. For example, these speakers have selectable options of 2.5w, 5w, 10w, 20w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 20 watts, and the ones in the hallway at 2.5 watts.

Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, wall mounted speakers, subwoofers, etc.
70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.
The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

Features:

• Rockville Wet-5B 5.25" Commercial/Restaurant 70V or 8 Ohm Wall Mount Speaker
• IPX55 rating makes this perfect for outdoor use or indoor use
• IPX55 means this can withstand jet streams spraying it from any angle without any damage
• Rugged ABS cabinet is waterproof
• Vented enclosure with waterproof vent (water can't get in but sound can get out)
• Aluminum grill is waterproof and rustproof
• Waterproof protective cloth blocks water from going into the vent
• Swivel wall bracket with quick release and tightening knobs
• Weather resistant
• 5.25" Woofer with Polypropylene cone
• 1" Mylar dome tweeter is very efficient and has great sound
• Frequency Response: 60Hz - 20Khz
• Sensitivity: 86dB
• RMS Power: 40w (when using 8 ohm)
• Nominal impedance: 8 Ohm
• 5-way binding post terminals
• Built in transformer supports 70V and 100V installations
• Built in tap switch to easily select your 70V or 100V power
• Color: Black
• Weight: 4.6 Lbs each
• Cabinet dimensions: 9.6" x 7.1" x 7.5"

There is a tap switch on the speaker so you can easily select how many watts you want the speaker to get from the amp.

70V Power Options:

• 20w
• 15w
• 10w
• 5w
• 2.5w

100V Power Options:

• 30w
• 20w
• 10w
• 5w

8 Ohm power handling:

• 40w

Owner's manual

---

All About Your WIIM MINI:

How To Set Up Your WIIM MINI:

Inputs, Outputs, Controls, and Functions on Your WIIM MINI Explained:

How To Create a Multi-Room Audio Set Up With Your WIIM MINI:

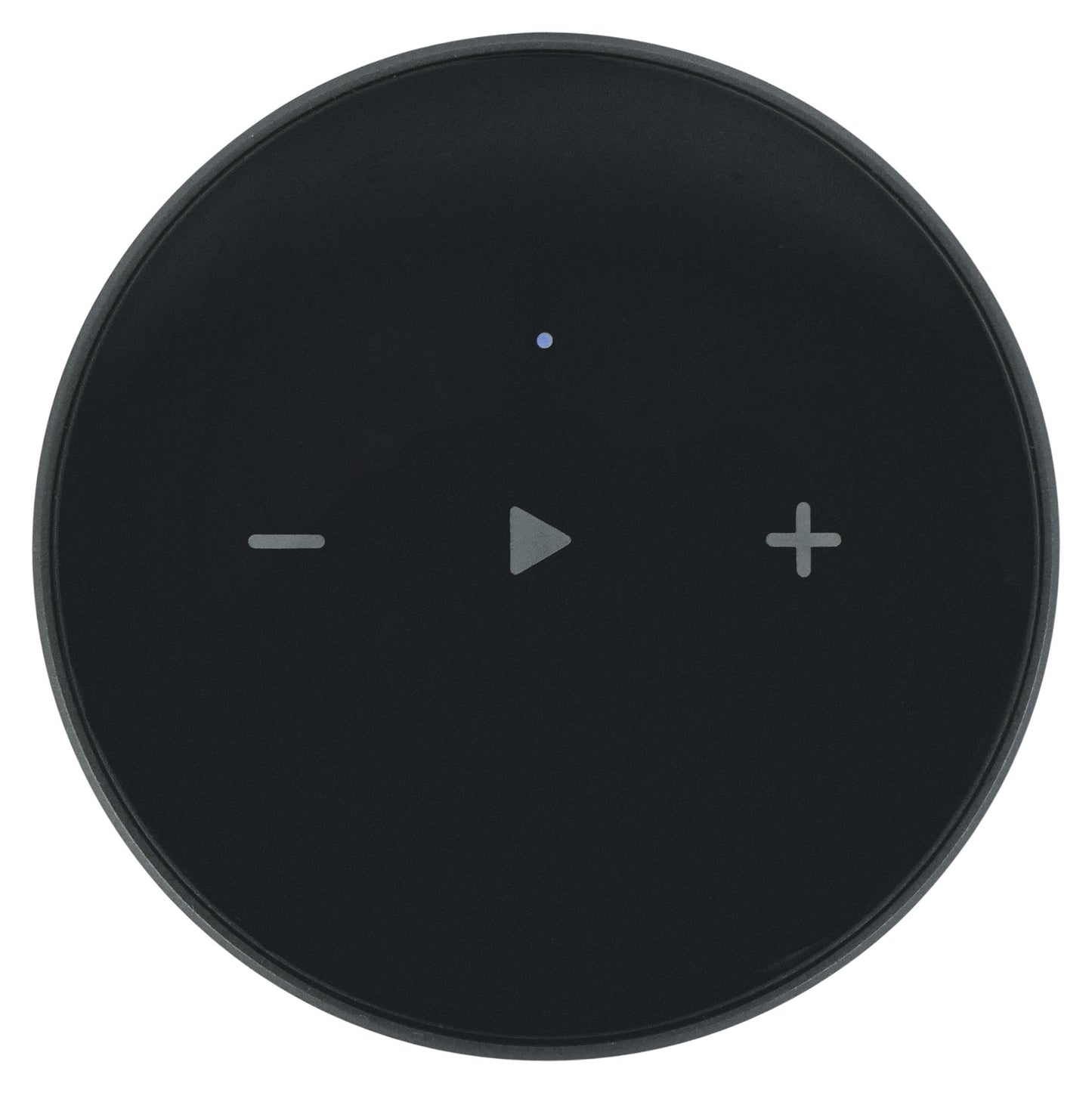

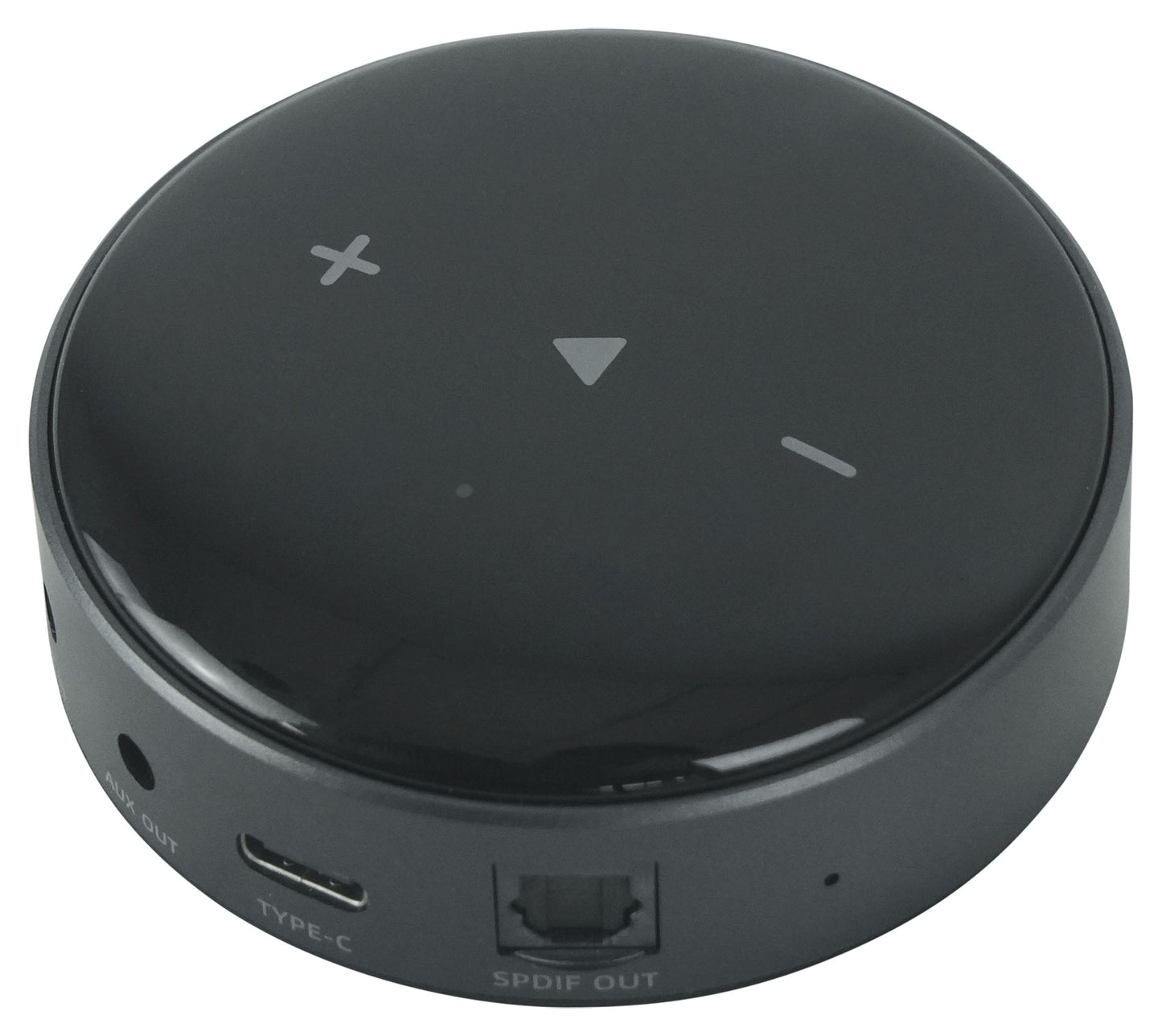

Description of Wiim Mini:

Super easy setup
WiiM Mini will pop up automatically in the WiiM Home app. Follow the in-app guide and start streaming music in less than 2 minutes.

Stream Hi-Res audio up to 192 kHz/24 bit.
WiiM Mini supports up to 192kHz, 24-bit audio output. That's the same as an artist's recording in the studio. The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance.

All your content in one app
We support many popular music streaming services in our WiiM Home app with more to come. Or connect to your NAS or local files to stream your favorite music. Spotify, TuneIn, Napster, Deezer, Qobuz, Amazon Music, Amazon Alexa, TIDAL, iHeartRadio, vTuner, Calm Radio, Pandora, Radio Paradise, SoundCloud, SoundMachine.

Play music everywhere with multi-room audio.
Building a wireless multiroom system has never been easier. Group WiiM Mini with other AirPlay 2 speakers, Alexa-enabled devices, or another WiiM Minis to have a multi-room/synchronized audio experience.

Automate your routines
Make your life easier by automating your routines. For your sleeping and wake-up routines, create a routine to wake up or fall asleep to your favorite music, station, or podcasts. Or, use your Alexa to create routines.

Works with Siri and Alexa
Connect WiiM Mini to your existing Echo or HomePod and use Siri or Alexa to select music,control playback volume, and more.

High-Res Audio
WiiM audio devices provide the capability to play Hi-Res lossless audio content from Spotify, Amazon Music, TIDAL, Deezer, Qobuz, and more. It supports up to 192kHz, 24-bit audio output which is the same as artist recordings in the studio . The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance, outstanding in all audio categories.

Multi-room and stereo pairing
Use the WiiM Home app to play perfect audio-synchronized music throughout your home. With our hardware, algorithm, and software optimization, we can achieve less than 150uS (0.00015s) synchronization accuracy among speakers as long as your speakers are in the same wireless network.

In addition, you can join two speakers connected with WiiM Mini to create a stereo pair for a wider and more immersive sound experience. It also supports multi-room and various audio inputs such as Wi-Fi-based streaming music, Bluetooth, and Aux input.

Gapless Playback
Precise gapless playback is important to your listening experience. With precise gapless playback, the playback timing is guaranteed to be identical to the source. There are no gaps or overlaps (crossfading) between successive tracks. The gap will be very noticeable in "continuous" music such as live concert recordings, some classical music, etc.

Whereas various software, firmware, and hardware components may add substantial delay associated with starting the playback of the track, our player uses two decoders to remove the extra samples at the beginning and end of each file and combines them. This works for all the supported music services and music in your phone or local network.

Adaptive EQ
Breakthrough listening experience requires both high-res audio content and a high-quality playback device . When adaptive EQ is enabled, the music genre information and other tags included in the audio content are used to adjust the frequency in real time by bringing in rich audio to capture every music detail or make human voices clearer in the podcast.

Auto calibration of audio delay
The connected receiver or speaker may have different audio path latency due to different hardware, software and DSP processing. To maintain the synchronization of each system, it's desirable to measure the audio path delay automatically. By leveraging the on-device microphone and proprietary algorithm, the entire audio path latency is measured automatically when it's connected with the receiver or speaker. The latency value will be used to maintain the perfect audio synchronization in wireless multi-room or multi-channel playback.

Features:

• Audio Codec: MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG

• Wi - Fi: Dual band Wi-Fi supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz network

• Bluetooth: Bluetooth 5.0, SBC and AAC codec, BT receiver and transmitter (with SW update)

• Line in: 1 Vrms
• Line in to Line out：
  - Power Output = 2Vrms
  - THD+N Ratio = 0.009%
  - SNR = 102dB
  - Crosstalk = -106 dB
  - Dynamic Range = 96 dB

• BT in to Line out：
  - Power Output = 2 Vrms
  - THD+N Ratio = 0.009%
  - SNR = 102 dB
  - Crosstalk = -106dB
  - Dynamic Range = 96dB
• Line in to SPDIF out：
  - Power Output = -3dBFS
  - THD+N Ratio = 0.005%
  - SNR = 102dB
  - Crosstalk = -103dB
  - Dynamic Range = 97dB

• BT in to SPDIF out：
  - Power Output = 0 dBFS
  - THD+N Ratio = 0.005%
  - SNR = 297dB
  - Crosstalk = -364dB
  - Dynamic Range = 213 dB

• Power Supply: 5V,1A

• LED: Three color status LED - Red, Green and White. WiiM Mini LED Behaviors >

• Button: Capacitive touch - Play/Pause, Volume+, Volume-
• Dimensions (L × W × H) : 69 × 69 × 24 mm (2.7 × 2.7 × 0.9 inches)

• Weight : 40g
