ATOM 8 Series (Product Video):

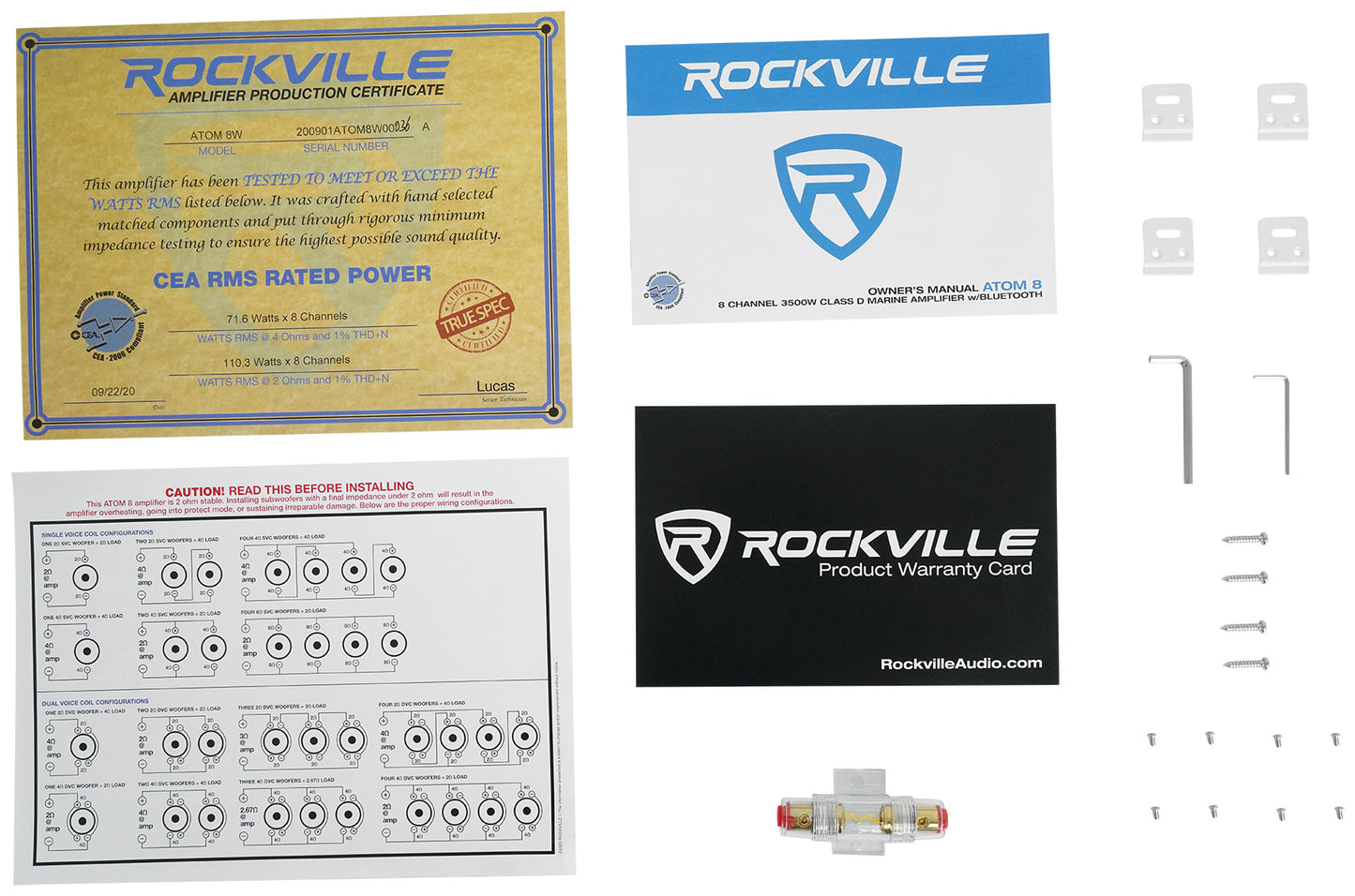

What's in the Box:
- Amplifier
- 80A External Fuse
- Birth sheet with Tested Power
- Mounting Hardware
- Warranty Card
- Owner’s Manual
Some Popular Configurations:

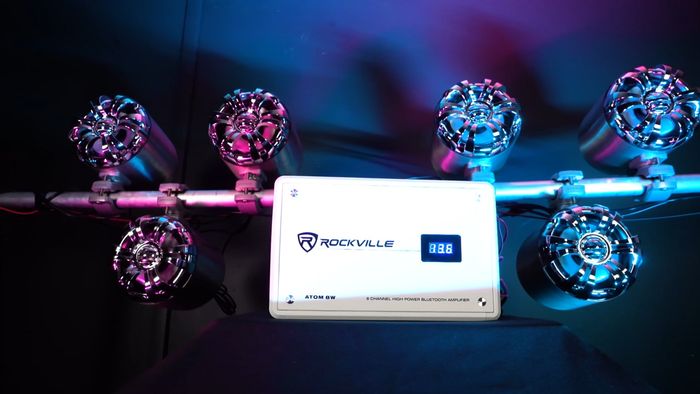

- 4 full range speakers and 2 or 4 subwoofers
- 8 full range speakers and 2 or 4 subwoofers
- 8 full range speakers (one per channel)
- 16 full range speakers (2 per channel)
- (4) subwoofers
- Combination of midrange speakers and tweeters
- Combination of subwoofers, full range speakers, and tweeters
This also has an adjustable input mode switch which means if you only have 2 sets of RCA outputs on your receiver then you can still run 4 or 8 channels off of your receiver.
Description:

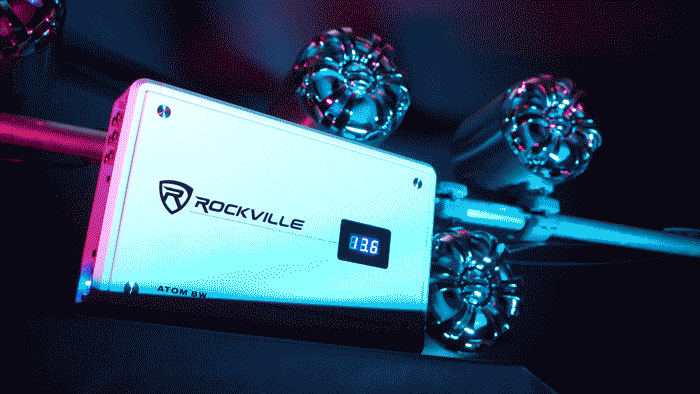

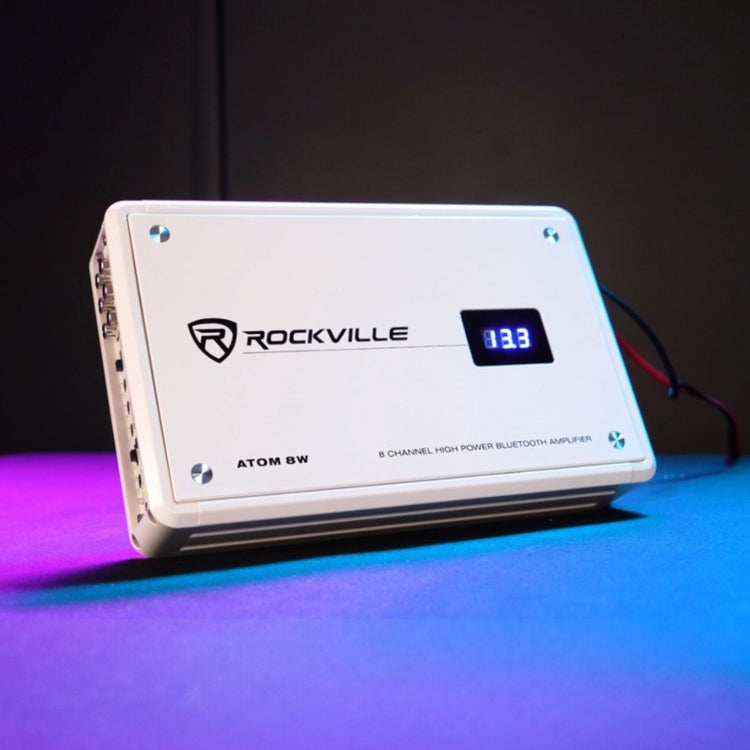

The all new ATOM marine series of amplifiers gives you the best of both worlds! Small footprint and big power!

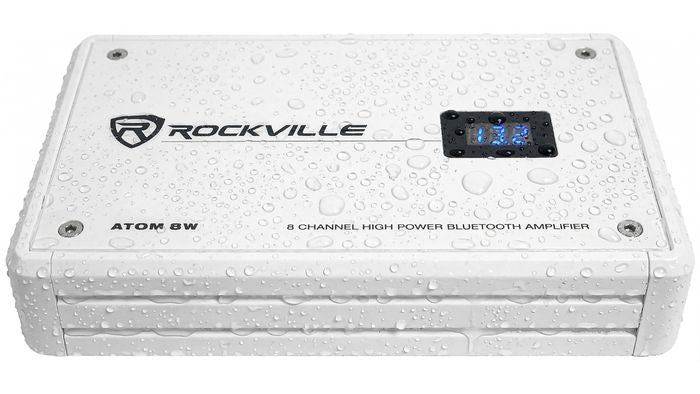

This amp utilizes high grade marine components including a conformal coated PCB board with a waterproof glue that is painted on to protect the circuitry. The heat sink casing, including the bottom plate, is made of stainless steel which is rustproof. The end panels, the internal mounting screws and hardware of the amp are made of stainless steel and are rustproof as well. Even after many years of use the amp will be rust free and operate like new!
The ATOM 8W is a class D 8-Channel high power amplifier with 3,500 watts peak output and 880 watts RMS rated power. The power of this amplifier is the real deal! It is enough to power multiple zones all at high volumes that you can hear over engine and wind noise. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.
This amp has a very cool fully adjustable 12dB/Octave crossover. What is cool about it is that the crossover supports low pass, full, and high pass. This makes our amp ideal for subwoofers (sealed and vented), full range speakers, midrange speakers, and even tweeters. In high pass mode we allow you to filter out the lower frequencies (cut-off frequency adjustable between 50Hz - 250 Hz). In low pass mode we allow you to filter out the upper frequencies (cut-off frequency adjustable between 50Hz - 250 Hz). In full mode you will not be filtering any frequencies. Our advanced crossover technology will allow you to really fine tune each speaker to get the sound you desire.
The other cool thing is that this amp has 2 of these crossovers. Every 4 channels has its own set of advanced filters.
As an example; you can use:
- Channels 1&3-2&4 for 4 full range speakers (in full mode)
- Channels 5&6-7&8 for subwoofers (in low pass mode)
The ATOM 8W is protected by full IC controlled circuitry with mute, delay, and soft start technology to protect your amplifier and speakers from thumping when you turn your vehicle on.
Features:

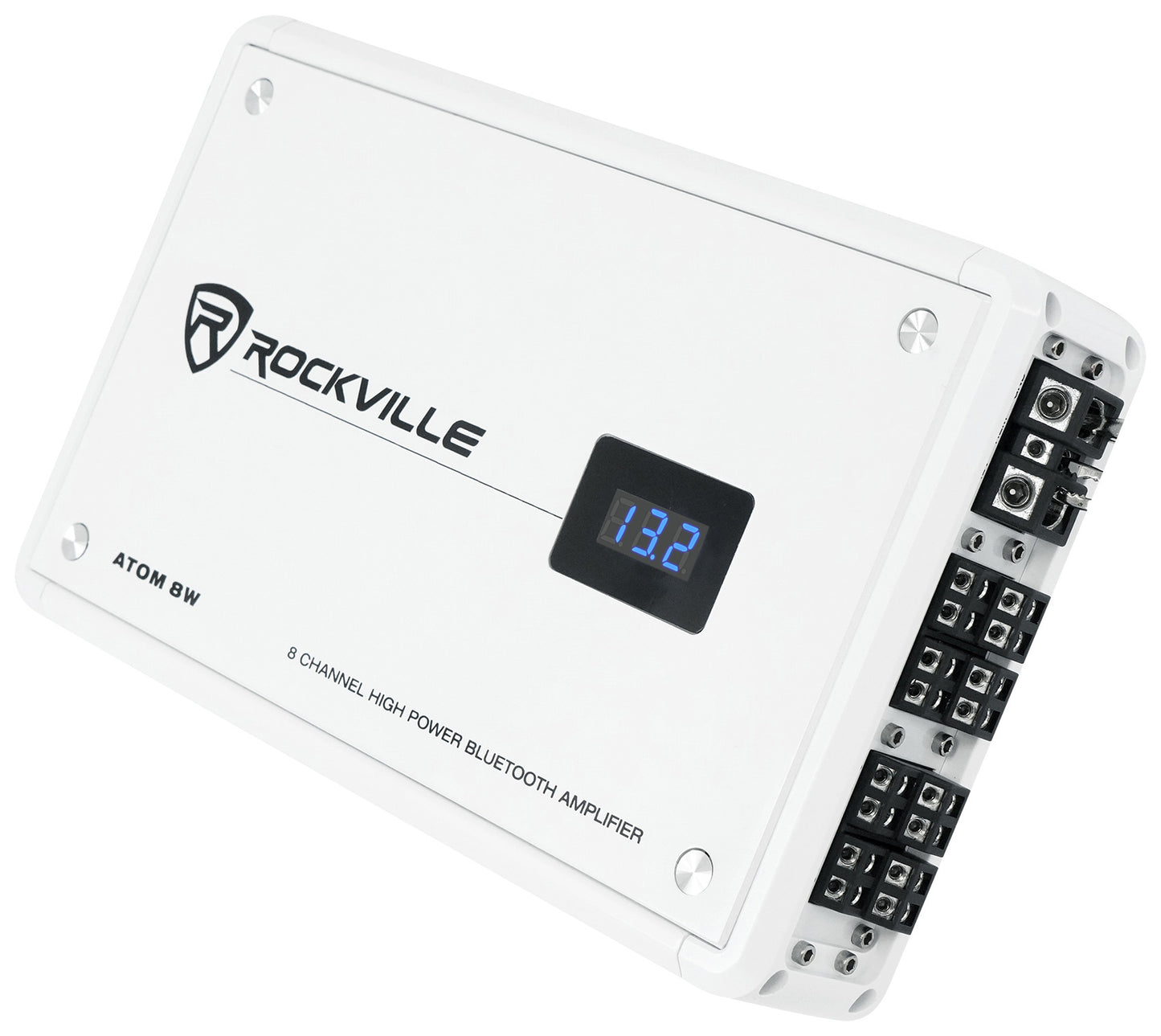

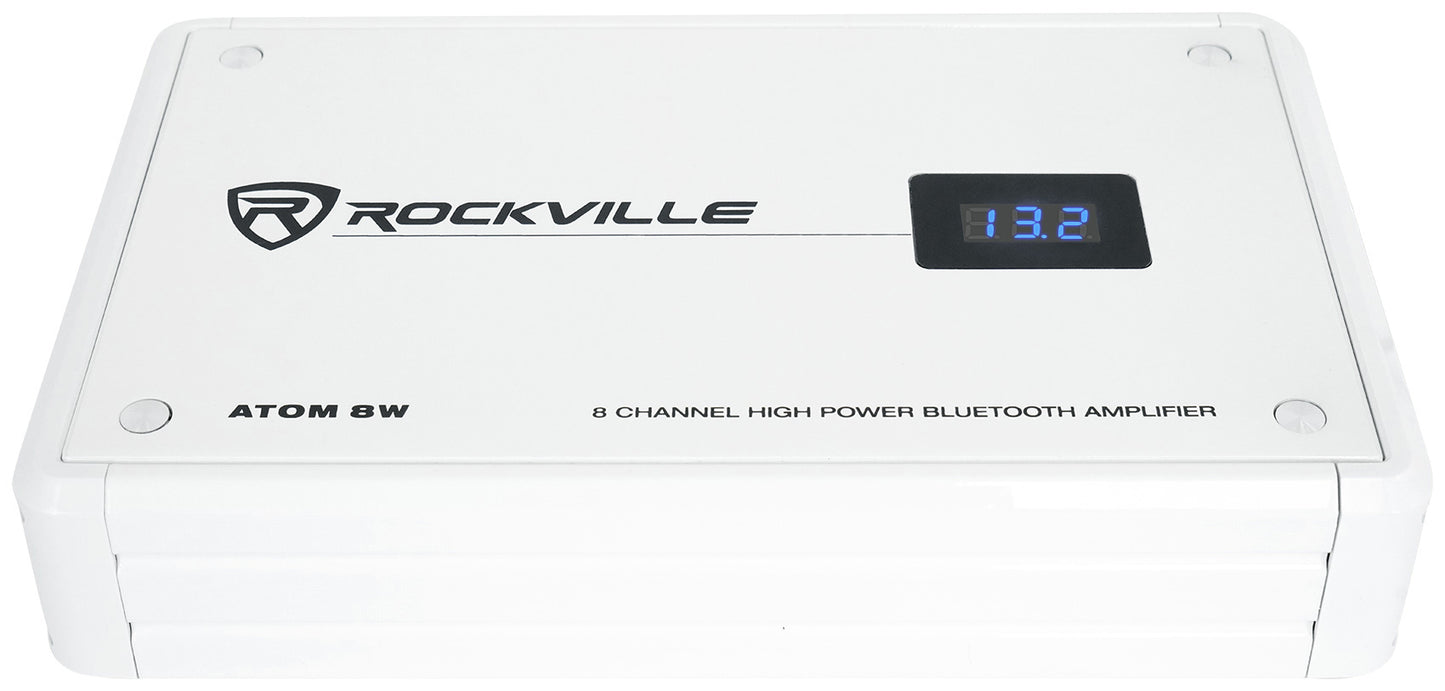

- Rockville ATOM 8W 8 Channel 3500 Watt Peak / 880w Dyno-Certified RMS Marine/Boat Amplifier Amp w/Bluetooth

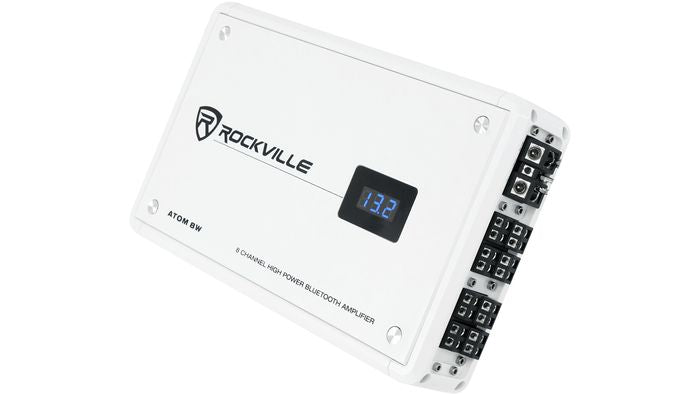

- Compact design and extremely high power (Do not be fooled by the compact size; this amp is a beast!!!)
- Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
- 3500 Watts Peak System Power
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
- RMS Power Output at 4 Ohms: 70 Watts x 8 Channels
- RMS Power Output at 2 Ohms: 110 Watts x 8 Channels
- RMS Bridged Power Output at 4 Ohms: 220 Watts x 4 Channels

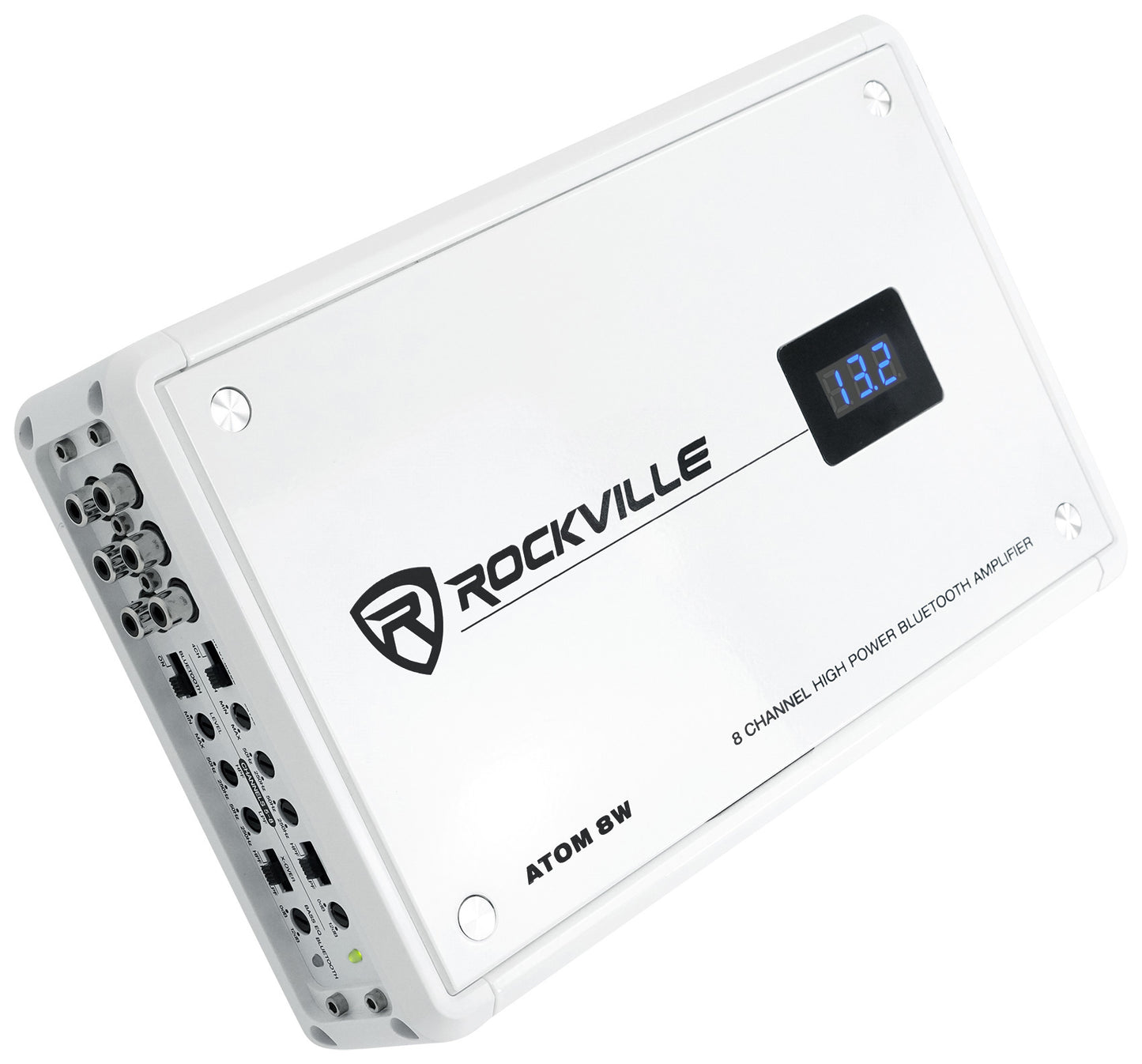

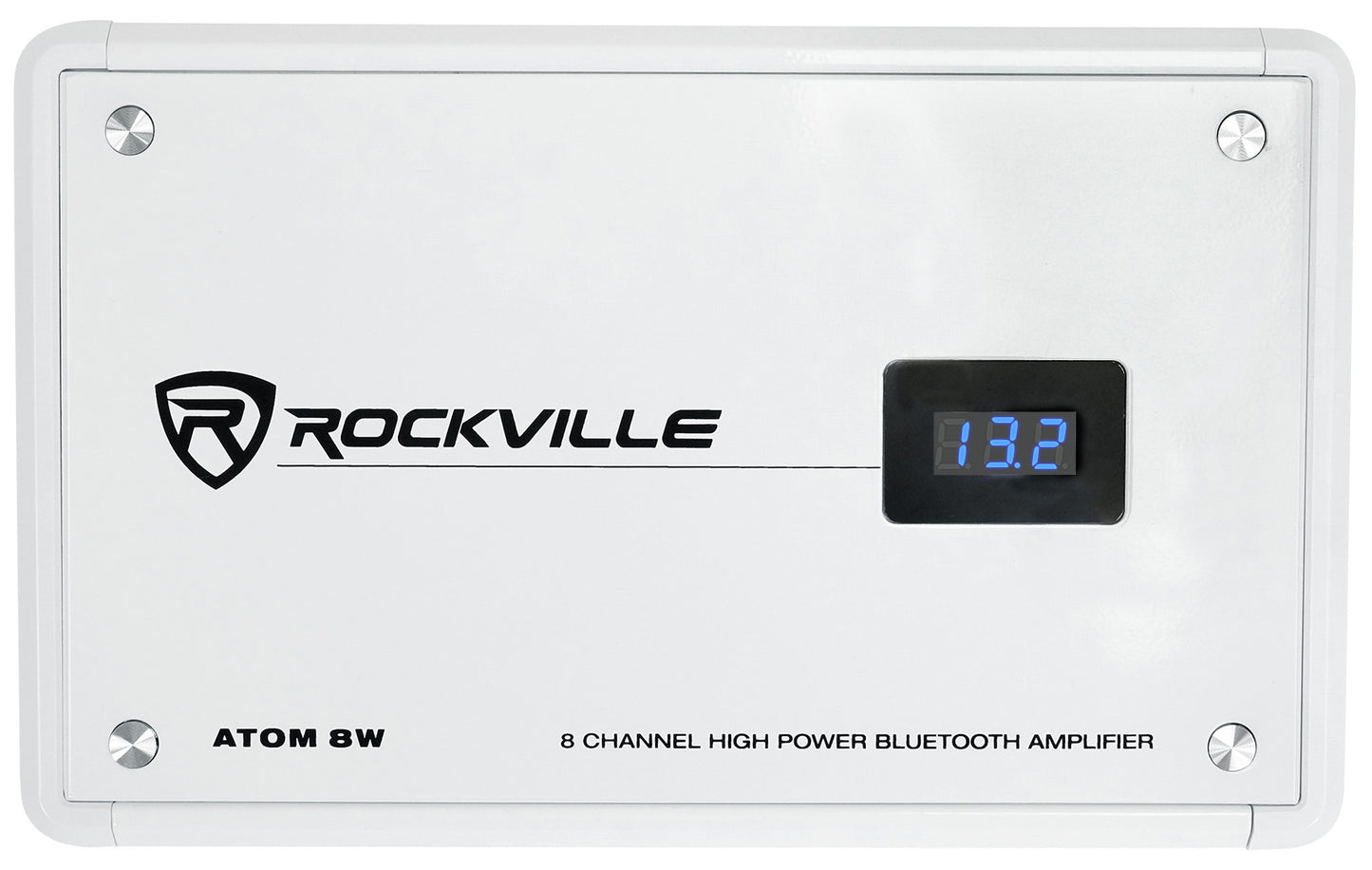

- Voltage display on amp

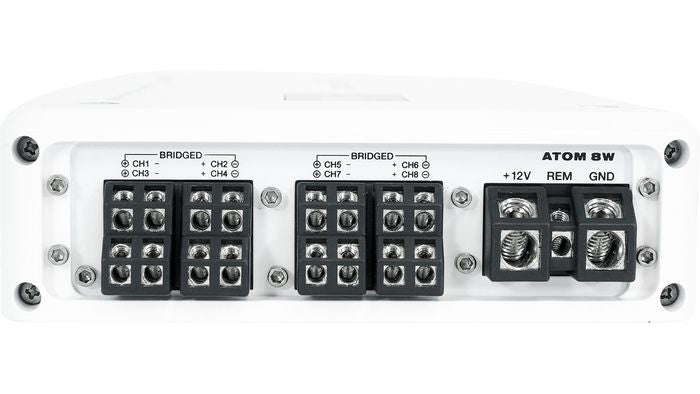

- Configurable to 8, 6, or 4 channels
- Bluetooth Wireless with Auto Pairing

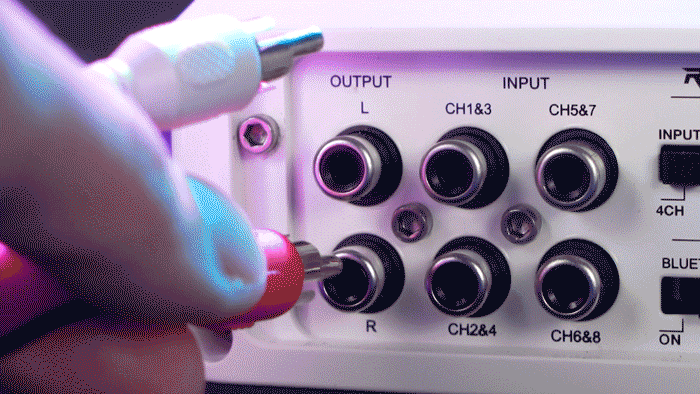

- RCA Line Output
- UV and Salt Water Resistant Paint, Silk Screen and Heat Sink Enclosure
- 80A Fuse rating!
- Marine-Grade Conformal Coated Boards Resist Corrosion from Salt Spray and Moisture
- Stainless steel end caps, mounting hardware, and bottom plate make this amp truly resistant to the elements

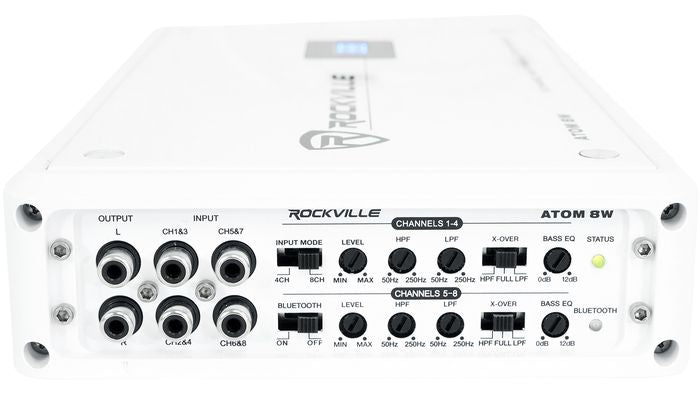

- 4CH / 8CH Input Mode Selector

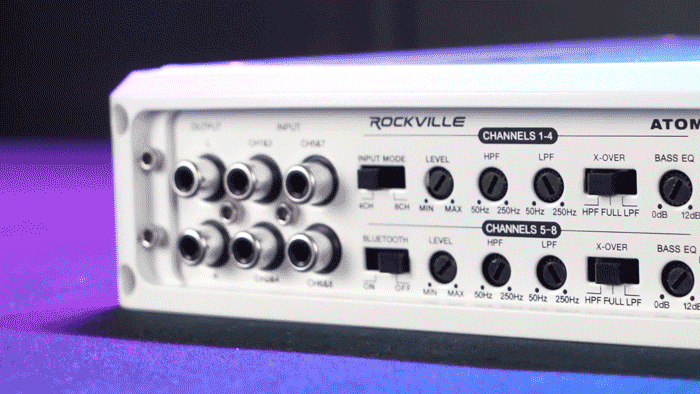

- Independent Crossover Controls for CH1-4 and CH5-8
- Full Range / Low Pass / High Pass Configurable
- Variable High-Pass Filter: 50Hz - 250Hz at 12dB/per Octave
- Variable Low-Pass Filter: 50Hz - 250Hz at 12dB/per Octave
- Bass Equalization: Fully Adjustable 0 - 12dB at 45Hz
- Status Mode LED Indicator
- Digital Class D Audio Topology
- High Speed MosFET Power Supply
- Studio Grade Output Stage Integrated Circuit
- Micro Size Architecture with SMD Component Circuitry
- Non-Corrosive Black Hairline Finish Aluminum Casing
- Conforms to the American Boat and Yacht Council (ABYC) Marine Electronic Standards
- 4-Way System Protection Circuitry (DC, Short, Thermal, Overload)
- Heavy-Duty Aluminum Alloy Heat-sink
- Anti-rust RCA Inputs

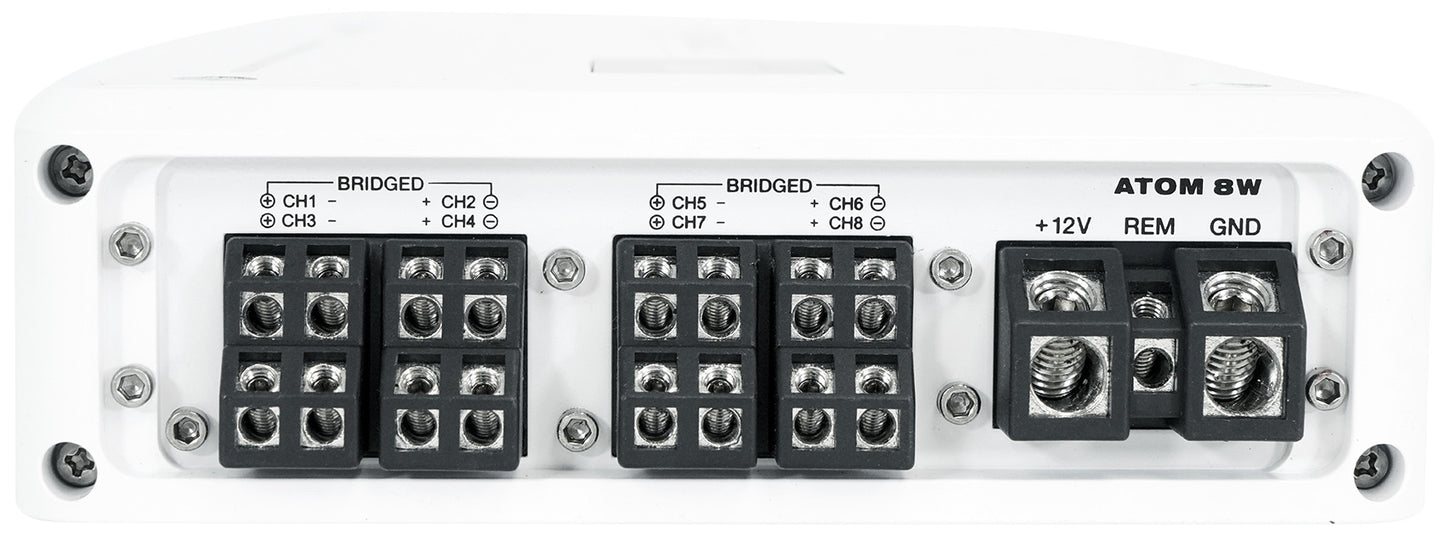

- Anti rust Bolt Down Molded Block Terminals
- Frequency Response: 10Hz - 30KHz
- S/N Ratio: >95dB
- Minimum THD: <0.05%
- Damping Factor: >150 at 100Hz
- Input Voltage: 280mV - 7V
- Channel Separation: >45dB
- Input Impedance: 15K
- Dimensions 6.7" W x 2" H x 10.8" L
- Color: White
- UPC:
- 819216027417
