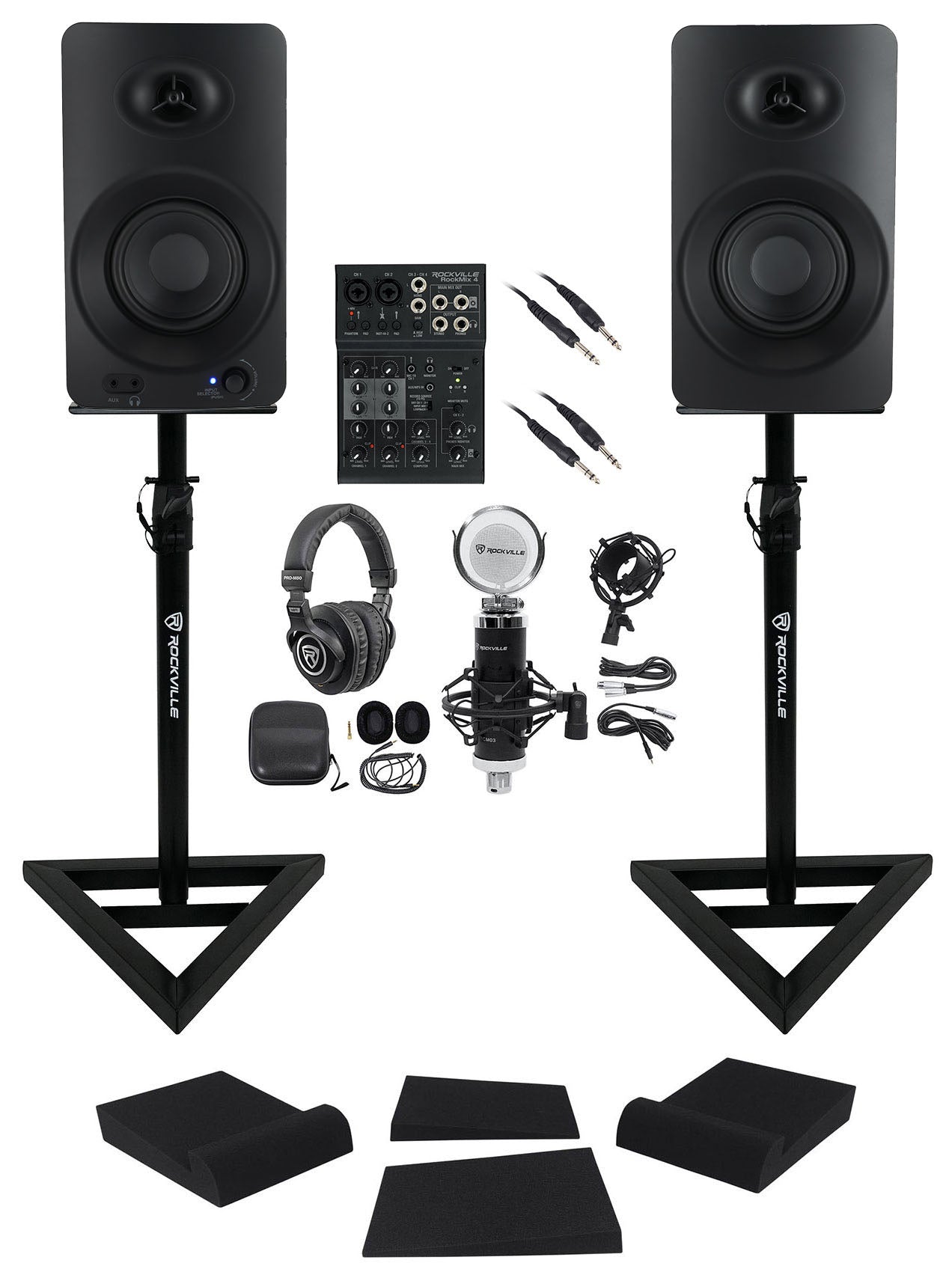

Package Includes:

• (1) Pair Rockville ASM4 4" Pro Studio Monitor Computer Speakers w/Bluetooth+Optical
• (1) Rockville RockMix 4 Channel Mic/Instrument Pro Recording Mixer+USB Interface/EQ
• (1) Rockville RVSM1 Pair of Near-Field Studio Monitor Stands w/ Adjustable Height
• (1) Pair Rockville RRS190S Foam Studio Monitor Isolation Pads 7.5" x 9.5"/3 Angles
• (1) Rockville RCM03 Pro Studio Recording Condenser Microphone Mic+Metal Shock Mount
• (1) Rockville PRO-M50 Studio Headphones w/ Detachable Coil Cable, Case+Extra Ear Pad

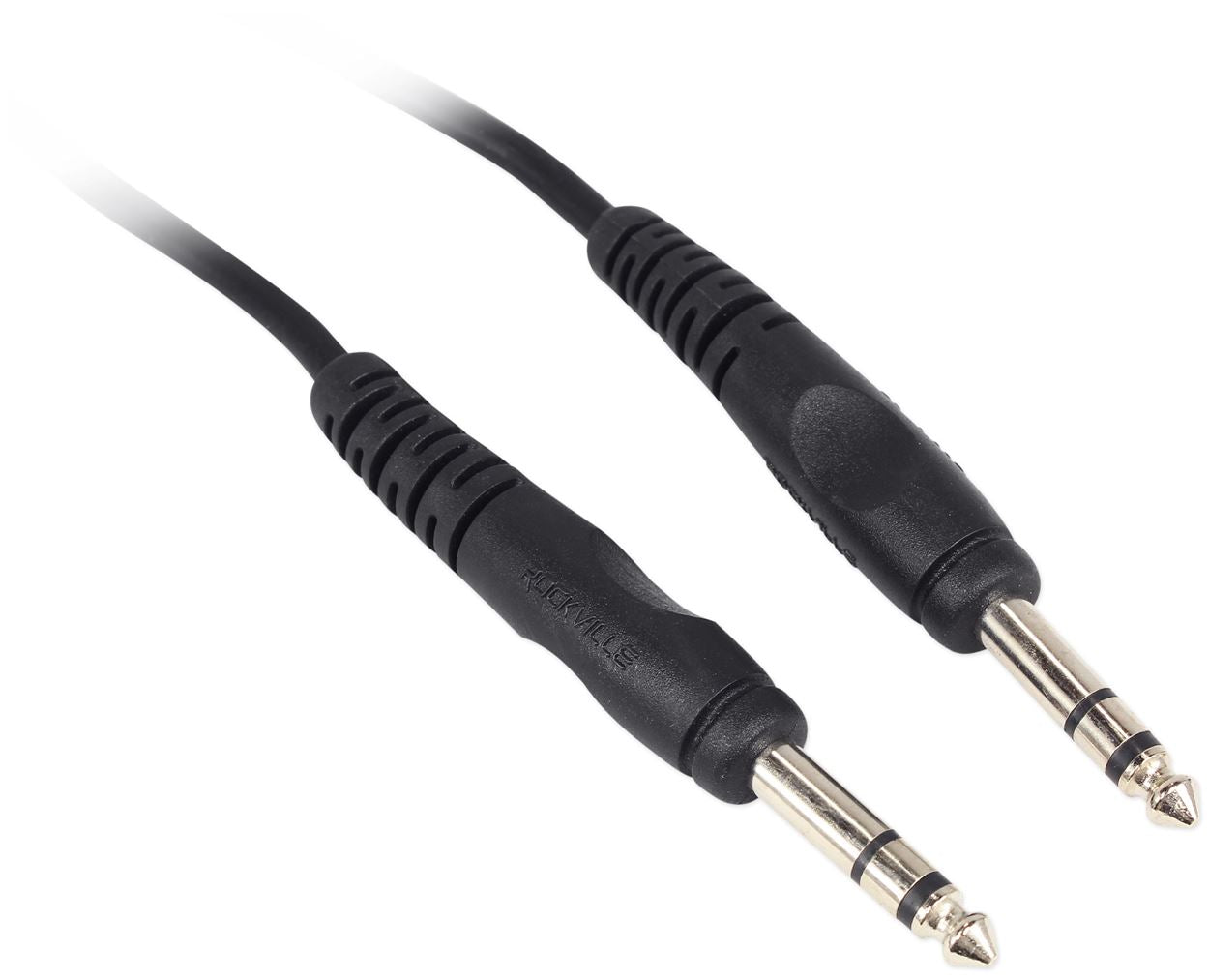

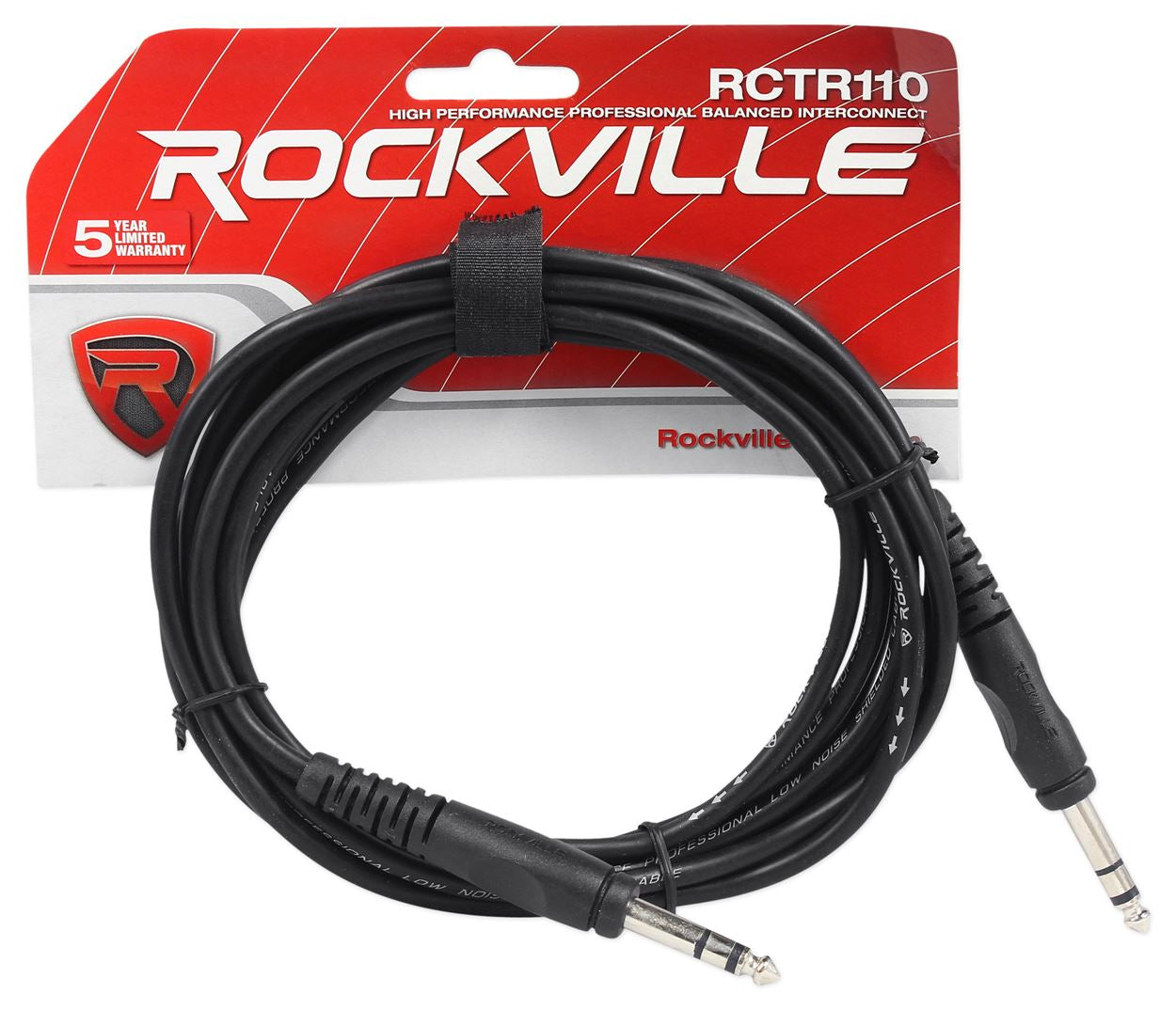

• (2) Rockville RCTR110B 10' 1/4'' TRS to 1/4'' TRS Cable, Black, 100% Copper

---

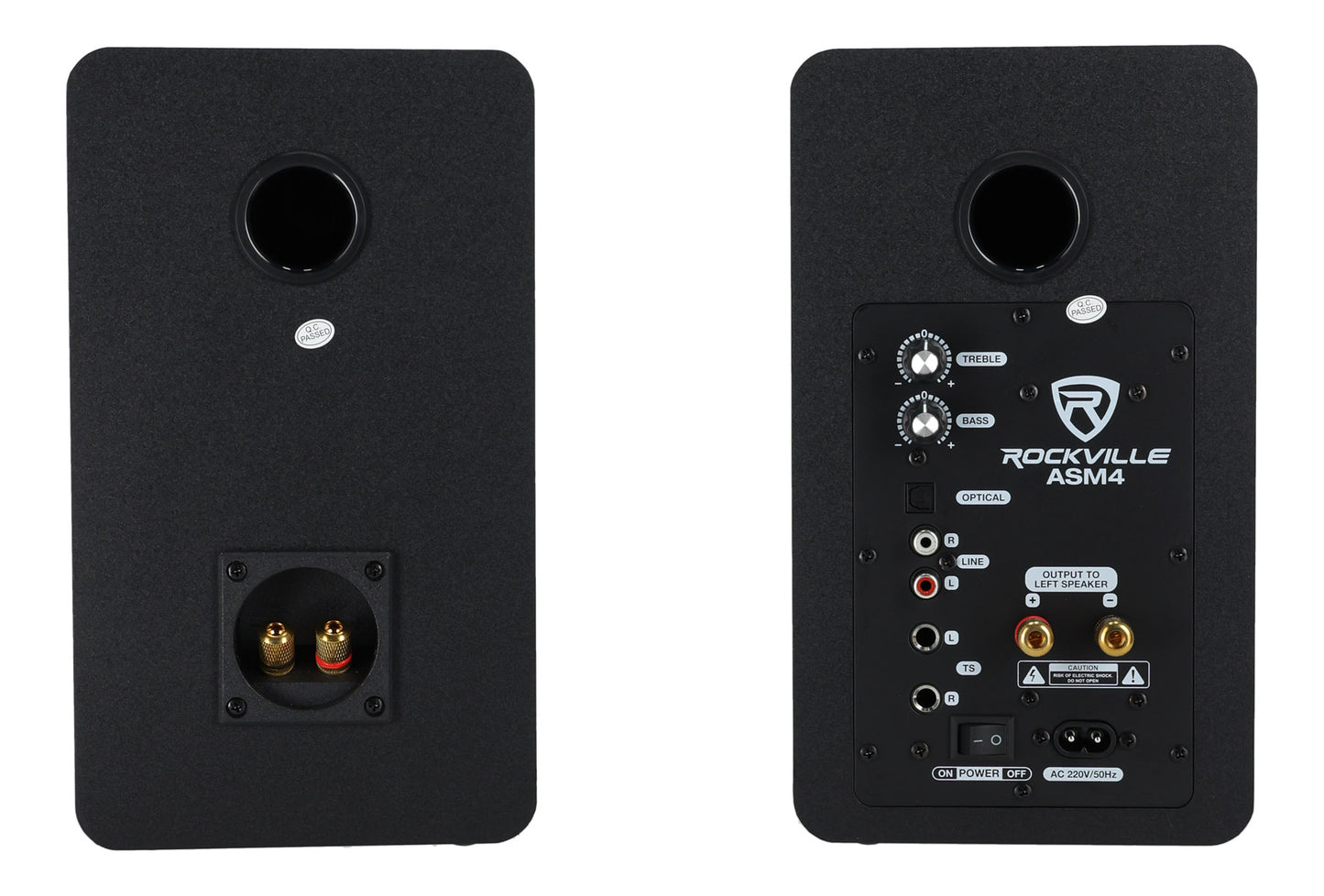

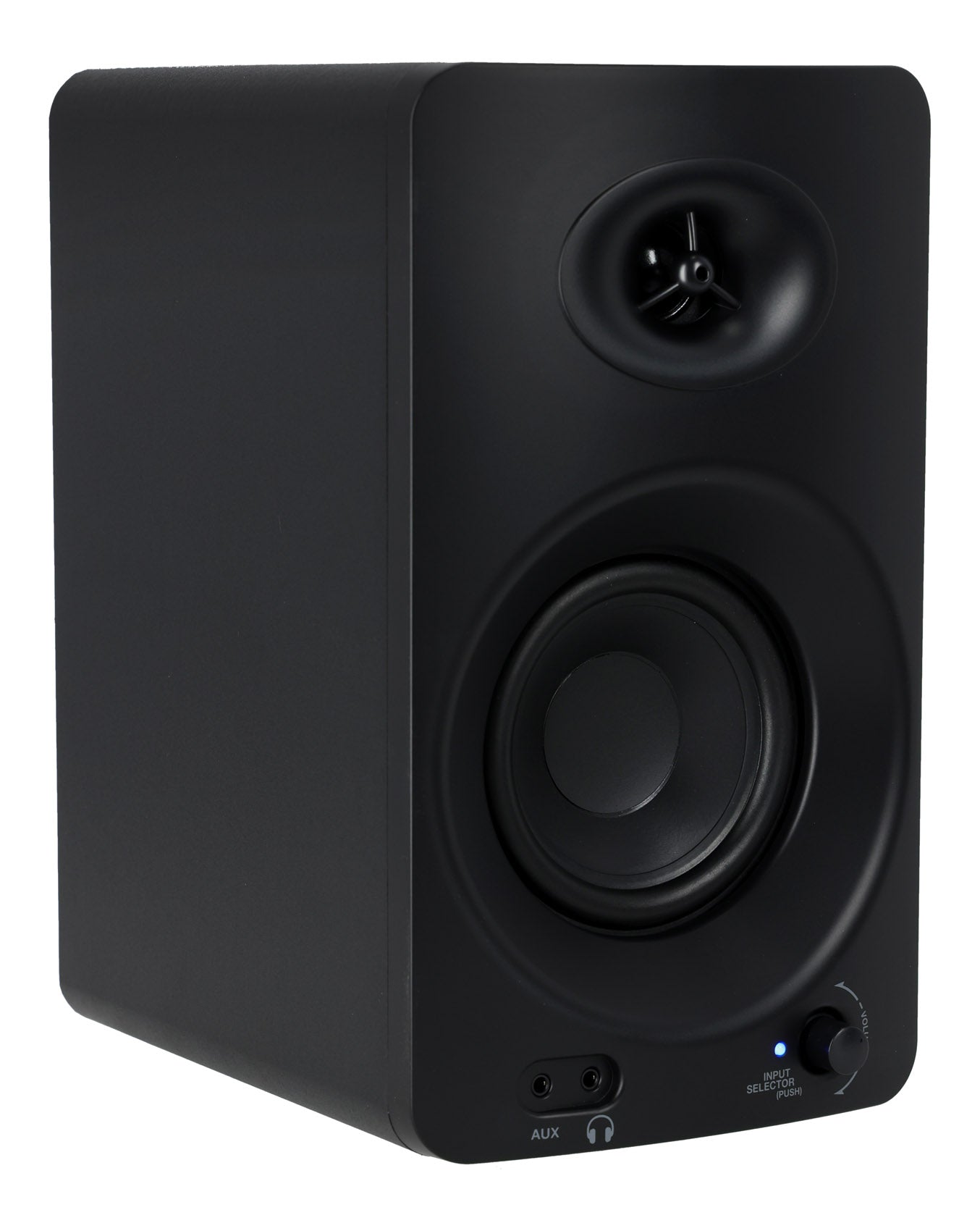

All About Your ASM4:

How To Set Up Your ASM4 Speakers:

How To Set Up Your ASM4 Speakers to an Audio Interface:

How To Set Up the Optical Input on Your ASM4:

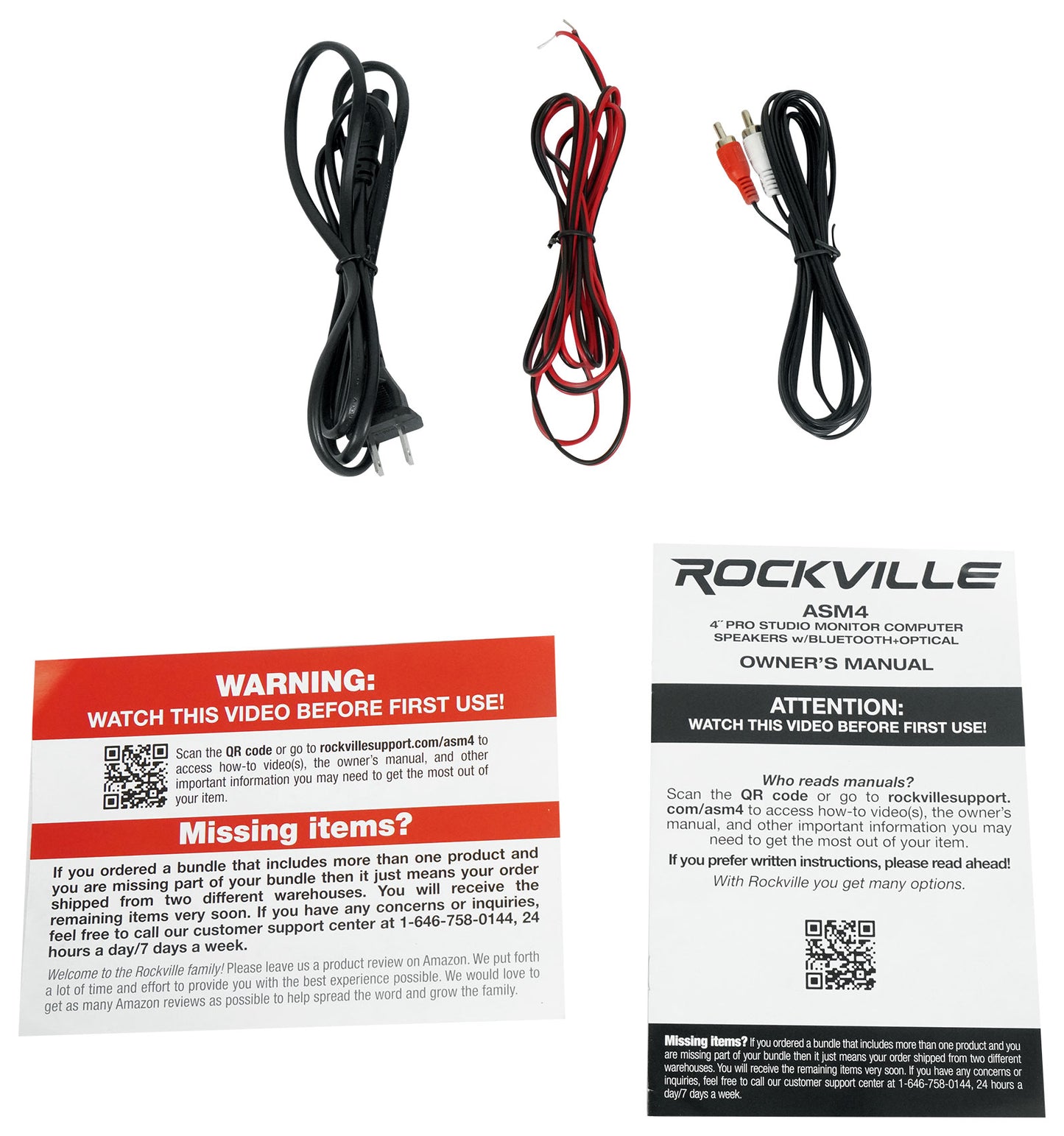

What's in the Box:

• Power Cable
• 3.5mm to dual RCA cable
• Speaker cable
• Owner’s Manual

Description:

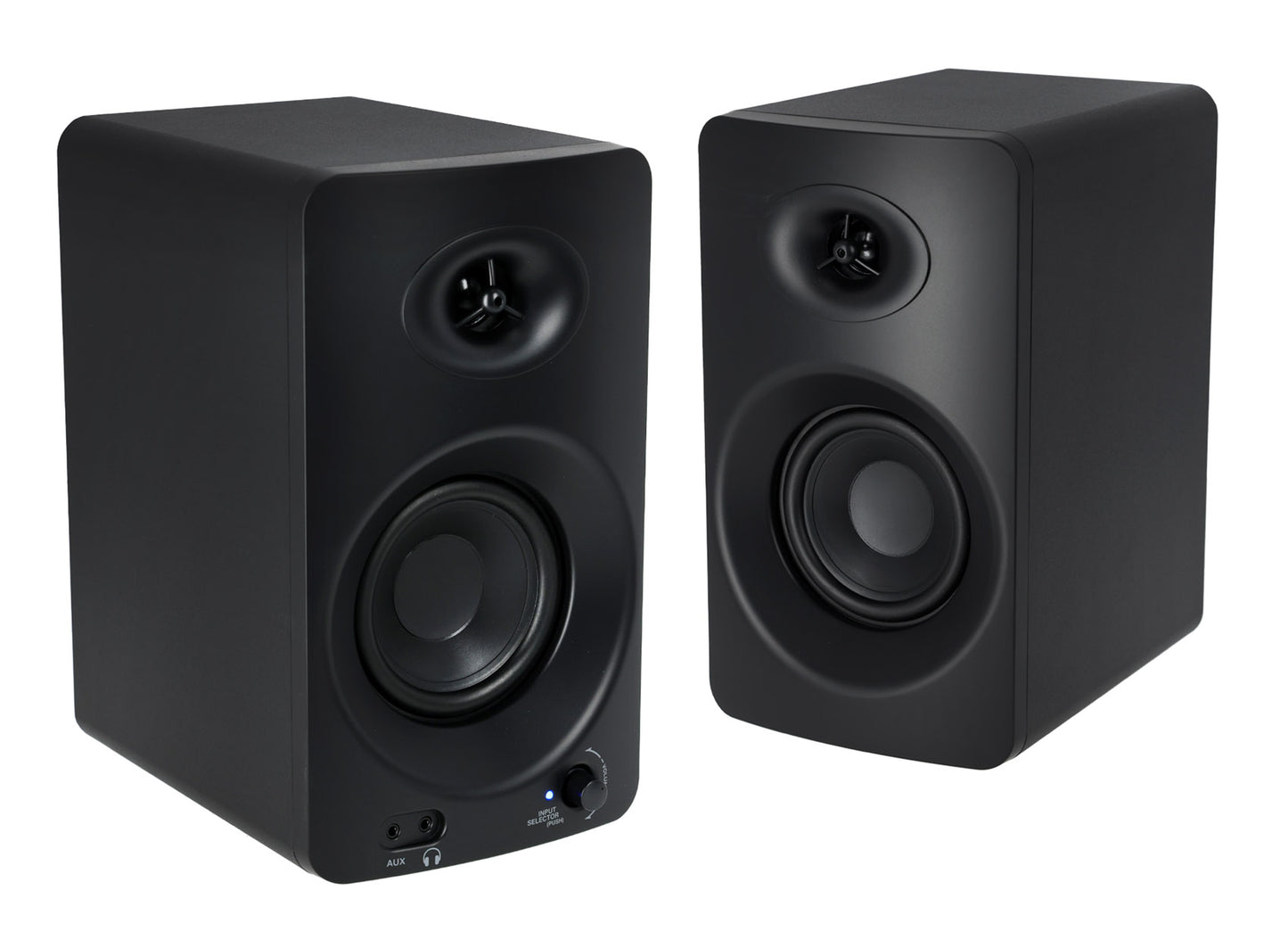

The Rockville ASM4 Active Studio Monitors were designed and engineered to be your go-to speakers for studio monitoring and entertainment. This is tuned to give a flat and balanced frequency response which also makes it the perfect computer speakers.

This speaker system provides full range monitoring accuracy with good bass down to 50Hz.

This speaker was DSP tuned by the Rockville development team. We compared it to the top studio monitors on the market and we made sure that we out-perform anything in our price range.

The Neodymium silk dome tweeters give smooth highs while our efficient woofer and rear bass port provide clear mids and lows.

We added Bluetooth playback so you can use these for entertainment in addition to studio monitoring. We also added an optical input so you can connect these to your TV or other digital source. The left and right ¼" TS jacks will allow you to connect any pro audio source such as a mixer, interface, etc.

Features:

• Rockville ASM4 4" 2-Way 200 Watt Active/Powered Pair of Studio Monitor Speakers with Bluetooth
• 200w Peak output / 50 Watts RMS
• 4" Woofer with efficient paper cone and rubber surround
• 1" Silk dome tweeter
• ½" MDF enclosure with rear firing port for enhanced low frequencies
• DSP tuned with a flat and balanced frequency response
• Built in Bluetooth playback with 35 foot range
• Optical input to connect to your TV or other digital source
• Left and Right ¼" TS input for any pro audio sources (mixer, interface, etc)
• RCA aux input
• 3.5MM aux input
• Bluetooth version 5.0
• Full Range Class D Amplifier Circuitry
• LED Power on Indicator
• Rotary Front Volume Control
• Curved Front Bezel Design Eliminates Standing Wave Distortion

Specifications:

• Frequency Response: 50Hz - 20 kHz
• Total Speaker Power Output: 50 Watts RMS / 200 Watts PEAK
• Input Impedance (Ohms): 10 K Ohm Balanced
• AC Power Input: 110/240 auto-switching
• Cabinet Finish: Black
• Dimensions of each speaker (H x W x D): 10.35" (263mm) x 5.91" (150mm) x 8.86" (225mm)
• Weight of the pair of speakers: 12.6 lbs. (5.7kg)

---

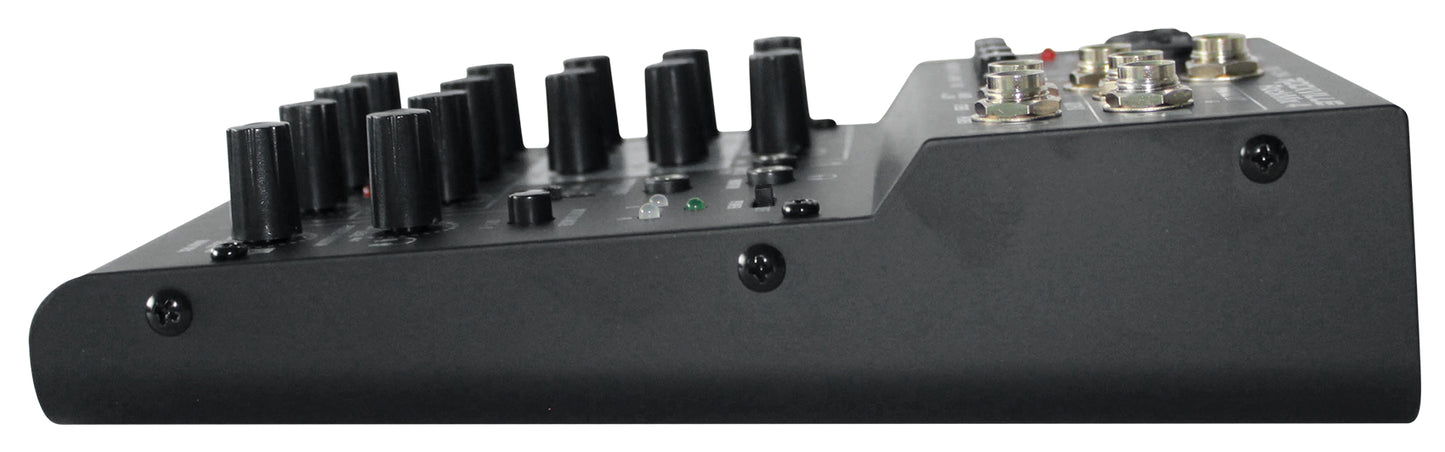

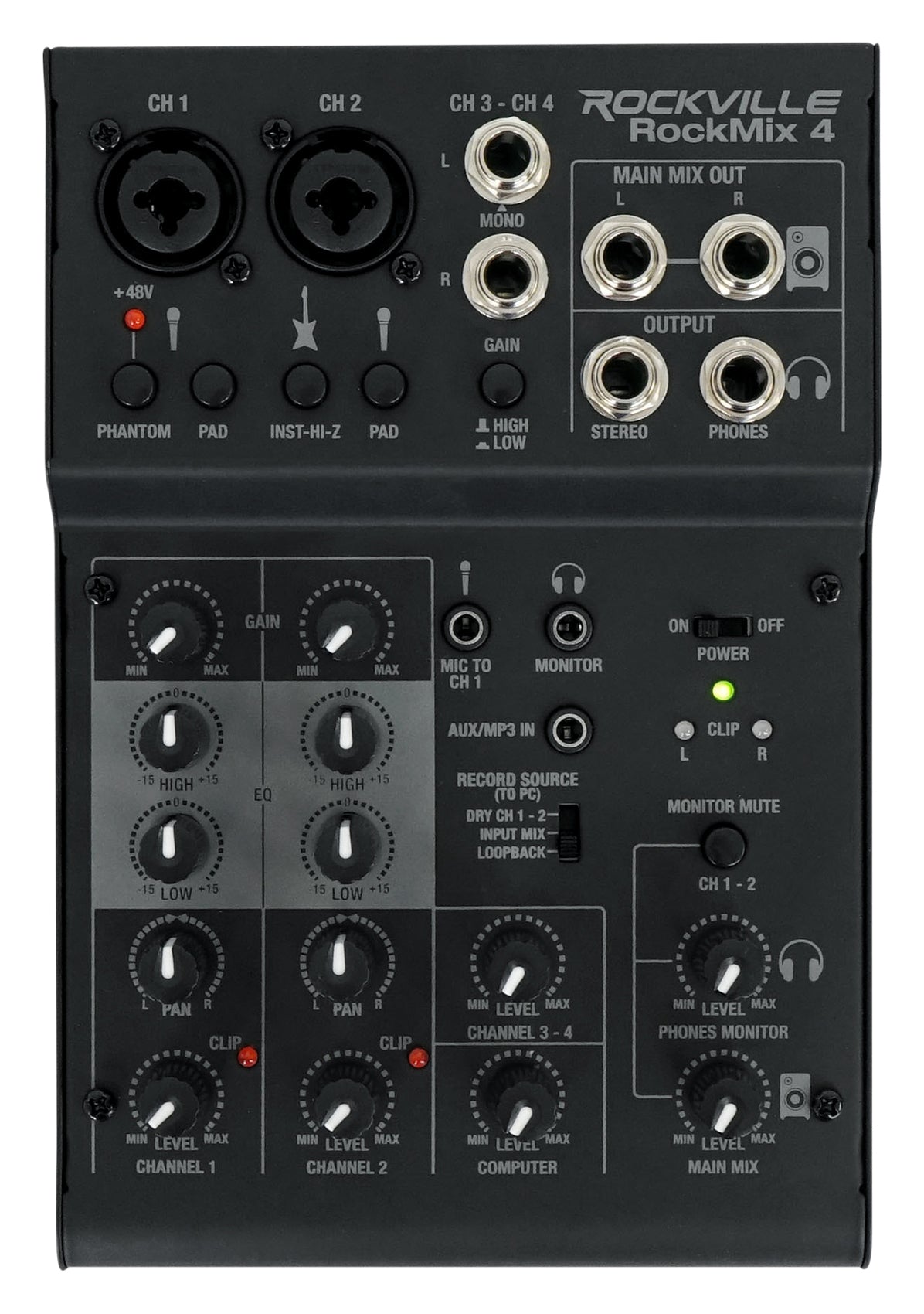

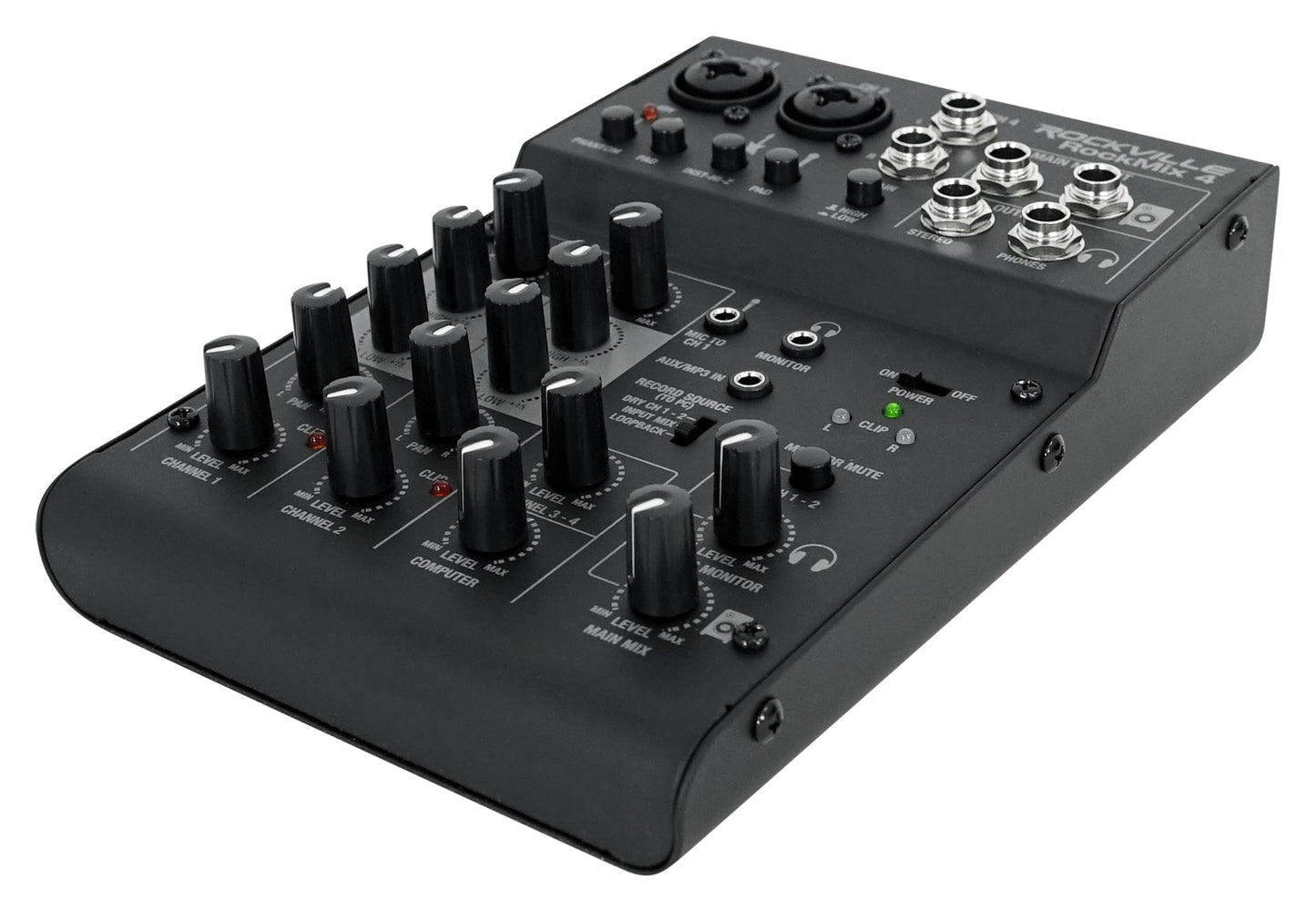

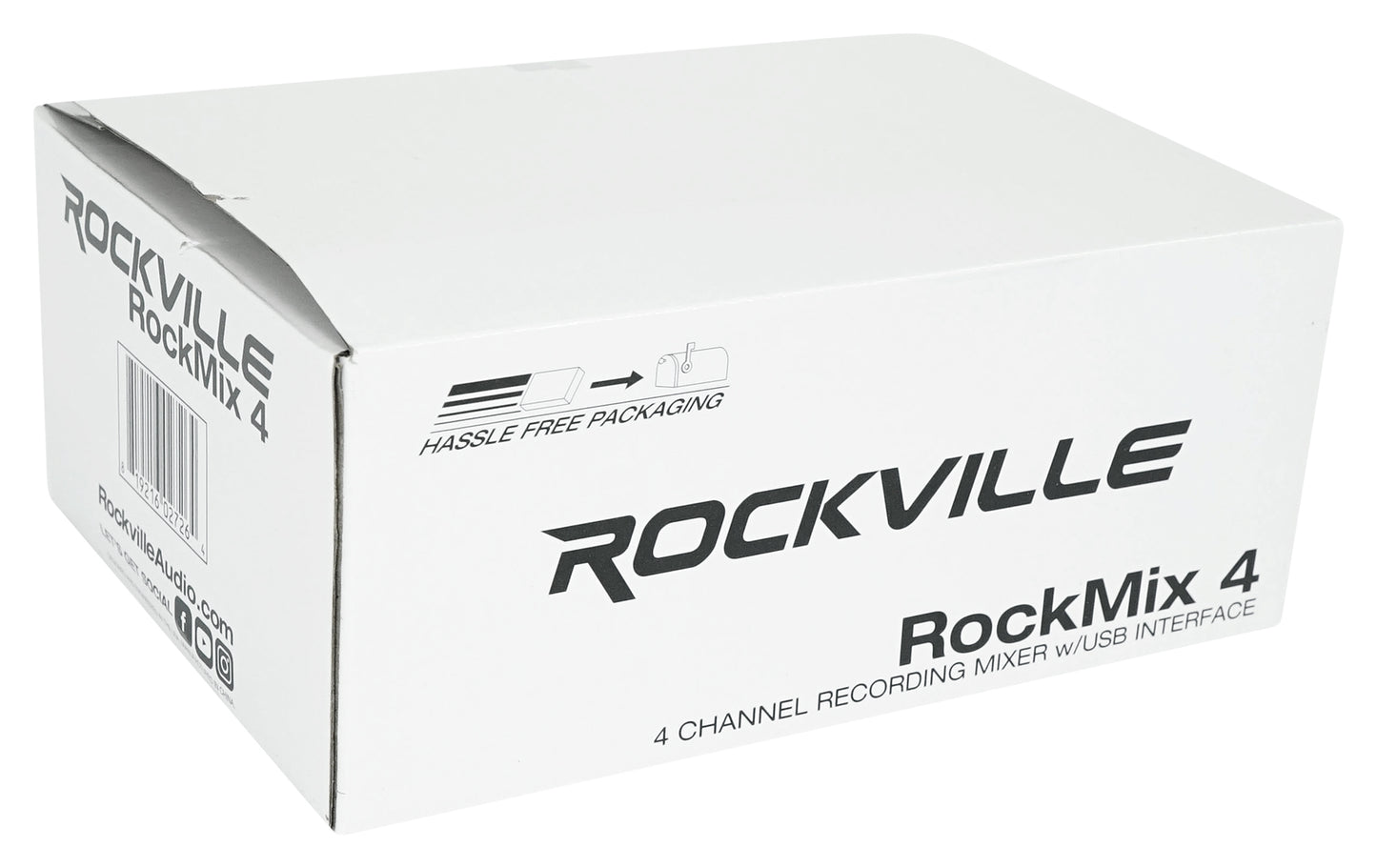

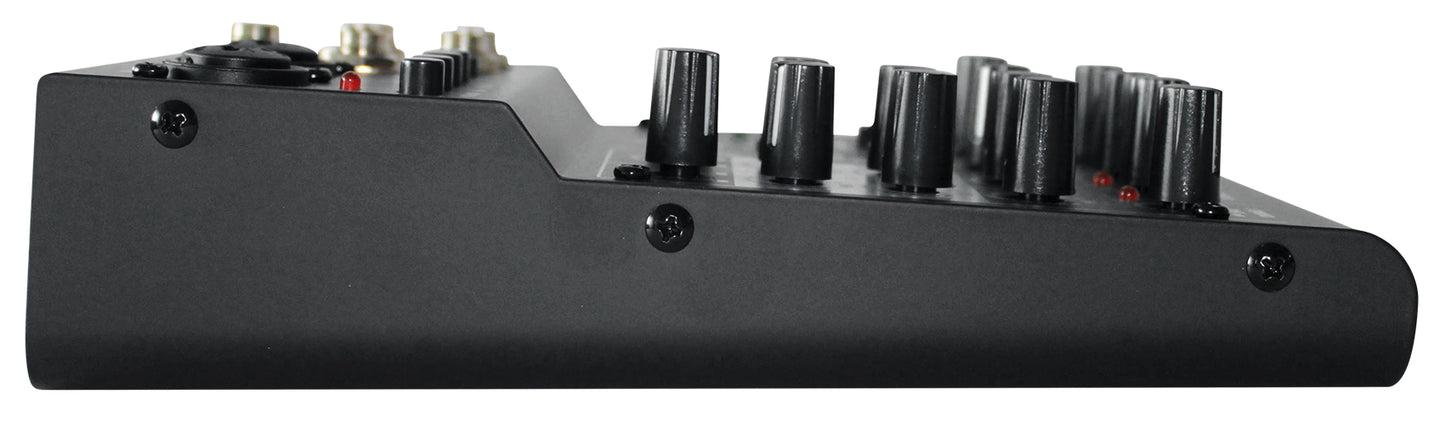

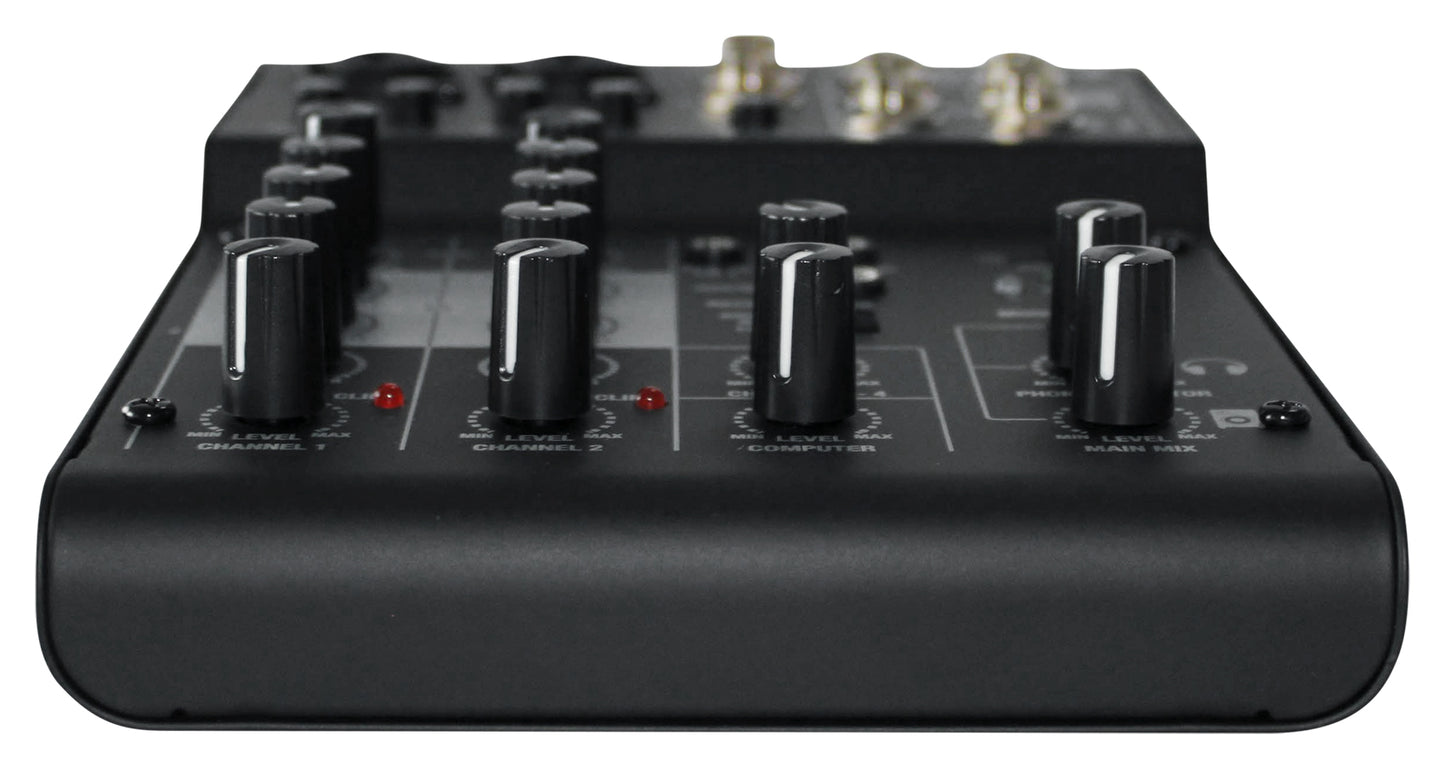

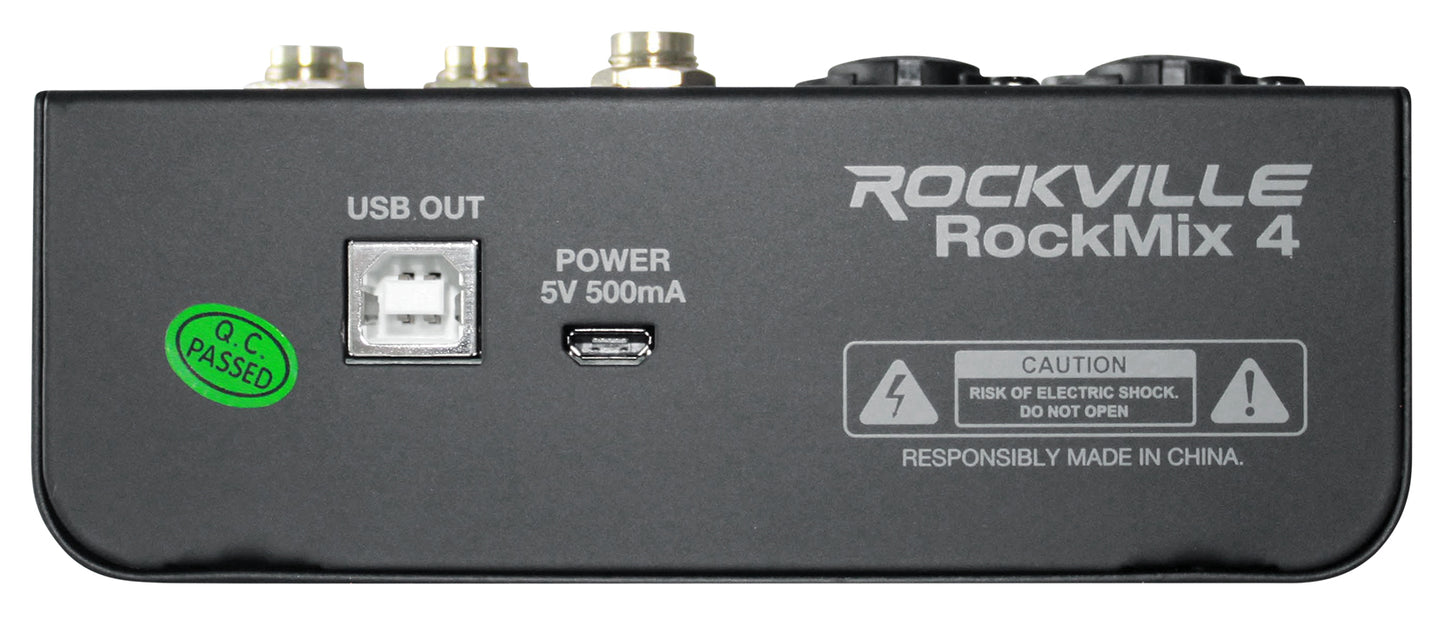

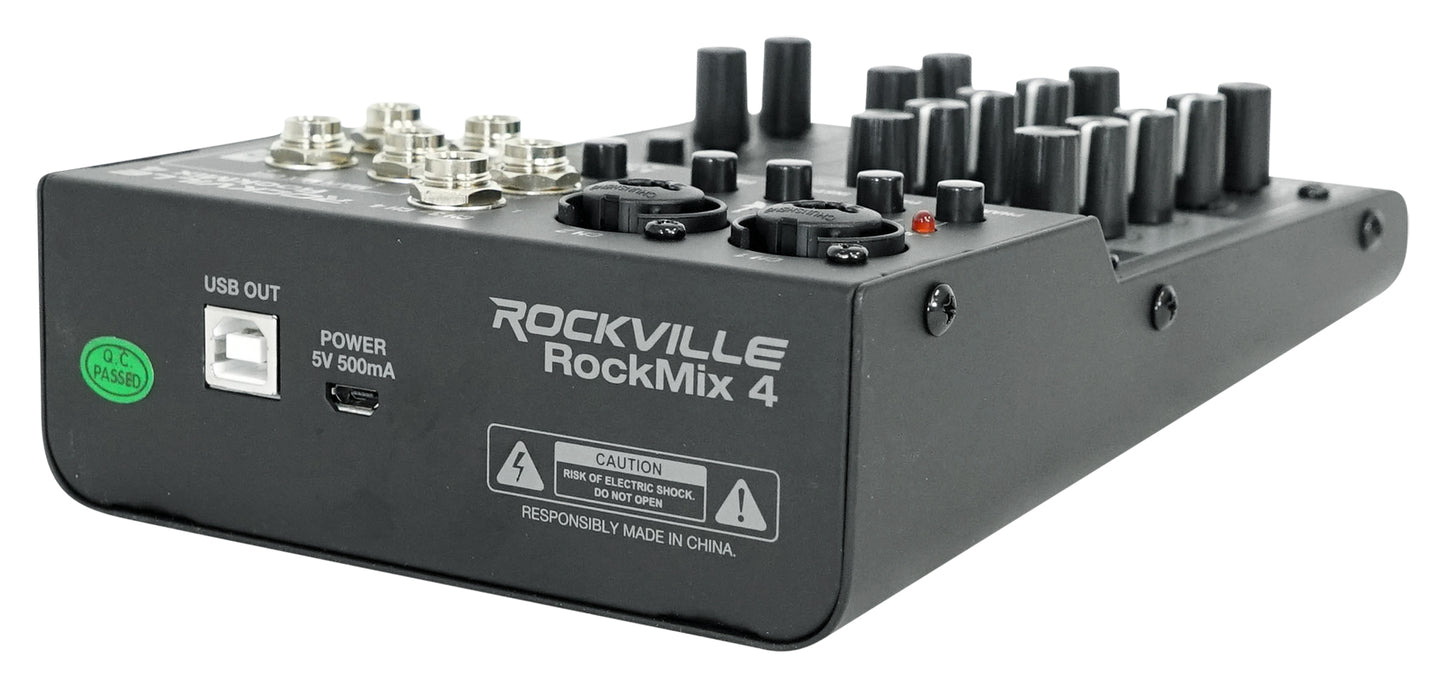

All about your ROCKMIX 4:

How to Set Up Your RockMix 4:

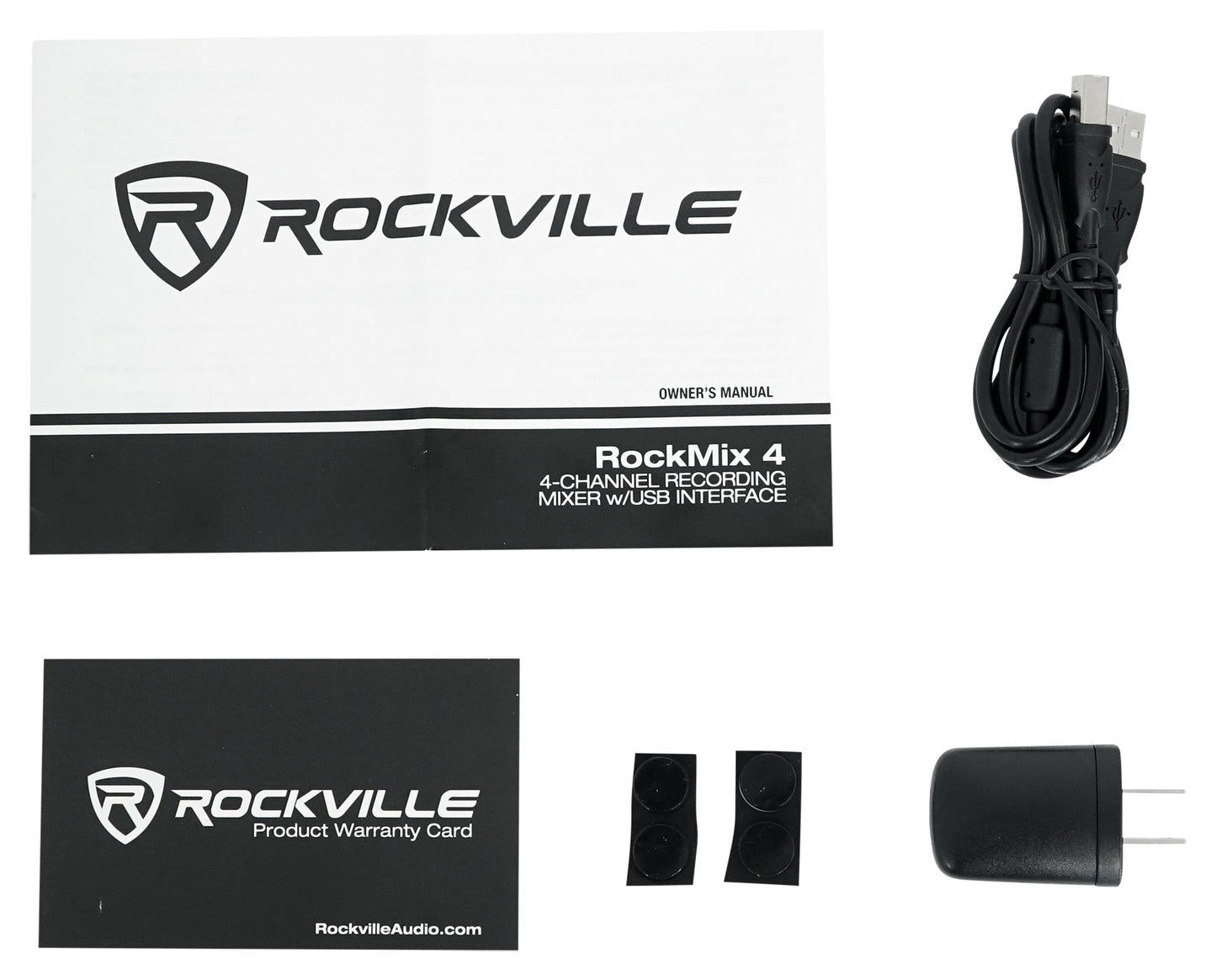

What's in the Box:

• Mixer with USB recording interface
• USB cable
• USB power adapter
• 4 Non-slip rubber feet pads
• Owner manual and warranty card

Recommended Applications:

• Live Stream/recording/podcasting/broadcasting, zoom/conference meetings, etc
• 2 person live stream or recording with (2) mics and a stereo instrument
• 3 person band with a singer, a guitar player, and a keyboard player

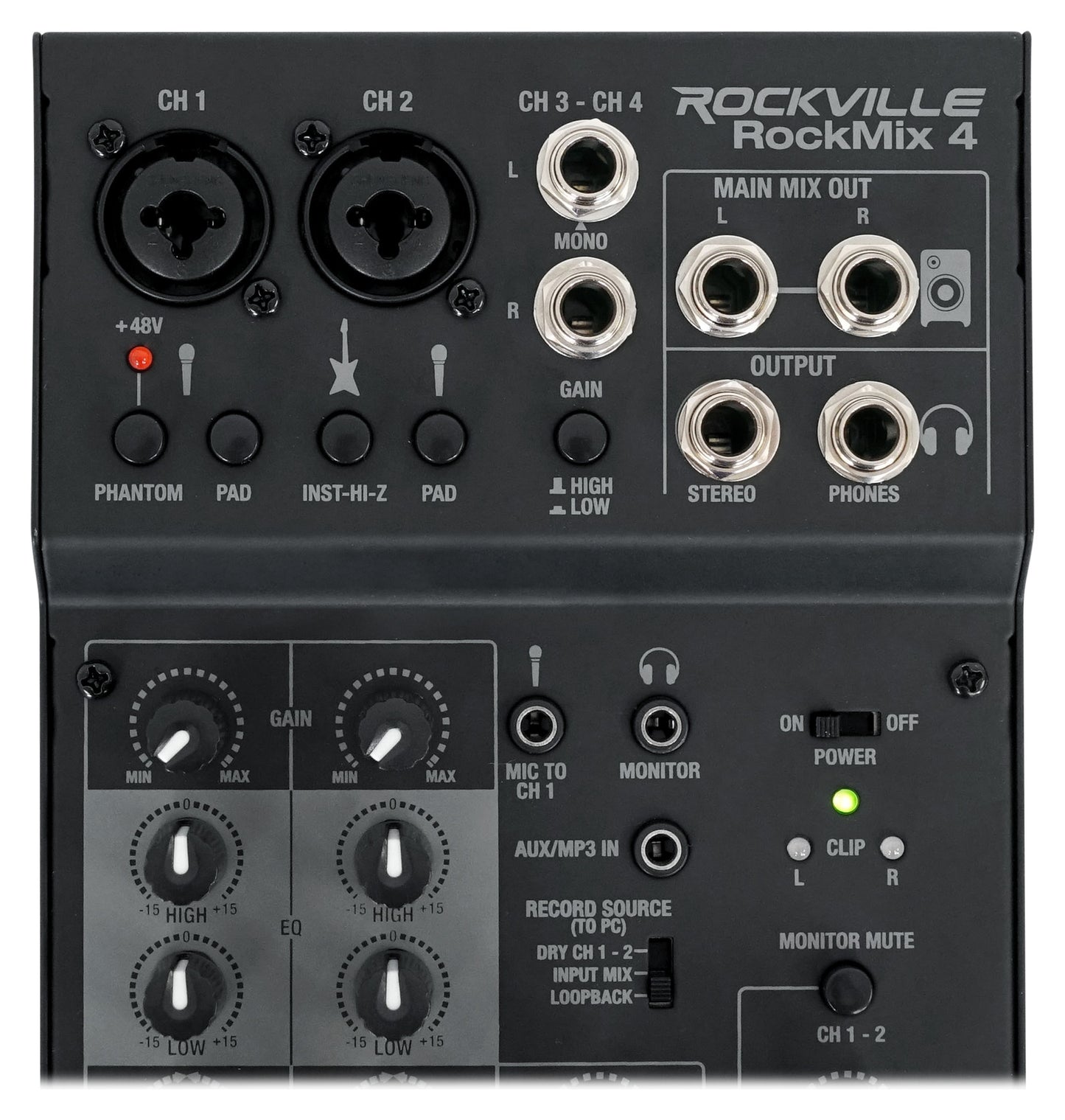

Features:

• Rockville RockMix 4 Channel Mic+Instrument Pro Recording Mixer with USB Recording Interface
• Bit Depth: 16 bit
• Sample Rate: 48kHz
• Assignable USB Record Source
• Switchable +48v Phantom Power on channels 1 & 2 for use with condenser microphones
• Channel 1 and Channel 2: XLR and ¼" TRS combo input jacks
• Channel 2: mic/instrument level switchable allowing you to connect a mic, instrument, or any other audio device
• Stereo channel 3 and 4 have ¼" inputs (balanced or unbalanced)
• CH3 & CH4 with GAIN switch and LEVEL control
• Independent Level Controls for Main and Headphone/Monitor Outputs
• Integrated Plug-and-Play USB Audio Interface for Mac & PC
• Operates on USB BUS Power or 5V DC External Power Supply (Included)
• 3.5mm aux input jack for sound effects or background music
• Low power consumption means you can power the mixer from the USB of your laptop or by plugging it into an outlet or through a standard 5V powerbank
• Super mini 4-channel mixing console designed for home studio recordings or live broadcast streaming
• (2) headphone outputs (¼" and 3.5mm)
• ¼-inch TRS Stereo Output
• ¼" Stereo Monitor Output
• Additional 3.5mm mic input allow you to connect an additional microphone to channel 1

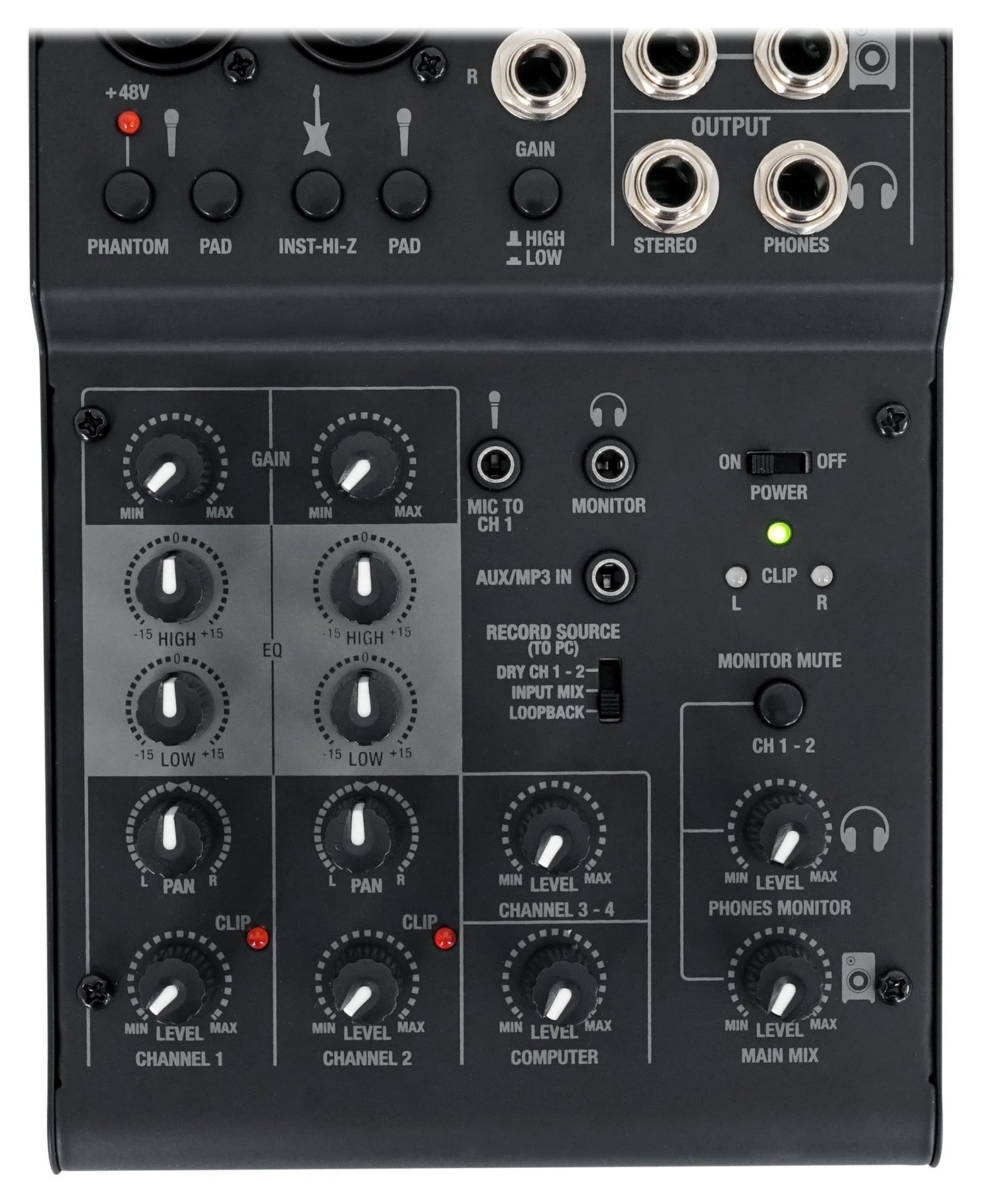

• Channels 1 and 2 each have a 2-band EQ and Pan controls and gain controls
• TO PC slide switch allows you to select which channels get sent to your computer (DRY CH1-2/ INPUT MIX/ LOOPBACK)
• Clip LED indicators
• Monitor mute button
• Monitor/headphone level control knob
• Main mix level control knob
• No external drivers are needed for mac or PC

Specifications:

Input Connections:

• XLR & ¼-inch Balanced Combi-jack (CH 1 & CH2)
• ¼-inch TRS Balanced (CH3 & CH4)
• 1/8-inch TRS Aux/MP3, 1/8-inch Headset Mic

Output Connections:

• ¼-inch TRS Balanced Main Mix Outputs
• ¼-inch TRS Stereo Output & Monitor Outputs
• 1/8th-inch Headset Output
• CH1 XLR: 1.5mV/2.2k ohm
• CH2 XLR: 2.5mV/2.2k ohm
• CH1 Jack: 10mV/12k ohm(line)
• CH2 Jack: 15mV/240k ohm
• CH3/4: 550mV/22Kohm
• Signal to Noise Ratio: > 90dB Typical (Ref 0dBu)
• Maximum Input Level: +8dBu (Mic), +16dBu (1/4-inch Input)
• Maximum Output Level: +15dBu Main Mix Outputs
• Maximum Gain >55dB (Mic), >37dB (Instrument), 5dB (CH3 & CH4)
• USB Computer Interface USB Class Compliant plug-and-play Mac / PC Interface
• AUX IN: 280mV/10Kohm
• Output Level: main mix out--max.6.5V, stereo out-- 1.0V, phone/monitor out-- max. 6.5V
• Frequency Range: 10-33000Hz, +/-3dB
• THD: <= 0.05%
• Low Range: ±15dB/80Hz
• High Range: ±15dB/12kHz
• Headphone: Impedance: >=8 ohm
• Phantom Power: +48V
• Power Supply: USB 5V 500mA  Via USB or 5VDC @ 500mA
• Operating System: Windows 2000/XP/7/Vista or higher; Mac OS 9.1/ OS X or higher
• Item Size: 190*130 *47mm / 7.48 * 5.11 * 1.85in
• Item Weight: 716g / 1.58lbs
• Package Size: 24 * 17.5 * 10cm / 9.4 * 6.9 * 3.9in
• Package Weight: 1015g / 2.24lbs

---

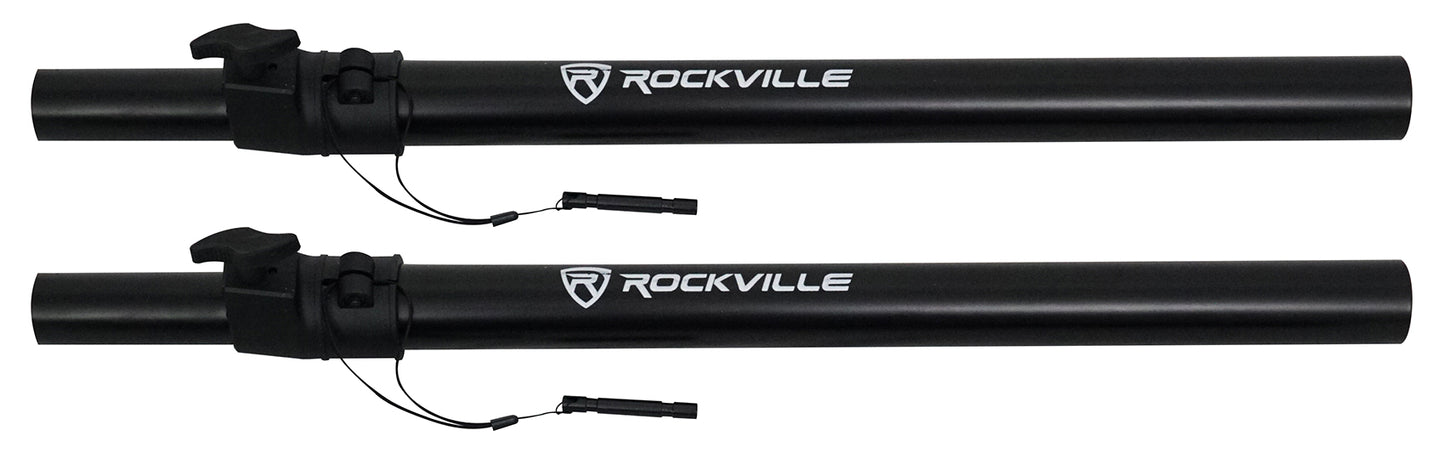

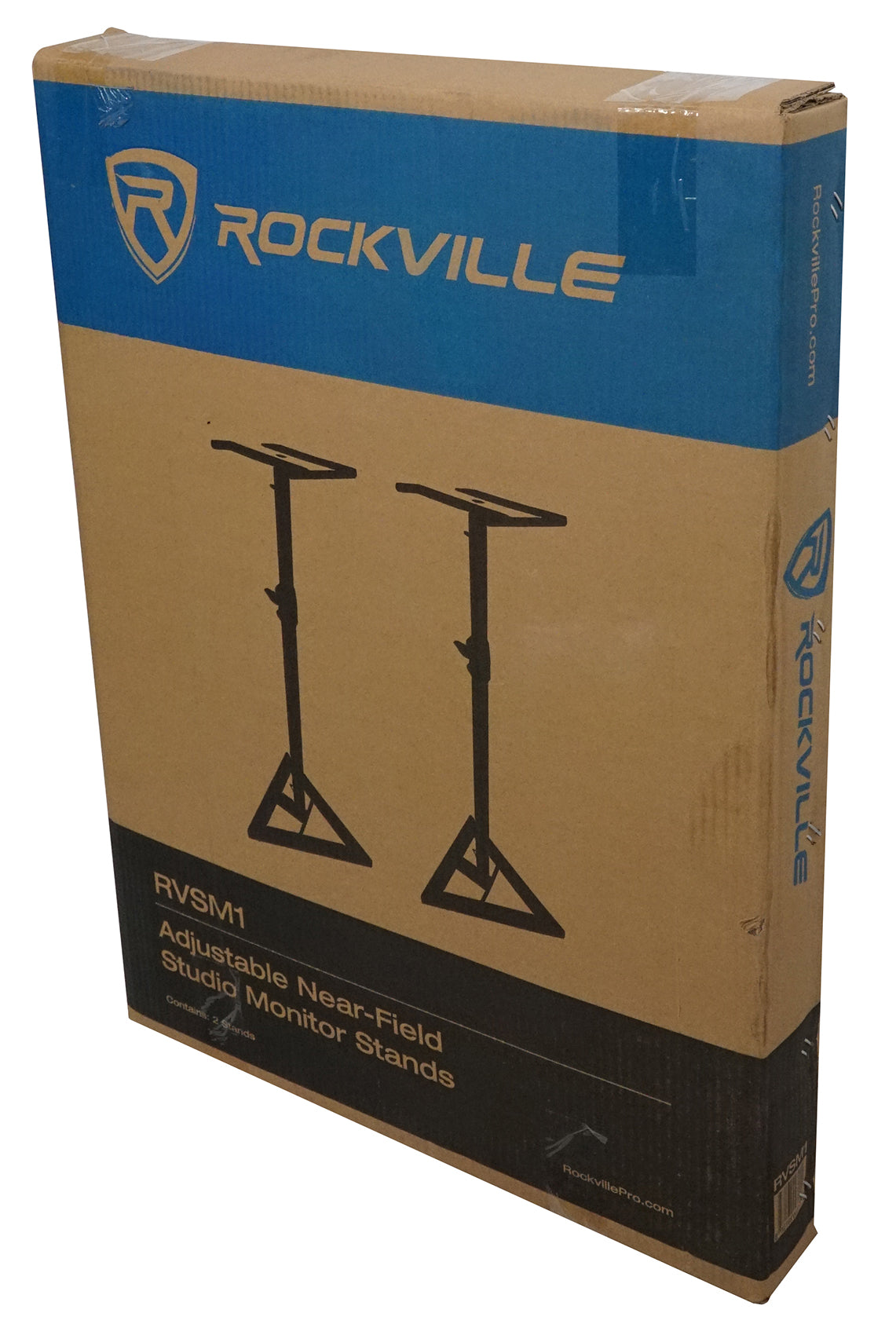

How to Set Up your RVSM1:

Video of RVSM1:

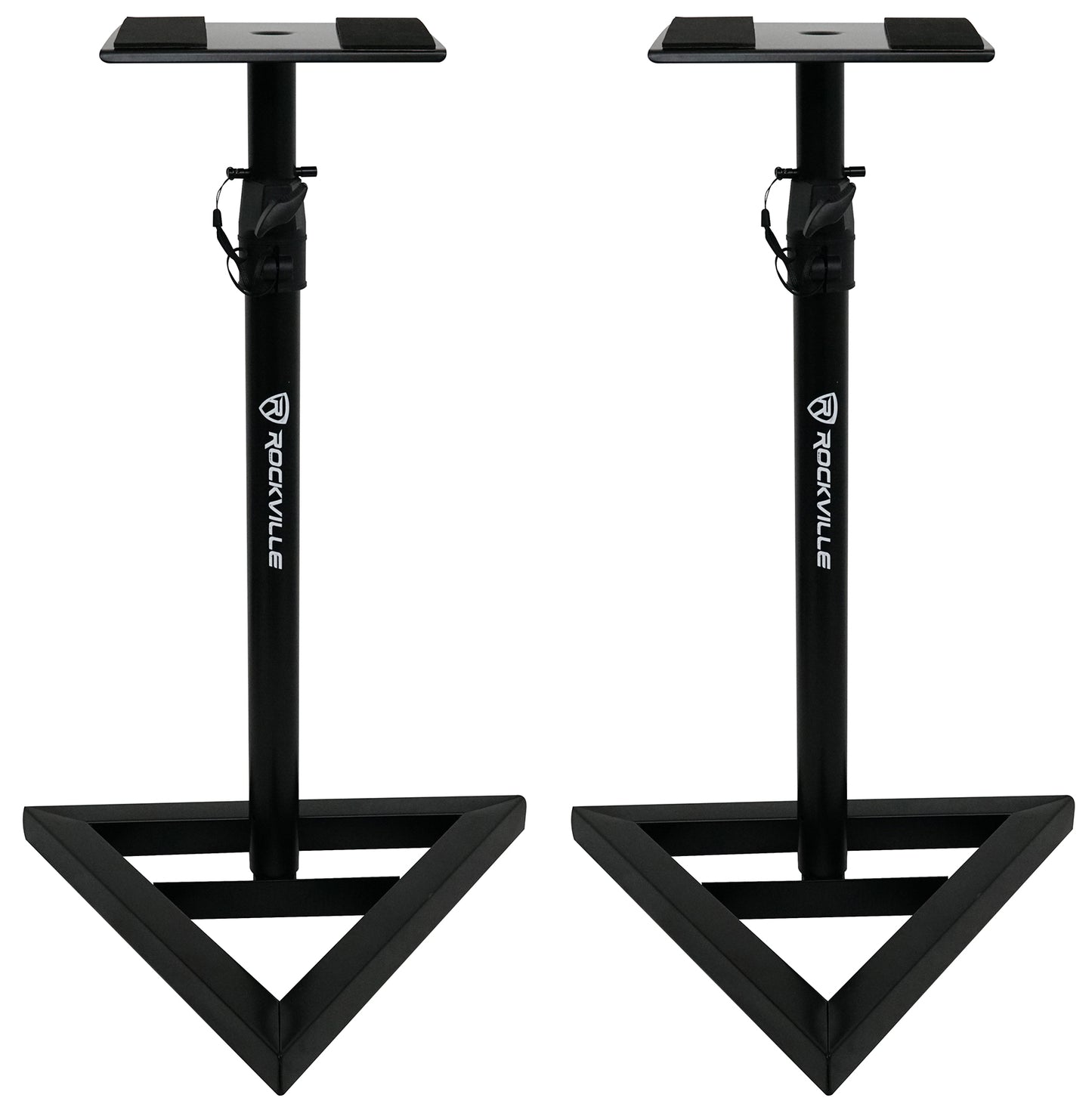

Description:

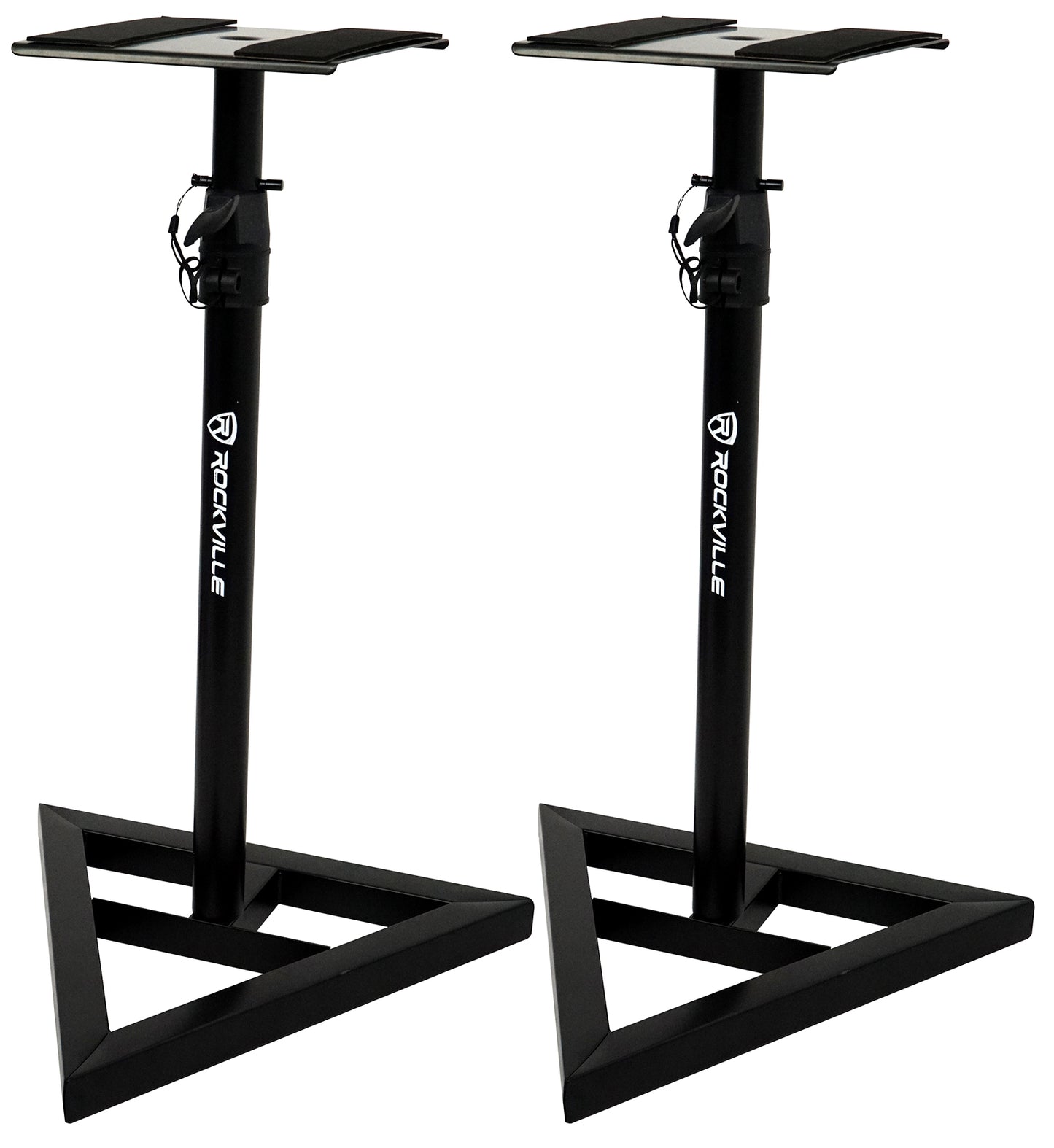

These heavy-duty Near-Field monitor stands are designed with home and project recording studios in mind. The height is adjustable for listening while sitting or standing, and locks in place with a security pin. Three rubber pads on the bottom of the base keep this stand stable on any surface. The entire stand breaks down into four pieces for easy storage and travel.

Includes:

• (2) Near-Field Monitor Stands

Features:

• Studio Monitor Stands (Pair)
• Adjustable Height
• Steel Construction

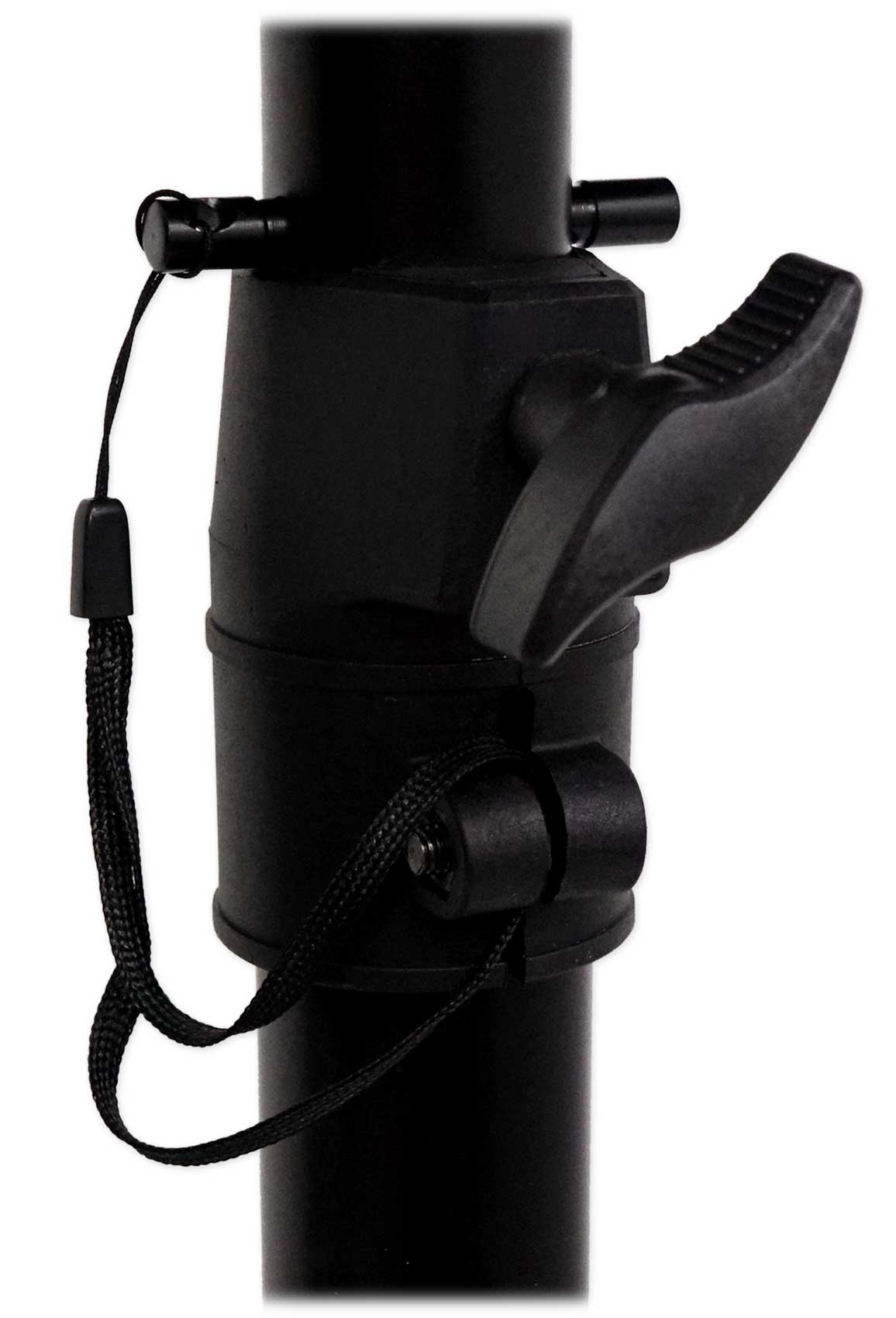

• Nylon clutch for adjusting

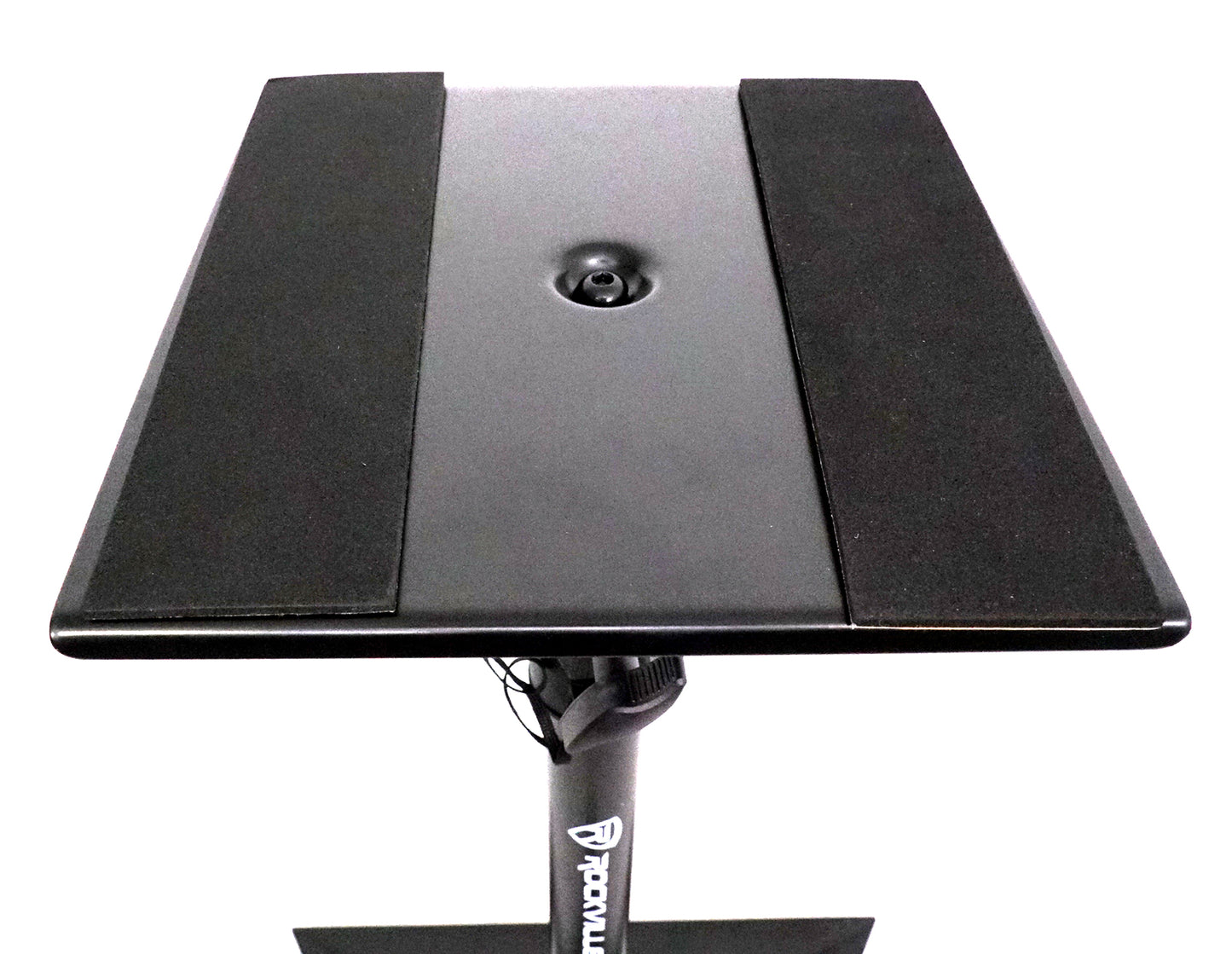

• EVA Pad on top to eliminate unwanted vibrations
• Triple enforced steel base with ultimate sturdiness
• Black Color
• Weight capacity: 80 lbs.
• Adjustable height Range: 33-45 inches
• Base: 17.7 x 17.7 x 17.7 inches
• Top Plate: 9.05 x 9.45 inches
• Tube Diameter: 1.5 inch- 1.37 inch

---

The Rockville Difference:

Whenever you see the Rockville shield on a product you know that it has the stamp of approval. While other companies simply import products from China, Rockville manufactures the products in China to lower your cost but do so under American style supervision and quality standards to get you that USA quality that you want!

About Rockville Quality Control Procedures:

The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty, though it is unlikely that you will need to use it.

Great features and great quality make Rockville a great choice.

---

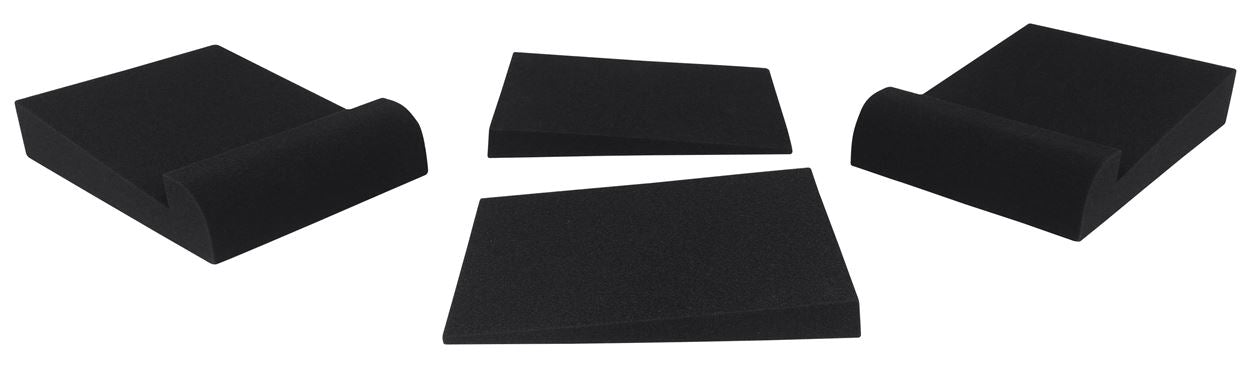

Video of RRS190S:

Authorized Rockville Dealer!

Description:

The Rockville RRS190S is specially designed to increase monitoring accuracy. These are made to decrease unwanted vibrations and noises so that you are left with accurate sounds. No matter how good your monitors are, they can never sound the way they were meant to if they are carrying over vibrations and unwanted noises into your music. These are 7.5" by 9.5" and includes 2 pads which will accommodate (2) monitors.

Isolate your speakers!
Rockville isolation pads are designed to acoustically isolate your studio monitors. They were designed to work in studios and give studio quality sound; however some customers will also use them for high end home theater setups. Typically when speakers are placed on hard surfaces, they can vibrate. The vibrations cause the speakers' sound to become inaccurate, unfocused and lose their "musical transparency." The Rockville Isolation Pad package includes a pair of high-density acoustic foam pads with multiple angle inserts that allow you to fine-tune your speakers positioning. Though conceived and designed for studio monitors/speakers you can decouple and isolate any sensitive studio device such as DVD players, turntables and laptops.

How to get maximum performance from your Monitors!
Rockville Studio Isolation Pads are the most cost-effective improvement you make to your sound system. Imagine the isolation pads as being your speaker systems "shock absorbers". Place the Rockville Isolation Pads under your monitors they will absorb vibrations and decouple your monitor to stop vibrations that would otherwise transfer into your studio environment. Isolation Pads will make a day and night difference in the sound quality of your studio. You spent good money on your studio monitors, now go the extra mile to make them sound their best.

Rockville Studio Isolation Pads Feature:

• Easiest and affordable way to improve your studio monitors sound
• Decouples your studio monitors from desktops and monitor stands for accurate reproduction
• Each package contains 2 Isolation Pads - enough for 2 studio monitors
• 2-part angled design provides you with a wide range of tilt options, including flat, +/-4 degrees, and +/-8 degrees
• Supports up to 100 lbs., so they can isolate a variety of studio gear
• Handsome charcoal gray color

Decouple your monitors for super-accurate sound
What Rockville Isolation Pads do is called "decoupling." When your monitors sit on your desk or floor, they transmit vibrations that cause the surface that they're sitting on to vibrate at low bass frequencies. These bass vibrations don't get recorded in to your mix because they are not really in your mix. But when you play the mix in your studio the "coupled" vibrations, will be heard giving you false sound reproduction. But because these "coupled" vibrations are not being recorded when you play your mix outside of your studio, all those low bass frequencies will be gone. By "decoupling: your monitors, you eliminate these false low frequency vibrations, helping you to create accurate mixes that will sound great on any playback system.

Perfectly position your monitors
Rockville Isolation Pads allow you to position your studio monitors at the exact angle you need. Each pad comes in two pieces, each with a 4 degree angle. That allows you to tilt your monitor at one of five different angles: flat, +/-4 degrees, or +/-8 degrees. This allows you to place your monitors flat on your desk top or angled down for proper positioning.
The most affordable way to improve the sound of your studio monitors

Features:

• Rockville RRS190S: Monitor Isolation Pads
• 3 Angle High Density Foam
• 7.5" x 9.5"
• High quality, High Density Foam
• Eliminates vibrations and unwanted noises in your studio
• Price is for (2) pads which accommodates (2) speakers

---

About Rockville Quality Control Procedures:

The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty.

---

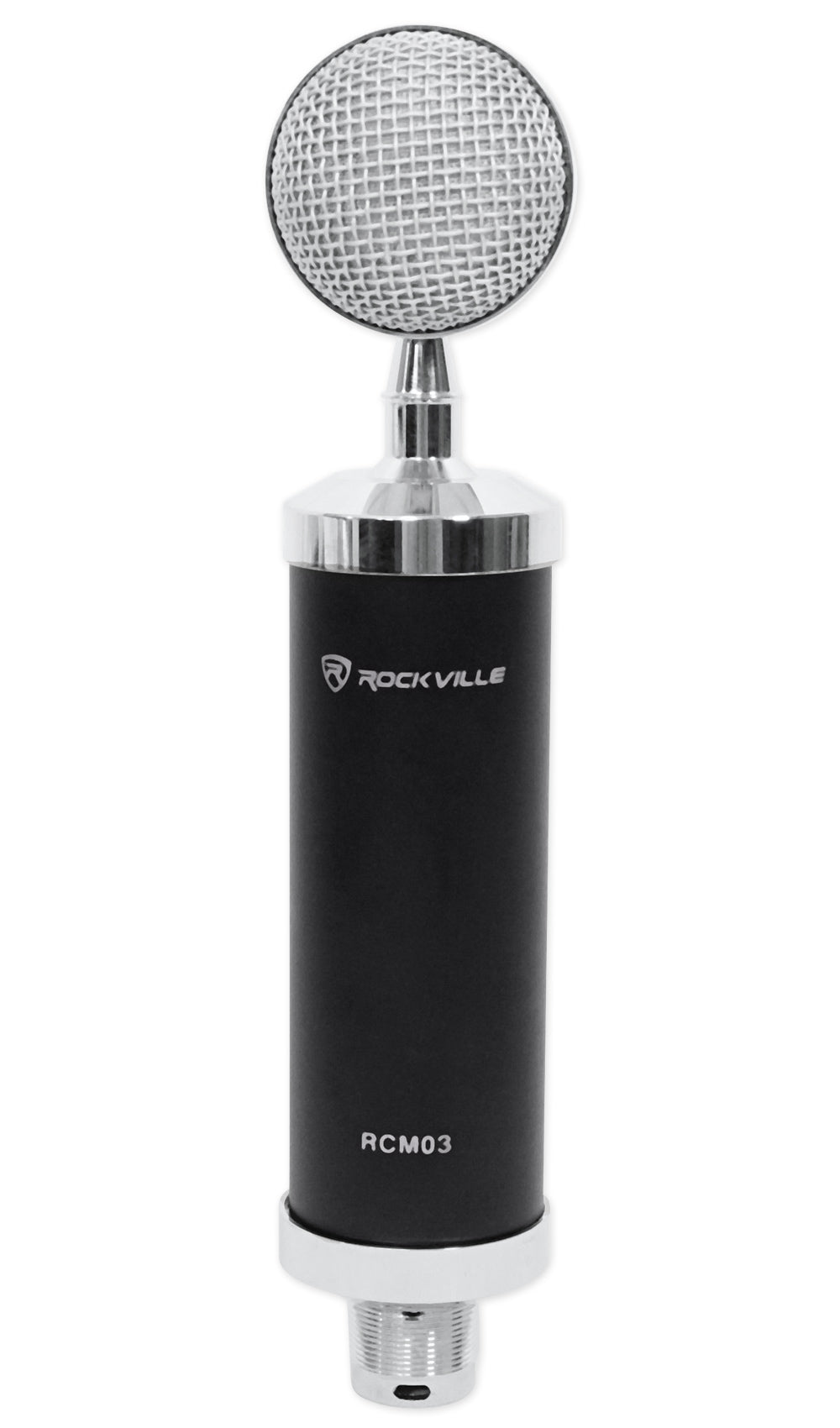

All about Your RCM03:

How To Set Up Your RCM03:

How To Set Up Your RCM03 with an Interface:

How To Set Up Your RCM03 with a PSP5:

How To Set Up Your RCM03 with an IsoBOX:

Description:

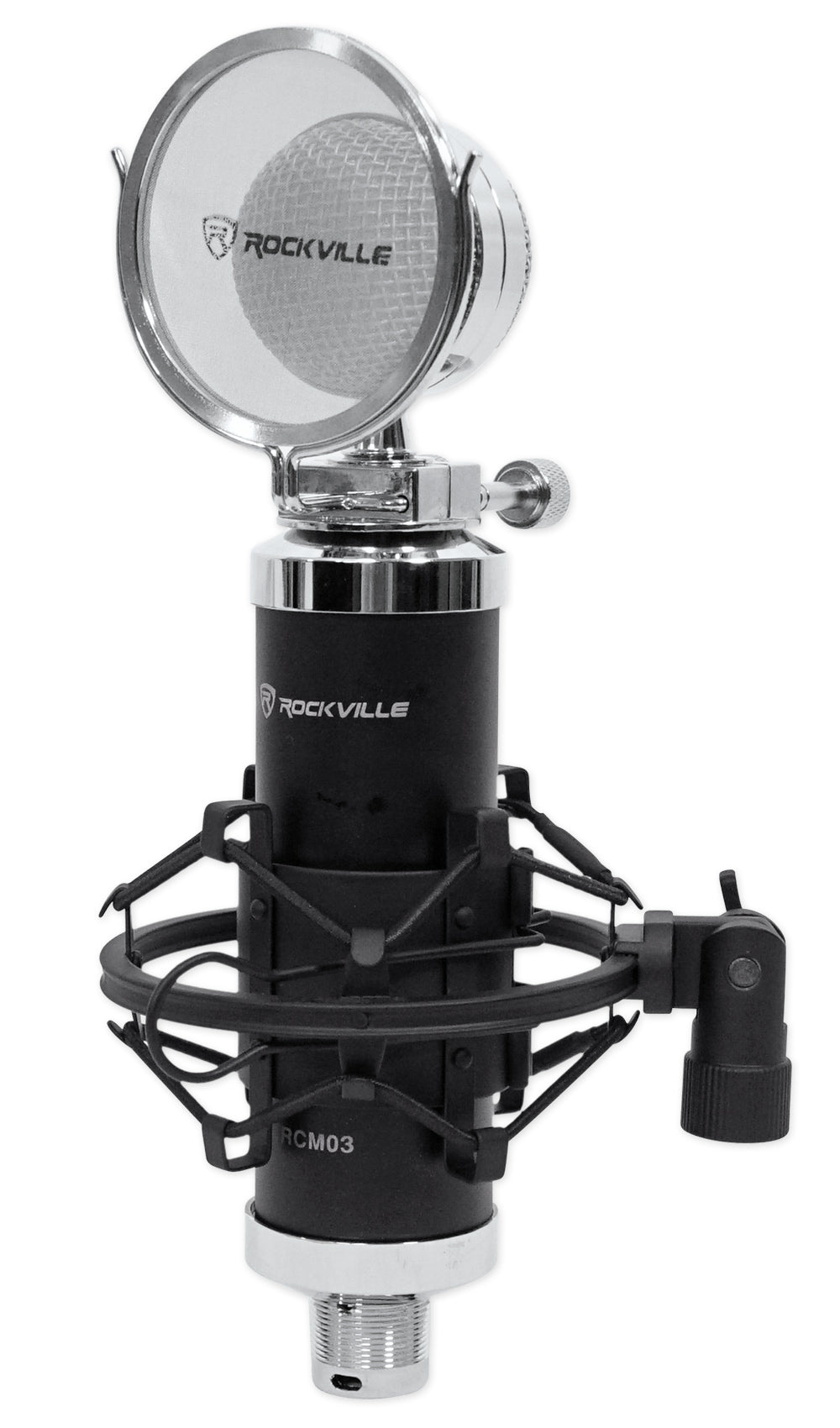

The Rockville RCM03 condenser microphone performs better than famous branded microphones that cost over $150. This model is similar to our RCM01 however it is made of aluminum, and the frame is slightly larger. We also upgraded this model to a high end metal anti-wind cap! We highly recommend this design. This model is an amazing upgrade to our top selling RCM01 model!

Multi-Purpose

Designed for crystal clear capturing of vocals, acoustic and amplified instruments, as well as room reverb. The frequency pick up pattern makes the RCM03 amazing in studio applications.

The aluminum construction makes the RCM03 tough enough for Live sound applications as well!

Multiple connection options!

This microphone can be used in multiple ways. You can connect this to the phantom power of your mixer or you can connect it directly to your computer sound card. We include both cables! We include a cable to connect it to your mixer as well as a cable to connect the mic to your computer!

Quality built inside and out!

The microphone is made of aluminum. It is very rugged and tough like you would expect from any Rockville product. This microphone has a large diaphragm which is what enables our mic to deliver a wider range of high and low frequencies than our competitors. Our frequency range is tested at 30HZ - 20KHZ! The mic sounds crystal clear sound with no distortion!

The PCB (circuit board) uses surface mounted components which is the same method the expensive brands use. We use only top components that under-go extreme testing by our own audio engineers.

The last thing that I need to mention and call out is that our product is very sturdy. Let me explain. When you are recording, you do not want even the slightest noises coming from your mic. The microphone consists of a casing and there is a cartridge inside the case. You do not want that cartridge moving around. We made sure to adjust our mechanism and ensure the cartridge is firmly in place and not creating any unwanted noises.

Best Value

After testing our Rockville condenser mics against mics that cost 300% more money, we found ours to be as good or better than the ones we tested against.

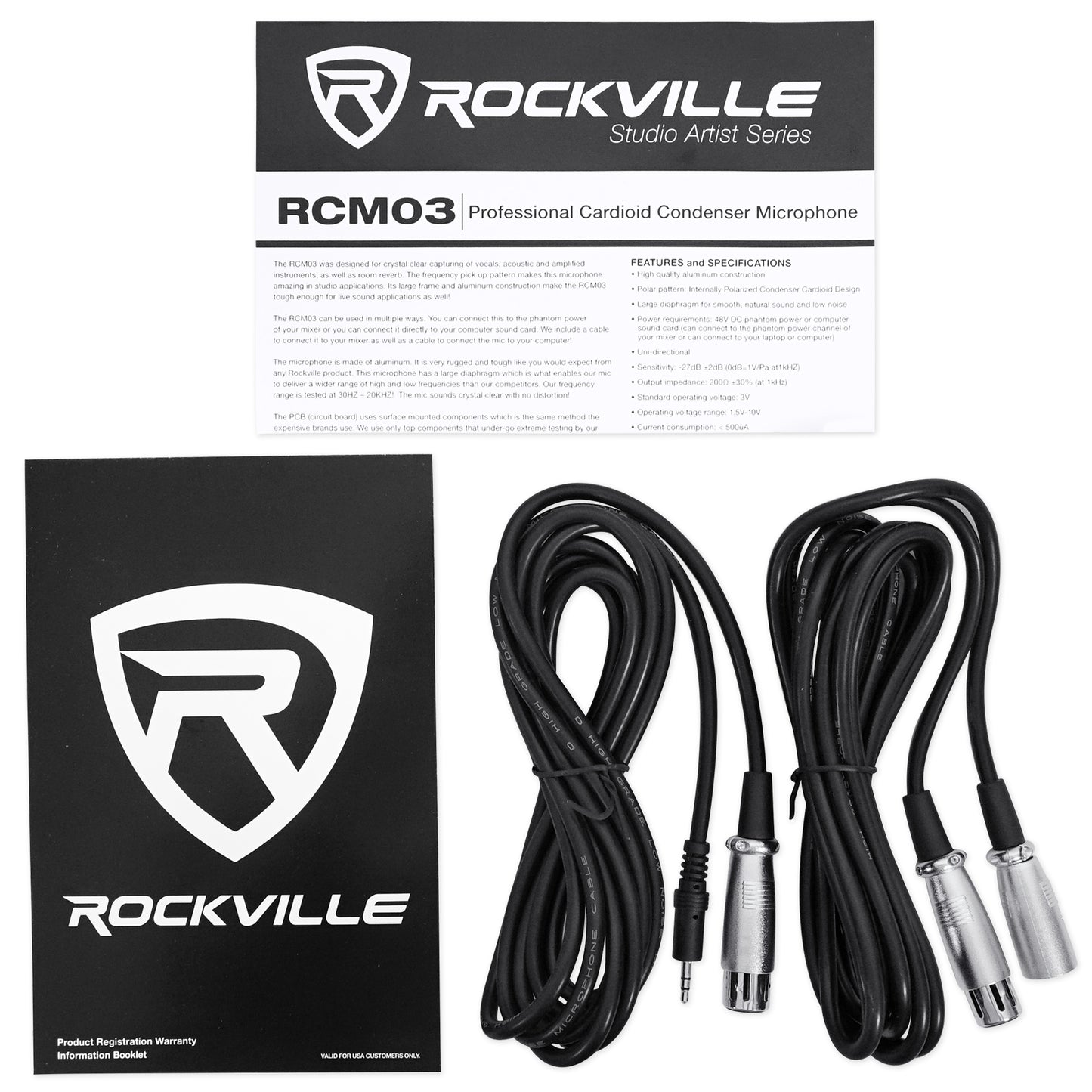

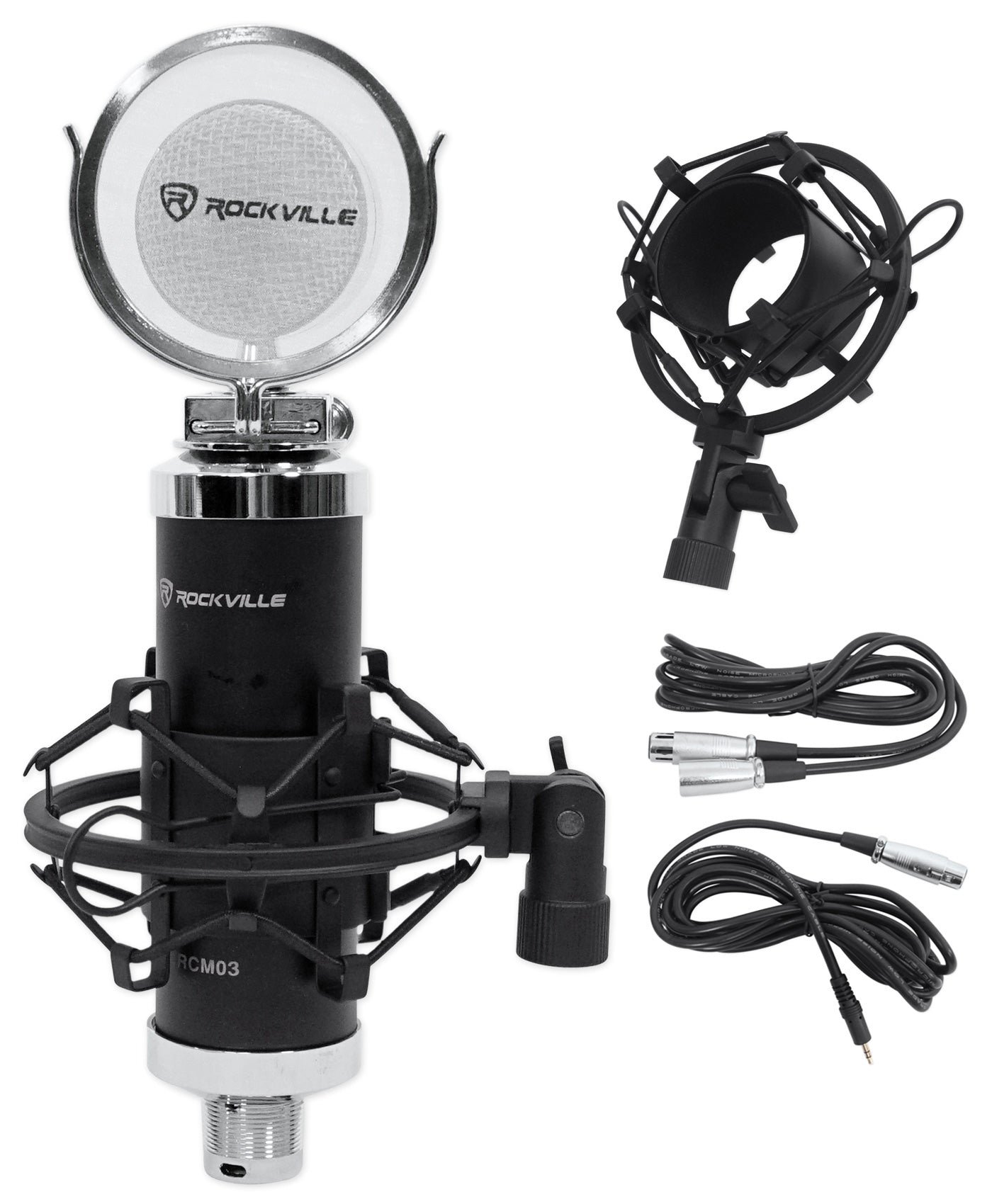

What's Included:

• RCM03 Condenser Microphone (made of aluminum!)
• 100% Copper 10 foot 3.5mm jack to XLR cable to connect mic to your computer or other device
• 100% Copper 10 foot XLR to XLR cable to connect to any mixer with phantom power

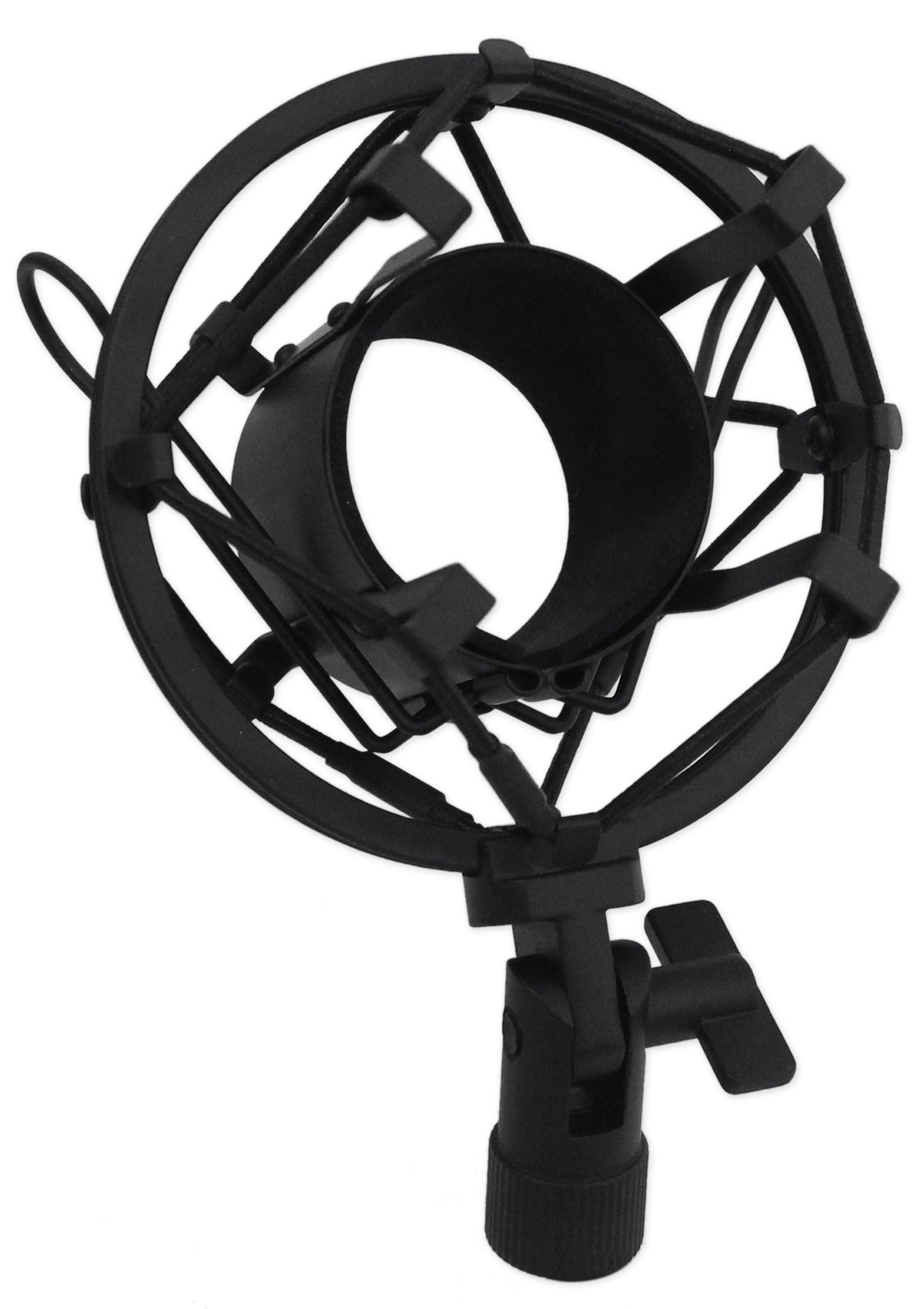

• Metal Shock Mount

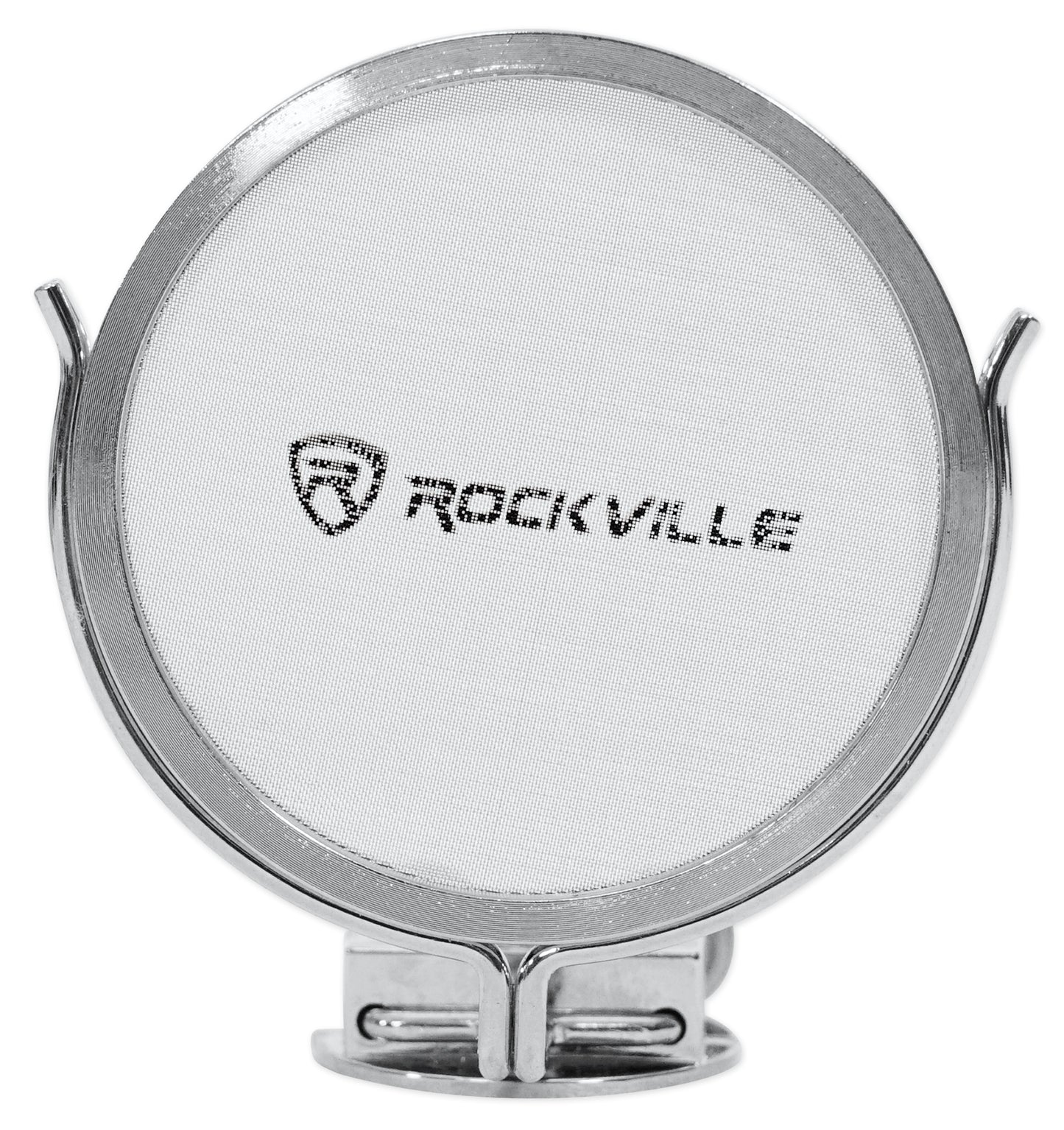

• Metal Anti-wind Foam Cap
• Owners Manual
• Warranty Card

Features:

• Rockville RCM03 Pro Studio Recording Condenser Microphone Mic+Metal Shock Mount
• Aluminum high quality construction
• Polar Pattern: Internally Polarized Condenser Cardioid Design
• Large diaphragm for smooth, natural sound and low noise
• Power Requirements: 48V DC Phantom Power
• Uni-directional
• Sensitivity: -27dB±2dB (0dB=1V/Pa at1kHZ)
• Output Impedance: 200O±30% (at 1kHz)
• Standard Operating Voltage: 3V
• Operating Voltage Range: 1.5V-10V
• Current Consumption: Less than 500uA
• Voltage Deduction Characteristic: within 3dB at 2V
• S/N Ratio: More than 24dB
• Frequency Response: 30Hz - 20 KHz
• Fixed Crossover Filter Cutoff Frequency: 40Hz---16 KHz
• Load Impedance: Greater or = to 1000 Ohms
• Equivalent Noise Level: Less than 18dB A (IEC581-5)
• Max. Input SPL: 126dB (THD=1.0% at 1kHZ)
• Electrical Current: Greater than 4.8Ma
• Microphone Body Net Weight: 320 Grams (0.7 Pounds)
• Microphone Max.diameter: 44mm (1.73" inches)
• Microphone Length: 217mm (8.54" inches)
• Microphone Material: Steel grille + Alluminum (handheld part)
• PCB Layout: Surface mount

---

About Rockville Quality Control Procedures:

The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty.

---

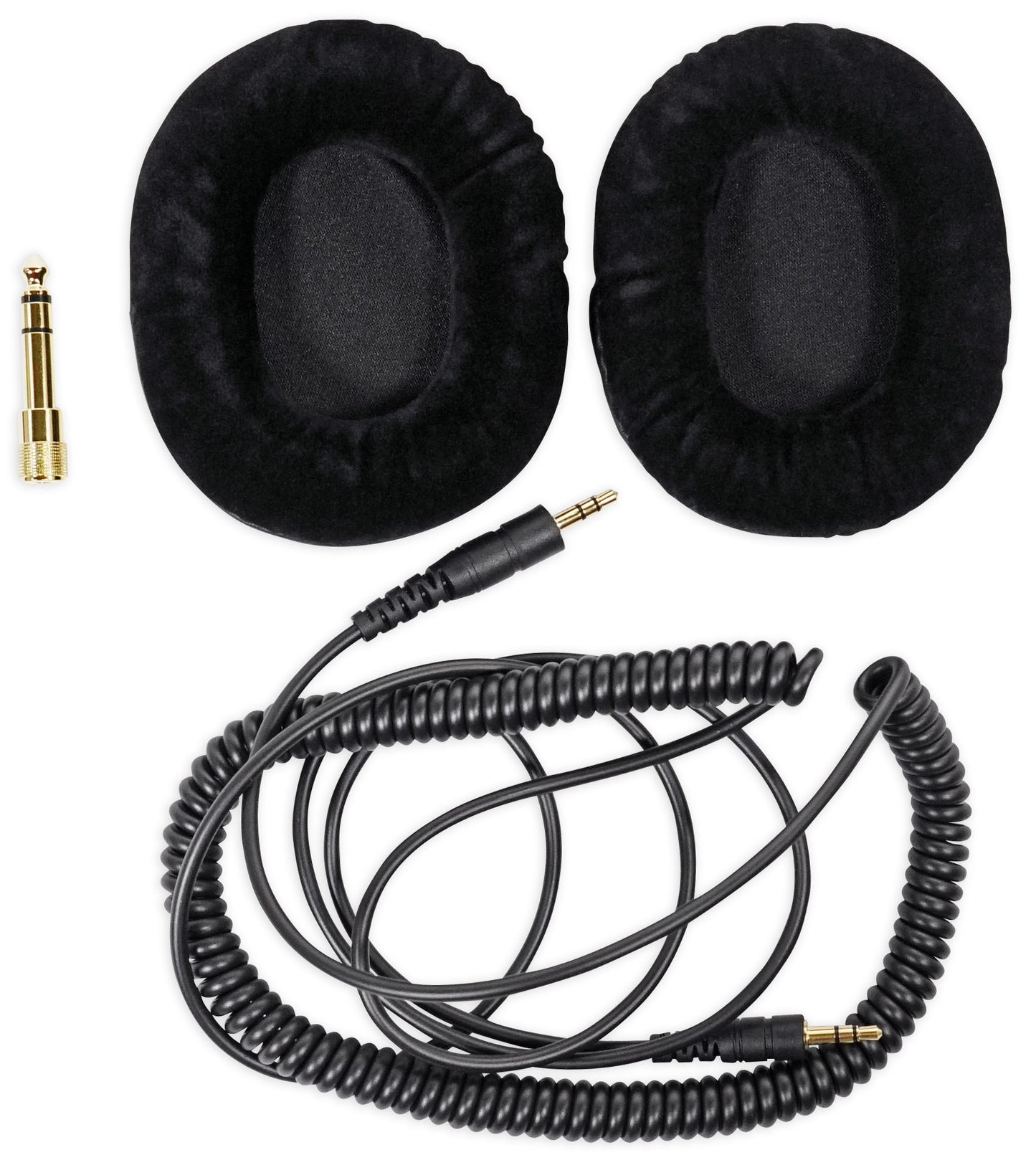

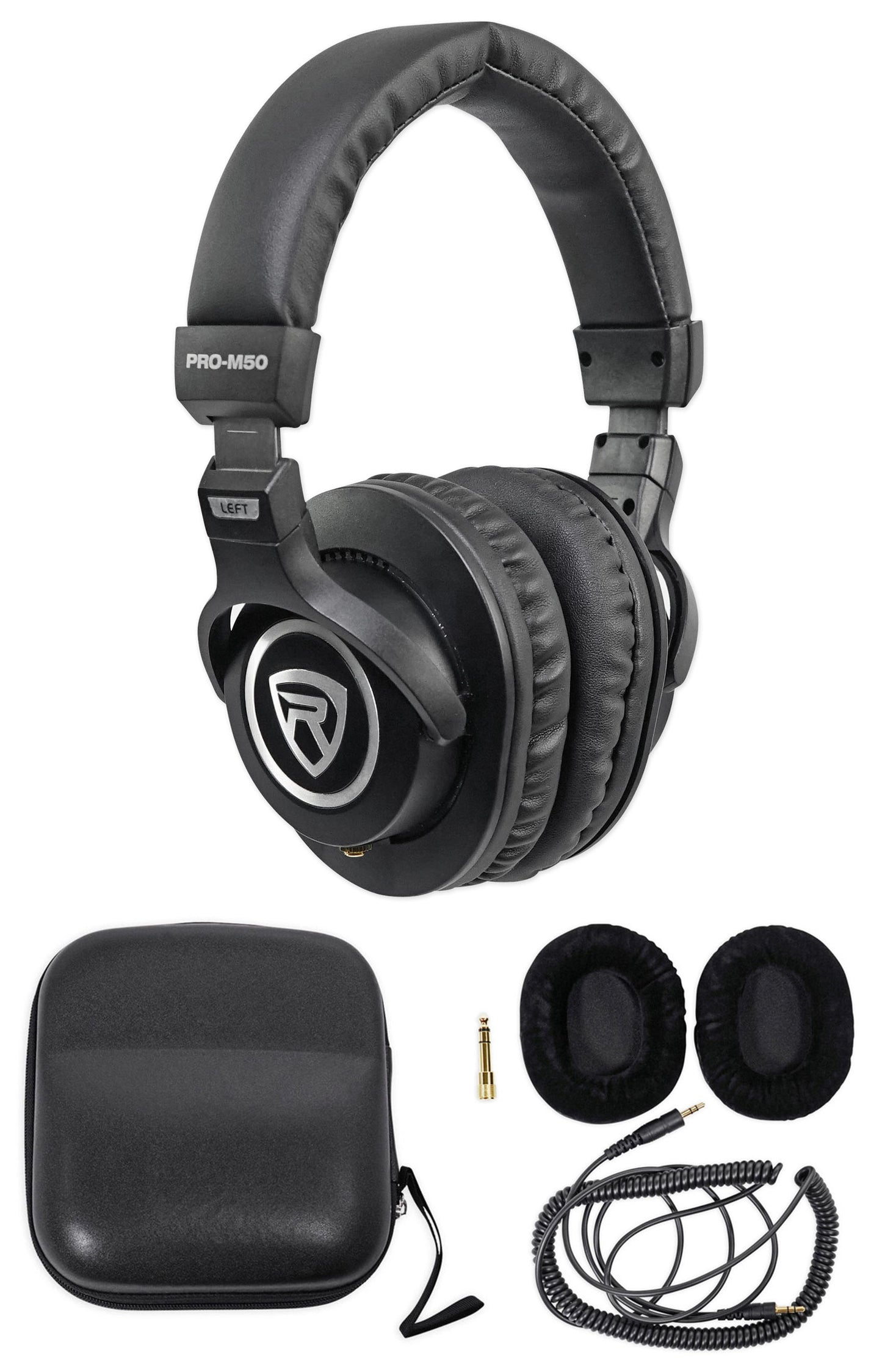

Includes:

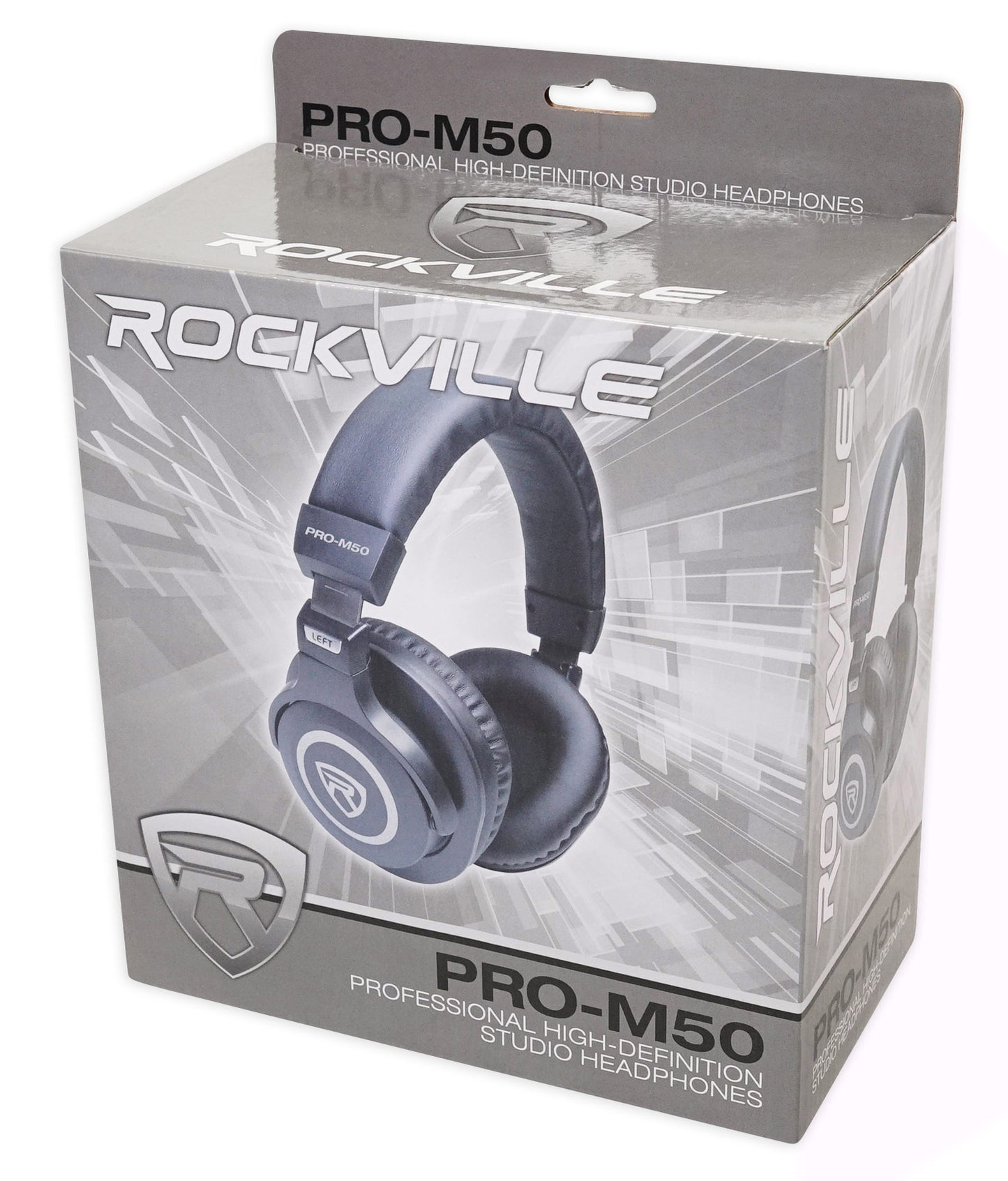

• PRO-M50 headphones
• Detachable cable
• Soft suede and leather ear cushions (interchangeable)

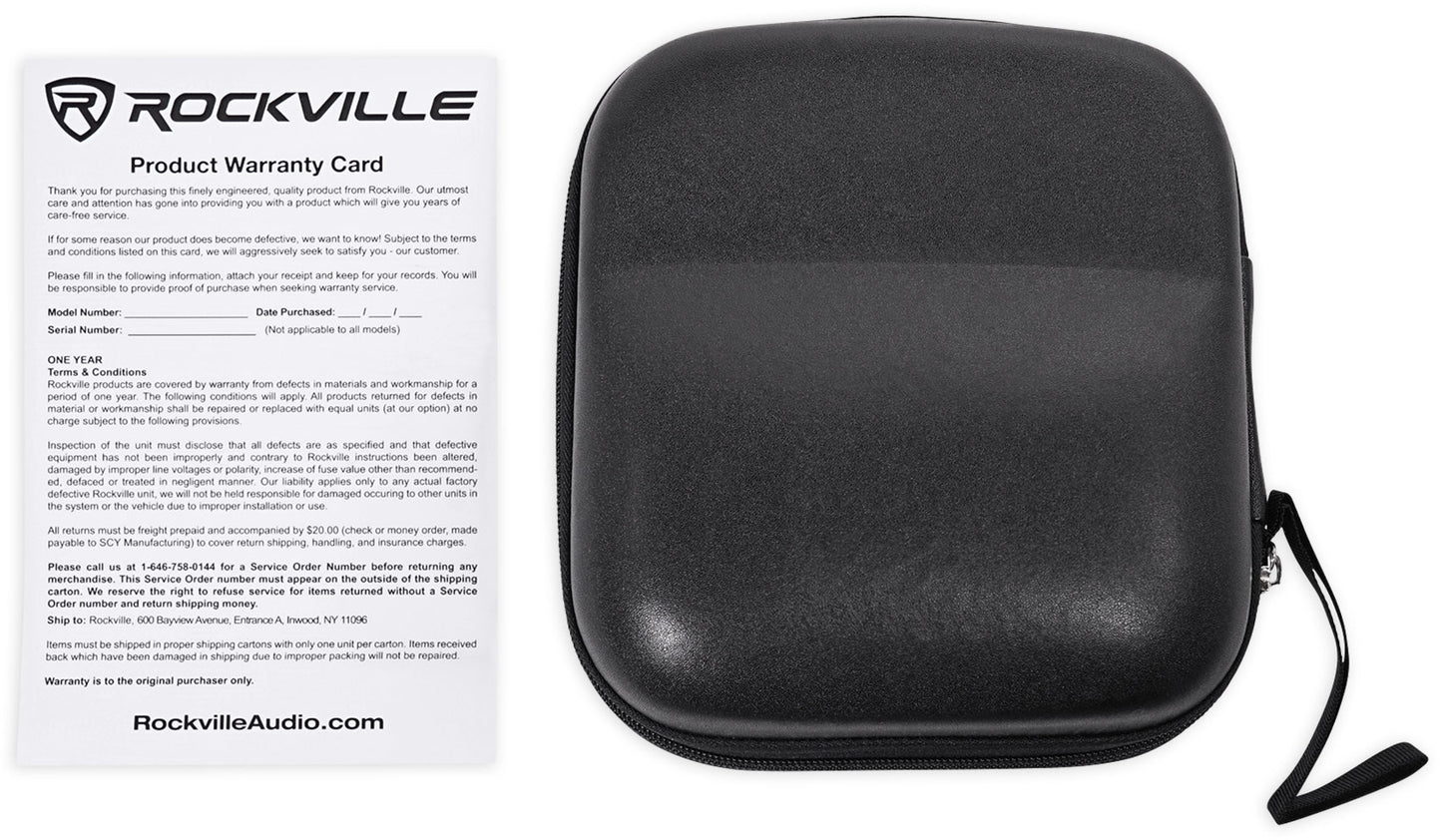

• Leather hard travel protective case
• Gold plated ¼" adapter

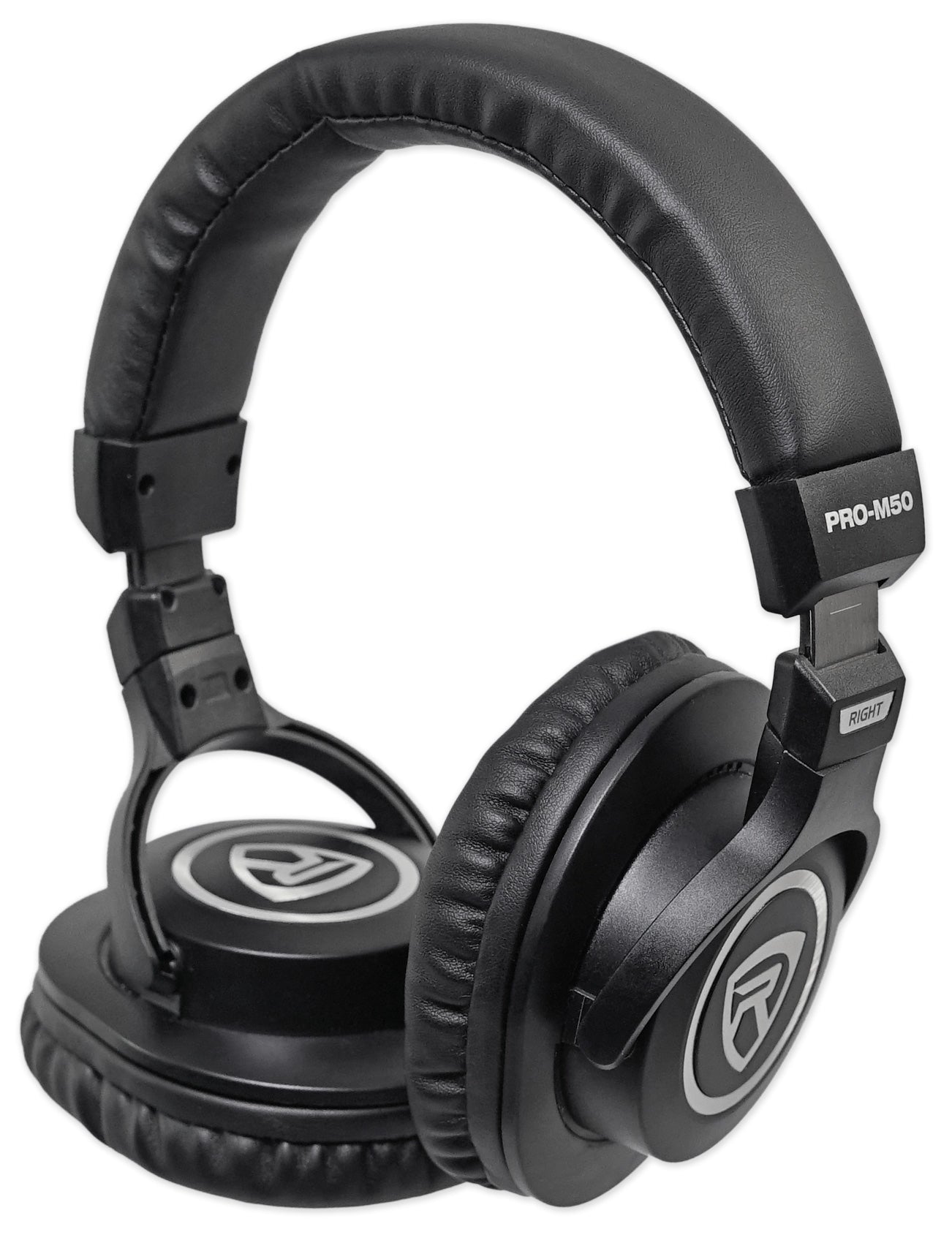

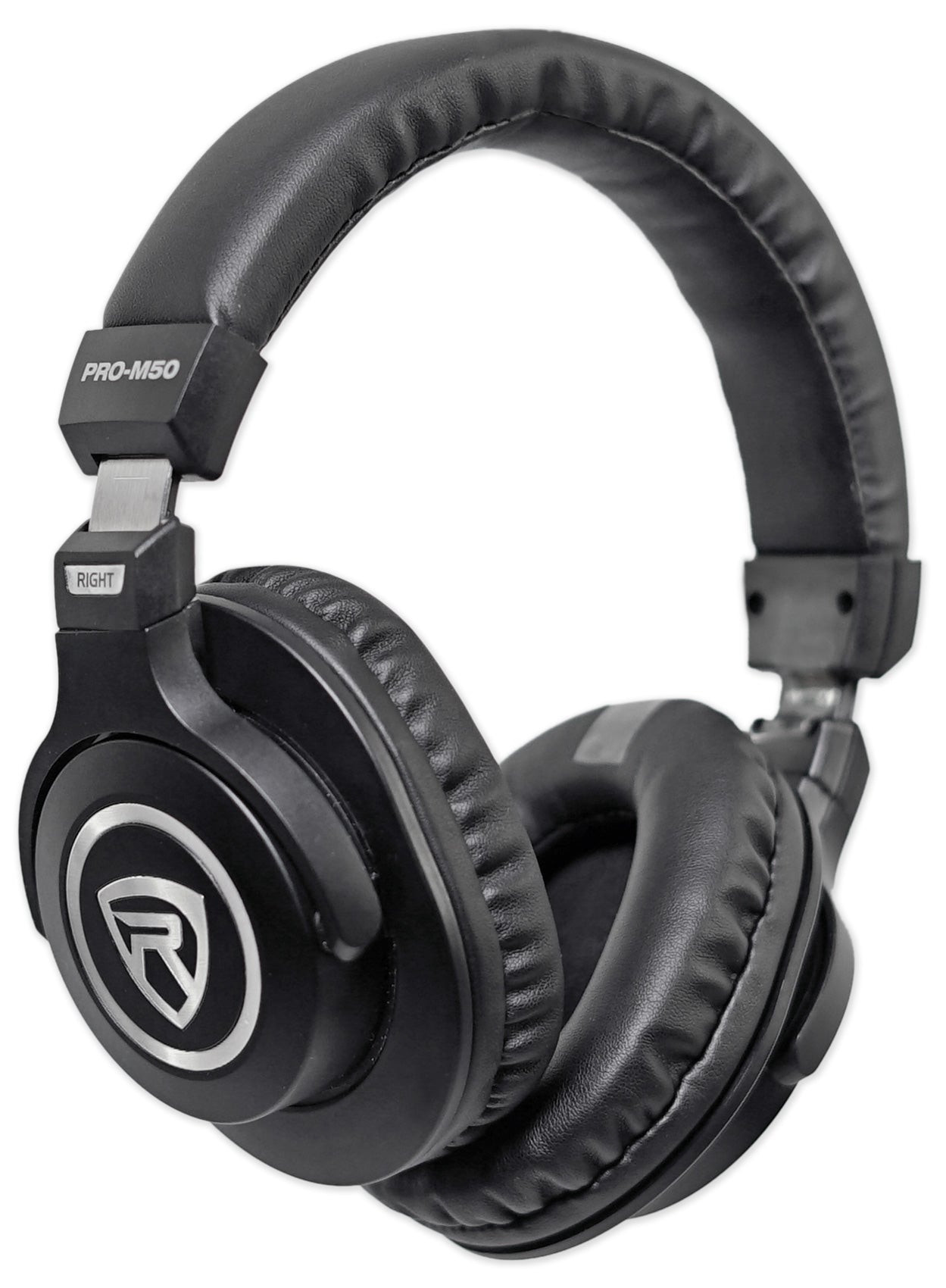

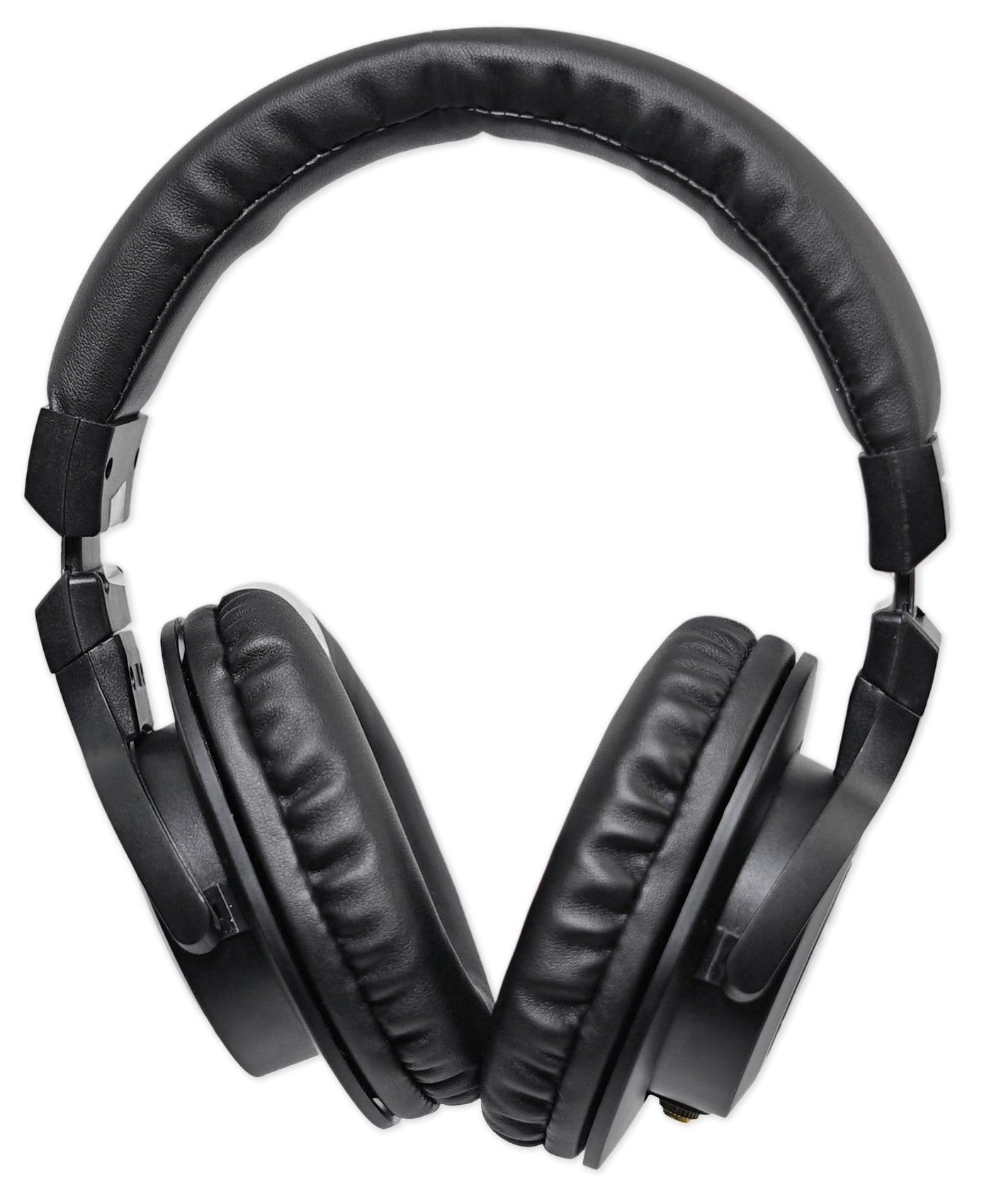

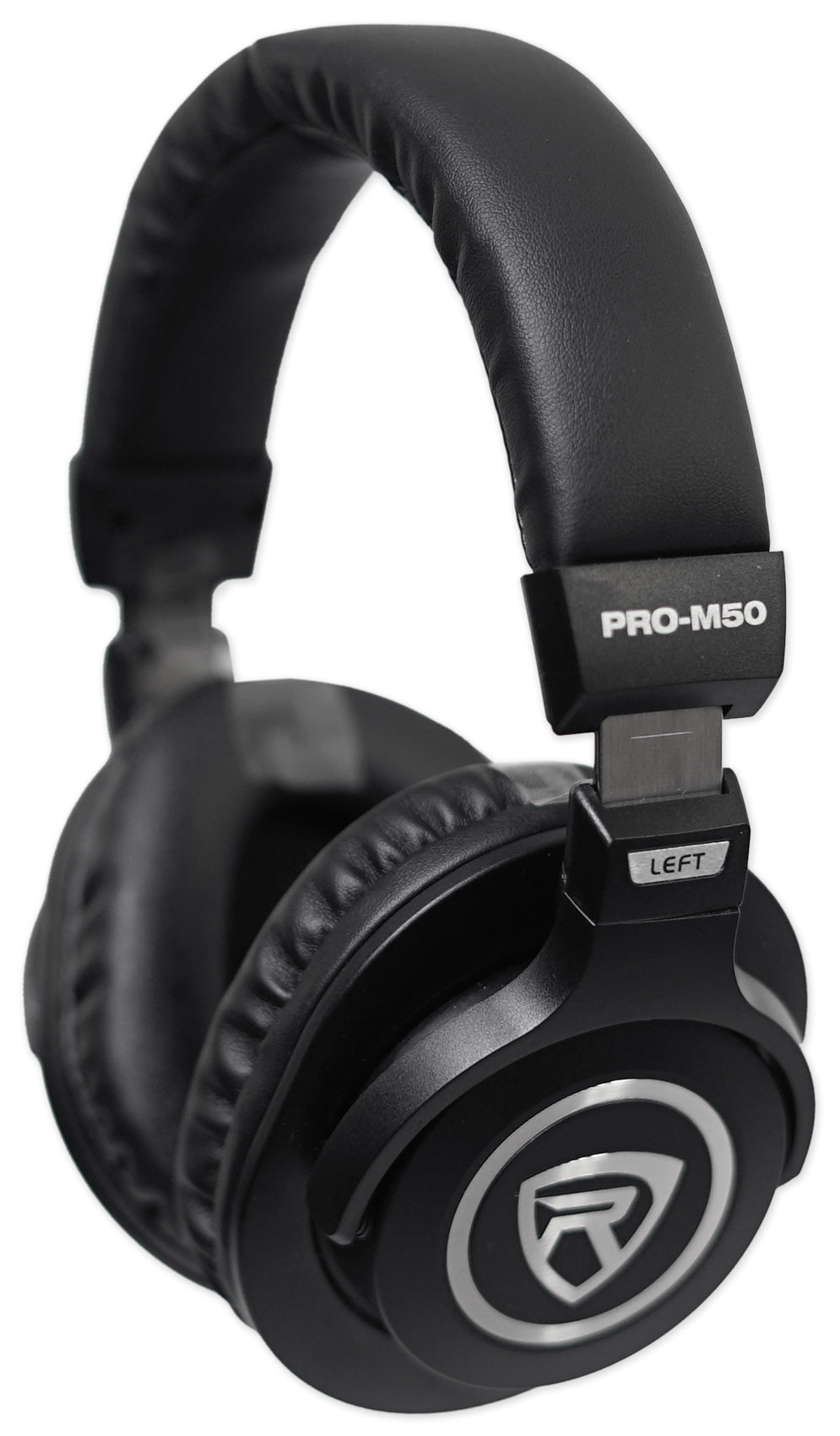

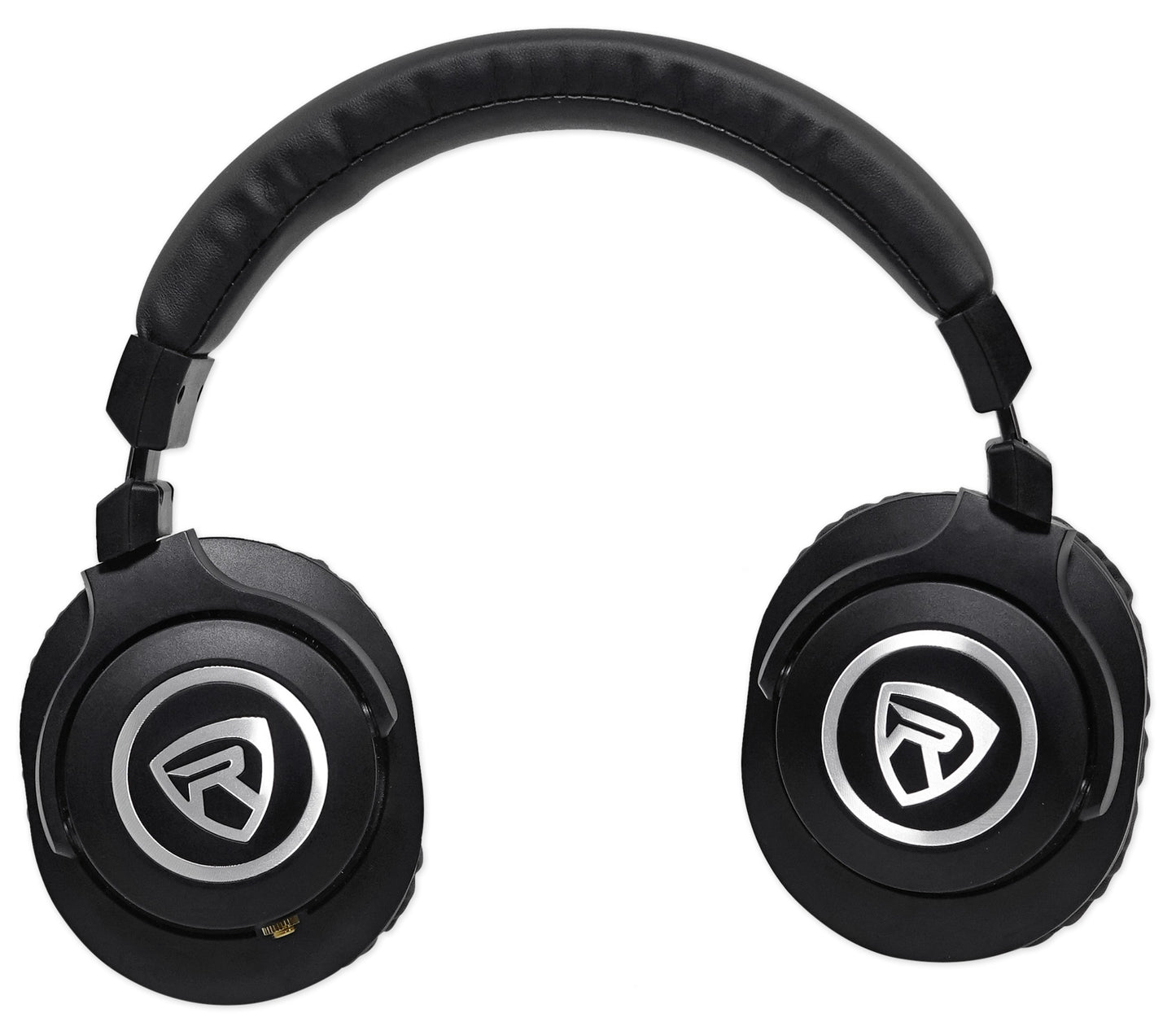

All About Your PRO-M50:



Description:

Rockville brings you studio quality headphones and at an incredible price with its new PRO-M50 headphones. These are professional grade headphones that are guaranteed to ourperform headphones that cost triple the price! These feature ergonomically designed swiveling cups with interchangeable soft suede or leather finish cushions (included). The ear cups seal tight for excellent sound isolation and minimal bleed. Inside these cups you'll find 40mm Neodymium drivers delivering accurate audio with an extended frequency range for clear and rich bass, and a full frequency range of mids and highs. These are closed back style headphones specifically designed for studio monitoring. These play back the sound with a flat frequency curve so you can hear your music exactly how it was recorded. With the PRO-M50 you can expect to hear every detail of every song with extreme accuracy. These headphones cover full frequency ranges; even extending a bit past the frequencies that the human ear can hear.

The headband is made of soft leather, offering ultimate comfort even after extended wear. The beautifully designed stainless steel headband frame and arms are strong and durable. A detachable 51" coiled 100% Oxygen Free Copper cable with a gold plated 3.5mm plug is included along with a gold plated ¼" adapter to ensure the best possible signal. A hard leather case is included to store and protect your new investment when you are on the go.

Amazing sound quality will make these your go-to headphones whether in the studio or out and about!

Features:

• Rockville PRO-M50 Studio Headphones w/ Detachable Coil Cable, Case+Extra Ear Pad
• Professional High-Definition Studio Headphones
• 40mm Neodymium drivers
• Ergonomically designed swivel ear cups
• Supreme sound isolation
• Accurate sound reproduction
• Minimal bleed
• Sturdy and durable steel headband and arms
• Soft leather headband cover
• Interchangeable leather and soft suede ear cups covers included
• Detachable 51" coil cable made of 100% Oxygen Free Copper (158" fully extended)
• Gold plated 3.5mm connector
• Gold plated ¼" adapter
• Hard leather carrying case
• Stainless steel headband frame and moving arms are durable and long-lasting

Specifications:

• Style: Closed-Back
• Design: Circumaural
• Transducer Type: Dynamic
• Driver: 40MM
• Sensitivity: 97±3dB
• Impedance: 32ohm
• Frequency Response:10Hz - 25KHz
• Max. Power: 600MW
• Rating Power: 260MW
• Net Weight: 290g (with cable)
