Package Includes:

• (4) Rockville W65K9D2 6.5" 1000w Peak Car Audio Subwoofer Dual 2-Ohm Sub 250w RMS CEA Rated
• (1) Rockville REC130 Quad 6.5" Subwoofer Enclosure Box For Chevy 2007-2020 Crew Cab
• (2) Dual Sub Box Enclosure Installation Kit: Speaker Wire, Screws, Spade Terminals

---

Video of K9 6.5" and 8" Subs:

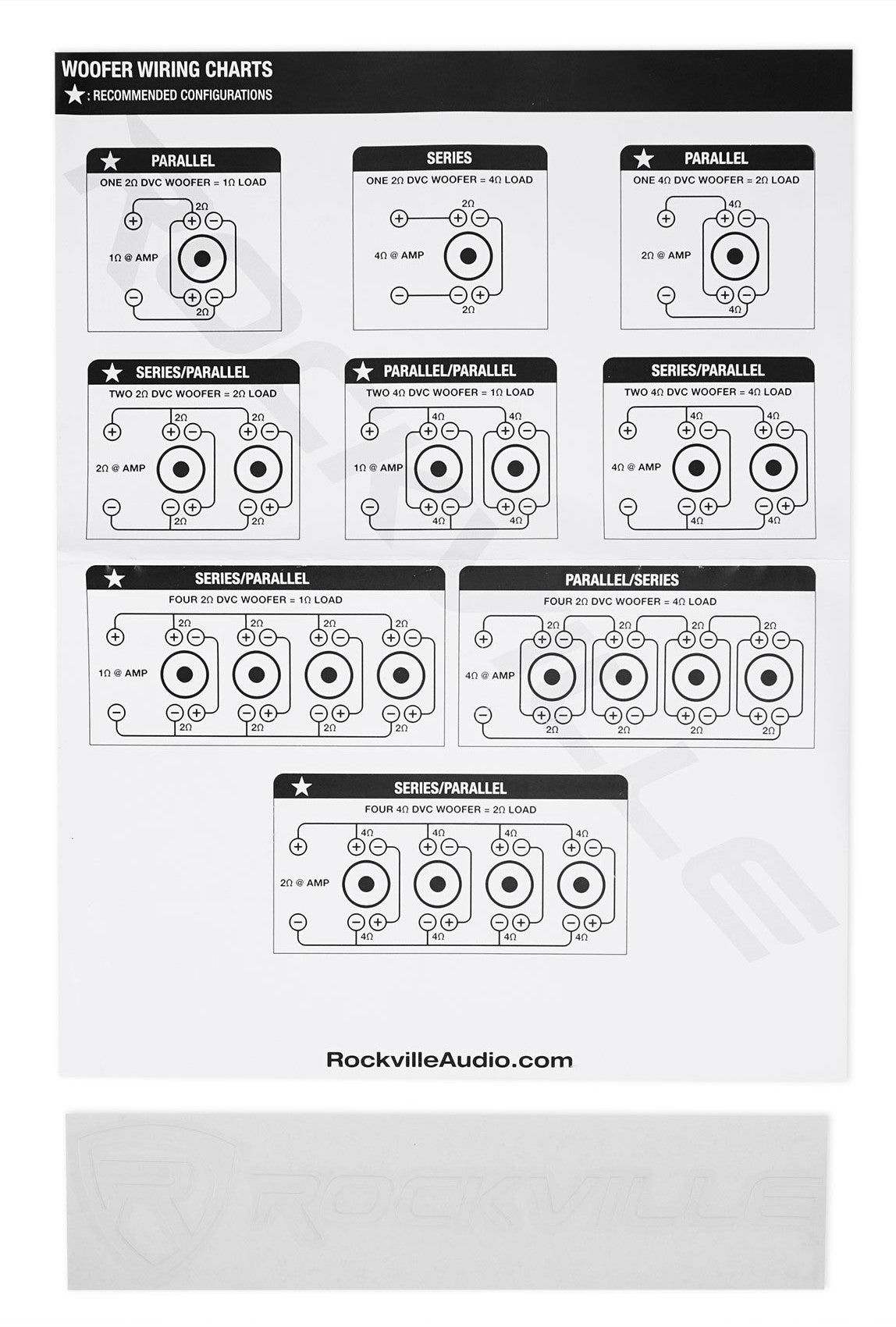

Wiring for 1 DVC 2 Ohm SUBS:

Wiring for 2 DVC 2 Ohm SUBS:

Features:

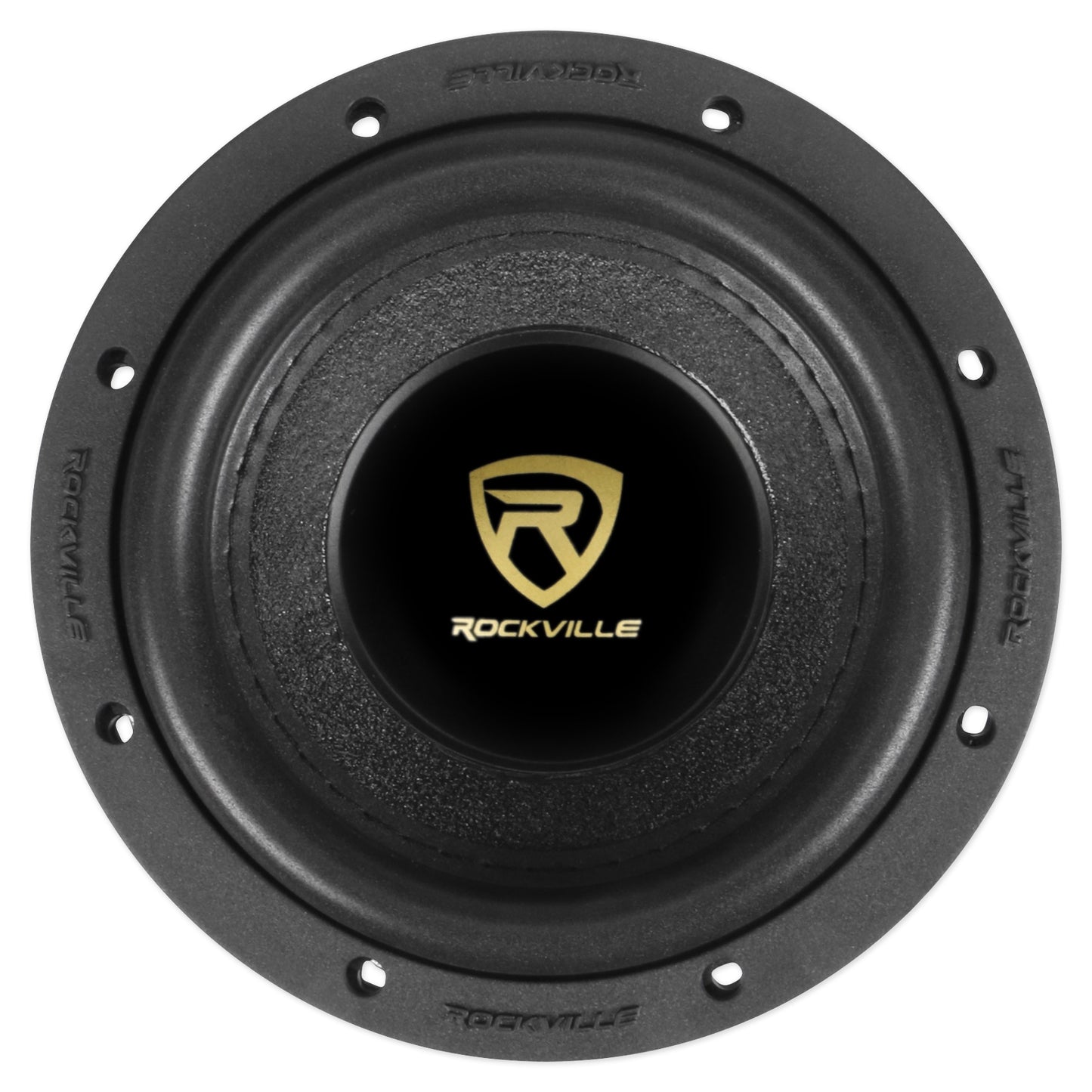

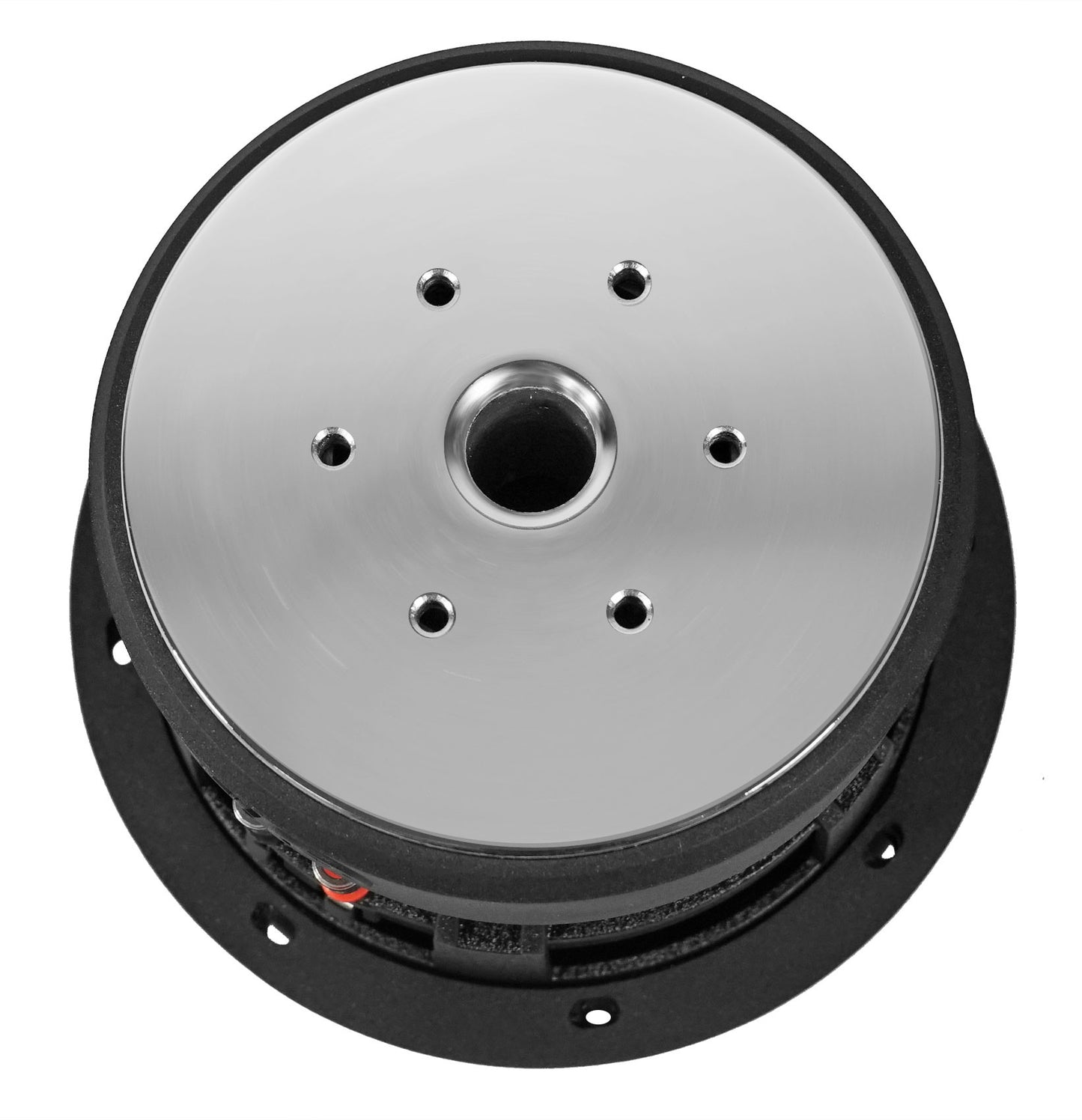

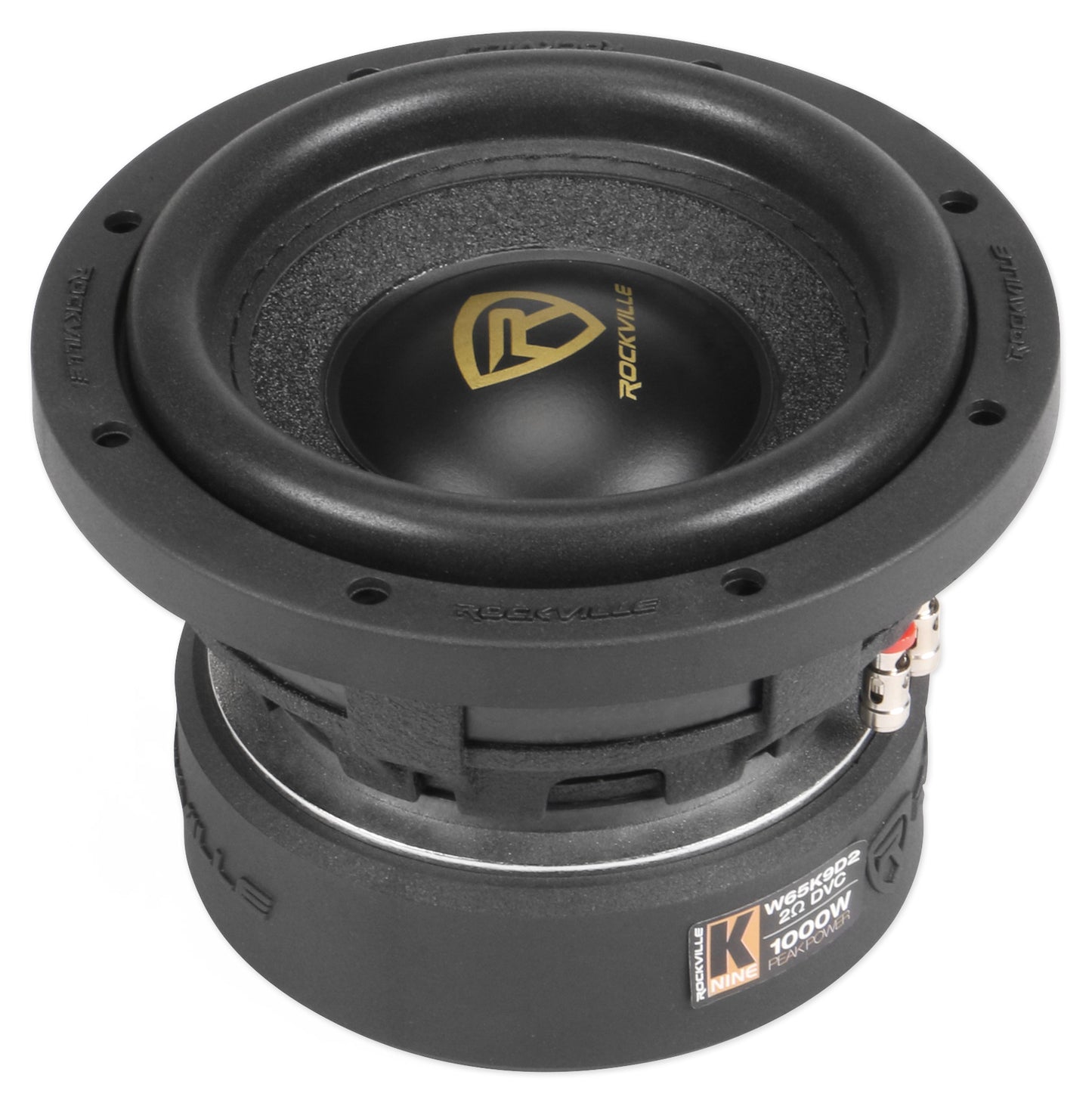

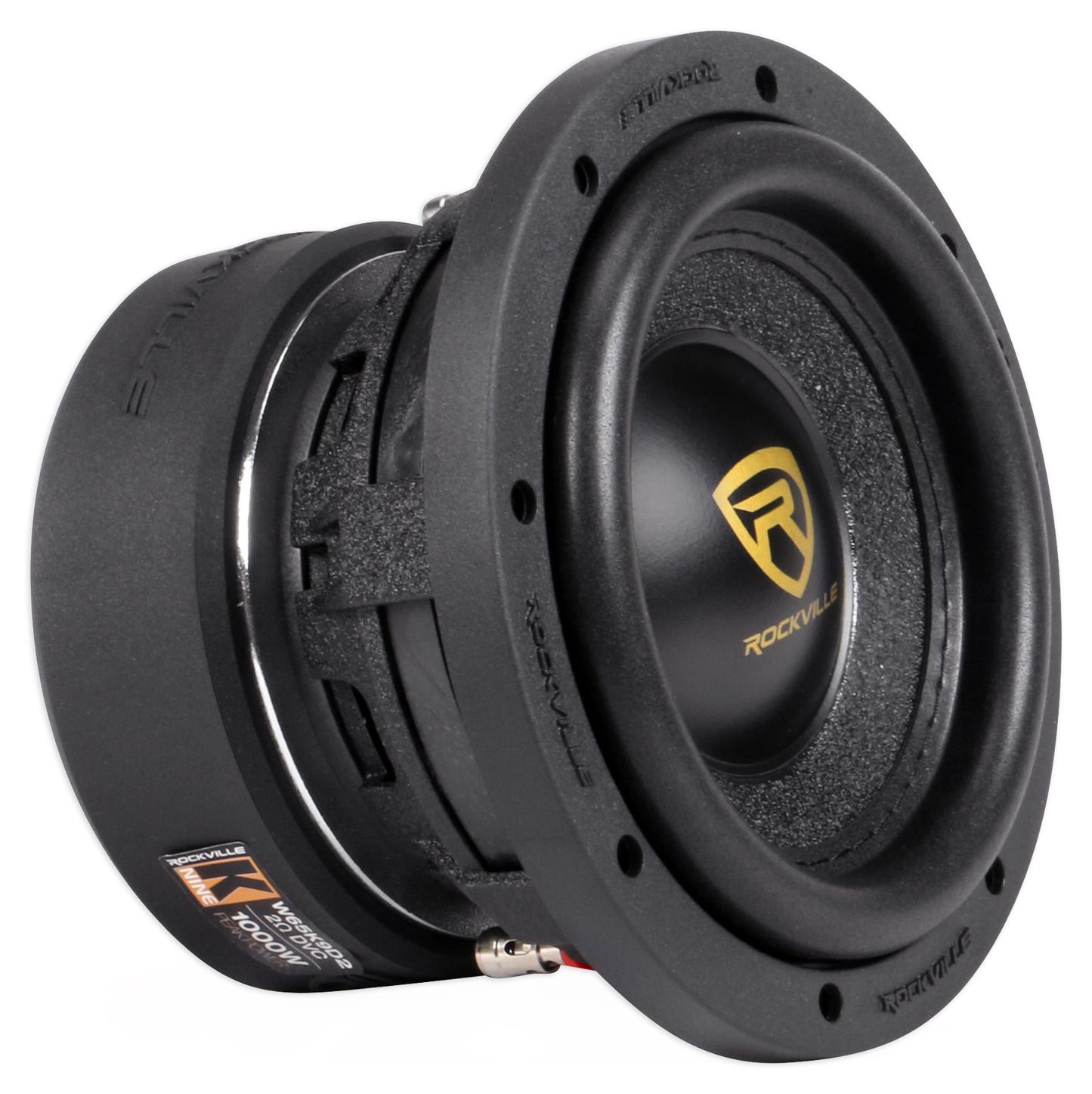

• Rockville W65K9D2 K9 Series 6.5" Dual 2-Ohm Car Subwoofer
• Peak Power Handling: 1000 Watts
• Program Power Handling: 500 Watts
• CEA Rated RMS Power Handling: 250 Watts
• 2" 4-Layer ASV Voice Coils Wound with OFC Wire Made in USA
• This voice coil is stable up to 180 degrees celcius! The voice coil windings are made in the USA!

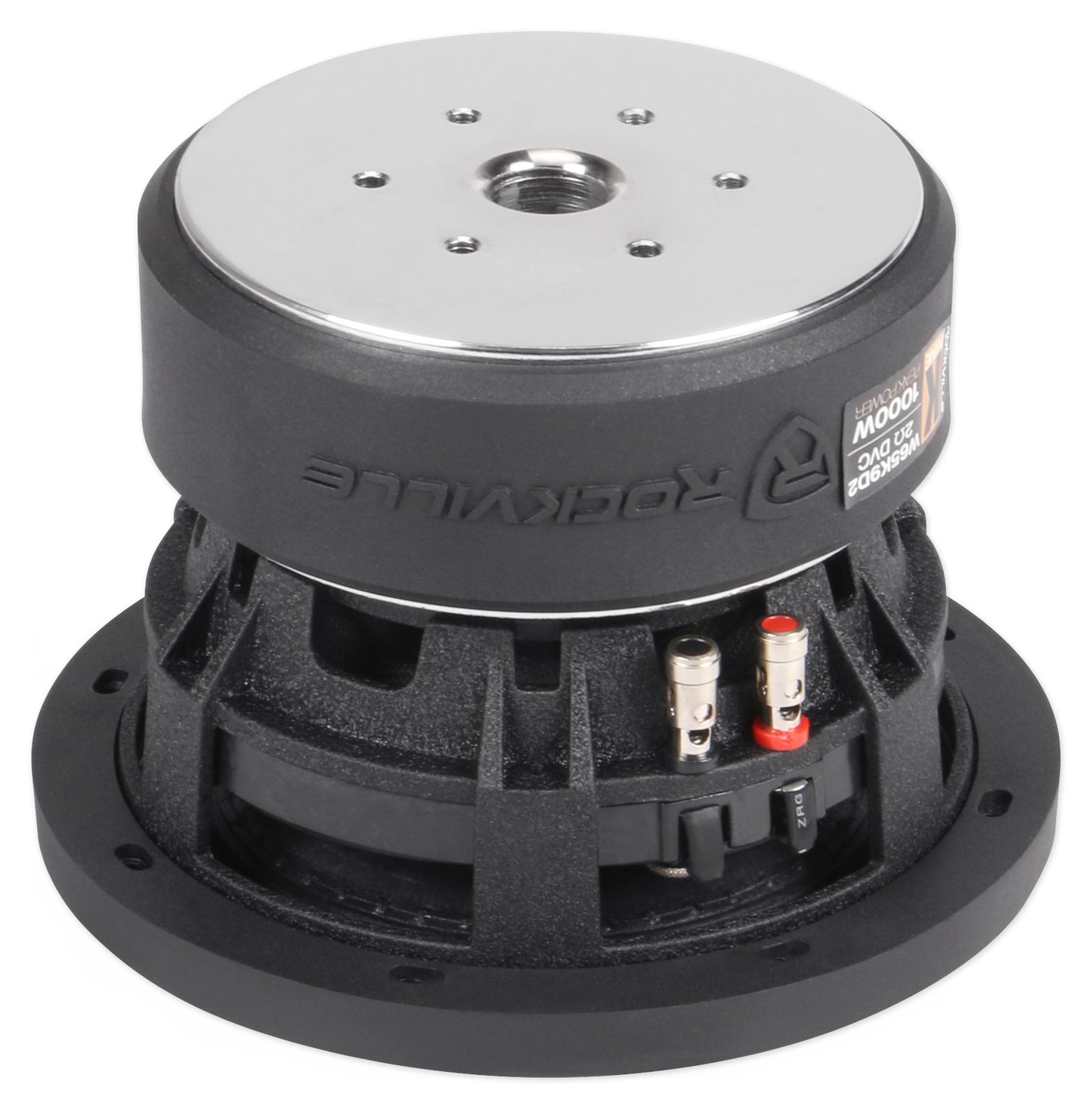

• Double Stacked 66 Oz High Quality Magnet
• Cast Aluminum Basket With Black Sanded Finish Makes This Sub Very Efficient And Lighter Weight

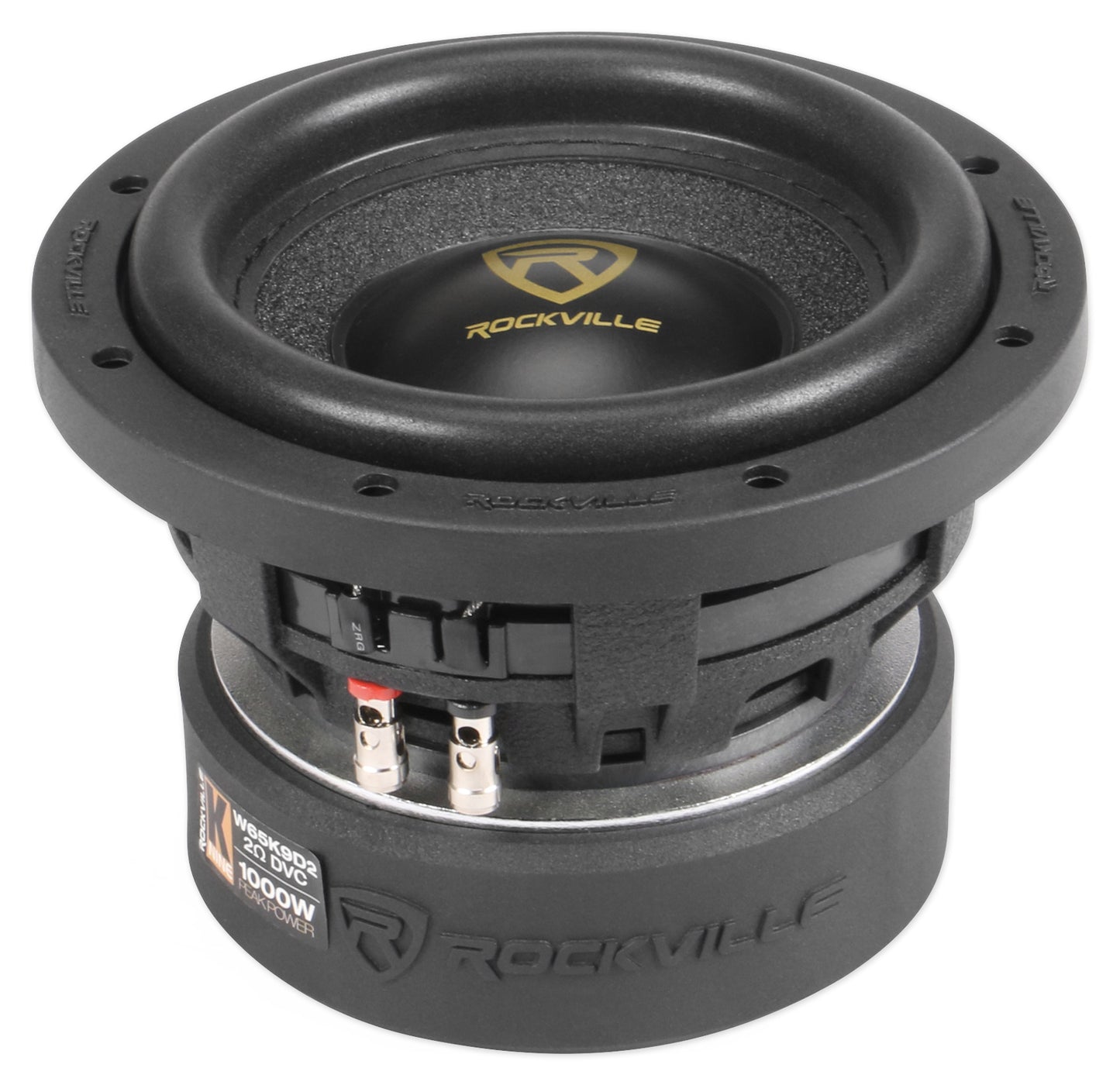

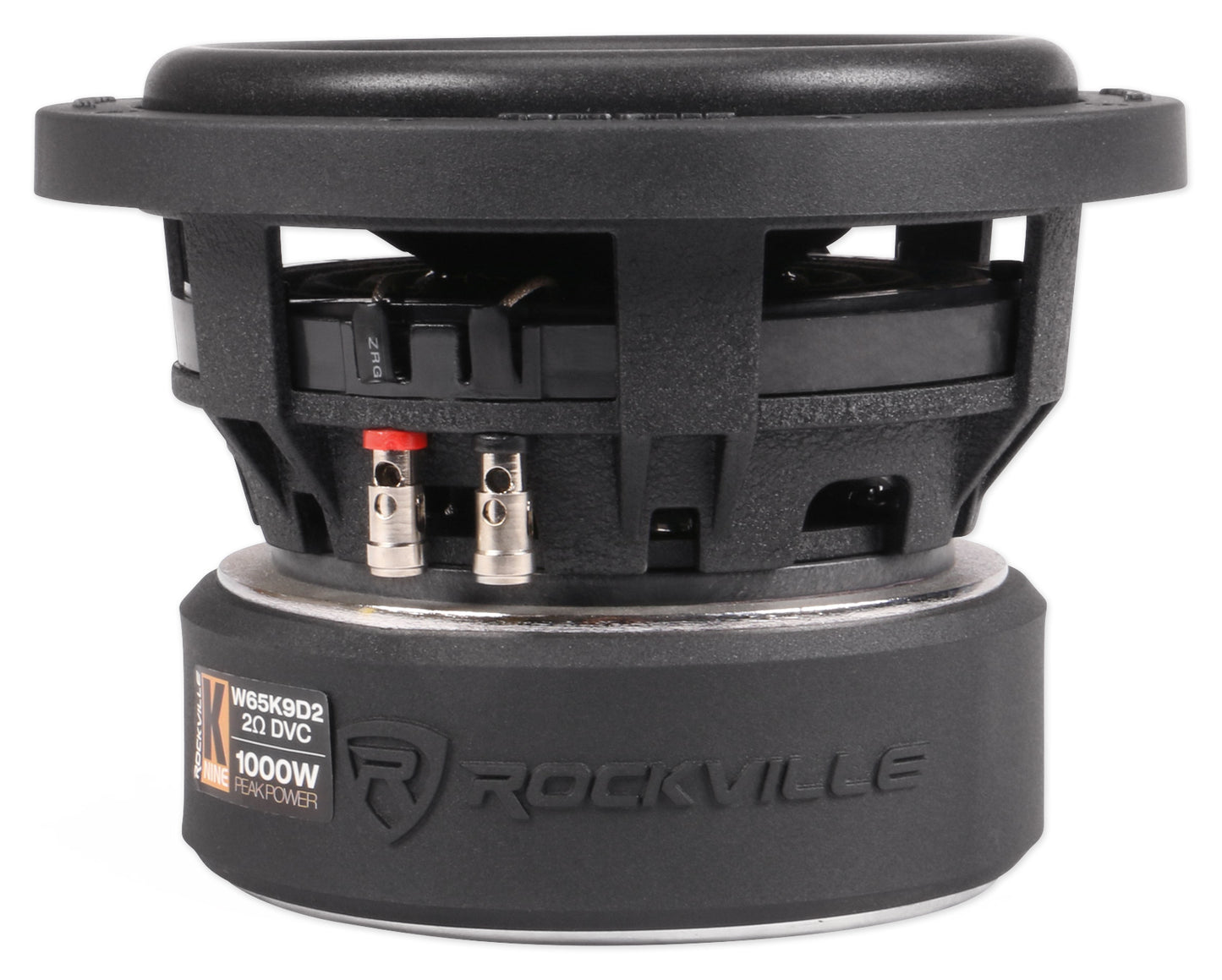

• Two Chrome-Plated Binding Post Terminals (These are the best terminals on the market and they accept any gauge wire and easy to connect, won't be oxidation)
• Black Non-Pressed Paper Cone With Beautiful Finish
• Our cones are ultra-stiff. They are thicker and stronger than other subs on the market making our subs able to handle more power.
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Black Stitching Cone Reinforcement Ensures Long Life
• New Ultra-stiff PolyPropylene (PP) Dustcap
• Impedance: Dual 2-Ohm Voice Coils
• Vented Hole on T-yoke Enhances Heat Dissipation
• Special Custom Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Custom Rockville Mounting Gasket Looks Beautiful and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use high grade glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
• Poly cotton spider with very good elasticity

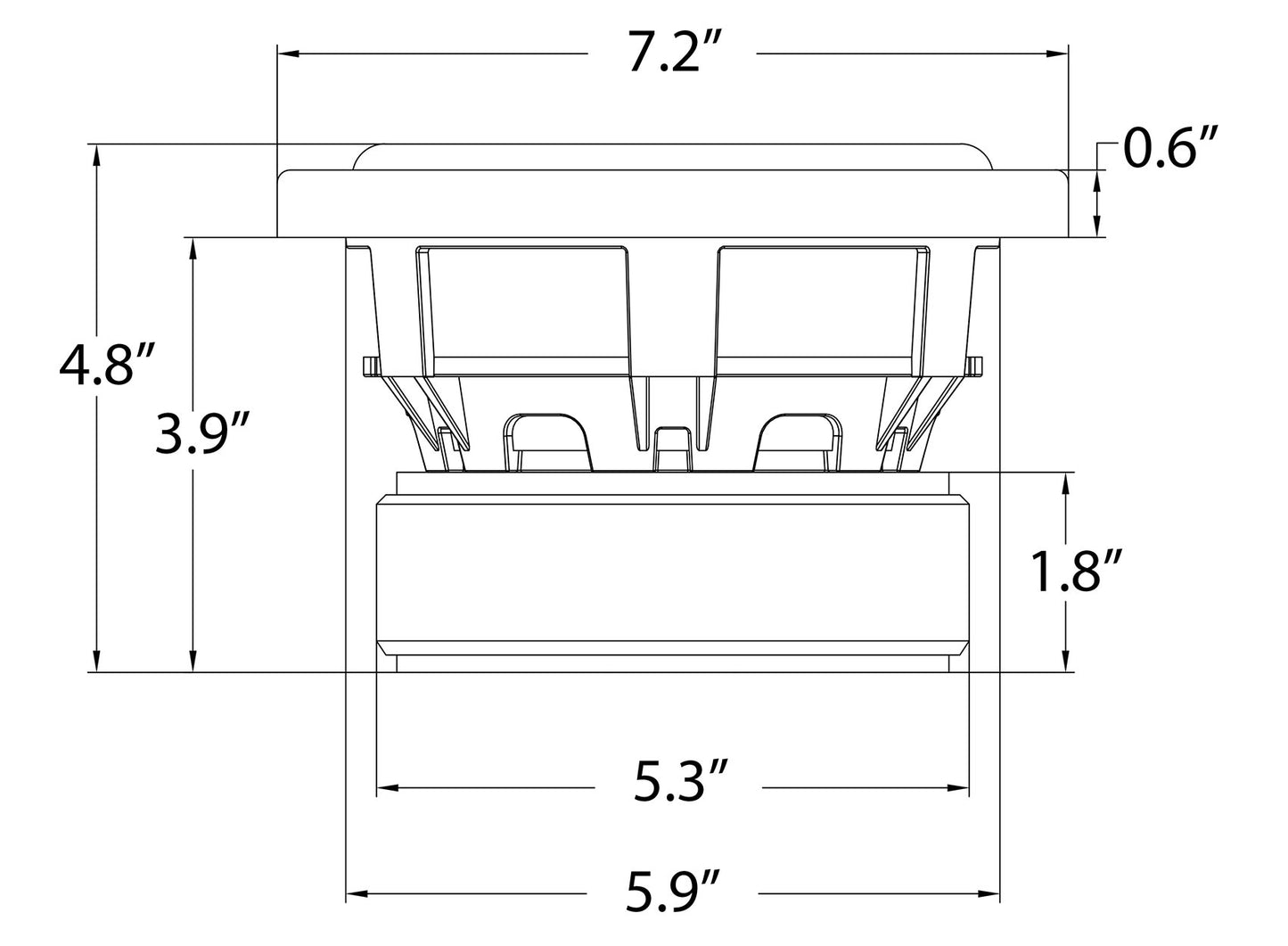

• Cutout Diameter: 5.94" inches
• Mounting Depth: 4.17" inches
• Frequency Response: 52hz-800hz
• 8mm T-Yoke + 8mm Washer
• Sensitivity: 82.1dB
• Sealed Enclosure Volume: 0.14 - 0.4 Cubic Feet
• Vented/Ported Enclosure Volume: 0.4- 0.7 Cubic Feet
• Weight: 9.92 Lbs.
• Shipping Weight: 12.13 Lbs.
• Shipping Box Dimensions: 9.84" x 9.84" x 9.65" Inches

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 56.4mm (2.22 inches)
• Gap Plate Outside Diameter: 127mm (5.0 inches)
• Gap Plate Thickness: 8mm (0.31 inch)
• Yoke Outside Diameter: 50mm (1.97 inches)
• Yoke Thickness: 8mm (0.31 inches)
• Yoke Pole Diameter: 127mm (5 inches)

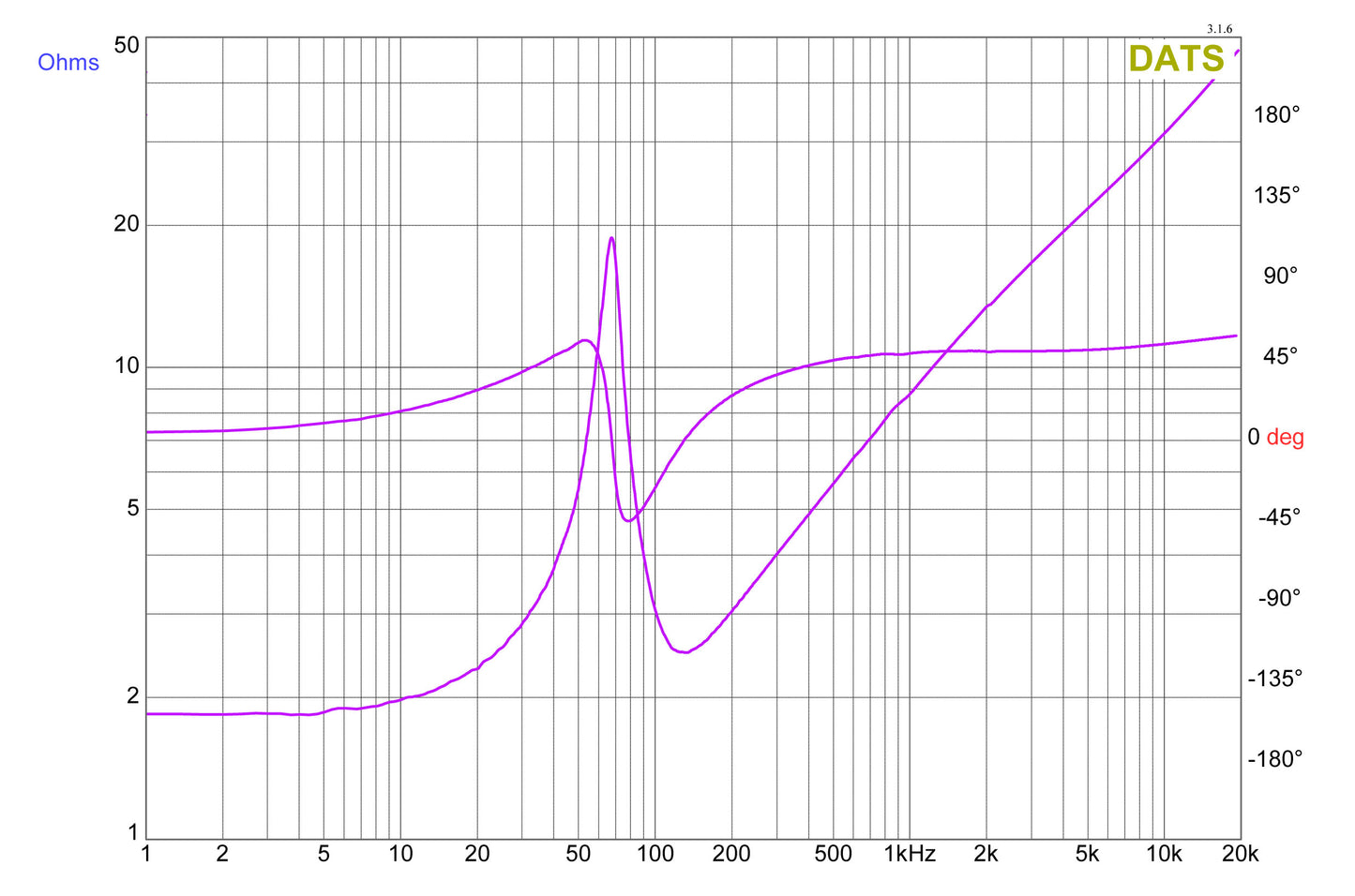

TS Parameters:

---

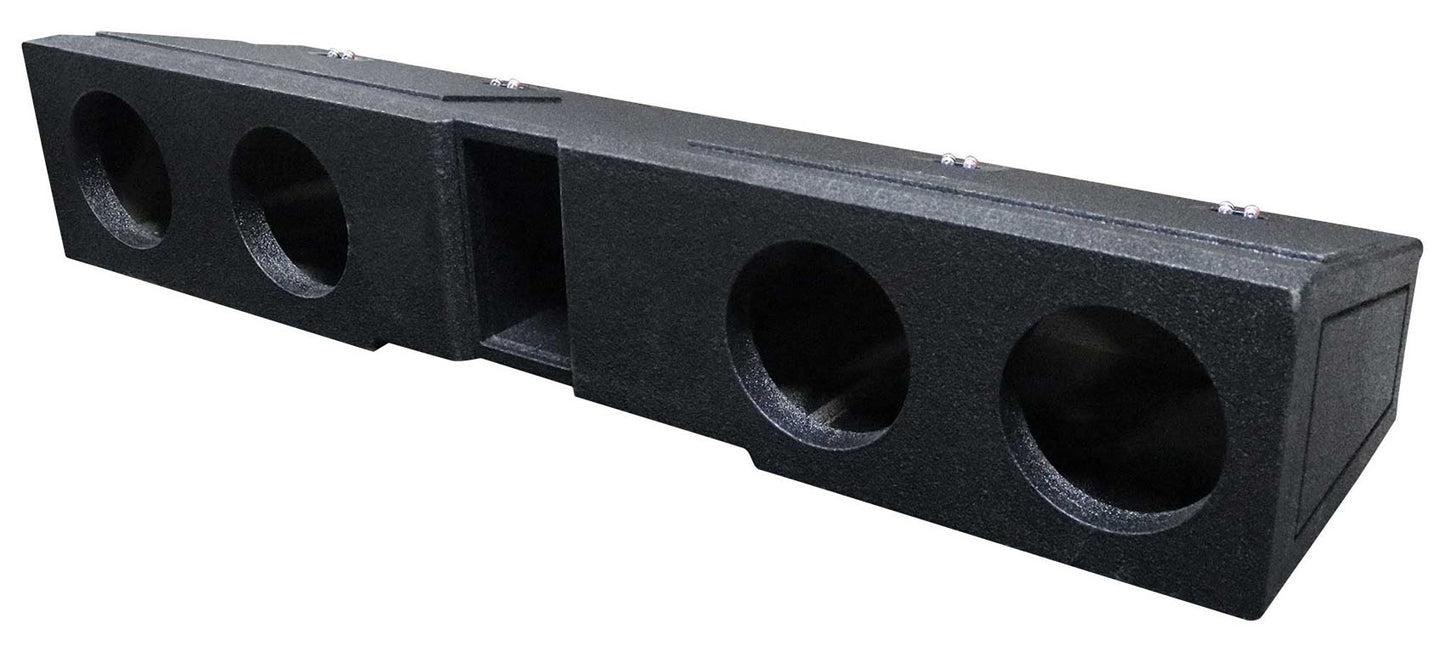

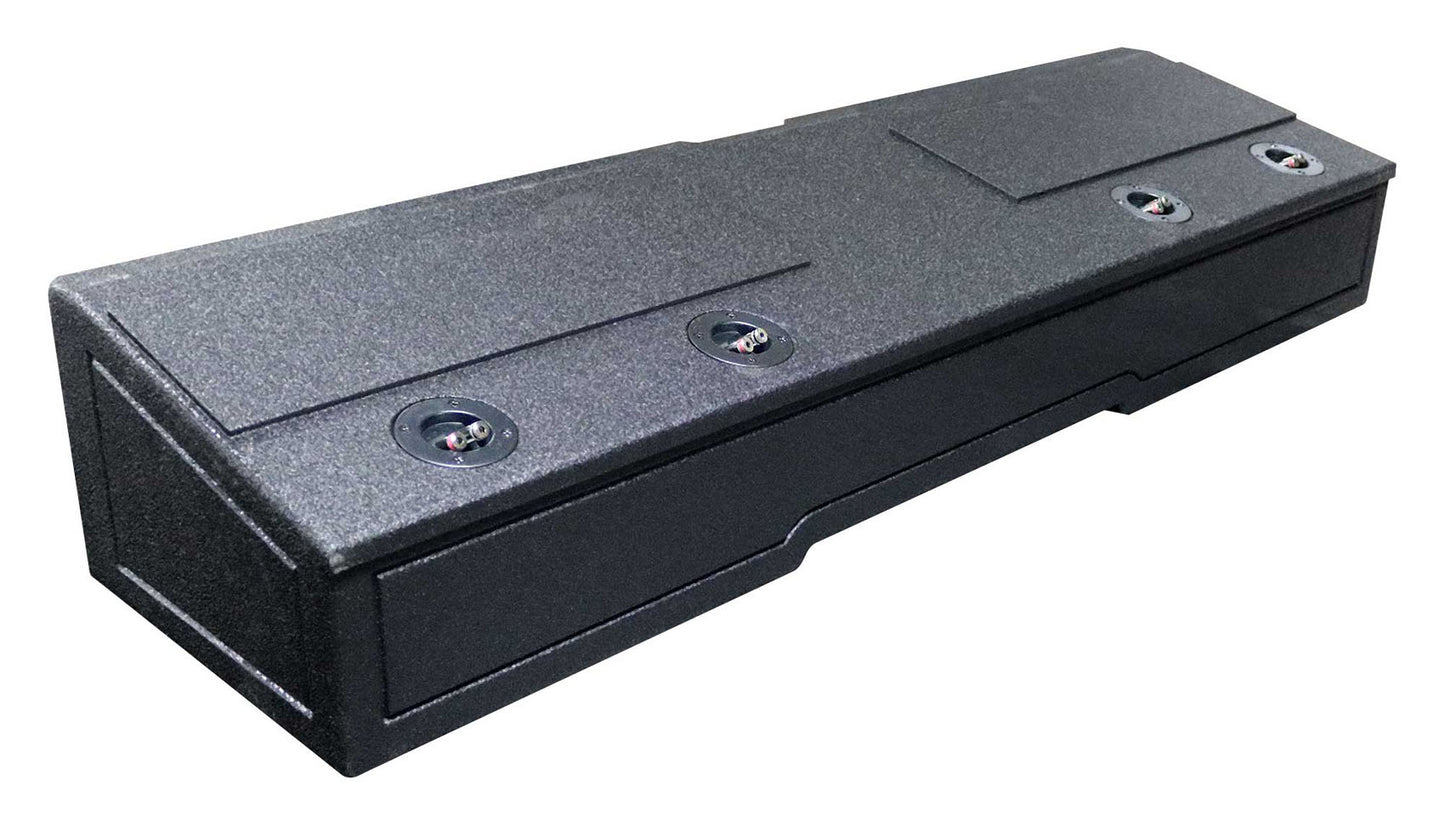

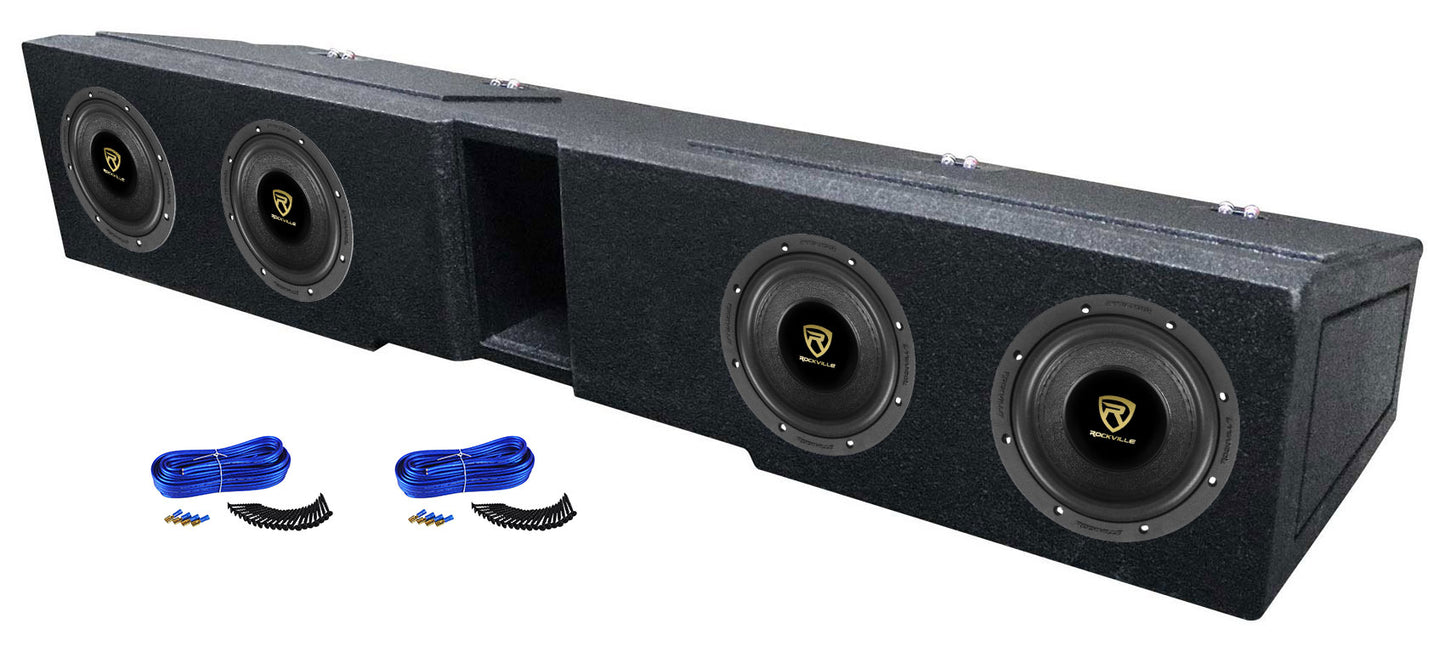

Description of REC130:

The REC130 speaker box is made in the USA with Grade "A" 5/8" MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The 5/8" USA MDF is much stronger than any type of import wood. This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you! EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn't enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more! MADE IN THE USA WITH PRIDE!

Features:

REC130 Quad 6.5" Ported Subwoofer Enclosure is Proudly Made In The USA, Using Only The Finest Quality materials - For The Best Level of Performance From Your Subs! This speaker box is custom designed for perfect fitment in a Chevy 2007-2020 Crew Cab. The 5/8" USA Heavy Duty MDF Construction Machine precision cut mounting holes Top of the line Glue for extra durable adhesion Designed, tested, and engineered to work with most of today's popular woofers. These enclosures are built with the quality additives needed to maximize the performance of any sound system.

Enclosure Measurements:

• Type of Enclosure: Ported Enclosure
• Sub Size: Quad 6.5
• Dimensions in Inches: 13.875" x 14.5" x 54.5"
• Mounting Depth: up to 11.25"
• Gross Volume Per Sub (Measurement for the outer dimensions of the box): .92 Cubic Feet
• Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 0.80 Cubic Feet

---

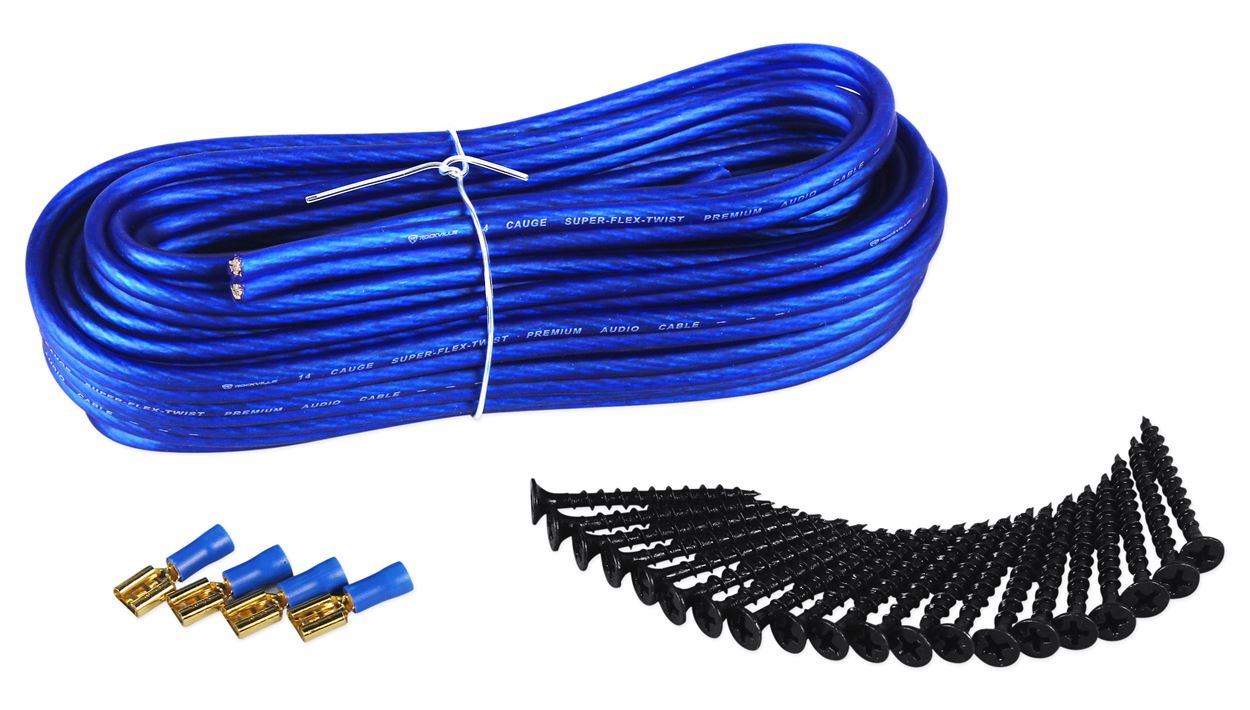

Complete Dual Subwoofer Enclosure Installation Kit!

Includes:

• 20 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 20 Feet of 14 AWG Blue Speaker Wire
• 4 Spade Terminals

This accessory package includes everything you need to install two subwoofers into an enclosure, and wire your enclosure to your amplifier. This package is a top of the line accessory package which we put together and tested.

The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure. The speaker wire is 14 gauge. This is way better than using 16 gauge. You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire. These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
