Video of RT5:

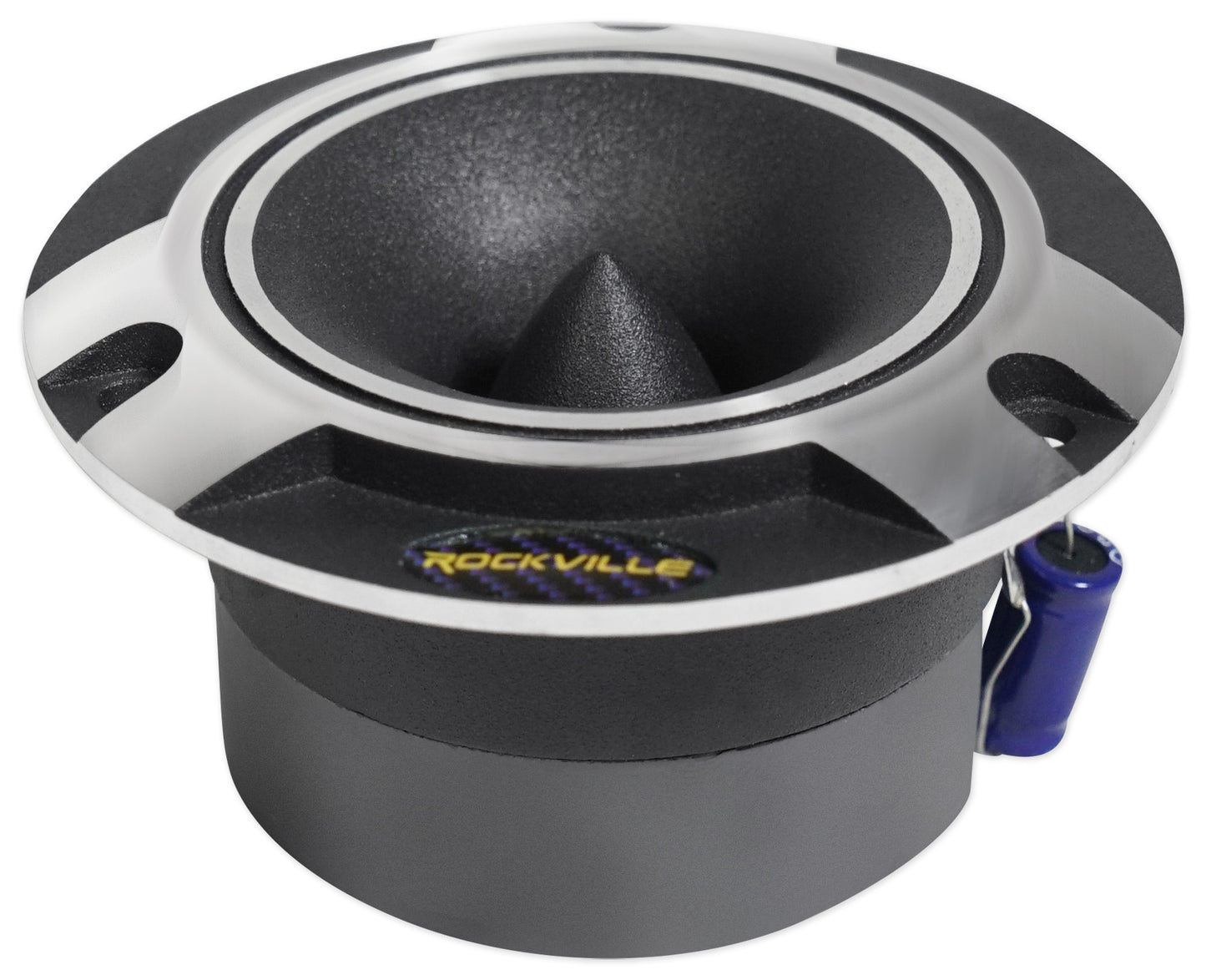

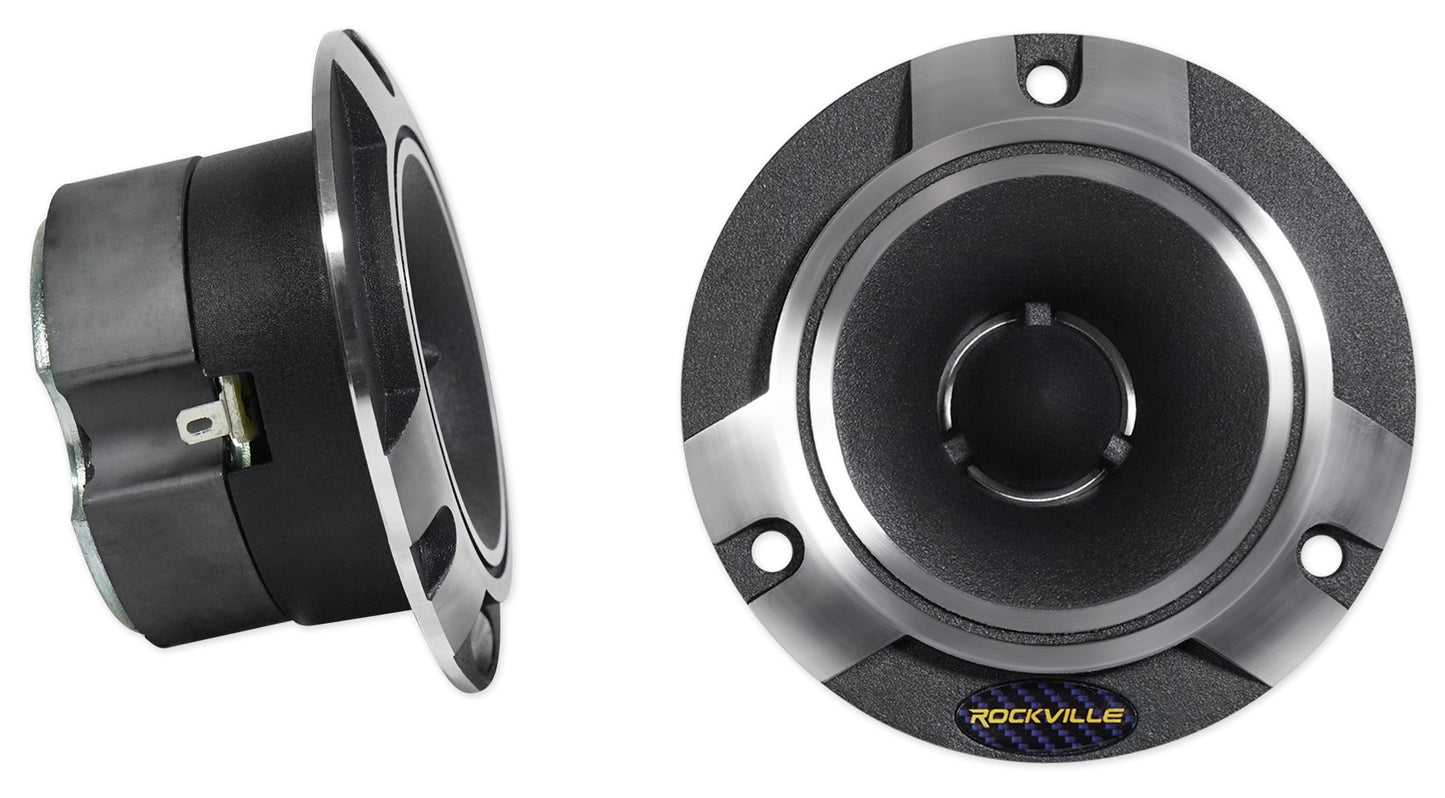

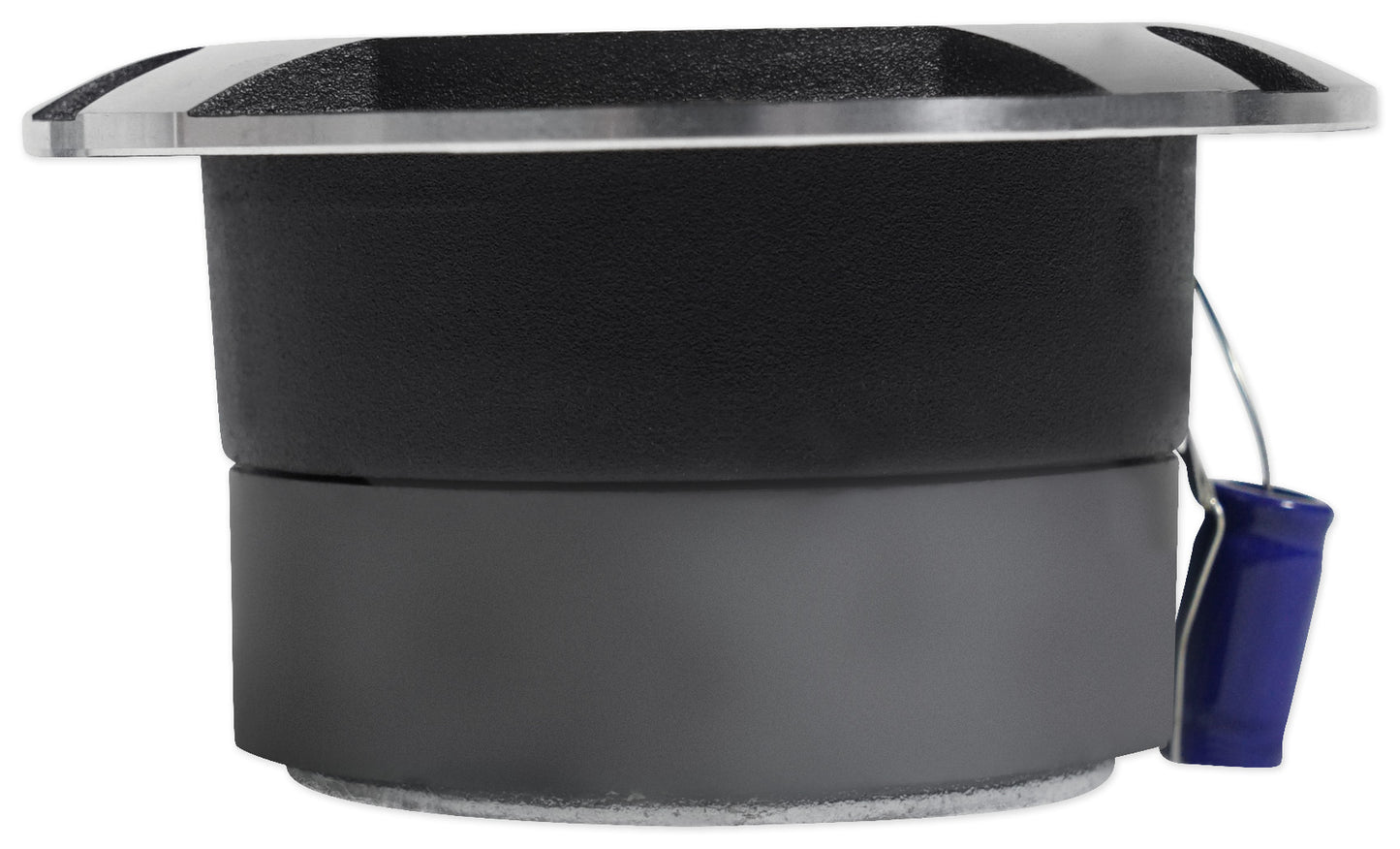

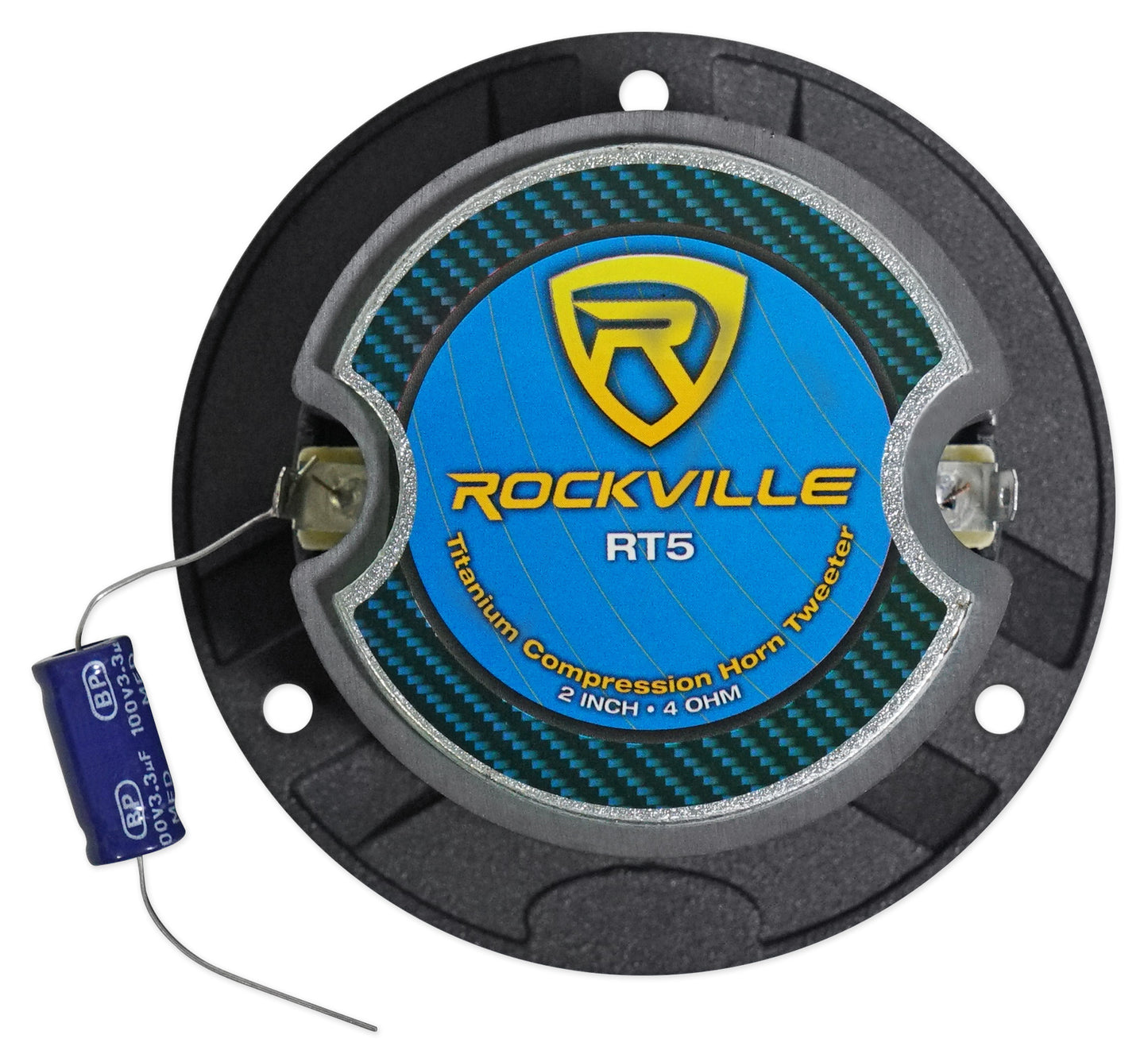

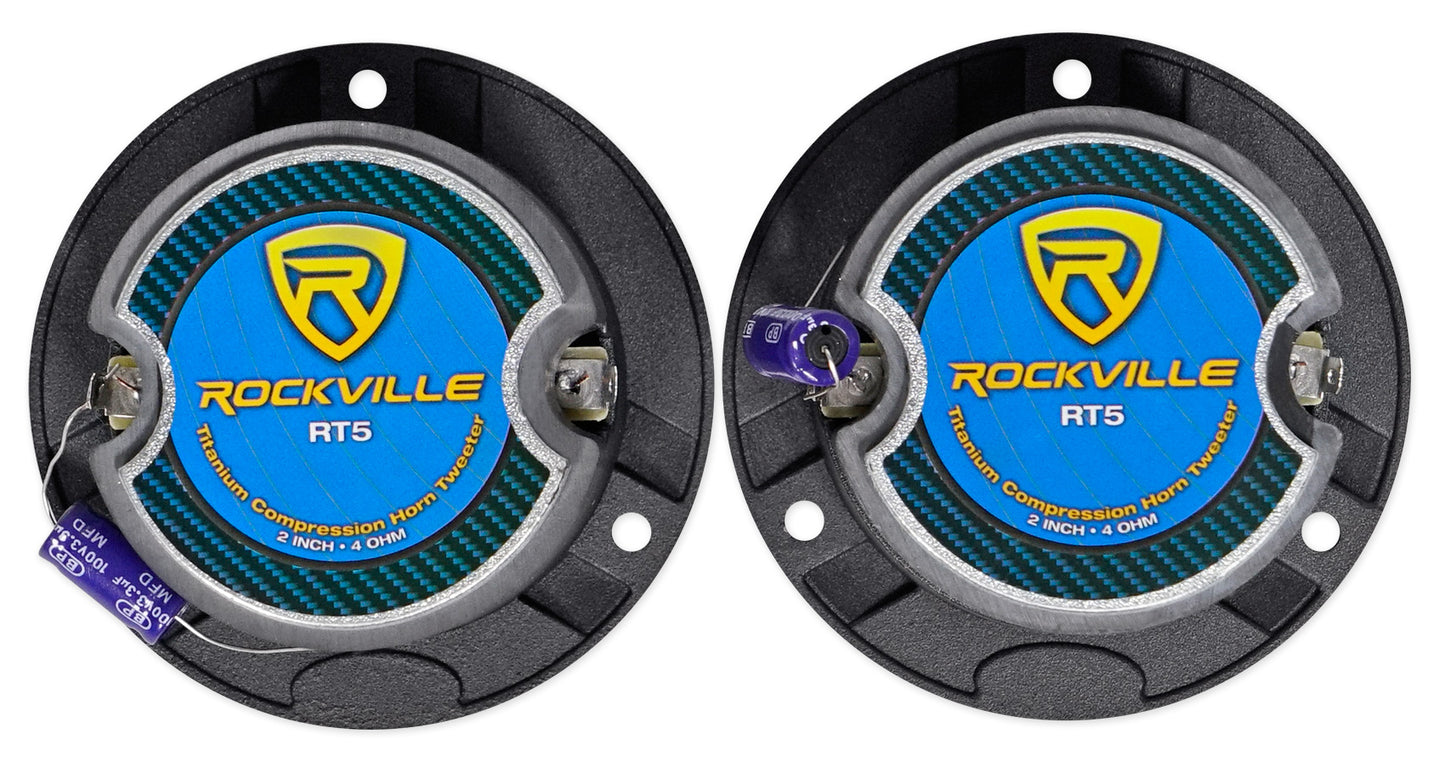

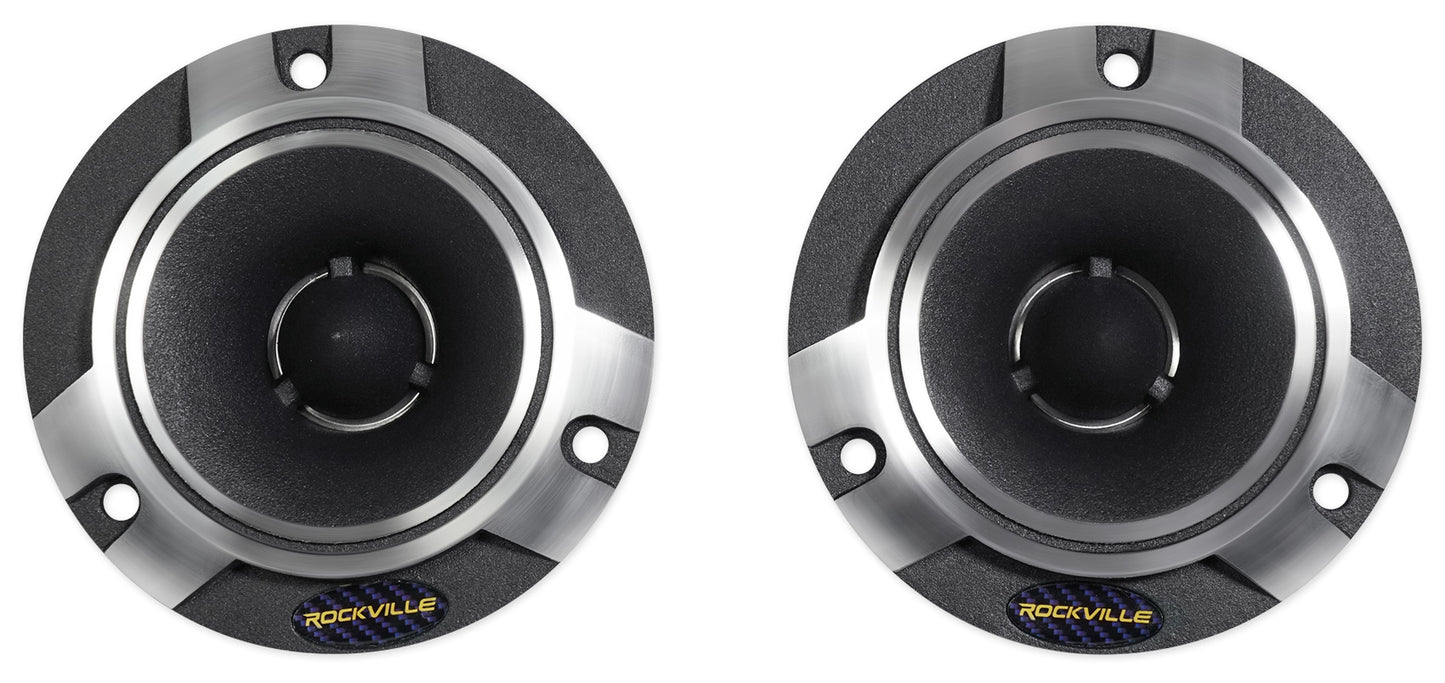

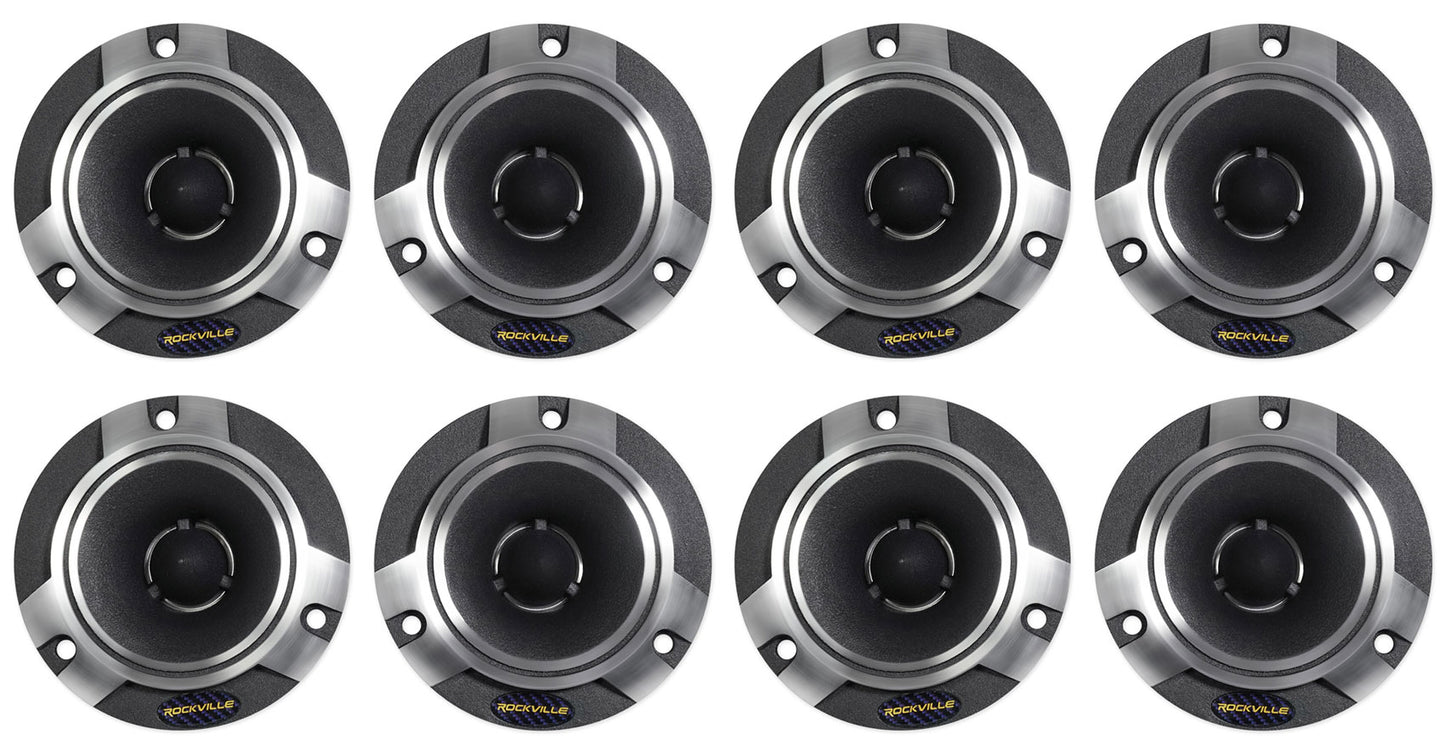

Price is for (4) Pairs of Rockville RT5 2.8" Aluminum Car/Pro Tweeters w Titanium Diaphragm+Kapton VC

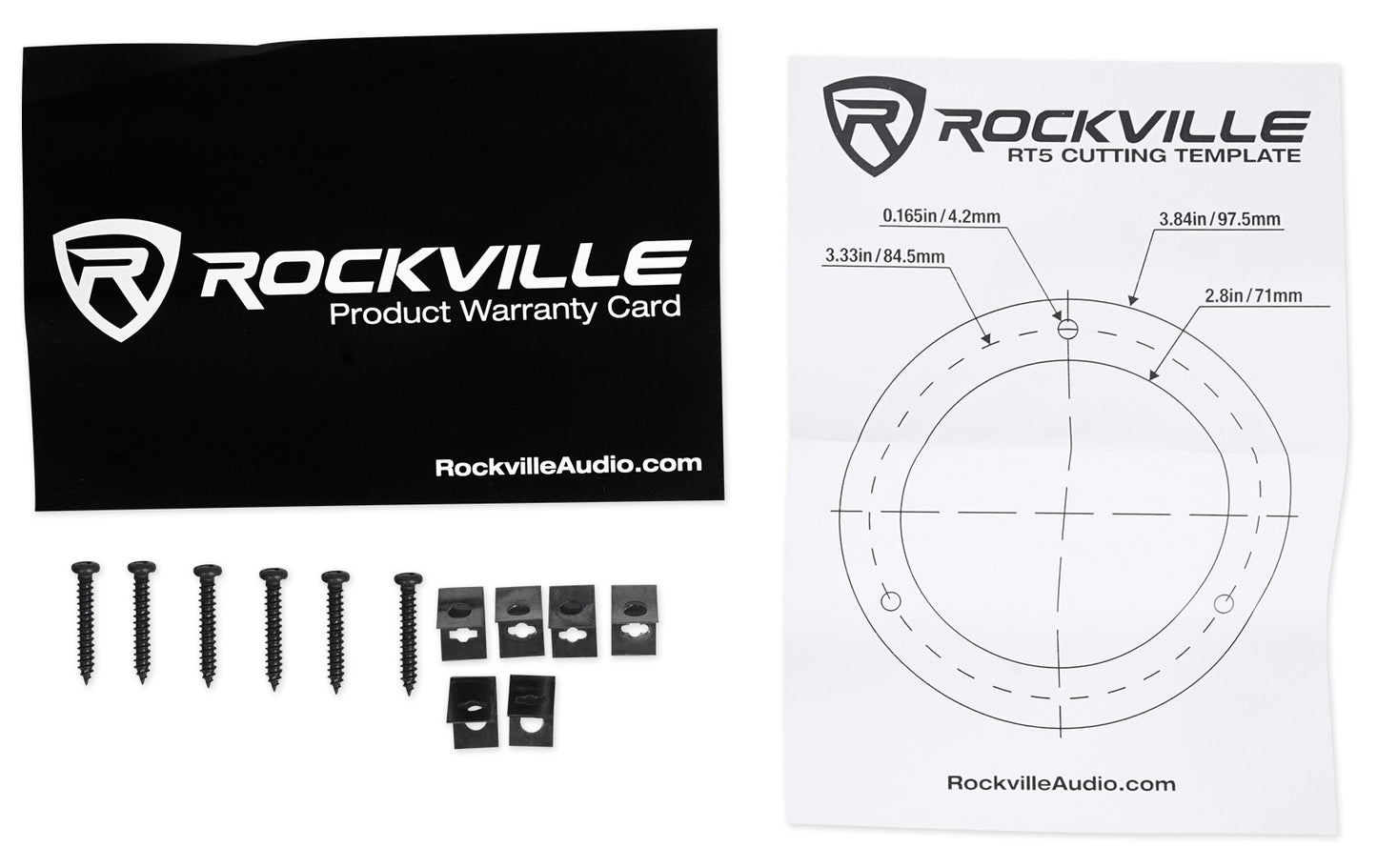

What's In The Box:
- (2) RT5 Tweeters
- Pre-Installed Mounting Screws
- Mounting Screws and Hardware
- Warranty Card
- Owner's Manual
Features:

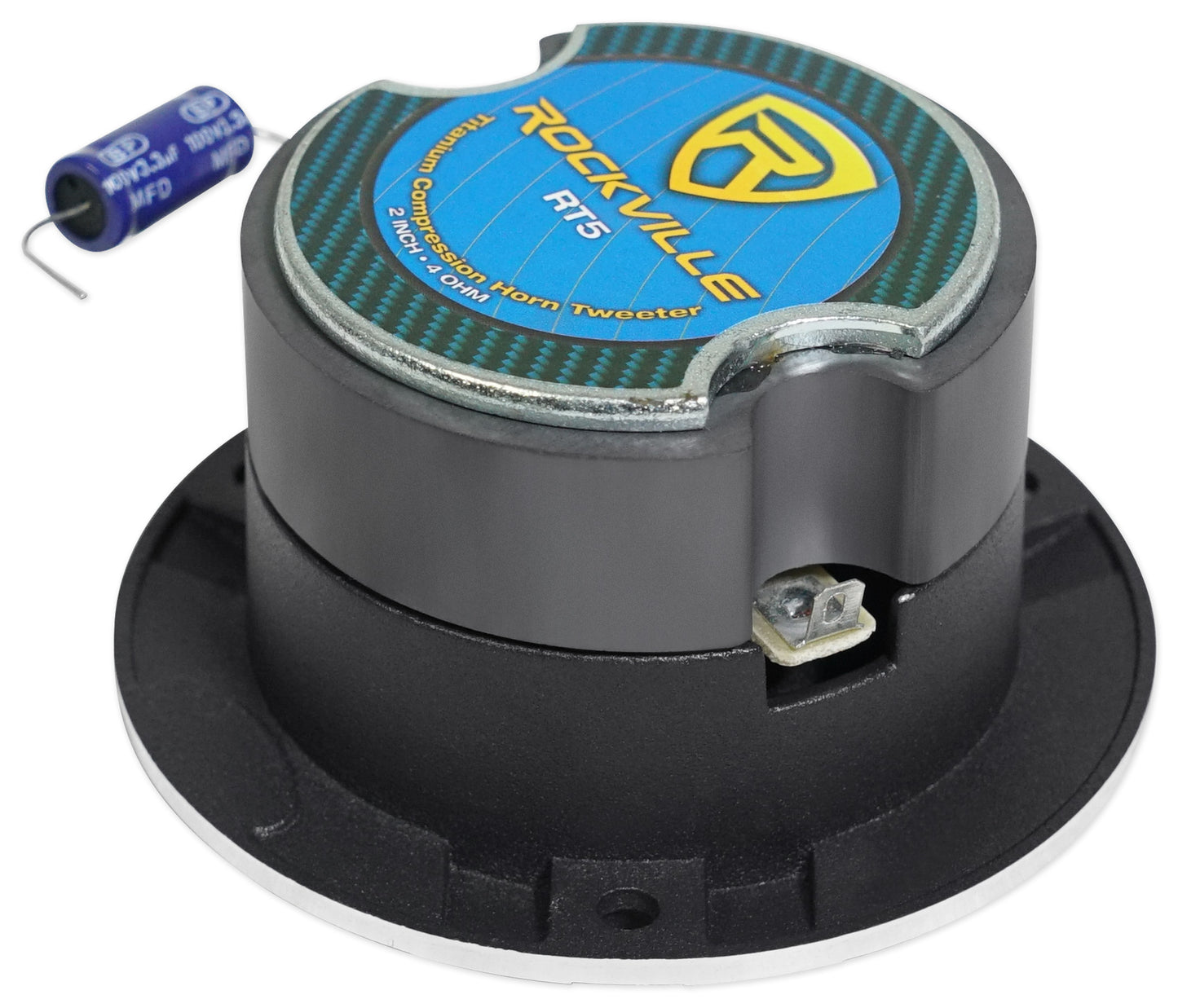

- Pair Rockville RT5 2.8" Aluminum Car/Pro Tweeters with Titanium Diaphragm and Kapton VC
- 1” High Temperature Die Cast Kapton Voice Coil
- Extremely loud and clear highs with an amazing frequency response that can even play some mids
- Ferro Fluid Enhanced Voice Coil Cooling
- Shallow Mounting Depth
- 10oz. Magnet
- Includes Mounting Hardware
- Impedance: 4 Ohm
- Cutout Diameter: 2.8”
- Mounting Depth: 1.66”
- Frequency Response: 2kHz - 20kHz
- Sensitivity: 96dB @ 1w / 1m
TS Parameters:
- Fo : 2.041kHZ
- Re : 3.6 OHM
- Qes : 11.995
- Qts : 2.74
- Qms : 3.551
- Krm : 11.224u Ohm
- Erm : 1.034
- Kxm : 1.531mH
- Exm : 0.592
Simple and quick tweeter installation:
1. Choose mounting location, typically rear deck or door
panel.
2. With the provided template cut a hole 2.8" in diameter make sure that you
have a minimum of 1.66" mounting depth.
3. Using the included hardware, screw the tweeter into your mounting location
1 YEAR
- UPC:
- 613815741268
