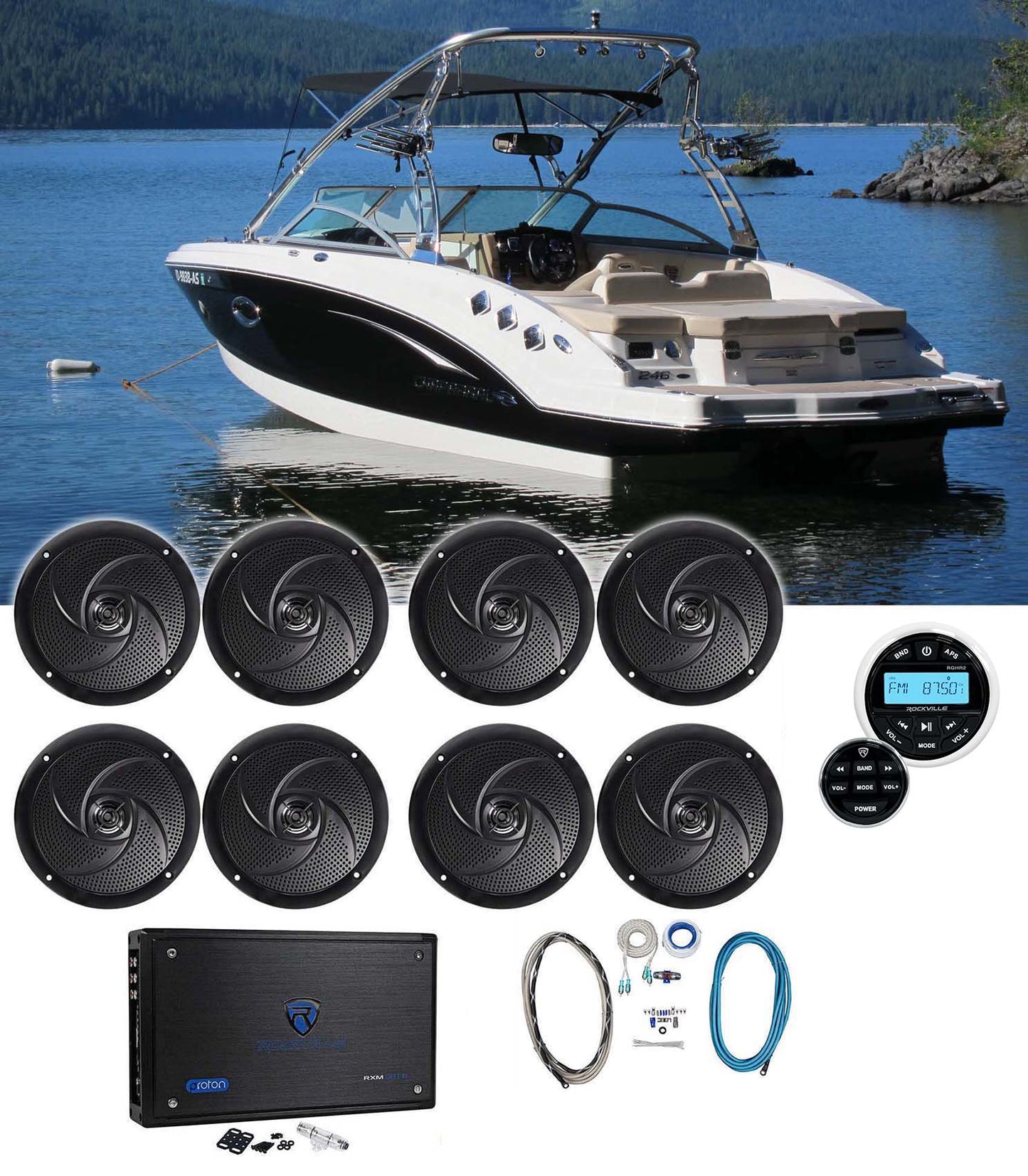

Package Includes:
- (4) Pairs of Rockville RSM65B 6.5" 1280 Watt Waterproof Shallow Slim Marine Boat Speakers
- (1) Rockville RXM8BTB 1500 Watt Peak/750w Dyno-Certified RMS Marine 8 Channel Digital Class D Power Amplifier with Bluetooth Wireless Integration
- (1) Rockville RGHR2 Marine Gauge Hole Receiver w Bluetooth USB, Radio + Wired Remote
- (1) Rockville RMWK4 4 AWG Gauge Waterproof Marine Amplifier/Amp Install Wire Kit
Video of RMS65:
Includes:
- Pair of 6.5" Marine Speakers
- Speaker Wire
- Mounting Screws
- Owner's Manual
- Warranty Card
Description of RSM65B:

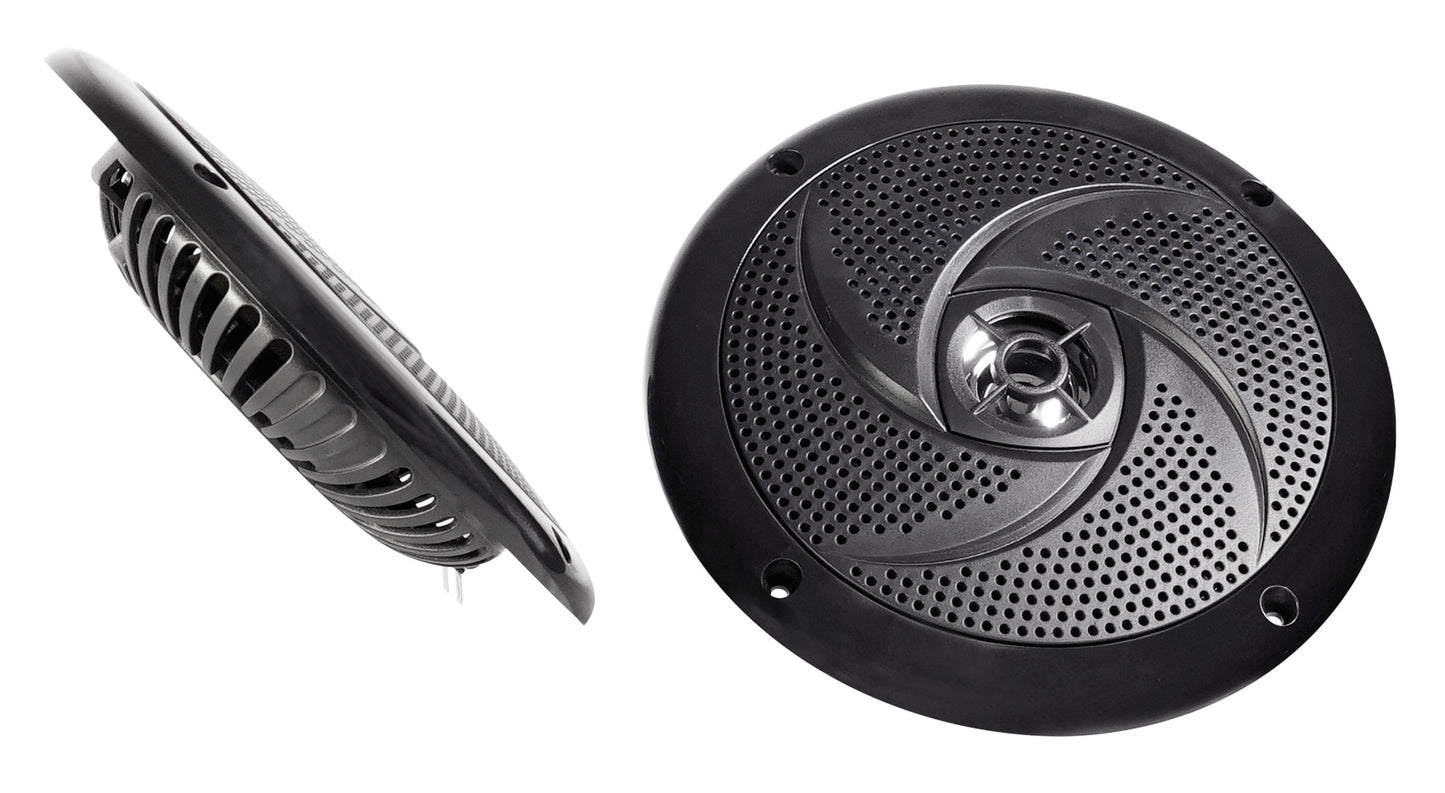

Rockville is proud to introduce the all new RSM65B Super shallow mount series of marine speakers. These speakers are the slimmest marine speakers available on the market and are perfect for Marine, ATV, UTV, Golf Cart, snowmobile and motorcycle application. They feature 160 Watts of power per speaker or 320 Watts per pair. The RSM65B is CEA rated which means the consumer electronics association recognizes them to be accurately rated and meets there rigorous standards for wattage, SPL, and frequency response so buy with confidence! These speakers have a lot more bass and mids than any other speaker on the market at this price point. You can compare them to top branded marine speakers on the market today!
The RSM65B speakers are completely waterproof and protected from the elements. They are UV treated and have a special waterproof coating to prevent water damage. Also these speakers come with a 1 year warranty to give you the peace of mind you deserve when purchasing from Rockville!
Rockville engineers care about quality and
sound more than anything else. The RSM65B was designed in a molded ABS plastic
basket. We use rubber surrounds on these to eliminate unwanted distortion. In
addition rubber is a very waterproof material. The low end bass and mids of
these speakers really makes them stand out.
These speakers come with everything you need for installation including pre
mounted grills, speaker wire and mounting hardware.
Features:
- Pair Rockville RSM65B 6.5" 320 Watt Waterproof Shallow Marine Speakers
- CEA Compliant Power Ratings
- Power Rating: 160 Watts Peak /40 Watts RMS Per Speaker
- 6.5“ Dual injection Cone Speaker System
- Fully Marinized Against Salt & Fresh Water Conditions
- Completely Waterproof and rustproof
- Molded ABS plastic basket
- Rubber Surround
- 1” Voice Coil
- 5.4 oz Y30 magnet
- Pre-installed mounting screws included
- Perfect for both marine, outdoor, and car use
- Impedance: 4 Ohms
- Frequency Response: 60Hz - 18KHz
- Sensitivity: 90 dB
- Total Diameter: 7.32” inches
- Cutout Diameter: 5.31” inches
- Total Height: 1.57” inches
- Mounting Depth: 0.925” inches
Video of RXM8BTB:
Description:

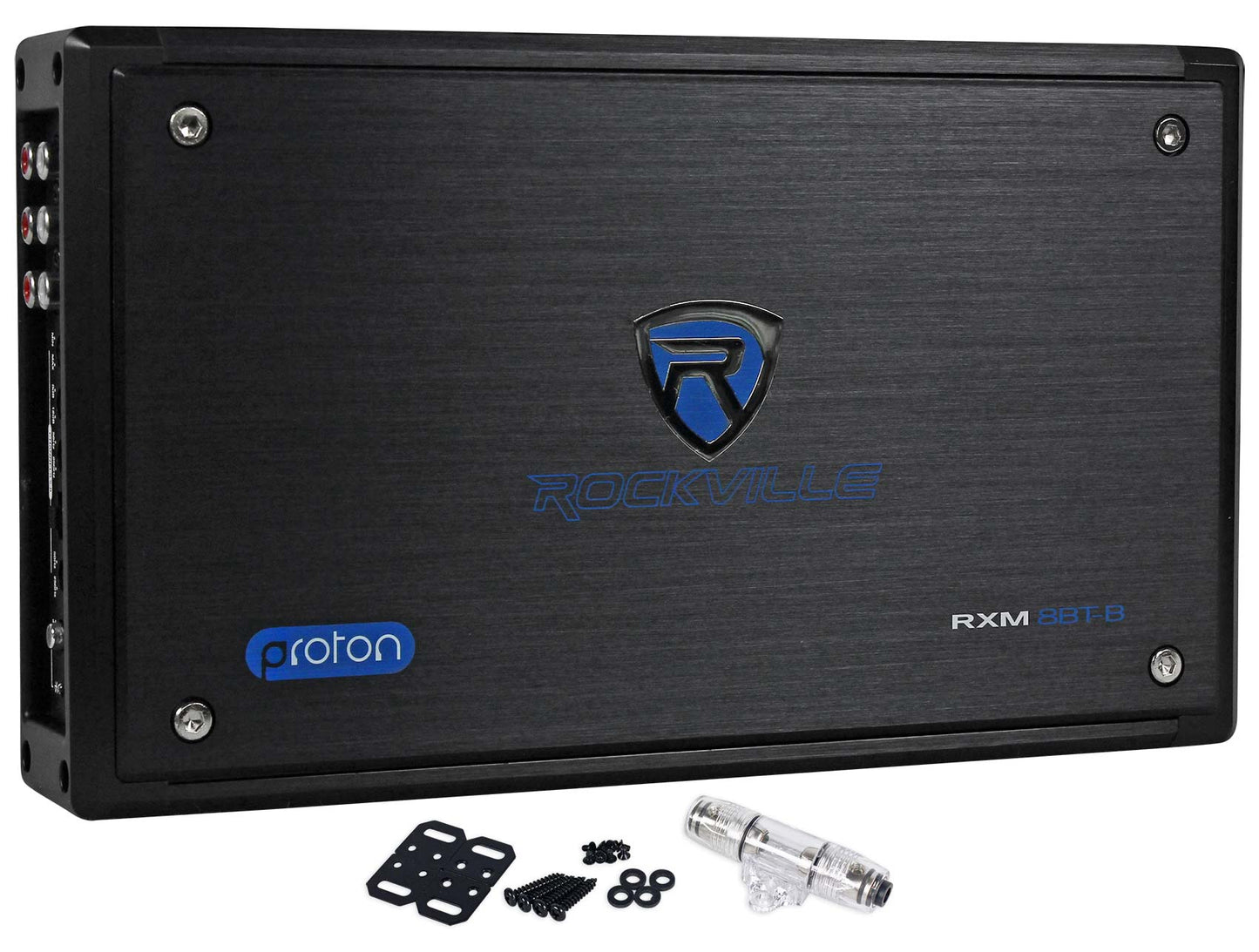

Rockville RXM8BT Marine 8 Channel Digital Class D Power Amplifier with Bluetooth Wireless Integration.
The Rockville Proton Series Marine
amplifiers are engineered with advanced technologies. These amps are a
full solution to your marine audio needs. Gone are the old days where
people bring CD's on their boat or listen to FM radio that cuts in and
out. Gone are the days where you need a receiver and multiple amplifiers
to power your speakers. Gone are the days where you have wires running
throughout your boat. Welcome to the marine system of the future! The
Rockville RXM8BT will change your life! This is an 8 channel amplifier
with Bluetooth built in! The Bluetooth will allow you to stream music
wirelessly from a Bluetooth enabled MP3 player or smartphone. Of course
the RXM8BT features "zero noise" RCA differential preamp inputs and
preamp outputs for system expansion. This means you can connect any
audio device through the RCA input. But it's the high quality Bluetooth
that will blow you away. It offers advanced streaming from almost any
music device. Now you can easily play your iTunes, Pandora, Rhapsody and
Spotify directly from your smart phone directly to all 8 channels of
your amplifier. Even more importantly though, is the capability of the 8
channel amplifier. We feel this is the best marine amplifier on the
market even if it did not have the Bluetooth capability which it has. It
offers more system flexibility and more power than anything even
remotely close to this price. I almost forgot to mention how good the
sound quality is.
The Rockville Proton Series Marine amplifiers utilize Texas Instruments patented switching technology to deliver class-leading sonic performance and extremely high power from what seems like an impossibly miniature package. The Proton Series' dimensions are made possible by its outstanding efficient class D design which is over 90%efficient. The result is more power in your boat with less current drain. Proton Series amplifiers are 2 ohm stable in stereo and 4 ohm in mono.There are so many options of configurations. Any 2 channels can be bridged to 1 channel. So for example, you can bridge 4 channels to 2 channels and still have an additional 4 channels remaining. You can simply plug 1 speaker to each channel. You can use 2 or 4 of the channels for subwoofers and the rest for your full range speakers. The configuration options are amazing with this amplifier. Whether you have 4 speakers, or 16 speakers, and whether you do or do not have subwoofers, this amplifier will power your system. With a smart auto thermal reset circuit, Proton Series amplifiers are almost impossible to shut down. When they get too warm, the thermal circuit reduces power by up to a third until they cool down enough to power up again at full power. And mixed impedances on different channels are no problem with the advanced rail voltage circuitry design.
This amplifier is so awesome I almost forgot to write about the most important thing. How much power the thing has. The short answer is a boatload!
But in all seriousness, this amplifier is extremely powerful. The true RMS ratings are 65 watts x 8 at 4 ohms or 95 watts x 8 at 2 ohms. This is the Dyno Certified RMS Power Ratings. In total this has 750 watts RMS and 1,500 watts peak output. There are not many marine amplifiers on the market with this much power. Other brands out there will rate their amps at thousands of watts but in reality are only a hundred or 200 watts. But this Rockville amplifier is legitimate and will produce or exceed its rated power. To prove the power; you can check the fuse rating. This amplifier is equipped with an 80A fuse. A general rule for 12 volt amplifiers is if you multiply the fuse rating by 10 that is close to the real power you will get. In this case that is 800 watts RMS (we rate it at 750w RMS since this is Dyno Certified). The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.
Utilizing the RCA preamp channels you can easily daisy chain a second amp for an almost unlimited number of speakers! But one amp in most setups will give you more than enough power and channels. This amp is a real marine amp and all the components have been fully marinized. It's resistant to both fresh water and salt water. The high quality surface mount (SMD) double sided PCB is conformal-coated keeping the board and components protected from the elements. All connections to speakers and RCA cables are 100% stainless steel to avoid any signal robbing corrosion. The RXM8BT is rated at 750 Watts RMS /1500 Watts Peak and is loud enough to literally power a boatload of speakers and subwoofers. So weather your plowing at full speed ahead, or just cruising around the lake, the Rockville Micro Marine Series amp will keep the music flowing with audio fidelity that high end audiophiles have come to expect and appreciate.Features:
- Rockville RXM8BTB 1500 Watt Peak/750w Dyno-Certified RMS Marine 8 Channel Digital Class D Power Amplifier with Bluetooth Wireless Integration
- Compact design and extremely high power (Do not be fooled by the compact size; this amp is a beast!!!)
- Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
- 1500 Watts System Power
- Peak Bridged Power Output at 4 Ohms: 380 Watts x 4 Channels.
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
- RMS Power Output at 4 Ohms: 65 Watts x 8 Channels
- RMS Power Output at 2 Ohms: 95 Watts x 8 Channels
- RMS Bridged Power Output at 4 Ohms: 190 Watts x 4 Channels
- Configurable to 8-6-4 channels or 4.2 System
- Bluetooth Wireless with Auto Pairing
- UV and Salt Water Resistant Paint, Silk Screen and Heat Sink Enclosure
- Marine-Grade Conformal Coated Boards Resist Corrosion from Salt Spray and Moisture
- LED Power and Protect Indicators
- TI Digital Class D Audio Topology
- High Speed MosFET Power Supply
- Studio Grade Bipolar Output Stage Transistors
- Micro Size Architecture with SMD Component Circuitry
- Compact Design and High Power
- Non-Corrosive High Gloss White Aluminum Casing
- Selectable Bass
- Non-Corrosive Brushed Aluminum Casing
- Conforms to the American Boat and Yacht Council (ABYC) Marine Electronic Standards
- Bass Equalization: Fully Adjustable 0 - 12dB at 45Hz
- 4-Way System Protection Circuitry (DC, Short, Thermal, Overload)
- Heavy-Duty Aluminum Alloy Heat-sink
- Stainless Steel RCA Level Inputs
- Stainless Steel Bolt Down Molded Terminals
- 4CH / 8CH Input Selector Mode
- Independent Crossover Controls between CH1-4 and CH5-8
- Full Range / Low Pass / High Pass Configurable
- Variable High-Pass Filter: 50Hz - 250Hz at 12dB/per Octave
- Variable Low-Pass Filter: 50Hz - 250Hz at 12dB/per Octave
- Frequency Response: 10Hz - 40KHz
- S/N Ratio: >100dB
- Minimum THD: <0.05%
- Damping Factor: >200 at 100Hz
- Input Voltage: 150mV - 6V
- RCA Line Output
- 80A Fuse rating!
- Channel Seperation: >60dB
- Input Impedance: 22K
- Dimensions 6.7" W x 2" H x 11.5" L
All about your RGHR2:
How To Set Up Your RGHR2:
Included in the box:
- Marine digital media receiver
- Wired remote with 32.8 foot wire
- USB extension cable (40 inches)
- Mounting bracket
- Screws
- ISO wiring
- Owner manual and warranty
Description:

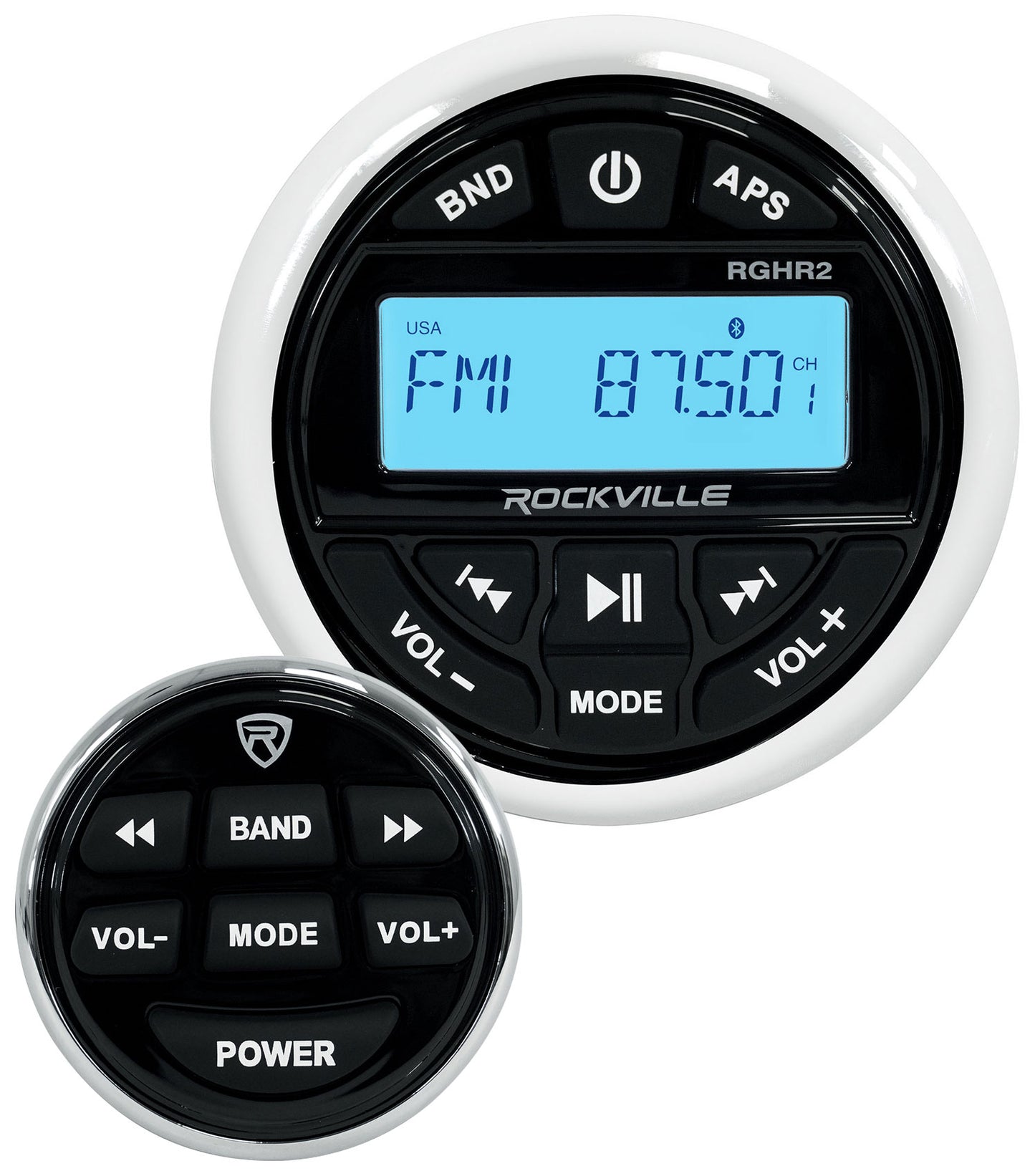

The Rockville RGHR2 is the best gauge hole receiver on the market. We developed this to give you the best sound and the best features.
Crazy loud!
We put in a built in amplifier that is louder than other marine receivers on the market. The RMS power of the built in amp is 28 watt x 4 channels! It is crazy loud and can be heard over the sound of the wind when you are on the water! There is also a built in EQ to customize the sound to your taste.
Included wired remote
Rockville is the only brand on the market that I know of that supplies a wired remote with your radio. The wired remote is a must have for any marine radio. This is great for boats and other powersport applications. We also include an extra long 32.8 foot wire so you will not need any additional extension cables.
Latest listening features
The RGHR2 gives you many listening options. The Bluetooth technology allows you to stream audio from your Bluetooth enabled phone or other music player to the receiver. Our Bluetooth distance is 50 feet! There is also a USB input allowing you to listen to music stored on a thumb drive. You can plug in any audio device to the auxiliary input. There is a built in radio with crystal clear reception as well.
Ability to connect multiple external amps
This receiver makes your system expandable. Two sets of pre-amp outputs allow you to hook up external amps for your speakers and/or subs. This has front and switchable rear/sub pre-amp outputs so you can amplifiy your speakers and a subwoofer amplifier.
Features:
- Rockville RGHR2 Weather Resistant Gauge-Hole Digital Media Receiver w/Bluetooth/USB/AM/FM
- Fits into a standard Gauge-Hole (Tachometer) Opening
- Built-in 72 x 4 Watt Peak high powered amplifier (28 x 4 RMS)
- Built in EQ with preset EQ curves (Pop, Class, Rock, Flat)
- IP66 Waterproof Certification (Tested to withstand the elements)
- USB Input to play back audio files store on a USB thumb drive or any other USB device
- RCA Aux Input
- AM/FM Radio Built In with 18 FM and 12 AM presets + US and European tuning
- Bluetooth built in to stream audio from any Bluetooth enabled device
- USB Input Charges Your Phone
- Two Sets of RCA Outputs (Front and a switchable rear/sub) allow you to connect external amplifiers
- Big easy to use buttons
- Backlit LCD display
- Wired Remote Control Included (normally $50)
- Required cutout: 2.96" (diameter) x 2.75" (depth)
- USB is 500mA and 5V and supports 16GB max
- Dimensions:
- 2.96" cutout mounting diameter
- 4.45" diameter top plate
- 3.9" mounting depth (not including top plate)
- 5.0" depth including the top plate
- Specs of the built in amplifier:
- TDA7851L quadbridge power amplifier
- 4 x 72 watts peak @ 2 ohm
- 4 x 48 watts peak @ 4 ohms
- 4 x 28 watts RMS @ 4 ohms
- Highly efficient even when running at 2 ohms!
- Low distortion even at top volumes
Features:

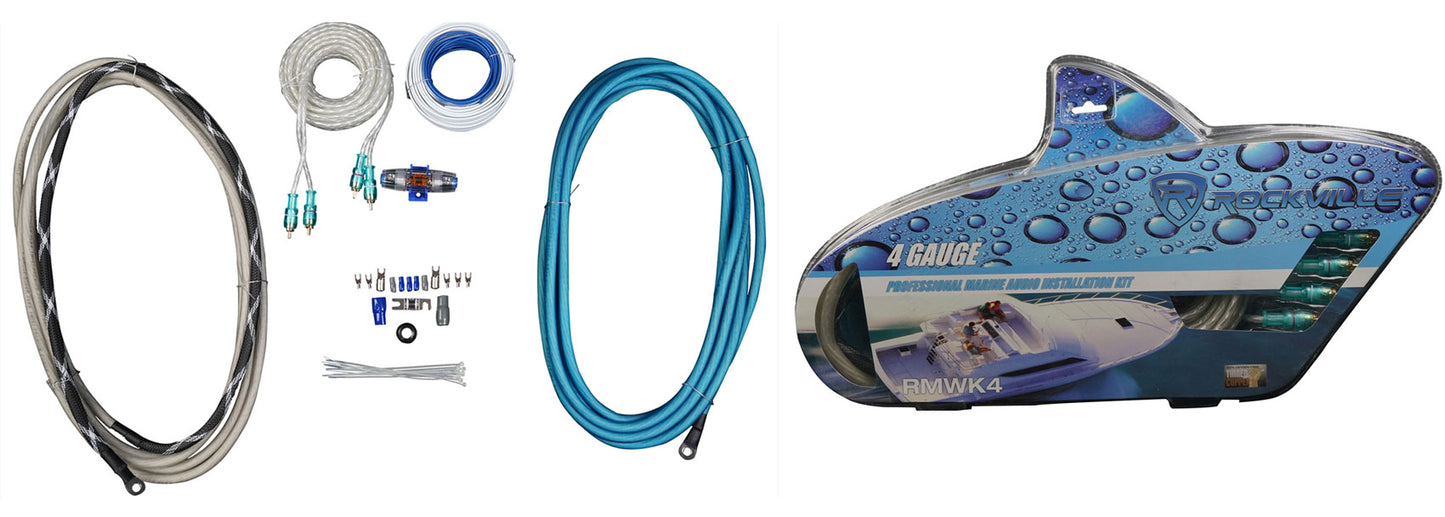

- Rockville RMWK4 4 AWG Gauge Waterproof Marine/Boat Amplifier Wire Installation Kit
- 20 ’ Translucent, Twisted Pair, High Quality, Tinned-OFC Flexible PVC RCA Cable
- 18’ 4 Gauge High Current, Low Impedance, Clear Flexible Power Cable with 3’ Black Poly Woven Mesh to better resist chemicals in the battery compartment
- 18’ 4 Gauge High Current, Low Impedance, Light Blue, Flexible Ground Cable
- 25’ 16 Gauge 100% Tinned-CCA, White, Non-Transparent Resin PVC, Flat Speaker Cable
- 25’ Blue Remote Wire
- (1) Silver Mini-ANL Fuse Holder – Clear Shell and Clear Blue Bottom Bracket with Blue Waterproof Ring
- (1) 120A Mini-ANL Fuse
- (1) 80A Mini-ANL Fuse
- (2) Ring Terminals
- (2) Spade Terminals
- (5) Speaker Cable Terminals
- (1) Washer
- (10) White Cable Ties
- UPC:
- 613815760375
