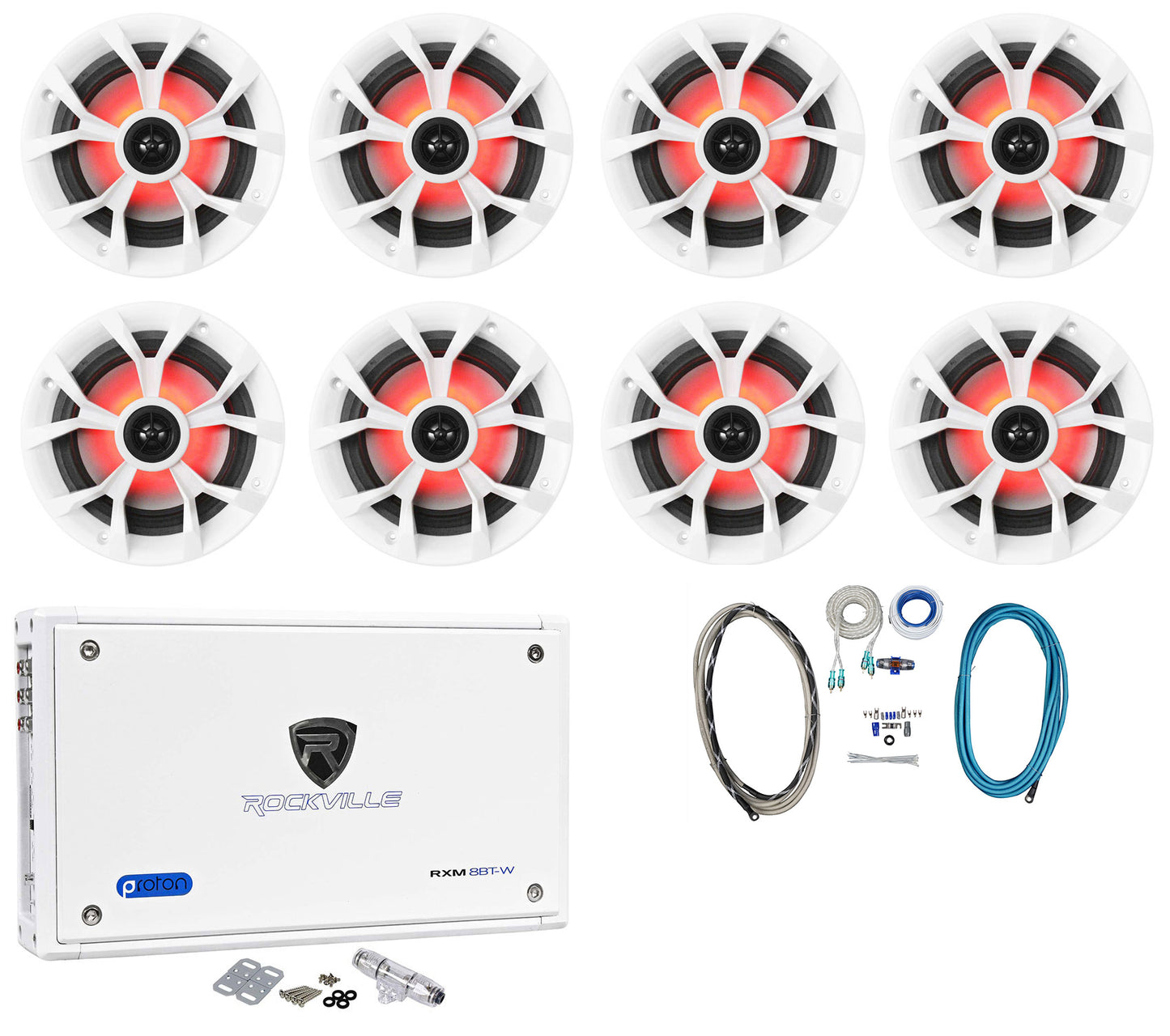

- (4) Pairs of Rockville RKL65MBW 6.5" 700w Marine Boat Speakers w/LED+Black/White Grilles
- (1) Rockville RXM8BTW 1500w Peak/750w Dyno-Certified RMS Marine 8 Channel Digital Class D Power Amplifier with Bluetooth Wireless Integration
- (1) Rockville RMWK4 4 AWG Gauge Waterproof Marine Amplifier/Amp Install Wire Kit
All About RKL65MBW:
How To Install Kick Panel Speaker Pods In A UTV:

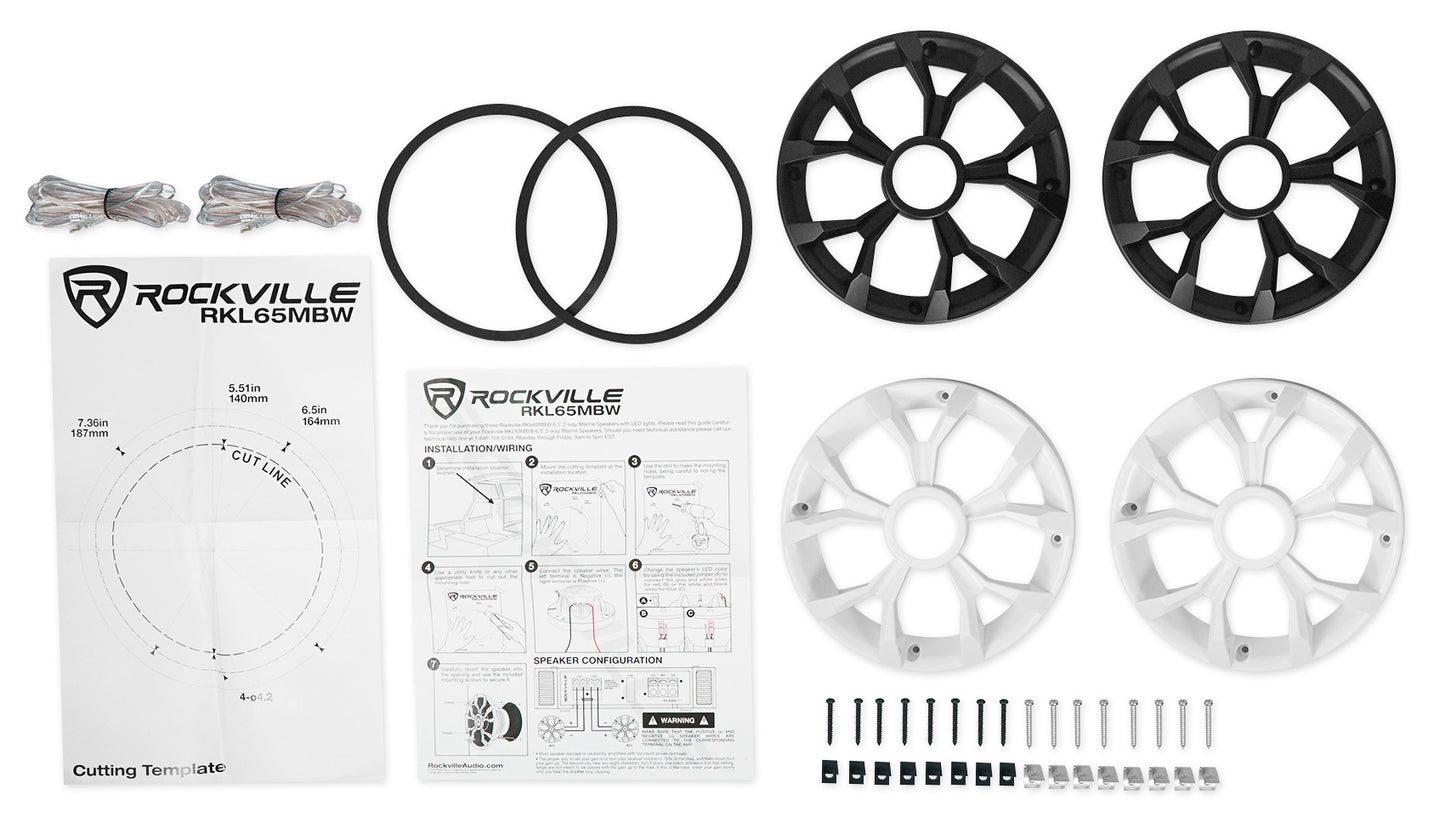

Includes:

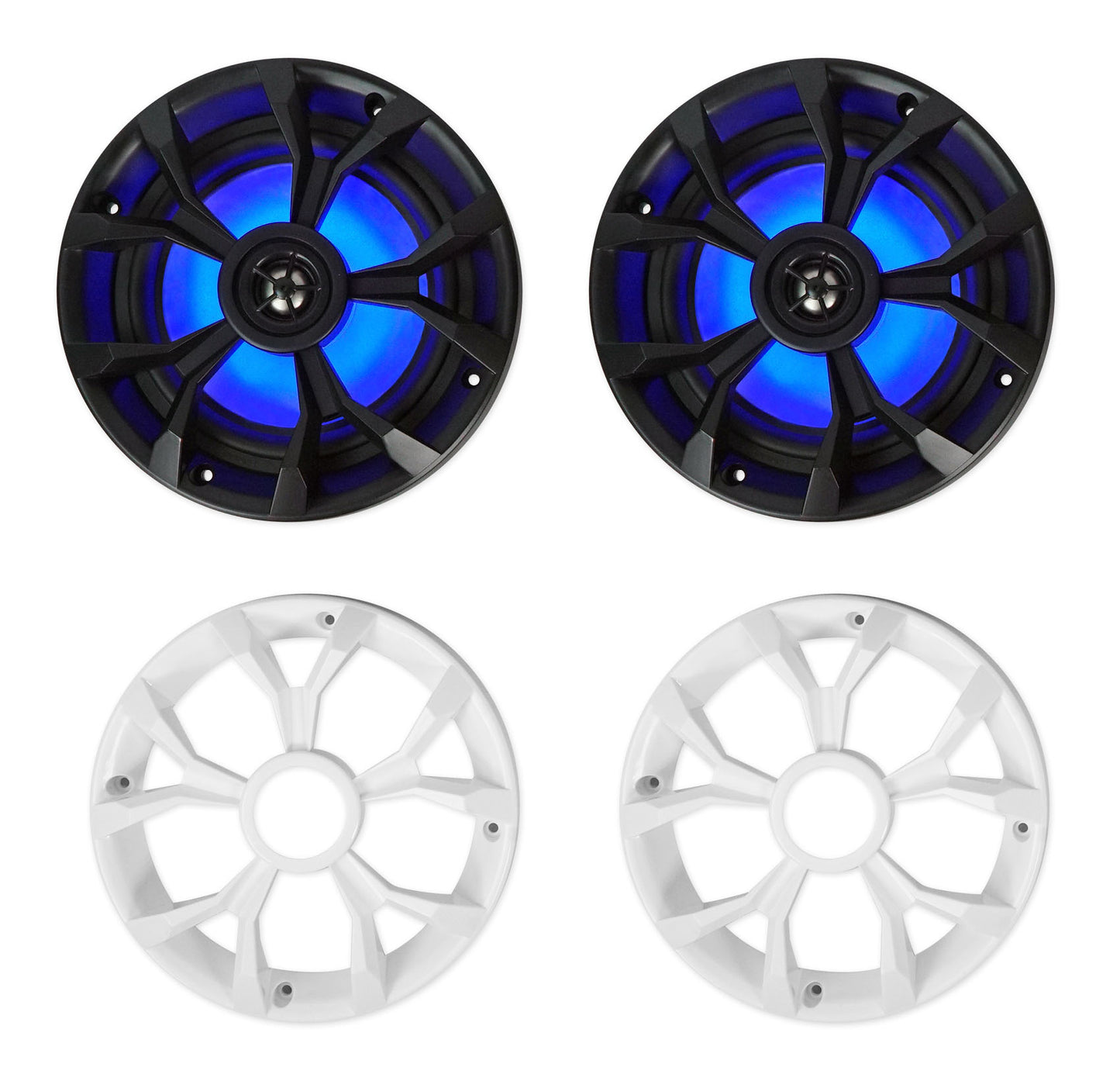

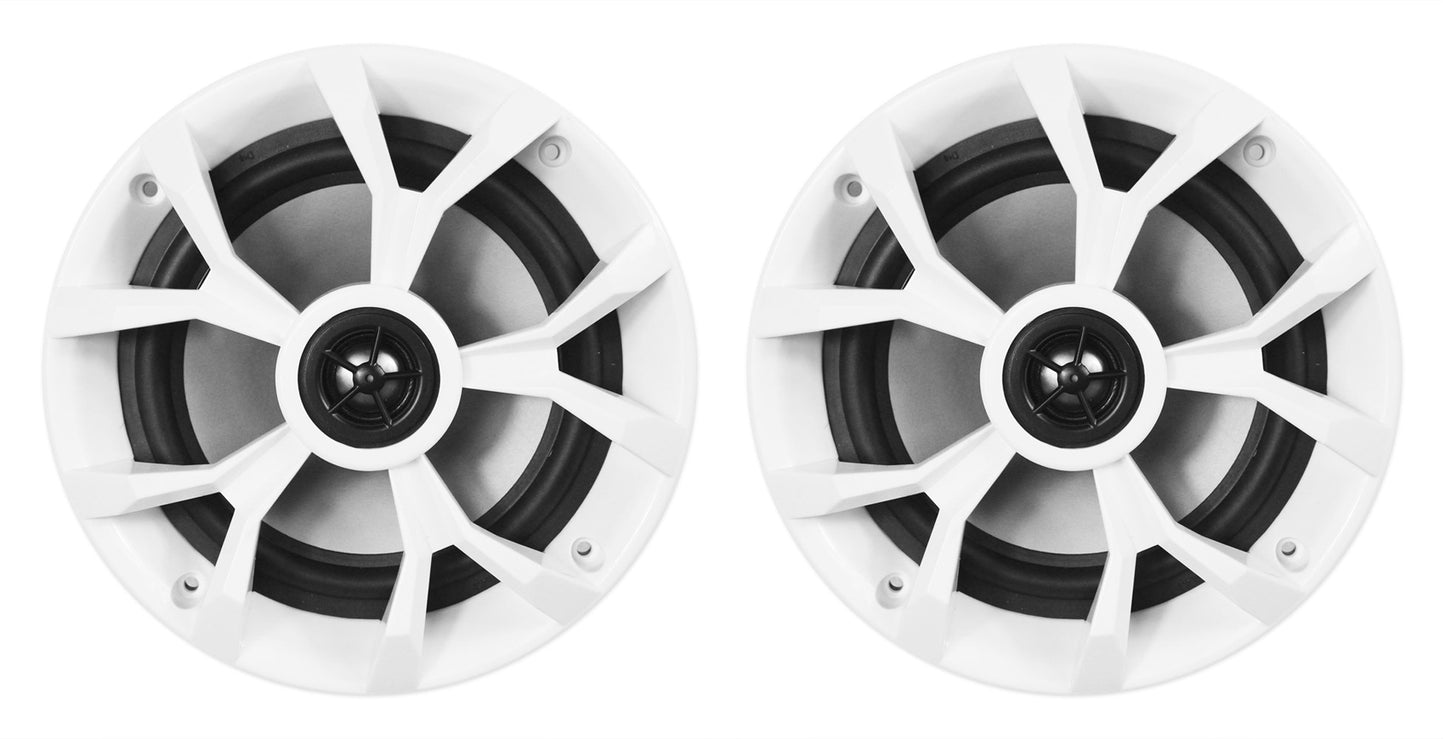

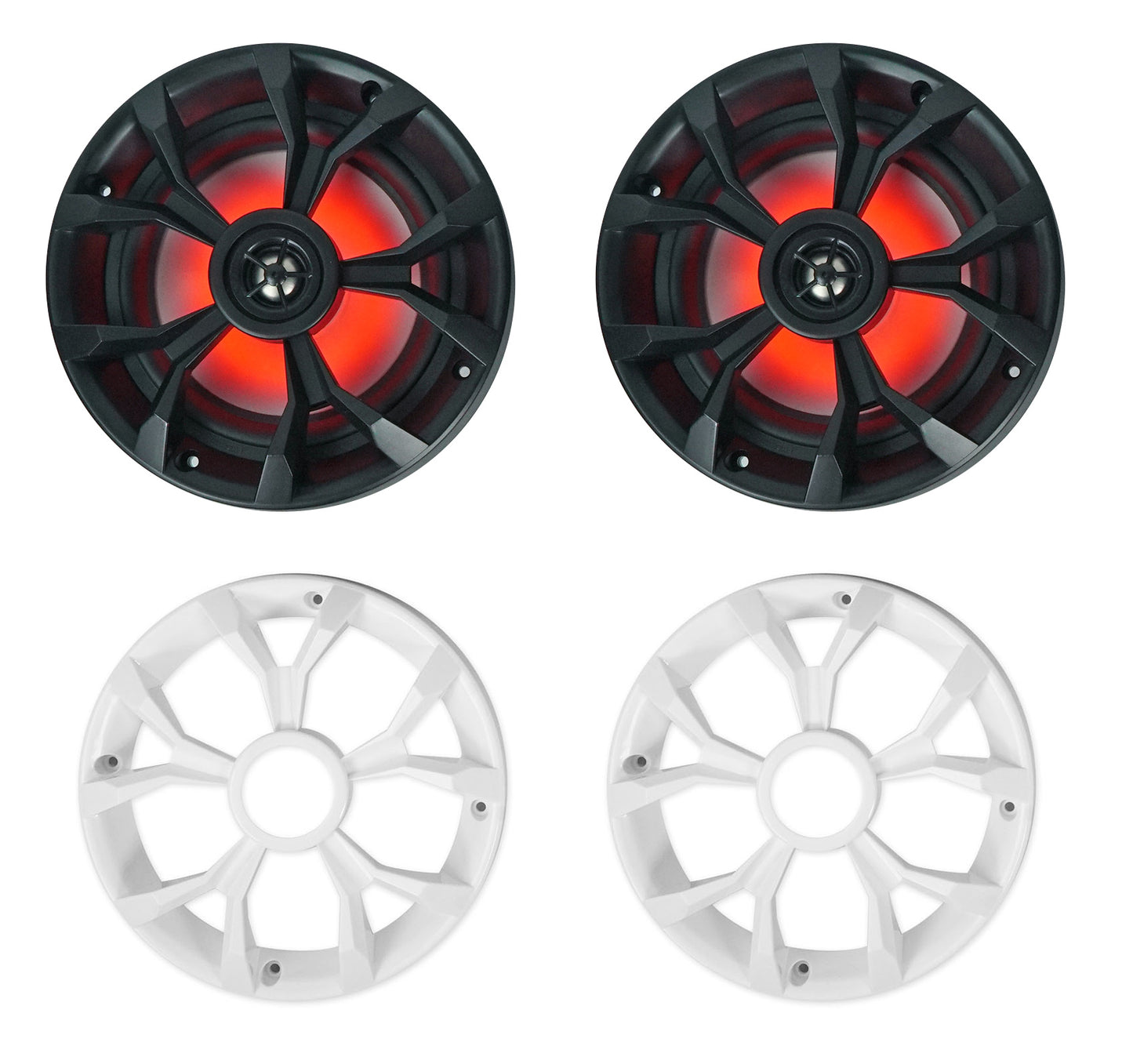

- Pair of 6.5" Marine LED Speakers
- 16.4 feet of Speaker Wire
- Stainless Steel Mounting Screws
- Black and White Grills Included
Features:

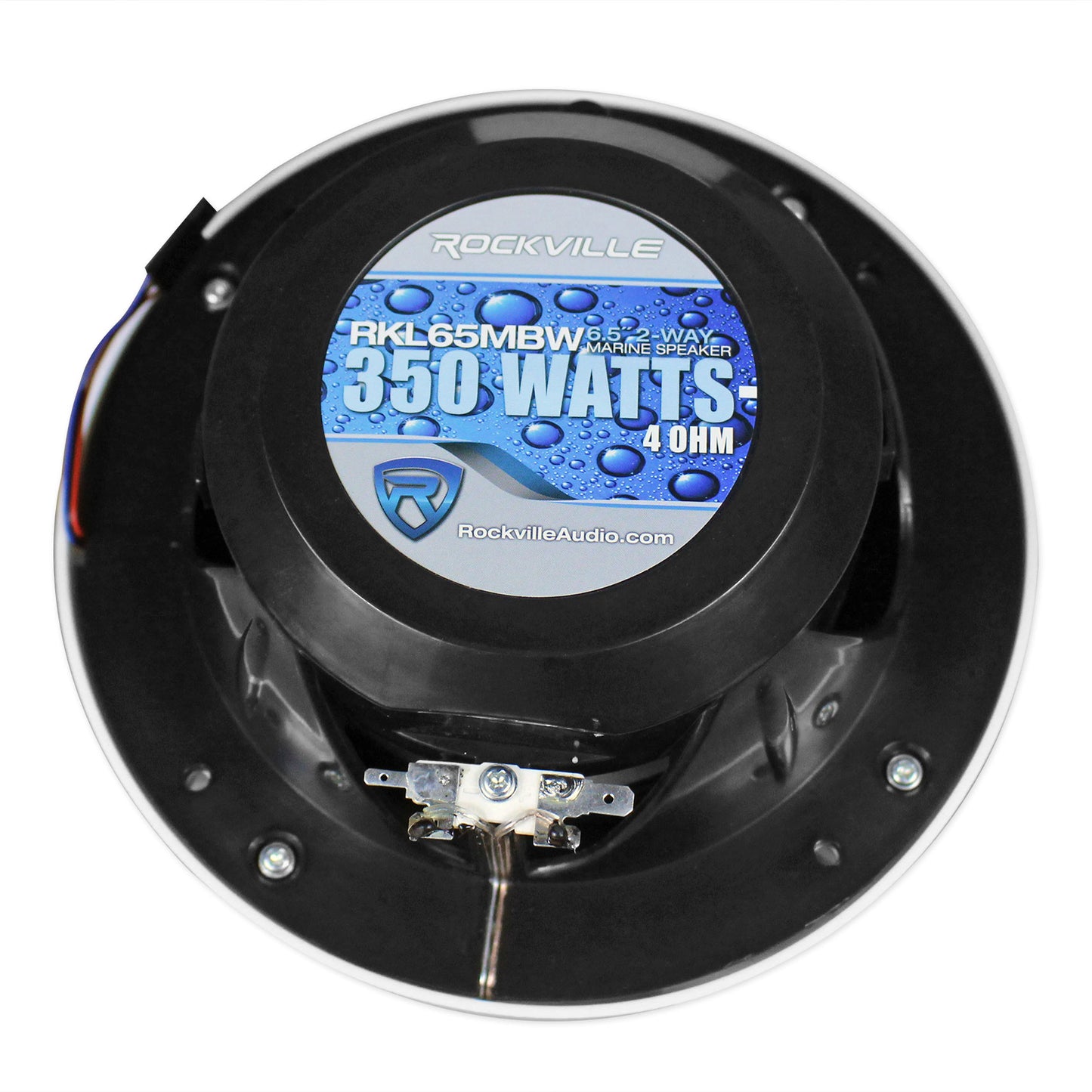

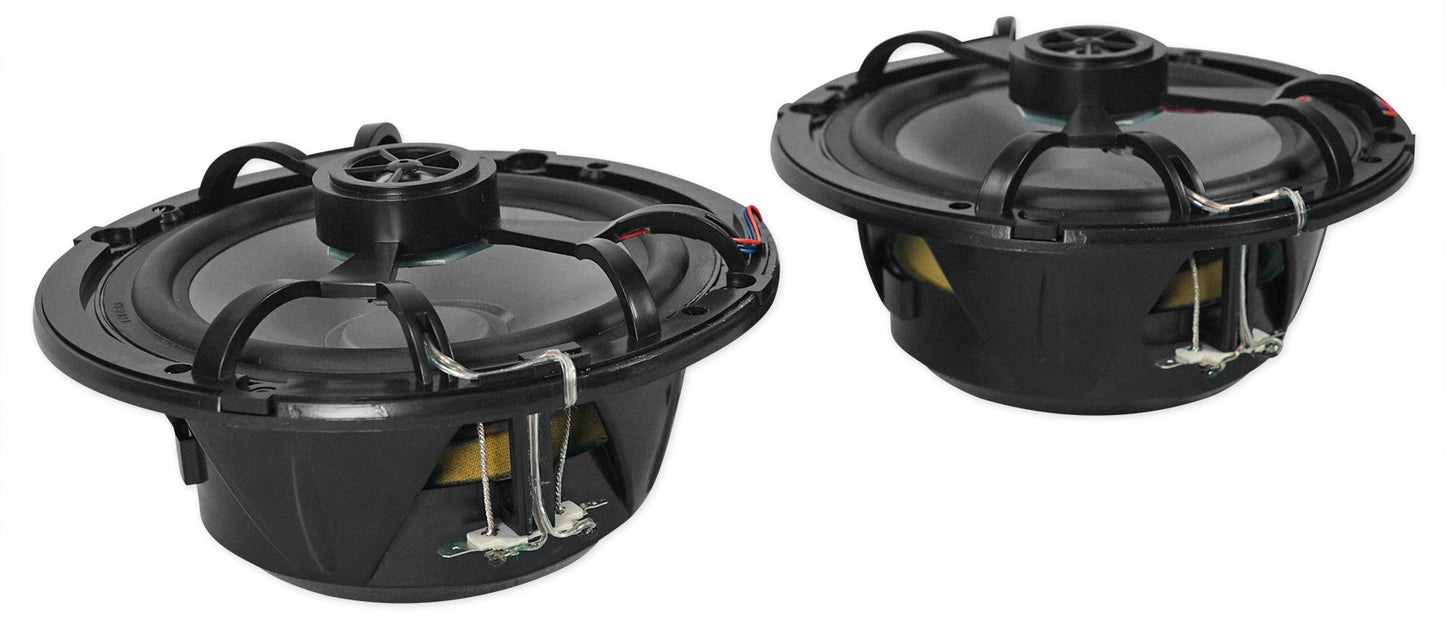

- Pair Rockville RKL65MBW 6.5" 2-Way 700 Watt Marine Boat Speakers with LED Lights
- CEA Compliant Power Ratings
- True Coax Design With the Tweeter Completely Separated From the Cone
- Larger Cone Surface Area Gives Better Mids and Lows
- Less Mass Attached to the Cone Allows for Higher SPL and Sensitivity
- True coaxial design allows for superior sound quality, better stereo separation, and clearer mids and highs
- Power Rating: 350 Watts Peak/85 Watts RMS Per Speaker
- Total Power: 700 Watts
- Beat sync LED's flash to the rhythm of the music

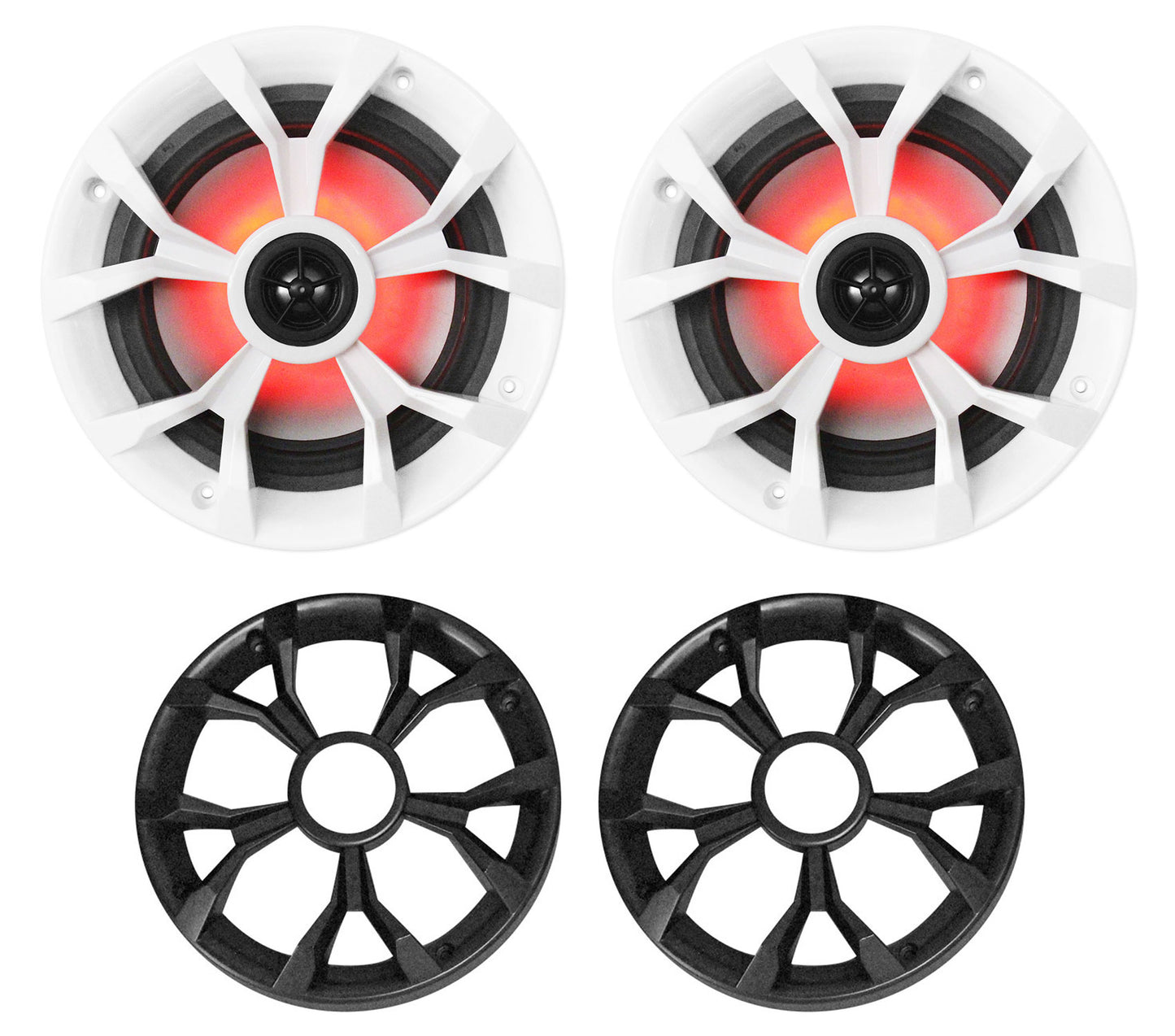

- You can select either red or blue color LED's on the wire harness
- No extra installation for the LED. It gets a power signal through your speaker wire
- The louder the music the more intense the LED's flash
- Black and White detachable Grills
- Fully Marinized Against Salt & Fresh Water Conditions
- UV treated cone makes this completely Waterproof and rustproof
- Anti-corrosion Stainless Steel Terminals
- Molded ABS plastic for amazing sound and protection from the elements while out on the water
- Polypropylene Formed Cone
- 10 Oz Y30 top of the line magnet supports high power handling
- Rubber Surround
- High quality ferrite magnet
- 1" inch Polymer Tweeter
- Oversized 1" CCAW Kapton Voice Coil
- Pre-installed Stainless-Steel mounting screws included
- Perfect for Marine, Car, ATV and UTV applications
- Impedance: 4-Ohm
- Frequency Response: 35Hz - 20KHz
- Sound Pressure Level: 90dB @ 1w/1m
- Total Diameter: 7.3"
- Cutout Diameter: 5.6"
- Total Height: 3.86"
- Mounting Depth: 2.56"
Video of RXM8BTW:
Description:

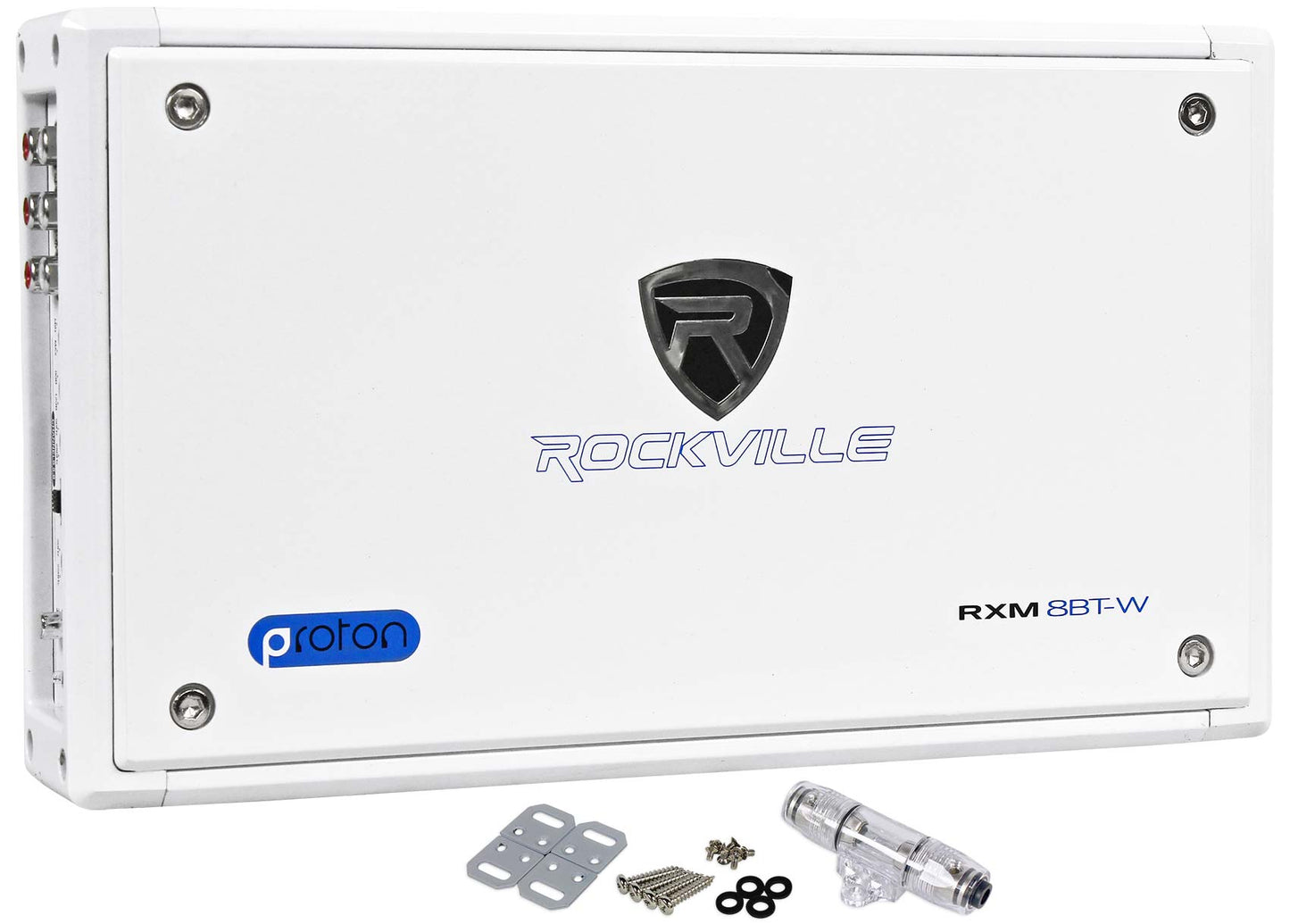

Rockville RXM8BT Marine 8 Channel Digital Class D Power Amplifier with Bluetooth Wireless Integration.
The Rockville Proton
Series Marine
amplifiers are engineered with advanced technologies. These amps are a
full solution to your marine audio needs. Gone are the old days where
people bring CD's on their boat or listen to FM radio that cuts in and
out. Gone are the days where you need a receiver and multiple amplifiers
to power your speakers. Gone are the days where you have wires running
throughout your boat. Welcome to the marine system of the future! The
Rockville RXM8BT will change your life! This is an 8 channel amplifier
with Bluetooth built in! The Bluetooth will allow you to stream music
wirelessly from a Bluetooth enabled MP3 player or smartphone. Of course
the RXM8BT features "zero noise" RCA differential preamp inputs and
preamp outputs for system expansion. This means you can connect any
audio device through the RCA input. But it's the high quality Bluetooth
that will blow you away. It offers advanced streaming from almost any
music device. Now you can easily play your iTunes, Pandora, Rhapsody and
Spotify directly from your smart phone directly to all 8 channels of
your amplifier. Even more importantly though, is the capability of the 8
channel amplifier. We feel this is the best marine amplifier on the
market even if it did not have the Bluetooth capability which it has. It
offers more system flexibility and more power than anything even
remotely close to this price. I almost forgot to mention how good the
sound quality is.
The Rockville Proton Series Marine amplifiers utilize Texas Instruments patented switching technology to deliver class-leading sonic performance and extremely high power from what seems like an impossibly miniature package. The Proton Series' dimensions are made possible by its outstanding efficient class D design which is over 90%efficient. The result is more power in your boat with less current drain. Proton Series amplifiers are 2 ohm stable in stereo and 4 ohm in mono.There are so many options of configurations. Any 2 channels can be bridged to 1 channel. So for example, you can bridge 4 channels to 2 channels and still have an additional 4 channels remaining. You can simply plug 1 speaker to each channel. You can use 2 or 4 of the channels for subwoofers and the rest for your full range speakers. The configuration options are amazing with this amplifier. Whether you have 4 speakers, or 16 speakers, and whether you do or do not have subwoofers, this amplifier will power your system. With a smart auto thermal reset circuit, Proton Series amplifiers are almost impossible to shut down. When they get too warm, the thermal circuit reduces power by up to a third until they cool down enough to power up again at full power. And mixed impedances on different channels are no problem with the advanced rail voltage circuitry design.
This amplifier is so awesome I almost forgot to write about the most important thing. How much power the thing has. The short answer is a boatload!
But in all
seriousness,
this
amplifier is extremely powerful. The true RMS ratings are 65 watts x 8
at
4 ohms or 95 watts x 8 at 2 ohms. This is the Dyno Certified RMS Power
Ratings. In total this has 750 watts RMS and 1,500 watts peak output.
There
are not many marine amplifiers on the market with this much power.
Other
brands out there will rate their amps at thousands of watts but in
reality are only a hundred or 200 watts. But this Rockville
amplifier is legitimate and will produce or exceed its rated power. To
prove the power; you can check the fuse rating. This amplifier is
equipped with an 80A fuse. A
general rule for 12 volt amplifiers is if you multiply the fuse rating
by 10 that is close to the real power you will get. In this case that
is
800 watts RMS (we rate it at 750w RMS since this is Dyno Certified RMS
Power Ratings). The peak rating can be used to compare with brands who
use peak ratings such as Boss and Power Acoustik while the Dyno
Certified RMS rating can be used to compare with top brands such as
Kicker, Rockford, Alpine, etc.
Features:
- Rockville RXM8BTW 1500w Peak/750w Dyno-Certified RMS Marine 8 Channel Digital Class D Power Amplifier with Bluetooth Wireless Integration
- Compact design and extremely high power (Do not be fooled by the compact size; this amp is a beast!!!)
- Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
- 1500 Watts System Power
- Bridged Power Output at 4 Ohms: 380 Watts x 4 Channels.
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
- RMS Power Output at 4 Ohms: 65 Watts x 8 Channels
- RMS Power Output at 2 Ohms: 95 Watts x 8 Channels
- RMS Bridged Power Output at 4 Ohms: 190 Watts x 4 Channels
- Configurable to 8-6-4 channels or 4.2 System
- Bluetooth Wireless with Auto Pairing
- UV and Salt Water Resistant Paint, Silk Screen and Heat Sink Enclosure
- Marine-Grade Conformal Coated Boards Resist Corrosion from Salt Spray and Moisture
- LED Power and Protect Indicators
- TI Digital Class D Audio Topology
- High Speed MosFET Power Supply
- Studio Grade Bipolar Output Stage Transistors
- Micro Size Architecture with SMD Component Circuitry
- Compact Design and High Power
- Non-Corrosive High Gloss White Aluminum Casing
- Selectable Bass
- Non-Corrosive Brushed Aluminum Casing
- Conforms to the American Boat and Yacht Council (ABYC) Marine Electronic Standards
- Bass Equalization: Fully Adjustable 0 - 12dB at 45Hz
- 4-Way System Protection Circuitry (DC, Short, Thermal, Overload)
- Heavy-Duty Aluminum Alloy Heat-sink
- Stainless Steel RCA Level Inputs
- Stainless Steel Bolt Down Molded Terminals
- 4CH / 8CH Input Selector Mode
- Independent Crossover Controls between CH1-4 and CH5-8
- Full Range / Low Pass / High Pass Configurable
- Variable High-Pass Filter: 50Hz - 250Hz at 12dB/per Octave
- Variable Low-Pass Filter: 50Hz - 250Hz at 12dB/per Octave
- Frequency Response: 10Hz - 40KHz
- S/N Ratio: >100dB
- Minimum THD: <0.05%
- Damping Factor: >200 at 100Hz
- Input Voltage: 150mV - 6V
- RCA Line Output
- 80A Fuse rating!
- Channel Seperation: >60dB
- Input Impedance: 22K
- Dimensions 6.7" W x 2" H x 11.5" L
About
Rockville Quality Control Procedures:
The Rockville brand stands for Quality, Innovation and
Value. All Rockville products go through the most rigorous quality
control standards in the industry. Products go through months of
extensive testing before they reach your hands. All user functions are
tested and all internal components are tested for quality. Rockville
makes products that are virtually un-breakable! Rockville is one of the
only brands in its class to test every concept model for weeks or months
before starting production. Once production begins, Rockville sends
product engineers to their factory to quality control every line of
production. During production every product is tested and on top of that
Rockville goes the extra mile and has their high level product
engineers do an additional quality control. They test a certain
percentage of all products from the production line a second time to
ensure that the quality meets their vigorous standards, and to make sure
that there is never a batch of products with even a slight problem. All
Rockville products are backed with a hassle free warranty.
??About Rockville Quality Control Procedures:
Features:

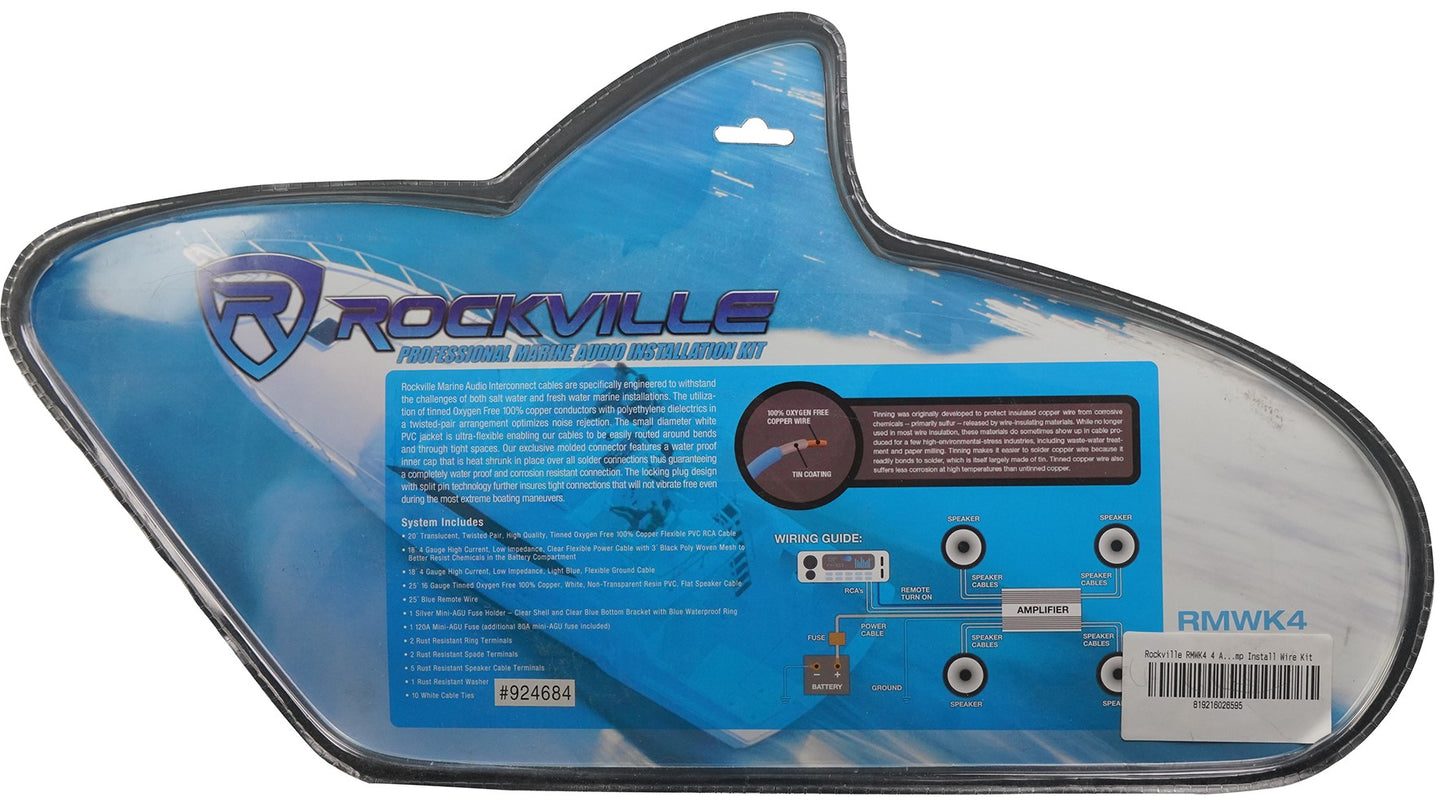

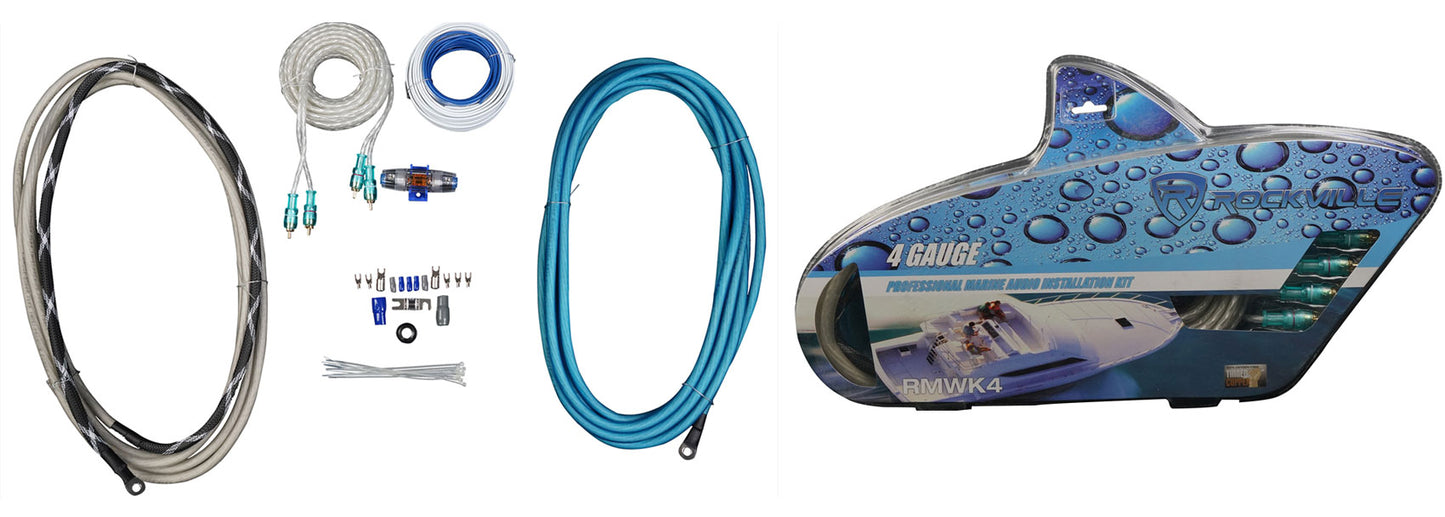

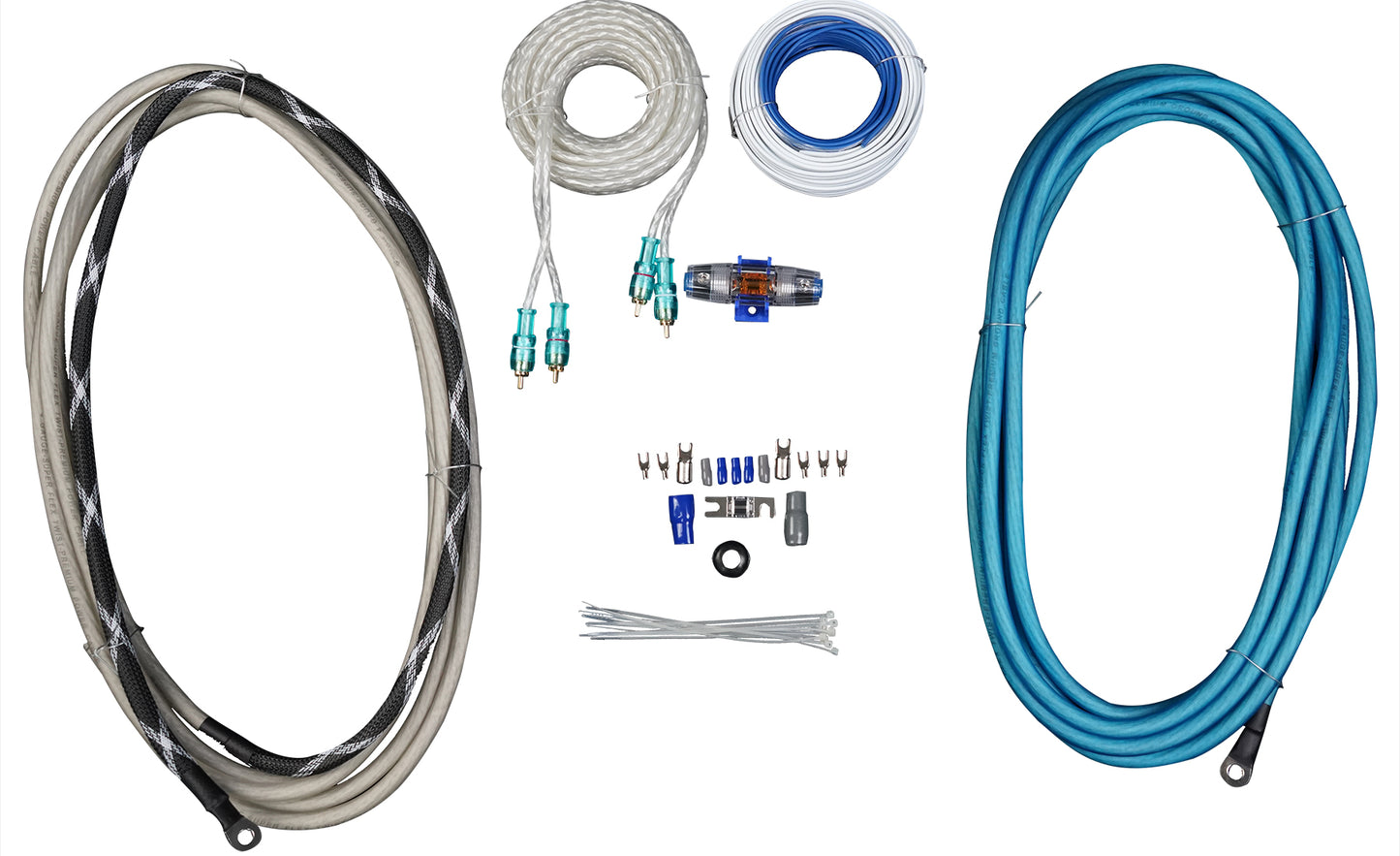

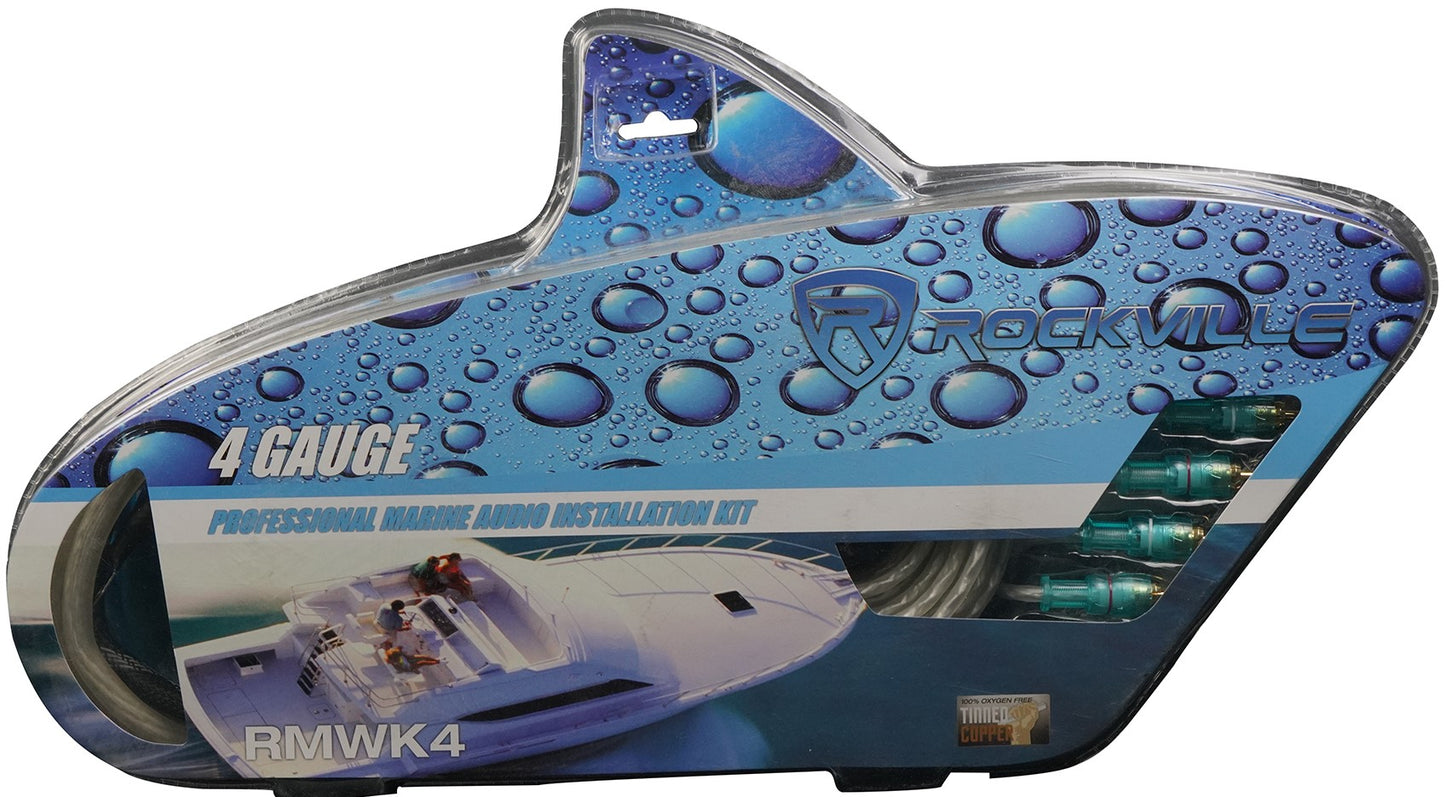

- Rockville RMWK4 4 AWG Gauge Waterproof Marine/Boat Amplifier Wire Installation Kit

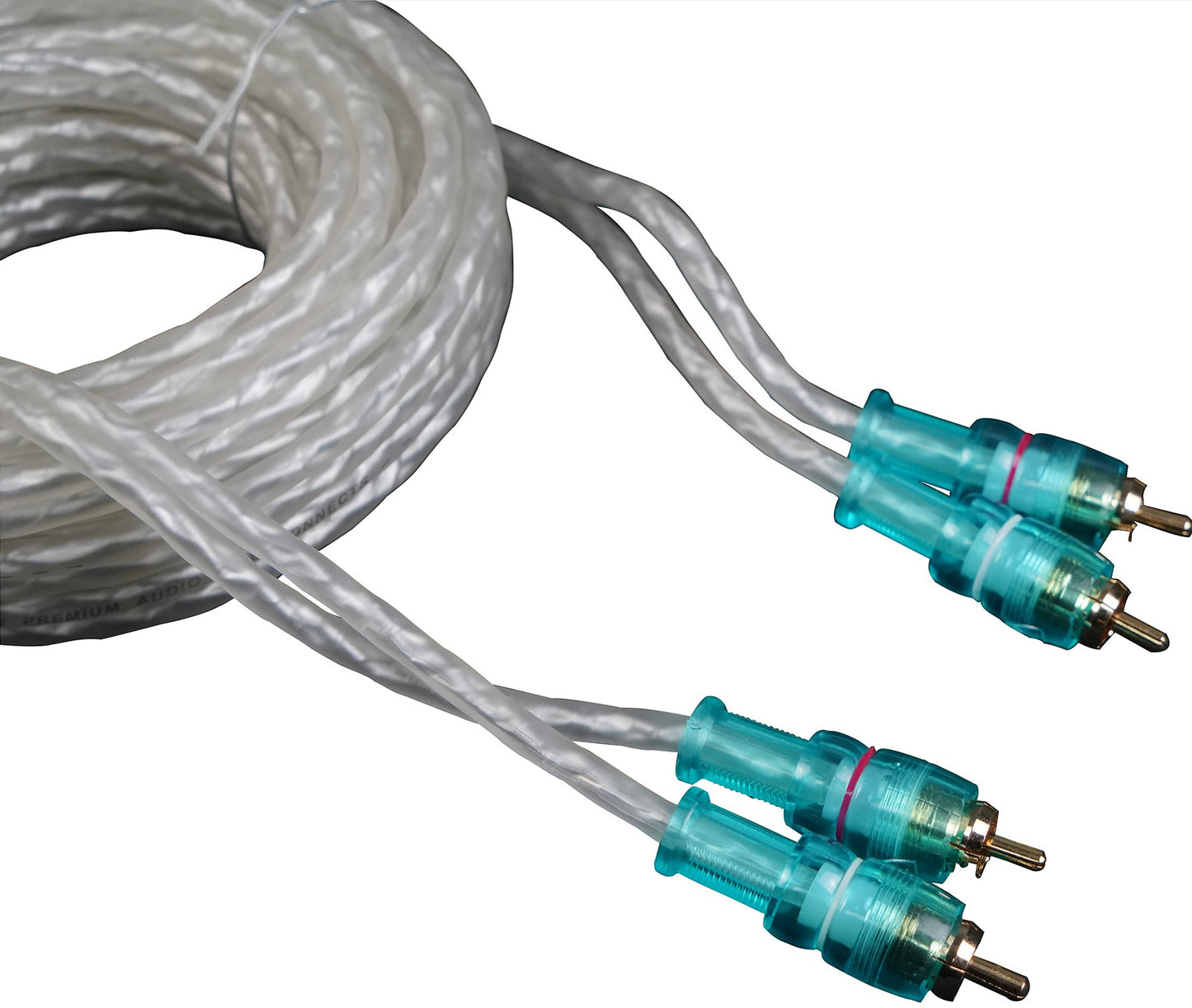

- 20 ’ Translucent, Twisted Pair, High Quality, Tinned-OFC Flexible PVC RCA Cable

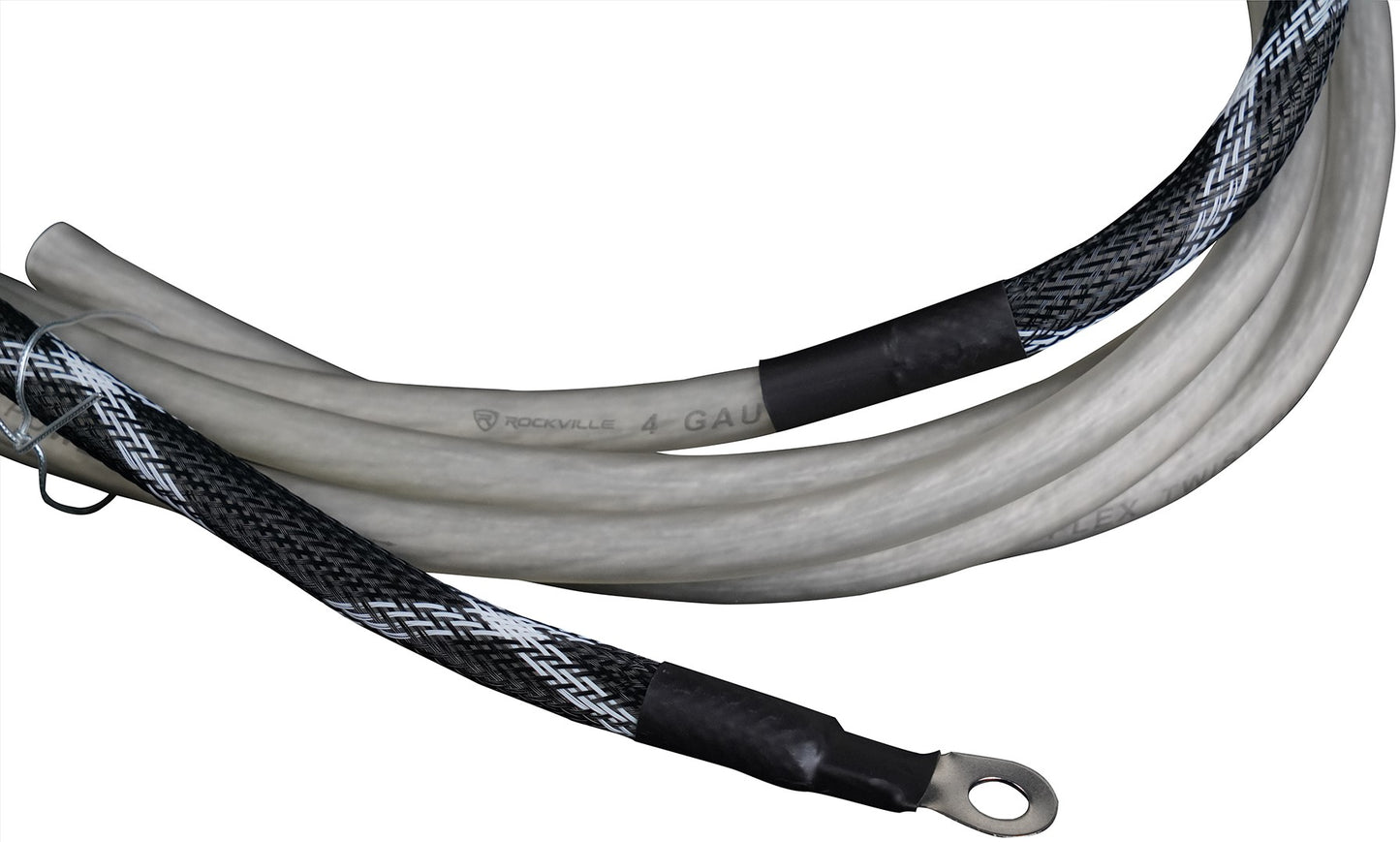

- 18’ 4 Gauge High Current, Low Impedance, Clear Flexible Power Cable with 3’ Black Poly Woven Mesh to better resist chemicals in the battery compartment

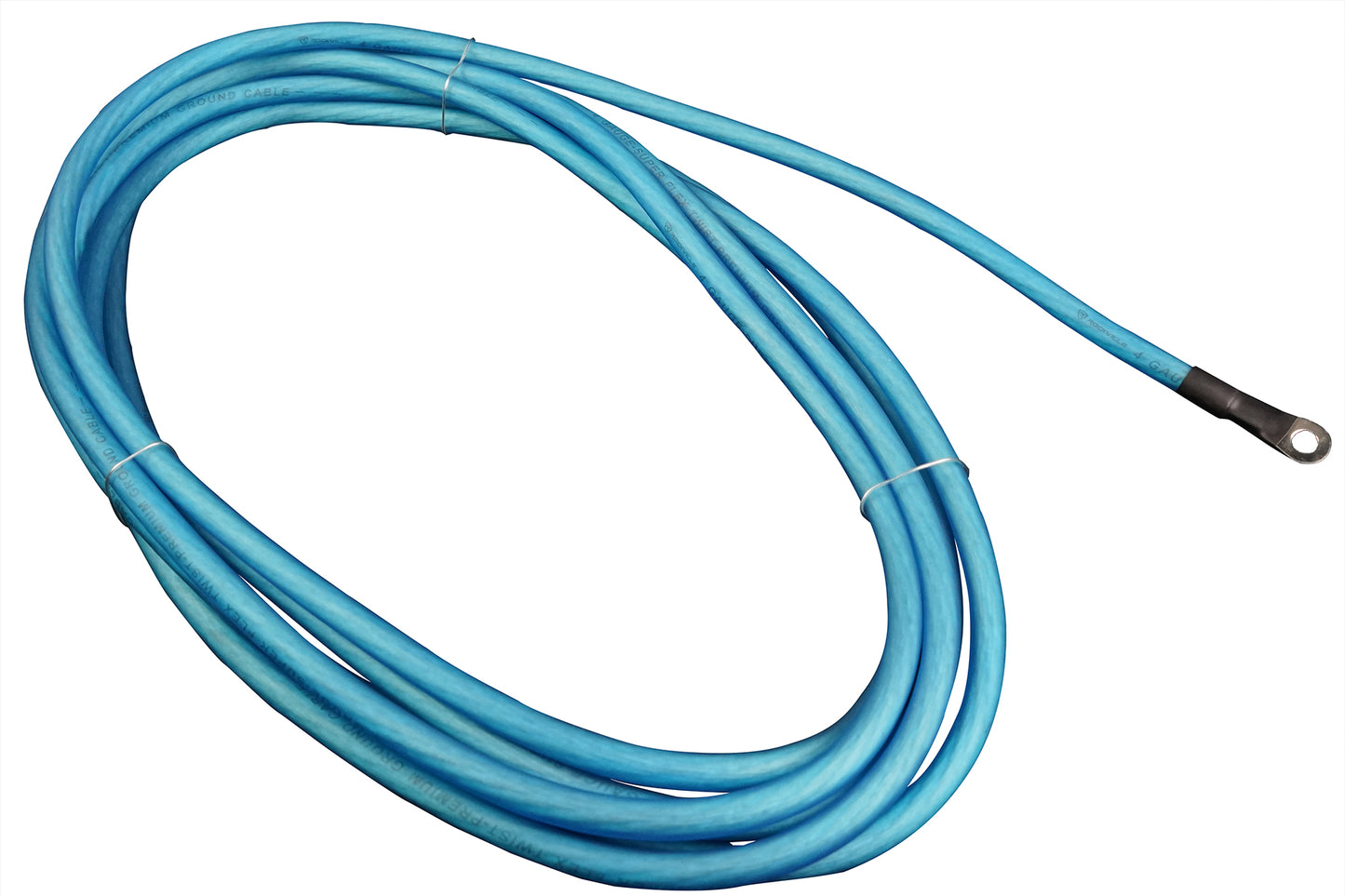

- 18’ 4 Gauge High Current, Low Impedance, Light Blue, Flexible Ground Cable

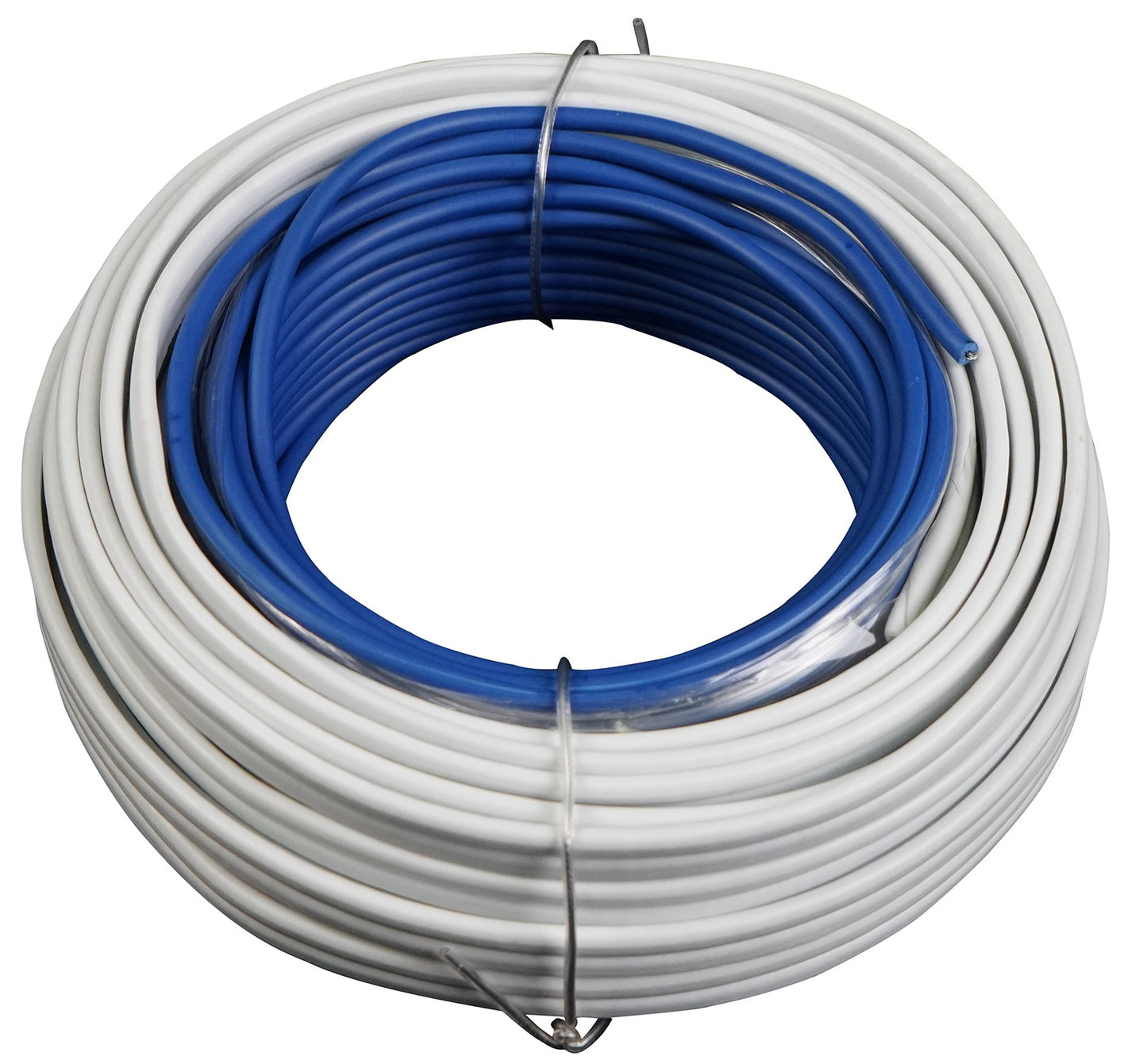

- 25’ 16 Gauge 100% Tinned-CCA, White, Non-Transparent Resin PVC, Flat Speaker Cable
- 25’ Blue Remote Wire

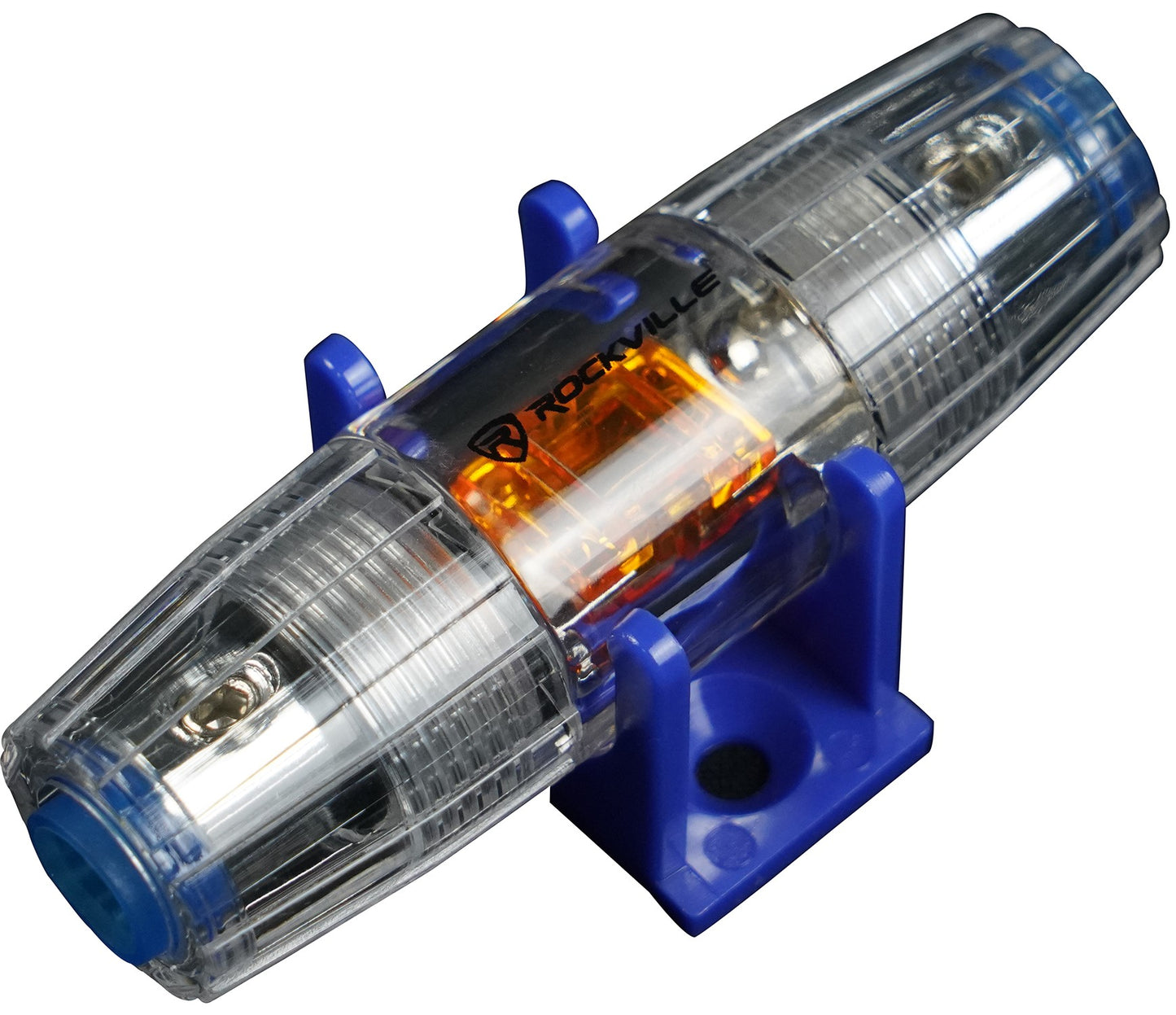

- (1) Silver Mini-ANL Fuse Holder – Clear Shell and Clear Blue Bottom Bracket with Blue Waterproof Ring

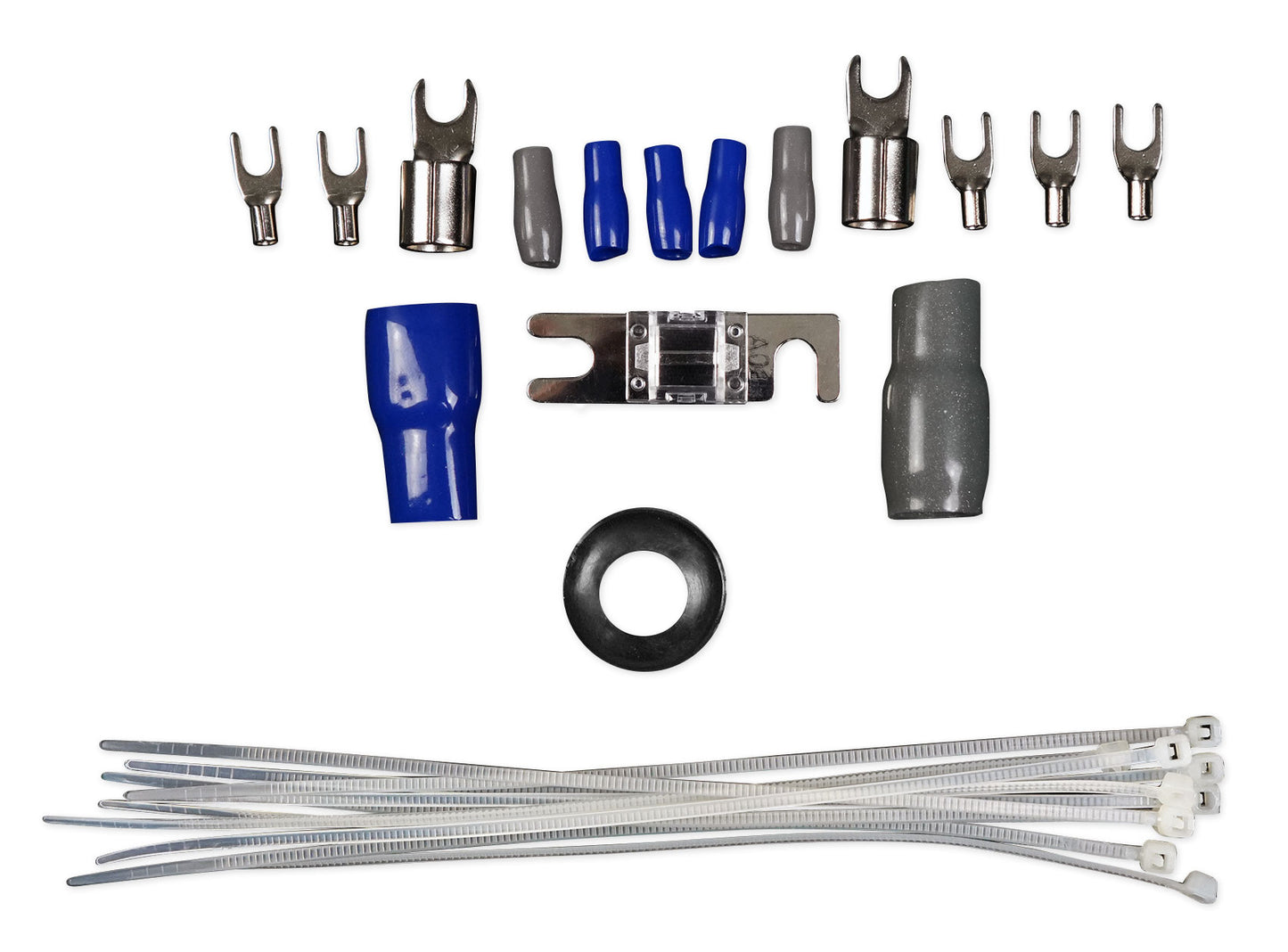

- (1) 120A Mini-ANL Fuse
- (1) 80A Mini-ANL Fuse
- (2) Ring Terminals
- (2) Spade Terminals
- (5) Speaker Cable Terminals
- (1) Washer
- (10) White Cable Ties
- UPC:
- 613816424481
