Video of
X8C
:

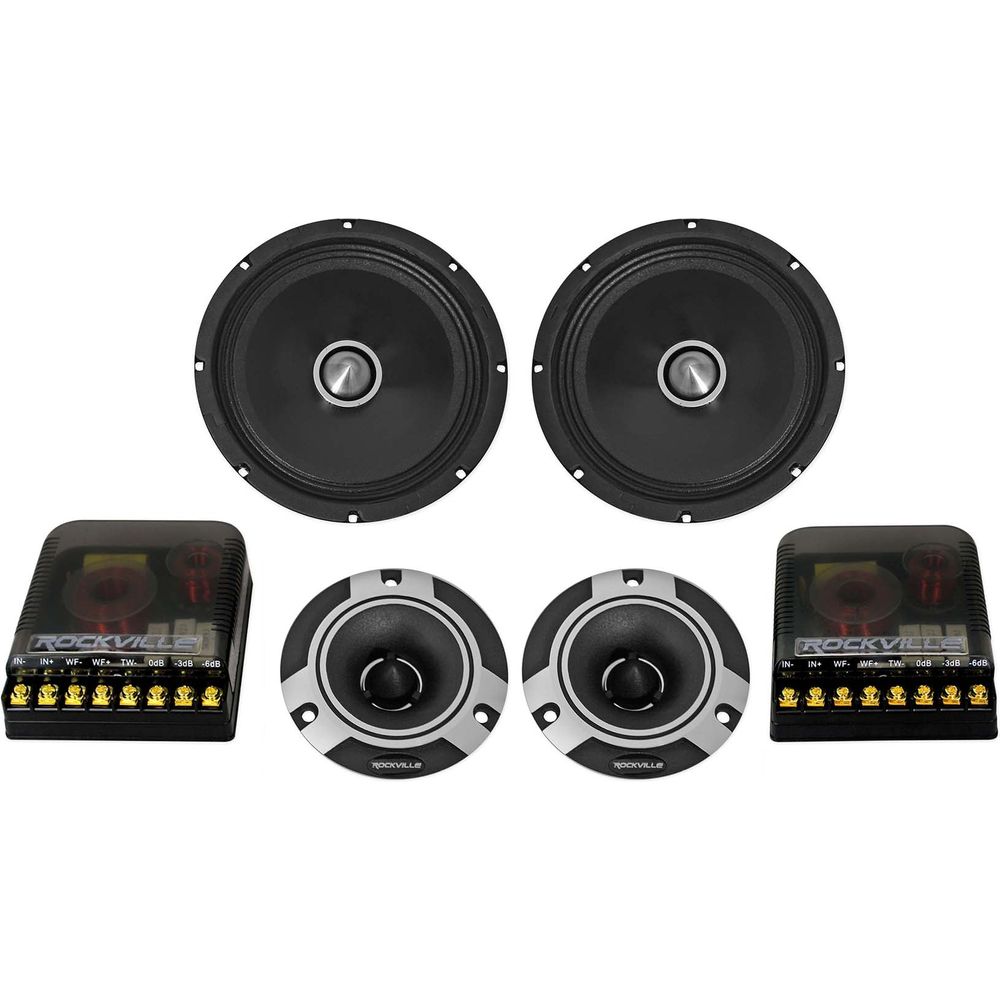

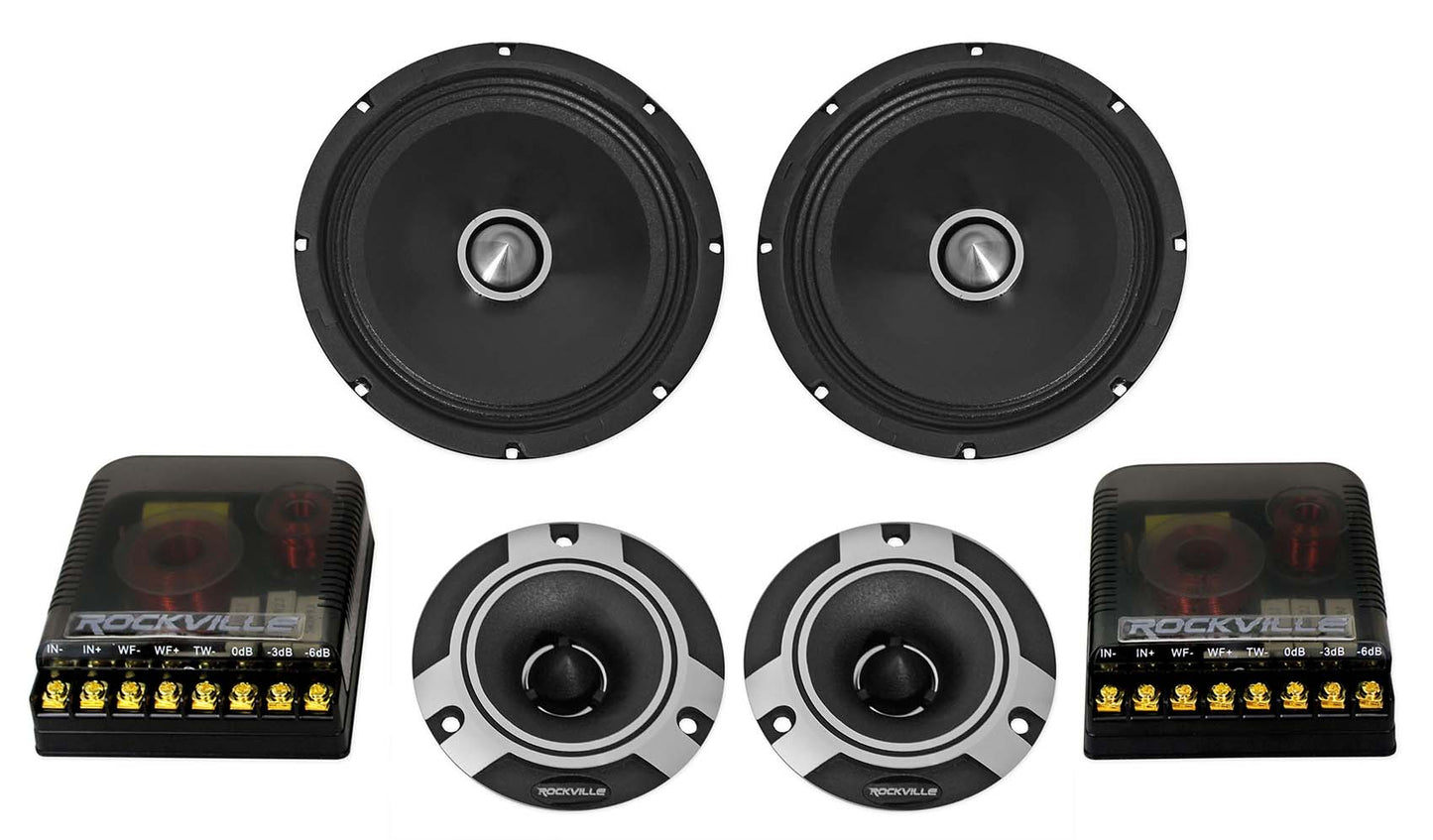

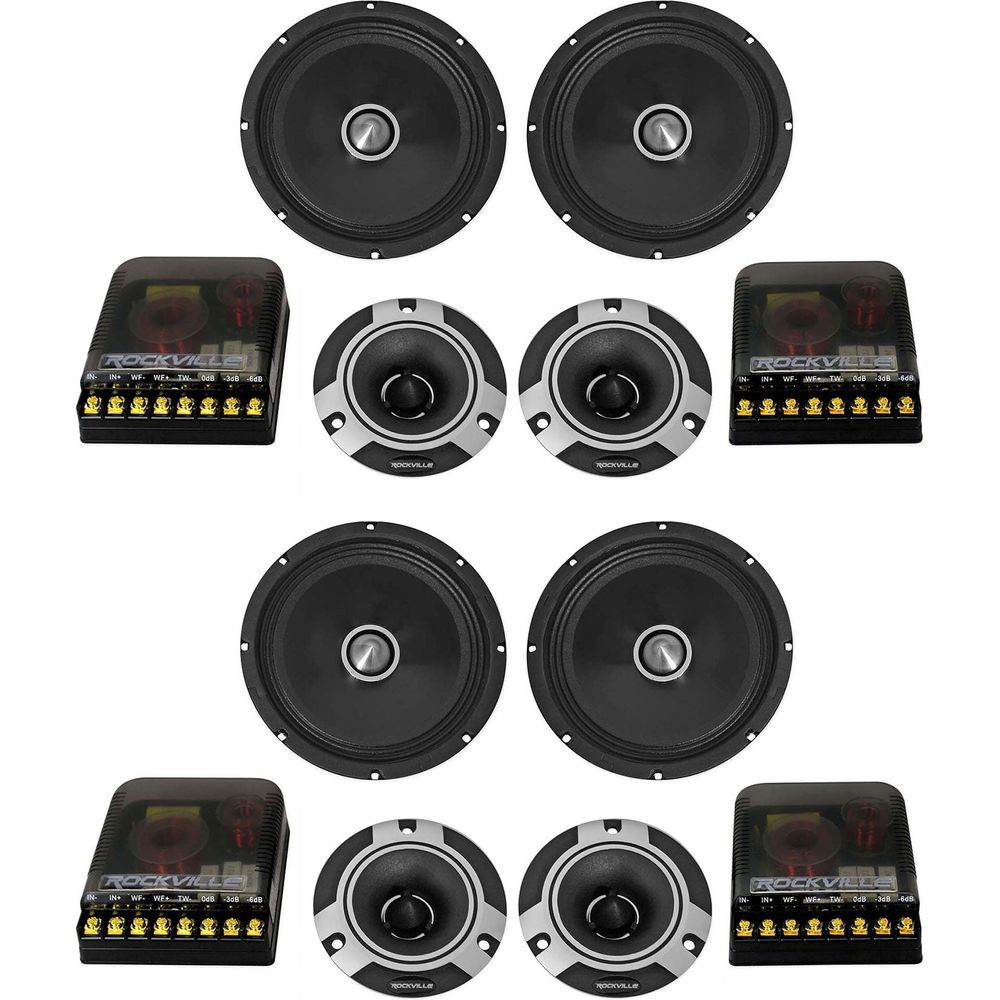

What's In The Box:
- (2) 8" Woofers
- (2) Tweeters
- (2) Top of the Line Audiophile Crossovers
- Pre-Installed Mounting Screws

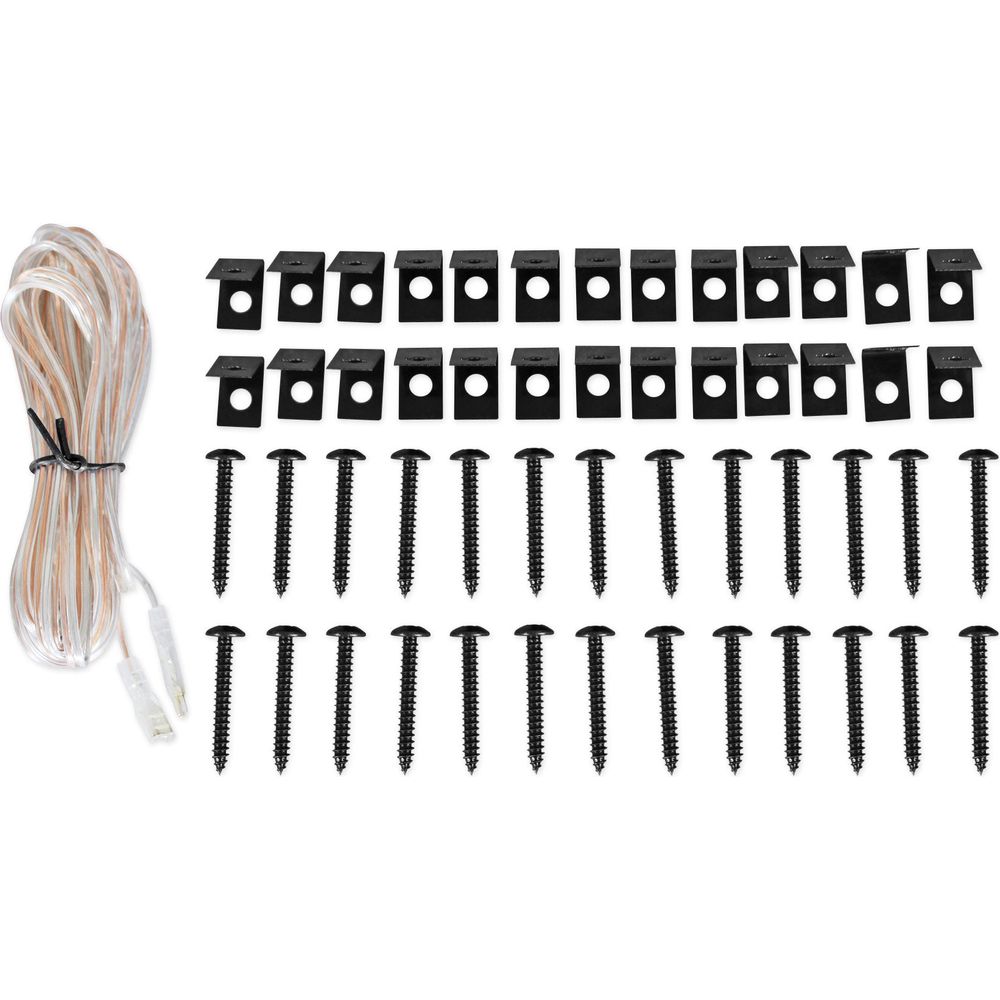

- Mounting Screws and Hardware
- Speaker Wire
- Warranty Card
- Owner's Manual
Features:
- Pair Rockville X8C Competition 8" 1,000 Watt Component Car Audio Speakers and Titanium Tweeters
- (2) 8” Woofers for Mids and Bass
- (2) 2” Aluminum Tweeters with Titanium Diaphragms
- (2) Audiophile Crossovers (these are very expensive crossovers with a lot of copper coils in them for advanced sound filtering to give you the best sound quality)
- Peak Power Rating: 1000 Watts Per Pair/500 Watts Each
- CEA Compliant RMS Rating: 250 Watts Per Pair/125 Watts Each
- Paper Woofer Cone With Cloth Edge Gives Amazing Bass and Mids
- True Aluminum Bullet to give the woofer amazing sound
- Steel Stamped Basket
- Oversized 1.5” CCAW Voice Coil
- 13 oz. High Quality Ferrite Magnet Y35
- Cutout Diameter: 7.2” inches
- Impedance: 4 Ohms
- Tweeter Size: 3.86’' x 1.97” inches
- Cutout Diameter of Tweeter: 2.80”inches
- Audiophile 2-Way Crossover with 12db/Octave Roll-Off
- Crossover Has Tweeter Attenuation Adjustment of -3db, -6db
- Frequency Response: 40Hz – 20,000 Hz
- Sound Pressure Level: 90dB @ 1w/1m
- Titanium Diaphragm Tweeter with 1” Kapton Voice Coils - the most premium voice coils on the market
- This item uses CCAW voice coil windings which is the most expensive and best material for voice coil winding
- Pre-installed mounting screws included?

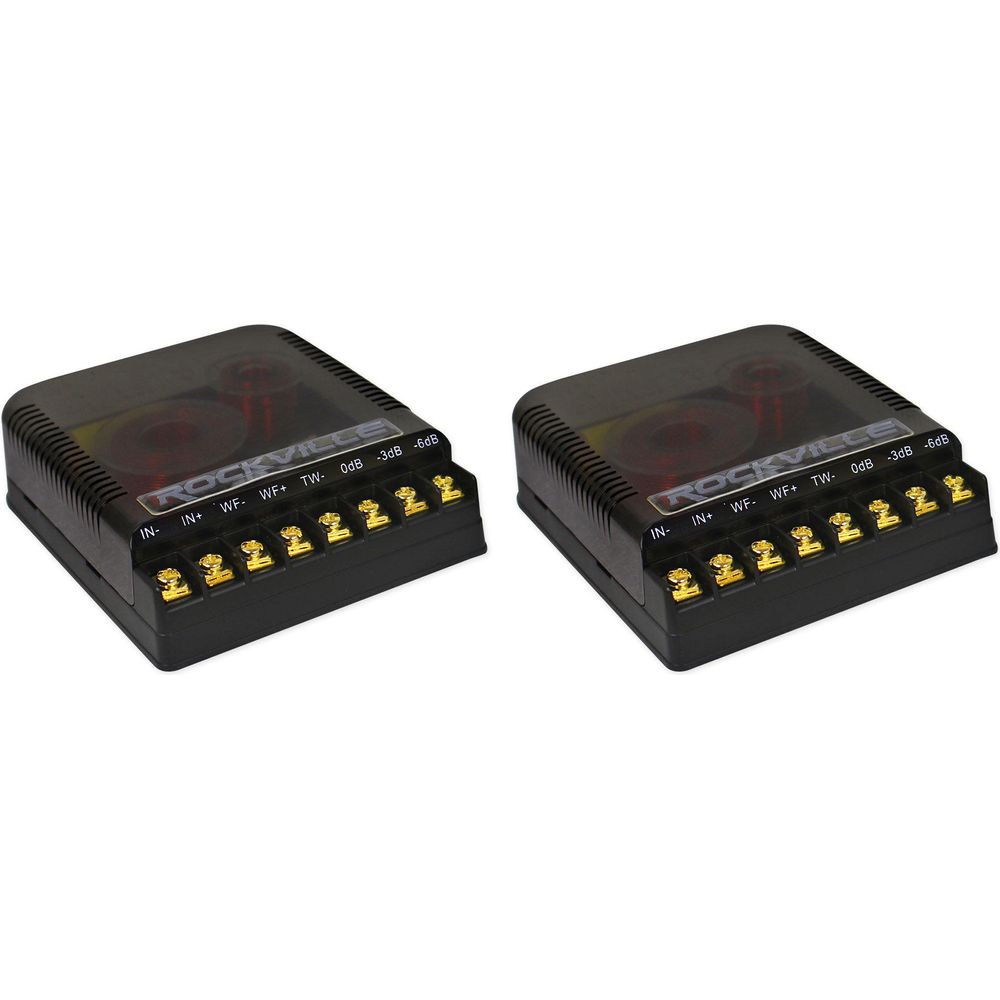

Features of Included Crossovers:
- 2-Way Passive Crossover Network
- One Pair of 4-Ohm Audiophile Grade Crossovers
- Gold Plated Screw Terminals
- Hingtat 100V Capacitor Modules (Best in Class)
- High Quality CCAW Coil Windings (Best in Class)
- High Grade Polymer Capacitors (Best in Class)
- Woofer Frequency: 20 Hz - 3.5 kHz
- Tweeter Frequency: 3.5 kHz - 20 kHz
- 12dB Per Octave Slope (4 Ohms)
- Poly-Glass Styling to See Internal Components
- Air Cooled Spools
- Input, Tweeter Output, Mid-Bass Woofer Output
- 0dB, -3db, -6dB Selectable Tweeter Attenuation
- Crossover Point: 2,800 Hz
- 4 Holes for Mounting
- Crossover Dimensions: 5" x 4.25" inches?

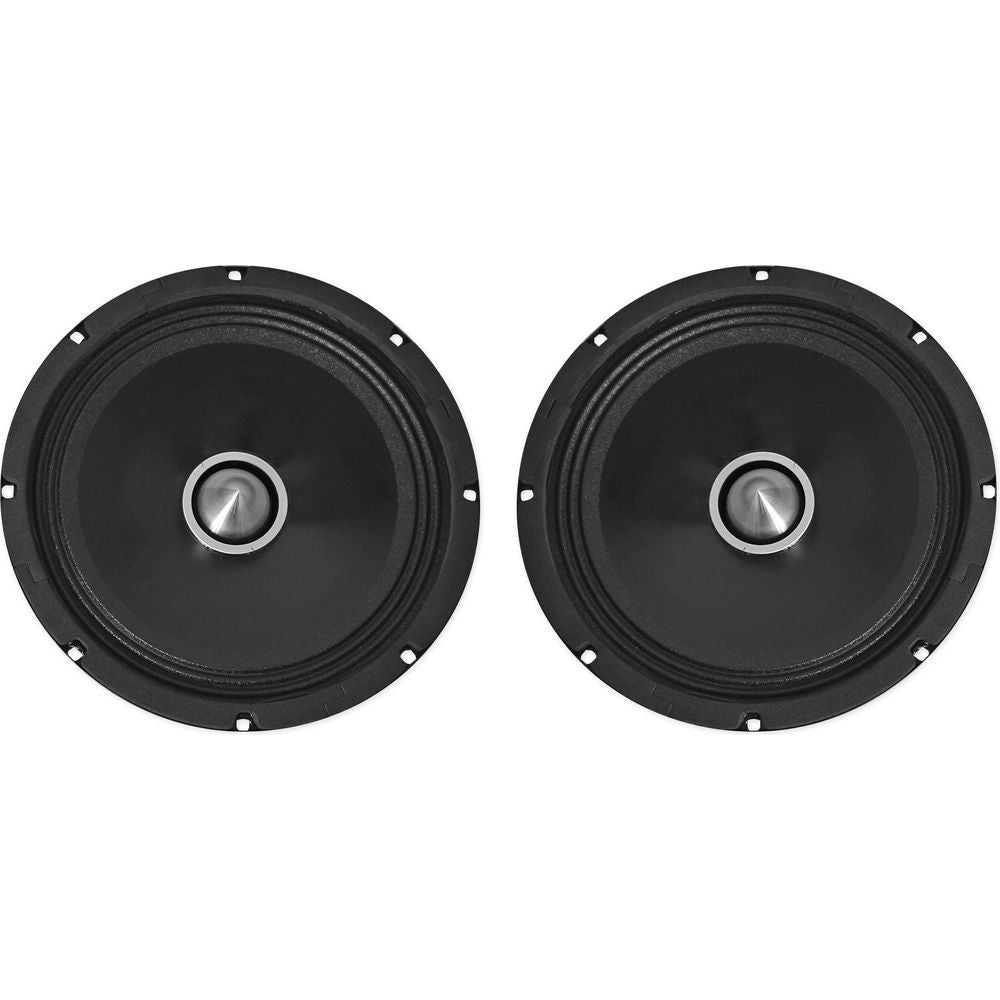

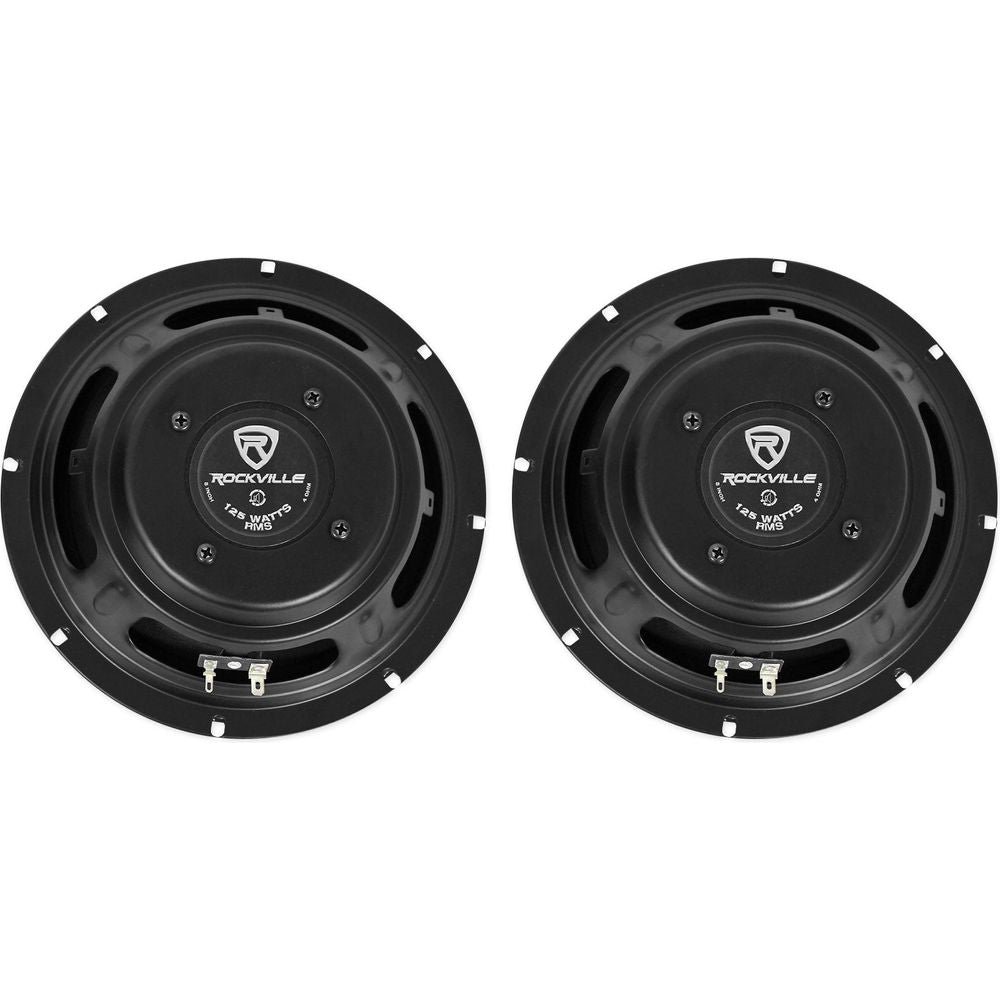

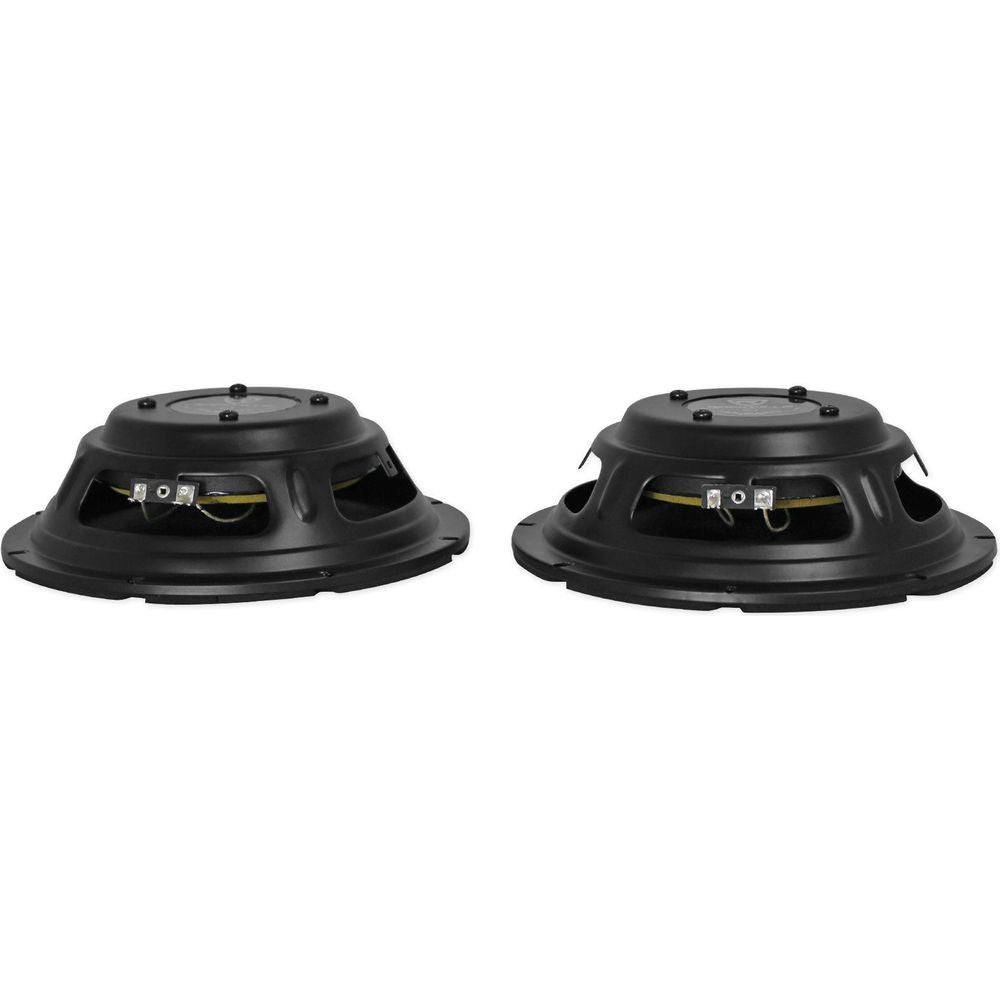

Features of Mid/Woofer:
- 8 Inch Mid/Bass Speakers Aluminum Bullet
- Design: Open-Basket Mid-Bass
- Sensitivity: 90dB
- Frequency Response: 80Hz-4KHz
- Impedance: 4 Ohms
- Reinforced Black Pulp Cone
- Linear Progressive Polyester-Cotton Composite Spider
- Aluminum Bullet Phase Plug High SPL Design
- High Tinsel Expanded Steel Basket
- Cloth surrounds reproduces very clean sound
- Zinc-Plated T-Yoke/Washers
- Super Slim Design Facilitates Door Installations
- 1.5” High Temperature CCAW Voice Coil
- 13oz. Magnet Y35
- Shallow Mounting Depth
- Top-Mount Depth: 2.32" inches
- Cutout Diameter: 7.2" inches
- Overall Diameter: 8.22” inches
- Mounting Hole Diameter: 8 holes- 0.196" x 0.315" inches?
TS Parameters of Mid/Woofer:
- Fs: 79.5Hz
- Re: 3.6 Ohm
- Qes: 1.542
- Qts: 1.105
- Qms: 3.894
- Vas: 16.766K
- Cms: 208.815
- Bl: 4.729
- MMS: 19.158g
- Exm: 0.567?

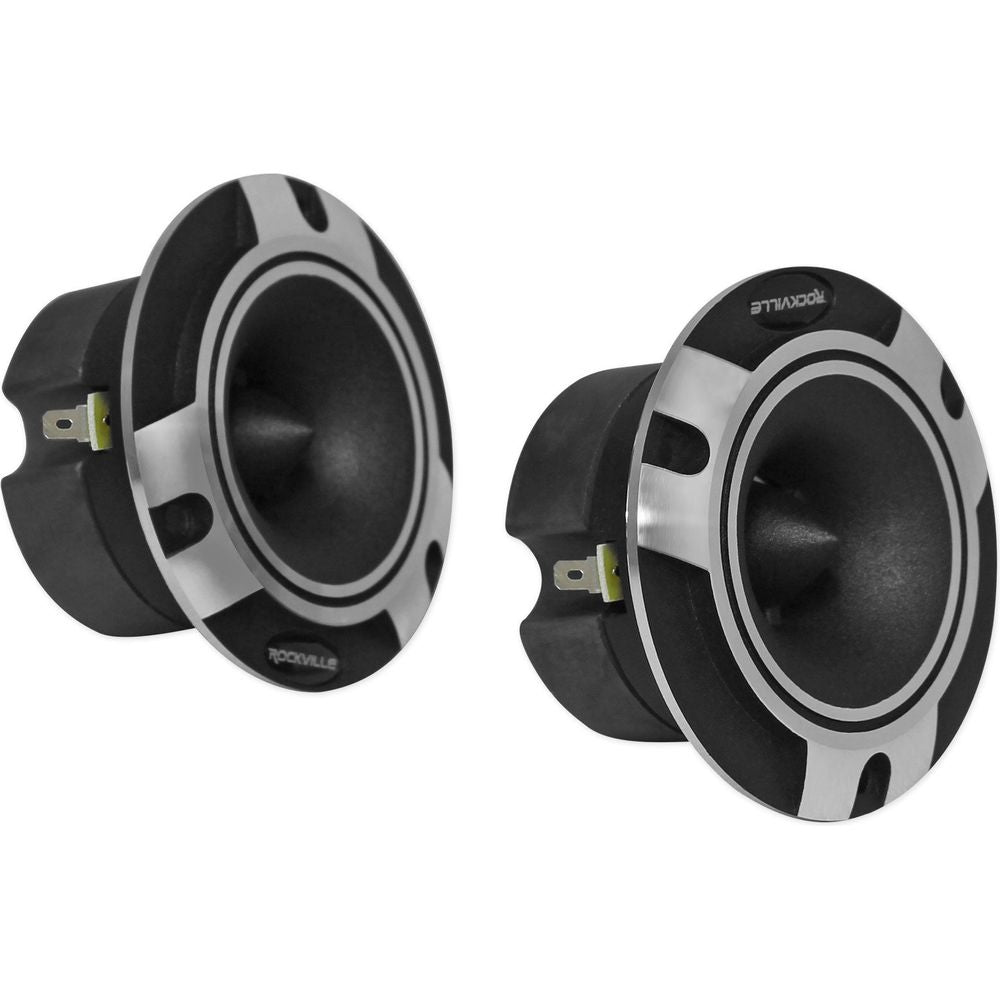

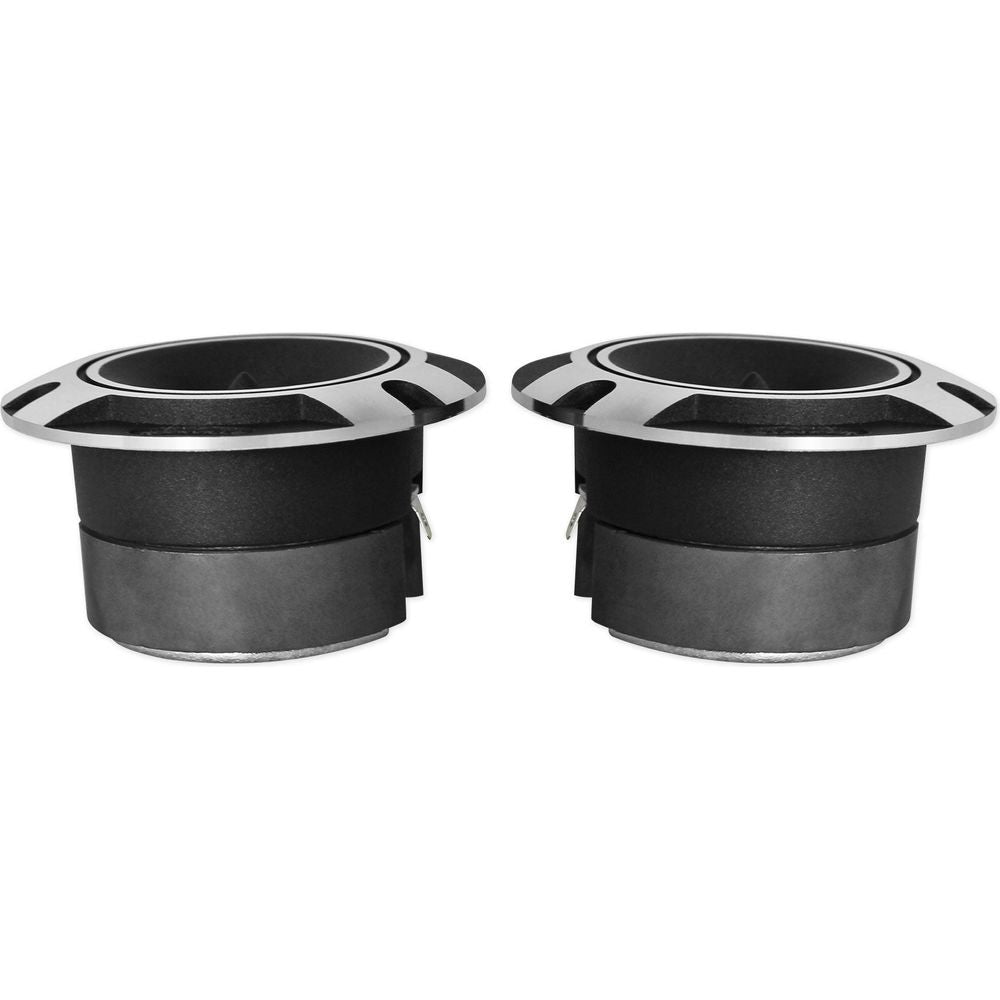

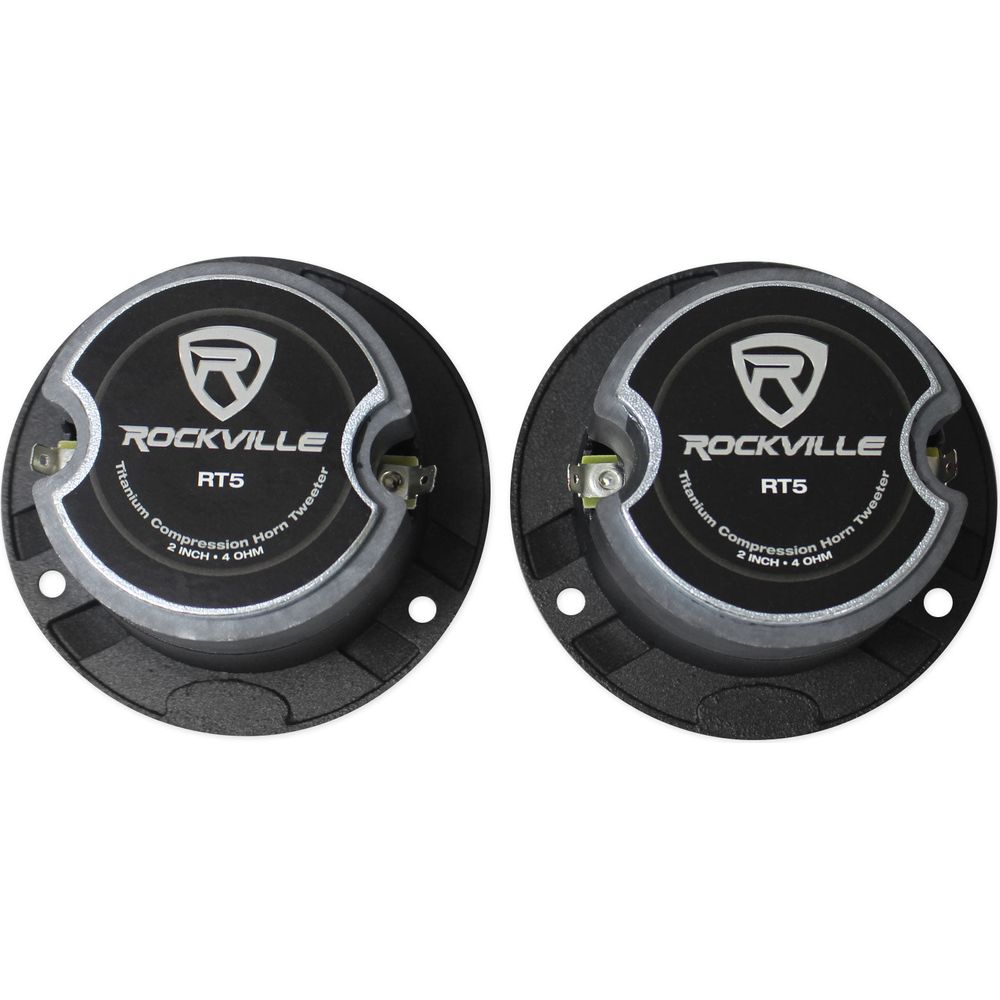

Features of Tweeter:
- 2” Titanium Compression Horn Tweeter
- 1” High Temperature Die Cast Kapton Voice Coil
- Extremely loud and clear highs with an amazing frequency response that can even play some mids
- Ferro Fluid Enhanced Voice Coil Cooling
- Shallow Mounting Depth
- 10oz. Magnet
- Includes Mounting Hardware
- Impedance: 4 Ohm
- Cutout Diameter: 2.8” inches
- Mounting Depth: 1.66” inches
- Frequency Response: 2 kHz - 20 kHz
- Sensitivity: 96dB @ 1w / 1m
TS Parameters of Tweeter:
- Fo: 2.041 kHz
- Re: 3.6 Ohm
- Qes: 11.995
- Qts: 2.74
- Qms: 3.551
- Krm: 11.224u Ohm
- Erm: 1.034
- Kxm: 1.531mH
- Exm: 0.592
Simple and Quick Tweeter Installation:
1. Choose mounting location, typically rear deck or door panel.
2. With the provided template cut a hole 2.8" in diameter make sure that you
have a minimum of 1.66" mounting depth.
3. Using the included hardware, screw the tweeter into your mounting location.
