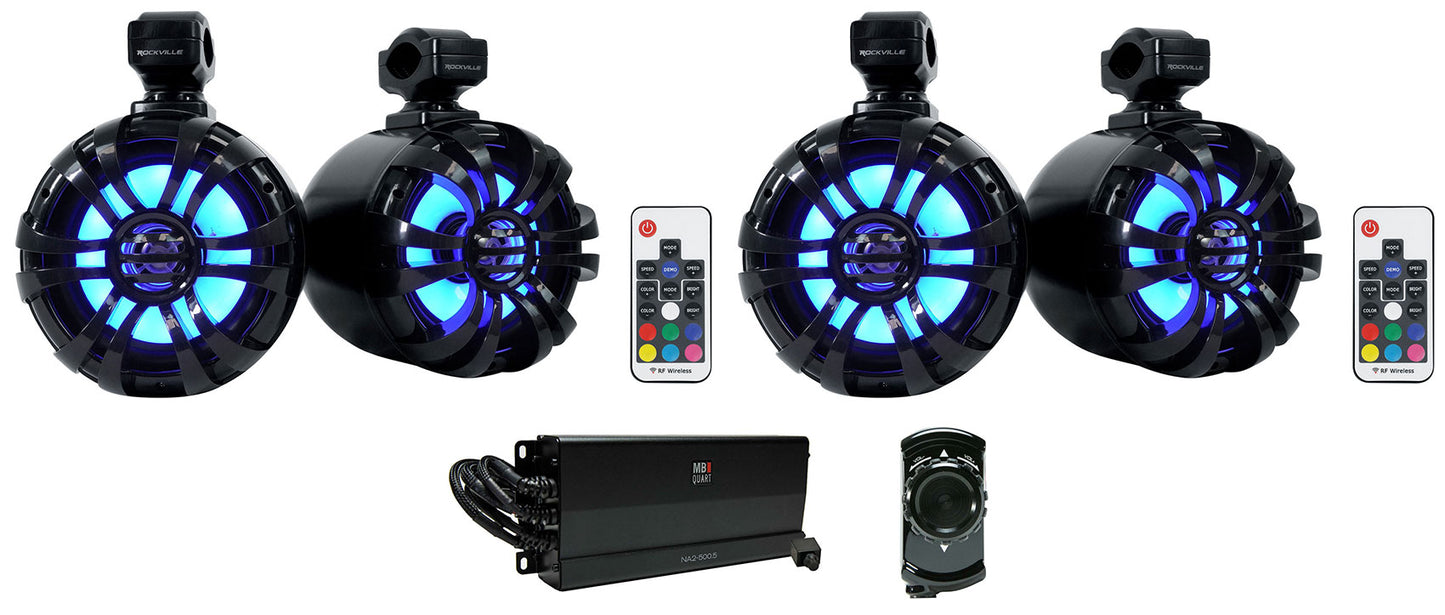

Package Includes:

• (2) Pair Rockville WB65KLS BLACK 6.5" 300w Metal Marine Wakeboard LED Tower Speakers
• (1) MB Quart NA2-500.5 500 Watt 5-Channel Amplifier Class-D Amp For ATV/UTV/RZR
• (1) MB Quart N2-WBT Rocker Switch Bluetooth Controller For Polaris RZR/ATV/UTV/CART

---

Video of WB65KLS Product:

How To Set Up your WB65KLS:

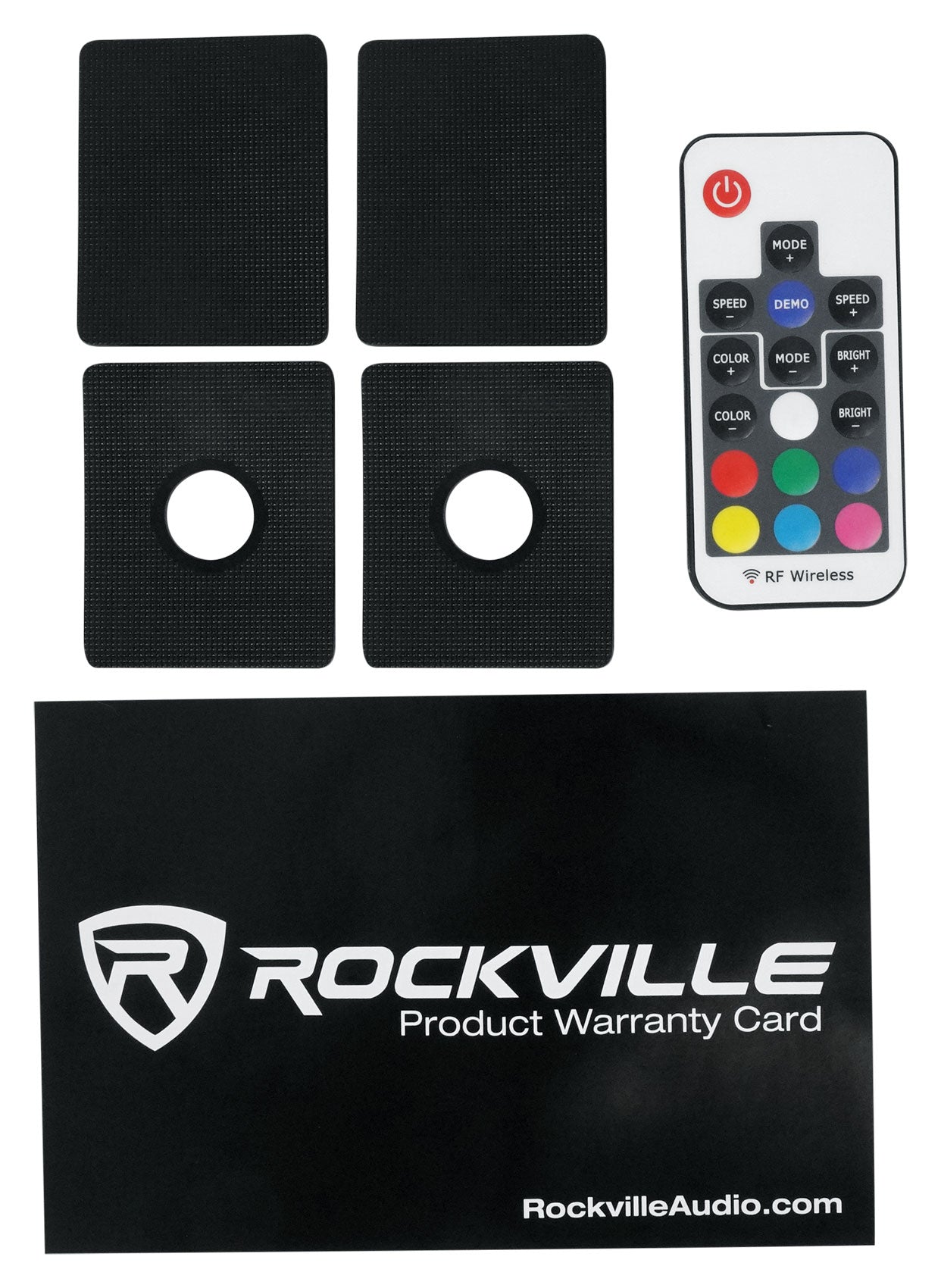

What's in the Box:

• Pair 6.5" marine wakeboard tower speakers with built in LED's
• Mounting brackets and mounting hardware
• Remote
• Installation hardware
• Rockville setup video to guide you through installation and usage

Description:

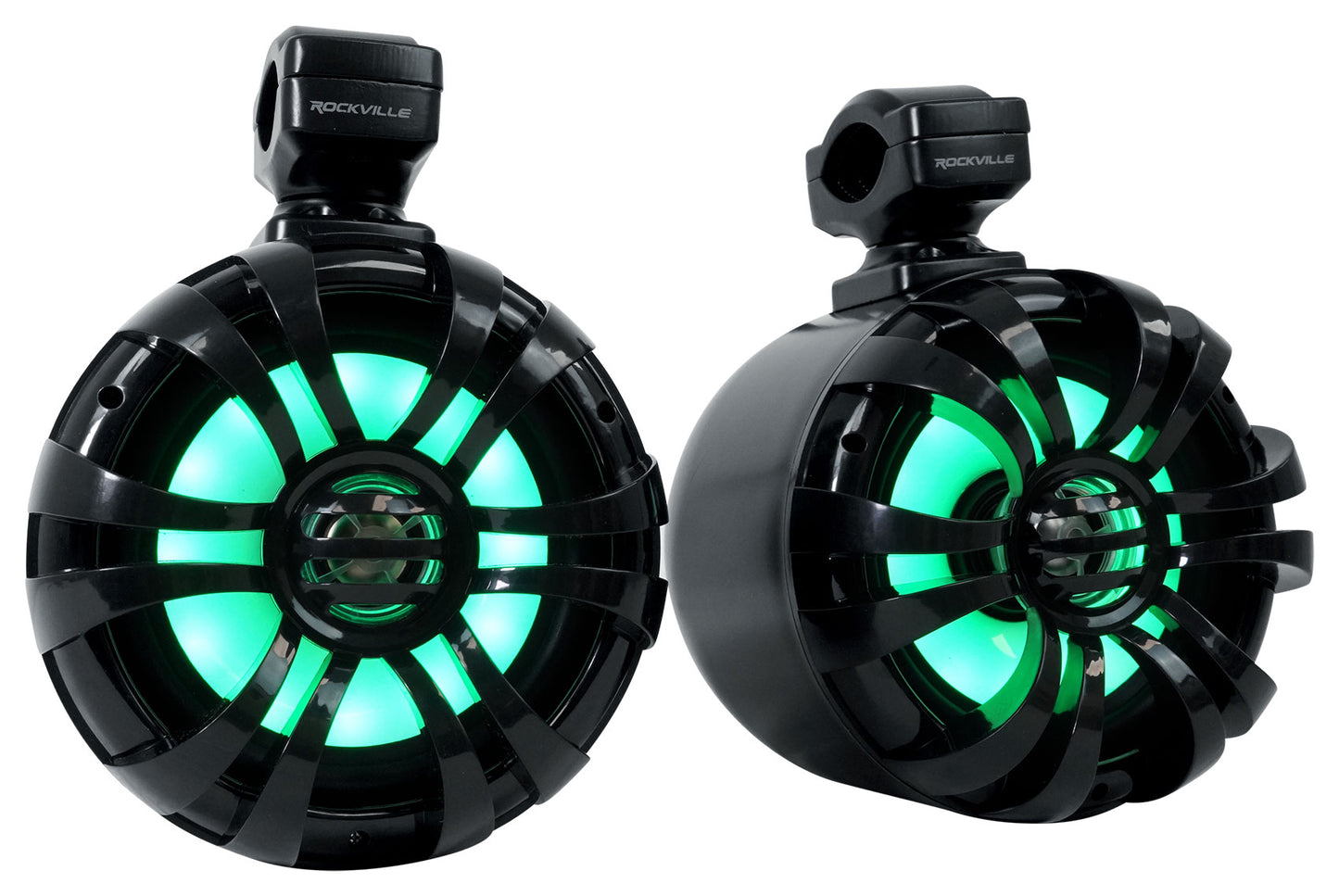

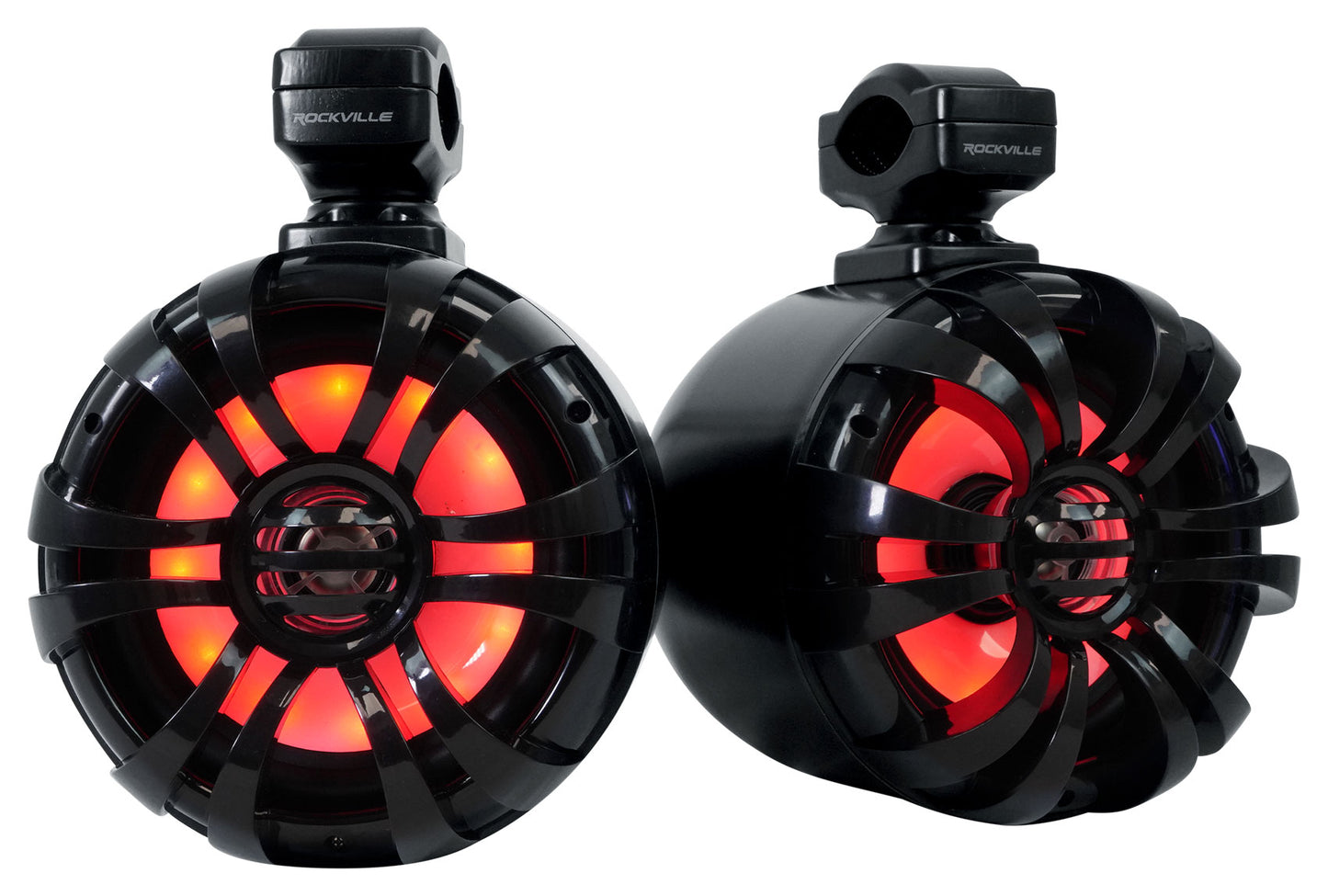

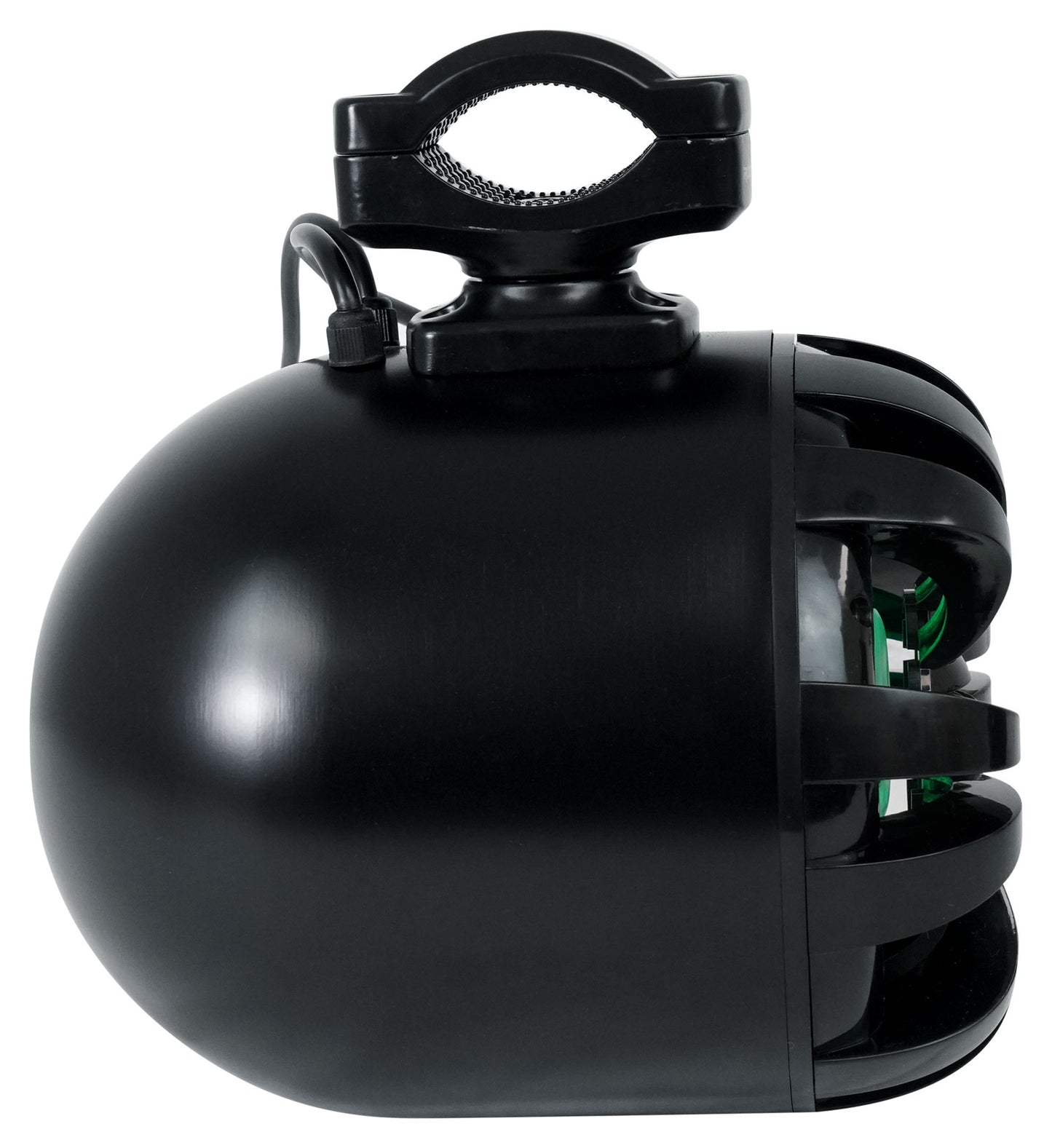

The WB65KLS 2-way marine wakeboard tower speakers with built in LED's by Rockville are great because they produce amazing bass, and clear highs in a compact enclosure that is perfect for your boat or your ATV.

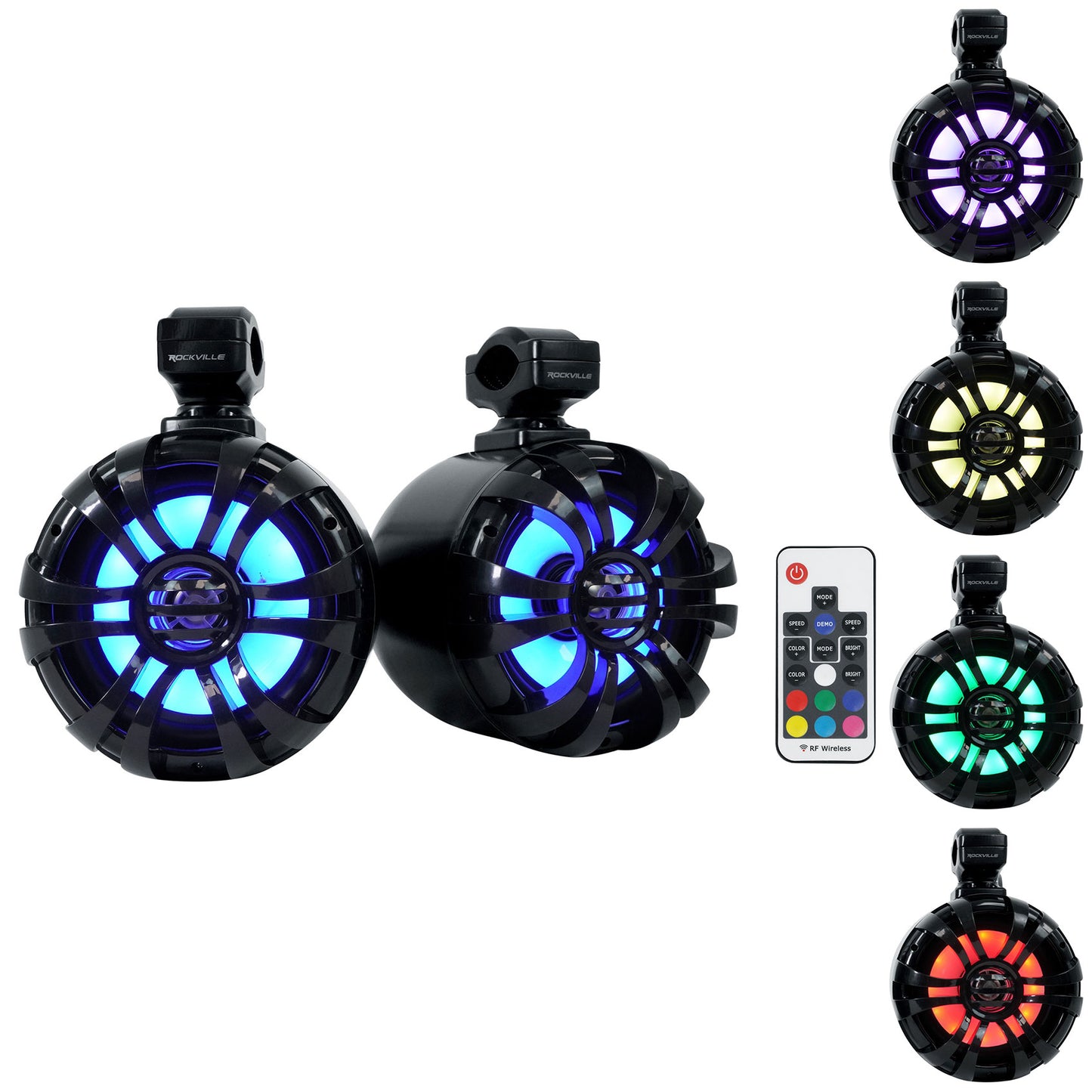

You get a pair of 6.5" waterproof speakers in a stainless steel enclosure with a chrome grill. Each speaker is equipped with a 1" titanium dome tweeter and a 6.5" woofer. Each speaker can handle 150 watts RMS and 300 watts peak! The built in LED's are controlled through the included remote and you can toggle colors and programs.

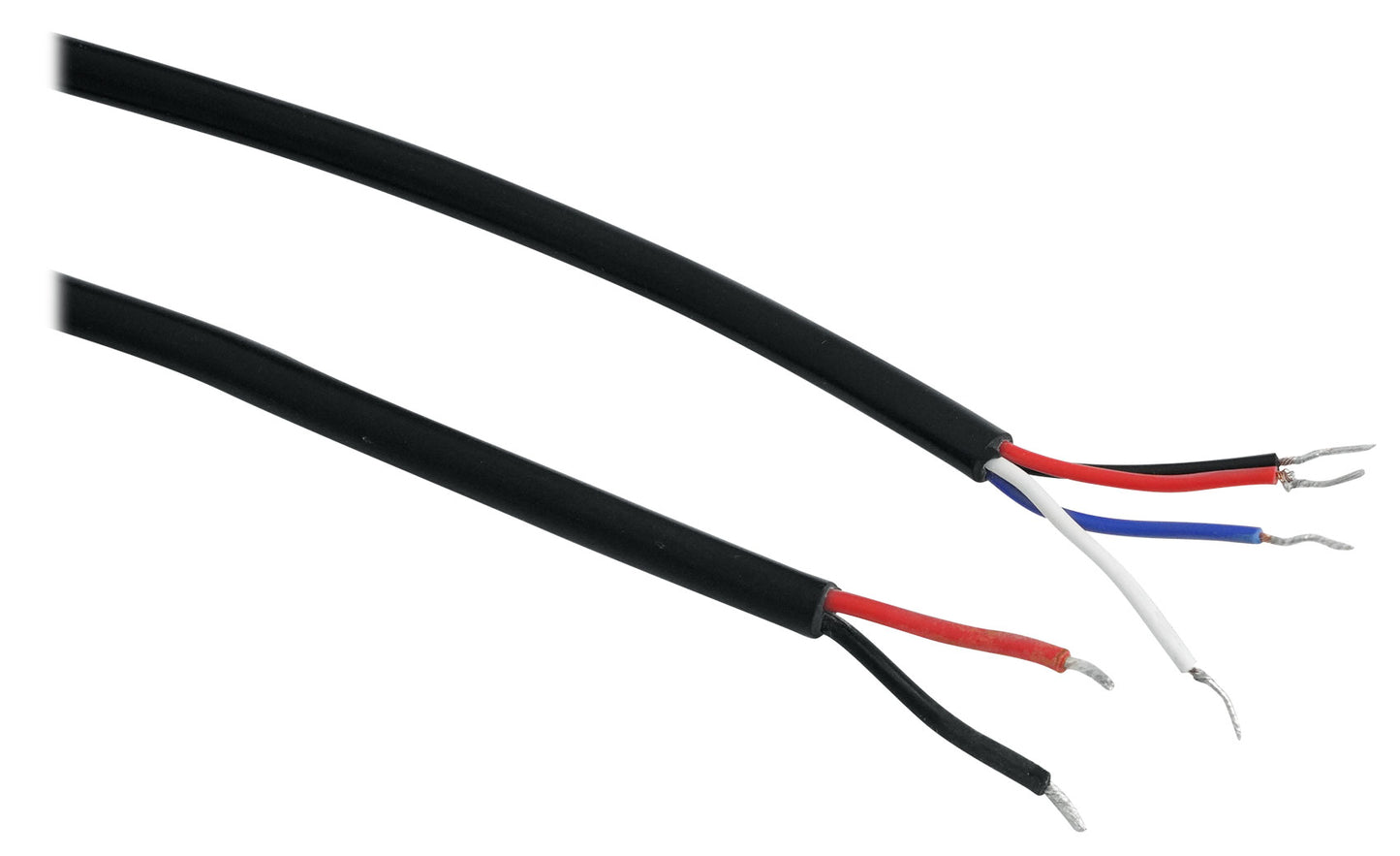

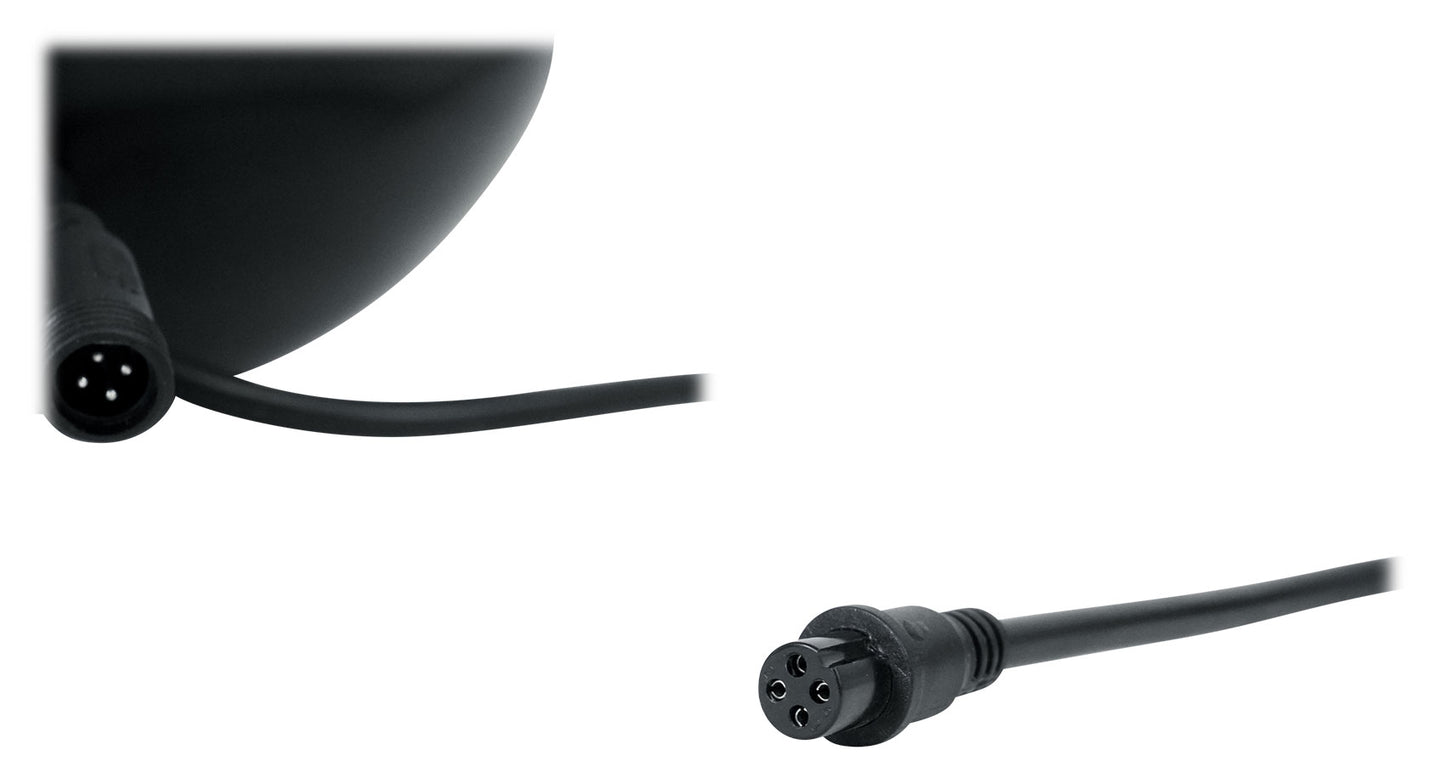

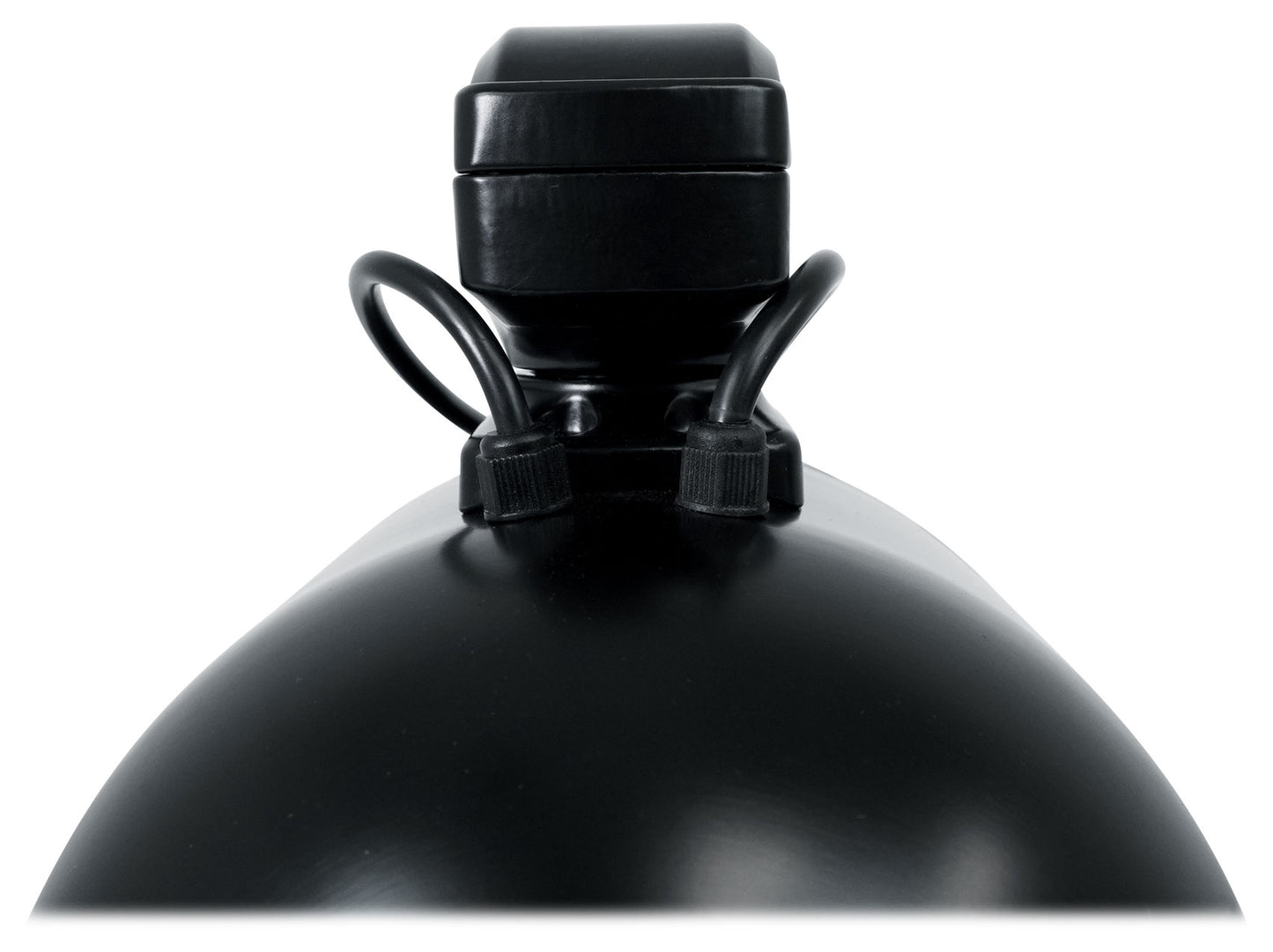

Another simple feature we added is that we have speaker wire leads that are water-tight and sealed that come out of the enclosure. So when you install the unit you simply wire your speaker wires to the leads and seal it. This is the most secure and easy way to install marine speakers. If you were using terminals then the wire would be exposed to water getting in. We really put a lot of thought into every aspect of this product.

Rockville engineers care about quality and sound more than anything else. Our team did a blind A to B listening test with the WB65KLS VS a famous brand that cost way more money and our model had a huge edge in frequency response and sound clarity. The 1" titanium dome tweeters really make the high frequencies throw long distances. The highs on these speakers are crisp, clear, and extremely loud! The bass produced by the woofer is extremely impressive for a full range speaker. In our blind test we were shocked at how much better our speaker sounded then the hyped up famous brand.

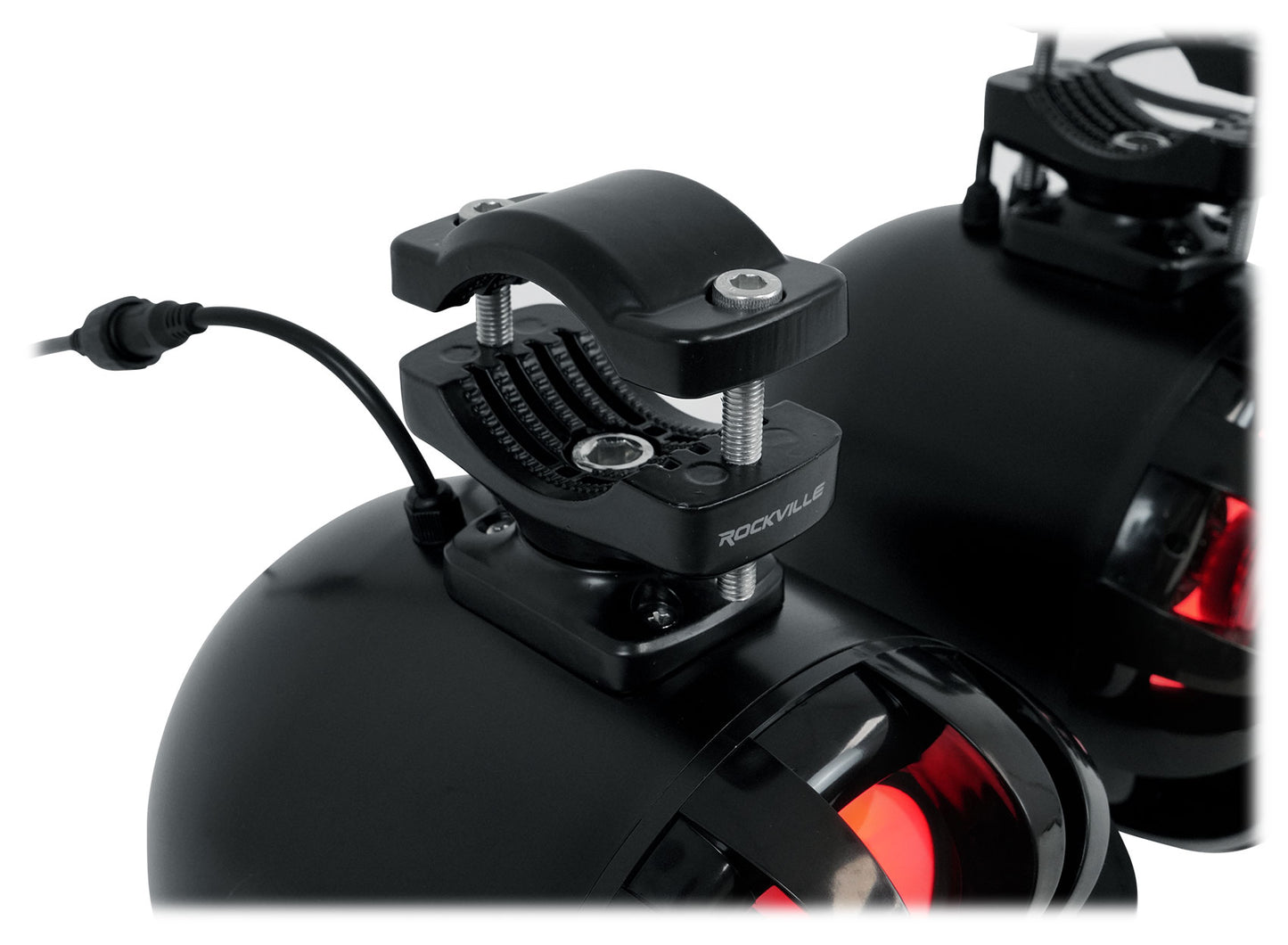

The mounting brackets are made of aluminum and built to last. These brackets are light weight, durable and can withstand the toughest conditions. The bracket features a special UV coating to protect it from the elements. A 360 degree rotating mechanism built into the bracket allows you to position the speaker in any direction for optimum listening enjoyment. This also gives you the flexibility to rotate the speaker to the front or rear of your ride.

We use only marine grade components and materials making these speakers truly waterproof. They will not get damaged by fresh water, salt water, or moisture. In addition to wakeboard towers on boats, these speakers are versatile and are perfect for installing in Jeeps, ATVs, and UTVs. We were careful in the design process to make these shallow enough to support an ATV or UTV.

With the WB65KLS you get way more sound than what you pay for.

Features:

• Pair Rockville WB65KLS BLACK 6.5" 300w Metal Wakeboard Tower Speaker w/ Built in LED's
• Peak Power Handling per speaker: 300 Watts
• RMS Power Handling per speaker: 150 Watts
• Water-tight and fully sealed speaker wire leads make installation secure and quick (Way better than terminals)
• Frequency Response: 70Hz to 20kHz
• Sensitivity: 88 dB
• Impedance: 4 Ohm
• Black stainless steel enclosure
• Aluminum Mounting Bracket
• Quick and Easy Speaker Angle Adjustment
• Bracket rotates 360 degrees
• 1" Titanium Dome Tweeter
• Fully Marinized Against Salt & Fresh Water Conditions
• Completely Resistant to Water, Rust, and UV Rays
• Polypropylene Mica Injected Cone with Rubber Surround
• 10 oz High Density Magnet
• 1" Voice Coil
• CE and RoHS Certified
• These wakeboard speakers fit bars ranging from 1" to 2.5"
• This model is shallow enough to fit perfectly in an ATV or UTV
• Dimensions per speaker (H x W x D): 7.1" x 7.1" x 8.7"
• Weight per speaker: 5.1 lbs
• Color: Black

---

Description:

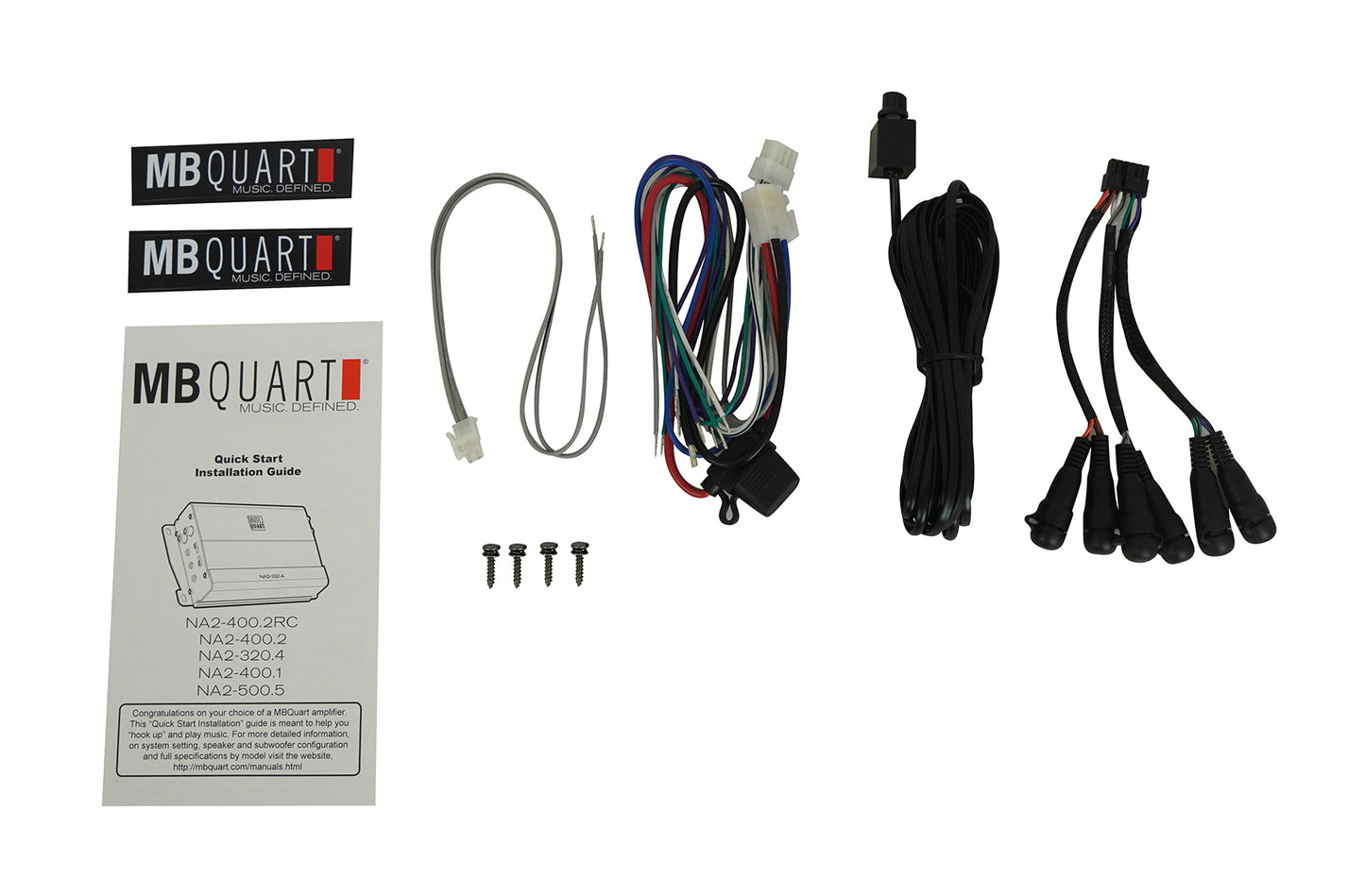

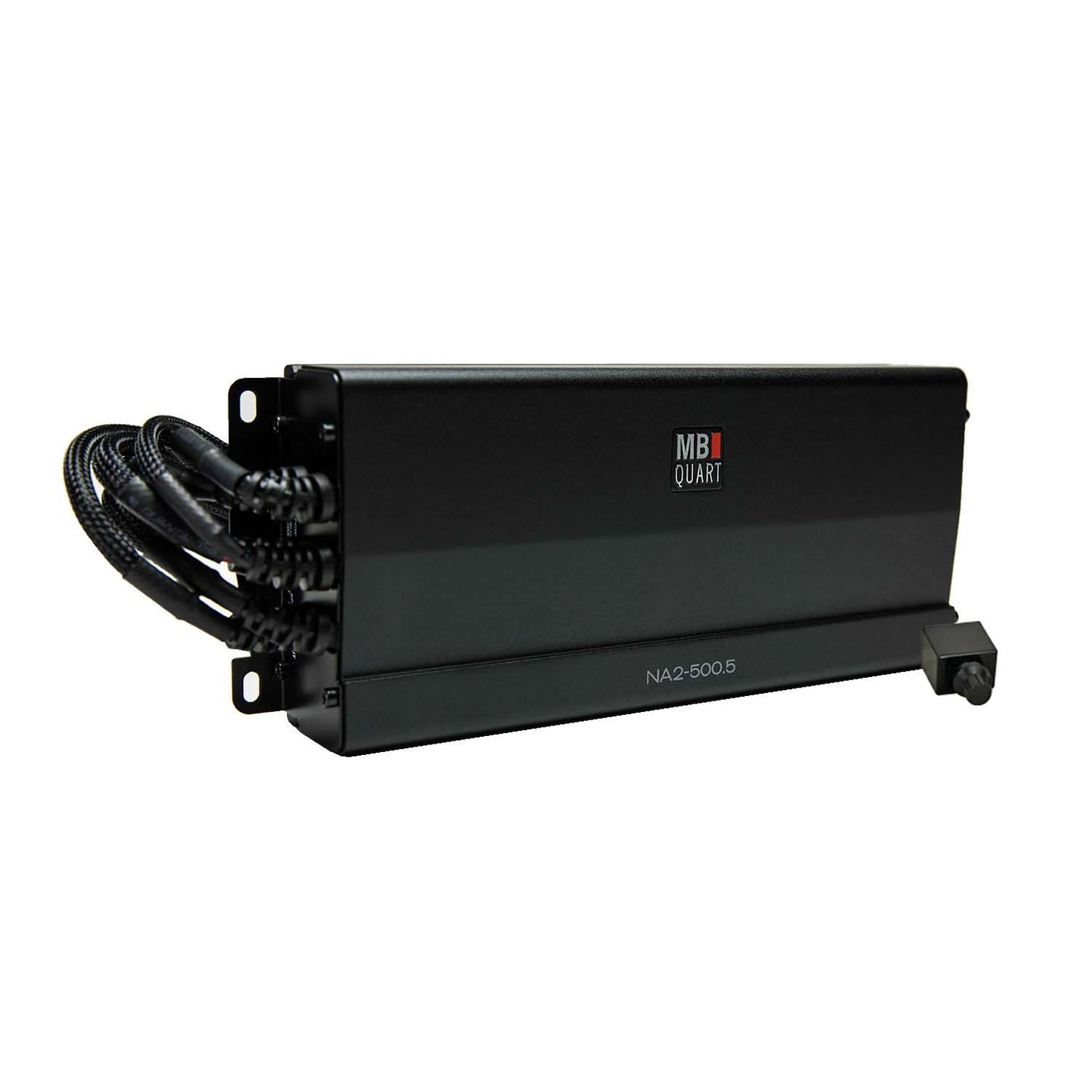

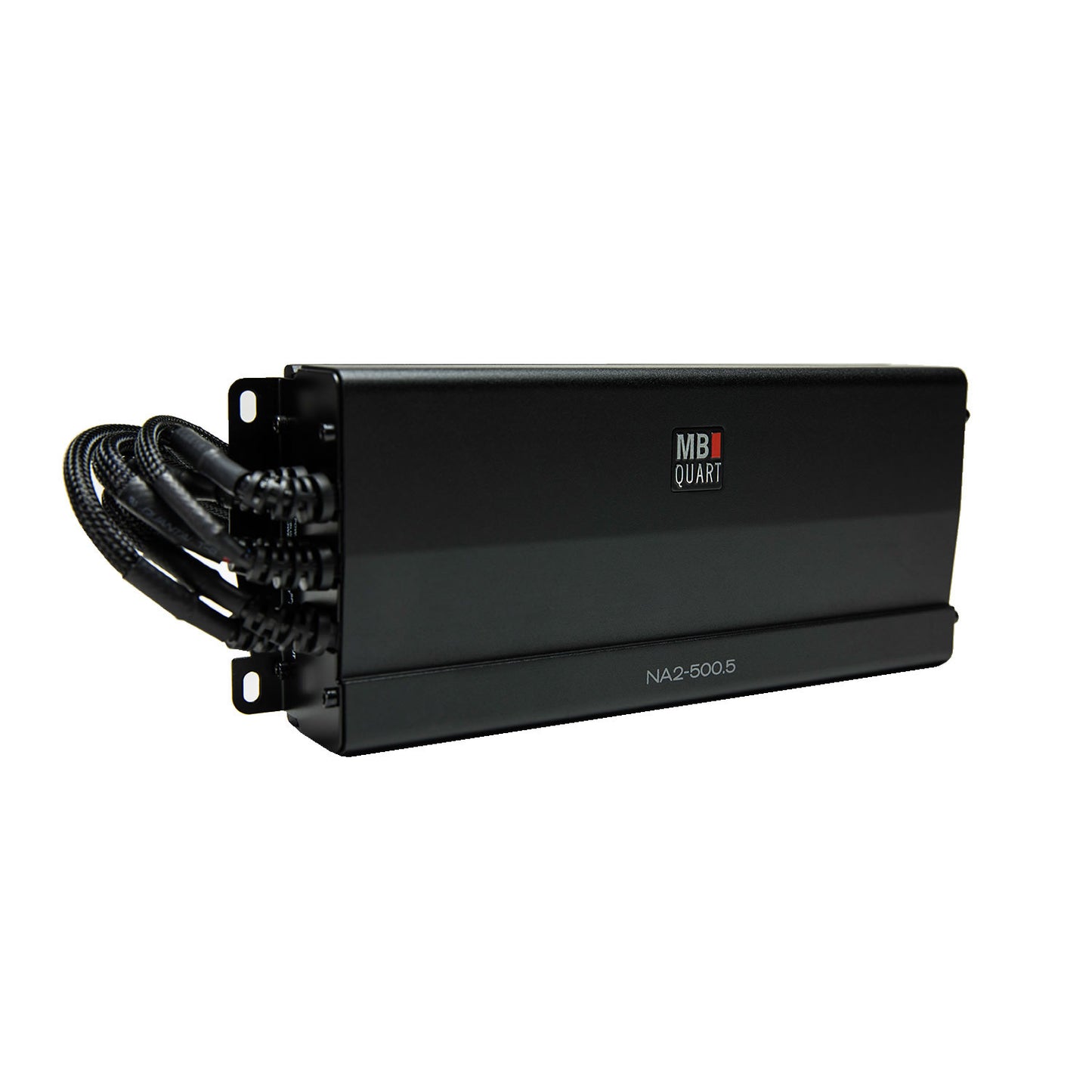

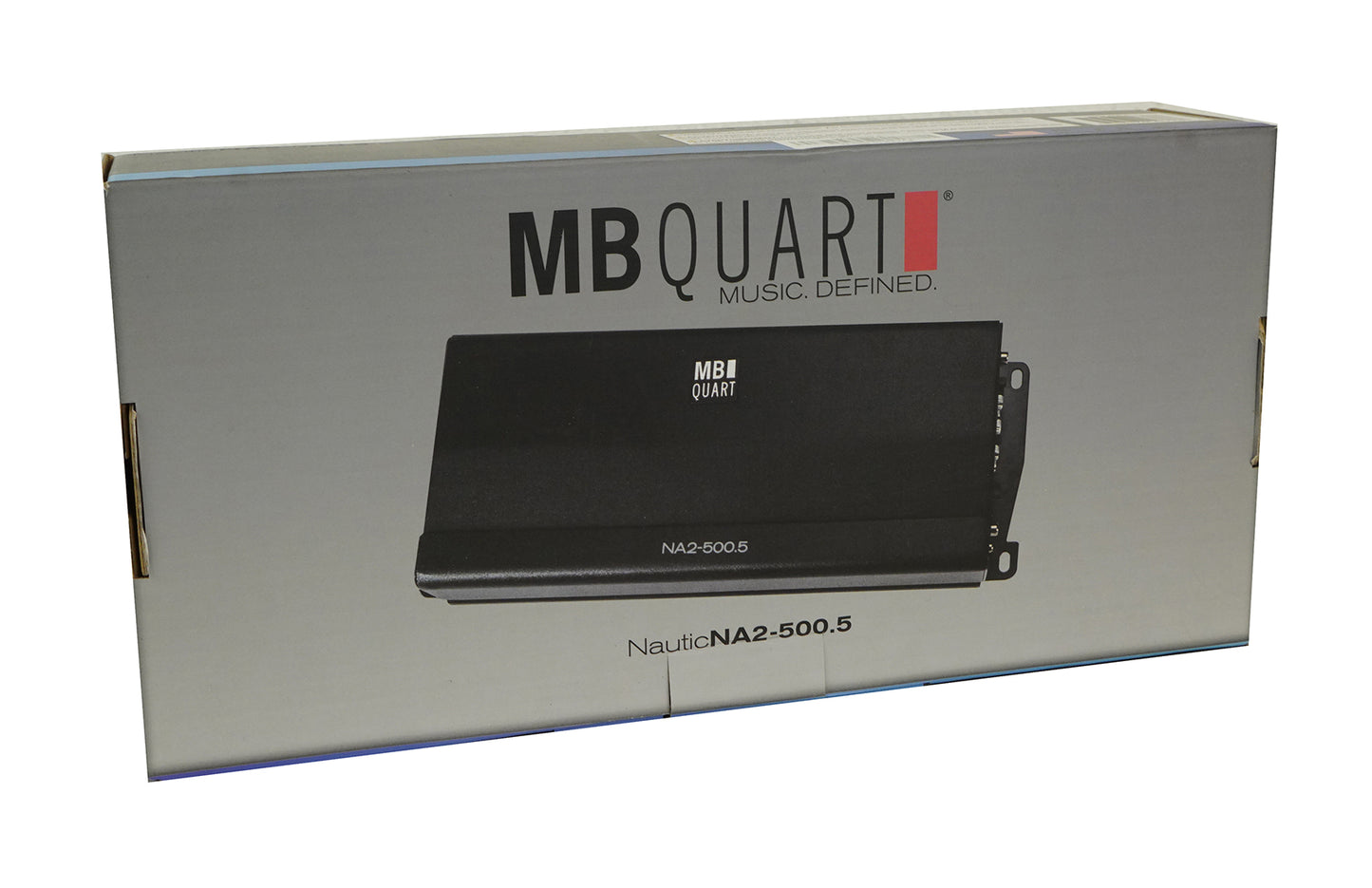

MB Quart compact Five Channel, 500 watt Powersports amplifier with on-board equalization and simple installation with quick release connectors. Base remote included.

Features:

Marine Grade Protection / IPX Rating

Amplifiers are ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture. IPX5

Low Noise Preamplifier Circuit

Q-Stasis Pre Amplifier Stage: The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality.

RCA Inputs

2 Pair, RCA (Front/Rear), 1 Pair RCA (Subwoofer) Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.

Operation Mode

Four channel and with dedicated subwoofer channel: Unique design allows this amplifier to power full range speakers with a dedicated channel for a subwoofer.

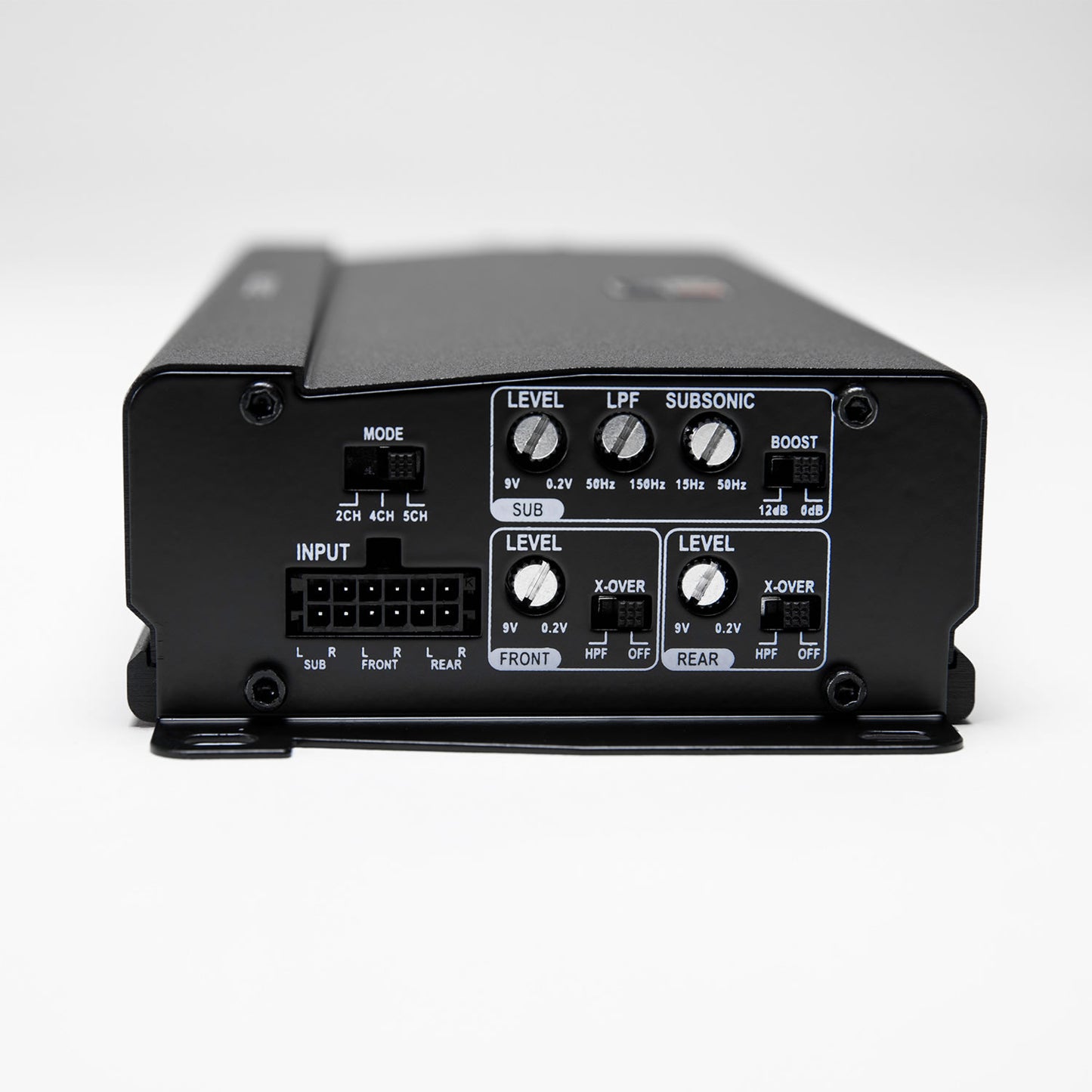

Crossover Type

Switched FULL / LPF / HPF: Complete control of amplifier signal, essential when using two or more amplifiers.

Class / Topology

Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.

Output Device Technology

PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.

Heat Sink

Aluminum: Quickly dissapates heat to allow the amplifier to run lower impedance for longer duration.

Power Supply

Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

Output Connections

Quick Disconnect Wires, RCA Connections: Quickly remove amplifier when you are putting machine up for the winter of as a security precaution.

Connection Type

Nickel-plated connections: Nickel plated corrosion resistant connections.

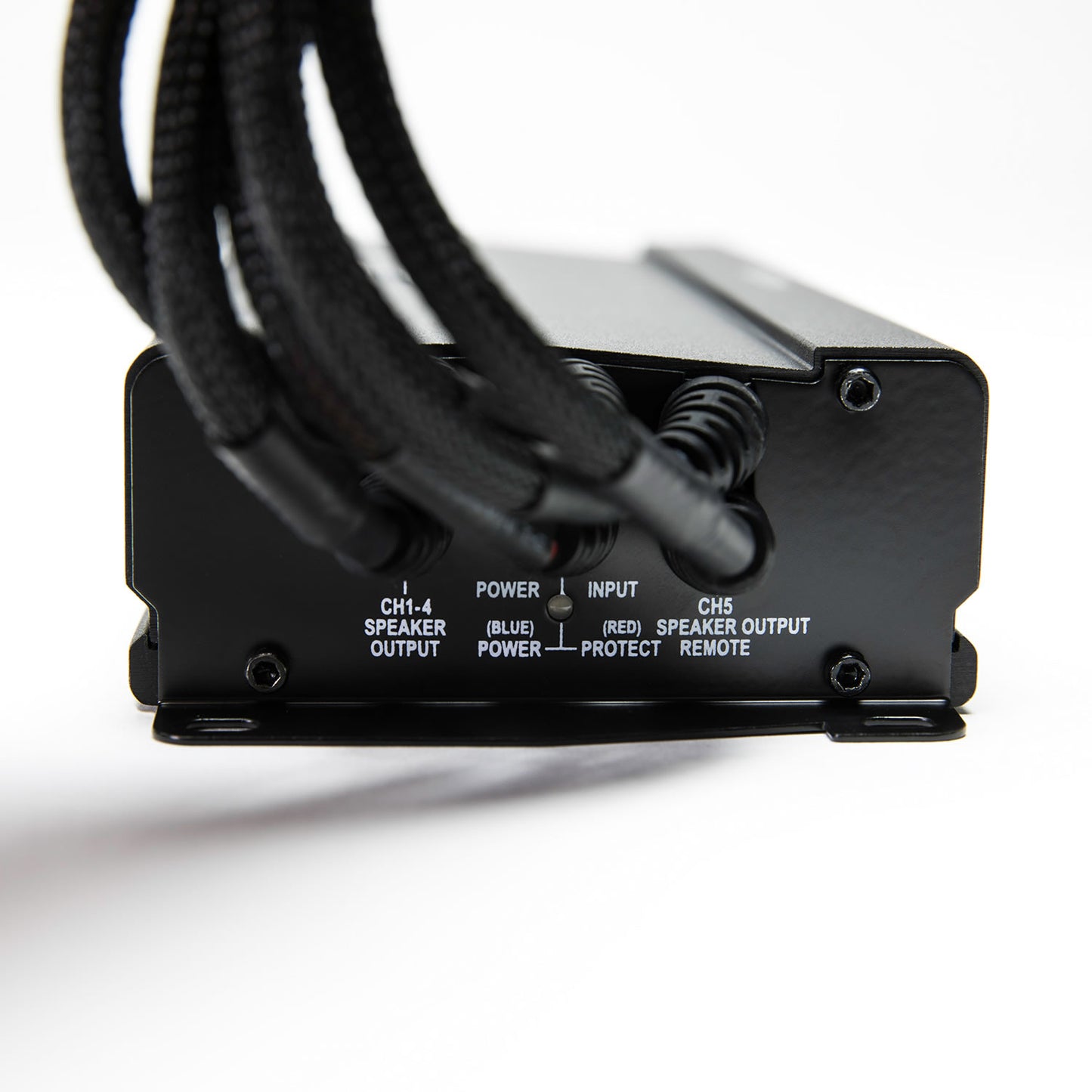

LED System Protection Circuitry Diagnostics

Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.

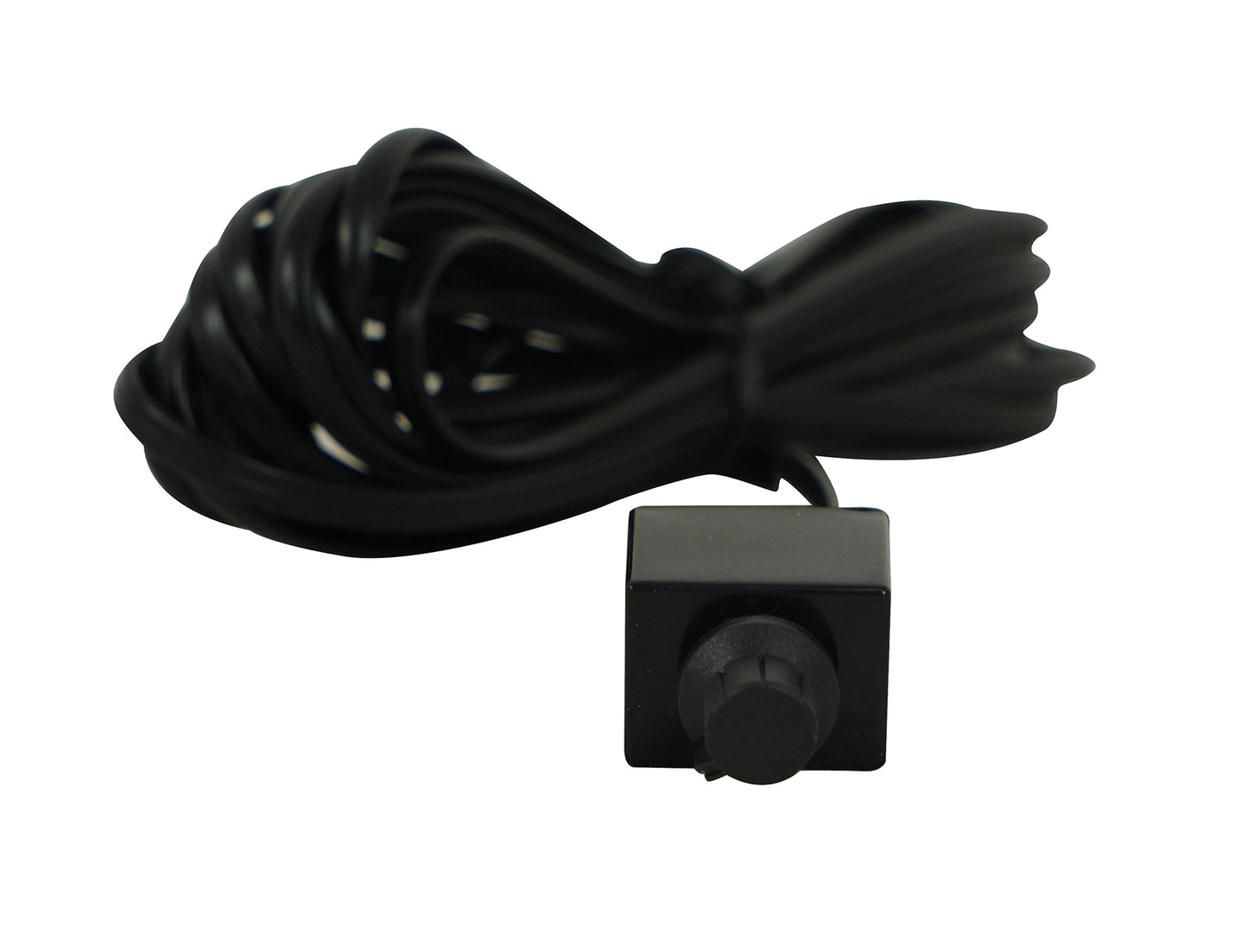

Bass Remote Included

Included: Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.

Specifications:

• Weight: 3.35 lbs
• Type: Amplifier
• Brand: MB Quart
• Series: Nautic
• Category: Marine, Powersports
• Condition: New
• Color: Black
• Warranty: 1 Year
• Amp Class: Full Range Class D
• Amp Total Channels: 5
• Amp Max Power (watts): 500
• Amp Power @ 2 Ohms (ch x watts): 4 x 80 + 1 x 200
• Amp Power @ 4 Ohms (ch x watts): 4 x 40 + 1 x 100
• Amp Variable High Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF, CH3 & CH4: Switched Full/HPF
• Amp Variable Low Pass Crossover 12dB per Octave: CH5: LPF 50Hz-150Hz
• Amp Bass Boost: 0-12dB @ 45Hz
• Amp Subsonic Filter: 60Hz
• Amp Variable Voltage: 0.2-9V
• Amp Signal to Noise: > 90dB
• Amp Frequency Response: 20Hz-20kHz
• Amp Speaker Level Audio Inputs: RCA
• Amp Power Terminal 12v/GND: Molex 10 GA
• Amp Speaker Terminal Wire Gauge: Molex Plug Connector
• Amp Fusing: 40A x 1

---

Description:

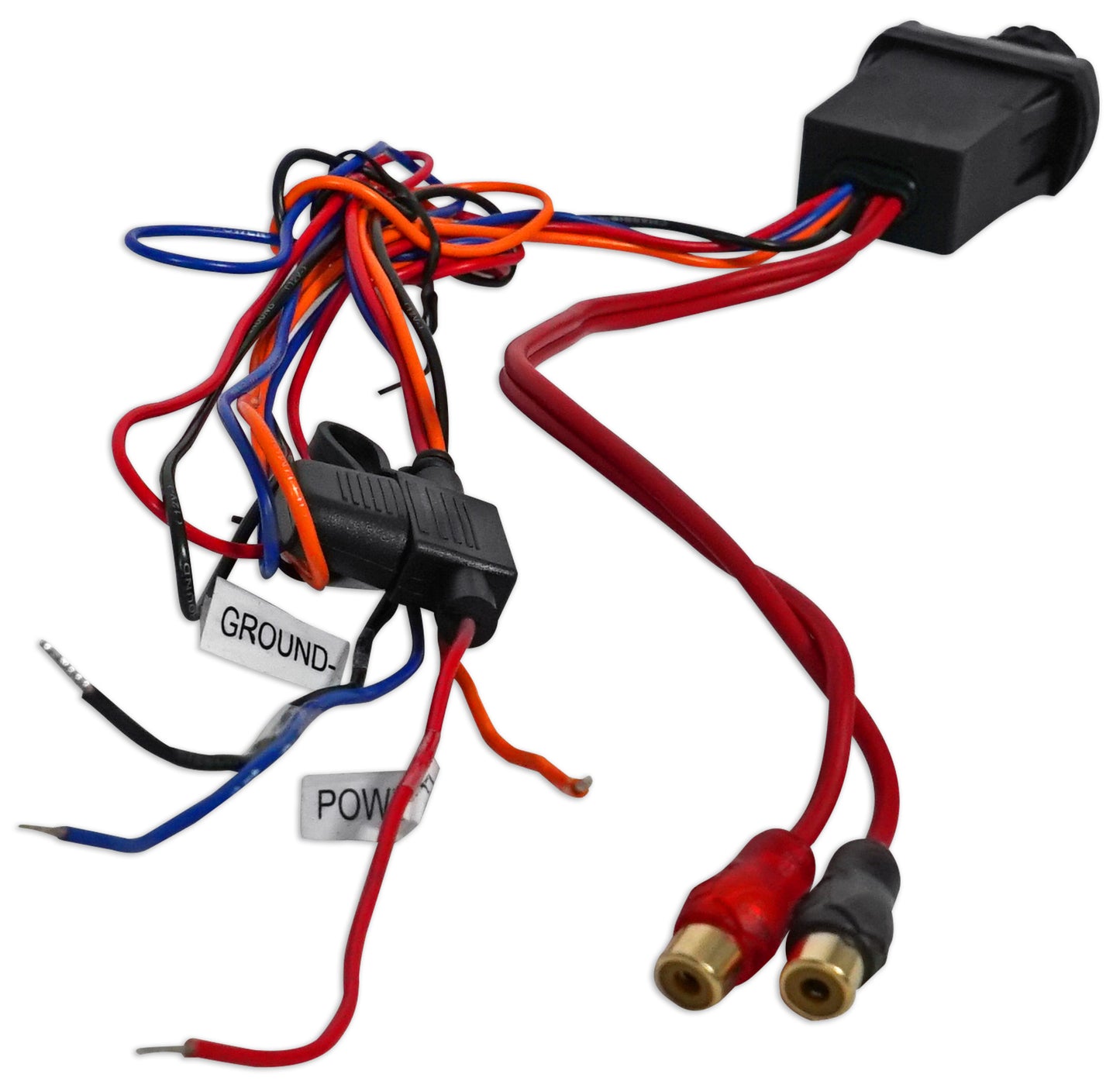

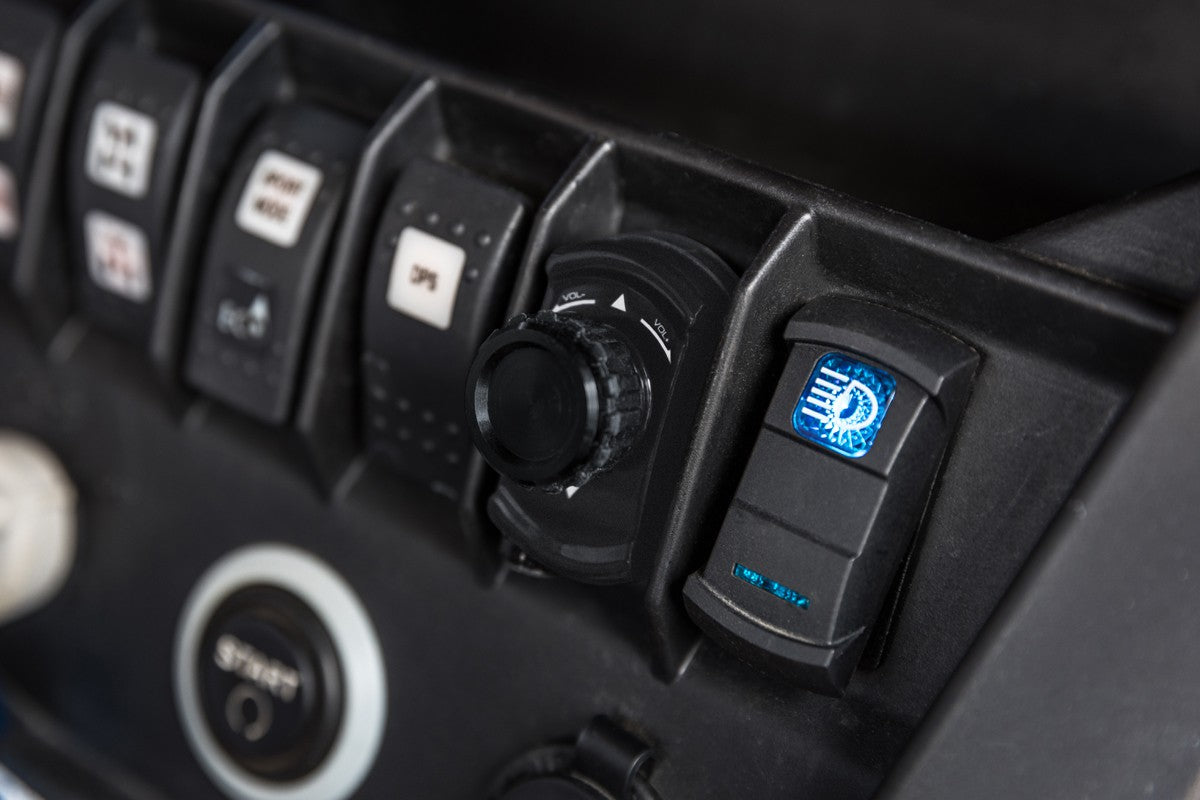

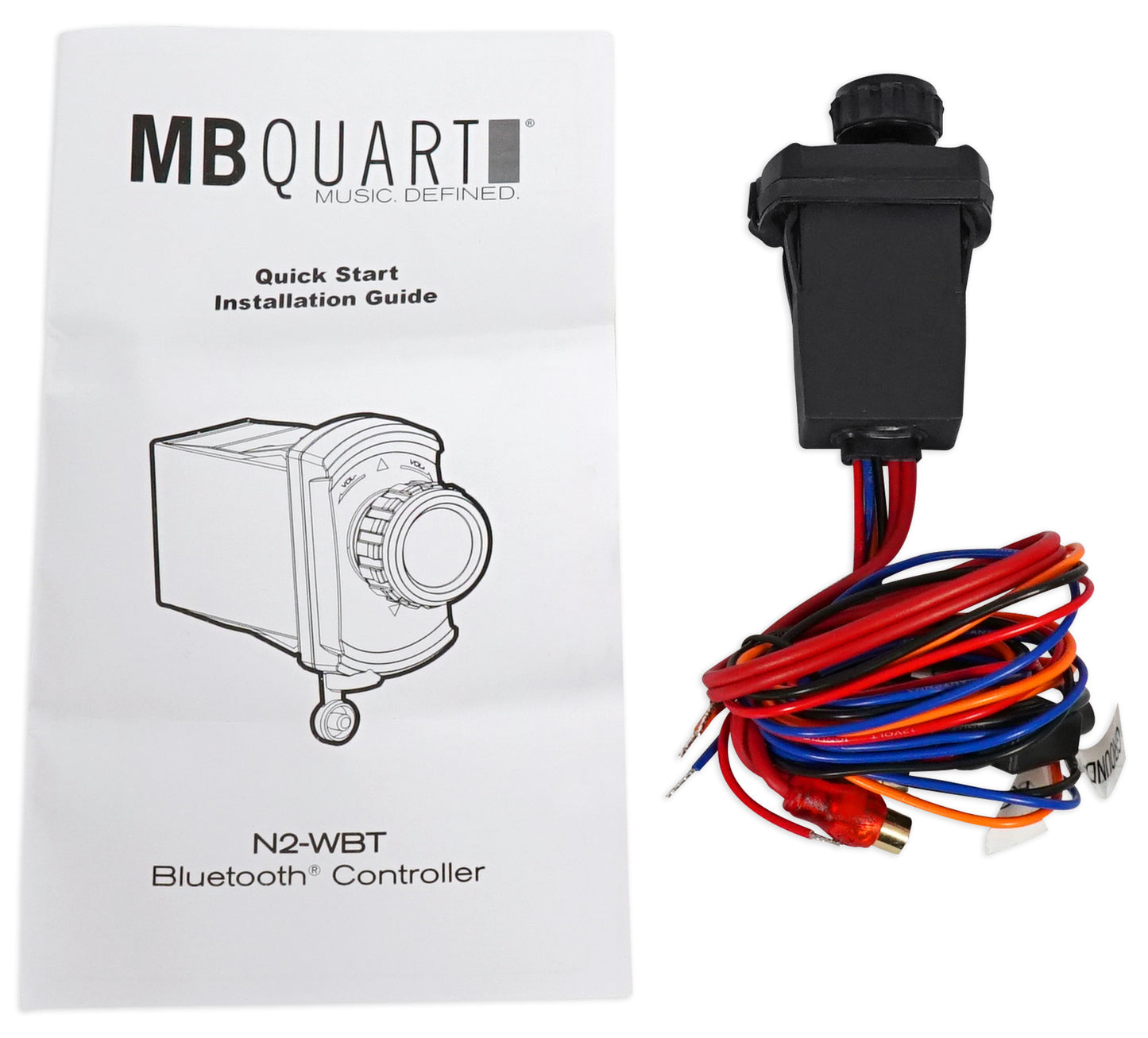

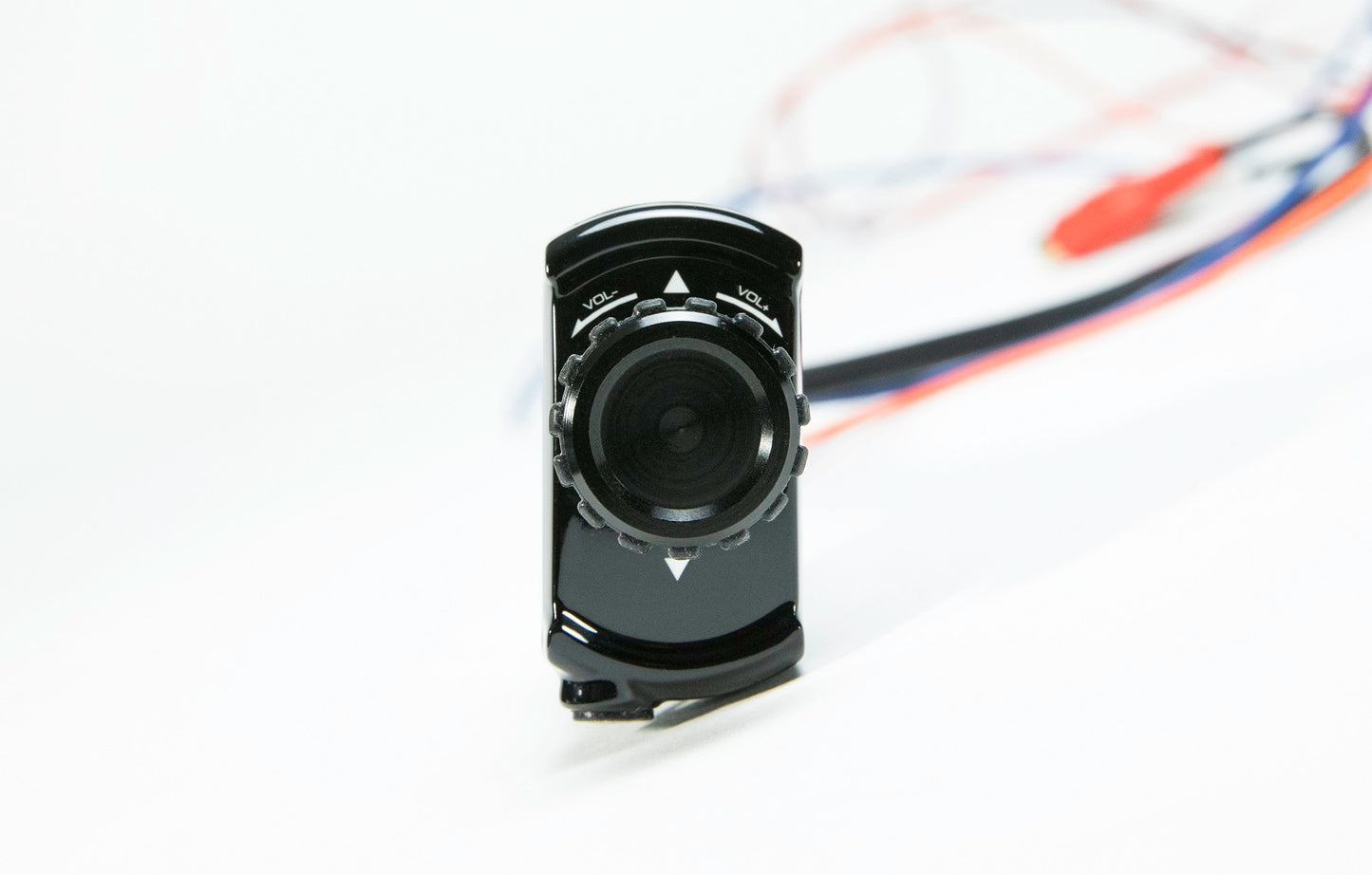

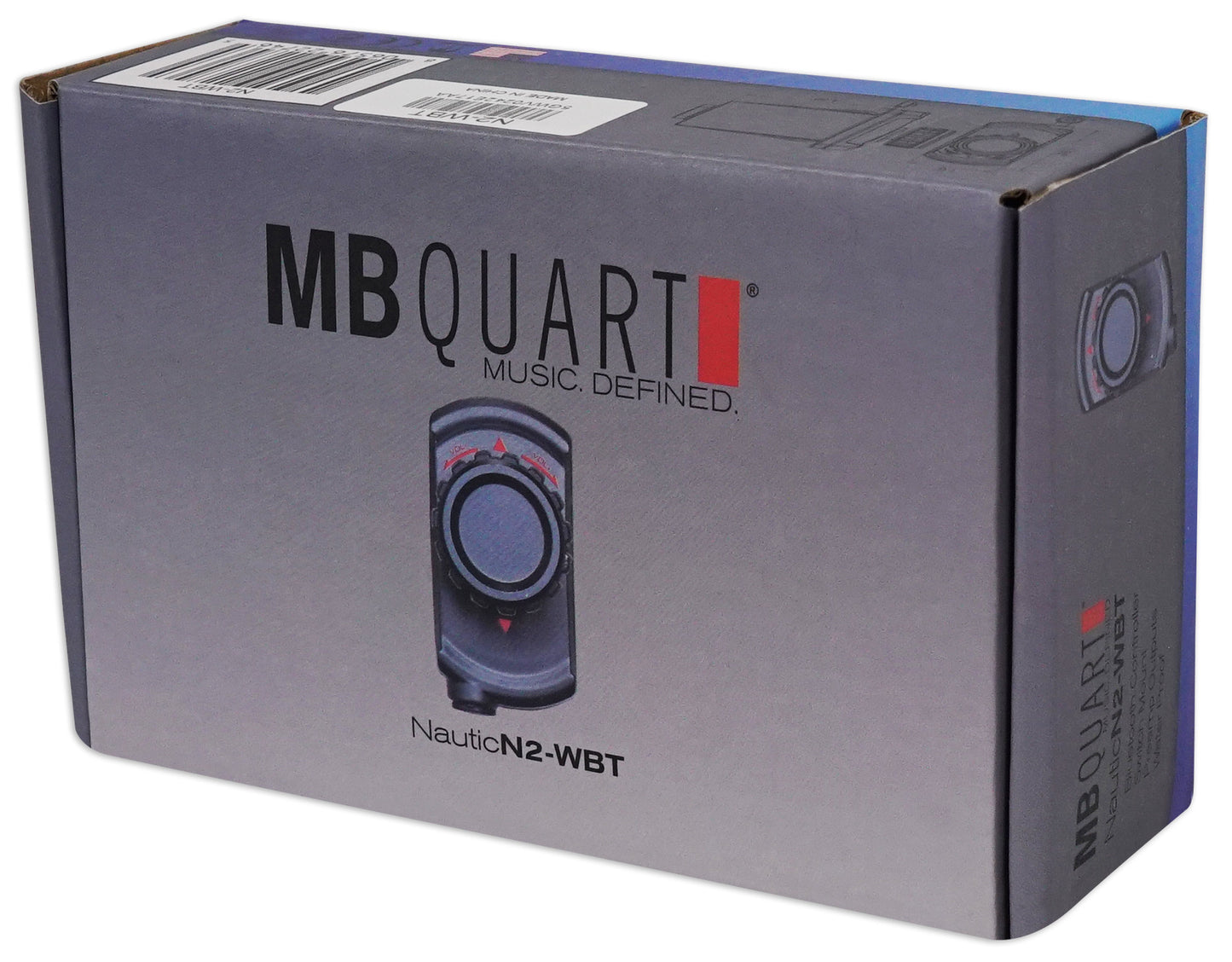

The MB Quart Nautic bluetooth controller is simple source unit solution designed to mount in a standard switch or accesory location. Features include: Back lighting and RCA outputs (Left & Right).

Features:

• MB Quart N2-WBT Wired Bluetooth Preamp Controller, Boat Polaris/ATV/UTV/RZR/CART
• Marine Grade Protection: Yes - Meets or excceds the American Boat and Yacht Council (ABYC) marine electronics standards and the American Society for Testing and Materials (ASTM)
• Source Type: Bluetooth - Allows to music via Bluetooth enabled devices
• Input Types: Bluetooth and 3.5mm jack - Bluetooth enabled devices and 3.5mm input from headphone output of mobile music device or phone
• Control Buttons: Fingertip Joystick - Play/Pause, Tracks Forward/Back, Volume Up/Down and Power On/Off are all protected from the elements with the the unique Fingertip Joystick
• Bluetooth Connect: Yes - Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
• Additional Inputs: 1 pair RCA (Left & Right)
• Bluetooth Range: 32' - 10 Meter
• Frequency Response (Aux In): 20Hz - 20kHZ
• Pre-amp Outputs: 1pr Left/Right
• Pre-amp Voltage: 2V
• Display Type: Backlight
• Display Backlit: Dial is backlit
• Dimensions Mounting Hole: Swich Hole 0.83" x 1.41" (2.1cm x 3.58cm)
• Dimensions Mounting Depth: 2.5" (6.35cm)
• Dimensions Mounting Bezel: 4.15" (10.5 cm)
• Product Weight: 1.0 lbs (0.45 kg)
• Product Dimensions: 3.5" (8.89cm)
