Package Includes:

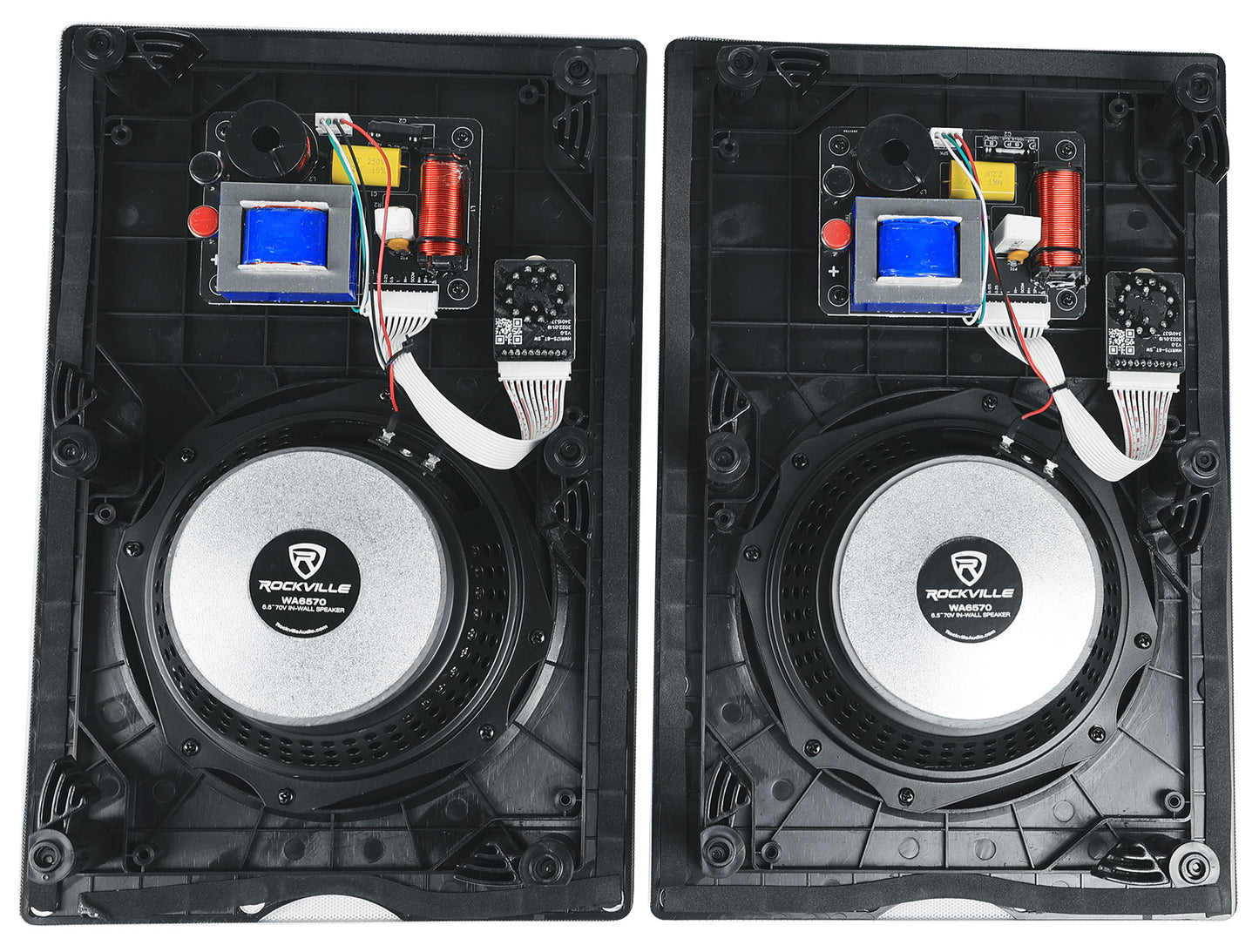

• (2) 2 Rockville WA6570 6.5" 70V Commercial/Restaurant In-Wall Speakers 40W/20W/10W/5


---

All About Your WA6570:

How To Set Up Your WA6570:

How To TAP Your WA6570 Speakers:



Description of WA6570:

Rockville WA6570 pair of In-Wall 70V speakers are perfect for keeping a clean look in your office or restaurant. These speakers feature high-end components from start to finish to give you a clear and balanced sound with great power handling.

The transformer taps (70.7V) are 40W/20W/10W/5W/8 ohms 1. The 6.5" woofer uses a glass fiber cone that gives great low/mid frequencies 1. The tweeter is a silk dome 1" tweeter to give you tamed and balanced high frequencies that sound pure and real.

The speaker design looks really nice when you install it. It blends into the wall and the grill is paintable which is great if you have bright colored walls and you want to blend the speaker into the wall. The design looks really cool with beveled fine imprint details.

Installation is quite easy with our easy-to-follow installation and how-to-use videos.

What is 70 volt ?

70 volt systems are the number one choice for applications where you want to install many speakers. With 70 volt there are a lot of advantages over 8-ohm systems. One of the main advantages is the simplicity of the wiring as well as how easy it is to match up speakers with the amplifier. For example, you can buy one 70V amplifier with 350 watts and you can install speakers that total close to 300 watts. It does not matter if it is 15 speakers that are 20 watts each or 50 speakers that are tapped at 5 watts each. You always want your 70 volt amp to have at least 15 or 20% more power than the combined watts your speakers are tapped at.

When we say the word tap, what we are referring to are the selectors these speakers have on them. For example, these speakers have selectable options of 5w, 10w, 20w, and 40w. What this does is limit how many watts the built-in transformer on the speaker will allow the speaker to get from the amplifier. This gives you full customization over the sound for your space. In a restaurant for example you can tap your dining room speakers at 5 watts, the speakers by the bar area at 20 watts, and the ones in the hallway at 2.5 watts.

Another great feature with 70 volt is you can mix and match any 70 volt speakers whether they are ceiling speakers, in-wall speakers, subwoofers, etc.

70 volt systems allow you to run very long lines of speaker wire without signal loss. This is ideal when running long speaker leads.

The wiring is simple. You just wire all the positive terminals of the speakers to the positive 70 volt terminals of the amplifier. The negative terminals on the speaker simply get wired to the negative terminals on the amp. You do not have to worry about impedance. The power is constant.

70V Power Options:

• 40W

• 20W

• 10W

• 5W

• 8 ohms (transformer bypass)


Features:

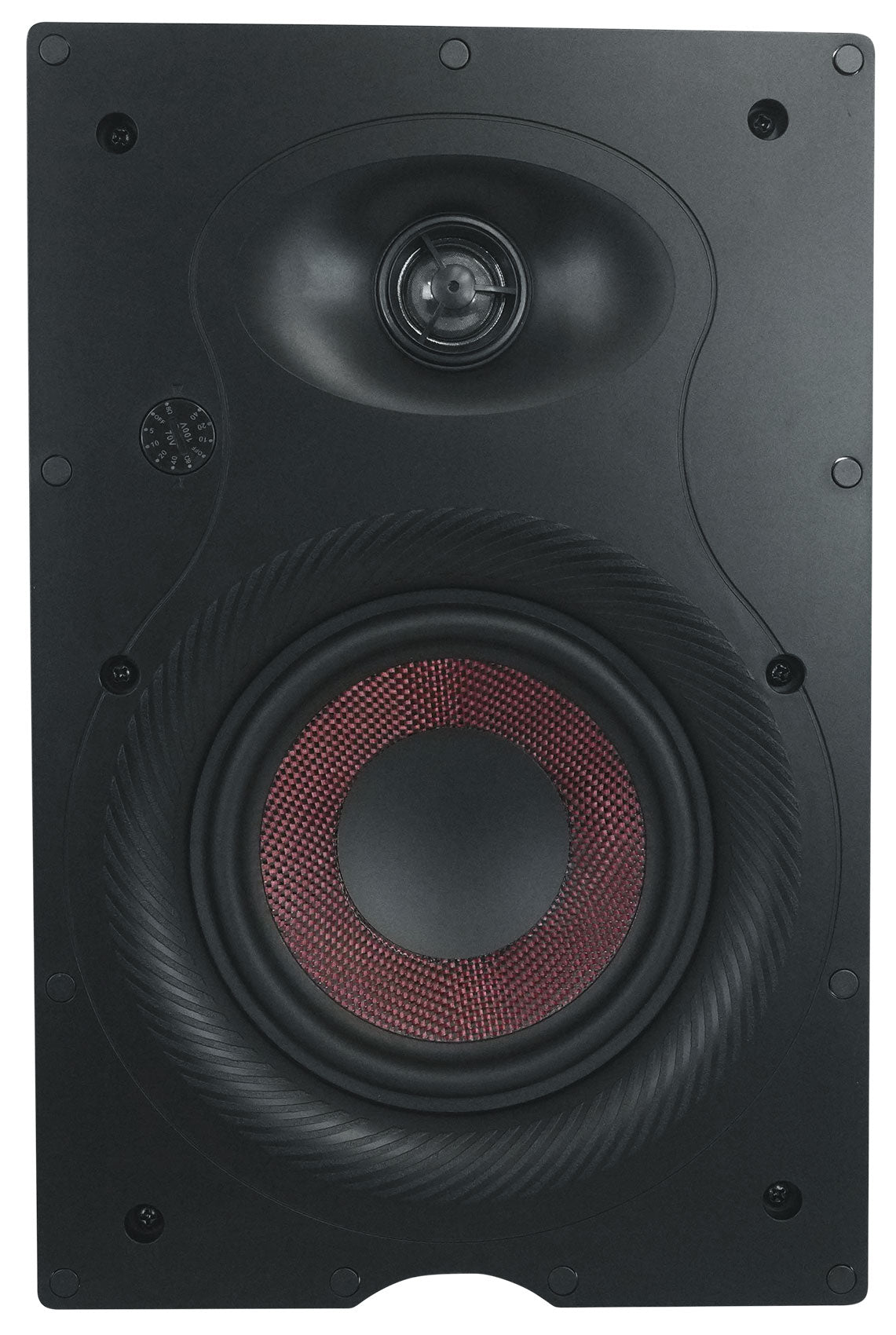

• Pair of Rockville WA6570 6.5" In-Wall 70V Commercial Speakers w Kevlar Woofer and Silk Dome Tweeters

• Transformer Taps (70.7V): 40W/20W/10W/5W/8 ohms

• Kevlar Cone

• Rubber Surround

• 6.5" Woofer

• 1" Aluminum Voice Coil

• 1" Silk Dome Tweeter

• Swivel tweeter

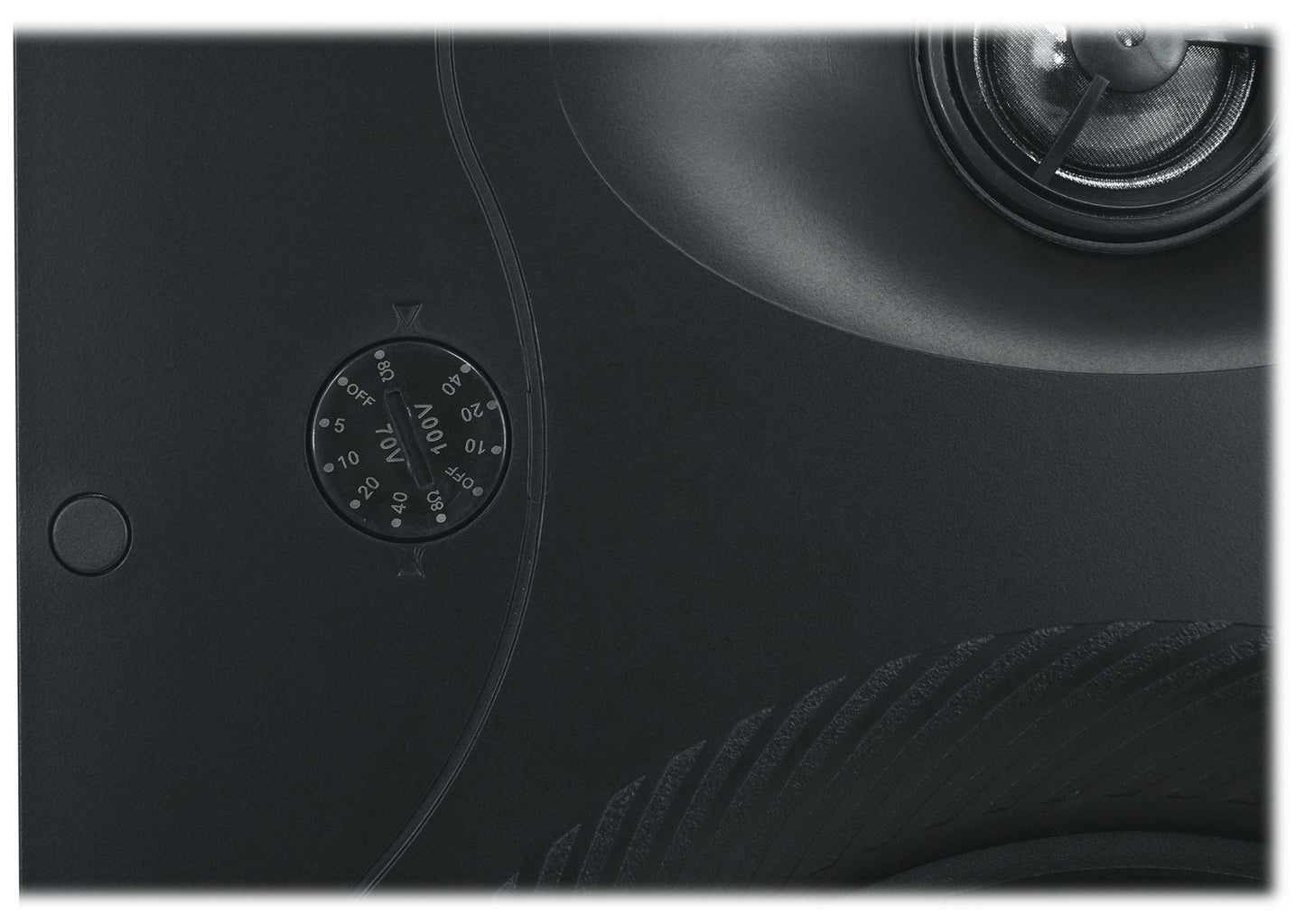

• 5-way tap switch on the front panel with easy access thanks to the magnetic grill

• 23 oz. Ferrite Magnet

• Built in 12dB/octave crossover (cutoff frequency is 3KHz)

• Easy to mount inside your wall

• High Quality Spring Loaded Push Terminals

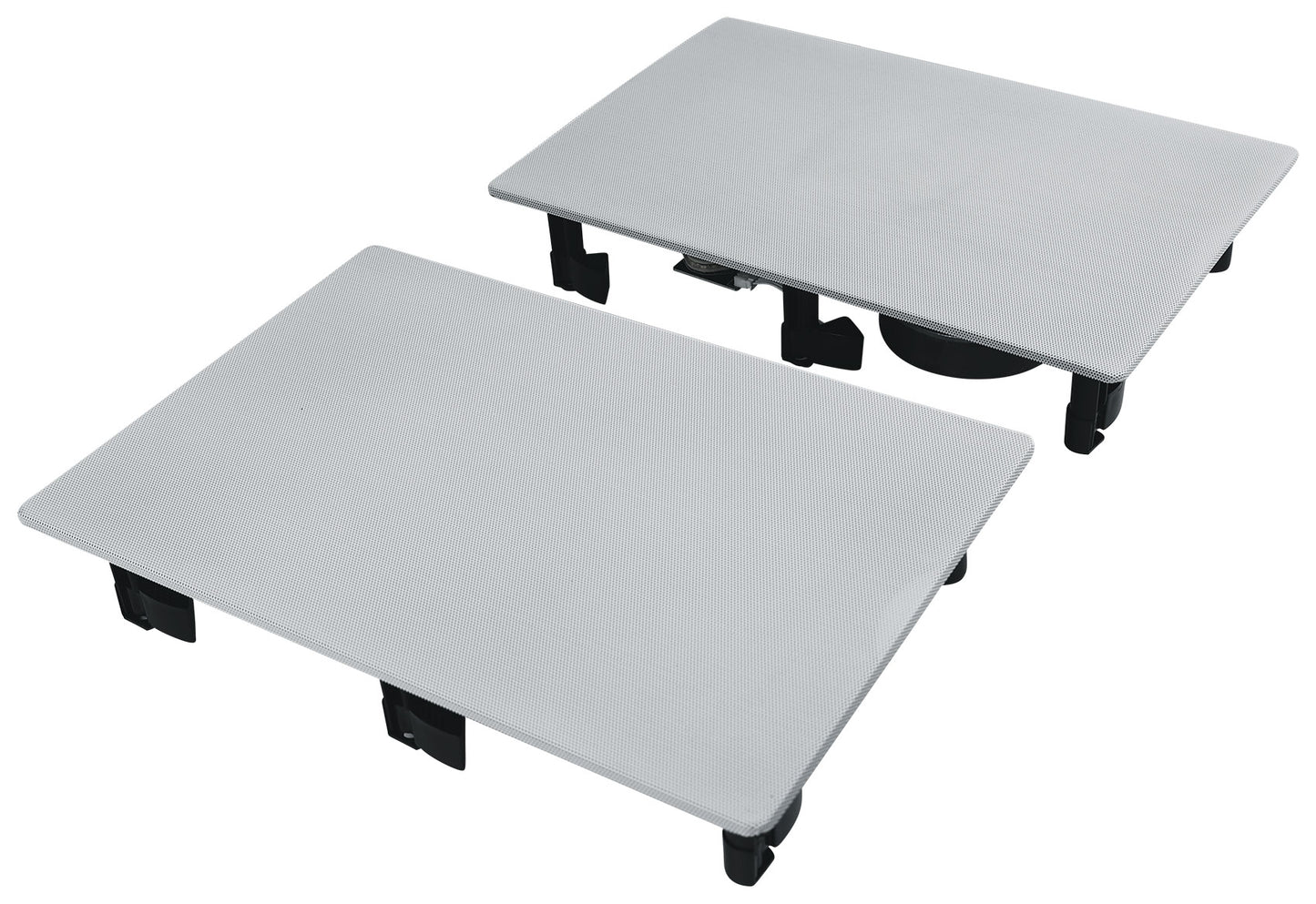

• Paintable Flush Mount Grills

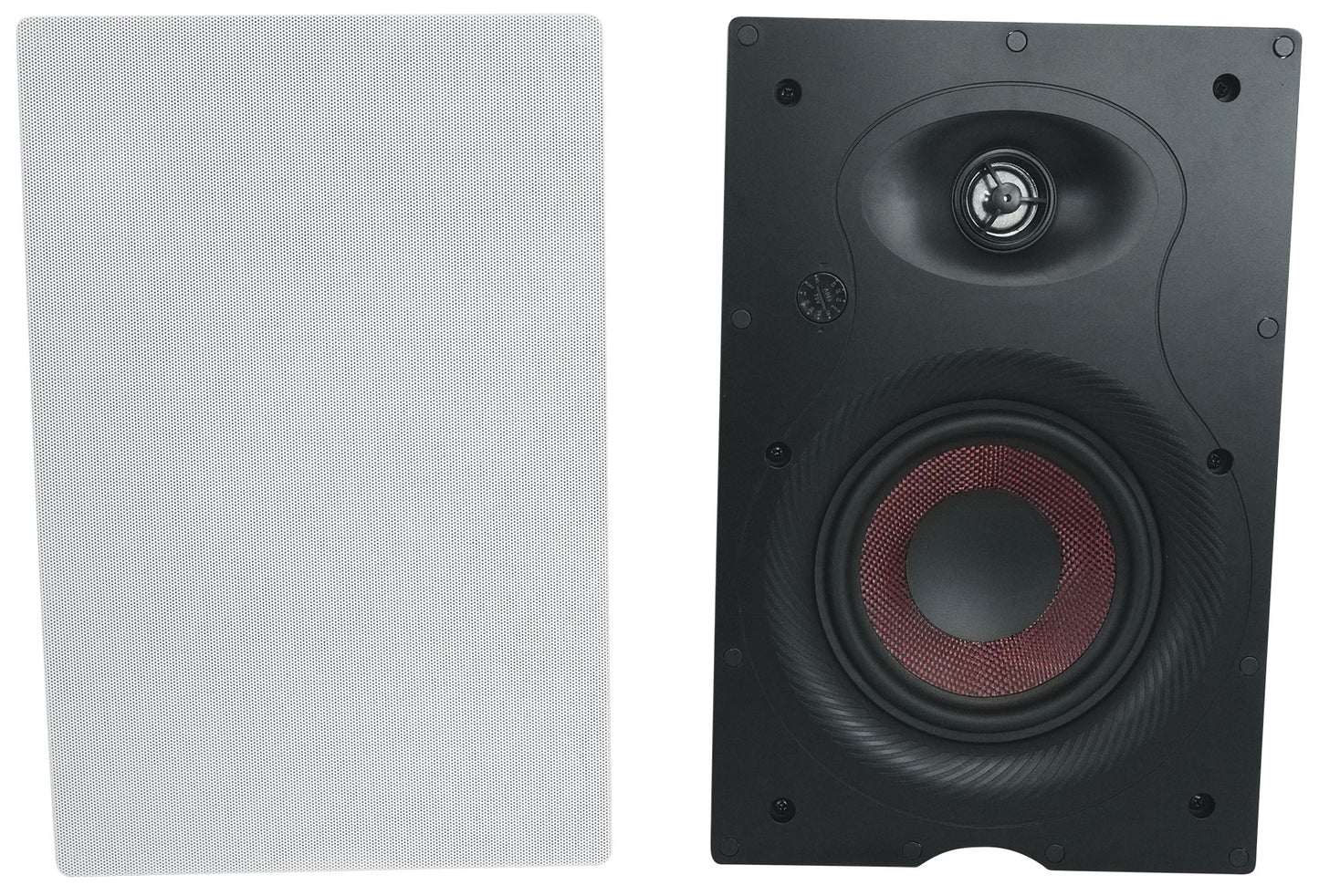

• Magnetic grill

• Speaker is designed to look beautiful with or without the grill

• Frequency Response: 60Hz - 20KHz

• Sensitivity: 86.8dB @ 1w / 1m

• Impedance: 8 Ohms (When setting tap switch to 8 ohm setting)

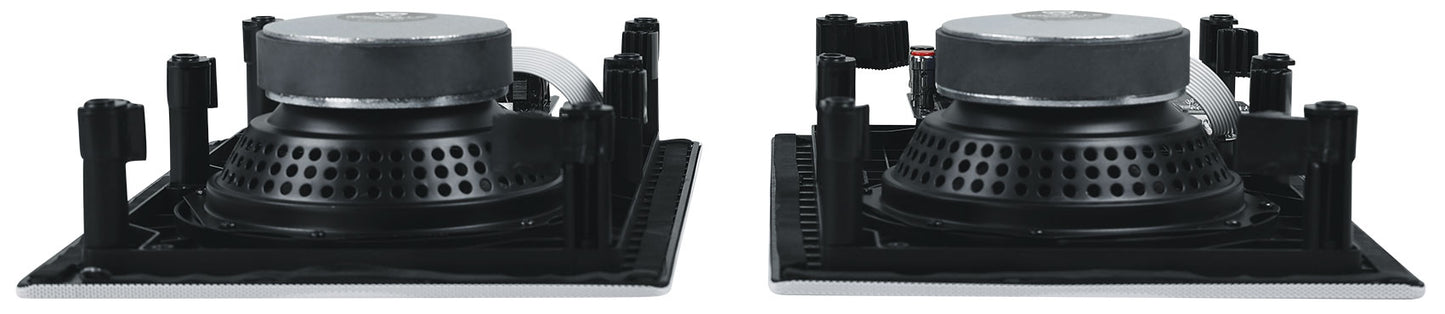

• Mounting Depth: 3.375"

• Cut-out Dimension: 12.5" x 7.7"

• Unit dimensions: 13.75" x 9.1"

• Color: White (paintable)

• Easy to follow installation and how-to-use videos
