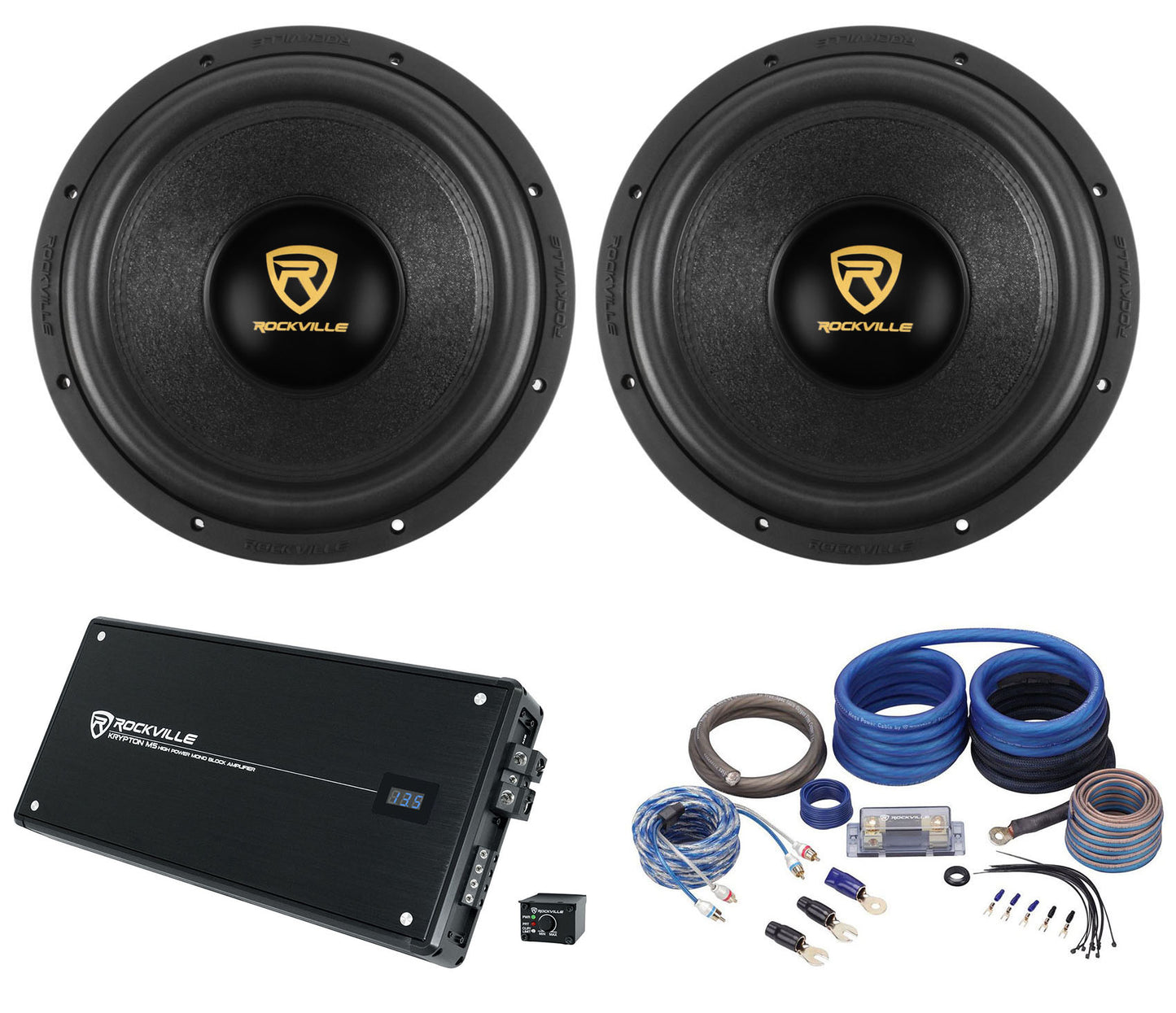

Package Includes:
- (2) Rockville W12K9D4 12"4000w Car Audio Subwoofer Dual 4-Ohm Sub CEA Compliant
- (1) Rockville Krypton-M5 8000 Watt Peak / 2000w RMS Mono 1 Ohm Car Amplifier Amp

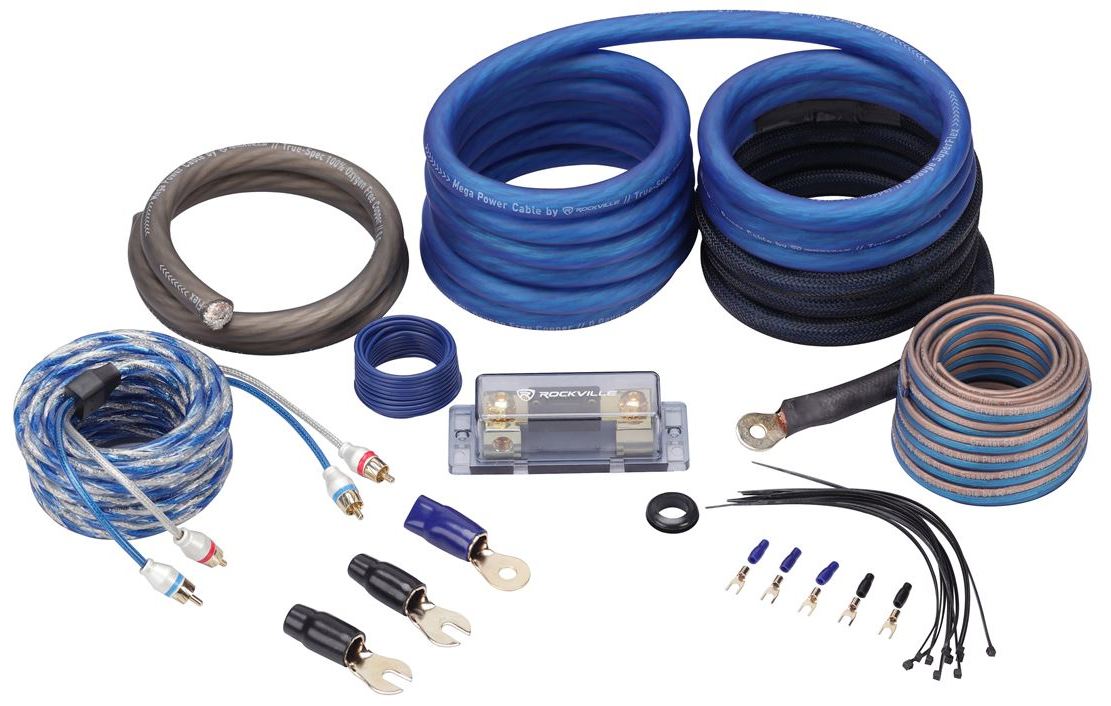

- (1) Rockville RWK0CU 0 AWG Gauge 100% Copper Complete Amp Installation Wire Kit OFC
All about your K9 Series Subwoofers:
Wiring for 1 DVC 4 Ohm SUBS:
Wiring for 2 DVC 4 Ohm SUBS:
The Rockville K9 series has been our best selling series of subs and it just got even better! Say hello to the K9 V3. This sub is a game changer. We improved the performance and cooling like crazy! Our engineers did some minor tweaks that give major results for bassheads who like to abuse subs! Weather you are an every day user or someone who pushes the limits of your equipment the K9 V3 is for you!
We made the following upgrades that will keep the voice coil cooler improving the subs ability to take constant abuse.
1. The dustcap was upgraded to the same one we use in our Punisher series. It is top of the line. Sure it increased our cost but we kept the low price the same!
2. We added an inner dustcap that stops heat from building up in the voice coil. We also made our pole vent smaller. The combination of these 2 changes keeps the voice coil significantly cooler when you are playing bass heavy songs or test tones.
3. We added a voice coil spacer that vastly improves the performance.
4. The cone has a smooth finish that allows the dustcap to be glued on more securely.
Features of W12K9D4:

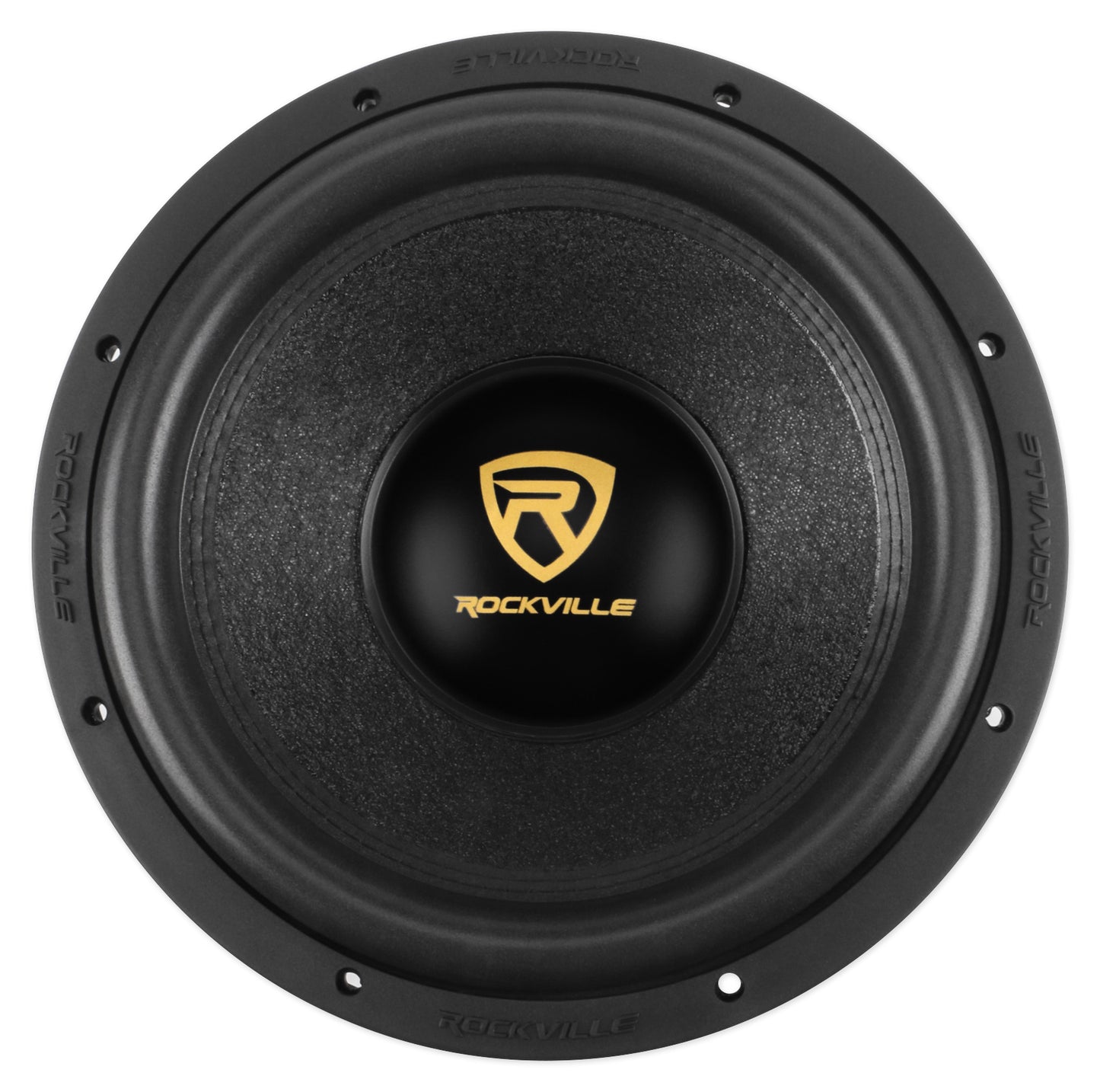

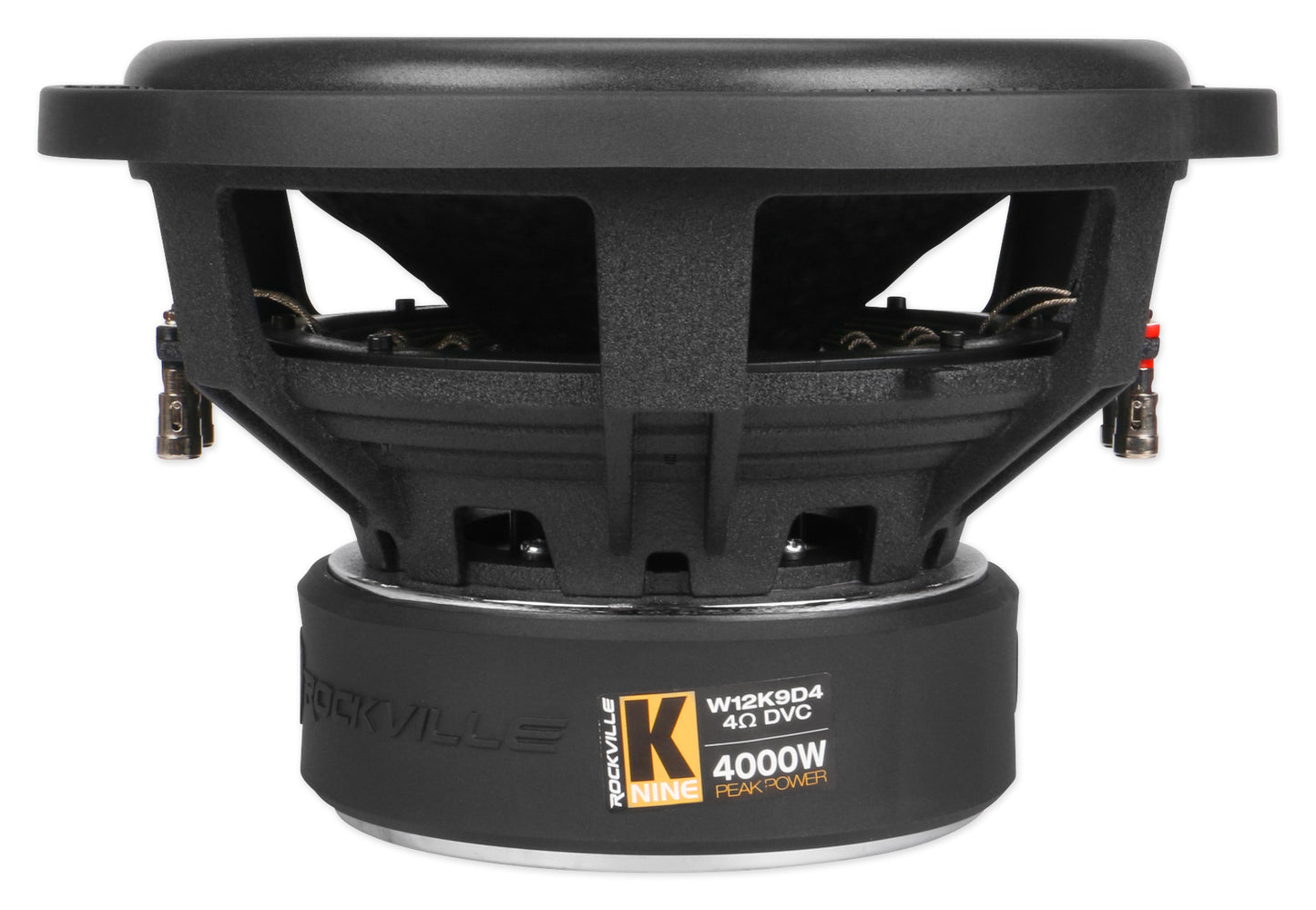

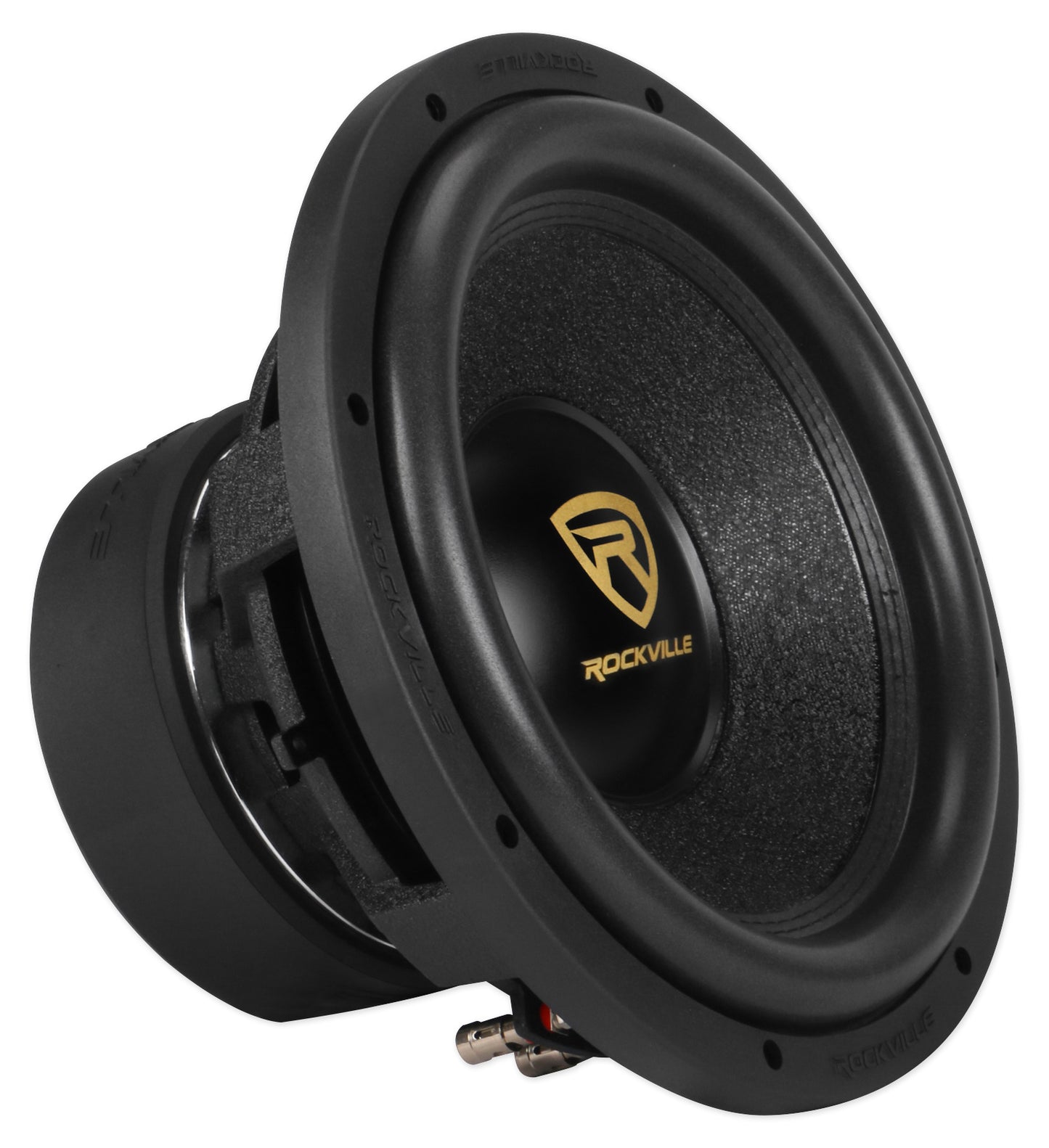

- Rockville W12K9D4 K9 Series 12" Dual 4-Ohm Car Subwoofer
- Peak Power Handling: 4000 Watts
- Program Power Handling: 2000 Watts
- RMS Power Handling: 1000 Watts
- 3" 4-Layer Black Aluminum Former Wound with OFC Wire Made in USA
- Ultra-stiff Non-Pressed Paper Punisher Cone
- Ultra-stiff Polypropylene Punisher Dustcap (The K9 V3 now uses the same dustcap as our Punisher series)
- We added an inner dustcap which helps to avoid hot air build-up in the voice coils resulting in more power handling
- More efficient air ventilation cools the voice coil even better than our V2
- We added a voice coil spacer improving longevity during test tones or extreme bass-heavy songs
- This voice coil is stable up to 240 degrees celcius! The voice coil windings are made in the USA!
- Double Stacked 190 Oz High Quality Magnet
- Cast Aluminum Basket With Black Sanded Finish Makes This Sub Very Efficient And Lighter Weight

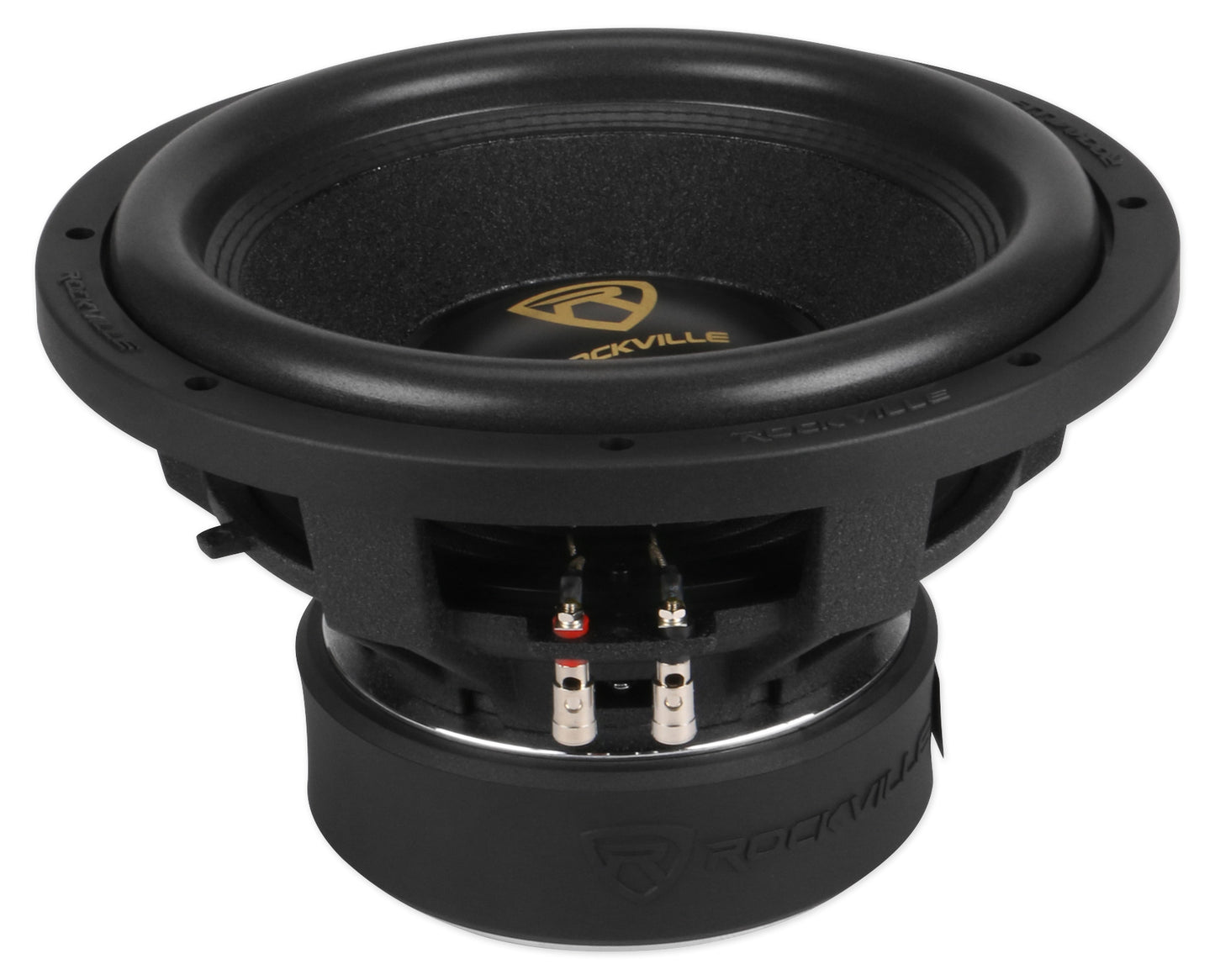

- Two Chrome-Plated Binding Post Terminals
- Black Non-Pressed Paper Cone With Beautiful Finish
- Our cones are ultra-stiff. They are thicker and stronger than other subs on the market making our subs able to handle more power.
- Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
- Red Stitching Cone Reinforcement Ensures Long Life
- New Ultra-stiff PolyPropylene (PP) Dustcap
- Impedance: Dual 4-Ohm Voice Coils
- Vented Hole on T-yoke Enhances Heat Dissipation

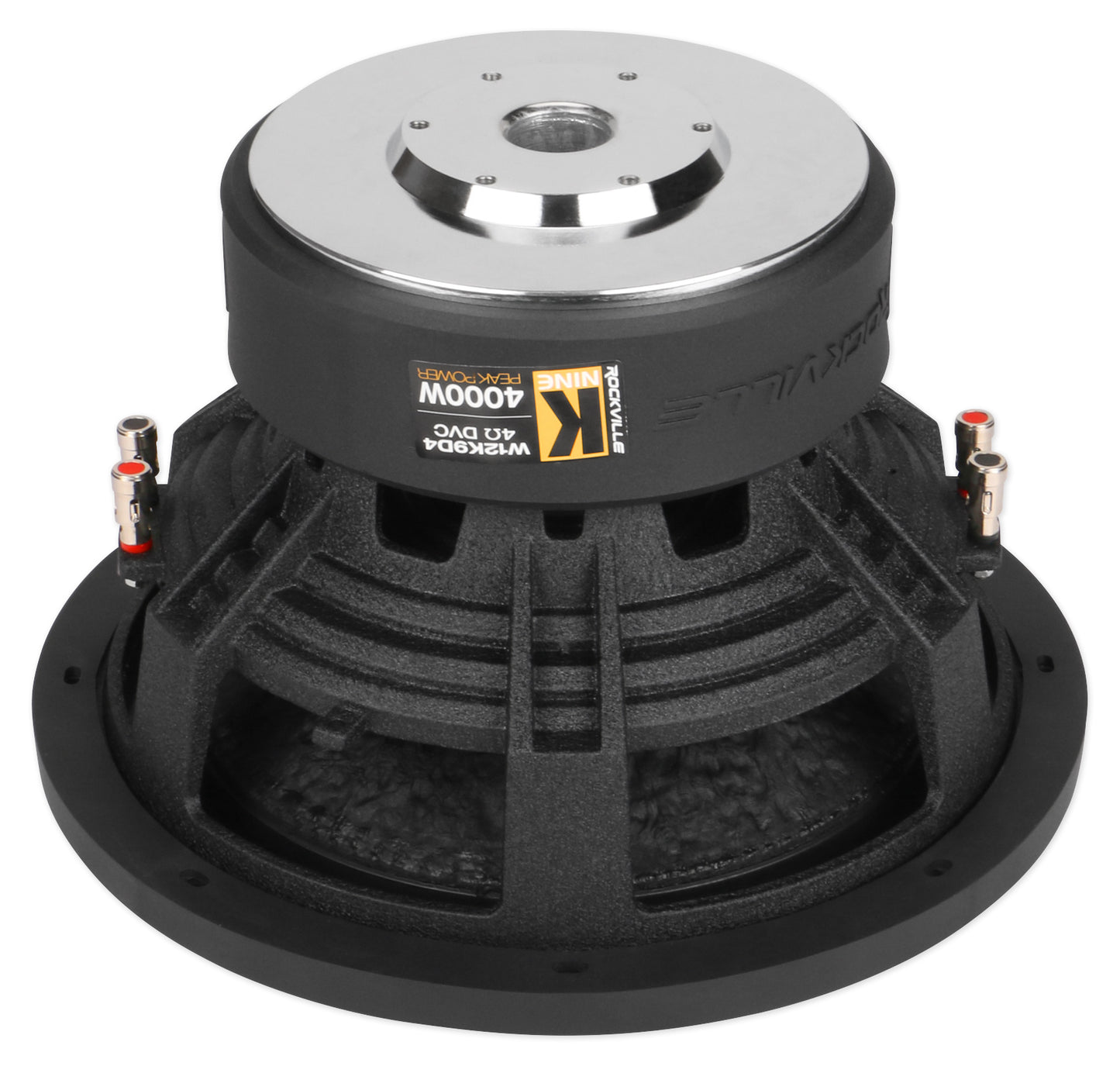

- Special Custom Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
- Custom Rockville Mounting Gasket Looks Beautiful and Makes it Easy To Mount the Subwoofer Air-Tight
- High BL Magnetic Motor Gap
- We use high grade glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
- Nomex Spider provides tear resistance, strength and long-term reliability over regular cotton and poly cotton spiders
- Cutout Diameter: 11.13” inches
- Mounting Depth: 6.85” inches
- Frequency Response: 33 Hz - 1.5K kHz
- 10mm T-Yoke + 10mm Washer
- Sensitivity: 83dB
- Sealed Enclosure Volume: 0.9 – 1.47 Cubic Feet
- Vented/Ported Enclosure Volume: 1.8 – 2.75 Cubic Feet
- XMAX is 28MM
- Weight: 28.67 Lbs.
- Shipping Weight: 33 Lbs.
- Shipping Box Dimensions: 14.57" x 14.57" x 10.83" Inches
- XMAX: 28MM
Detailed Info:
- Body: Non-Pressed Paper
- Gap Plate Inside Diameter: 95mm (3.74 inches)
- Gap Plate Outside Diameter: 190mm (7.5 inches)
- Gap Plate Thickness: 25mm (1 inch)
- Yoke Outside Diameter: 180mm (7.1 inches)
- Yoke Thickness: 10mm (0.4 inches)
- Yoke Pole Diameter: 75mm (3 inches)

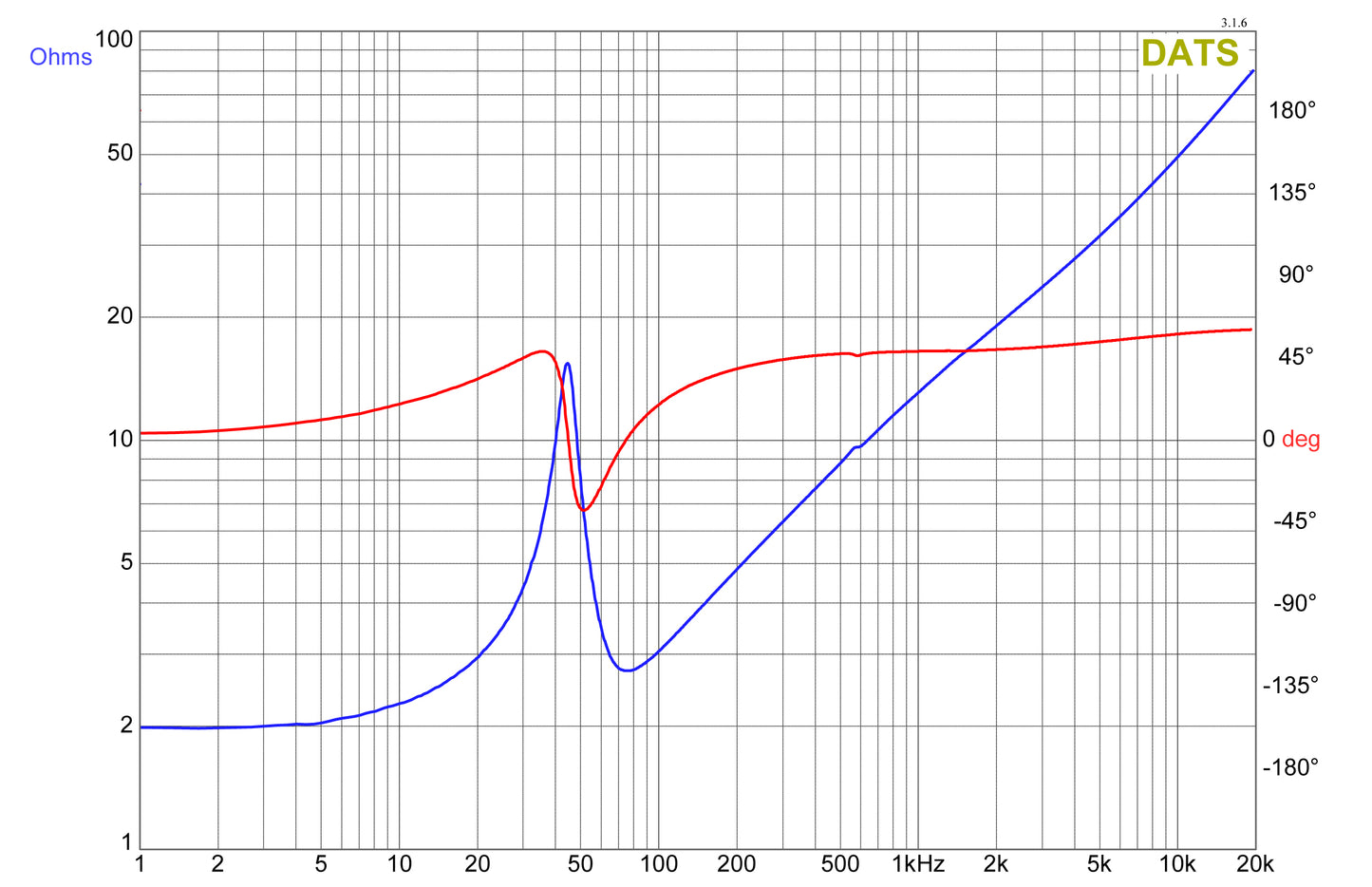

TS Parameters:
Krypton Series (Product Video):
What's in the Box:
- Amplifier
- 200A External fuse
- Bass Remote with clipping indicator
- Birth sheet with tested power
- Owner’s manual
- Mounting Screws
- Warranty
Description:
The Krypton series of amplifiers by Rockville are engineered to have the best reliability and features. Whether you are a car audio competitor or just like to enjoy loud music. We engineered and designed these amps from the ground up to give you great sound quality and great features. You will notice the cool battery voltage display meter which looks great but also serves as a tool for you to know if your battery voltage is dropping which would affect your systems performance. We designed the amps to be able to last for many years even if you are playing them at max volume before clipping for extended periods of time.
Our favorite feature we introduced of the Krypton series is the bass remote that has a clipping indicator. This allows you to set the amp to max output before clipping on any song. This will protect your subs while you maximize SPL. What is nice about this is that you can set the gain level to max before clipping on any given song in real time! If you use a DD-1 or another tool, you are setting the gain on one song but the next song might have more headroom or might clip depending on the levels it was recorded at (this is referred to as crest factor in the engineering world).
We guarantee that this series of amplifiers will not only meet their Dyno Certified power but exceed their rated power.
Another feature we love about this is the bass equalizer. Most amps have this feature however not all bass EQ are created equal. Some bass EQ's will just clip your subs to death. Our bass EQ circuitry will boost the proper frequencies in a way that sounds good and is safe for your subs. In addition you can always use the clip indicator on the bass remote to make sure you are not sending a clipped signal to your subs. Our amplifier is meant to give you as much clean power to your subs as possible. Our voltage display allows you to make sure you are getting the proper voltage to your amp and our clip indicator on the remote will make sure you always send clean power to your subs. In addition we also guarantee the amplifier will be giving over the rated Dyno Certified so you can confidently match our amplifier with high-end subs and know what to expect!
What about sound quality and efficiency though ??
Well glad you asked. This amplifier is engineered so well that it has an extremely low signal to noise ratio which just means the sound will be super clean even at high volume levels. It also has a good efficiency rating so you don't have to draw too much power from your battery. One other thing that is important is that we engineered this to have a high common mode rejection rating (CMRR). This means that the amp has the capability to block out engine noise signals. By rejecting unwanted noises the end result is the cleanest sound quality.
Once again, Rockville has stepped up its game with the all new Krypton series. Their is no other amp like it on the market. In our opinion this is the best budget series of amps in the world. We actually enjoy this amp more then others that cost over 2 times the price.
Features of Krypton-M5:

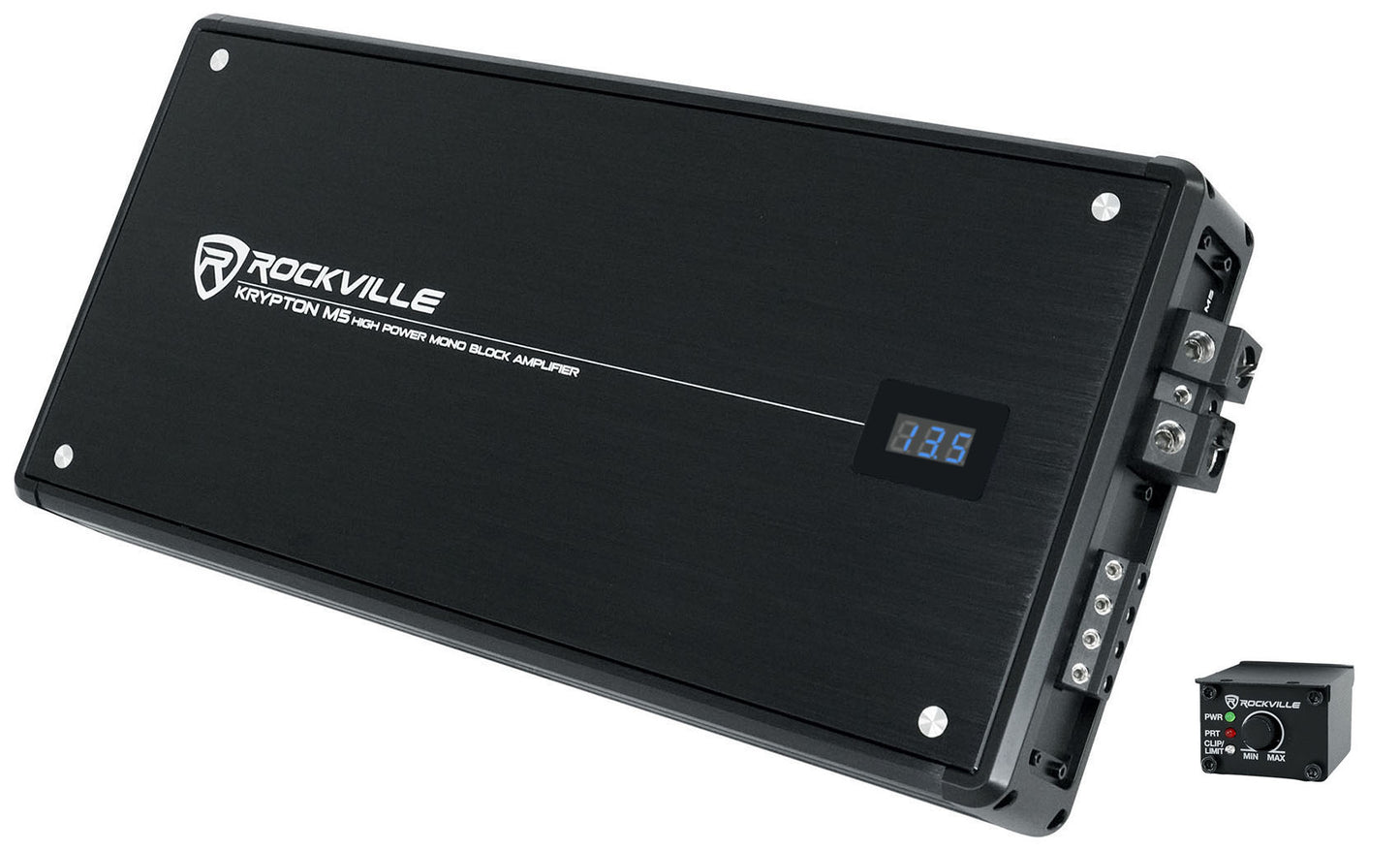

- Rockville Krypton-M5 8000 Watt Peak / 2000w Dyno-Certified RMS Mono 1 Ohm Car Amplifier Amp
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
- 1 Ohm: 2000 Watts x 1 Channel <1% THD+N (79% efficient)
- 2 Ohm: 1300 Watts x 1 Channel <1% THD+N (86% efficient)
- 4 Ohm: 780 Watts x 1 Channel <1% THD+N (89.5% efficient)
- Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
- 1 Ohm: 8000 Watts x 1 Channel
- 2 Ohm: 5200 Watts x 1 Channel
- 4 Ohm: 3120 Watts x 1 Channel
- Digital Voltage Display on Amp (Accurate within 0.15V)
- Power/Protect/Clip LED Indicators on the front panel
- Power/Protect/Clip LED Indicators on Remote control
- Clip indicator on the bass remote allows you to quickly set any song to right before clipping in real time
- Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
- Low Pass Filter: 50Hz - 250Hz
- Subsonic Filter: 15Hz - 55Hz
- Fully Adjustable 12dB Bass Equalizer
- Remote Dashboard Subwoofer Control
- 8 Volt Preamp Circuitry
- Phase Control Switch
- High-Speed MOSFET Power Supply
- Optical Coupler Class “D” Technology
- Full IC-Controlled Protection Circuitry
- Mute and Delay Soft Start System
- RCA Preamp Line Output
- Status Mode LED Indicator
- Minimum THD at Rated Power: <0.1%
- S / N Ratio: >90dB
- Frequency Response: 15Hz - 250Hz
- Damping Factor: >150 @ 100Hz
- 200A External Fuse Included
- Passes the Signal Burst Test (Instant signal for full power “SPL Contest”)
- Rockville engineered with a super low signal to noise ratio to give you clean sound
- Improved Bass EQ filter works well to boost the proper frequencies

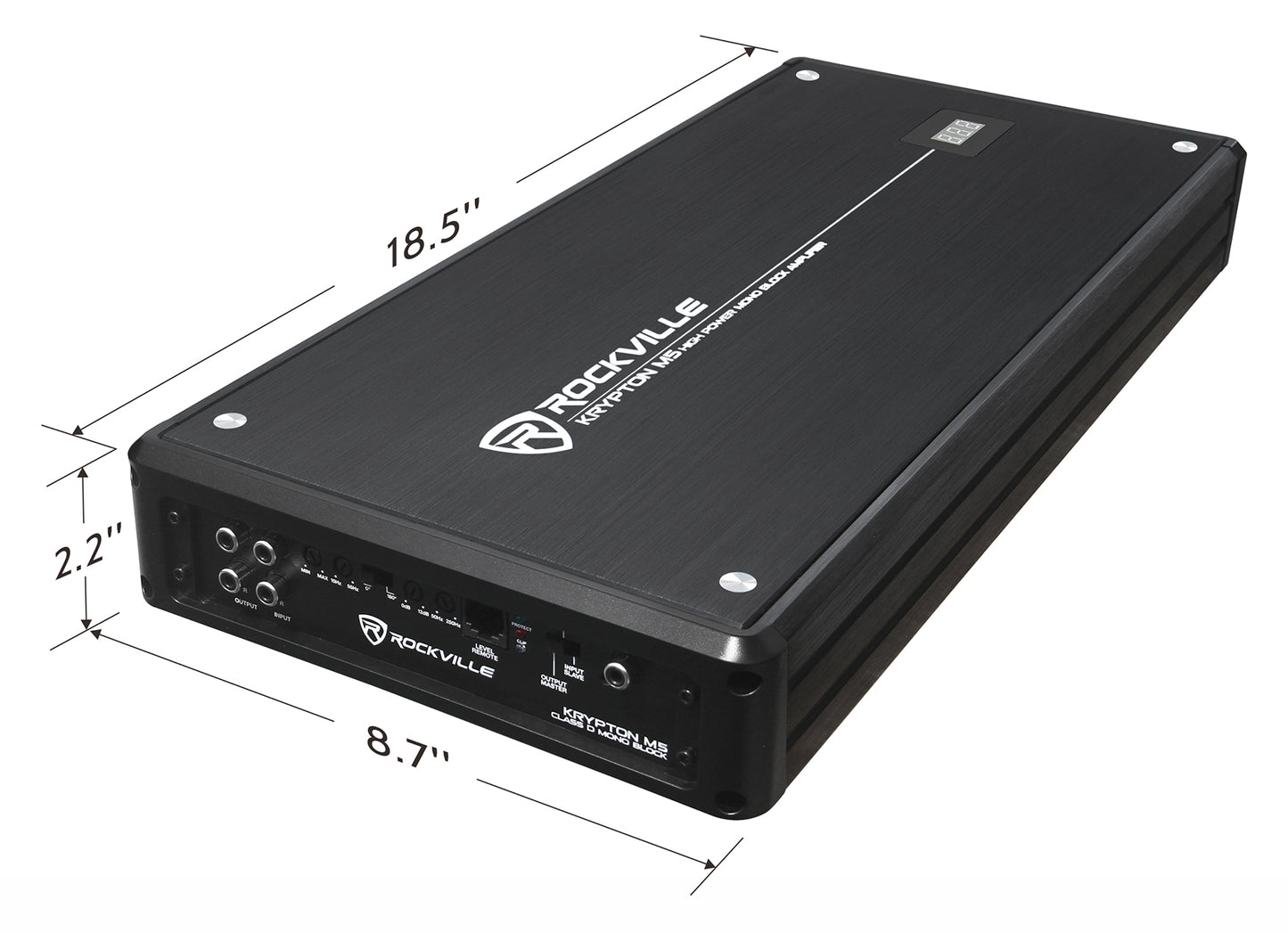

- Dimensions: (W x H x L) 18.26" x 8.66" x 2.2"
Videos of RWK0CU:
We challenge anyone to put this wire to a resistance test against any other wire on the market with the same gauge. If our cable does not meet or exceed any other cable, even if it costs 3 times more, we will be happy to call tag the item and refund you in full. Why are we so confident ? This cable is 100% copper. You cant have a cable with more copper than 100 %. So the only way a cable would out-perform this one is if it were being advertised as a 0 AWG but they are giving you more wire than advertised. No brands selling 100 % copper cables actually do this.
We guarantee that this kit will compete with the most expensive amp kits on the market from Kicker, JL Audio, or any other top brands.
Looking for a wire kit that has 100% true specifications? A wire kit that uses 100% copper 0 gauge cable? Then look no further than the Rockville True-S
- UPC:
- 613815848974
