Package Includes:

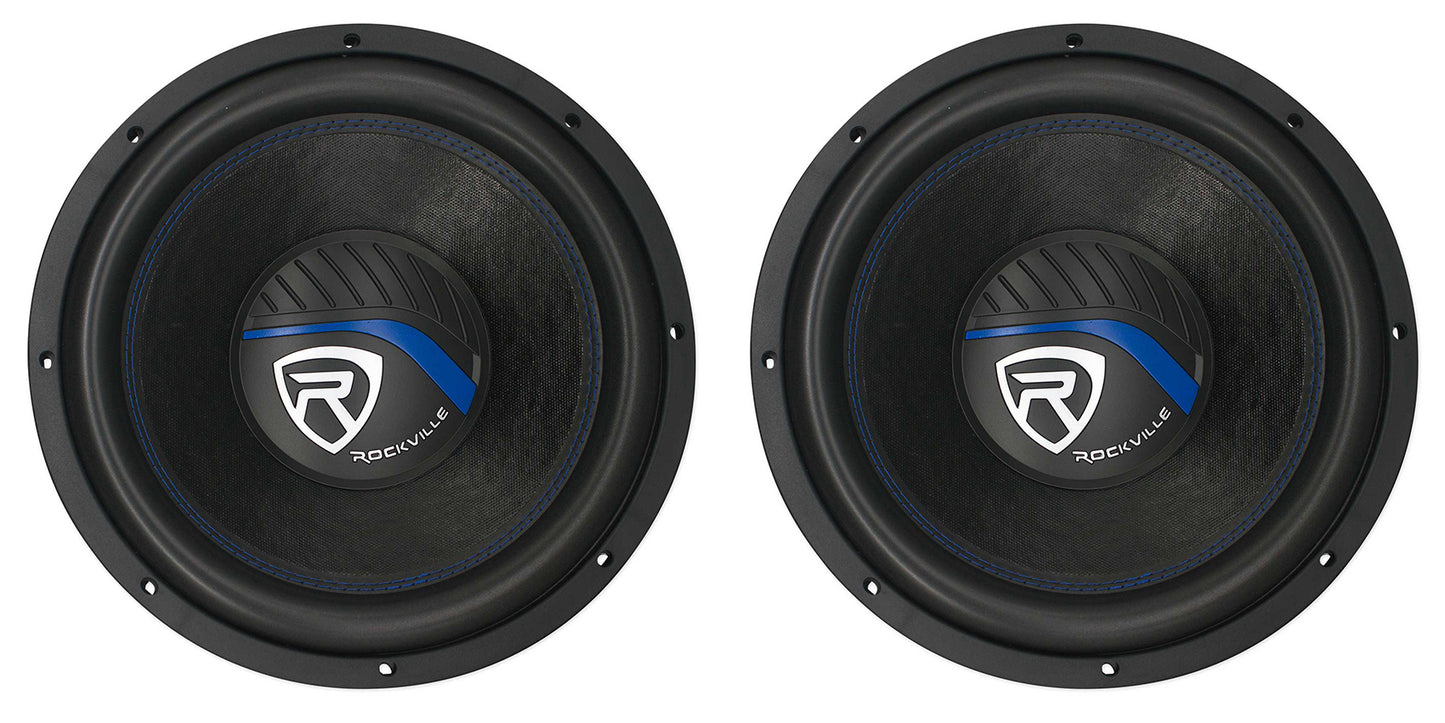

- (2) Rockville K5 W12K5S4 12" 1400w 4 Ohm Car Audio Subwoofer Sub 350w RMS CEA Rated!
<"https://smhttp-ssl-33159.nexcesscdn.net/uploads/Miscellanious/rockville%20logo%20small.jpg">
Video of K5 SERIES:Features:

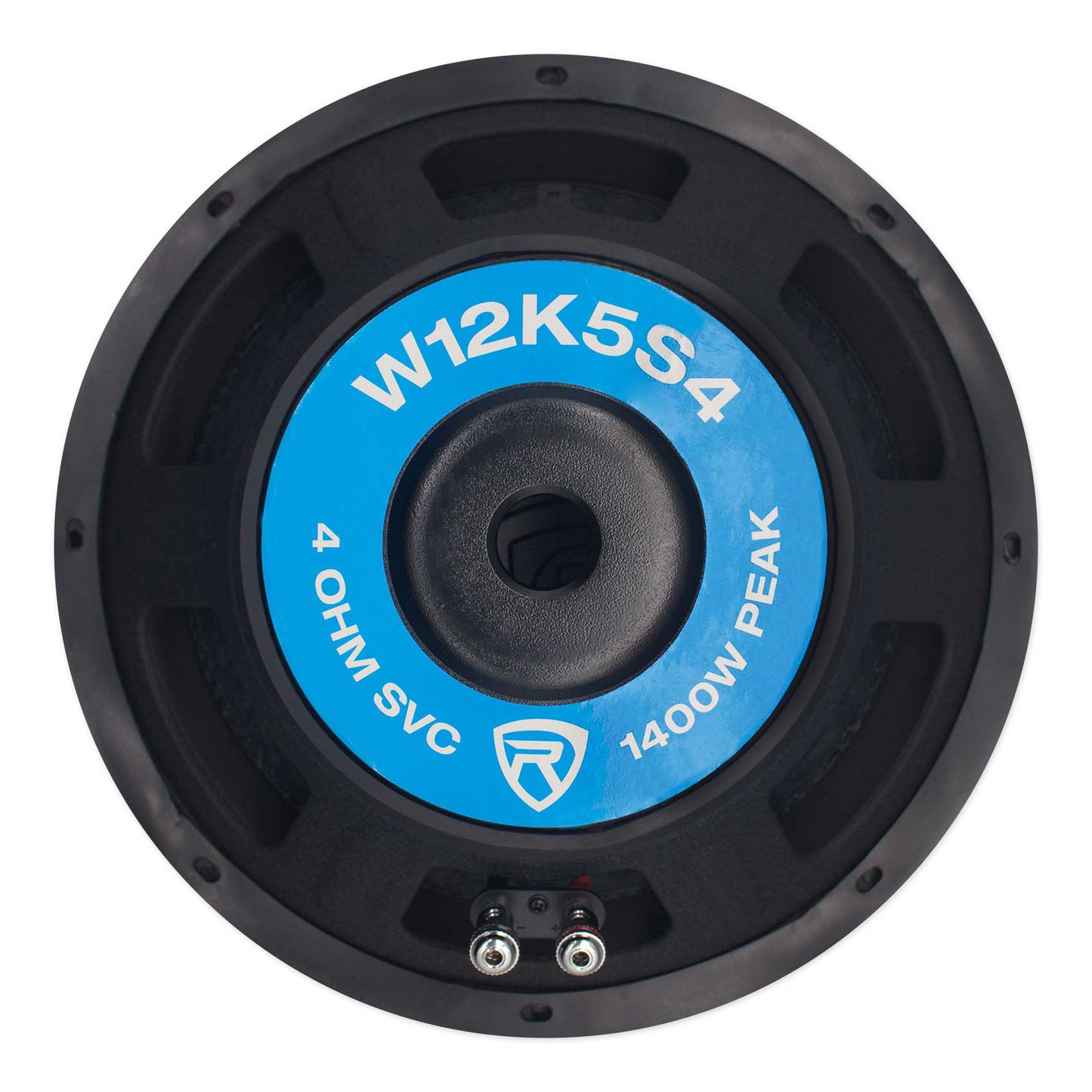

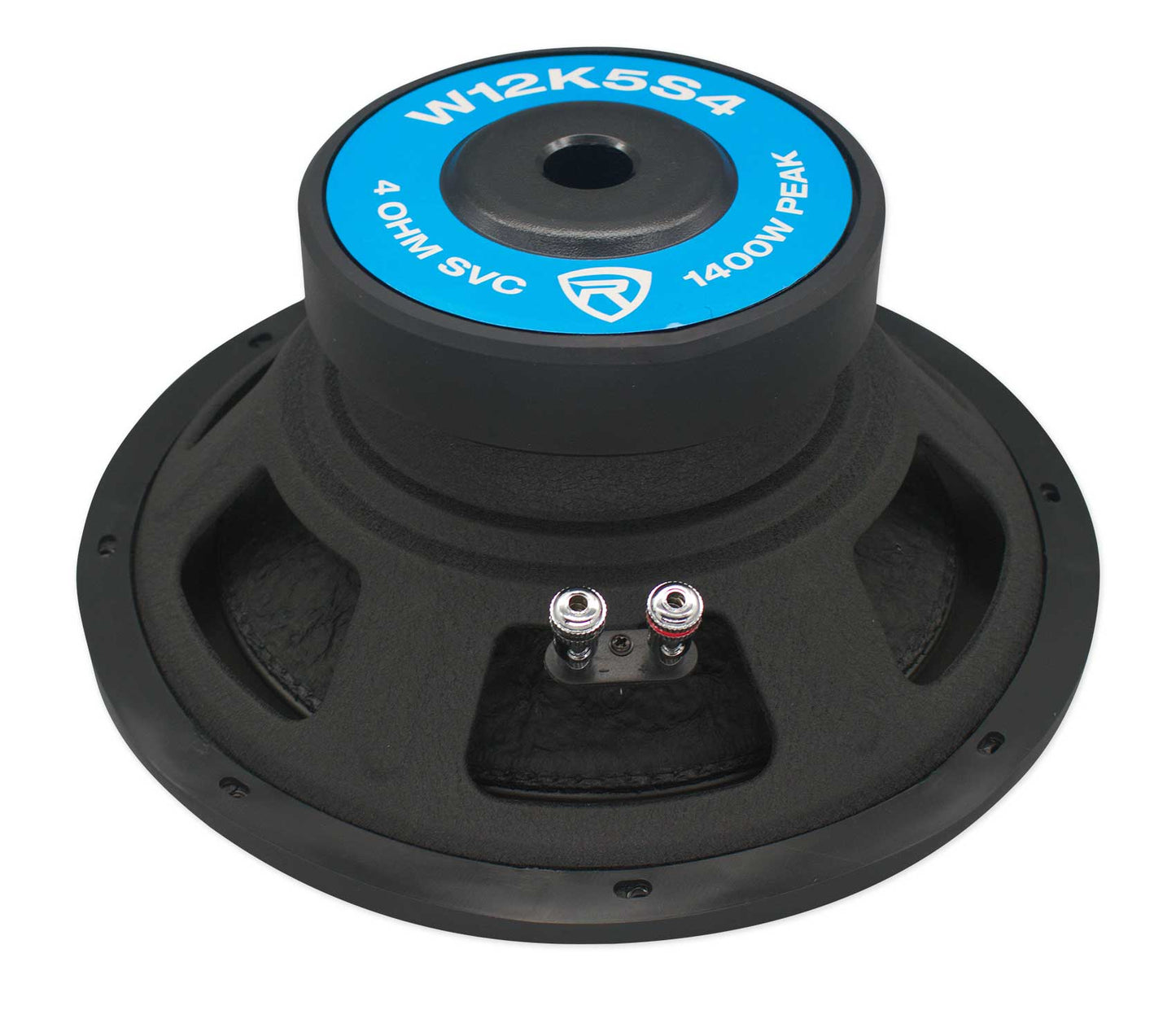

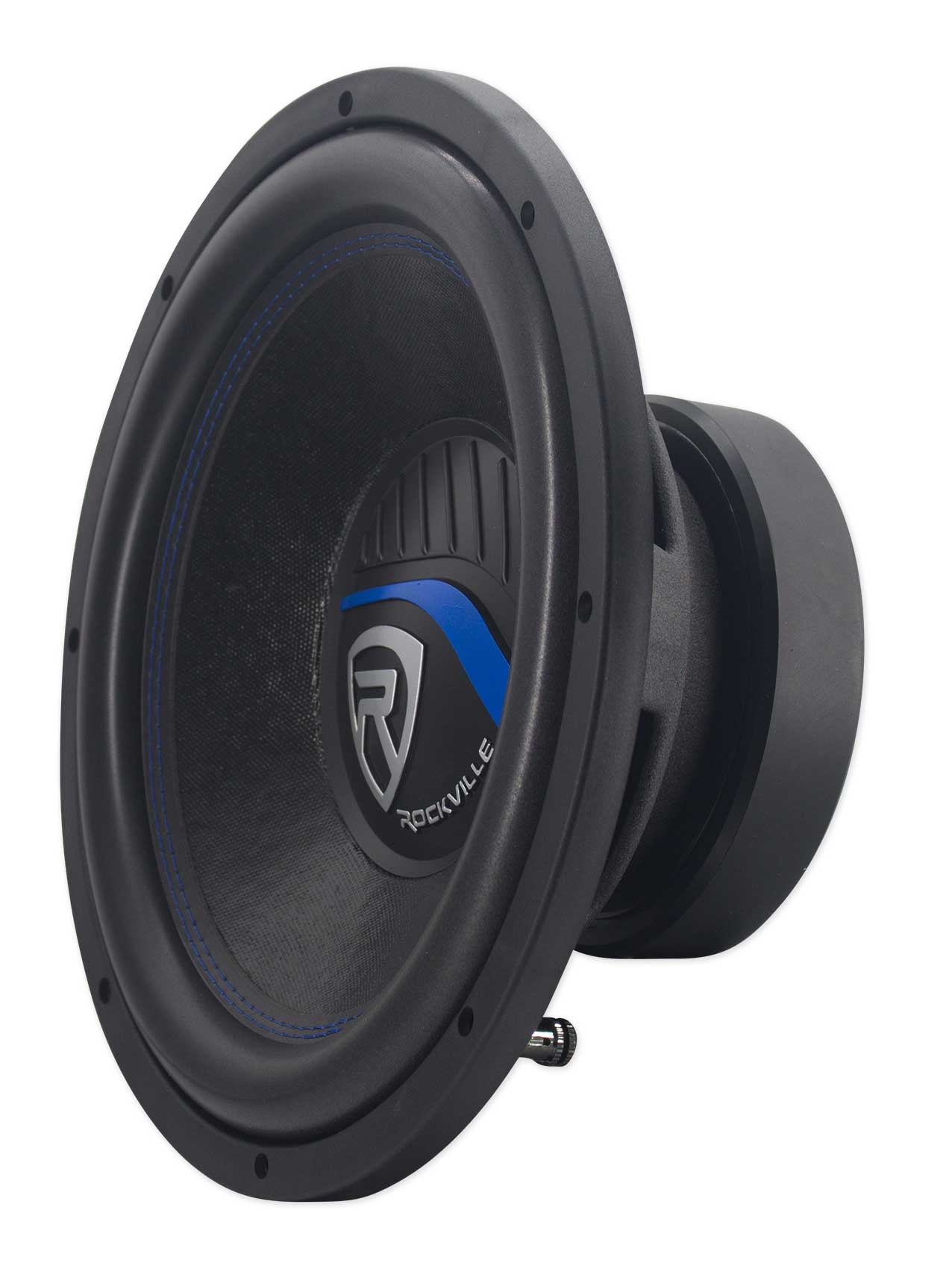

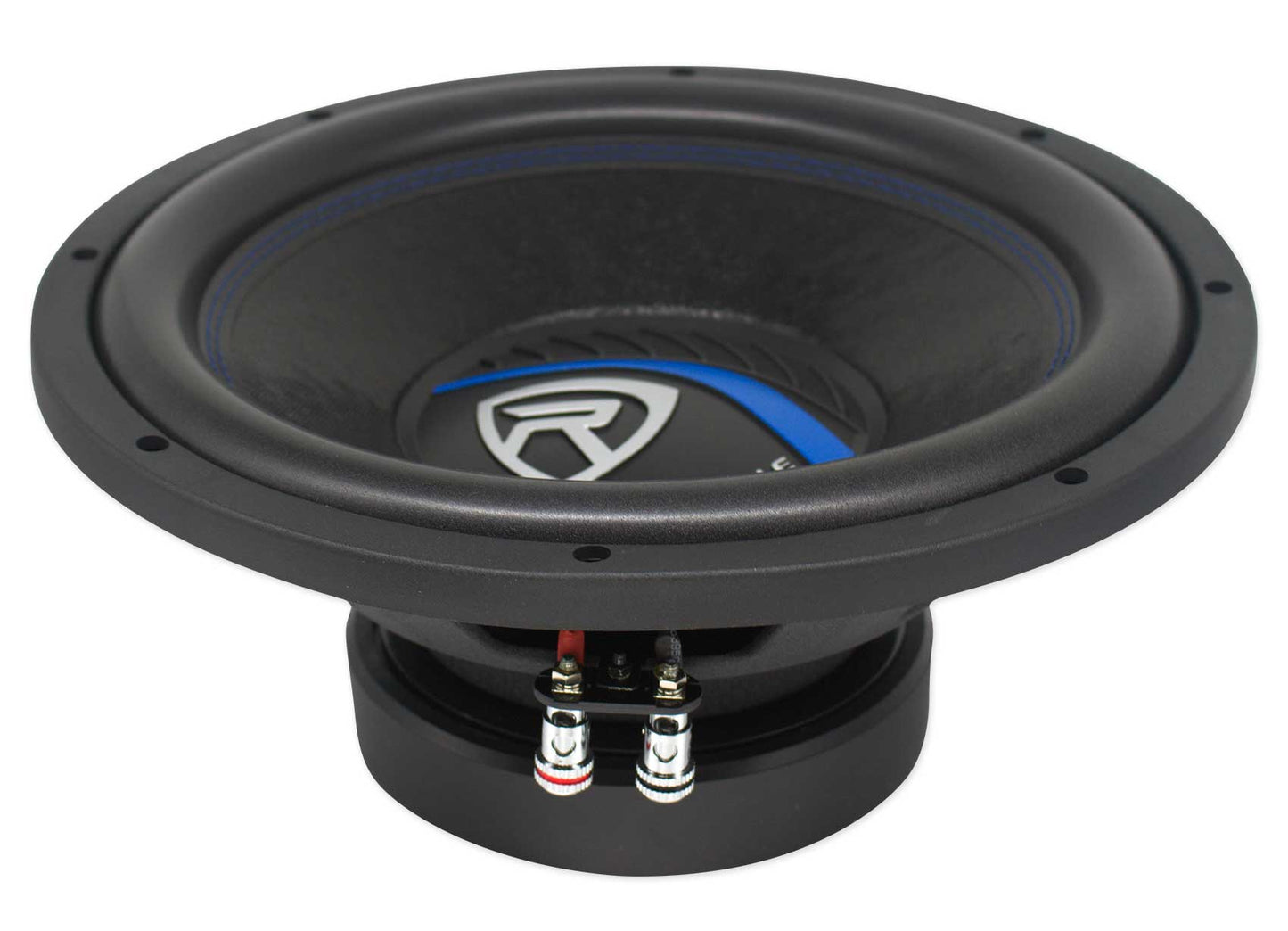

- Rockville W12K5S4 K5 Series 12" 4-Ohm Car Subwoofer
- Peak Power Handling: 1400 Watts
- Program Power Handling: 700 Watts
- CEA Rated RMS Power Handling: 350 Watts
- 2" 4-Layer Black Aluminum Voice Coils Wound with OFC (100% Copper) Wire
- The wire we use to wind the voice coil is imported from Japan which is way better quality than the standard China wire
- 50 Oz High Quality Magnet

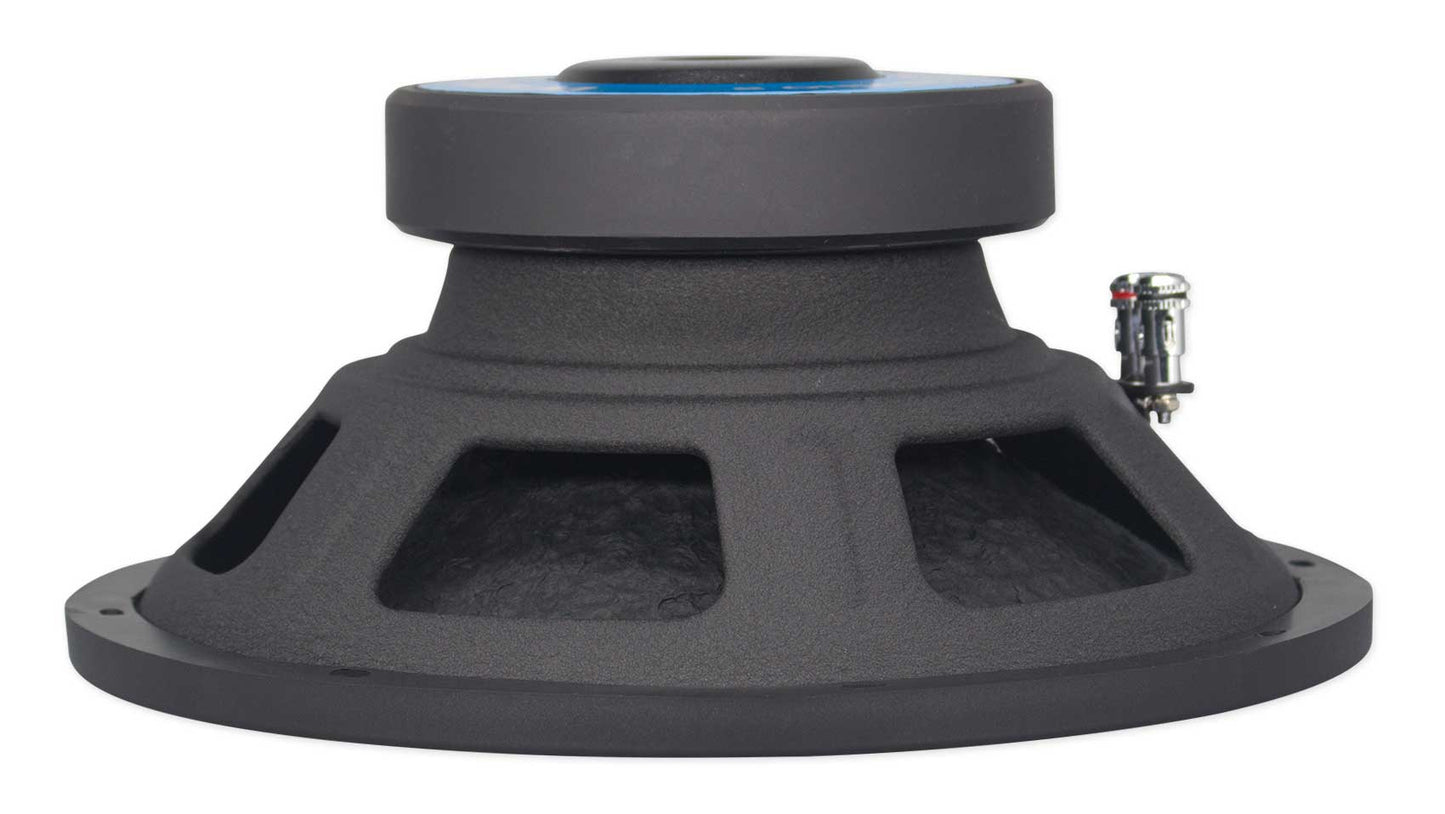

- Cast Iron Basket With Black Sanded Finish

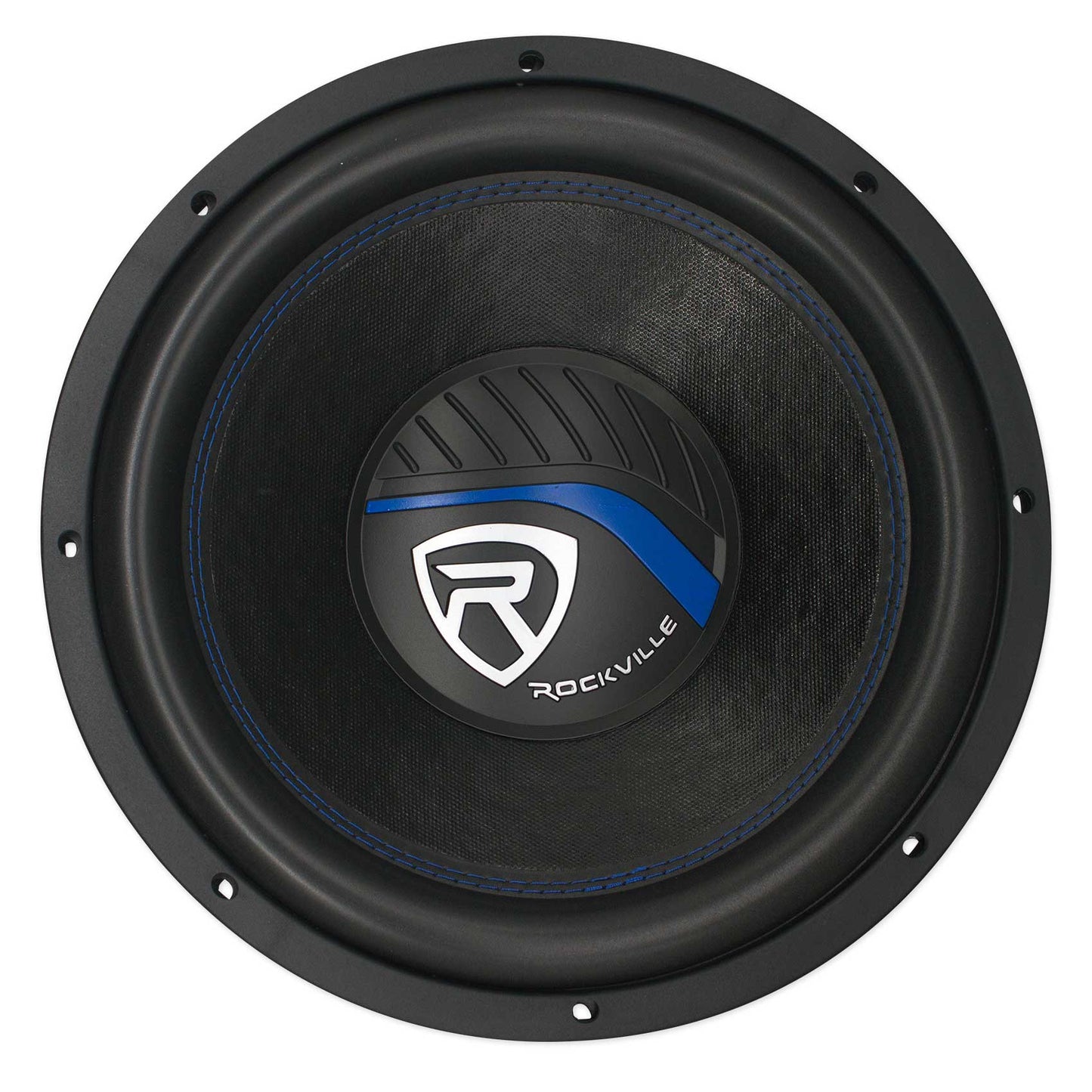

- Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone – This cone is very efficient which makes the speaker sound louder even without requiring a lot of power to push it
- Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
- Blue Stitching Cone Reinforcement Ensures Long Life
- Paper Dustcap is light weight and efficient helping the sub to play louder even if your amp is not so powerful

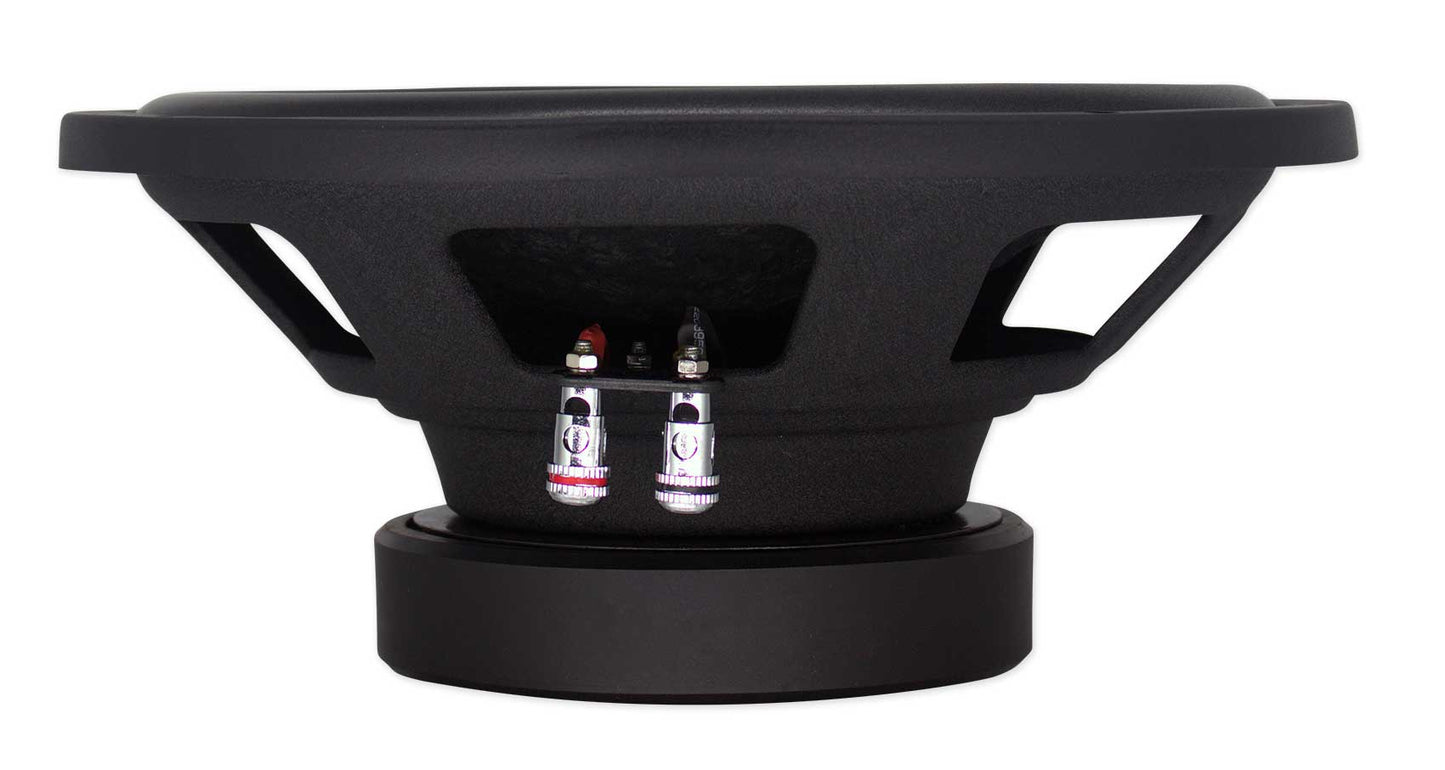

- Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
- Impedance: Single 4-Ohm Voice Coils
- Vented Hole on T-yoke Enhances Heat Dissipation
- Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
- Mounting Gasket with Rockville branding looks great and Makes it Easy To Mount the Subwoofer Air-Tight
- High BL Magnetic Motor Gap
- We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated

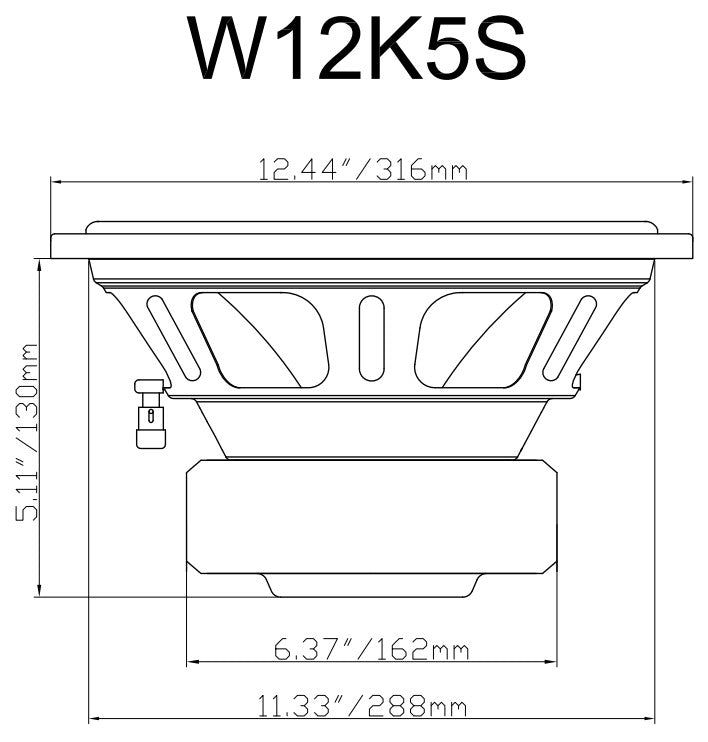

- Cutout Diameter: 11.02” inches
- Mounting Depth: 5.03” inches
- Frequency Response: 25 Hz - 1.5K kHz
- 6mm T-Yoke + 6mm Washer
- Sensitivity: 88dB
- Sealed Enclosure Volume: 0.8 – 1.3 Cubic Feet
- Vented/Ported Enclosure Volume: 1.3 – 2.0 Cubic Feet
- Weight: 10.1 Lbs.
- Shipping Weight: 11.6 Lbs.
- Shipping Box Dimensions: 13.78" x 13.78" x 8.97" Inches
Detailed Info:
- Body: Non-Pressed Paper
- Gap Plate Inside Diameter: 80mm (3.14 inches)
- Gap Plate Outside Diameter: 156mm (6.14 inches)
- Gap Plate Thickness: 25mm (0.98 inches)
- Yoke Outside Diameter: 145mm (5.7 inches)
- Yoke Thickness: 6mm (0.23 inches)
- Yoke Pole Diameter: 50mm (2 inches)

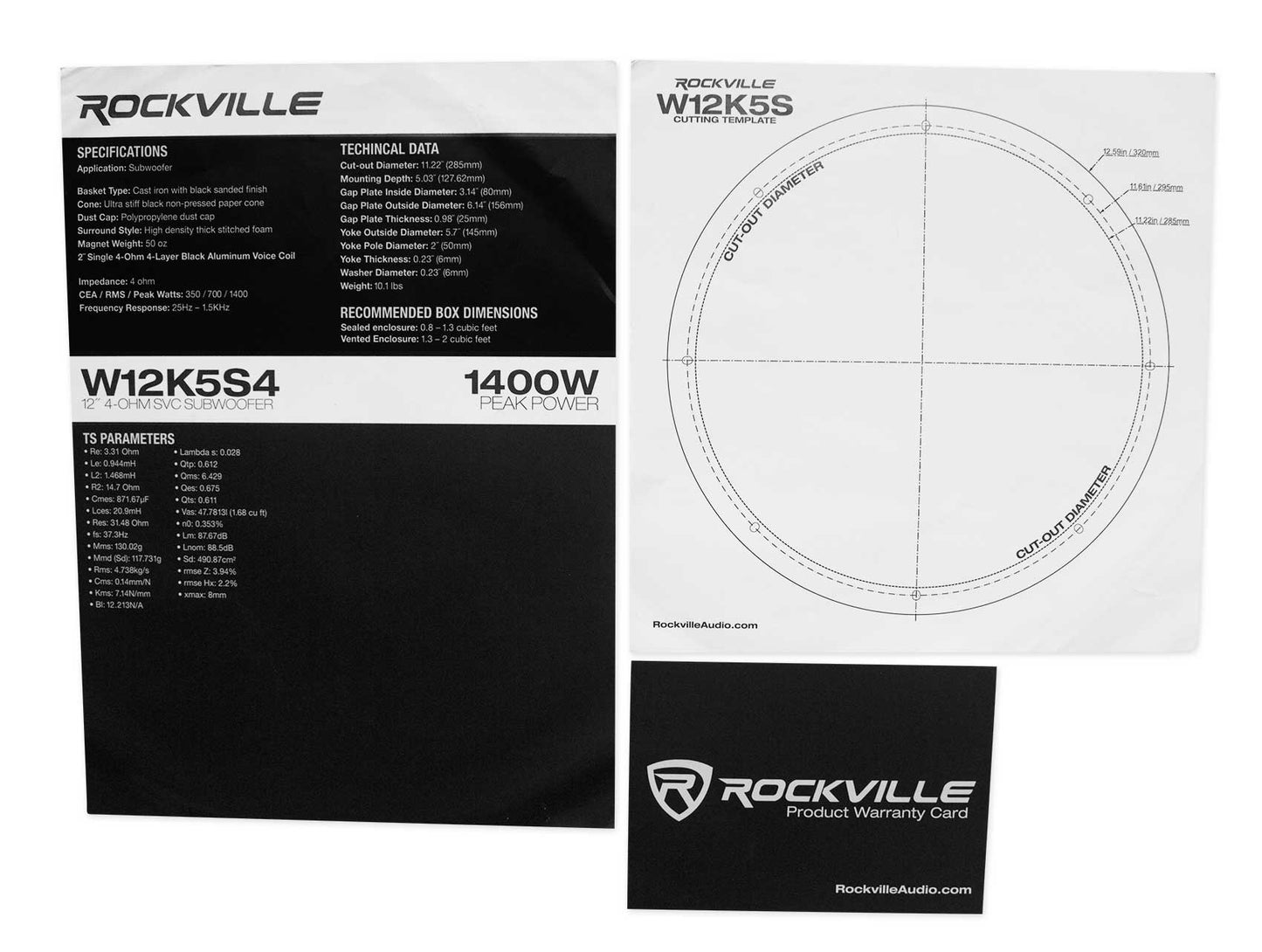

T/S Parameters (Tested on a Klippel):
| Electrical Parameters | |||
| Re | 3.31 | Ohm | electrical voice coil resistance at DC |
| Le | 0.944 | mH | frequency independent part of voice coil inductance |
| L2 | 1.468 | mH | para-inductance of voice coil |
| R2 | 14.7 | Ohm | electrical resistance due to eddy current losses |
| Cmes | 871.67 | µF | electrical capacitance representing moving mass |
| Lces | 20.9 | mH | electrical inductance representing driver compliance |
| Res | 31.48 | Ohm | resistance due to mechanical losses |
| fs | 37.3 | Hz | driver resonance frequency |
| Mechanical Parameters | |||
| (using laser) | |||
| Mms | 130.02 | g | mechanical mass of driver diaphragm assembly including air load and voice coil |
| Mmd (Sd) | 117.731 | g | mechanical mass of voice coil and diaphragm without air load |
| Rms | 4.738 | kg/s | mechanical resistance of total-driver losses |
| Cms | 0.14 | mm/N | mechanical compliance of driver suspension |
| Kms |
