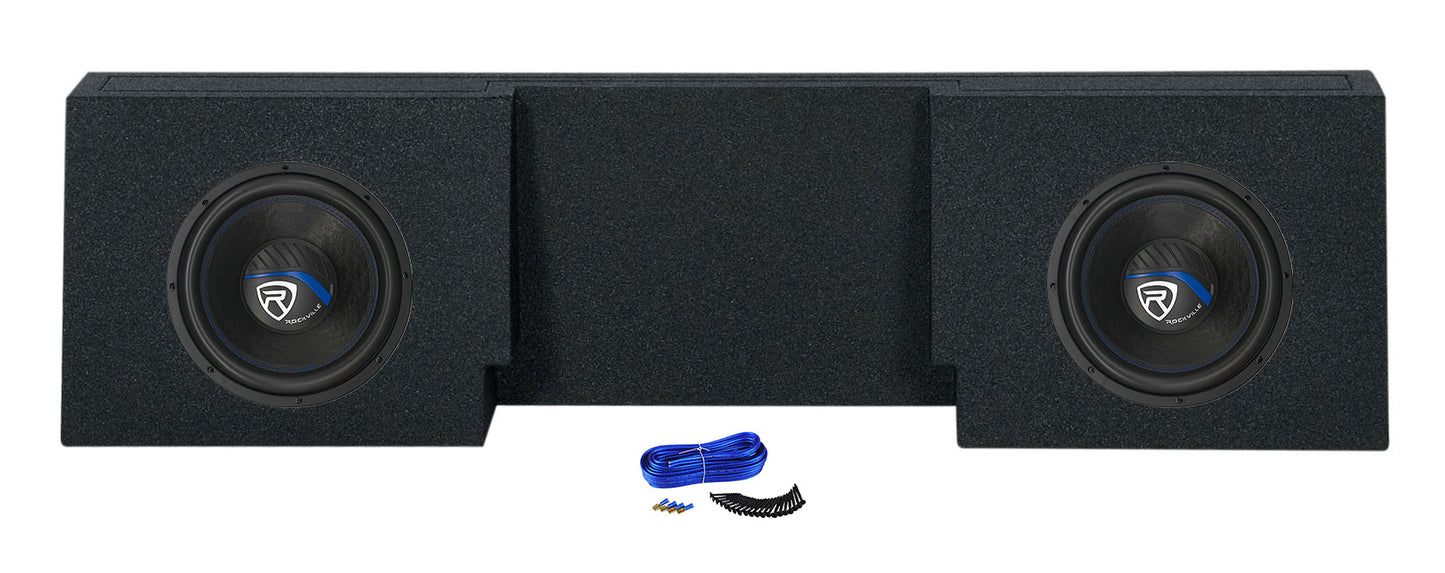

Package Includes:

• (2) Rockville K5 W12K5S2 12" 1400w 2 Ohm Car Audio Subwoofer Sub 350w RMS CEA Rated!
• (1) Rockville REC92 Dual 12" Sub Box Enclosure For Chevy 2007- Current Single Cab
• (1) Dual Sub Box Enclosure Installation Kit: Speaker Wire, Screws, Spade Terminals

---

All about your K5 SERIES:

Features:

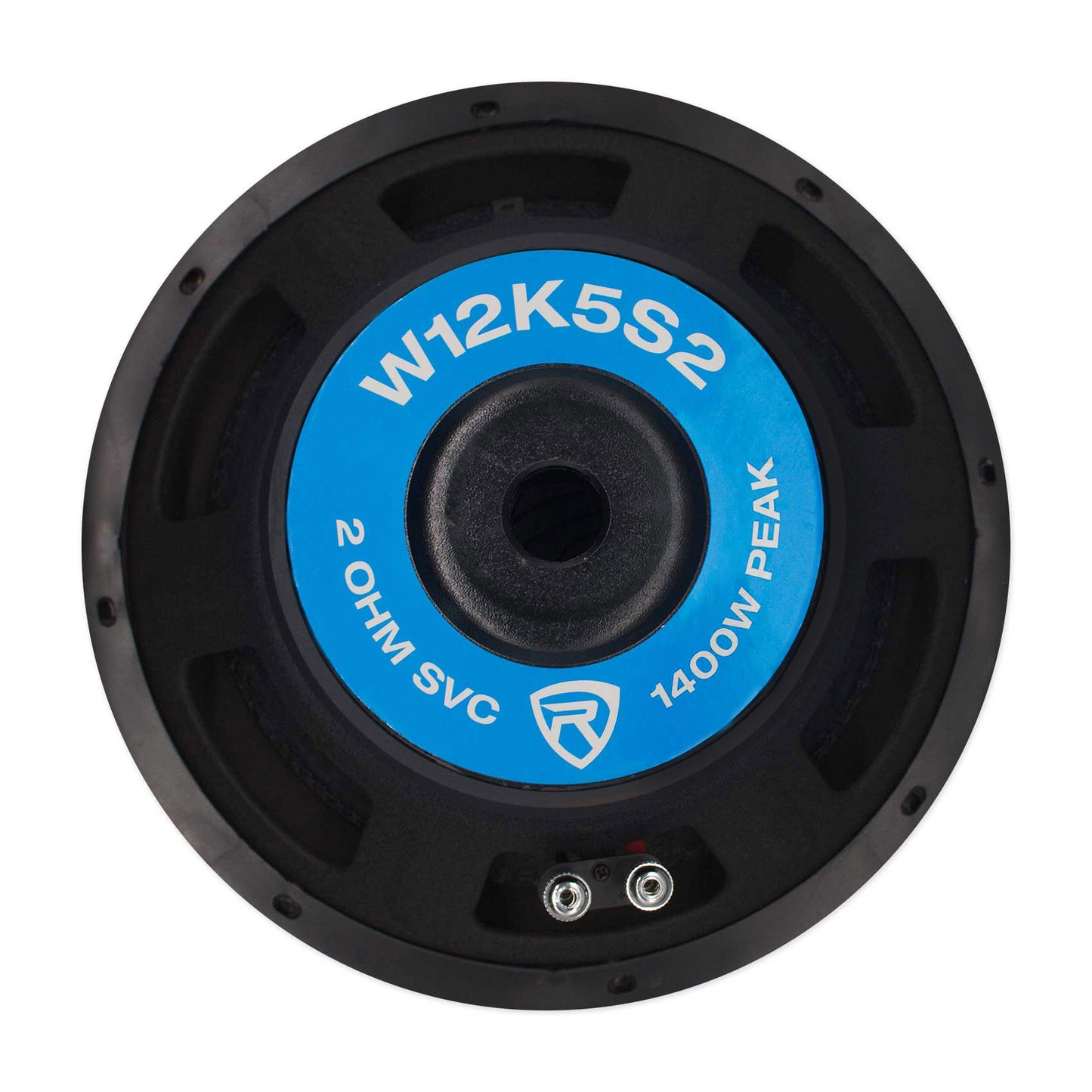

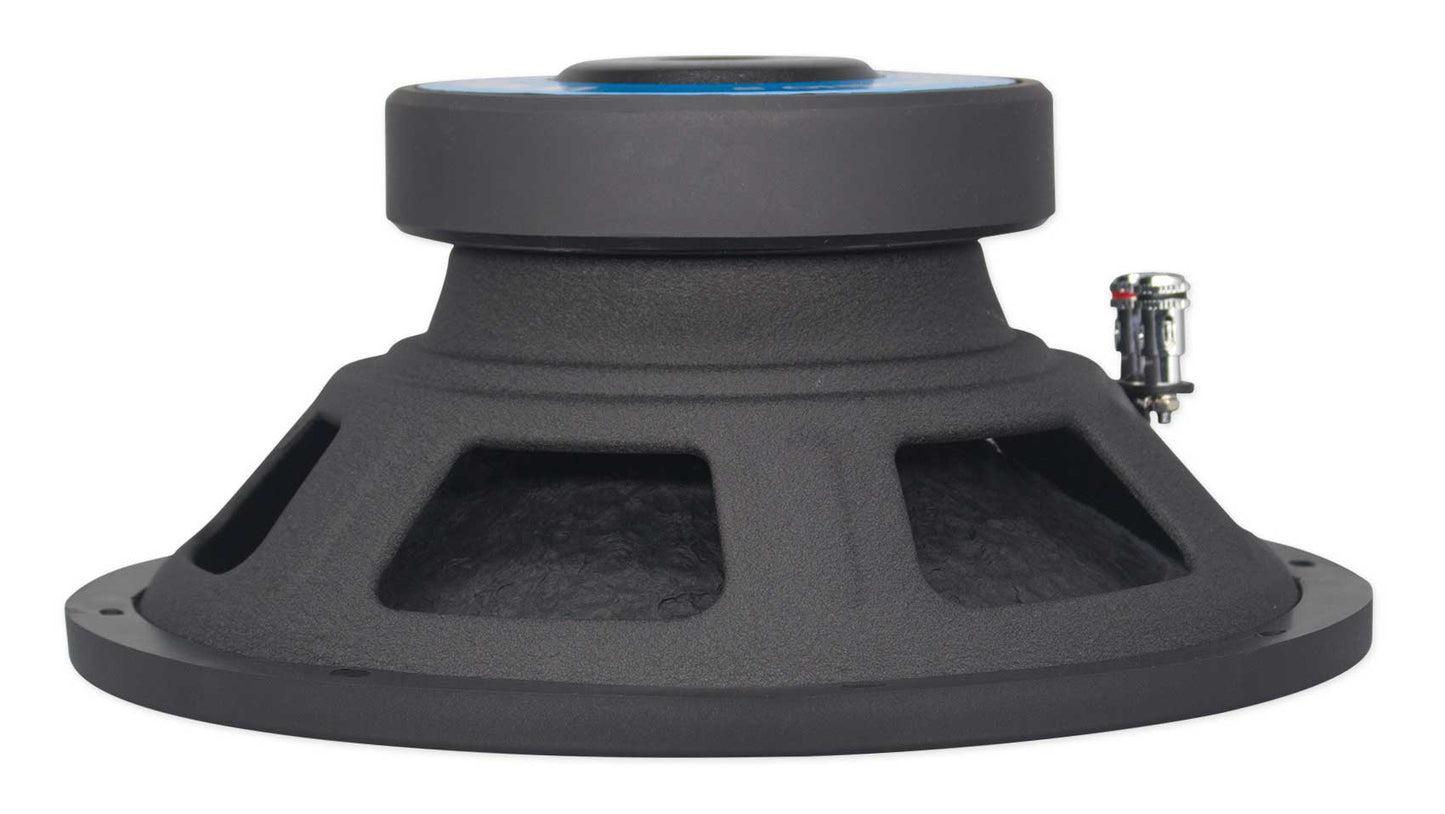

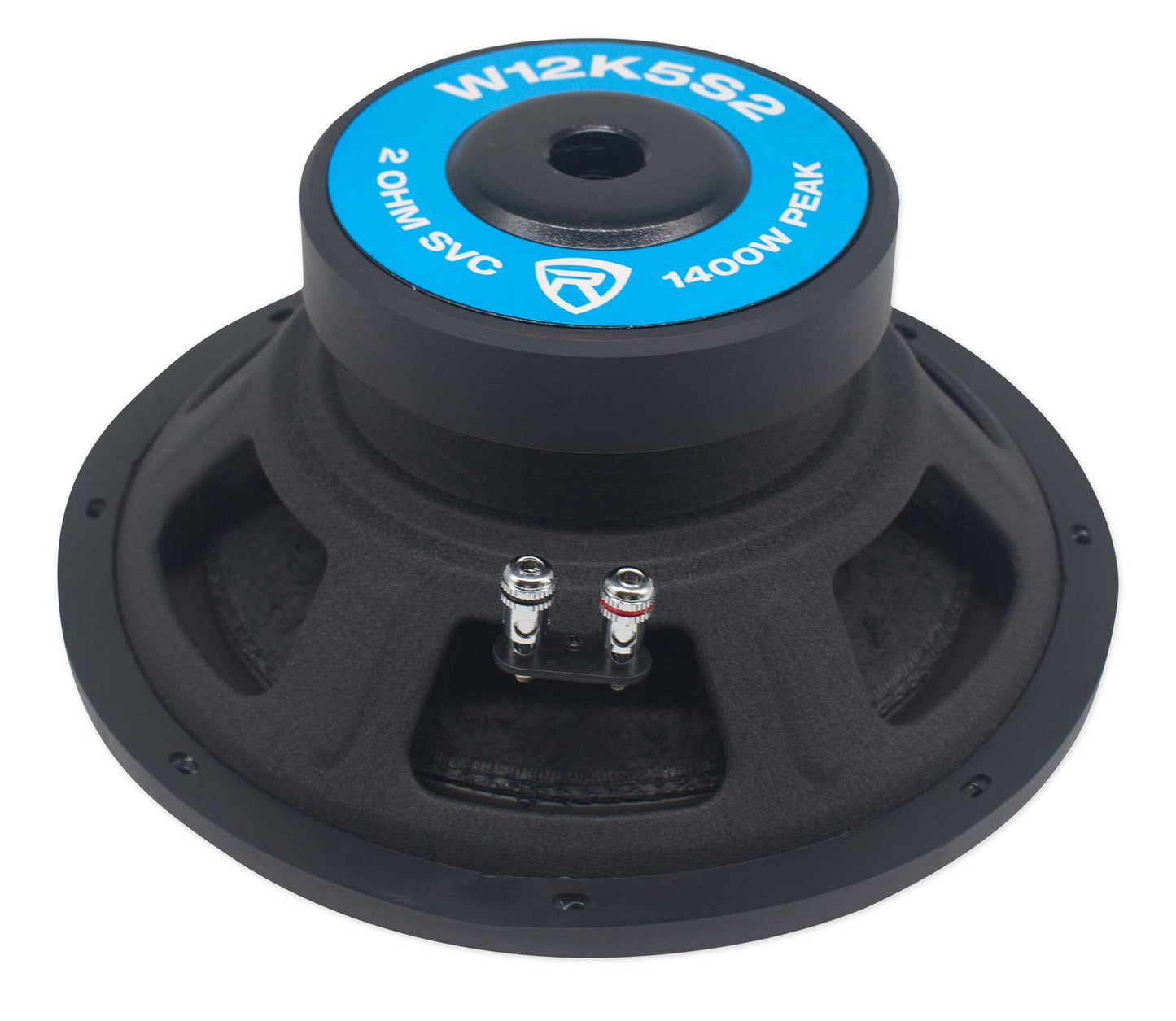

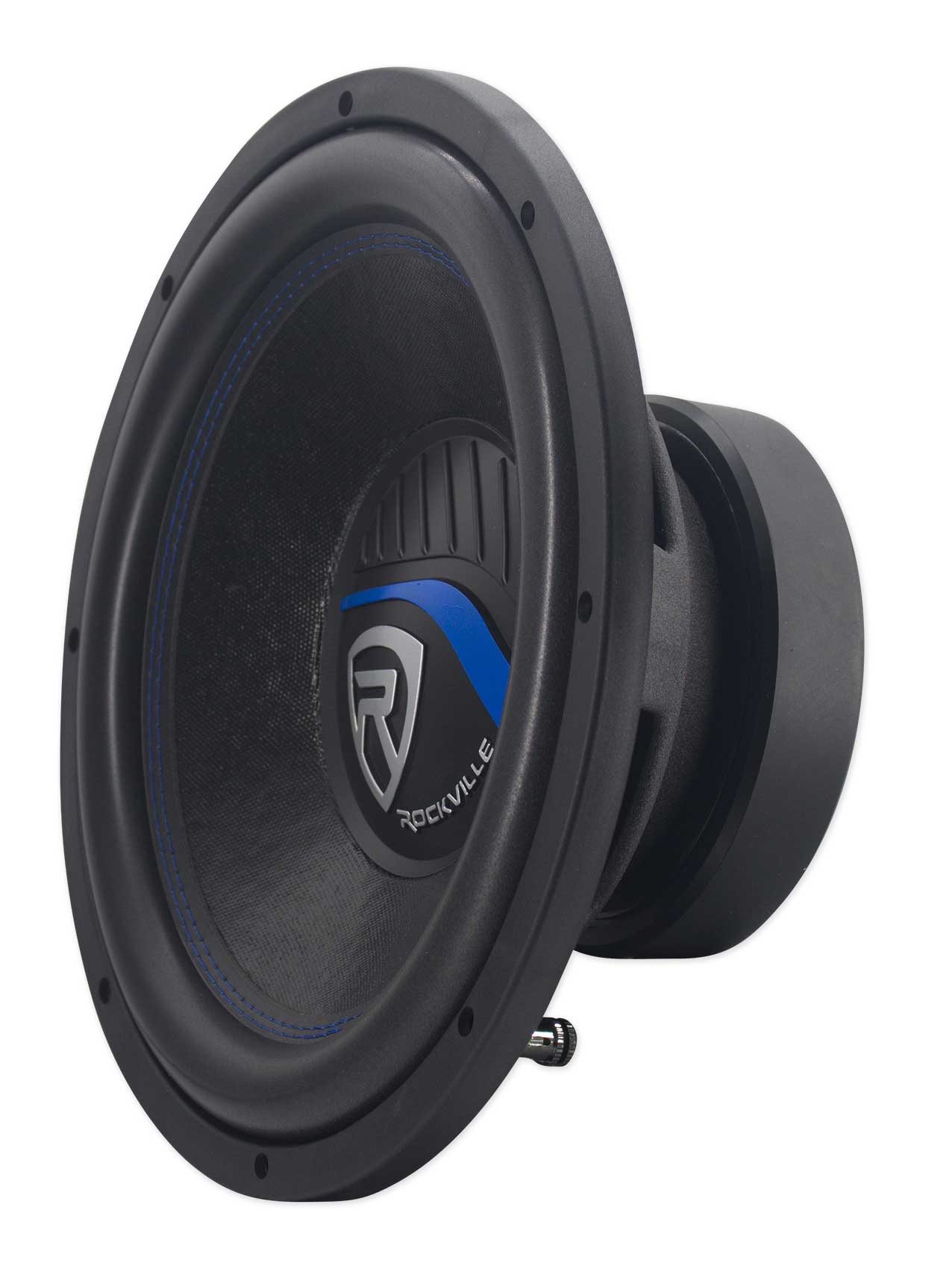

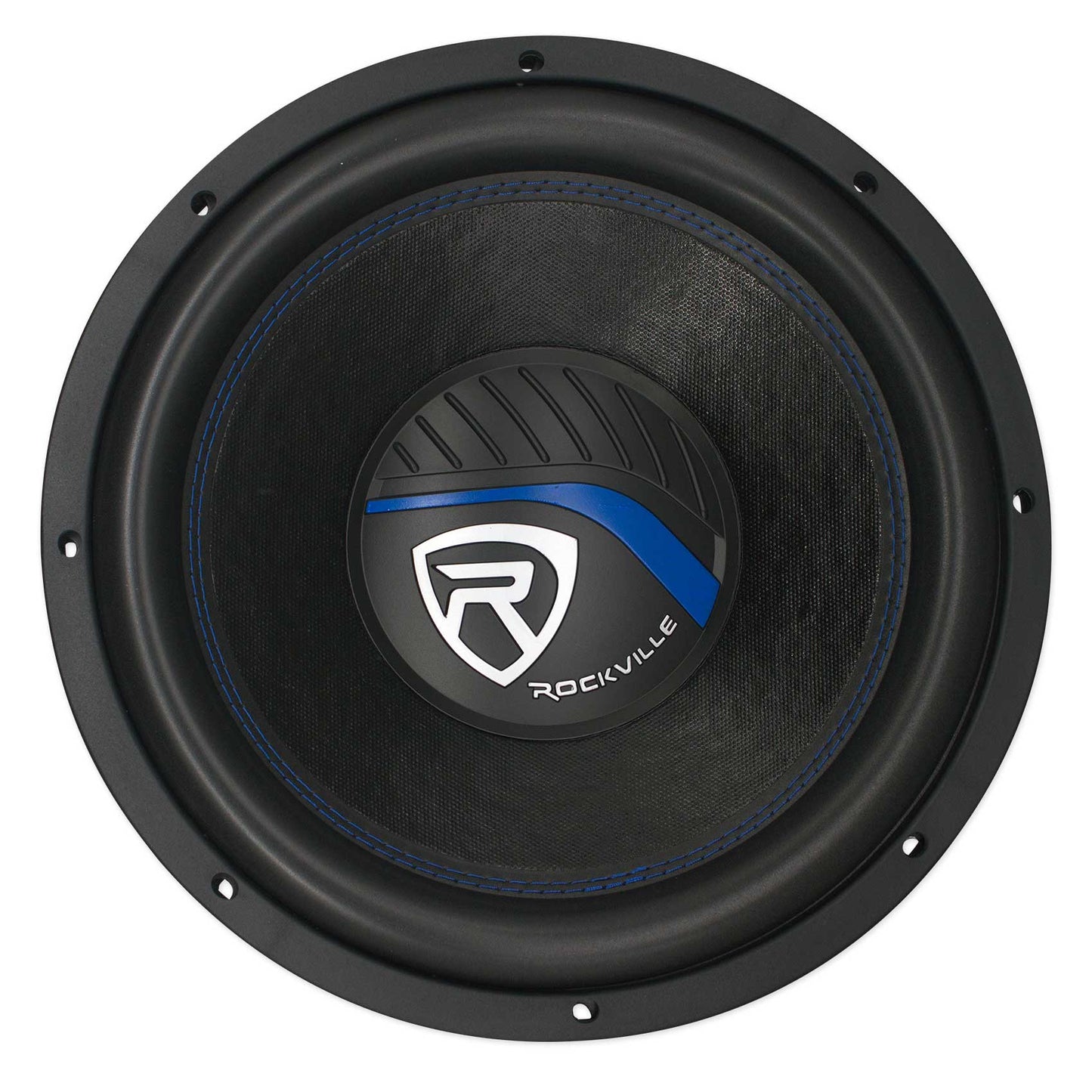

• Rockville W12K5S2 K5 Series 12" 2-Ohm Car Subwoofer
• Peak Power Handling: 1400 Watts
• Program Power Handling: 700 Watts
• CEA Rated RMS Power Handling: 350 Watts
• 2" 4-Layer Black Aluminum Voice Coils Wound with OFC (100% Copper) Wire
• The wire we use to wind the voice coil is imported from Japan which is way better quality than the standard China wire
• 50 Oz High Quality Magnet
• Cast Iron Basket With Black Sanded Finish
• Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone – This cone is very efficient which makes the speaker sound louder even without requiring a lot of power to push it
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Blue Stitching Cone Reinforcement Ensures Long Life
• Paper Dustcap is light weight and efficient helping the sub to play louder even if your amp is not so powerful

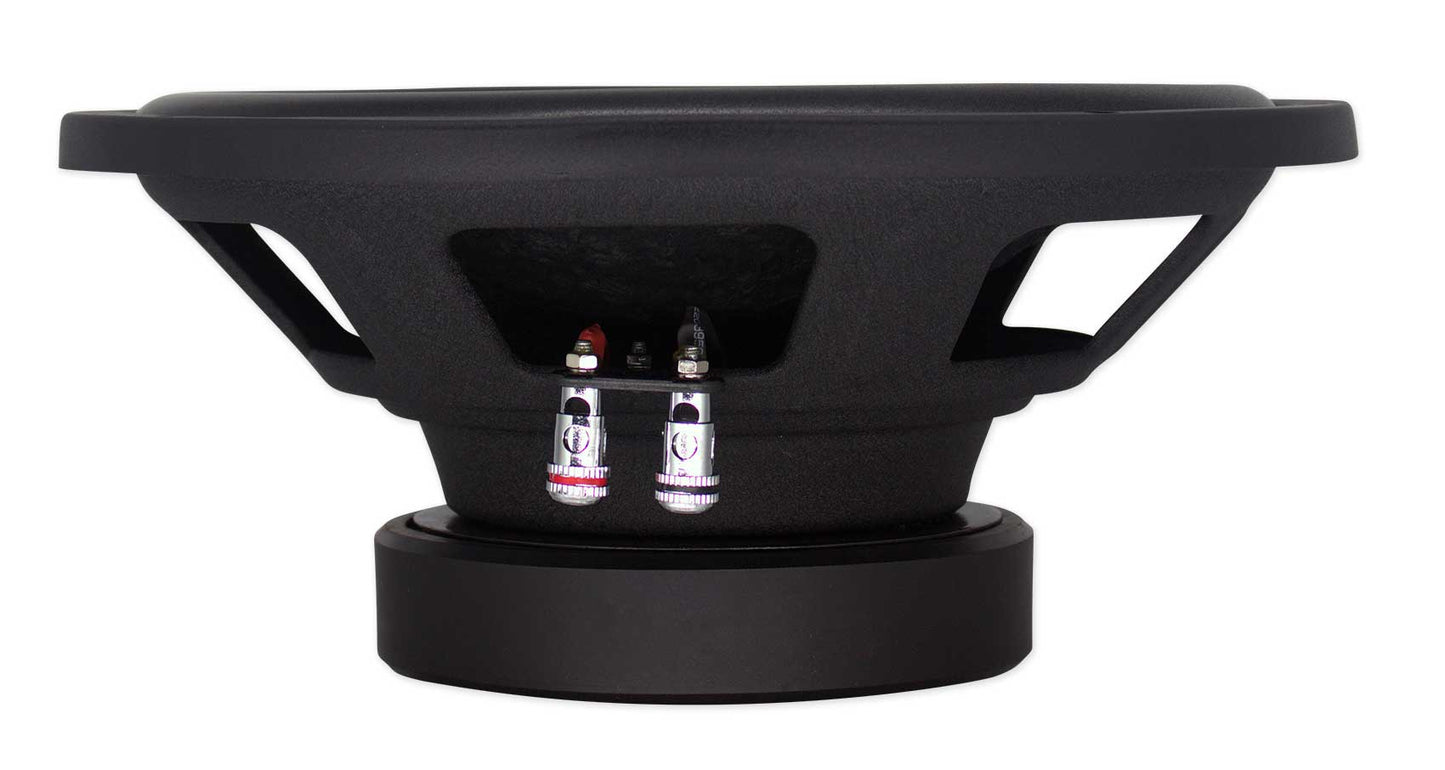

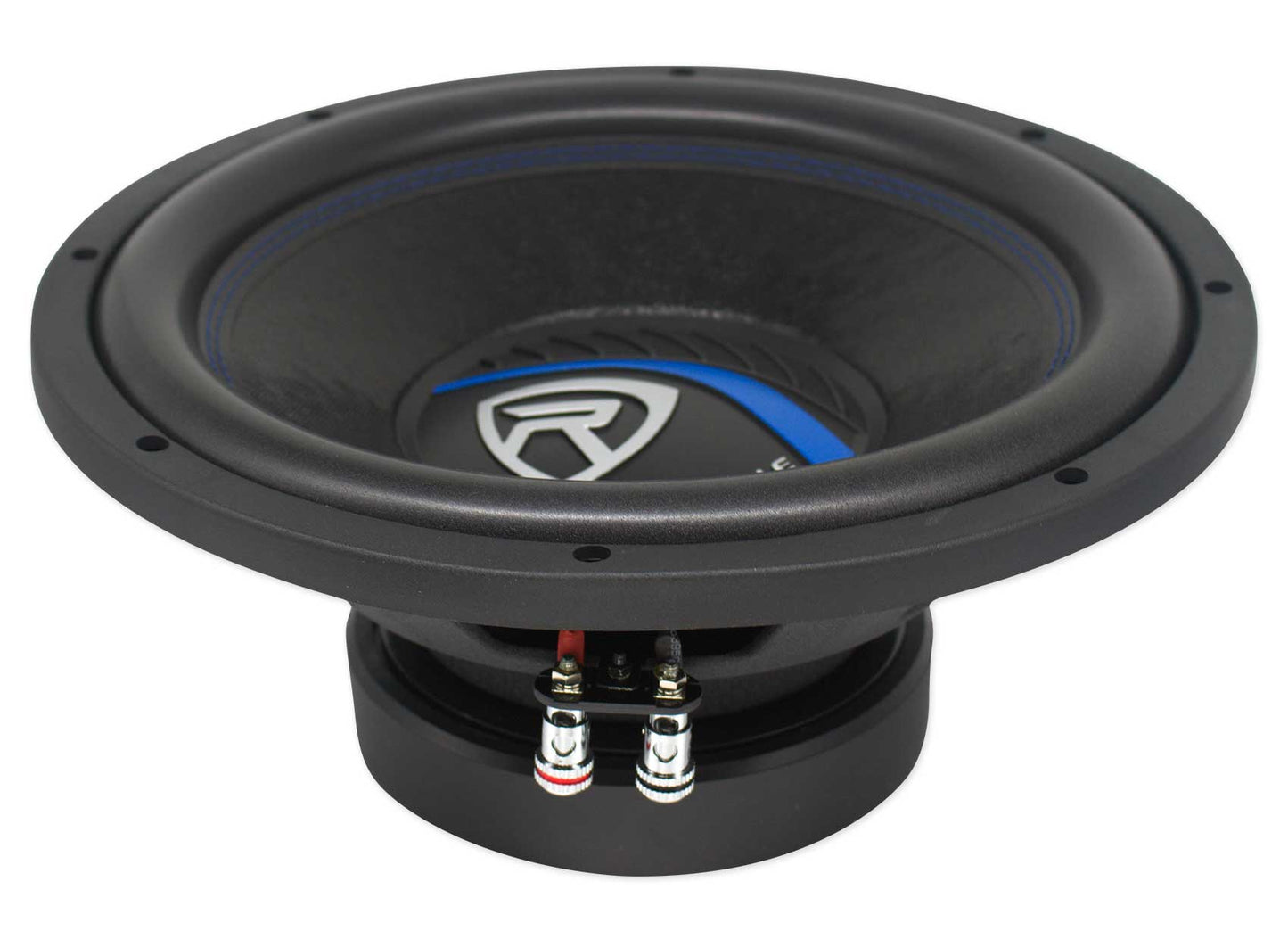

• Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
• Impedance: Single 2-Ohm Voice Coil
• Vented Hole on T-yoke Enhances Heat Dissipation
• Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Mounting Gasket with Rockville branding looks great and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated

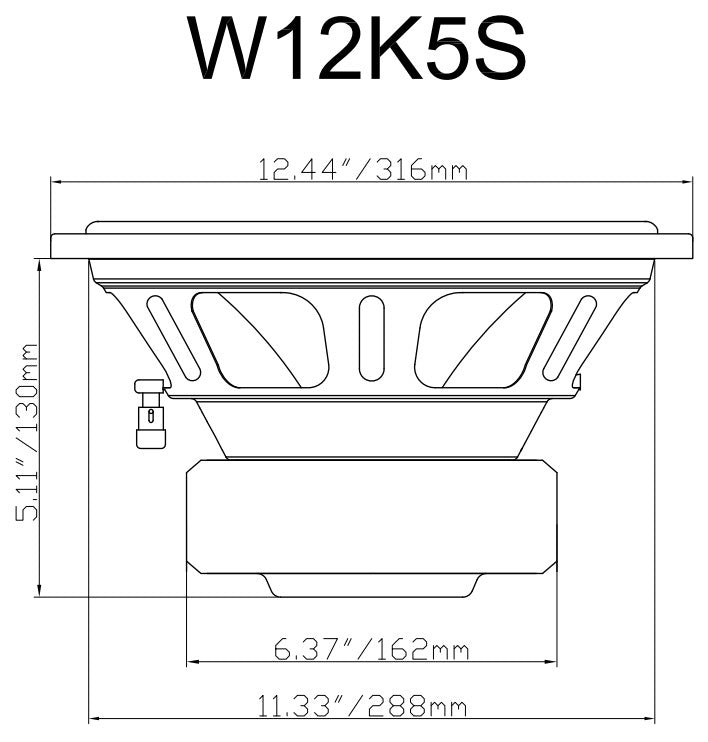

• Cutout Diameter: 11.02” inches
• Mounting Depth: 5.03” inches
• Frequency Response: 25 Hz - 1.5K kHz
• 6mm T-Yoke + 6mm Washer
• Sensitivity: 88dB
• Sealed Enclosure Volume: 0.8 – 1.3 Cubic Feet
• Vented/Ported Enclosure Volume: 1.3 – 2.0 Cubic Feet
• Weight: 10.1 Lbs.
• Shipping Weight: 11.6 Lbs.
• Shipping Box Dimensions: 13.78" x 13.78" x 8.97" Inches

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 80mm (3.14 inches)
• Gap Plate Outside Diameter: 156mm (6.14 inches)
• Gap Plate Thickness: 25mm (0.98 inches)
• Yoke Outside Diameter: 145mm (5.7 inches)
• Yoke Thickness: 6mm (0.23 inches)
• Yoke Pole Diameter: 50mm (2 inches)

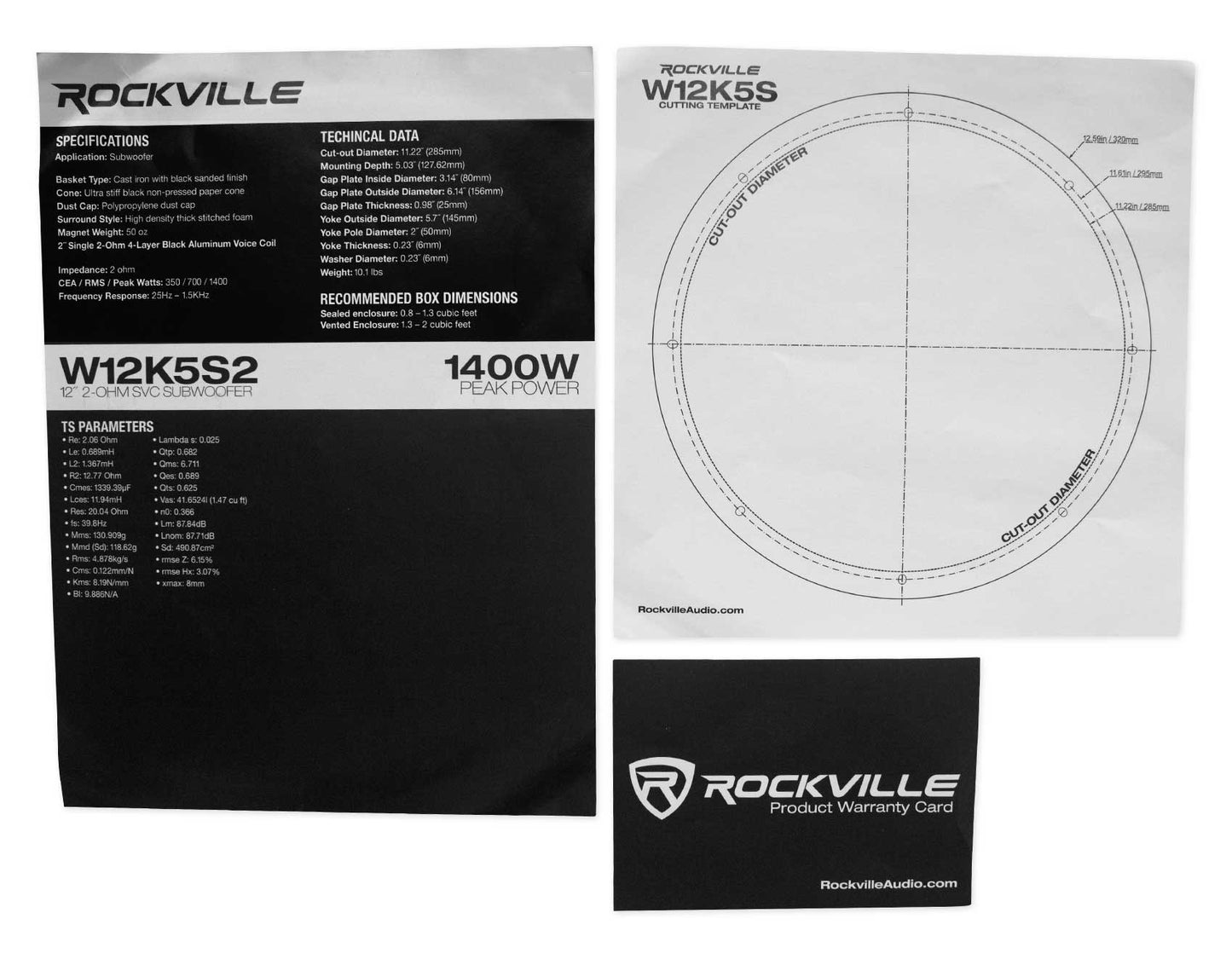

T/S Parameters (Tested on a Klippel)

Electrical Parameters
Re	2.06	Ohm	electrical voice coil resistance at DC
Le	0.689	mH	frequency independent part of voice coil inductance
L2	1.367	mH	para-inductance of voice coil
R2	12.77	Ohm	electrical resistance due to eddy current losses
Cmes	1339.39	µF	electrical capacitance representing moving mass
Lces	11.94	mH	electrical inductance representing driver compliance
Res	20.04	Ohm	resistance due to mechanical losses
fs	39.8	Hz	driver resonance frequency
Mechanical Parameters
(using laser)
Mms	130.909	g	mechanical mass of driver diaphragm assembly including air load and voice coil
Mmd (Sd)	118.62	g	mechanical mass of voice coil and diaphragm without air load
Rms	4.878	kg/s	mechanical resistance of  total-driver losses
Cms	0.122	mm/N	mechanical compliance of driver suspension
Kms	8.19	N/mm	mechanical stiffness of driver suspension
Bl	9.886	N/A	force factor (Bl product)
Lambda s	0.025

---

Description:

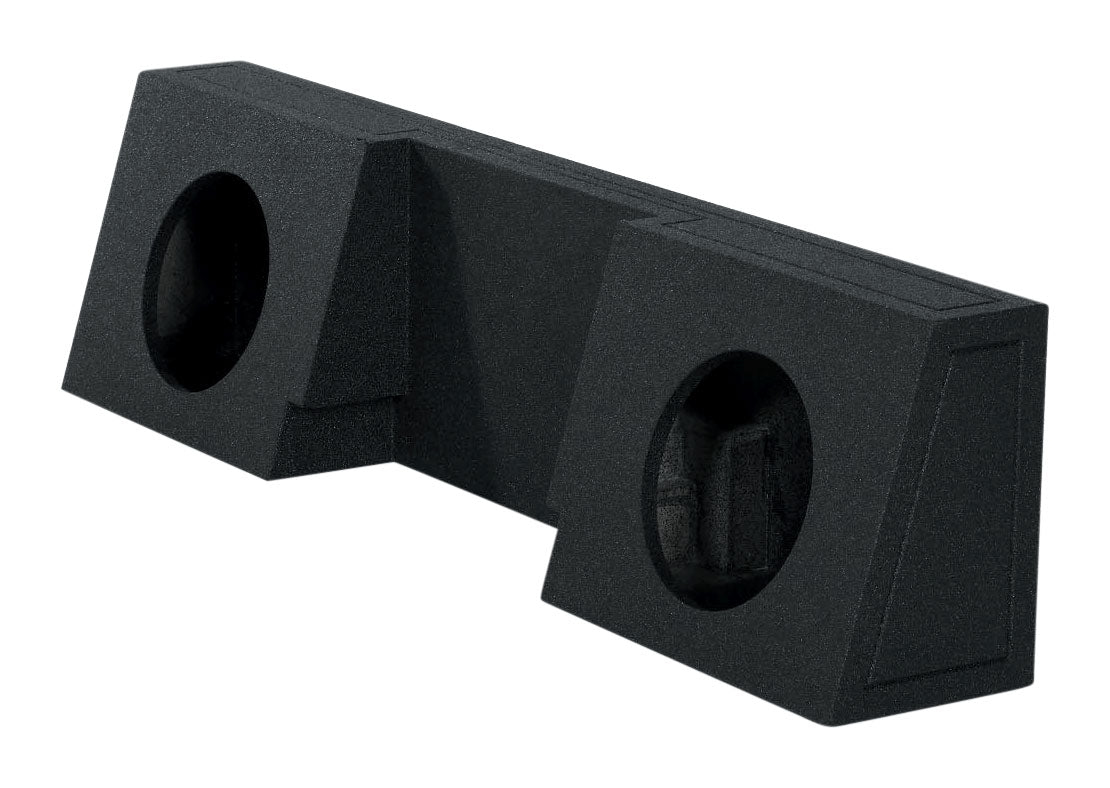

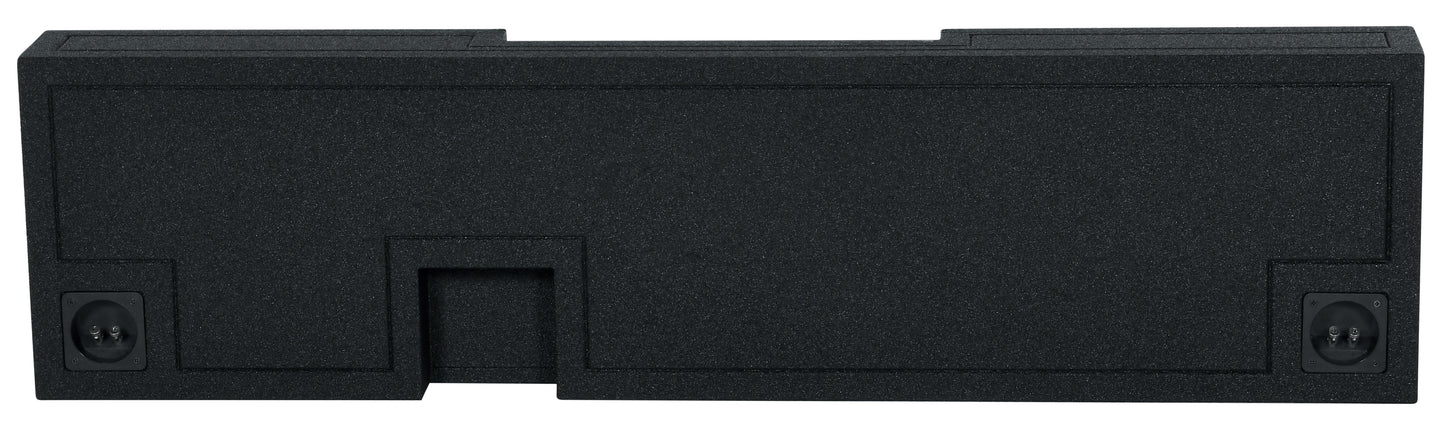

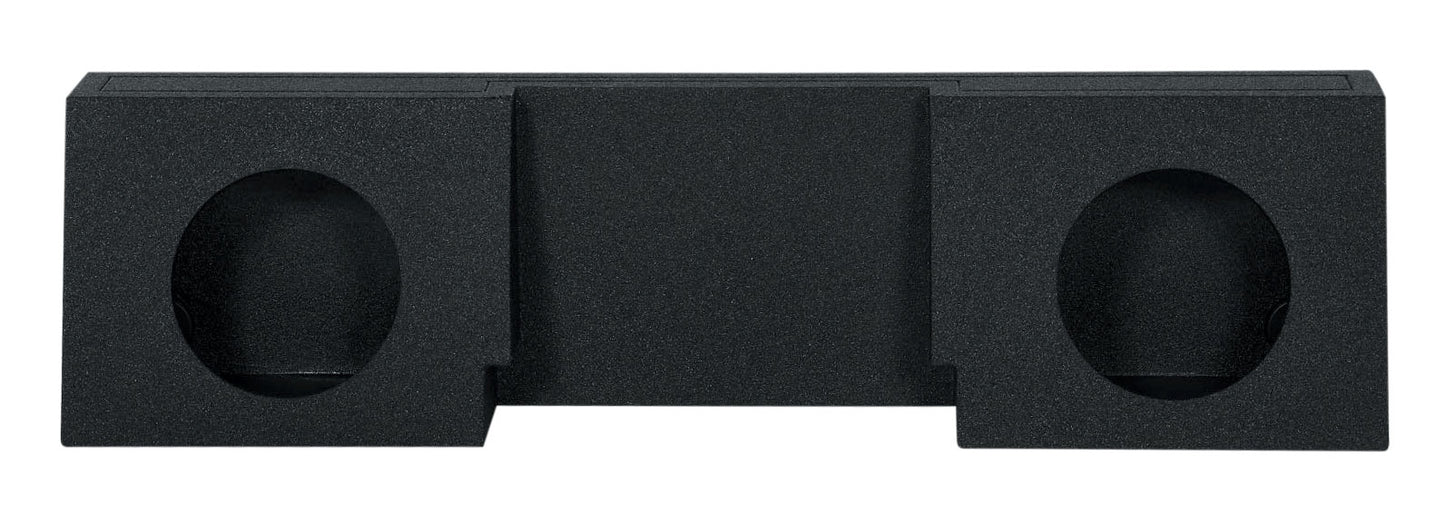

The REC92 speaker box is made in the USA with Grade "A" 5/8" MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The 5/8" USA MDF is much stronger than any type of import wood. This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you! EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn't enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more! MADE IN THE USA WITH PRIDE!

Features:

REC92 Dual 12 Sealed Subwoofer Enclosure is Proudly Made In The USA, Using Only The Finest Quality Materials - For The Best Level of Performance From Your Subs! This speaker box is custom designed for perfect fitment in a 2007-Current GM/Chevy Single Cab Trucks. 5/8" USA Heavy Duty MDF Construction Machine precision cut mounting holes Top of the line Glue for extra durable adhesion Designed, tested, and engineered to work with most of today's popular woofers. These enclosures are built with the quality additives needed to maximize the performance of any sound system.

Enclosure Measurements:

• Type of Enclosure: Sealed Enclosure
• Sub Size: Dual 12"
• Dimensions in Inches: 9.25" x 13.75" x 53.25"
• Top Depth: 5.25"
• Bottom Depth: 9.25"
• Mounting Depth: up to 6.75"
• Gross Volume Per Sub (Measurement for the outer dimensions of the box): 0.95 Cubic Feet
• Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 0.78 Cubic Feet

---

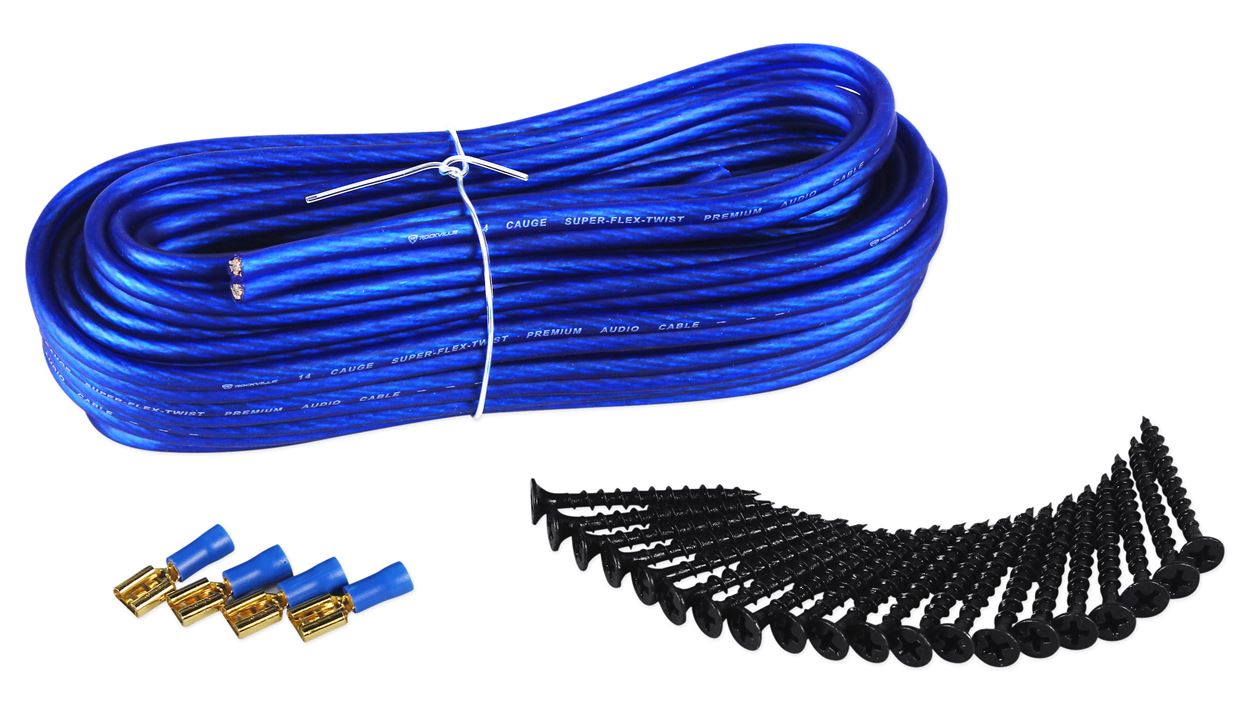

Complete Dual Subwoofer Enclosure Installation Kit!

Includes:

• 20 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 20 Feet of 14 AWG Blue Speaker Wire
• 4 Spade Terminals

This accessory package includes everything you need to install two subwoofers into an enclosure, and wire your enclosure to your amplifier. This package is a top of the line accessory package which we put together and tested.

The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure. The speaker wire is 14 gauge. This is way better than using 16 gauge. You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire. These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
