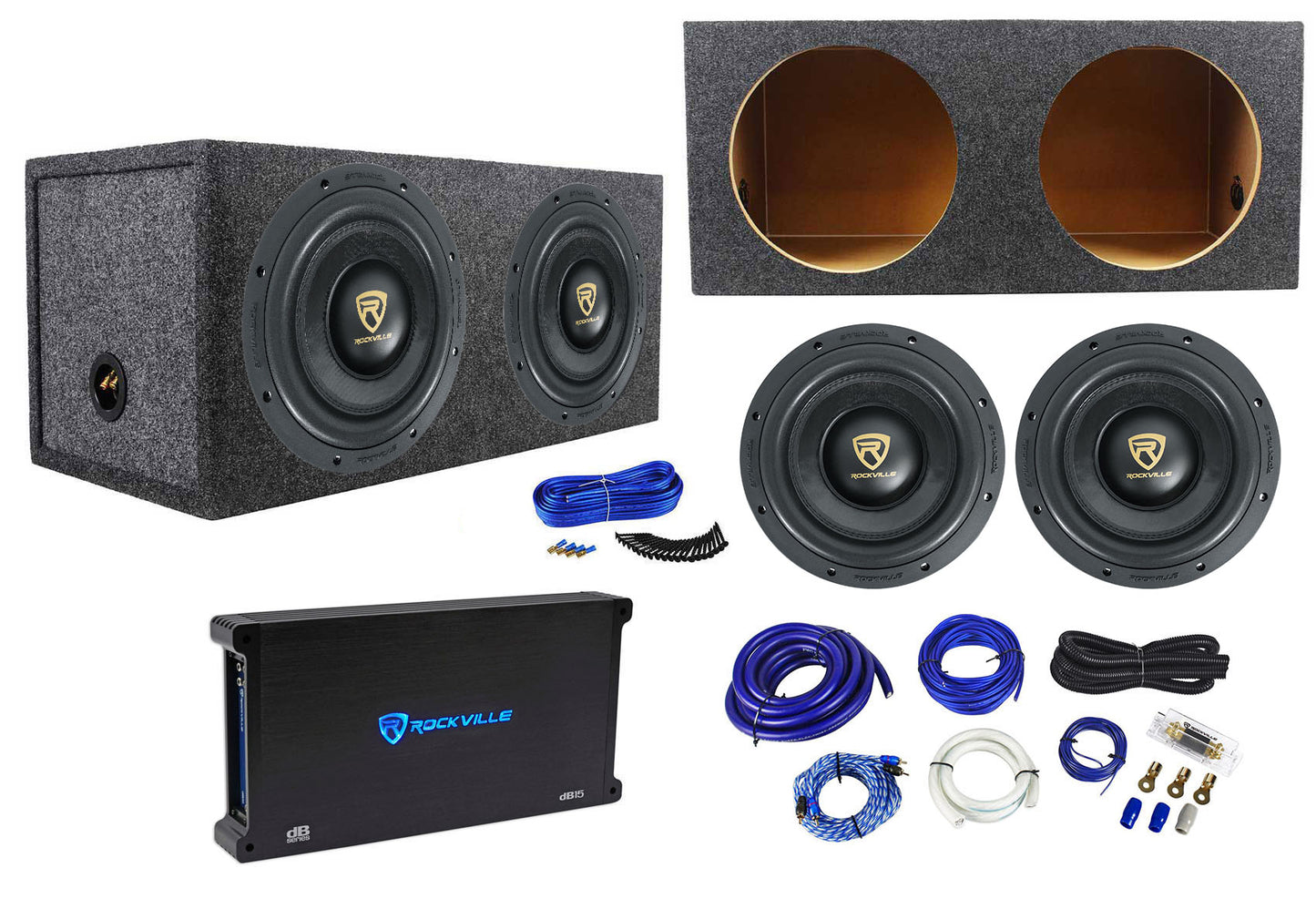

Package Includes:

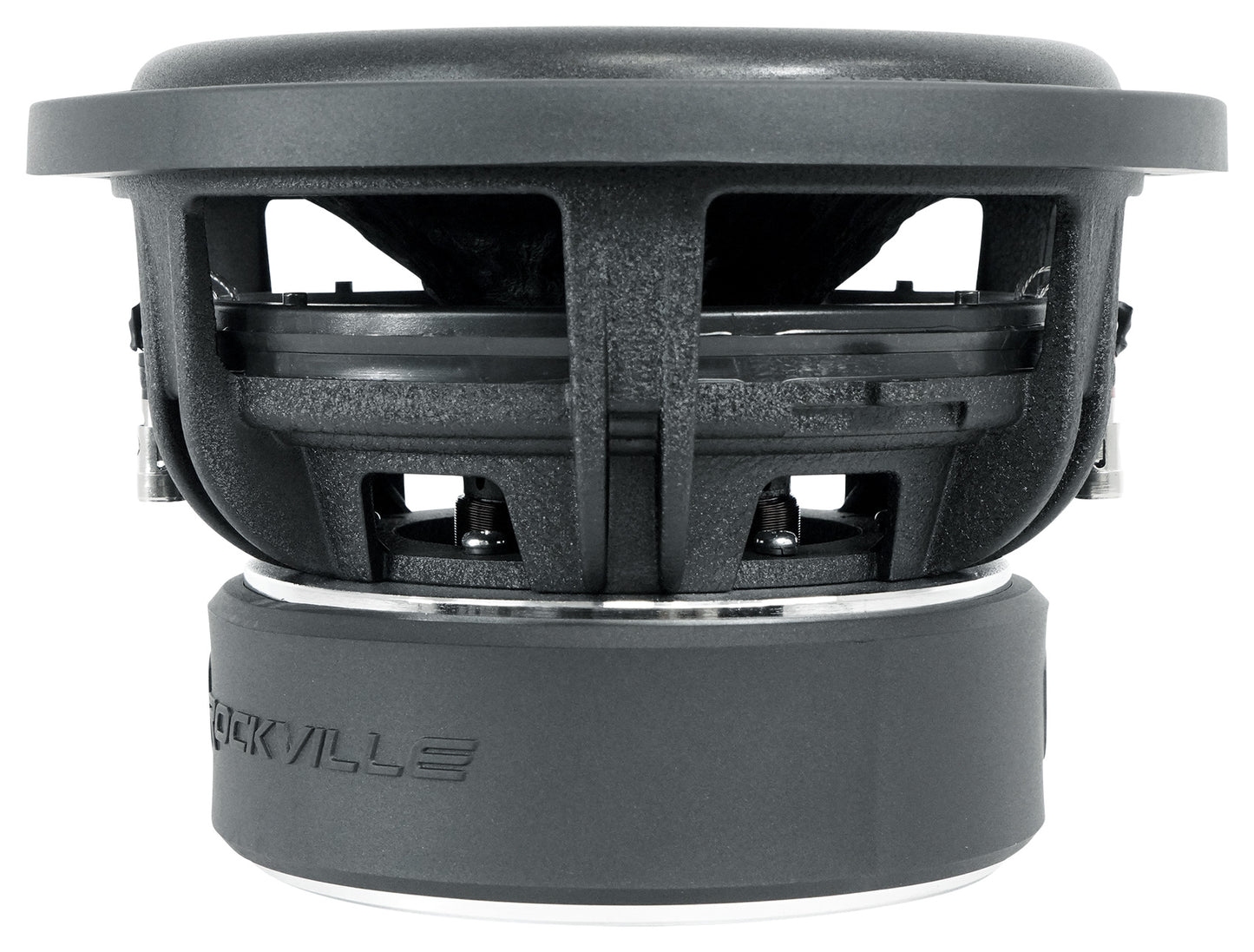

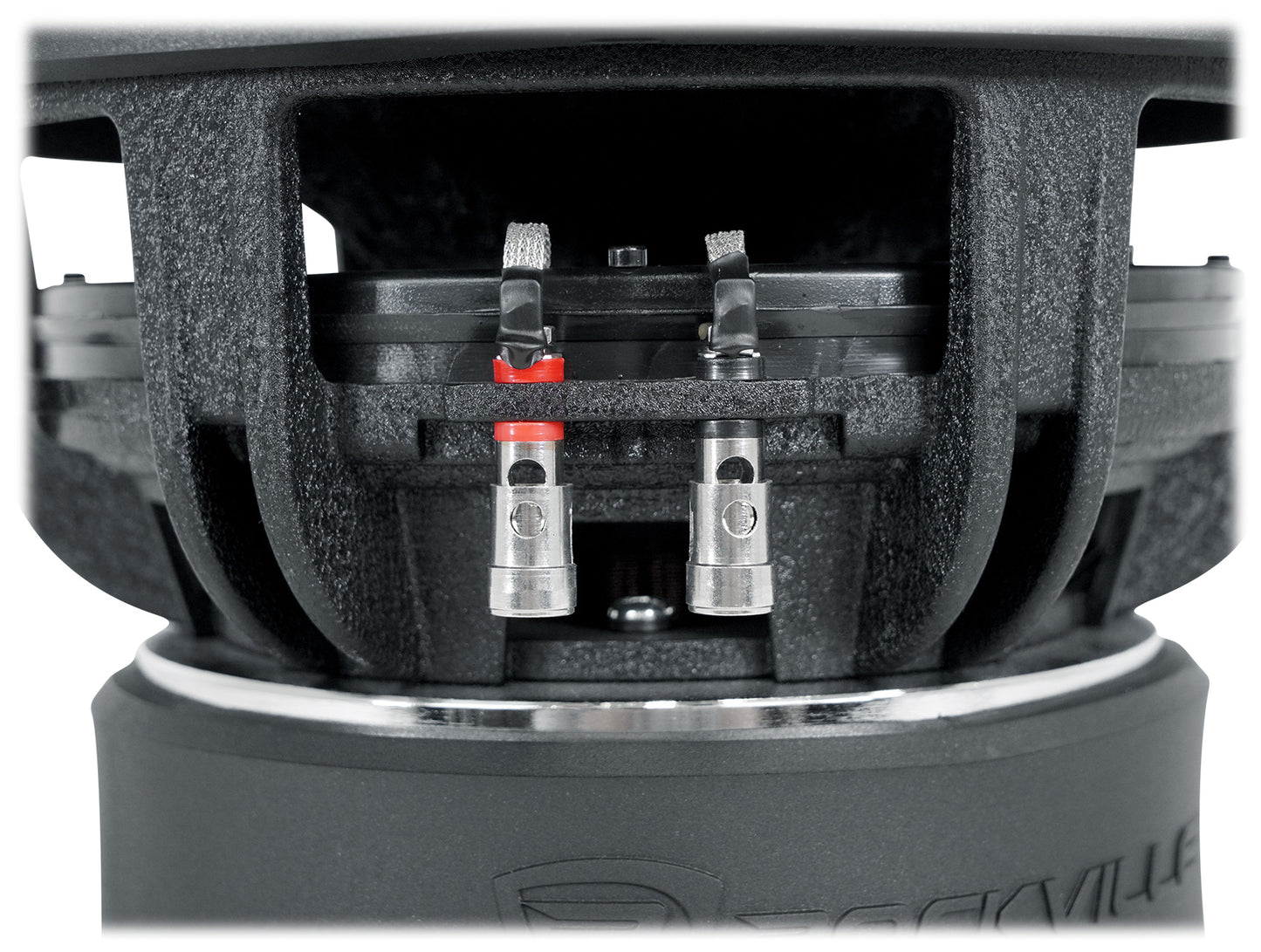

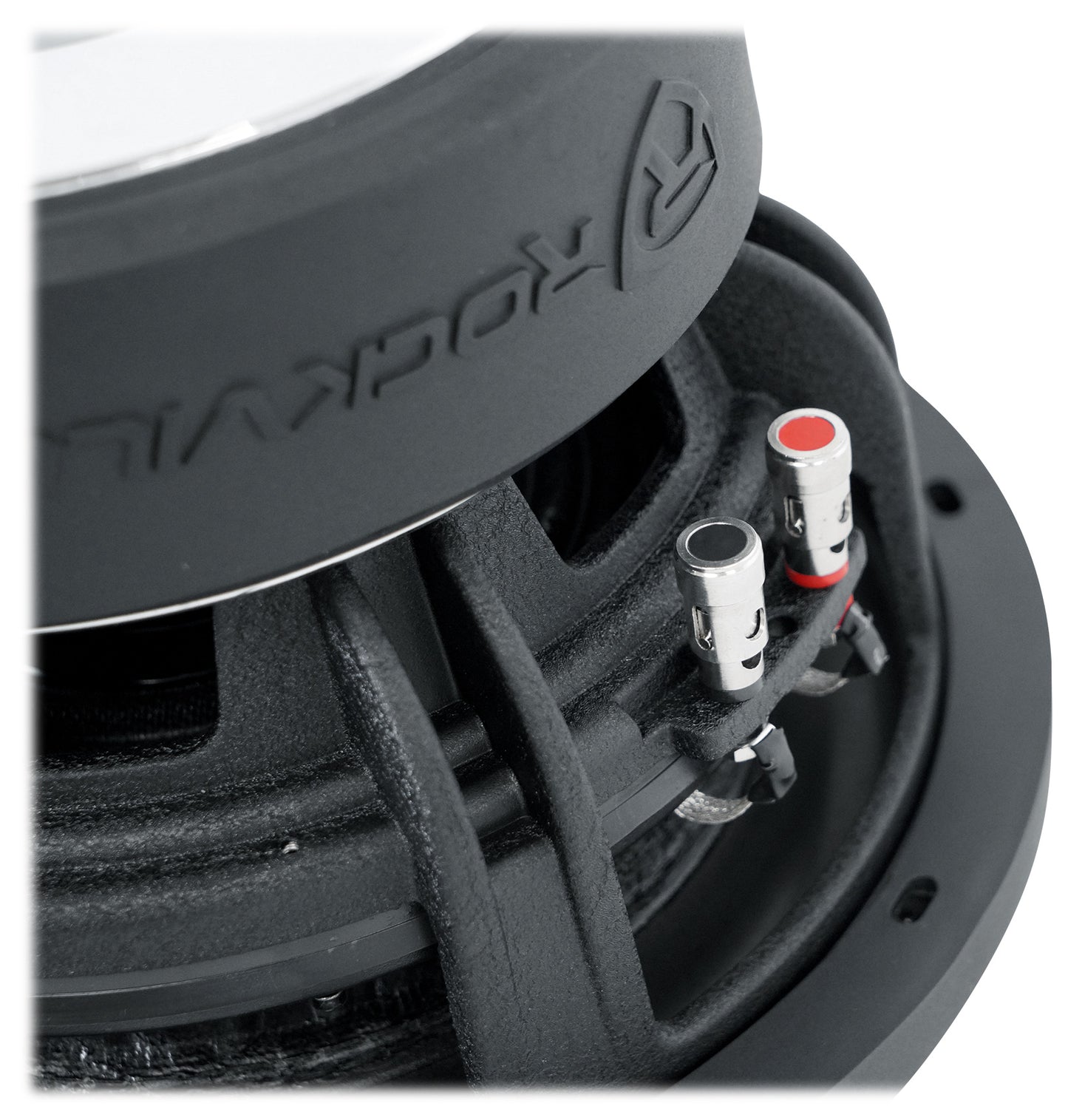

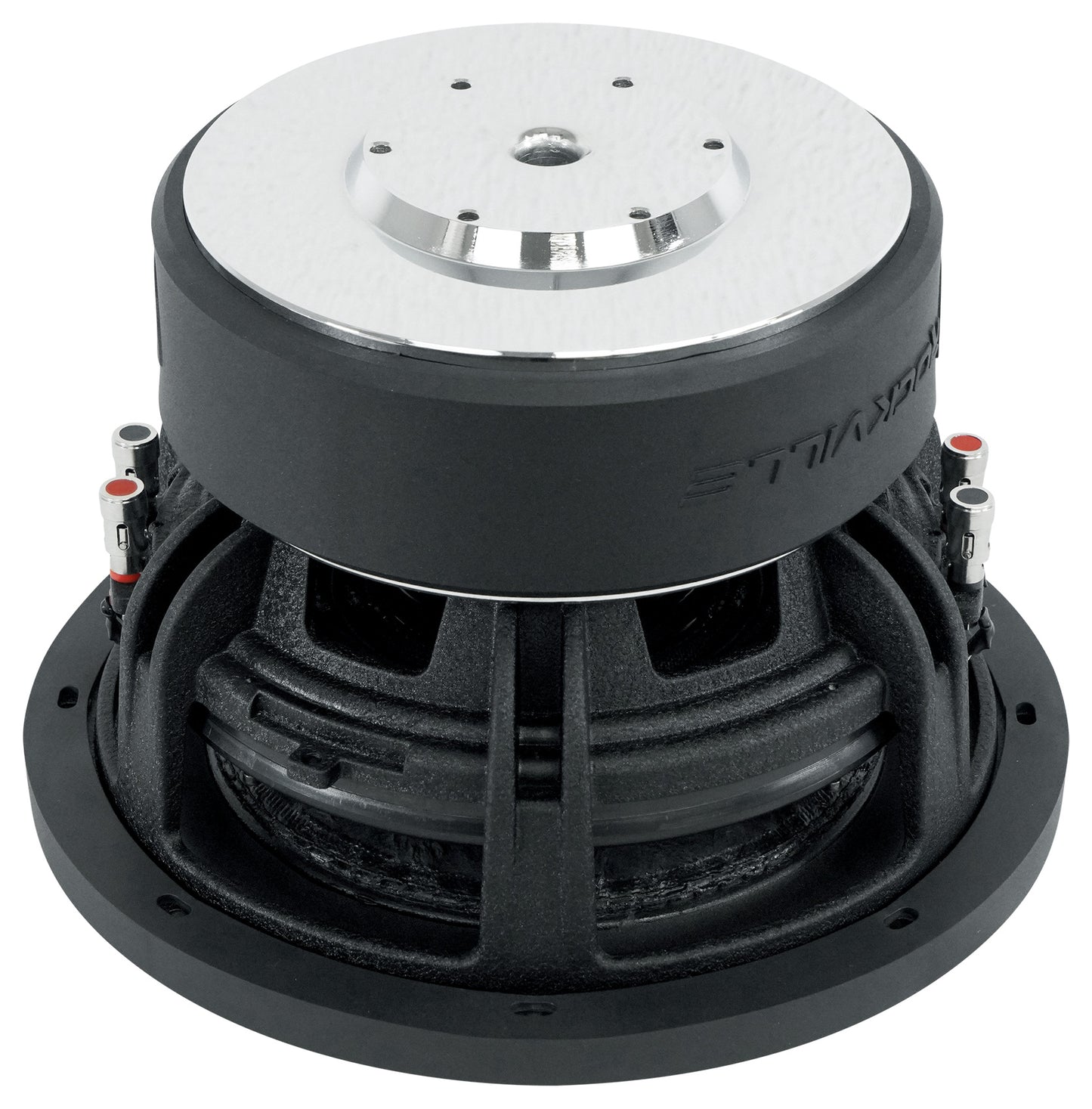

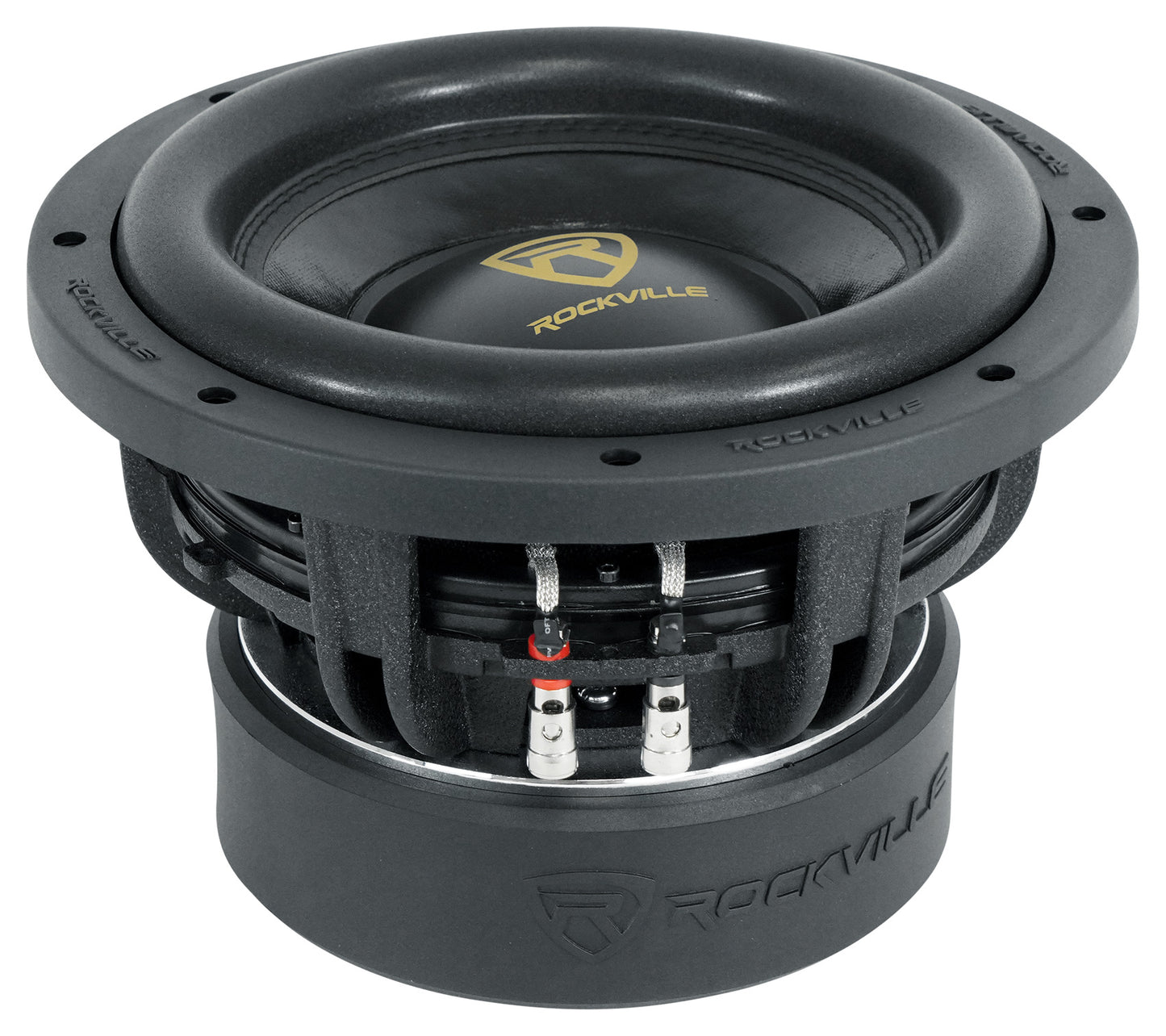

- (2) Rockville 10" Car Audio Subwoofers
- (1) Rockville Dual 10” 1.0 cu.ft. 3/4" MDF Sealed Subwoofer Enclosure Sub Box
- (1) Rockville dB15 6000 Watt Peak/1500 Watt Dyno-Certified RMS Mono 2 Ohm Amplifier Car Audio Amp

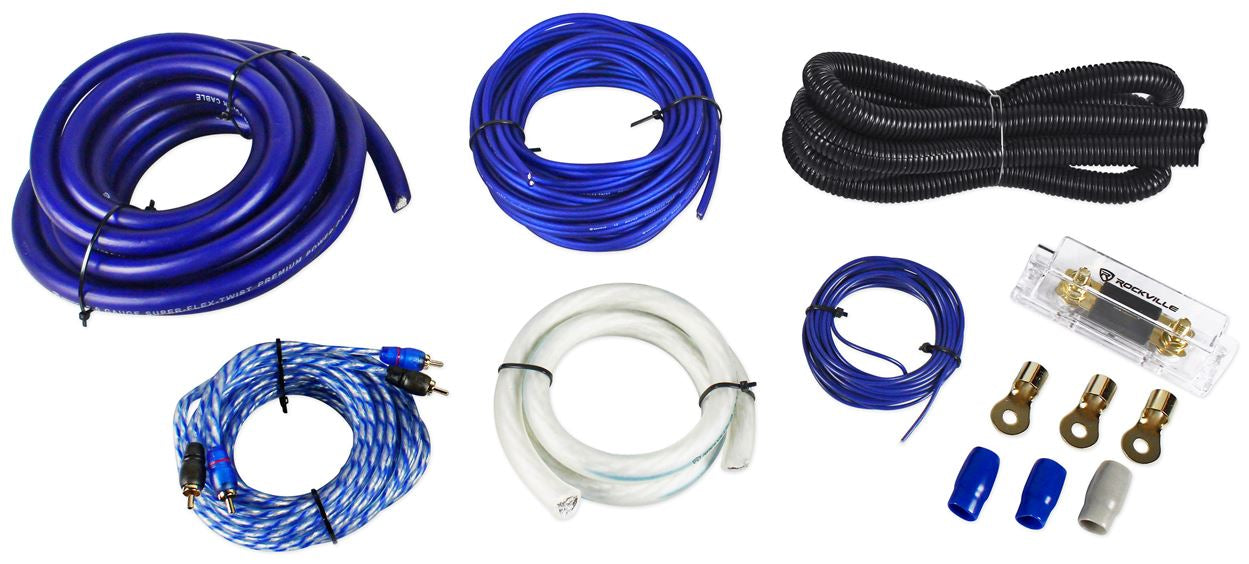

- (1) Rockville RWK01 0 Gauge Complete Car Amp Wiring Installation Wire Kit w/ RCA's

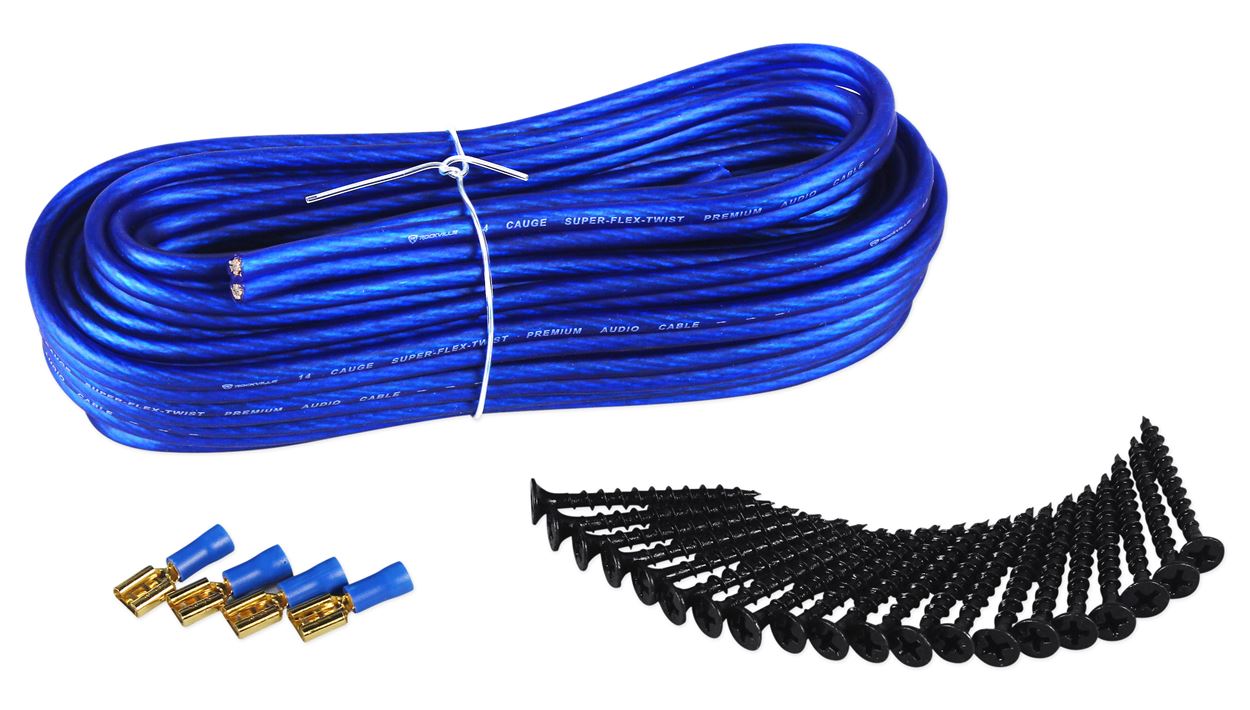

- 20 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
- 20 Feet of 14 AWG Blue Speaker Wire
- 4 Spade Terminals

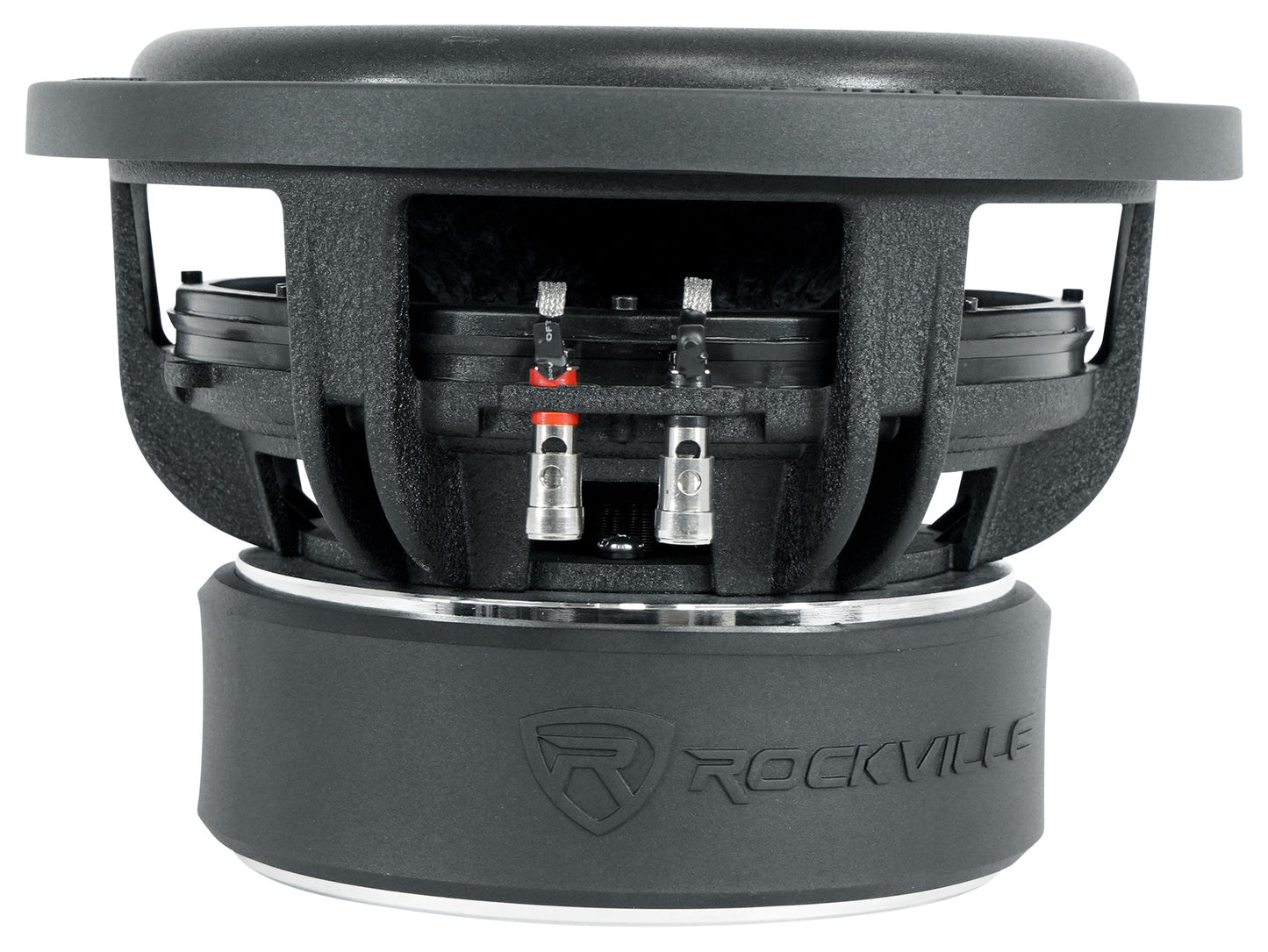

All about your K9 Series Subwoofers: Wiring for 1 DVC 2 Ohm SUBS: Wiring for 2 DVC 2 Ohm SUBS: Description:

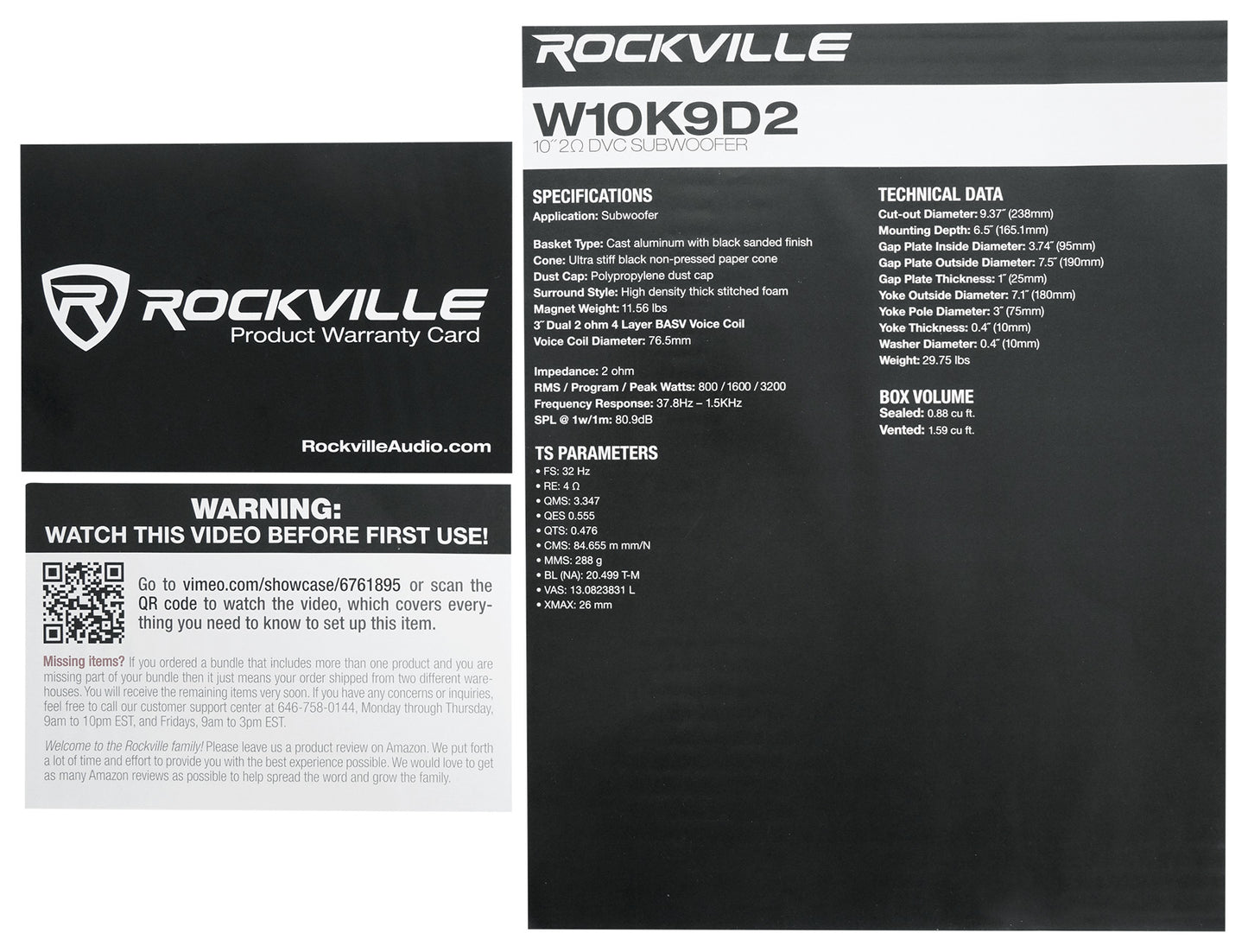

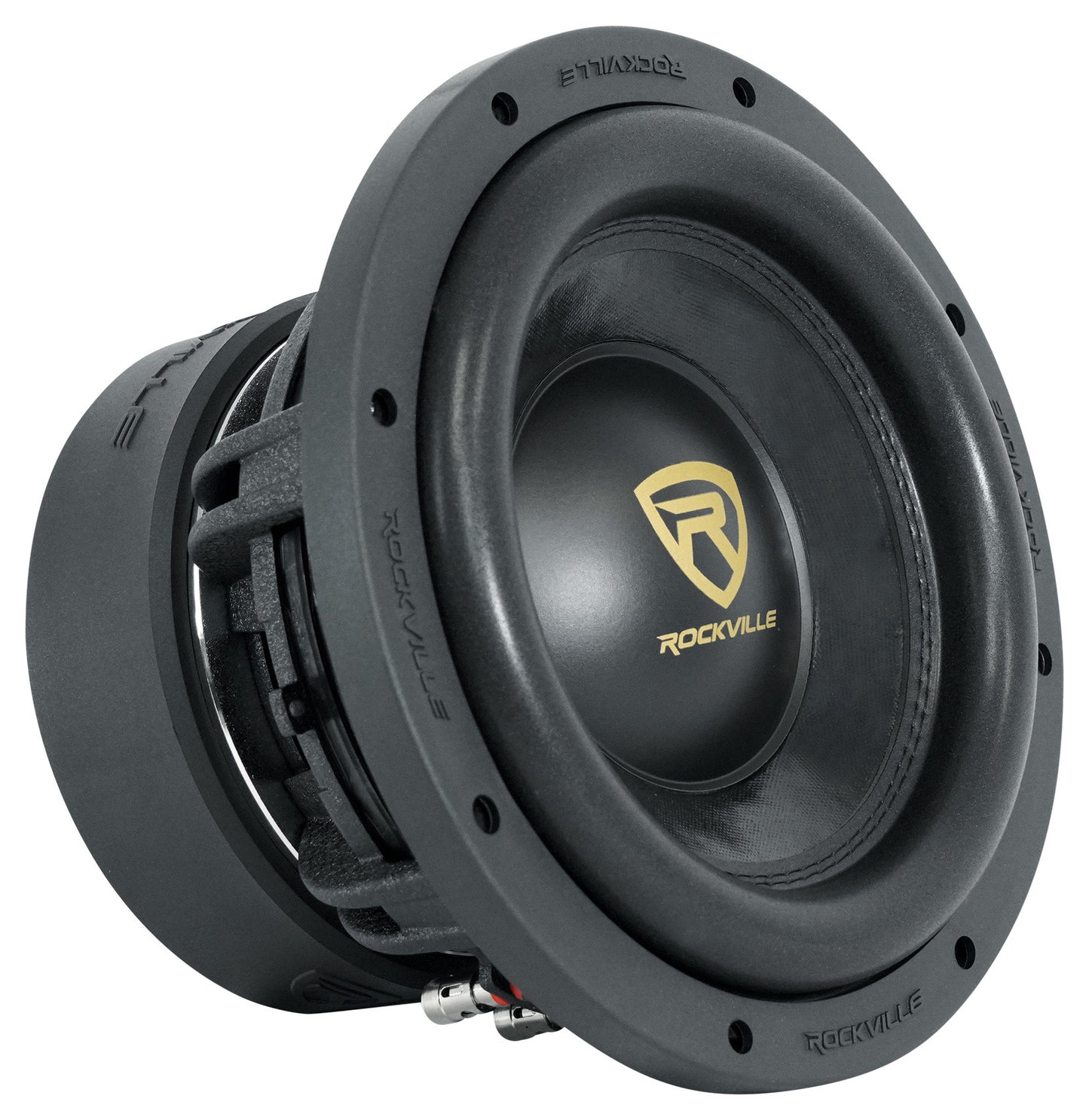

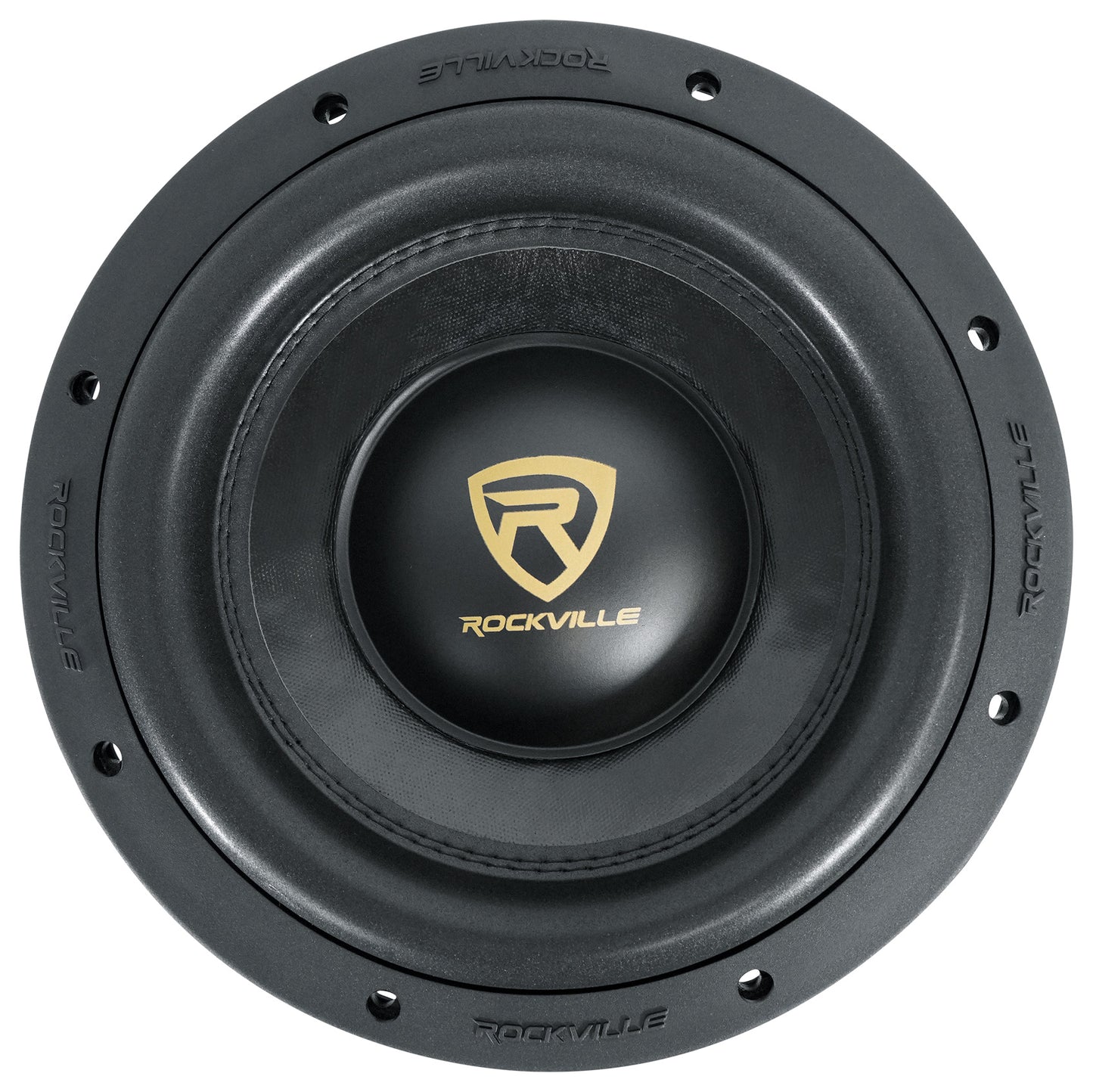

The Rockville K9 series has been our best selling series of subs and it just got even better! Say hello to the K9 V3. This sub is a game changer. We improved the performance and cooling like crazy! Our engineers did some minor tweaks that give major results for bassheads who like to abuse subs! Weather you are an every day user or someone who pushes the limits of your equipment the K9 V3 is for you! We made the following upgrades that will keep the voice coil cooler improving the subs ability to take constant abuse. 1. The dustcap was upgraded to the same one we use in our Punisher series. It is top of the line. We figured it just cost us a couple dollars extra, so why not throw on the best dustcap. 3. We added a voice coil spacer that vastly improves the performance. 4. The cone has a smooth finish that allows the dustcap to be glued on more securely. Features: Detailed Info: TS Parameters:
Video of dB15:
Description:

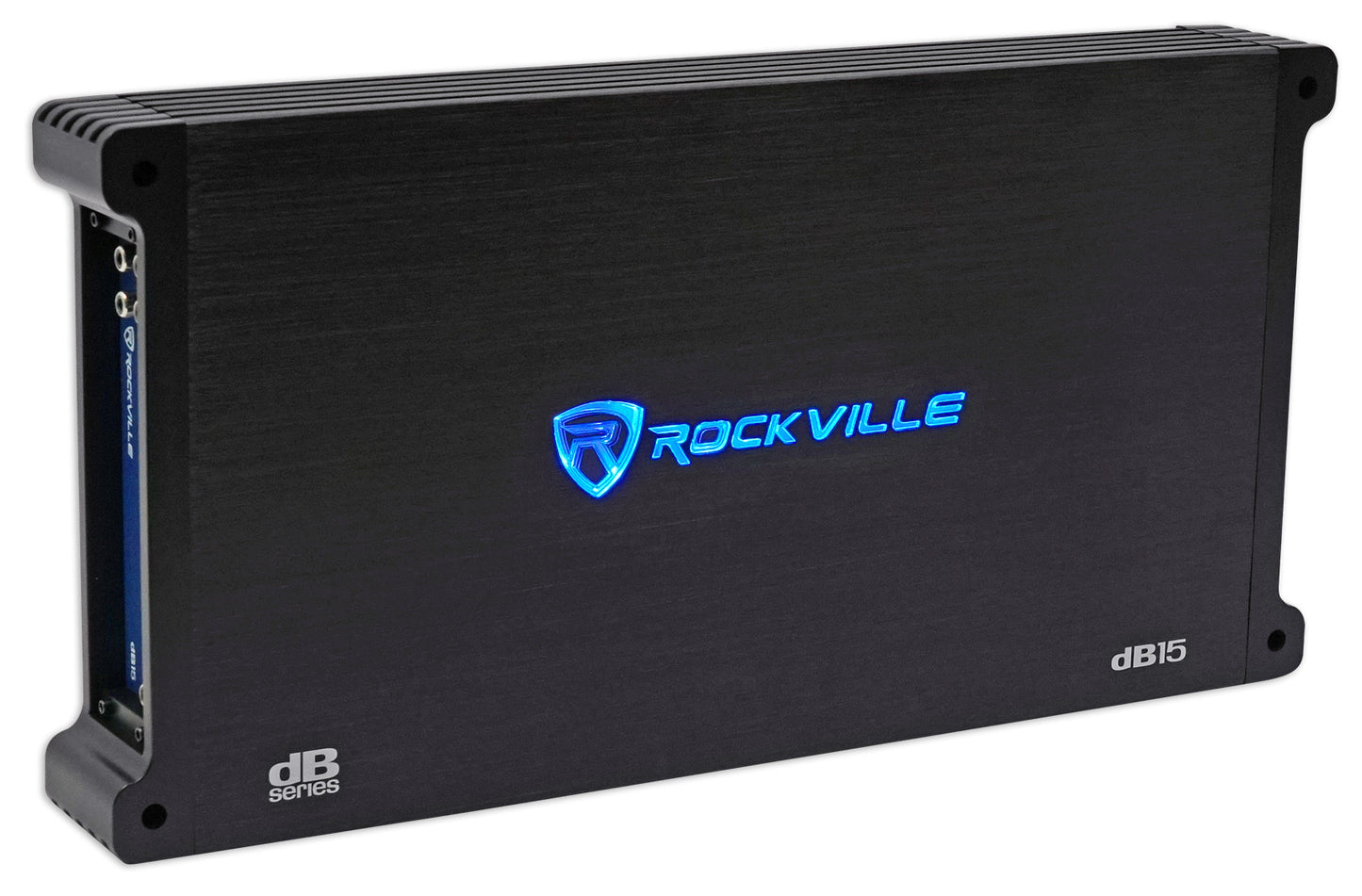

The dB15 is a mono amplifier with 6,000 watts peak output and 1500 watts Dyno-Certified power. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.
One of the tricks to determine the real power of a car amplifier is to multiply the fuse rating by 10 to determine the true RMS power. This formula almost always works within 20 %. The dB15 features a fuse with a rating of 150 Amps. Although we rate these conservatively at 1500 watts Dyno Certified @ 2 ohms, this amplifier puts out more power than this!
This amp has a fully adjustable 12dB/Octave crossover with differential circuitry. Other features include a subsonic filter, a fully adjustable bass equalizer, mute and delay soft start technology, a phase control switch, and a dashboard subwoofer control for added convenience. The dB15 is protected by a full IC controlled circuit and has professional peak limiter circuitry guaranteeing distortion free music playback at all levels.
The RCA input accepts both balanced and un-balanced inputs. If there is potential inference in the car, the balanced input signal is less susceptible to noise.
The dB amps by Rockville use the top parts and components recommended by Rockville’s very own engineer. These amps are the best sounding out of any series we have ever created. They perform more efficiently resulting in even dB of sound. We created them to be 2 ohm stable just like the world’s most famous amps by Rockford Fosgate, Kicker, etc. If you compare our amp to the most famous amps you will find our amp can compete and, in my opinion, surpass the performance of anything in its class.
Each and every amplifier we manufacture is tested twice. Once at the semi-finished PCB stage of production, and then another test is done at the final assembly. We also run age tests on them. After this is all done, we hire a 3rd party independent company unaffiliated with our factory or with us to go to the factory and inspect 20% of all the production items. We test the power, the controls, and over 20 other tests. We guarantee these amps will satisfy you. We are so confident in your satisfaction of this amplifier that we will offer you a 90 day money back guarantee. If this amp does not perform as well as you expected we will send you a pre-paid shipping label and give you all of your money back. This means if for any reason you want to return the amplifier back for a full refund within 90 days, you can! (Amp must be complete along with the box).
Includes:
- Amplifier
- Bass Remote
- Birth sheet with tested power
- Owner’s manual
- Mounting Screws
- Warranty
Features:
- Rockville dB15 6000 Watt Peak/1500 Watt Dyno-Certified RMS Mono 2 Ohm Amplifier Car Audio Amp
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
- 2 Ohm: 1500 Watts x 1 Channel <1% THD+N
- 4 Ohm: 900 Watts x 1 Channel <1% THD+N - Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
- 2 Ohm: 6000 Watts x 1 Channel
- 4 Ohm: 3600 Watts x 1 Channel - High-Speed MOSFET Power Supply
- Optical Coupler Class “D” Technology
- Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
- Low Pass Filter: 50Hz - 250Hz
- Subsonic Filter: 15Hz - 55Hz
- Phase Control Switch
- Full IC-Controlled Protection Circuitry
- Remote Dashboard Subwoofer Control
- Fully Adjustable 12dB Bass Equalizer
- Mute and Delay Soft Start System
- RCA Preamp Line Output
- 8 Volt Preamp Circuitry
- Status Mode LED Indicator
- Minimum THD at Rated Power: <0.1%
- S / N Ratio: >90dB
- Under Voltage Protection at 10V
- Over Voltage Protection at 16V
- Frequency Response: 15Hz - 250Hz
- Damping Factor: >150 @ 100Hz
- 150 Amp Fuse
- Dimensions: (W x H x L)9" x 2.4" x 17.8"
Description for Rockville Enclosure:

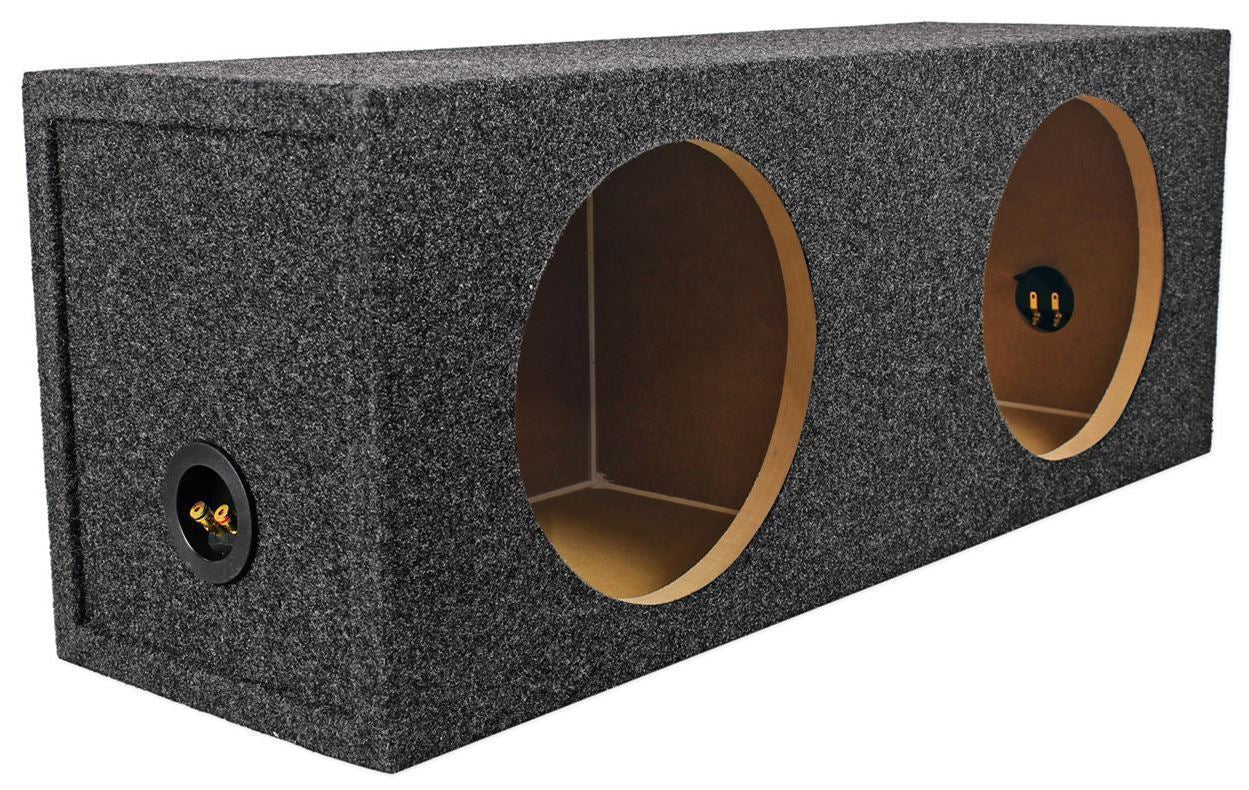

The RD10 dual sealed speaker box is made in the USA with Grade “A” ¾” MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ¾” USA MDF is much stronger then any type of import wood. This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you! EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!
MADE IN THE USA WITH PRIDE!
Features:
- Rockville RD10 Dual 10" Sealed Subwoofer Enclosure
- Proudly Made In The USA, Using Only The Finest Quality Materials - For The Best Level of Performance From Your Subs!
- 3/4" USA Heavy Duty MDF Construction
- Machine precision cut mounting holes
- Top of the line Glue for extra durable adhesion
- High quality GOLD spring loaded terminals
- Designed, tested, and engineered to work with most of today’s popular woofers. These enclosures are built with the quality additives needed to maximize the performance of any sound system.
Enclosure Measurements:
- Type of Enclosure: Sealed
- Enclosure Sub Size: Dual 10"
- Dimensions in Inches: 28" L x 13" W x 13 H"
- Top and Bottom Depth: 10"
- Mounting Depth: up to 10" (enough depth for any sub on the market)
- Gross Volume Per Sub (Measurement for the outer dimensions of the box): 1.3 Cubic Feet
- Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 1.0 Cubic Feet
