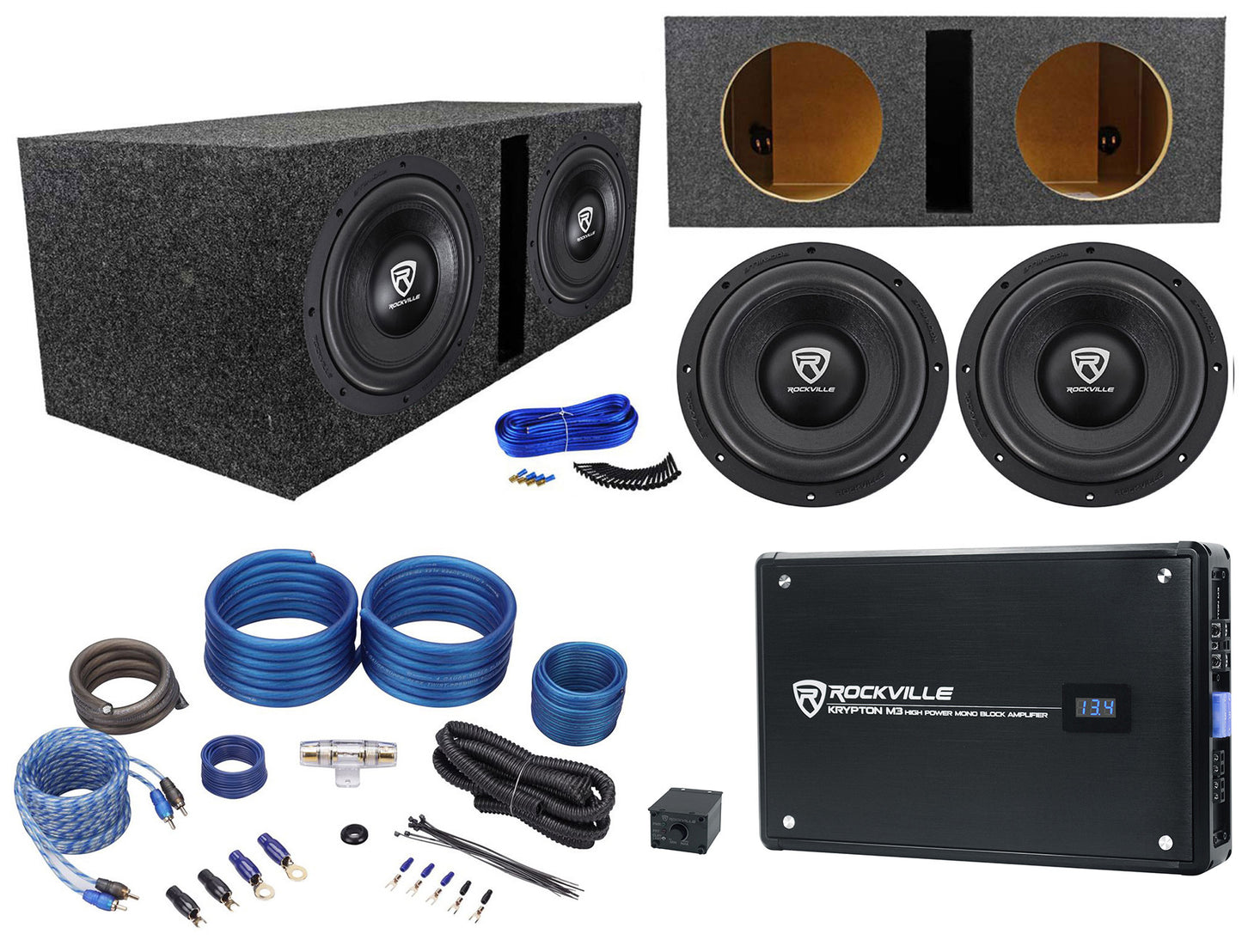

Package Includes:

• (2) Rockville 10" Car Audio Subwoofers
• (1) Rockville Dual 10” 1.1 cu.ft. 3/4" MDF Vented Subwoofer Enclosure Sub Box
• (1) Rockville KRYPTON-M3 4000w Max/1000w RMS Mono 1 Ohm Car Amplifier Amp+Remote
• (1) Rockville RWK41 4 Gauge Complete Car Amp Wiring Installation Wire Kit with RCA's
• 20 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 20 Feet of 14 AWG Blue Speaker Wire
• 4 Spade Terminals

---

Video of W10K6D4 V2:

Features:

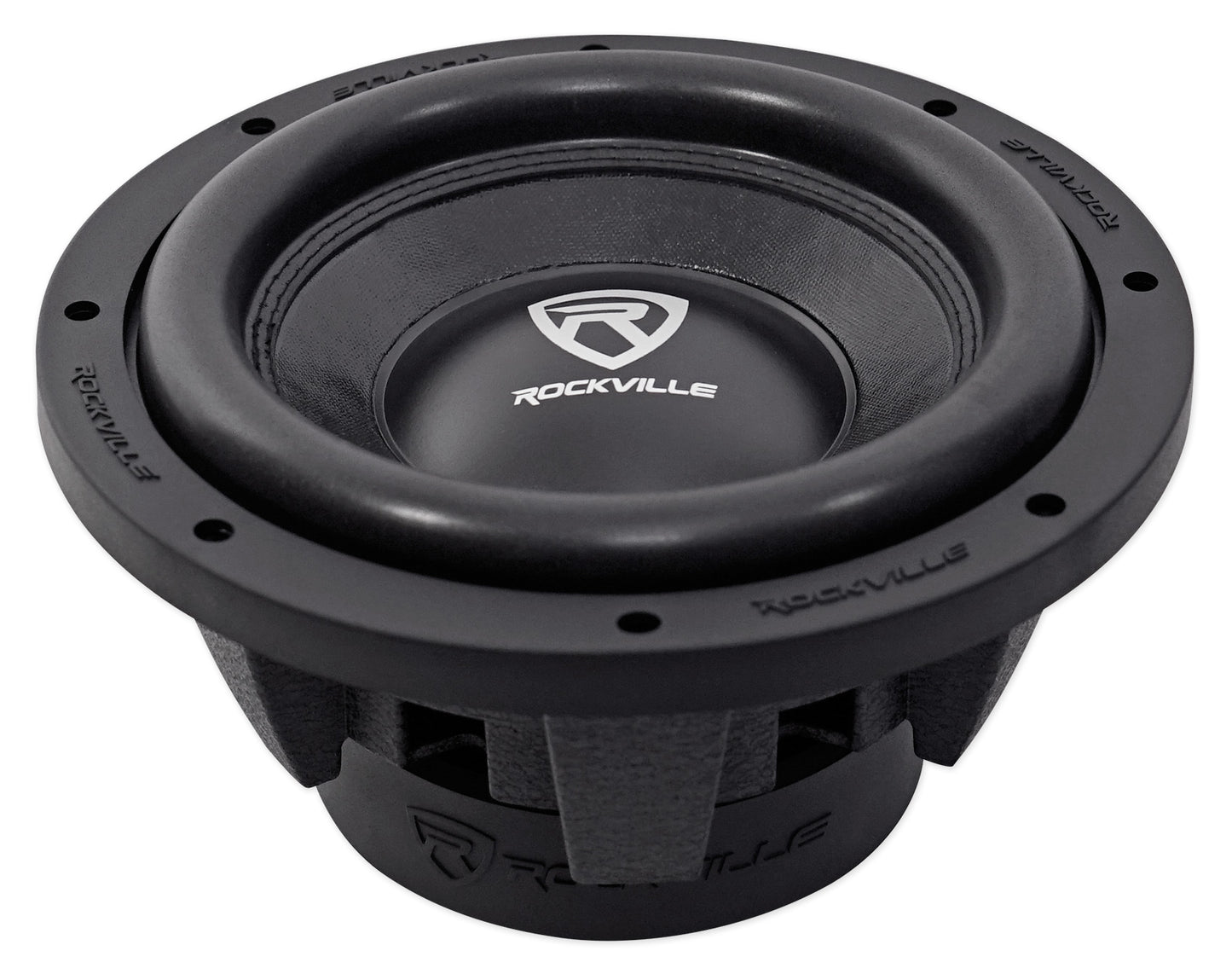

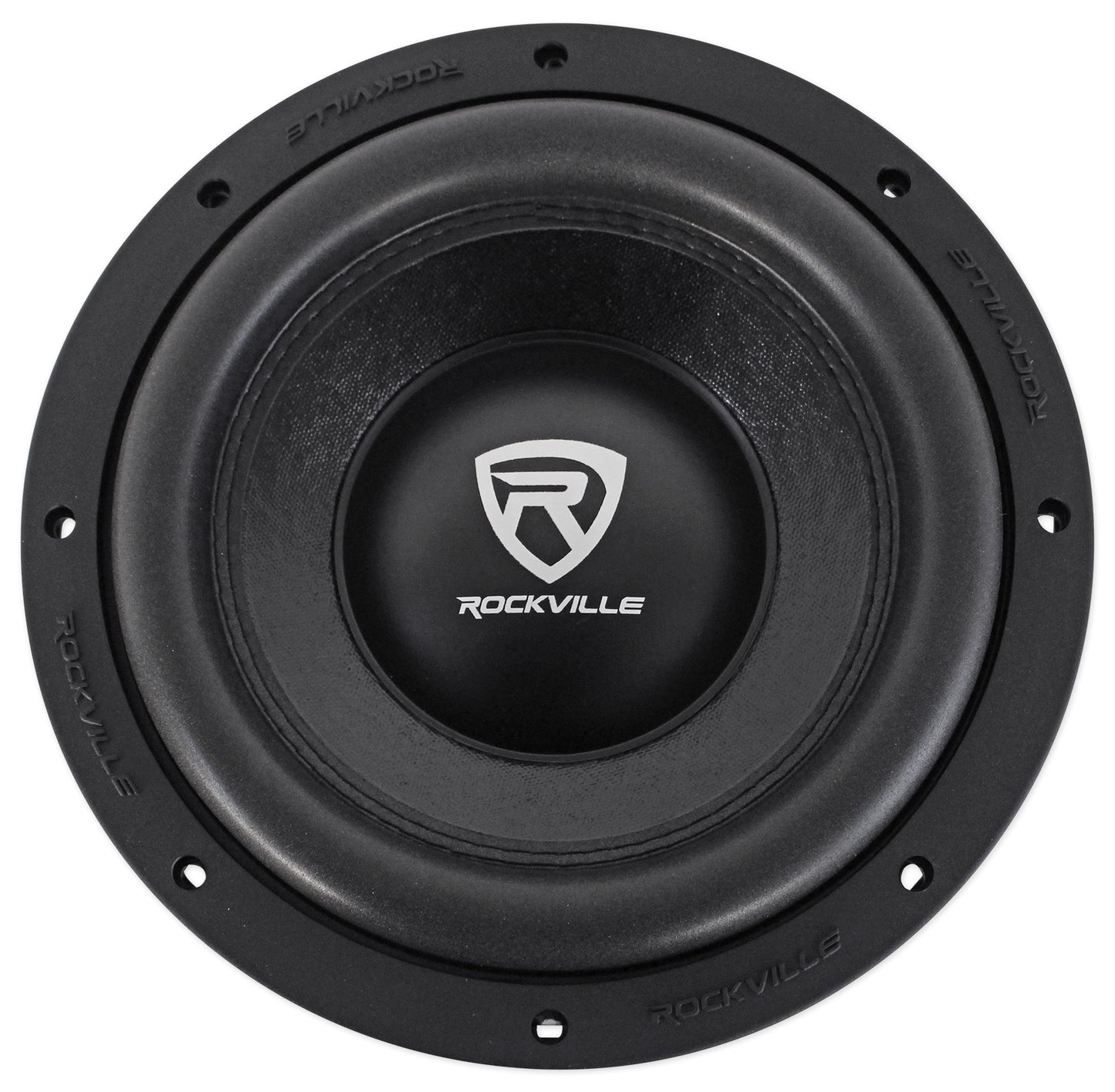

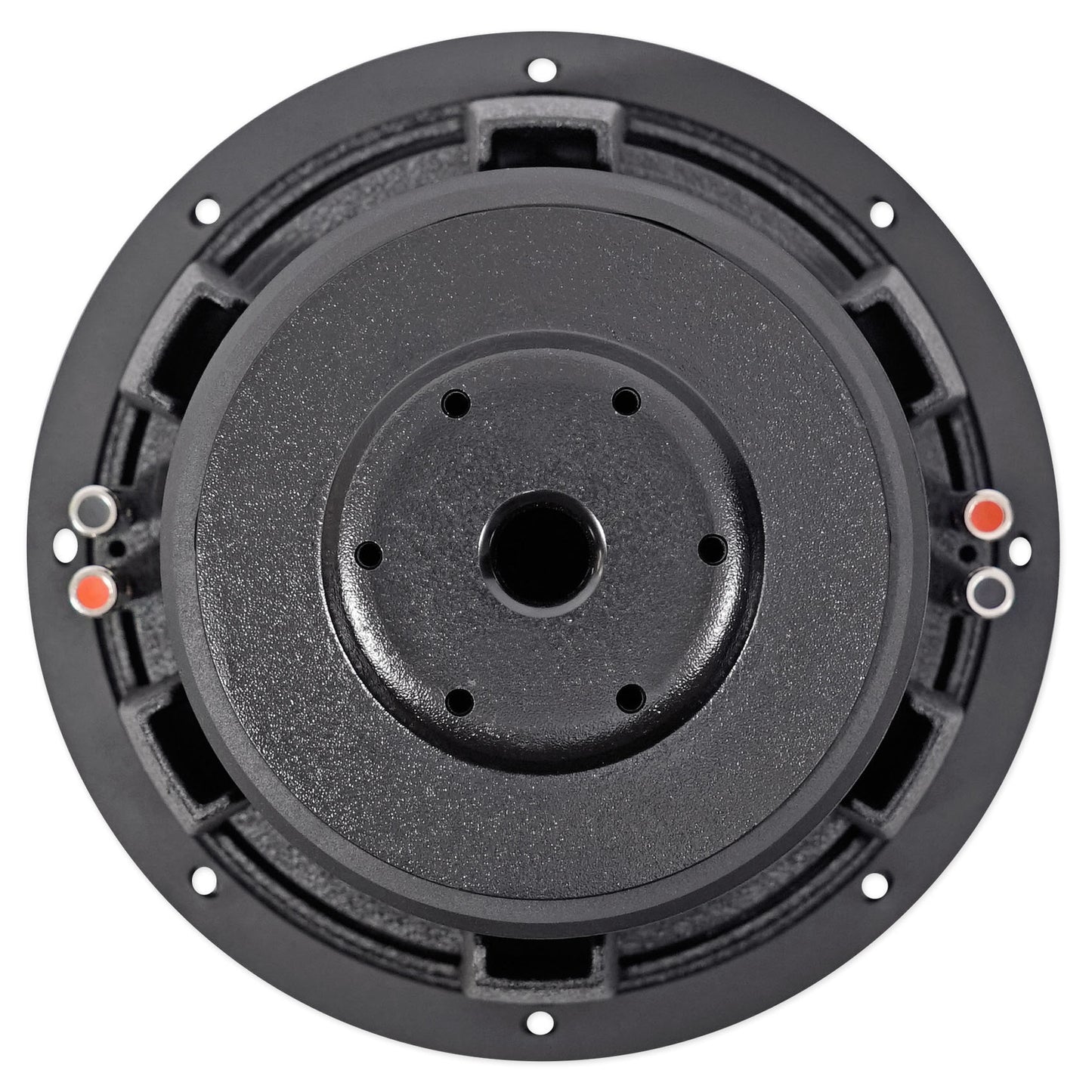

• Rockville W10K6D4 V2 K6 Series 10" Dual 4-Ohm Car Subwoofer
• Peak Power Handling: 2000 Watts
• Program Power Handling: 1000 Watts

• CEA Rated RMS Power Handling: 500 Watts
• 2.5" Voice coils (Black Aluminum Former Wound with 100% OFC Copper Wire
• The wire we use is made in the USA! It is one of the most important components to make the sub high quality and last longer
• Double Stacked 100 Oz High Quality Magnet
• Cast Aluminum Basket With Black Sanded Finish Makes This Sub Very Efficient
• Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Red Stitching Cone Reinforcement Ensures Long Life
• Polypropylene (PP) Dustcap

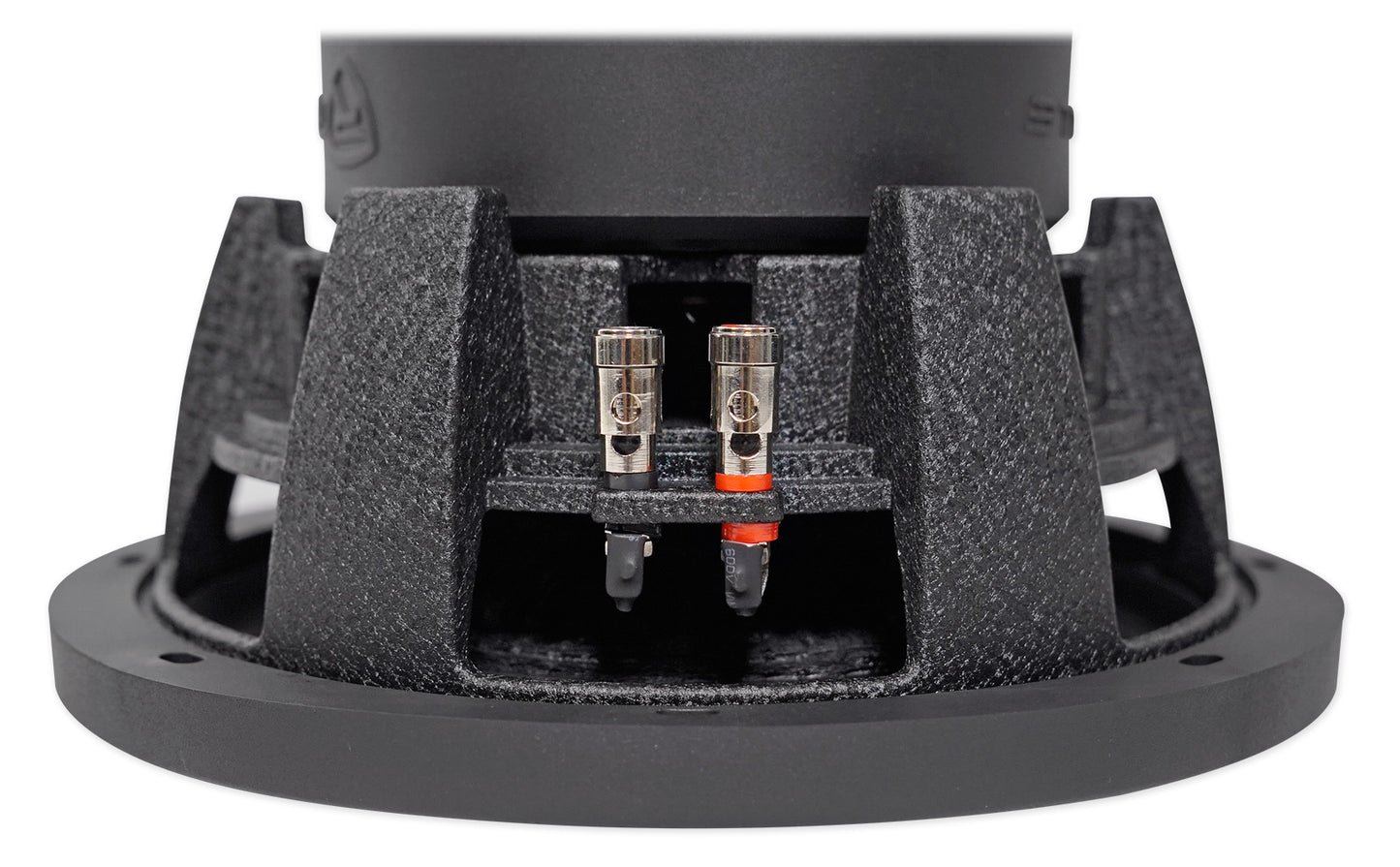

• Two Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
• Impedance: Dual 4-Ohm Voice Coils
• Vented Hole on T-yoke Enhances Heat Dissipation
• Special Custom Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Custom Rockville Mounting Gasket Looks Beautiful and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
• Cutout Diameter: 9.41” inches
• Mounting Depth: 5.29” inches
• Frequency Response: 38.6 Hz - 1.5K kHz
• 8mm T-Yoke + 8mm Washer
• Sensitivity: 85dB
• Sealed Enclosure Volume: 0.6 – 1.1 Cubic Feet
• Vented/Ported Enclosure Volume: 1.1 – 1.6 Cubic Feet
• Weight: 16.53 Lbs.
• Shipping Weight: 19.84 Lbs.
• Shipping Box Dimensions: 13.58" x 13.58" x 12.6" Inches
• XMAX:20 MM (One way)

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 80mm (3.14 inches)
• Gap Plate Outside Diameter: 156mm (6.14 inches)
• Gap Plate Thickness: 20mm (0.8 inches)
• Yoke Outside Diameter: 145mm (5.71 inches)
• Yoke Thickness: 8mm (0.31 inches)
• Yoke Pole Diameter: 60mm (2.4 inches)

TS Parameters:

TS Parameter	Wired in Series	Wired in Parallel	Description of Measurement
Electrical Parameters
Re	8.28 Ohm	2.12 Ohm	Electrical voice coil resistance at DC
Le	6.483 mH	1.656 mH	Frequency independent part of voice coil inductance
L2	8.788 mH	2.229 mH	Para-inductance of voice coil
R2	12.94 Ohm	3.26 Ohm	Electrical resistance due to eddy current losses
Cmes	458.04 µF	1753.22 µF	Electrical capacitance representing moving mass
Lces	31.18 mH	8.35 mH	Electrical inductance representing drive compliance
Res	65.09 Ohm	15.58 Ohm	Resistance due to mechanical losses
fs	42.1 Hz	41.6 Hz	Drive resonance frequency
Mechanical Parameters (Using Laser)
Mms	203.734  g	190.519 g	Mechanical mass of drive diaphragm assembly including air load and voice coil
Mmd (Sd)	197.024 g	183.81 g	Mechanical mass of voice coil and diaphragm without air load
Rms	6.833 kg/s	6.974 kg/s	Mechanical resistance of total-drive losses
Cms	0.07 mm/N	0.077 mm/N	Mechanical compliance of drive suspension
Kms	14.27 N/mm	13.02 N/mm	Mechanical stiffness of driver suspension
Bl	21.09 N/A	10.424 N/A	Force factor (Bl product)
Lambda s	0.173	0.114	Suspension creep factor
Loss Factors
Qtp	0.929	0.891	Total Q-factor consider all losses
Qms	7.889	7.141	Mechanical Q-factor of of drive in free air considering Rms only
Qes	1.004	0.971	Electrical Q-factor of drive in free air considering Re only
Qts	0.89	0.855	Total Q-factor considering Re and Rms only
Other Parameters
Vas	10.6666 l	11.6894 l	Equivalent air volume of suspension
n0	0.076%	0.083%	Reference efficiency (2 pi-radiation using Re)
Lm	81.03 dB	81.41 dB	Characteristic sound pressure level (SPL at 1m for 1W @ Re)
Lnom	80.88 dB	81.15 dB	Nominal sensitivity (SPL at 1m for 1W @ Zn)
Sd	327.9 cm²	327.9 cm²	Diaphragm area
EBP	41.9	42.8	Efficiency bandwidth product

---

About Rockville Quality Control Procedures:
The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville products are backed with a hassle free warranty, though it is unlikely that you will need to use it.

---

Krypton Series (Product Video):



What's in the Box:

• Amplifier

• Bass Remote with clipping indicator

• Birth sheet with tested power

• Owner’s manual

• Mounting Screws

• Warranty

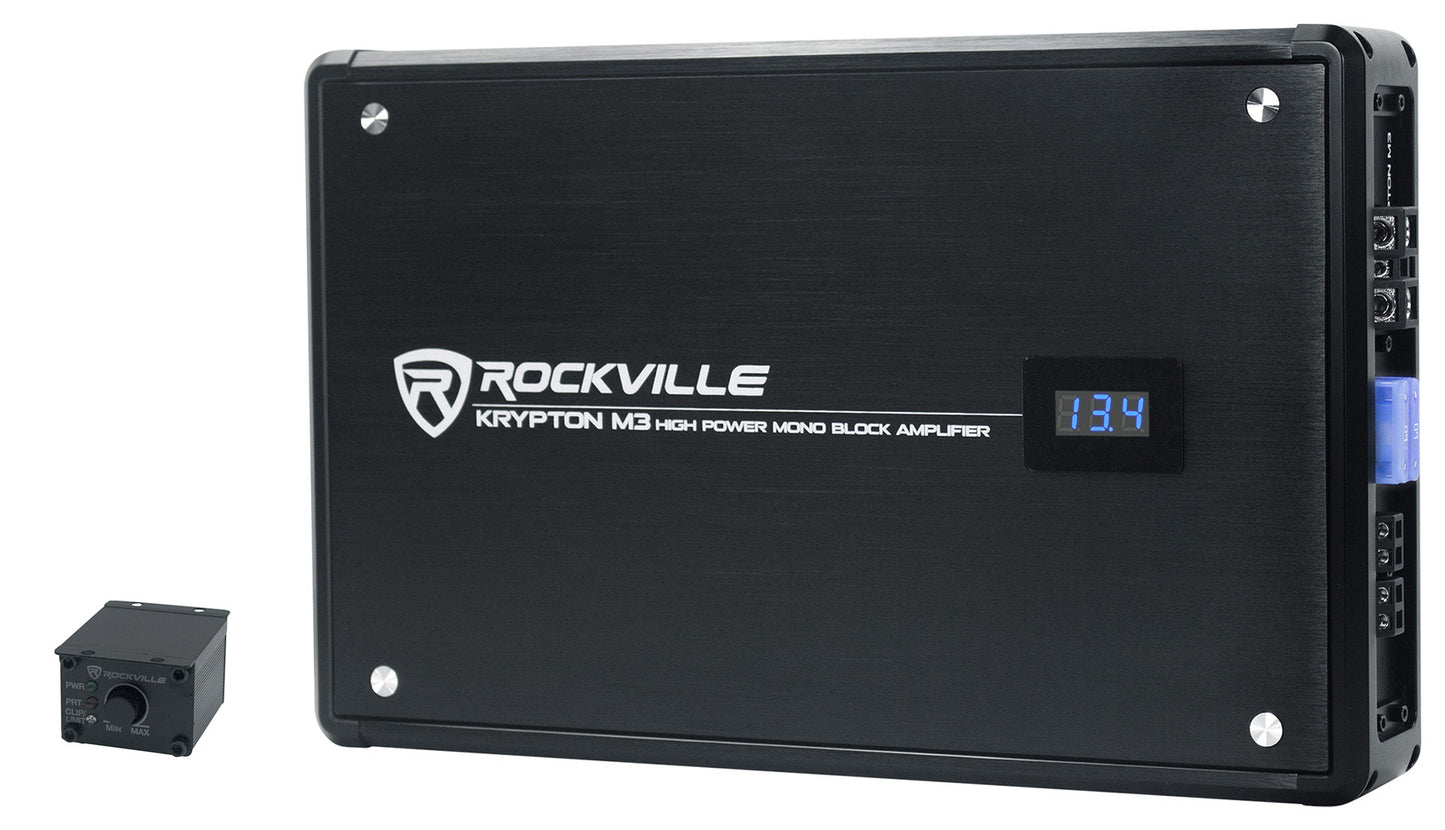

Description of KRYPTON-M3:

The Krypton series of amplifiers by Rockville are engineered to have the best reliability and features. Whether you are a car audio competitor or just like to enjoy loud music. We engineered and designed these amps from the ground up to give you great sound quality and great features. You will notice the cool battery voltage display meter which looks great but also serves as a tool for you to know if your battery voltage is dropping which would affect your systems performance. We designed the amps to be able to last for many years even if you are playing them at max volume before clipping for extended periods of time.

Our favorite feature we introduced of the Krypton series is the bass remote that has a clipping indicator. This allows you to set the amp to max output before clipping on any song. This will protect your subs while you maximize SPL. What is nice about this is that you can set the gain level to max before clipping on any given song in real time! If you use a DD-1 or another tool, you are setting the gain on one song but the next song might have more headroom or might clip depending on the levels it was recorded at (this is referred to as crest factor in the engineering world).

We guarantee that this series of amplifiers will not only meet their rated power but exceed their rated power on a certified dyno test.

Another feature we love about this is the bass equalizer. Most amps have this feature however not all bass EQ are created equal. Some bass EQ's will just clip your subs to death.  Our bass EQ circuitry will boost the proper frequencies in a way that sounds good and is safe for your subs. In addition you can always use the clip indicator on the bass remote to make sure you are not sending a clipped signal to your subs. Our amplifier is meant to give you as much clean power to your subs as possible. Our voltage display allows you to make sure you are getting the proper voltage to your amp and our clip indicator on the remote will make sure you always send clean power to your subs. In addition we also guarantee the amplifier will be giving over the rated power so you can confidently match our amplifier with high-end subs and know what to expect!

What about sound quality and efficiency though ??
 Well glad you asked. This amplifier is engineered so well that it has an extremely low signal to noise ratio which just means the sound will be super clean even at high volume levels. It also has a good efficiency rating so you don't have to draw too much power from your battery. One other thing that is important is that we engineered this to have a high common mode rejection rating (CMRR). This means that the amp has the capability to block out engine noise signals. By rejecting unwanted noises the end result is the cleanest sound quality.

Once again, Rockville has stepped up its game with the all new Krypton series. Their is no other amp like it on the market. In our opinion this is the best budget series of amps in the world. We actually enjoy this amp more then others that cost over 2 times the price.

Features:

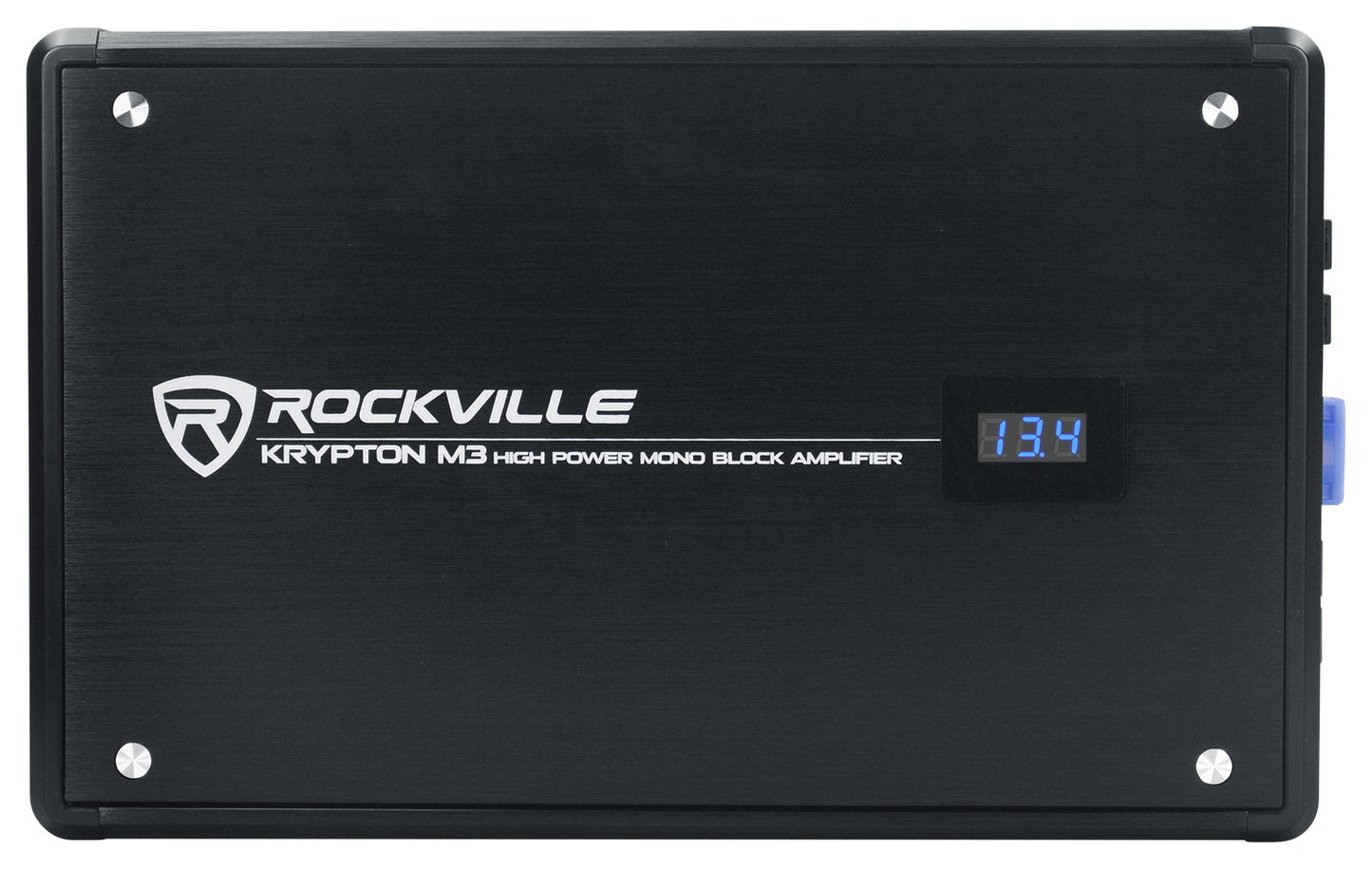

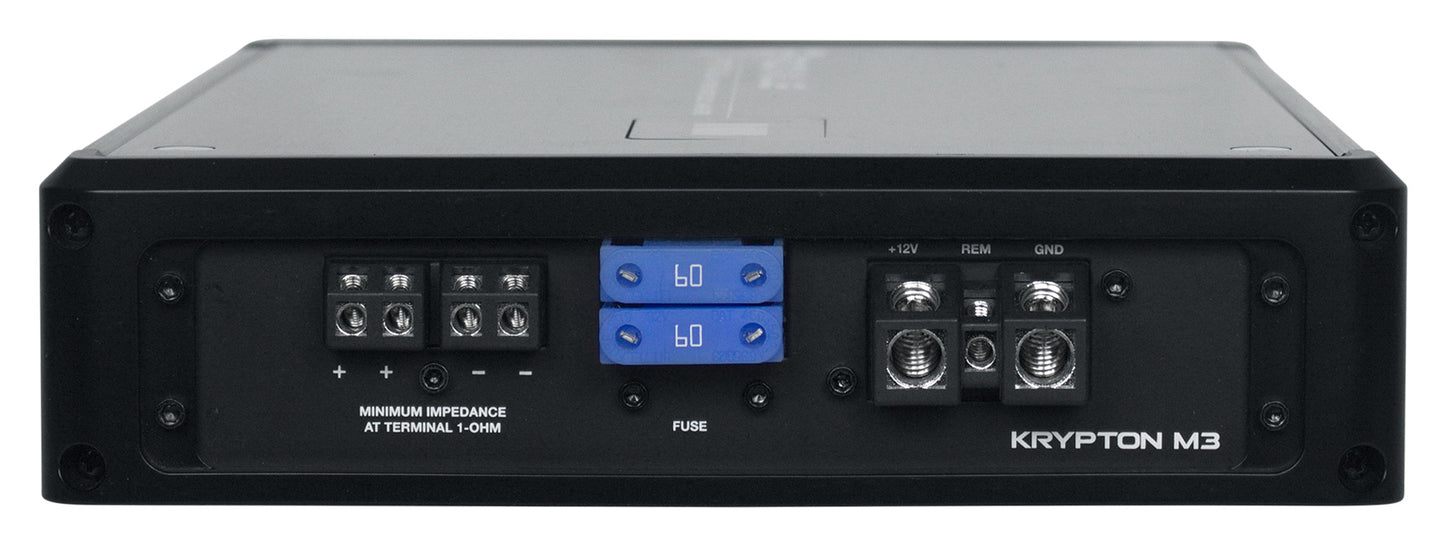

• Rockville KRYPTON M3 4000 Watt Peak and 1000w RMS Class D 1 Ohm Stable Mono Amplifier With Voltage Display

• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD)  (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
• 1 Ohm: 1000 Watts x 1 Channel <1% THD+N (71% efficient)

• 2 Ohm: 700 Watts x 1 Channel <1% THD+N (79% efficient)

• 4 Ohm: 400 Watts x 1 Channel <1% THD+N (84.5% efficient)
• Peak: (Use these ratings when comparing with great brands such as Boss, Power Acoustik, etc)
• 1 Ohm:4000 Watts x 1 Channel

• 2 Ohm:2800 Watts x 1 Channel

• 4 Ohm:1600 Watts x 1 Channel

• Digital Voltage Display on Amp (Accurate within 0.15V)

• Power/Protect/Clip LED Indicators on the front panel

• Power/Protect/Clip LED Indicators on Remote control

• Clip indicator on the bass remote allows you to quickly set any song to right before clipping in real time

• High-Speed MOSFET Power Supply

• Optical Coupler Class “D” Technology

• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry

• Low Pass Filter: 50Hz - 250Hz

• Subsonic Filter: 15Hz - 55Hz

• Phase Control Switch

• Full IC-Controlled Protection Circuitry

• Remote Dashboard Subwoofer Control

• Fully Adjustable 12dB Bass Equalizer

• Mute and Delay Soft Start System

• RCA Preamp Line Output

• 8 Volt Preamp Circuitry

• Status Mode LED Indicator

• Minimum THD at Rated Power: <0.1%

• S / N Ratio: >90dB

• Frequency Response: 15Hz - 250Hz

• Damping Factor: >150 @ 100Hz

• 2 x 60 Amp Maxi Fuse

• Passes the Signal Burst Test (Instant signal for full power “SPL Contest”)

• Rockville engineered with a super low signal to noise ratio to give you clean sound

• Improved Bass EQ filter works better then any other brand we tested against

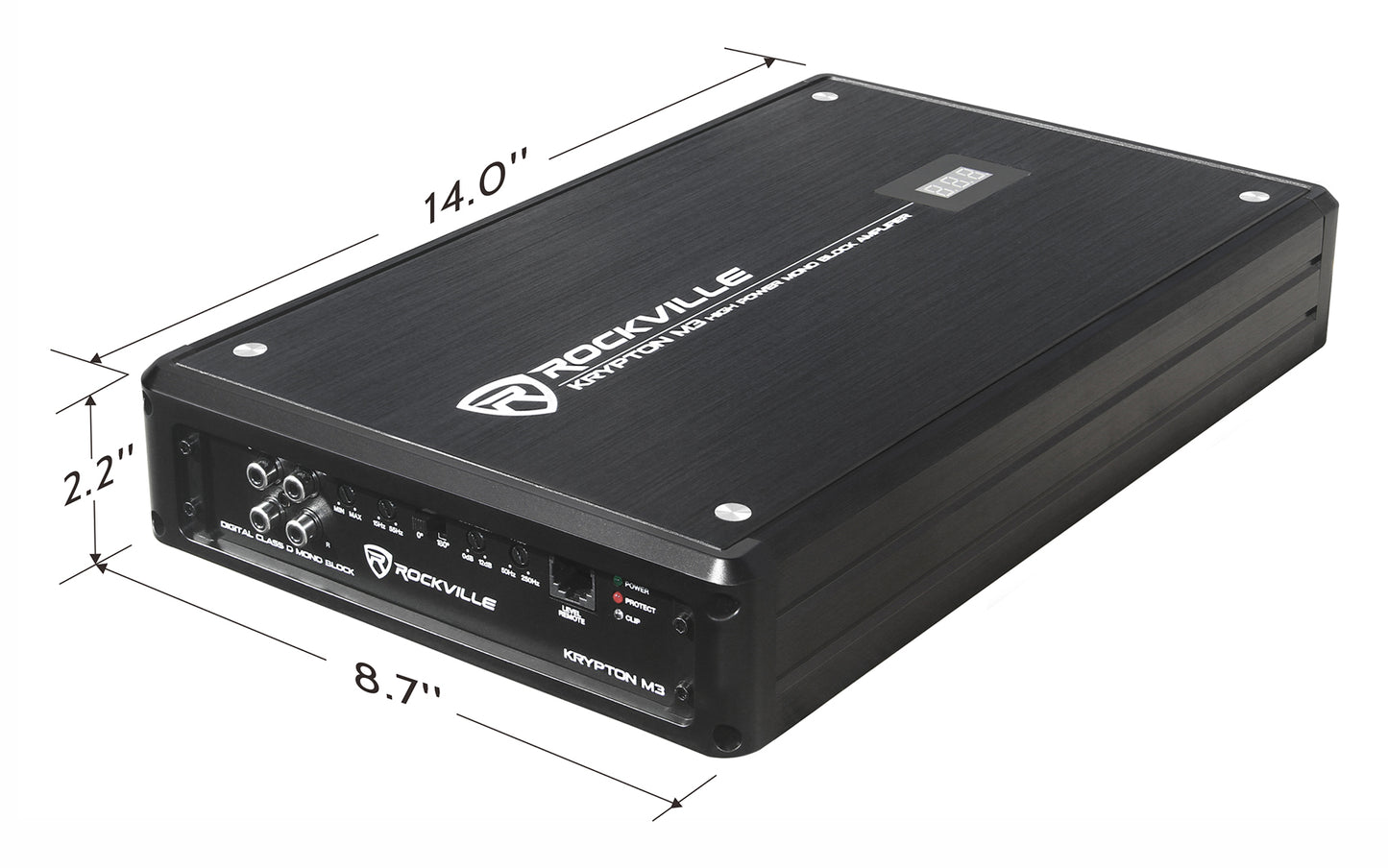

• Dimensions: (W x H x L) 13.78˝ x 8.66˝ x 2.2˝

Owner's Manual​​







---

Description for Rockville Enclosure:

The RDV10 dual vented speaker box is made in the USA with Grade “A” ¾” MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ¾” USA MDF is much stronger then any type of import wood.  This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you!  EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!

MADE IN THE USA WITH PRIDE!

Features:

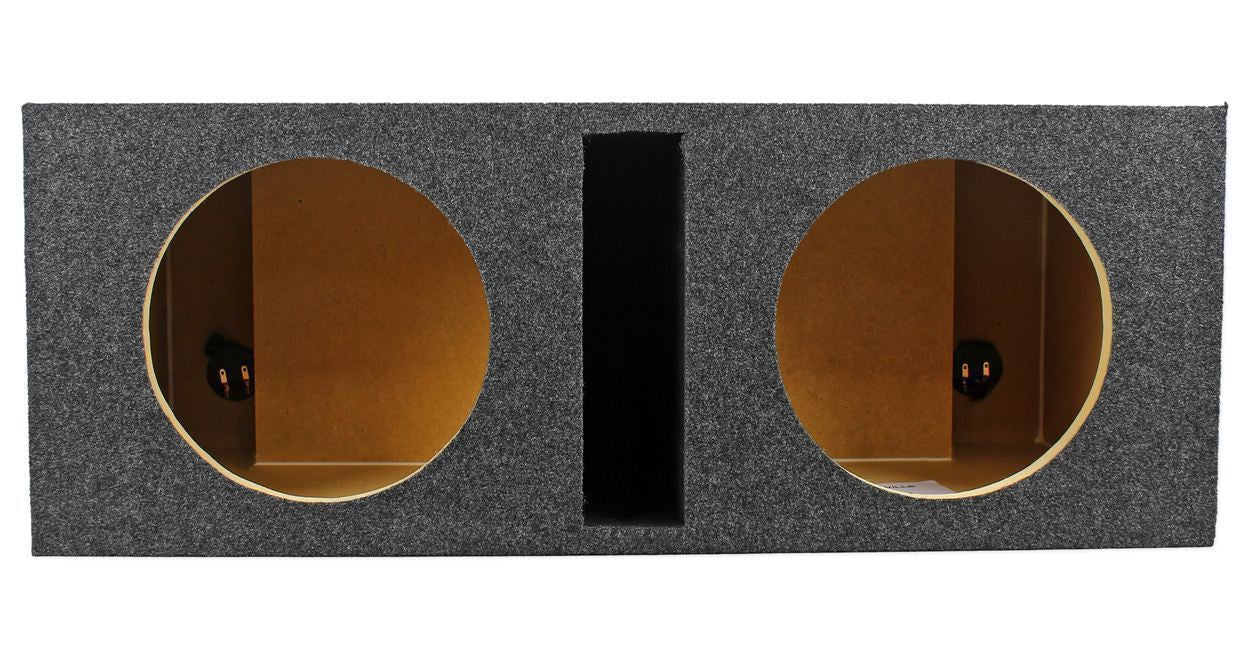

• Rockville RDV10 Dual 10" Vented Subwoofer Enclosure
• Proudly Made In The USA, Using Only The Finest Quality Materials - For The Best Level of Performance From Your Subs!
• 3/4" USA Heavy Duty MDF Construction
• Machine precision cut mounting holes
• Top of the line Glue for extra durable adhesion
• High quality GOLD spring loaded terminals
• Designed, tested, and engineered to work with most of today’s popular woofers. These enclosures are built with the quality additives needed to maximize the performance of any sound system.
• Tuning Frequency: 42Hz

Enclosure Measurements:

• Type of Enclosure: Vented
• Enclosure Sub Size: Dual 10"
• Dimensions in Inches: 14.25" L x 32" W x 12 H"
• Top and Bottom Depth: 14.25"
• Mounting Depth: up to 15" (enough depth for any sub on the market)
• Port Dimensions: 2" x 18.5" x 10.5"
• Gross Volume Per Sub (Measurement for the outer dimensions of the box): 1.61 Cubic Feet
• Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood and port): 1.1 Cubic Feet

---

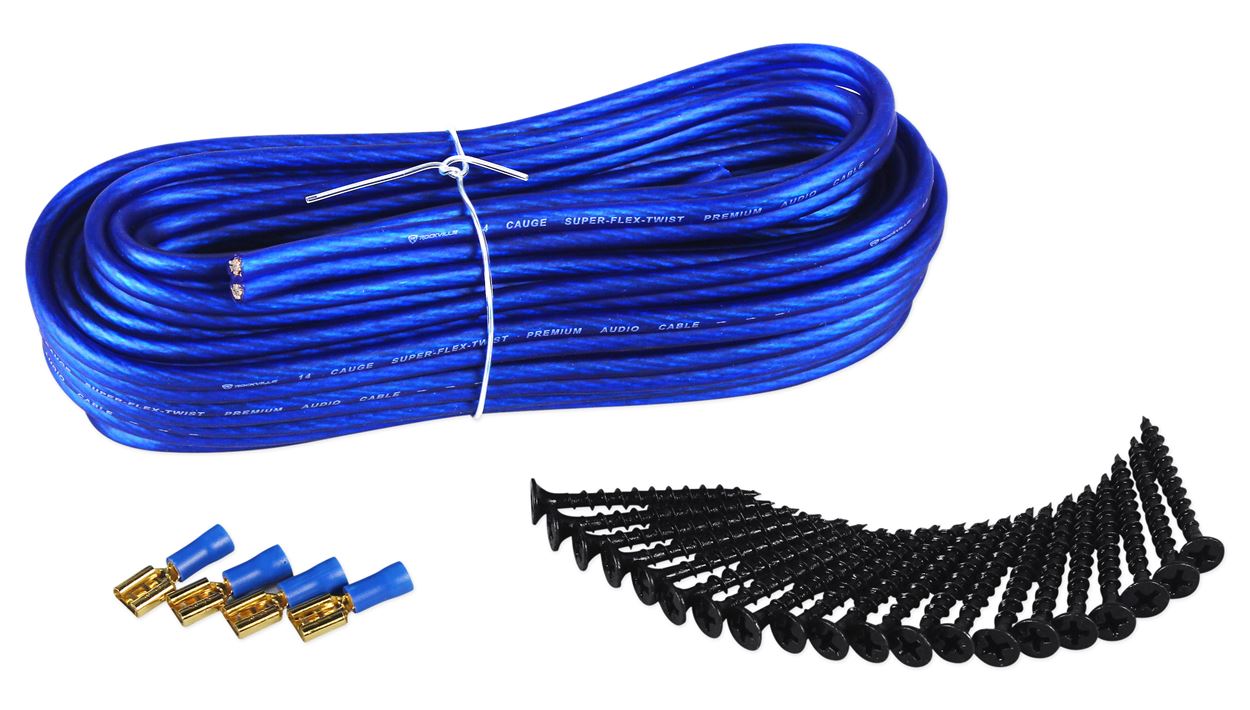

Complete Dual Subwoofer Enclosure Installation Kit!

Includes:

• 20 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 20 Feet of 14 AWG Blue Speaker Wire
• 4 Spade Terminals

This accessory package includes everything you need to install two subwoofers into an enclosure, and wire your enclosure to your amplifier.  This package is a top of the line accessory package which we put together and tested.

The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure.  The speaker wire is 14 gauge.  This is way better than using 16 gauge.  You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire.  These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.

---

Video of RWK41:

Unboxing Video for RWK41:

Description:

The Rockville RWK41 4 AWG (American Wire Gauge) amp kit has the following differences over other amp kits on the market at this price point.

1. Our RCA cables are 100 % copper. These are top of the line RCA cables

2. Better Resistance: The only thing that really matters with wires is the resistance rating. This is a measurement of conductivity and how much signal is loss per foot of wire. Since Rockville wires are made with around 3 times as much copper as any other wire at this price point, these wires had a much better resistance rating which means they will transfer more power to your amps than the other brands.

3. We do not cheat you on the thickness of the wire. These are standard American wire gauge thickness. This is another reason our conductivity is better than anything else at this price point. Other brands in the market place write 4 gauge, but cheat you on the thickness. We are honest about the thickness.

4. The Rockville amplifier installation kits feature a new soft abrasion proof insulating jacket. This rugged PVC outer jacket allows for 100% improved flexibility over standard power cables making them extremely easy to route through your vehicles interior, and it maintains exceptional resistance to grease and oil. The PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F.

The RCA signal transfer cables included in this kit feature blue and silver twisted pair technology in a clear outer jacket insulation skin. Not only do the blue and silver wires look cool but they also provide superior signal transfer with maximum noise suppression. They are 100% copper to provide absolute lossless perfect signal transfer to your receiver. This technology reduces interference, so your audio signal flows clean and pure at all power levels.

This kit also includes a massive 60 Amp AGU Gold Plated Fuse, so you can be sure it will handle the all the DC power that your amp will need without even the slightest loss of current. The included 7 split loom tube provides protection for your power cable from the typically harsh environment found under the hood of your car.

Audiosavings product experts have tested this amp kit against many leading amp kits on the market and were were impressed not only by the great looks but by the quality of these Rockville installation kits as well. These kits had a lower resistance rating than the other brands we compared and tested them against. What this means is that Rockville manufactures their kits with more copper than other kits at this price point, ultimately providing your amplifiers with better and cleaner DC power, so they work cooler and more efficiently. You will hear the difference a Rockville installation kit will make!

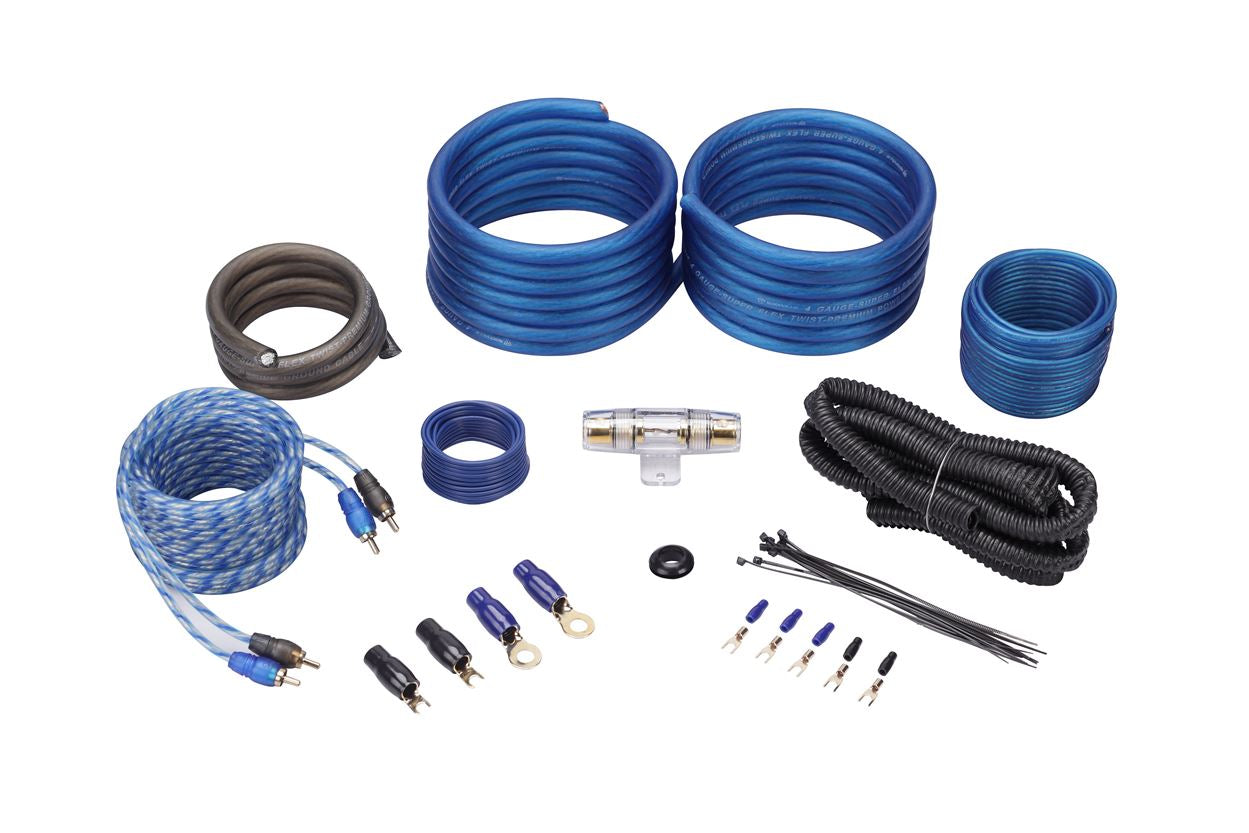

Features:

• 1 – 17’ High Grade Twisted Pair of 100% Copper RCA Cable
• 17’ – 4 Gauge Translucent Blue SuperFlex Power Cables
• 17’ – 18 Gauge Blue Remote Cable
• 17’ – 16 Gauge Clear Speaker Wire
• 3’ – 4 Gauge Clear SuperFlex Ground Wire
• Gold Plated AGU Heat Resistant Fuse Holder
• 60 Amp AGU Gold Plated Fuse
• 7’ Split Tube Loom
• Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets
