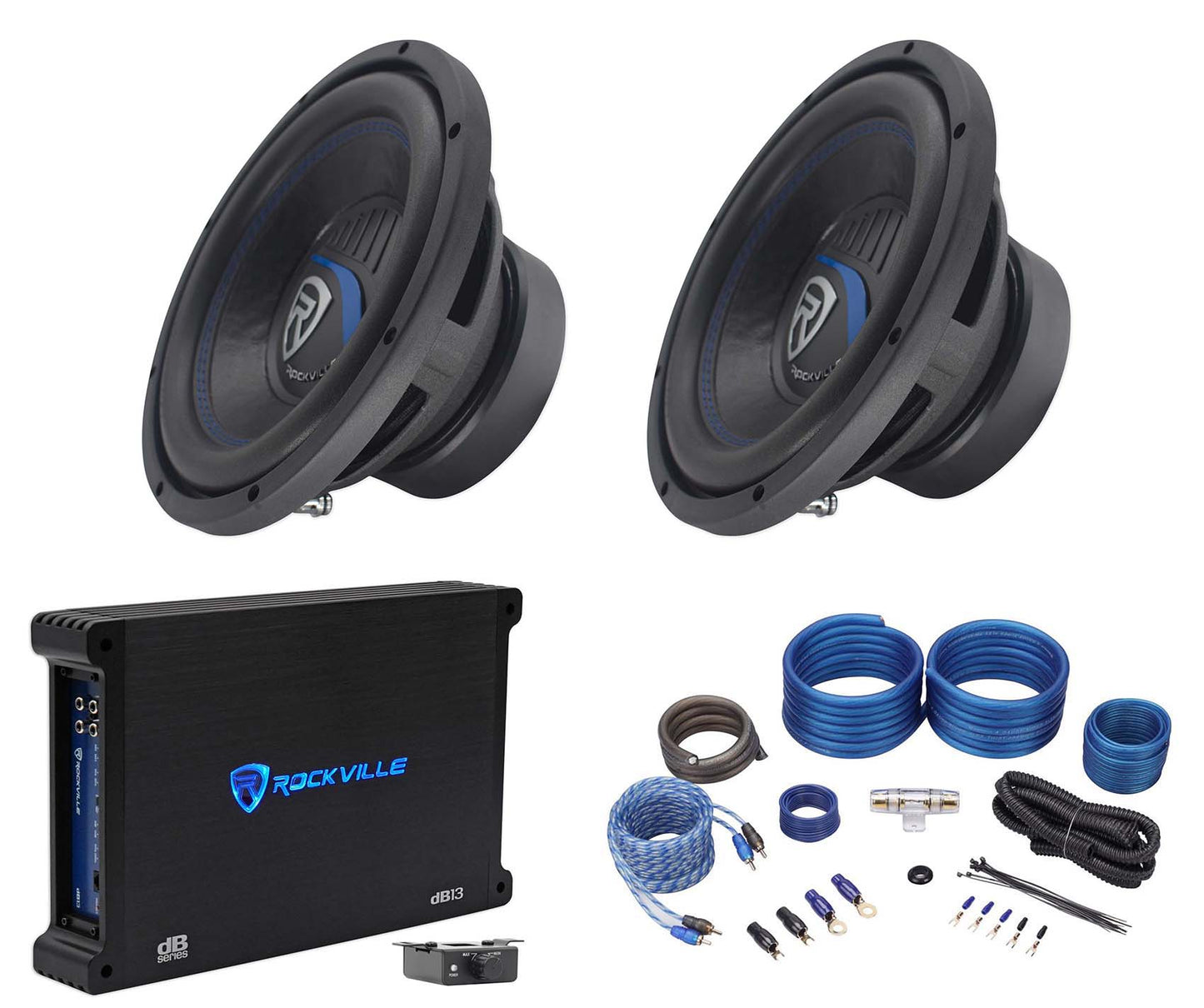

- (2) Rockville K5 W10K5S4 10" 1200w 4 Ohm Car Audio Subwoofer Sub 300w RMS CEA Rated!

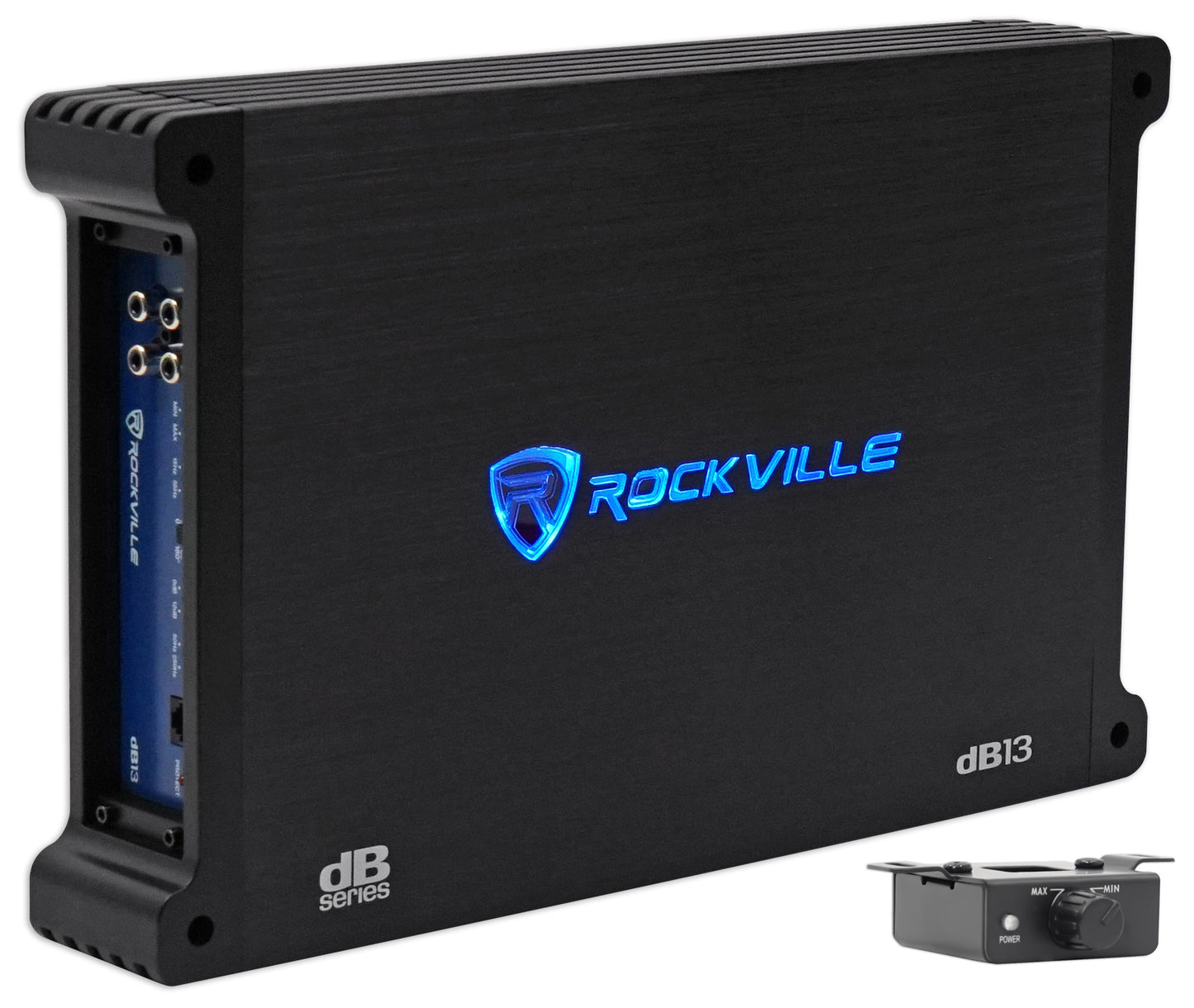

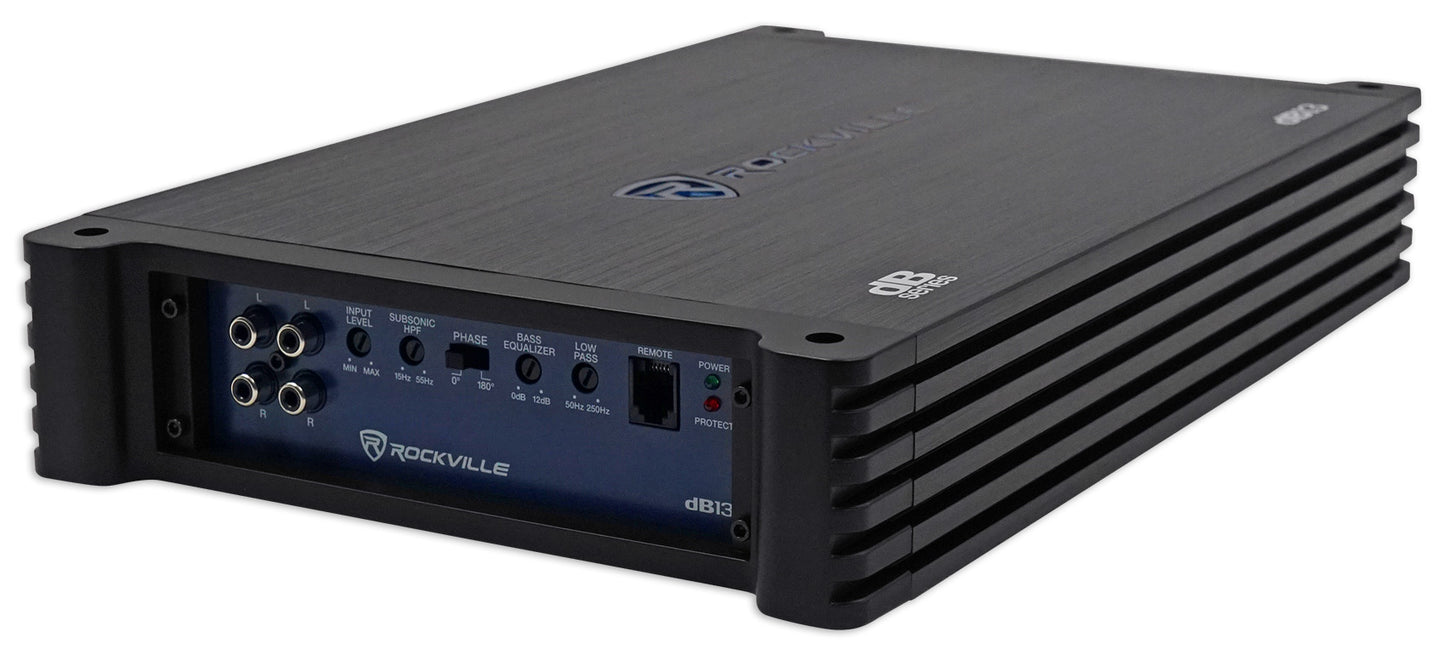

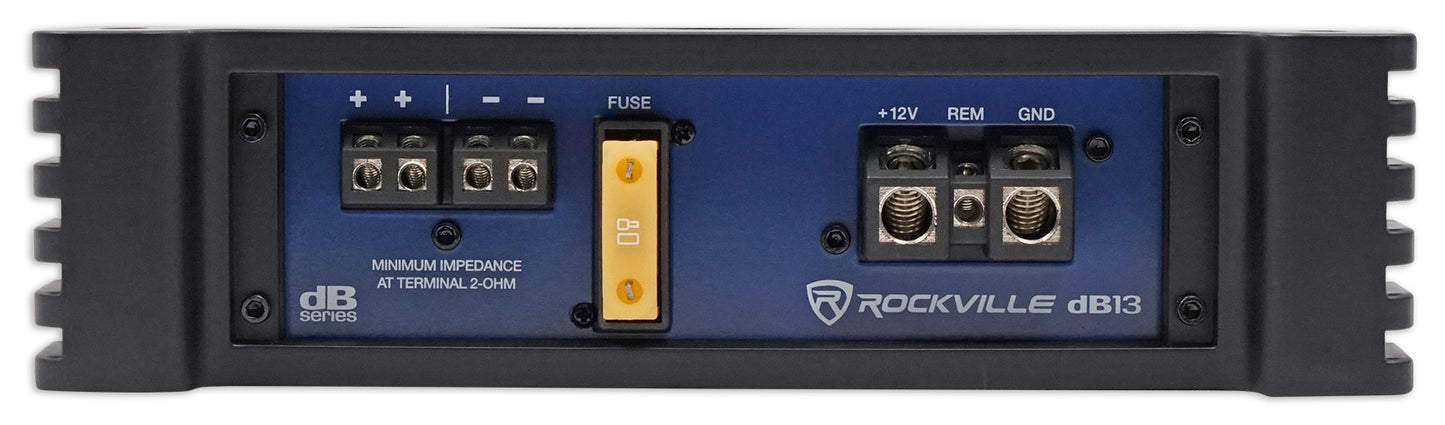

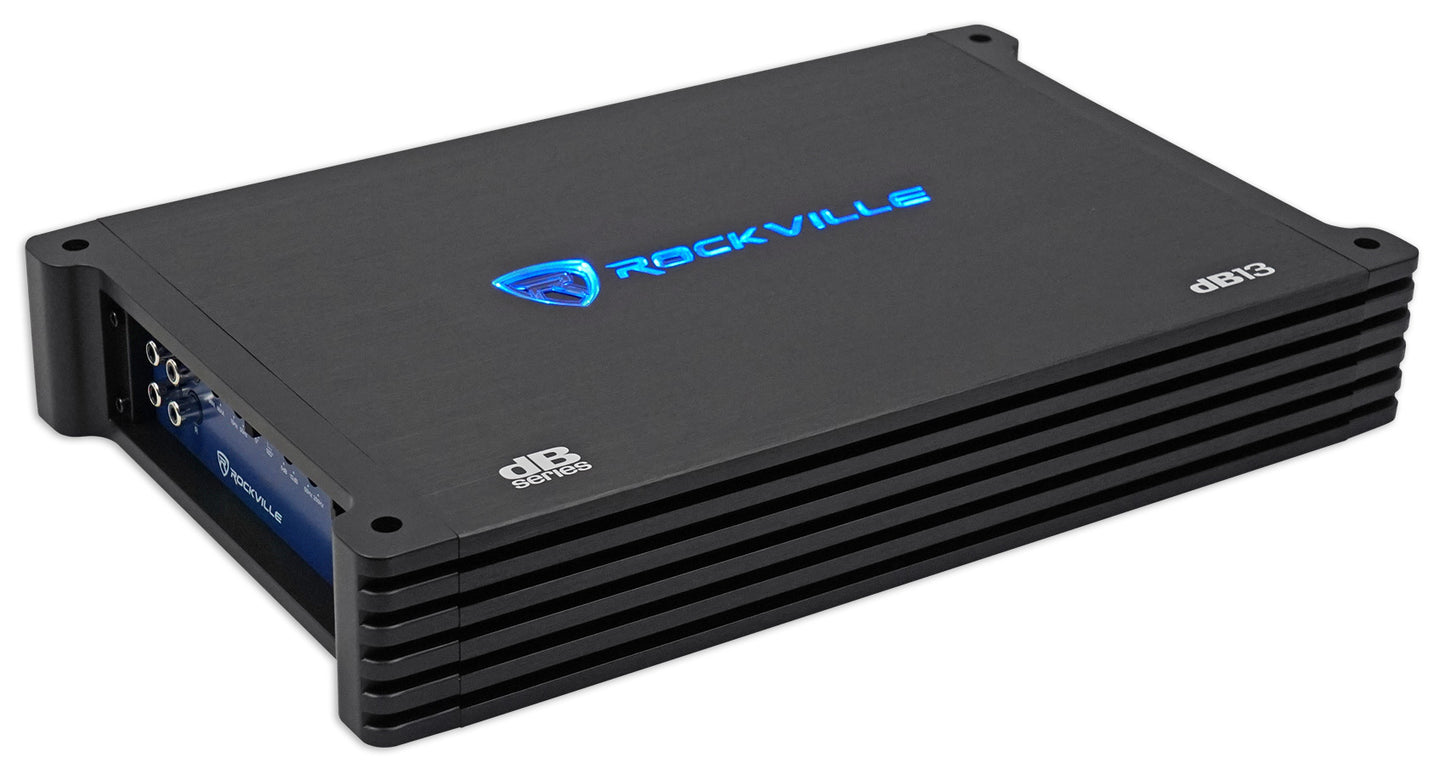

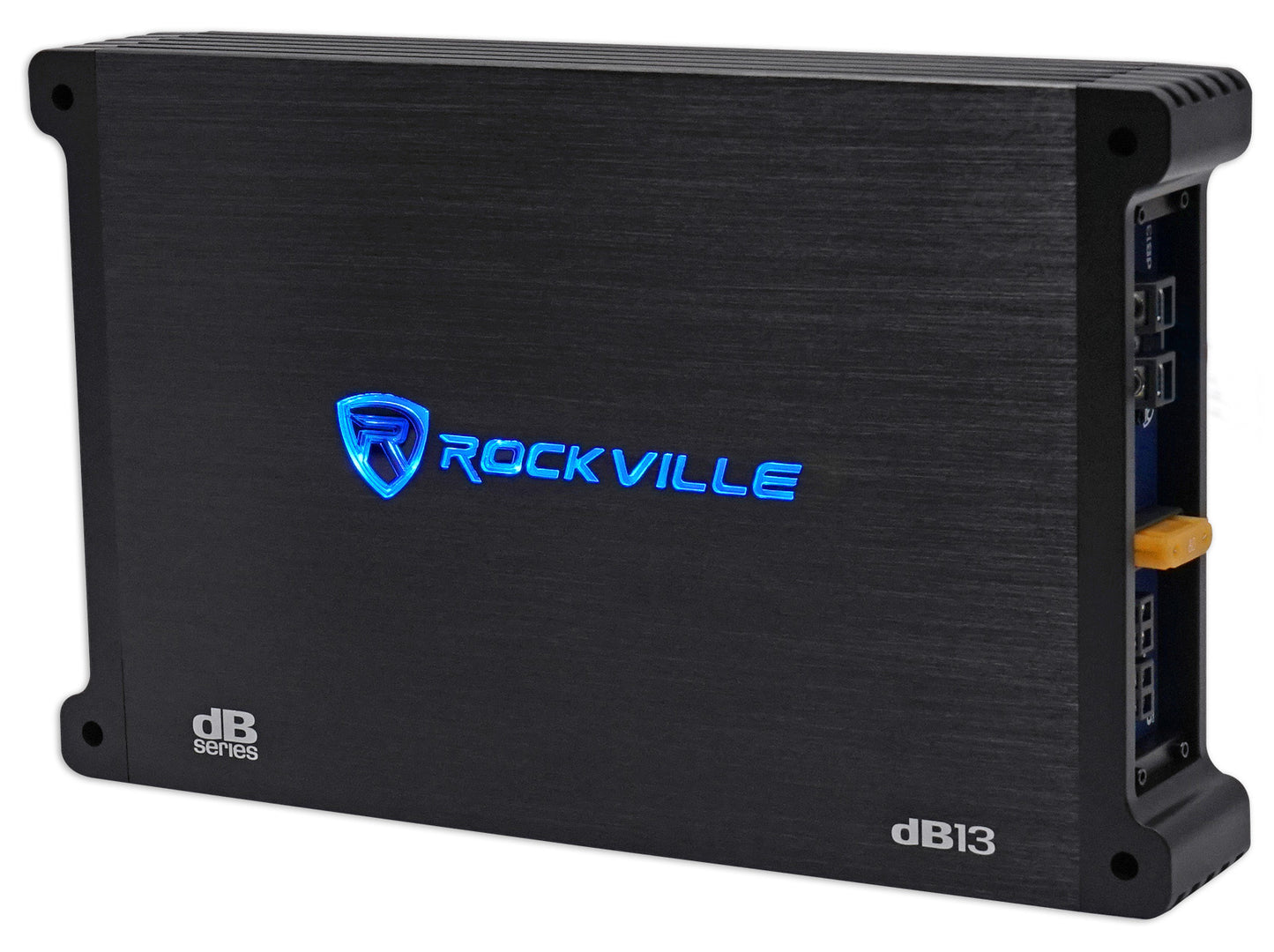

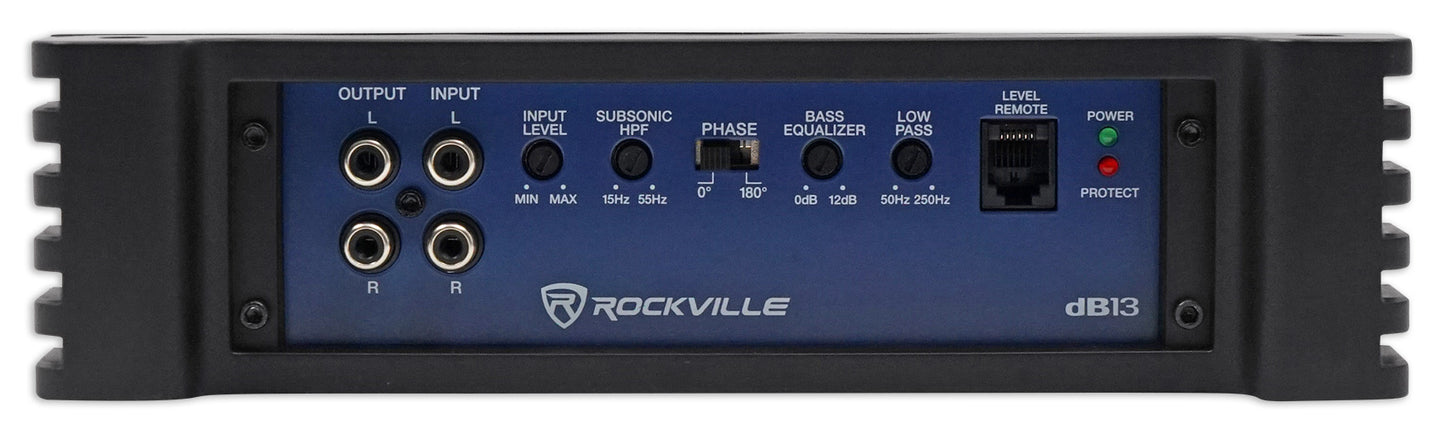

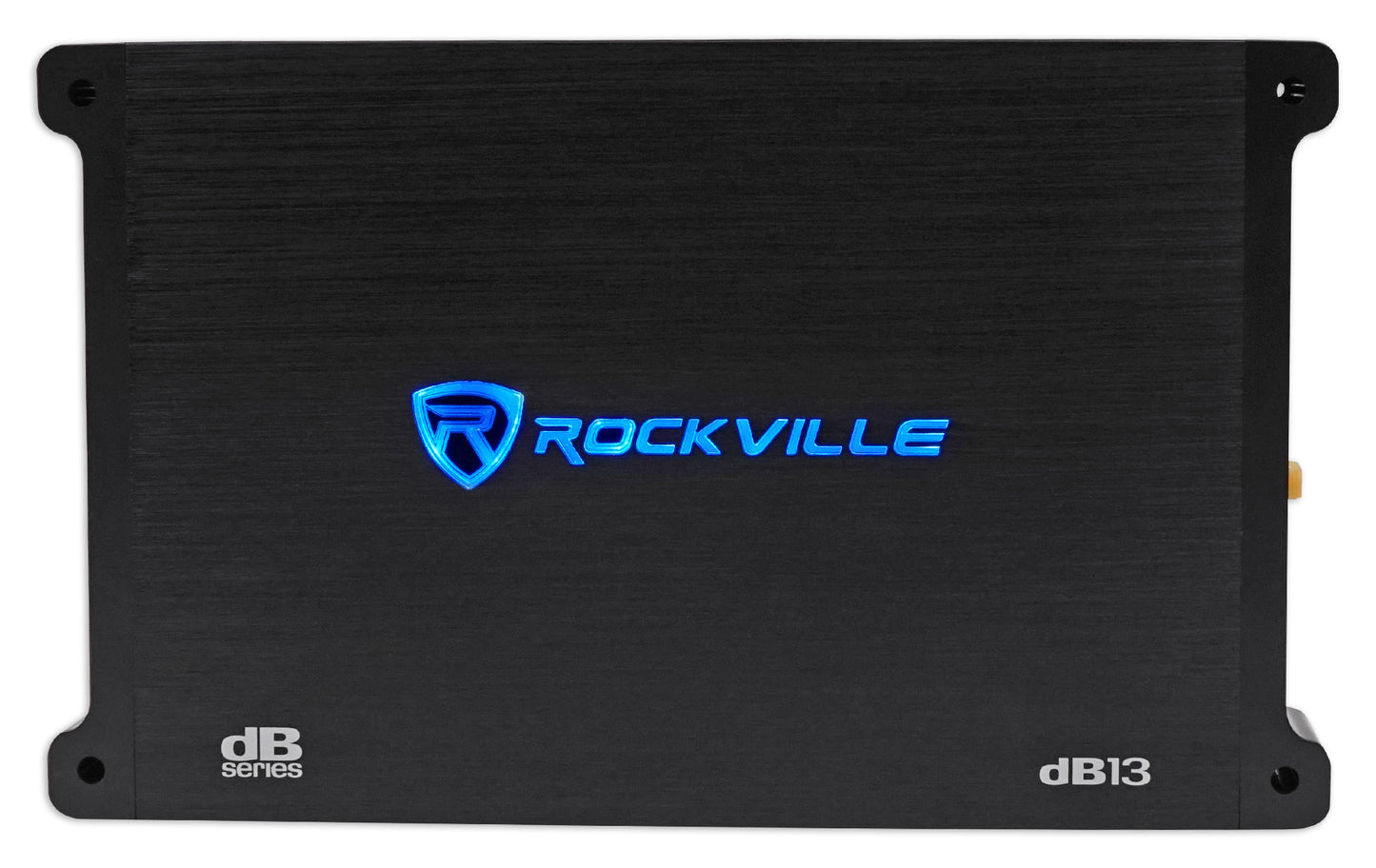

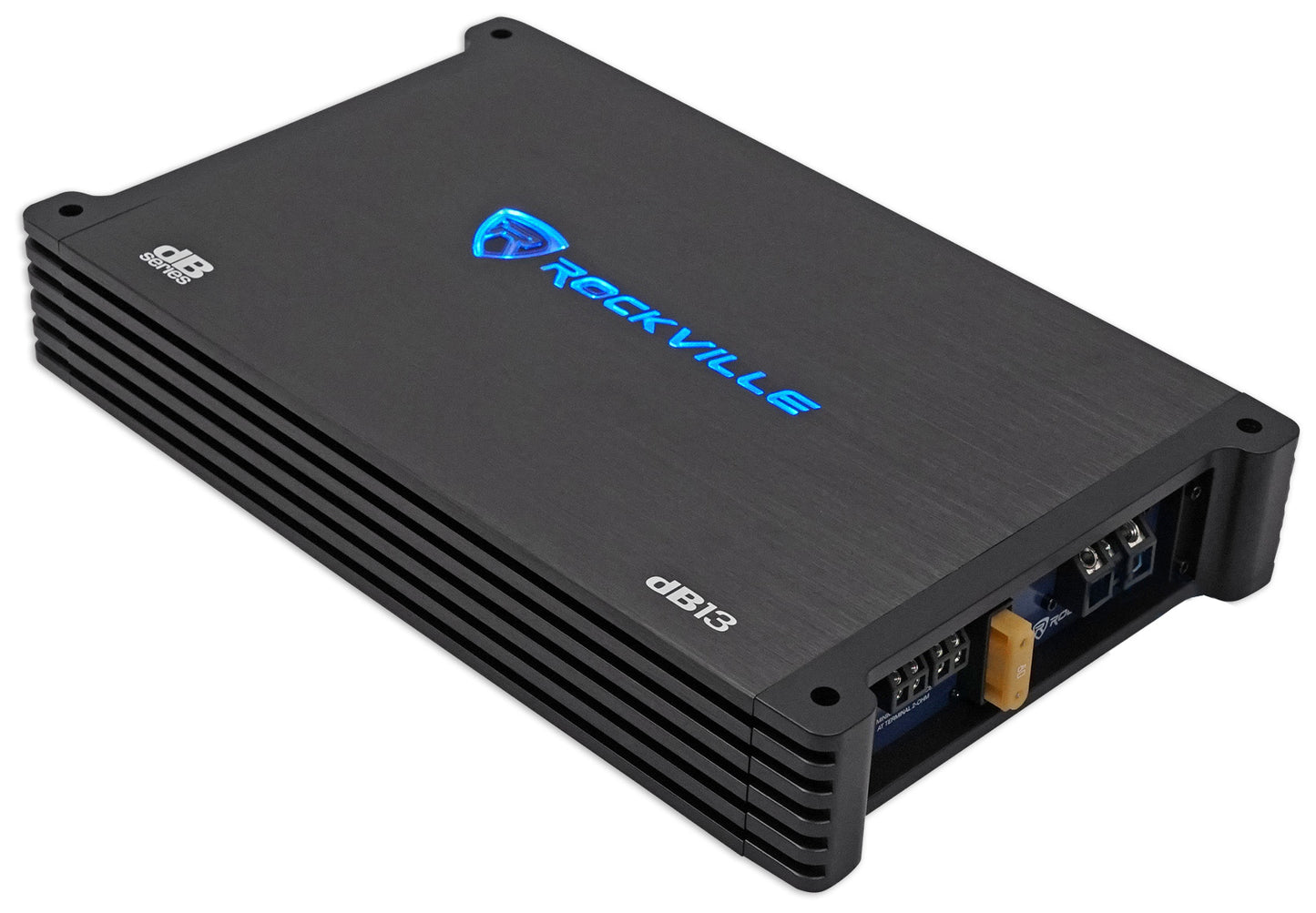

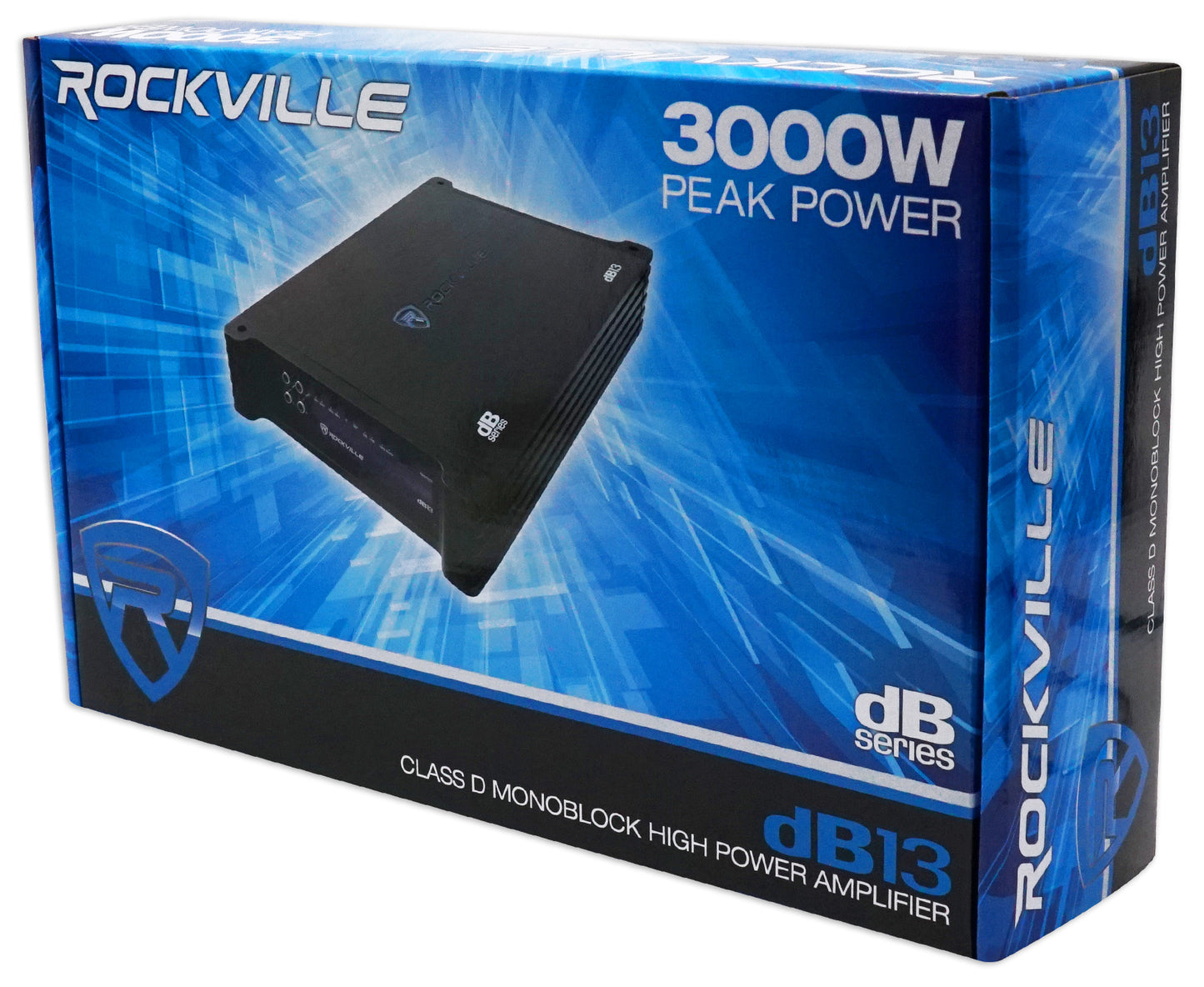

- (1) Rockville dB13 3000 Watt Peak/750w Dyno-Certified RMS Mono 2 Ohm Amplifier Car Amp

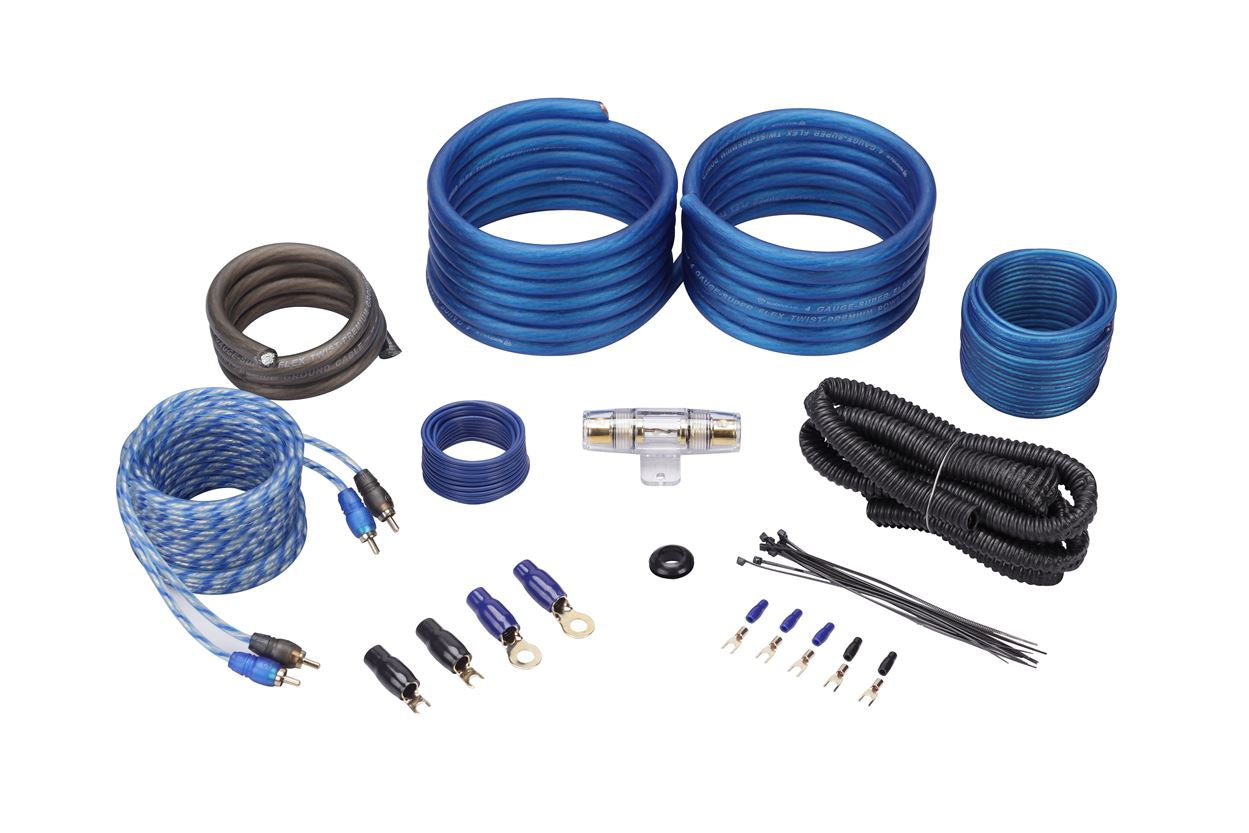

- (1) Rockville RWK41 4 Gauge Complete Car Amp Wiring Installation Wire Kit with RCA's
Video of K5 SERIES:
Features of W10K5S4:

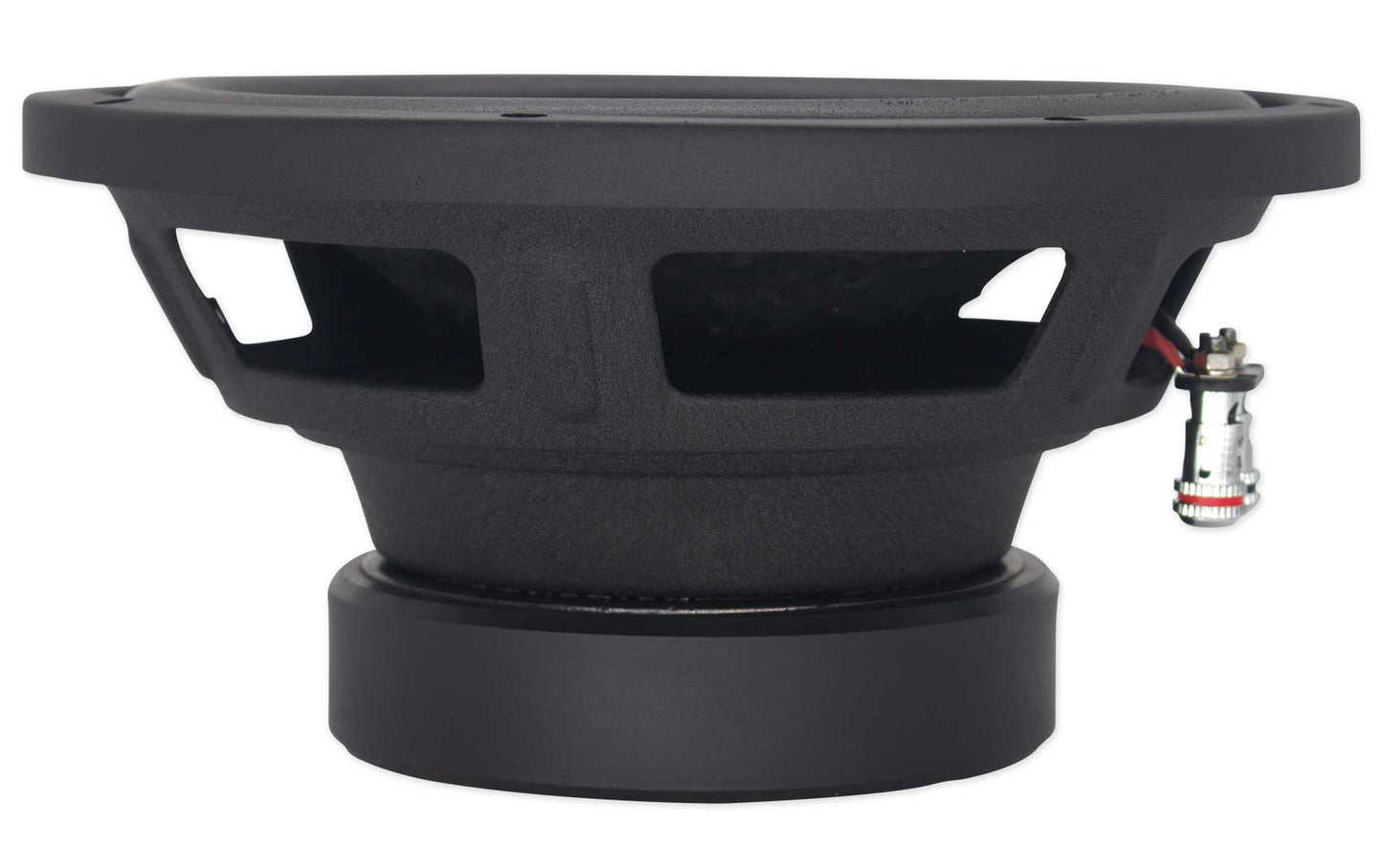

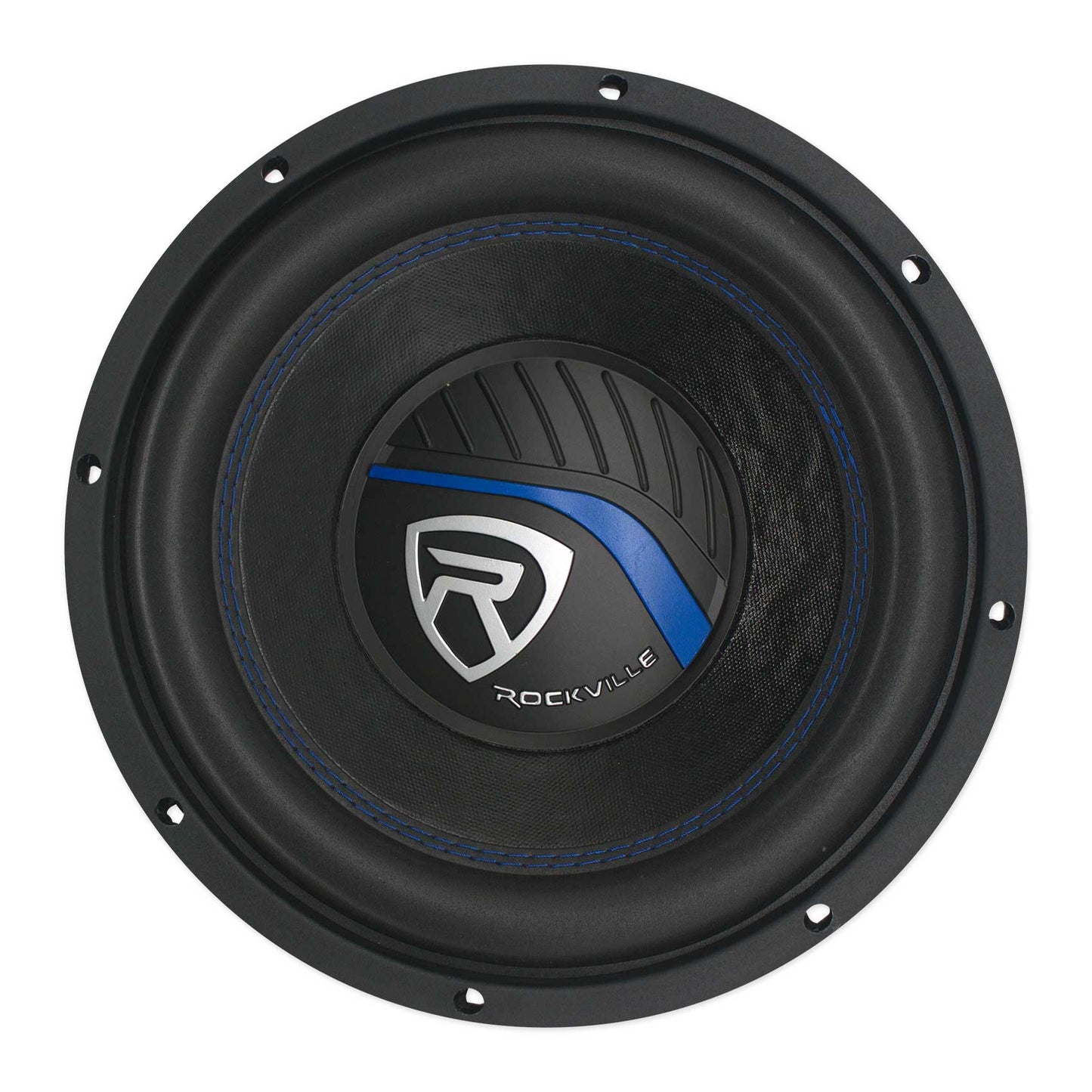

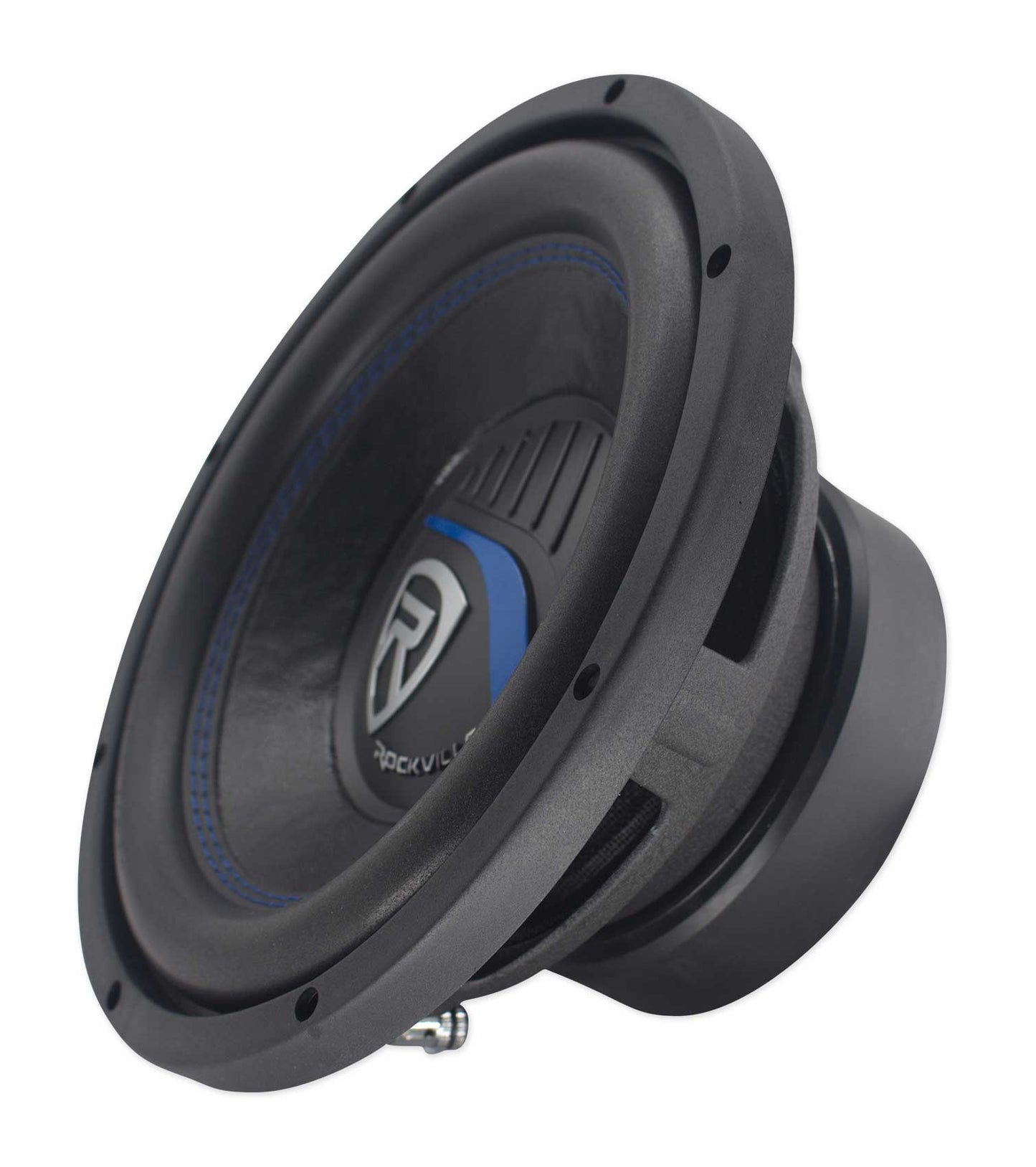

- Rockville W10K5S4 K5 Series 10" 4-Ohm Car Subwoofer
- Peak Power Handling: 1200 Watts
- Program Power Handling: 600 Watts
- CEA Rated RMS Power Handling: 300 Watts
- 2" 4-Layer Black Aluminum Voice Coils Wound with OFC (100% Copper) Wire
- The wire we use to wind the voice coil is imported from Japan which is way better quality than the standard China wire
- 40 Oz High Quality Magnet
- Cast Iron Basket With Black Sanded Finish
- Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone – This cone is very efficient which makes the speaker sound louder even without requiring a lot of power to push it
- Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
- Blue Stitching Cone Reinforcement Ensures Long Life
- Paper Dust cap is light weight and efficient helping the sub to play louder even if your amp is not so powerful
- Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
- Impedance: Single 4-Ohm Voice Coils
- Vented Hole on T-yoke Enhances Heat Dissipation

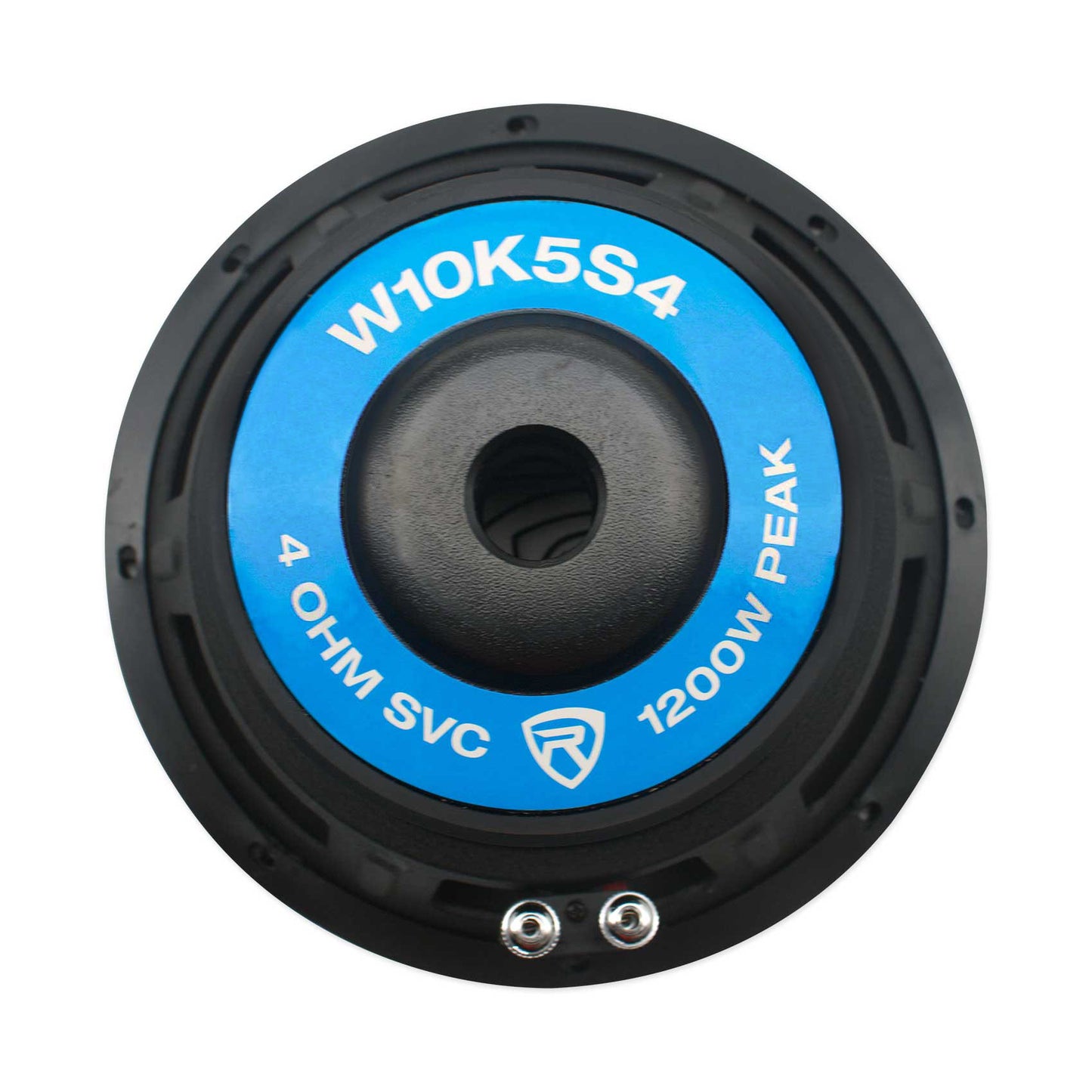

- Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
- Mounting Gasket with Rockville branding looks great and Makes it Easy To Mount the Subwoofer Air-Tight
- High BL Magnetic Motor Gap
- We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated

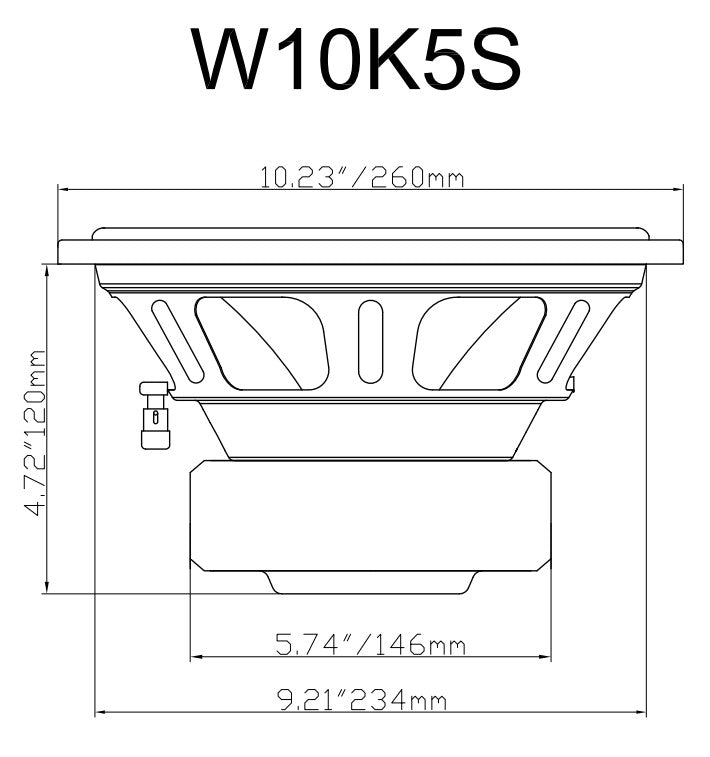

- Cutout Diameter: 9.05 inches
- Mounting Depth: 4.52 inches
- Frequency Response: 28 Hz - 1.3K kHz
- 6mm T-Yoke + 6mm Washer
- Sensitivity: 87.7dB
- Sealed Enclosure Volume: 0.5 – 1.3 Cubic Feet
- Vented/Ported Enclosure Volume: 0.9 – 1.6 Cubic Feet
- Weight: 7.8 Lbs.
- Shipping Weight: 9.3 Lbs.
- Shipping Box Dimensions: 11.42x 11.42 x 8.26 Inches

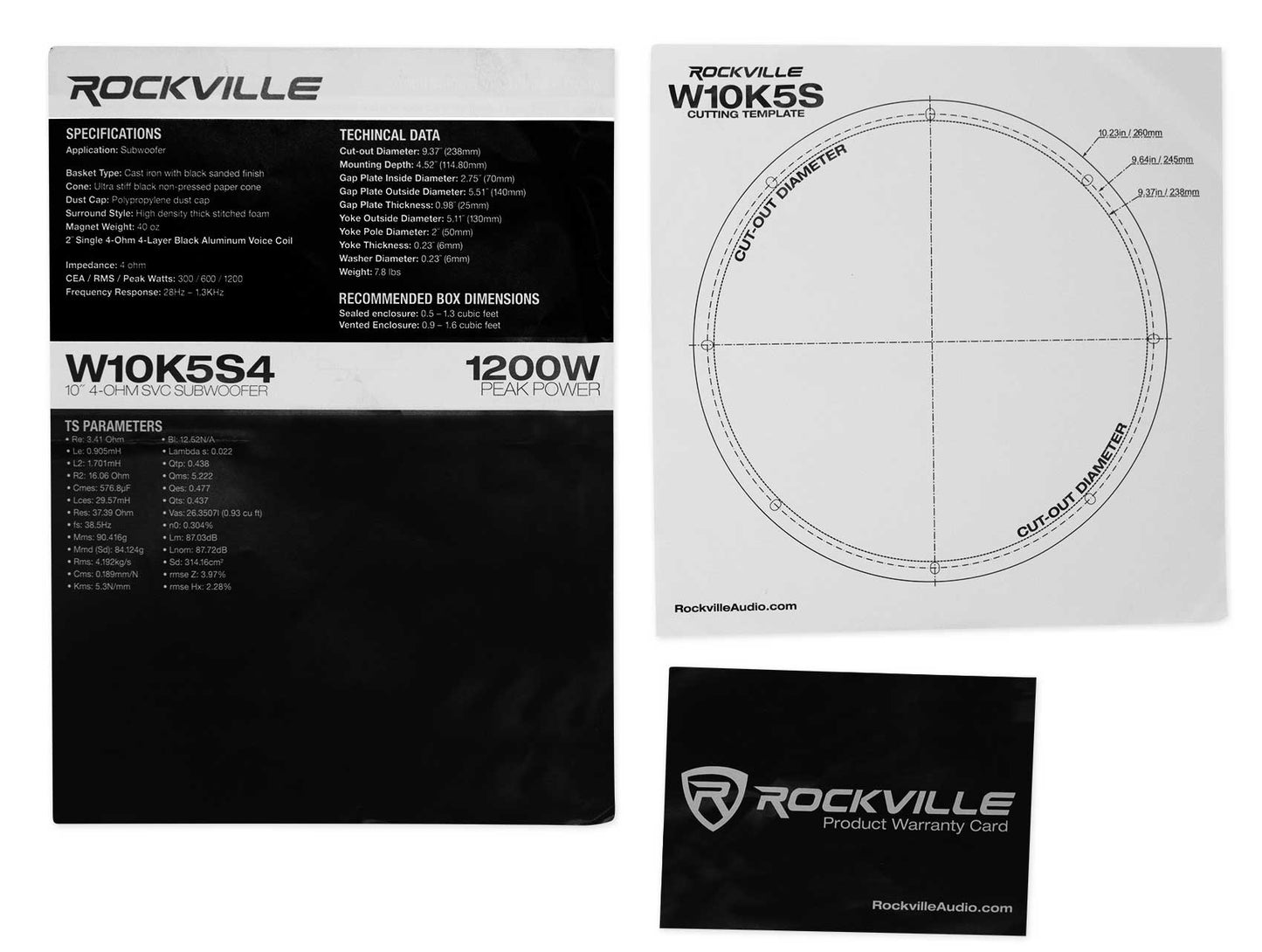

Detailed Info:
- Body: Non-Pressed Paper
- Gap Plate Inside Diameter: 70mm (2.75 inches)
- Gap Plate Outside Diameter: 140mm (5.51 inches)
- Gap Plate Thickness: 25mm (0.98 inches)
- Yoke Outside Diameter: 130mm (5.11 inches)
- Yoke Thickness: 6mm (0.23 inches)
- Yoke Pole Diameter: 50mm (2 inches)
T/S Parameters (Tested on a Klippel)
|
Electrical Parameters |
|
|
|
|
Re |
3.41 |
Ohm |
electrical voice coil resistance at DC |
|
Le |
0.905 |
mH |
frequency independent part of voice coil inductance |
|
L2 |
1.701 |
mH |
para-inductance of voice coil |
|
R2 |
16.06 |
Ohm |
electrical resistance due to eddy current losses |
|
Cmes |
576.8 |
µF |
electrical capacitance representing moving mass |
|
Lces |
29.57 |
mH |
electrical inductance representing driver compliance |
|
Res |
37.39 |
Ohm |
resistance due to mechanical losses |
|
fs |
38.5 |
Hz |
driver resonance frequency |
|
|
|
|
|
|
Mechanical Parameters |
|
|
|
|
(using laser) |
|
|
|
|
Mms |
90.416 |
g |
mechanical mass of driver diaphragm assembly including air load and voice coil |
|
Mmd (Sd) |
84.124 |
g |
mechanical mass of voice coil and diaphragm without air load |
|
Rms |
4.192 |
kg/s |
mechanical resistance of total-driver losses |
|
Cms |
0.189 |
mm/N |
mechanical compliance of driver suspension |
1 YEAR
