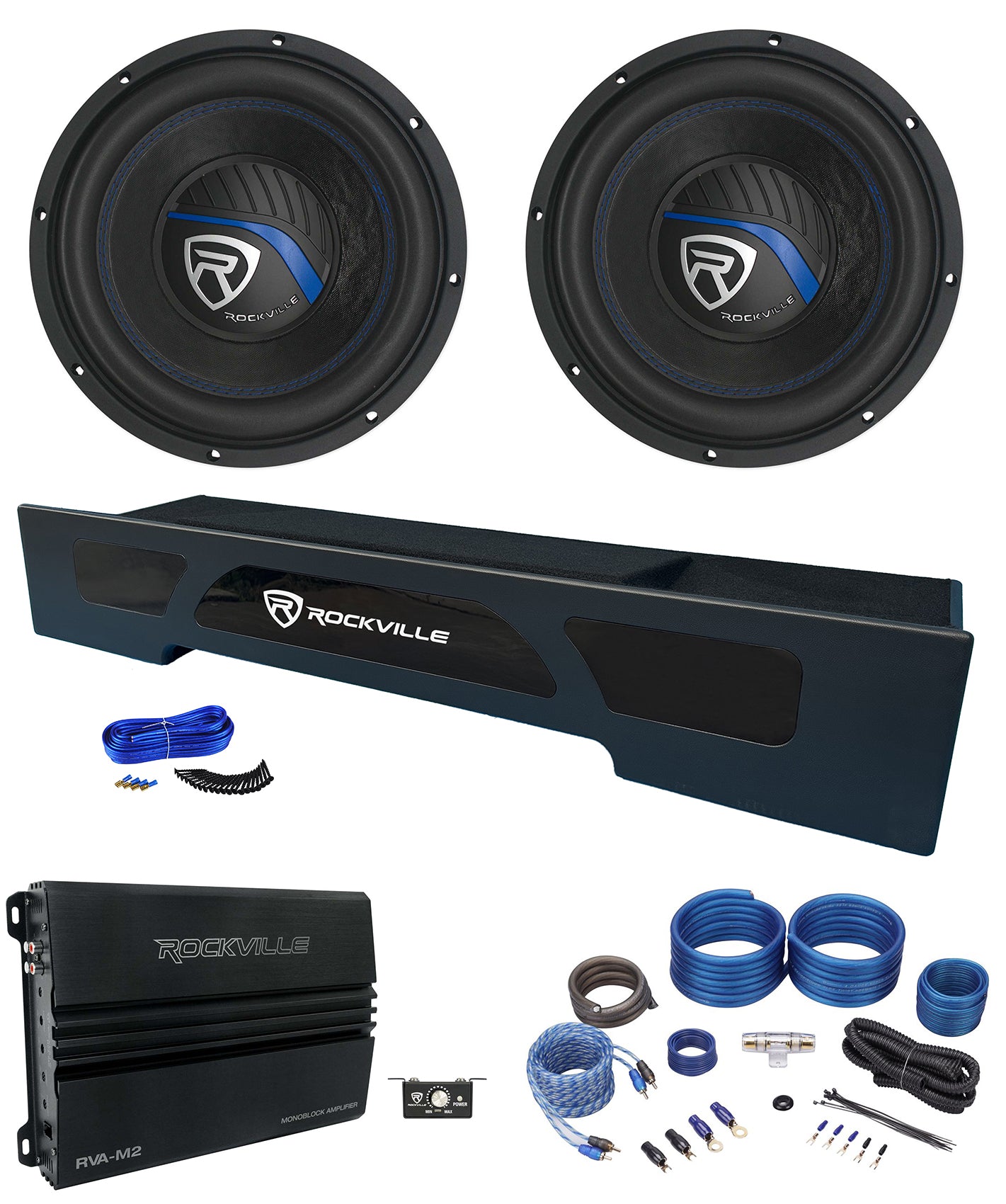

Package Includes:

• (2) Rockville K5 W10K5S2 10" 1200w 2 Ohm Car Audio Subwoofer Sub 300w RMS CEA Rated!

• (1) Rockville RVA-M2 2500w Peak/625w RMS @ 1 Ohm Amplifier Mono Car Amp+Remote

• (1) Rockville RWK41 4 Gauge Complete Car Amp Wiring Installation Wire Kit with RCA's

• (1) Rockville REC149 10" Subwoofer Box For 2009+ Ford F150 Super Crew+17-24 F250/350

• 20 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 20 Feet of 14 AWG Blue Speaker Wire
• 4 Spade Terminals

---

All about your K5 SERIES:

Wiring for 1 SVC 2 Ohm SUBS:

Wiring for 2 SVC 2 Ohm SUBS:

Features:

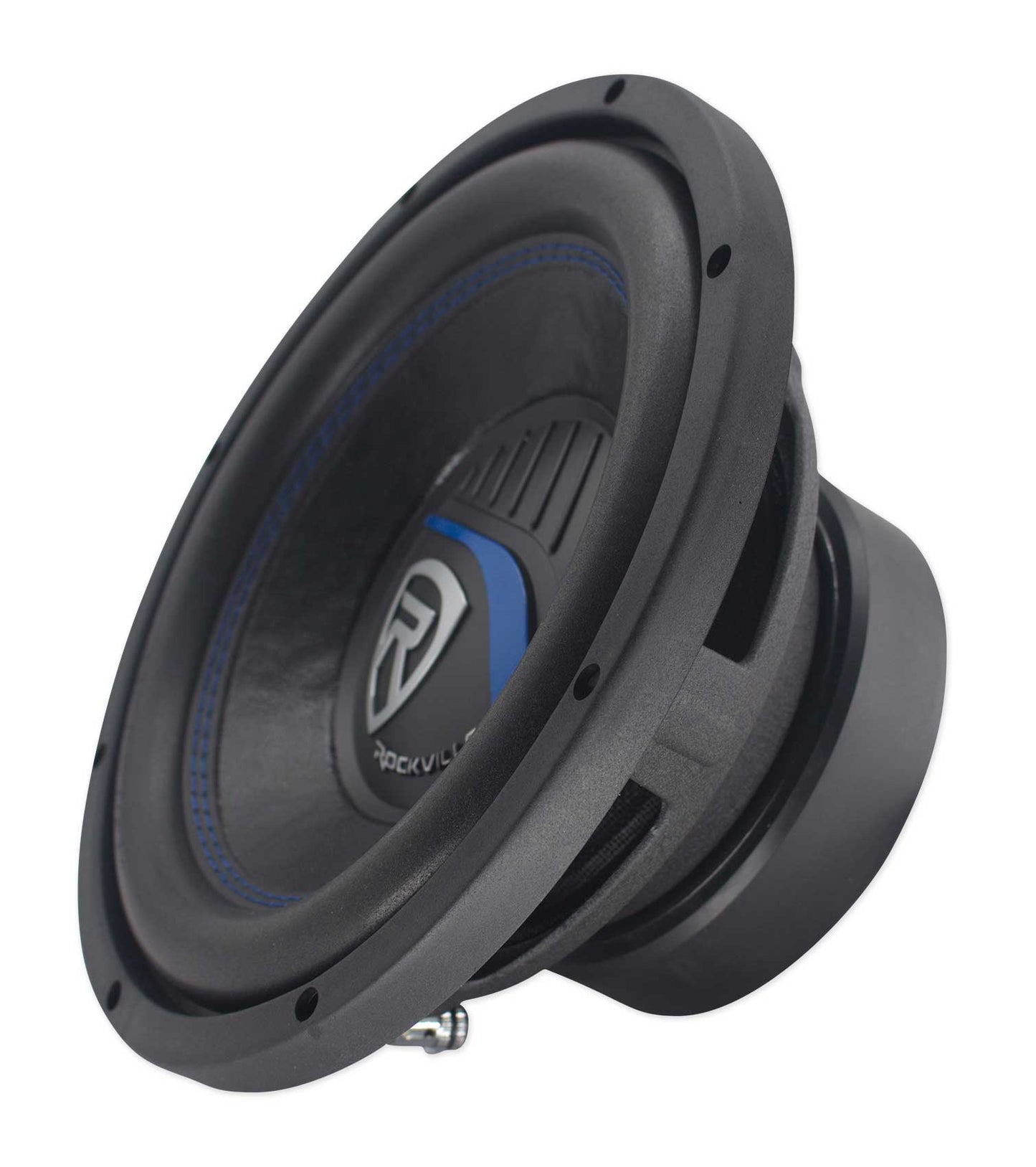

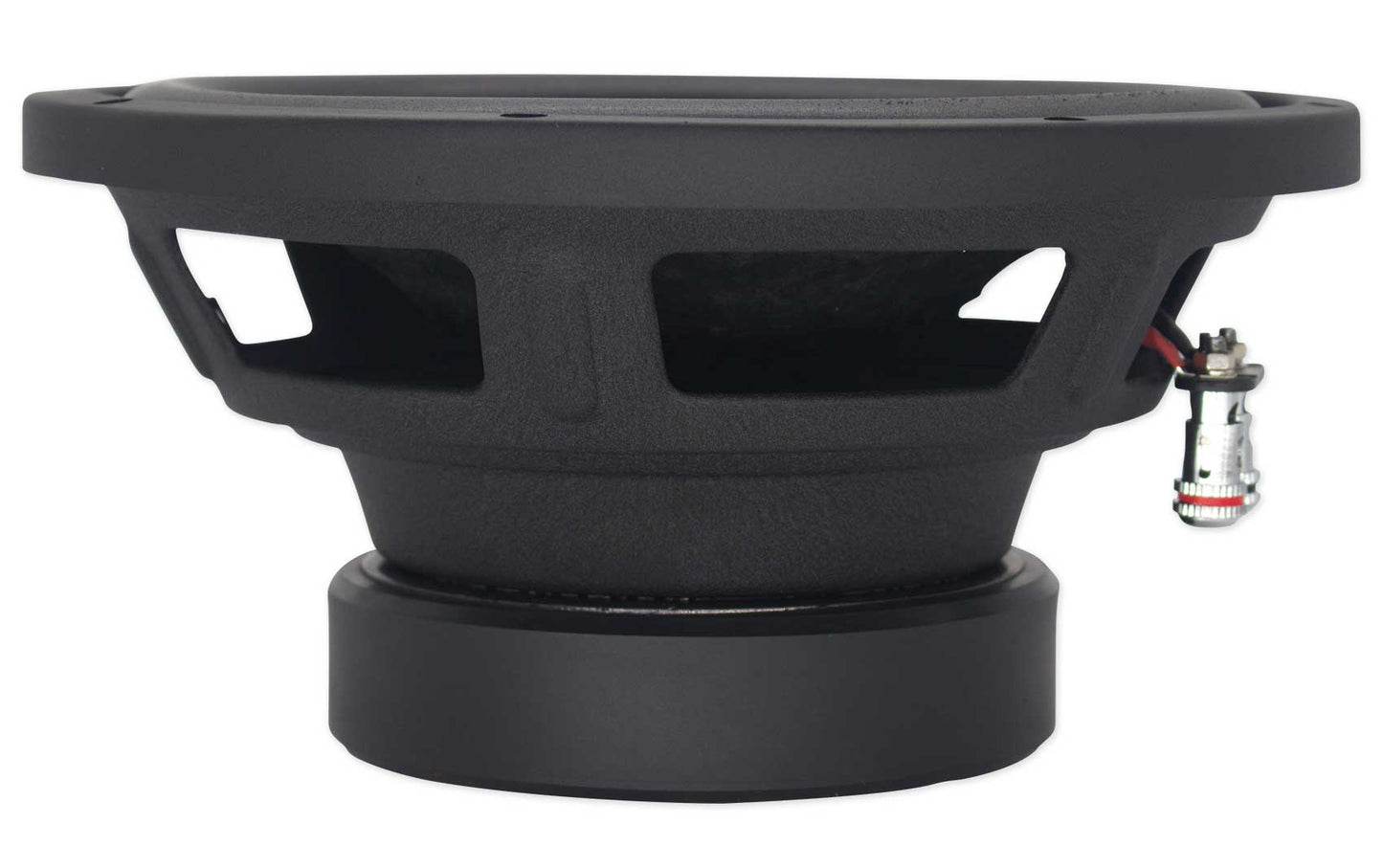

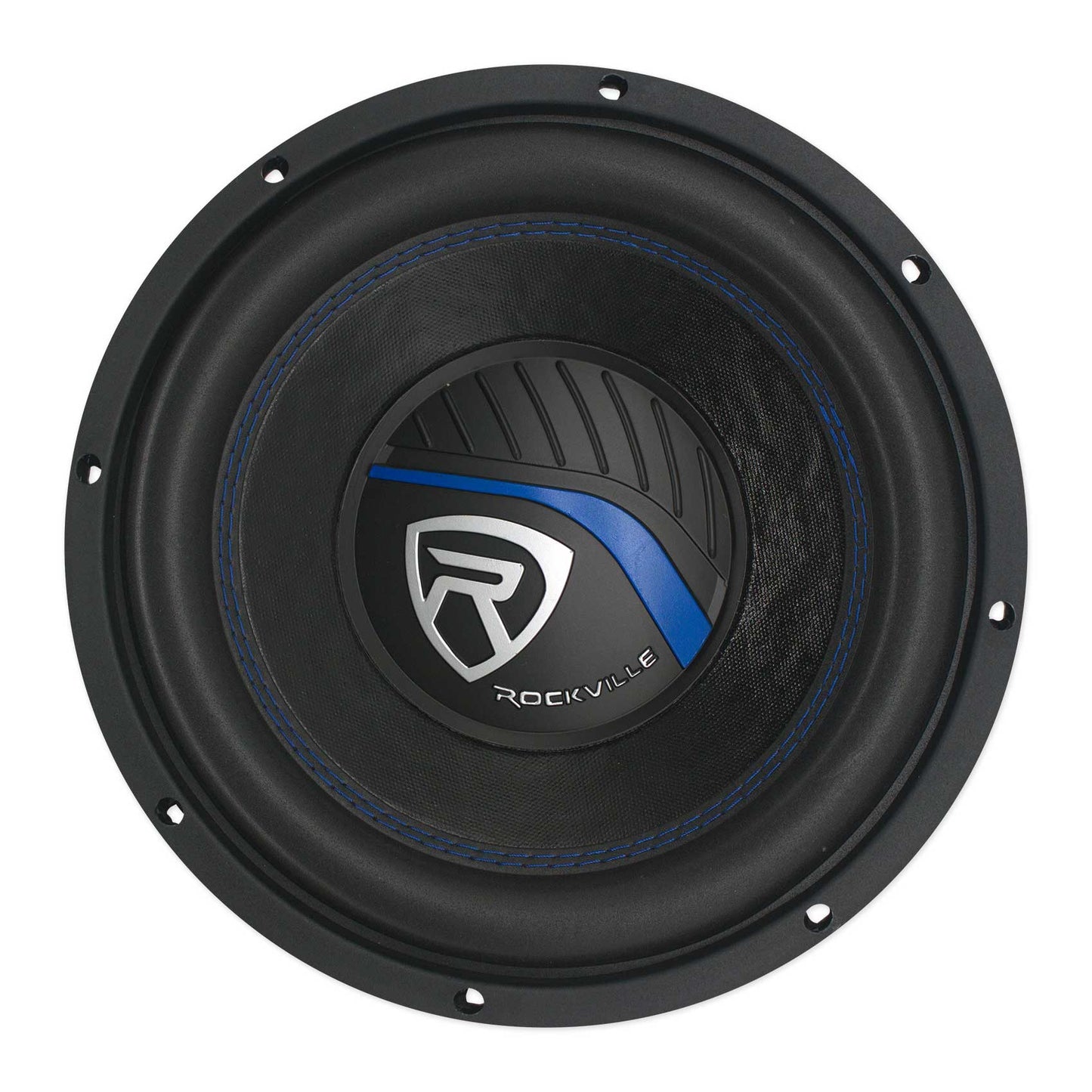

• Rockville W10K5S2 K5 Series 10" 2-Ohm Car Subwoofer
• Peak Power Handling: 1200 Watts
• Program Power Handling: 600 Watts
• CEA Rated RMS Power Handling: 300 Watts
• 2" 4-Layer Black Aluminum Voice Coils Wound with OFC (100% Copper) Wire
• The wire we use to wind the voice coil is imported from Japan which is way better quality than the standard China wire
• 40 Oz High Quality Magnet
• Cast Iron Basket With Black Sanded Finish
• Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone - This cone is very efficient which makes the speaker sound louder even without requiring a lot of power to push it
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Blue Stitching Cone Reinforcement Ensures Long Life
• Paper Dust cap is light weight and efficient helping the sub to play louder even if your amp is not so powerful
• Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
• Impedance: Single 2-Ohm Voice Coils
• Vented Hole on T-yoke Enhances Heat Dissipation
• Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Mounting Gasket with Rockville branding looks great and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
• Cutout Diameter: 9.05 inches
• Mounting Depth: 4.52 inches
• Frequency Response: 28 Hz - 1.3K kHz
• 6mm T-Yoke + 6mm Washer
• Sensitivity: 85.5dB
• Sealed Enclosure Volume: 0.5 - 1.3 Cubic Feet
• Vented/Ported Enclosure Volume: 0.9 - 1.6 Cubic Feet
• Weight: 7.8 Lbs.
• Shipping Weight: 9.3 Lbs.
• Shipping Box Dimensions: 11.42x 11.42 x 8.26 Inches

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 70mm (2.75 inches)
• Gap Plate Outside Diameter: 140mm (5.51 inches)
• Gap Plate Thickness: 25mm (0.98 inches)
• Yoke Outside Diameter: 130mm (5.11 inches)
• Yoke Thickness: 6mm (0.23 inches)
• Yoke Pole Diameter: 50mm (2 inches)

​​

---

All about your RVA-M2:

How To Set the Gain On your Car Subwoofer Amplifier:

Features:

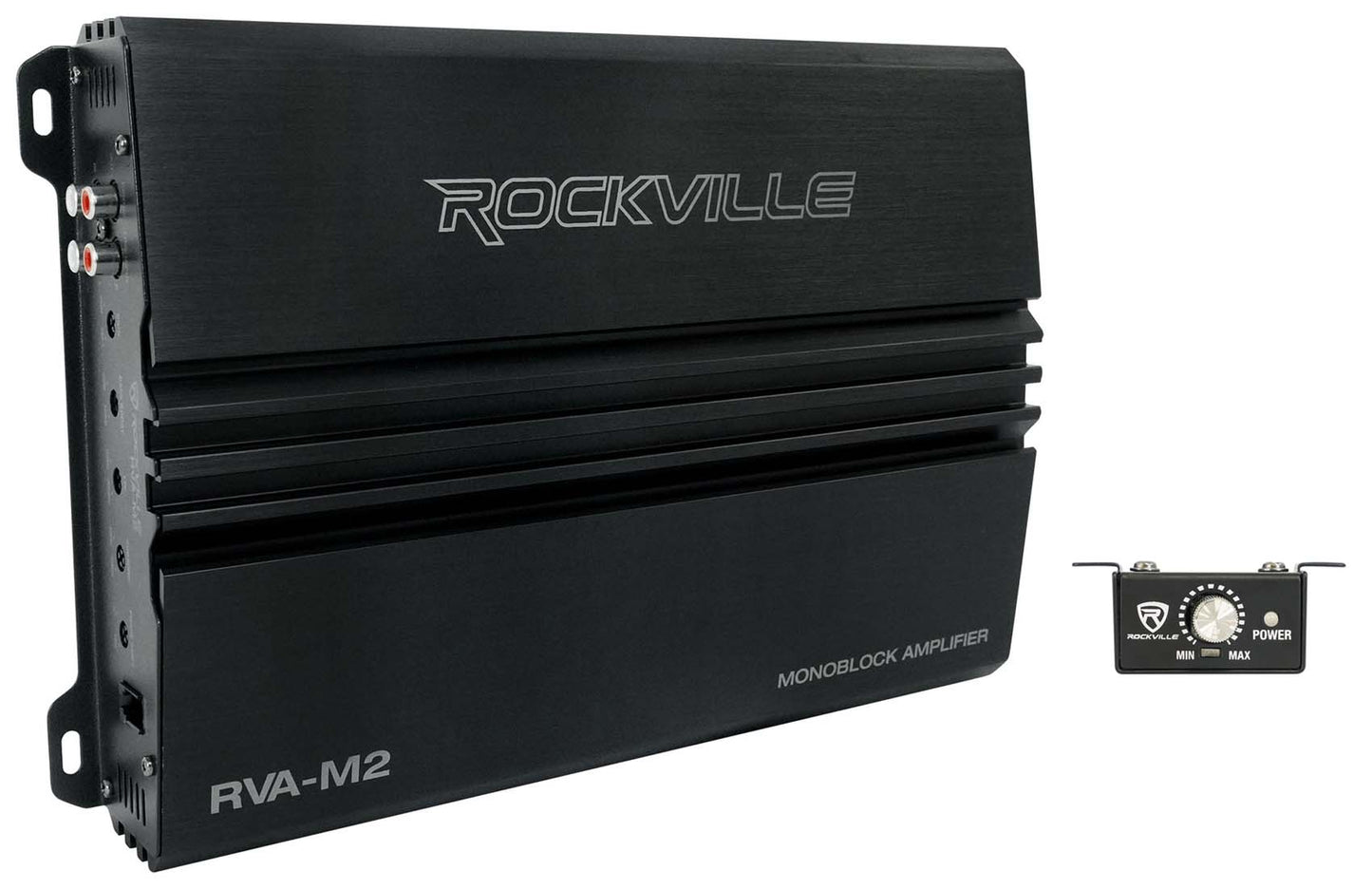

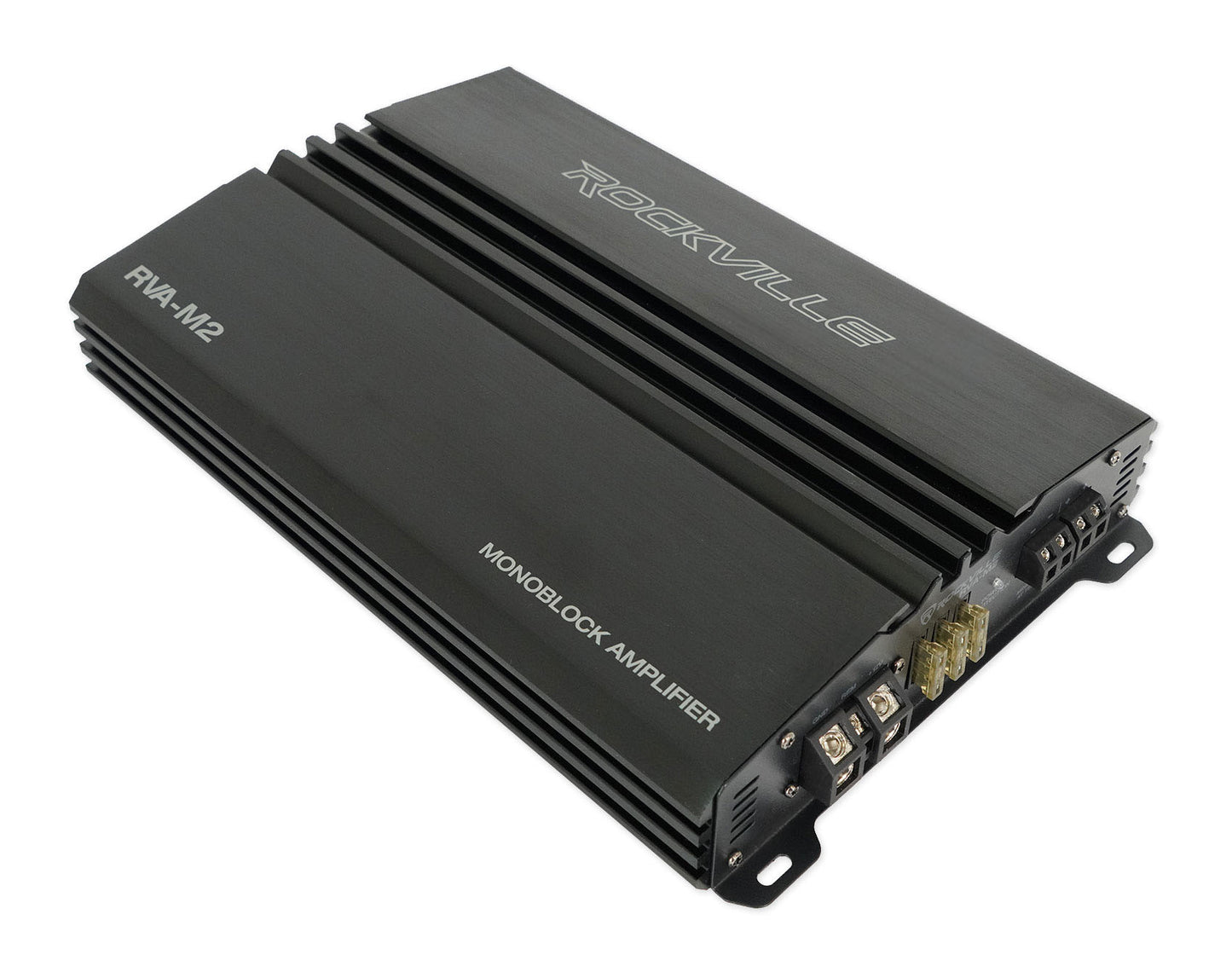

• Rockville RVA-M2 2500w Peak/625w Dyno-Certified RMS @ 1 Ohm Amplifier Mono Car Amp+Remote
• Metal Bass Remote Included
• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
  • 1 Ohm: 625 Watts(<1% THD @ 14.4 Volts) (70.2% efficient)
  • 2 Ohm: 440 Watts (<1% THD @ 14.4 Volts) (82.4% efficient)
  • 4 Ohm: 264 Watts (<1% THD @ 14.4 Volts) (83.7% Efficient)
• Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
  • 1 Ohm: 2500 Watts
• High-Speed MOSFET Power Supply
• Class D Technology
• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
• Low Pass Filter: 32Hz - 300Hz
• Subsonic Filter: 10Hz - 50Hz
• Phase Control Switch
• Full IC-Controlled Protection Circuitry
• Adjustable 0-12dB Bass Equalizer
• Mute and Delay Soft Start System
• Status Mode LED Indicator
• Minimum THD at Rated Power: <0.1%
• S/N Ratio: >90dB
• Under Voltage Protection at 9V
• Over Voltage Protection at 16V
• Radiation cooling keeps the amp running at high volumes for hours straight
• Extruded aluminum heatsink
• Frequency Response: 10Hz - 300Hz
• Damping Factor: >150 @ 100Hz
• Fuse: 30A*2
• Technology: This series uses a reliable Class D circuitry that gives you the most reliability and the most power for your money
• Dimensions: (L x W x H) 13" x 8.5" x 2.24"
• Weight: 7 lbs

---

Video of RWK41:

Unboxing Video for RWK41:

Description:

The Rockville RWK41 4 AWG (American Wire Gauge) amp kit has the following differences over other amp kits on the market at this price point.

1. Our RCA cables are 100 % copper. These are top of the line RCA cables.

2. Better Resistance: The only thing that really matters with wires is the resistance rating. This is a measurement of conductivity and how much signal is loss per foot of wire. Since Rockville wires are made with around 3 times as much copper as any other wire at this price point, these wires had a much better resistance rating which means they will transfer more power to your amps than the other brands.

3. We do not cheat you on the thickness of the wire. These are standard American wire gauge thickness. This is another reason our conductivity is better than anything else at this price point. Other brands in the market place write 4 gauge, but cheat you on the thickness. We are honest about the thickness.

4. The Rockville amplifier installation kits feature a new soft abrasion proof insulating jacket. This rugged PVC outer jacket allows for 100% improved flexibility over standard power cables making them extremely easy to route through your vehicles interior, and it maintains exceptional resistance to grease and oil. The PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F.

The RCA signal transfer cables included in this kit feature blue and silver twisted pair technology in a clear outer jacket insulation skin. Not only do the blue and silver wires look cool but they also provide superior signal transfer with maximum noise suppression. They are 100% copper to provide absolute lossless perfect signal transfer to your receiver. This technology reduces interference, so your audio signal flows clean and pure at all power levels.

This kit also includes a massive 60 Amp AGU Gold Plated Fuse, so you can be sure it will handle the all the DC power that your amp will need without even the slightest loss of current. The included 7 split loom tube provides protection for your power cable from the typically harsh environment found under the hood of your car.

Audiosavings product experts have tested this amp kit against many leading amp kits on the market and were were impressed not only by the great looks but by the quality of these Rockville installation kits as well. These kits had a lower resistance rating than the other brands we compared and tested them against. What this means is that Rockville manufactures their kits with more copper than other kits at this price point, ultimately providing your amplifiers with better and cleaner DC power, so they work cooler and more efficiently. You will hear the difference a Rockville installation kit will make!

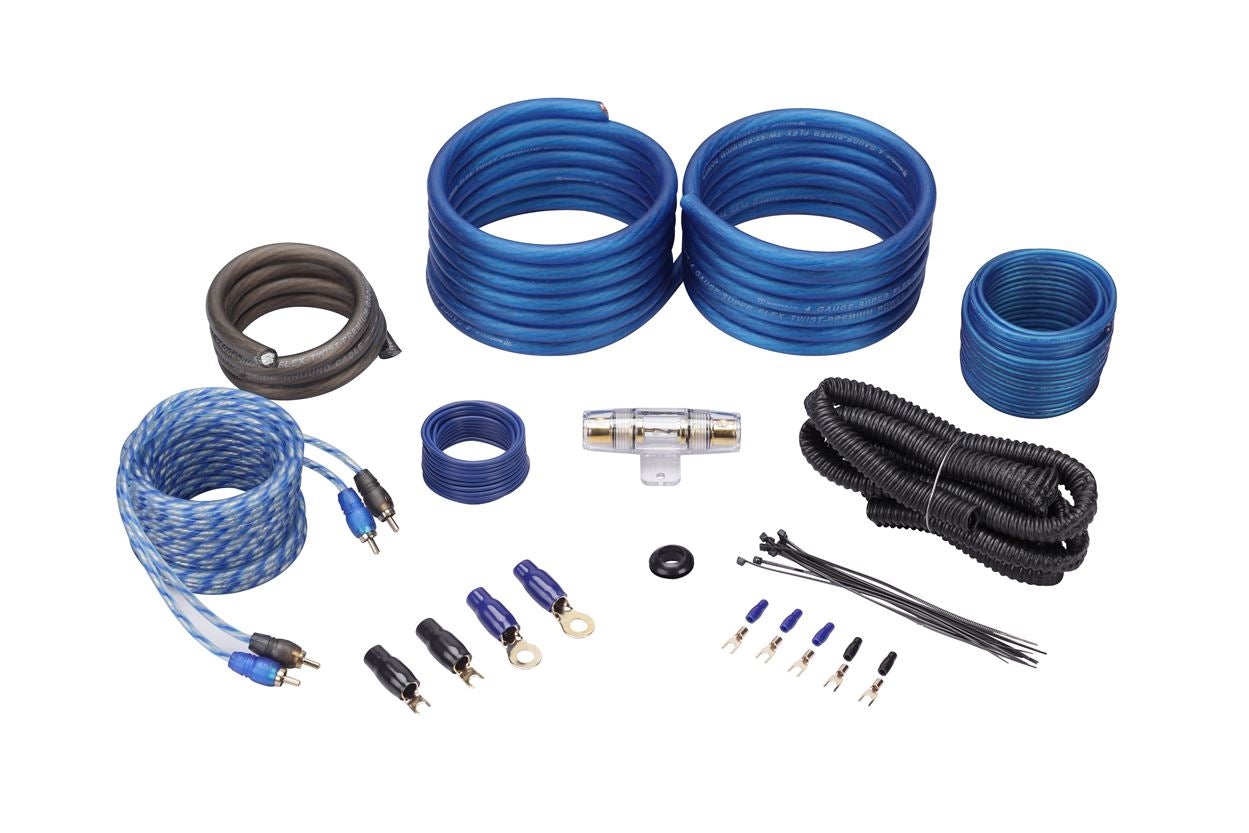

Features:

• 1 - 17' High Grade Twisted Pair of 100% Copper RCA Cable
• 17' - 4 Gauge Translucent Blue SuperFlex Power Cables
• 17' - 18 Gauge Blue Remote Cable
• 17' - 16 Gauge Clear Speaker Wire
• 3' - 4 Gauge Clear SuperFlex Ground Wire
• Gold Plated AGU Heat Resistant Fuse Holder
• 60 Amp AGU Gold Plated Fuse
• 7' Split Tube Loom
• Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets

---

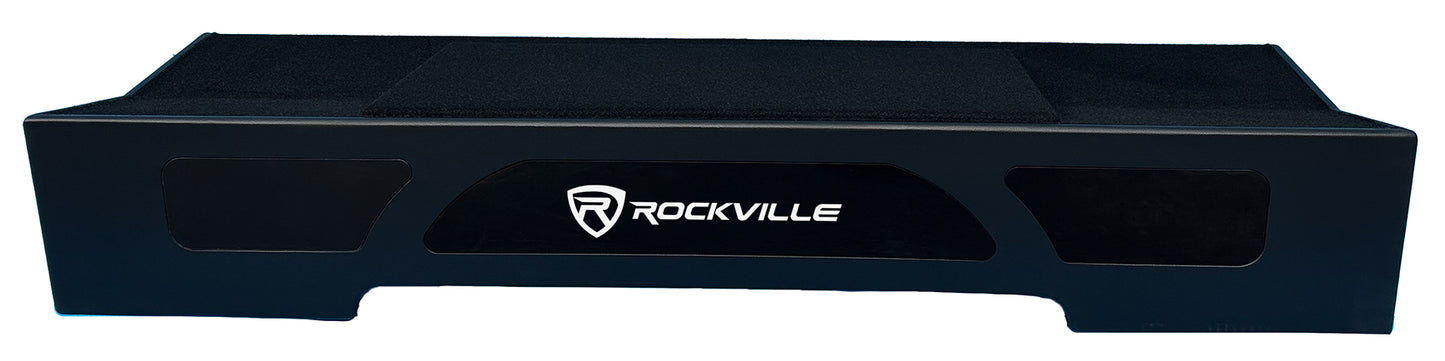

Features:

• High Glossy Logo & Plexiglass.

• Poly-Fil included.

• Wrapped with rugged Vinyl.

• Extra Plush Black Carpet

• Heavy Duty MDF Construction

• Machine precision cut mounting holes

• Top of the line Glue for extra durable adhesion

• Prewired High quality Screwed-In Nickel-plated spring-loaded terminals.

• These enclosures are built with the quality additives needed to maximize the performance of any sound system.

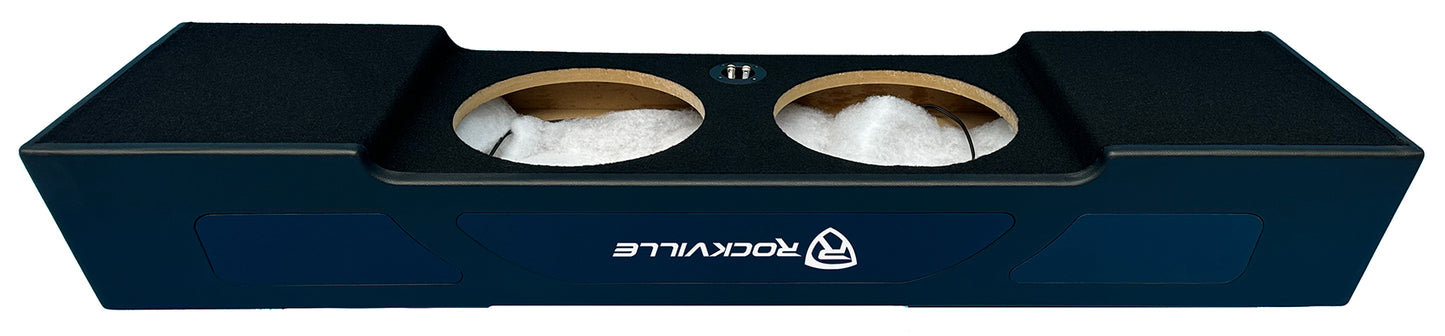

Enclosure Measurements:

• Type of Enclosure: Sealed

• Enclosure Sub Size: Dual 10"

• Dimensions in Inches: 57.75" L x 17 D x 10.75” Height

• Mounting Depth: up to 5.875”

• Air Space: 1.0 per sub

• Fits Ford 2009-2024 F150 Super Crew & 2017-2024 F250/350

---

Complete Dual Subwoofer Enclosure Installation Kit!

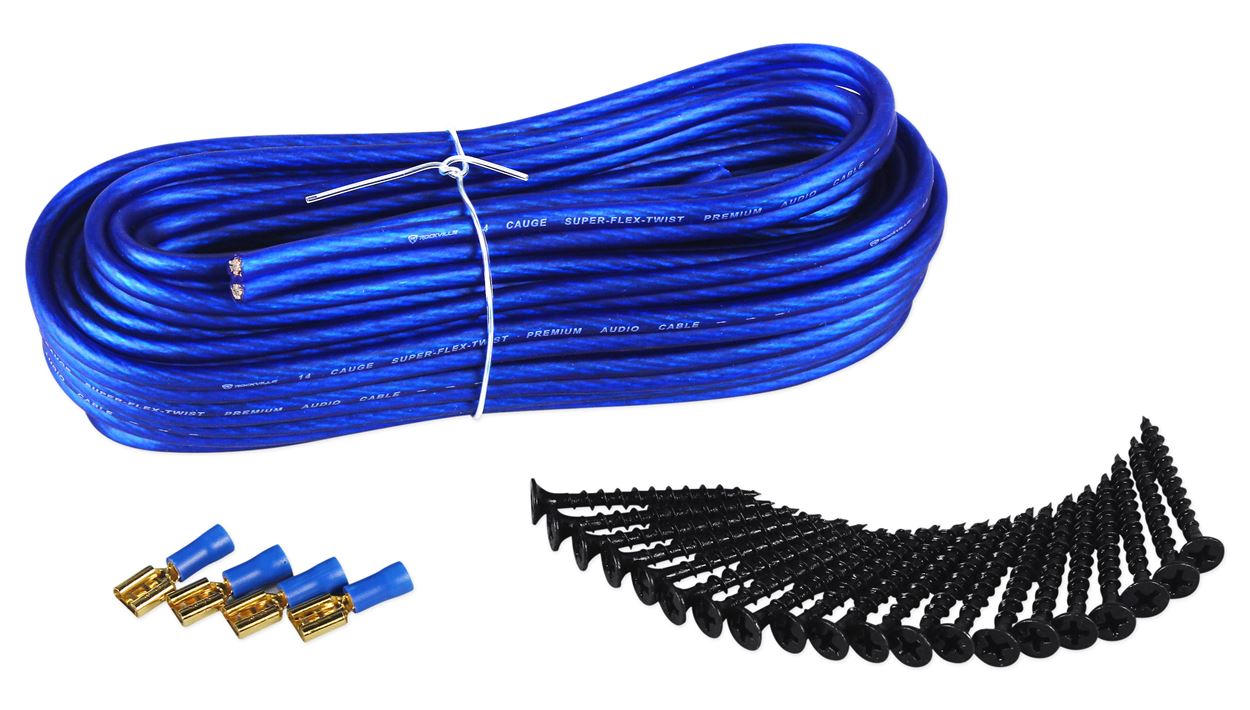

Includes:

• 20 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 20 Feet of 14 AWG Blue Speaker Wire
• 4 Spade Terminals

This accessory package includes everything you need to install two subwoofers into an enclosure, and wire your enclosure to your amplifier. This package is a top of the line accessory package which we put together and tested.

The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure. The speaker wire is 14 gauge. This is way better than using 16 gauge. You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire. These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
