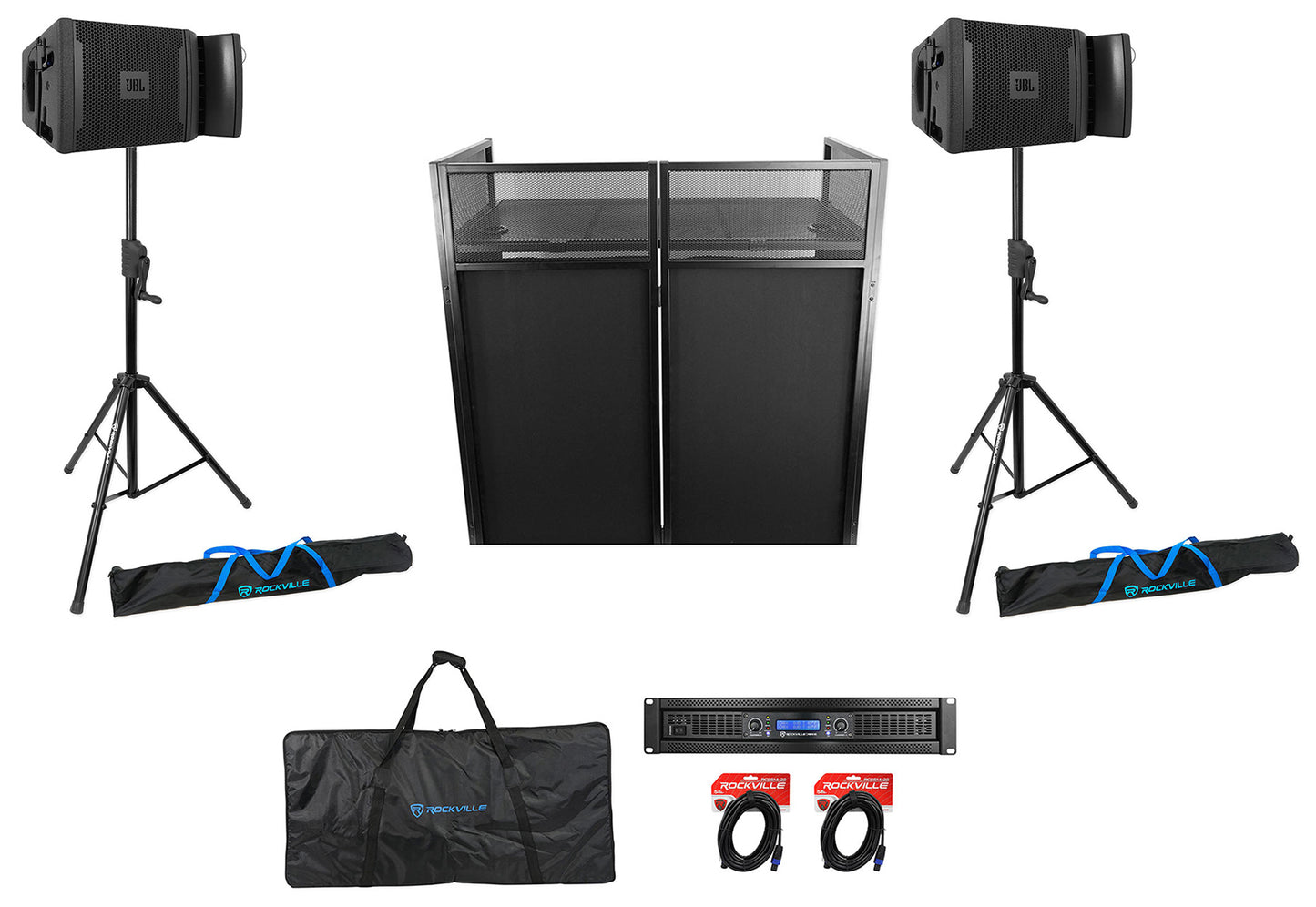

Package Includes:

• (2) JBL VRX928LA 8" 400 Watt 2-Way Passive Line-Array Speaker in Black
• (1) Rockville RPA16 10000 Watt Peak / 3000w RMS 2 Channel Power Amplifier Pro/DJ Amp
• (2) Rockville RVCS2 Heavy-Duty Tripod Adjustable Crank-Up DJ PA Speaker Stand+Bag
• (2) Rockvile RCSS1425 25' 14 AWG Speakon to Speakon Speaker Cable 100% Copper
• (1) Rockville ROCKBOOTH DJ Event Booth Facade w/Built in Table+Travel Bag+Scrims

---

Description:

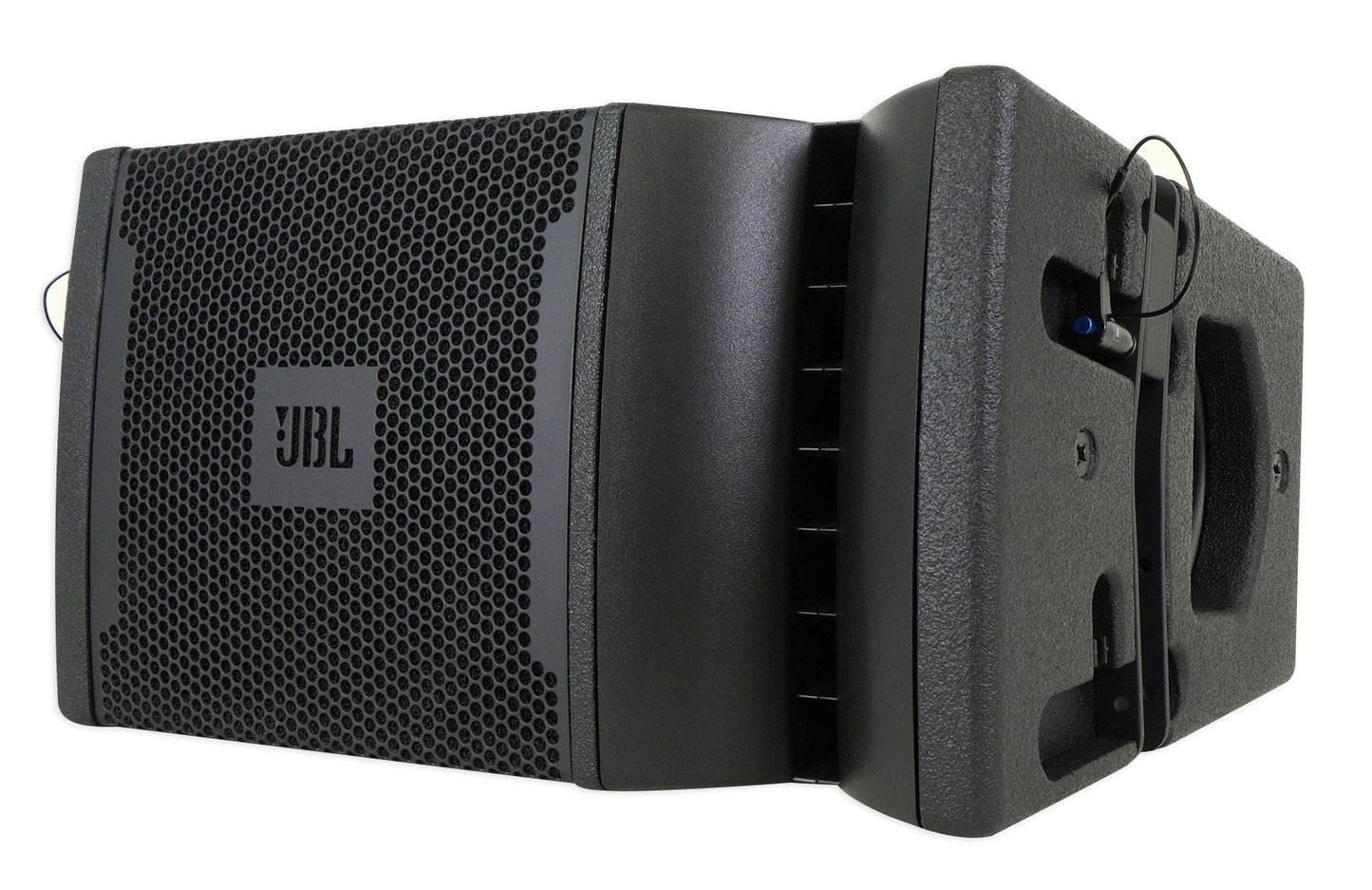

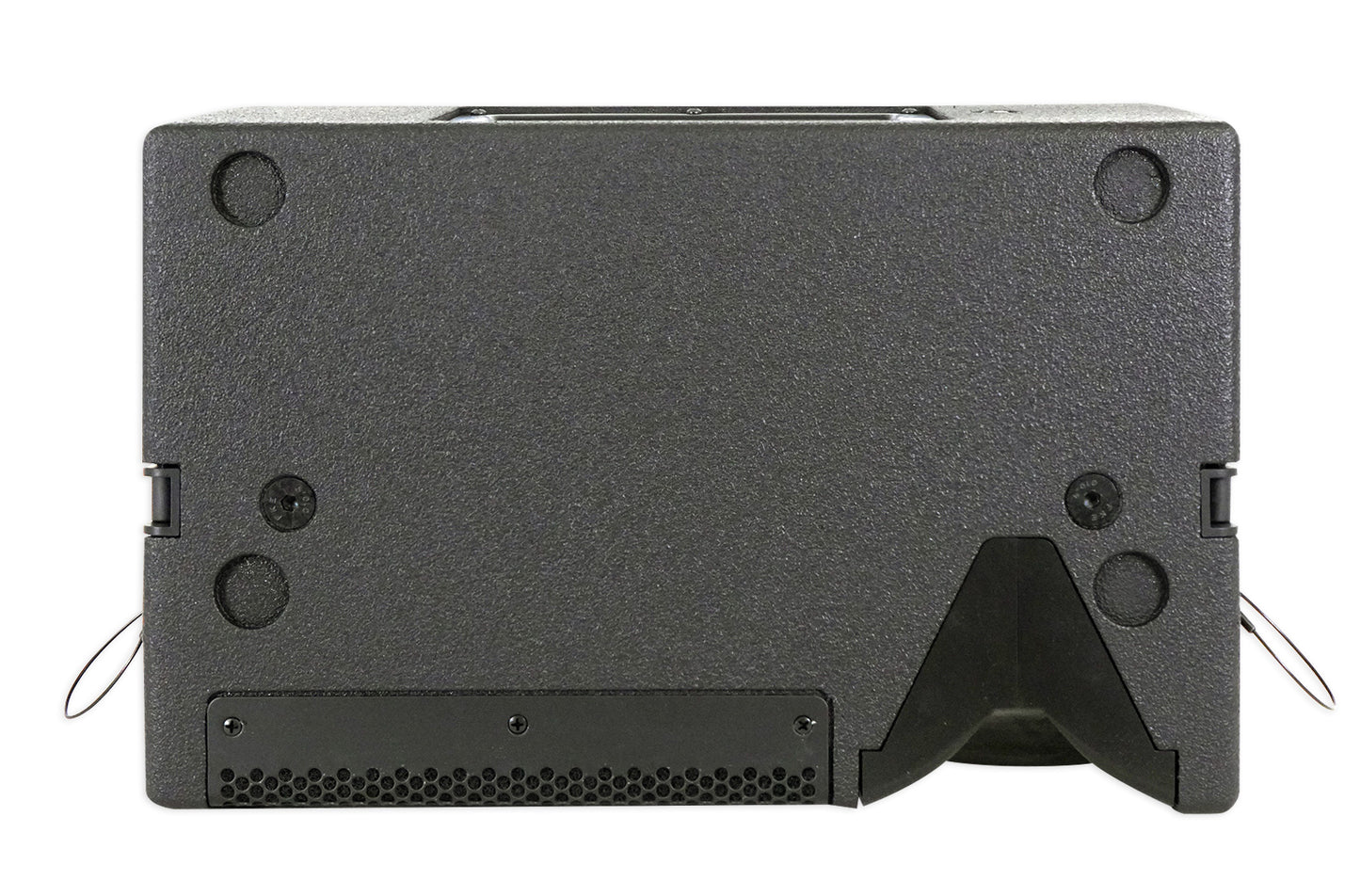

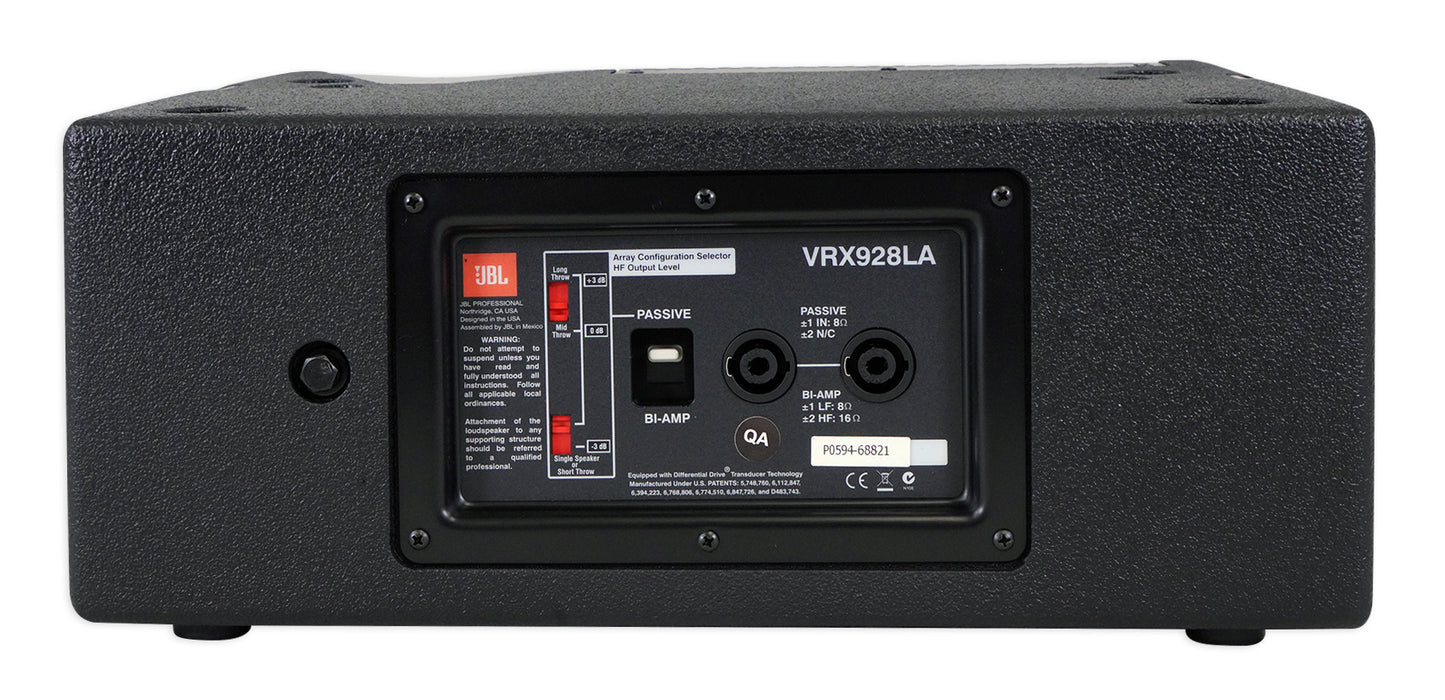

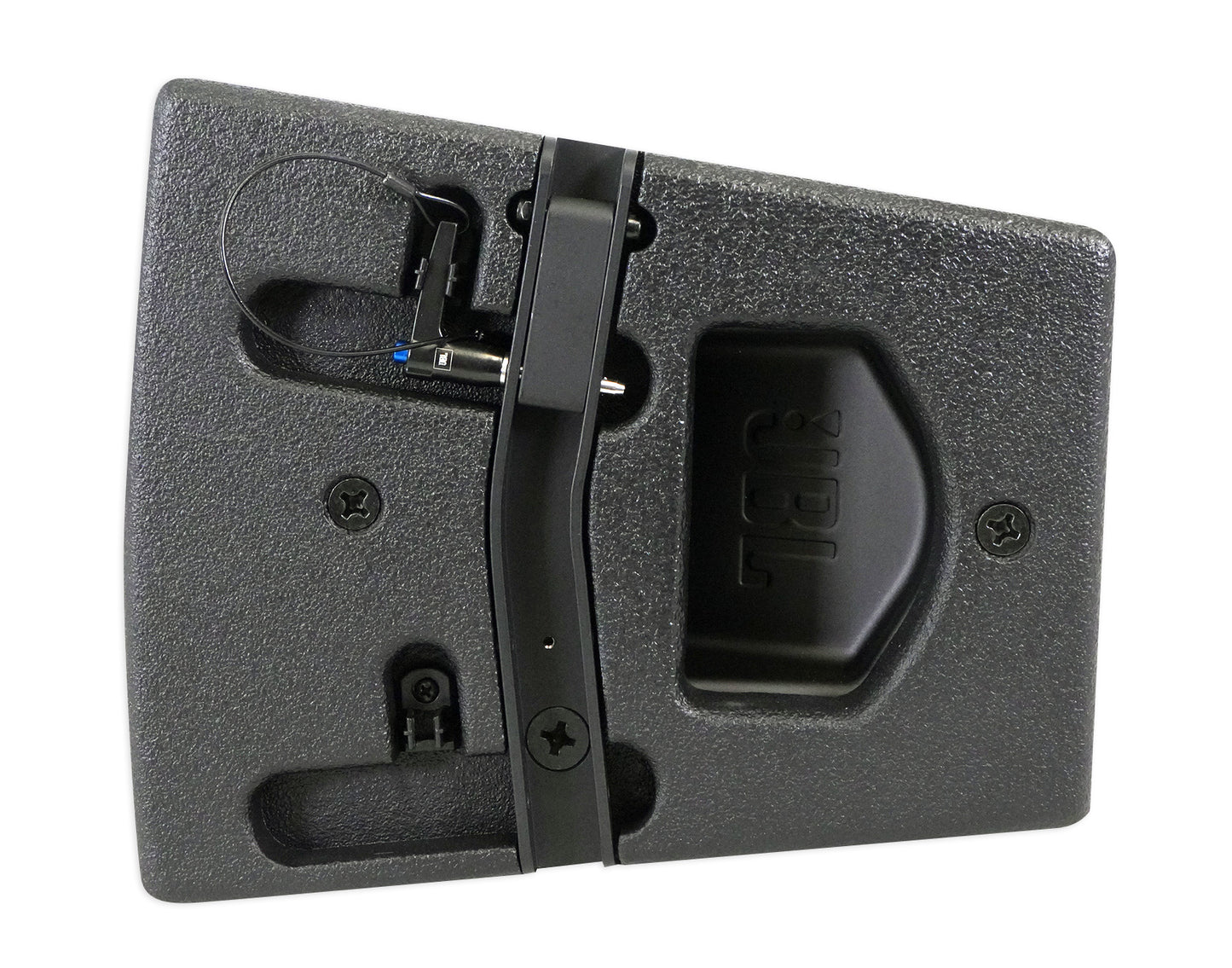

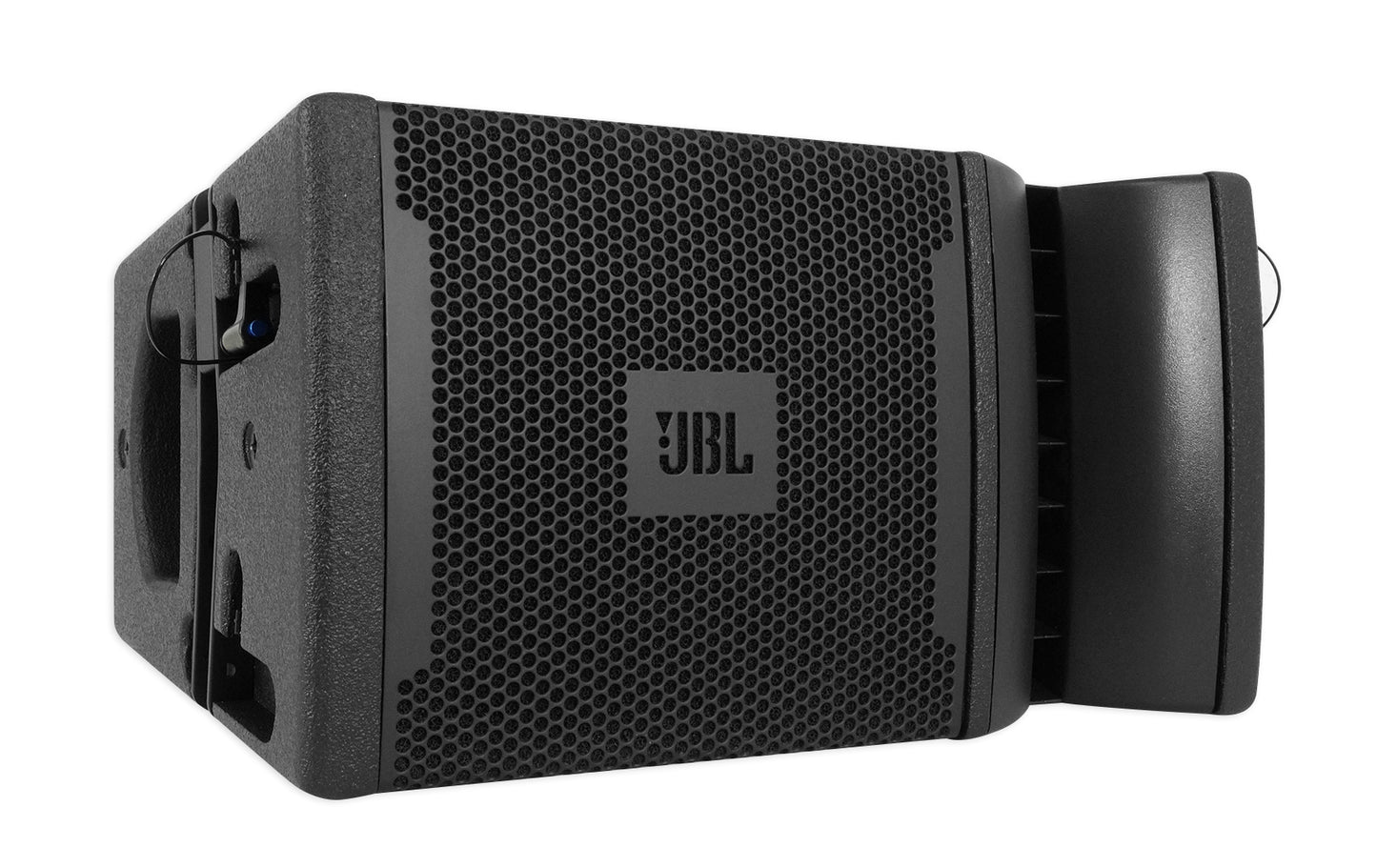

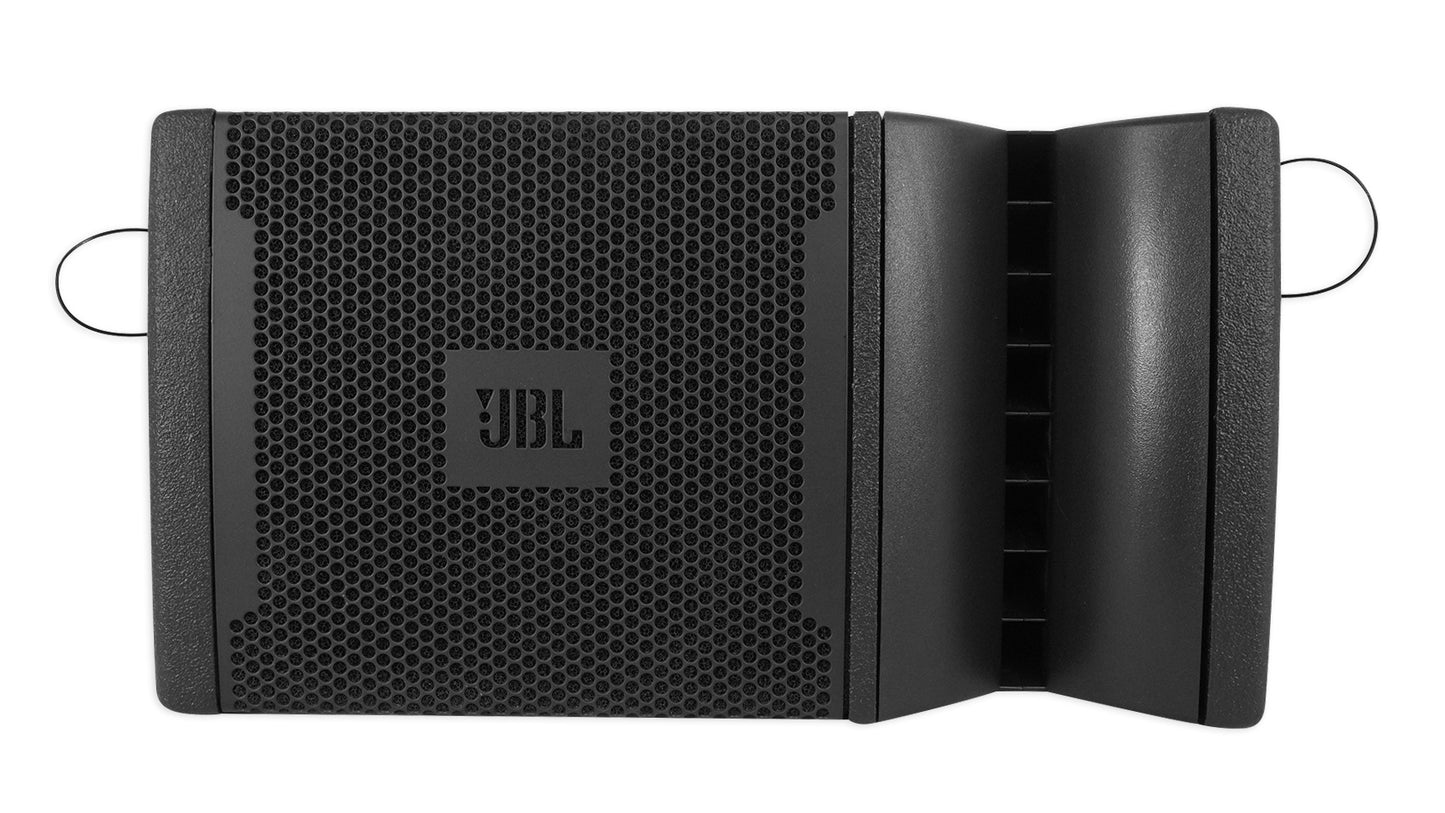

The VRX928LA is a lightweight (28 lb / 13 kg) compact 8" two-way line array speaker system designed for use in arrays of up to six units.

Features:

• Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
• Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
• Suspension and Rigging.
• Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure (not on - WH version)
• Differential Drive® Woofer.

Specifications:

• Power Rating: 400 W / 800 W / 1600W
• Frequency Range: (-10dB) 70 Hz - 20 kHz
• Dimensions (H x W x D): 230mm x 420mm x 270mm (9.0in x 16.5in x 10.5in)
• Coverage Pattern: 100 x 15 nominal
• Frequency Response (±3 dB): 85 Hz - 19 Hz
• Crossover Modes: Bi-amp / passive,
• Crossover Frequency: 2.0 kHz
• Net Weight (each): 12.7 kg (28 lb)
• Inputs: Neutrik® Speakon NL-4 (x2)
• Outputs: 1 x XLR
• Enclosure: Duraflex coated plywood
• System Type: Constant Curvature 8" Two-Way Line Array System
• Maximum SPL (1m): 122 dB SPL peak (passive mode) LF: 122 dB (bi-amp mode) HF: 128 dB (bi-amp mode)
• Nominal Impedance: Passive = 8 ohm
• Bi-amp LF = 8 ohm
• Bi-amp HF = 16 ohm
• LF Driver: 1 x 200 mm (8 in) Differential Drive® woofer
• HF Driver: 2 x 25 mm (1.0 in) neodymium compression driver

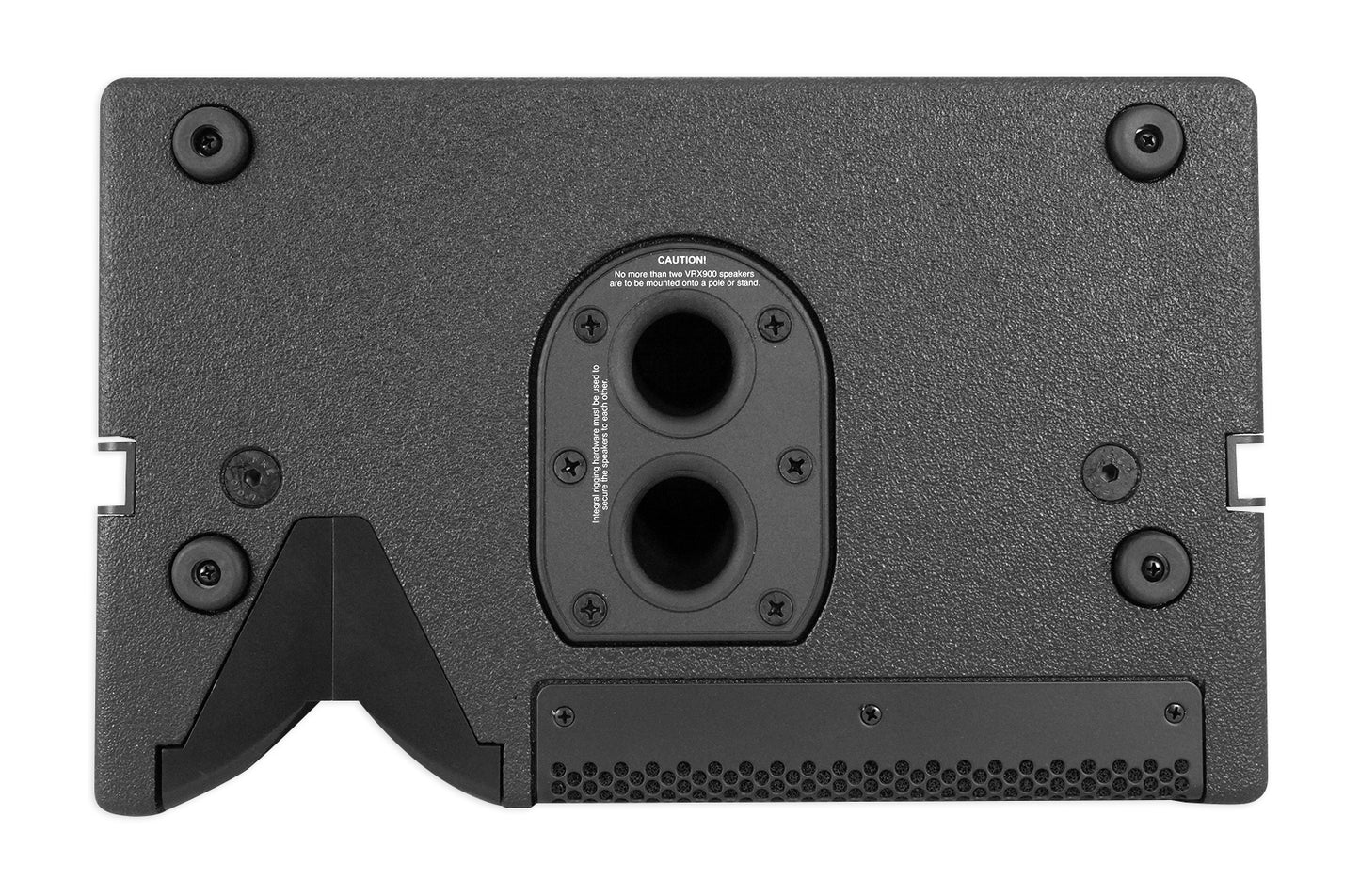

• Suspension / Mounting: Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.

---

How to Set Up Your RPA12, RPA14, and RPA16:

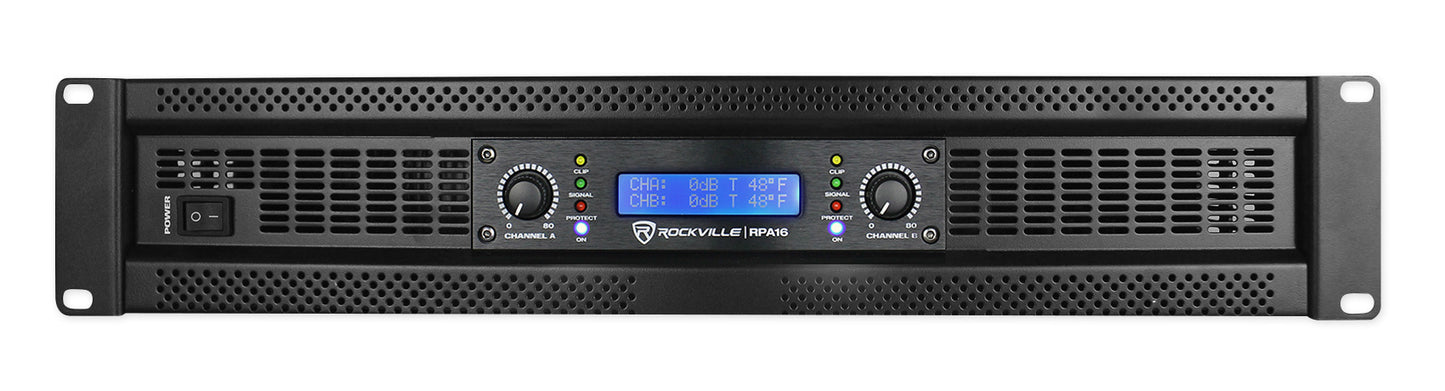

Video of RPA16:

Power Ratings:

• RMS Power Output:
• Stereo 8 Ohm: 2 x 1,000W
• Stereo 4 Ohm: 2 x 1,500W
• Bridged 8 Ohm: 1 x 3000W
• Peak Power Output:
• Stereo 4 Ohm: 2 x 5,000W Max
• Bridged 8 Ohm: 1 x 10,000W Max

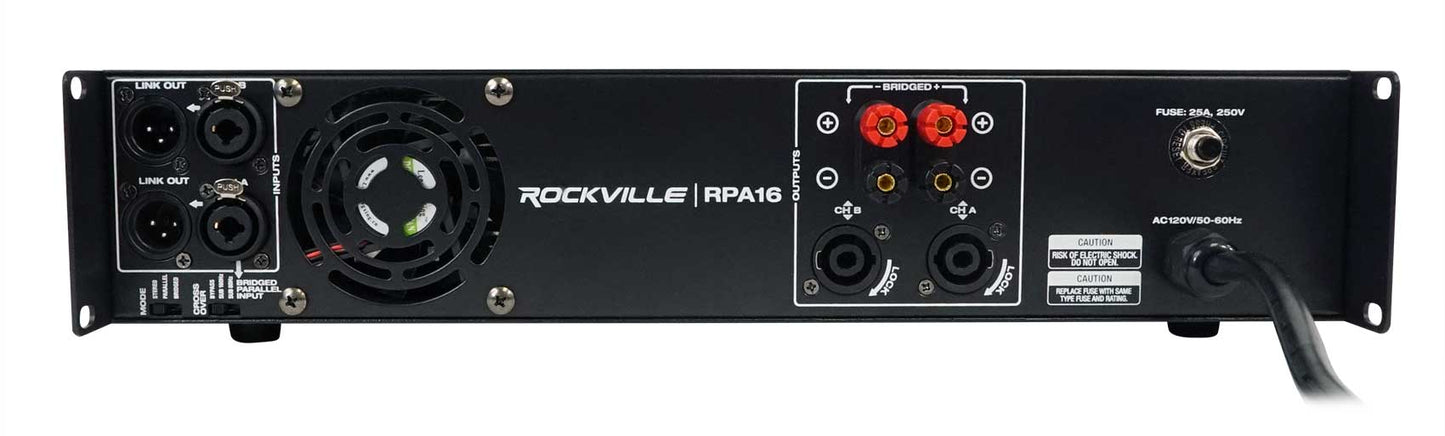

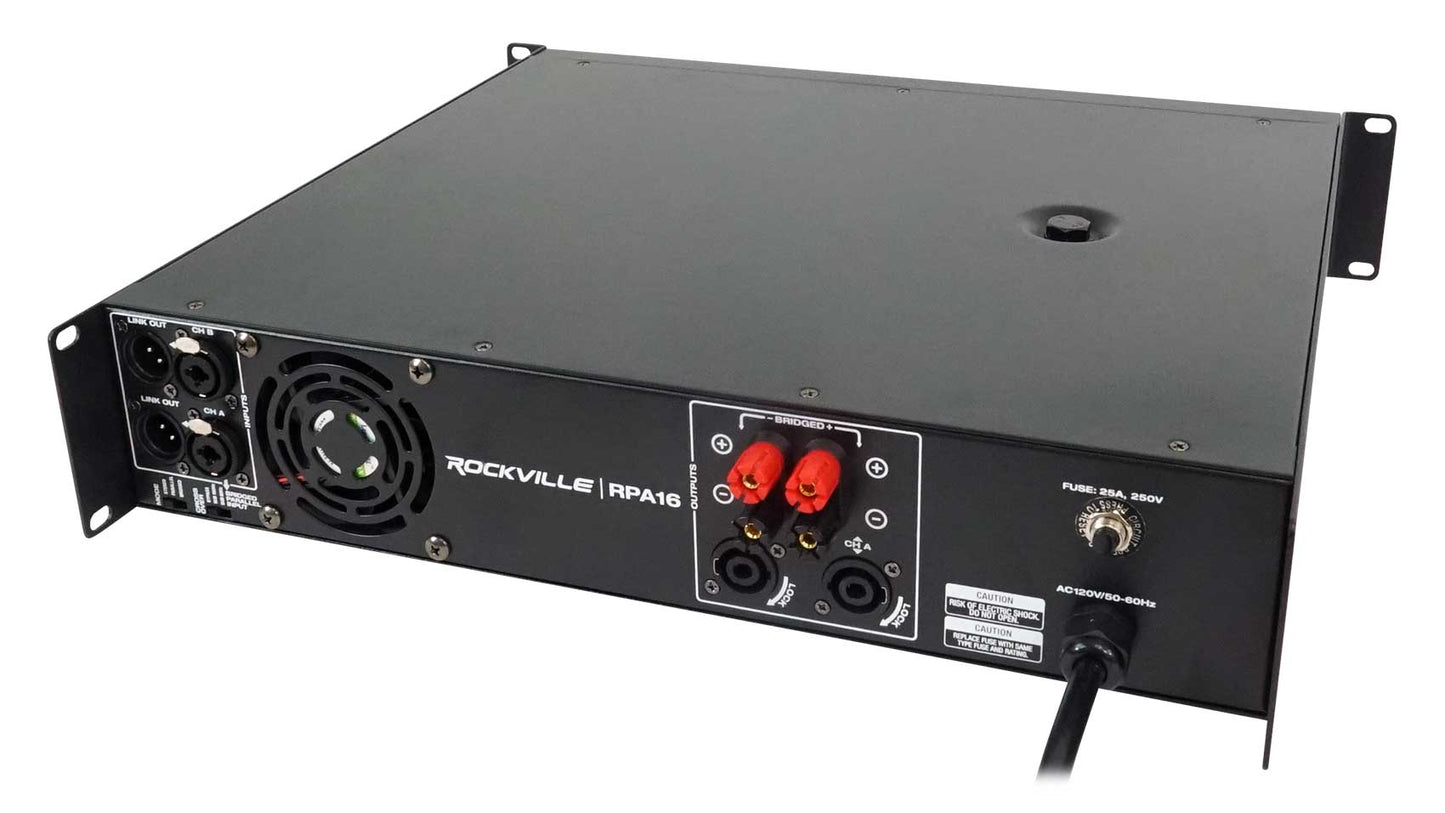

Terminals:

• Input Terminals:
• Combo jack (XLR and ¼”) A & B inputs
• Output Terminals:
• Banana binding post speaker output
• Speak on output
• XLR output to connect another amplifier or powered sub

Features:

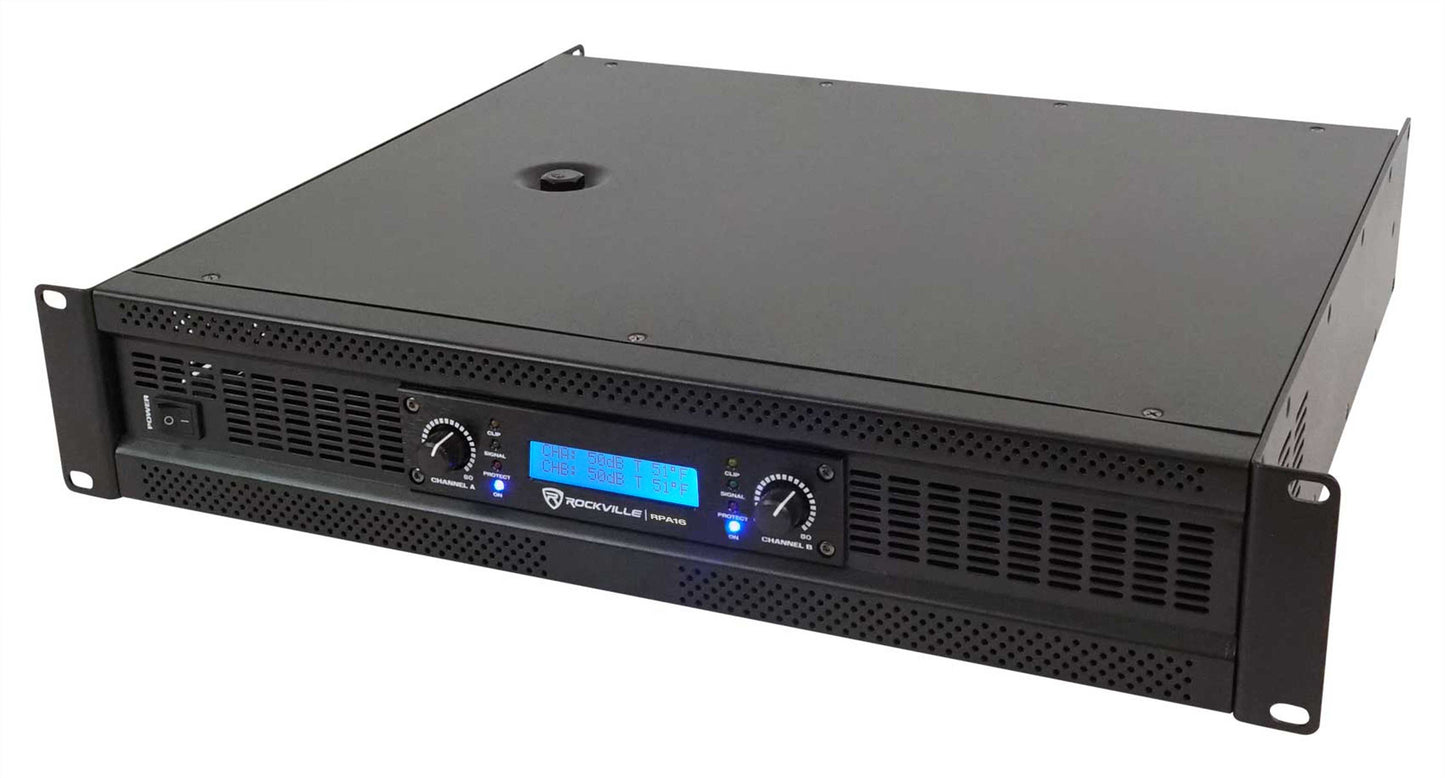

• Rockville RPA16 10,000 Watt Peak 2 Channel Professional/DJ Rack Mount Amplifier

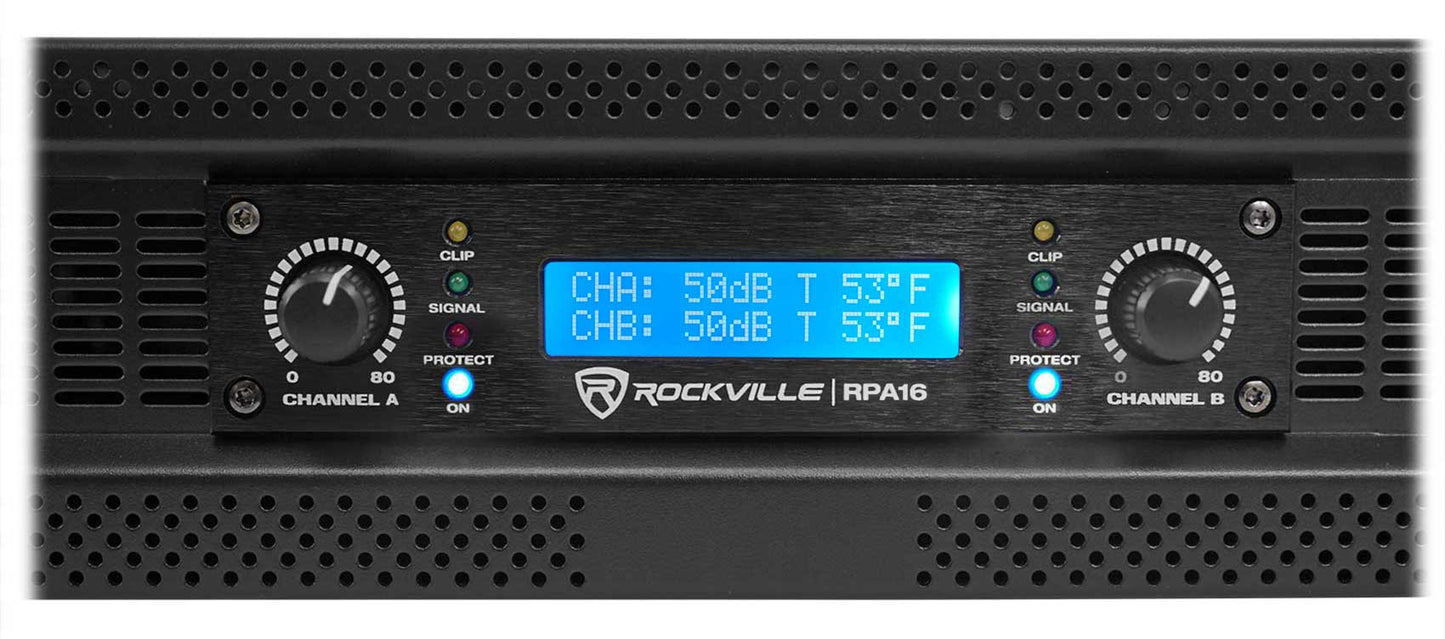

• LCD displays volume in dB per channel and operating temperature
• 2U rack space
• Built in limiter protects your speakers from distortion and clipping
• Bridged mode allows you to combine both channels power into one channel for use with a subwoofer
• Stereo mode is perfect for (2) speakers or (4) speakers in a left and right configuration
• Parallel mode gives you dual mono output signal which is perfect for monitor use when you want all sounds coming out of each speaker instead of a left/right configuration
• Built in crossover switch (bypass, 80 Hz, 160 Hz) allows amp to be used with full range PA speakers, or Subwoofer(s)
• Channel A & B Clipping Led Indicators
• Channel A & B Separate Level Controls
• Power, signal, clipping, and protection LED indicators on front of amp
• Heavy duty rack mount ears with handles
• Built-in variable high velocity quiet cooling fans
• Maximum headroom for 4-ohm and 8-ohm Speakers
• Level controls for precise setting and matching of sensitivity
• Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load
• User serviceable fuse (25A, 250V)
• Frequency Response (bandwidth @ 2Vrms out, @ -3.0dB) 10 Hz – 30 Khz
• THD + Noise @ 1Khz full power: <0.04%
• Input Impedance: 10K Ohm Balanced
• Input signal voltage: 660mV – 1.5V
• Input sensitivity: 0.7v
• Damping factor: ( 100Hz, 10w, 4 ohms): 36.5
• Damping factor: (1Khz @ 8 ohm): >400:1
• Effective damping factor (100Hz, 10w, 4 Ohms) 1.08
• Output impedance at speaker terminals: 0.10975 Ohm
• Frequency Response vs THD+N (worst case, across normal bandwidth 1W) 0.6%
• Signal to Noise Ratio: > 100dB
• IMD 60Hz & 1kHz, 4:1: <0.04%
• SLEW RATE (input filter limited) : 40v/uS
• Power Requirements: 120V / 50-60Hz
• Weight: 40.8 lbs
• Dimensions: 19.09 x 16.93 x 3.35 inch

---

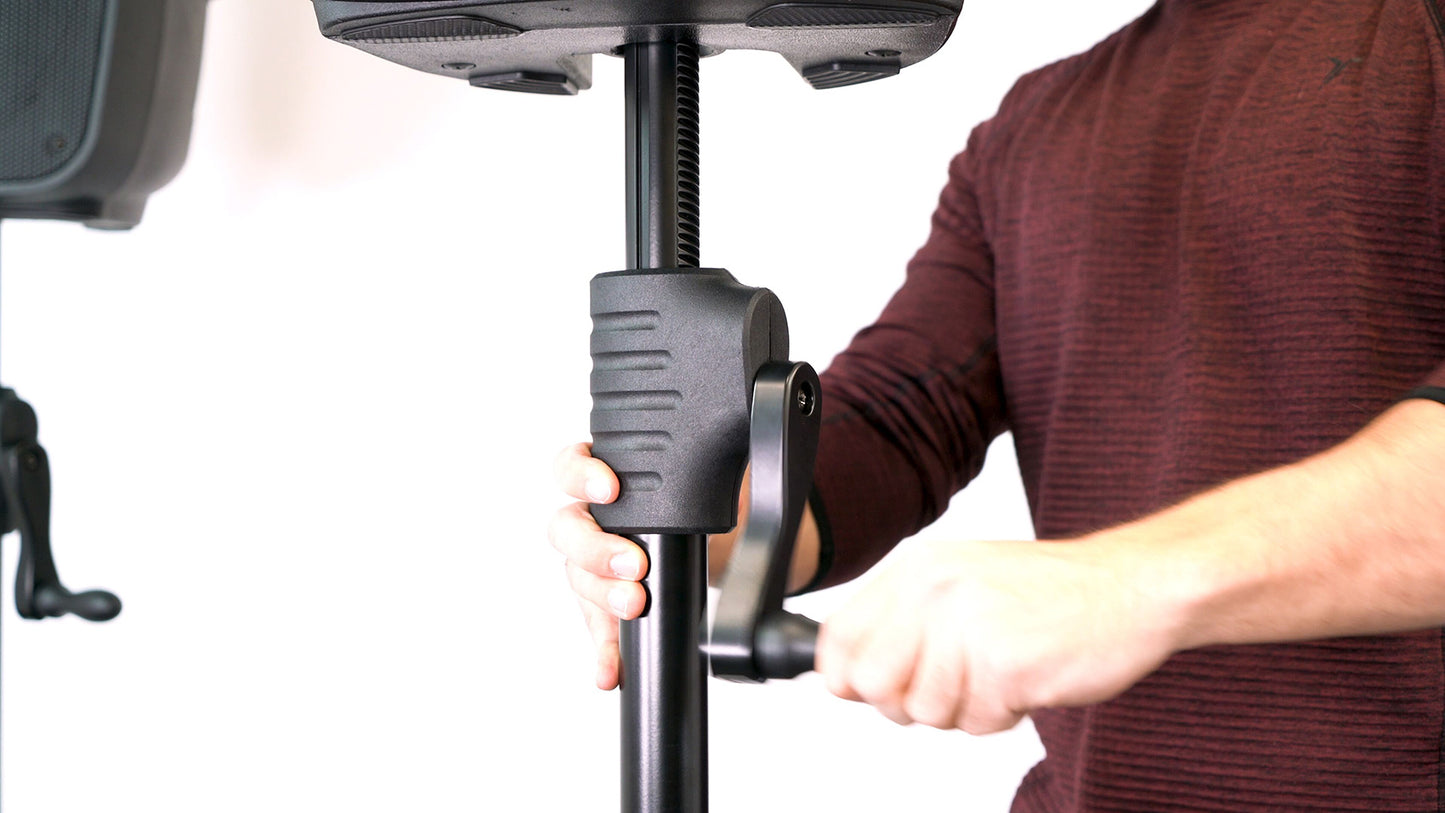

Video of RVCS2:

Description:

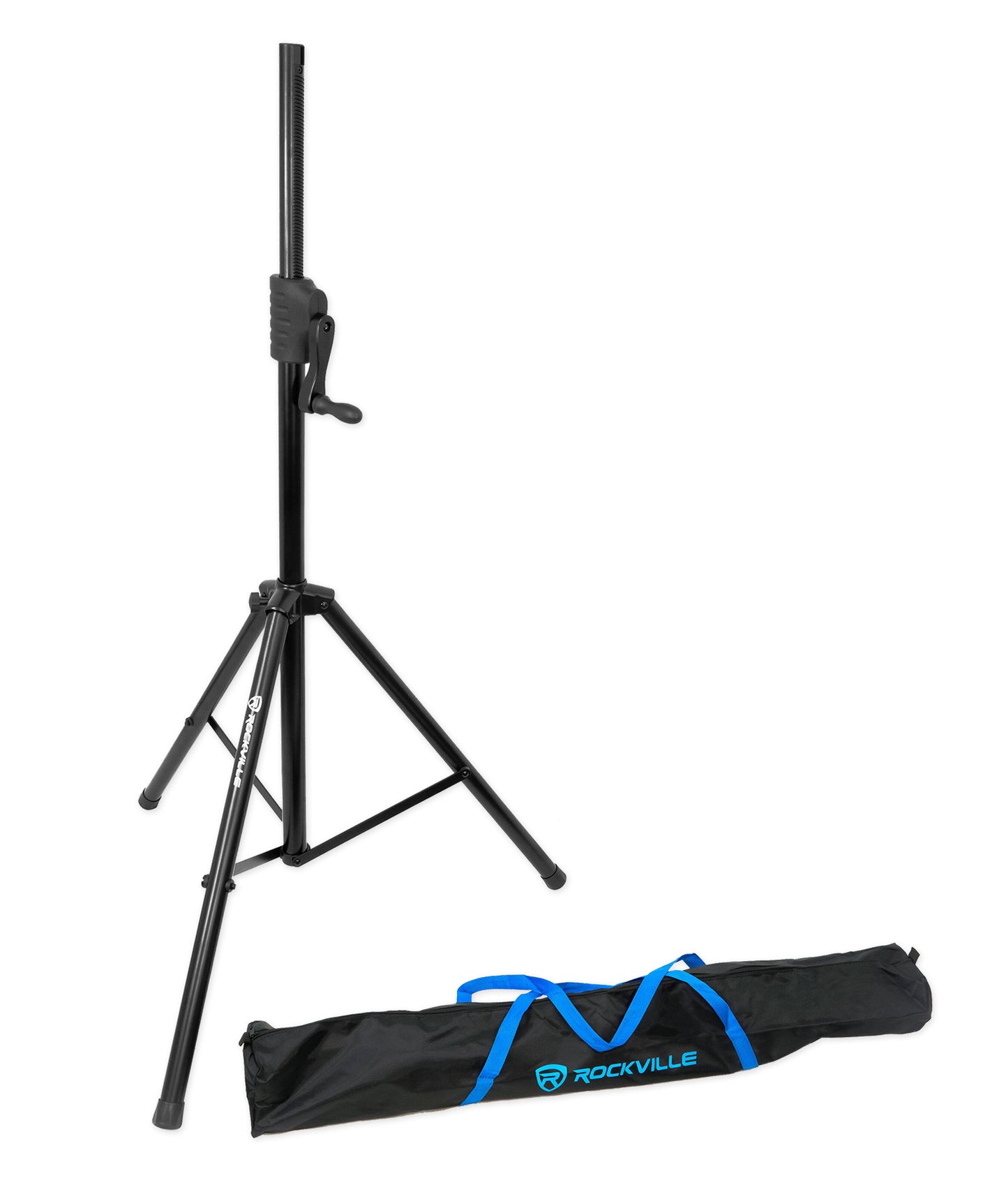

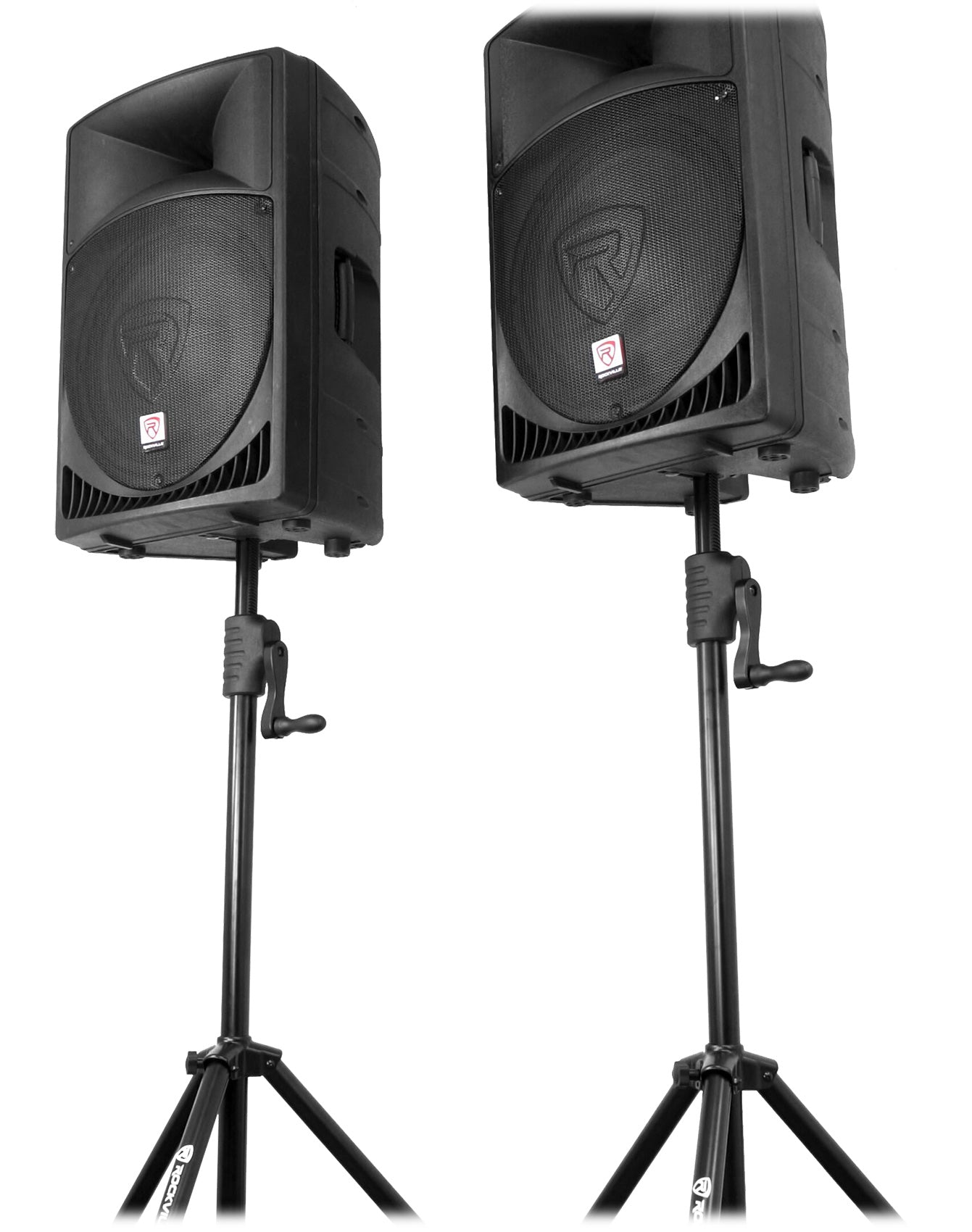

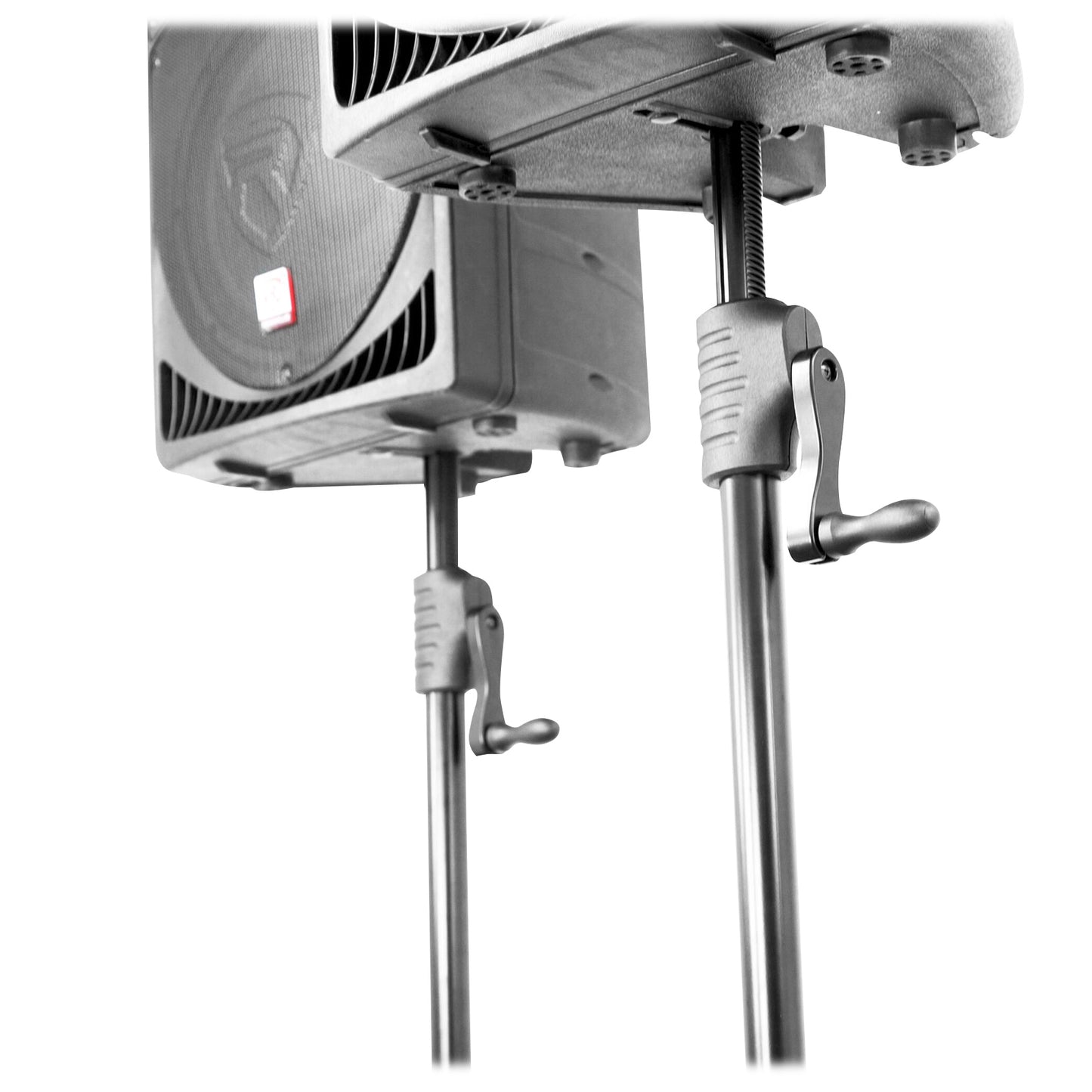

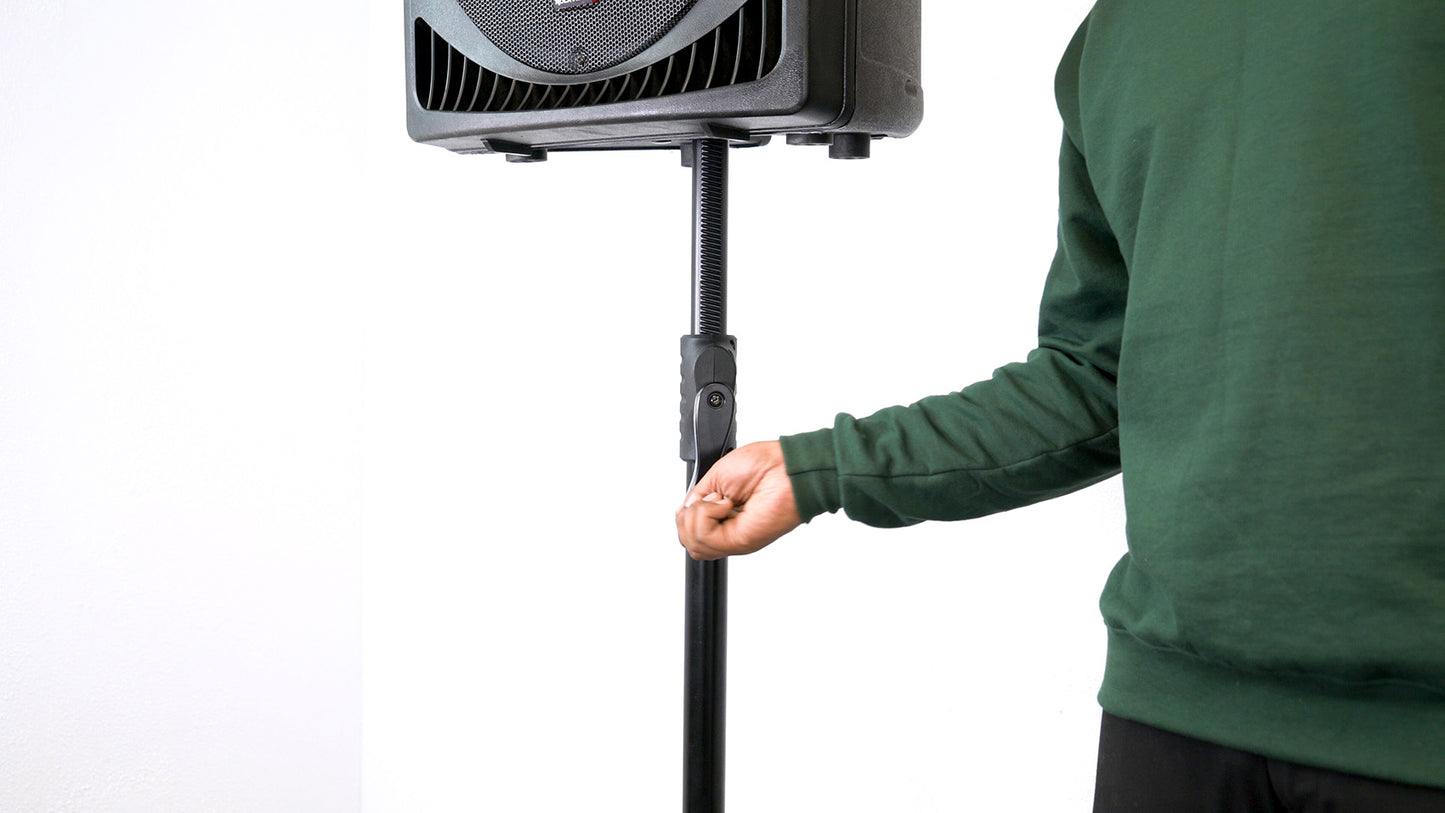

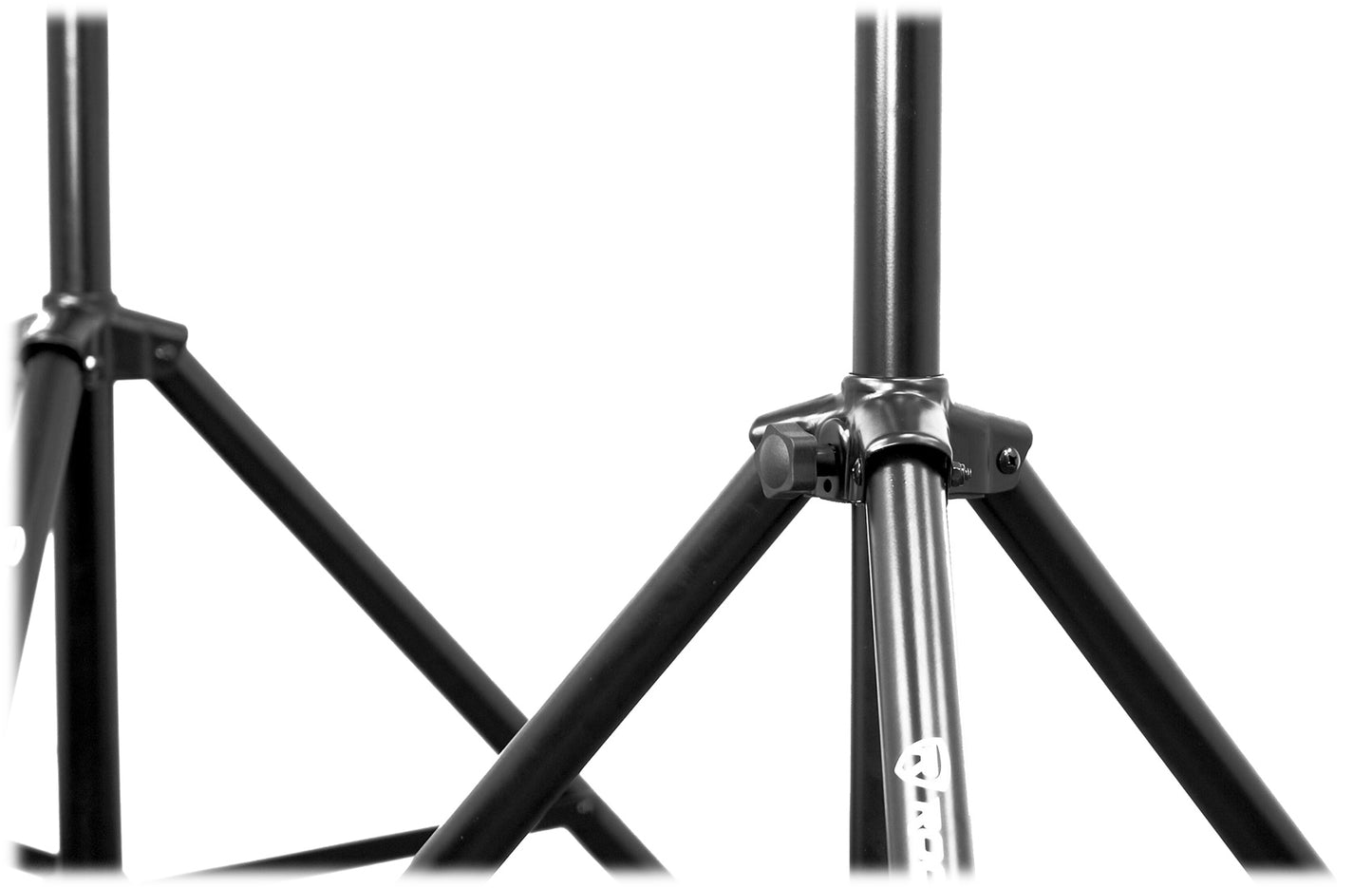

The Rockville RVCS2 crank up speaker stand will enable you to set your desired speaker height with ease. The height of the stand can be adjusted manually by using the crank handle. The RVCS2 can be adjusted to lift the speaker up to 80 inches and will support most speaker models weighing up to 100 lbs. This heavy-duty universal speaker stand is the ideal way to raise heavy speakers effortlessly. Also included with the Rockville RVCS2 is a carry bag making transport of the stand a breeze!

Features:

• Adjustable Height
• Upper Shaft Construction: Extruded Aluminum
• Bottom Tube Construction: Steel
• Color: Black

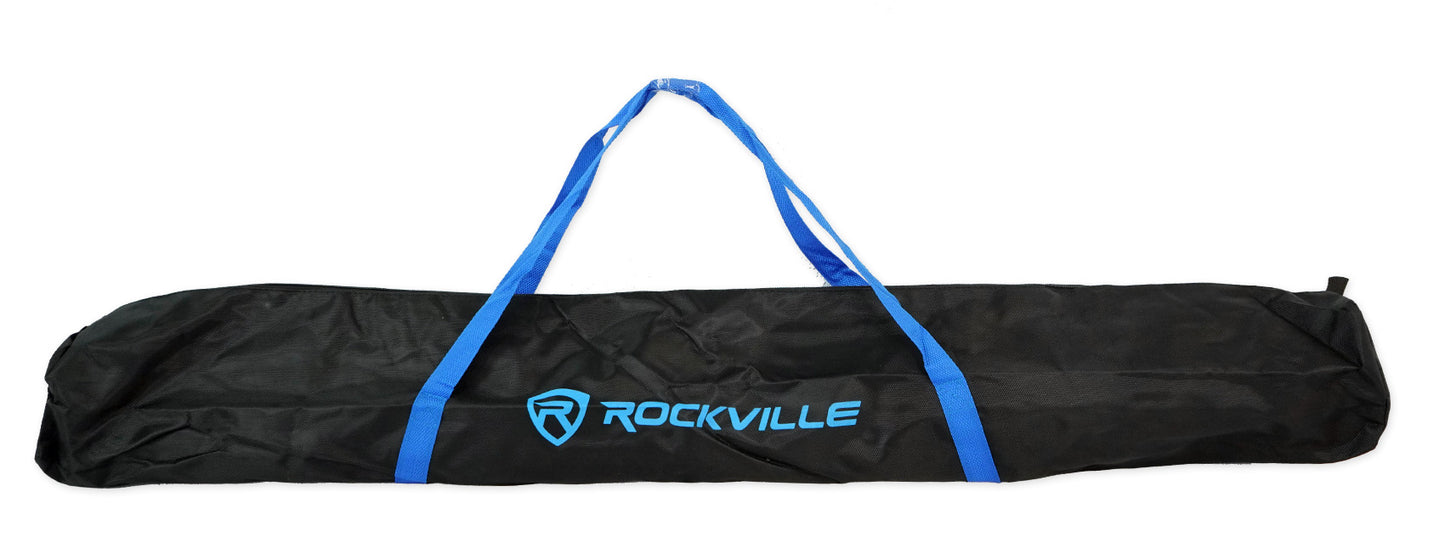

• Carry Bag Included

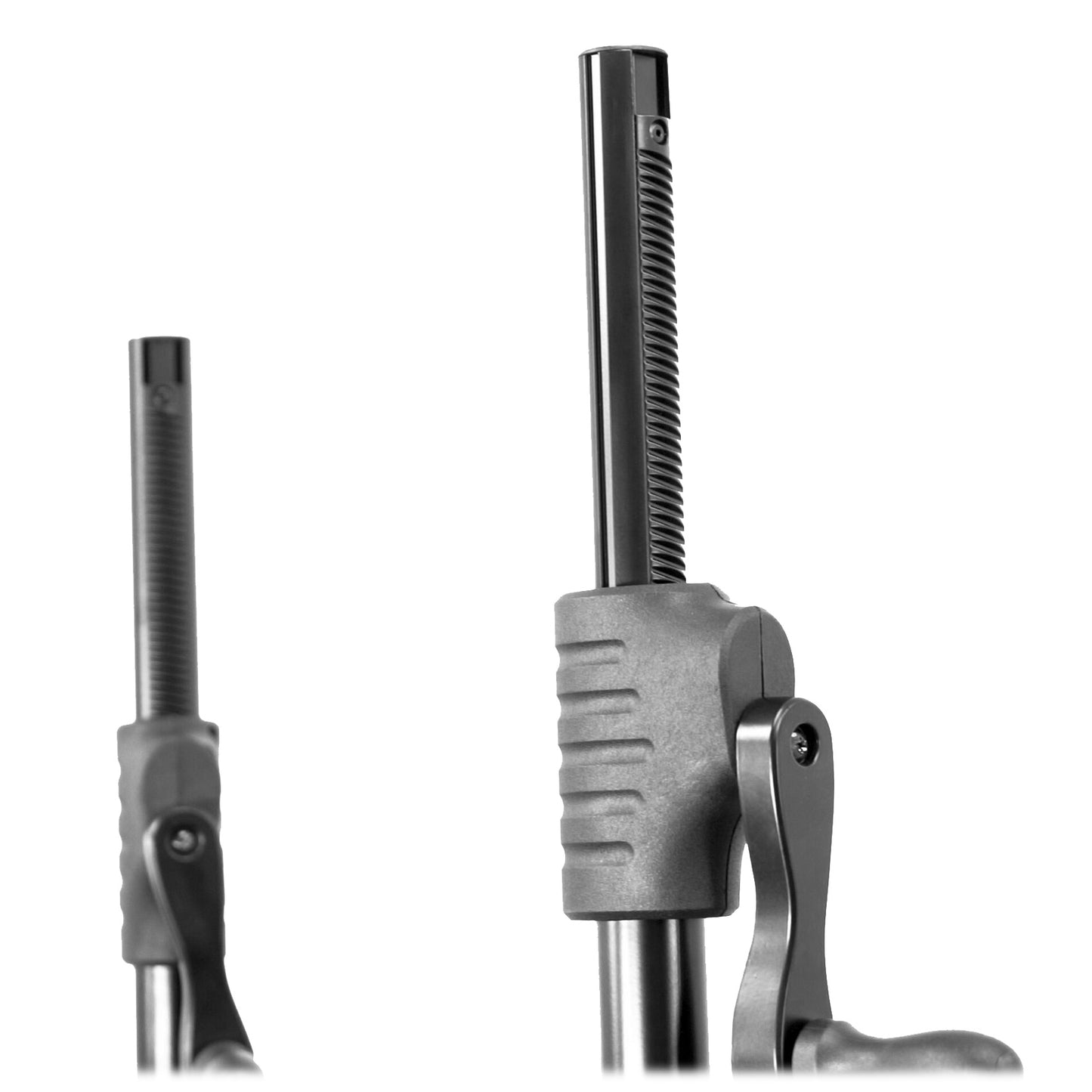

• Hand Crank Mechanism
• Weight Capacity: 100 lbs.
• Adjustable Height Range: 48” – 78”
• Base spread: 39”
• Telescopic Tube Diameter: 1.38”
• Outer Tube Diameter: 1.61”
• Leg Tube Diameter:1.38”
• Product Weight: 9.5 lbs.

---

Video of RCSS SPEAKON CABLES:

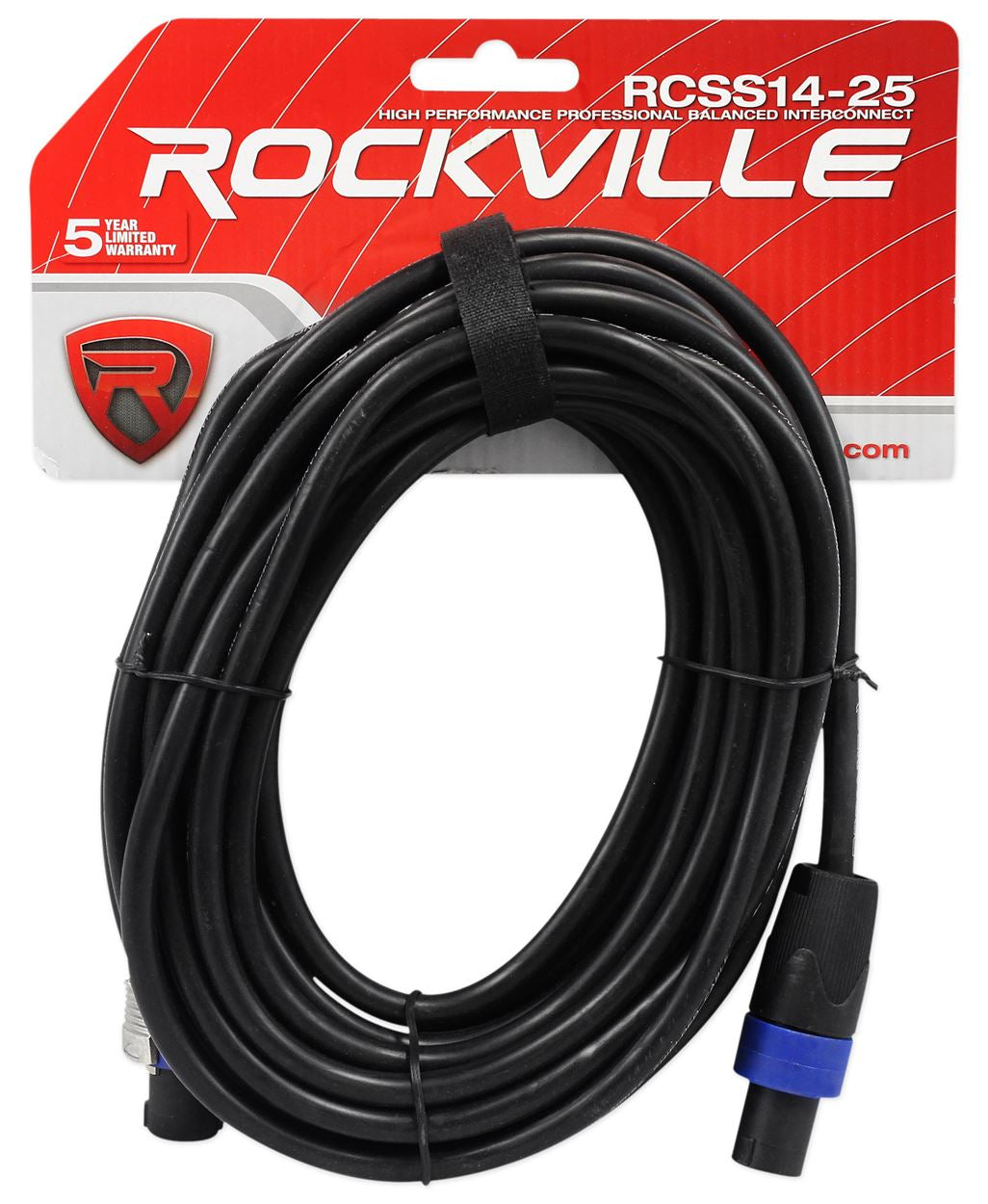

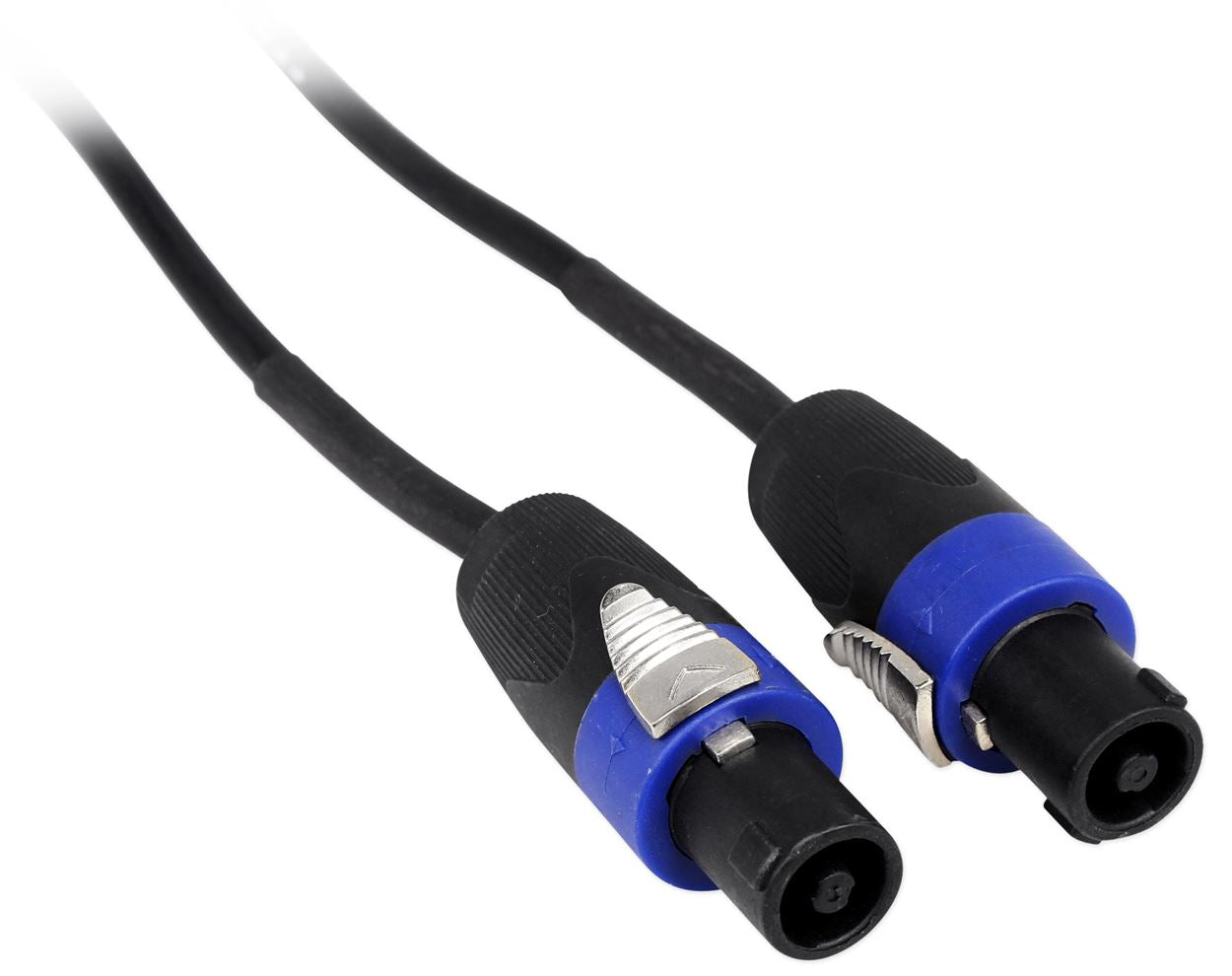

Video of RCSS1425:

Description:

All Rockville pro audio cables are made with 100% copper which boosts the efficiency of the cable. There is nothing better than 100% copper. Most of the cheaper cables on the market do not use 100% copper, instead they make their cables with CCA (Copper Clad Aluminum). CCA cables do not perform on the level that 100% copper cables perform at. CCA will not conduct signals efficiently. A 12 gauge CCA cable will not even perform as well as a 14 gauge 100% pure copper cable, which will in turn, affect the performance and longevity of your equipment. If you find cables on the market that do not mention the copper content, there is a good chance that they are selling you a cheaper cable that is CCA and not 100% copper. Rockville pays an inspection company to oversee the manufacturing of the product to ensure that we provide a 100% Oxygen Free Copper Cable (OFC). Our OFC cables are less prone to oxidation, and will provide maximum signal transfer.

The other important factor of a cable is the shielding. Most of the good brands on the market have about 85% shielding coverage, so we decided to take our shielding a step further. Rockville cables are shielded with a tight copper mesh, covering 90% of the cable! The high percentage of coverage increases the ability to absorb the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) that suppresses signal and degrades the performance of equipment. Rockville Cable’s copper shielding provides great flexibility, maintains a durable structural integrity, while decreasing signal interference ensuring enhanced signal clarity with every use.

Features:

• Rockville RCSS14-25 14 AWG 2-Conductor SpeakON to SpeakON Pro Speaker Cable
• 100% Copper Conductors for Lower Resistance
• Black PVC Jacket for Both Durability and Flexibility
• Intended for High-Current Applications Only, Not Line-Level Signals
• Length: 25 Ft
• Gauge: 14

---

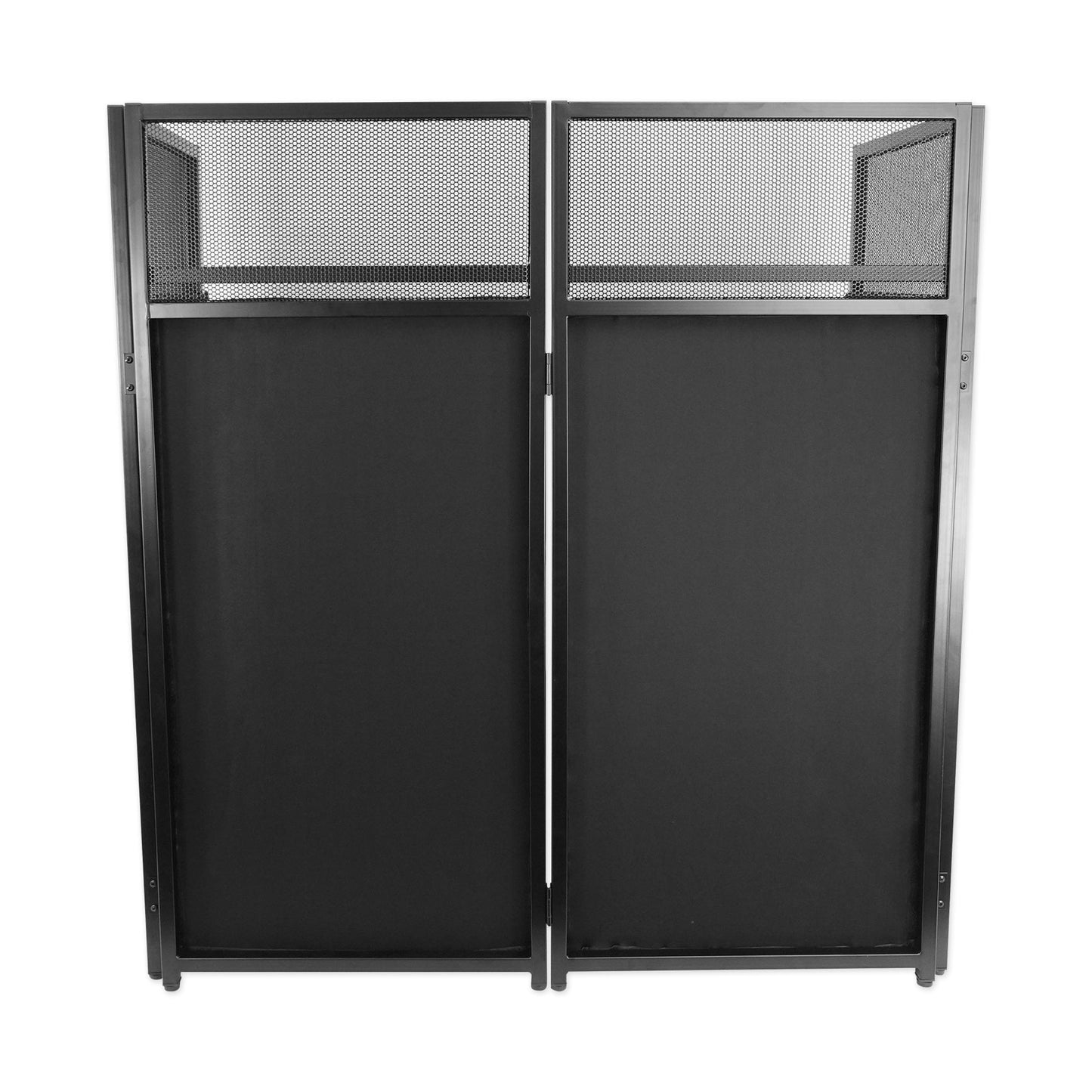

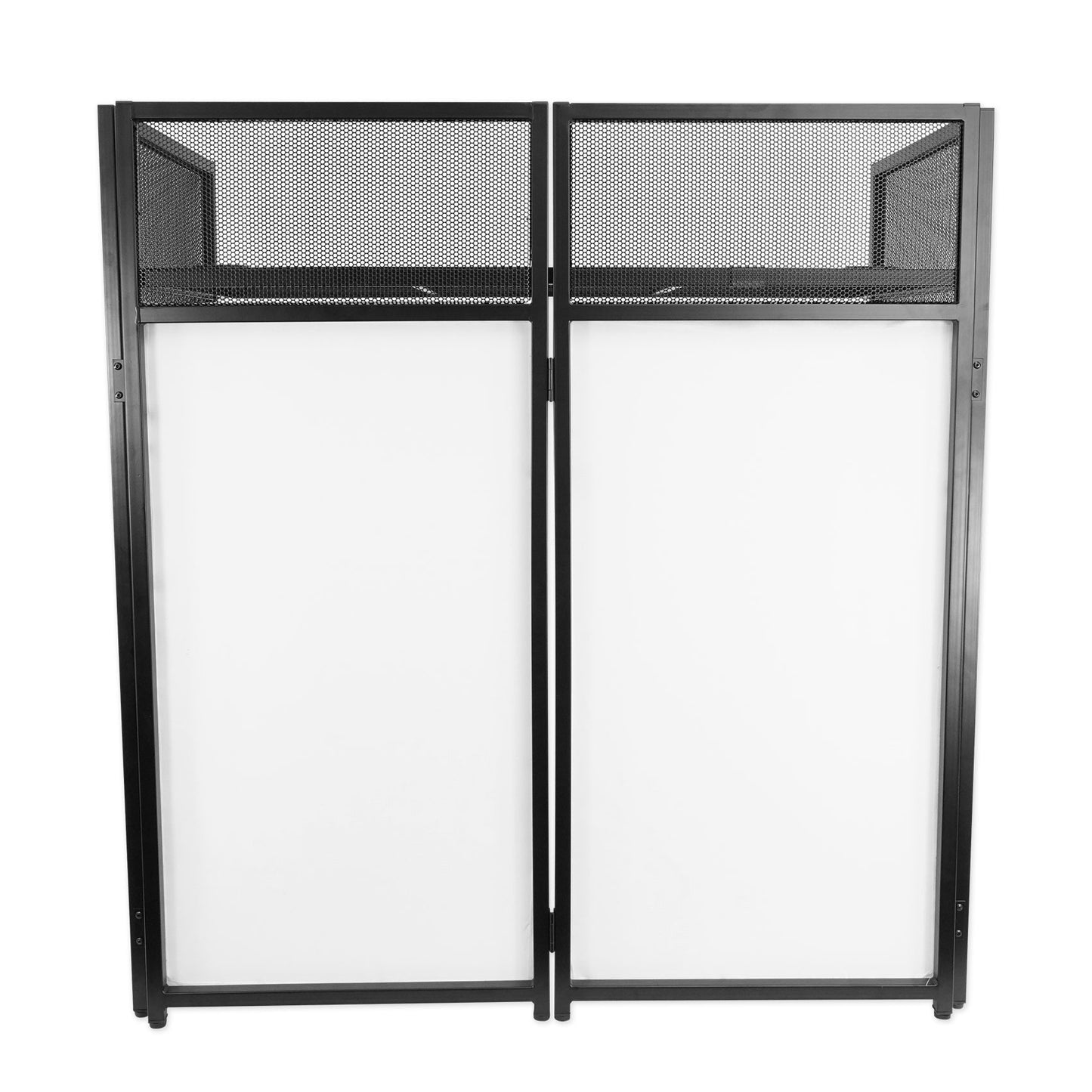

Video of ROCKBOOTH:

HOW TO SET UP YOUR ROCKBOOTH:

Includes:

• (4) Facade panels: 20" L x 44.1" H
• (1) Table panel: 39.5" L x 20" D
• (8) Scrims (4 black and 4 white)

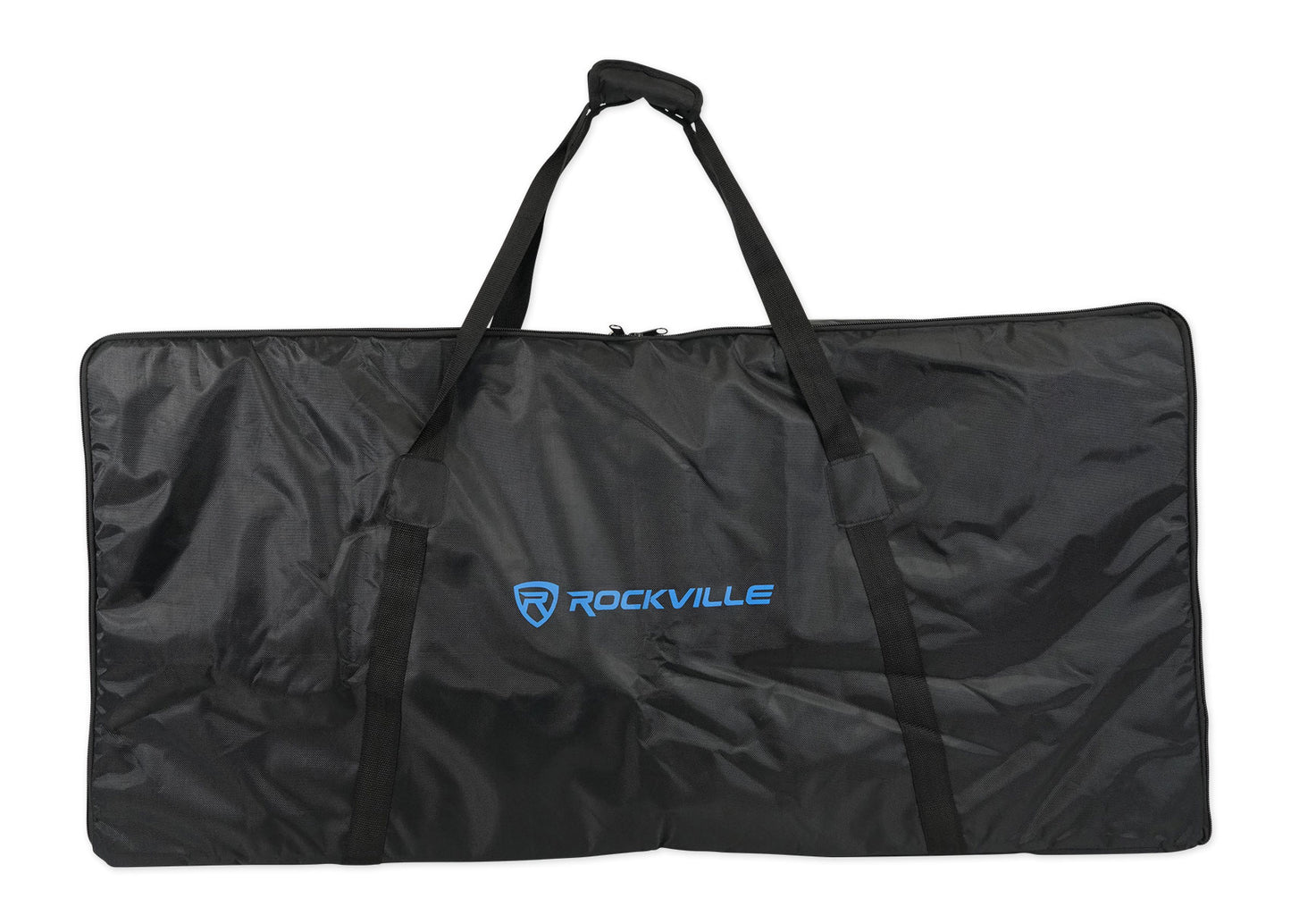

• Travel bag to hold the façade and scrims

Description:

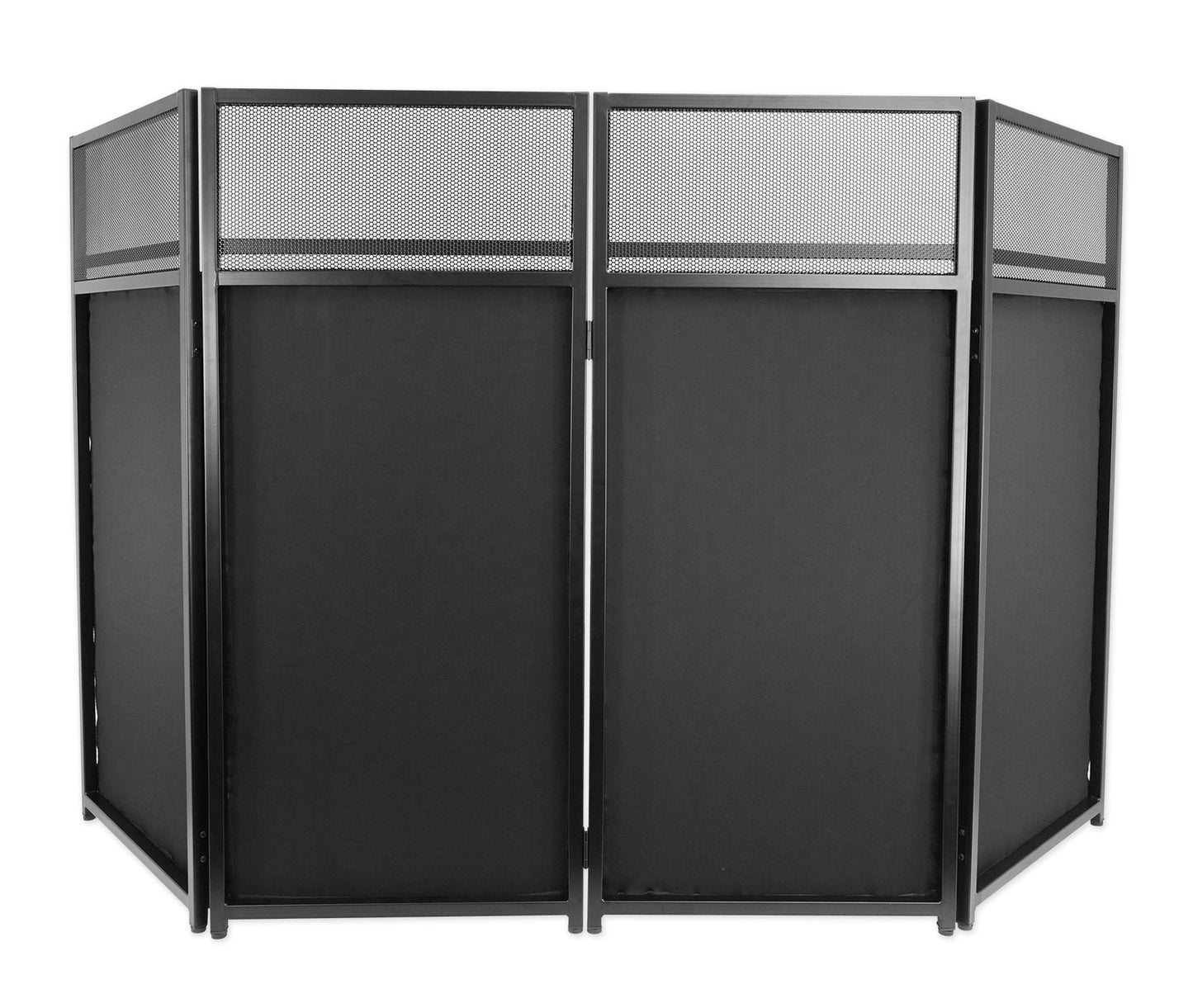

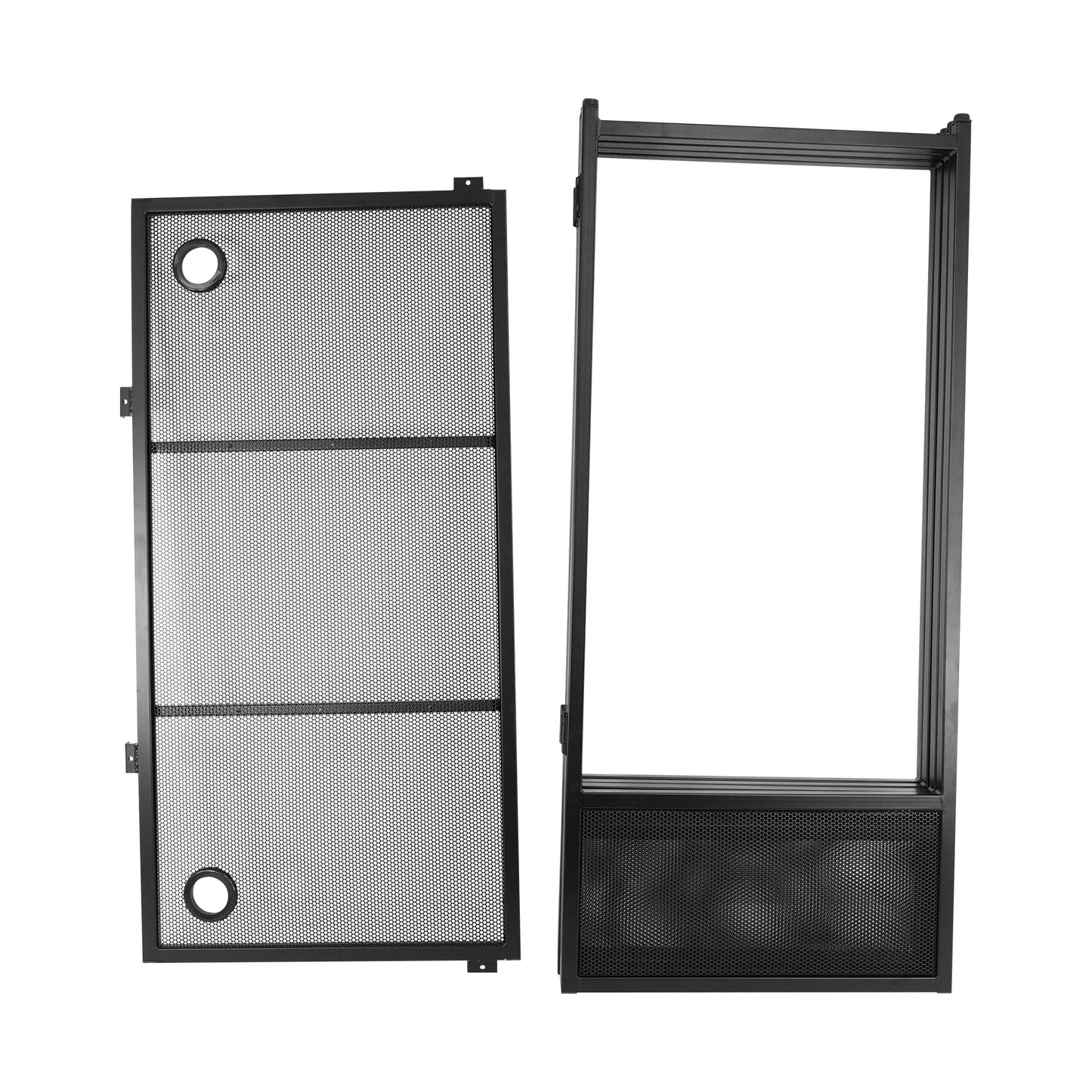

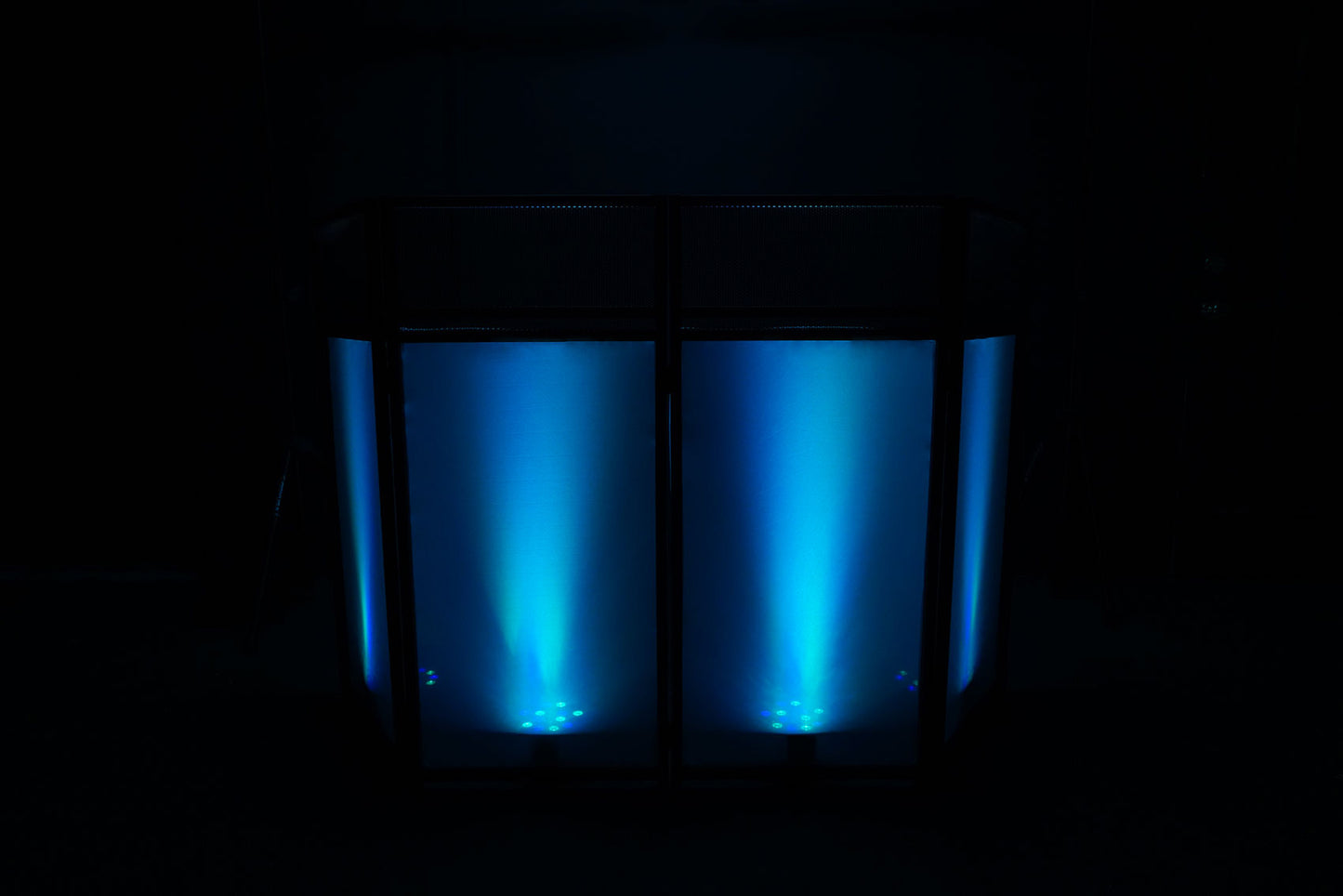

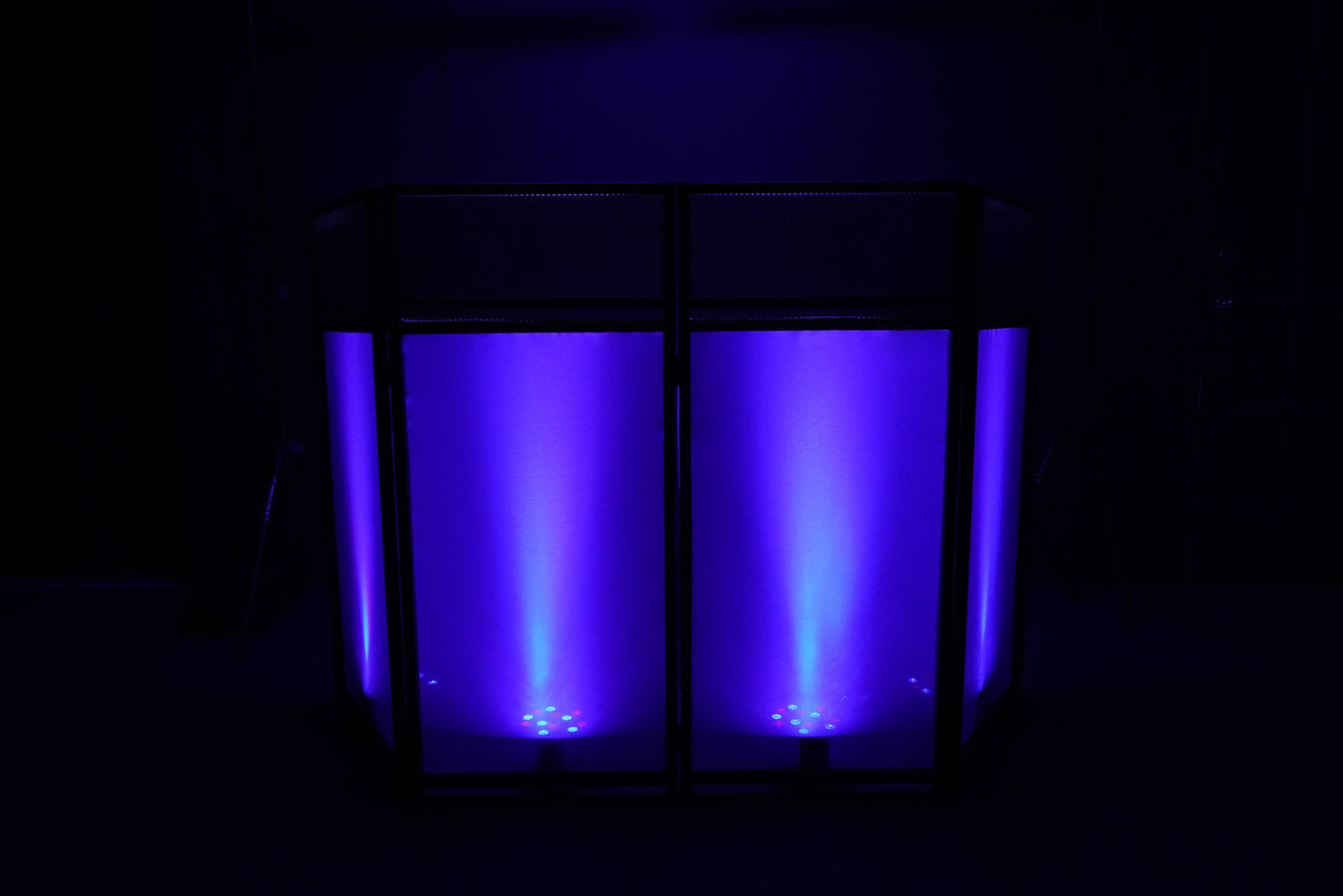

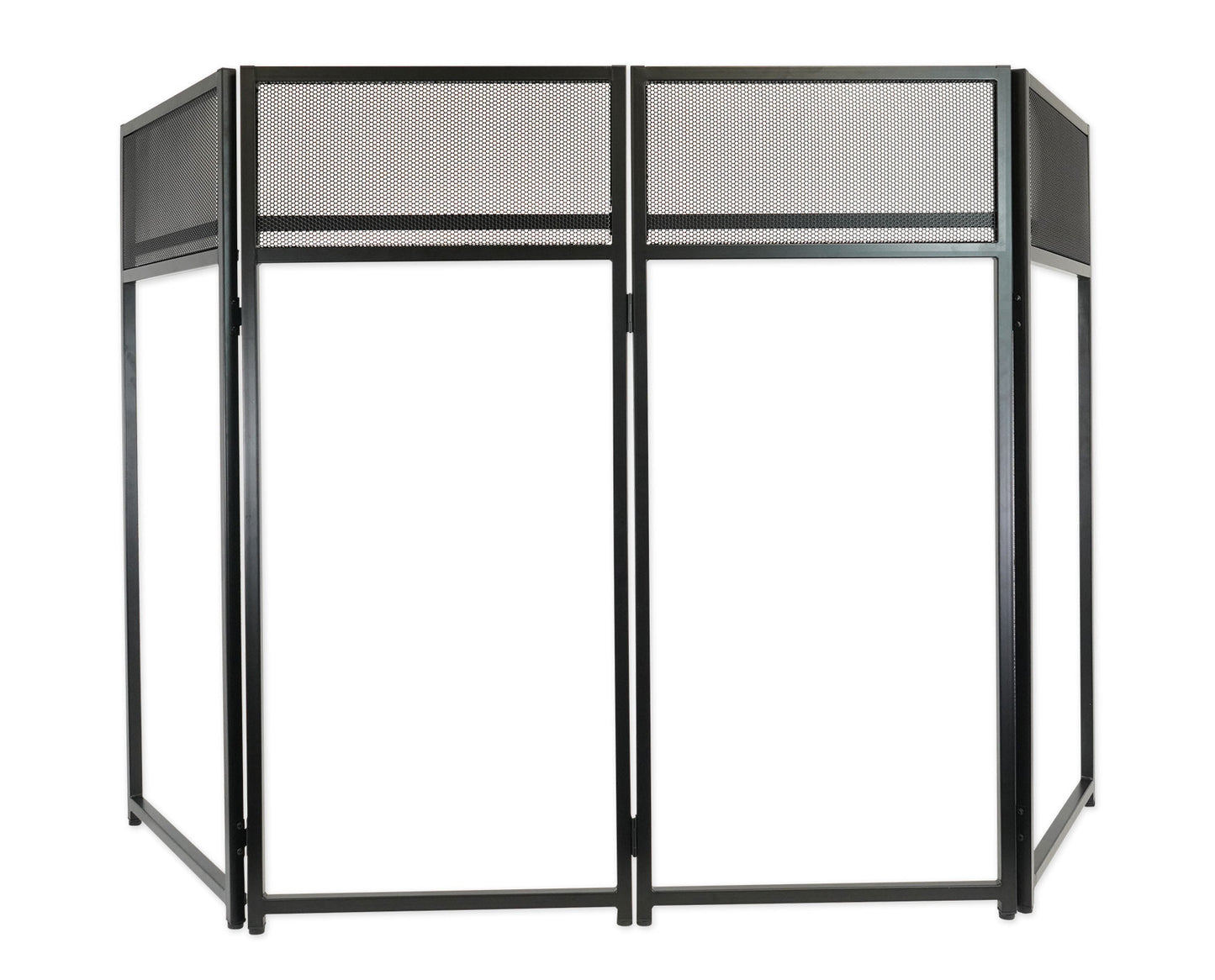

The Rockville RockBooth is an all in one solution for DJ’s. The RockBooth is a complete booth that includes a Façade as well as a built-in table with wire management. The table is detachable so you can change the angle of the panels and use the Rockbooth like a standard DJ façade..

Our standard RockBooth is slightly larger than similar items made by other brands. We also make an XL version for DJ’s who have a lot of gear or want the convenience of even more space.

The RockBooth breaks down flat quickly and fits inside the included high-quality travel bag.
We include black and white scrims to match the décor of any event.
The adjustable feet allow this to be stable on any surface (even if the floor is uneven).

Some other brands have the table click into place which is less sturdy. Our scrims are fire retardant and are made of the highest quality Lycra material on the market.

The Rockbooth includes a 90 day money back guarantee. If you are not happy with it return it for a refund and we will even send you a pre-paid return shipping label to cover your return shipping cost if you are in the 48 continental US.

Features:

• Rockville ROCKBOOTH DJ Event Booth Facade w/Built in Table+Travel Bag+Scrims
• 100% metal frame is strong and sturdy
• Detachable table allows you to use this as a traditional façade or as a complete DJ booth
• Table has (2) wire management openings
• Includes black and white scrims that attach and detach quickly
• Strong velcro on the frame is attached with glue and rivets
• Includes 4 adjustable screw in legs for perfect stability even on un-even floors
• Folds completely flat for easy transport with the included carrying bags and pouches
• Adjustable feet make the Rockbooth stable on any floor
• Our panels and table are larger than the competition and our XL model is even larger than this one!
• Foldable design is quick and easy to set up and break down
• Scrim is fire retardant
• Scrim is easy to wash – simply wash with cold water and lay it flat to dry
• Non-slip rubber feet for stability
• 90-day money back guarantee including return shipping
• Product weight: 37 Lbs.
• Dimensions of facade panels: 20" L x 44.1" H
• Dimensions of table panel: 39.5" L x 20" D
