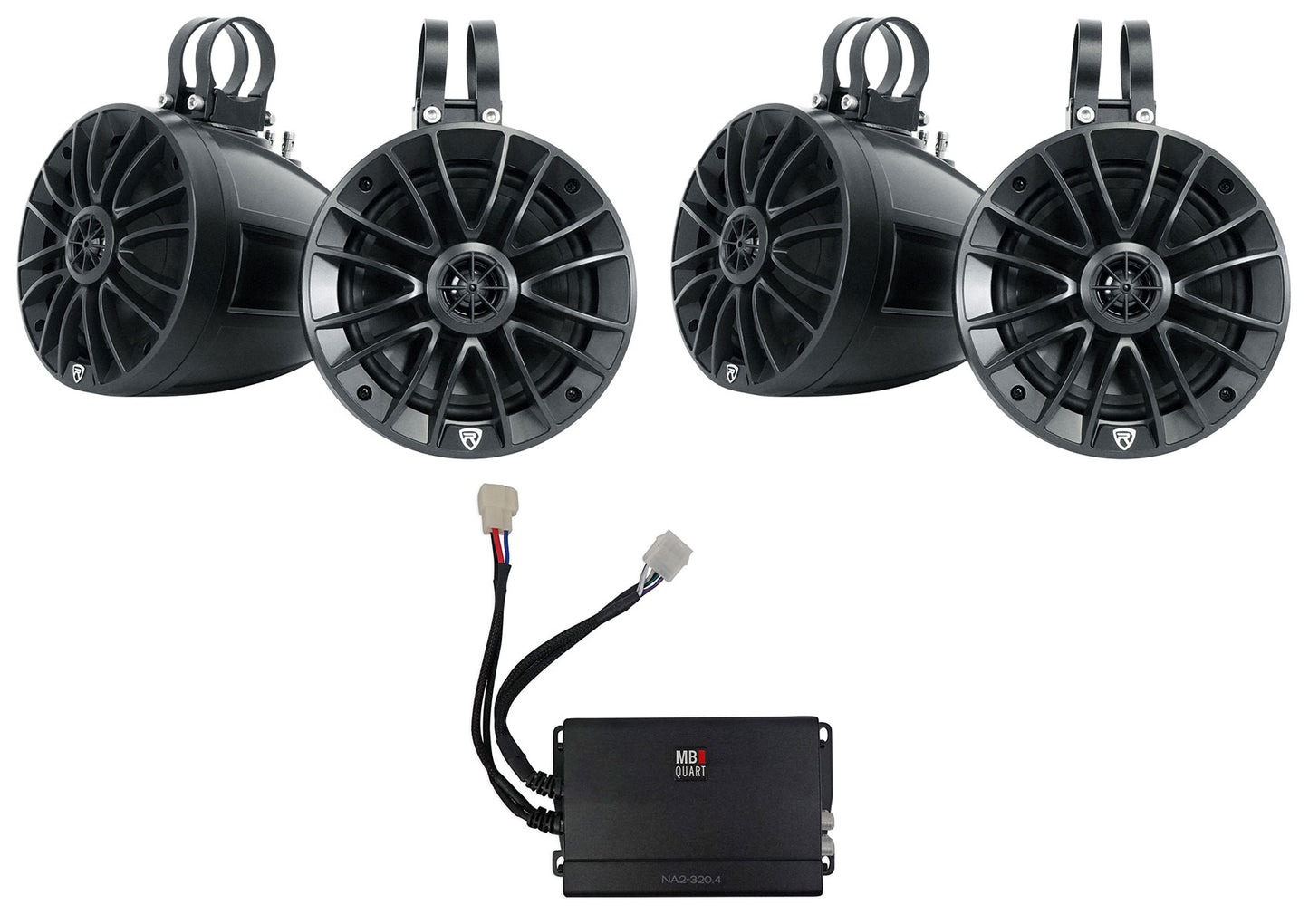

Package Includes:

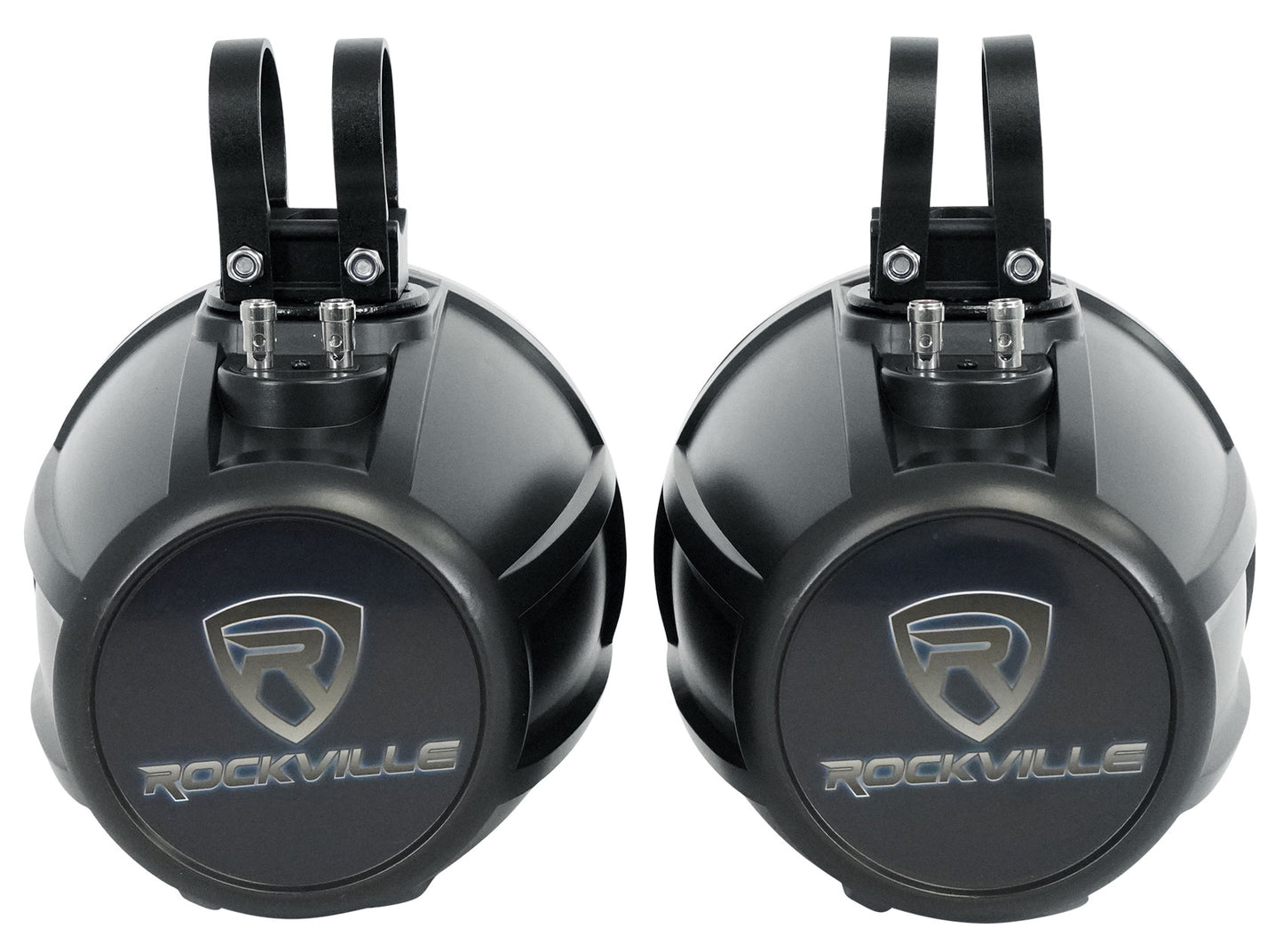

• (2) Rockville UT65B UTV/ATV 6.5" Rollbar Wakeboard Marine Speakers/Swivel Mount/IPX6
• (1) MB Quart NA2-320.4 320w RMS 4-Channel Amplifier Amp for Polaris RZR/ATV/UTV/Cart

---

How To Set Up Your UT65B:

UT65B PRODUCT VIDEO:

What's In The Box:

• 2 swivel mount roll bar / wakeboard speakers

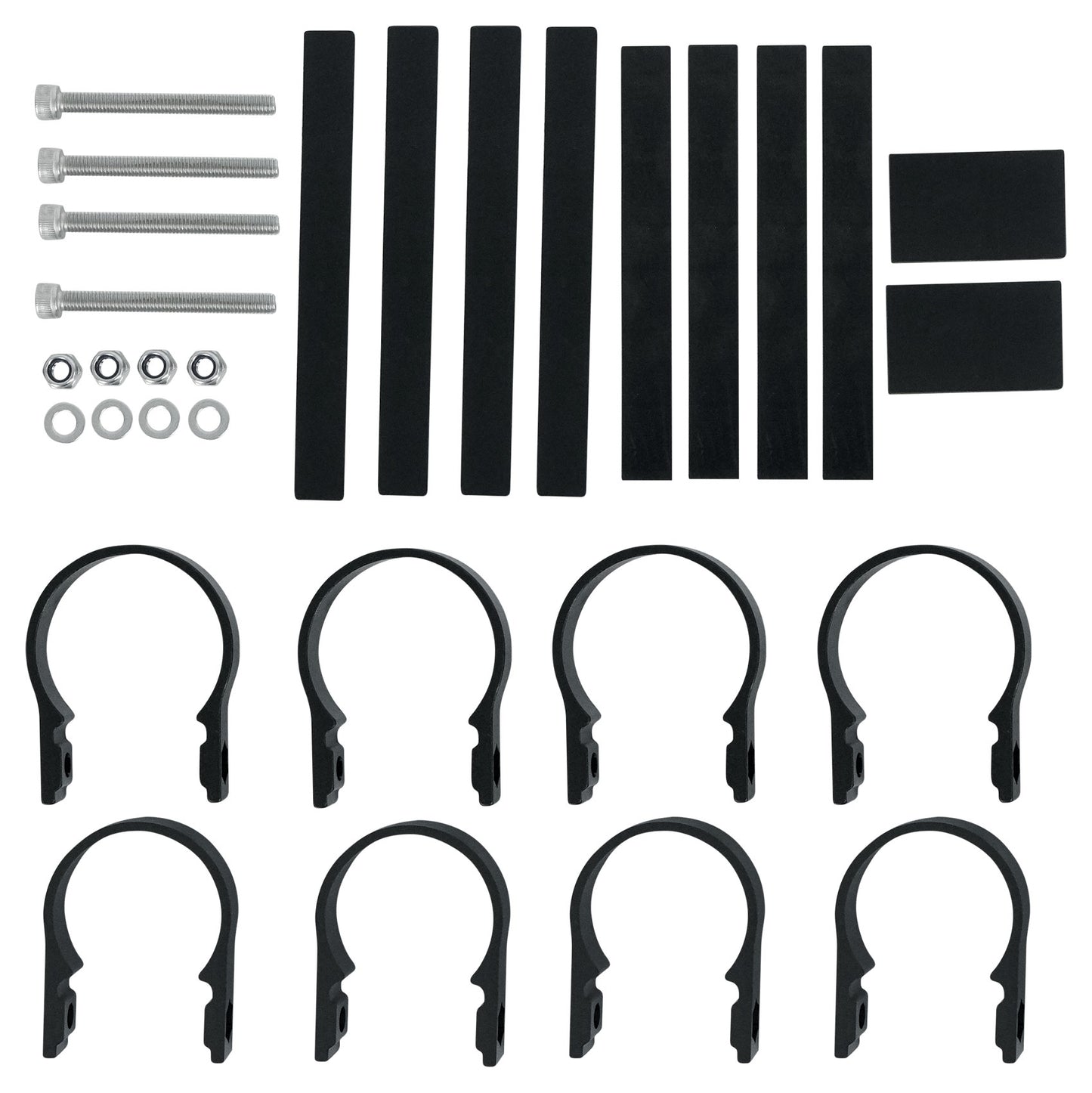

• Swivel Mounting brackets and mounting hardware to fit 1.5'' or 1.75" or 1.875" or 2" bars
• Installation Hardware

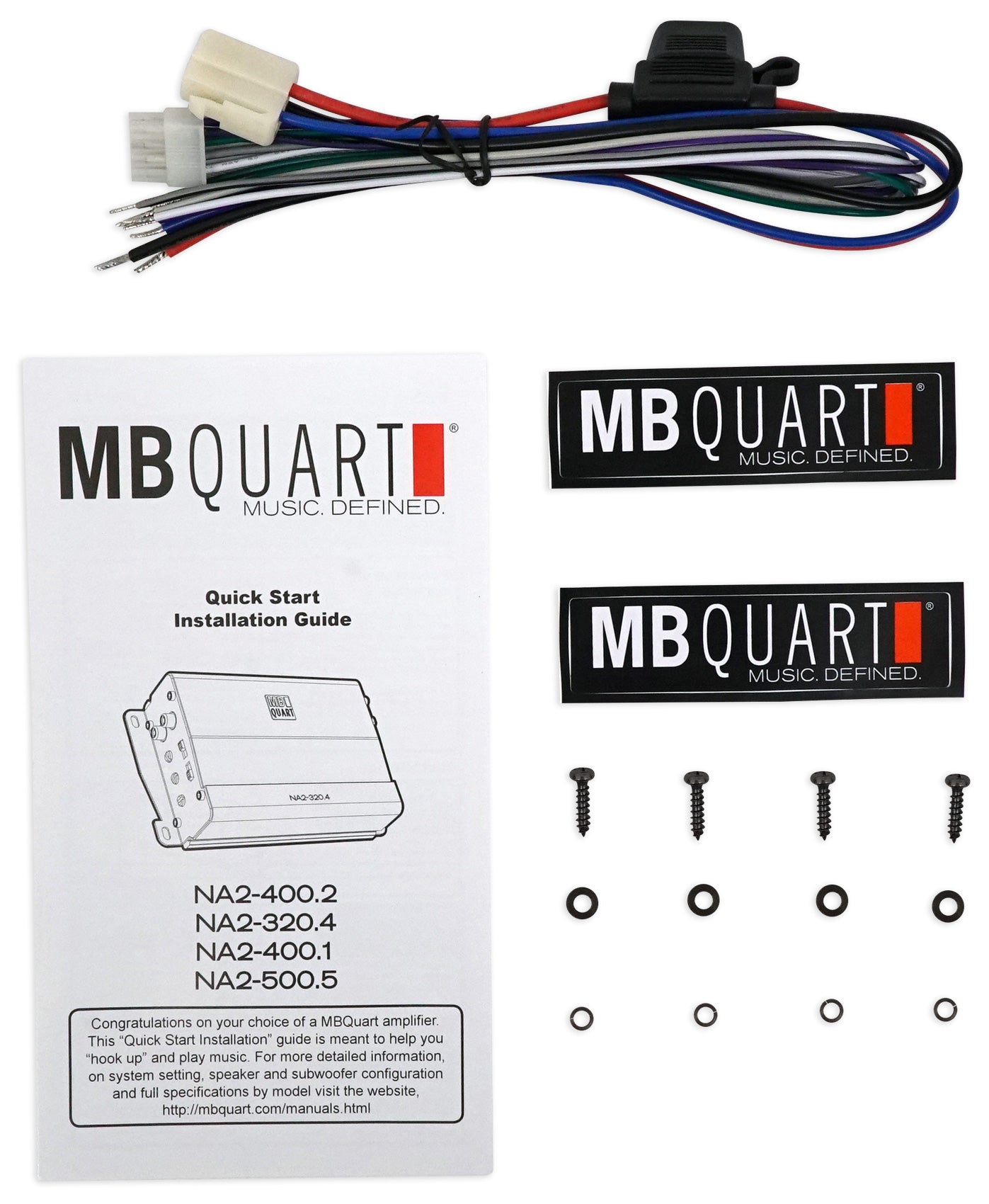

• Owner's Manual
• Warranty Card

Features:

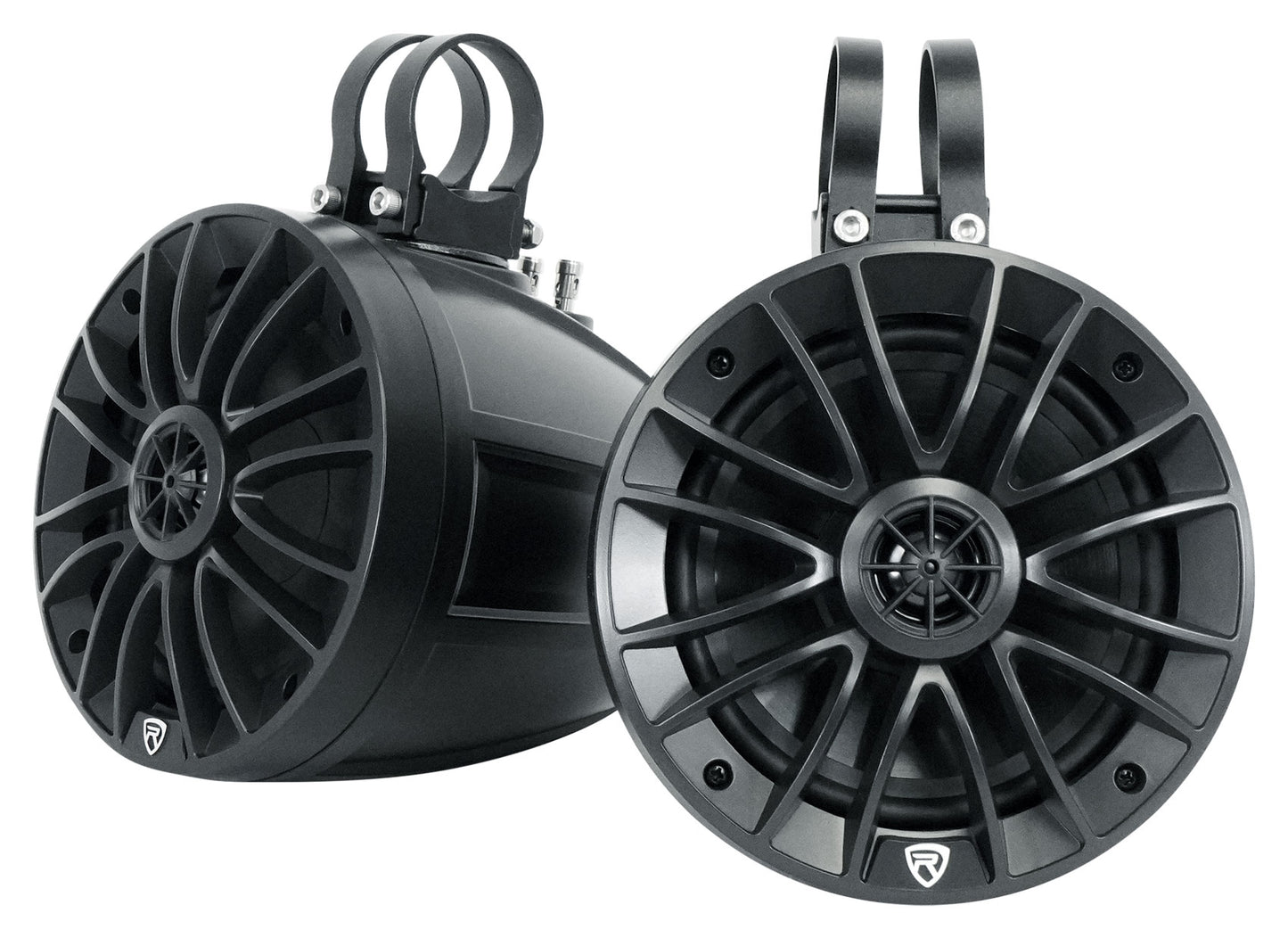

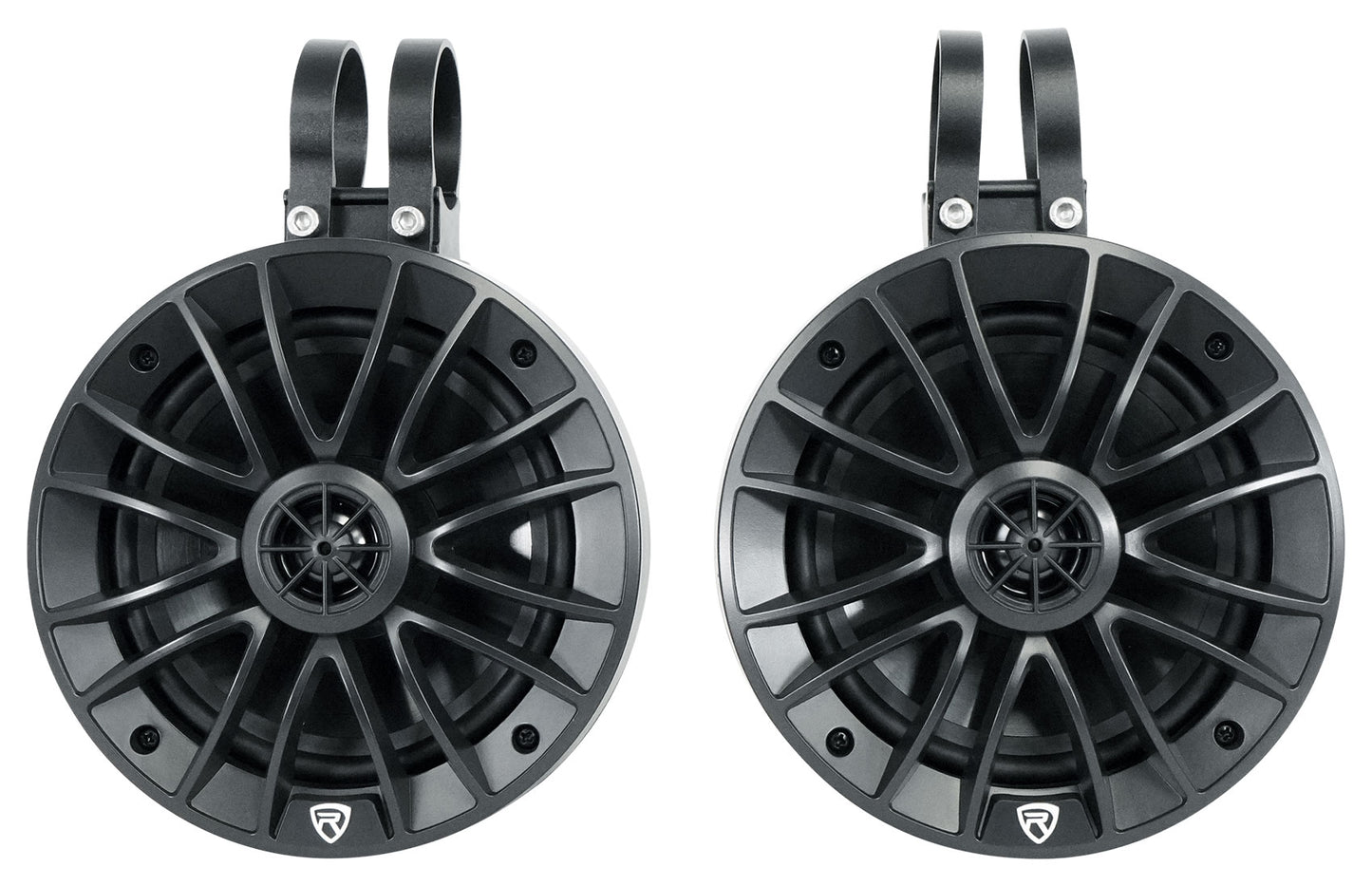

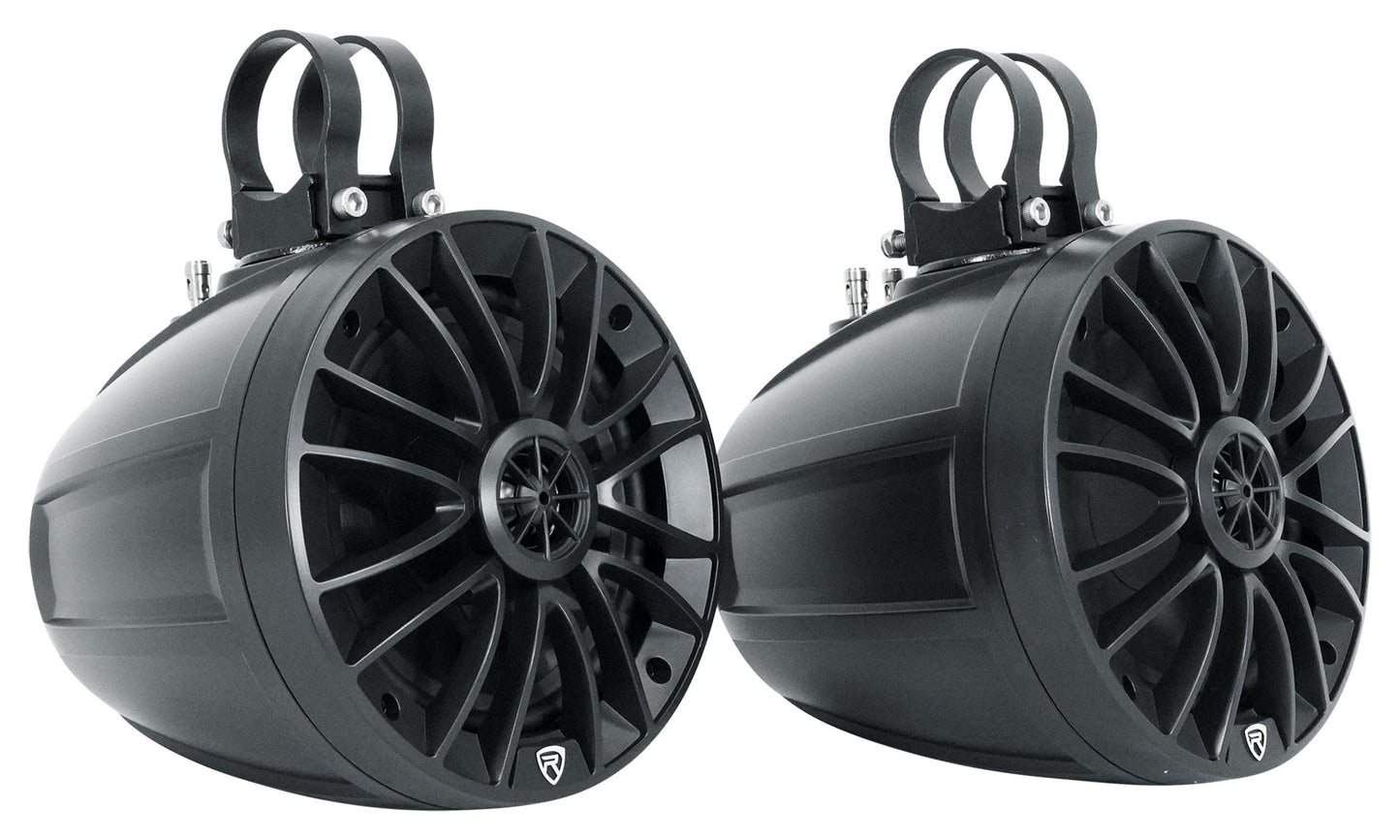

• Rockville UT65B Pair 6.5" Marine UTV/ATV Roll Bar / Wakeboard Tower Speakers
• Peak Power Handling: 400 Watts
• RMS Power Handling: 100 Watts
• True Coax Design With the Tweeter Completely Separated From the Cone
• Larger Cone Surface Area Gives Better Mids and Lows
• Less Mass Attached to the Cone Allows for Higher SPL and Sensitivity
• True coaxial design allows for superior sound quality, better stereo separation, and clearer mids and highs
• Heavy Duty ABS enclosure
• IPX6 Water Resistance Rated
• Marine-grade components are protected from the outdoor elements

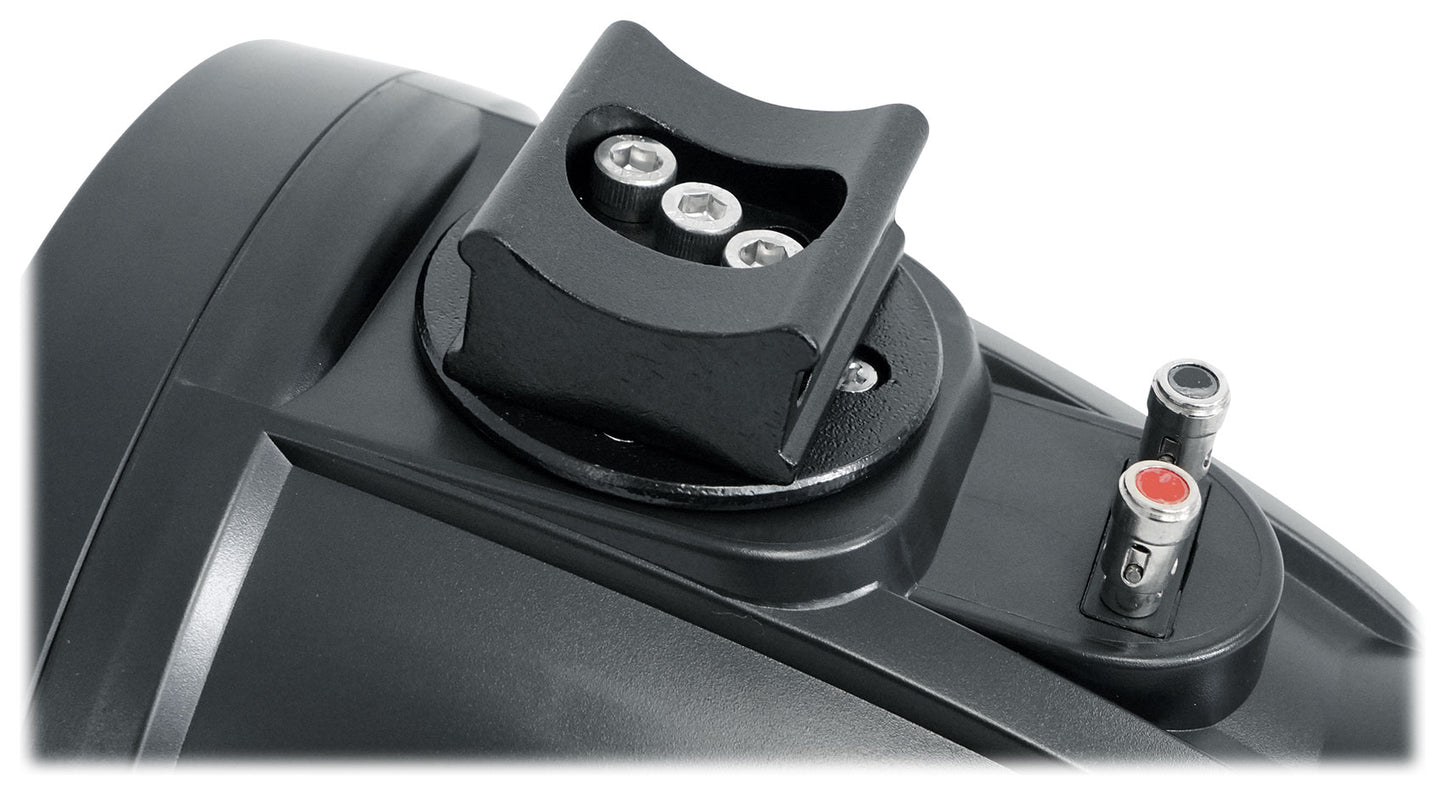

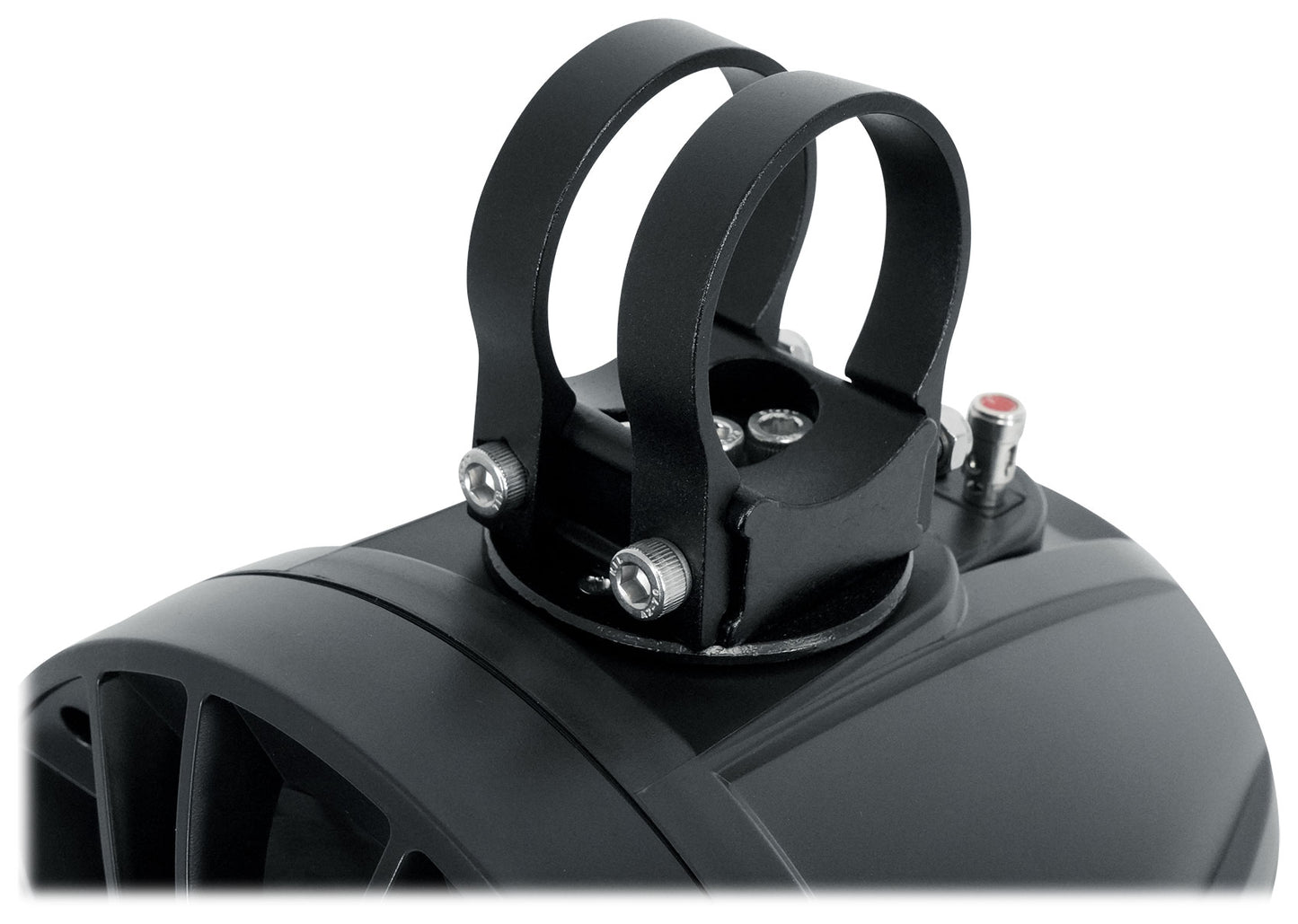

• Adjustable Aluminum Mounting Bracket is Strong and Sturdy
• Bracket Swivels 360 Degrees (Fixed swivel)
• Bracket supports any rollbar from 1.5" to 2" inches thick
• 6.5" Woofers with 11 oz Magnets and Oversized 1.25" Kapton Voice Coils
• 1" PEI Dome Tweeters with Neo magnets
• Fits wakeboard towers and roll bars ranging from 1.5" to 2" inches
• Shallow enclosure design is perfect for UTV, ATV, and marine applications
• Built-In Two-Way Crossover Network
• Fully Marinized Against Salt & Fresh Water Conditions
• Completely Resistant to Water, Rust, and UV Rays
• Terminals Are Sealed internally with silicone making them resistant to water
• Polypropylene Mica Injected Cone with Butyl Rubber Surround
• Frequency Response: 60Hz - 20KHz
• SPL: 87dB @ 1w/1m
• Impedance: 4 Ohms
• Shockproof Design
• ABS Weather Resistant Grills and Hardware
• CE and RoHS Certified
• Color: Black
• Dimensions (H x W x D): 9.84" x 7.17" x 7.32"

---

Description:

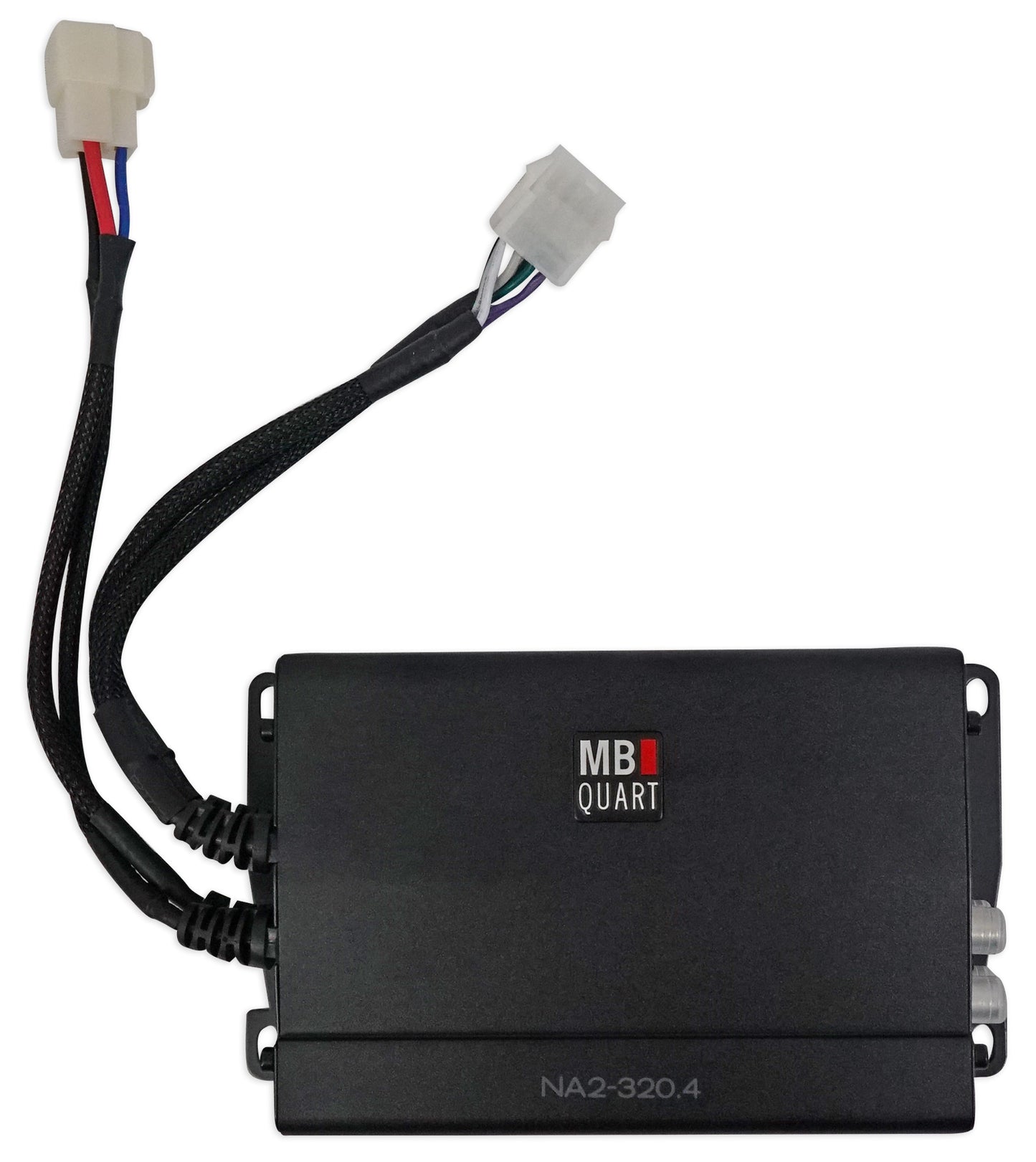

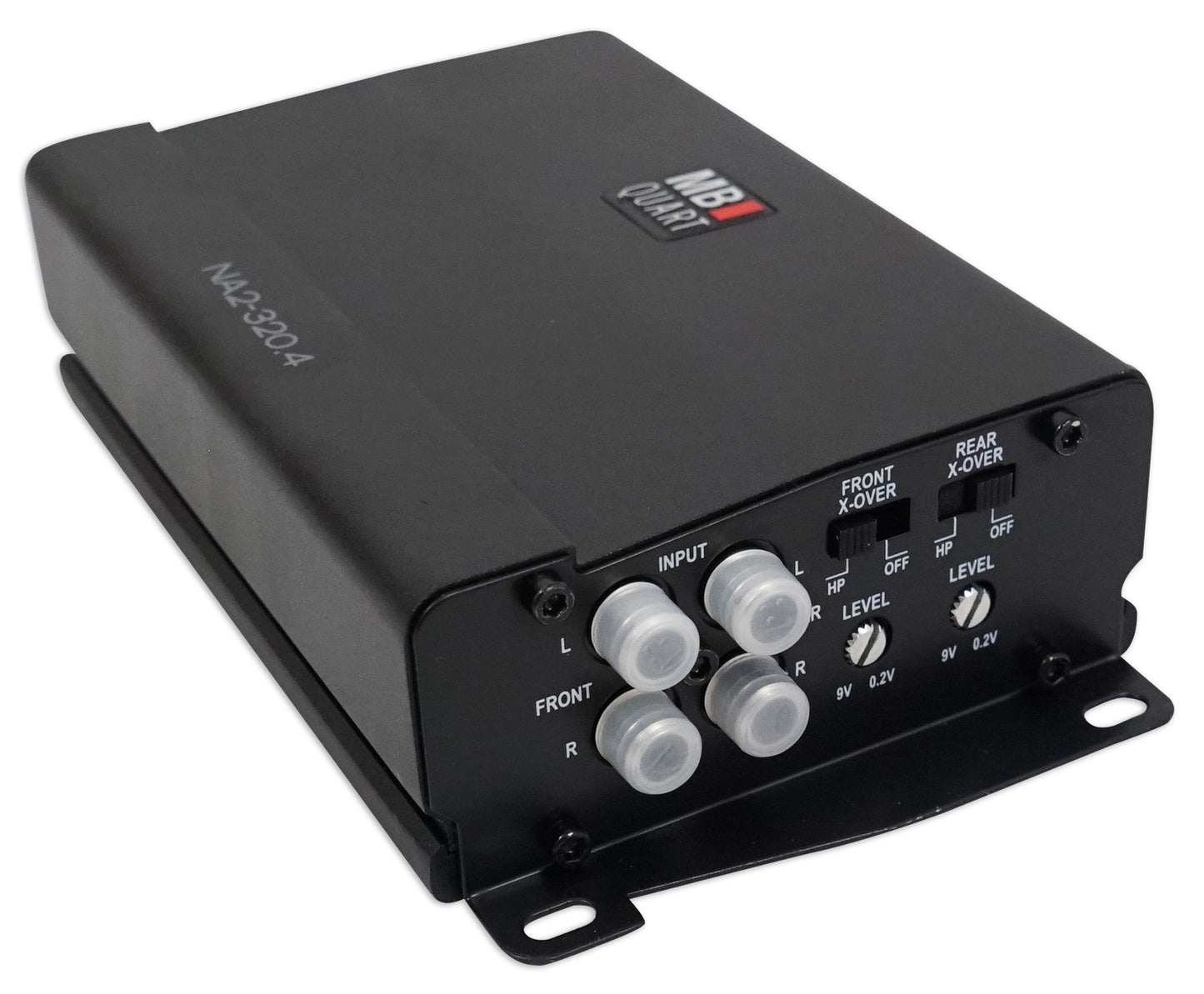

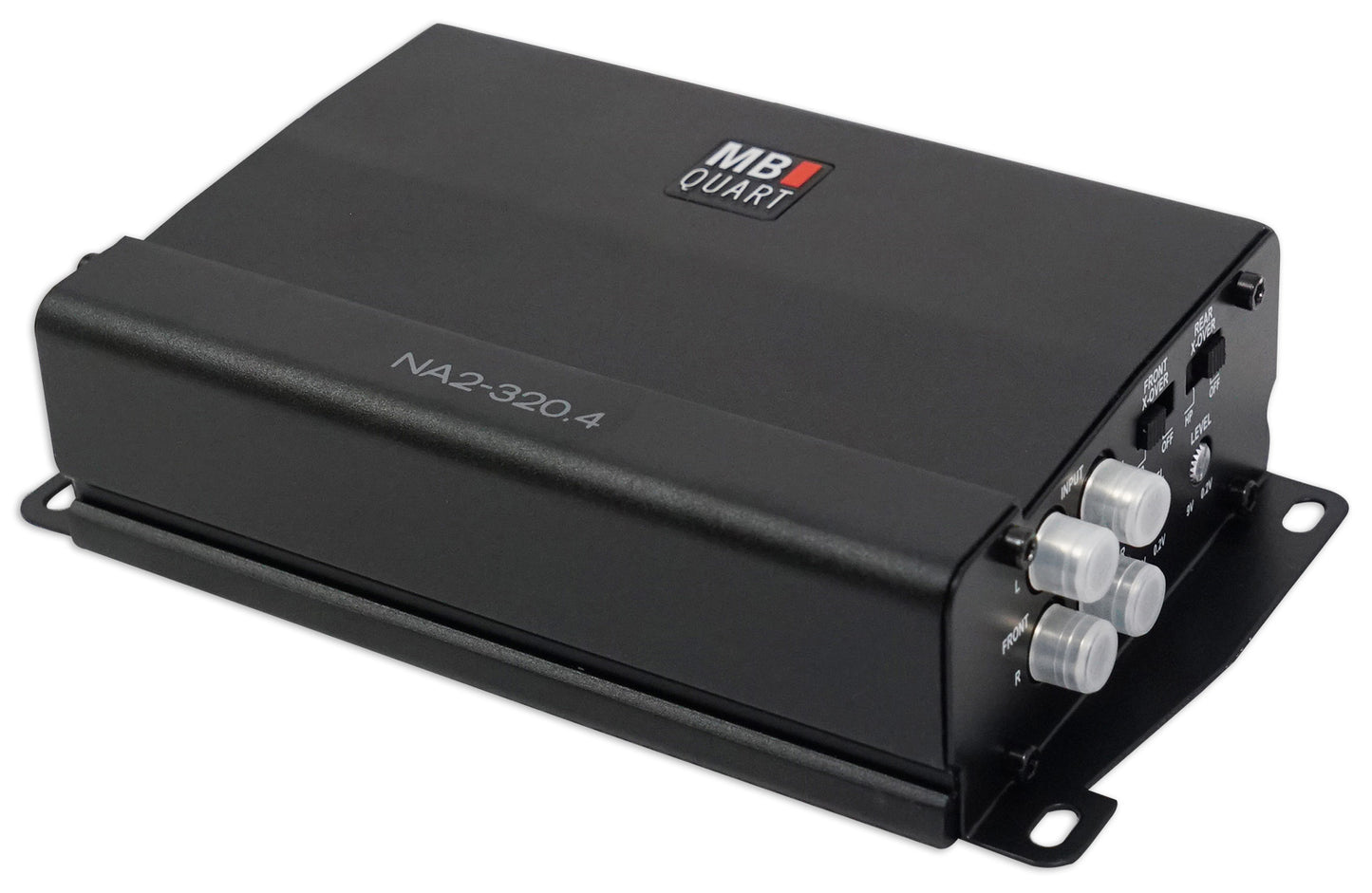

MB Quart compact Four Channel, 400 watt Powersports amplifier with on-board equalization and simple installation with quick release connectors

Features:

• MB Quart NA2-320.4 320w RMS 4-Channel Amplifier 4 Polaris RZR/ATV/UTV/Cart
• Marine Grade Protection
• Pre-Amp Circuitry: The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality

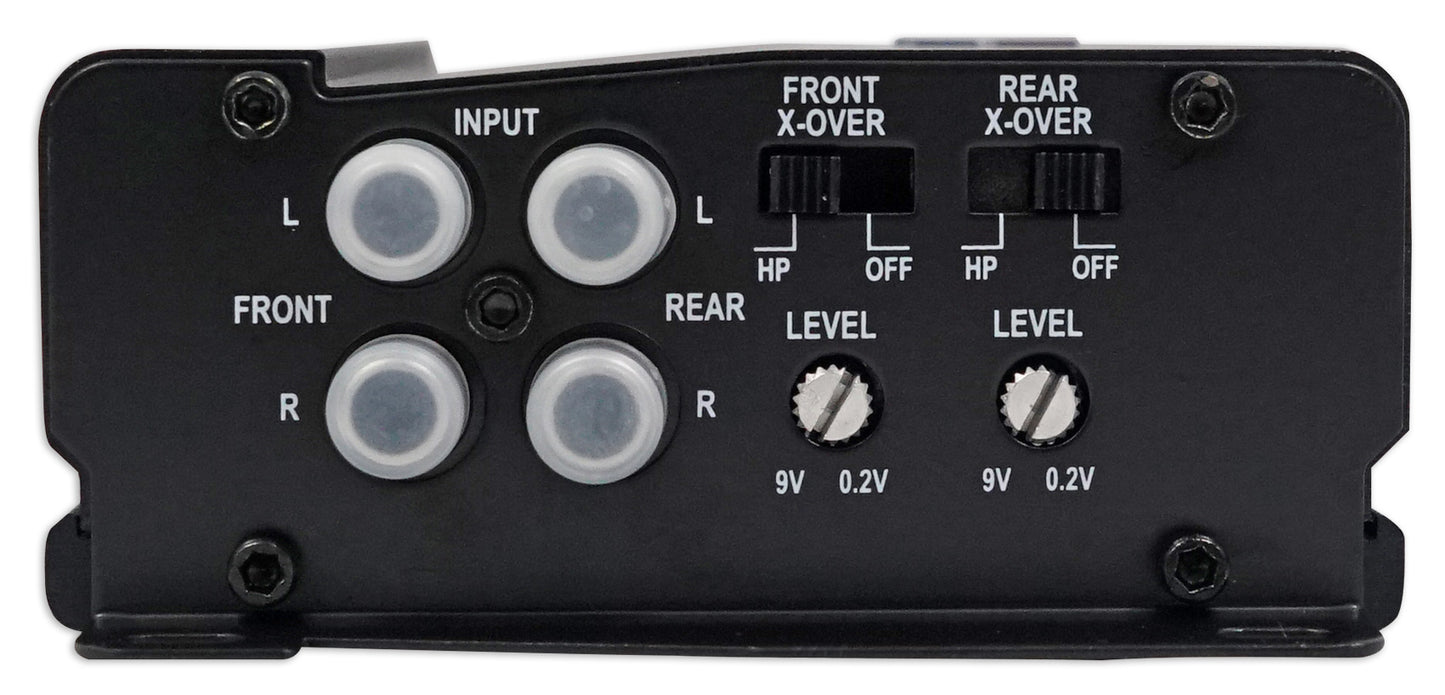

• Inputs: 2 Pair, High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
• Four channel operation
• Complete control of amplifier signal, essential when using two or more amplifiers
• Full Range Class D: High efficient circuit topology which helps the amplifier develop a lot of power in a very small heatsink
• Stable power through the PC board with minimal heat generation
• Aluminum Heat Sink: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration
• Simpatico Coil Design: The dual coil pulse width modulated power supply keeps voltage constant through the Ultra-Fi output devices

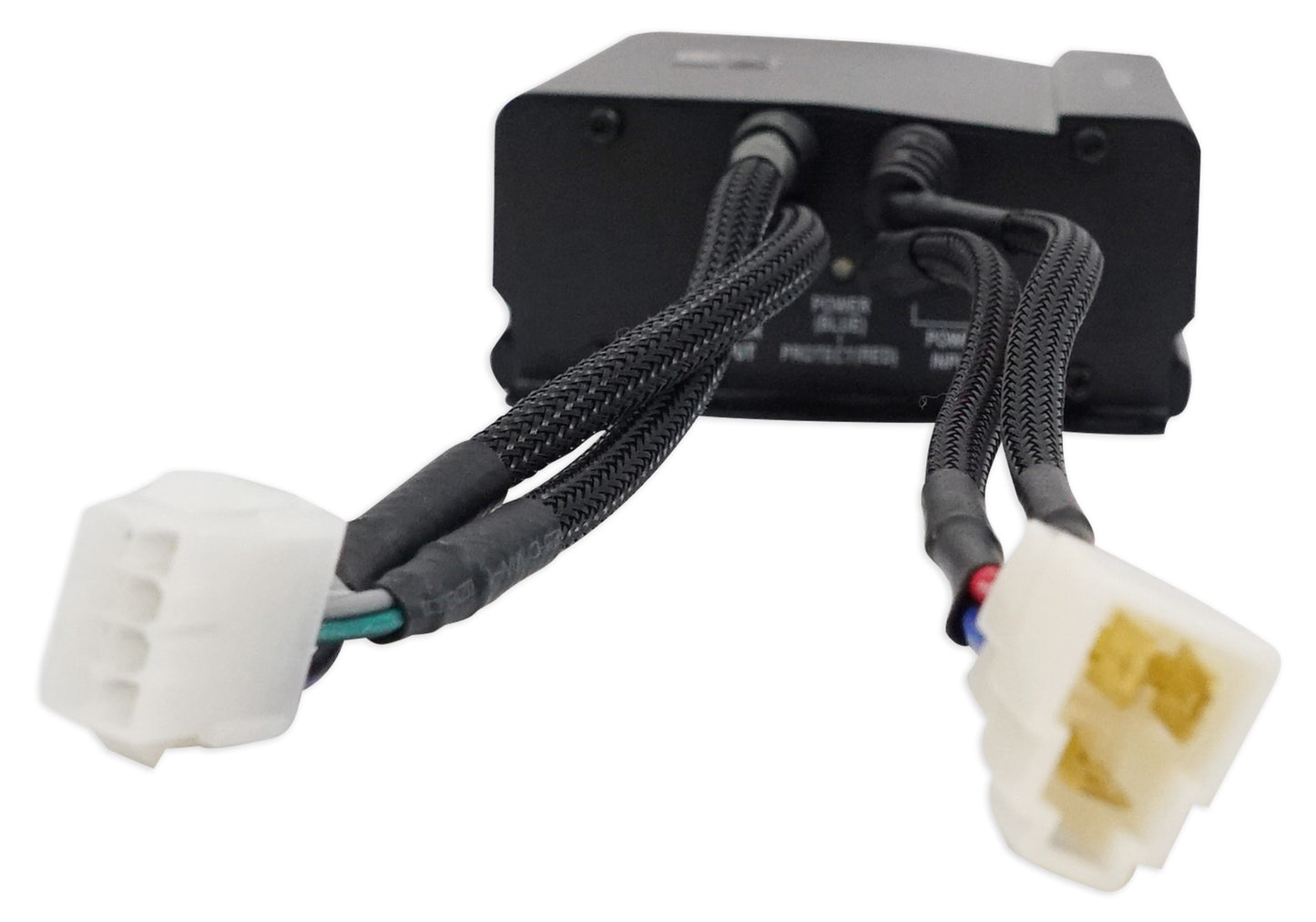

• Output Connections: Quickly remove amplifier when you are putting machine up for the winter as a security precaution
• Gold plated power, ground, speaker and RCA corrosion resistant connections
• Diagnostics: Monitor thermal, overload, DC and speaker short protection with lighted indicators on the amplifier end panel
• Water resistant for durability in any environment

Specifications:

• Certifications: Marine and Powersports
• Variable Voltage: 0.2V-0.9V
• Signal to Noise Ratio: >90dB
• Frequency Response: 20Hz - 20kHz
• Bass Boost: 0-12dB at 45Hz
• Power at 2-Ohms: 4 x 80W
• Power at 4-Ohms: 4 x 40W
• Total Channels: 4
• Audio Inputs: RCA
• Dimensions: 3.70" x 5.51" x 1.77" in (9.4 x 14.0 x 4.5 cm)
• Weight 2.16lbs (0.98kg)
