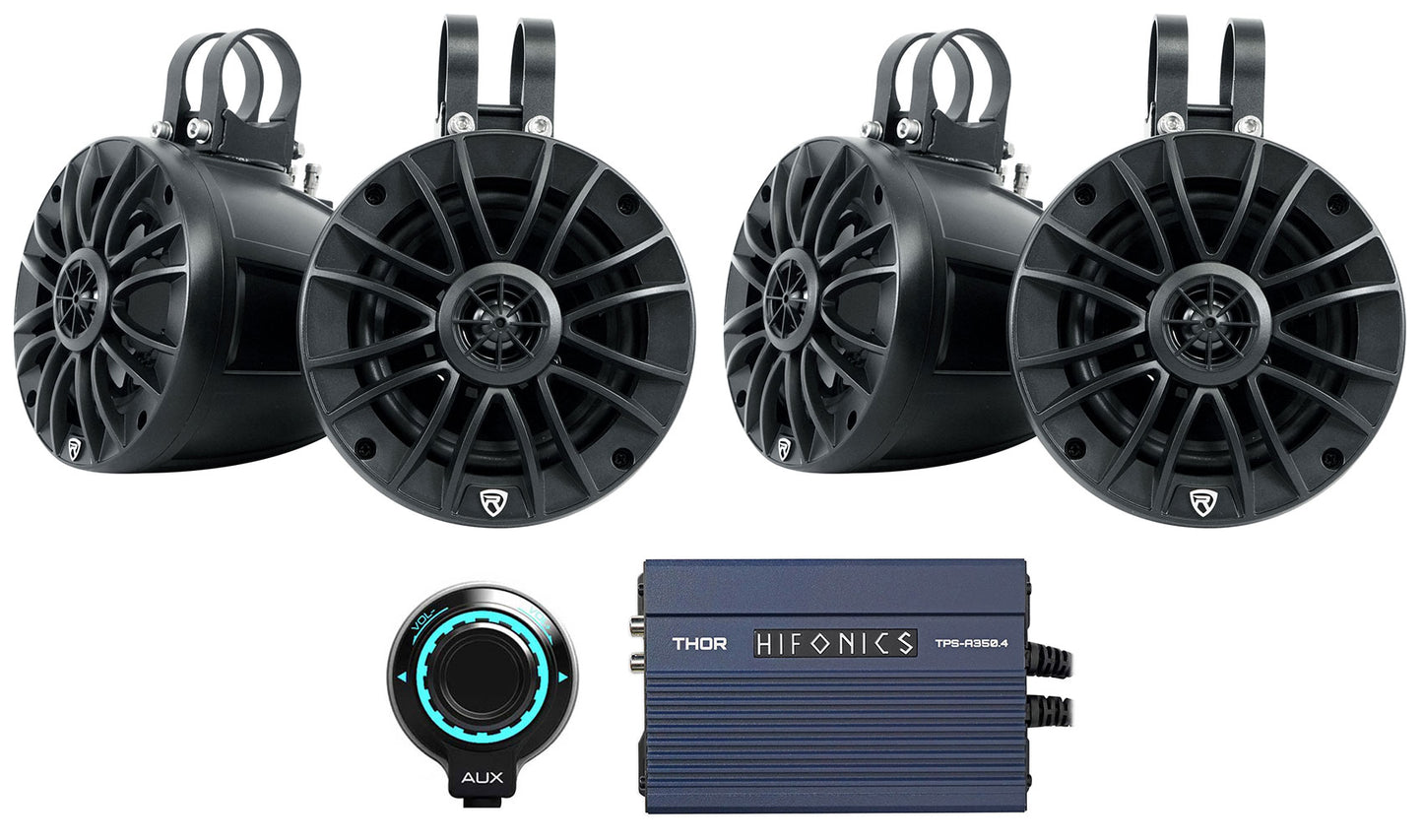

Package Includes:

• (2) Rockville UT525B UTV/ATV 5.25" Rollbar Wakeboard Marine Speakers/Swivel/IPX6
• (1) Hifonics TPS-A350.4 350w 4-Channel Marine Amplifier For Polaris RZR/ATV/UTV/Cart
• (1) Hifonics TPS-BT1 Bluetooth Marine Pre-Amp Controller 4 Polaris RZR/ATV/UTV/Cart

---

UT525B PRODUCT VIDEO:

How To Set Up Your UT525B:

How To Set Up the Brackets On Your UT525B:

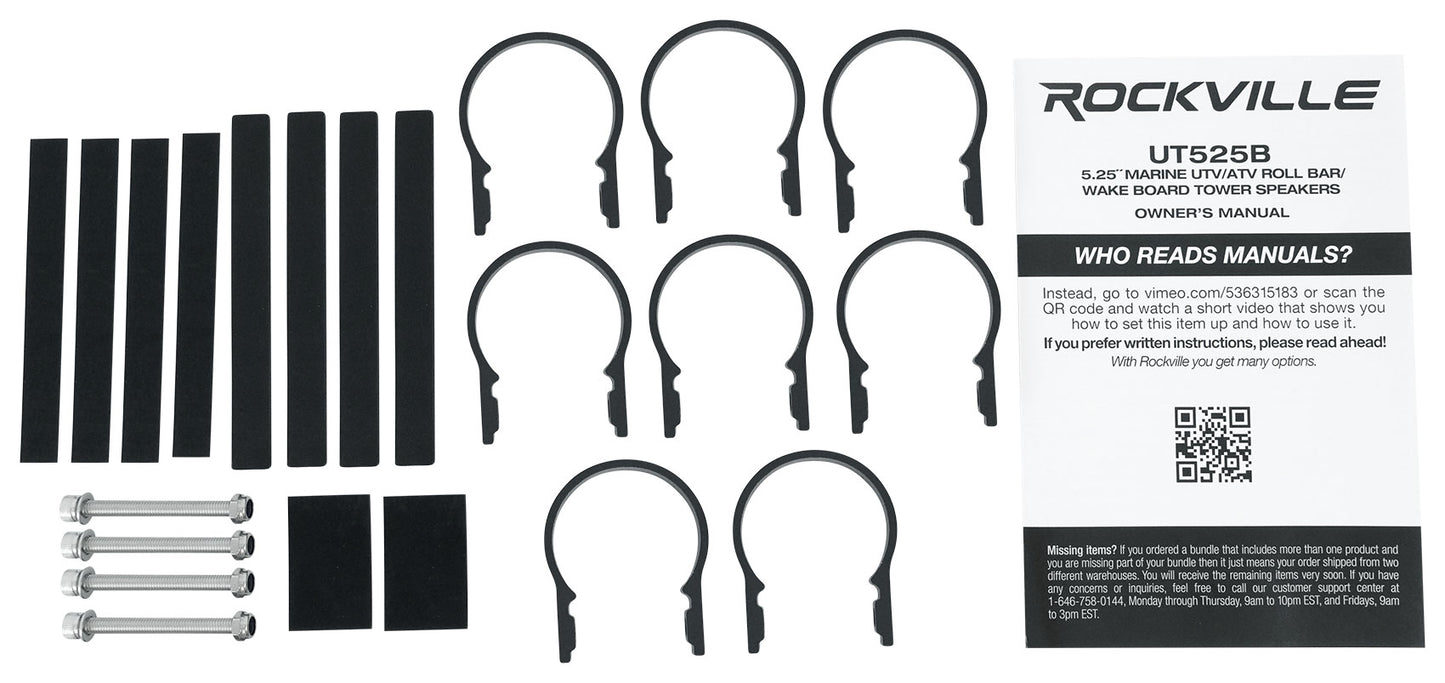

What's In The Box:

• (2) Swivel mount roll bar / wakeboard speakers
• Swivel Mounting brackets and mounting hardware to fit 1.5'' or 1.75" or 1.875" or 2" bars
• Installation hardware
• Owner's manual
• Warranty card

Features:

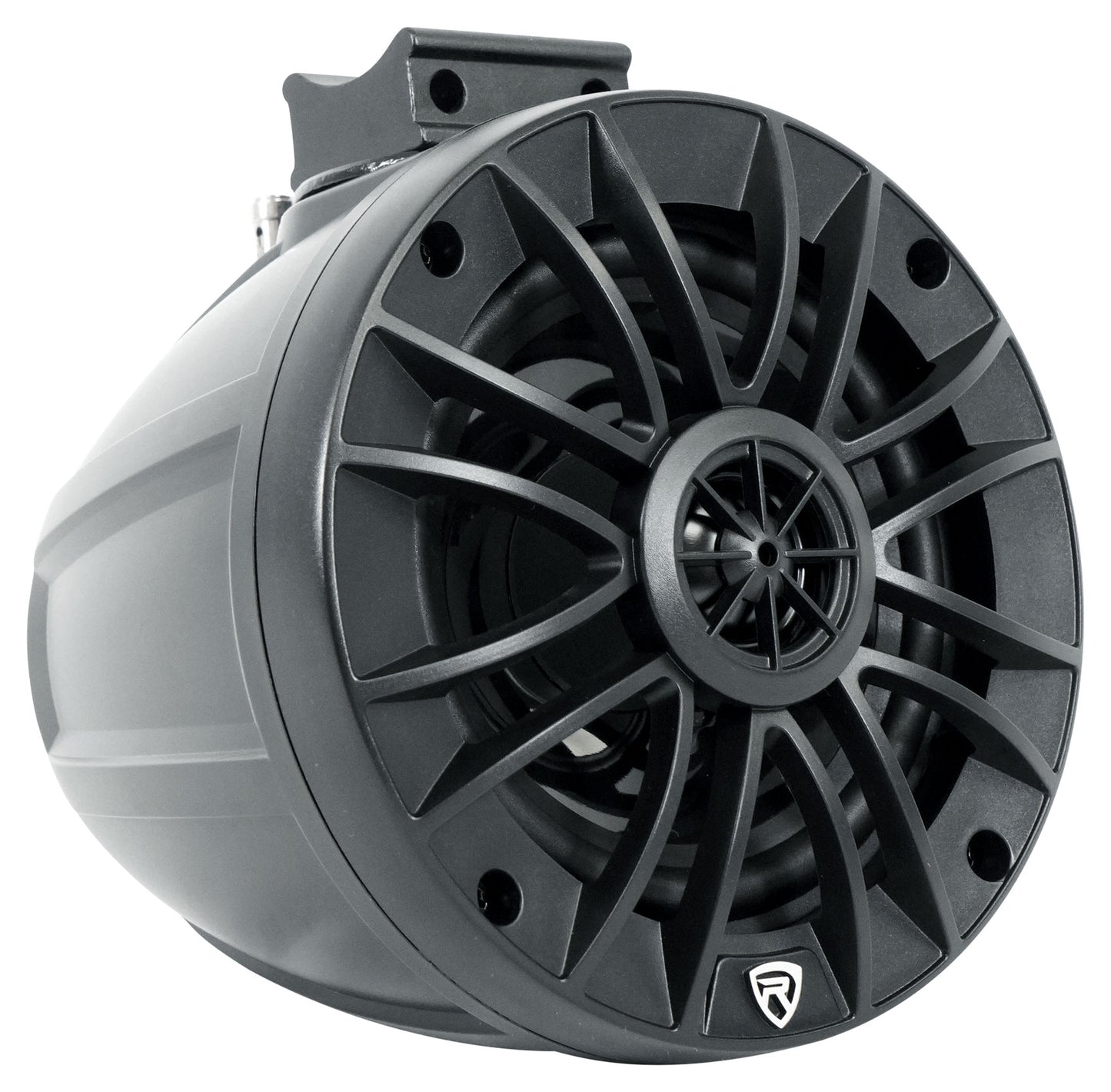

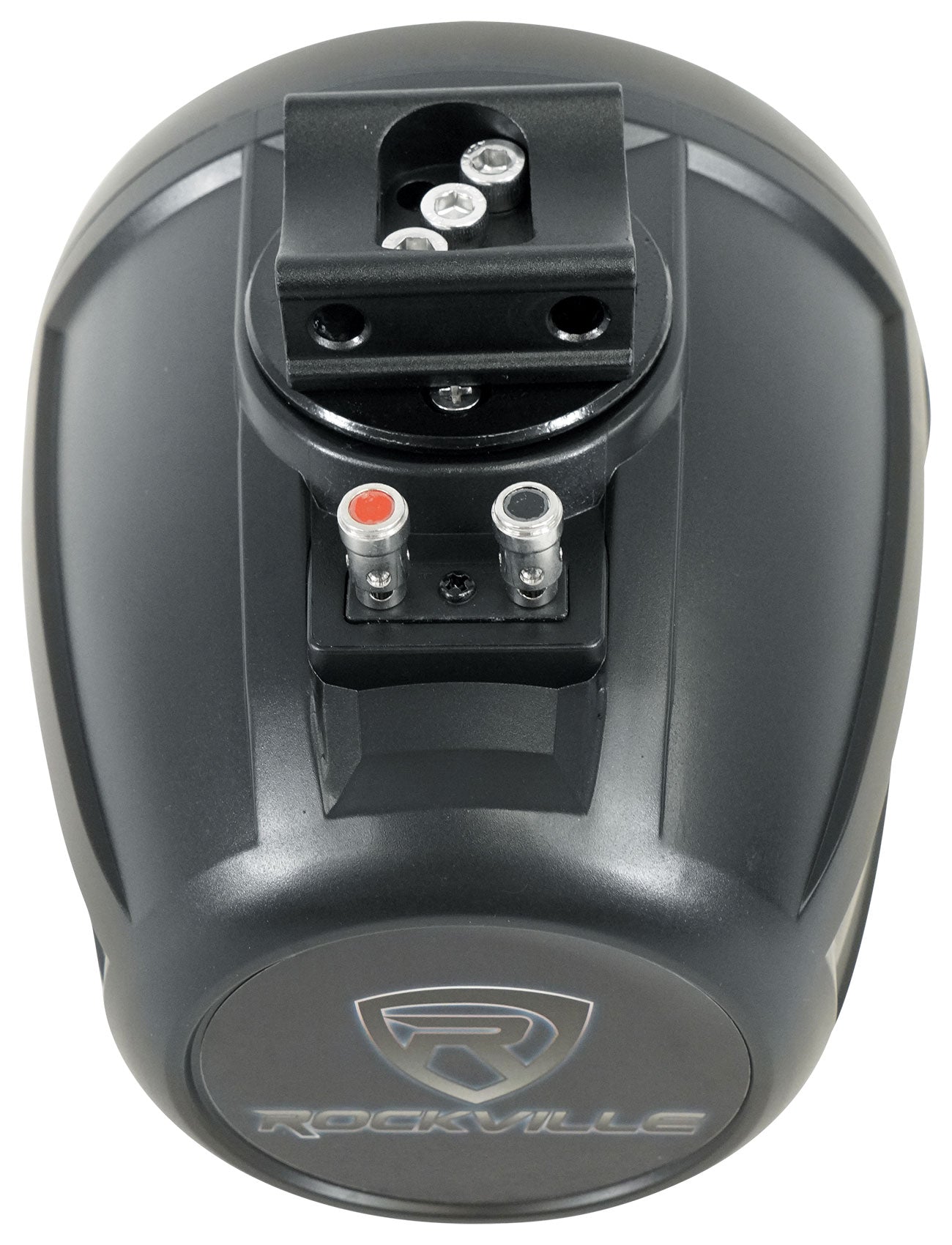

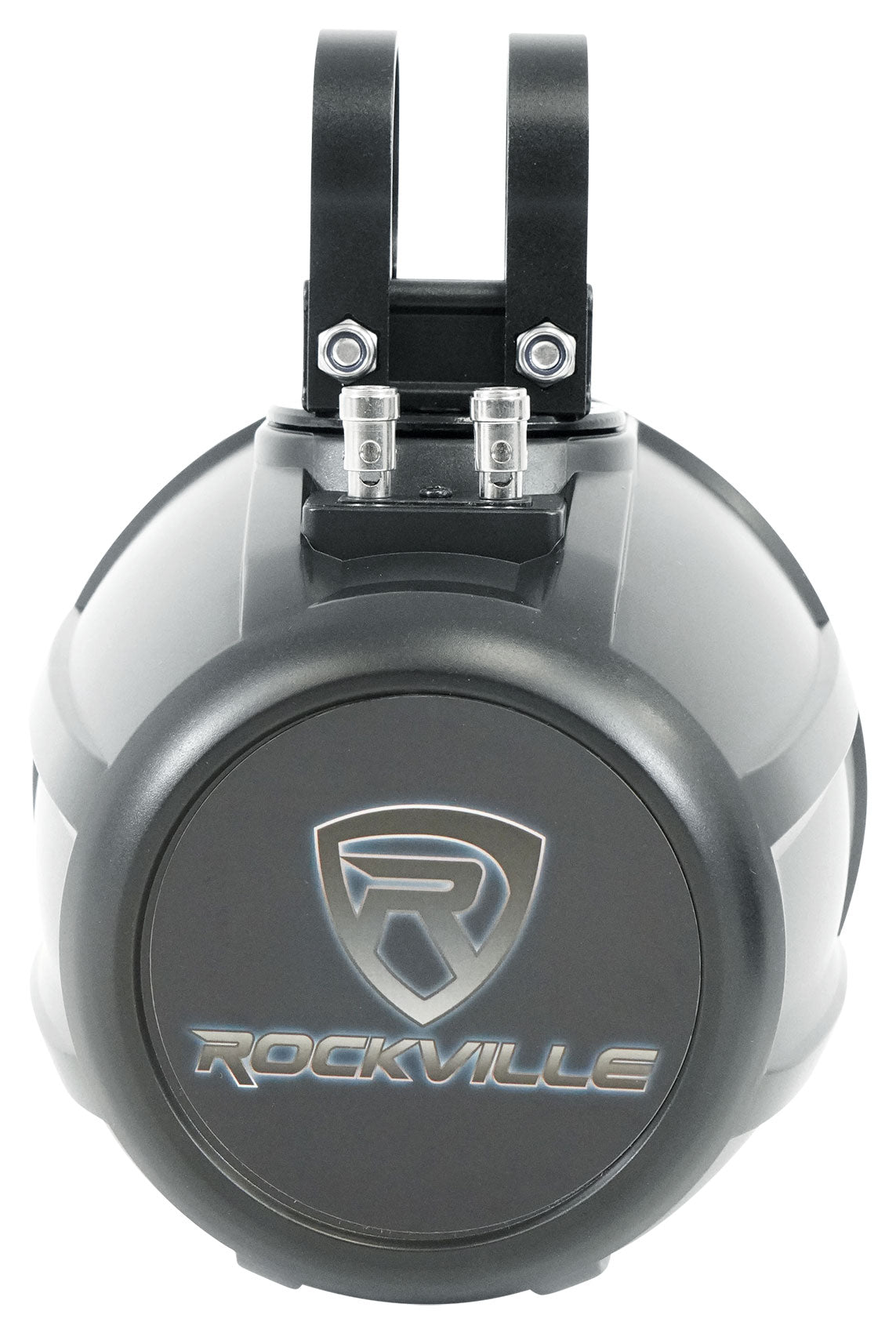

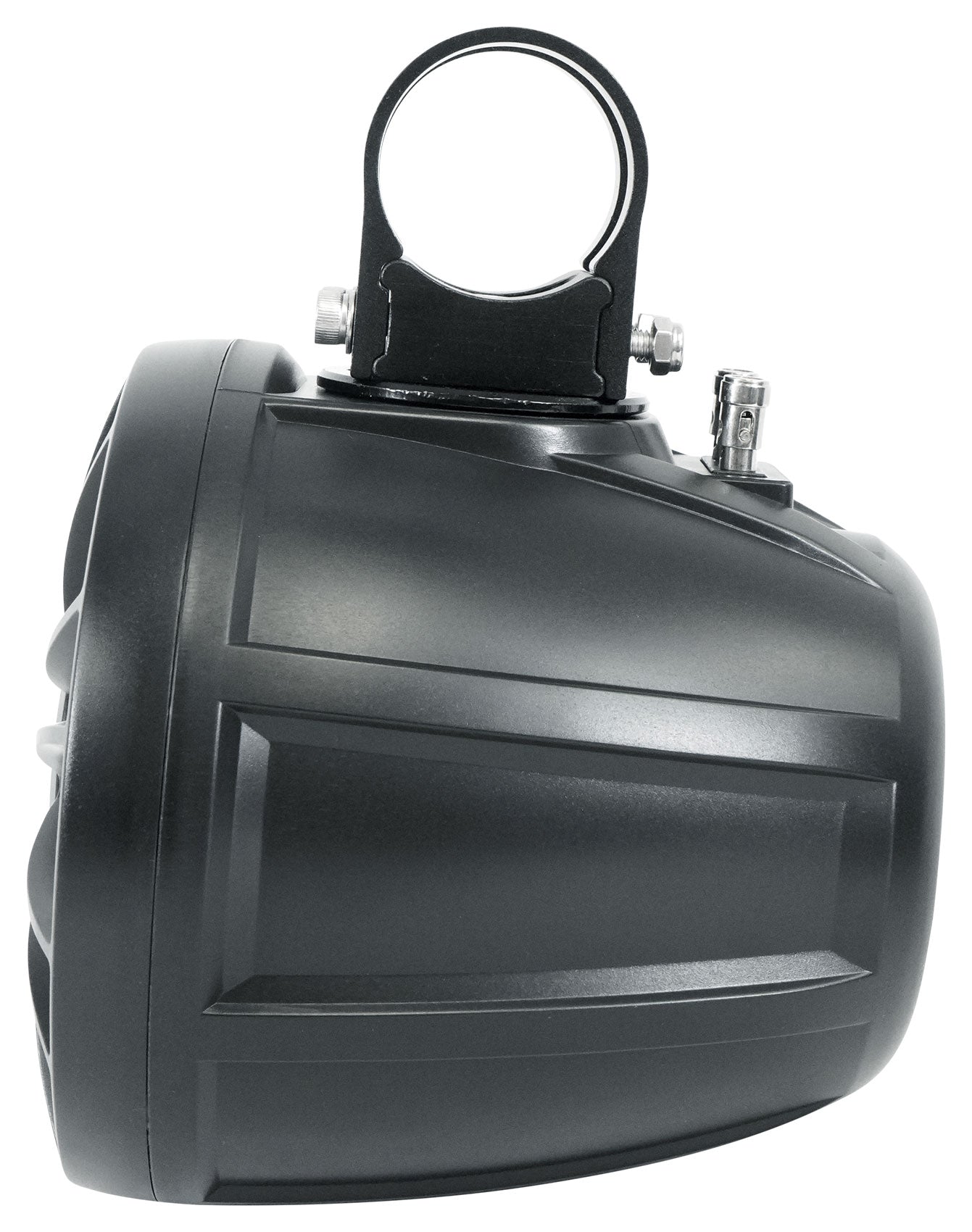

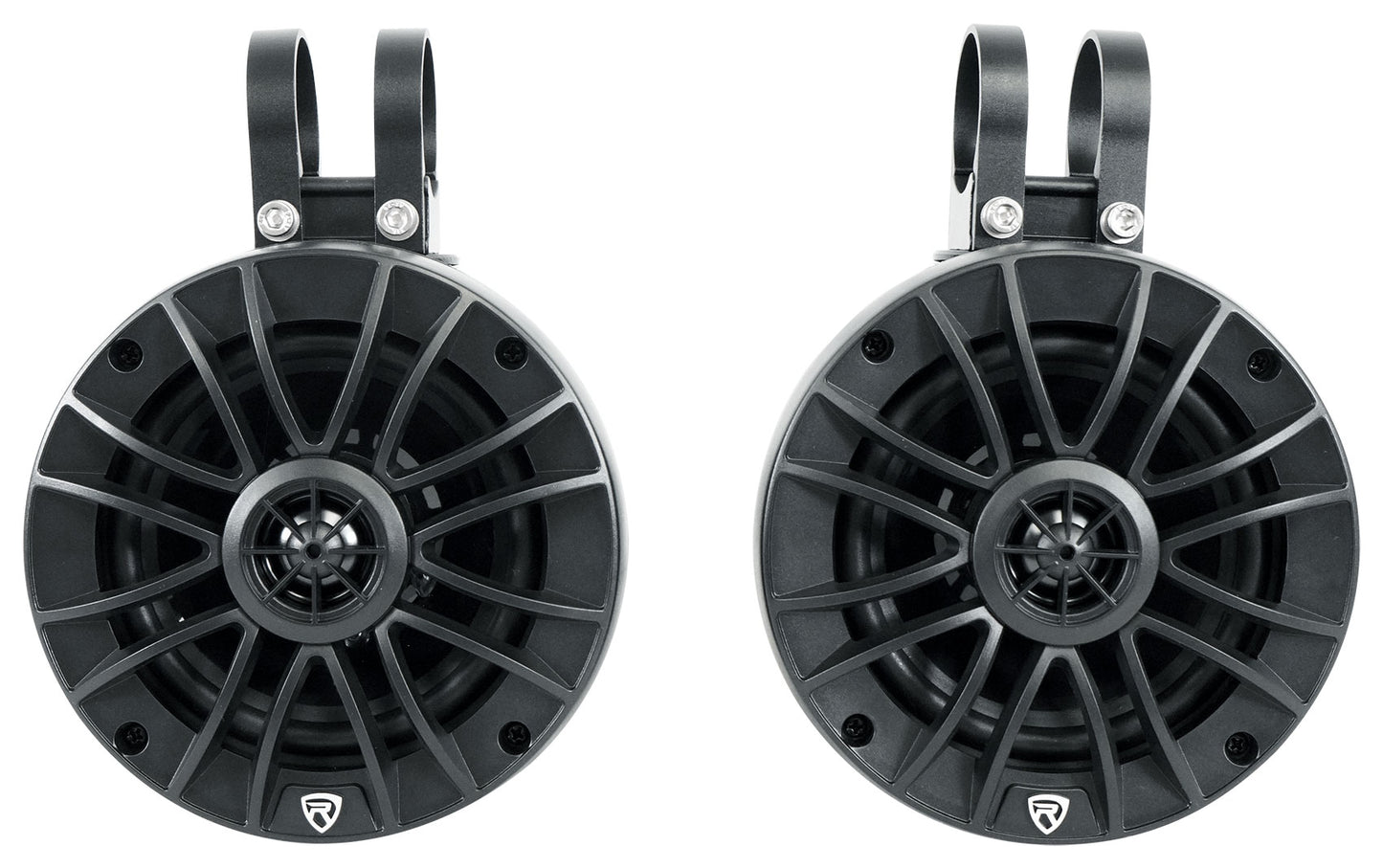

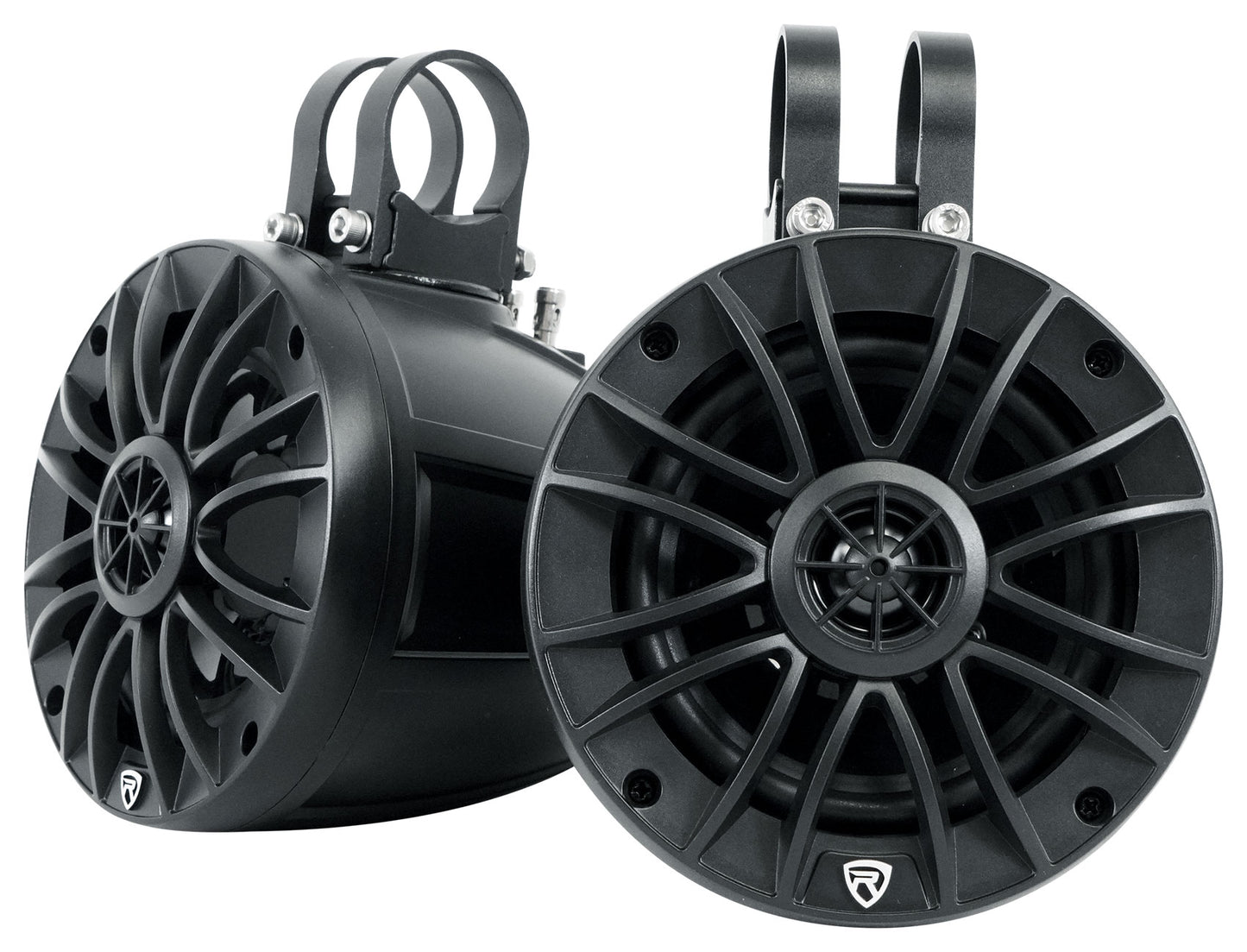

• Rockville UT525B 5.25" Marine UTV/ATV Roll Bar / Wakeboard Tower Speakers
• Peak Power Handling: 280 Watts
• RMS Power Handling: 70 Watts
• True Coax Design With the Tweeter Completely Separated From the Cone
• Larger Cone Surface Area Gives Better Mids and Lows
• Less Mass Attached to the Cone Allows for Higher SPL and Sensitivity
• True coaxial design allows for superior sound quality, better stereo separation, and clearer mids and highs
• Heavy Duty ABS enclosure
• IPX6 Water Resistance Rated
• Marine-grade components are protected from the outdoor elements

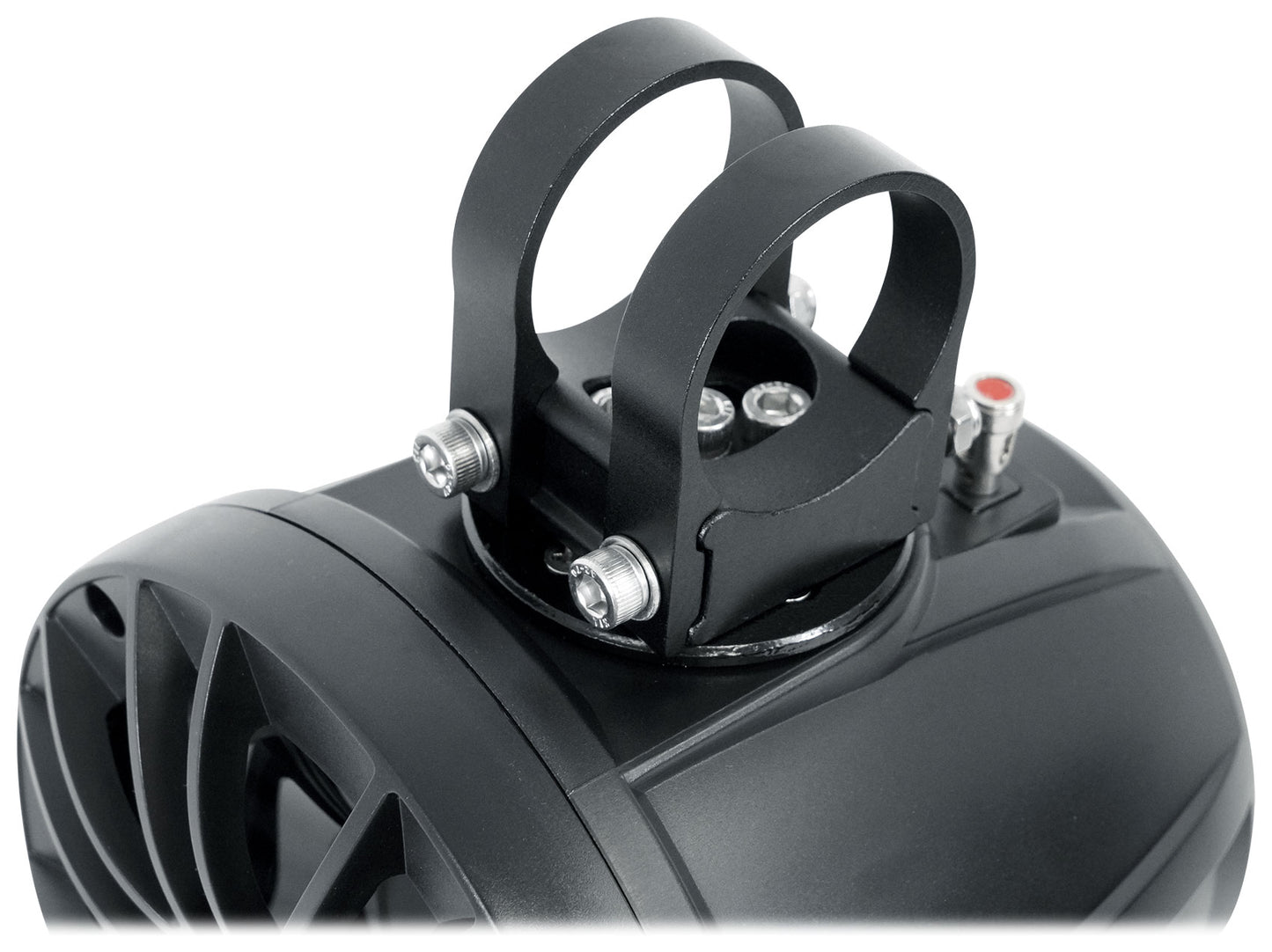

• Adjustable Aluminum Mounting Bracket is Strong and Sturdy
• Bracket Swivels 360 Degrees (Fixed swivel)
• 5.25" Woofers with 11 oz Magnets and Oversized 1" Kapton Voice Coils
• 1" PEI Dome Tweeters with Neo magnets
• Fits wakeboard towers and roll bars ranging from 1.5" to 2" inches
• Shallow enclosure design is perfect for UTV, ATV, and marine applications
• Fully Marinized Against Salt & Fresh Water Conditions
• Completely Resistant to Water, Rust, and UV Rays
• Polypropylene Mica Injected Cone with Butyl Rubber Surround
• Frequency Response: 130Hz - 20KHz
• SPL: 87dB @ 1w/1m
• Impedance: 4 Ohms
• Shockproof Design
• ABS Weather Resistant Grills and Hardware
• RoHS Certified
• Color: Black
• Dimensions (H x W x D): 9" x 6.39" x 6.23"

---

Description:

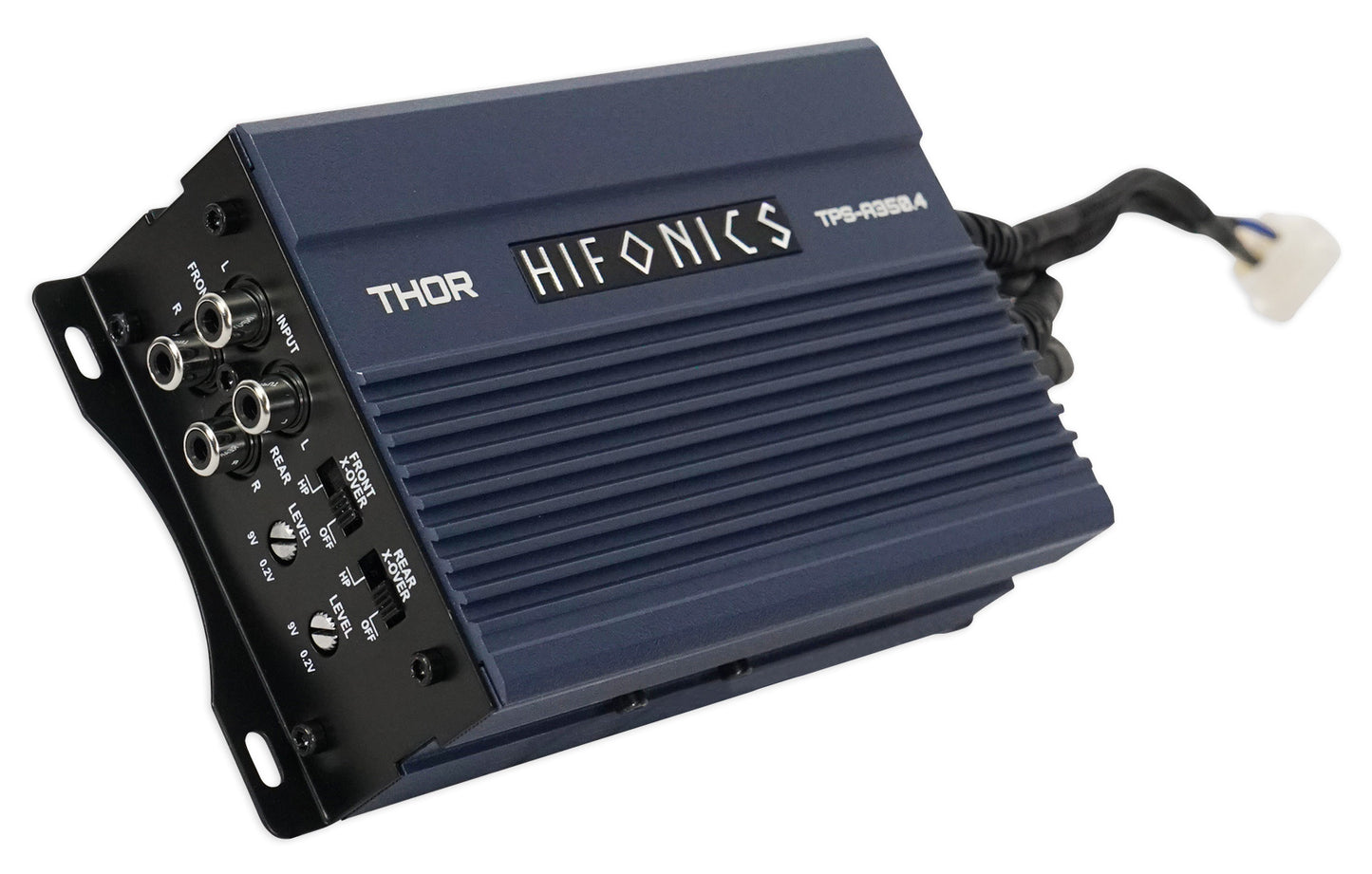

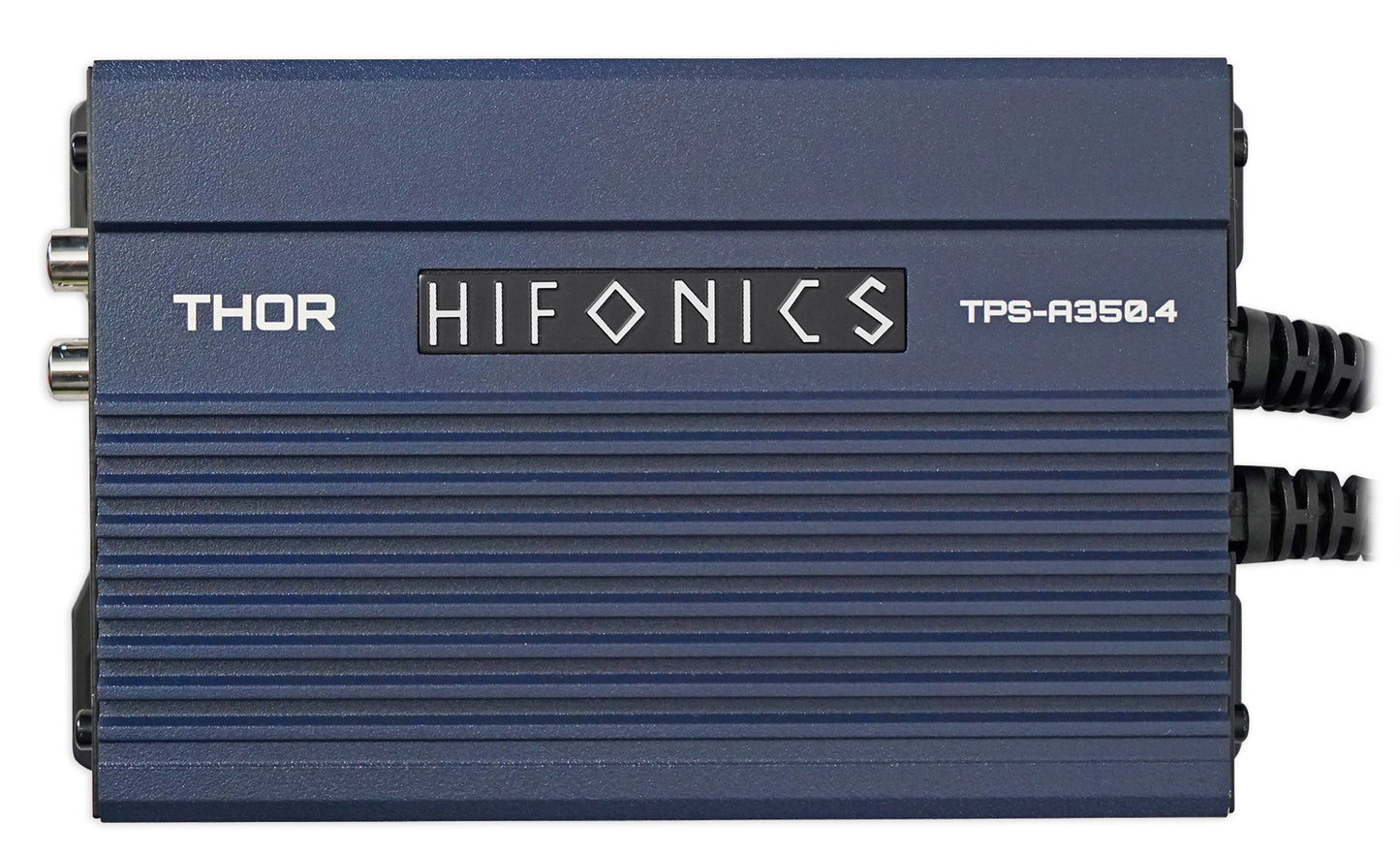

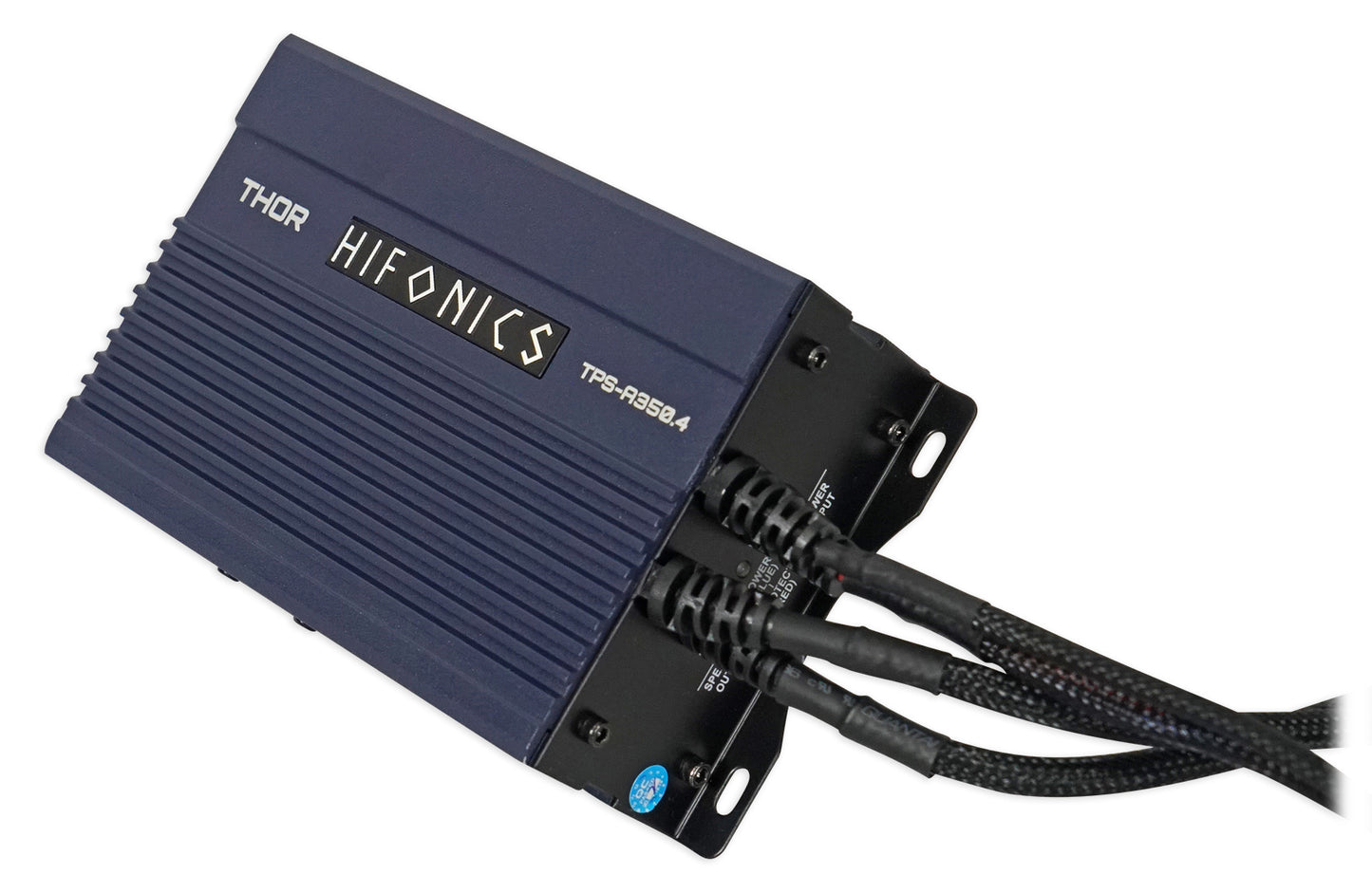

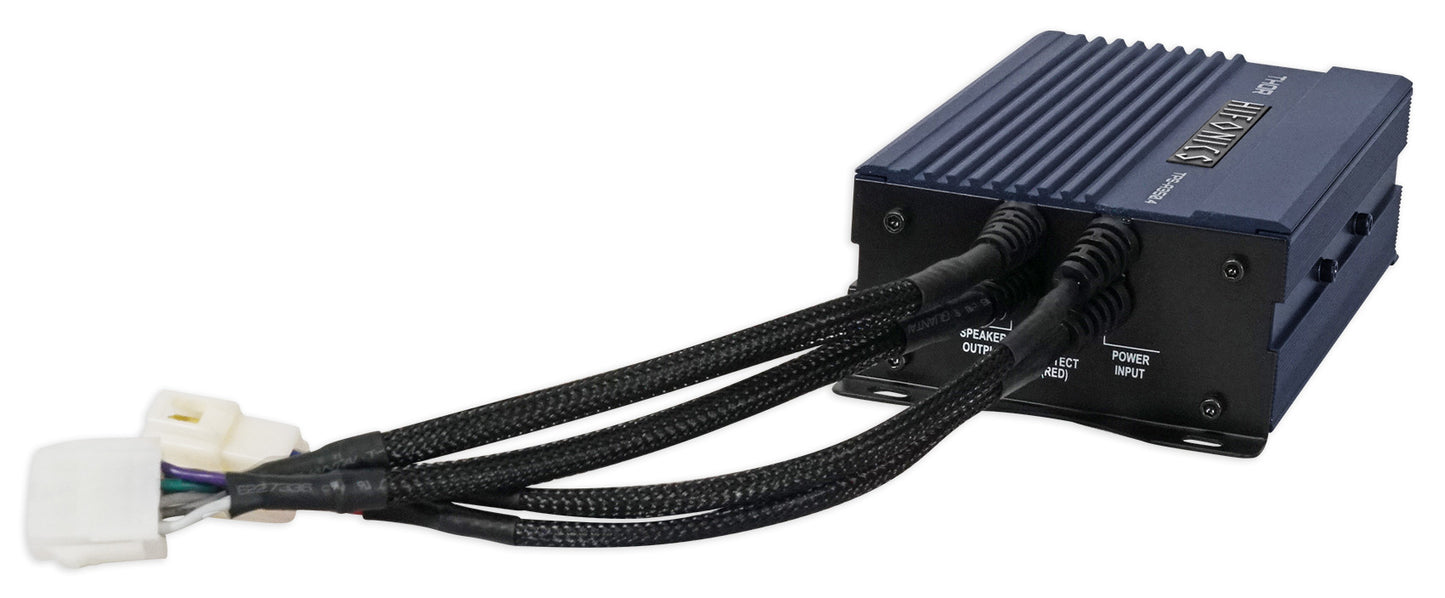

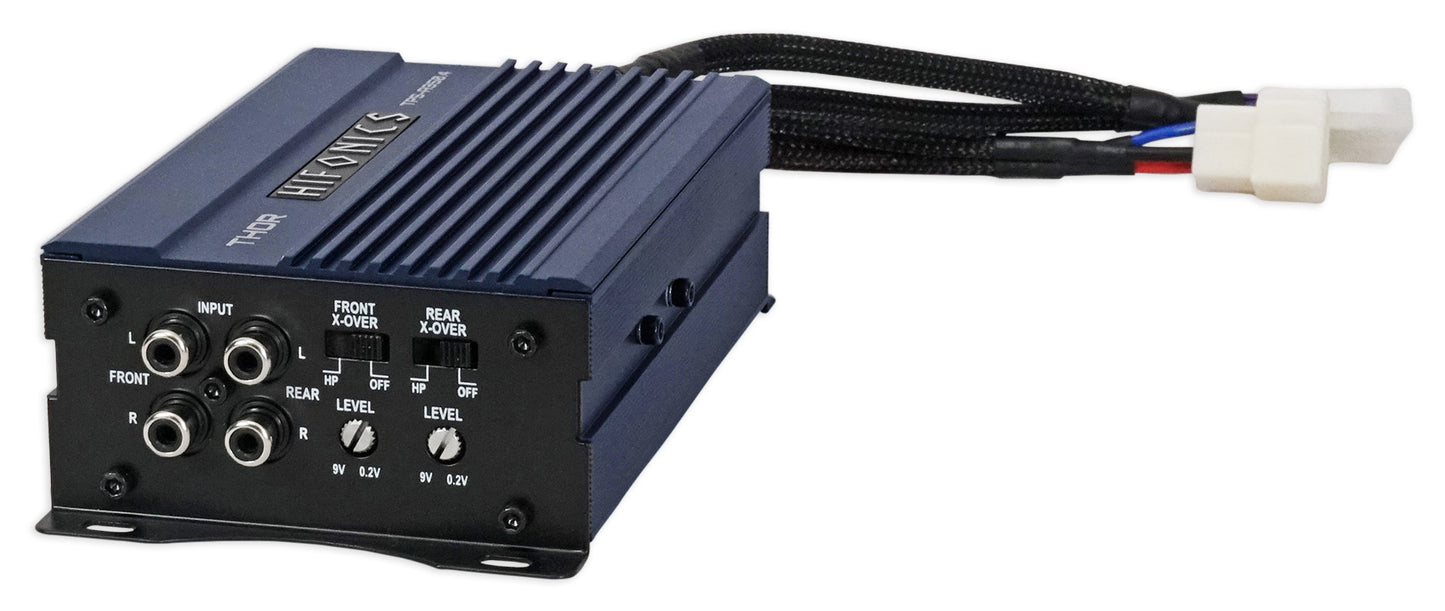

Hifonics THOR compact Four Channel, 350 watt Powersports amplifier with on-board equalization and simple installation with quick release connectors.

Features:

• Hifonics TPS-A350.4 350w 4-Channel Marine Amplifier For Polaris RZR/ATV/UTV/Cart
• Marine Grade Protection: YES - Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
• Pre-Amp Circuitry: Low Noise Pre-Amplifier Stage - Special preamplifier reduces incoming noise from source units dramatically improving sound quality

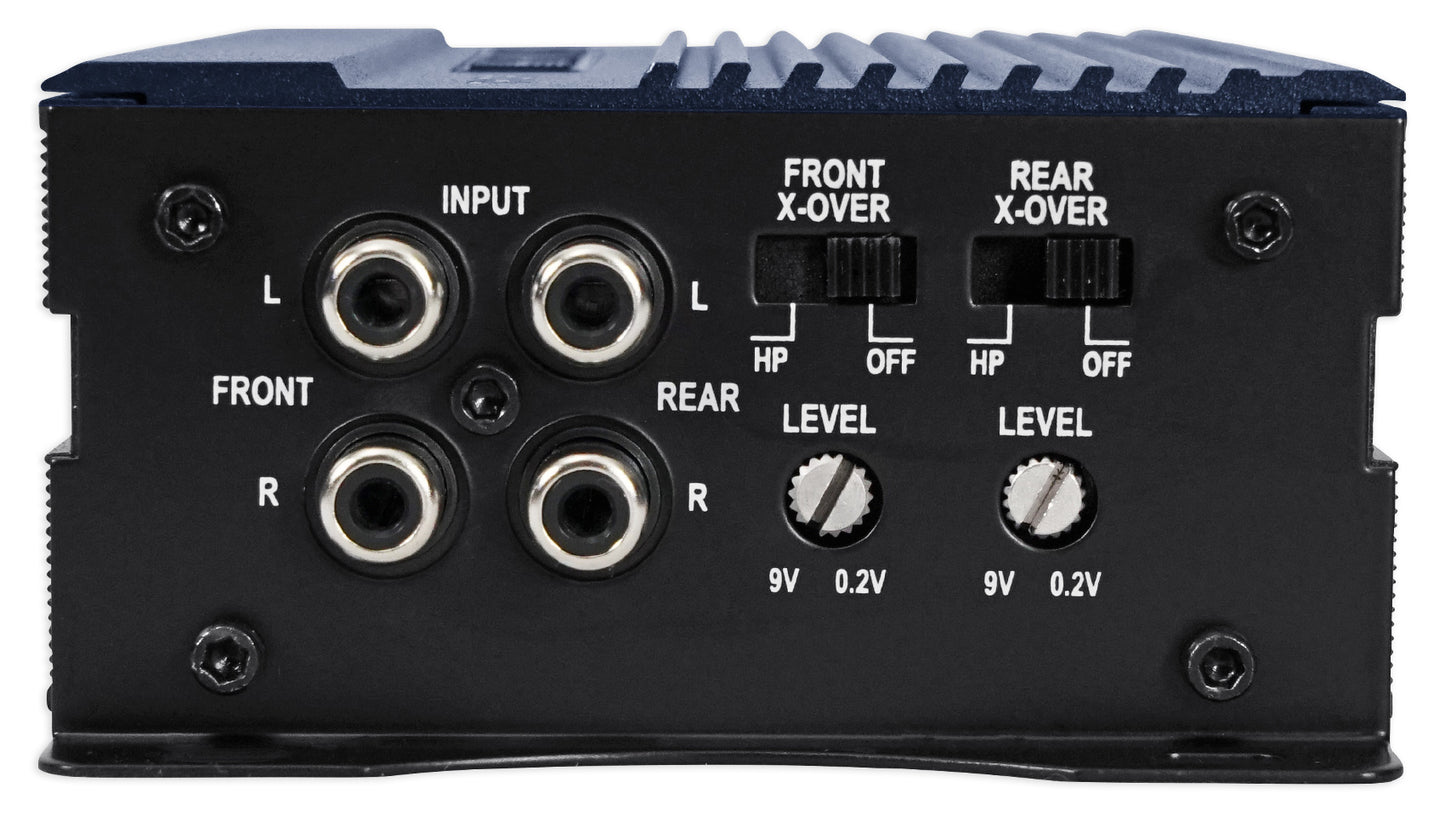

• Inputs: 2 Pair, RCA Nickel-Plated - High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
• Operation Mode: Four channel operation - Flexible installation allows this amplifier to run in four channel or bridged mono mode.
• Crossover / Signal Shaping: Switched FULL / LPF / HPF - Complete control of amplifier signal, essential when using two or more amplifiers
• Class / Topology: Full Range Class D - Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
• Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PC board with minimal heat generation
• Heat Sink: Aluminum - Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
• Power Supply: Simpatico Coil Design - The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices

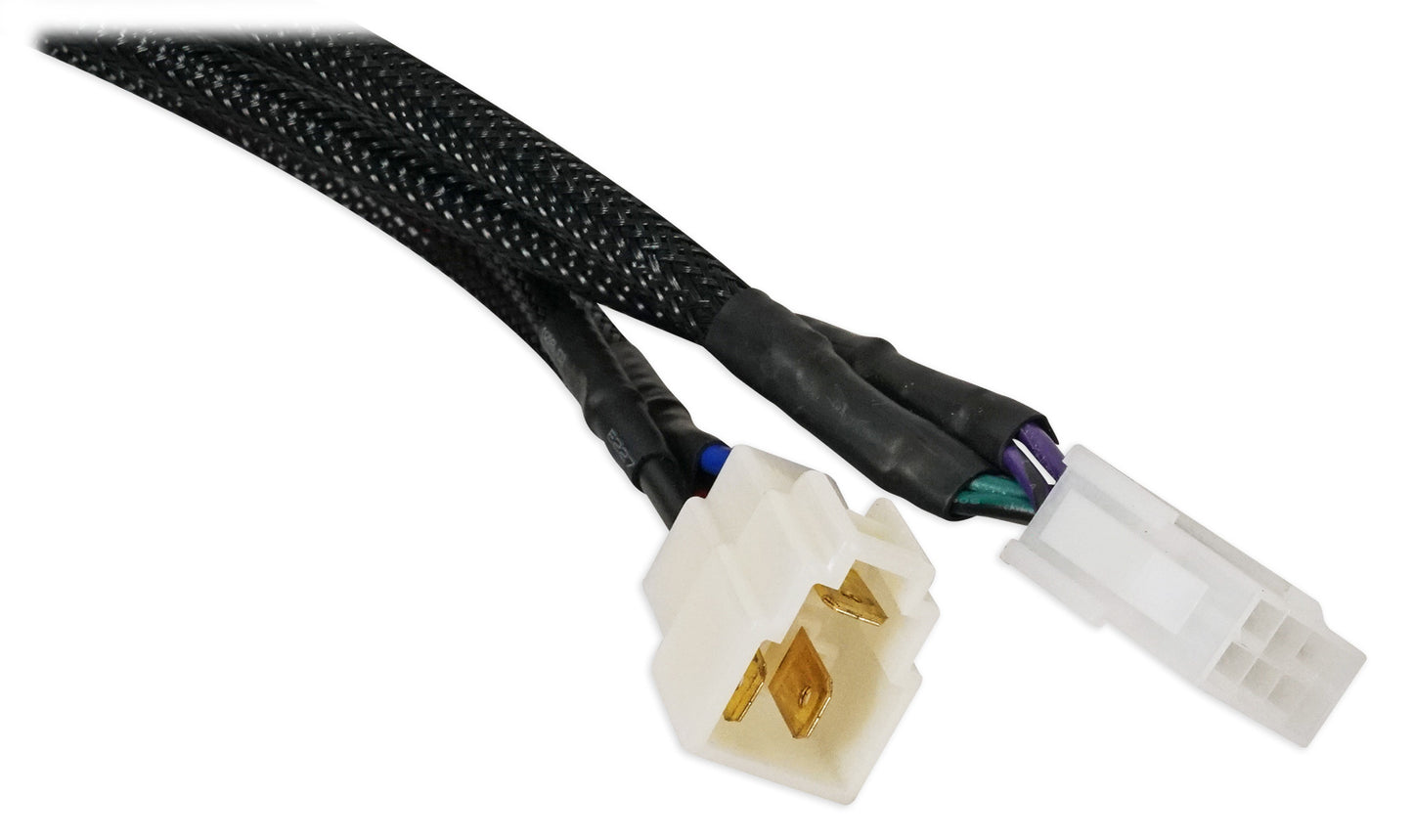

• Output Connections: Quick Dissconect Wires, RCA Connections - Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
• Connections Type: Gold-plated connections - Gold-plated power, ground, speaker and RCA corrosion resistant connections

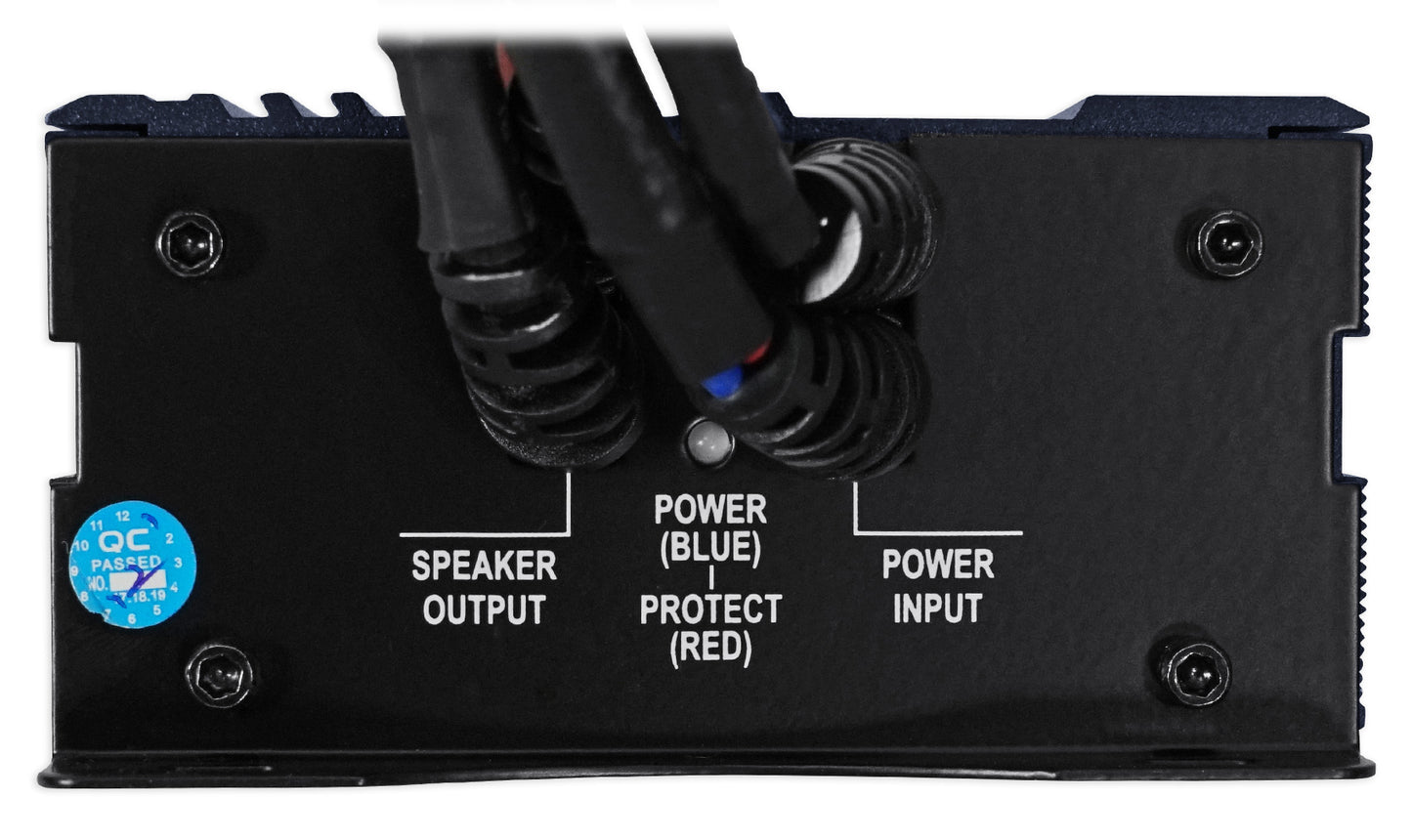

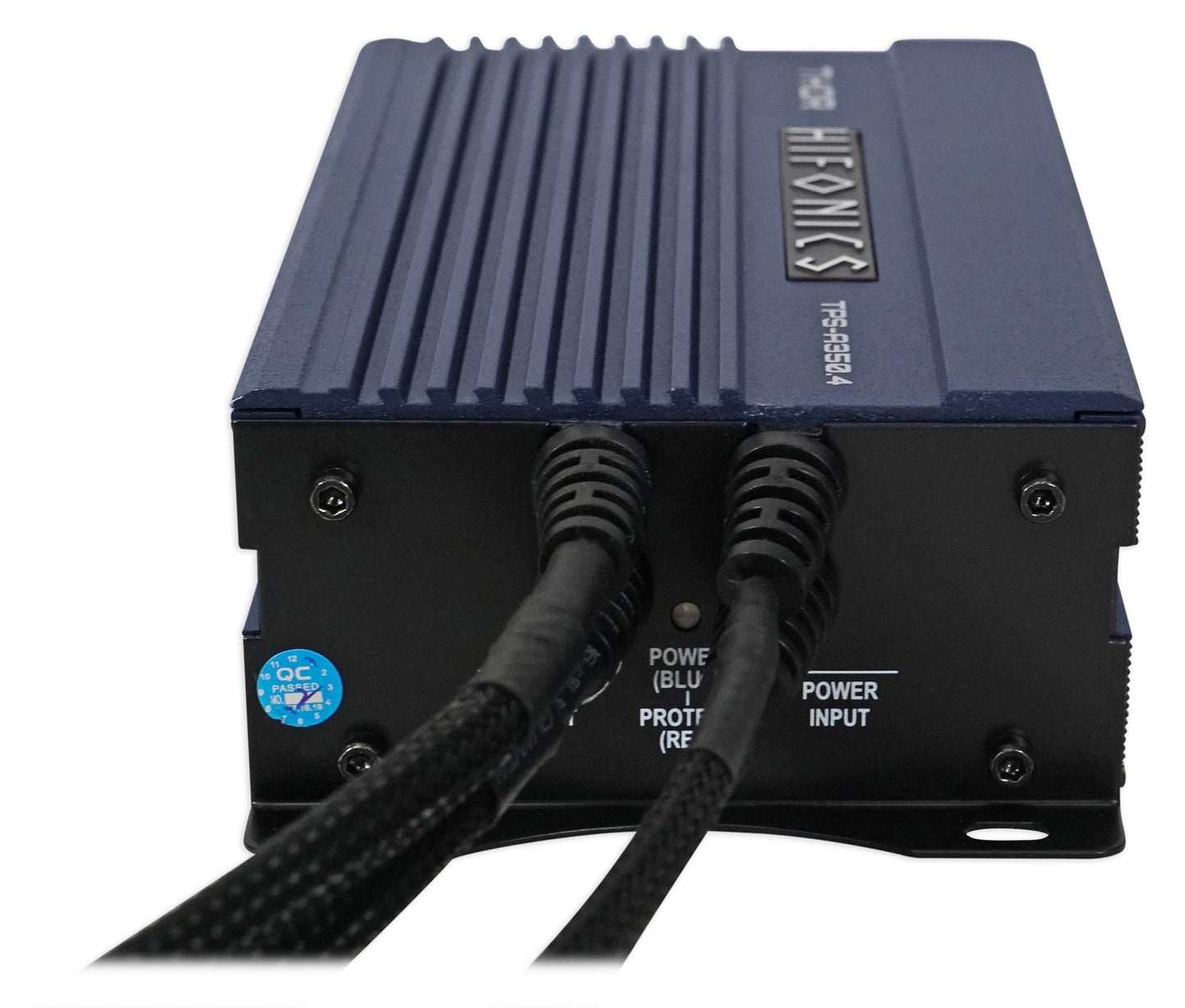

• Diagnostics: Three-stage protection circuits - Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
• Marinized / Waterproof: YES - Water resistant for durability in any environment

Specifications:

• Class: Full Range Class D
• Variable Voltage: 0.2V~9V
• Signal to Noise Ratio: >90dB
• Frequency Response: 20Hz-20kHz
• Crossover Frequency Range CH1 & CH2: Switched HP/ Full
• Crossover Frequency Range CH3 & CH4: Switched HP/ Full
• Bass Boost: 0-12dB@45Hz
• Power @ 2-Ohms: 4 x 80W
• Power @ 4-Ohms: 4 x 40W
• Total Channels: 4
• Audio Inputs: RCA

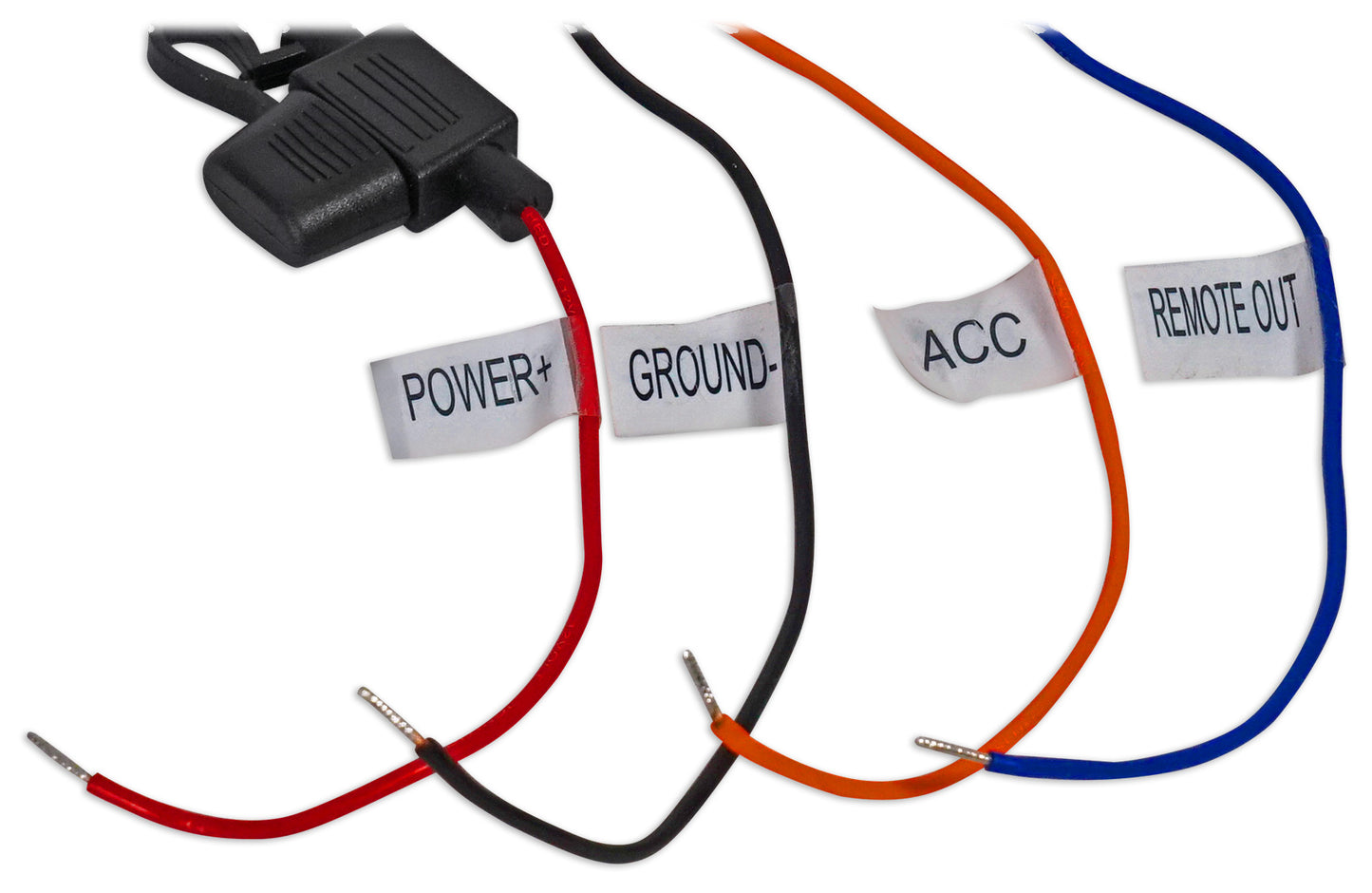

• Power Terminal 12v/GND: Molex 10 ga
• Speaker Terminal Wire Gauge: Molex Plug Connector
• Fusing: 1 x 30 Amps
• Certifications: Marine & Powersports
• Dimensions: 3.70 X 5.51 X 1.77 inches (9.4 X 14.0 X 4.5 cm)
• Weight: 2.16 lbs (0.98 kg)

---

Description:

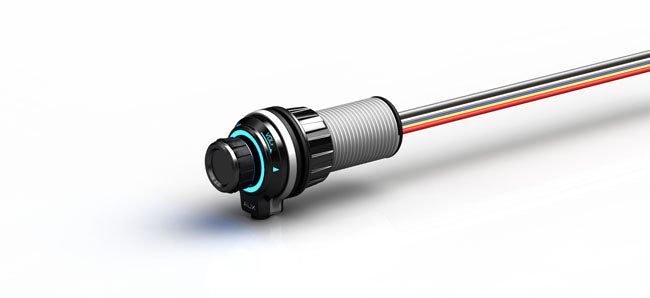

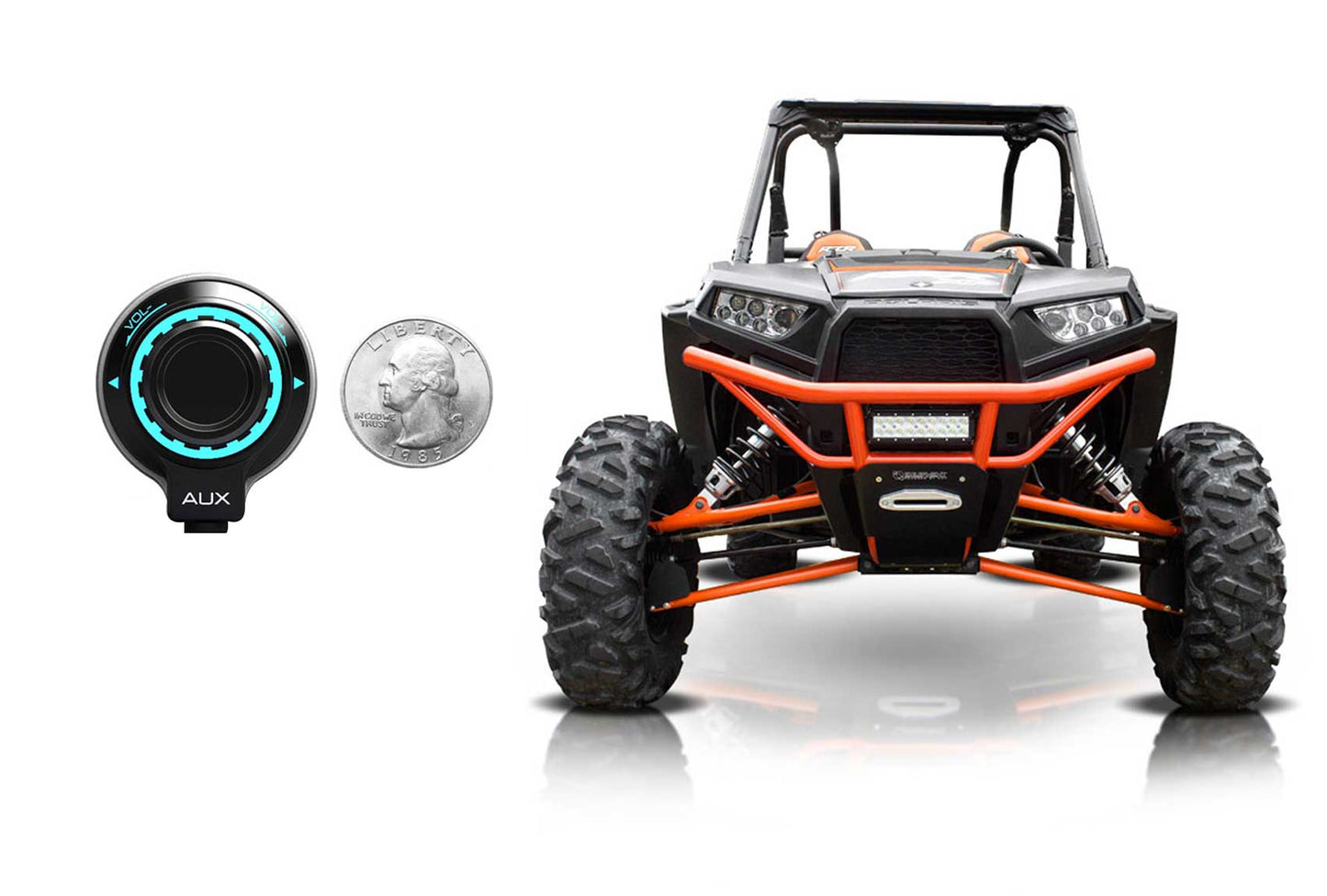

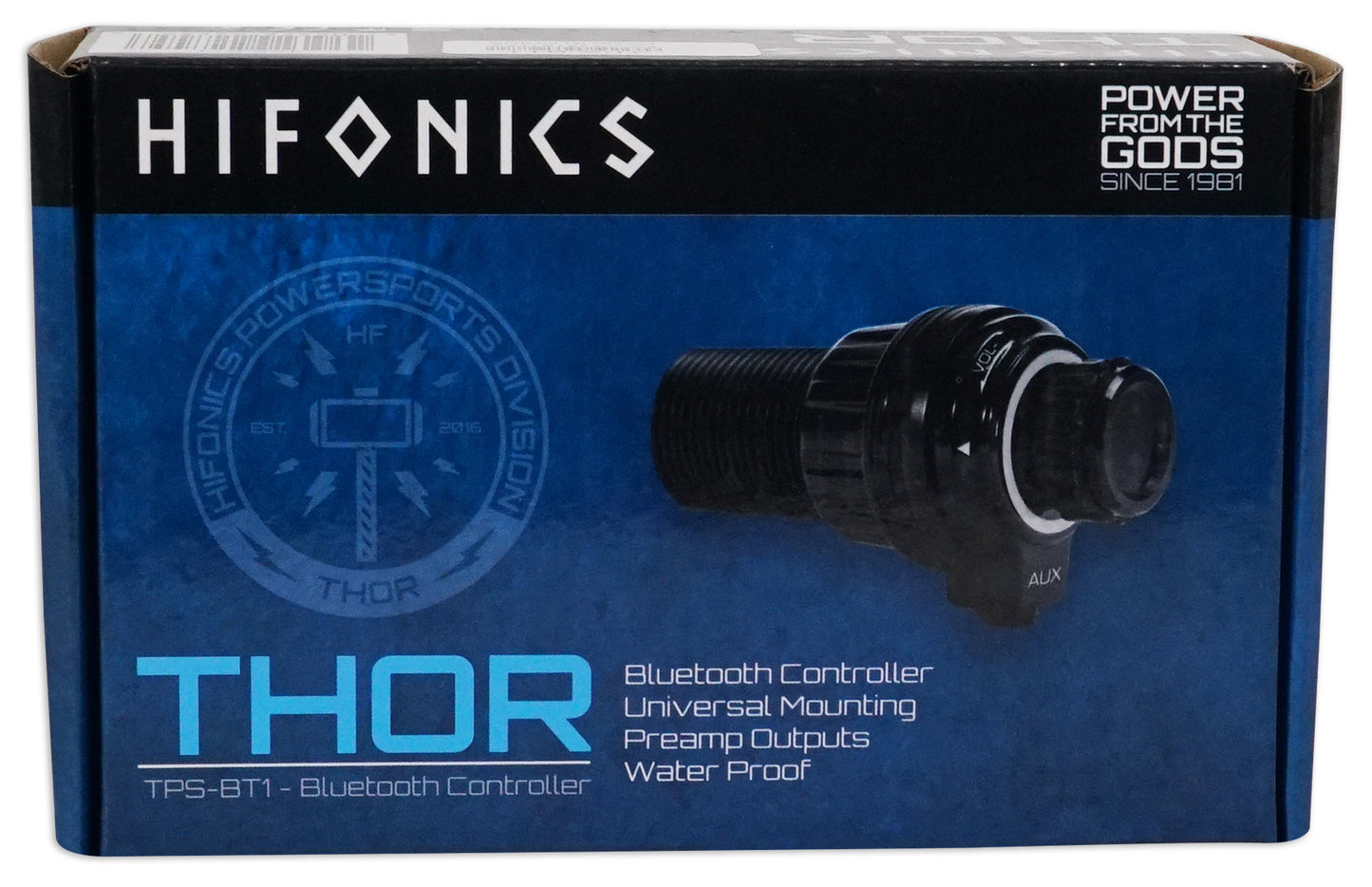

For installations where a full size radio/source until will not fit, Hifonics has designed the ridiculously small TPS-BT1 Bluetooth, pre-amp controller. That model comes from THOR Power Sports Bluetooth 1. It might be your favorite controller you have ever used. The amount of control and connectivity you will have at your fingertips is shocking.

All the music, from your Bluetooth enabled device, directly into your system via this small controller. The TPS-BT1 is fully IPX67 protected against the elements so it is perfect for installation right in the dash of your Side-X-Side or off road application.

For custom car builders, looking to keep an original clean look, This Bluetooth controller is a great option to changing out the original dash radio in a classic.

Features:

• Hifonics TPS-BT1 Bluetooth Marine Pre-Amp Controller 4 Polaris RZR/ATV/UTV/Cart
• Pre-amp controller
• Volume and track selection are controlled by the multi-functional joystick
• 2 volts output
• Waterproof Bluetooth controller designed to fit into a small hole
• iPhone, Android & Bluetooth Device Ready
