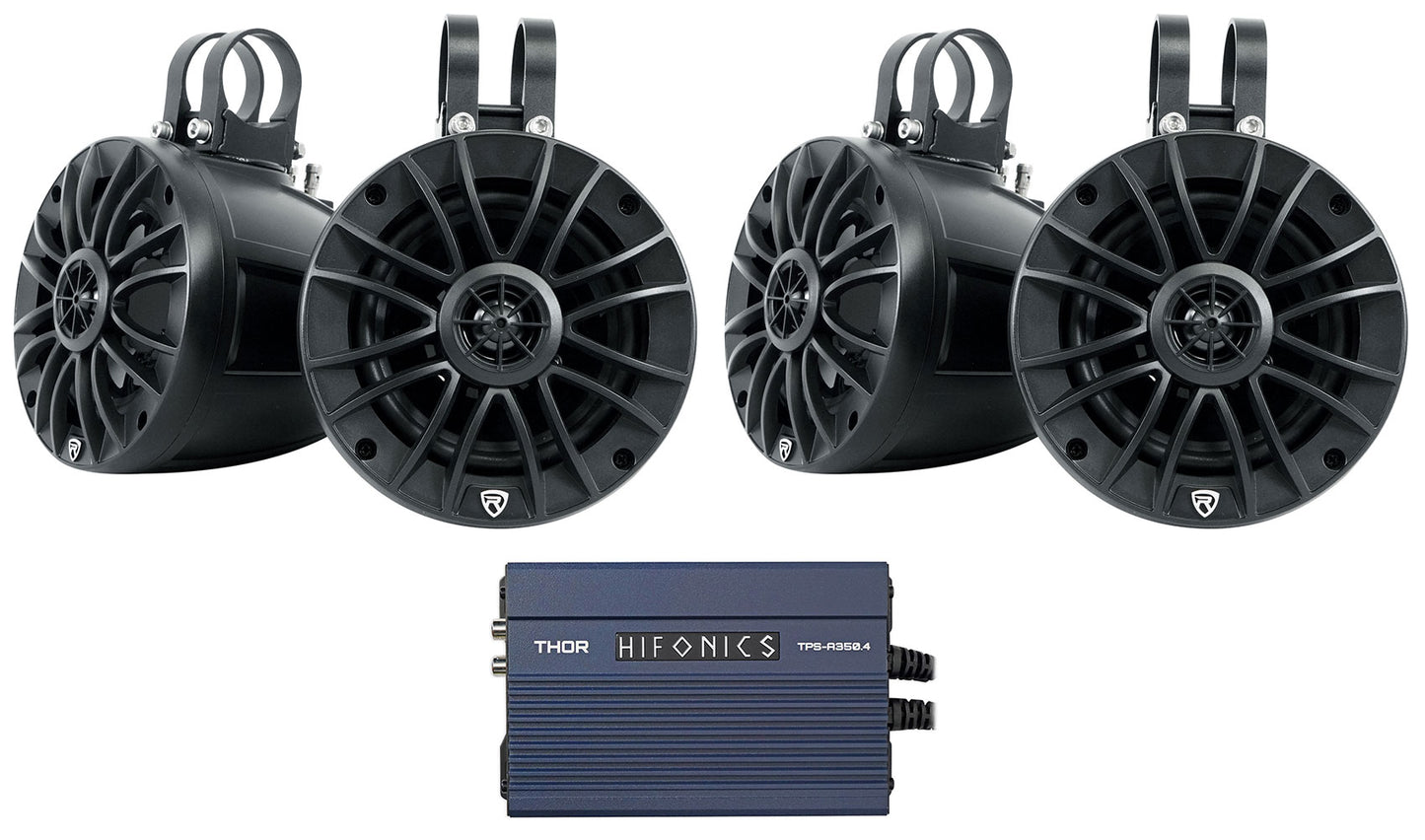

Package Includes:

• (2) Rockville UT525B UTV/ATV 5.25" Rollbar Wakeboard Marine Speakers/Swivel/IPX6
• (1) Hifonics TPS-A350.4 350w 4-Channel Marine Amplifier For Polaris RZR/ATV/UTV/Cart

---

UT525B PRODUCT VIDEO:

How To Set Up Your UT525B:

How To Set Up the Brackets On Your UT525B:

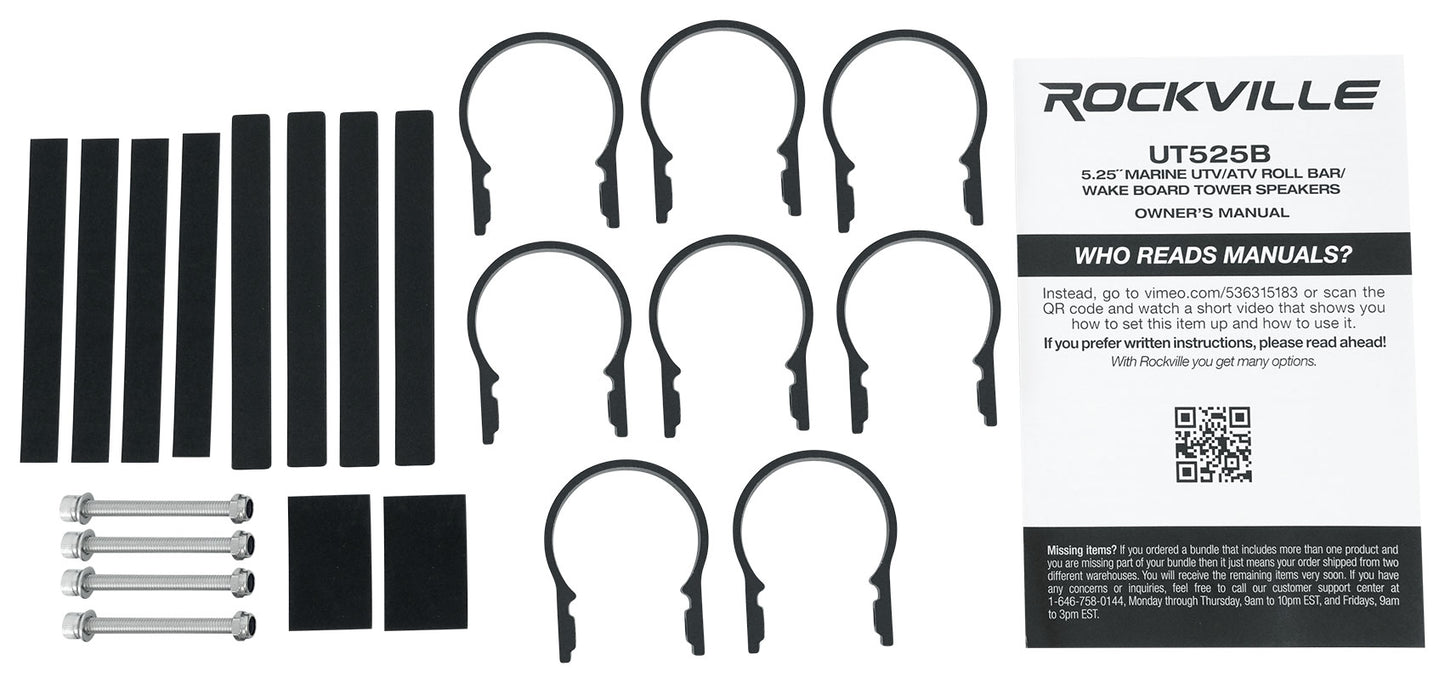

What's In The Box:

• (2) Swivel mount roll bar / wakeboard speakers
• Swivel Mounting brackets and mounting hardware to fit 1.5'' or 1.75" or 1.875" or 2" bars
• Installation hardware
• Owner's manual
• Warranty card

Features:

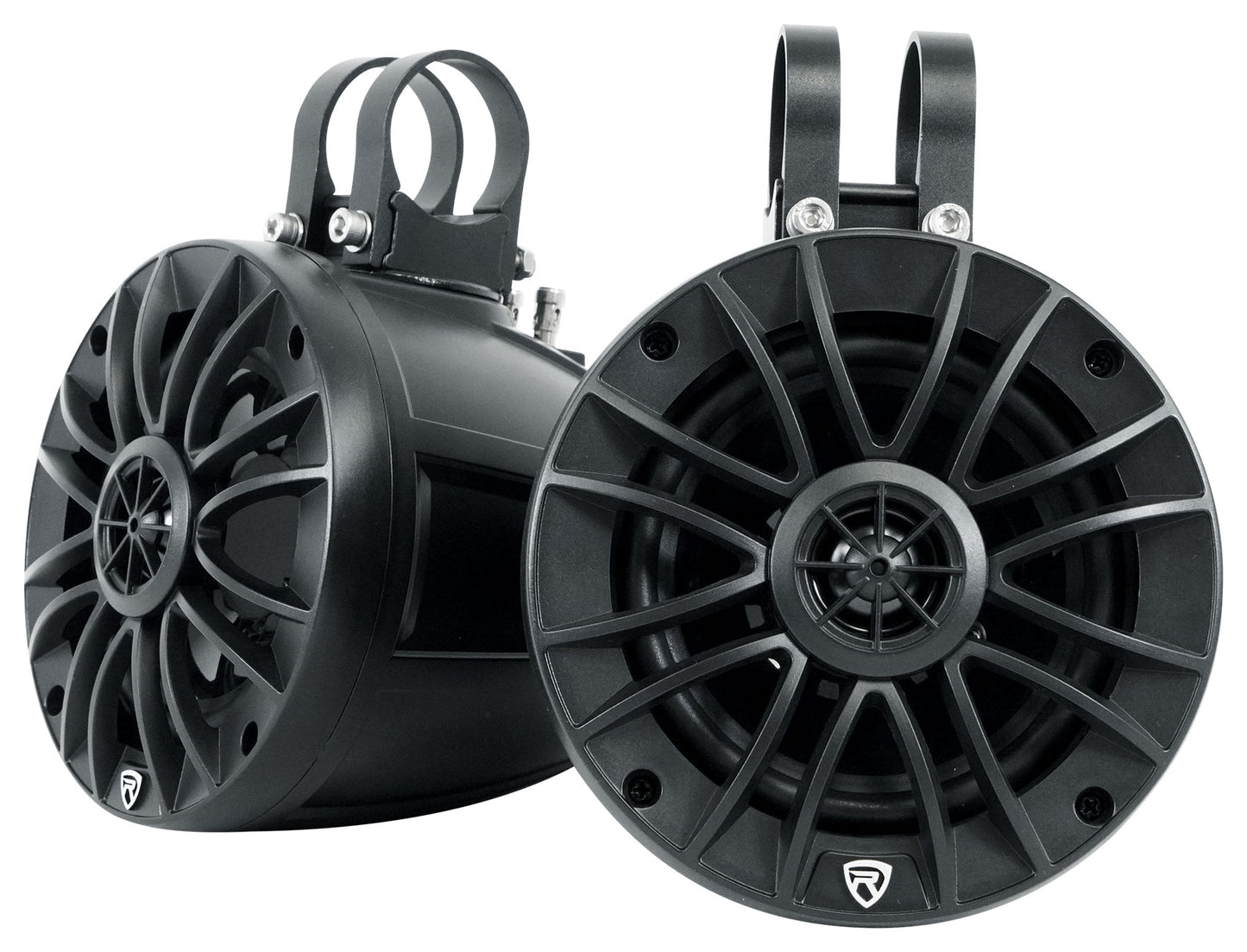

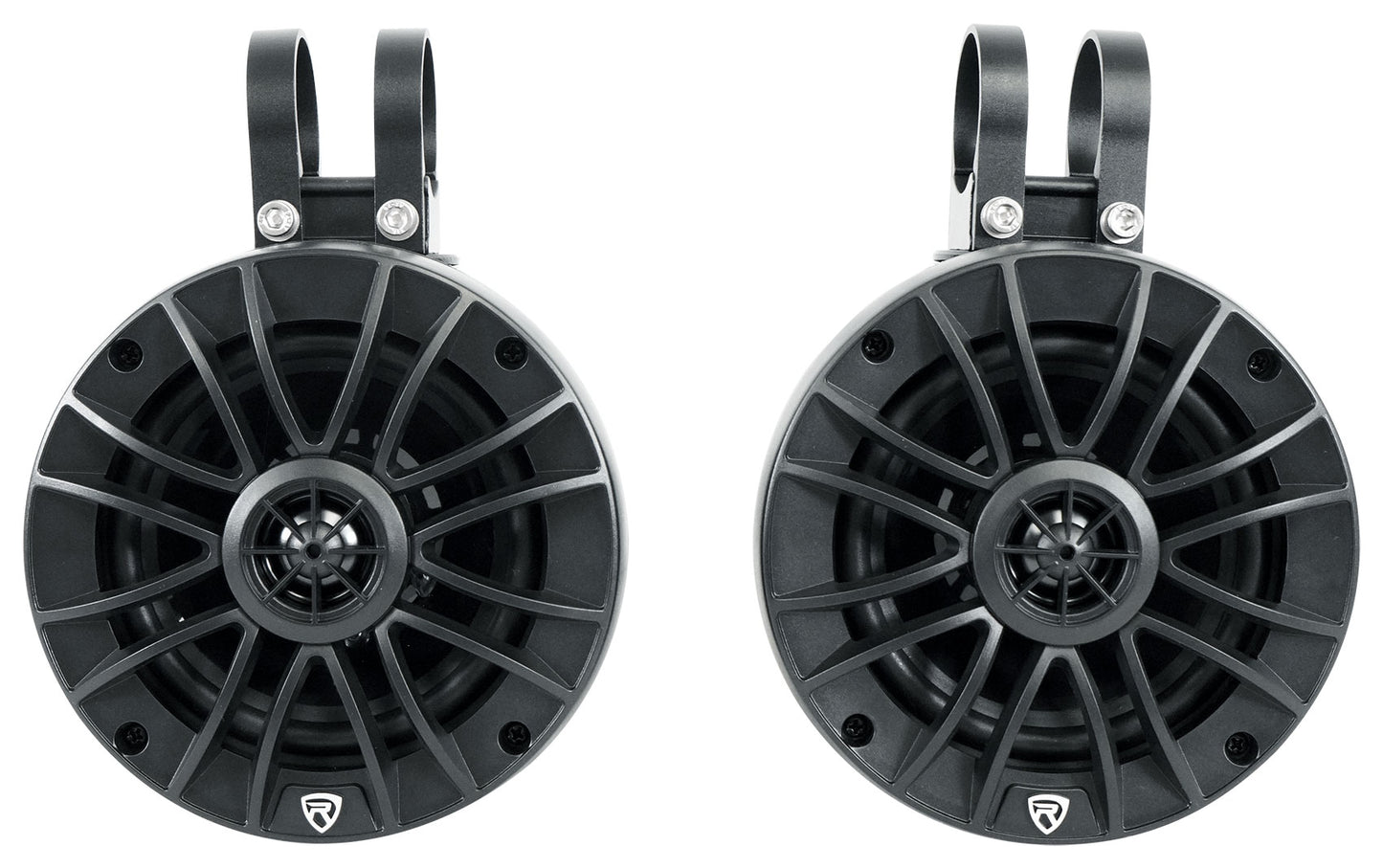

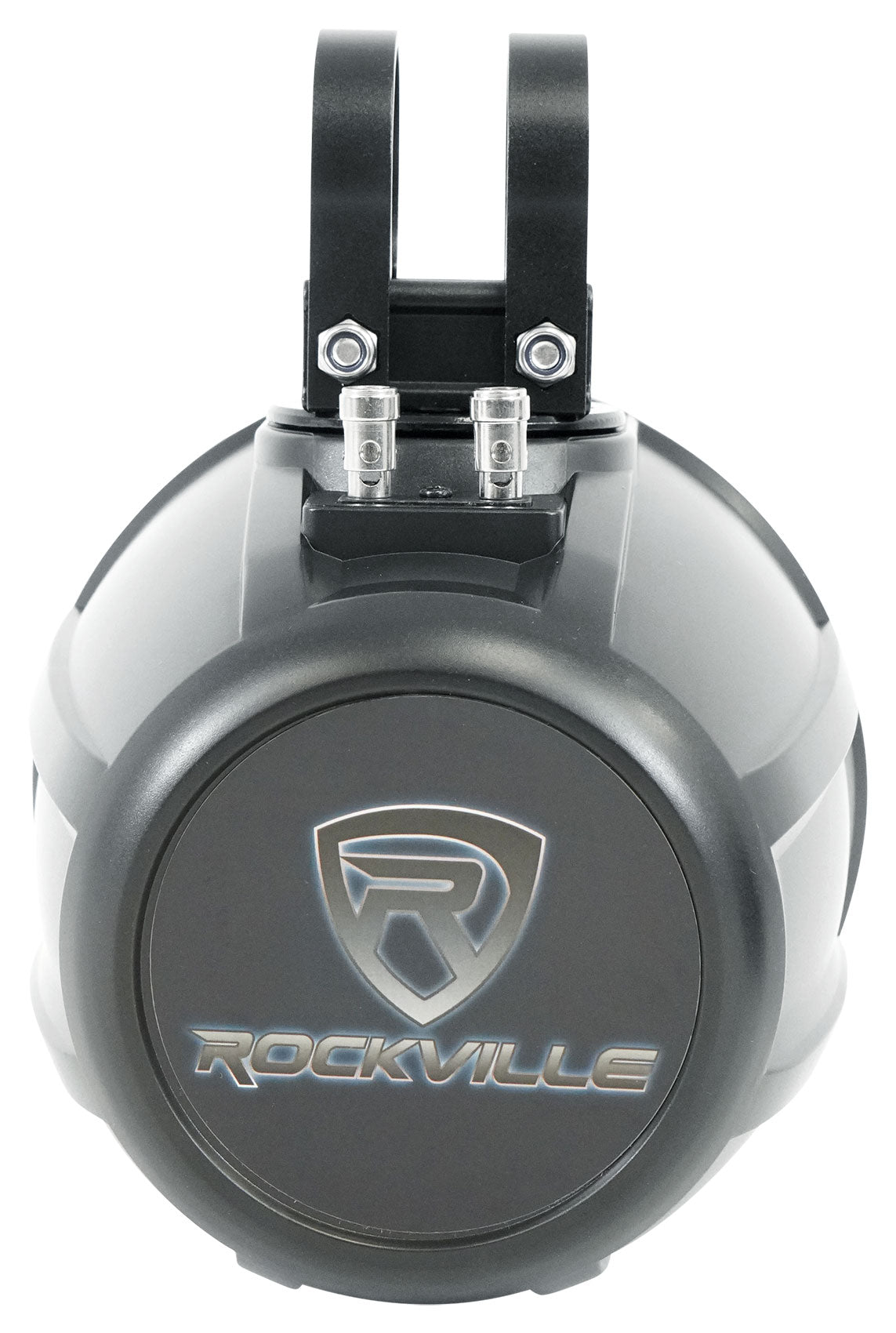

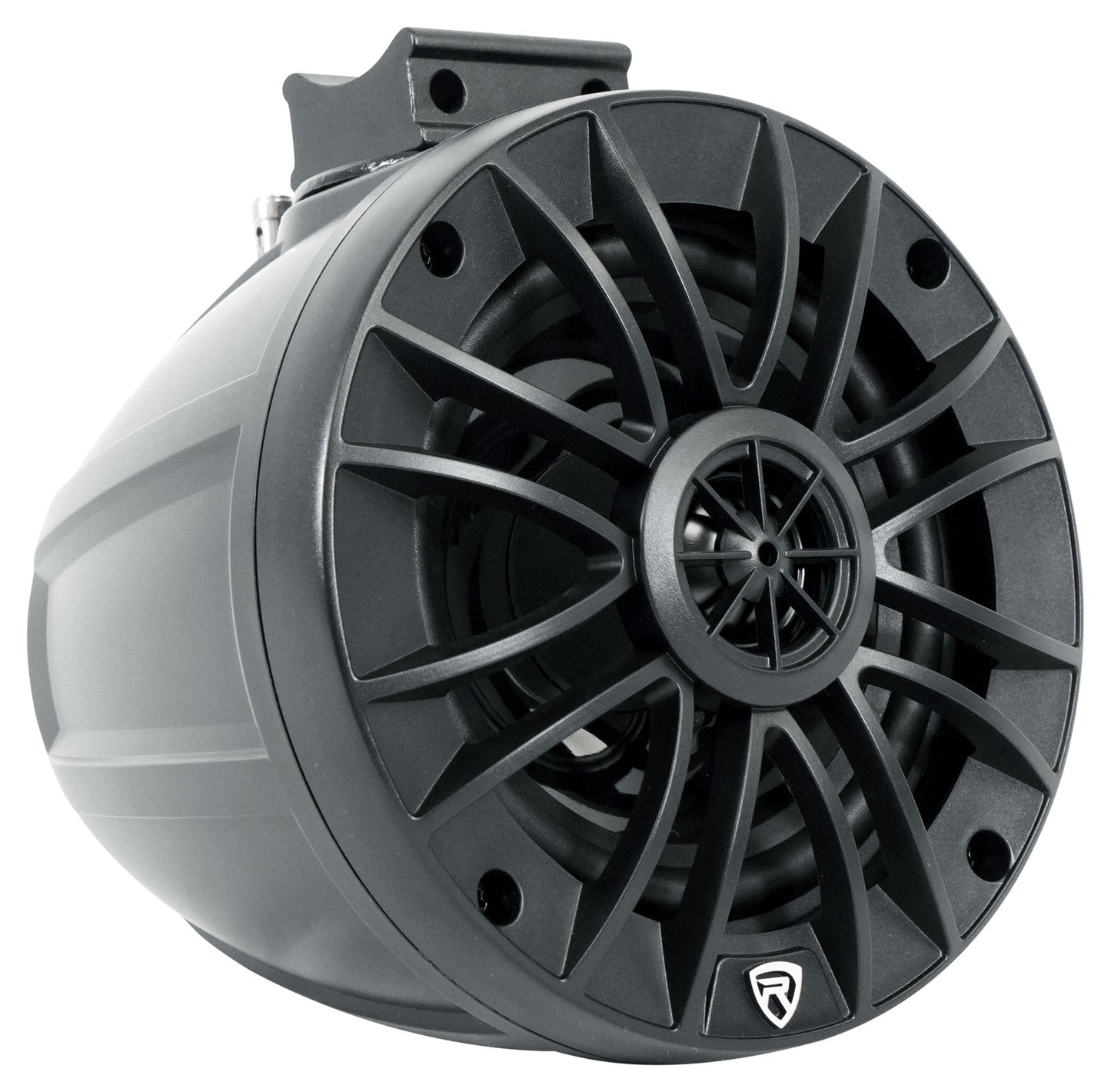

• Rockville UT525B 5.25" Marine UTV/ATV Roll Bar / Wakeboard Tower Speakers
• Peak Power Handling: 280 Watts
• RMS Power Handling: 70 Watts
• True Coax Design With the Tweeter Completely Separated From the Cone
• Larger Cone Surface Area Gives Better Mids and Lows
• Less Mass Attached to the Cone Allows for Higher SPL and Sensitivity
• True coaxial design allows for superior sound quality, better stereo separation, and clearer mids and highs
• Heavy Duty ABS enclosure
• IPX6 Water Resistance Rated
• Marine-grade components are protected from the outdoor elements

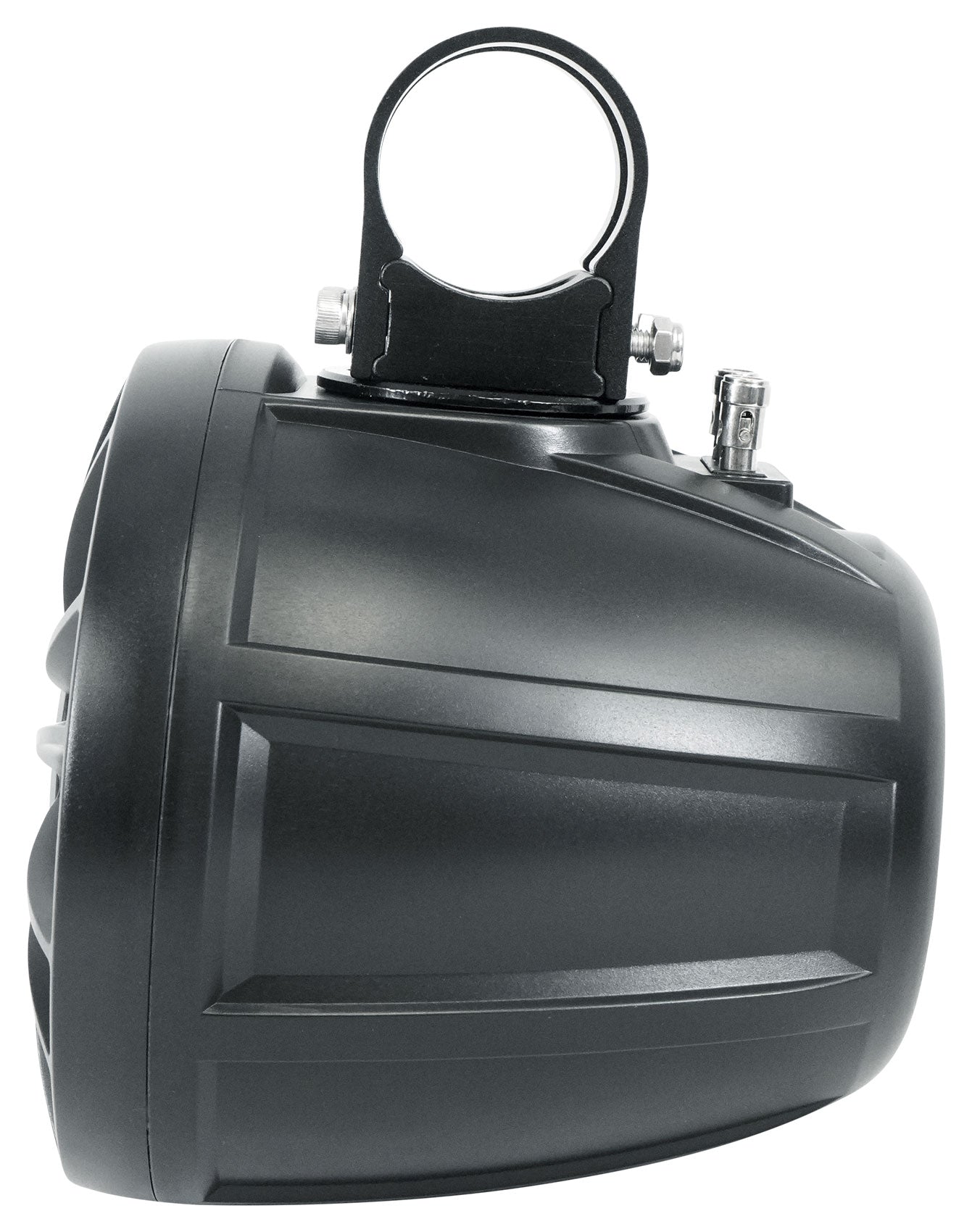

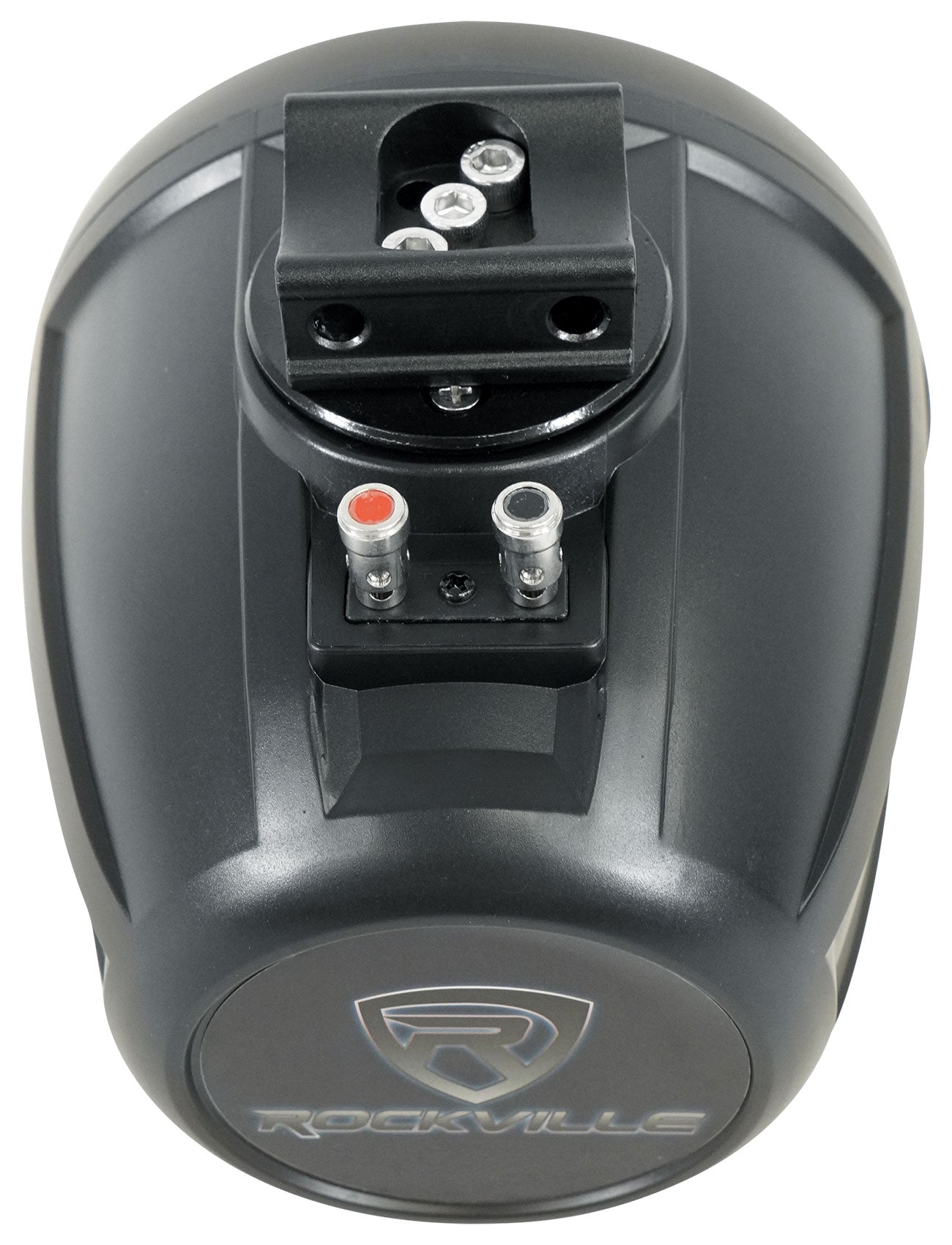

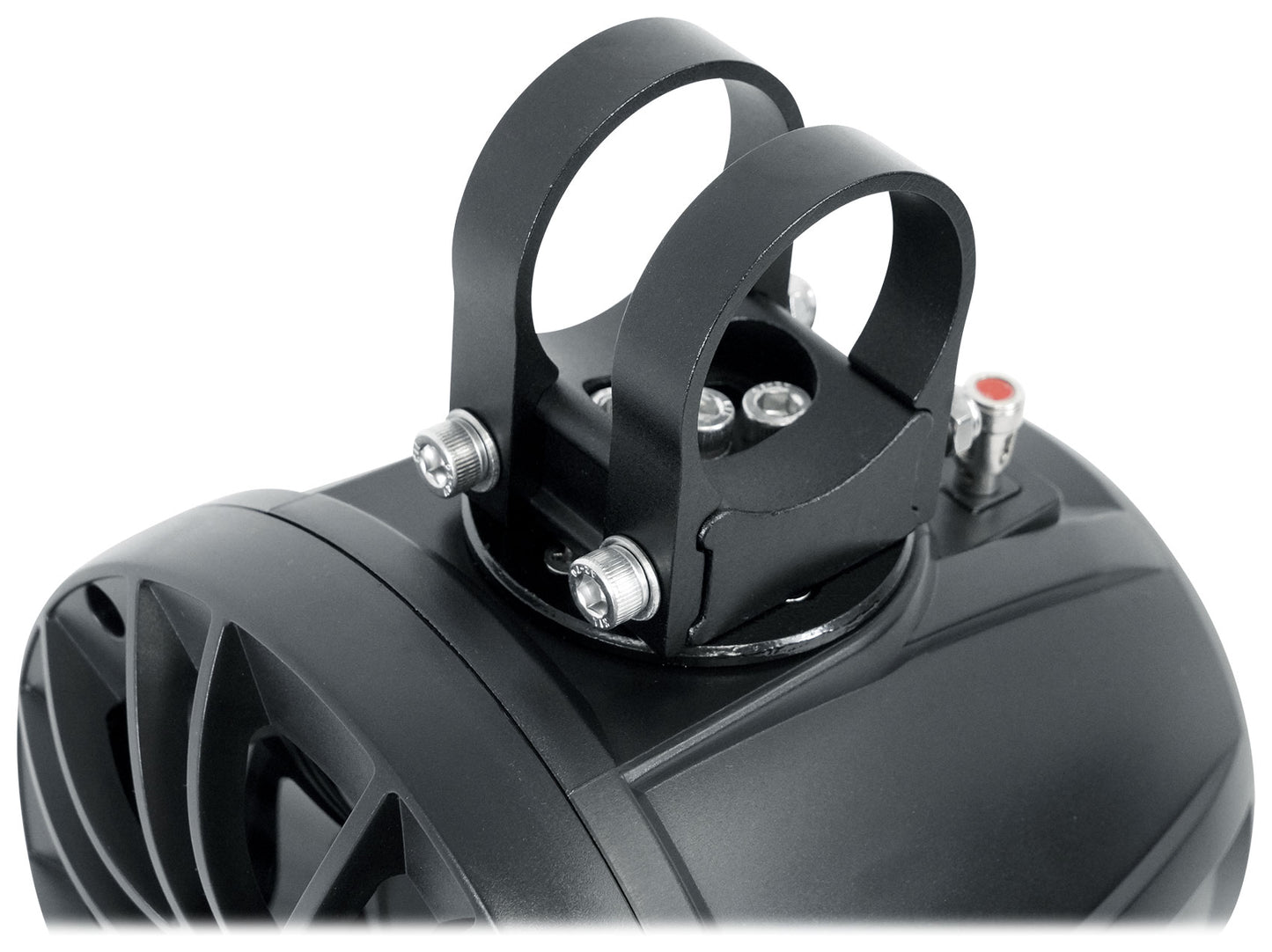

• Adjustable Aluminum Mounting Bracket is Strong and Sturdy
• Bracket Swivels 360 Degrees (Fixed swivel)
• 5.25" Woofers with 11 oz Magnets and Oversized 1" Kapton Voice Coils
• 1" PEI Dome Tweeters with Neo magnets
• Fits wakeboard towers and roll bars ranging from 1.5" to 2" inches
• Shallow enclosure design is perfect for UTV, ATV, and marine applications
• Fully Marinized Against Salt & Fresh Water Conditions
• Completely Resistant to Water, Rust, and UV Rays
• Polypropylene Mica Injected Cone with Butyl Rubber Surround
• Frequency Response: 130Hz - 20KHz
• SPL: 87dB @ 1w/1m
• Impedance: 4 Ohms
• Shockproof Design
• ABS Weather Resistant Grills and Hardware
• RoHS Certified
• Color: Black
• Dimensions (H x W x D): 9" x 6.39" x 6.23"

---

Description:

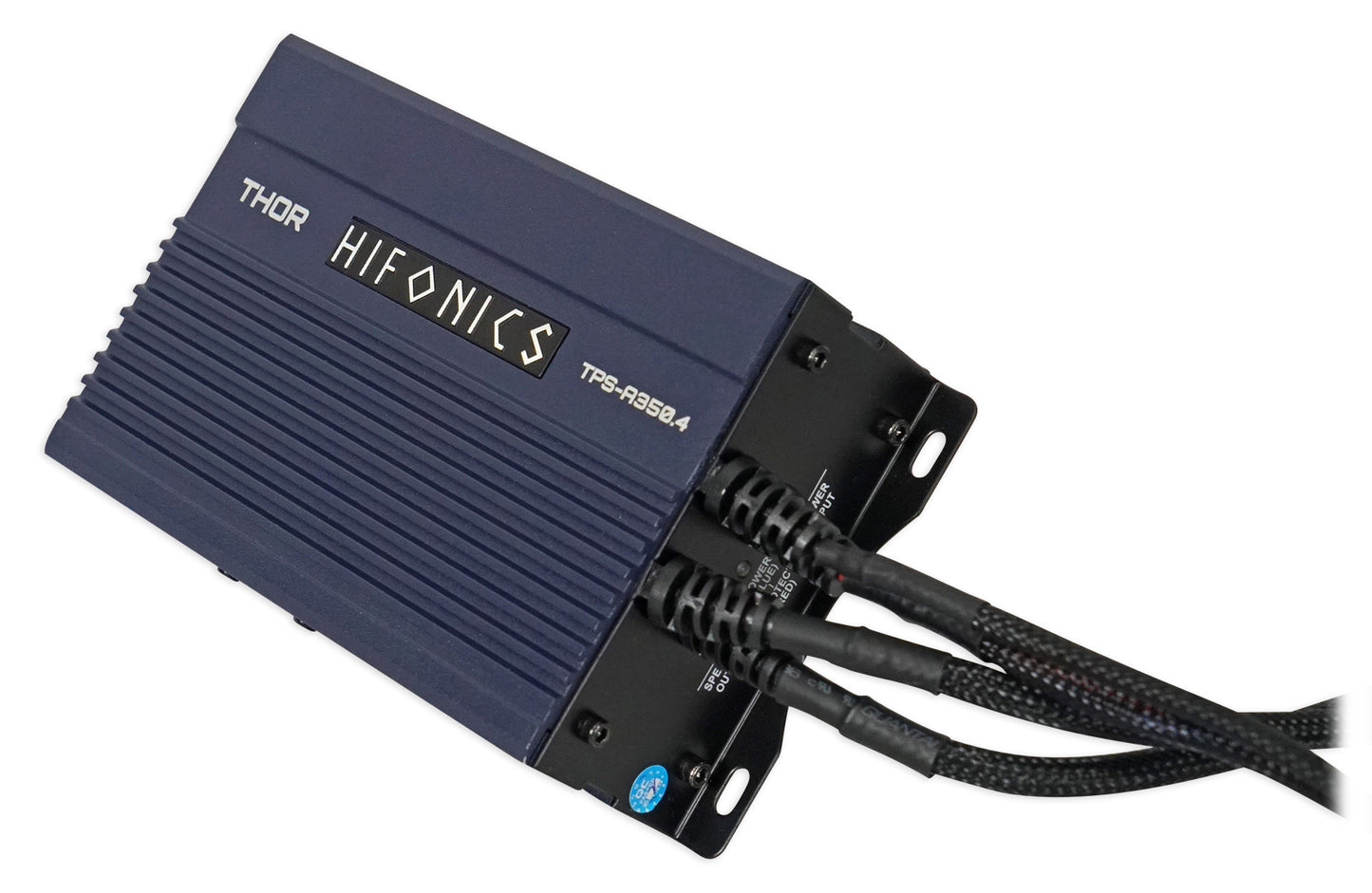

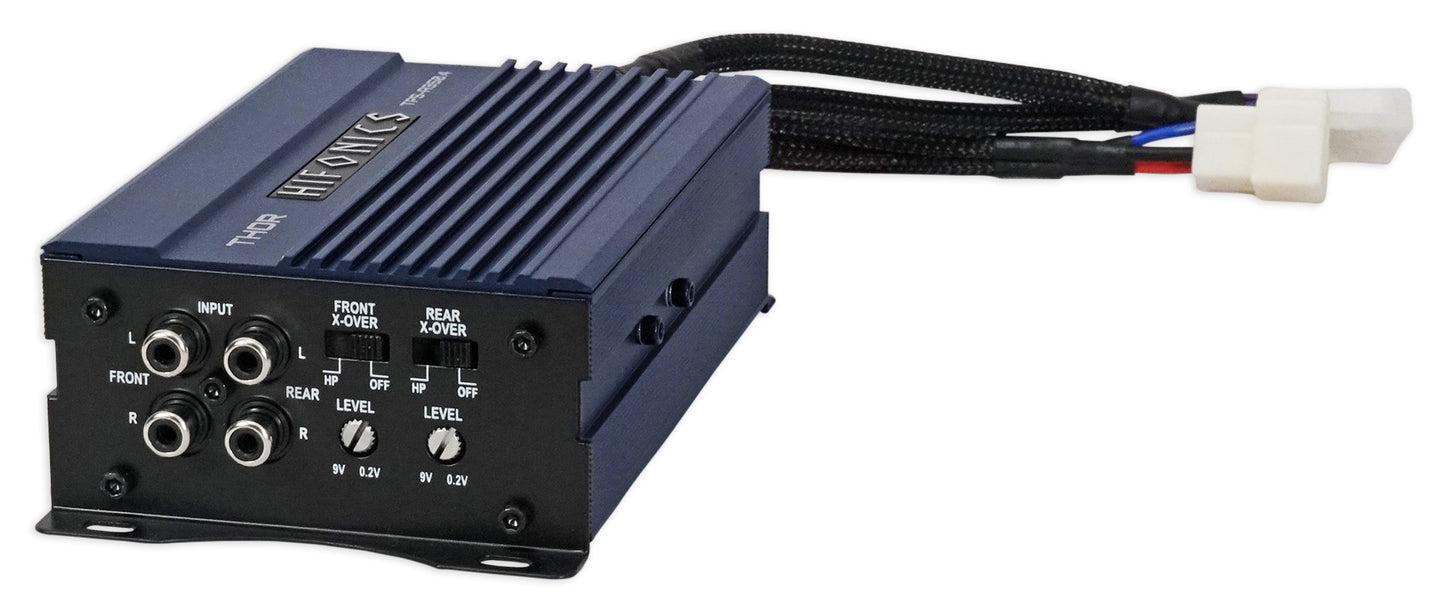

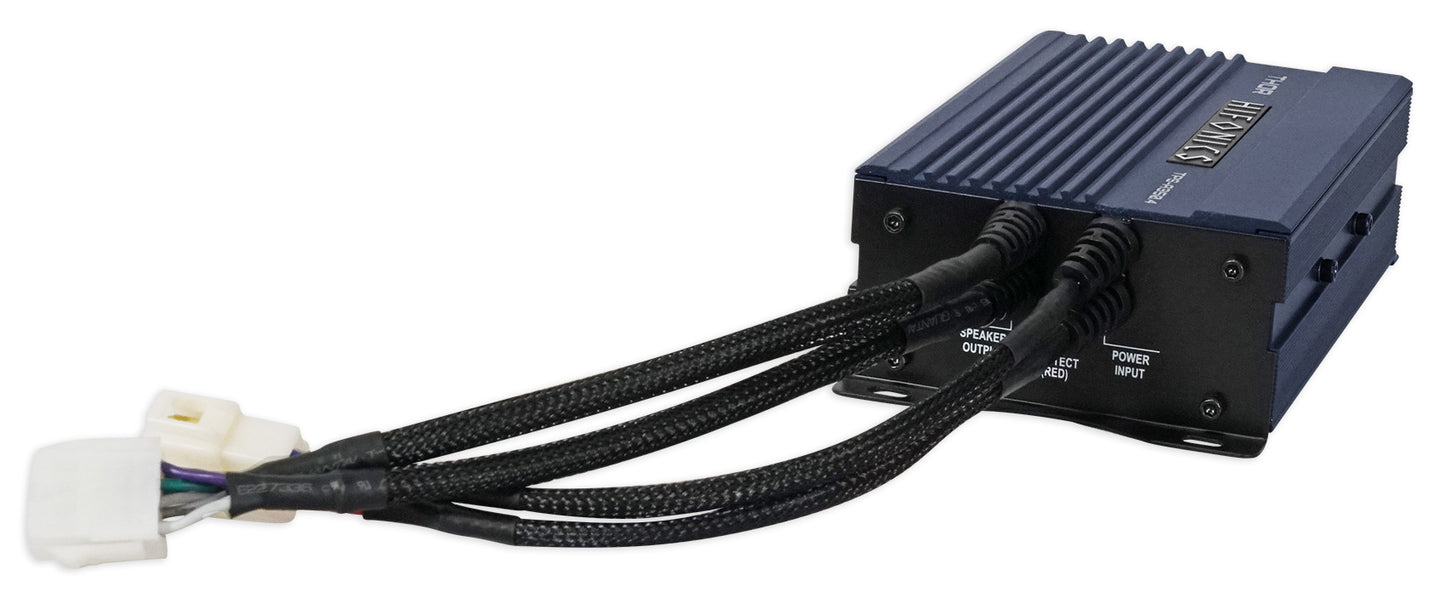

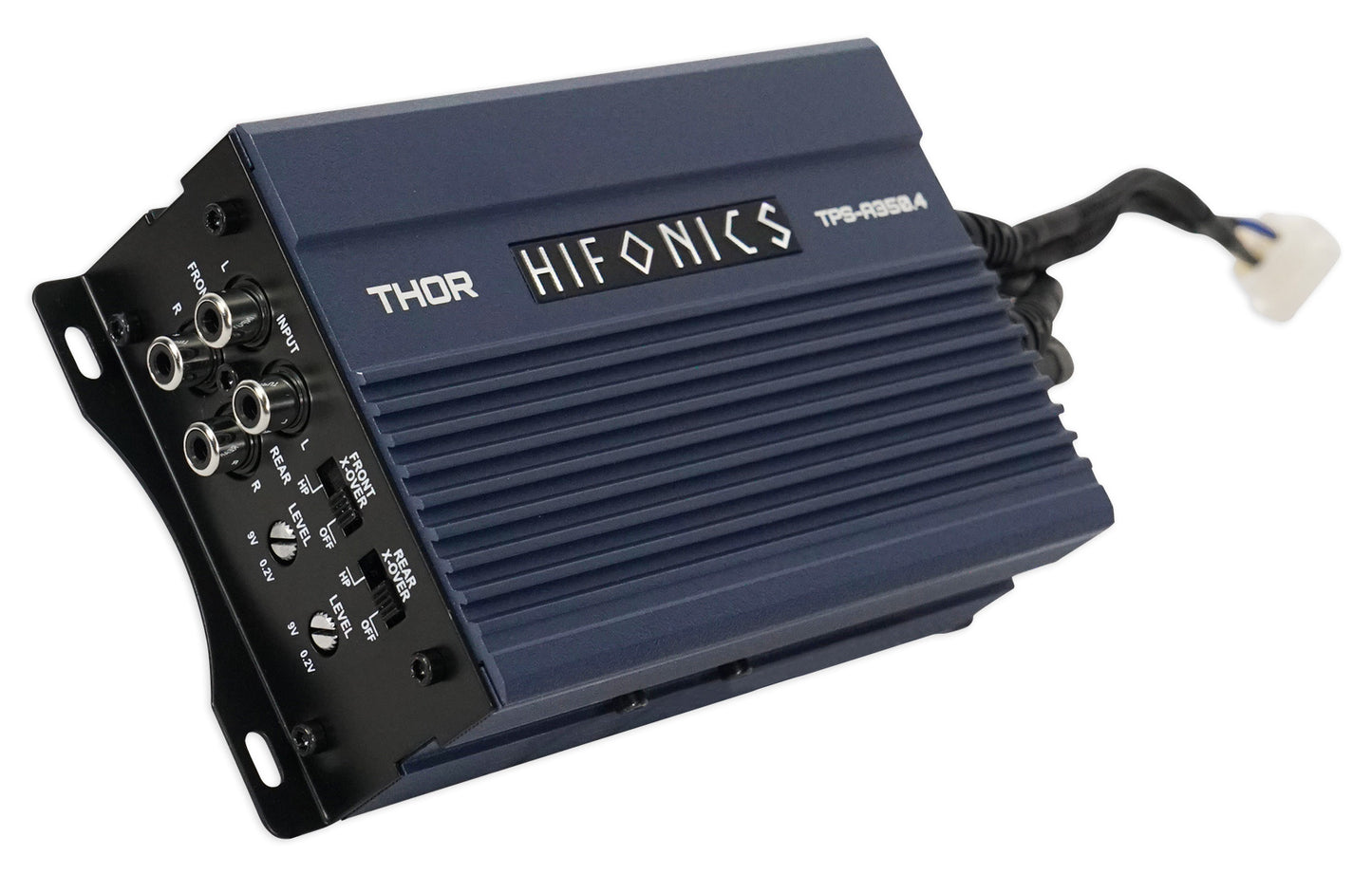

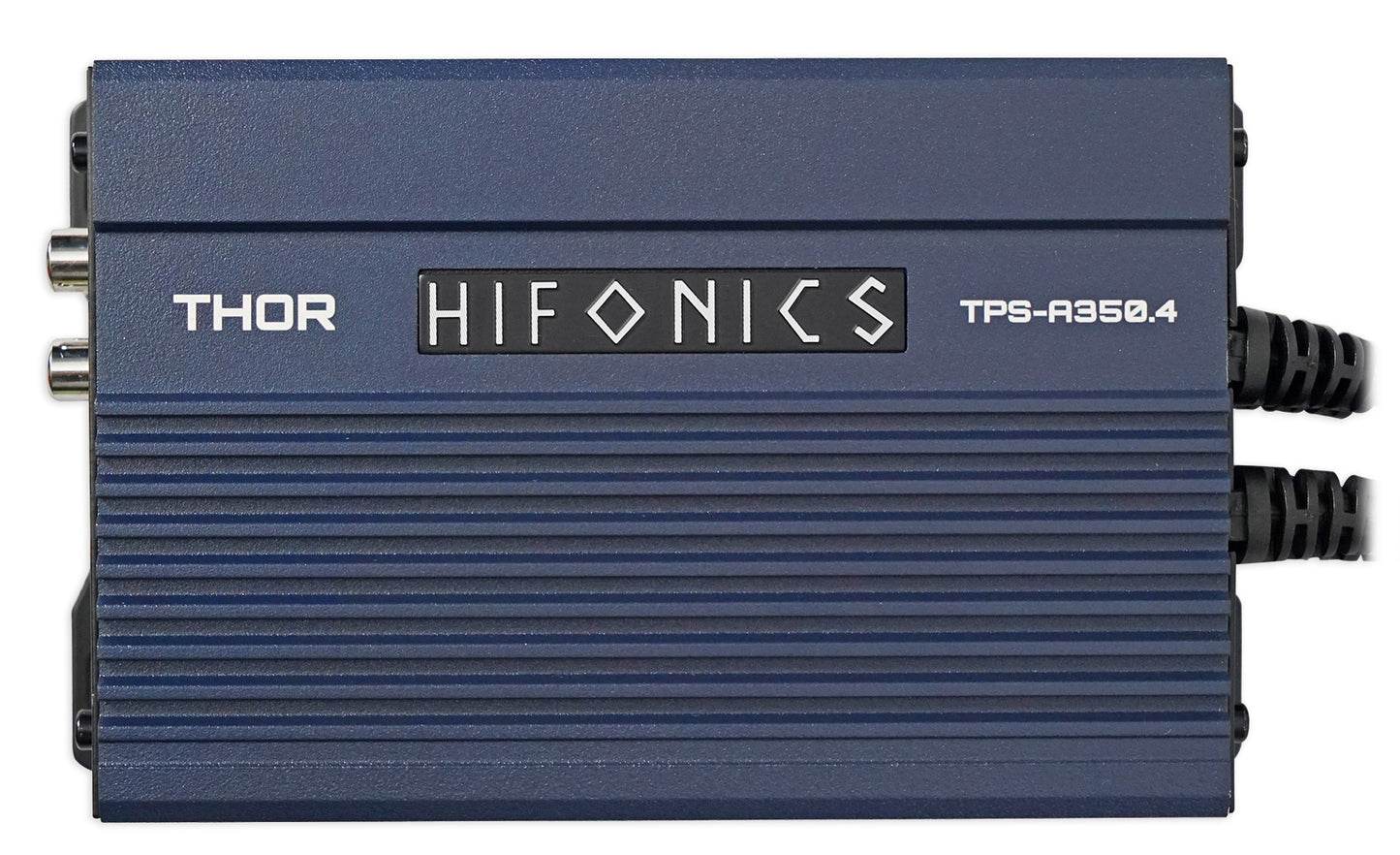

Hifonics THOR compact Four Channel, 350 watt Powersports amplifier with on-board equalization and simple installation with quick release connectors.

Features:

• Hifonics TPS-A350.4 350w 4-Channel Marine Amplifier For Polaris RZR/ATV/UTV/Cart
• Marine Grade Protection: YES - Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
• Pre-Amp Circuitry: Low Noise Pre-Amplifier Stage - Special preamplifier reduces incoming noise from source units dramatically improving sound quality

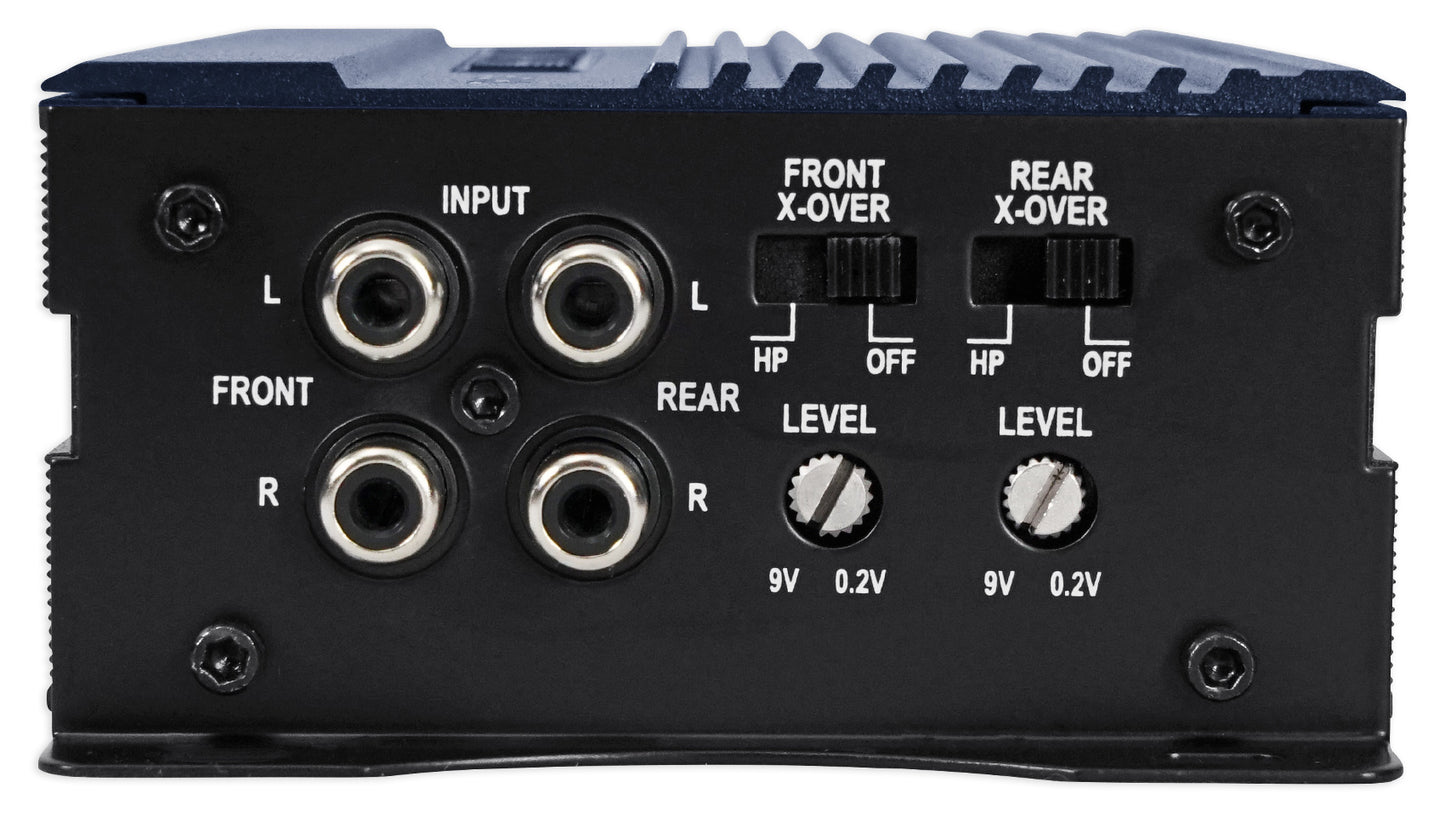

• Inputs: 2 Pair, RCA Nickel-Plated - High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
• Operation Mode: Four channel operation - Flexible installation allows this amplifier to run in four channel or bridged mono mode.
• Crossover / Signal Shaping: Switched FULL / LPF / HPF - Complete control of amplifier signal, essential when using two or more amplifiers
• Class / Topology: Full Range Class D - Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
• Output Devices Technology: PWM MOSFET Power Supply - Stable power through the PC board with minimal heat generation
• Heat Sink: Aluminum - Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
• Power Supply: Simpatico Coil Design - The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices

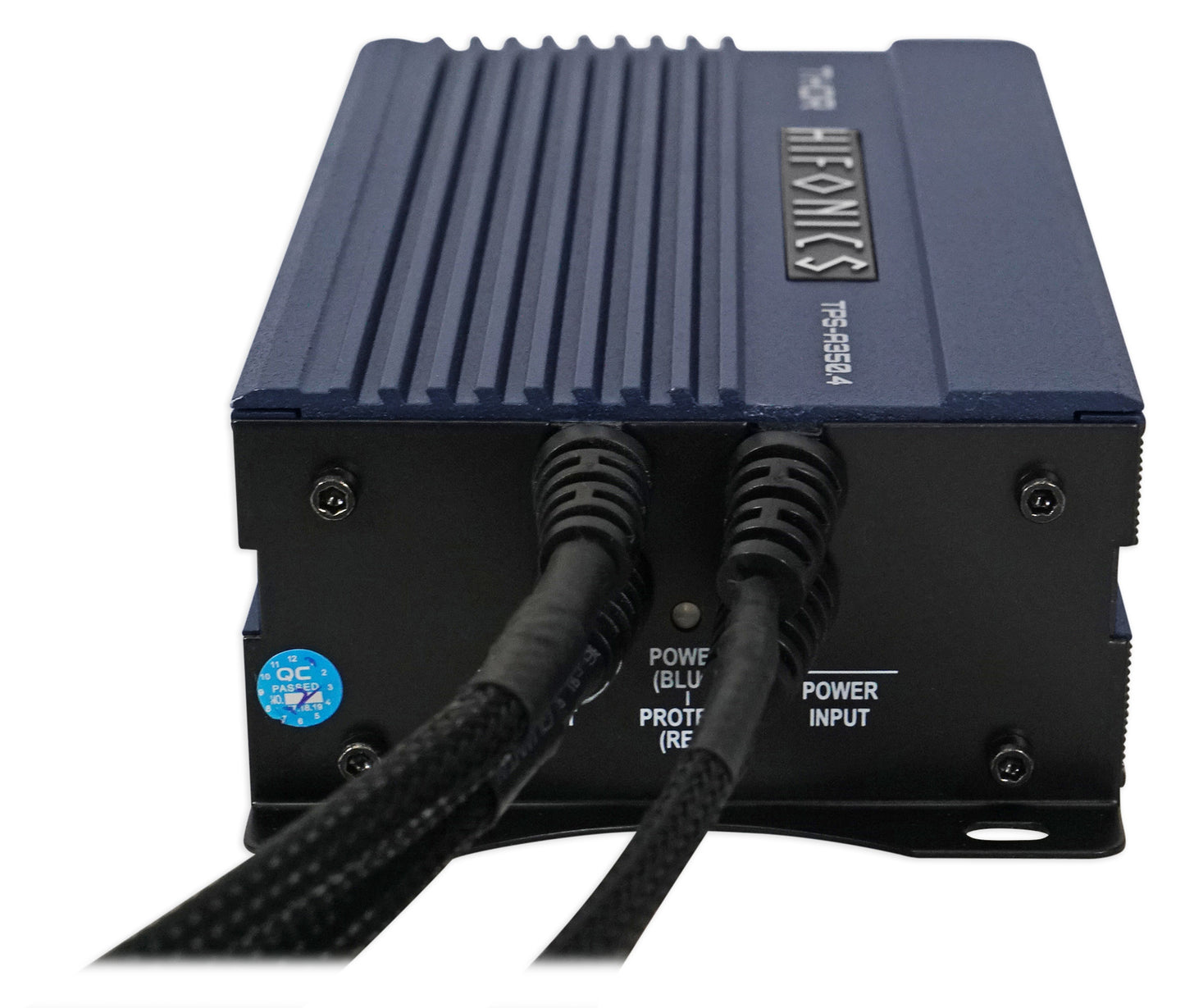

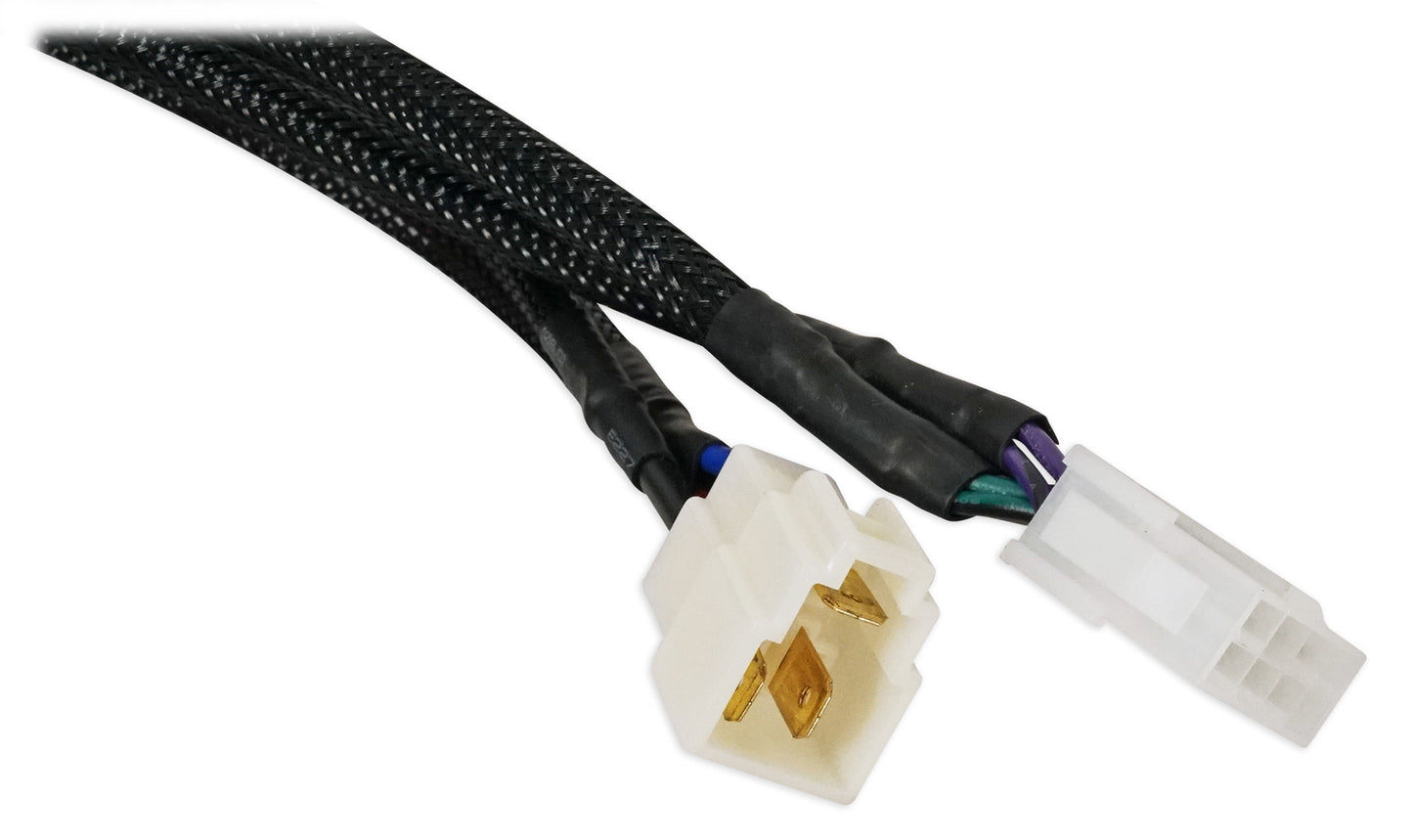

• Output Connections: Quick Dissconect Wires, RCA Connections - Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
• Connections Type: Gold-plated connections - Gold-plated power, ground, speaker and RCA corrosion resistant connections

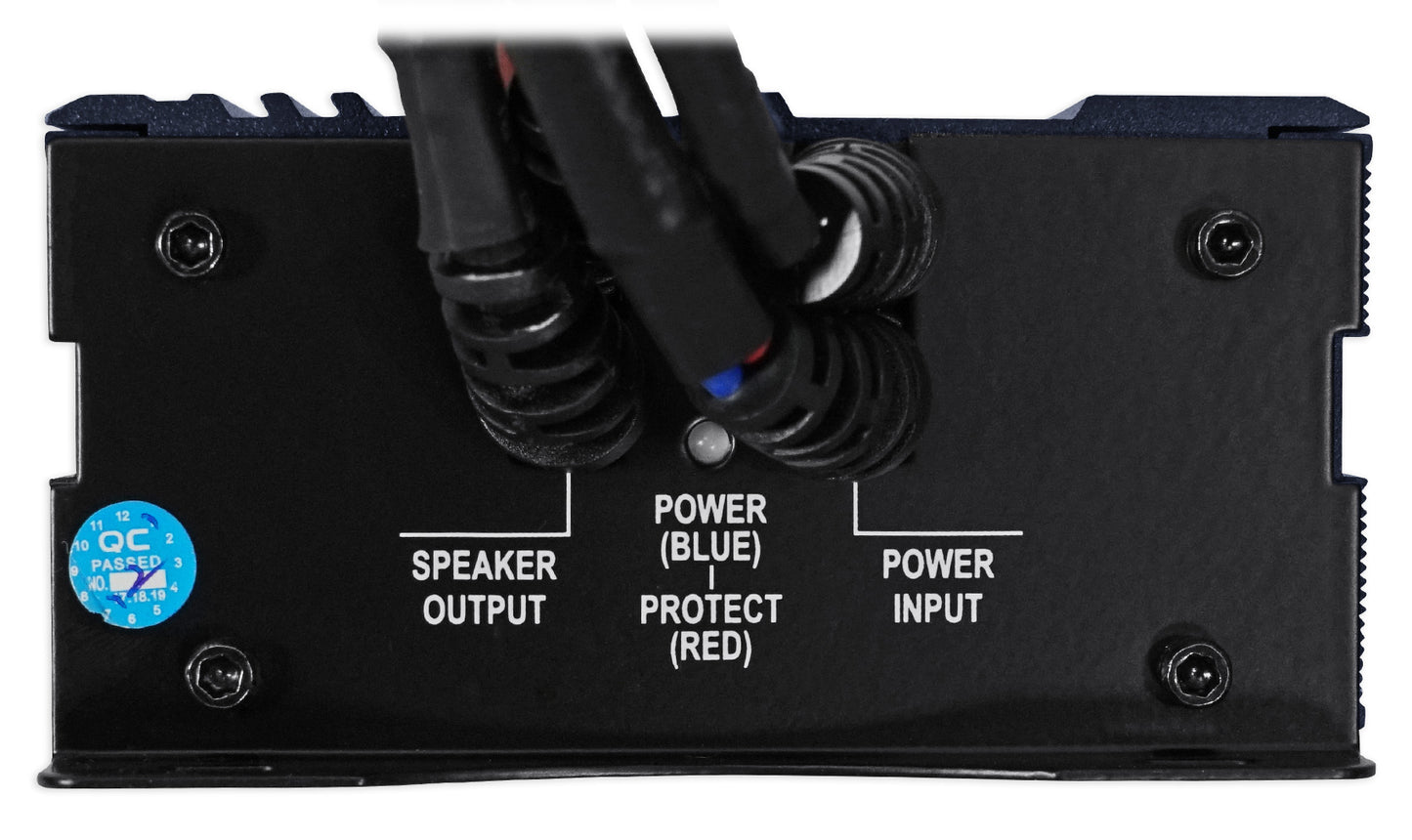

• Diagnostics: Three-stage protection circuits - Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
• Marinized / Waterproof: YES - Water resistant for durability in any environment

Specifications:

• Class: Full Range Class D
• Variable Voltage: 0.2V~9V
• Signal to Noise Ratio: >90dB
• Frequency Response: 20Hz-20kHz
• Crossover Frequency Range CH1 & CH2: Switched HP/ Full
• Crossover Frequency Range CH3 & CH4: Switched HP/ Full
• Bass Boost: 0-12dB@45Hz
• Power @ 2-Ohms: 4 x 80W
• Power @ 4-Ohms: 4 x 40W
• Total Channels: 4
• Audio Inputs: RCA
• Power Terminal 12v/GND: Molex 10 ga
• Speaker Terminal Wire Gauge: Molex Plug Connector
• Fusing: 1 x 30 Amps
• Certifications: Marine & Powersports
• Dimensions: 3.70 X 5.51 X 1.77 inches (9.4 X 14.0 X 4.5 cm)
• Weight: 2.16 lbs (0.98 kg)
