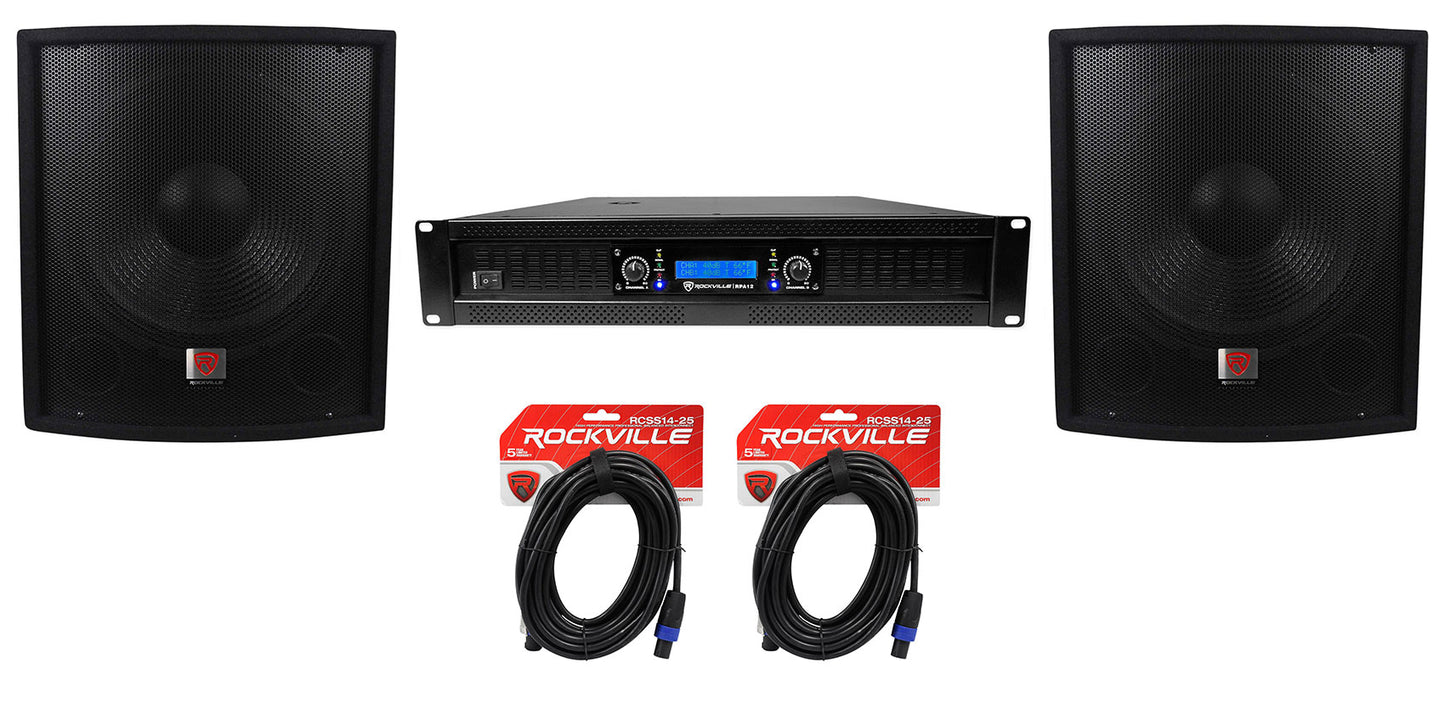

Package Includes:

• (2) Rockville SBG1158 15" 800 Watt Passive Pro DJ Subwoofers, MDF Cabinet/Pole Mount
• (1) Rockville RPA12 5000 Watt Peak / 1400w RMS 2 Channel Power Amplifier Pro/DJ Amp
• (2) Rockvile RCSS1425 25' 14 AWG Speakon to Speakon Speaker Cables 100% Copper

---

How to Set up Your SBG Subwoofers:

Video of SBG1158:

 Unboxing Video for SBG1158:





Description:

At Rockville we understand you have a choice of where to buy your pro audio gear. We strive to compete in quality with higher end brands in the market. We also market directly to end users cutting out all middlemen which is why we are able to offer high end products at lower prices than the cheap stuff out there.

Something we like to do is to explain the differences between this and off brand pro audio subwoofers so you can understand how great the quality of this subwoofer is.

The cheaper ones use particle board. We spend more money manufacturing these with MDF which will hold up for a much longer time than particle board. We are using a real true pro audio subwoofer in the cabinet which has very large 3" voice coils and a 70 oz magnet. The off brand names use a magnet half the size of this and a smaller size voice coil. The advantage is that our unit can handle more power and will last longer. These subs can take a real beating! The other difference is the build quality. We go the extra mile to use the right amount of glue, solder, etc. Lots of off brand name subs blow due to poor glue or poor solder. Lastly, our company goes through vigorous testing for sound quality and tuning before we start our mass production. Lastly, we have one of our very own technicians go to the factory and inspect a minimum of 15% of the production models to ensure the quality is as good as the original samples we engineered.
This product has a 1 year warranty (It is highly unlikely you will ever have to use it though).

Features:

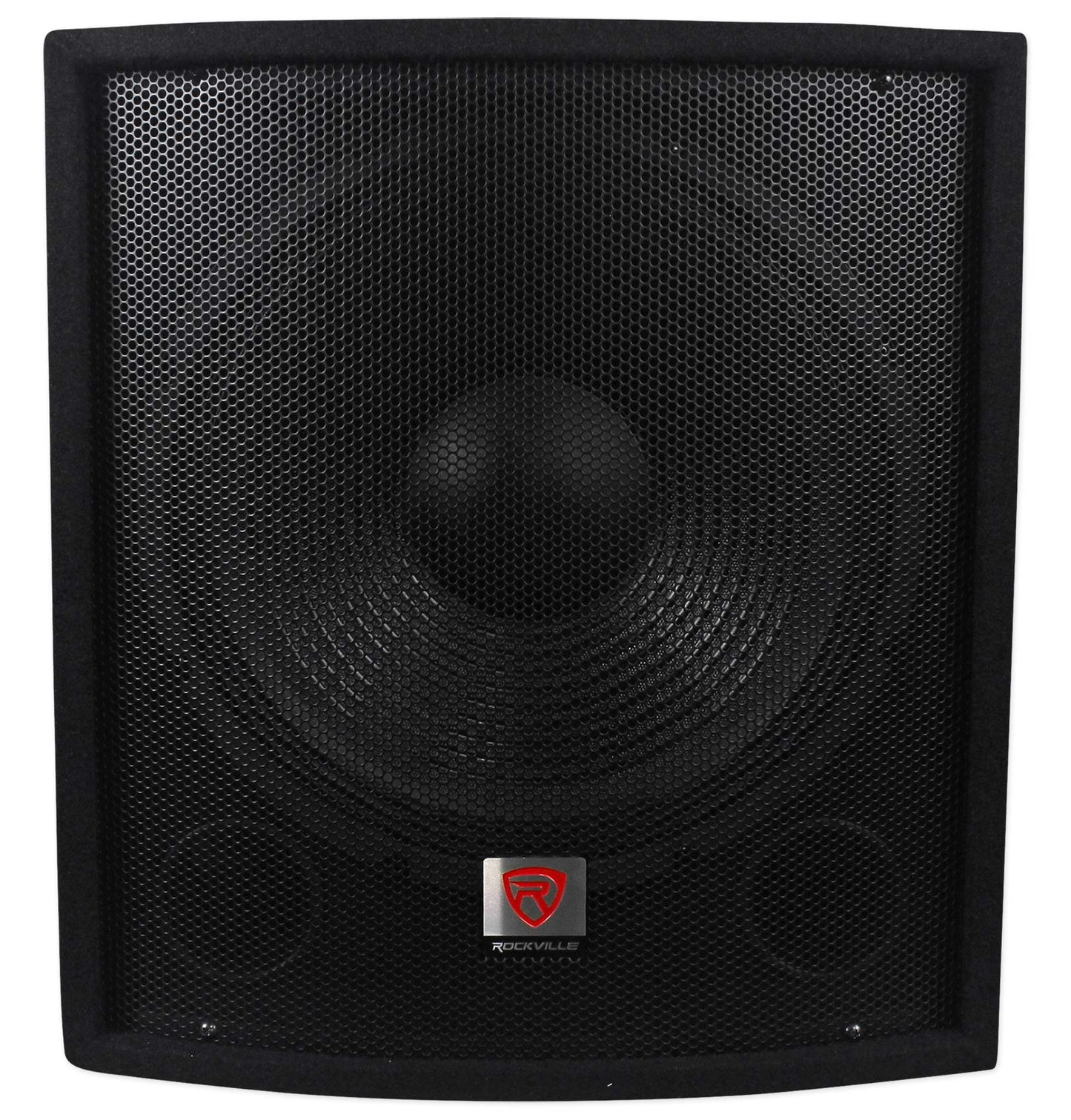

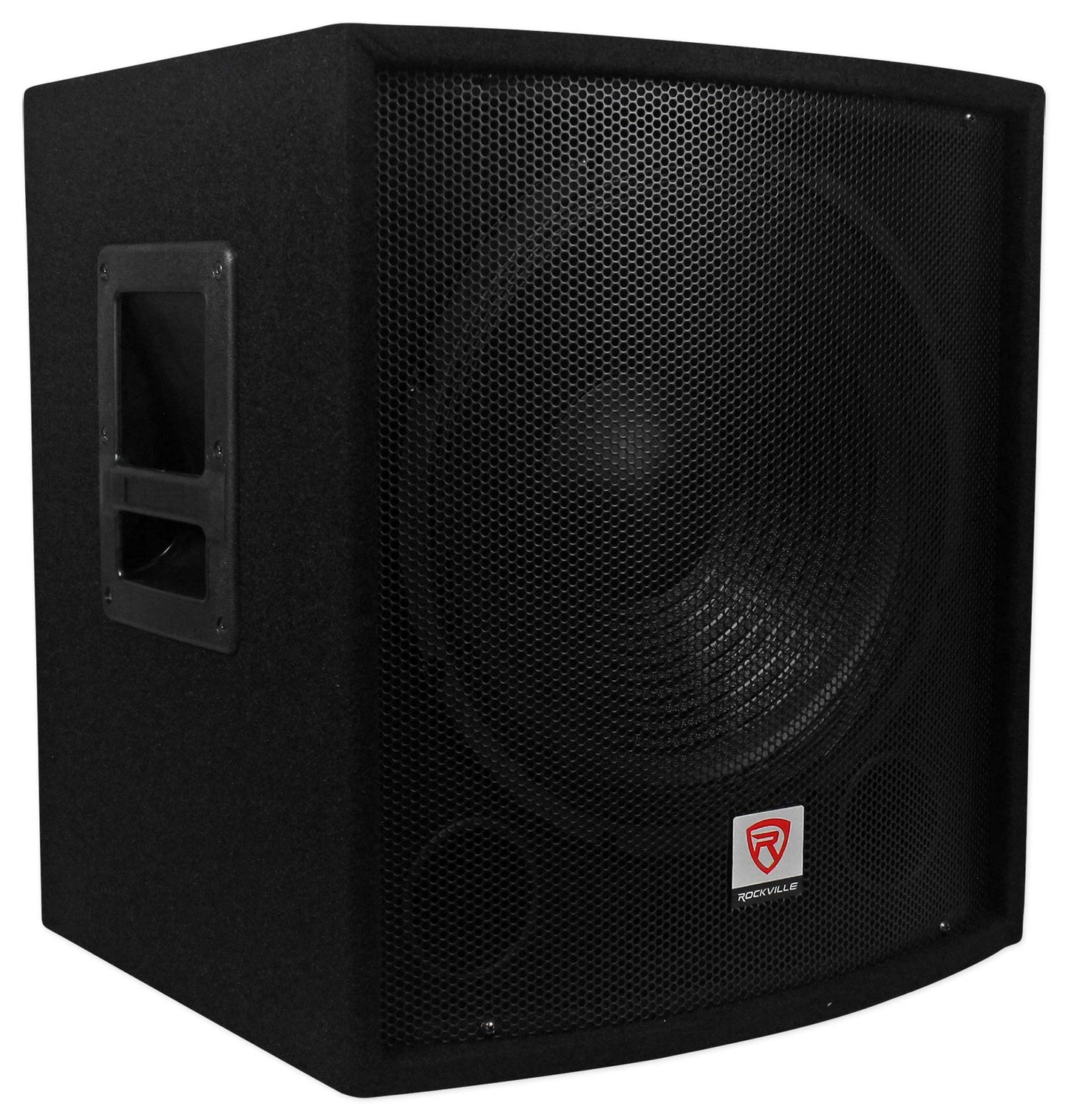

• Rockville SBG1158 15" 800 Watt Passive Pro DJ Subwoofer w/ MDF Cabinet and Pole Mountable
• 15” Pro audio woofer

• 400 Watts RMS / 600 Watts Program / 800 Watts Peak
• 3” High temperature aluminum voice coil

• 70 oz magnet woofer
• Ported Enclosure for Improved Bass Response
• Construction: High-Density, High-Quality Non Resonant MDF wood - Stapled, Bonded & Braced

• Ergonomic Recessed Handles

• Molded Steel Grill

• Aviation Grade Black Carpet

• Pole Mountable

• Rubber Isolating Feet

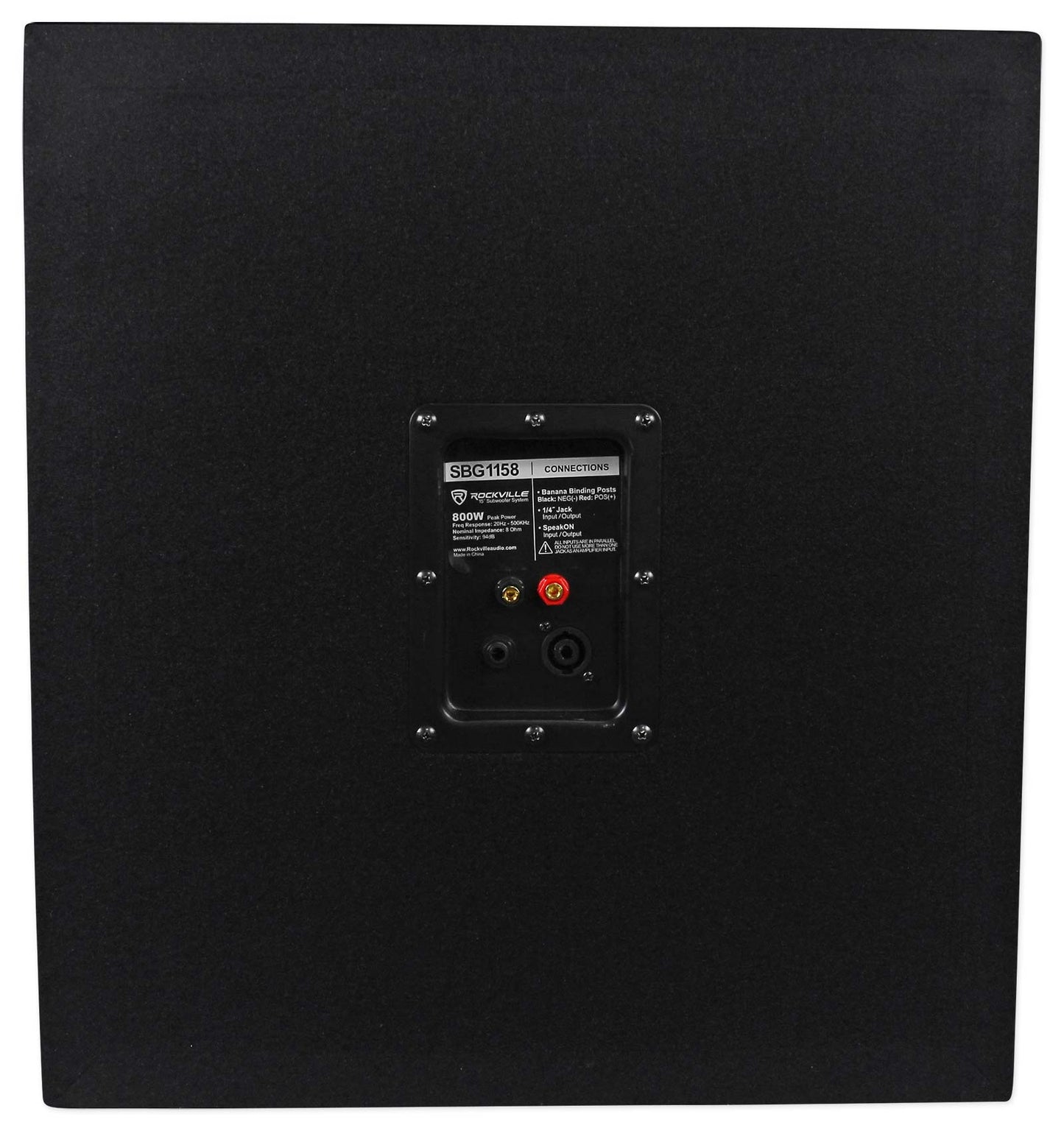

• Binding Post / Banana Plug Terminals (Negative/Positive)

• 1/4" Jack (In/Out)

• SpeakON (In/Out)
• All input/output connections are internally connected in parallel

• Nominal Impedance: 8 Ohm
• Sensitivity: 94dB @ 1w/1m

• Frequency Response: 20Hz - 500Hz

• Dimensions (W x D x H): 18” x 17” x 20”
• Weight: 44 lbs


---

How to Set Up Your RPA12, RPA14, and RPA16:

Video of RPA12:

Power Ratings:

• RMS Power Output:
• Stereo 8 Ohm: 2 x 500W
• Stereo 4 Ohm: 2 x 700W
• Bridged 8 Ohm: 1 x 1400W
• Peak Power Output:
• Stereo 8 Ohm: 2 x 2000W Max
• Stereo 4 Ohm: 2 x 2500W Max
• Bridged 8 Ohm: 1 x 5000W Max

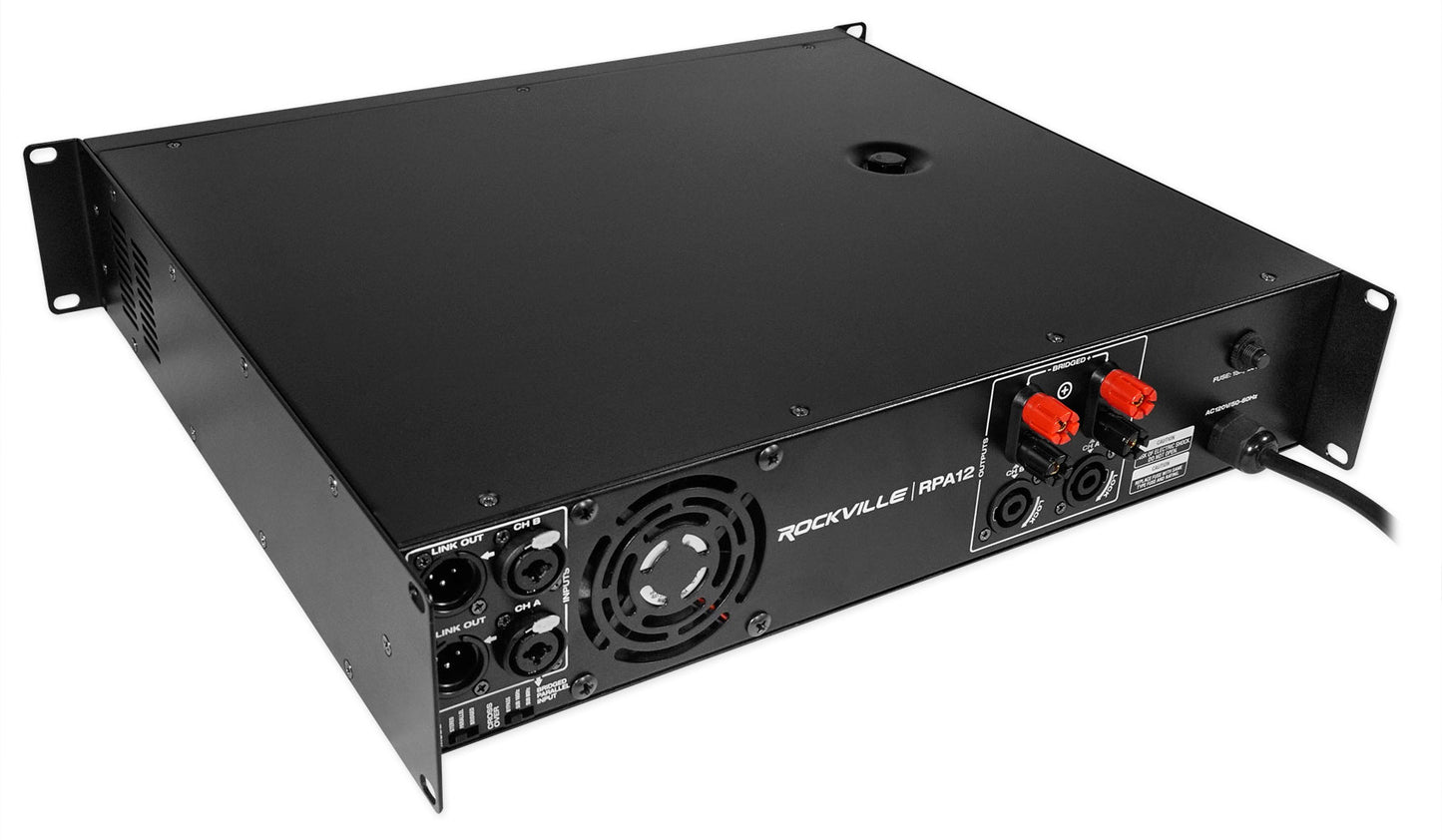

Terminals:

• Input Terminals:
• Combo jack (XLR and ¼”) A & B inputs
• Output Terminals:
• Banana binding post speaker output
• Speakon output
• XLR output to connect another amplifier or powered sub

Features:

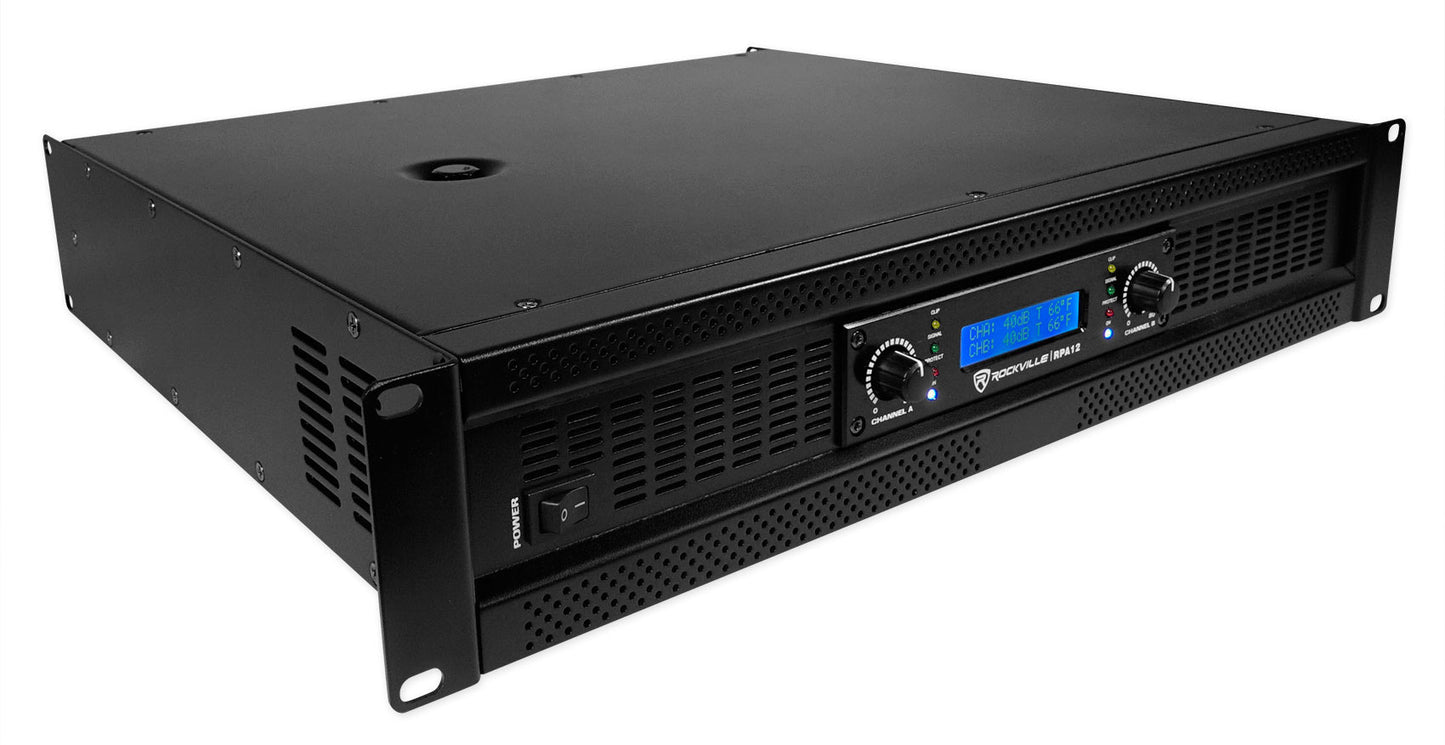

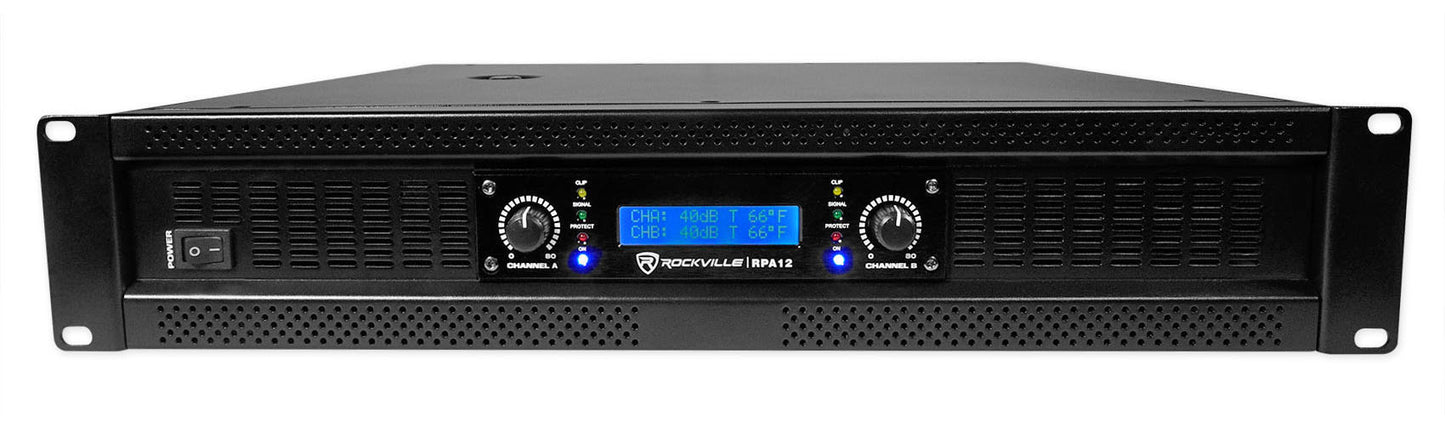

• Rockville RPA12 5000 Watt Peak 2 Channel Professional/DJ Rack Mount Amplifier
• LCD displays volume in dB per channel and operating temperature
• 2U rack space
• Built in limiter protects your speakers from distortion and clipping
• Bridged mode allows you to combine both channels power into one channel for use with a subwoofer
• Stereo mode is perfect for (2) speakers or (4) speakers in a left and right configuration
• Parallel mode gives you dual mono output signal which is perfect for monitor use when you want all sounds coming out of each speaker instead of a left/right configuration
• Built in crossover switch (bypass, 80 Hz, 160 Hz) allows amp to be used with full range PA speakers, or Subwoofer(s)
• Channel A & B Clipping Led Indicators
• Channel A & B Separate Level Controls
• Power, signal, clipping, and protection LED indicators on front of amp
• Heavy duty rack mount ears with handles
• Built-in variable high velocity quiet cooling fans
• Maximum headroom for 4-ohm and 8-ohm Speakers
• Level controls for precise setting and matching of sensitivity
• Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load
• User serviceable fuse (15A, 250V)
• Frequency Response (bandwidth @ 2Vrms out, @ -3.0dB) 10 Hz – 30 Khz
• THD + Noise @ 1Khz full power: <0.03%
• Input Impedance: 10K Ohm Balanced
• Input signal voltage: 660mV – 1.5V
• Input sensitivity: 0.7v
• Damping factor: ( 100Hz, 10w, 4 ohms): 40.8
• Damping factor: (1Khz @ 8 ohm): >400:1
• Effective damping factor (100Hz, 10w, 4 Ohms) 1.08
• Output impedance at speaker terminals: 0.09803 Ohms
• Frequency Response vs THD+N (worst case, across normal bandwidth 1W) 0.11%
• Signal to Noise Ratio: > 100dB
• IMD 60Hz & 1kHz, 4:1: <0.04%
• SLEW RATE (input filter limited) : 40v/uS
• Power Requirements: 120V / 50-60Hz
• Weight: 26.5 lbs
• Dimensions: 19.09 x 16.93 x 3.35 inch

---

Video of RCSS1425:

Description:

All Rockville pro audio cables are made with 100% copper which boosts the efficiency of the cable. There is nothing better than 100% copper. Most of the cheaper cables on the market do not use 100% copper, instead they make their cables with CCA (Copper Clad Aluminum). CCA cables do not perform on the level that 100% copper cables perform at. CCA will not conduct signals efficiently. A 12 gauge CCA cable will not even perform as well as a 14 gauge 100% pure copper cable, which will in turn, affect the performance and longevity of your equipment. If you find cables on the market that do not mention the copper content, there is a good chance that they are selling you a cheaper cable that is CCA and not 100% copper. Rockville pays an inspection company to oversee the manufacturing of the product to ensure that we provide a 100% Oxygen Free Copper Cable (OFC). Our OFC cables are less prone to oxidation, and will provide maximum signal transfer.

The other important factor of a cable is the shielding. Most of the good brands on the market have about 85% shielding coverage, so we decided to take our shielding a step further. Rockville cables are shielded with a tight copper mesh, covering 90% of the cable! The high percentage of coverage increases the ability to absorb the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) that suppresses signal and degrades the performance of equipment. Rockville Cable’s copper shielding provides great flexibility, maintains a durable structural integrity, while decreasing signal interference ensuring enhanced signal clarity with every use.

Features:

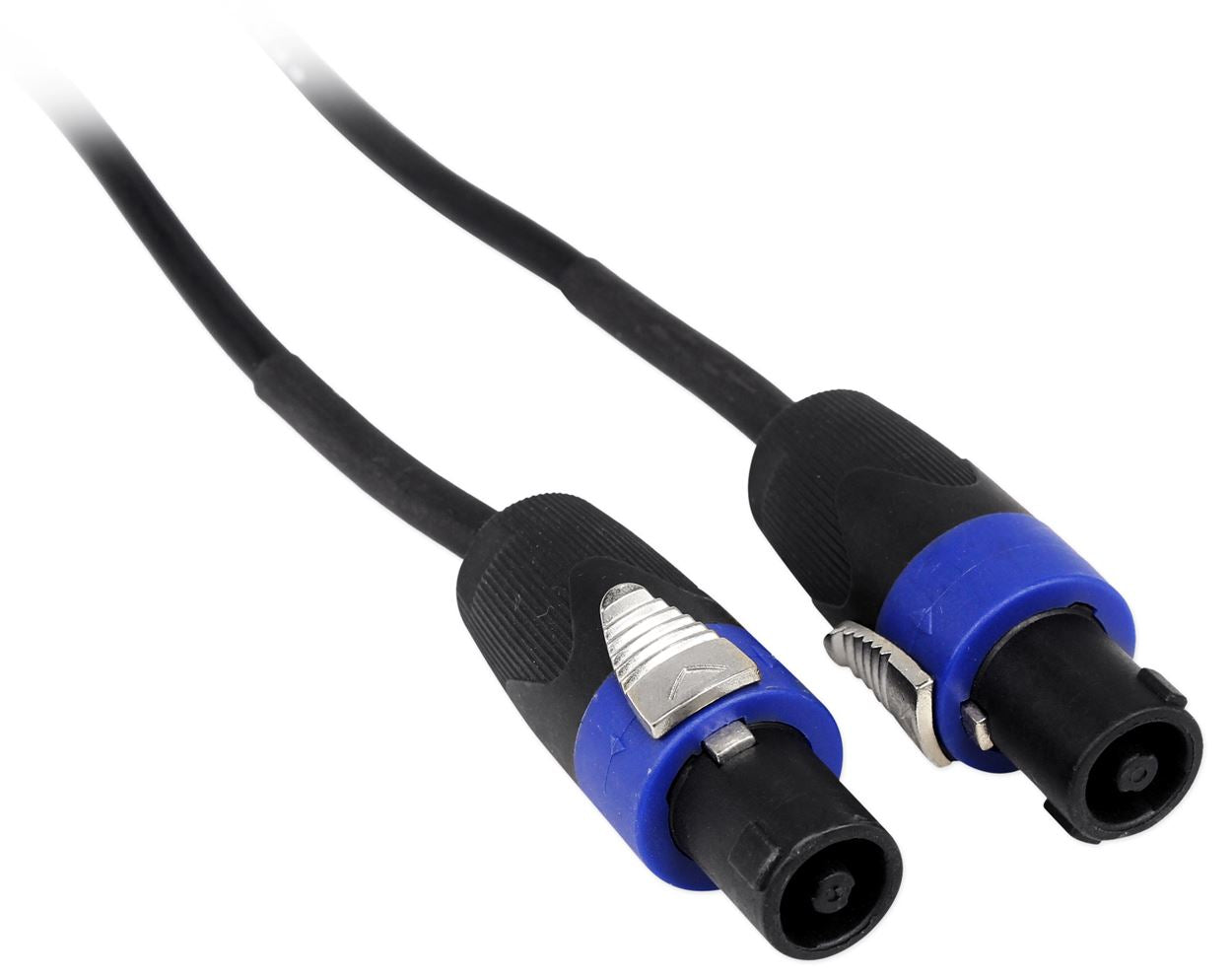

• Rockville RCSS14-25 14 AWG 2-Conductor SpeakON to SpeakON Pro Speaker Cable
• 100% Copper Conductors for Lower Resistance
• Black PVC Jacket for Both Durability and Flexibility
• Intended for High-Current Applications Only, Not Line-Level Signals
• Length: 25 Ft
• Gauge: 14
