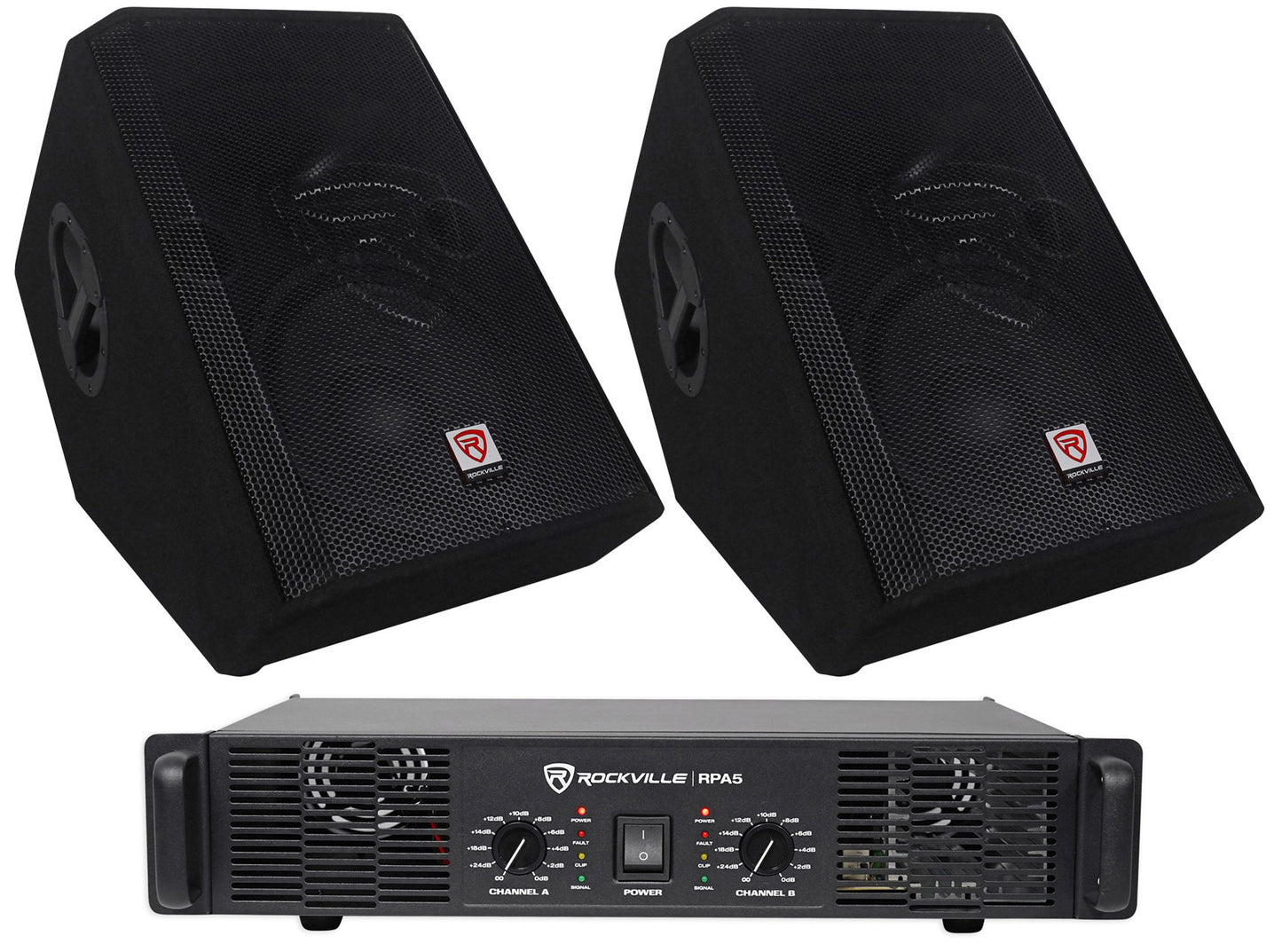

- (2) Rockville RSM12P 12" 2-Way Passive Stage Floor Monitor Speakers Totaling 2000 Watt
- (1) Rockville RPA5 1000 Watt Peak / 500w RMS 2 Channel Power Amplifier Pro/DJ Amp
Video of RSM12P:
How to Set Up your RSM Series Monitors :
Description:

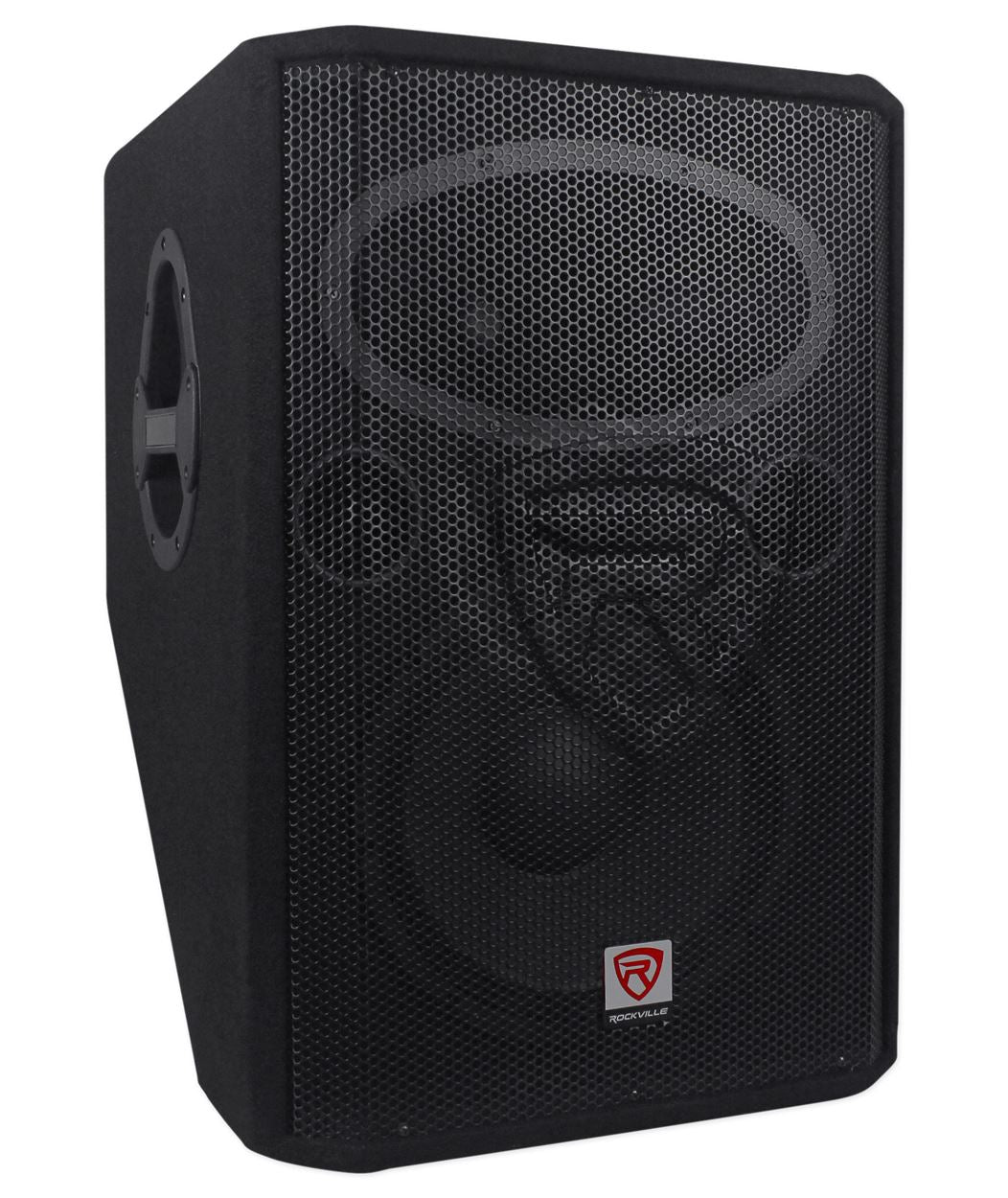

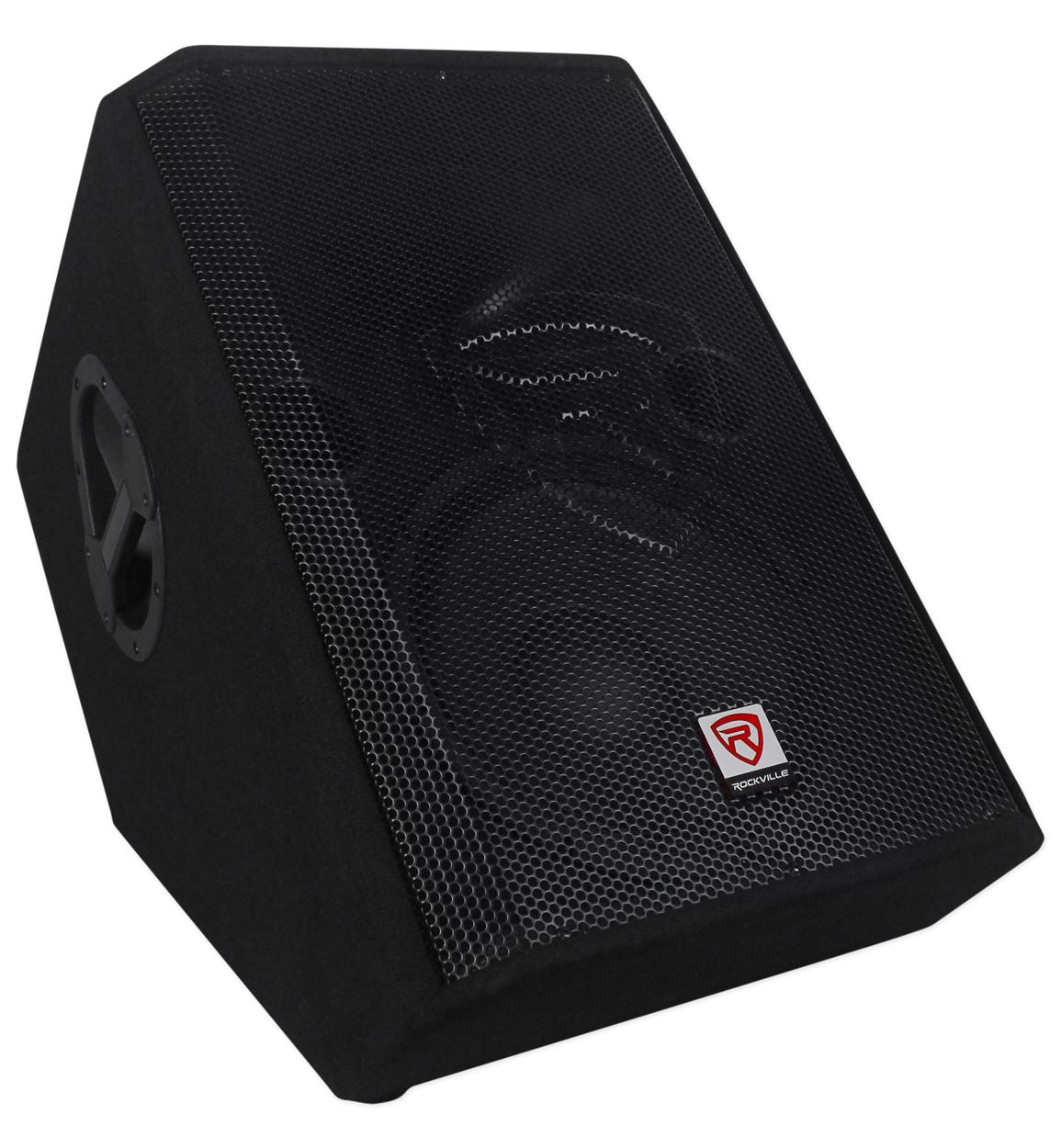

Looking for a top-of-the-line stage monitor? The Rockville RSM12P is an incredible solution to your stage monitor needs. Capable of handling 1000-Watts of peak power this passive stage monitor sets a new standard in audio quality and high SPL playback.
Cabinet Construction
The cabinet is constructed of high quality MDF and
features a thicker front baffle for added stability. The composition and materials were chosen for their high strength, light weight, and
anti-vibration characteristics. CNC routing machines are used to accurately cut and shape every part, guaranteeing consistency with
extremely close tolerances. Skilled technicians assemble each cabinet by hand. The cabinets are finished in aviation grade heavy-duty carpet.
Steel grills protect the drivers and recessed carry handles make it easy to transport.
A compact speaker with tons of functionality
The
Rockville RSM12P packs a 12“ Low Frequency and
1” High Frequency Titanium Compression Horn driver for a total of 1000
watts of peak power in a 30-pound package. This Rockville speaker
features multiple hook up input and output terminals, low weight, and
much more.
A flexible unit for all your monitoring needs
You
can connect a variety of signals to the Rockville RSM12P, making it a
very flexible speaker. Use multiples of them for your main monitor
system. Use it with a guitar or a keyboard amplifier and of course to a
main system amplifier or powered mixing board. The RSM12P can even be
pole-mount for use as your main speakers. With 1000 watts of peak
power-handling capability there is enough power to use the Rockville
RSM12P for all your monitoring and speaker needs.
Add an affordable high-performance passive stage monitor to your Pro setup with the Rockville RSM12P.
Features:
- Rockville RSM12P 12“ 1000 Watt 2-Way Passive Stage Floor Monitor Speaker
- 250 Watt RMS / 500 Watts Program Power / 1000 Watts Peak
- High power 12'' woofer with 2.5“ KSV voice coil provides incredibly deep bass and acoustic power
- Exclusive horn design delivers ultra-wide 70-degree x 50-degree sound dispersion
- Extreme high power handling capability – extremely loud
- Superior sound quality with transparent tonal response
- Frequency Response: 45Hz-20KHz
- Maximum SPL @1w/1m: 93dB peak
- High-power 2-way pro sound stage monitor speaker system for live sound and playback applications
- Wedge shaped enclosure provides the perfect angle for stage monitoring use.
- Compact and light weight system delivers distortion free sound even at extreme SPL
- Great power to weight ratio
- State-of-the-art 1'' titanium diaphragm compression horn driver for crystal clear high frequency reproduction
- Ultra-wide dispersion, large-format Elliptical wave guide horn
- Custom Molded Steel Grill
- Ergonomically shaped handle for easy carrying and setup
- Aviation Grade Black Carpet

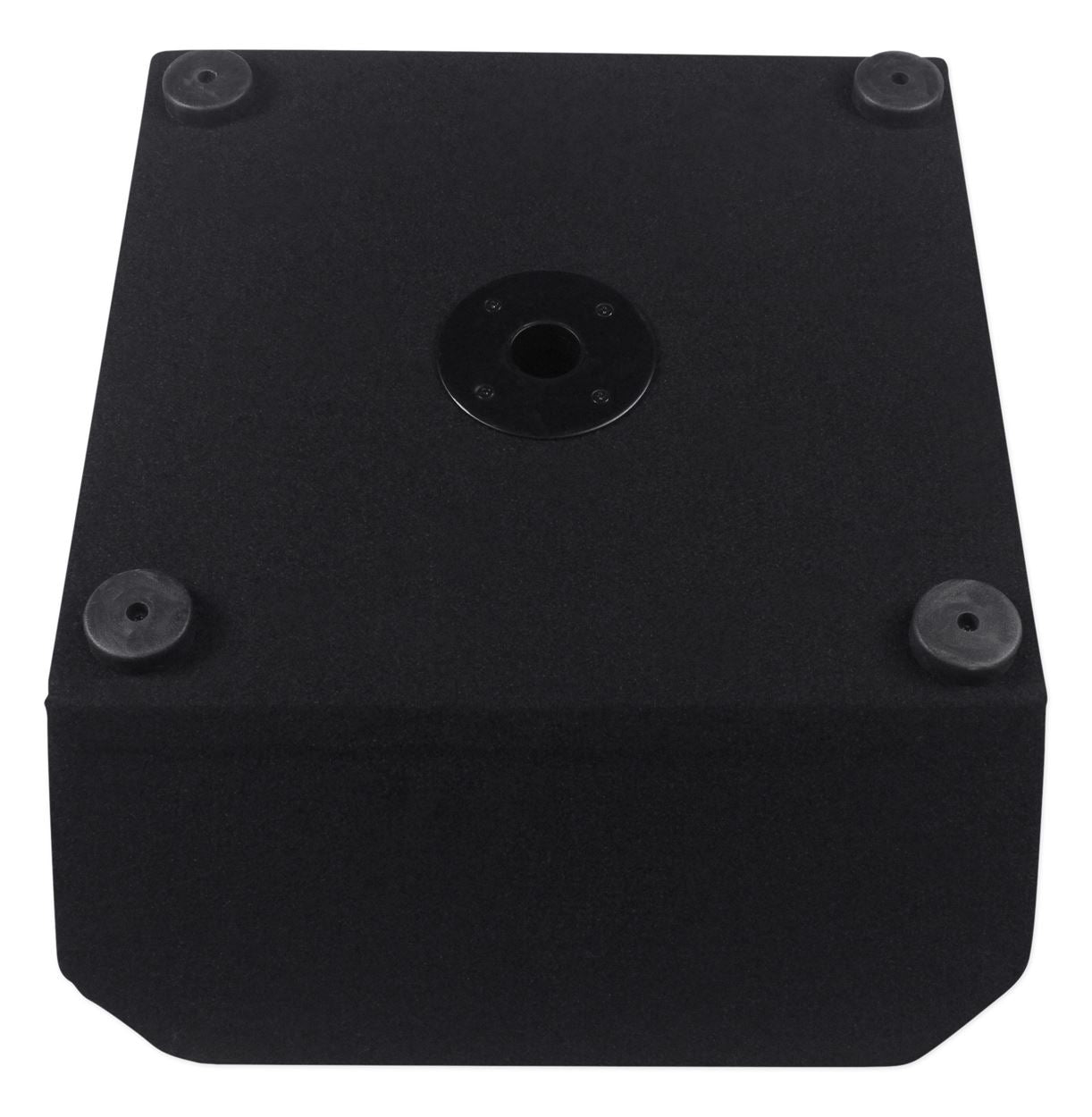

- Rubber Isolating Feet
- Stage Monitor that can also be pole mounted
- Sturdy pole socket

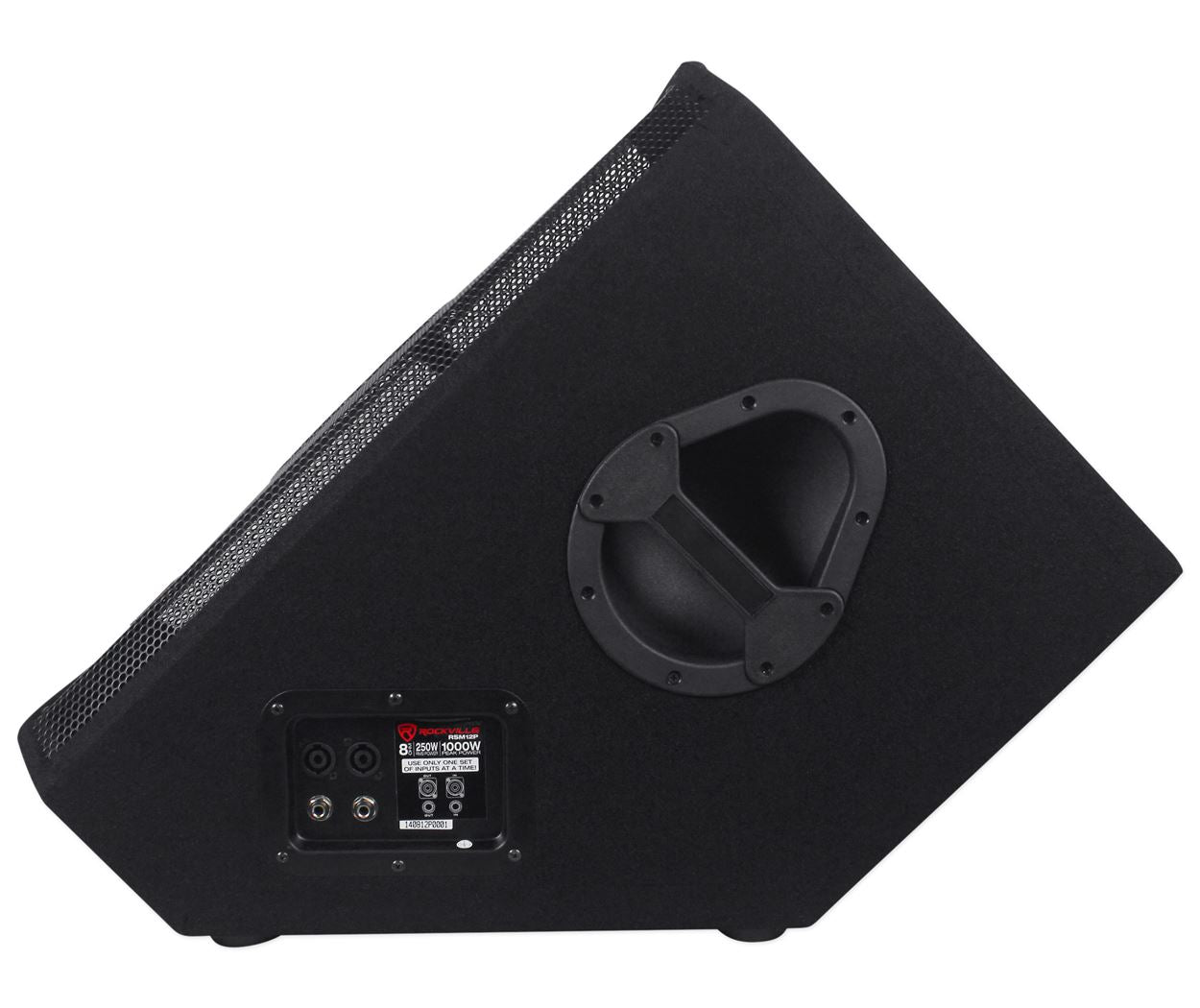

- 1 x 1/4" jack and 1 x Speakon input connector
- 1 x 1/4" jack and 1 x Speakon thru connector
- Impedance: 8 Ohm
- Dimensions: 14.96“ x 15.83” x 22.95“ (L x W x H)
- Weight: 36.8Lbs
How to Set Up Your RPA5 & RPA9:
Video of RPA5:
Description:

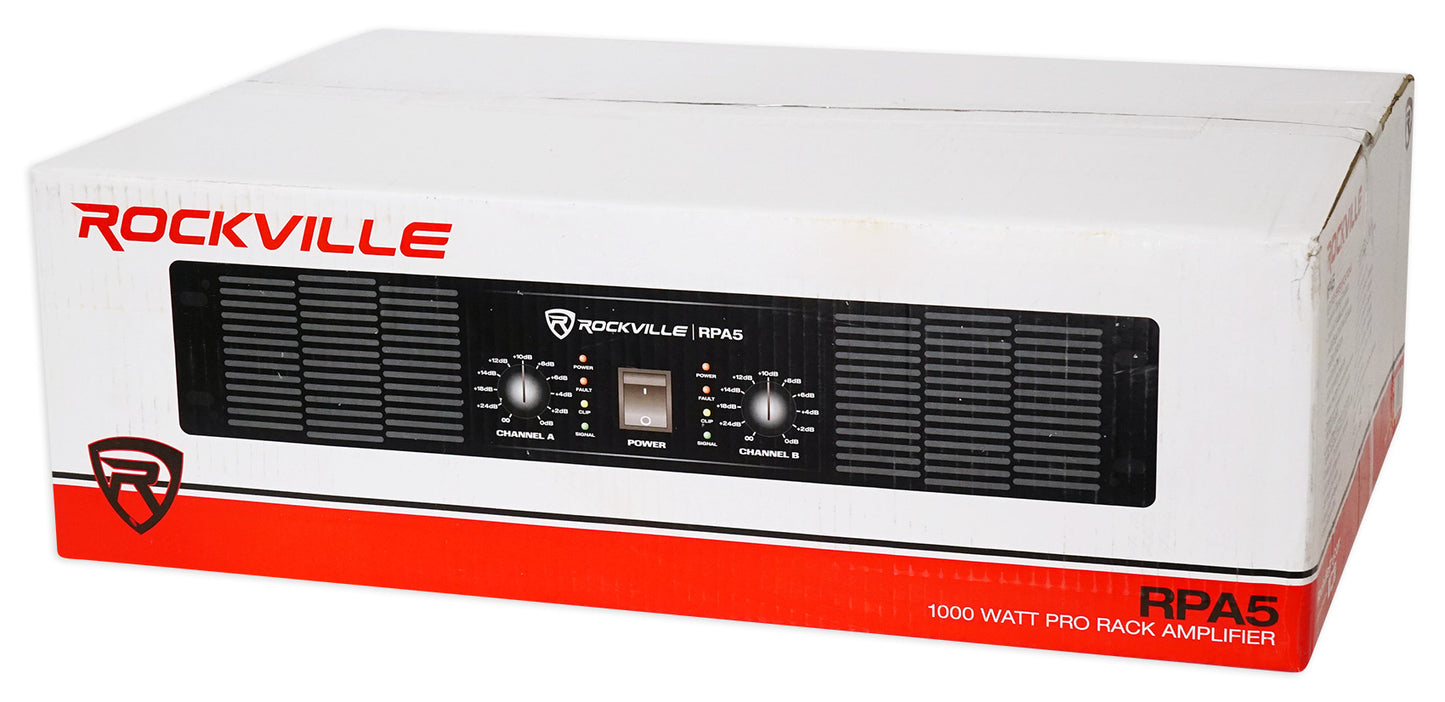

Heavy-Duty Powerhouse Pro Amplifier

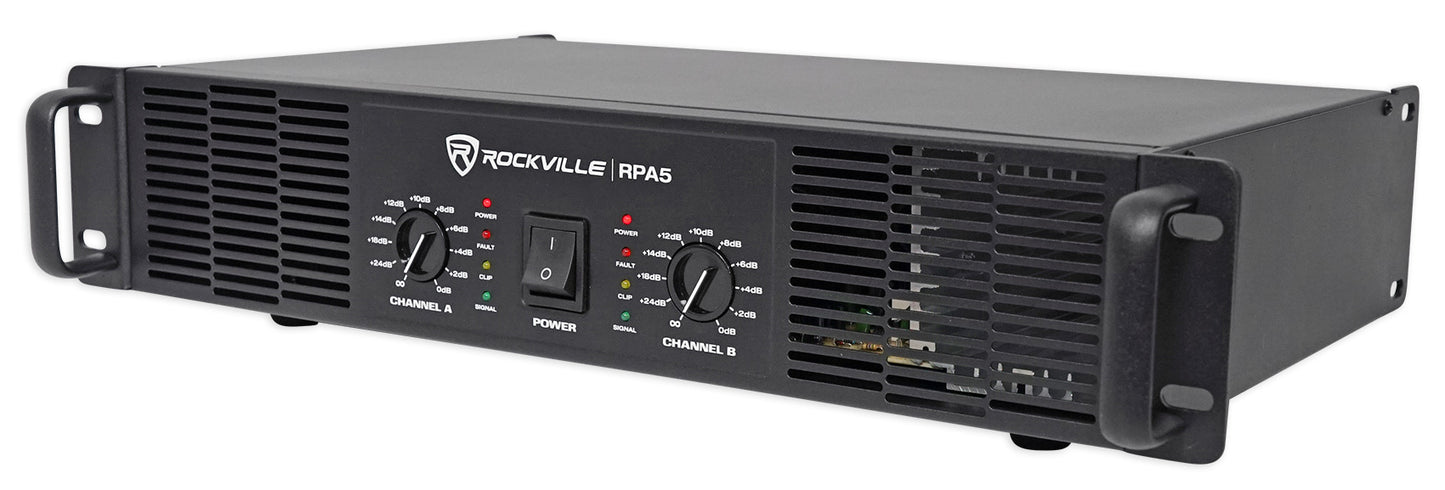

The Rockville RPA5 1000-watt power amplifier combines efficiency with great sound to deliver a lightweight amplifier that packs a ton of punch. This amplifier is engineered using advanced design and components creating a lightweight design and extremely reliable operation that can pound daily for years and years of use. The computerized IC controlled protection circuitry allows delivery of peak power while preventing overloads. The RPA5 is optimized for 4 and 8-ohm speakers, and is equipped with a stereo/mono speaker output switch allowing for quick system impedance optimization. The RPA9 amp fits perfectly into standard 19” racks, and is lightweight enough (less than 30 lbs.) to make it incredibly easy to transport.
Top features!
We added a built in crossover so that you can use the amplifier for subwoofers or full range speakers. When connecting subwoofers simply select the low pass. We also added a link output which will allow you to use (2) of these amplifiers together at the same time for venues that demand even more power.
The other enhancement we made is that we added all the input and output terminals that ensure this amplifier is compatible with any setup!
We added XLR and ¼” combo jacks and RCA inputs making this amp perfect for any mixer and any speakers on the market. For outputs, we have banana and speakon outputs plus XLR direct outputs.
Mono Subwoofer-ready
A stereo/mono switch on the rear of the system allows for quick configuration to use multiple speakers in stereo mode or a single subwoofer in mono mode.
Power Ratings:
- RMS Power Output:
- Stereo 8 Ohm: 2 x 125W
- Stereo 4 Ohm: 2 x 250W
- Bridged 4 Ohm: 1 x 500W
- Peak Power Output:
- Stereo 8 Ohm: 2 x 250W Max
- Stereo 4 Ohm: 2 x 400W Max
- Bridged 4 Ohm: 1 x 1000W Max

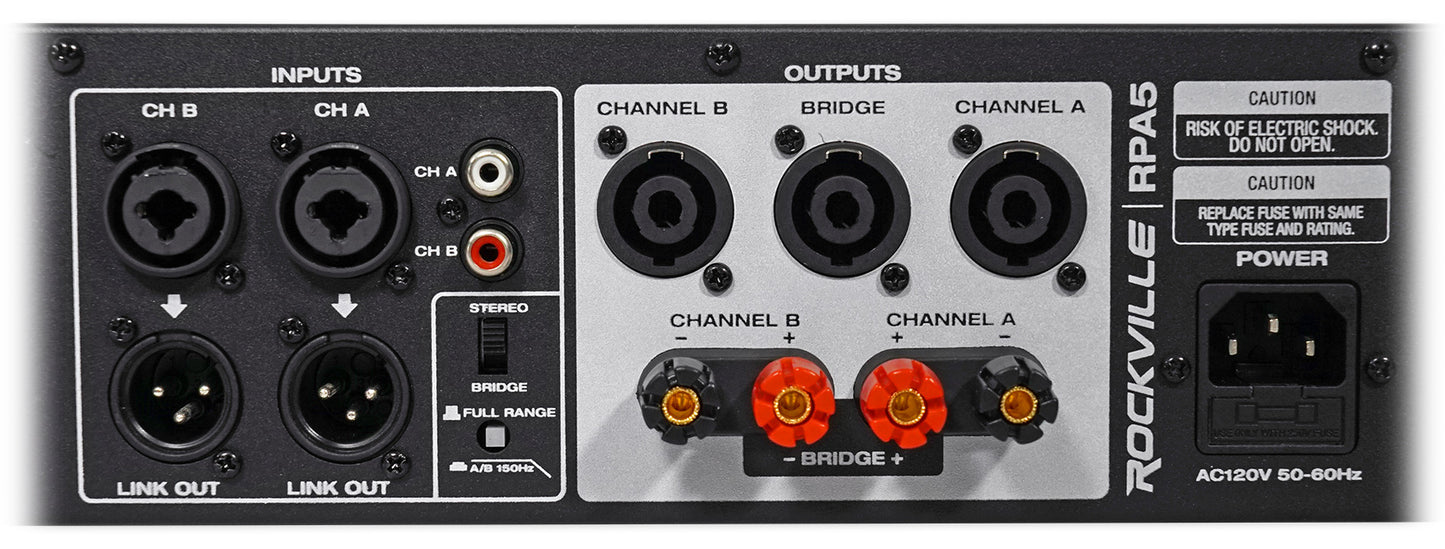

Terminals:
- Input Terminals:
- Combo jack (XLR and ¼”) A & B inputs
- RCA A & B Inputs
- Output Terminals:
- Banana binding post speaker output
- Speakon output
- XLR direct output
Features:
- Rockville RPA5 1000 Watt Peak 2 Channel Professional/DJ Rack Mount Amplifier
- 2U rack space
- Bridged and Stereo output switch makes this perfect for (2) subwoofer, (2) speakers, or (4) speakers
- Built in crossover switch allows make this perfect for speakers, monitors, or subwoofers
- Channel A & B Clipping Led Indicators
- Channel A & B Separate Level Controls

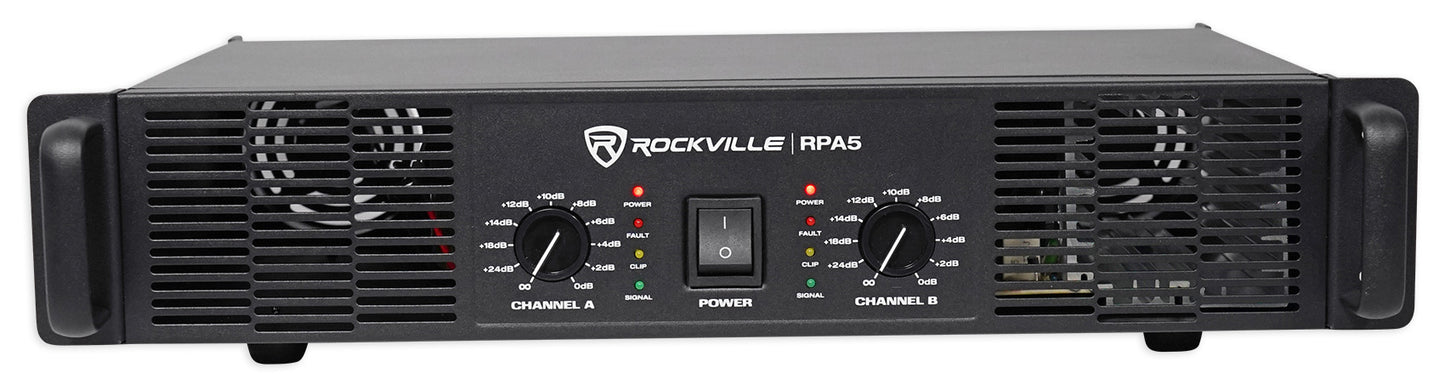

- Power, signal, overload, clipping, and protection LED indicators on front of amp
- Heavy duty rack mount ears with handles
- Built-in dual high velocity quiet cooling fans
- Maximum headroom for 4-ohm and 8-ohm Speakers
- Level controls for precise setting and matching of sensitivity
- Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load
- User serviceable fuse (4A, 250V)
- Frequency Response: 20Hz to 20KHz <+/- 0.5dB
- Distortion: <0.03%
- Input Impedance: 20K Ohm Balanced and 10K Ohm Unbalanced
- Signal to Noise Ratio: > 102dB
- Power Requirements: 120V / 50-60Hz
- Weight: 13.4 lbs
- Dimensions: 18.97 x 11.02 x 3.54 inch
- UPC:
- 613816024063
