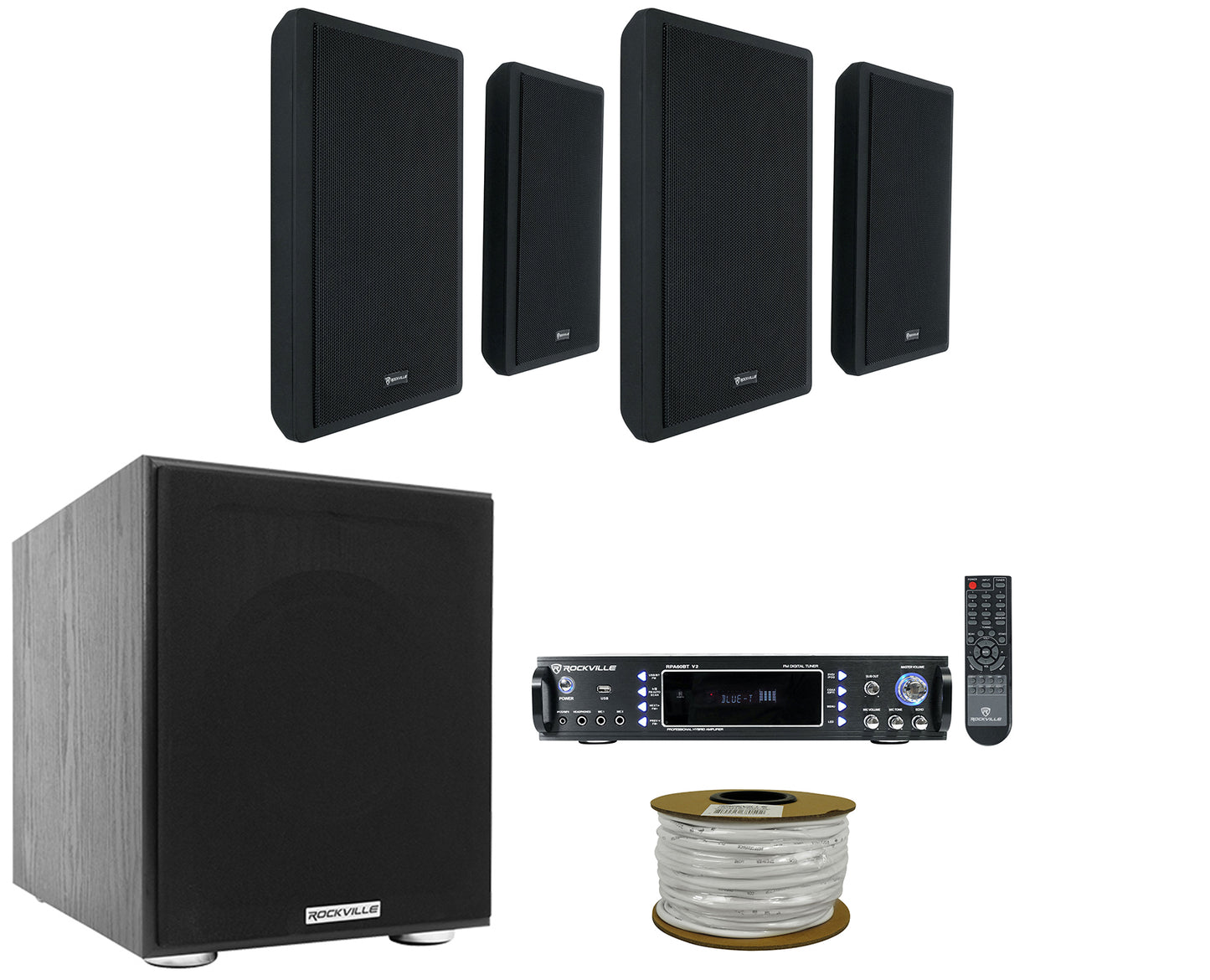

Package Includes:

• (4) Rockville RockSlim Black Home Theater 5.25" 240w Easy Wall Mount Slim Speakers

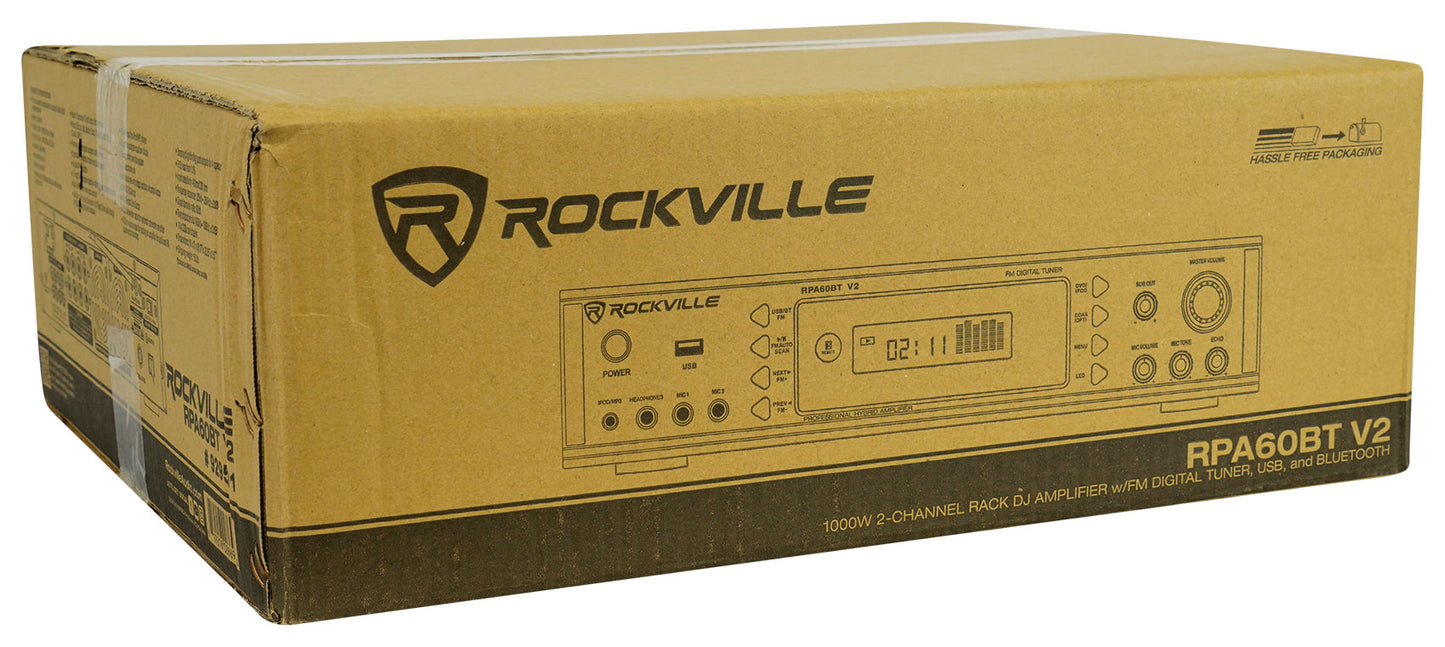

• (1) Rockville RPA60BT V2 1000 Watt 2-Ch USB Bluetooth DJ/Pro/Karaoke Amplifier Mixer

• (1) Rockville Rock Shaker 8" Inch Black 400w Powered Home Theater Subwoofer Sub

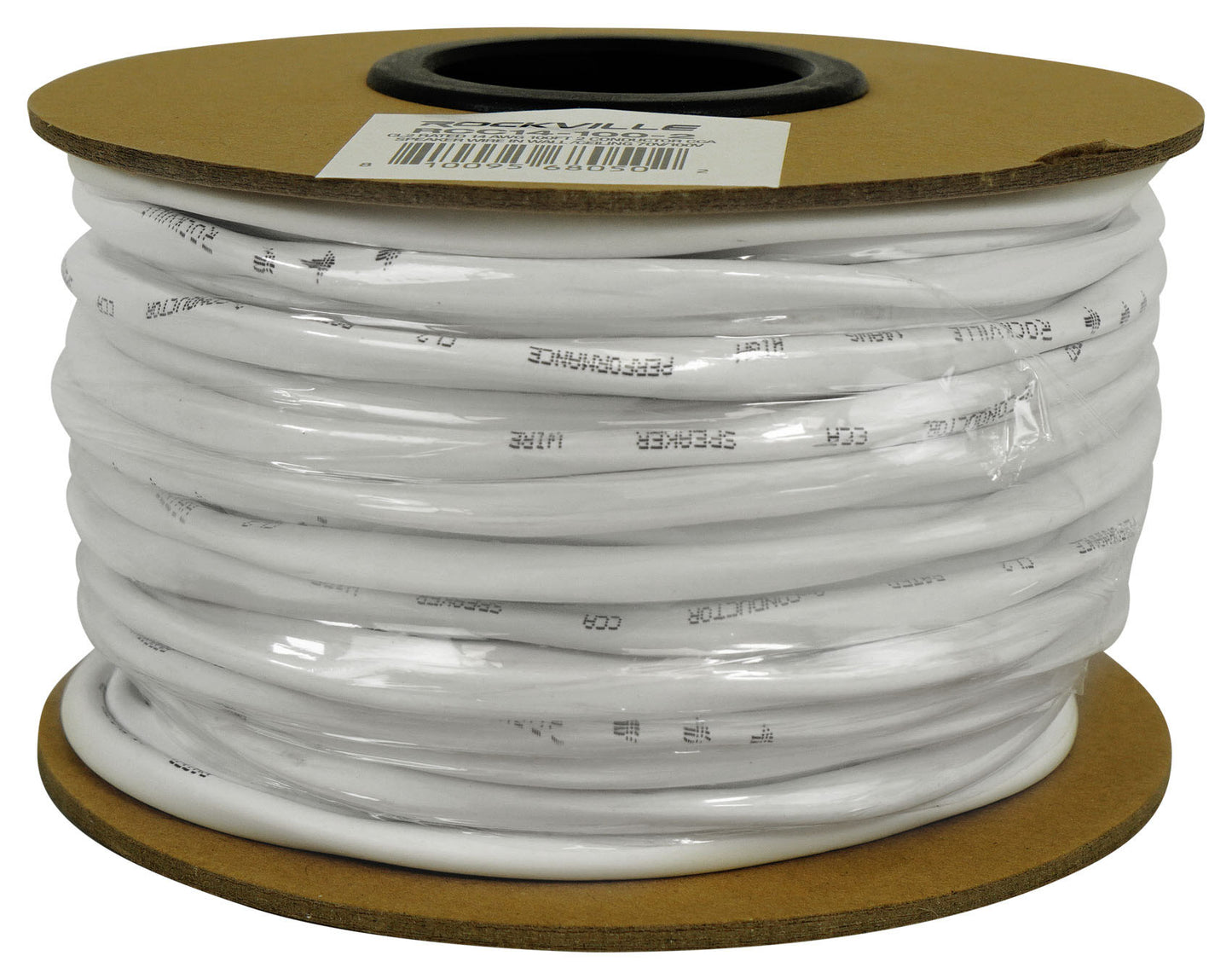

• (1) Rockville RCC14-100-2 CL2 Rated 14 AWG 100' CCA Speaker Wire In Wall Ceiling 70V

How to set up your RockSlim:

Video of ROCKSLIM BLACK:

Features:

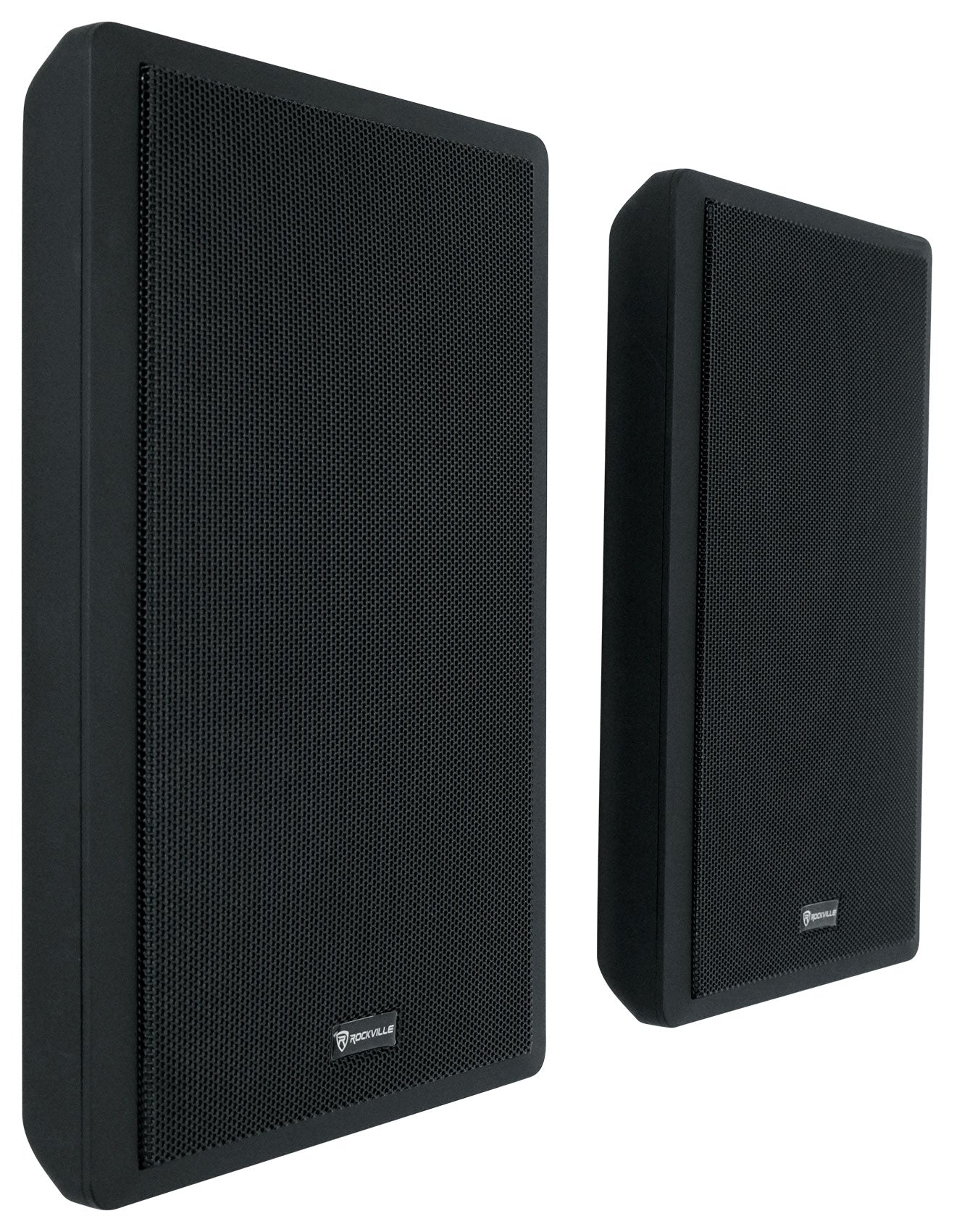

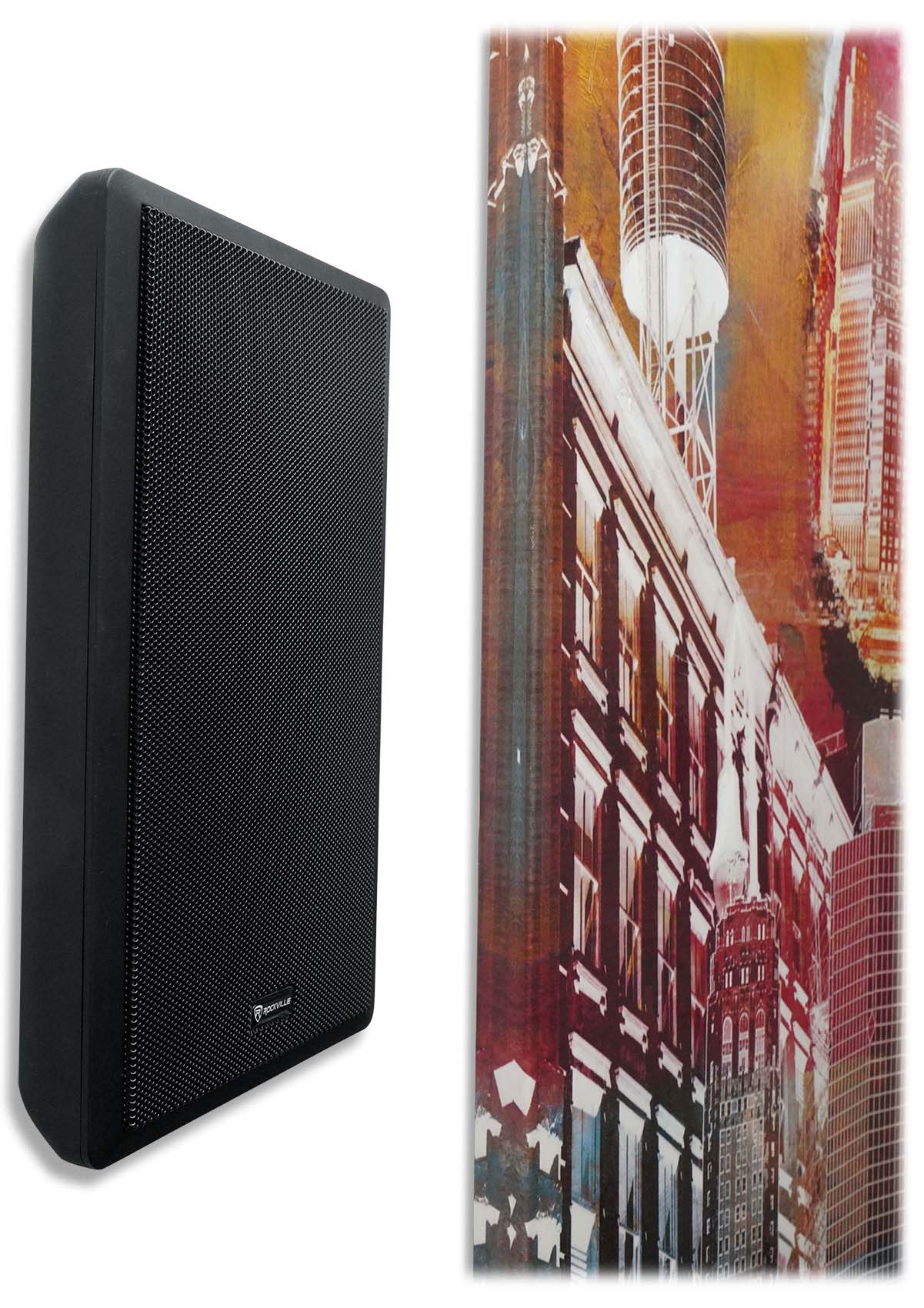

• Pair of Rockville RockSlim Black 5.25" 240 Watt Home Theater Slim Speaker with Easy Wall Mount Brackets
• RMS Power Handling: 40 Watts Per Speaker / 80 Watts Per Pair
• Peak Power Handling: 120 Watts Per Speaker / 240 Watts Per Pair
• 5.25” Woofer with Paper Cone has Natural Sound Reproduction with Clear Mids and Bass
• 0.5” Mylar dome tweeter delivers pristine highs
• Sensitivity: 89 dB
• Nominal Impedance: 8 Ohm
• Frequency Response (±3db): 100Hz - 20kHz
• Cabinet Material: ABS
• Color: Black
• Shielded grill offers additional protection from dust and damage

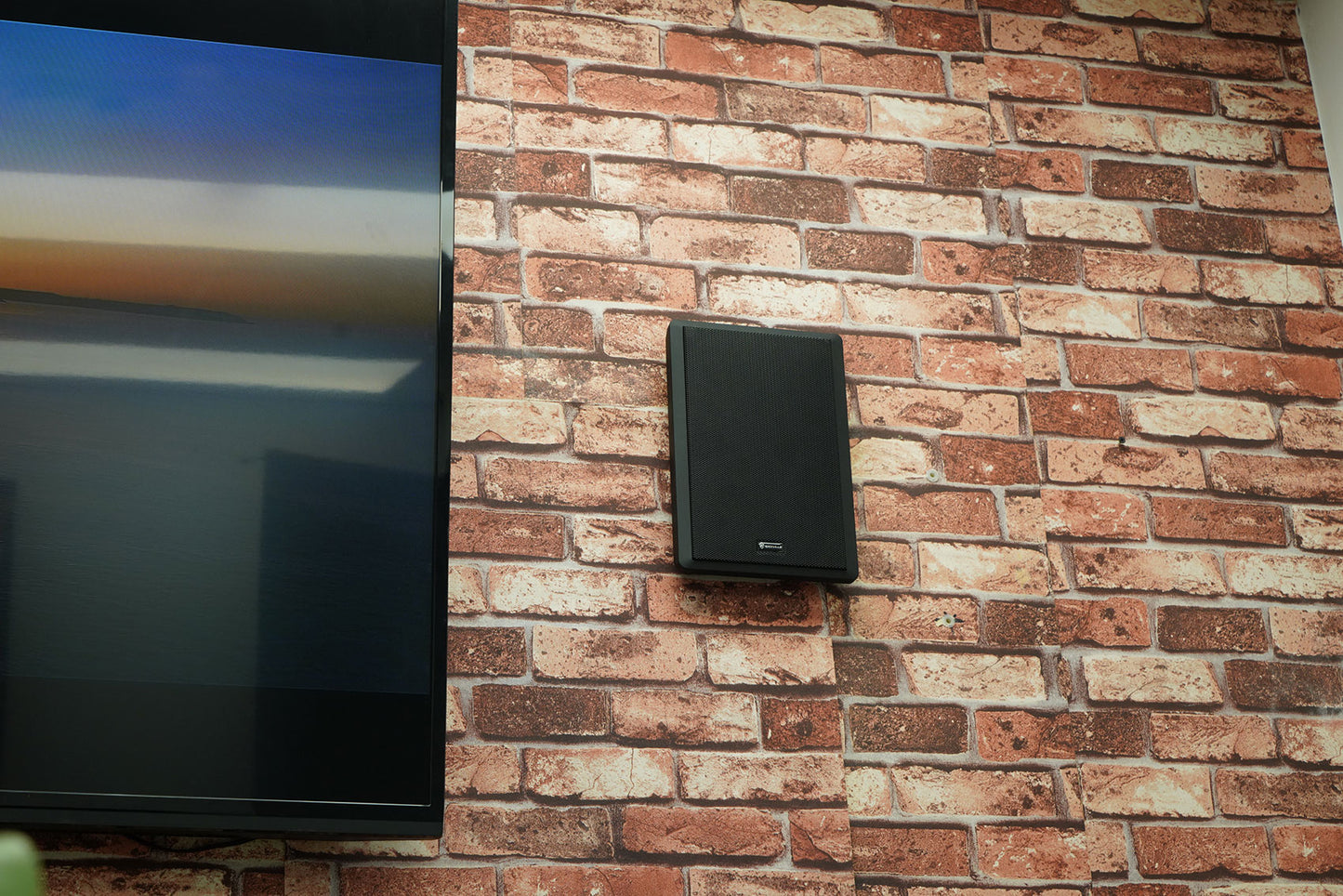

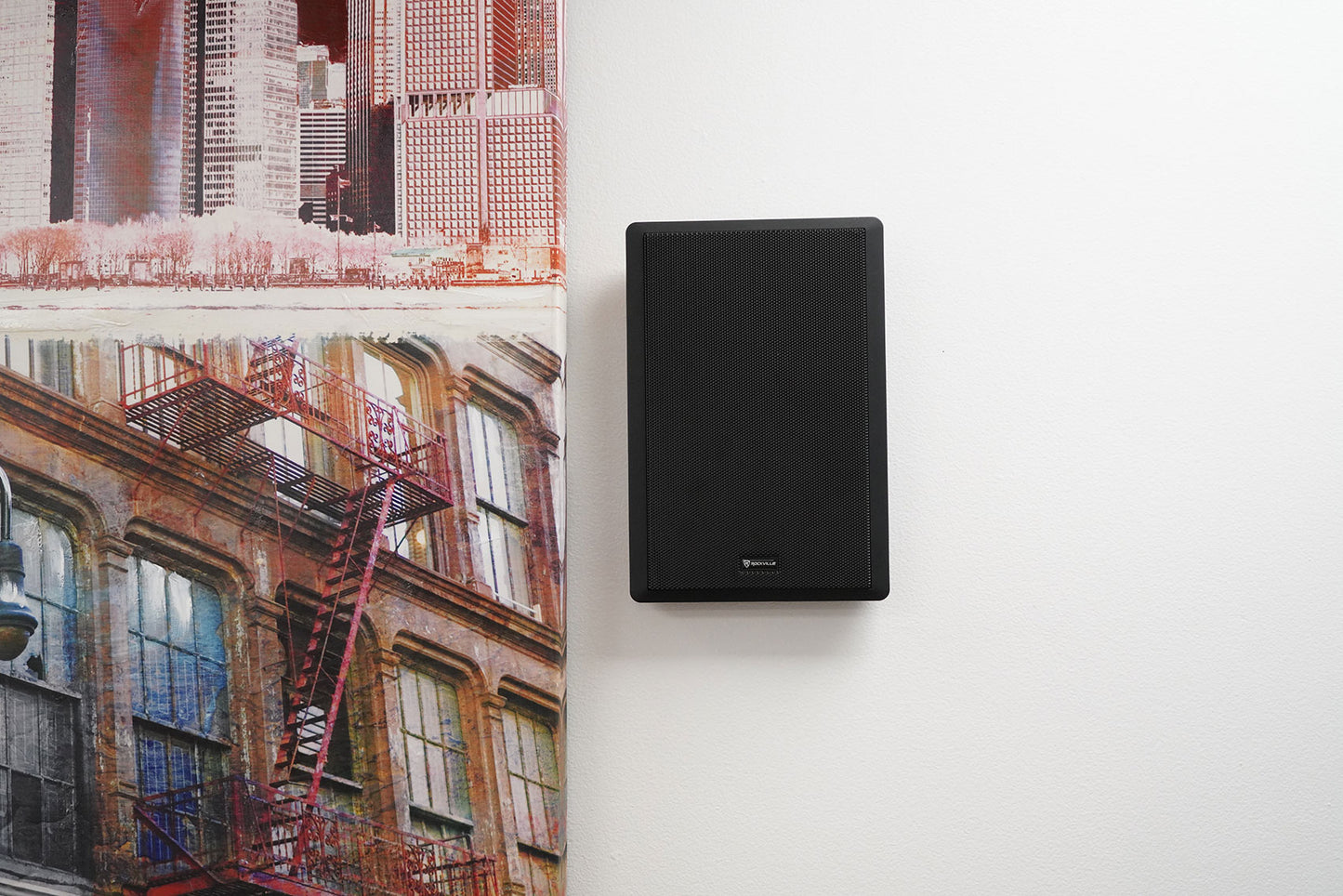

• Easily hangs on your wall – Just as easy as hanging a picture!

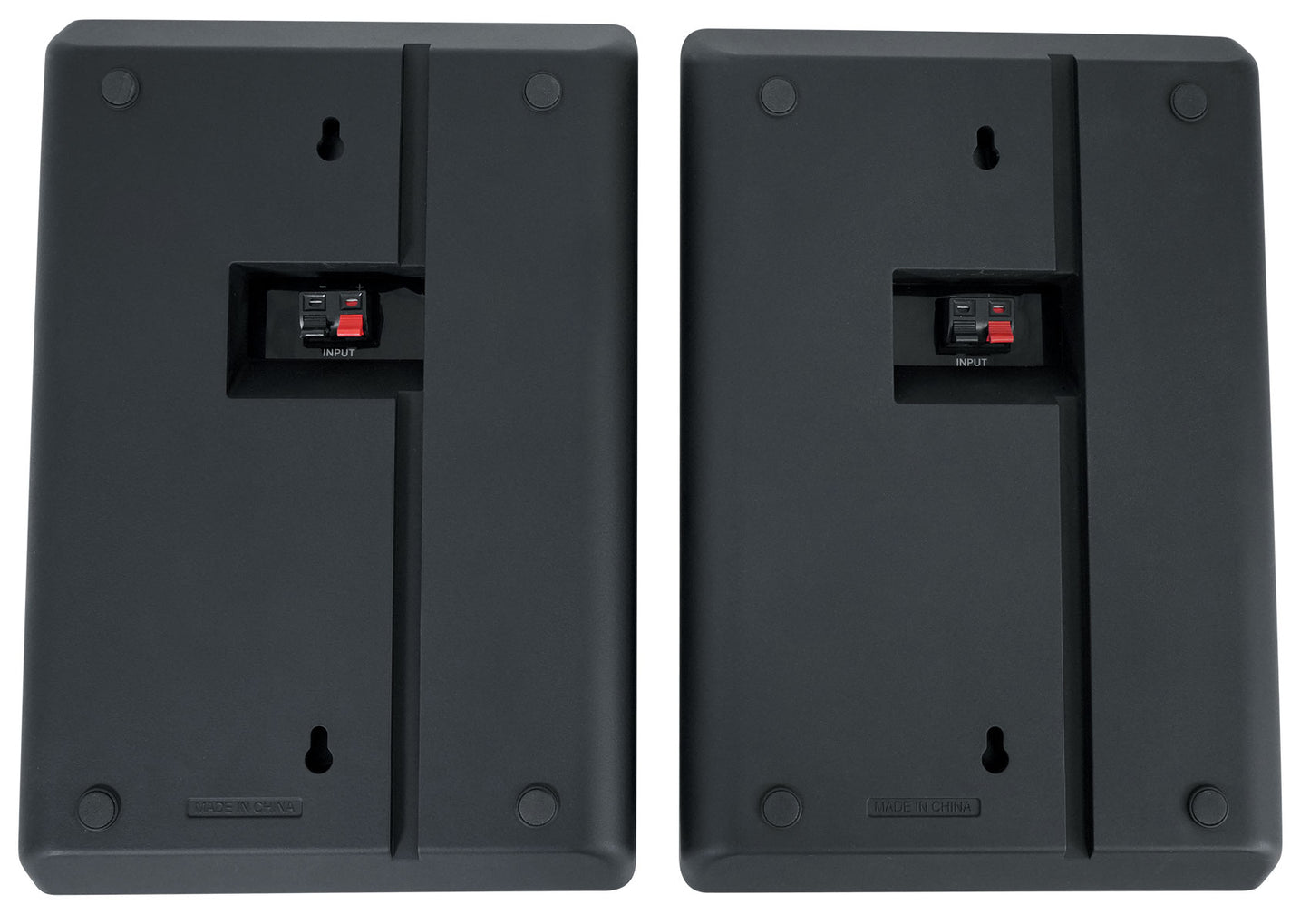

• Hanging bracket is molded into the speaker
• Recessed spring loaded speaker wire terminals make it easy to hide wires
• Molded speaker wire groove makes it easy to run speaker wires behind the speaker
• Beautiful sleek design is perfect for a living room, bedroom, kitchen, restaurant, and more

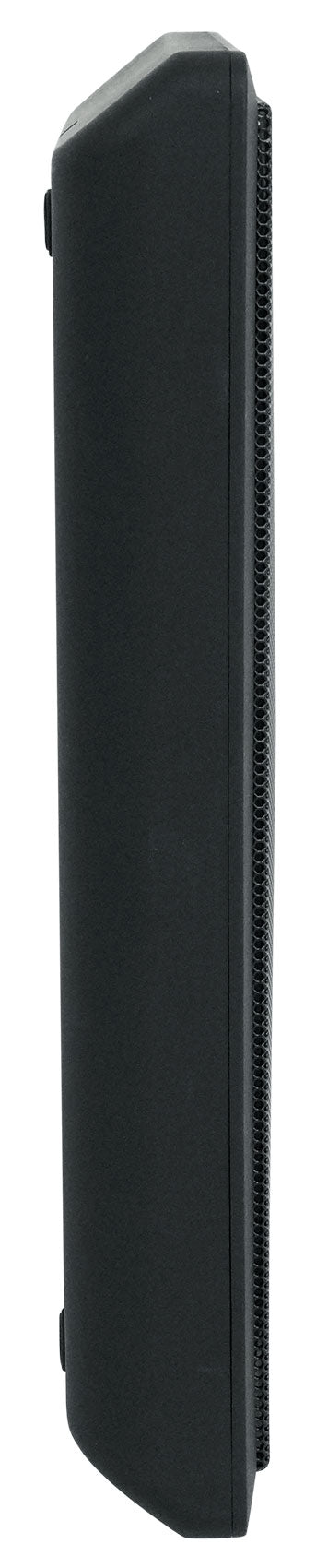

• Product Dimensions: 10.8" x 7.3" x 1.38" inches
• Product Weight: 2 Lbs. (Per Speaker)
• Speaker Wire Length: 11.8 Feet

---



RPA SERIES PRODUCT VIDEO:

HOW TO SET UP YOUR RPA SERIES (RPA70WBT V2, RPA60BT):

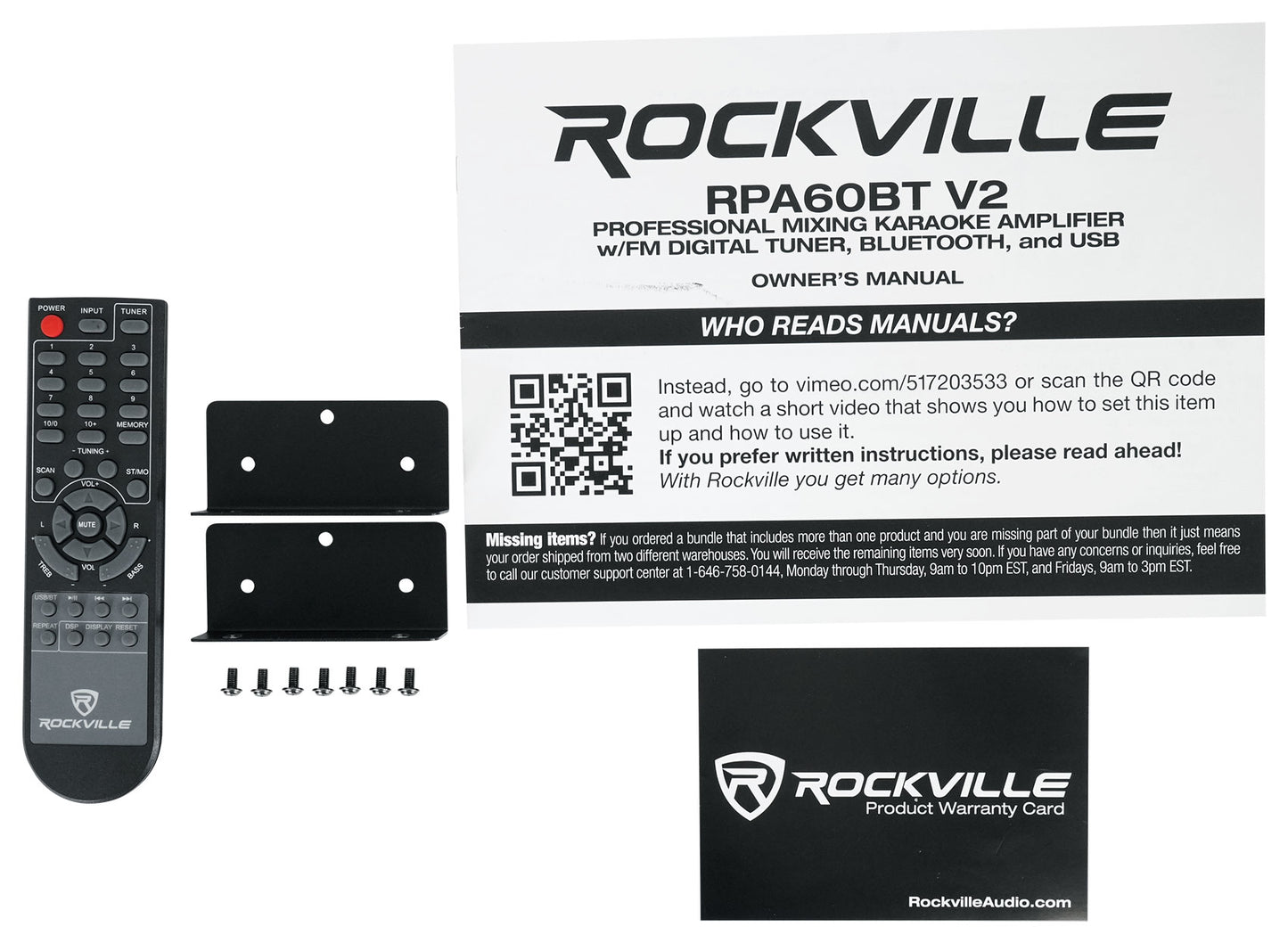

What's in the Box:

• RPA60BT Receiver

• Rack Ears (Detachable)

• (1) Remote Control

• (1) AC Power Plug

• Owners Manual

• Warranty Card


Description of RPA60BT V2:

Huge Power
The RPA60BT is loaded with 1,000 Watts of power! When manufacturing this item we upgraded the power of the amplifier. We tested these against similar items on the market and these significantly outperformed the others rated at 2000 and 3000 watts.

Expandable
This is more than an amplifier. The RPA60BT will be the control center for your home, karaoke, or professional audio system. There is an optical and coaxial input to easily integrate this with any television or LED panel. There is an RCA aux input for any media player like a CD player, etc. There is an RCA pre-amp output allowing you to expand your system by adding another amplifier or even powered speakers. The sub output allows you to add a powered subwoofer or another amplifier. The REC output allows you to record easily.

You can also connect 2 microphones directly to the front of the receiver.

Other playback options built into the unit are USB playback, Bluetooth, 3.5mm aux, and FM radio.

Great For Karaoke
There is a built in mic mixer with echo control, which makes this perfect for karaoke performances.

Bluetooth
Connect your favorite device, and quickly start a karaoke party with your favorite songs!

Full Function Remote
The remote control that is included will allow you to access all functions of the receiver quickly and efficiently.

Built In Radio
Another major advantage this model has is that it has a built in radio. This makes it perfect for home use, and the radio is also great for intermissions during live performances.

Adjustable Equalizer Settings
The adjustable equalizer will allow you to fine tune your music so it sounds at its best.

Built In Dual Cooling Fan
The built in fans keep the amp cool. This amp will never overheat on you like the cheaper ones out there. We actually upgraded this to a dual cooling fan when we were engineering these. Since we upgraded the amplifier we actually felt the need to also upgrade the fan of this unit to ensure it doesn't overheat.

Beautiful Multi Colored Display
The multi colored display is easy to read. It has an active EQ curve that goes to the beat of the music. The display is very user friendly.

Features:

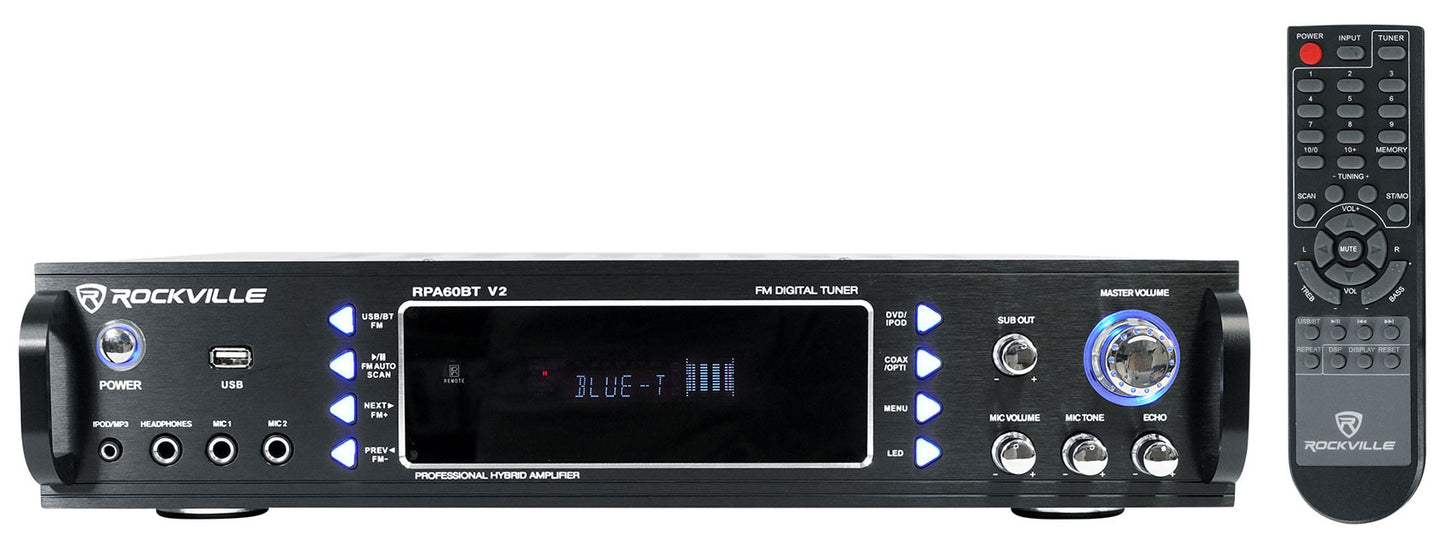

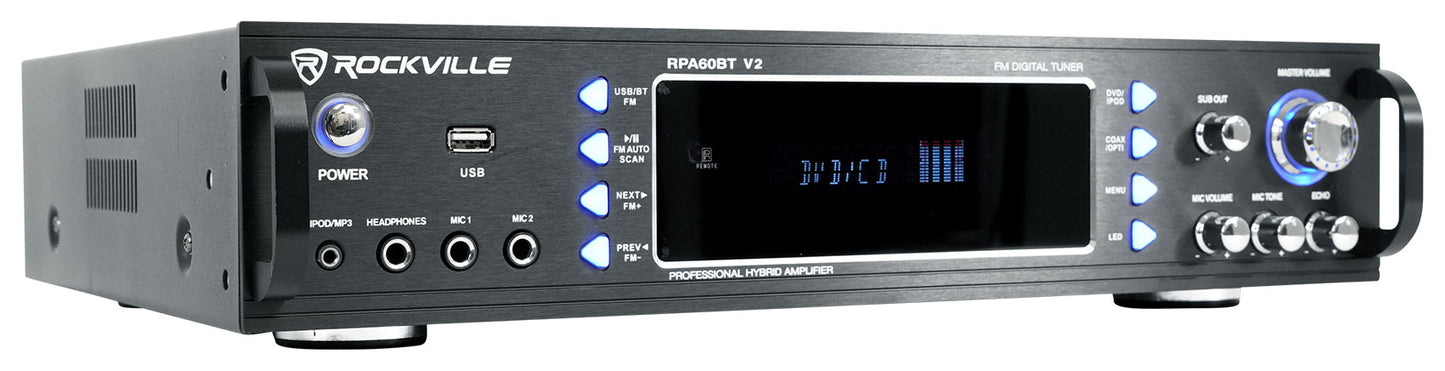

• Rockville RPA60BT 19" 1000 Watt 2-Channel USB and Bluetooth Karaoke Receiver/Amplifier/Mixer

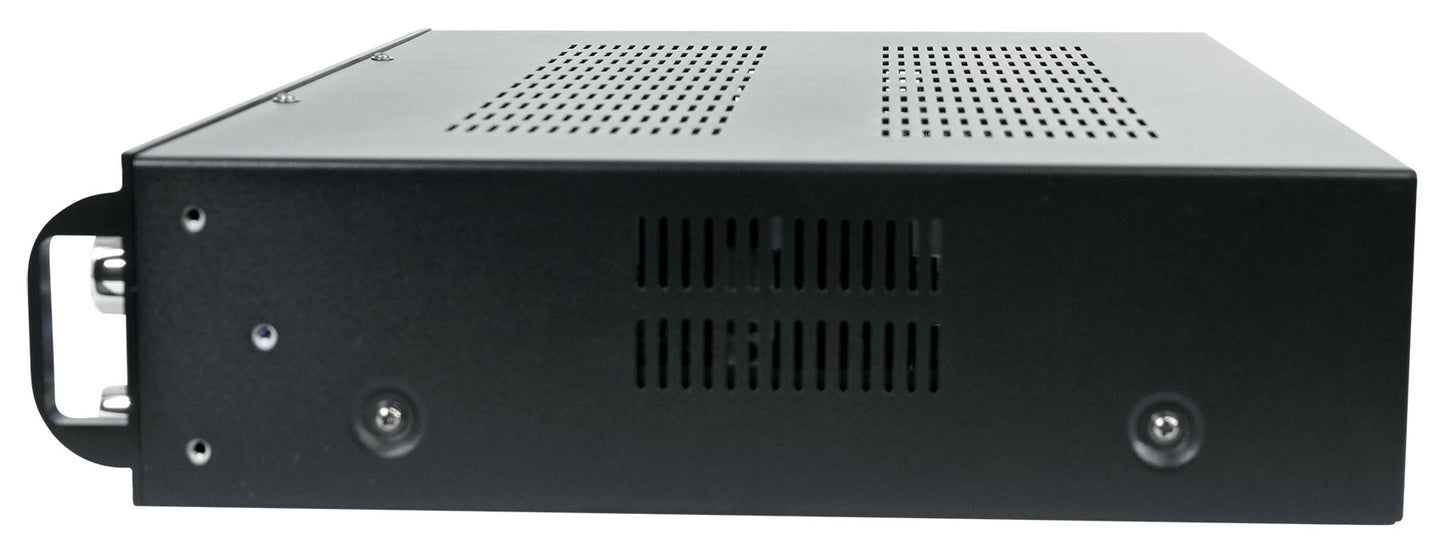

• 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver

• RMS Power @ 4 Ohms: 125w x 2

• Peak Power @ 4 Ohms: 500w x 2

• RMS Power @ 8 Ohms: 100w x 2

• Peak Power @ 8 Ohms: 400w x 2

• THD: > 0.1%

• Input Sensitivity: 400mv/33 KOhm

• Frequency Response: 20 Hz - 20 kHz

• Signal to Noise Ratio: 80 dB

• Tone Characteristic: 100Hz-10KHz ±12dB

• 110v/220v Switchable

• Front Inputs: 3.5MM front aux input, 1/4” Headphone Jack, (2) 1/4" Mic Inputs, USB Input, Optical

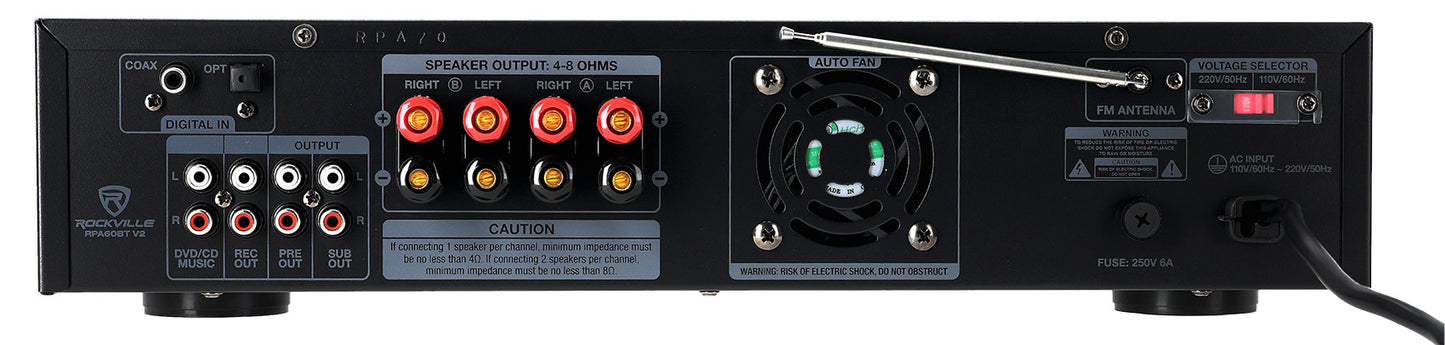

• Rear Inputs: RCA, Optical, Coaxial

• Rear Outputs:

• Preamp output for an external additional amplifier or powered speaker

• Sub preamp output to connect a powered subwoofer or an amplifier
• Record output to mixer
• Record output to connect a recording device

• Bluetooth Capable

• Rear Speaker Terminals: Banana plug / binding post outputs for 4 speakers (2 on Channel A and 2 on Channel B)

• Built-in Pre-Amplifier

• Bass, treble, and balance control knobs

• Multicolor VFD Display

• FM Radio Tuner with Presets & Auto-Scan

• Preset EQ: Rock, Pop, Classical, Jazz

• Remote control for quick access to all functions

• Vacuum Fluorescent Digital Output Display Meters

• Separate gain controls for master volume & subwoofer

• Digital Karaoke System

• 2 front microphone inputs with volume, tone and echo controls

• Built-In Mic Mixer with Echo Control

• USB input for music files from USB thumb drive

• 3.5mm input for iPod / MP3 player

• Spectrum analyzer equalizer display

• Turbo cooling twin fan system

• Dimensions with rack ears (W x D x H): 19" x 12.25" x 3.5" inches

• Dimensions without rack ears (W x D x H): 17" x 12.25" x 3.5" inches

---

How to Set Up Your Rock Shaker Subwoofer:



Video of ROCK SHAKER 8:

Description:

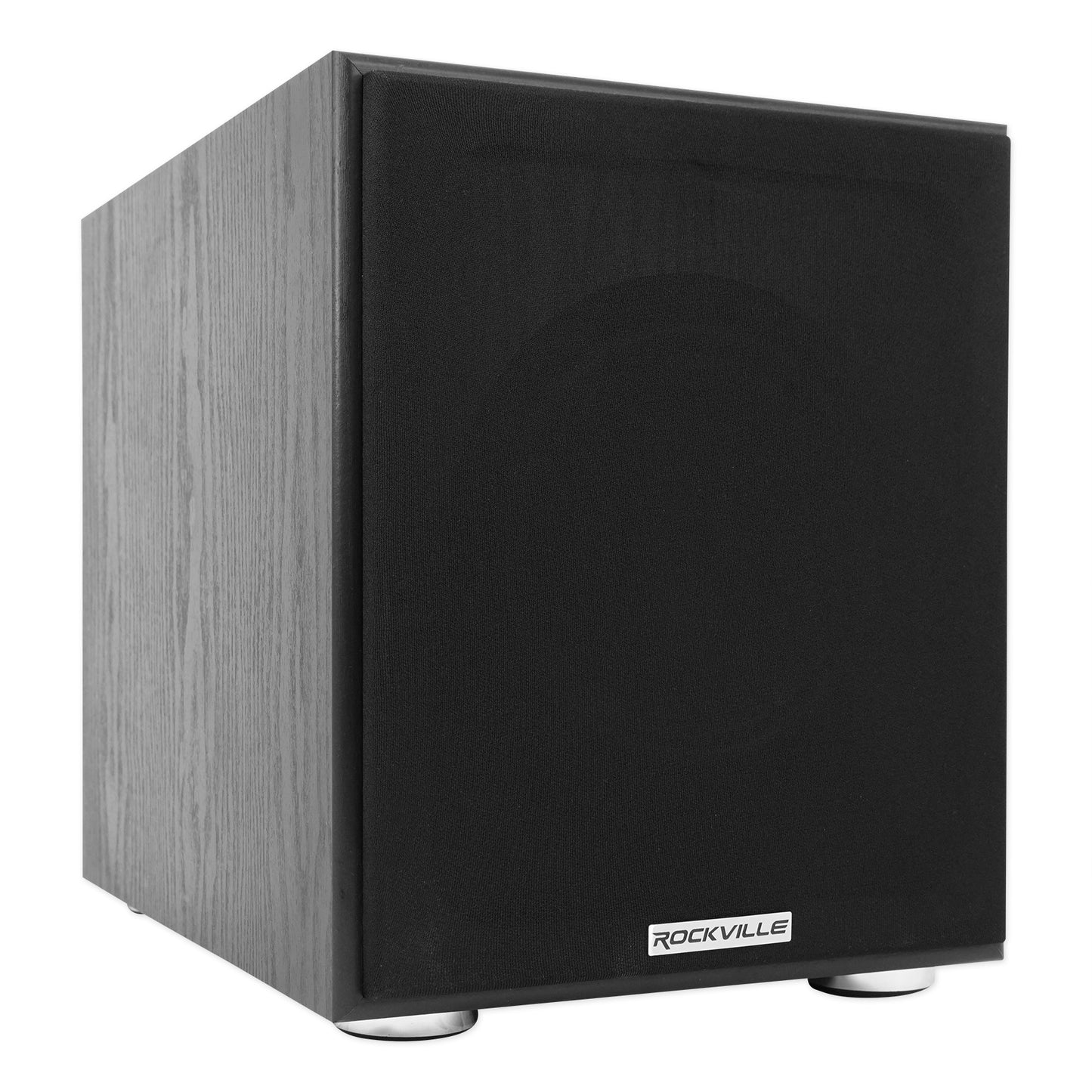

The Rock Shaker 8 is an all in one powered 8” subwoofer perfect for any home theater system or studio application.

This product uses high grade components from the ground up and delivers clean sound with tight and thumpy bass you can really feel.

The enclosure is made of high quality MDF which delivers superb sound. We use a highly efficient class “D” amplifier that is engineered to be perfectly matched with the woofer and enclosure. We tested the rear firing port and determined it delivers the best bass response where you get optimal reflection that will disburse the sound throughout the room.

The woofer is top quality with foam surrounds and features a Y30 grade magnet, and a 4-layer voice coil.

Our subwoofer has RCA inputs and outputs as well as high level speaker inputs and outputs to support any setup.

Features:

• Rockville Rock Shaker 8 Black 400 Watt Powered 8" Home Theater Subwoofer
• 400 Watts Peak / 200 Watts RMS
• Built-in Class D Amplifier
• Enclosure is made of top quality MDF wood. (MDF wood sounds better and lasts longer than particle board)
• High-grade vinyl enclosure covering with a beautiful finish
• The enclosure is built with the perfect air space to maximize sound quality and punch
• The rear firing port is engineered for optimal sound
• Class “D” Amplifier Circuitry with Auto-Switching Power Supply
• High-grade woofer with foam surround and paper cone
• Woofer has a Y30 grade magnet, and 1.5” 4-layer voice coil
• Distortion-Free Playback Even at Max Volume Listening! Very Clean Sound!
• Enclosure is filled with fire resistant poly cotton
• Detachable foam grill

Inputs / Outputs / Controls:

• RCA line input
• RCA line output
• Speaker High level inputs
• Speaker High level outputs
• Volume control
• Phase switch (0°-180°)
• Crossover Frequency control
• Power switch
• Standard IEC power cable included

Specifications:

• Amplifier: Class D
• Woofer Impedance: 4 Ohm
• Signal to noise ratio: 85 dB (Maximum output with THD+N <1%, A-weighted)
• THD: <1%
• INPUT sensitivity: 88dB +/- 2dB
• Frequency Response: 20 Hz - 200 Hz
• 400 Watts peak output
• 200 Watts RMS output
• Voltage: 110-240V
• Product Dimensions in Inches: (W*H*D): 11.8'' x 13.8" x 15''
• Shipping Dimensions in Inches: (W*H*D): 14.6" x 18.3'' x 18.9''
• Unit Weight: 18 LBS
• Shipping Weight: 22 LBS
• Color: Black

---

All About Your RCC14 Series of Speaker Wire:

How To Set Up Your RCC14 Speaker Wire:

Description:

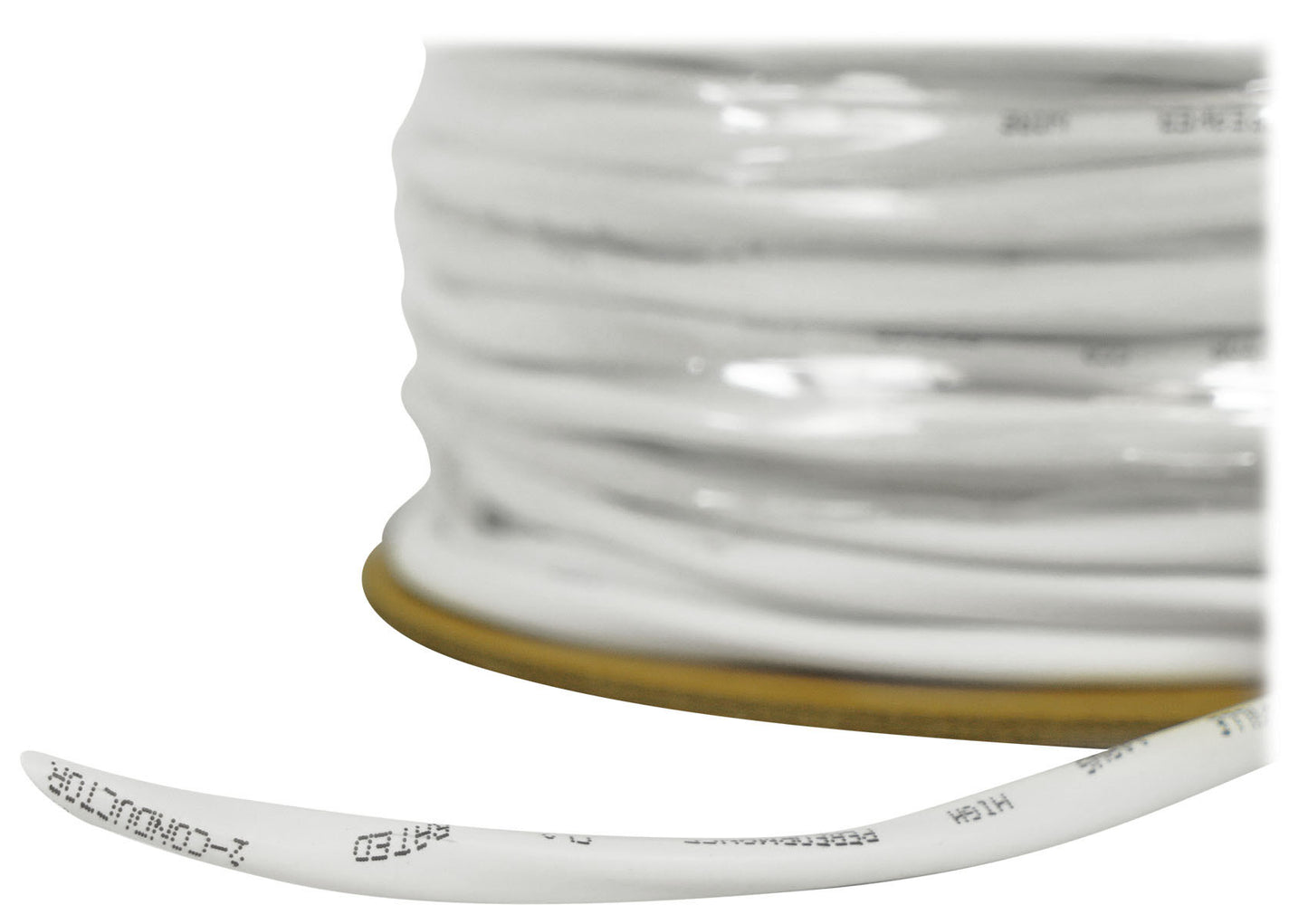

CL2 rated speaker wire is perfect for commercial or home applications. CL2 means you can safely install it in your ceiling or behind walls. If you are doing a 70V or 100V or 8 ohm installation of wire then this is the perfect product for you.

This speaker wire is CCA (copper clad aluminum). Our CCA will run well because we use 30 % copper and 70 % aluminum. There are other CCA cables on the market that use 10 % or less of copper. OFC cables are better but they cost way more and in many applications there will be no performance difference. You should use OFC cables for long runs or if a lot of power will be running through it.

Each conductor is housed in a color-coded PVC for easy polarity identification. The entire cable is inside of a PVC material that is CL2 fire-safety rated.

Features:

• Rockville RCC14-100-2 CL2 Rated CCA (Copper Clad Aluminum) Speaker Wire For In Ceiling or In-Wall Installation
• 100 Feet
• 14 AWG (American Wire Gauge)
• 2 Conductor
• 30% Copper and 70 % Aluminum wire
• CL2 rated for safe installations in ceilings or walls
• Strands Count: 41 Wires Strand Size: 0.25mm
• Each conductor is housed in a color-coded PVC for easy polarity identification
