Package Includes:

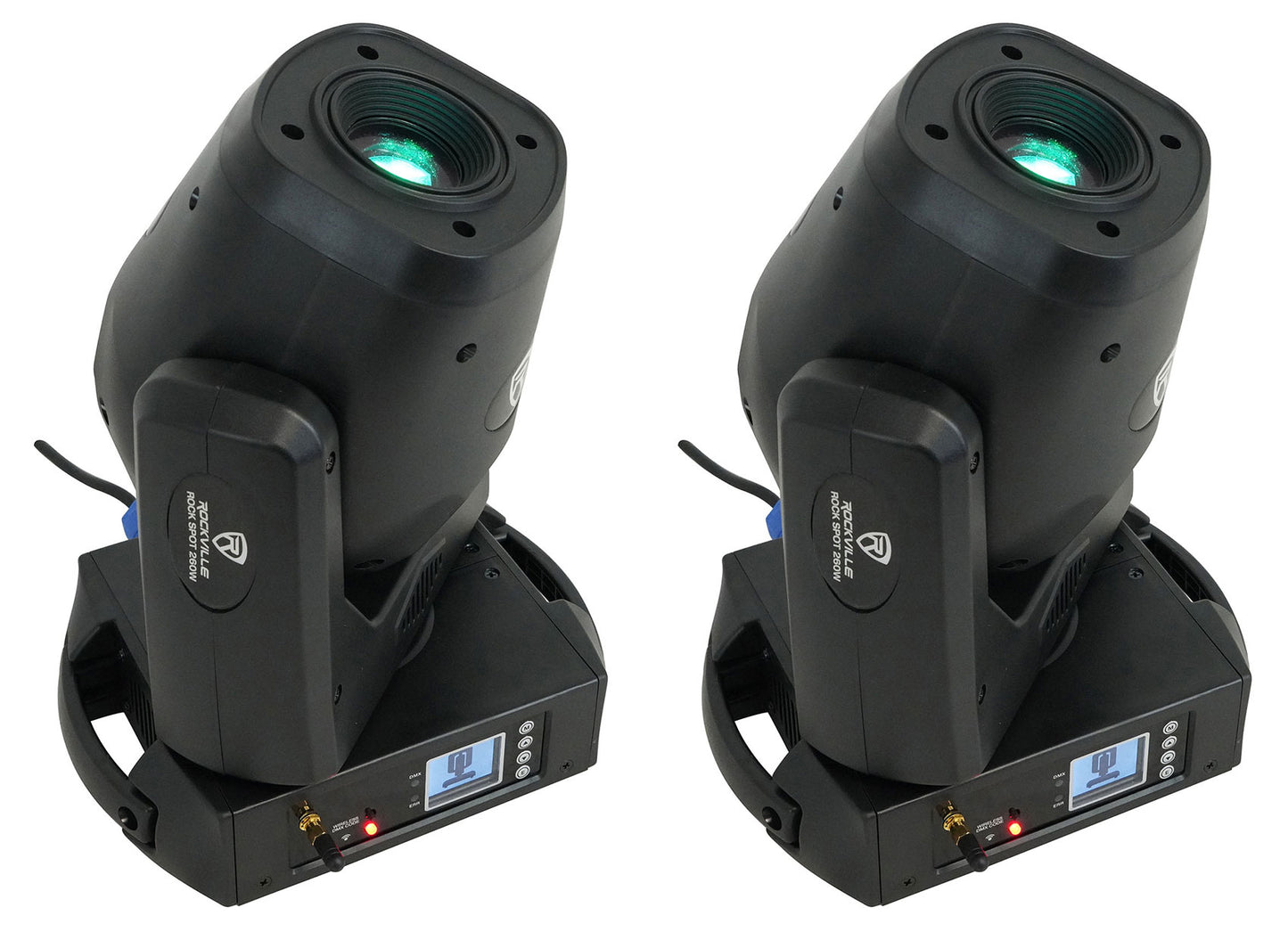

• (2) Rockville ROCK SPOT 260W DJ Moving Head Spot Light w Wireless DMX+Prism+Gobos

---

All About Your ROCK SPOT 260W:

How To Set Up Your ROCK SPOT 260W:

How To Set Up A DMX Controller To Your ROCK SPOT 260W:

How To Set Up Master / Slave Mode On Your ROCK SPOT 260W:

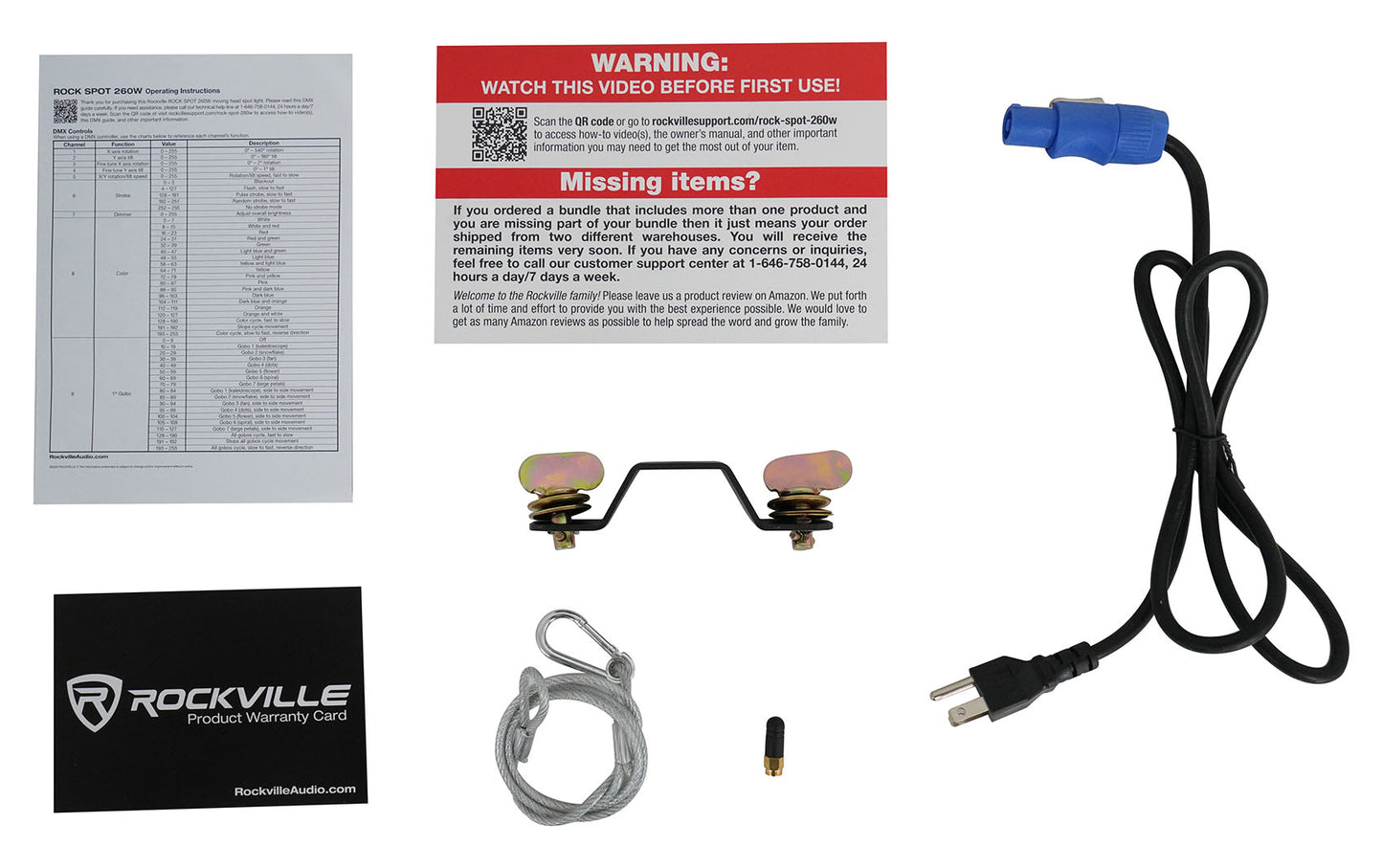

Includes:

• Moving Head Light
• 6 Foot Power Cable
• Hanging Mounting Bracket
• Owners Manual
• Warranty Card


Description:

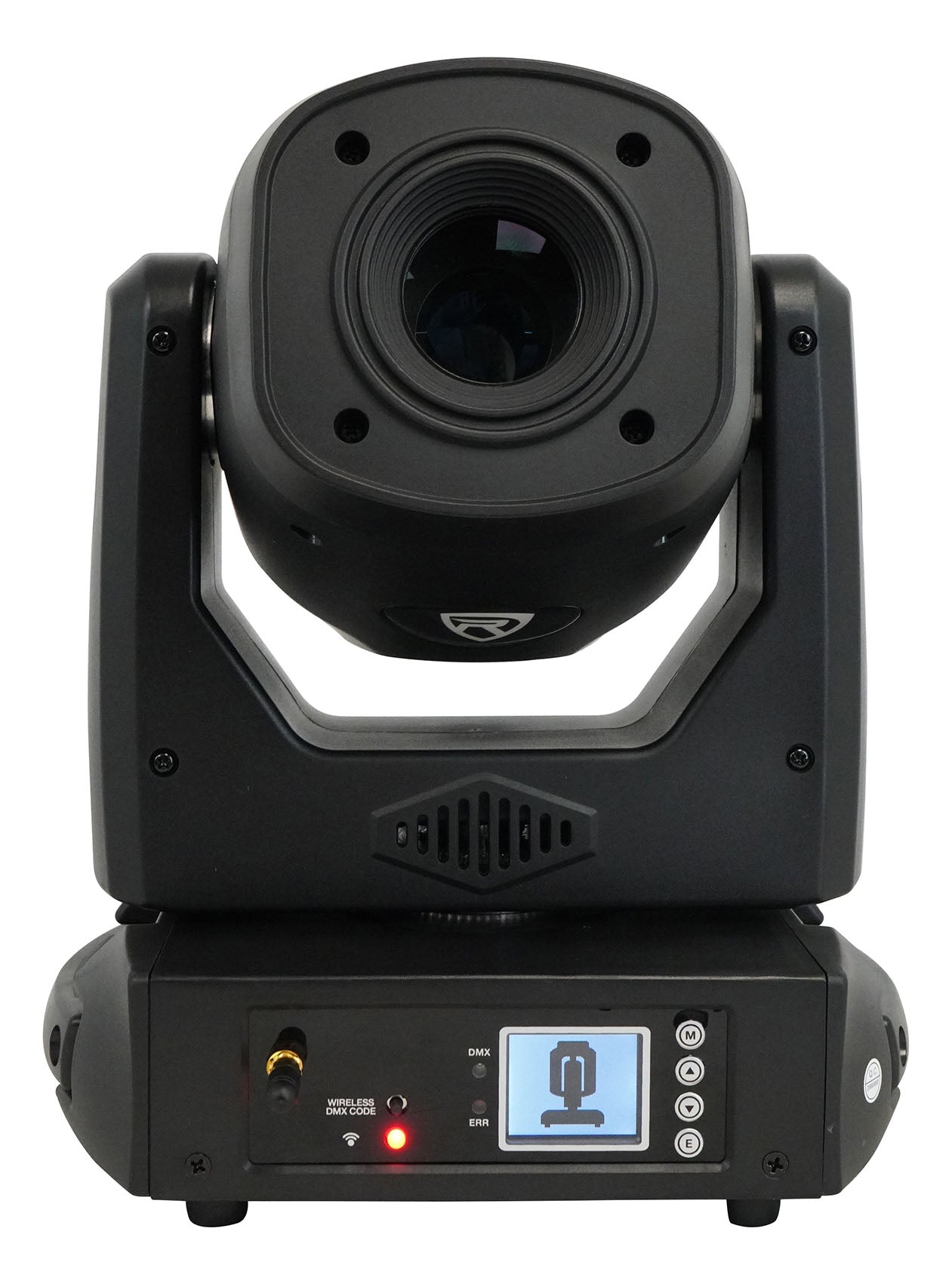

Rockville is proud to introduce the RockSpot 260W moving head spot light with wireless DMX. This light is for DJ's and other professional applications. It is extremely bright.  Even in a bright room this can project far distances. The Illuminance rating is 5100 lux @ 3m (True rating). The power consumption of this unit is 120 watts. It is a beast of a light! This should not be compared to those mini moving heads, this is a full sized super-powerful light!

This has 14 channels of wireless DMX controls allowing you to link multiple units wirelessly or link it to your wireless DMX controller. You can control, the gobos, strobe, color, pan, tilt, speed, prism, rotation, zoom, shake, and more.

The idea of this light is that it utilizes many effects in combinations to deliver really professional and cool light shows that are perfect for dance floors, stages, and more.

Some of the more unique things this light can do that many others can not do are:

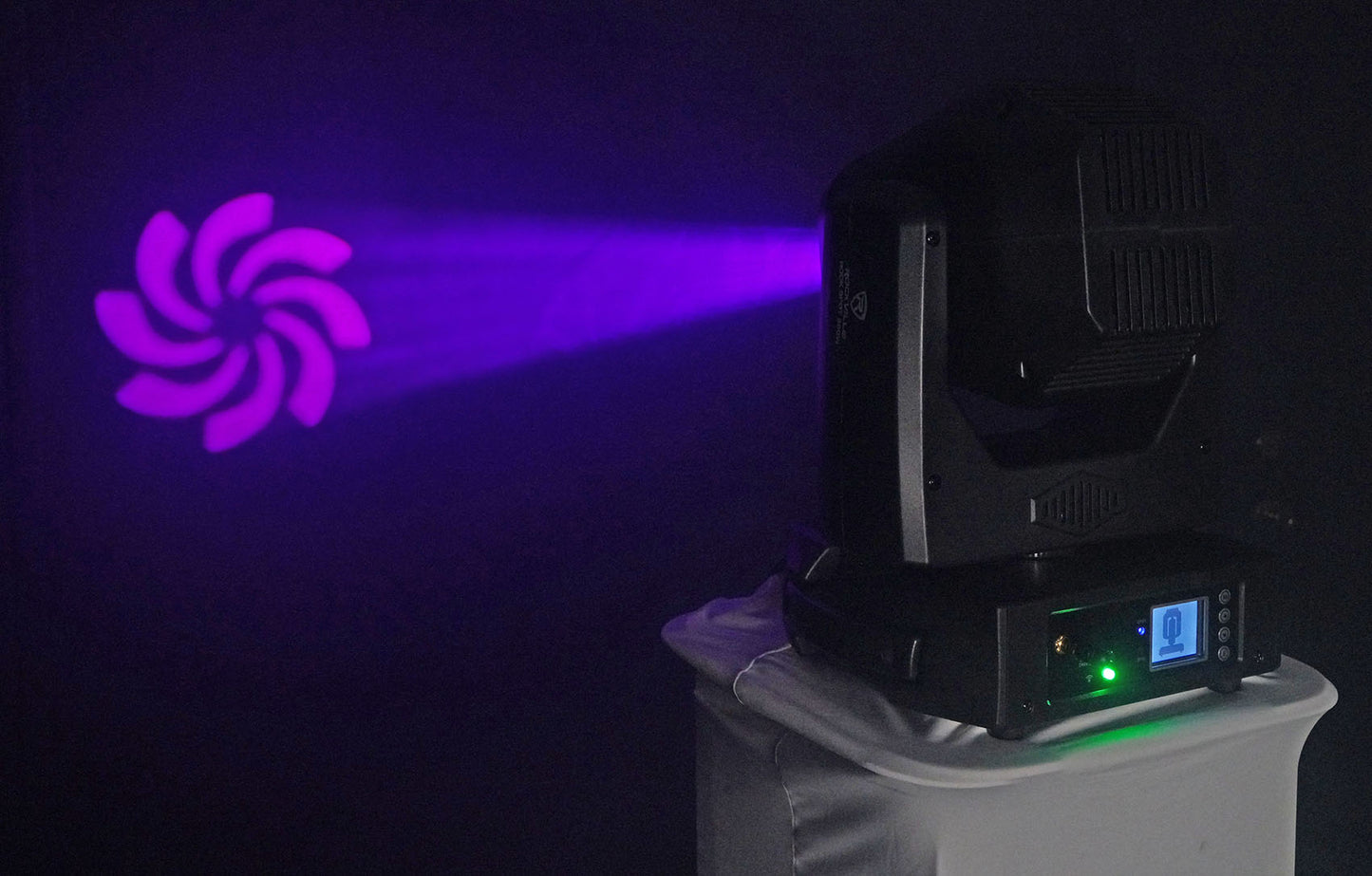

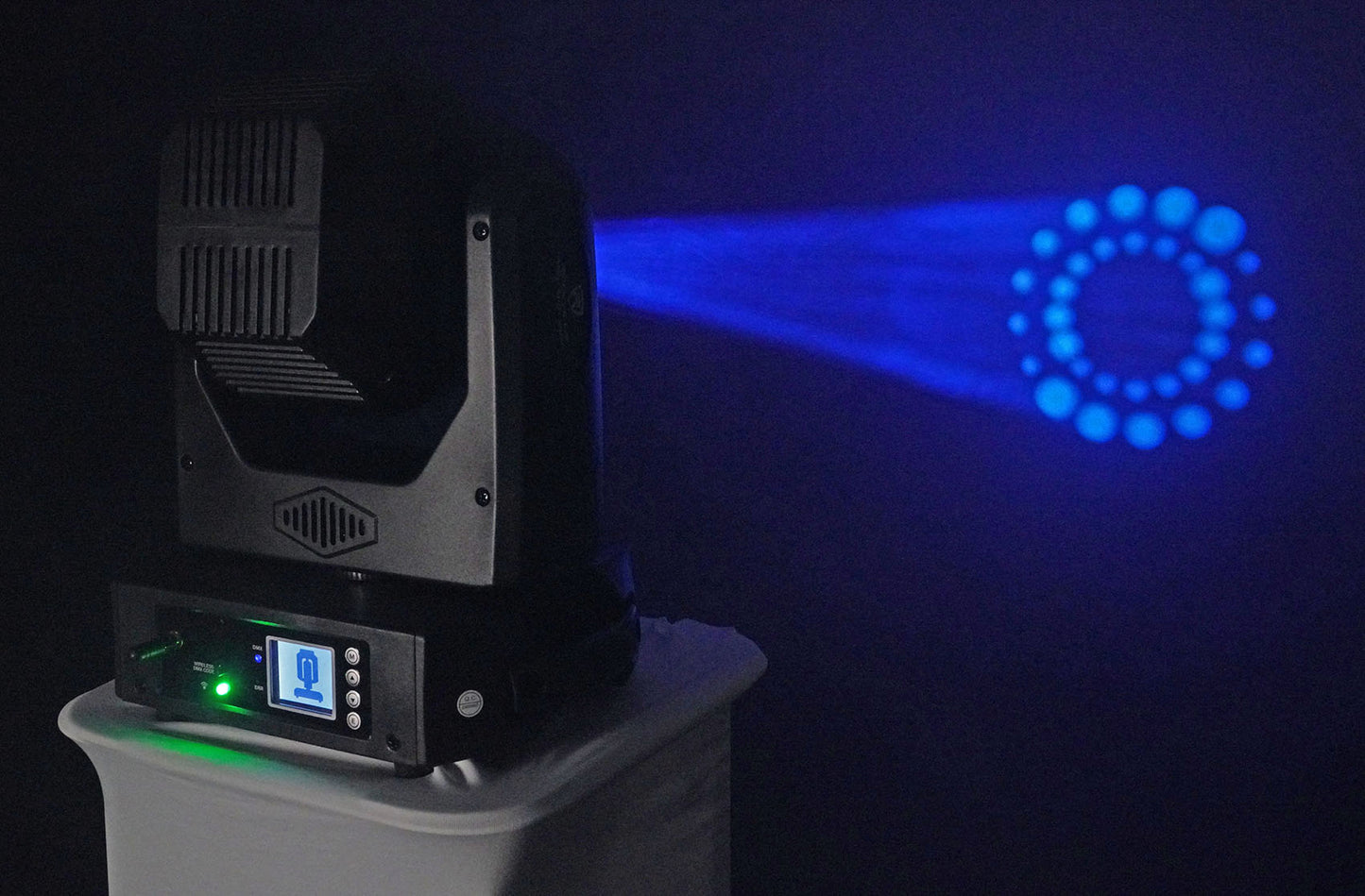

Prism effect: It will create 3 projections with this one light and the 3 projections can rotate and move and shake. During all of this you can rotate through different gobos and colors including the ability to overlay 2 gobos on top of each other as well as combining multiple colors simultaneously.

Zoom: Another feature we have is the ability to focus/zoom so you can project the light from short or far distances.

You have 4 ways to operate this light:

• DMX Control Mode (Wireless or wired): With 14 channels of DMX control this option gives you the most precise control over the light with a DMX controller.
• Master/Slave Mode: When entering the light into this mode the light will replicate whatever the master light is doing.
• Sound Activated: This is the easiest setting to use. Simply set the light to sound activated mode and the light will go to the rhythm or beat of the music and create a spectacular and professional light show.
• Manual Control using the built-in menu options
• Automated Program: You can let the lights run through preset professional automated programs.

Features:

• Rockville ROCK SPOT 260W DJ Moving Head Spot Light w Wireless DMX+Prism+Gobos
• Extremely bright - This is for professional use
• Uses 18° lens that throws extremely long distances
• Built in wireless DMX controls to link multiple units together as well as to link to your wireless DMX controller
• Control Modes: Automatic programs, Sound activated mode, Wireless DMX512, master/slave

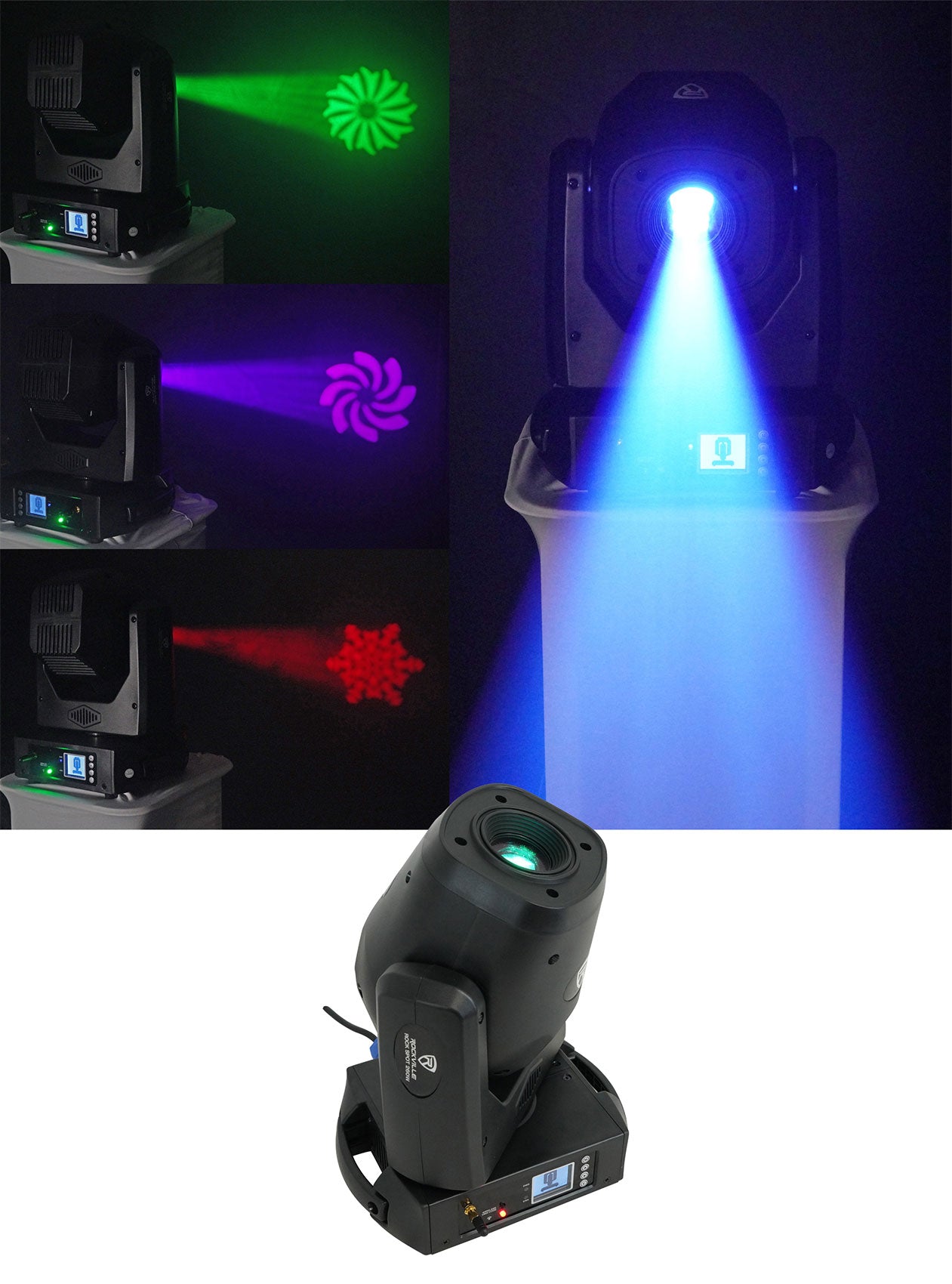

• Gobos: 6 individual gobos + you can overlay any 2 gobos for many cool combo gobos
• Each gobo can rotate, shake, or prism as well as continuous scroll at adjustable speeds
• Prism allows you to have 3 projections that rotate, shake, change colors, etc.
• Gobo Color wheel: 7 switchable colors + split color + rainbow effect
• You can overlay any 2 gobos on top of each other for a unique effect
• Adjustable zoom/focus allows you to project far or close distances
• You can make the projections spin in circles while you are in prism mode making cool effects for a dance floor
• Strobe controls with adjustable speed
• Can do a combination of prism, strobe, color changing and multiple gobo changing to deliver amazing effects for dance floors or stages
• DMX 512 controls (14 channels) (wired or wireless)
• Built-in, sound-activated program dances to the beat of the music
• Rated Power Consumption: 120W
• Create spectacular aerial light shows using extremely fast pan and tilt speeds
• Strong power arm for fast and precise movement
• Linear dimmer control
• An IP20 rating makes this unit rugged and tough
• Projects long ranges even in a lit up room
• Set, save, and recall any scene manually from the built in menu screen
• Powercon power cable
• Hanging bracket included
• Suitable for DJs, clubs, concert venues, party halls, stage productions, bars

Specifications:

• LED Life Expectancy: 50,000 Hrs
• Dimming: 0-100% linear dimming
• DMX Channels: 14CHs

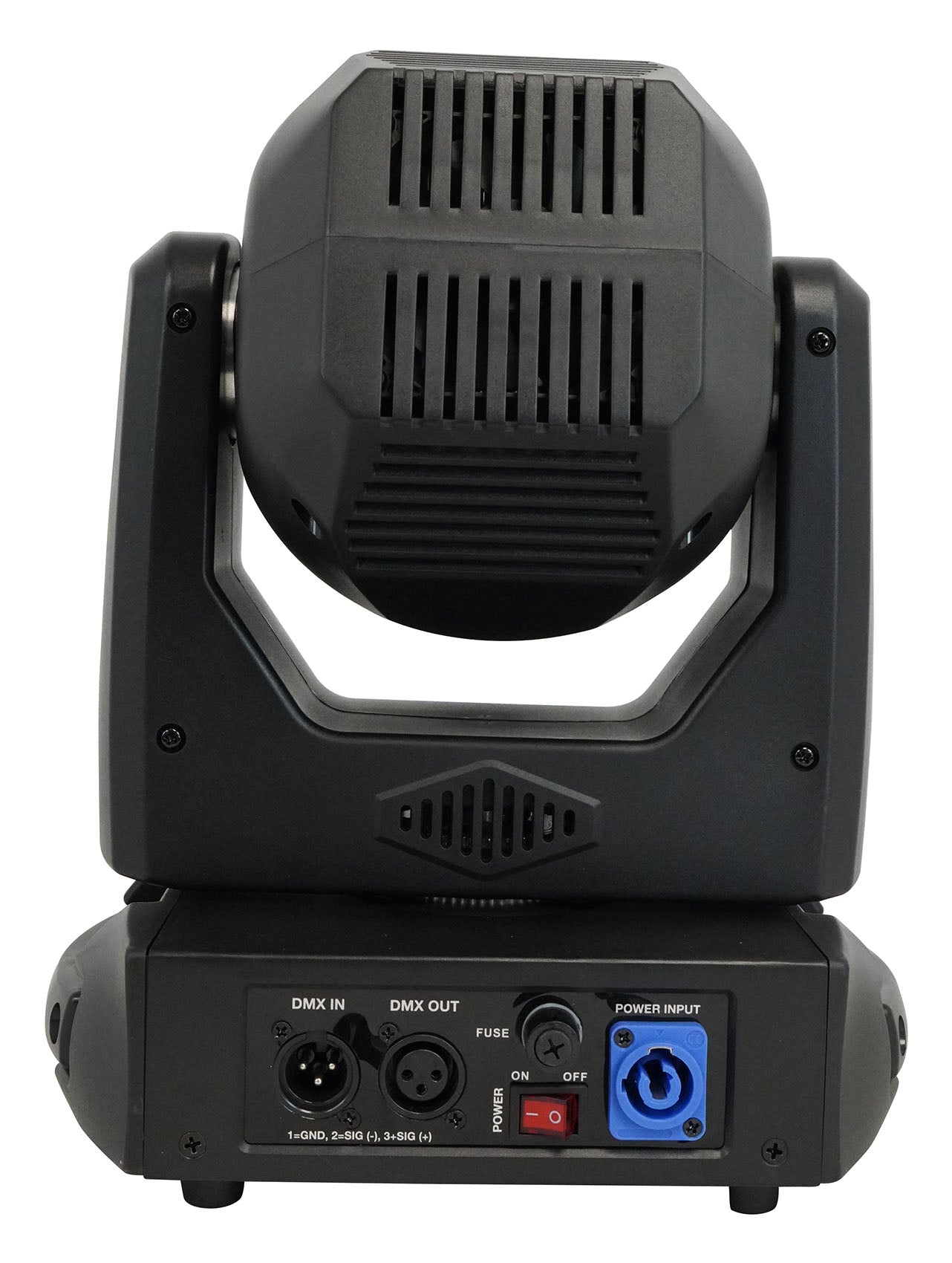

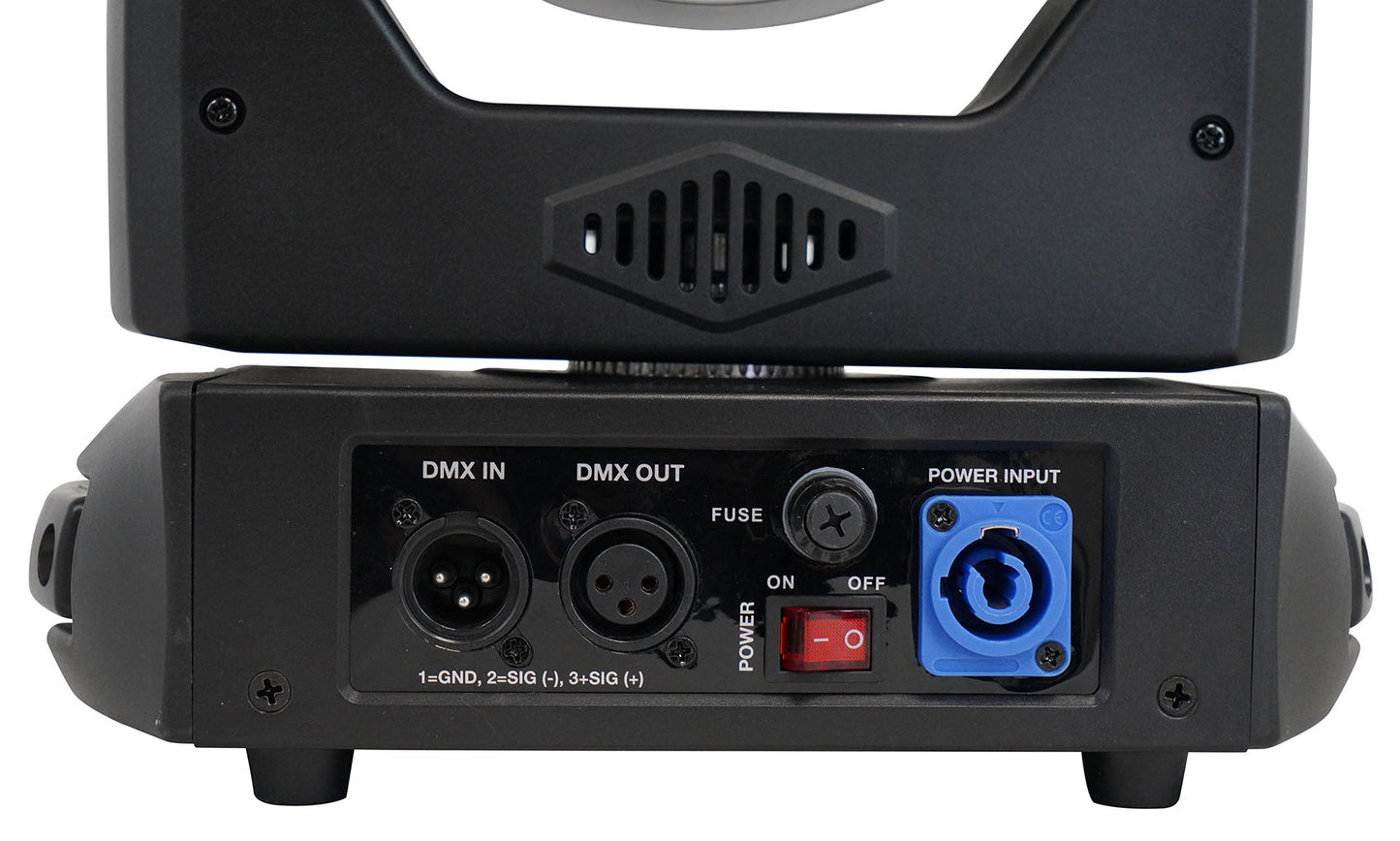

• DMX Connectors: 3-pin
• Pan and Tilt: 540°/270°
• Strobe Rate: 0 - 25Hz
• Beam Angle: 18°
• Illuminance: 5100 lux @ 3m,1860 lux @ 5m
• Input Voltage: AC110-240V, 50/60Hz
• IP Rating: IP20
• Product Weight: 13.44 LBS (6.1KG)
• Dimensions: 10.63" x 7.87" x 11.02" inches

Owner's manual
