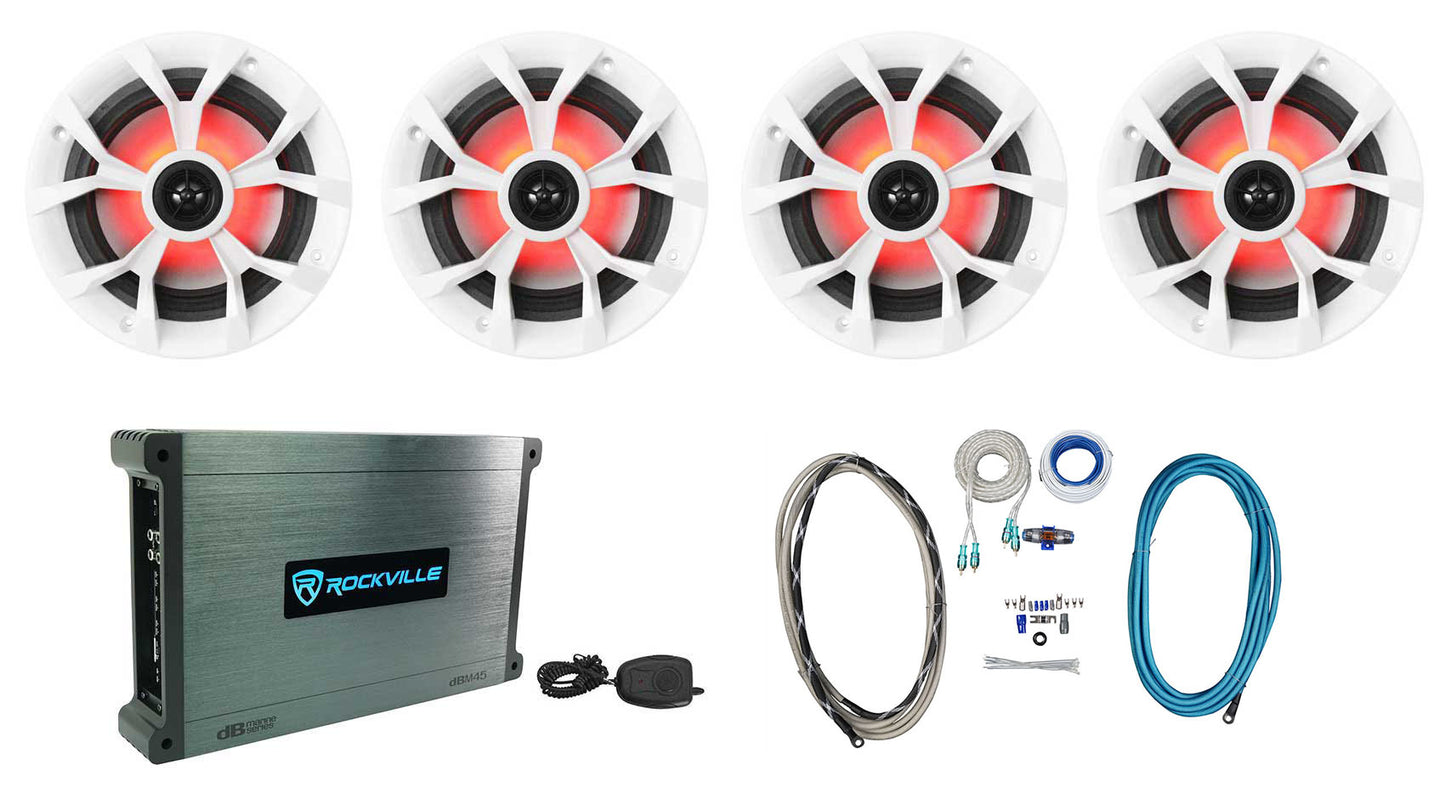

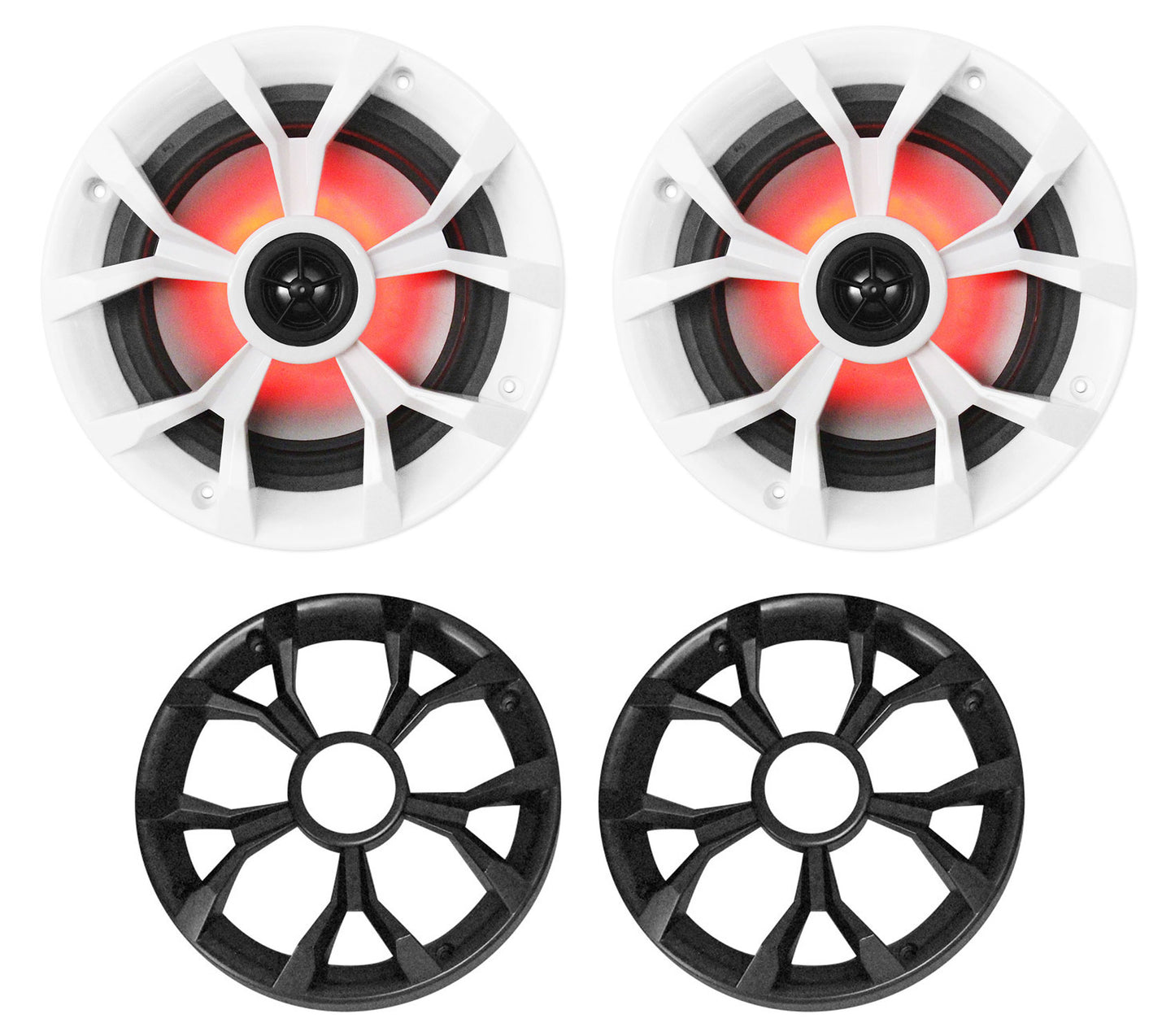

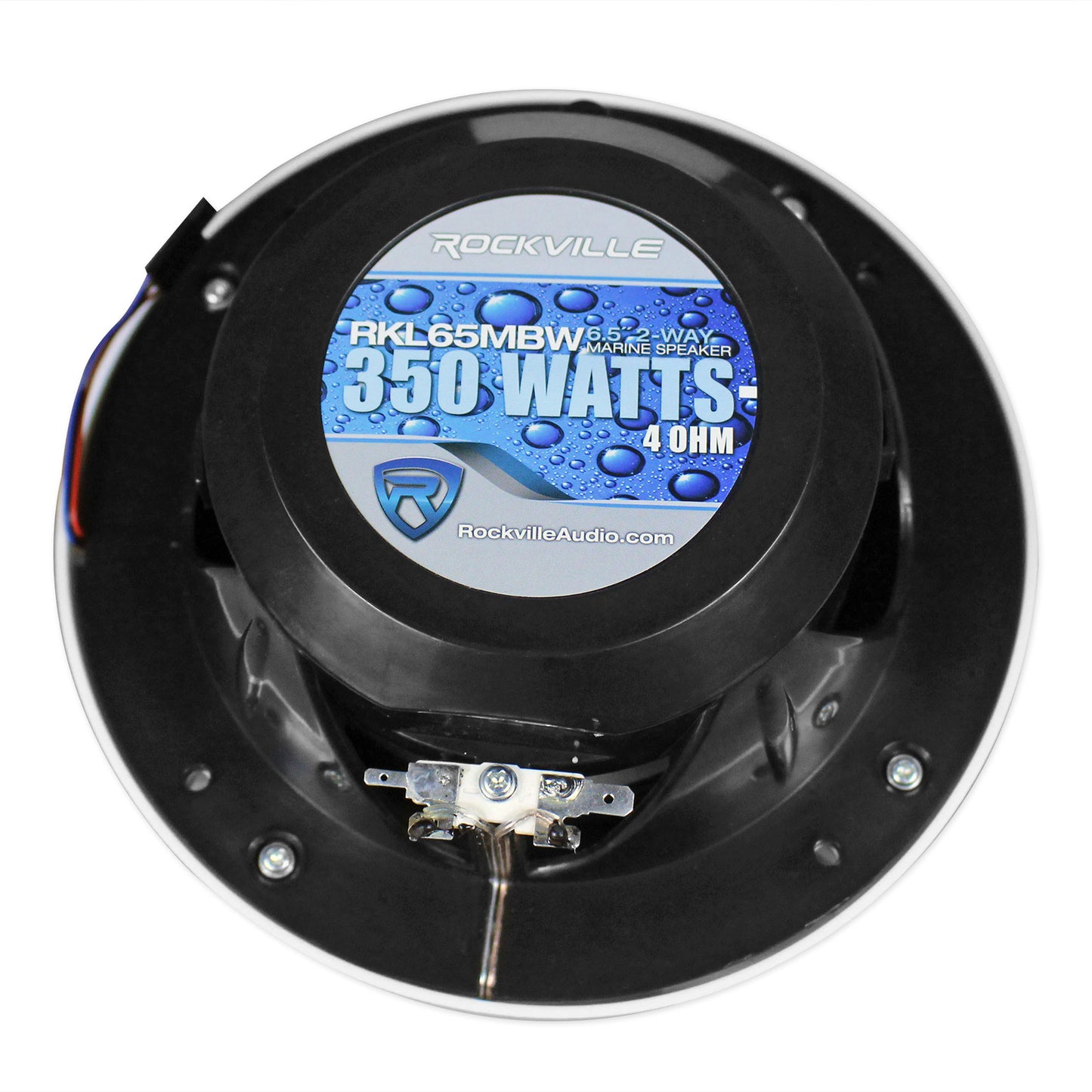

- (2) Pairs of Rockville RKL65MBW 6.5" 700w Marine Boat Speakers with LED and Black/White Grilles

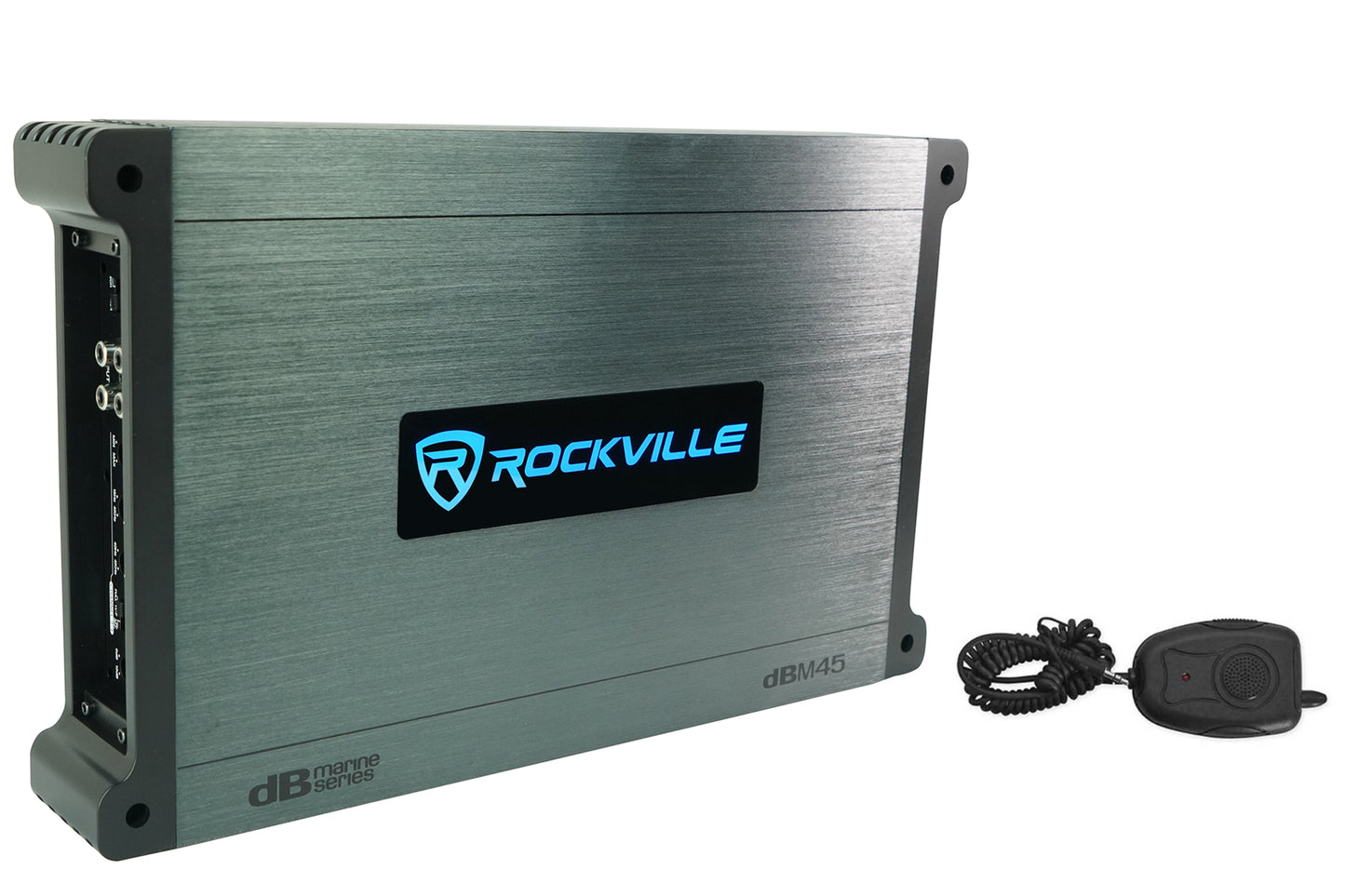

- (1) Rockville DBM45 4-Channel 2000w Peak/500w Dyno-Certified RMS Marine/Boat Amplifier
- (1) Rockville RMWK4 4 AWG Gauge Waterproof Marine Amplifier/Amp Install Wire Kit
Includes:

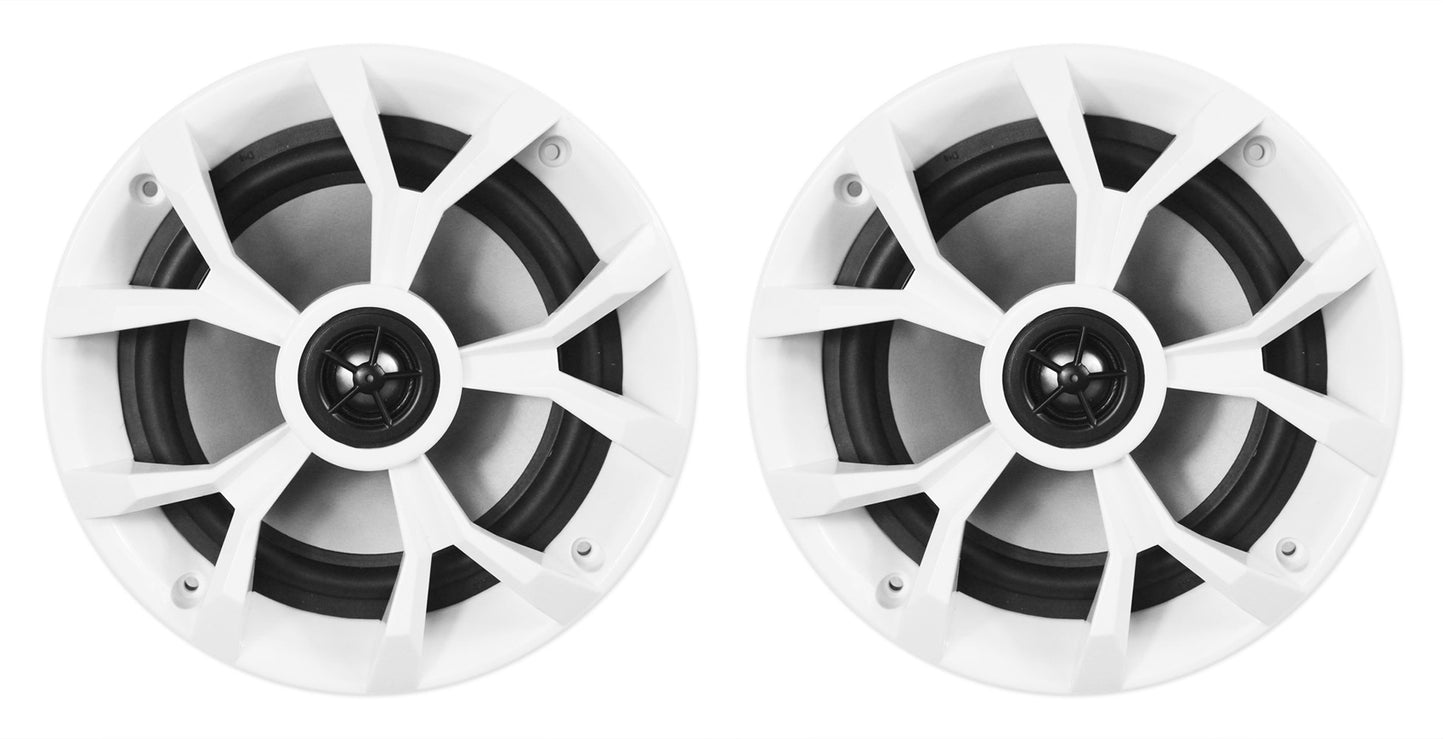

- Pair of 6.5" Marine LED Speakers
- 16.4 feet of Speaker Wire
- Stainless Steel Mounting Screws

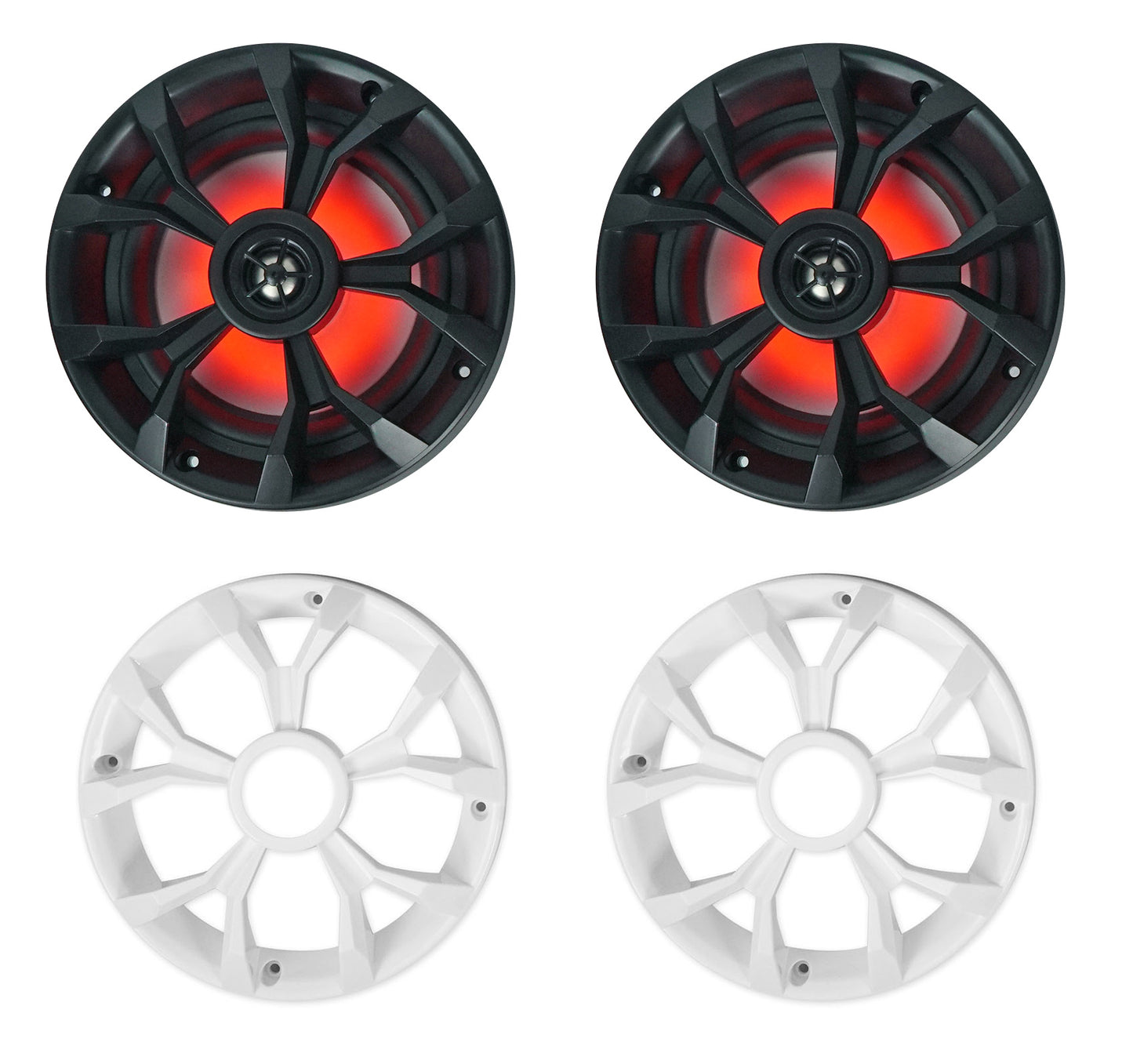

- Black and White Grills Included
Features:
Features:

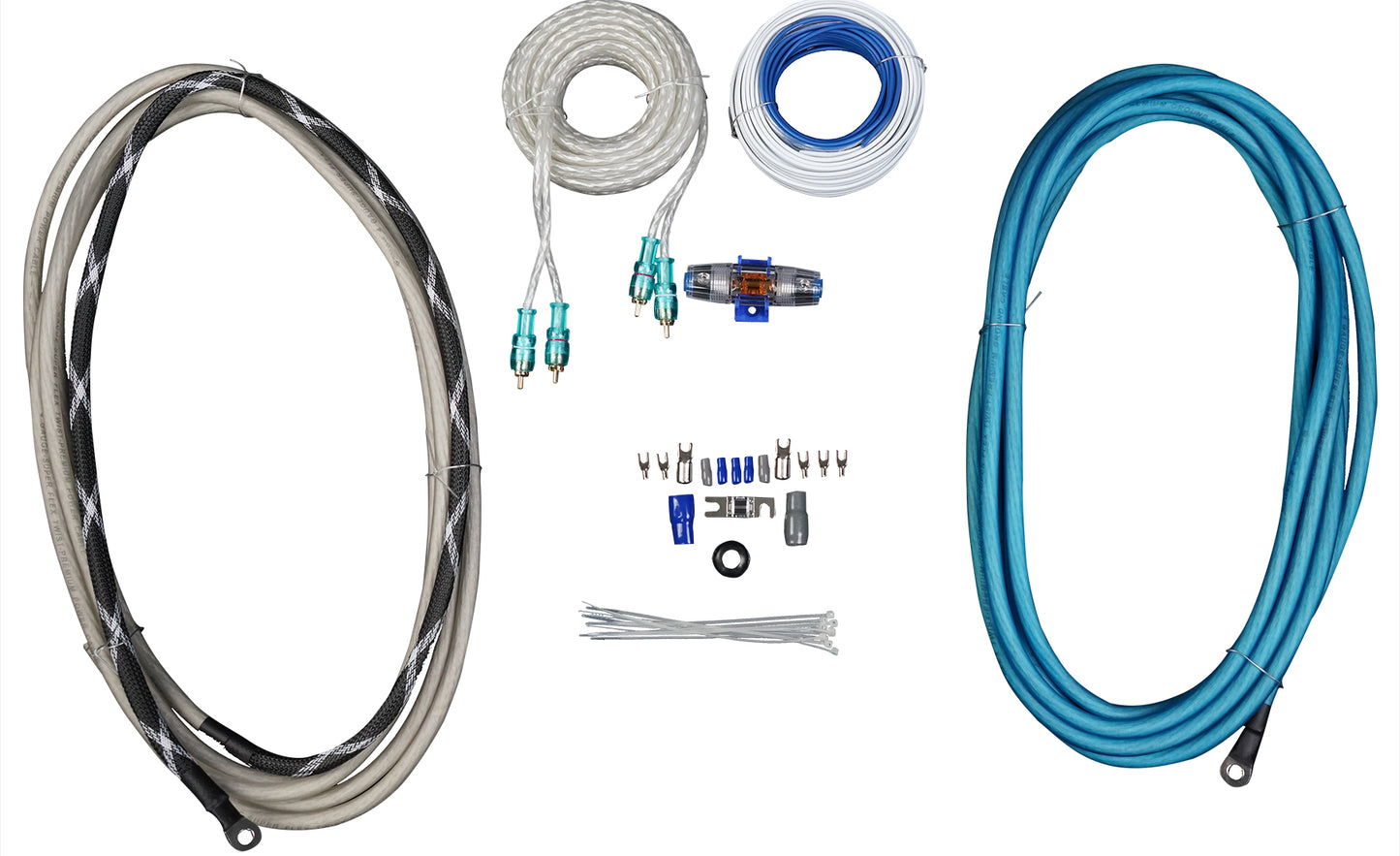

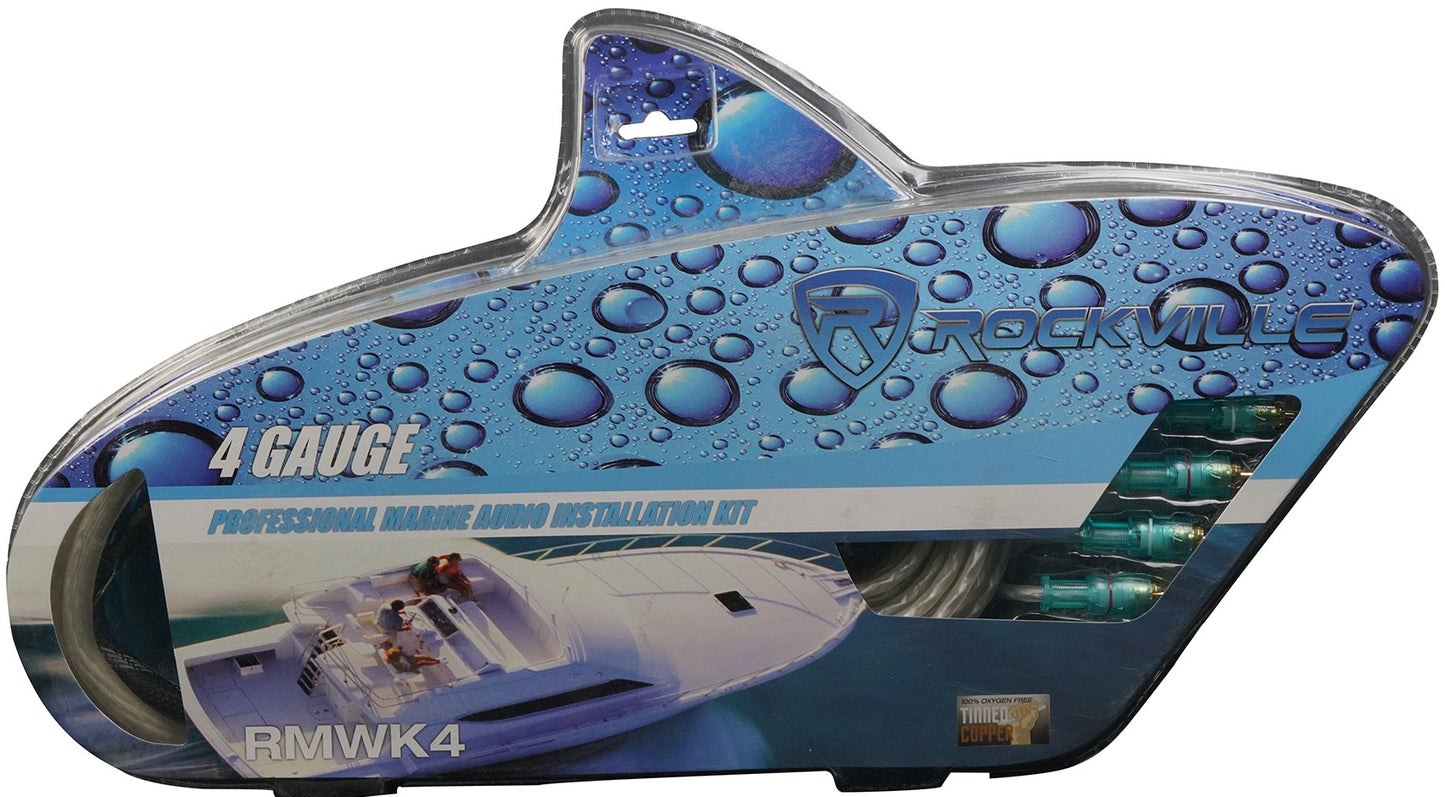

- Rockville RMWK4 4 AWG Gauge Waterproof Marine/Boat Amplifier Wire Installation Kit

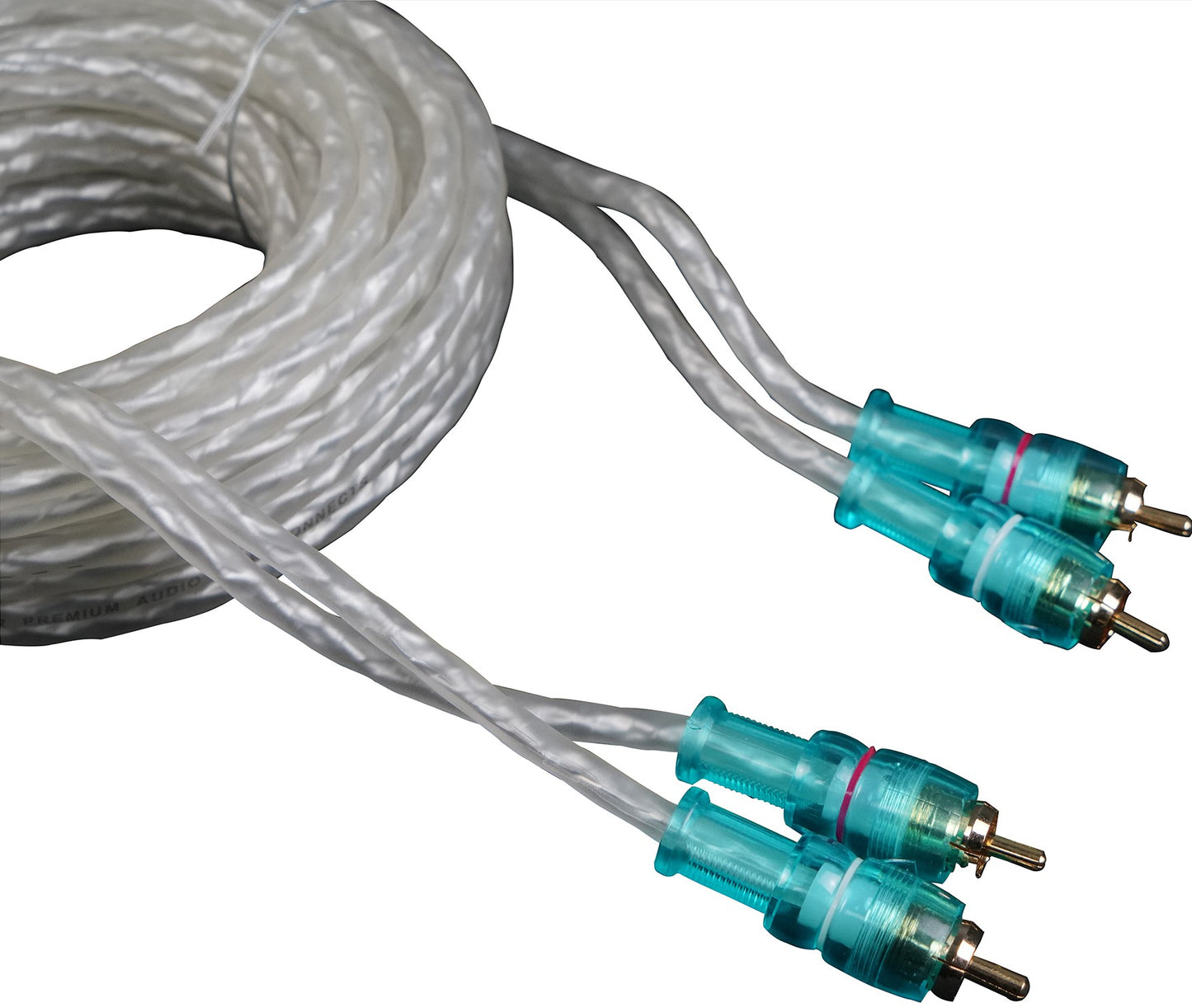

- 20 ’ Translucent, Twisted Pair, High Quality, Tinned-OFC Flexible PVC RCA Cable

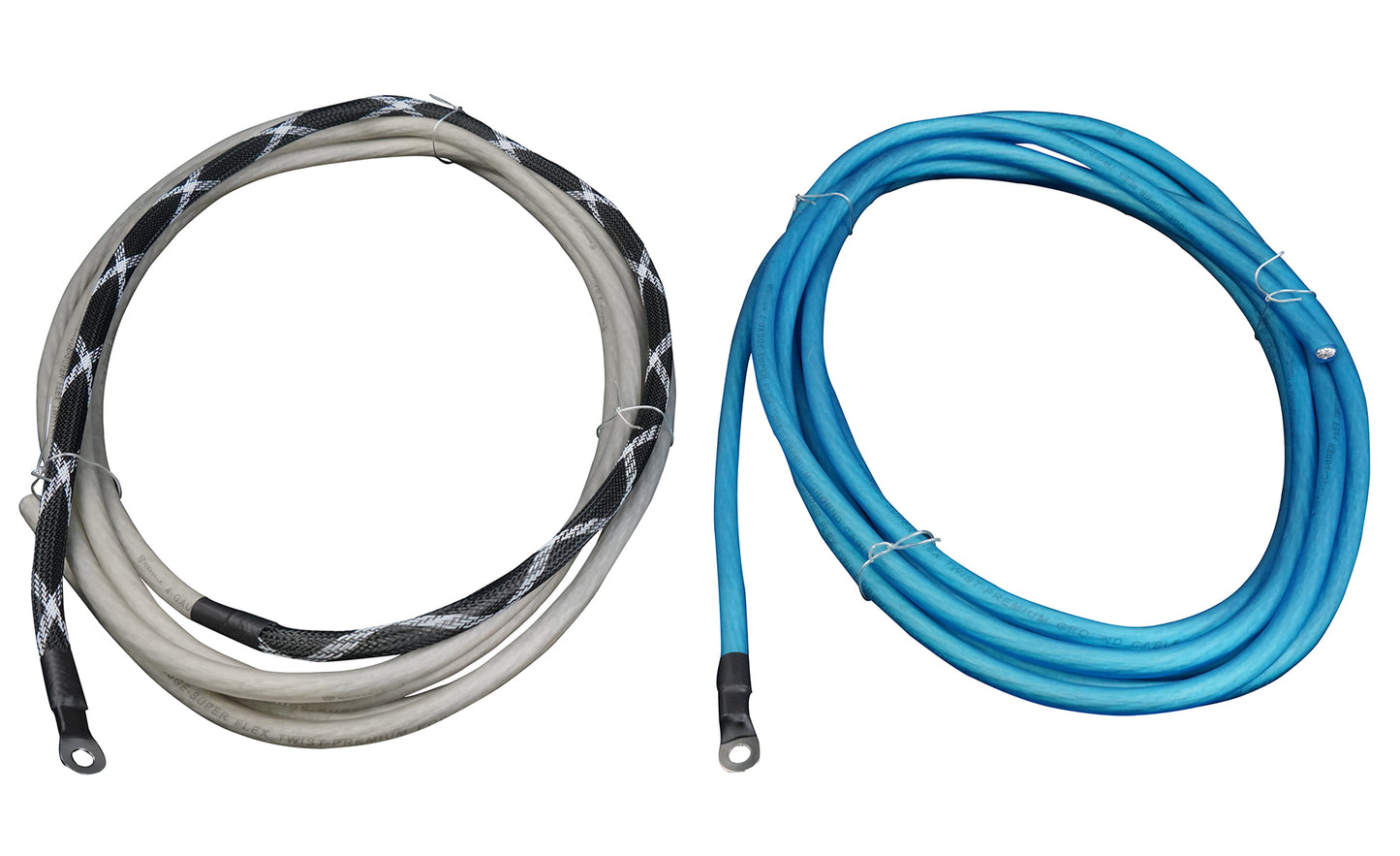

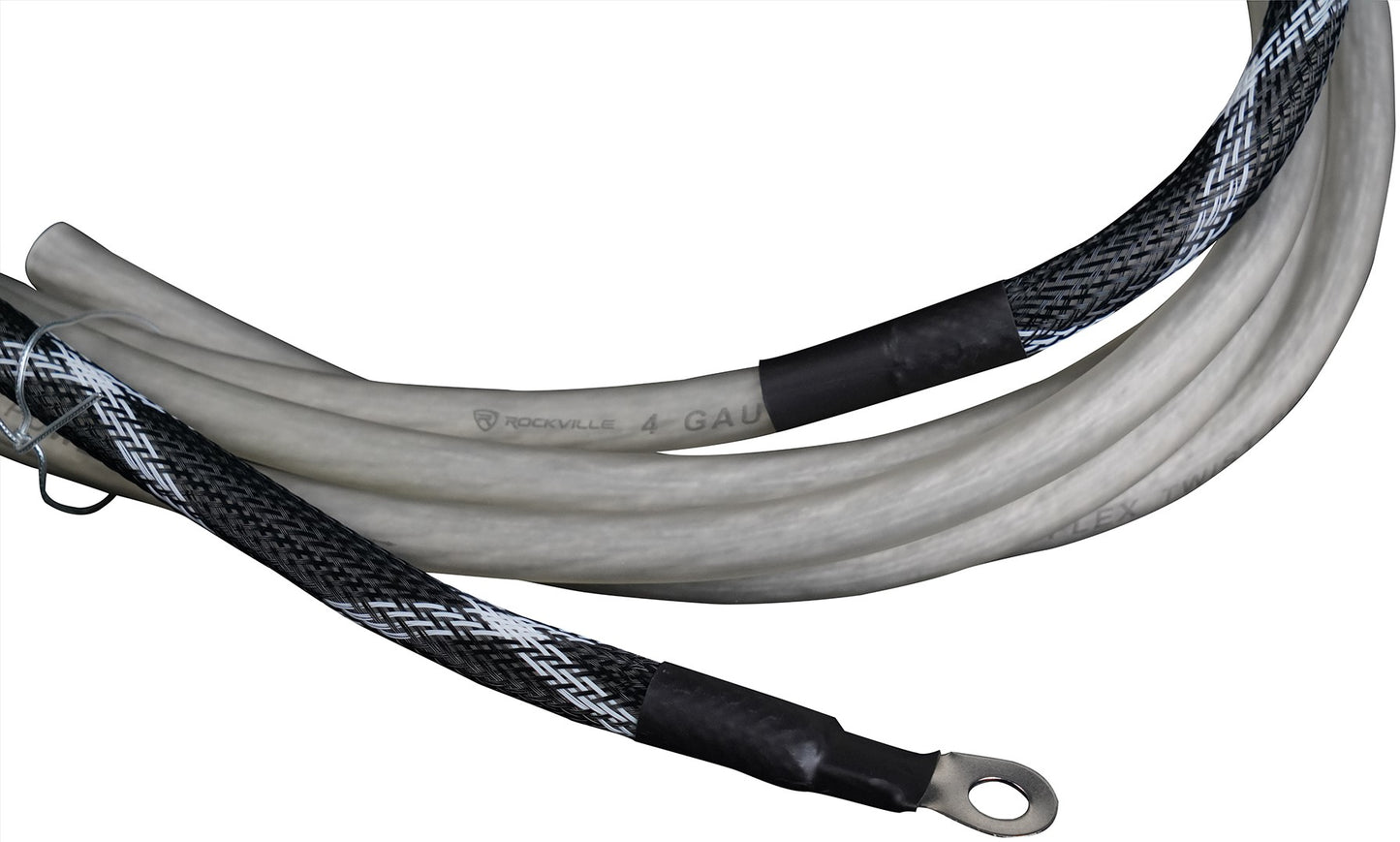

- 18’ 4 Gauge High Current, Low Impedance, Clear Flexible Power Cable with 3’ Black Poly Woven Mesh to better resist chemicals in the battery compartment
- 18’ 4 Gauge High Current, Low Impedance, Light Blue, Flexible Ground Cable
- 25’ 16 Gauge 100% Tinned-CCA, White, Non-Transparent Resin PVC, Flat Speaker Cable
- 25’ Blue Remote Wire

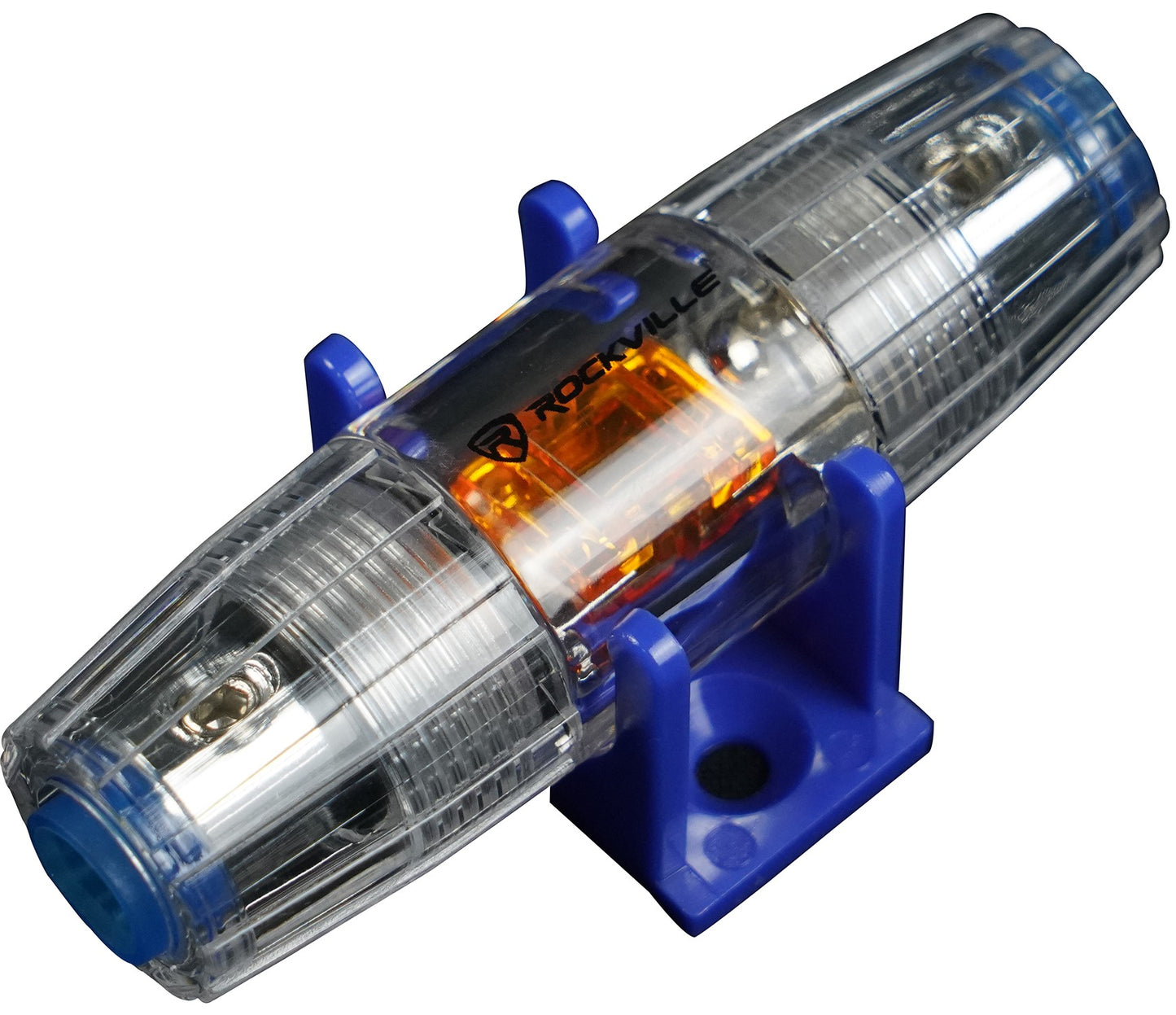

- (1) Silver Mini-ANL Fuse Holder – Clear Shell and Clear Blue Bottom Bracket with Blue Waterproof Ring
- (1) 120A Mini-ANL Fuse
- (1) 80A Mini-ANL Fuse
- (2) Ring Terminals
- (2) Spade Terminals
- (5) Speaker Cable Terminals
- (1) Washer
- (10) White Cable Ties
How To Install a Marine Amplifier onto Your Boat:
Video of DBM45:
What's in The Box:
- DBM45 amplifier
- PA microphone
- Birth sheet with tested power
- Mounting screws
- Warranty card
- Owner’s Manual
Description:
The all new dB marine series of amplifiers gives you the best of both worlds! We took the sound of our best-selling series of dB car amps and we added top of the line marine grade parts so that they will last forever and withstand even the harshest conditions on the water.
We went a little overboard (no pun intended) to make this amp marine ready. We conformal coated the PCB board with a waterproof glue that is painted on to protect the circuitry. We then added waterproof silicone covers over the terminals so that water can never get into the amp. The heat sink, including the bottom plate, is made of aluminum which is rustproof. The end panels, internal mounting screws and hardware of the amp are made of stainless steel and are rustproof. Even after many years of use the amp will be rust free and operate like new!

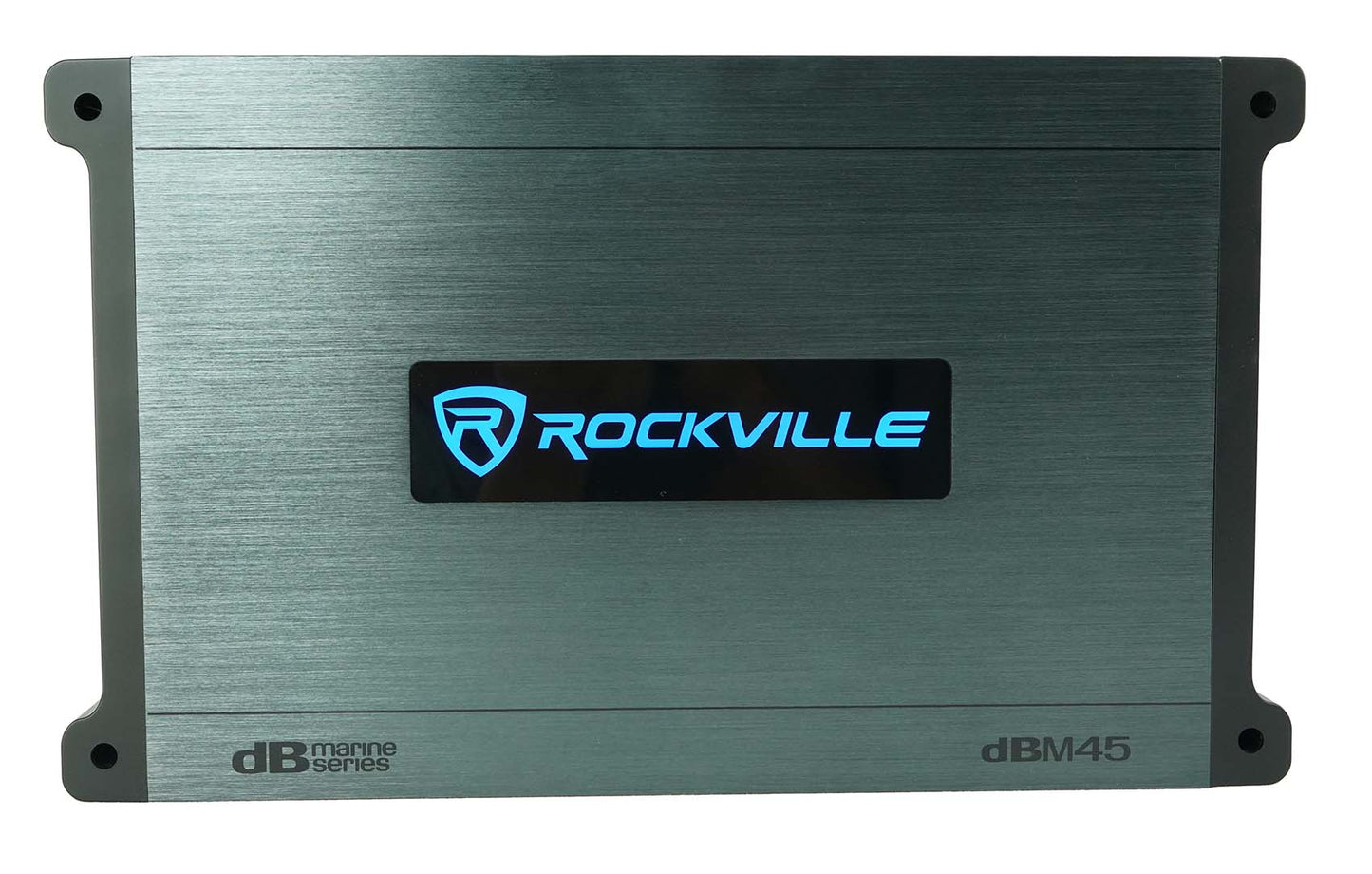

The DBM45 is a 4-Channel high power amplifier with 2,000 watts peak output and 500 watts Dyno Certified power. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.
This amp has a very cool fully adjustable 12dB/Octave crossover. What is cool about it is that our crossover supports low pass, high pass, bandpass, and subsonic. This makes our amp ideal for subwoofers (sealed and vented), full range speakers, and midrange speakers. In high pass mode we allow you to filter out frequencies between 15Hz - 4K Hz. In full mode you will not be filtering any frequencies. The really cool part is in low pass mode you can use the high pass and low pass mode. So for example you can set the low pass mode to 50 hz, and then you can set the high pass to 15 Hz. In this case you would be playing frequencies in the range of 15-50 Hz on this channel. This would be an example of using the subsonic filter. Another option you have is for midrange speakers, you can use our low pass filter and set it really high. Lets say to 150 hz. And then you can set the high pass to 3K hz and your midrange speakers will only play that frequency range. Our advanced crossover technology will allow you to really fine tune each speaker to get the sound you desire.
The dBM45 is protected by a fully IC controlled circuit which includes mute, delay, soft start technology so that the amplifier will turn on safely every time and protect your speakers from popping.
We are so confident in your satisfaction with this amplifier that we will offer you a 90 day money back guarantee. If this amp does not perform as well as you expected, we will send you a pre-paid shipping label and give you your money back. This means that, if for any reason you want to return the amplifier for a full refund within 90 days, you can! (Amp must be complete along with the box).
Features:
- Rockville DBM45 4-Channel 2000w Peak/500w Dyno-Certified RMS Marine/Boat Amplifier
- Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
- 2 Ohm: 125 Watts x 4 Channel
- 4 Ohm: 85 Watts x 4 Channel
- 4 Ohm Bridged: 250 Watts x 2 Channel
- Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
- 2 Ohm: 500 Watts x 4 Channel
- 4 Ohm: 340 Watts x 4 Channel
- 4 Ohm Bridged: 1000 Watts x 2 Channel
- Painted Conformal Coating PCB Board (Uses 2577 Waterproof Glue)
- Waterproof silicone covers for end panels
- Rustproof Aluminum heat sink with white painted finish
- Stainless steel end panels are rustproof
- All screws and mounting hardware are stainless steel and rustproof
- Bottom panel is aluminum and rustproof
- All channels on the amp have crossovers so they can each be used for subs or full range speakers or tweeters or midrange speakers
- All channels on the amplifier are bridgeable
- Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
- Adjustable Subsonic Filter: 15Hz -40Hz (This filter is on the HPF knob)
- Adjustable Low Pass Filter: 40Hz – 4KHz
- Adjustable Band Pass Filter: 15 Hz - 4 kHz (use both the HPF and LPF filter)
- Adjustable High Pass (Subsonic) Filter: 15 Hz - 4 kHz (use both the HPF and LPF filter)
- Fully Adjustable 12dB Bass Equalizer
- 2CH/4CH Input Mode Switch
- Status Mode LED Indicator
- Adjustable Input Level Control
- Mute and Delay Soft Start System
- Minimum THD at Rated Power: <0.05%
- S/N Ratio: >90 dB
- Frequency Response: 10 Hz - 50 kHz
- Damping Factor: >85 @ 100Hz
- (2) 35 Amp ATC Fuses
- High-Speed MOSFET Power Supply
- Studio-Grade Bipolar Output Stage Transistors
- 8 Volt Preamp Circuitry
- 35 Amp x2 ATC Fuse
- Microphone input and PA microphone included
- Product Dimensions (W x H x L): 9? x 2.4? x 15.1? inches
- Product Weight: 7.7 Lbs
- UPC:
- 613816440801
