Package Includes:

• (2) Rockville Punisher 12D1 12" 5600w Competition Car Audio Subwoofer Dual 1-Ohm Sub
• (1) Rockville dBcomp4 Competition Mono Amplifier 3000w RMS Dyno-Certified! Car Audio Amp
• (1) Rockville RWK0CU 0 AWG Gauge 100% Copper Complete Amp Installation Wire Kit OFC

---

Description of PUNISHER 12D1:

The Rockville Punisher series of subwoofers were built from the ground up to survive brutal amounts of abuse and heat.

This subwoofer is huge and beefy and is in the heavy-weight division weighing in at 41.08 lbs.

The magnet is a 246 Oz (15.38 lbs). This sub has our best cooling technology which means even if you are entering competitions and playing 1 minute test tones it will handle it all day! We added a thick aluminum ring near the t-yoke that absorbs and dissipates a ton of heat. We also used a much thicker T-Yoke and washers which also absorb heat.

The voice coil we use is 3” and is rated to handle heat up to 250 Degrees Celsius.

This sub is engineered and built better than other subs that cost twice the price.

Recone kits are available, and this item includes a 90 day money back guarantee. If you don’t like it we will send you a return label and take it back and give you all your money back.

Features:

• Rockville PUNISHER Series 12" Dual 1-Ohm Car Subwoofer
• Peak Power Handling: 5600 Watts
• Program Power Handling: 2800 Watts
• CEA Rated RMS Power Handling: 1400 Watts
• 3" 4-Layer Black Aluminum Voice Coil Former Wound with OFC Wire
• This voice coil is stable up to 250 degrees celsius! The voice coil windings are made in the USA
• Double Stacked 246 Oz Y35 Magnet
• Cast Aluminum Basket With Black Sanded Finish
• Two Chrome-Plated Binding Post Terminals
• Black Non-Pressed Paper Cone
• Ultra-Stiff cone is extremely thick and strong
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Black stitching reinforces the cone and ensures long life
• New Ultra-stiff PolyPropylene (PP) Dustcap is 0.9mm thick (Extremely, thick, beefy, and stiff)
• Oversized aluminum heatsink ring keeps the voice coils cool by absorbing and dissipating heat
• Extra thick T-yoke and washers assist in keeping the voice coils cool by absorbing and dissipating heat
• This series was engineered from the ground up to keep the voice coils cool so that even if you play test tones for long periods of time in a competition atmosphere the sub can handle it
• Impedance: Dual 1-Ohm Voice Coils
• Vented Holes on T-yoke Enhances Heat Dissipation
• Custom Rubber Boot Magnet Cover
• Custom Rockville Mounting Gasket makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
• 3 layer spider made with thick gauge material that is resistant to tearing even at extreme SPL levels
• Easy to install recone kits are available
• Cutout Diameter: 11.22 inches
• Mounting Depth: 7.48 inches
• Frequency Response: 31.634 Hz -500Hz
• 15mm T-Yoke + 12mm Washer
• Sensitivity: 85dB
• Sealed Enclosure Volume:1.24-2.12 Cubic Feet
• Vented/Ported Enclosure Volume: 1.94-2.83 Cubic Feet
• 1-Way XMAX: 28 MM
• 2-Way XMAX: 56 MM
• Weight: 41.08 lbs.
• Shipping Weight: 43.28 lbs.
• Shipping Box Dimensions: 15.75” x 15.75” x 13.58” Inches

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 84.1mm (3.31 inches)
• Gap Plate Outside Diameter: 210mm (8.27 inches)
• Gap Plate Thickness: 12mm (0.47 inch)
• Yoke Outside Diameter: 210mm (8.27 inches)
• Yoke Thickness: 15mm (0.59 inches)
• Yoke Pole Diameter: 75mm (2.95 inches)

TS Parameters:

Series

• Fs: 31.634 Hz
• Qms: 2.878
• Cms: 0.061535 mm/N
• Bl: 20.646 N/A
• Zmin: 12.6405 O
• Re: 2 O ±0.2 O
• Qes: 0.384
• Mms: 411.343g
• dBspl: 85
• Sd: 530.093 cm²
• Qts: 0.339
• VAS: 24.646 L / .47 cu ft

Parallel

• Fs: 29.613 Hz
• Qms: 2.422
• Cms: 0.071355 mm/N
• Bl: 10.611 N/A
• Zmin: 1.8102 O
• Re: 0.5 O ±0.2 O
• Qes: 0.334
• Mms: 404.805 g
• dBspl: 85.3
• Sd: 530.093 cm²
• Qts: 0.294
• VAS: 28.562 L / .47 cu ft

---

Videos of RWK0CU:

Description:

We challenge anyone to put this wire to a resistance test against any other wire on the market with the same gauge. If our cable does not meet or exceed any other cable, even if it costs 3 times more, we will be happy to call tag the item and refund you in full. Why are we so confident ? This cable is 100% copper. You cant have a cable with more copper than 100 %. So the only way a cable would out-perform this one is if it were being advertised as a 0 AWG but they are giving you more wire than advertised. No brands selling 100 % copper cables actually do this.

We guarantee that this kit will compete with the most expensive amp kits on the market from Kicker, JL Audio, or any other top brands.

Maximum Power!
Looking for a wire kit that has 100% true specifications? A wire kit that uses 100% copper 0 gauge cable? Then look no further than the Rockville True-Spec RWK0-CU 0 Gauge Amplifier Wiring Installation Kit. This package includes everything you'll need to get your amplifier system powered-up correctly and at peak efficiency.

The power and ground cables aptly named “Mega Power Cable” are a no compromise power cable. Rockville’s engineering team over-built and designed the cables using thousands of strands of only true 100% oxygen-free, silver-tinned copper strands. The use of a proprietary special twisting process reduces “surface skin impedance loss” so that Mega Power cables have zero signal and power loss, delivering full power from your battery system to your amplifier even at lengths of 20 feet! The increased current flow and higher amperage carrying capacity will increase your amplifiers efficiency and keep your amplifier running cooler. The SuperFlex outer insulating jacket jacket makes installation and cable routing simple and easy. The 100% copper stranded wire is extremely tolerant of the hostile conditions found under the hood in vehicles and compensates for vibration, heat expansion and flexibility. This flexible and well shielded wire is crucial for getting through all of the nooks and passageways within the confines of a vehicle interior.

Some manufactures use all aluminum or mix a little copper with aluminum to give their cables the appearance of a “heavy-duty” cable. But not Rockville, our True-Spec 100% oxygen free, silver tinned copper eliminates corrosion, increases current transfer x 10, and won’t discolor over time.

The superior quality and materials of the Rockville 100% True-Spec amplifier installation kit is realized in the included accessories and cable workmanship. Included is a precision CNC cut full size ANL fuse housing, machined from solid brass and then 14K gold plated for superior signal transfer and complete with a matching gold plated 250-amp ANL fuse. The power cable is wrapped in 6 feet of durable nylon braided tubing to protect it from heat and chafing in the engine compartment. All installation accessories such as the ring terminals and spade connectors are nickel plated for superior signal transfer and durability.

CRYSTAL SQ AUDIO PLANAR SPEAKER CABLE
The speaker cable included in the Rockville True-Spec is also manufactured from 100% copper and woven in to a flat planner design and coated in our Super-Flex insulation so that it fits under and around your vehicles trim and carpet smoothly and without bulking up. With crystal clear sound quality these speaker cables deliver true audio fidelity from your car audio amplifier to your speakers. The 12 gauge speaker cable included in the 0 gauge kit can handle over 3000 watts of power without heating up or degrading signal quality.

CRYSTAL SQ RCA AUDIO INTERCONNECT CABLE
Designed and engineered to be the best sounding, best performing and best looking RCA cables available today. Each channel in the RCA cable is triple shielded first with dielectric internal insulators and then with a 98% coverage woven shield. All cables are manufactured of 100% oxygen free copper and feature twisted pair technology for superior noise rejection and pure sonic signal flow. The RCA plugs are shielded metal and feature a spiral cut outer ground ring with center split pin for precise and tight audio connections. The result of all this technology is noise free-noise rejection signal transfer for optimum sound quality. You will hear the difference these RCA signal transfer cables will make.

Amplifier Kit Key Features:

• 0 Gauge Power Amplifier Installation Kit
• Designed specifically for car audio systems over 1000 watts RMS to 3000 Watts
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• The solid brass gold plated ANL Fuse Holder offers ideal protection for high powered systems
• Strand Count: 4704
• BC-5W2 Compliant

Kit includes:

• 17 ft. Frosted Blue 0 gauge power wire with seamless crimp ring terminal
• 3 ft. Frosted Gray 0 gauge ground wire
• 17 ft. Blue 18 gauge remote lead wire
• 25 ft. Frosted Clear/Blue 12 gauge flat speaker wire
• 17 ft. Triple shielded twisted pair RCA cables
• One ANL Fuse Holder with 250 amp ANL fuse
• One 1/2" black rubber firewall grommet
• Two 0 gauge spade terminals
• Two black 12 gauge nickel-plated spade lugs
• Three blue 12 gauge nickel-plated spade lugs
• One black 0 gauge ring terminal
• Ten 6" black zip ties

---

Video of DBCOMP series:

Includes:

• Amplifier
• Bass Remote with clipping indicator
• Birth sheet with tested power
• Owner’s manual
• Mounting Screws
• Warranty

Features:

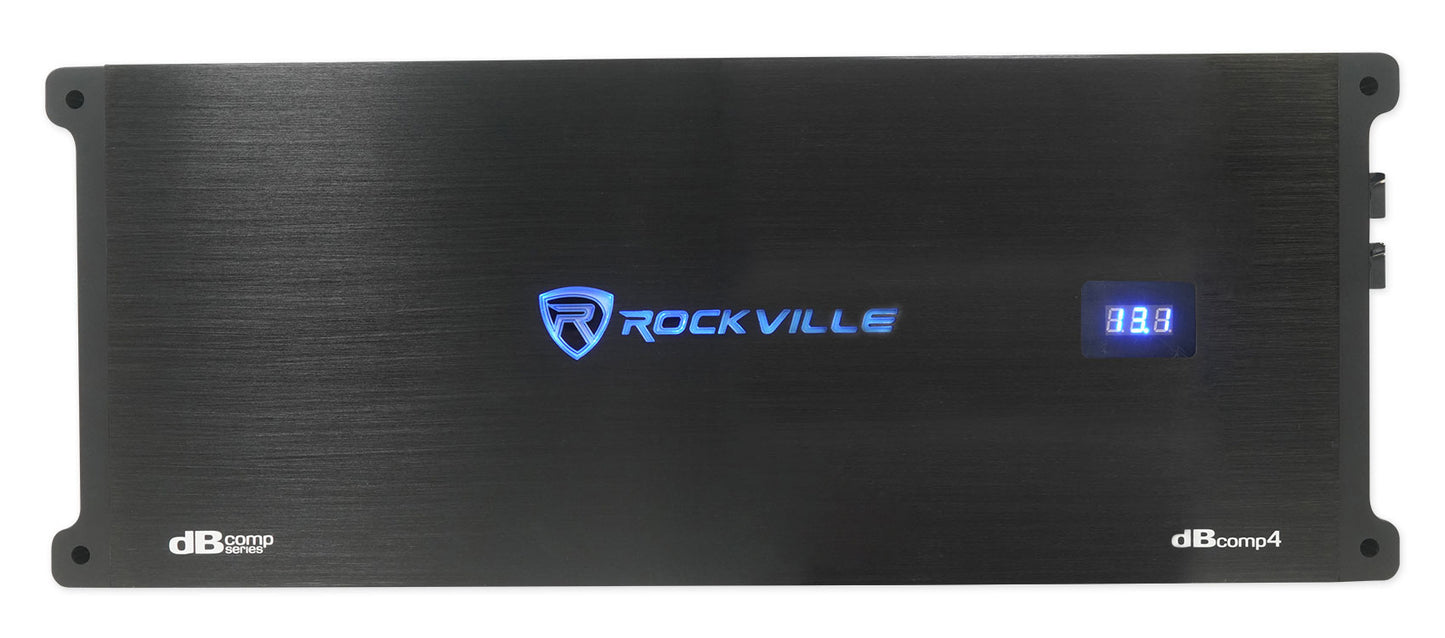

• Rockville dBcomp4 Competition Mono Amplifier 3000w RMS Dyno-Certified! Car Audio Amp
• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
  • 1 Ohm: 3000 Watts x 1 Channel <1% THD+N at 14.4 volts (83% efficiency)
  • 2 Ohm: 2000 Watts x 1 Channel <1% THD+N at 14.4 volts (80% efficiency)
• Digital voltage display on amp
• External 400A fuse
• High-Speed MOSFET Power Supply
• Optical Coupler Class “D” Technology
• Fully Adjustable 24dB / Octave Crossover with Differential Circuitry
• Low Pass Filter: 50Hz - 250Hz
• Subsonic Filter: 15Hz - 55Hz
• Phase Control Switch
• Limiter With ON/OFF Switch (You can turn off the limiter if you want to burp a sub during a competition and get more power out of the amp)
• Full IC-Controlled Protection Circuitry
• Remote Dashboard Subwoofer Control
• Fully Adjustable 12dB Bass Equalizer
• Mute and Delay Soft Start System
• RCA Preamp Line Output
• 8 Volt Preamp Circuitry
• Power/Protect/Clip LED Indicators on control panel
• Power/Protect/Clip LED Indicators on Remote control
• Minimum THD at Rated Power: <0.1%
• S / N Ratio: >90dB
• Under Voltage Protection at 10V
• Over Voltage Protection at 16V
• Frequency Response: 15Hz - 250Hz
• Damping Factor: >150 @ 100Hz
• Dimensions: (W x H x L) 9" x 2.4" x 23"
