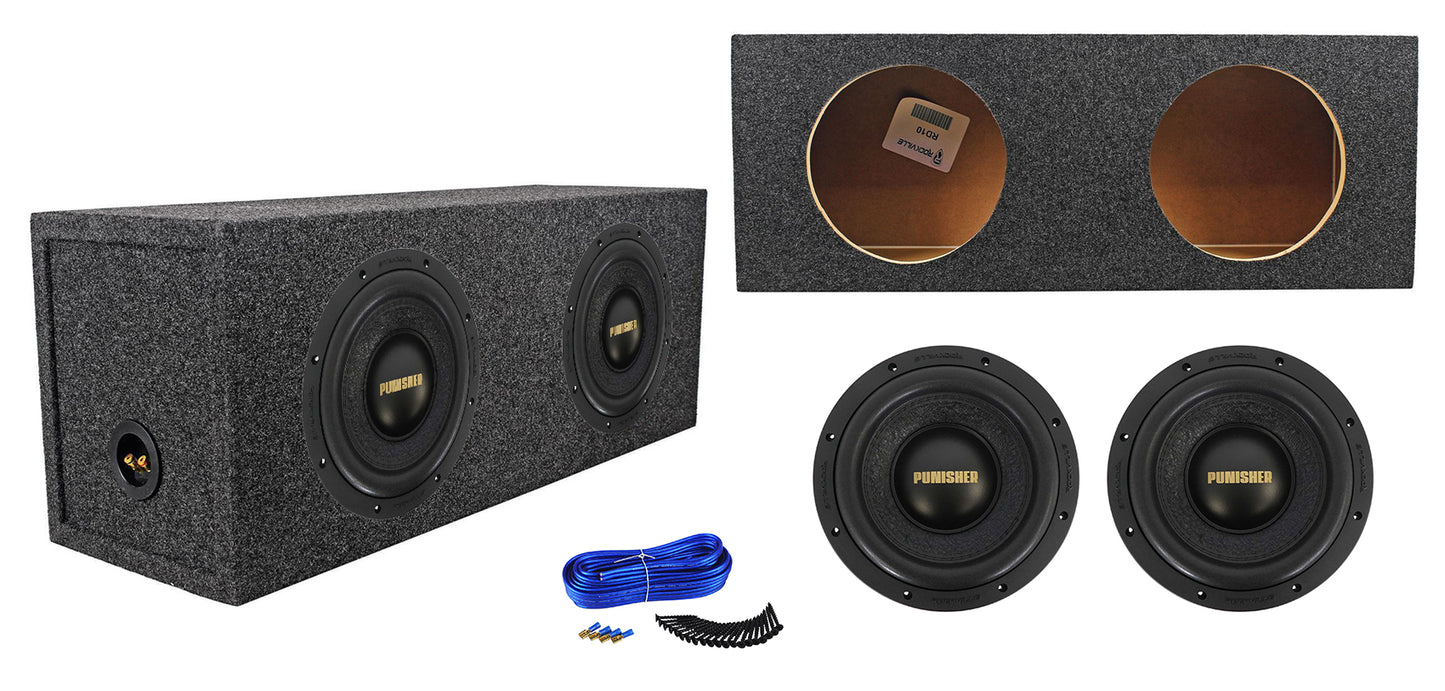

Package Includes:

• (2) Rockville Punisher 10D2 10" 4800w Competition Car Audio Subwoofer Dual 2-Ohm Sub
• (1) Rockville RD10 Dual 10” 1.0 cu.ft. 3/4" MDF Sealed Subwoofer Enclosure Sub Box
• 20 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 20 Feet of 14 AWG Blue Speaker Wire
• 4 Spade Terminals

---

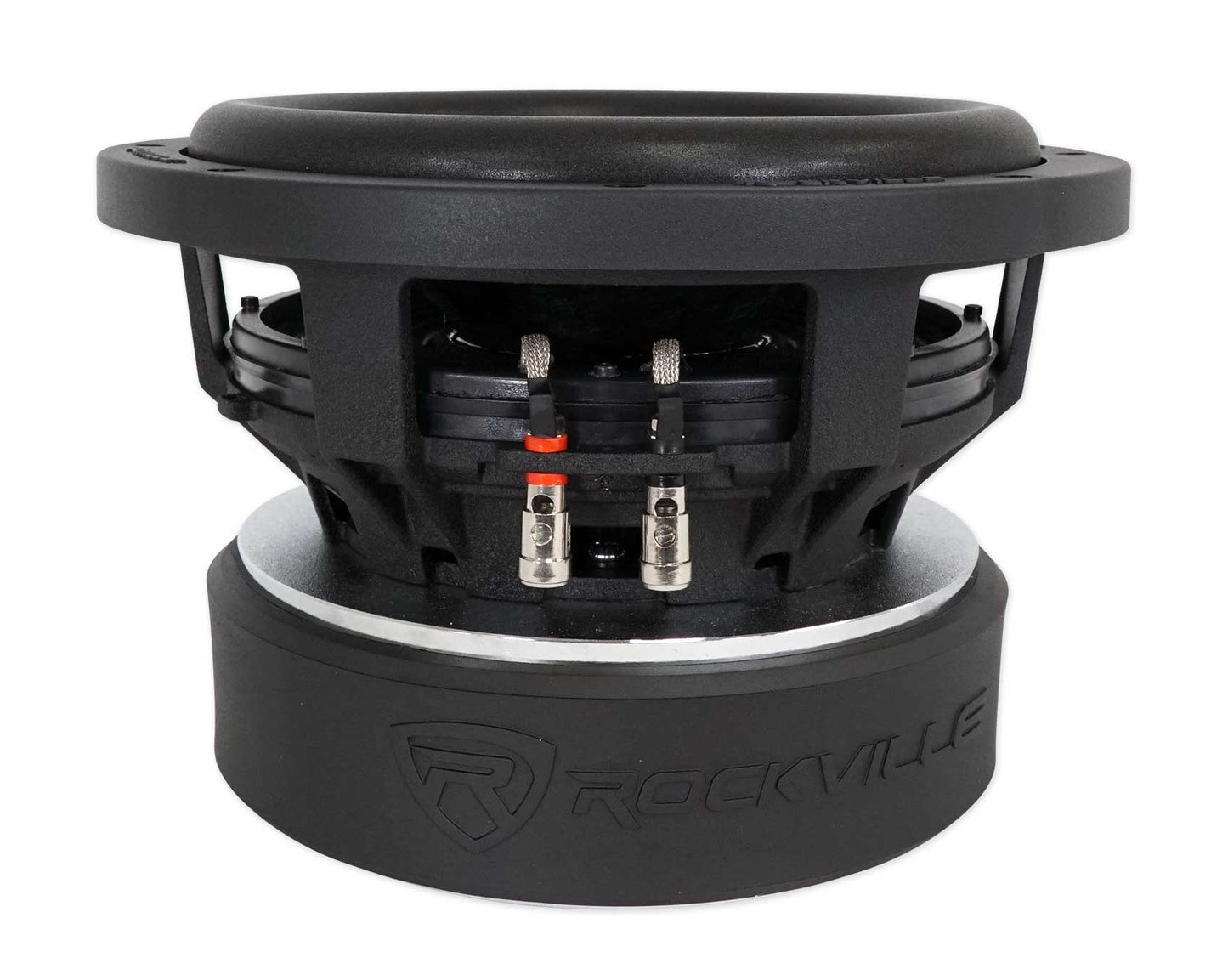

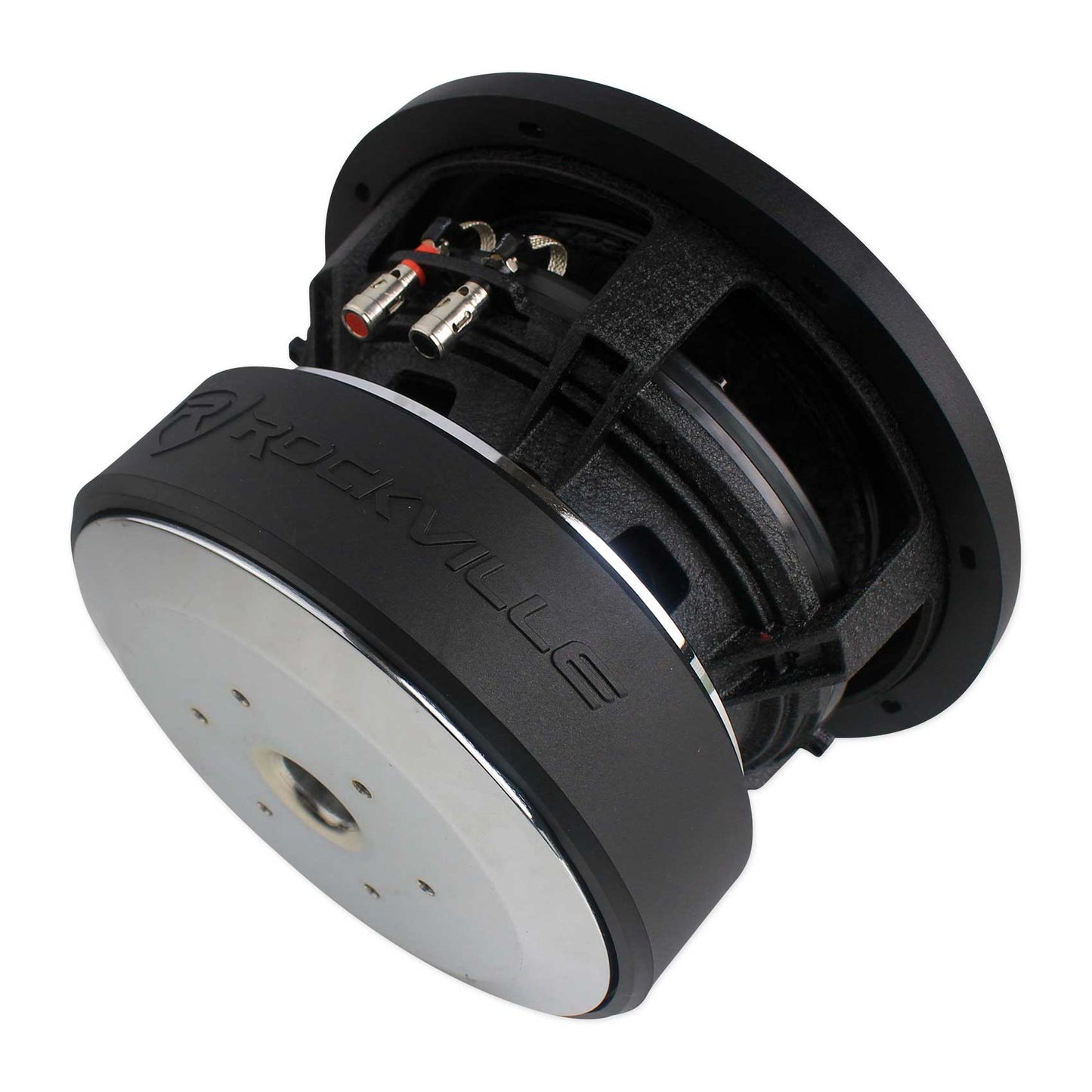

Description of PUNISHER 10D2:

The Rockville Punisher series of subwoofers were built from the ground up to survive brutal amounts of abuse and heat.

This subwoofer is huge and beefy and is in the heavy-weight division weighing in at 37.5 lbs.

The magnet is a 246 Oz (15.38 lbs). This sub has our best cooling technology which means even if you are entering competitions and playing 1 minute test tones it will handle it all day! We added a thick aluminum ring near the t-yoke that absorbs and dissipates a ton of heat. We also used a much thicker T-Yoke and washers which also absorb heat. The voice coil we use is 3” and is rated to handle heat up to 250 Degrees Celsius.

This sub is engineered and built better than other subs that cost twice the price.

Recone kits are available, and this item includes a 90 day money back guarantee. If you don’t like it we will send you a return label and take it back and give you all your money back.

Features:

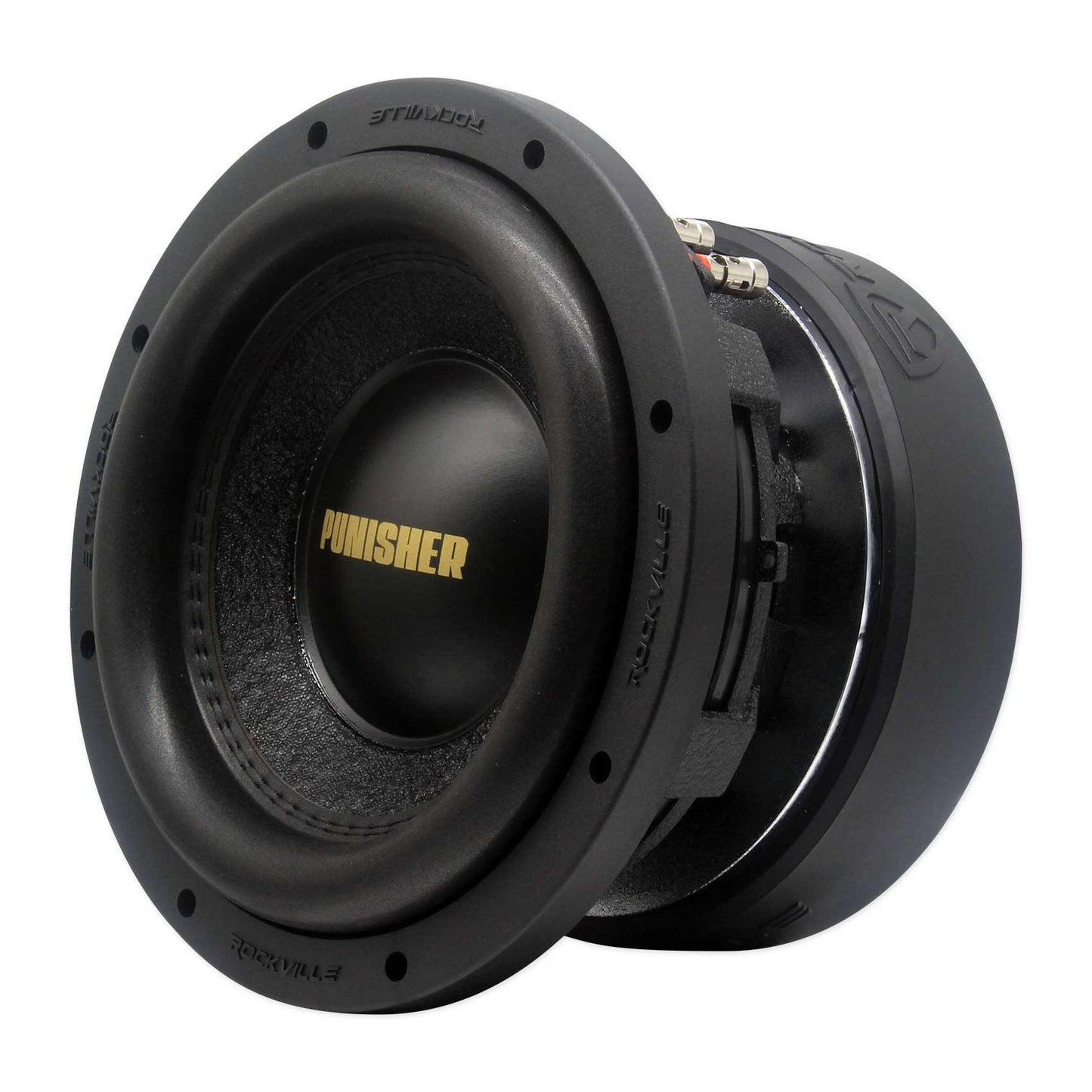

• Rockville PUNISHER Series 10" Dual 2-Ohm Car Subwoofer
• Peak Power Handling: 5000 Watts
• Program Power Handling: 2500 Watts
• CEA Rated RMS Power Handling: 1250 Watts
• 3" 4-Layer Black Aluminum Voice Coil Former Wound with OFC Wire
• This voice coil is stable up to 250 degrees celsius! The voice coil windings are made in the USA
• Double Stacked 246 Oz Y35 Magnet
• Cast Aluminum Basket With Black Sanded Finish

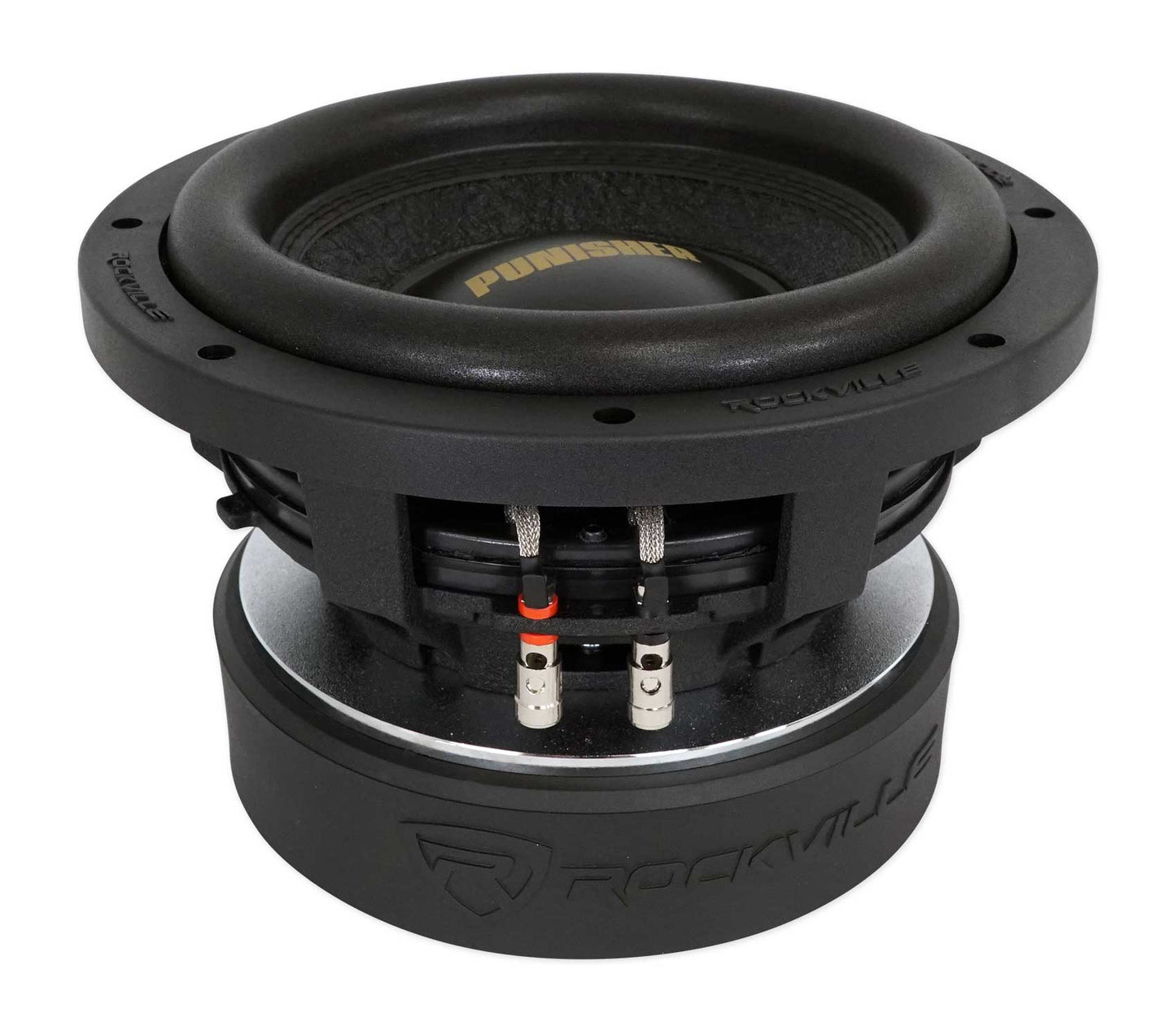

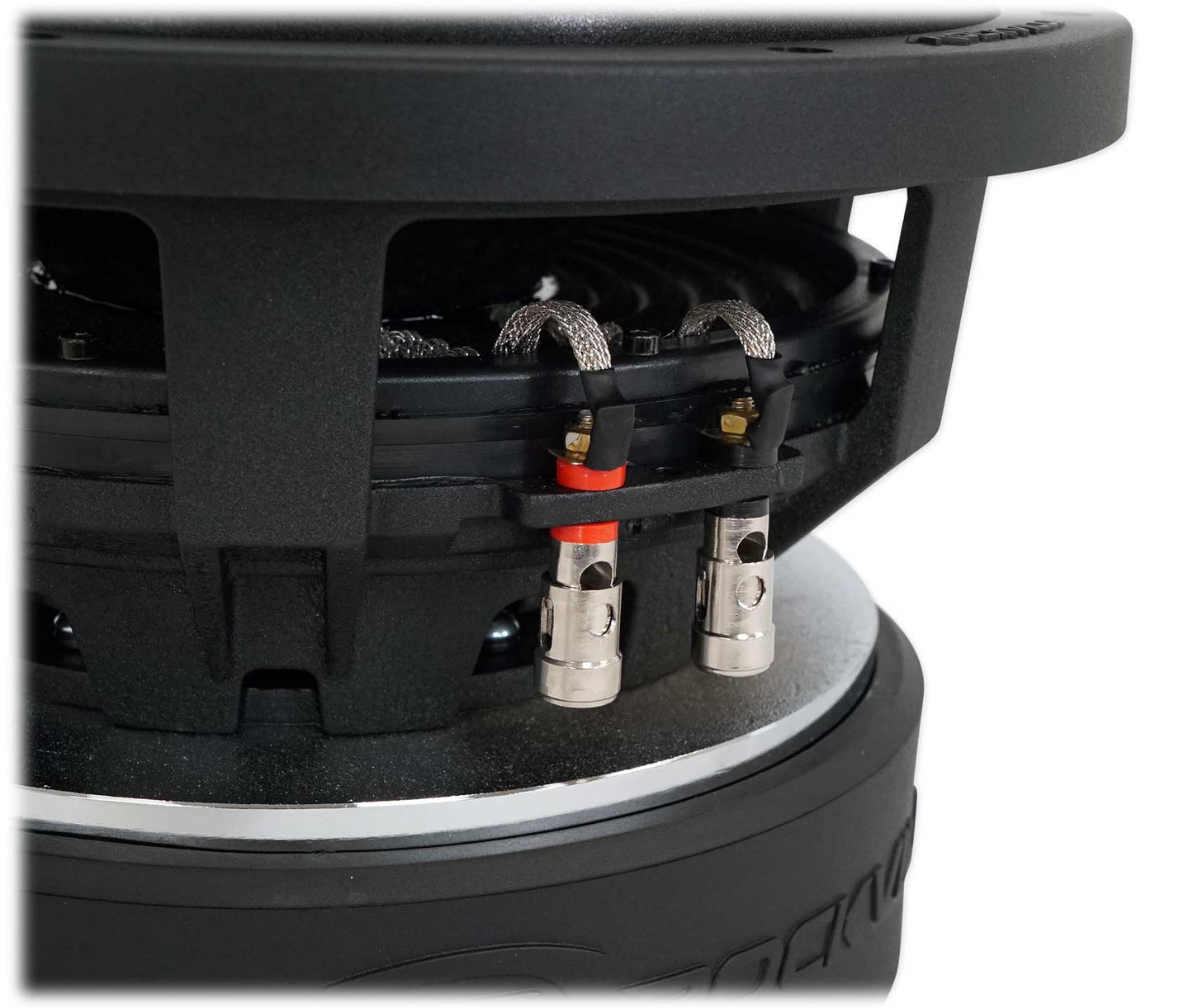

• Two Chrome-Plated Binding Post Terminals

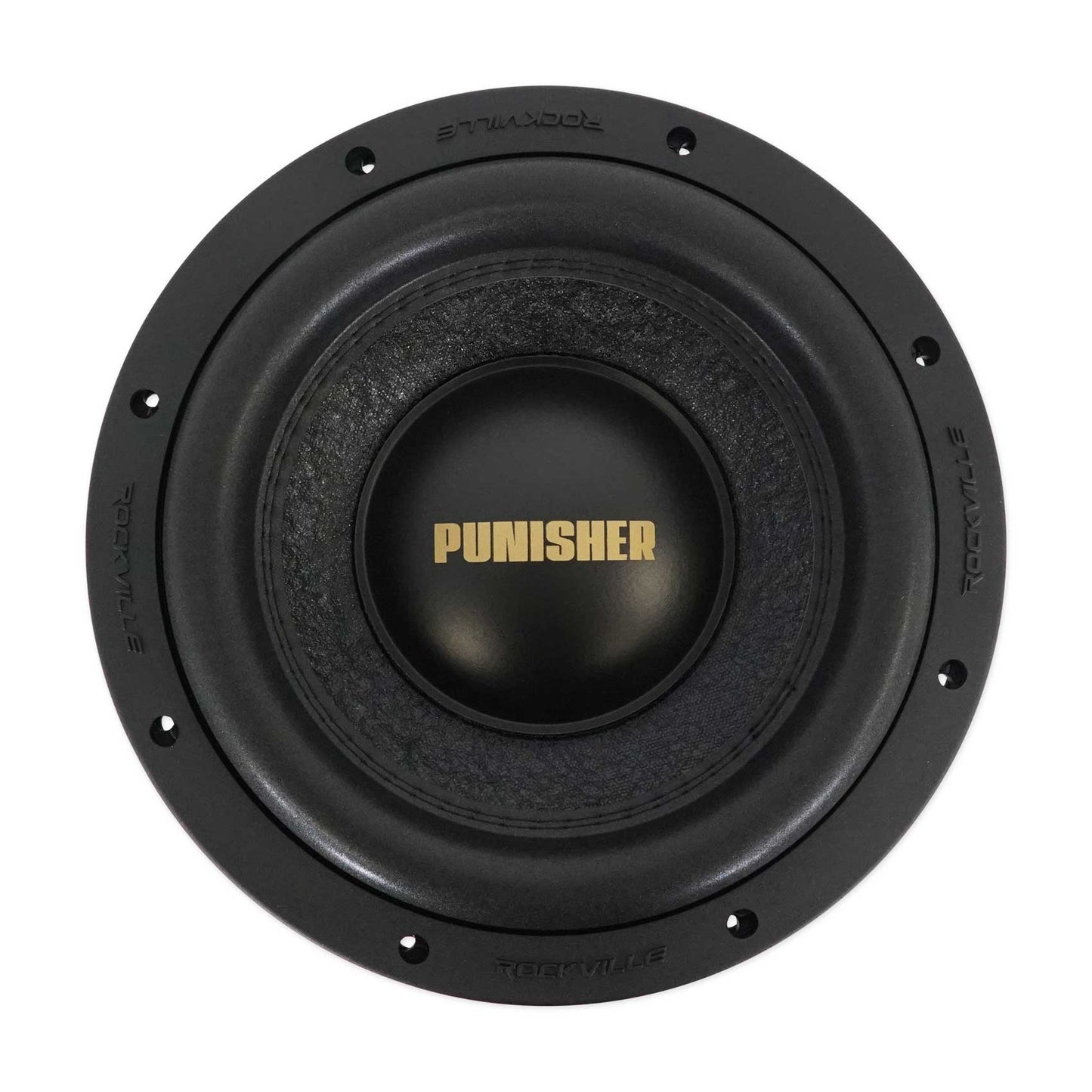

• Black Non-Pressed Paper Cone
• Ultra-Stiff cone is extremely thick and strong
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Black stitching reinforces the cone and ensures long life
• New Ultra-stiff PolyPropylene (PP) Dustcap is 0.9mm thick (Extremely, thick, beefy, and stiff)

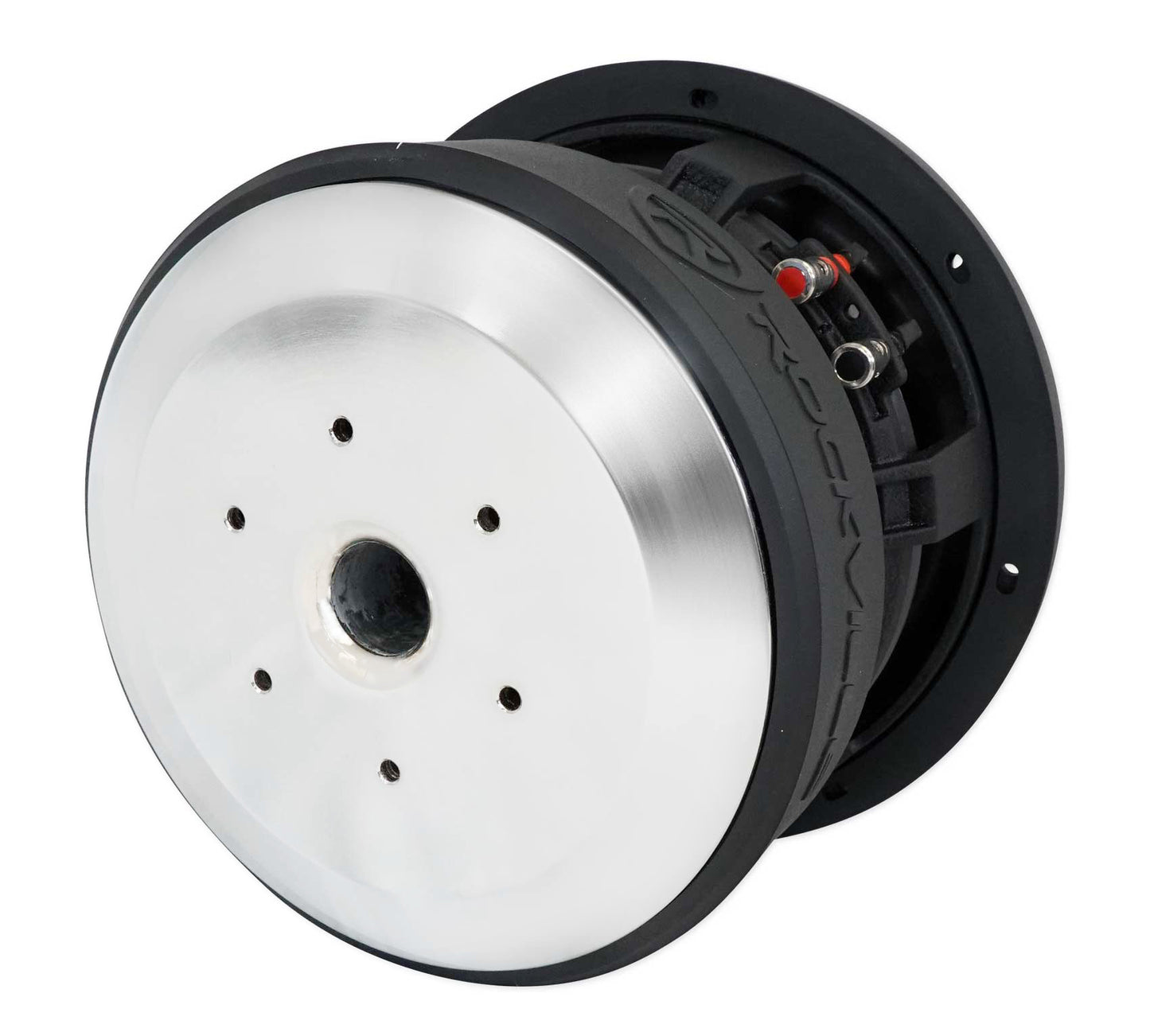

• Oversized aluminum heatsink ring keeps the voice coils cool by absorbing and dissipating heat
• Extra thick T-yoke and washers assist in keeping the voice coils cool by absorbing and dissipating heat
• This series was engineered from the ground up to keep the voice coils cool so that even if you play test tones for long periods of time in a competition atmosphere the sub can handle it
• Impedance: Dual 2-Ohm Voice Coils
• Vented Holes on T-yoke Enhances Heat Dissipation

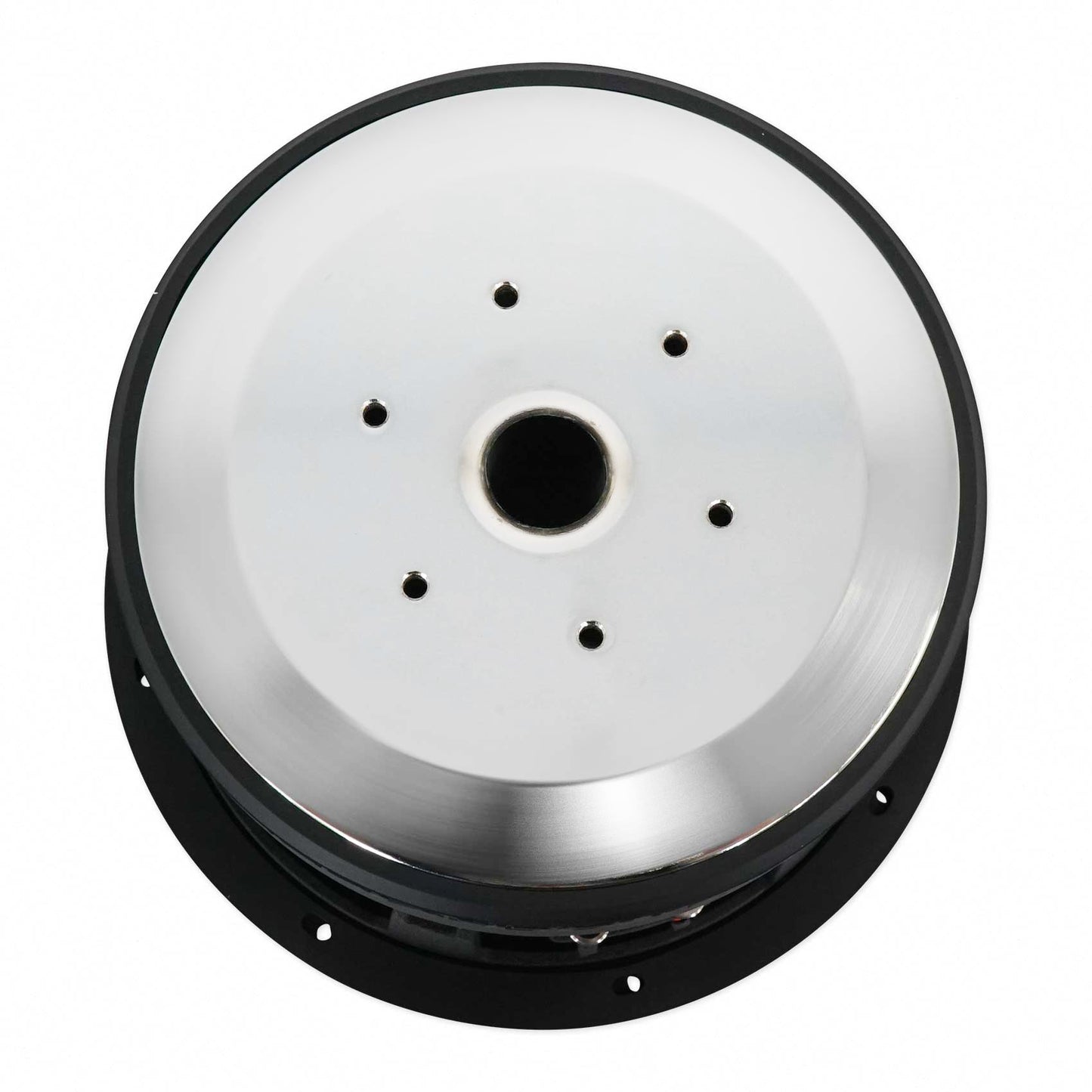

• Custom Rubber Boot Magnet Cover
• Custom Rockville Mounting Gasket makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated
• 3 layer spider made with thick gauge material that is resistant to tearing even at extreme SPL levels
• Easy to install recone kits are available

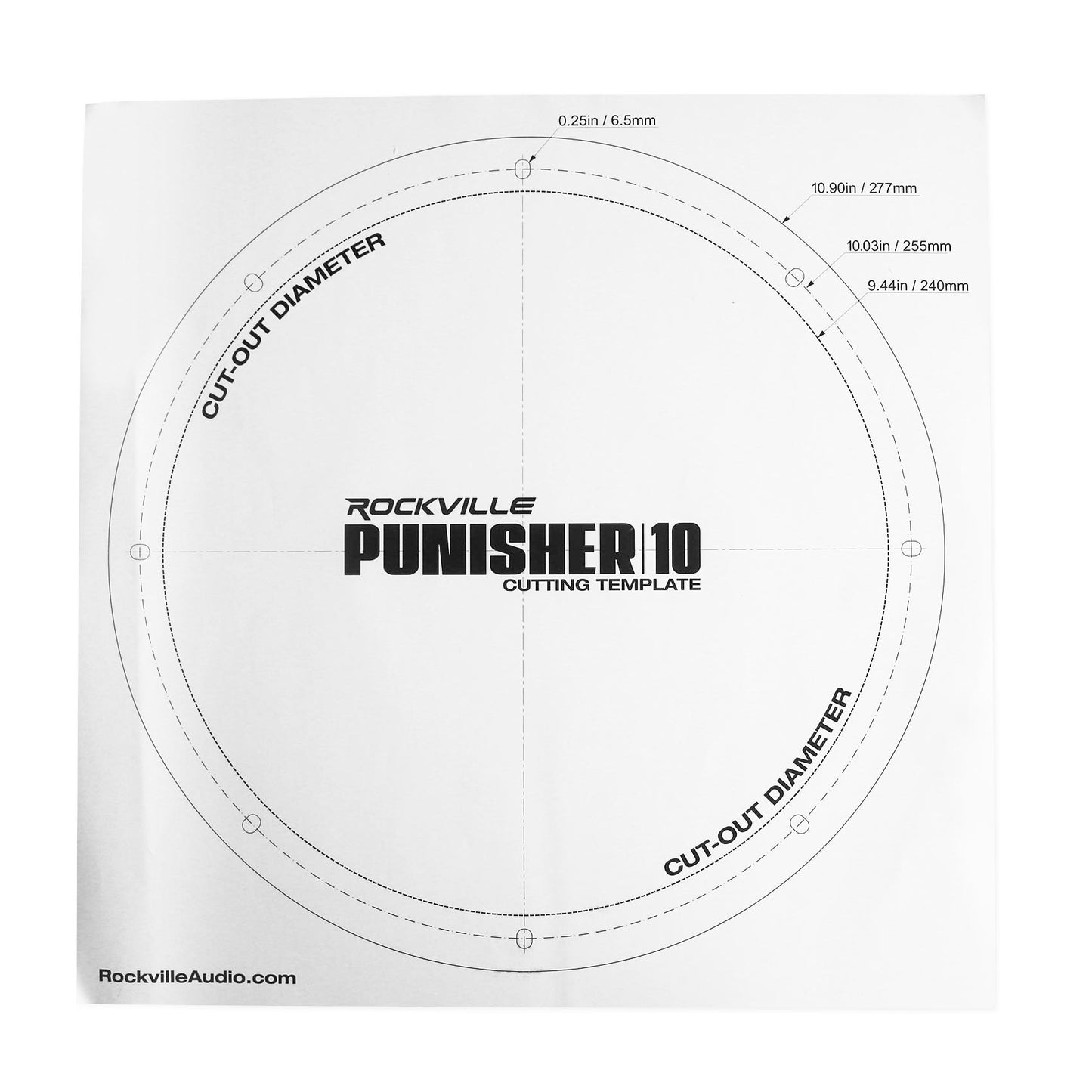

• Cutout Diameter: 10.04inches
• Mounting Depth: 6.69 inches
• Frequency Response:32.749Hz - 500Hz
• 15mm T-Yoke + 12mm Washer
• Sensitivity: 82.6 dB
• Sealed Enclosure Volume: 0.88 -1.41 Cubic Feet
• Vented/Ported Enclosure Volume:1.6-2.12 Cubic Feet
• 1-Way XMAX: 27 MM
• 2-Way XMAX: 54 MM
• Weight: 37.49 lbs.
• Shipping Weight: 39.69 lbs.
• Shipping Box Dimensions: 13.58” x 13.58” x 12.6” Inches

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 84.1mm (3.31 inches)
• Gap Plate Outside Diameter: 210mm (8.27 inches)
• Gap Plate Thickness: 12mm (0.47 inch)
• Yoke Outside Diameter: 210mm (8.27 inches)
• Yoke Thickness: 15mm (0.59 inches)
• Yoke Pole Diameter: 75mm (2.95 inches)

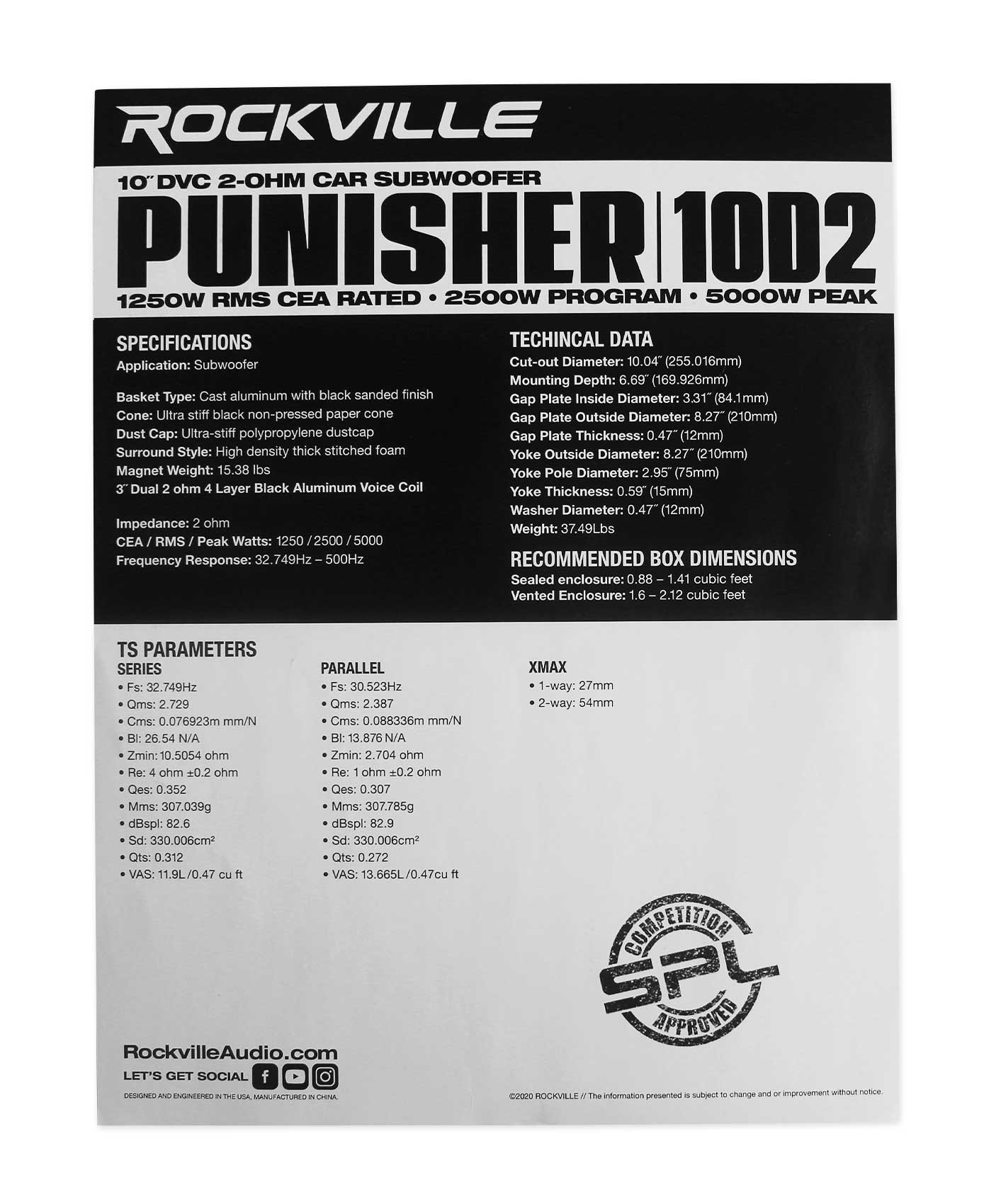

TS Parameters:

Series

• Fs: 32.749 Hz
• Qms: 2.729
• Cms: 0.076923 mm/N
• Bl: 26.54 N/A
• Zmin: 10.5054 O
• Re: 4 O ±0.2 O
• Qes: 0.352
• Mms: 307.039g
• dBspl: 82.6
• Sd: 330.006 cm²
• Qts: 0.312
• VAS: 11.9 L / .47 cu ft

Parallel

• Fs: 30.523 Hz
• Qms: 2.387
• Cms: 0.088336 mm/N
• Bl: 13.876 N/A
• Zmin: 2.7004 O
• Re: 1 O±0.2 O
• Qes: 0.307
• Mms: 307.785g
• dBspl: 82.9
• Sd: 330.006 cm²
• Qts: 0.272
• VAS: 13.665 L / .47 cu ft

---

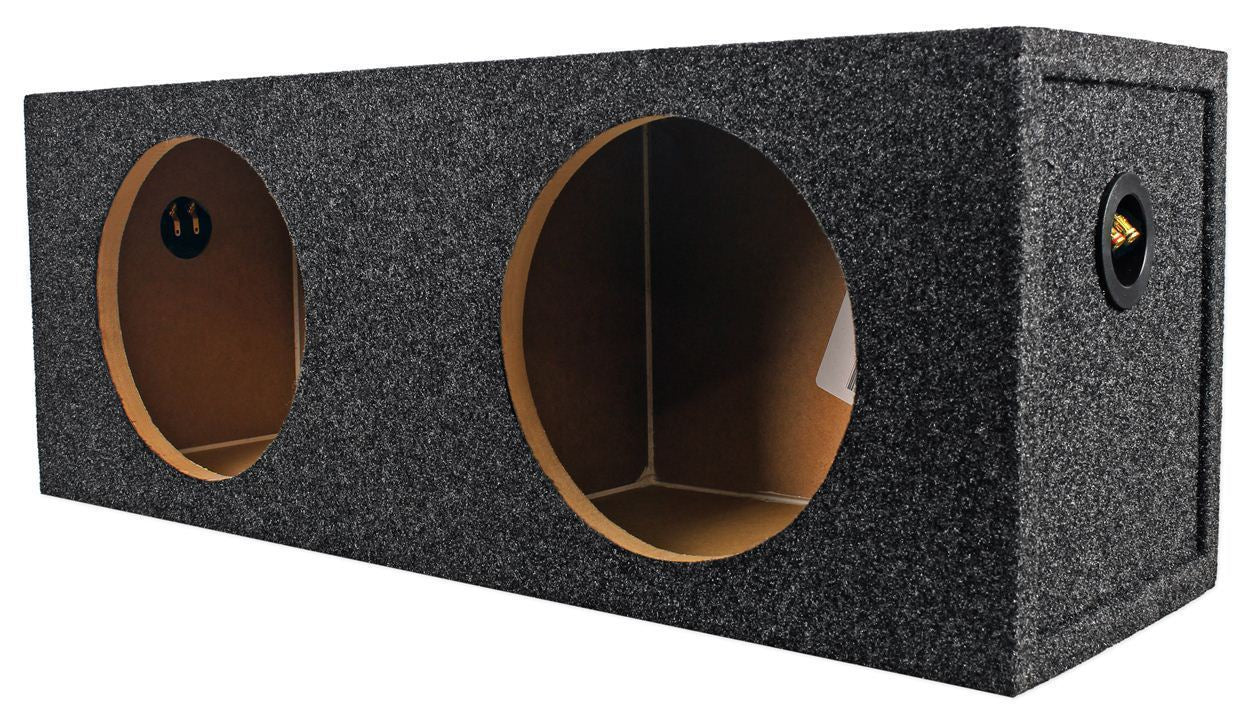

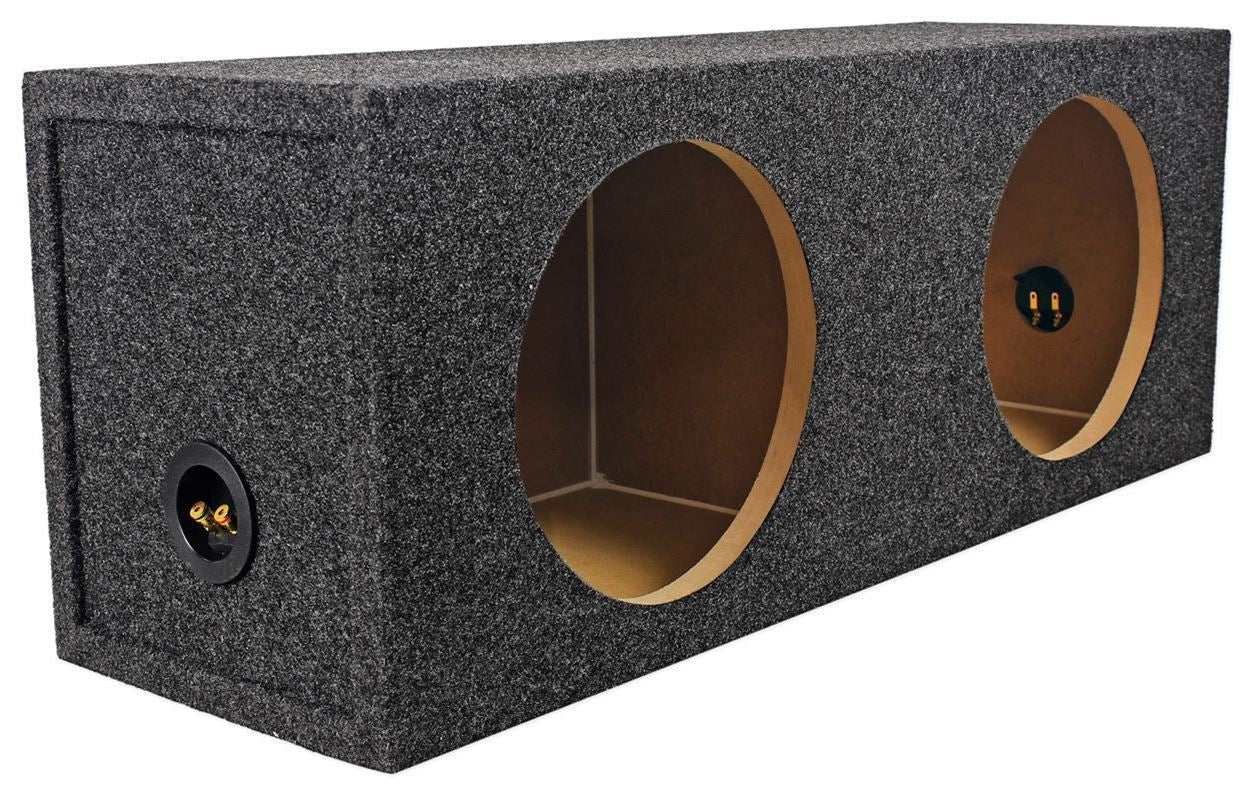

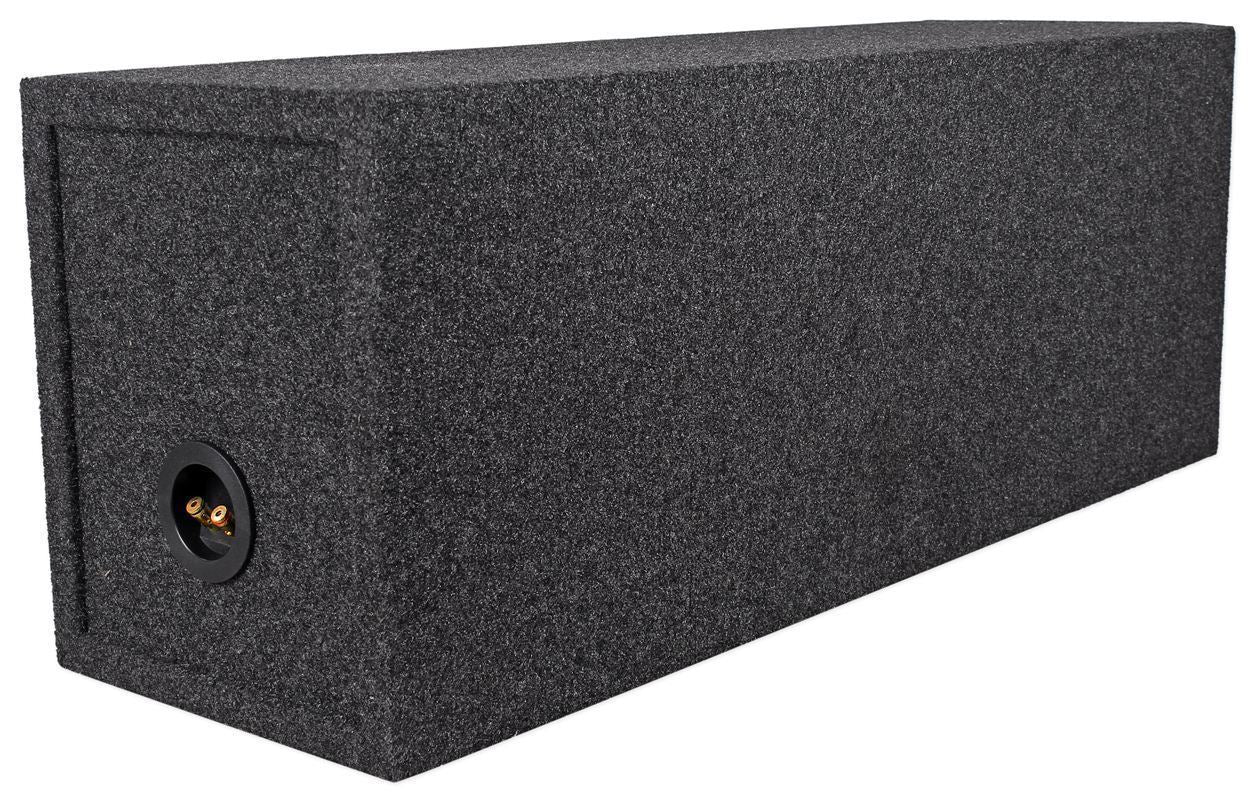

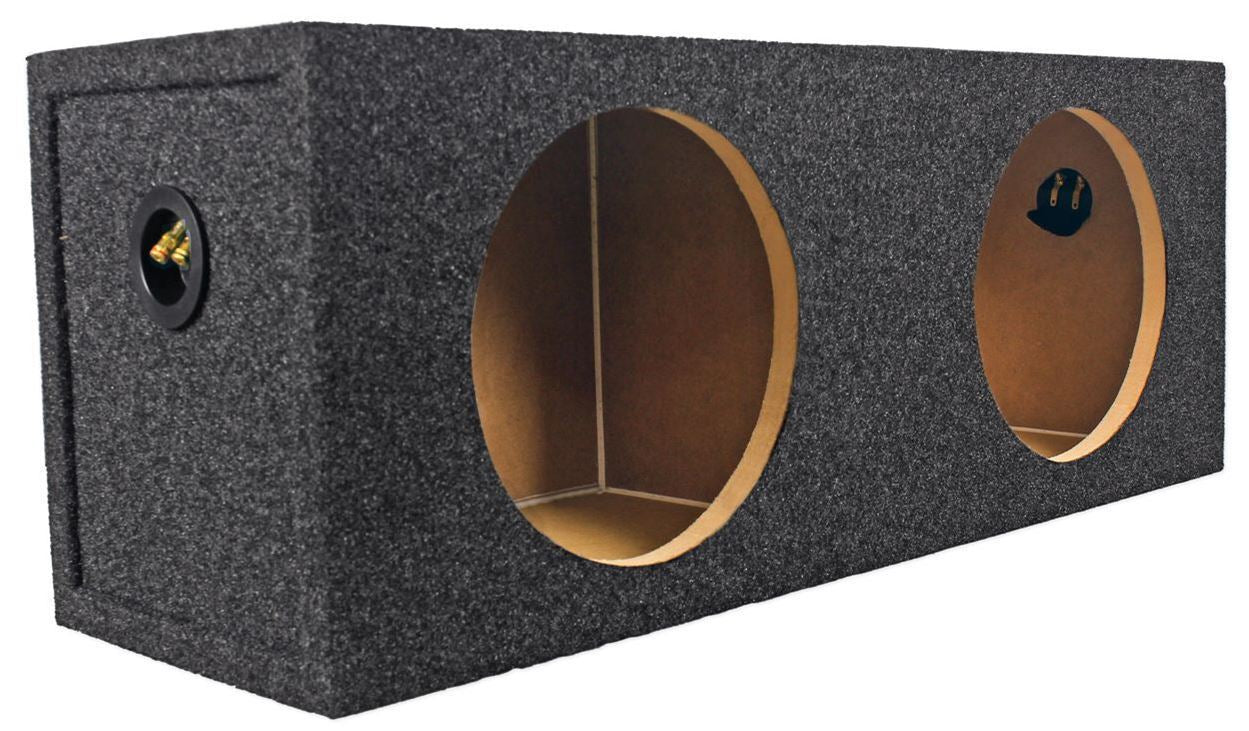

Description of RD10:

The RD10 dual sealed speaker box is made in the USA with Grade “A” ¾” MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ¾” USA MDF is much stronger then any type of import wood. This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you! EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!

MADE IN THE USA WITH PRIDE!

Features:

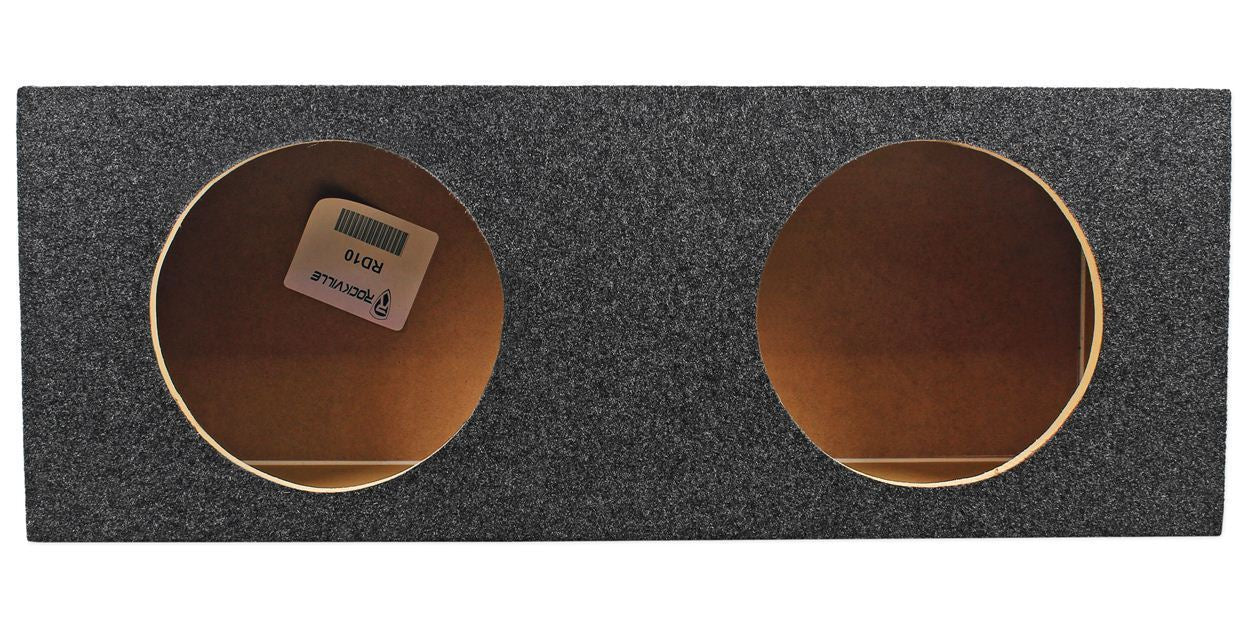

• Rockville RD10 Dual 10" Sealed Subwoofer Enclosure
• Proudly Made In The USA, Using Only The Finest Quality Materials - For The Best Level of Performance From Your Subs!
• 3/4" USA Heavy Duty MDF Construction
• Machine precision cut mounting holes
• Top of the line Glue for extra durable adhesion

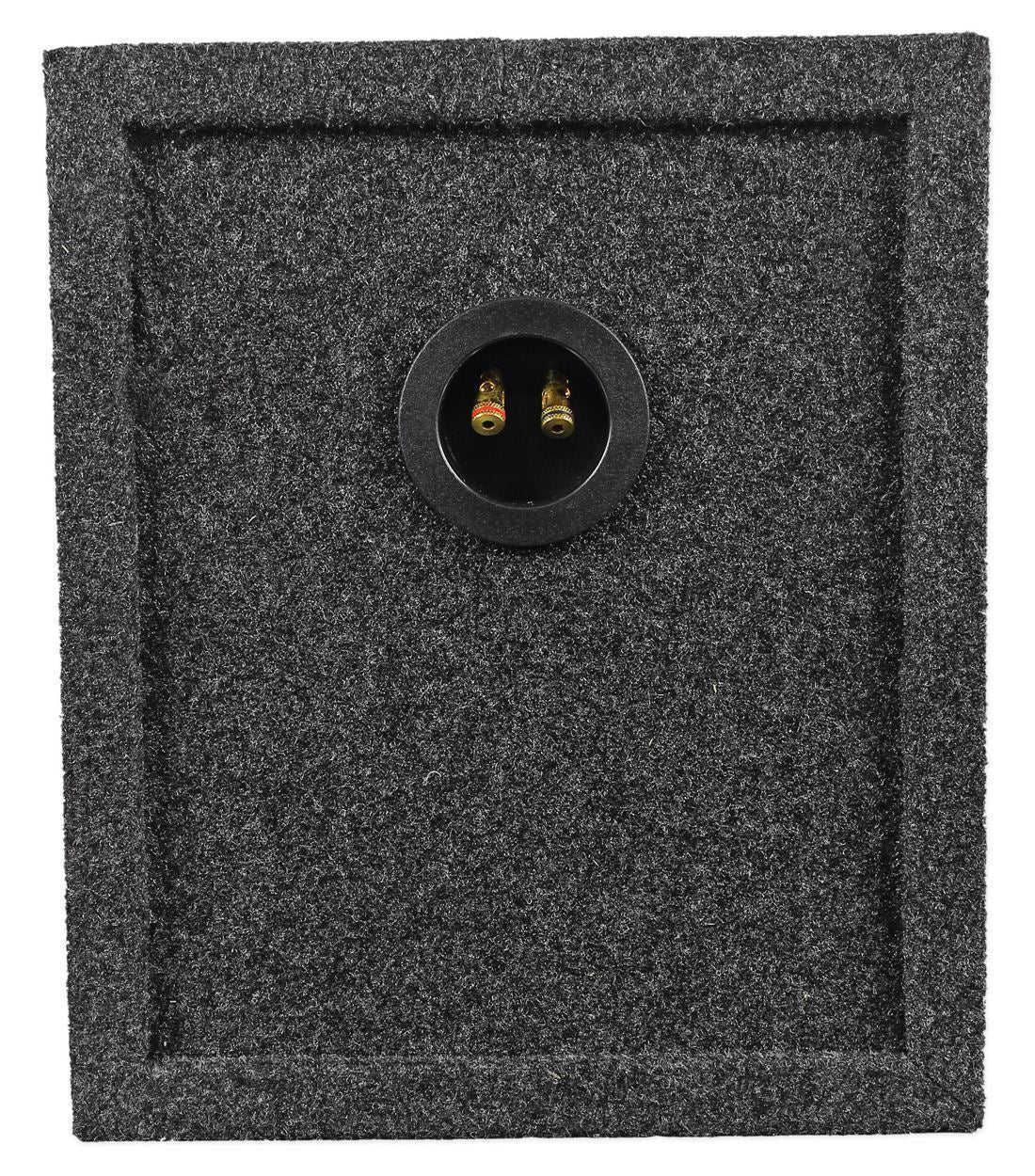

• High quality GOLD spring loaded terminals
• Designed, tested, and engineered to work with most of today’s popular woofers. These enclosures are built with the quality additives needed to maximize the performance of any sound system.

Enclosure Measurements:

• Type of Enclosure: Sealed
• Enclosure Sub Size: Dual 10"
• Dimensions in Inches: 28" L x 13" W x 13 H"
• Top and Bottom Depth: 10"
• Mounting Depth: up to 10" (enough depth for any sub on the market)
• Gross Volume Per Sub (Measurement for the outer dimensions of the box): 1.3 Cubic Feet
• Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 1.0 Cubic Feet

---

About Rockville Quality Control Procedures:

The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville sub enclosures are backed with a full 90 day warranty, though it is unlikely that you will need to use it.

---

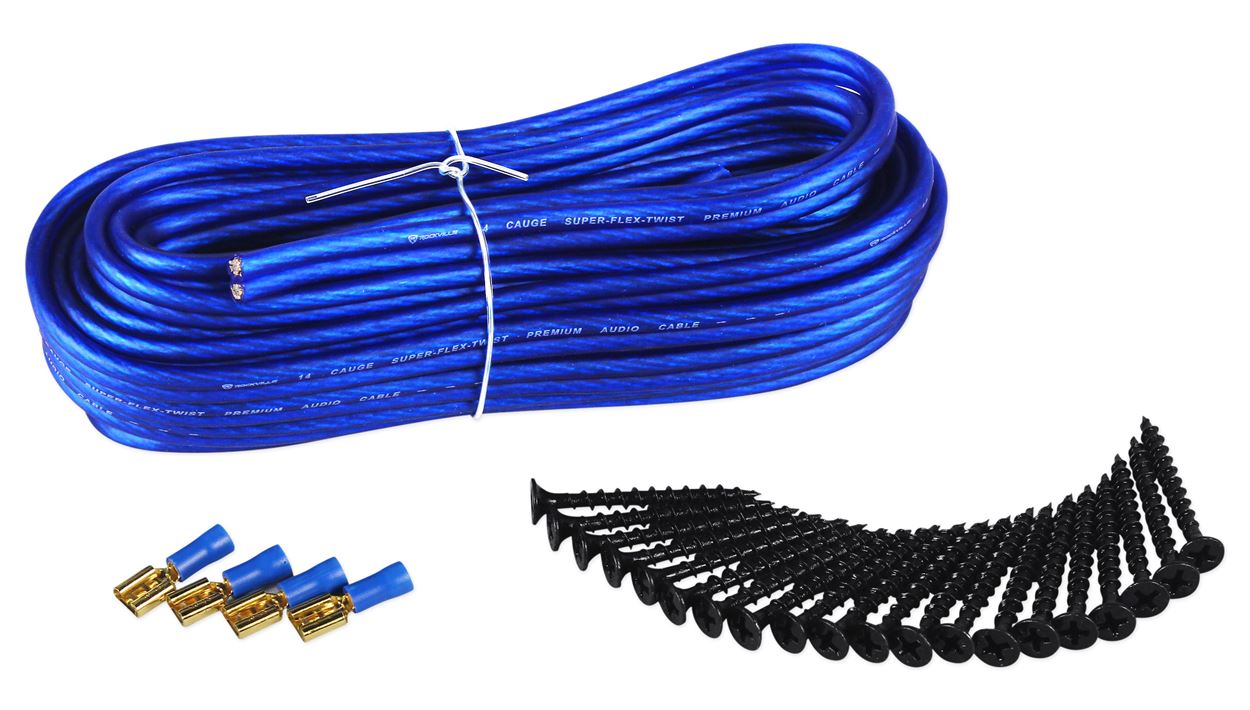

Complete Dual Subwoofer Enclosure Installation Kit!

Includes:

• 20 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 20 Feet of 14 AWG Blue Speaker Wire
• 4 Spade Terminals

This accessory package includes everything you need to install two subwoofers into an enclosure, and wire your enclosure to your amplifier. This package is a top of the line accessory package which we put together and tested.

The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure. The speaker wire is 14 gauge. This is way better than using 16 gauge. You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire. These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
