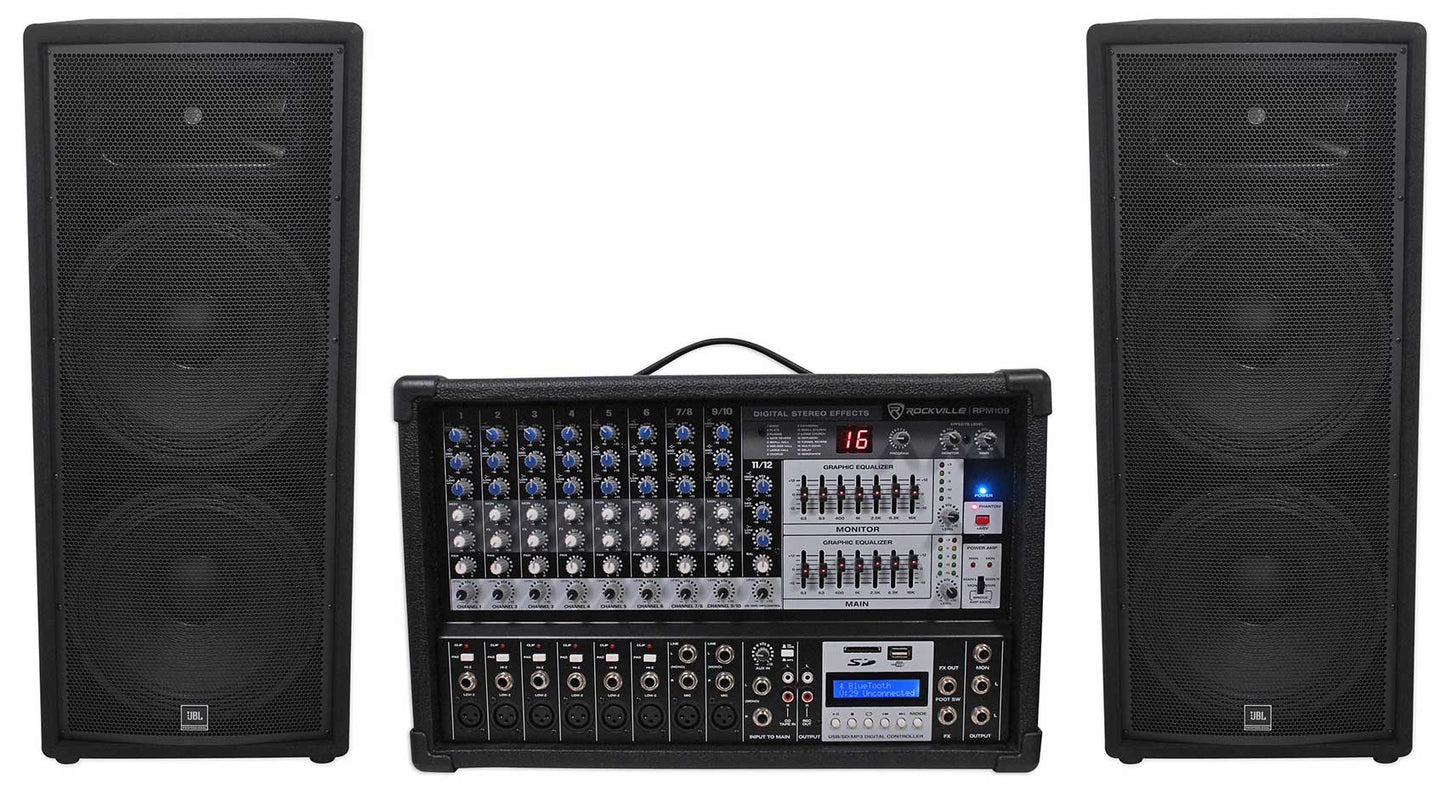

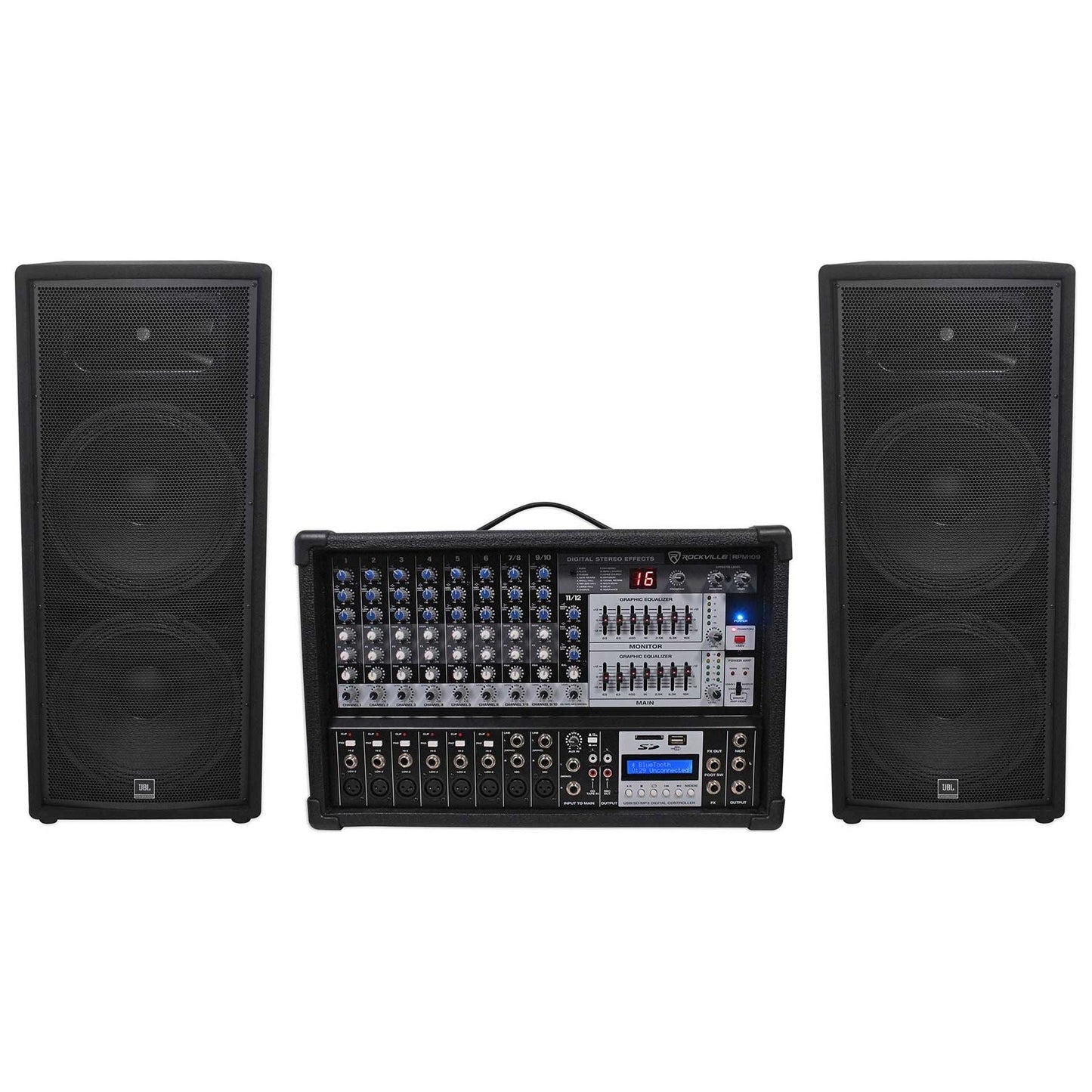

Package Includes:

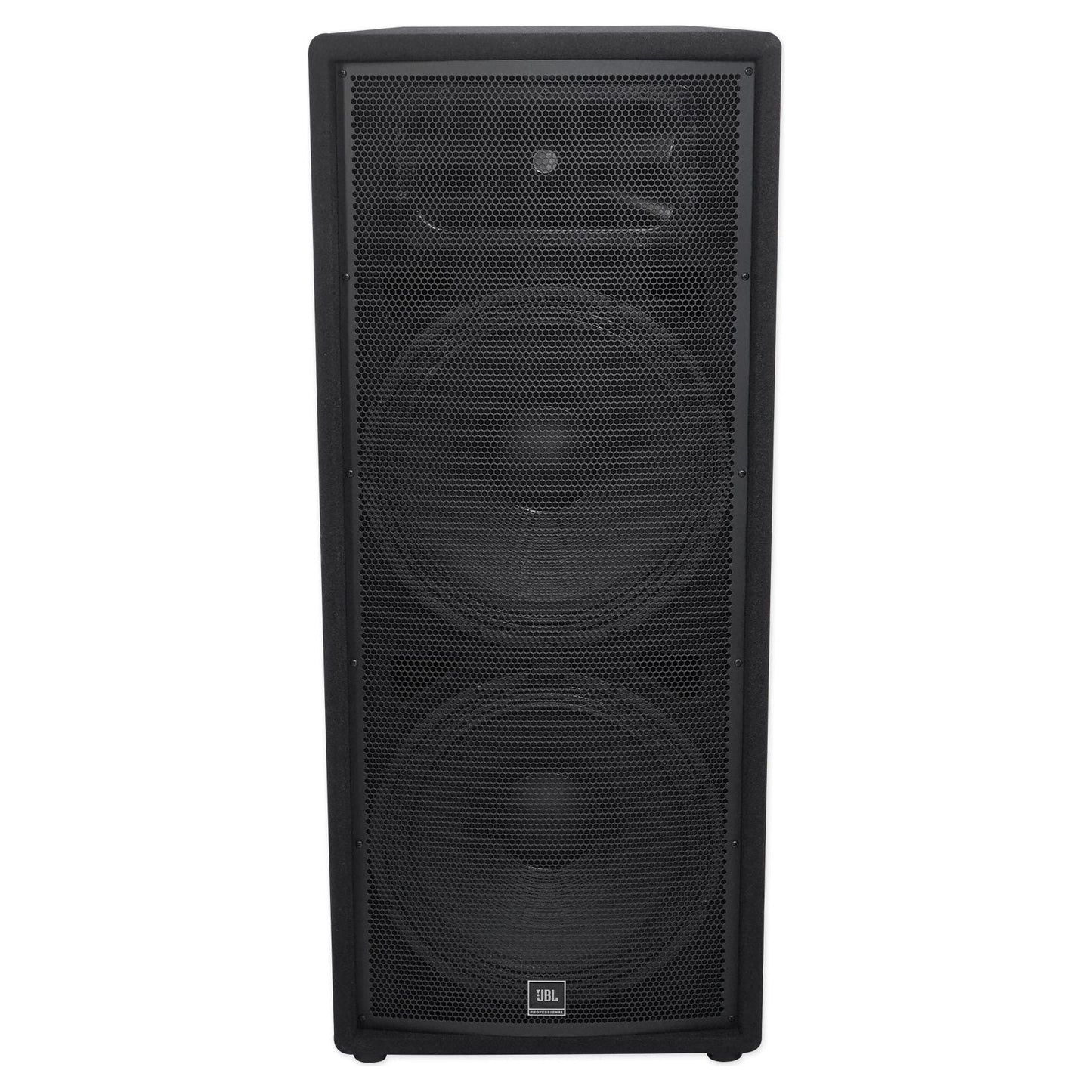

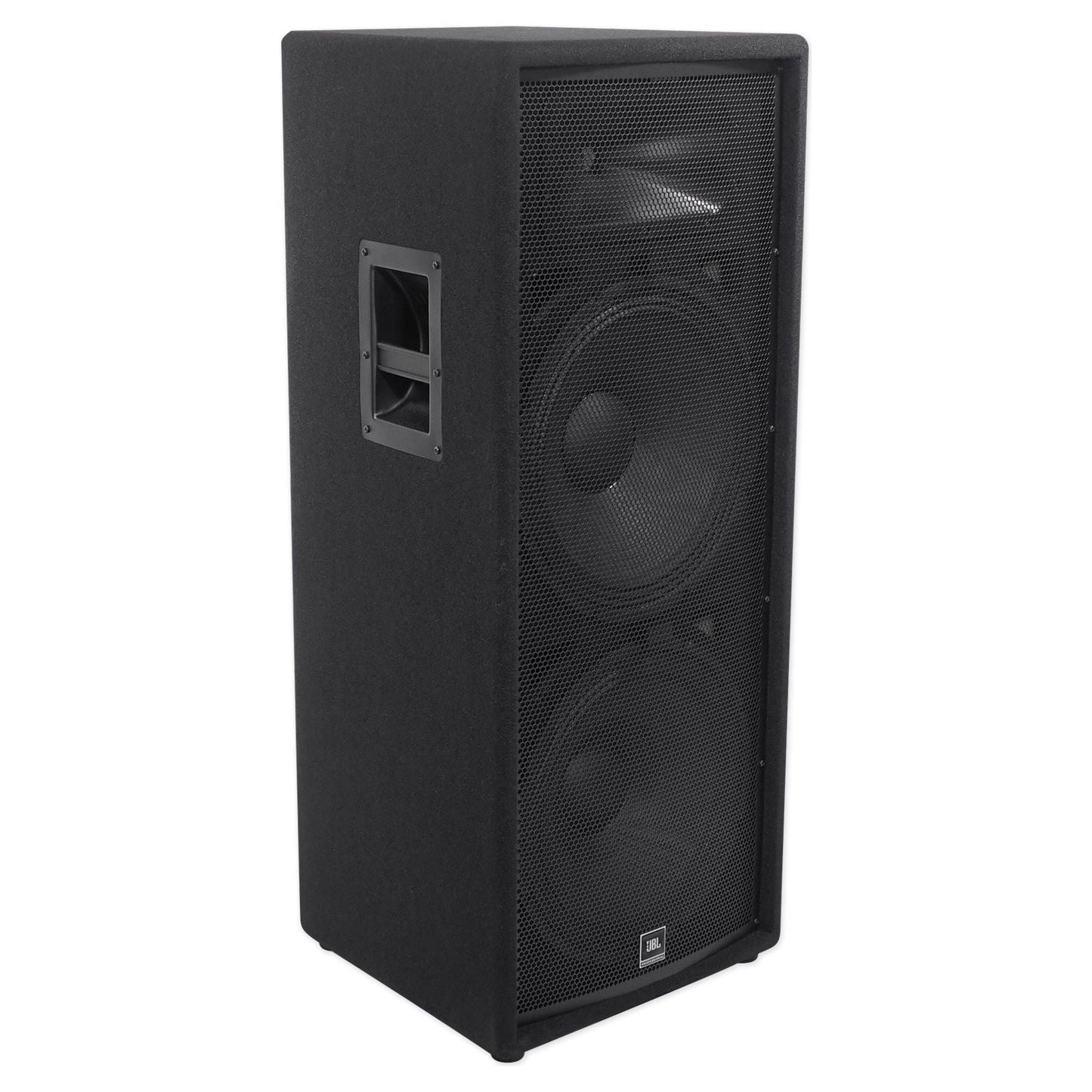

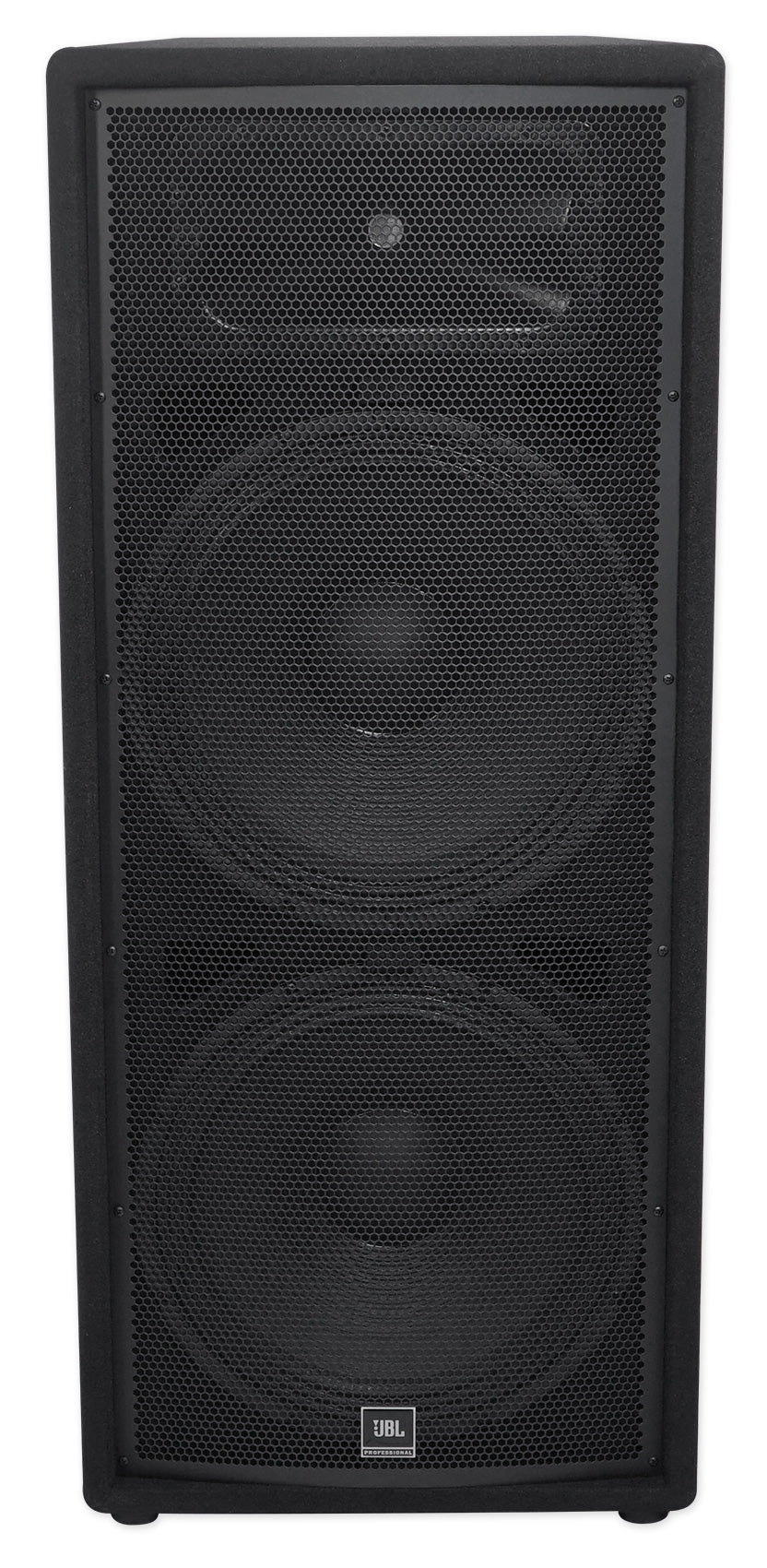

• (2) JBL JRX225 Dual 15" Professional 4000 Watt Passive DJ/PA Speakers 4 Ohm JRX 225
• (1) Rockville RPM109 V2 12 Channel 4800w Powered Mixer, 7 Band EQ, Effects, USB, 48V

---

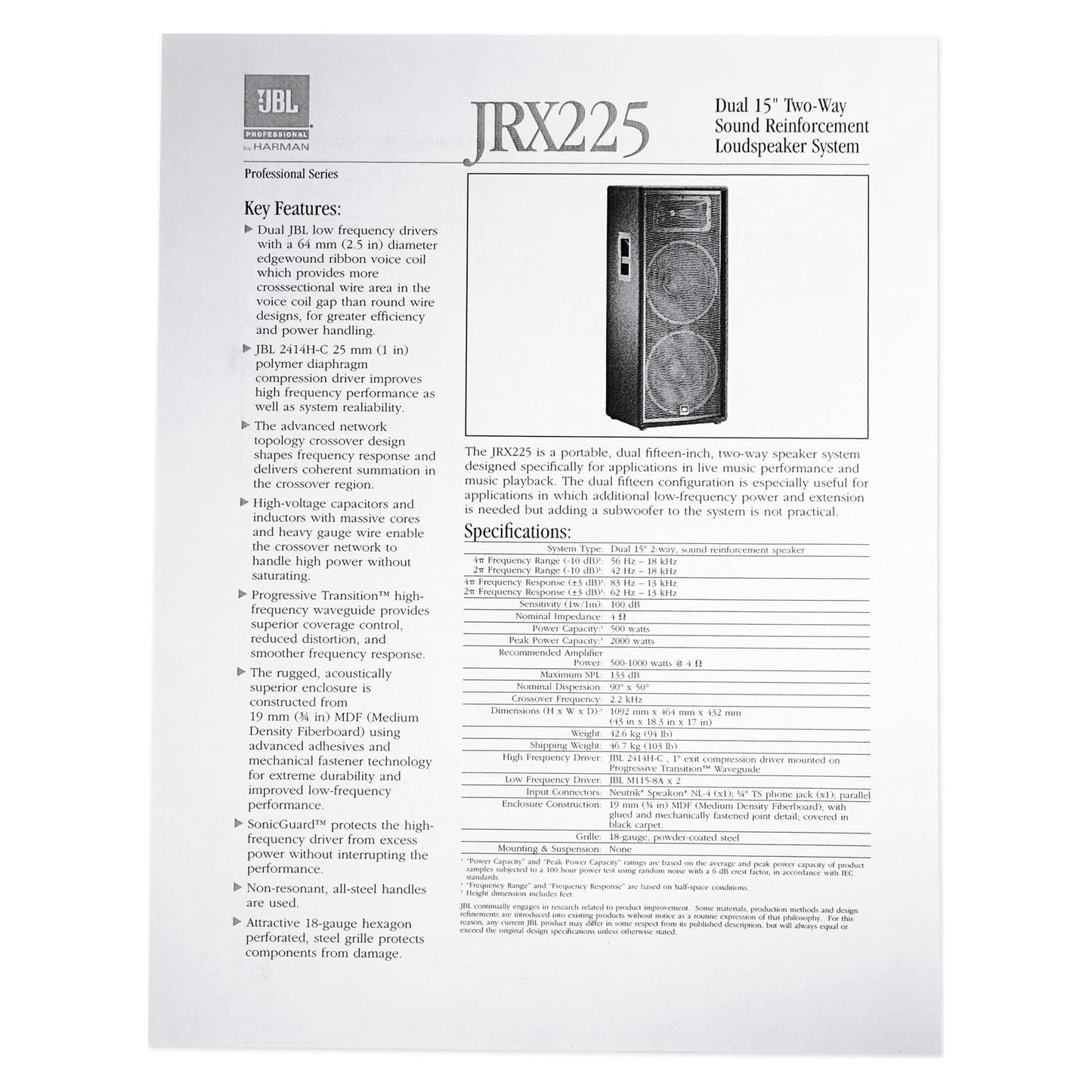

Features of JRX225:

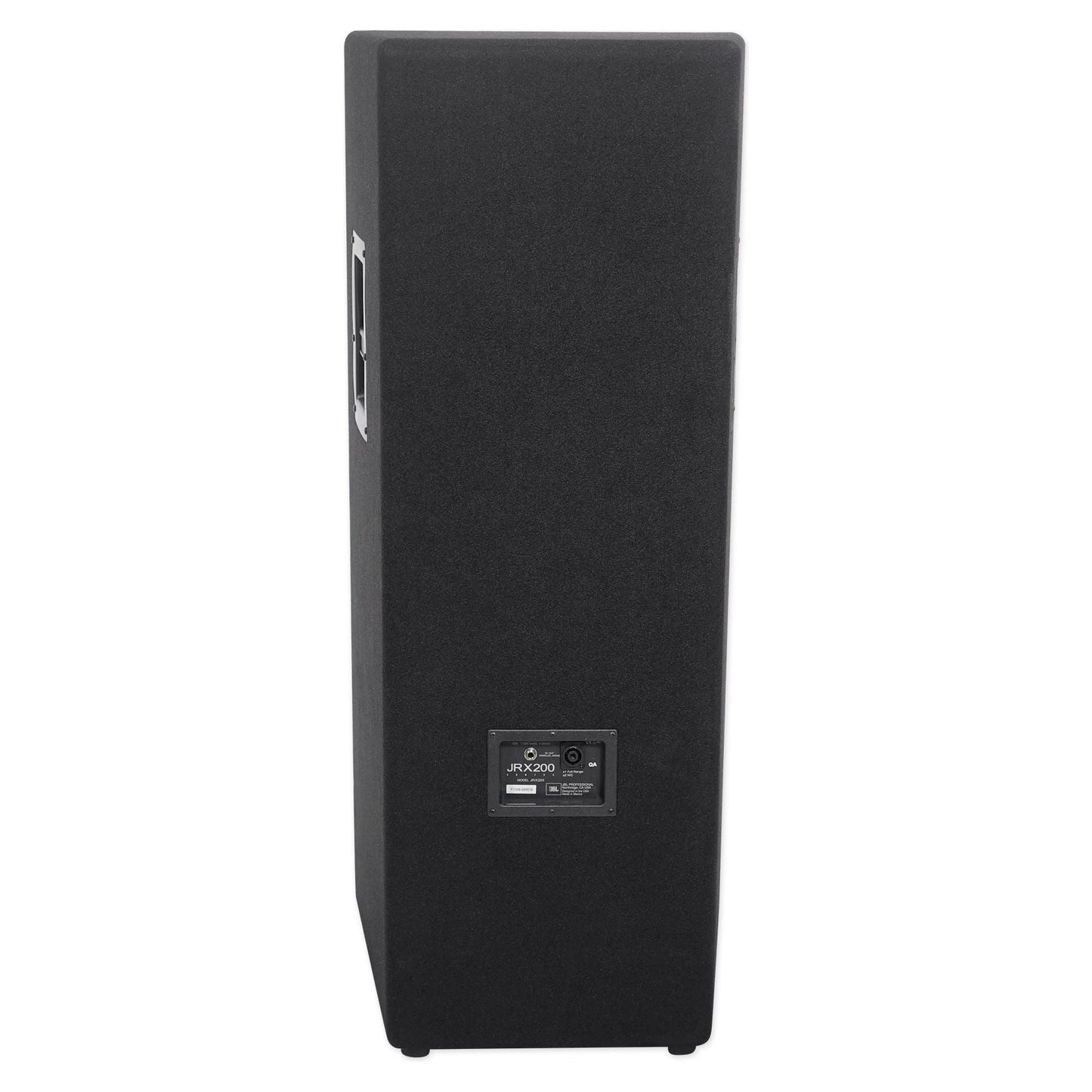

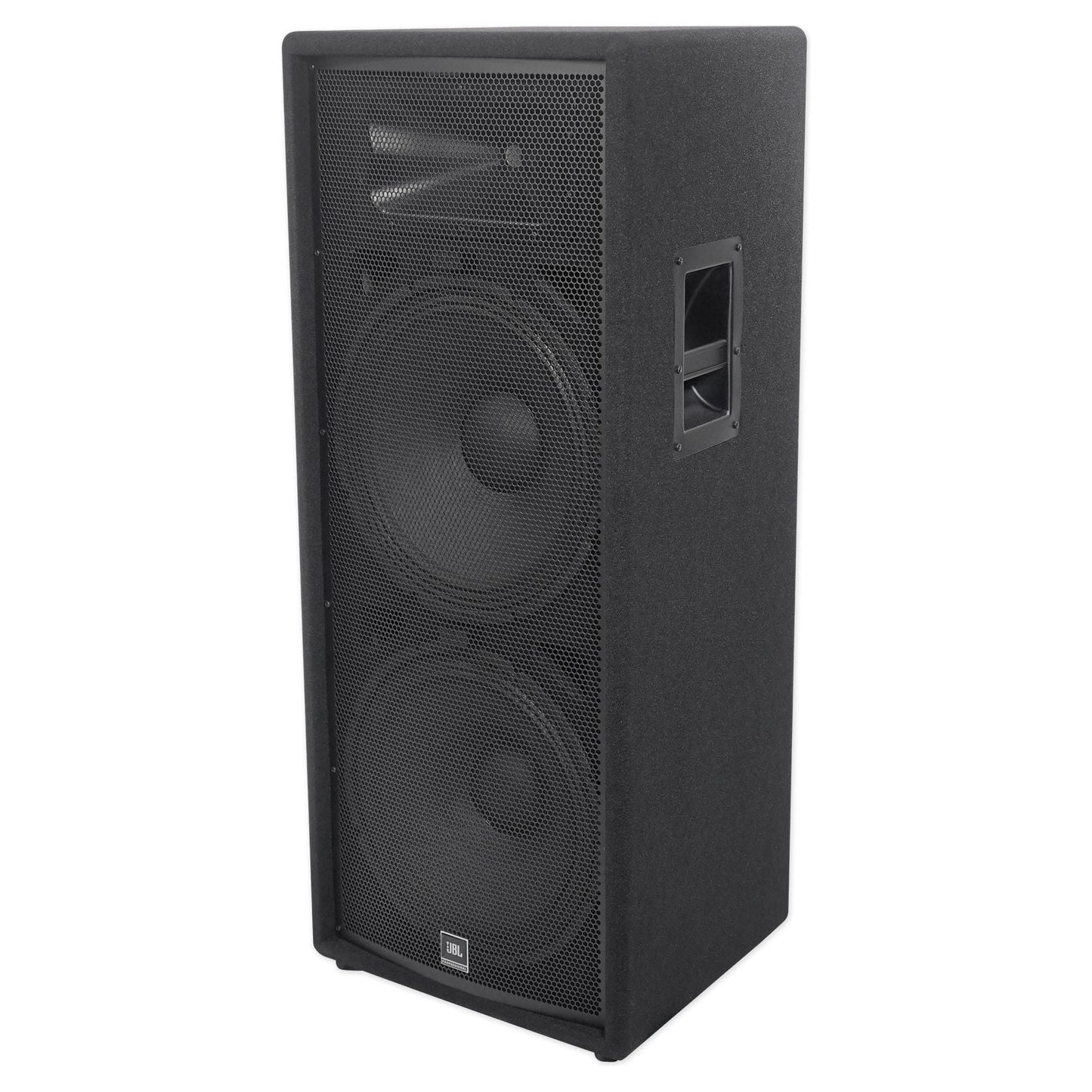

• JBL JRX225 Dual 15" 2000 Watt Passive DJ/PA Speaker
• Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil for greater efficiency and power handling.
• JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver
• Advanced network topology crossover design
• High-voltage capacitors and inductors with massive cores and heavy gauge wire
• Progressive Transition™ high frequency waveguide
• 19 mm (.75 in) MDF (Medium Density Fiberboard) enclosure
• SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
• Non-resonant, all-steel handles
• 18-gauge hexagon perforated, steel grille Dual-angle pole-mount socket allows the speaker to tilt 10°

Details:

• Power Rating : 500 W / 2000 W
• Frequency Range (-10 dB) : 42 Hz - 18 kHz
• Frequency Response (±3 dB) : 62 Hz - 13 kHz
• Sensitivity (1w/1m) : 100 dB SPL
• Nominal Impedance : 4 ohms
• Recommended Amplifier Power : 500 W to 1000 W into 4 ohms
• Maximum SPL : 133 dB
• Nominal Dispersion : 90º x 50º
• Crossover Frequency : 2.2 kHz
• Dimensions (H x W x D) : 1092 mm x 464 mm x 432 mm (43 in x 18.3 in x 17 in)
• Weight : 42.6 kg (94 lb)
• High Frequency Driver : JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
• Low Frequency Driver : JBL M115-8A x 2

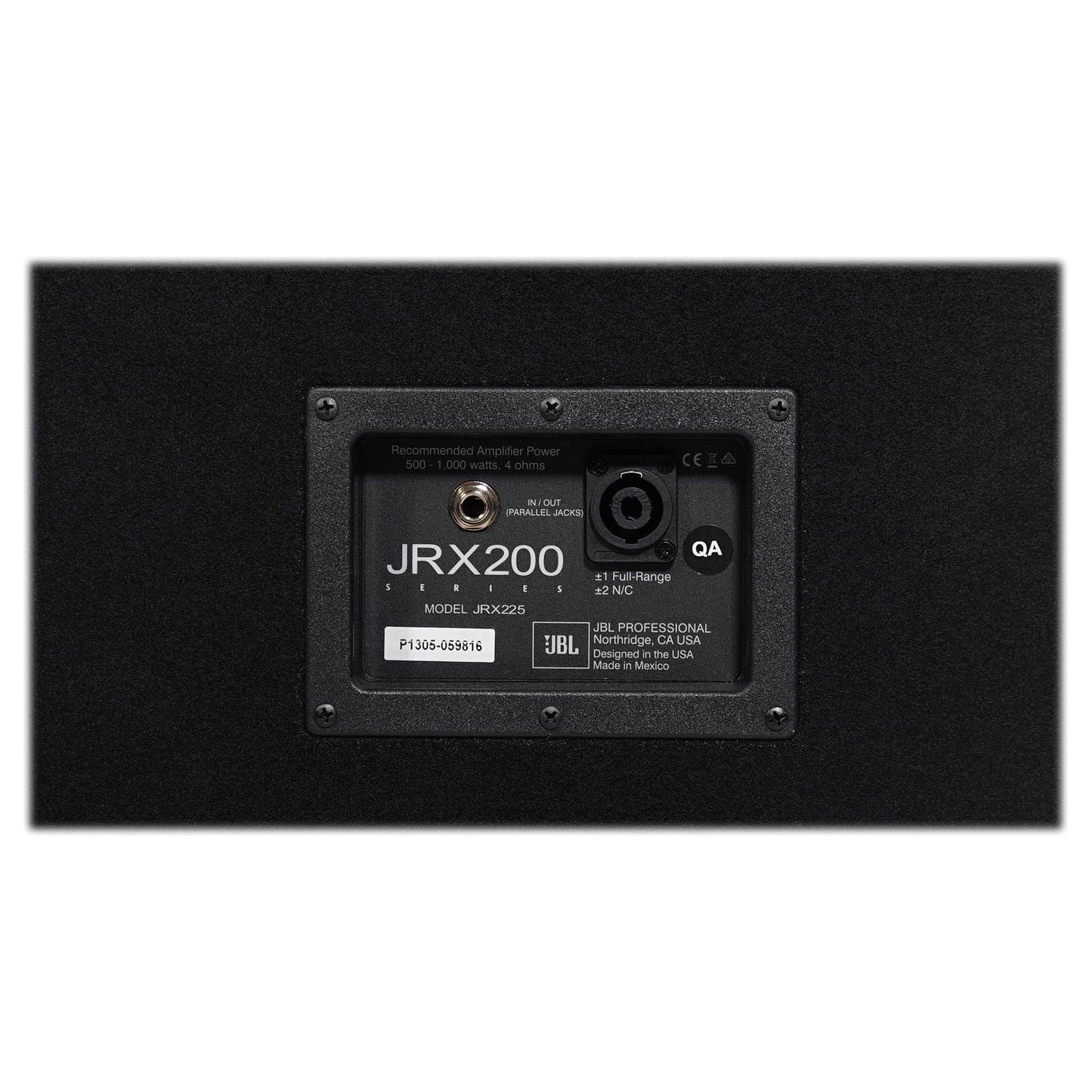

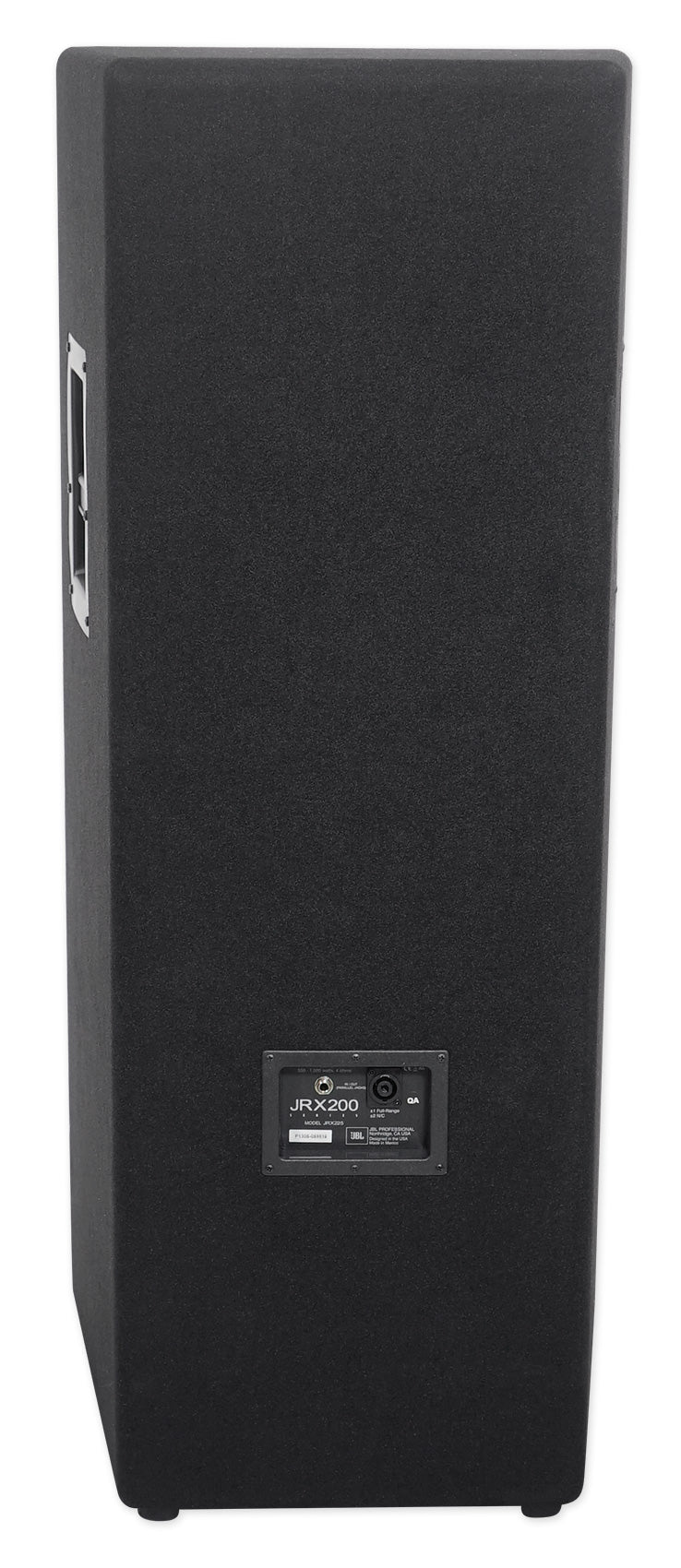

• Input Connectors : Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
• Grille : 18-gauge, powder-coated steel

---

All About your RPM109 V2:

How To Set Up Your RPM109 V2:

Inputs, Outputs, and Controls of Your RPM109 V2:

How To Set Up a Mic/Instrument to Your RPM109 V2:

How To Set Up Karaoke with Your RPM109 V2:

How To Set Up a Laptop or Computer with Your RPM109 V2:

How To Use Your Effects on Your RPM109 V2:

Description of RPM109 V2:

90 Day Money Back Guarantee

This item is insanely loud and has clean sound! If you are not happy in 90 days we will take the item back for a full refund!

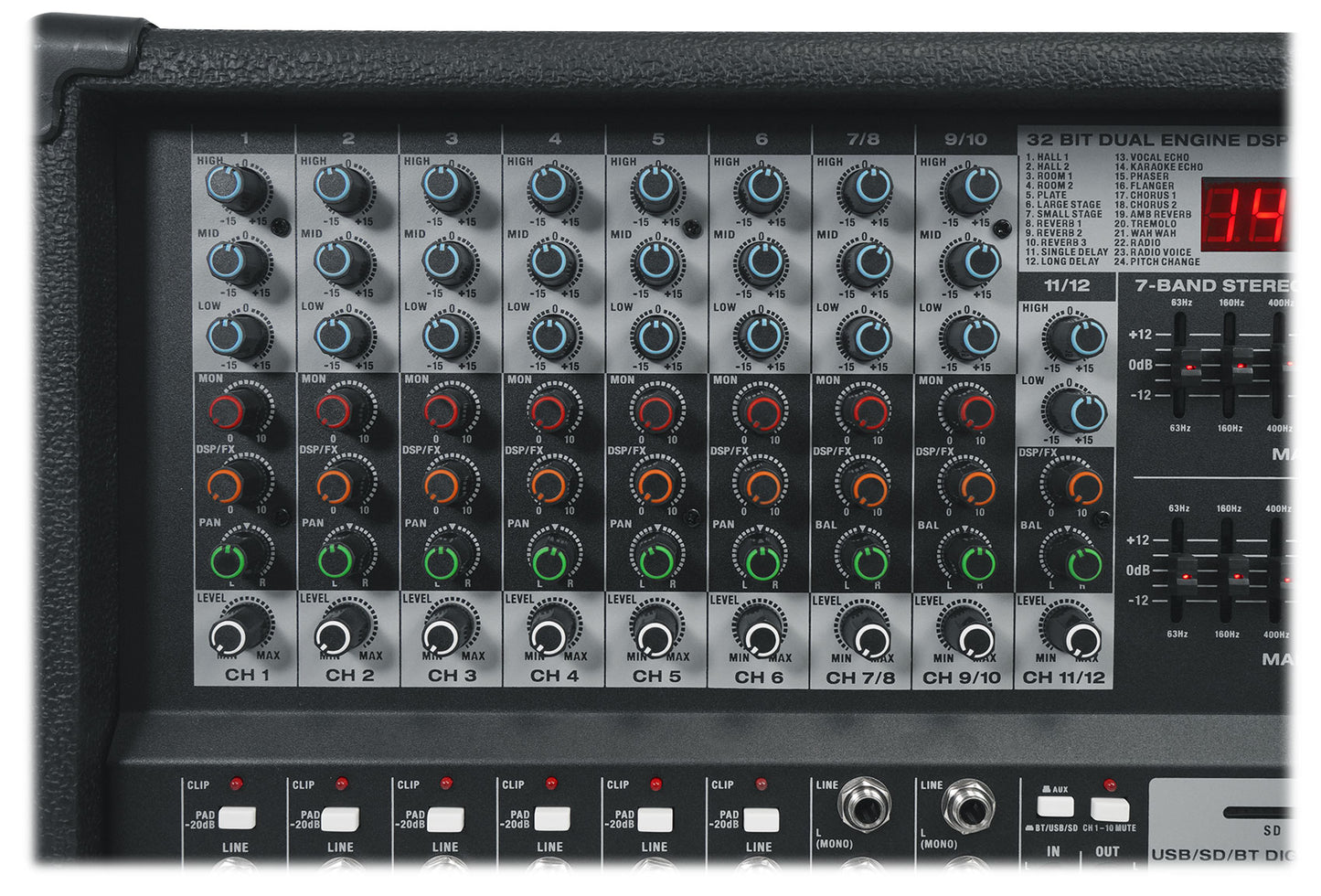

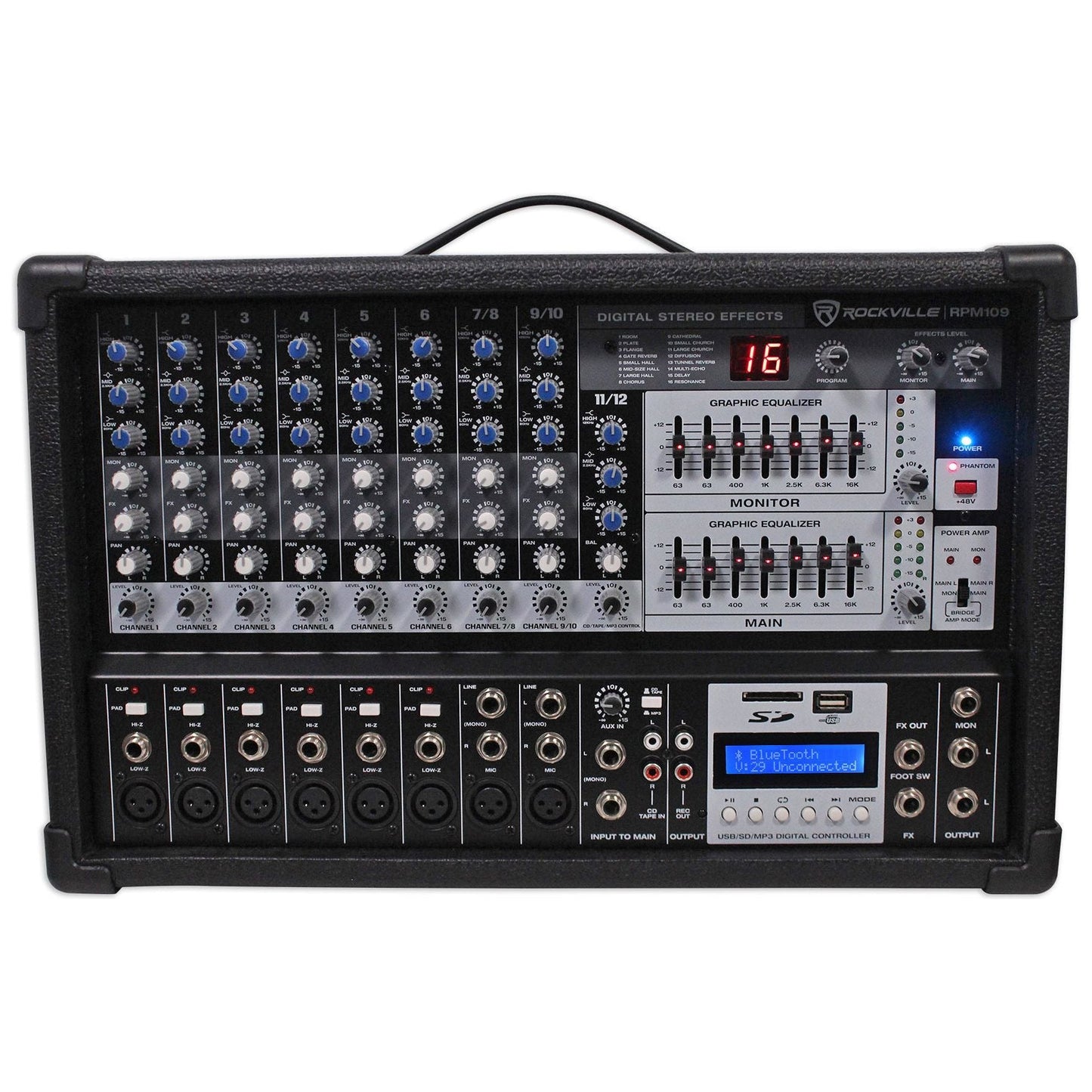

The Rockville RPM109 V2 is a 12 channel wood cabinet powered mixer with USB/SD input and LCD display. This mixer is one of the best sounding powered mixers on the market. This will compete with the most premium brands on the market in terms of sound quality and how much power this has. I personally tested our RPM series of powered mixers and I was completely blown away! I ran this to (2) Yamaha speakers and even with the volume turned up half way these were insanely loud! When I cranked the volume to 90 % the clarity was just un-believable. The power amp built into this mixer is 450 x 2 RMS @ 8 ohms and 600 x 2 RMS @ 4 ohms. We rate the RMS very strictly the way famous brands like Mackie rate their items. We also supply you with program and peak ratings but RMS is the true continuous output power you should look at.

This powered mixer is rugged and tough! It is enclosed in a high quality wooden enclosure which can take a real beating! This model has 12 channels making it versatile enough for most parties and gigs. It has an adjustable 3 band EQ (high, mid, low) on each channel along with a dual 7 band master EQ.

We added built in Bluetooth, USB, and SD players giving you a lot of playback options.

We upgraded our FX module from 16 analog effect to 24 digital effects that are way better and more useful.
We added a USB Interface for playback or to record your performance in your DAW.
We added a mute button for channels 1-10 which enables you between sets to must all the channels accept the aux/Mp3 channels

Features:

• Rockville RPM109 V2 12 Channel 4800w Powered Mixer, 7 Band EQ, Effects, USB, 48V

• RMS Power Output:
  .....600w x 2 @ 4 Ohm
  .....450w x 2 @ 8 Ohm
  .....1200w x 1 @ 8 Ohm

• Program Power Output:
  .....1200w x 2 @ 4 Ohm
  .....900w x 2 @ 8 Ohm
  .....2400w x 1 @ 8 Ohm

• Peak Power Output:
  .....2400w x 2 @ 4 Ohm
  .....1800w x 2 @ 8 Ohm
  .....4800w x 1 @ 8 Ohm

• 12 Channel mixer section: 6 mono channels, 3 stereo channels

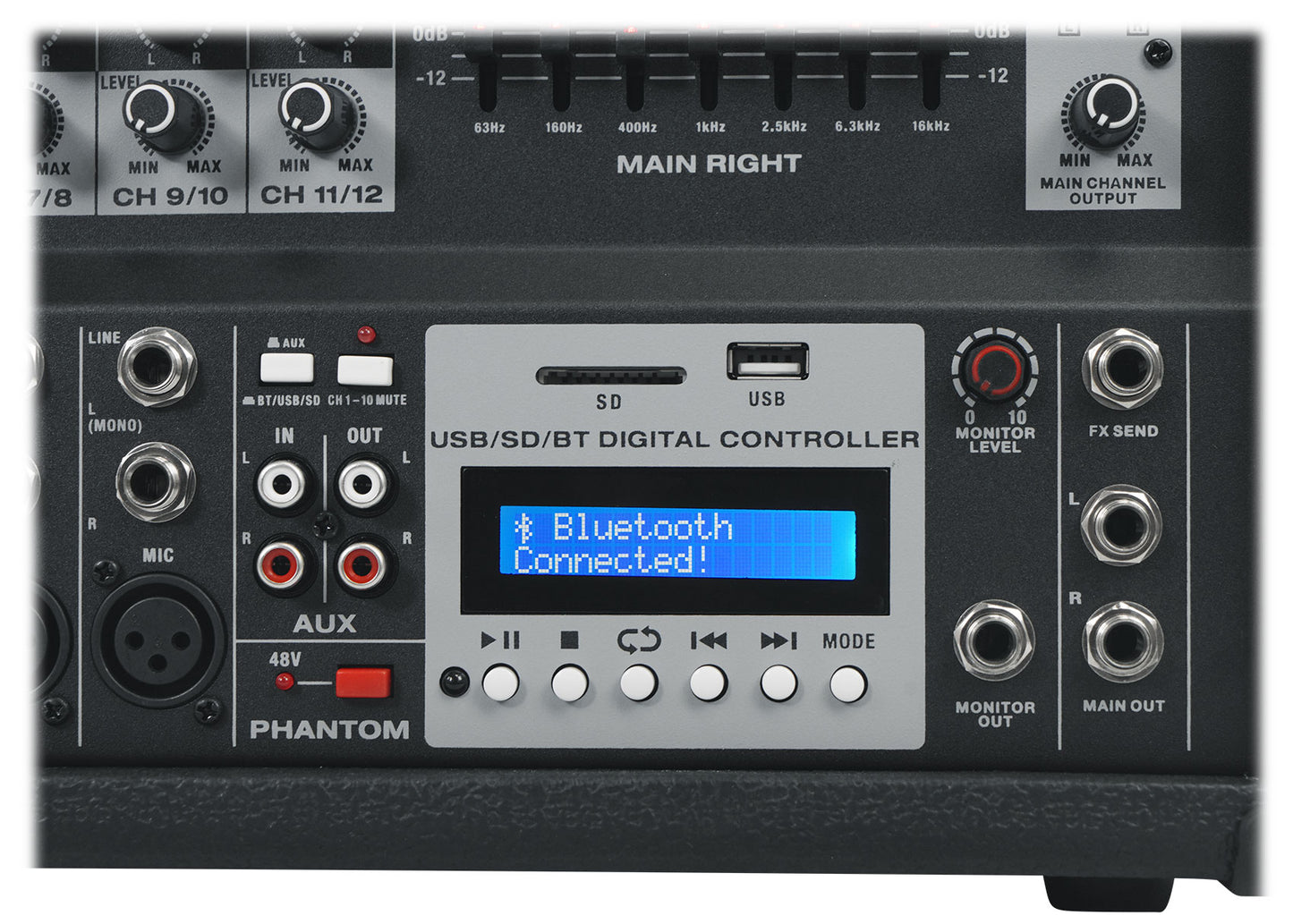

• 1 dedicated USB/SD input

• USB Interface for playback or to record your performance in your DAW

• Mute button for channels 1-10 which enables you Switch between all the channels accept the aux/Mp3 channels.

• Built-in Bluetooth playback

• Studio-grade stereo FX processor with 24 digital effects including reverb, chorus, plate, delay, chorus, cathedral and various multi-effects

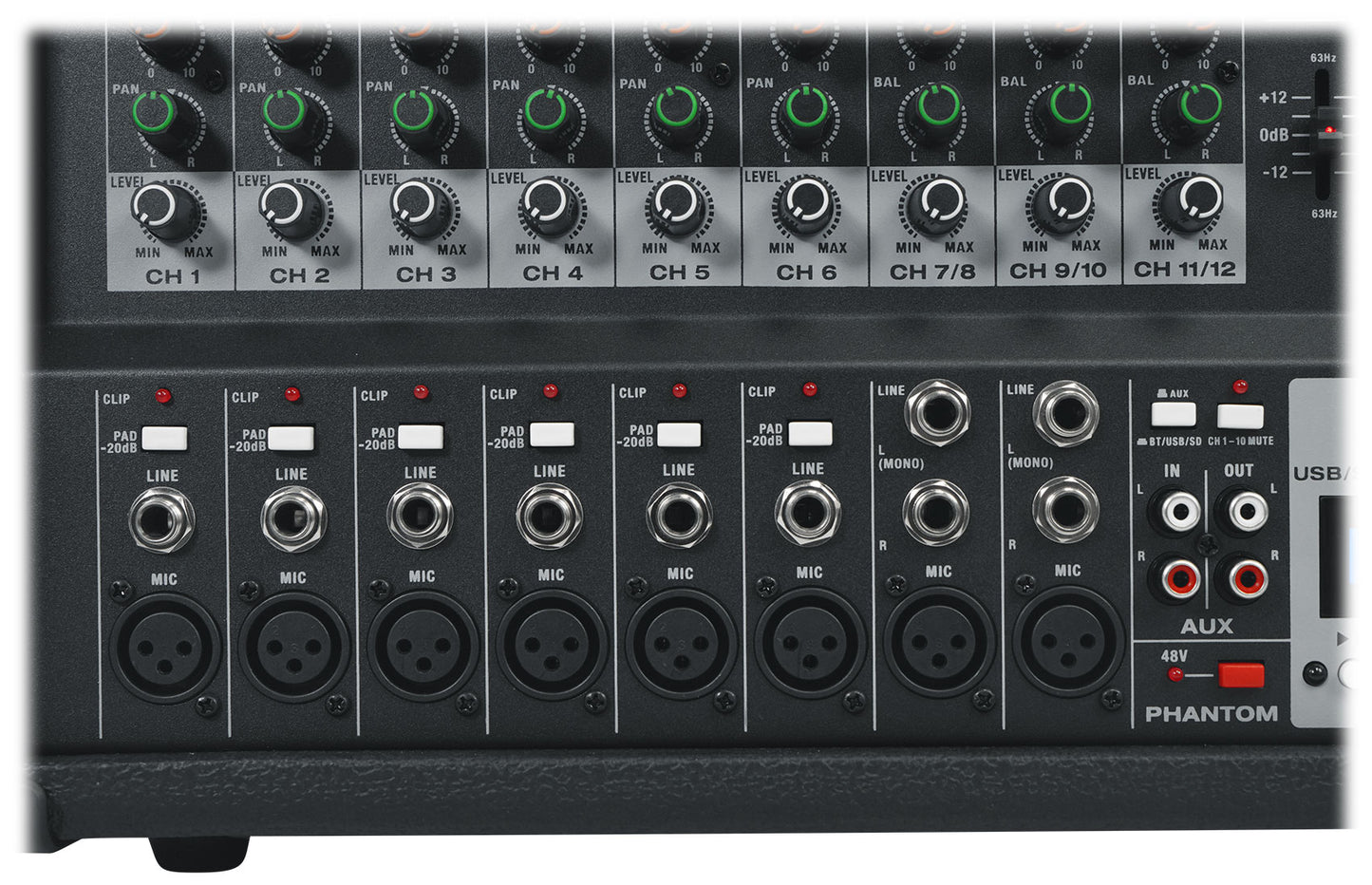

• 8 high-quality mic preamps with switchable +48 V phantom power for condenser microphones

• Pad Switch on each Mono Channel
• Clip LEDs on each Mono Channel

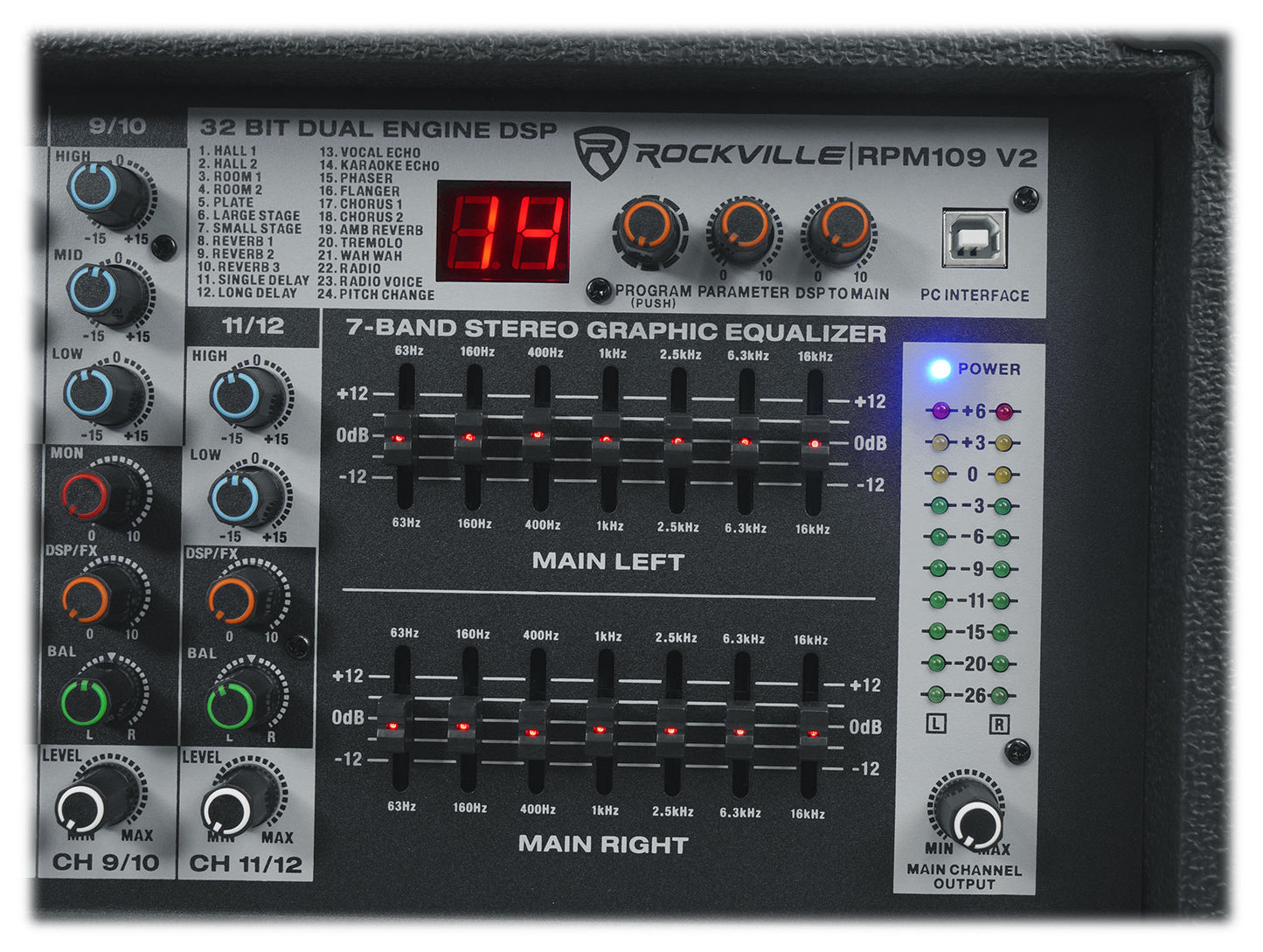

• Dual Stereo 7-band Graphic EQ allows for precise frequency correction of main outputs

• Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode

• Monitor Level Knob with 5 LED Level Meter

• Main Level Knob with 2 x 5 LED Level Meter

• Dual RCA Aux Input with Independent Level Knob for External Signal Sources

• Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
• Dual RCA Output

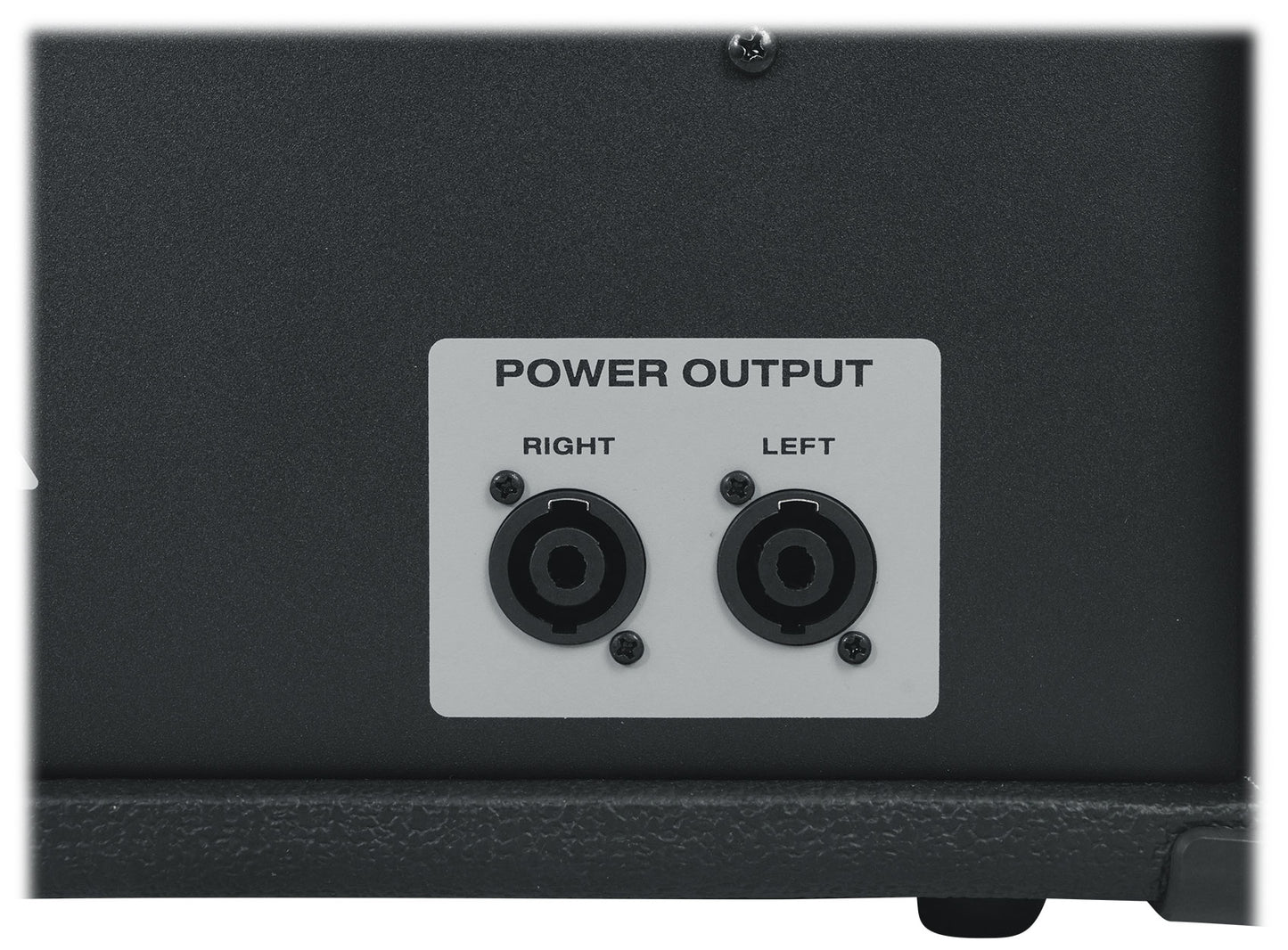

• Dual Speak-ON jacks for Speaker Output

• Dual Fan vent Cooling System

• 110-120V power supply

• Dimensions: 18” x 11.22” x 11.41”

• Weight: 30.9 lbs.


---
