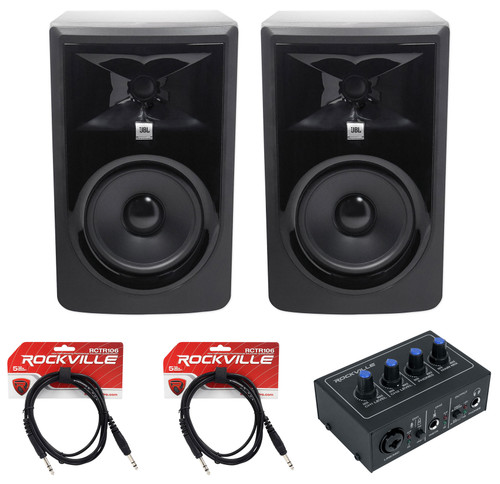

- (2) JBL 306P MkII 6" 2-Way Powered Studio Reference Monitor Monitoring Speaker
- (1) Rockville ROCK-U MINI 2x2 USB Computer Recording Interface 24 Bit 192Khz Home Studio
- (2) Rockville RCTR106B 6' 1/4'' TRS to 1/4'' TRS Balanced Cable, Black, 100% Copper
Authorized JBL Dealer!
Description:
Powered "6" Two-Way Studio Monitor
The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
Why MkII?
Since their release, word has spread on the quality and value found in the original JBL 3 Series, resulting in wide adoption from hobbyists to high-end professionals working in music, film, post, and broadcast production worldwide. With such an obvious hit, you might ask, "Why update now?" On every project at JBL, there’s always a handful of features or improvements that the engineering team can’t squeeze in before going to production. 3 Series was no different. When the opportunity presented itself, we decided to make those final improvements to the transducers, add a frequently-requested feature, and apply the latest manufacturing learnings. The result—a new edition of this popular studio monitor that retains the best qualities of the original, but now looks better, sounds better, and provides transparent sound in even more production environments.
Patented Image Control Waveguide
Reveal impressive detail, ambience and depth in your mixes thanks to the groundbreaking JBL Image Control Waveguide. Originally developed for JBL’s flagship M2 Master Reference Monitor, this patented innovation ensures an acoustically seamless transition between the low- and high-frequency transducers and provides an immersive soundstage with precise imaging. Offering a broad sweet spot and neutral frequency response, JBL 306P MkII delivers a crystal-clear representation of your mix—revealing subtle details, even when listening off-axis.
Your Mix is Only as Good as Your Monitors
To help you make the best mix decisions, JBL equipped the 306P MkII with acclaimed 3 Series transducers that now perform even better. Hear deep, accurate and tightly controlled bass thanks to a long-throw 6.5" woofer and the patented JBL Slip Stream™ low-frequency port. Enjoy soaring, immaculately detailed highs via the woven-composite 1" Neodymium tweeter. JBL engineers took things to the next level with faster HF transient response through fine-tuned ferrofluid damping, and greater low frequency linearity and lower harmonic distortion courtesy of an enhanced woofer design. The result is a studio monitor you can trust—with unmatched peak handling, stunning dynamics and neutral frequency response that’s unbeatable in its class.
Big Sound Out of the Box
JBL 306P MkII is ready for the most demanding production styles right out of the box. Dual integrated Class D power amplifiers, custom designed by JBL for each transducer, give you generous dynamic range for any project. From music production and podcasting to cinematic sound design or daily vlogging, enjoy the output and power you need to hear exceptional detail at any volume—even at peak SPLs. Simply plug in, power on, and start creating.
Tailored Sound to Fit Your Studio
The dimensions and acoustics of a room can have a major effect on sonic accuracy, and that’s why JBL 306P MkII lets you adjust the response to fit your studio. The new Boundary EQ attenuates the low-end boost that can occur when you place monitors directly on the desktop or near walls. The 3-position HF Trim switch allows you to adjust the high-frequency response of the 306P MkII to tailor it to room acoustics or personal tastes.
Flexible Connectivity
Offering both balanced XLR and 1/4" TRS inputs, and adjustable +4dBu/-10dBV input sensitivity, the 306P MkII offers flexible, professional connectivity options to provide easy setup while maintaining your signal integrity.
70 Years of Expertise
The design of the 306P MkII leverages over 70 years of JBL acoustic expertise to create a refined studio monitor at an outstanding value. While other manufacturers use off-the-shelf components and make subjective decisions about the sound, JBL builds speakers that squeeze every ounce of performance from each component to deliver efficient, accurate sound reproduction. 306P MkII is designed to JBL’s Linear Spatial Reference criteria—a series of 72 individual measurements taken 360 degrees around the speaker to ensure a faithful reproduction of your mix, whatever your listening environment.
JBL Professional Reliability
JBL Professional studio monitors are designed for reliable performance, even when projects push your gear to the limit. Before being approved for production, 3 Series monitors must first pass JBL’s strenuous Power Test. Each model is required to perform flawlessly at maximum volume for an unheard-of 100 hours—without failure. As a result, you can depend on 306P MkII monitors to deliver consistently excellent sound reproduction for years to come.
Features:
- JBL 306P MkII 6" 2-Way Powered Studio Reference Monitor
- Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
- Next-generation JBL transducers for optimized transient response and improved linearity
- Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
- Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
- New Boundary EQ settings compensate for low frequency variants introduced by the environment
- HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
- Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
- Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
- Strenuous JBL 100-hour full-power test ensures years of reliability
- Sleek, modern design provides a visual upgrade to any studio
Specifications:
- LF Driver Size: 6.5" inches
- HF Driver Size: 1" inch
- HF Driver Type: Soft Dome
- Crossover: 1425 Hz 4th Order Acoustic Linkwitz-Riley
- Input Sensitivity: 92 dB
- Power Configuration: Bi-Amplified
- HF Driver Power Amp: 56 Watts, Class-D
- LF Driver Power Amp: 56 Watts, Class-D
- Frequency Response (±3DB): 47 Hz – 20 kHz
- Frequency Range (-10DB): 39 Hz – 24 kHz
- Low Frequency Extension (-10 dB): 39 Hz
- Maximum Continuous SPL: 92 dB
- Maximum Peak SPL: 110 dB
- Maximum Peak Input Level (-10DBV / +4DBU): +6DBV / +20.3DBU
- System Distortion Criteria: <10% THD At Maximum Output With Full Compressor / Limiter Engagement
- Electrical Distortion Criteria: 0.2% THD @ 1KHZ / 2.83vrms Output; <1% THD @ 1KHZ, Full Rated Output
- Signal To Noise Ratio: 75 dBA (A-Weighted), 70 dBR (Unweighted), Relative To 2.83VRMS Output
- Coverage (Horizontal x Vertical): 120° X 90°
- Analog Input Types: 1 x XLR Female, 1 x TRS Female, Balanced
- HF Trim Control: -2DB, 0DB, +2DB
- Boundary EQ: LF Shelf @ 50 Hz: -3dB, -1.5dB, 0dB
- AC Input Voltage: 100 – 240VAC (±10%), 50 / 60 Hz
- Enclosure Type: Ported
- Enclosure Construction: 15mm MDF
- Enclosure Finish : Matte Black PVC
- Baffle Construction: Injection-Molded Structural ABS
- Cabinet Dimensions (H x W x D): 14.2" x 8.8" x 11.1" inches
- Display Carton (H x W x D): 16.1" x 11.2" x 12.9" inches
- Shipping Carton (H x W x D): 16.5" x 11.5" x 13.3" inches
- Net Weight: 13.42 Lbs.
- Shipping Gross Weight: 15.95 Lbs.
for the Owner's Manual
Video of ROCK-U Mini:
How to Set Up your ROCK-U Mini:
Description:
The ROCK-U 2x2 is the ideal solution for those who need a low-latency, compact and reliable 2 in / 2 out computer USB audio interface. It is bus-powered and doesn't require any external adapters or power sources : simply connect it to your computer using the provided USB cable and you're all set.
The ROCK-U 2x2 has 2 channels.
Channel 1 features an XLR/1/4” combo jack with phantom power.
Channel 2 features a dedicated 1/4” instrument input.
Additionally, the PAD switch on CH1 allows you to properly gain stage your input source and have a clear signal with a lot of headroom. The signal/clipping indicator lets you monitor your signal in real-time and keep an eye on the sensitivity of your inputs in order to avoid distortion.
Our low noise studio-grade preamps offer clean and clear signal with good signal-to-noise ratio and lots of headroom. Whether you're plugging in a microphone, guitar, bass or synth, the preamps will accurately capture the source with no added artifacts. The 24 Bit / 192 kHz sample rate lets you achieve the highest digital resolution when recording.
The direct/usb monitoring switch lets you choose if you want to monitor your input signal in real-time with 0ms latency. 2 x 1/4” TRS outputs with dedicated volume control provide connectivity to your favorite studio monitors. There is an extra 1/4” headphone out with separate volume control, for monitoring with studio headphones.
Finally, the high-quality metal casing ensures long-term durability for this convenient, compact and portable interface.
Features:
- Rockville ROCK-U 2X2 USB Computer Recording Interface
- 24 Bit 192Khz sampling rate
- 2 Inputs and 2 Outputs
- Ch 1: XLR/1/4” Line/Mic input Combo Jack
- CH 2: ¼” TRS input with Hi-Z switch for connecting guitar, bass etc
- Studio-grade mic preamps with low noise and lots of headroom
- 48v phantom power for use with condenser mics
- Bus powered lets you record on the go (Can get power through the USB of your computer or laptop or power bank)
- USB 2.0 high speed
- Dedicated 1/4” TRS outputs for connecting studio monitors
- ¼” headphone output
- Flexible routing options for mixing and assigning input streams to outputs
- Frequency Response: 20-20KHz\
- Thick metal housing
- Signal and clipping indicator lights
- Ability to monitor direct signal in real-time (with 0ms latency) or USB playback
- Playback/USB button
- Perfect for home studios, recording on the go, or recording a live show
- Very versatile with low latency
- Can record dynamic/condenser mics, instruments, and line level signals
- Independent volume control for channel 1 and channel 2
- Main mix volume control
- Headphone volume control
- Compatible with all Windows and MAC computers and laptops
- Weight: 0.9 Lbs
- Dimensions: 3.1” L x 4.5” W x 1.8” H (Inches)
Video of RCTR CABLES:
Video of RCTR106B:
Description:
All Rockville pro audio cables are made with 100% copper which boosts the efficiency of the cable. There is nothing better than 100% copper. Most of the cheaper cables on the market do not use 100% copper, instead they make their cables with CCA (Copper Clad Aluminum). CCA cables do not perform on the level that 100% copper cables perform at. CCA will not conduct signals efficiently. A 12 gauge CCA cable will not even perform as well as a 14 gauge 100% pure copper cable, which will in turn, affect the performance and longevity of your equipment. If you find cables on the market that do not mention the copper content, there is a good chance that they are selling you a cheaper cable that is CCA and not 100% copper. Rockville pays an inspection company to oversee the manufacturing of the product to ensure that we provide a 100% Oxygen Free Copper Cable (OFC). Our OFC cables are less prone to oxidation, and will provide maximum signal transfer.
The other important factor of a cable is the shielding. Most of the good brands on the market have about 85% shielding coverage, so we decided to take our shielding a step further. Rockville cables are shielded with a tight copper mesh, covering 90% of the cable! The high percentage of coverage increases the ability to absorb the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) that suppresses signal and degrades the performance of equipment. Rockville Cable’s copper shielding provides great flexibility, maintains a durable structural integrity, while decreasing signal interference ensuring enhanced signal clarity with every use.
Features:
- Rockville RCTR106 Nickel-Plated, 1/4'' TRS to 1/4'' TRS Balanced Cable
- 100% Copper Conductors for Enhanced Signal Clarity
- OFC Spiral Shield for Effective EMI and RFI Rejection and Flexibility
- Length: 6 Ft
- Color: Black
- UPC:
- 613817055813
