Package Includes:

• (10) Rockville MINI RF4 Black RGBWA+UV DJ/Party LED Par Wash Up Light+4 Ch. RF Remote
• (2) Rockville MINI RF BAG Carry Bag For 5 MINI RF or IR Lights Plus Accessories

---

All About Your MINI RF4:

How To Set Up Your MINI RF Light (MINI RF1 V2, MINI RF3, MINI RF4):

How To Set Up Wireless DMX on your MINI RF Light (MINI RF1 V2, MINI RF3, MINI RF4):

How To Group Your MINI RF Lights:

How To Use Master/Slave Mode on Your MINI RF Light (MINI RF1 V2, MINI RF3, MINI RF4):

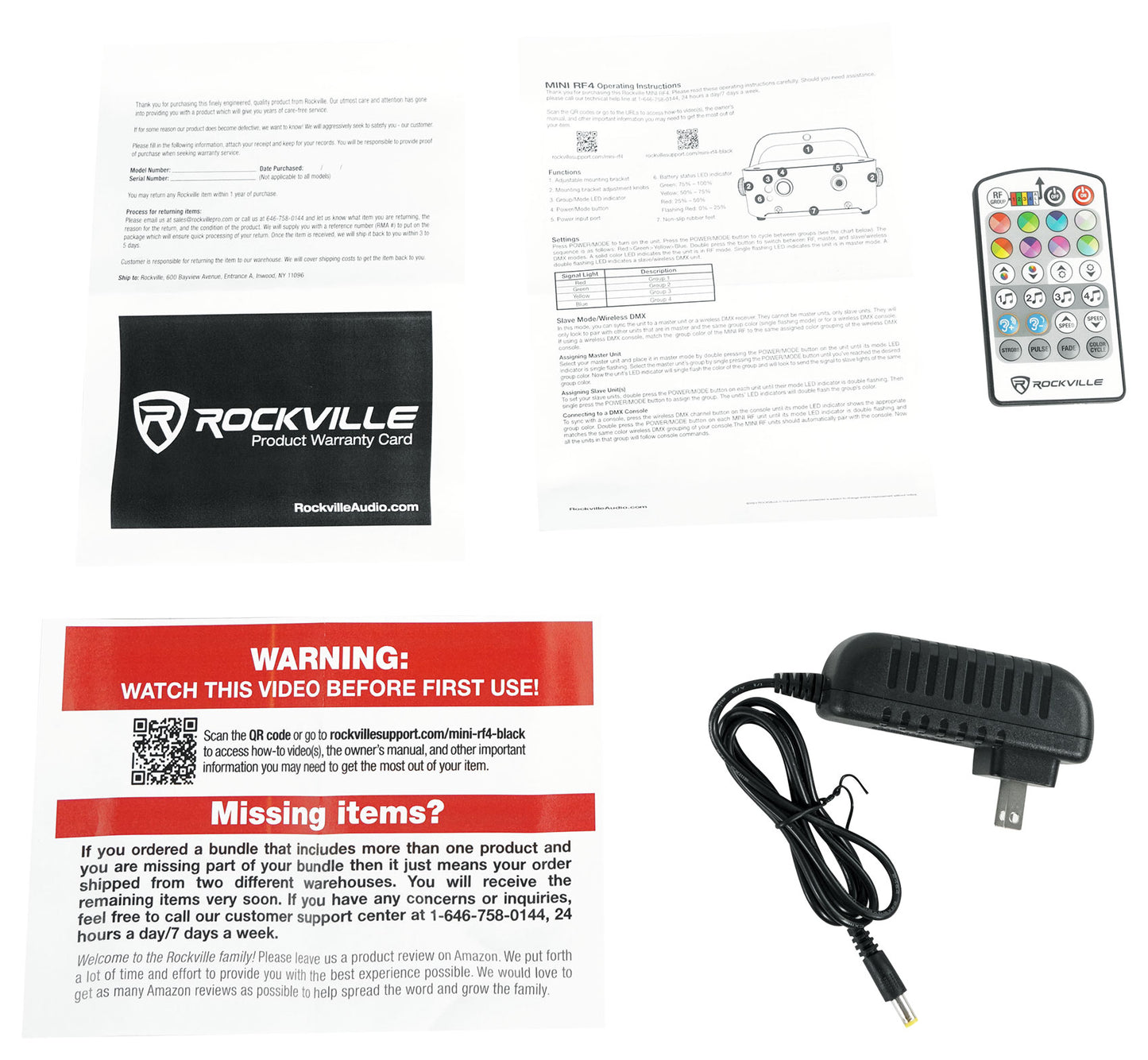

What's In The Box:

• Light

• RF Remote

• Bracket

• Adapter

• Training video and Warranty card


Description:

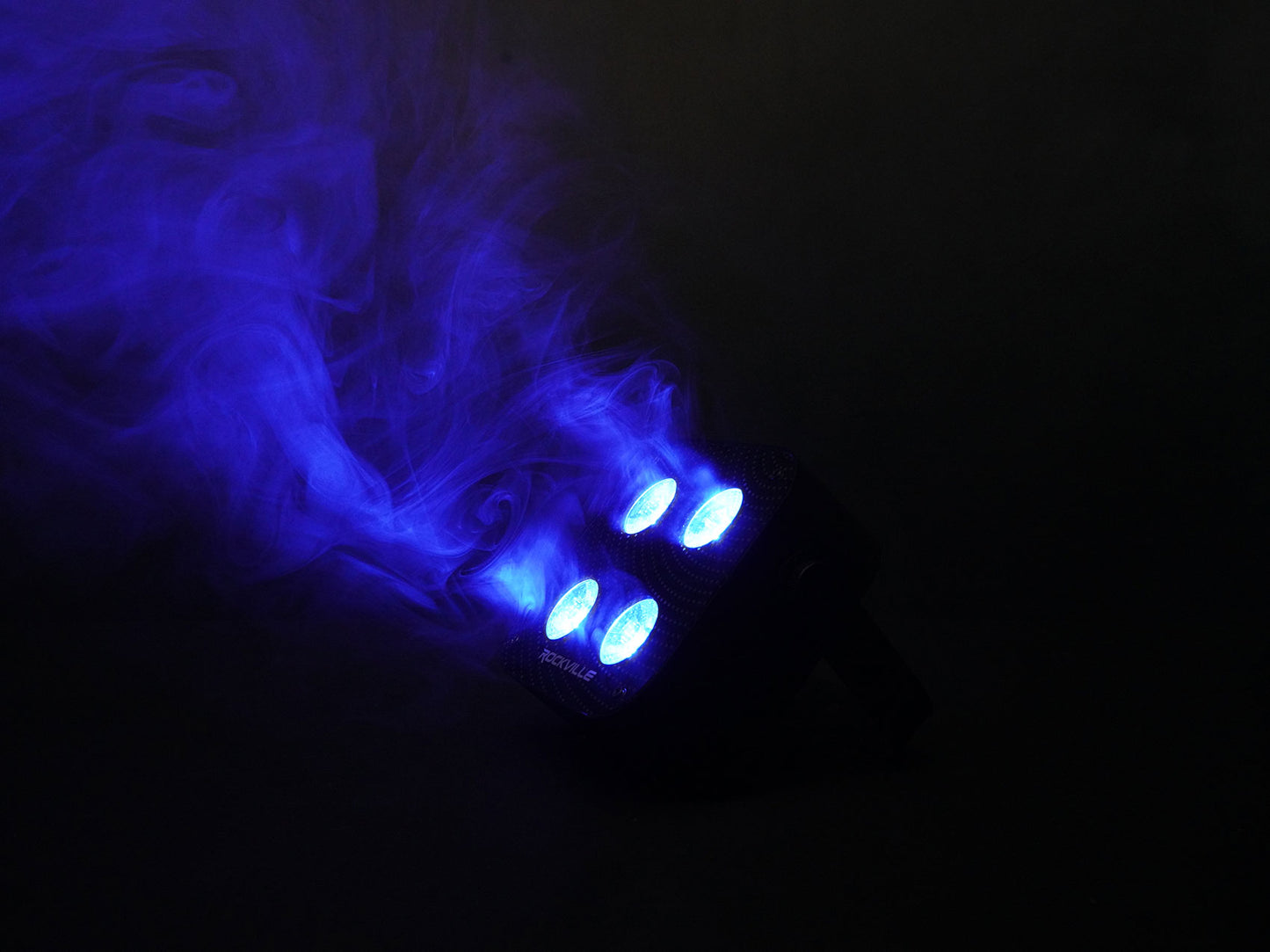

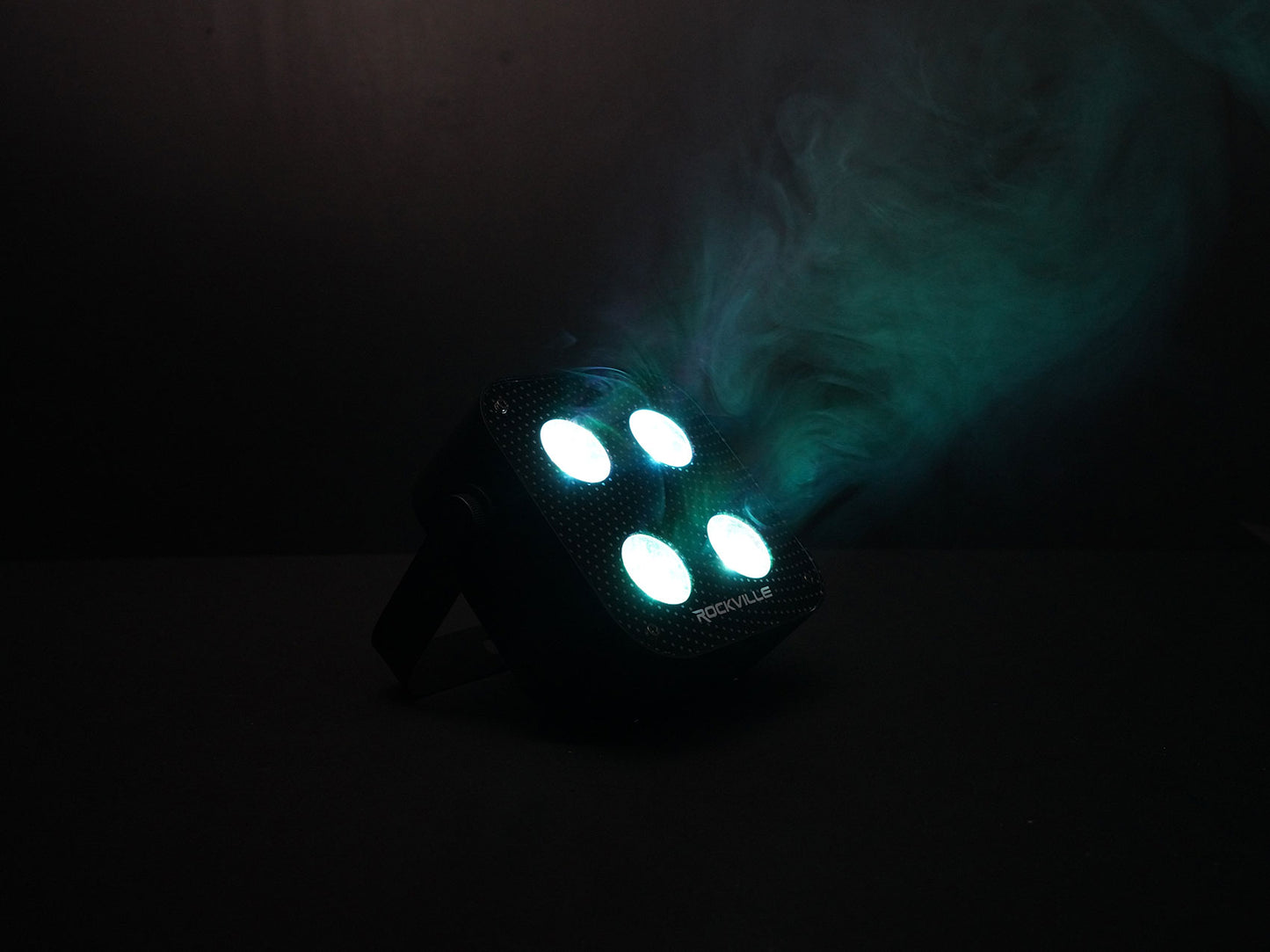

Compact + Extremely Bright!

The MINI RF4 is 4 times the brightness as our MINI RF1. This light is really portable. They are light-weight and compact and easy to set up and take from gig to gig.

4 Channel RF Remote!

Our RF remote technology allows you to control the color, mode, and other functions of the light from ranges of 50-100 feet.

Each light has 4 RF channels. This means you can have one remote to control 4 groups of lights. For example, you can have 10 lights set to group A, 10 lights to group B, 4 lights to group C, and 2 lights on group D. From the remote you can go to group A and hit red. Those 10 lights will turn red. You can then go change group B to blue with one button. You can then put group C to sound mode 1 and group D to sound mode 4 (we have 4 sound modes). You also have the ability from the remote to control all 4 RF channels at the same time.

This is such a powerful feature that it eliminates the need for a DMX controller in many scenarios.

4 master/slave groups

From each light you can set it to master and then set any other lights you want to replicate that master as a slave for that group.

Warning: When a light is set to master or slave the remote will not operate until you change the mode back to remote mode.

Here is how this works. You take a light and set it to sound mode. You then set that same light to master. The light remembers the last color or mode you set it at. Now when you set the slave lights to that same channel it will just copy that master light. So it will be in sync. You can create 4 groups like this.

Wireless DMX

This allows you to connect wirelessly to your DMX controller as well as wirelessly link multiple lights together into master/slave mode.

4 Sound modes!

We added 4 sound modes that you can apply with one button from the remote. You can also apply any sound mode to any group! The sound modes are color cycling, color strobing, color pulsing, and a club sound mode that is programmed to do more intense strobing combined with color changing to get people dancing! We also added mic sensitivity controls for the sound modes as well as brightness controls.

8 Color wheels

The remote also has 8 color wheels on it. Each color wheel contains 4 colors. Once you select one of those color wheels you can use the up and down arrows to browse other colors in that color wheel. You can also adjust the brightness of any color from the remote. So from the remote you have access to 32 colors without any DMX controller! Combine this with all the RF channels and master/slave groups and you will likely not need any DMX controller!

Big battery life

The battery life on these lights are enough to last for around 3 gigs before you have to charge them.

Battery life indicator

We added a battery life LED indicator that will tell you how much battery life remains.

RGBWA+UV

This is a huge upgrade to normal RGB lights. Regular RGB lights can combine red, green, and blue to create lots of colors. This light adds White, Amber, and Ultra Violet.

Support

Our light includes a set-up video that will teach you how to use every feature easily.

Applications:

• DJ Events (Color changing on dance floor, wall washing)
• Home or backyard party lights
• Great for bars to illuminate the bottles or other areas of the bar
• Mood lights for your living room or bedroom

Features:

• Rockville Mini RF4 RGBWA+UV Battery Powered Mini Wash Light with 4 Channel RF Remote
• 4 times the brightness of MINI RF1 (12 Watts x 4 Bulbs)
• RF remote with 50-100 foot range
• One remote can control many lights from long distances
• Each light has 4 RF channels
• The remote can change to any RF channel or control all channels
• Built in wireless DMX controls
• 4 Master/slave groups
• 4 Different sound modes
• 8 color wheels on the remote each with 4 sub-colors
• Built in 5000mA lithium rechargeable battery
• Battery lasts 22 hours on red, 20 hours on blue, 9 hours on white, and 6.5 hours with all lights simultaneously on all colors
• Charging time: 5 hours (max)

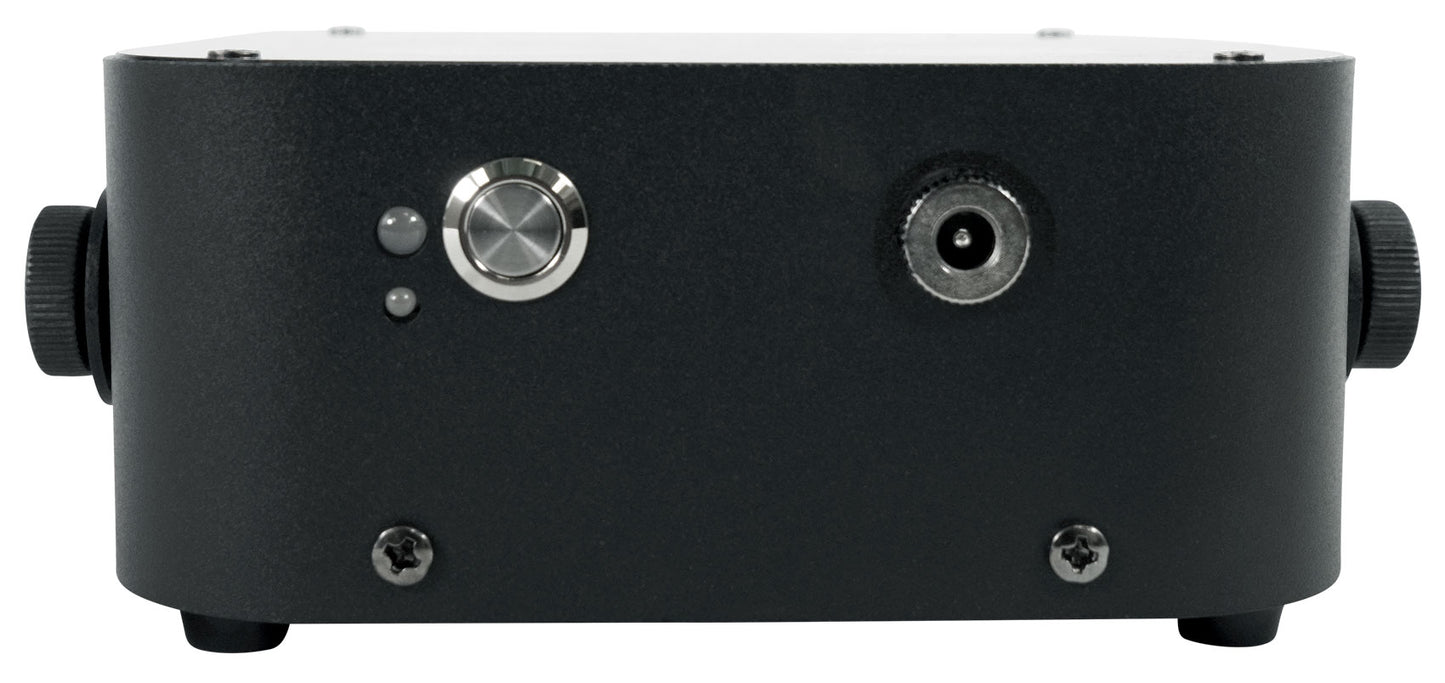

• Battery life indicator
• Battery overcharge protection
• RF Remote control included
• Brightness control in any mode
• Housing made of high quality stainless steel
• Automatic modes: Static color, strobe, dimmer, gradual color change, sound activated
• Dimmable
• Charging indicator
• Light source 4 Bulbs each 12 Watt RGBWA+UV LED
• Working environment:-10-45 degree
• 16.7 millions colors
• Dimmer: 0-100% linear dimming
• 3,306 Lux @ 2m (All LED's on)
• Beam angle: 25°
• Battery will still perform optimally even after hundreds of charging cycles

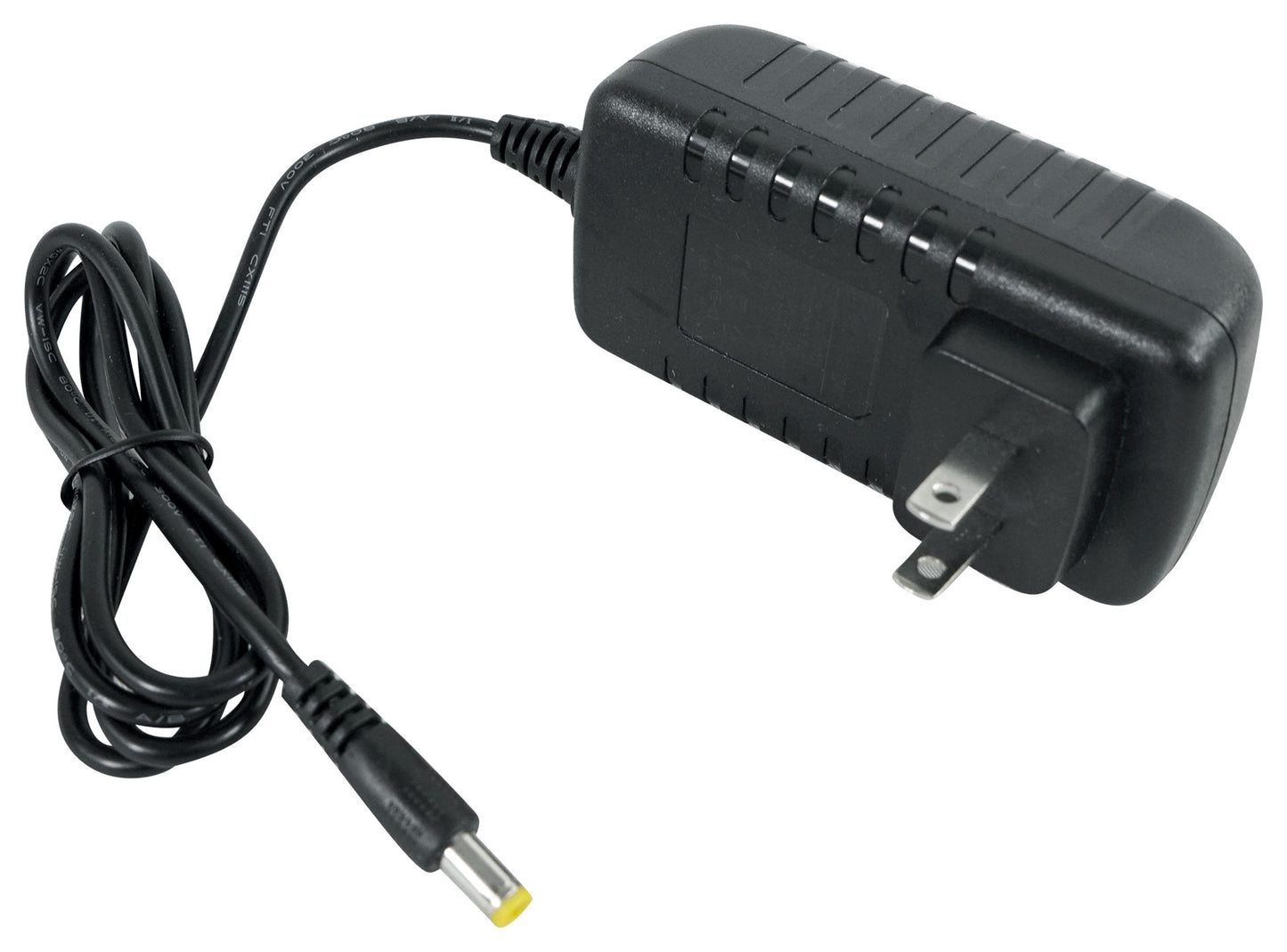

• DC 12V Charging input (Via the included charger)
• Double bracket allows for multiple rigging or floor standing applications
• Voltage: AC110-240V, 50/60Hz
• Power consumption: 36W
• Replaceable batteries
• 110/220V switchable for use in any country
• Unit Dimensions: (L x W x H) 6.1" x 5.71" x 2.36" inches
• Unit weight: 2.6 lbs.
• Color: Black

---

Video of MINI RF BAG PRODUCT:

Description:

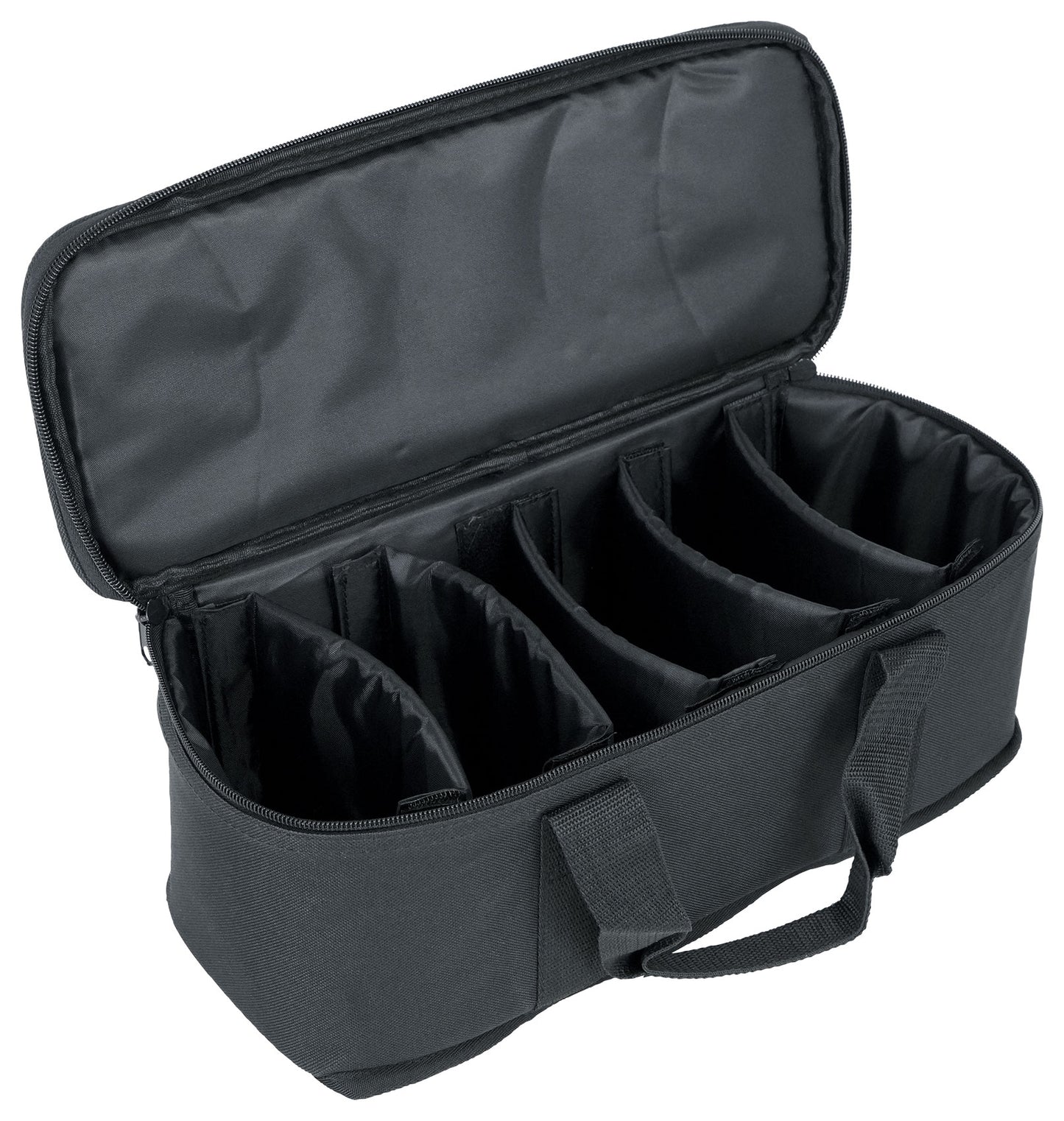

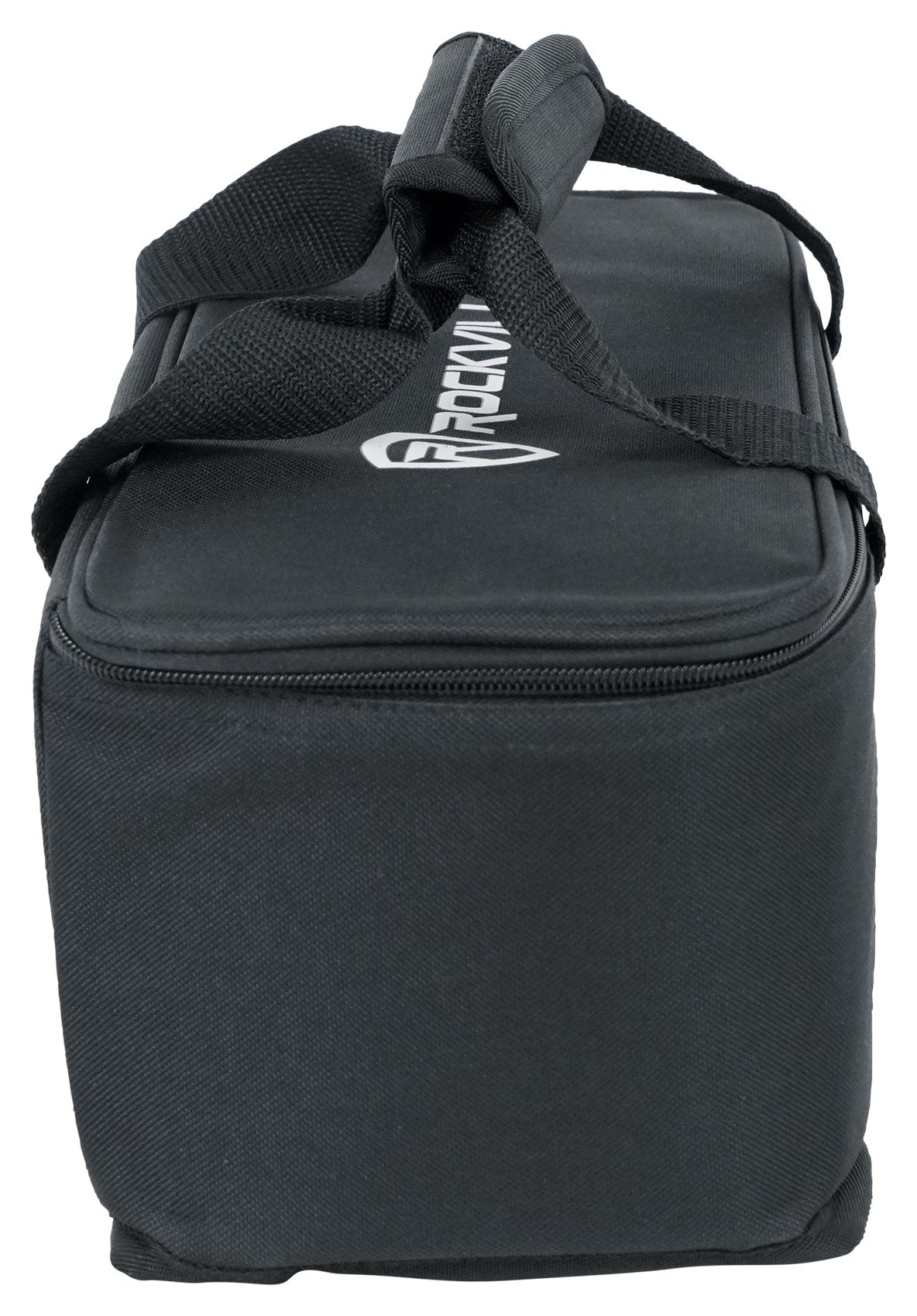

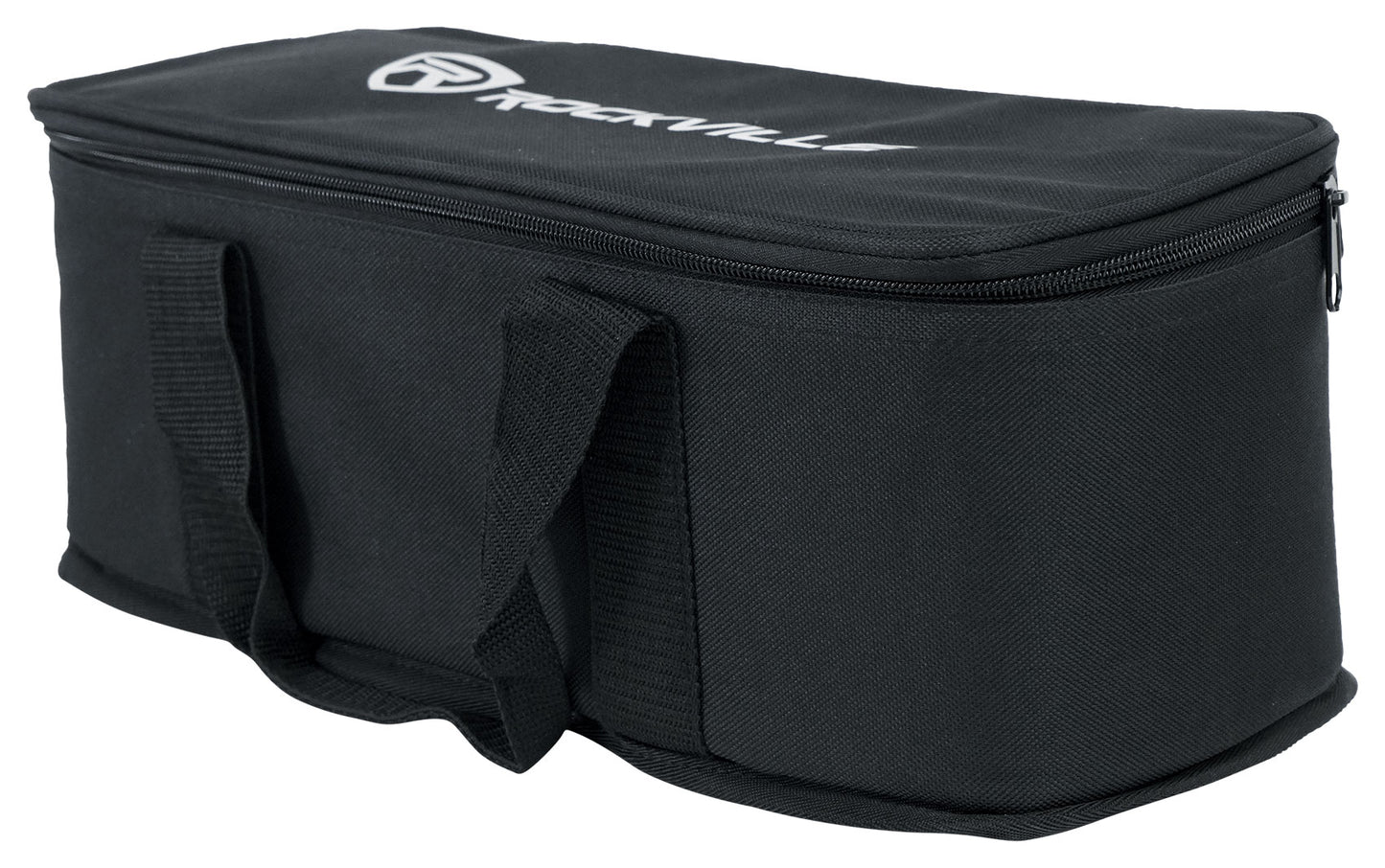

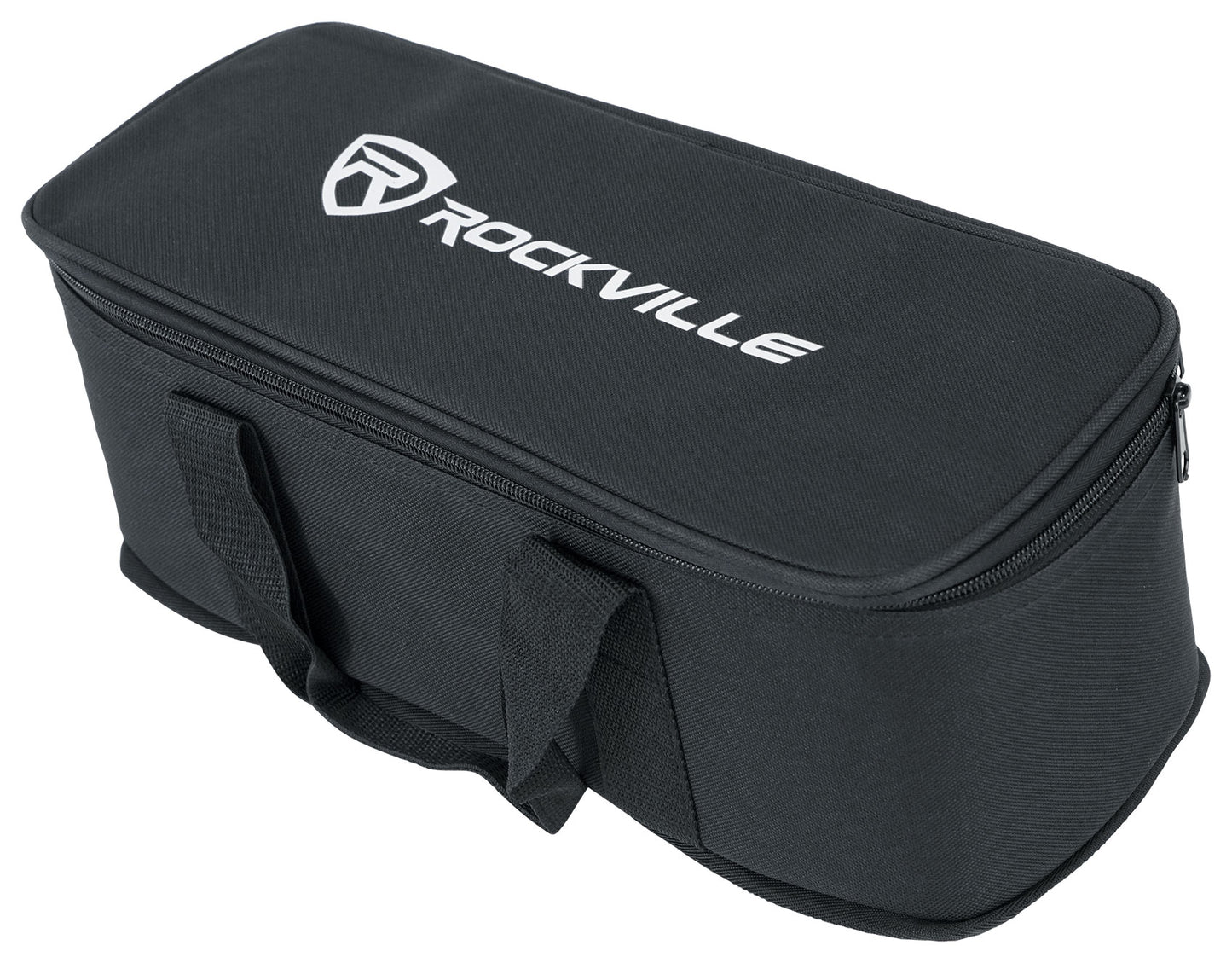

The MINI RF BAG is the perfect solution for protecting your lights during transport. The bag is padded and has a soft yet rigid outer shell.

The bag can hold up to 6 MINI RF1 lights or up to 5 MINI RF3, RF4, or IR4 lights. The bag has removable separators in case you want to use the bag for a couple of larger par lights.

It is also compatible with other lights that have similar dimensions, such as most of the Ape lights.

Features:

• Rockville MINI RF BAG Carry Bag For 5 MINI RF or IR Lights Plus Accessories
• Carry handles
• Soft yet rigid shell maintains its shape
• Padded interior protects your lights
• Removable Velcro pads allow you to adjust the case to suit your needs
• Easily transports 4-5 MINI RF3 RF4 and IR4 lights
• Easily transports 4-6 MINI RF1 lights
• Each compartment Fits lights up to 6 inch x 5.5 inch x 3 inch
• 5 removable dividers create 6, 5, 4, 3, 2, or 1 compartment
• You can use one of the compartments to store power cables and remotes
• The bag is extremely padded on all sides, corners, top, and bottom, protecting your lights
• Bag Material: 600D Nylon
• Internal main compartment dimensions (without dividers): 14.6" x 6.2" x 6"
• Shipping Dimensions (inches): 6.7" x 7.9" x 16.2"
• Unit Weight: 3.31 lbs. (empty)
